50mm Digital Test Indicator 0.001mm Resolution Absolute System 330° Rotating Display IP54 - Metav IndustryLine

Take advantage of a compact, workshop-ready design combined with an absolute measuring system and 0.001 mm resolution for decisive short-range measurements; the robust construction and IP54 rating support reliable on‑machine use. Order the Digital Indicator directly via Metav Werkzeuge or consult their specialists for application advice.

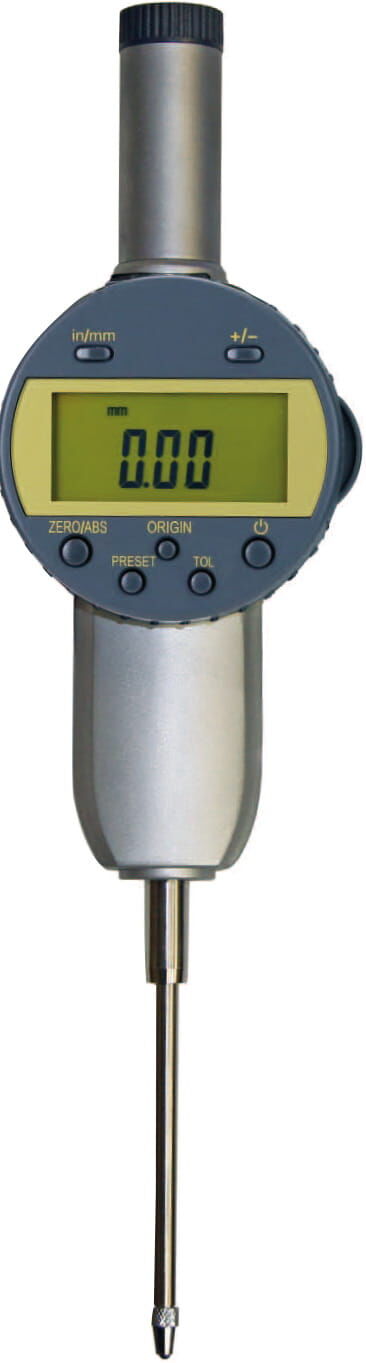

Digital Indicator M301.039 — 50 mm, 0.001 mm resolution (Absolute system, 330° rotatable display)

A Digital Indicator M301.039 designed for precise displacement and comparative measurements in workshops and inspection stations.

• Absolute measuring system with 0.001 mm resolution
• Rotatable display 0–330° for ergonomic reading
• IP54 protection against dust and splash water
• Repeatability 0.005 mm for consistent measurements

Consistent metrology for repeatable results

The compact digital gauge combines an absolute measuring system with a fine 0.001 mm resolution, delivering measurement clarity for short-range checks and comparative tasks. The built-in glass guide rail ensures accurate signal scanning and reduces signal noise compared with plain plastic slides. With a repeatability of 0.005 mm, the instrument supports reproducible control routines and quality checks in serial inspection or setup procedures. These attributes turn fine positional changes into reliable numeric data that can be trusted for go/no‑go evaluation and process control.

Ergonomics and durability that speed up inspection

Engineered for everyday workshop use, the unit features a 330° rotatable display that eases reading in confined set-ups and minimises repositioning time during multi-fixture inspection. The electronics offer a multi-function readout with ON/OFF, origin, 0/ABS, preset, tolerance display and mm/inch switching, simplifying set-up and reducing operator steps. Built to withstand routine working conditions, the indicator carries an IP54 protection rating and a compact mass of 0.29 kg, balancing robustness with handheld or fixture-mounted convenience. The reversible measuring direction and a nominal measuring force >2.2 N contribute to stable contact behaviour and consistent outcomes across varied test routines.

Seamless integration into workshop routines

Data transfer capability is provided via an RB6 data output, enabling downstream capture or connection to measuring stands and data-loggers for statistical documentation. The instrument’s short 0–50 mm measuring range suits component set-up, short-run inspection and fixture verification where clear numeric feedback is needed without complex instrumentation. Delivered as a digital indicator, it supports conversion between metric and imperial units and features preset/tolerance functions to expedite pass/fail decisions. As a compact, ready-to-fit device, it bridges bench-top measurement and process monitoring, helping machines and inspection benches maintain steady throughput and traceable results.

For application guidance, integration options or to secure the M301.039 from Metav IndustryLine, contact Metav Werkzeuge in Emmerich for local support and reliable supply — info@metav-werkzeuge.com | +49 2822 7131930

Technical data

• Article number: M301.039
• GTIN: 4054469164878
• Label: Digital indicator, 50 x 0.001 mm, absolute system, 330° rotatable display, IP54

Numbers / Core technical data

• Measuring range: 0–50 mm
• Resolution (display): 0.001 mm
• Repeatability: 0.005 mm
• Measuring force: >2.2 N
• Weight: 0.29 kg
• Protection class: IP54
• Power / system: Absolute system, 3 V
• Display rotation: 0–330°
• Data output: RB 6

Special features

• Scale with glass guide rail for precise scanning

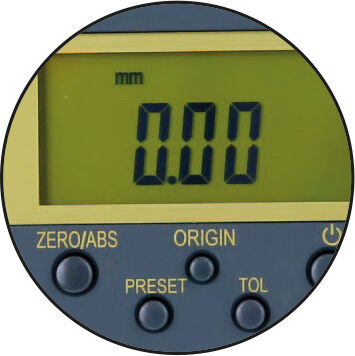

• Multi-function digital display: ON/OFF, origin, 0/ABS, preset, tol, mm/inch, +/-
• Reversible measuring direction possible
• Compact, workshop-suitable construction
• Designed for short-range displacement and comparative measurement

FAQ

What accuracy can be expected for close-range checks?
The instrument offers a 0.001 mm resolution with a repeatability of 0.005 mm, making it suitable for precise short-range checks and comparative measurements where micrometre-level consistency is required.

Is the display orientation adjustable for awkward set-ups?
Yes. The 330° rotatable display allows the readout to be turned to the most ergonomic position without disturbing the measuring set-up.

Can measurement results be transferred to a data-logging system?
The indicator is equipped with an RB6 data output, which enables connection to compatible data capture devices for process documentation and SPC workflows.

Which applications suit this digital indicator best?
The 0–50 mm range and fine resolution make the gauge ideal for fixture alignment, component set-up, small-part inspection and any workshop tasks demanding precise short-range displacement feedback.

Does the construction tolerate workshop conditions?
The device carries an IP54 rating and a compact, robust build intended for routine workshop use, offering protection against dust ingress and splash water.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
