M302.028.C — Digital outside micrometer 500–600 mm with carbide measuring faces (Metav IndustryLine)

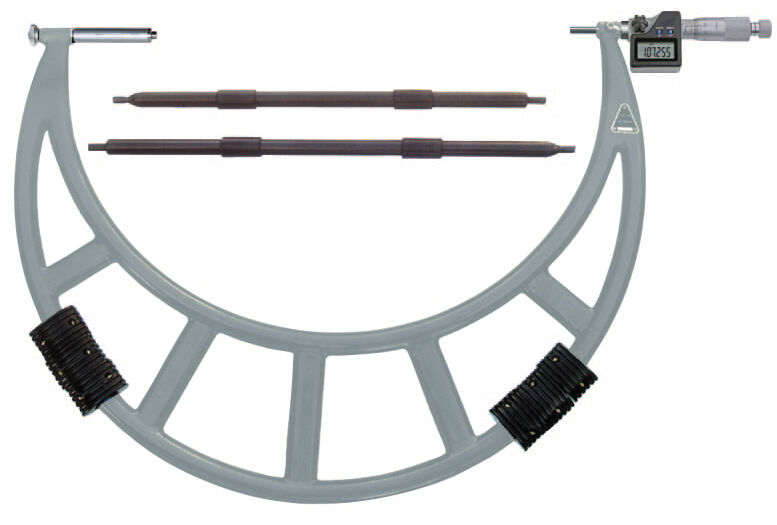

The M302.028.C is a high-range digital outside micrometer engineered for accurate external measurements of sizeable components in production and workshop environments.

• Digital display with ABS/INC and UNIT keys
• Carbide measuring faces for extended wear resistance
• Integrated ratchet stop for consistent contact force
• Measuring range 500–600 mm with fine spindle pitch

Accurate measurement for large external dimensions

The instrument delivers dependable results across a broad measuring span, combining a digital display with a fine 0.5 mm spindle pitch to support controlled, gradual adjustments. The readout resolution of 0.001 mm provides micron-level increments, while the specified accuracy of ±0.015 mm reflects a realistic repeatability expectation for workshop instruments in this size class. This balance of resolution and accuracy makes the micrometer suitable for routine quality checks on large shafts, housings and assemblies where clear numeric readouts reduce interpretation errors and speed up inspection cycles.

Streamlined data capture and process integration

Equipped with RB 4.1 data output and a user-friendly control array (ON/OFF/SET, ABS/INC and UNIT), the device supports straightforward transfer of measurement results into digital quality workflows. The measurement capture features enable faster logging and minimise transcription mistakes during batch inspections, contributing to improved traceability and simplified reporting. Incorporating digital transfer into existing SPC or data-logging setups reduces manual rework and helps maintain consistent production tolerances.

Durable mechanics and ergonomic handling for daily use

Wear-prone contact areas are protected by carbide measuring faces, extending service life under frequent use. The matt chrome-plated measuring drum offers a tactile, low-glare grip surface for fine adjustments, while the ratchet stop ensures consistent contact force and reduces operator-induced variance. Built for workshop conditions, the construction supports robust everyday handling without sacrificing measurement fidelity; routine maintenance is limited to periodic cleaning and spindle lubrication to keep accuracy stable over time.

For reliable external measurements across the 500–600 mm range with stable data output, choose the Metav IndustryLine M302.028.C — contact Metav Werkzeuge in Emmerich for detailed technical advice or to request a quotation via info@metav-werkzeuge.com

Technical data

• Article number: M302.028.C
• GTIN: 4054469163017
• Category: Messschrauben (outside micrometer)
• Brand: Metav IndustryLine

Facts

• Measuring range: 500–600 mm
• Resolution (display): 0.001 mm
• Specified accuracy: ±0.015 mm
• Spindle pitch: 0.5 mm per revolution
• Spindle diameter: 8 mm
• Tariff number: 90173000
• Standard: Werksnorm

Special features

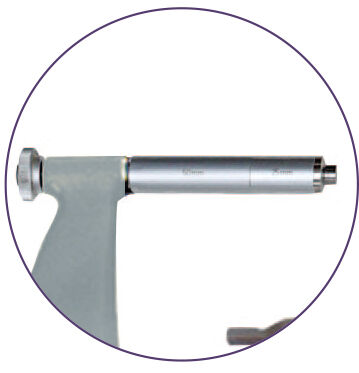

• Carbide measuring faces (HM)
• Digital display with ON/OFF/SET, ABS/INC and UNIT keys
• Data output: RB 4.1
• Integrated ratchet stop for consistent measuring force
• Matt chrome-plated measuring drum

FAQ

What measurement range does this micrometer cover?
The M302.028.C covers an external measuring band from 500 to 600 mm, making it suitable for larger shafts and housings where precise external dimensions are required.

What resolution and accuracy can be expected from this instrument?
This digital micrometer offers a display resolution of 0.001 mm and a specified accuracy of ±0.015 mm, providing micron-scale readability with realistic workshop-level repeatability.

How are results transferred to a PC or data-logging system?
Data export is provided via the RB 4.1 interface; the M302.028.C can feed captured measurements into compatible SPC or logging systems for traceable records.

Are the measuring faces wear-resistant for production use?
Yes—the measuring faces are made of carbide (HM), which increases wear resistance and prolongs the service life under frequent measurement cycles.

Does the instrument include features to reduce operator-induced variation?
The built-in ratchet stop ensures a repeatable contact force for each measurement, while the fine spindle pitch allows controlled approach to the workpiece, reducing variability between operators.
