Digital Uni Micrometer M302.050.C – digital micrometer with two interchangeable inserts, 0–25 mm

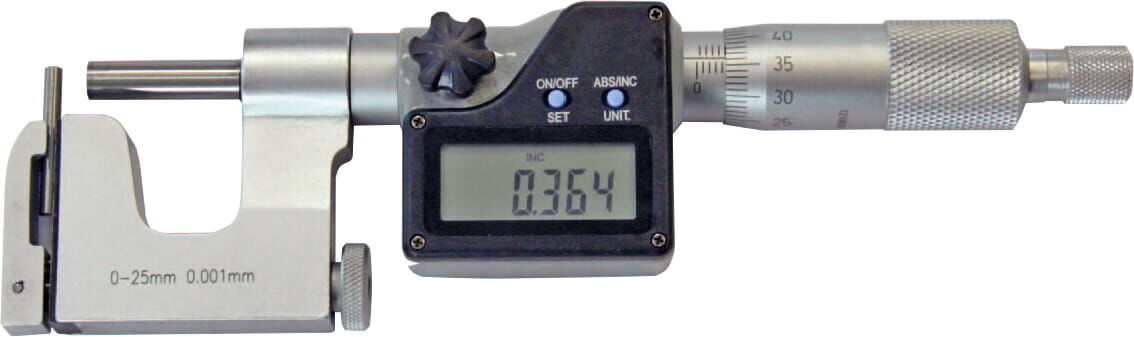

The Digital Uni Micrometer M302.050.C is a compact 0–25 mm digital micrometer designed for precise external, step and groove measurements in workshops and quality-control stations.

• Digital display with ABS/INC and unit selection
• Two interchangeable measuring inserts included
• Ratchet spindle for consistent measuring pressure
• Supplied in protective transport case

Consistent precision for routine quality control

The instrument delivers a resolution of 0.001 mm and an operational accuracy of ±0.004 mm, making it suitable for demanding workshop checks and incoming inspection. The integrated ratchet spindle with a 0.5 mm pitch ensures consistent contact force, reducing variation from operator pressure and improving repeatability. Hardened measuring faces and a 6.5 mm face diameter provide durable contact surfaces that preserve accuracy over time.

Adaptable measuring options for diverse tasks

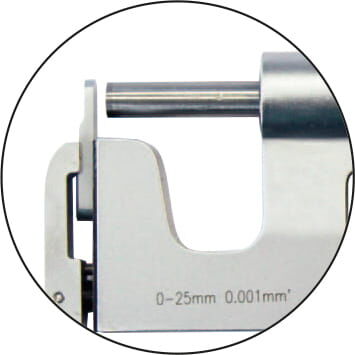

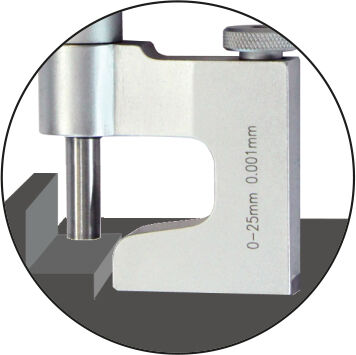

Equipped with a cylinder insert (Ø 3.0 mm) and a flat insert (d = 1.5 mm, width 5 mm), the tool supports measurements on tube walls, grooves and step depths without the need for additional fixtures. The digital readout features ON/OFF, ABS/INC, UNIT and SET buttons for fast unit switching and zeroing. For integration into data workflows, the micrometer offers an RB 4.1 data output so measurements can be recorded directly into inspection software or data loggers.

Robust design for everyday workshop use

With a compact 0–25 mm range and a weight of approximately 0.6 kg, the device balances manoeuvrability with solid build quality for handheld operation. Supplied in a protective transport case, the instrument is ready for mobile measuring tasks and safe storage. The digital electronics and mechanical features were selected to minimise downtime and support efficient measurement routines in production environments.

Choose the Metav IndustryLine Digital Uni Micrometer for repeatable 0–25 mm measurements and contact Metav Werkzeuge in Emmerich for tailored advice or to place an order via info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• Article number: M302.050.C
• GTIN: 4054469157955
• Customs tariff number: 90173000

Facts

• Measuring range: 0–25 mm
• Resolution: 0.001 mm
• Resolution (inch): 0.00005 in
• Accuracy: ±0.004 mm
• Weight: 0.6 kg
• Spindle pitch: 0.5 mm
• Measuring face diameter: 6.5 mm

Special features

• Digital display with ON/OFF, ABS/INC, UNIT and SET buttons
• RB 4.1 data output
• Ratchet spindle for consistent measuring pressure
• Includes cylinder insert Ø 3.0 mm and flat insert (d = 1.5 mm, width 5 mm)
• Hardened measuring faces
• Supplied in protective transport case
• Category: Micrometers

FAQ

What accuracy can be expected from this micrometer?
The Digital Uni Micrometer M302.050.C achieves an accuracy of approximately ±0.004 mm, providing reliable results for standard workshop and inspection tasks.

Which inserts are supplied with the micrometer?
The micrometer is delivered with a cylinder insert (Ø 3.0 mm) and a flat insert (d = 1.5 mm, width 5 mm) to cover tube wall, groove and step measurements.

Can measurement data be exported to a PC?
Yes, the micrometer is equipped with an RB 4.1 data output, enabling direct transfer of readings to compatible data collection systems.

Is the measuring face material hardened?
The measuring faces are hardened, providing wear resistance and long-term stability for repeated contact measurements.
