25mm Digital Bore Gauge Two Curved Measuring Faces 0.001mm Resolution With Ratchet In Plastic Case - Metav IndustryLine

Take advantage of the combination of 0–25 mm precision, a ratchet spindle for consistent contact, and the convenience of digital data output to speed up inspection routines; order the M302.155.C directly via Metav Werkzeuge or ask the consultants if needed.

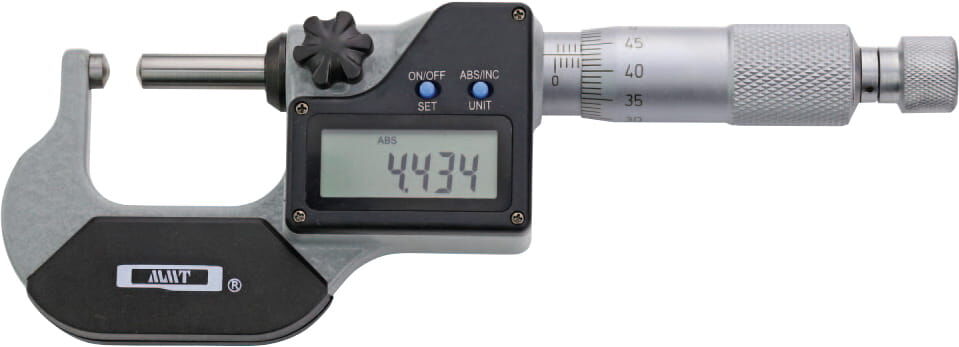

M302.155.C — Digital Micrometer 0–25 mm, 0.001 mm resolution (Metav IndustryLine)

The M302.155.C is a digital micrometer designed for compact, high‑precision measurement tasks in workshops and inspection benches, offering fine 0–25 mm range, a ratchet stop for reproducible pressure and a matt‑chrome measuring drum.

• 0–25 mm measurement range
• 0.001 mm resolution digital readout
• Ratchet spindle for repeatable contact
• Ball‑ended measuring faces both sides
• Supplied in a protective transport case

Compact precision for small components

Designed for fine workshop and inspection tasks, this digital micrometer delivers a 0–25 mm range that places it within the micro category of measuring tools — the ideal choice where compact dimensions and maximum precision matter. The 0.001 mm display resolution ensures that small deviations are visible at a glance, while the stated accuracy of 0.004 mm provides a realistic expectation of measurement repeatability for typical metalworking and precision assembly checks. This balance of resolution and accuracy makes the instrument suitable for small parts inspection, gauge checks and fine mechanical assemblies where space is limited but tolerance demands remain high.

Consistent handling and reproducible contact

Repeatability is supported by the integrated ratchet spindle, which limits applied measuring force and reduces variation caused by operator technique. The spindle pitch of 0.5 mm and a robust measuring spindle (6.5 mm nominal) maintain mechanical stiffness during contact; the ratchet stop promotes uniform pressure on the workpiece and reduces overshoot. For practical workshop use, the ball‑ended measuring faces allow reliable contact on slightly rounded or turned surfaces, improving centring on shafts and fillets and preventing local indentation on soft materials.

Digital features that streamline inspection workflows

The instrument includes a clear digital display with ON/OFF, ABS/INC, UNIT and SET functions for flexible operation and unit switching. Data transfer is provided via RB 4.1 output, enabling straightforward capture of measured values into data collectors or inspection software for traceable records and batch documentation. These features support rational, process‑driven inspection routines: measurements are taken quickly, recorded without manual transcription and integrated into quality logs to reduce errors and speed decision making.

Durable finish and practical delivery for the workshop

The frame is finished in a lacquered coating while the measuring drum is matt‑chrome, combining corrosion resistance with a non‑reflective surface that aids precise reading and handling. The tool is supplied in a protective transport case to safeguard calibration and mechanical alignment during storage and transit. Such packaging reduces the risk of impact damage when the micrometer is moved between the bench and inspection area, helping to preserve long‑term measurement reliability.

For precision measurement tasks using the Metav IndustryLine micrometer, contact Metav Werkzeuge in Emmerich for delivery details and tailored technical advice on integrating this instrument into existing inspection processes

Technical data

• Article number: M302.155.C
• GTIN: 4054469115061
• eCl@ss: 27200302
• ETIM: EC003590
• Tariff number: 90173000

Facts

• Measurement range: 0–25 mm
• Resolution / display: 0.001 mm
• Stated accuracy: 0.004 mm
• Spindle pitch: 0.5 mm
• Measuring spindle diameter: 6.5 mm

Special features

• Frame: lacquered
• Measuring drum: matt‑chrome
• Measuring faces: ball / ball
• Ratchet spindle included
• Digital display with ON/OFF, ABS/INC, UNIT, SET
• Data output: RB 4.1
• Supplied in a protective transport case

FAQ

What measurement range does the micrometer cover and how is it classified?
The micrometer covers 0–25 mm, placing it in the micro range suitable for compact, high‑precision tasks and small component inspection.

What resolution and accuracy can be expected from this digital instrument?
The device offers a 0.001 mm resolution on the digital display and a stated accuracy of 0.004 mm, appropriate for fine workshop controls and component checks.

How does the ratchet spindle affect measurement quality?
The ratchet spindle ensures consistent measuring force for each contact, reducing operator‑induced variation and improving repeatability during serial checks with the Metav IndustryLine micrometer.

Are the measuring faces suitable for rounded surfaces?
Yes, the ball‑ended measuring faces on both anvil and spindle allow reliable contact on shafts, fillets and slightly curved geometries without causing local surface damage.

Can measured values be exported to inspection software?
Measured values can be transmitted via the RB 4.1 data output for capture by compatible data collectors and inspection systems.
