25mm Digital Depth Micrometer With Quick-Measure Probe, 0.001mm Resolution, Carbide Faces, USB Recharge - Metav IndustryLine

Take advantage of 0.001 mm resolution, carbide measuring faces and a quick-measure probe to speed up inspection cycles while maintaining repeatable, workshop-grade accuracy; order the instrument directly via Metav Werkzeuge or consult the Metav team for application advice.

Digital Micrometer M302.204 — compact digital micrometer, 0–25 mm range, 0.001 mm resolution (Metav IndustryLine)

The Digital Micrometer M302.204 is a compact, high-resolution instrument for precise external measurements in fine mechanical and workshop environments, combining a rapid measuring spindle and a rechargeable power supply for continuous use.

• 0.001 mm resolution for micrometre-grade precision
• Carbide measuring faces for long-term wear resistance
• Rechargeable lithium battery with USB charging
• Quick-measure probe with 3 mm travel for faster cycles

High-resolution measurement that reduces rework

The instrument delivers 0.001 mm resolution with an stated repeatability of ±0.002 mm, providing the numerical basis for confident go/no-go decisions in quality control. This combination of fine resolution and low error margin makes the device well suited to dimensional checks where small deviations matter. The specified 5–10 N measuring force helps to reduce operator-induced variation, so readings remain consistent across repeated tests. By linking measurement data to clear numeric tolerances, setup and inspection times are reduced and scrap is minimised.

Faster inspection cycles through quick measuring and digital convenience

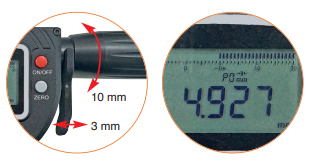

Equipped with a quick-measure probe that provides a 3 mm measuring travel, the instrument shortens actuation time compared with slower spindle-only techniques. The digital display features ON/OFF, ZERO, M, HOLD and DATA controls for straightforward operation and short learning curve in the workshop. A built-in rechargeable lithium battery with USB charging removes the need for disposable cells and keeps the device ready for long shifts; the supplied USB cable enables simple recharging between inspection runs. These attributes combine to increase throughput while keeping handling intuitive.

Designed for micro-range work and durable daily use

Classified in the Micro group (measuring range up to 10–100 mm), this micrometre is optimised for small parts such as precision components, fine mechanical assemblies and tooling checks where a short, stiff spindle provides best measurement integrity. The carbide measuring faces (HM) provide superior wear resistance under frequent contact, extending service life in serial inspections. A compact form factor and a measured weight of 0.8 kg make the instrument easy to handle while maintaining robust construction for the shop floor.

Discuss application requirements with Metav Werkzeuge or request an application-oriented recommendation for the M302.204 digital micrometer; the Metav team in Emmerich will advise on suitability and delivery options

Technical data

• Article number: M302.204
• GTIN: 4054469182391
• Label: Digital-Mess mit Schnellmesstaster 0 - 25 mm mit HM-Messflächen, Ablesung 0,001 mm

Core specifications

• Measuring range: 0–25 mm
• Maximum range: 25 mm
• Resolution: 0.001 mm
• Accuracy: ±0.002 mm
• Measuring force: 5–10 N
• Measuring spindle diameter: 6.5 mm
• Spindle pitch: 10
• Weight: 0.8 kg
• Quick-measure travel: 3 mm

Features & materials

• Carbide measuring faces (HM)
• Digital display with ON/OFF, ZERO, M, HOLD, DATA buttons
• Built-in rechargeable lithium battery; USB cable included
• Quick-measure probe (3 mm travel)
• Category: Digital micrometers
• Manufacturer: Metav IndustryLine

FAQ

What is the measuring range and resolution?
The M302.204 measures from 0 to 25 mm with a display resolution of 0.001 mm and a declared accuracy of ±0.002 mm.

Is the micrometre suitable for repeated workshop inspection?
Yes; the M302.204 combines carbide measuring faces and a defined 5–10 N measuring force to reduce wear and operator variation, supporting repeated checks in production.

How is the device powered and charged?
The instrument features a built-in rechargeable lithium battery and is charged via the supplied USB cable for convenient recharging between shifts.

Which applications fit this instrument best?
Its Micro-range class and compact construction make it ideal for fine mechanical parts, precision components and tooling checks where short, stiff measuring faces give best accuracy.

Does the specification include a data output port?
No data output interface is specified in the provided product information.
