5-100mm Digital Micrometer With Movable Anvil 0.001mm Readout, Ø6.5mmx30° Measuring Faces, Friction Ratchet, Delivered In Case - Metav IndustryLine

Take advantage of the high-resolution 0.001 mm display, robust carbide measuring faces and a friction thimble for repeatable contact — ideal for production control and incoming inspection. Order the instrument directly via Metav Werkzeuge or ask the consultants for application advice.

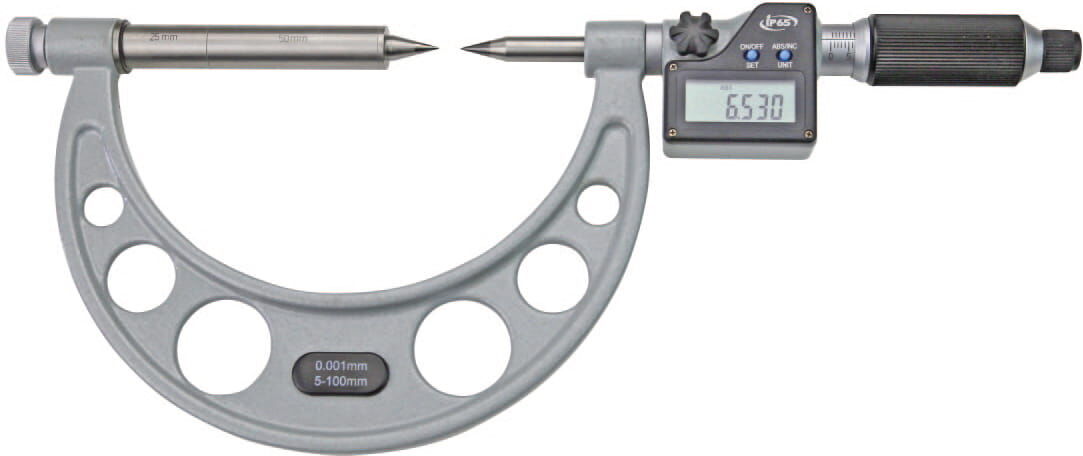

M302.215 Digital micrometer — 5–100 mm, 0.001 mm resolution (Metav IndustryLine)

A M302.215 is a digital micrometer designed for precise dimensional checks in workshop and production environments, covering a measuring range from 5 to 100 mm with fine incremental readout.

• 0.001 mm digital resolution
• Carbide measuring faces Ø6.5 mm x 30°
• Friction thimble for uniform measuring force
• RB 4.1 data output ready

Reduce rejects with measurable precision

The instrument delivers a 0.001 mm display resolution combined with a stated accuracy of ±0.005 mm, which translates into reliable control limits for routine quality checks. This level of precision supports tighter tolerances in assembly lines and helps lower scrap rates by catching deviations early. The 5–100 mm range covers common bench and production dimensions, so larger series parts can be inspected without changing tools. The included setting gauge ensures zeroing and baseline verification are straightforward and fast.

Durable contact and consistent handling for repetitive tasks

A friction thimble provides a controlled, repeatable measuring force that reduces operator influence on results; this contributes directly to process stability during batch inspections. The carbide measuring faces (Ø6.5 mm x 30°) resist wear from frequent contact, extending the instrument’s service life and preserving measurement reliability. A painted, rigid frame stabilises the geometry during handling and supports consistent alignment over the measuring stroke.

Ready for data collection and workshop workflows

Equipped with an electronic readout and RB 4.1 data output, the device integrates with digital data-loggers and SPC systems to remove transcription errors and speed up reporting. The display offers ON/OFF/SET and ABS/INC/UNIT functions for quick switching between absolute and incremental modes and unit changes. A 2 mm spindle pitch gives predictable axial movement per spindle rotation, aiding fine adjustment during setting or verification. The instrument’s weight and construction reflect a robust build suitable for bench use and routine handling.

Choose Metav IndustryLine’s digital micrometer for production-grade accuracy and dependable shop-floor integration — contact Metav Werkzeuge in Emmerich for specification matching and reliable European supply.

Technical data

• Article number: M302.215
• GTIN: 4054469151892
• Brand: Metav IndustryLine
• Category: Messschrauben
• Data output: RB 4.1
• Digital display: ON/OFF/SET; ABS/INC/UNIT

Facts

• Measuring range: 5–100 mm
• Resolution: 0.001 mm
• Accuracy: 0.005 mm
• Spindle pitch: 2 mm
• Measuring faces: Ø6.5 mm x 30°
• Weight: 2.3 kg

Special features

• Painted frame
• Carbide measuring faces
• Friction thimble (ratchet)
• Setting gauge included
• Digital output interface RB 4.1
• ABS/INC/UNIT readout functions

FAQ

What is the display resolution and accuracy of this micrometer?
The digital readout shows 0.001 mm increments and the instrument specification lists an accuracy of ±0.005 mm for the M302.215 digital micrometer.

Are the measuring faces durable for frequent use?
Yes, the M302.215 is fitted with carbide measuring faces (Ø6.5 mm x 30°) that are designed for wear resistance in regular shop-floor inspection.

Does the micrometer provide consistent measuring force?
A friction thimble (ratchet) is integrated to ensure a uniform measuring force and more reproducible results across repeated measurements.

Can measurement data be transferred to a computer system?
The device supports RB 4.1 data output, enabling integration with data-loggers and SPC systems for automated collection and reporting.

Is a zero reference or setting gauge included?
A setting gauge is included to facilitate zeroing and quick verification of the micrometer before use.
