50–75 mm Digital Micrometer 0.001 mm Resolution, IP65, Ratchet, Four-Button Display, Plastic Case - Metav IndustryLine

Combine 0.001 mm resolution with an IP65 rating and a ratchet thimble for repeatable measuring force to secure dependable dimensional control in fine‑component work. Benefit from the compact measuring range and robust data output for streamlined quality checks. Order directly via Metav Werkzeuge or consult the Metav team for application advice.

Digital Micrometer M302.296 – 50–75 mm, 0.001 mm resolution, IP65

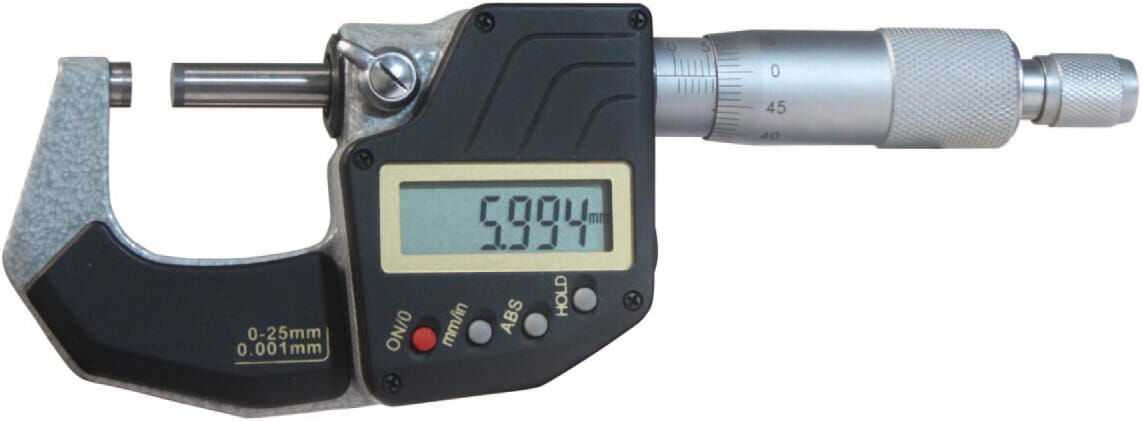

The Digital Micrometer M302.296 is a compact, workshop‑grade outside micrometer designed for precision measurement of small to medium components, ideal for tasks that demand sub‑micron indication and protected operation.

• Digital micrometer, 0.001 mm resolution
• IP65 dust and splash protection
• Ratchet thimble for repeatable force
• 4-function display with mm/inch selection

Precise control for fine components and fixtures

This micrometer delivers a 0.001 mm readout within its 50–75 mm measuring span, placing it in the compact "micro" class for highly detailed work. The fine resolution supports precise adjustment and verification of shafts, spindles and small housings without overcomplicating the workflow. Compliance with DIN 863 ensures the instrument meets recognised tolerance and form standards, so measurement results are both traceable and comparable across inspections. The comparatively small anvil and spindle face diameter, specified as 6.5 mm, concentrates contact force and reduces measurement scatter on narrow features, improving repeatability in serial checks and assembly controls.

Designed for dependable use in demanding environments

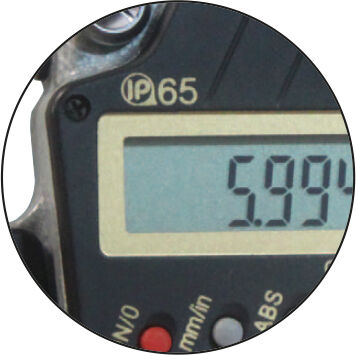

Protection to IP65 safeguards internal electronics against dust ingress and low‑pressure water jets, which keeps the instrument operational in busy production or inspection bays. A ratchet thimble provides a consistent measuring force, removing variability caused by operator technique and helping to avoid overloading delicate parts. The solid construction and sealed electronics reduce downtime from contamination and permit confident use at the machine or alongside measuring fixtures. These reliability features translate into fewer retests, less scrap and a more consistent throughput during quality control procedures.

Fast readout and data transfer for efficient workflows

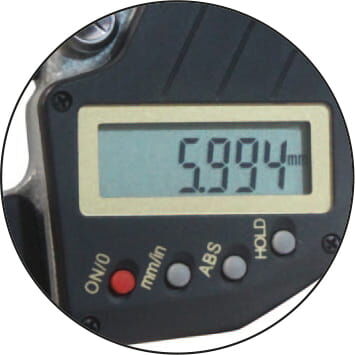

The large digital display offers four dedicated controls (ON/0, mm/inch, ABS, HOLD) for immediate unit switching and zeroing, enabling rapid changeovers between imperial and metric tasks without additional calculations. Data output via RB 4 supports integration with measurement data collectors or SPC systems, speeding documentation and reducing manual transcription errors. Together, the intuitive interface and available data output improve inspection cycle times and feed quality data directly into process control, supporting rational decisions and traceable records for audits.

Contact Metav Werkzeuge for precise availability and tailored advice on using the M302.296 in your inspection process; Metav’s specialists in Emmerich can confirm stock and recommend the best calibration or data‑logging options

Technical Data

• Article number: M302.296
• GTIN: 4054469115634
• Category: Messschrauben
• Standard: DIN 863

Facts

• Measuring range: 50–75 mm
• Resolution: 0.001 mm
• Measuring face diameter: 6.5 mm
• Protection class: IP65

Special features

• Ratchet thimble for constant measuring force
• Digital display with ON/0, mm/inch, ABS and HOLD
• Data output: RB 4
• Digital operation (metric/imperial switching)

FAQ

What measuring range does this instrument cover?
The micrometer covers a measuring range of 50–75 mm, making the M302.296 suitable for fine mechanical parts within that span.

What resolution and repeatability can be expected?
Resolution is 0.001 mm on the display; repeatability is supported by the ratchet thimble that ensures a consistent measuring force during repetitive checks.

Is the micrometer suitable for use near production machinery?
Yes. The IP65 rating on the M302.296 protects against dust and low‑pressure water jets, so it is suitable for use in many workshop and shop‑floor environments.

Can measurement data be exported to a PC or SPC system?
The unit is equipped with RB 4 data output, allowing connection to compatible data loggers or SPC interfaces for automated data capture.

Are the measuring faces hardened for wear resistance?
The instrument features hardened measuring faces with a 6.5 mm diameter that improve wear resistance and preserve measurement integrity over time.
