25mm Tube Wall Micrometer With Spherical Anvil, 0.01mm Graduation, Ratchet, In Case - Metav IndustryLine

Take advantage of precise pipe‑wall measurement in a compact format: the combination of a 0–25 mm measuring range with a ball anvil and a 0.01 mm graduation ensures accurate contact on curved surfaces and clear readout for quality checks. The hardened measuring faces and ratchet stop provide repeatable results and protect the spindle, so production sampling and inspection cycles remain consistent. Order the micrometre directly via Metav Werkzeuge or ask the consultants for application advice.

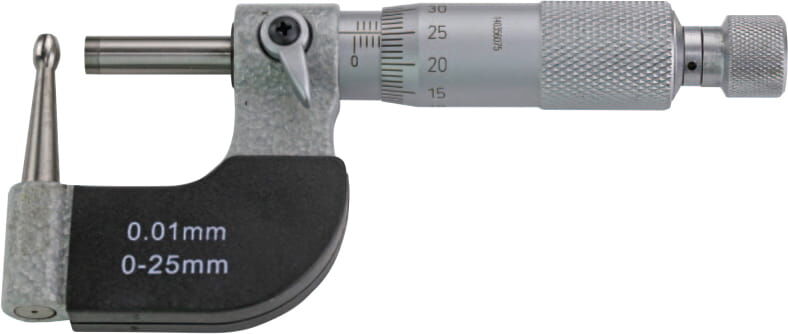

M309.044 Micrometre Screw Gauge — Pipe‑wall measure 0–25 mm, 0.01 mm graduation (Metav IndustryLine)

M309.044 is a precision micrometre designed to measure pipe wall thickness up to 25 mm, combining a ball‑shaped anvil for secure contact on curved parts with a matt‑chrome thimble for easy reading

• Precision 0.01 mm graduation

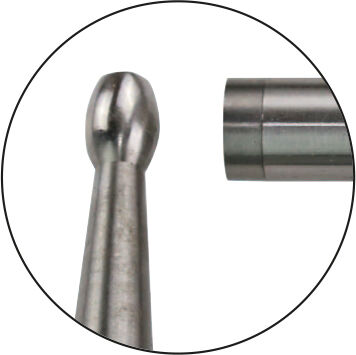

• Ball anvil for curved surfaces
• Ratchet stop for consistent measuring force
• Hardened measuring faces and matt chrome thimble

Consistent accuracy for curved workpieces

A micrometre built specifically for pipe and tubular inspection reduces the uncertainty that comes from measuring rounded geometries. The ball anvil contacts the workpiece with a defined surface geometry, so contact points remain stable even on small radii; coupled with the ratchet stop, the applied measuring force is controlled, reducing operator‑induced variation. The instrument’s graduation of 0.01 mm and the documented accuracy ±0.004 mm make it suitable for routine quality checks where reproducible values are required rather than only rough estimates. This saves time at the inspection bench and supports fast pass/fail decisions.

Repeatable handling that speeds up inspection cycles

Ergonomics and repeatability are decisive in busy workshops. The micrometre’s ratchet mechanism ensures the same final spindle travel each time, which reduces rework and improves throughput on batch inspections. The lacquered frame offers good grip and thermal stability compared with bare metal finishes, while the matt‑chrome thimble improves contrast for quicker readings. Together these features provide a measurable productivity gain: fewer measurement repeats and shorter cycle times for standardised quality control routines.

Robust finish and workshop readiness

Designed for practical use, the measuring faces are hardened to resist wear from repeated contact, extending service life and preserving calibration. The frame is lacquered and the measuring drum is matt‑chrome plated, protecting key surfaces from corrosion and shop contamination. Delivery includes a protective case for safe transport and storage, so the instrument arrives ready for use on the shop floor or in the inspection room. For applications that routinely inspect pipe wall thickness from 4.7 mm, the construction and contact geometry conserve accuracy across many measurements.

For precise pipe‑wall verification choose the Metav IndustryLine M309.044 micrometre and contact Metav Werkzeuge in Emmerich for tailored advice by e‑mail at info@metav-werkzeuge.com or by telephone on +49 2822 7131930

Technical data

• Article number: M309.044
• GTIN: 4054469117706
• Category: Micrometre screw gauges (Messschrauben)
• eCl@ss: 27200302
• ETIM: EC003590
• Customs tariff number: 90173000

Numbers / Core technical data

• Measurement range: 0–25 mm
• Resolution / graduation: 0.01 mm
• Stated accuracy: ±0.004 mm
• Suitable for pipe wall thickness from 4.7 mm
• Mechanical type: analogue, ratchet stop included

Special features / Design

• Ball‑shaped anvil for measurement on curved surfaces
• Hardened measuring faces
• Frame lacquered and measuring drum matt‑chrome plated
• Delivered in protective case for transport and storage

FAQ

How fine is the reading on this micrometre and what accuracy can be expected?
The micrometre M309.044 provides a 0.01 mm graduation and a stated accuracy of ±0.004 mm, making it suitable for precise, repeatable checks in workshop inspection.

Is the gauge suitable for measuring pipe or tube walls?
Yes, the M309.044 is specifically designed for pipe‑wall measurement and is suitable for wall thicknesses from 4.7 mm upwards, thanks to its ball anvil contact geometry.

Does the instrument include any features to ensure repeatable force during measurement?
The M309.044 includes a ratchet stop, which standardises the final spindle travel and reduces operator‑induced variation for consistent results.

What surface finishes and protections does the tool have for workshop use?
The gauge has a lacquered frame, a matt‑chrome measuring drum and hardened measuring faces to resist wear and contamination in industrial environments.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
