100-2100mm Rod Internal Measuring Set 0.01mm Resolution, Includes Extensions, Case - Metav IndustryLine

Take advantage of the combination of a wide measuring range up to 2,100 mm, a fine 0.01 mm indication and hardened contact faces for repeated, reliable internal measurements; order the rod internal measuring set directly via Metav Werkzeuge or consult the technical advisors if further clarification is required.

Rod internal measuring set M310.063 — 100–2,100 mm, 0.01 mm by Metav IndustryLine

The Rod internal measuring set M310.063 is a modular internal‑diameter measuring system designed for large bores and long‑range inspection tasks in toolrooms and heavy machining environments

• Modular extensions up to 2,100 mm
• Readout resolution 0.01 mm
• Hardened measuring faces for long life

Long reach for large components with repeatable stiffness

The set covers an internal measuring span from 100 to 2,100 mm, placing it in the Extra‑Long class for large components. This reach is achieved through a system of precision rods that preserve alignment over length, so measurements on housings, large bearings and cylinder bores stay reproducible. The design mitigates typical deflection issues associated with long probes by combining a compact base with stable extension elements, enabling reliable capture of internal dimensions where conventional callipers cannot reach.

Precise mechanical indication and robust contact surfaces

Measurement is performed via a proven mechanical vernier readout with an indication step of 0.01 mm, providing clear incremental readings for process checks and workshop quality control. The contact faces are hardened to resist wear during repeated use, which preserves reference geometry and extends service life. The analogue readout keeps operation straightforward and robust under workshop conditions, while the fine indication supports precise set‑up and acceptance checks without dependence on batteries or electronics.

Modular set for flexible on‑machine and in‑fixture use

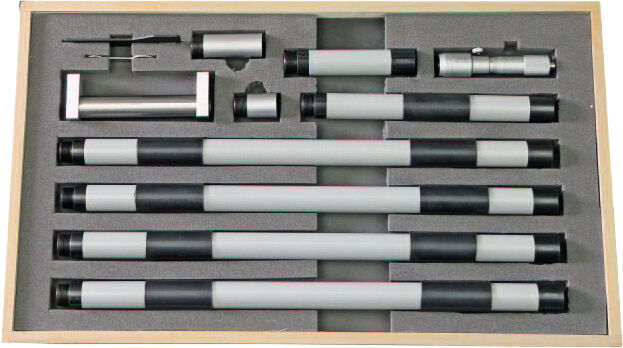

Supplied as a complete set, the package includes a range of extension rods to configure measuring lengths as needed: extensions of 25 mm, 50 mm, 100 mm, 200 mm and four 400 mm rods are part of the delivery. This modular approach reduces downtime when switching measurement tasks and allows tailored assembly for specific bores or fixtures. The construction suits use in machine‑shop inspection, assembly jigs and maintenance rounds, and the set format simplifies storage and transport between measuring stations.

For long‑range internal measurements choose the Metav IndustryLine M310.063 set — contact Metav Werkzeuge for personalised advice and ordering at info@metav-werkzeuge.com or by phone on +49 2822 7131930

Technical Data

• Article number: M310.063
• GTIN: 4054469118949
• Category: Messschrauben / measuring screws
• ECLASS: 21170335
• ETIM: EC003590
• Customs tariff: 90173000
• Manufacturer: Metav IndustryLine

Numbers / Core technical data

• Measuring range: 100–2,100 mm
• Indication / resolution: 0.01 mm
• Readout type: mechanical vernier (analogue)
• Rod diameter: 22 mm
• Set: modular configuration with extensions included

Special features / Versions

• Hardened measuring faces
• Included extensions: 25 mm, 50 mm, 100 mm, 200 mm, 4 × 400 mm
• Intended use: internal diameter measurement for large bores and assemblies

FAQ

What measuring range does the set cover?
The M310.063 set covers internal measurements from 100 to 2,100 mm, enabling inspection of large bores and housings.

What resolution and readout type are provided?
Readings are taken on a mechanical vernier with a resolution of 0.01 mm, giving clear analogue increments for workshop checks.

Are the contact faces protected against wear?
Yes, the measuring faces are hardened to maintain accuracy and durability during repetitive use.

Which extensions are included with the set?
The delivery comprises extension rods of 25 mm, 50 mm, 100 mm, 200 mm and four 400 mm rods to configure the required measuring length.

Is the M310.063 suitable for on‑machine checks?
The modular construction and robust mechanical readout make the set well suited for on‑machine and in‑fixture internal measurements.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
