M9×1 Three-Point Thread Go/No-Go Plug Gauge Metric ISO Fine Thread Right-Handed, Hardened Gauge Steel DIN 13 6H - Metav IndustryLine

Take advantage of a compact, standards‑compliant gauge that combines rapid pass/fail checks with durable construction; the hardened gauge steel body and DIN 13 tolerance ensure repeatable assessments of fine threads. Order the limit thread plug gauge directly via Metav Werkzeuge or consult the Metav team for procurement assistance.

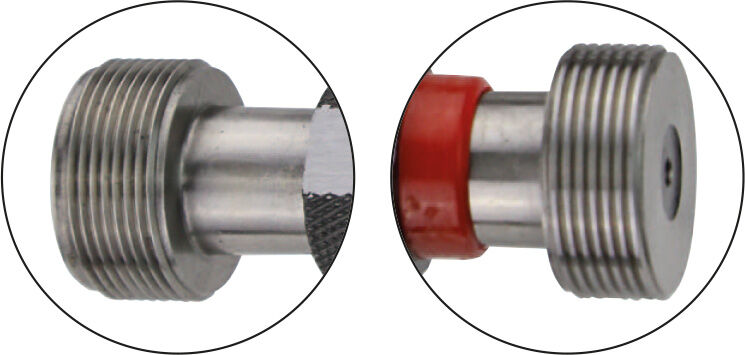

Limit thread plug gauge M9 x 1 mm (Go/no‑go) – right‑hand, hardened gauge steel | Metav IndustryLine

A limit thread plug gauge M9 x 1 mm designed for fast, shop‑floor acceptance testing of right‑hand metric ISO fine threads in production and quality control.

• Hardened gauge steel for long service life
• Conforms to DIN 13, tolerance grade 6H
• Go/no‑go design for quick acceptance checks
• Compact M9 x 1 size for fine‑thread inspections

Faster, unambiguous acceptance for fine threads

The plug gauge is a straightforward tool for rapid thread acceptance: the Go/no‑go principle gives an immediate binary result that speeds up inspection routines while reducing interpretation errors. For M9 x 1 mm metric fine threads the gauge provides direct indication whether an internal thread meets the defined limits; this removes the need for time‑consuming measurements when only conformity is required. The compact format minimises handling effort and is well suited to repetitive checks in assembly or small‑batch production.

Technical conformity and what the markings mean

Manufactured to DIN 13 with tolerance grade 6H, the gauge represents the reference limits for metric ISO fine threads. The Go side verifies the minimum material condition for correct assembly, while the No‑Go side confirms the thread is not oversized beyond acceptable limits. The specification 6H denotes the internal thread tolerance commonly used for general‑purpose engineering and ensures compatibility with mating external threads produced to standard limits. The right‑hand orientation follows standard thread direction conventions for most fastening applications.

Robust design for routine quality control

Made from hardened gauge steel, the tool resists wear under regular use and retains its acceptance edges for an extended service life, providing a reliable pass/fail verdict over many inspection cycles. The small mass and compact geometry make it simple to store and handle on the workbench or in incoming goods inspection. Supplied under the Metav IndustryLine label, the gauge fits into a broader quality workflow where traceability and repeatability are priorities, supporting consistent assembly and fewer rework incidents.

For reliable, standards‑based thread inspections order the Metav IndustryLine limit thread plug gauge M9 x 1 mm through Metav Werkzeuge — email info@metav-werkzeuge.com or call +49 2822 7131930 to arrange purchase and delivery.

Technical data

• Article number: M315.009.4
• GTIN: 4054469122236
• Manufacturer: Metav IndustryLine

Facts

• Thread: M9 x 1 mm
• Weight: 0.05 kg
• Tariff number: 90173000
• Tolerance grade: 6H

Special features

• Material: hardened gauge steel
• Right‑hand thread
• Go/no‑go limit plug gauge design
• Standard: DIN 13

FAQ

What thread size and pitch does this gauge check?
The limit thread plug gauge checks an internal metric fine thread of M9 x 1 mm and is manufactured for right‑hand threads under the Metav IndustryLine range (SKU M315.009.4).

Does the plug gauge indicate tolerance class?
Yes, the gauge is produced according to DIN 13 and corresponds to tolerance grade 6H, which is stated on the gauge and ensures compatibility with standard external threads.

Is the gauge suitable for production‑line checks?
The Go/no‑go design makes this plug gauge well suited to routine shop‑floor acceptance testing where rapid, unambiguous results are required for M9 x 1 threads.

What material is the gauge made from and why does it matter?
The gauge is made from hardened gauge steel, chosen for wear resistance and dimensional stability so that inspection limits remain reliable over many cycles.

How is conformity determined with this tool?
Conformity is determined by the Go side passing into the thread and the No‑Go side not entering; the Metav IndustryLine plug gauge M9 x 1 mm therefore provides immediate pass/fail confirmation.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
