500 mm End Gauge Holder 400–500 mm Clamping Range, Very Sturdy Construction - Metav IndustryLine

Benefit from a very stable construction and an extendable 400–500 mm clamping range that secures gauge blocks for repeatable calibration results; order directly via Metav Werkzeuge or consult our advisers for integration into existing metrology routines.

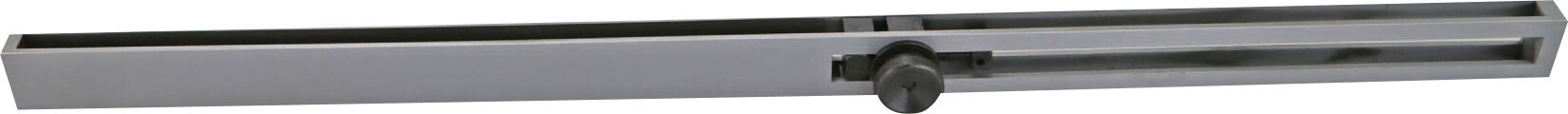

Gauge Block Holder 500 mm (M317.114) — extendable 400–500 mm clamping range, very stable construction (Metav IndustryLine)

The Gauge Block Holder 500 mm secures end gauges and similar standards for precise measurement and calibration tasks in industrial metrology

• Very stable construction
• Clamping range 400–500 mm (extendable)
• Compact cross-section 30.5 x 2.5 mm
• Low weight approx 1 kg

Reliable support for precise calibration and repeatable results

The holder’s very stable construction delivers a secure reference for gauge blocks, which reduces setup variation and improves repeatability in routine calibrations. The combination of a rigid profile and a precisely defined clamping area ensures that end measures remain immobile during inspection, lowering measurement uncertainty. For workshops and calibration laboratories where consistent results are essential, this device provides a straightforward way to translate gauge-block standards into reproducible measurement outcomes.

Flexible clamping and easy handling for varied metrology tasks

With a clamping range of 400–500 mm that can be extended, the holder adapts to a broad span of gauge block stacks and lengths, reducing the need for multiple fixtures. The slim 30.5 x 2.5 mm cross-section increases profile stiffness relative to weight, so the holder remains both stable and easy to position on benches or in test rigs. At approximately 1 kg, the device balances portability with the mechanical robustness required for industrial use, enabling simple handling without compromising support during fine measurement work.

Integrates with calibration workflows to safeguard production quality

Designed for use alongside standard end gauges, the holder supports efficient calibration sequences and consistent traceability across measurement chains. By delivering stable fixation and predictable geometry, the device helps to shorten setup times and reduces rework caused by inconsistent fixturing. In quality control and toolroom environments, this translates into fewer process interruptions and more reliable documentation of reference measurements, supporting overall productivity and audit-readiness.

Contact Metav Werkzeuge today to discuss how the Metav IndustryLine gauge block holder can be integrated into calibration workflows — call +49 2822 7131930 or email info@metav-werkzeuge.com

Technical data

• Article number: M317.114
• GTIN: 4054469127439
• ECLASS: 21170108
• TARIC/HS code: 90173000
• Manufacturer: Metav IndustryLine

Facts

• Clamping range: 400–500 mm (extendable)
• Nominal length: 500 mm
• Cross-section: 30.5 x 2.5 mm
• Weight: 1 kg

Special features

• Very stable execution
• Designed for gauge block/end measure fixation
• Category: Endmasse
• SKU: M317.114

FAQ

How does the holder secure gauge blocks for calibration?
The gauge block holder (Metav IndustryLine M317.114) uses a rigid profile and controlled clamping range to keep end measures immobile, enabling stable reference positioning for accurate calibration.

Can the clamping range be adapted for different gauge block stacks?
Yes, the clamping range of 400–500 mm is extendable, allowing the holder to accommodate varying stack heights without the need for multiple fixtures.

Is the device suitable for use in a busy workshop environment?
The holder’s very stable construction and compact cross-section (30.5 x 2.5 mm) provide the stiffness required for workshop use while the modest weight of about 1 kg simplifies handling and repositioning.

Which product identifier should be quoted when ordering or enquiring?
Please refer to M317.114 (GTIN 4054469127439) and the Metav IndustryLine designation when placing orders or requesting further details.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
