125mm End Gauge Connector Anodised, 0.27kg - Metav IndustryLine

Take advantage of the combination of anodised corrosion resistance, secure connection bores and compatibility with end gauges from 125 mm for reliable gauge assemblies; order the end gauge connector directly via Metav Werkzeuge or ask our consultants for specification support.

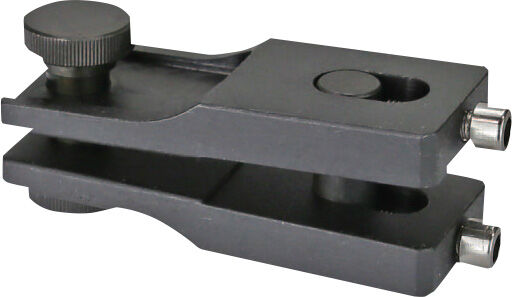

End gauge connector M317.130 — anodised connector for end gauges from 125 mm (Metav IndustryLine)

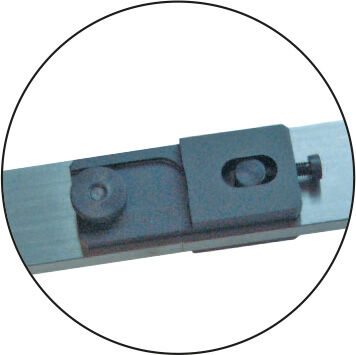

End gauge connector M317.130 is an anodised joining accessory designed to link end gauges from 125 mm upwards, providing stable and corrosion‑resistant connections for gauge stacks and modular measurement fixtures.

Anodised surface for corrosion resistance Suitable for end gauges from 125 mm Secure mounting with connection bores

Built for durable, repeatable gauge assemblies

The anodised finish delivers lasting corrosion resistance, which preserves contact accuracy and reduces maintenance cycles in routine use. As a joining component for standard end gauges from 125 mm, this connector simplifies the assembly of multi‑piece gauges and ensures a consistent mechanical interface between components. The surface treatment also minimises friction and wear at the contact surfaces, supporting reproducible results over time.

Secure mechanical connection that supports precision workflows

Designed with connection bores to accept fixed fastenings, the connector provides secure mounting that reduces play and misalignment during handling and measurement. This mechanical stability translates directly into fewer setup errors and faster throughput in calibration and inspection tasks. By stabilising the joint between end gauge elements, the accessory helps maintain measurement traceability and supports quality control procedures on the shop floor.

Practical integration and workshop benefits

The simple geometry and standardised mounting pattern allow straightforward integration into existing gauge sets and fixtures, which reduces engineering time when extending measuring ranges. The anodised joining piece is a low‑complexity solution that contributes to smoother assembly processes, less downtime when reconfiguring gauges, and consistent end results across repetitive operations. Where fixture repeatability matters, this connector supports operational efficiency and reduces potential rework.

Contact Metav Werkzeuge in Emmerich for specification advice or to order the M317.130 connector; call +49 2822 7131930 or email info@metav-werkzeuge.com for direct assistance and fast dispatch from our European stock.

Technical data

• Article number: M317.130
• GTIN: 4054469127460
• EClass: 21170108
• Tariff code: 90173000
• Brand: Metav IndustryLine

Facts

• Compatible from 125 mm
• Surface: anodised
• Category: End gauges

Special features

• Connection bores for fixed mounting
• Corrosion‑resistant surface treatment
• Compact joining design for modular gauge stacks

FAQ

Which gauge sizes can be joined with this connector? The connector supports end gauges from 125 mm and is intended for modular gauge stacks where the joining geometry matches the connection bores.

What surface treatment does the part have? The joining piece is anodised, offering improved corrosion resistance and reduced wear at contact points.

How does the connector improve measurement stability? By providing secure mounting via connection bores, the connector reduces play at joints and helps maintain alignment between gauge elements, which supports repeatable measurements.

Is the M317.130 compatible with standard metric end gauges? Yes, the M317.130 is designed for conventional metric end gauge assemblies and integrates into standard workshop fixtures for inspection and calibration

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
