700-1000mm End Gauge Holder Very Robust Design - Metav IndustryLine

Benefit from a robust construction and an adjustable span of 700–1000 mm to secure end measures for dependable calibration and repeatable length checks; choose this holder to reduce setup time and improve measurement consistency. Order the end gauge holder directly via Metav Werkzeuge or ask our consultants for application-specific advice.

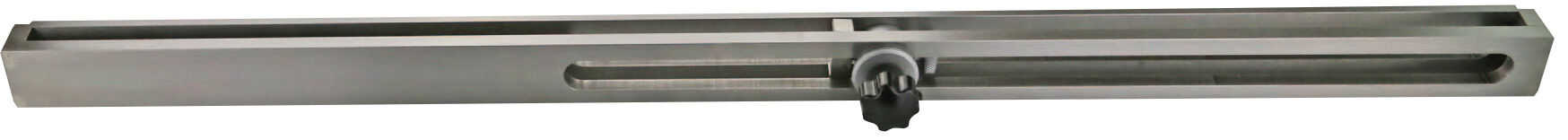

End gauge holder 700–1000 mm — robust design, 700–1000 mm span (Metav IndustryLine)

The End gauge holder 700–1000 mm is a workshop fixture that secures end measures for precise length measurement and the calibration of measuring instruments in machine shops and quality departments.

• Very robust construction
• Adjustable span 700–1000 mm
• Stable cross-section for long spans
• Lightweight at 0.4 kg

Built for consistent calibration and repeatable results

The holder’s robust construction provides a stable reference when working with end measures, reducing the influence of handling and vibration on results. By fixing the measuring standard solidly in place, the fixture simplifies the calibration process and shortens the time spent on successive checks. For production environments where repeatability matters, this stability directly contributes to fewer measurement cycles and less rework, so processes run more efficiently and inspection throughput improves.

Design that supports long-span accuracy and handling

With an adjustable span of 700–1000 mm, this holder falls into the workshop class for long bars and large components that require reliable support across extended lengths. The specified cross-section adapts for rigidity — 30×5 mm up to 300 mm and 30×6.7 mm beyond — which increases profile stiffness where it matters and helps keep deflection low over the full span. The combination of span and section geometry reduces measurement uncertainty for large gauges and ensures measurements remain comparable over repeated setups.

Practical operation and compatibility in the workshop

The fixture is compact and lightweight (0.4 kg), making it simple to position and secure without adding unnecessary bulk to the bench. It is designed specifically for use with standard end measures, enabling precise length determination and the traceable adjustment of measuring devices. Fitting and removal of end measures is straightforward, which helps to keep calibration routines fast and reduces the potential for handling errors. The result is a pragmatic tool that integrates into established quality workflows with minimal training.

Contact Metav Werkzeuge today for tailored advice on integrating this robust 700–1000 mm end gauge holder into calibration routines and to arrange delivery from Emmerich

Technical data

• Article number: M317.209
• GTIN: 4054469127552
• Label: Endmaßhalter 700 - 1000 mm Spannbereich 700 - 1000 mm
• SKU: M317.209
• Eclass: 21170108
• TARIC: 90173000
• Manufacturer: Metav IndustryLine

Facts

• Measuring range / span: 700–1000 mm
• Weight: 0.4 kg
• Cross‑section: up to 300 mm 30×5 mm; from 300 mm 30×6.7 mm

Special features

• Very robust construction
• Intended for securing end measures for precise measurement and calibration
• Category: Endmasse
• Short description: End gauge holder

FAQ

How does the holder improve calibration consistency?
The holder fixes the end measure securely, so the fixture reduces movement and handling variability; this stabilisation improves repeatability during calibration with the End gauge holder 700–1000 mm (SKU M317.209).

Is the fixture suitable for large end measures and long bars?
Yes, the design and adjustable span of 700–1000 mm make it suitable for long end measures and larger components that require stable support.

What is the weight and does it affect handling?
The holder weighs 0.4 kg, which keeps it easy to position while still providing the required stiffness for accurate measurements.

Can this holder be used for official calibration work?
The fixture is intended to secure end measures for precise measurement and calibration tasks; for traceability requirements, pair the holder with appropriately certified end measures and calibration procedures.
