Ø100x30 Base for End Gauge Holder Very Robust Design 1.7 kg - Metav IndustryLine

Take advantage of the heavy, stable construction and the Ø100 x 30 mm footprint to secure repeatable results during gauge block set-up and calibration; order the part directly via Metav Werkzeuge or consult our specialists if further clarification is required.

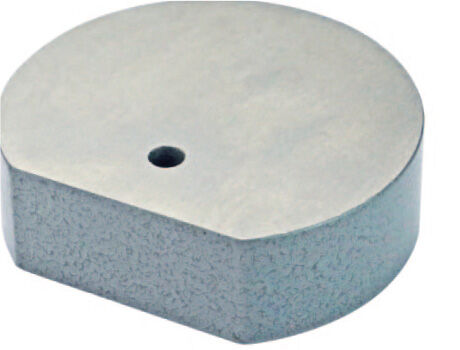

M317.212 Foot for End-measure Holder (Ø100 x 30 mm) — heavy-duty 1.7 kg by Metav IndustryLine

M317.212 is a compact, heavy-duty base for end-measure holders, designed for secure horizontal or vertical mounting in calibration and workshop environments

• Heavy 1.7 kg stable construction
• Horizontal and vertical mounting possible
• Ø100 x 30 mm footprint for secure support

Engineered for stable calibration and repeatable measurement

The base is manufactured for stability: its robust construction and 1.7 kg mass reduce movement and minimise the influence of ambient vibration during delicate set-ups. This results in faster achievement of measurement equilibrium and improved repeatability when aligning end measures or gauge blocks. The increased mass acts as a passive damper, which is particularly beneficial in busy workshop areas where floor or bench vibrations can otherwise degrade accuracy. Such design choices translate directly into fewer re-measurements and more reliable calibration outcomes.

Flexible mounting and clear compatibility for holders

Designed to accept the common holder formats, the foot features a Ø100 x 30 mm interface and supports cross-sections of 30 x 5 mm for holders up to 300 mm and 30 x 6.7 mm for larger sizes. The possibility of secure horizontal and vertical arrangement gives practical flexibility when working with different gauge stacks or when space is limited on the bench. Clear, standardised geometry simplifies integration with existing end-measure systems and helps ensure the holder sits free of play, enabling precise seating of gauge elements and consistent contact orientation during calibration.

Practical benefits for the workshop and calibration bench

Beyond dimensional compatibility, the design focuses on day-to-day usability: stable positioning speeds up set-up, while the compact footprint keeps the bench uncluttered. The construction is described as very stable, meaning less handling-induced error during repeated use and a robust platform for transferring reference lengths. For technicians performing routine checks or formal calibrations, this translates into more efficient workflows and reduced uncertainty in comparative measurements. The base is therefore a pragmatic choice wherever reliable support for end-measure holders is required.

For traceable and robust end-measure set-ups, choose the Metav IndustryLine M317.212 foot and arrange supply or technical advice through Metav Werkzeuge in Emmerich — contact info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: M317.212
• GTIN: 4054469127569
• eCl@ss: 21170108

Facts

• Weight: 1.7 kg
• Foot dimensions: Ø100 x 30 mm
• Tariff number: 90173000

Special features

• Very stable execution
• Horizontal and vertical mounting possible
• Cross-section compatibility: up to 300 mm → 30 x 5 mm; from 300 mm → 30 x 6.7 mm

FAQ

How does the weight of the foot affect measurement stability?
The 1.7 kg mass of the M317.212 base increases inertia and dampens small vibrations, improving stability for end-measure holder set-ups and supporting repeatable comparative measurements.

Can the foot be used both horizontally and vertically?
Yes, the design of this Metav IndustryLine foot allows secure horizontal and vertical mounting to suit different gauge block arrangements and bench layouts.

Which cross-section holders are compatible with this base?
The base accepts holders with a cross-section of 30 x 5 mm for lengths up to 300 mm and 30 x 6.7 mm for larger holders, matching common end-measure holder standards.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
