9.01-10 mm Gauge Pin Set 100 Pieces 0.01 mm Increment Supplied in Case - Metav IndustryLine

Take advantage of a finely graduated set that combines reliable diameter verification with workshop-grade robustness; the precise 0.01 mm steps and a typical tolerance of ±0.002 mm support repeatable decisions on the shop floor. Order the kit directly via Metav Werkzeuge or ask Metav's consultants for specification advice and availability.

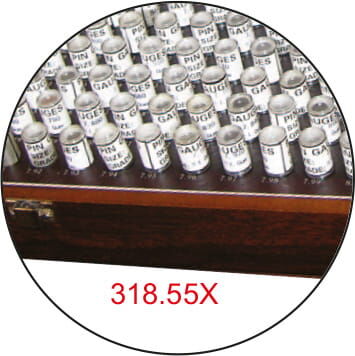

Gauge pin set M318.559 — 100-piece, 9.01–10.00 mm (0.01 mm steps) by Metav IndustryLine

The Gauge pin set M318.559 is designed for precise diameter checking and fit verification across the 9.01–10.00 mm band, suitable for inspection, tool setting and acceptance testing in production environments

• 0.01 mm step for fine incremental gauging
• High-grade special steel construction
• Measurement range 9.01–10.00 mm
• Supplied in protective case for transport

Consistent precision for inspection and quality control

The gauge pins in this kit span the 9.01–10.00 mm range in 0.01 mm increments, enabling fine gradation when verifying bore sizes or checking shaft diameters. With a measured tolerance on the order of ±0.002 mm, the set supports reproducible go/no-go and transition-fit checks that reduce subjective judgement in routine inspection. Made from special steel, the pins resist wear under repeated contact and retain dimensional stability, which is crucial when used as a reference during first-article inspection or in-process checks.

Built for workshop use and safe transport

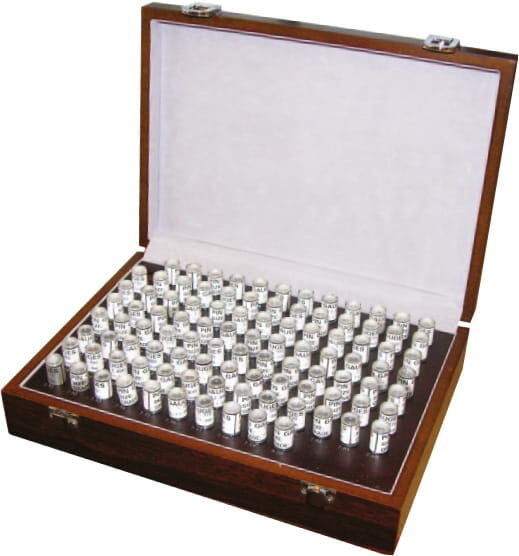

Organised storage and safe handling reduce downtime: the kit is delivered in a secure, organised box and has a collective weight of 4.5 kg, which keeps the set portable while protecting individual gauges. Each pin has a length of 50 mm, optimised for stable support in seating and insertion tasks without excessive overhang. The 100-piece composition provides dense resolution across the interval so that technicians can reach the exact diameter step quickly without resorting to filing or shimming, improving throughput at the measuring bench.

Speeding up inspection and reducing downtime

Using a finely stepped set like this accelerates decision-making in production inspections: installers and inspectors find the matching pin rapidly, avoiding iterative caliper measurements and reducing cycle time. The kit is particularly useful for assembly checking, fixture set-up and routine acceptance testing where fast, objective diameter verification prevents rework. Backed by Metav IndustryLine's distribution and quality control, the set supports reliable supply and consistent lot quality for small-batch and continuous operations alike.

For tailored specification support or to secure supply from Metav IndustryLine, contact Metav Werkzeuge in Emmerich for availability and delivery guidance — Metav Werkzeuge can advise on application fit and dispatch the required items directly

Technical data

• Article number: M318.559
• GTIN: 4054469129426
• HS code: 90173000
• Manufacturer: Metav IndustryLine

Dimensions & precision

• Measurement range: 9.01–10.00 mm
• Graduation: 0.01 mm
• Accuracy: ±0.002 mm
• Pieces per set: 100
• Individual pin length: 50 mm
• Weight (total): 4.5 kg

Materials & features

• Material: Special steel
• Protective transport case included
• Category: Gauge pins / inspection gauges
• Intended use: Diameter verification, fit checks, fixture set-up

FAQ

What is the intended use of this gauge pin set?
The gauge pin set M318.559 is intended for diameter verification, go/no-go checks and fixture setting where incremental diameter selection between 9.01 mm and 10.00 mm is required.

How fine are the increments and what tolerance can be expected?
Increments are 0.01 mm and the typical tolerance associated with this kit is ±0.002 mm, giving fine-grain control for close-tolerance inspections.

Which materials are the pins suitable for measuring?
The pins are made from special steel and are used to measure diameters of shafts and bores made from common workshop materials; they are a measuring standard rather than a cutting tool.

Is the kit suitable for workshop environments with frequent handling?
Yes. The set is supplied in a protective case and the pins are designed for repeated insertion and extraction; organised storage reduces handling time and wear.

Can this set replace micrometre checks for small production batches?
For quick verification and fit decisions the set provides faster throughput; where traceable absolute measurements are required, complementing pins with calibrated micrometres is recommended.
