14.5-19.5mm Test Pin Holder With Good/Reject Indication - Metav IndustryLine

Take advantage of a compact, repeatable gauging solution that combines precise pin compatibility and clear pass/fail indication for faster inspection cycles. Order directly via Metav Werkzeuge or consult our specialists for integration advice.

Measuring-pin holder for 14.5–19.5 mm pins with Good and Reject marking — Metav IndustryLine clamp for workshop gauging

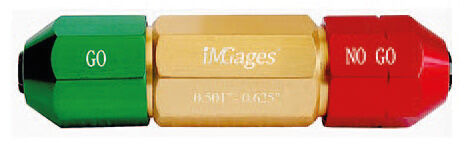

The Measuring-pin holder for 14.5–19.5 mm pins with Good and Reject marking is a compact fixture designed to secure measuring pins and provide instant visual pass/fail feedback for bench and production gauging tasks.

• Secure clamp for Ø14.5–19.5 mm pins

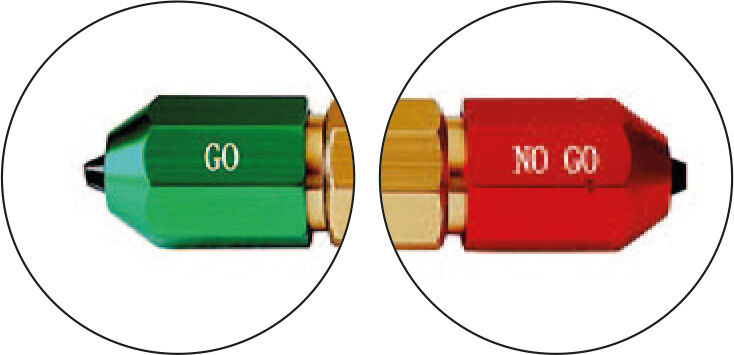

• Integrated 'Good' / 'Reject' visual marking
• Compact 150 mm length, 0.2 kg mass
• Robust design for repetitive workshop use

Consistent positioning reduces measurement variance

A stable locating fixture is essential for repeatable checks. The holder provides a defined seating for measuring pins with diameters from 14.5 mm to 19.5 mm, ensuring the same pin axis and contact point on every insertion. This repeatability reduces setup time and measurement scatter, supporting faster batch inspection and consistent quality control. The compact form factor keeps the centre of mass low, improving handling and alignment when used on gauging rigs or test benches.

Clear pass/fail marking speeds inspection throughput

Visual differentiation between acceptable and rejected parts shortens decision time on the shop floor. The integrated 'Good' / 'Reject' marking gives an immediate, unambiguous indication during manual checks, which reduces interpretation errors and accelerates operator throughput. For process-controlled environments this kind of visible signalling complements digital records by decreasing the number of steps in a manual inspection routine and helps maintain steady production rhythm.

Workshop-grade construction for reliable daily use

Designed for everyday industrial use, the fixture balances light weight with sufficient rigidity. At 150 mm length and roughly 0.2 kg, the unit remains easy to manoeuvre while providing a secure clamp for measuring pins. The design supports repeated insertion cycles and holds the pin without wobble, which preserves the integrity of the measuring tip and the accuracy of subsequent checks. Simple handling reduces operator fatigue and helps maintain inspection consistency across shifts.

Compatibility and practical integration into gauging setups

The holder is intended for use with standard measuring pins and integrates smoothly into existing gauges and fixtures. As a purpose-built accessory for gauging tasks, it complements bench and modular gauge systems by offering a fixed interface for cylindrical pins in the 14.5–19.5 mm range. The solution is particularly suited to small-batch inspections and fixture-based routines where quick changeover and clear results are priorities.

Contact Metav Werkzeuge for tailored gauging advice and procurement of the M318.565 measuring-pin holder, including assistance with selecting compatible pins and integrating the holder into inspection fixtures.

Technical data

• Article number: M318.565
• GTIN: 4054469167169
• Category: Gauging / Measuring pins
• Tariff number: 90173000

Facts

• Length: 150 mm
• Weight: 0.2 kg
• Compatible pin diameter: 14.5–19.5 mm

Special features

• Integrated Good / Reject visual marking
• Compact holder for workshop gauging
• Suitable for repetitive manual inspection

FAQ

What pin diameters does the holder accept?
The holder accepts measuring pins with diameters from 14.5 mm to 19.5 mm and is specified for use with standard cylindrical gauging pins.

Is the M318.565 suitable for production-line checks?
Yes, the M318.565 measuring-pin holder from Metav IndustryLine is designed for repetitive workshop use and supports quick visual pass/fail decisions to keep inspection throughput high.

Can the marking be customised for a specific inspection scheme?
The unit is supplied with a clear 'Good' / 'Reject' marking; for customised labelling or additional signalling, consult Metav IndustryLine support to discuss options and compatibility.

Does the holder require special pins or adapters?
Standard measuring pins within the 14.5–19.5 mm range fit the holder; no special adapter is needed for those diameters, though tailored fixture interfaces can be advised by Metav Werkzeuge if integration into bespoke gauges is required.

What are the main advantages of using this holder in a small workshop?
The holder offers reliable repeatability, compact handling, and immediate visual pass/fail indication, which together reduce inspection time and lower the risk of human error during manual gauging.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
