9.01-10.0 mm Precision Gauge Pin Set With Pin Holder 0.01 mm Graduation In Plastic Case - Metav IndustryLine

This gauge-pin set delivers traceable, workshop-ready sizing across the 9.01–10.00 mm range while combining fine 0.01 mm increments with a declared accuracy of 0.004 mm, enabling consistent pass/fail checks and high-repeatability gauging; order directly via Metav Werkzeuge or speak to our consultants for specification support.

Gauge Pin Set M318.579 — 101-piece, 9.01–10.00 mm, 0.01 mm graduations (Metav IndustryLine)

A Metav IndustryLine gauge pin set designed for precision diameter verification and toolsetting in inspection, toolroom and production environments.

• 101-piece hardened gauge pin set
• Diameter range 9.01–10.00 mm per 0.01 mm step
• Graduation 0.01 mm for fine adjustment

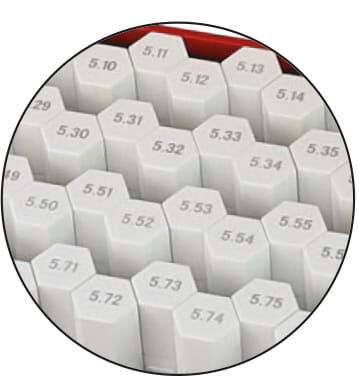

• Holder included for organised handling

Consistent dimensional control through measurable precision

The set is engineered to support reliable size verification and incremental adjustment tasks with a declared accuracy of 0.004 mm, which keeps tolerance checks tight and reduces rework. Using pins in 0.01 mm steps permits fine interpolation between standard nominal sizes, so set-up and verification processes become more predictable. For users in quality assurance and production metrology, this translates into fewer rejected parts and steadier process capability.

Practical set composition that speeds inspection and set-up

Supplied as a comprehensive kit, the tools cover diameters from 9.01–10.00 mm in 0.01 mm increments and each pin has a usable length of 50 mm, making them suitable for a wide range of holes and bores. The pins are manufactured from special steel, offering a balance of surface hardness and corrosion resistance that supports repeated use. The inclusion of a dedicated holder assists orderly storage and quick selection during serial inspection or machine set-up, improving throughput and operator ergonomics.

Designed for integration into workshop workflows

The modular nature of this set supports both bench inspection and on‑machine referencing: the compact, graduated increments aid precise alignment of fixtures and cutting tools, while the robust construction stands up to everyday handling. Backed by Metav’s long-standing supply chain and quality assurance ethos, the kit is aimed at shops and maintenance departments seeking dependable measuring aids that simplify process control and minimise downtime.

Contact Metav Werkzeuge for detailed technical guidance on Metav IndustryLine gauge pin sets and to discuss how this precision kit can be integrated into existing inspection routines; eMail: info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: M318.579
• GTIN: 4054469168333
• Manufacturer: Metav IndustryLine

Facts

• Diameter range: 9.01–10.00 mm
• Graduation: 0.01 mm
• Nominal accuracy: 0.004 mm
• Length (usable): 50 mm
• Weight (set): 4.17 kg

Special features

• Material: Special steel
• Set: 101 pieces
• Inclusive: Pin holder

FAQ

What diameter range does the set cover?
The set covers diameters from 9.01 mm to 10.00 mm in 0.01 mm increments, allowing detailed sizing within that band.

Is the accuracy suitable for workshop quality control?
Yes, the set is specified with a nominal accuracy of 0.004 mm, which supports tight tolerance checks in routine inspection tasks.

What material are the pins made from?
The pins are manufactured from special steel designed for repeated use and good dimensional stability.

How is the set organised for use during inspection?
The kit includes a dedicated pin holder to keep pins organised and to speed selection during measurement and setting operations.
