9x1.001–1.009/49x1.01–1.49/19x0.5–9.5/10x10–100 Carbide Gauge Set, DIN EN ISO 3650 Case - Metav IndustryLine

The hard-wearing combination of carbide construction, DIN EN ISO 3650 compliance and a protective transport case ensures consistent, repeatable measurement across the workshop; use the set to simplify calibration checks and fixture setup. Order the set directly via Metav Werkzeuge or contact our consultants for tailored advice.

Carbide parallel end gauge set — workshop-grade precision, DIN-compliant flatness (Metav IndustryLine)

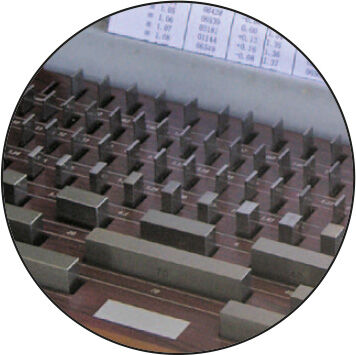

The Carbide parallel end gauge set provides a compact system of hardened, ground end measures designed for alignment, go/no-go checks and stackable setting tasks across mechanical workshops and tool rooms.

• 87-piece carbide gauge set
• DIN EN ISO 3650 compliance
• Precision-ground measuring faces
• Supplied in protective case

Repeatable accuracy for everyday quality control

The set is built to deliver consistent flatness and parallelism for alignment and inspection tasks. Manufactured from carbide, each gauge face is ground to meet the demands of repetitive use, reducing wear and preserving measurement integrity. Conformity with DIN EN ISO 3650 gives a clear reference for tolerance and interchangeability; the standardised geometry simplifies comparison with calibrated references and supports reliable setup of fixtures and jigs. This results in fewer adjustment cycles and steadier production output.

Durable materials that lower lifetime costs

Using hard-wearing carbide for the measuring faces reduces deformation and the need for frequent replacement, which is especially relevant when end measures are used as setting masters or in abrasive shop environments. The robust construction and ground surfaces maintain contact accuracy even under regular handling. As a practical benefit, the set’s total mass of 4.2 kg and compact organisation in a protective case make transport between workstations straightforward while protecting components from accidental damage.

Practical assortment and workshop benefits

The set comprises a comprehensive range of thicknesses, covering fine increments from around 0.5 mm up to larger stackable measures approaching 100 mm, enabling quick stacking for bespoke lengths without machining new reference blocks. Supplied as a complete set with 87 pieces, the assortment reduces downtime: a single kit covers most routine alignment and setup tasks. Organisational efficiency is increased as reference stacks can be prepared and stored in the case, ready for repeatable use at the machine or inspection bench.

Opt for the Metav IndustryLine carbide parallel end gauge set (M322.871) for durable, DIN-compliant references — contact Metav Werkzeuge for availability and advice tailored to specific workshop needs.

Technical Data

• Article number: M322.871
• Manufacturer: Metav IndustryLine
• GTIN: 4054469132747
• Standard: DIN EN ISO 3650

Facts

• Pieces per set: 87
• Weight: 4.2 kg
• Tariff number: 90173000
• Size coverage: pieces from approx. 0.5 mm to 100 mm

Special features

• Material: carbide
• Delivery: protective transport case
• Application: alignment, setting, inspection

FAQ

What sizes are included in the set?
The set contains 87 pieces in a graded assortment, covering fine increments from approximately 0.5 mm up to around 100 mm for flexible stacking and bespoke reference lengths.

What material are the measuring faces made from?
Measuring faces are manufactured from carbide, offering high wear resistance and stability for repeated workshop use with the Carbide parallel end gauge set (M322.871).

Does the set meet any standards for flatness and geometry?
Yes — the components are produced to DIN EN ISO 3650, providing a recognised benchmark for parallelism and dimensional consistency.

How is the set supplied and stored?
The complete 87-piece set is supplied in a protective transport case that organises each gauge and shields surfaces from damage during handling.

What workshop tasks is the set suitable for?
The set is suitable for alignment, go/no-go checks, fixture setting and as a reference stack for machine setup and inspection tasks.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
