225-250mm Three-Point Internal Micrometer Self-Centering Interchangeable Anvils, 0.007mm - Metav IndustryLine

Taking advantage of self-centring three-point measurement and hard-metal measuring faces delivers reliable repeatability for blind-hole inspection; combine this with an interchangeable measuring insert for flexible, low-downtime checks. Order the instrument directly via Metav Werkzeuge or contact our consultants for application advice.

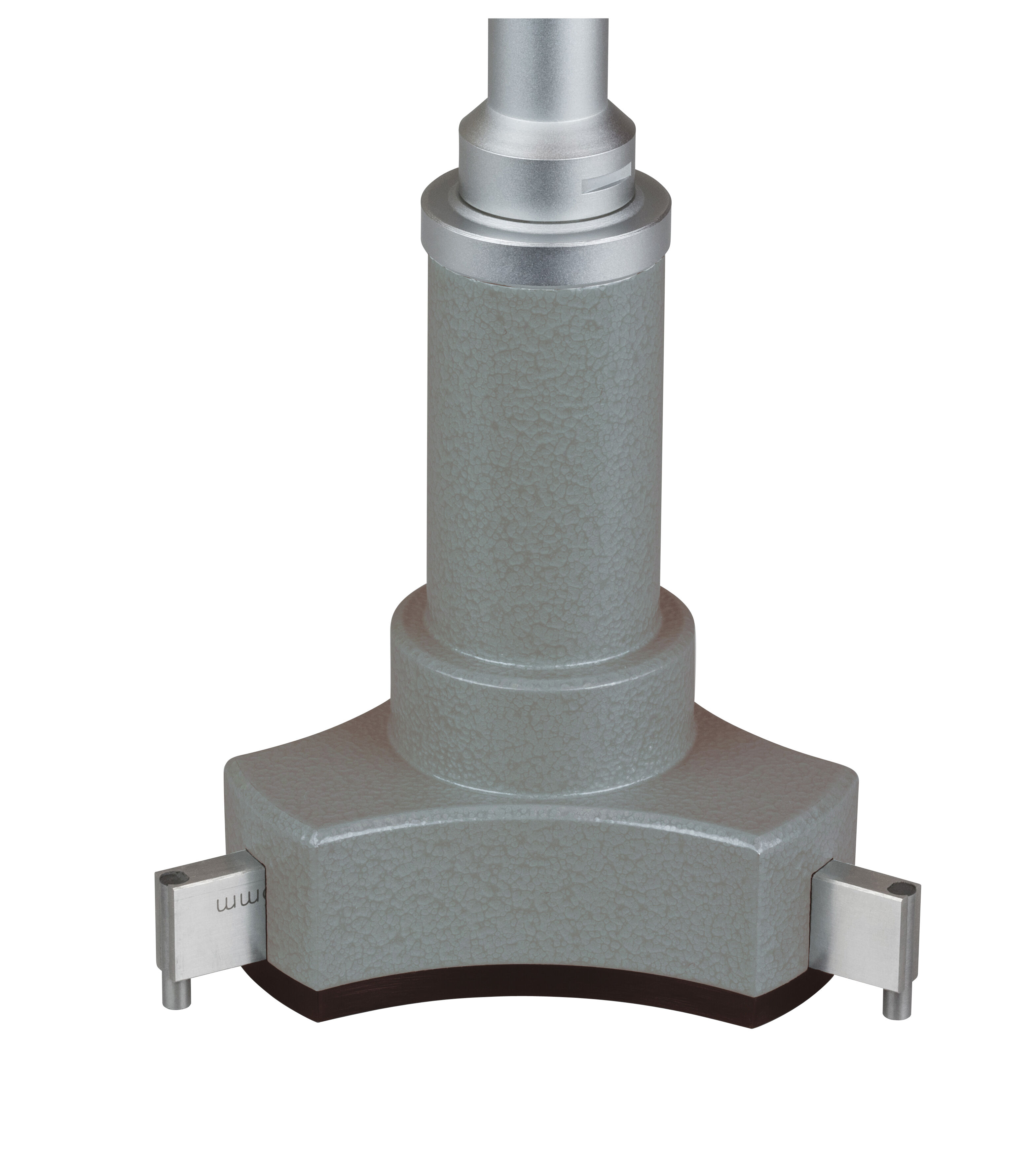

Three-point internal micrometer MS908.668 — self-centring, analogue unit (225–240 mm)

A three-point internal micrometer designed for precise inspection of blind bores and similar internal features in machine and toolmaking environments.

• Self-centring three-point measurement
• Measuring range 225–240 mm
• Interchangeable measuring insert
• Hard-metal measuring faces

Consistent accuracy that speeds up decision-making on the shop floor

The instrument provides a measuring range of 225–240 mm and an accuracy of ±0.007 mm, combined with a reading of 0.005 mm on the analogue scale. This balance of resolution and repeatability makes it well suited for standard workshop quality control where swift go/no-go decisions are required. The numeric stability of the mechanism reduces the need for repeated measures, shortening inspection cycles while maintaining documented tolerances. As a standard measuring class tool, it fits seamlessly into routine measurement plans for machining, assembly and maintenance tasks.

Robust three-point mechanism for reliable blind-hole measurement

A self-centring three-point system ensures the measuring heads align concentrically in blind bores, converting variable contact positions into a single, reproducible diameter value. The interchangeable measuring insert extends the instrument’s service life and enables adaptation to particular bore geometries without replacing the entire tool. Hard-metal measuring faces resist wear during repeated contact in production environments, reducing maintenance intervals and protecting measurement integrity. These features together deliver dependable internal measurements with minimal operator adjustment.

Practical integration, traceability and workshop benefits

Designed as an analogue instrument that is easy to handle, the micrometer combines traditional tactile control with industrial resilience. Its compact overall profile (length approx. 145 mm) and clear scale make it straightforward to use at the bench or in a fixture. Classified within the standard (100–300 mm) range, the tool suits common machine‑ and metal‑working applications where reach, stiffness and one‑hand operation are priorities. The device is supplied by Metav IndustryLine as SKU MS908.668, allowing straightforward specification management in procurement and inspection records.

Contact Metav Werkzeuge for tailored advice or to procure the Metav IndustryLine three-point internal micrometer MS908.668 with self-centring action and interchangeable insert.

Technical data

• Article number: MS908.668
• Name: Three-point internal micrometer
• Brand: Metav IndustryLine
• Category: Measuring micrometers
• Analogue instrument

Key measurements

• Measuring range: 225–240 mm
• Reading: 0.005 mm
• Accuracy: ±0.007 mm
• Length: 145 mm

Special features

• Self-centring three-point mechanism
• Interchangeable measuring insert
• Hard-metal measuring faces
• Suitable for blind-hole measurement
• Designed for standard workshop quality control

FAQ

How precise is this three-point internal micrometer?
The instrument offers an accuracy of ±0.007 mm with a reading of 0.005 mm, making it suitable for standard workshop verification and routine quality checks.

Is this micrometer suitable for blind bores?
Yes — the self-centring three-point mechanism is specifically designed for blind-hole measurement and ensures concentric contact within bores.

Can the measuring faces be replaced if worn?
The micrometer features an interchangeable measuring insert, allowing worn or specialised contact points to be changed without replacing the complete tool.

What material are the measuring faces made from?
The device has hard-metal measuring faces, chosen to resist wear from repeated measurements and maintain consistent performance.

Which measuring range does this instrument cover and what workshop class does it fit?
The unit covers 225–240 mm and is classified in the standard (100–300 mm) group, making it a versatile choice for machine and metalworking shops.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
