100mm Face Milling Cutter for SNKX 1206 Indexable Inserts, 45° Cutting Angle, 8 Inserts, 32mm Shank - Teknik Makina

Take advantage of a compact, high-stability design and proven compatibility with SNKX 1206 indexable inserts; the combination of a 45° cutting angle and Ø100 mm body delivers efficient face milling and predictable surface finish. Order directly via Metav Werkzeuge or ask the consultants for application advice.

Face milling head T330TM by Teknik Makina — face milling head for SNKX 1206 indexable inserts, 45° cutting angle

A robust face milling head T330TM designed for secure fitting of SNKX 1206 indexable inserts in general and finishing milling operations

• Compatible with SNKX 1206 indexable inserts
• Ø100 mm body diameter
• 45° cutting angle for versatile milling
• 32 mm arbor diameter for standard toolholders

Consistent cutting performance for production workflows

The T330TM face milling head is engineered to offer consistent cutting performance in batch and single-part production. The 45° cutting angle reduces cutting forces while maintaining effective material removal, which supports stable feeds and longer insert life. With a 113 mm max cutting diameter and a compact body of Ø100 mm, the head combines accessible reach with predictable cutting behaviour, enabling more efficient cycle planning and reduced rework.

Fast set-up and broad tooling compatibility

Designed for modern tooling systems, the head accepts SNKX 1206 indexable inserts and is compatible with insert brands such as Böhlerit, Korloy and Palbit. The 32 mm arbor accommodates standard arbors and clamping systems; the included Torx screw specification M4x12.5 with key T15 simplifies secure insert mounting. Explaining the term: indexable inserts are replaceable cutting tips that allow quick tool renewal without reclamping the entire head, which shortens downtime and keeps production flowing.

Durable design that supports workshop efficiency

With 8 cutting edges, a balanced geometry and a total length of 52 mm, the head is dimensioned for robust chip evacuation and even wear distribution. The measured weight of 1.926 kg contributes to stable spindle dynamics without excessive inertia. These features translate into fewer tool changes and consistent surface quality across runs, making the T330TM a practical choice where repeatability and uptime are priorities.

For tailored advice on integrating Teknik Cutting Tools' T330TM face milling head into existing toolholders, contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 — consultation and procurement support available.

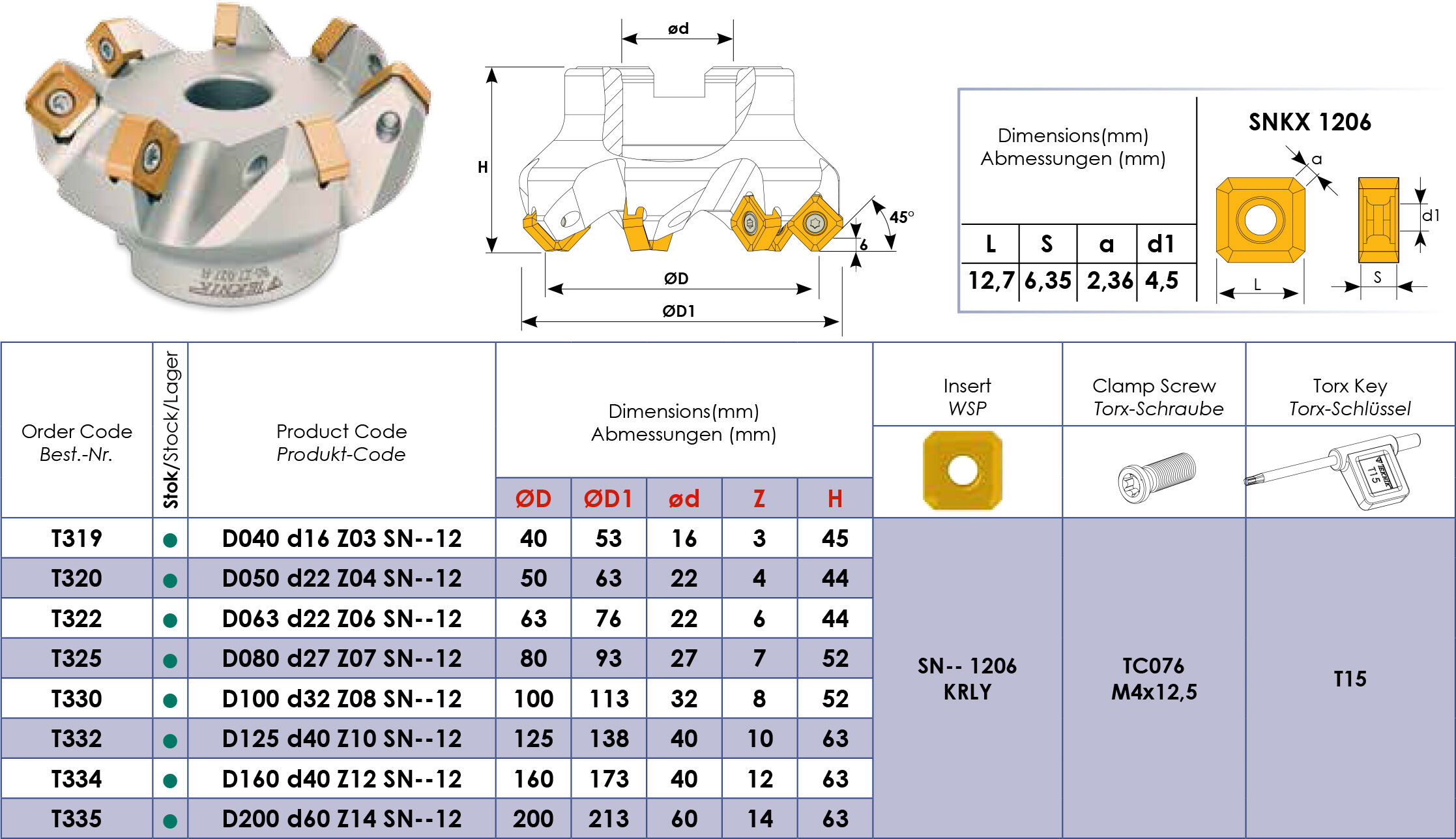

Technical data

• SKU: T330TM
• Manufacturer: Teknik Makina
• Designation: Planmesserkopf
• Secondary designation: for SNKX 1206 Indexable Inserts

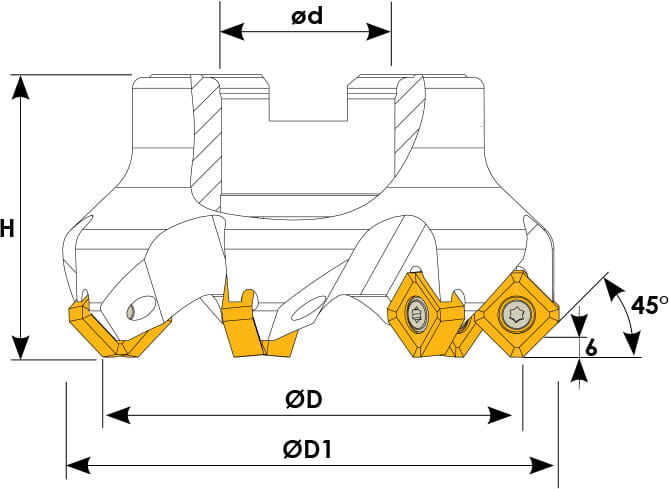

Facts

• Diameter (body): 100 mm
• Max. cutting diameter: 113 mm
• Arbor/holding diameter: 32 mm
• Total length: 52 mm
• Weight: 1.926 kg
• Cutting angle: 45°
• Number of cutting edges: 8
• Torx screw: M4x12.5
• Torx key: T15

Special features

• Suitable for SNKX 1206 indexable inserts
• Compatible with Böhlerit, Korloy, Palbit inserts
• Indexable-insert mounting for quick replacement
• Balanced geometry for stable milling

FAQ

What insert type does the T330TM accept?
The T330TM face milling head is configured for SNKX 1206 indexable inserts and supports inserts from Böhlerit, Korloy and Palbit.

What arbor diameter is required for mounting?
Mounting requires a 32 mm arbor, which fits standard toolholders used in many milling spindles.

How does the 45° cutting angle affect machining?
A 45° cutting angle reduces radial cutting forces and promotes smoother engagement, improving surface finish and extending insert life under comparable cutting conditions.

How many cutting edges are available on the head?
The head is designed with 8 cutting edges, providing balanced load distribution and efficient chip removal during face milling.

Is the T330TM suitable for larger face milling operations?
With a 113 mm max cutting diameter the T330TM covers many medium-sized face milling tasks while remaining compact for versatile setups.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
