100mm Corner Turning Tool Holder for LNGU 15T6 Indexable Inserts, 90° Cutting Angle, 8 Inserts, 32mm Shank - Teknik Makina

Combine the 90° cutting geometry, a 32 mm shank and compatibility with LNGU 15T6 indexable inserts to achieve repeatable corner turning and reduced setup times—order the component directly via Metav Werkzeuge or request technical advice from our consultants.

Corner tool head by Teknik Makina — 90° cutting angle, for LNGU 15T6 indexable inserts

A corner tool head engineered for precise external turning and cornering using LNGU 15T6 indexable inserts in standard 32 mm toolholders.

• 90° cutting angle for precise corner turning
• Compatible with LNGU 15T6 indexable inserts
• 32 mm shank diameter for common toolholders
• Secured with M4x11 Torx screw (T15)

Built for precise geometry and consistent finishes

The turning head is built around a 90° cutting angle, which keeps the cutting forces predictable and the tool path stable during cornering and profiling operations. Matching the geometry to the insert type—LNGU 15T6—ensures that each indexable face presents identical cutting geometry, so surface finish and dimensional repeatability are improved across batches. The design reduces the need for corrective rework and supports efficient production cycles by maintaining consistent edge engagement and chip control.

Secure clamping and compact footprint for fast changeovers

Mounting reliability is delivered via an M4x11 Torx screw tightened with a T15 drive, providing high clamping security for the insert seat without complex fixtures. The 32 mm shank offers a rigid connection to common toolholders, limiting deflection in interrupted cuts, while the compact overall length of 50 mm and a head diameter of 100 mm keep the assembly accessible in confined turning envelopes. The robust mass (approx. 1.933 kg) contributes to damping of vibration, improving both tool life and component quality during higher feed operations.

Compatibility, workshop benefits and application focus

Designed for indexable turning with LNGU 15T6 inserts and compatible with Kennametal insert geometries, the head suits operations such as corner turning, external profiling and small-step chamfering. Using an indexable insert system reduces tooling downtime and cost per edge compared with solid tooling, while the replacement routine is straightforward when the insert seat is secured by the Torx screw. The compact head supports versatile workshop deployment where space and changeover speed matter, helping to centralise tooling choices and streamline inventory.

Contact Metav Werkzeuge for a tailored integration plan or to request a technical quote for the Teknik Makina corner tool head T961TM

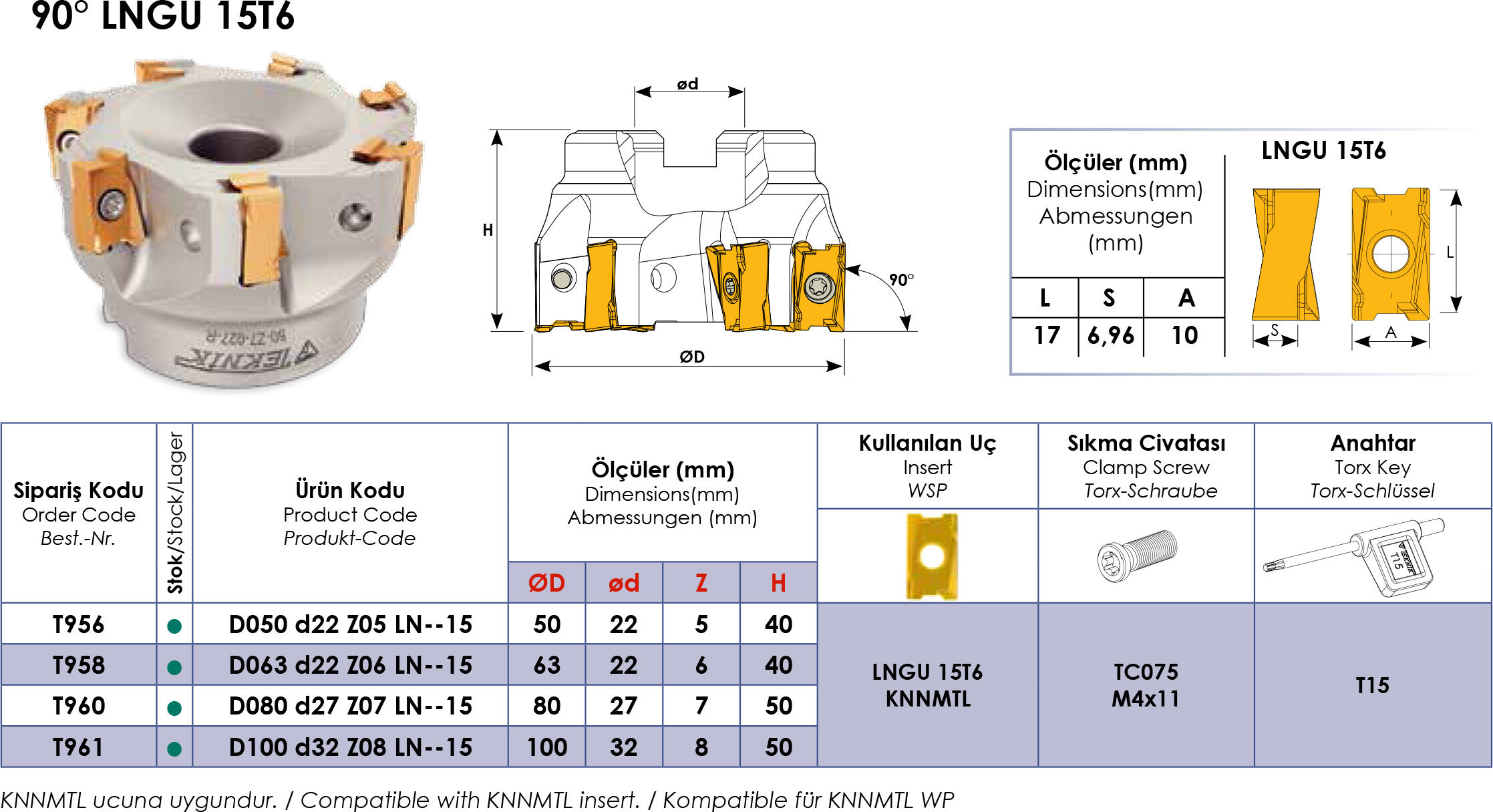

Technical data

• Article number: T961TM
• Manufacturer: Teknik Cutting Tools
• Brand: Teknik Makina
• Suitable for indexable inserts: LNGU 15T6
• Compatible insert manufacturer: Kennametal

Facts

• Shank diameter: 32 mm
• Head diameter: 100 mm
• Cutting angle: 90°
• Number of cutting edges: 8
• Overall length: 50 mm
• Weight: 1.933 kg

Special features

• Secured with M4x11 Torx screw
• Torx key size: T15
• Designed for indexable turning and corner machining
• Compact design for confined tool envelopes

FAQ

Which insert type fits this tool head?
The head is designed for LNGU 15T6 indexable inserts, compatible with Kennametal-style geometries.

What shank diameter is required for the toolholder?
A 32 mm shank diameter is required; the head mounts into standard 32 mm toolholders.

How is the insert secured in the tool head?
The insert seat is clamped using an M4x11 Torx screw tightened with a T15 drive for secure and repeatable fixing.

What operations is this head best suited for?
Best suited for corner turning, external profiling and small chamfering tasks where a 90° cutting geometry is required.

What is the article number for ordering and reference?
Refer to article number T961TM when enquiring or ordering the corner tool head.
