22-32mm Cartridge for Boring Tool CCMT 09T3, T15/M3.5x8.5 Torx - Teknik Makina
€58.00
Product information "22-32mm Cartridge for Boring Tool CCMT 09T3, T15/M3.5x8.5 Torx - Teknik Makina"
Take advantage of precise clamping, broad adjustability and simple insert replacement to streamline internal turning operations; order supply via Metav Werkzeuge or consult our technical team for tailored recommendations.

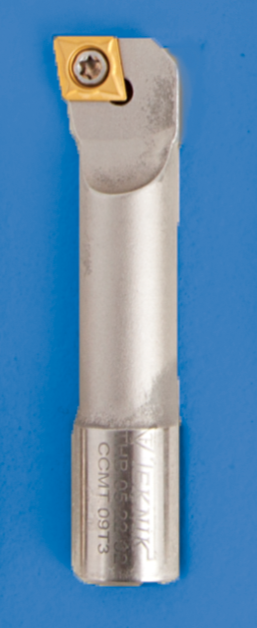

Cartridge THB05TM — 22–32 mm for boring tool set (Teknik Makina)
A Cartridge THB05TM designed for secure clamping in adjustable boring heads, intended for internal turning and finishing tasks in metalworking environments
- Adjustable 22–32 mm clamping range
- Accepts CCMT 09T3 indexable inserts
- Torx T15 key and M3.5×8.5 screw spec
- Robust cartridge for boring tool sets
Consistent clamping for accurate bore results
The cartridge is engineered to deliver repeatable concentricity across the 22–32 mm range, which reduces rework and improves process stability. Its compatibility with CCMT 09T3 indexable inserts ensures a familiar cutting geometry for many turning operations, while the adjustable clamping range permits one holder to replace several fixed shanks. For workshops seeking predictable cycle times and reduced set-up variance, this holder provides a solid technical basis for improved part quality.
Maintenance and insert change made efficient
Fast insert exchange is supported by a standard Torx T15 drive and an M3.5×8.5 retaining screw, allowing controlled removal and replacement of cutting tips without special tooling. The straightforward fastening arrangement helps shorten tool-change intervals and simplifies inventory of spare parts. Where downtime minimisation and clear maintenance procedures are priorities, the cartridge’s familiar hardware and indexed insert fit support reliable, low-complexity servicing.
Clear technical benefits for process planning
Using a single cartridge that covers 22–32 mm reduces the number of holders required and streamlines tooling lists, which benefits procurement and setup logistics. The acceptance of widely used CCMT 09T3 inserts means cutting data and edge preparations remain standardised across machines. For planners and operators, this translates into fewer tool variants, simpler tool presetting routines and more consistent finish quality on internal bores.
Practical applications and workshop integration
The unit is intended for integration into boring tool sets for internal turning, fine finishing and diameter adjustment tasks in conventional and CNC lathes. Its design supports flexible adaptation to differing bore sizes without the need for multiple dedicated holders, thereby saving bench space and lowering tooling complexity. In mixed-production environments where changeovers are frequent, the cartridge contributes to a leaner tooling system and helps maintain machining throughput.
Contact Metav Werkzeuge for tailored supply and technical advice on the Teknik Makina cartridge THB05TM; call +49 2822 7131930 or email info@metav-werkzeuge.com for reliable delivery from Emmerich.
Technical data
- Article number: THB05TM
- Manufacturer: Teknik Makina
- Description: Cartridge 22–32mm for boring tool set
Facts
- Clamping range: 22–32 mm
- Torx key size: T15
- Screw: M3.5×8.5
- eCl@ss: 21041590
Special features
- For CCMT 09T3 indexable inserts
- Intended for boring tool sets
- SKU: THB05TM
FAQ
Which indexable inserts fit this cartridge? The cartridge THB05TM accepts CCMT 09T3 indexable inserts and is configured for the common CCMT insert geometry used in internal turning.
What clamping range does the holder cover? The clamping range is 22–32 mm, enabling a single holder to accommodate a variety of internal diameters within that span.
How is the insert secured and changed? Insert retention is via an M3.5×8.5 screw tightened with a Torx T15 driver; the cartridge THB05TM permits controlled replacement following standard workshop procedures.
For which operations is this cartridge suitable? Designed for integration into boring tool sets, the cartridge is suitable for internal turning and finishing tasks where adaptable diameter control and repeatable clamping are required.
Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
| Designation: | Ausdrehwerkzeug Satz |
|---|---|
| Diameter-1: | mm |
Zubehör
Compact, space-saving fastening with a Torx drive and an M3.5 thread for reliable assemblies; combine secure engagement and precise dimensions for efficient production. Order this fastener directly via Metav Werkzeuge or consult our specialists for compatibility checks. Torx screw TC067TM — M3.5 thread, 8.5 mm length by Teknik Makina Torx screw TC067TM for compact mechanical assemblies, designed to deliver secure drive engagement and precise thread compatibility in confined spaces Torx drive for secure engagement Nominal diameter 5.3 mm Thread M3.5 standard Compact 8.5 mm total length Consistent torque transfer for dependable assembly results The Torx geometry is engineered to reduce cam‑out and provide improved torque transmission compared with slotted or Phillips drives. In practice this means assembly processes become more reliable and repeatable: a stable driver engagement reduces slip and wear on both tool and fastener; the combination of the Torx interface and the specified T15 matching key ensures a controlled transfer of force. For engineering teams this translates into fewer reworks and smoother production flow when fitting small components. Precision dimensions that save space and simplify design With a nominal diameter of 5.3 mm and a total length of 8.5 mm, the fastener is suitable for tight assemblies where clearance is limited. The external thread designated M3.5 conforms to standard metric sizing, enabling predictable mating with corresponding tapped holes or inserts. Designers benefit from the compact profile when specifying fastenings for enclosures, panels or small brackets, since predictable thread engagement and controlled head geometry support consistent clamping without excessive protrusion. Workshop efficiency and straightforward inventory management As a standardised metric fastener, the item streamlines procurement and tool selection across routine maintenance and assembly tasks. The relatively small mass (0.1 kg stated) aids logistics planning for storage and shipping bundles, while compatibility with the T15 driver reduces the number of specialised tools required on the workbench. Supplied under the Teknik Makina designation, the component is intended as a practical choice for small‑part assembly where standardisation and accessibility are priorities. Proven supply and service through a trusted partner Sourcing through Metav aligns the technical benefits of the fastener with dependable distribution and quality control. Metav’s role as a “quality filter” for the European market means buyers gain access to consistent stock, product verification and a broad range of workshop supplies alongside measurement and tooling solutions. This combination of a reliable feed of standard parts and technical consultancy supports long‑term operational stability in manufacturing and maintenance settings. For availability and order details of the Teknik Makina Torx screw TC067TM, contact Metav Werkzeuge in Emmerich — phone +49 2822 7131930 or email info@metav-werkzeuge.com for precise product information and stock status Technical Data Article number: TC067TM Manufacturer: Teknik Makina eCl@ss: 21189290 Core technical data Weight: 0.1 kg Diameter: 5.3 mm Thread: M3.5 Total length: 8.5 mm Head angle: 60° Features Drive type: Torx Suitable key: T15 Brand: Teknik Makina FAQ What driver fits this screw most effectively? The screw is designed for a Torx drive and is compatible with a T15 Torx key for optimal engagement. Which thread standard does the fastener use? This fastener uses an M3.5 metric thread suitable for corresponding tapped holes and standard inserts. What are the primary dimensions to consider during design? Key dimensions are a nominal diameter of 5.3 mm, a total length of 8.5 mm and a head angle of 60°, which help define clearance and engagement depth. Is this part a Teknik Makina product and what is the SKU? Yes — the item is listed under Teknik Makina and is supplied as TC067TM. For which kinds of assemblies is this fastener appropriate? The component is intended for compact mechanical assemblies and small fittings where a secure Torx drive and short overall length are required. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Are you unsure whether the tool is suitable for your application? Or do you need further technical information?No problem - feel free to contact us! 📧 eMail: info@metav-werkzeuge.com, ☎️ Phone: +49 2822 7131930, ✔️ WhatsApp: +49 170 2837271 Performance features indexable inserts CCMT 09T304 from MetavCUT Brand: MetavCUT Manufacturer Order Number: CCMT09T304-Steel ISO-Code: CCMT09T304 Usage for: Steel Material: cemented carbide Form: rhombic Usable to the work on: Stahl Clearance Angle: 7° with hole Hole Style: cylindrical hole + single-sided countersink (40°–60°) Thickness: 3,97mm Radius: 0.4 Chip Breaker: single-sided Angle: 80° Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; www.metav-shop.de; info@metav-werkzeuge.com 40START indexable-inserts-CCMT-09T304-Stahl-MetavCUT 40END
