Precision gauge blocks and plug gauges for reliable dimensional control
Mechanical gauge blocks and plug gauges are essential for tactile verification of threads, bores and gap dimensions, providing fast, unambiguous go/no-go results that enhance process reliability and reduce scrap. Designed for industrial metalworking and toolmaking, these precision tools support incoming inspection and final quality checks by delivering traceable measurements in applications such as thread inspection, bore diameter testing and spacing checks. Manufactured from specially hardened, low-distortion alloys and fine-lapped for minimal measurement uncertainty, the range includes thread plug gauges, precision plug gauges and calibration gauge blocks to ensure long-term repeatability and wear resistance.
72mm Setting Ring Form C Hardened Gauge Steel DIN 2250, DIN 286 JS3 - Metav IndustryLine
Benefit from a combination of hardened and lapped gauge steel, precise JS3 tolerance and conformity to DIN 2250 / DIN 286 for repeatable set-up and inspection of 72 mm diameters; order the setting ring directly via Metav Werkzeuge or consult our specialists for application advice. M313.072 setting ring gauge 72 mm — hardened & lapped (Metav IndustryLine) The M313.072 setting ring gauge is a Form C ring gauge intended for precision setting and verification of external diameters and calibration tasks in toolrooms and inspection benches. Form C ring gauge, DIN 2250/286 compliant Hardened and lapped gauge steel finish JS3 tolerance for accurate fits Suited to workshop and inspection use Precision where measurement matters The setting ring is manufactured from gauge steel, hardened and lapped, providing a wear‑resistant measuring surface that preserves dimensional integrity over repeated use. Compliance with DIN 2250 and DIN 286 together with a JS3 tolerance class ensures that the component serves as a reliable reference for setting and checking gauges, micrometres and calibration fixtures. The stabilized surface finish reduces measurement scatter and supports consistent set‑ups across production runs, contributing to traceable process control. Practical benefits for workshop and inspection A ring of this specification simplifies routine calibration and go/no‑go verification tasks; its Form C design permits straightforward mounting and handling on benches and in jigs. The lapped bore yields low surface roughness, which reduces wear on mating parts and maintains fit accuracy. As a result, inspection cycles can be shortened and instrument downtime minimised. The combination of robust material treatment and close tolerance class benefits workshops that require reliable repeatability rather than frequent replacements. Handling, maintenance and integration Routine maintenance consists of gentle cleaning and corrosion protection; avoid abrasive contact with the measuring diameter to preserve the lapped finish. The ring integrates easily into existing calibration routines and can be used as a reference during setting of external gauges or as a control standard in incoming inspection. Proper storage, ideally in a protective sleeve or rack, helps to maintain the gauge’s reference quality and extends service life, supporting a lower total cost of ownership through fewer replacements. Quality assurance and traceability Manufactured to recognised metrological standards, the gauge supports documented quality processes and helps meet internal and external inspection requirements. The conformity to DIN standards and the tight JS tolerance provide an objective basis for acceptance criteria in production and quality assurance tasks. Where full calibration documentation is required, Metav can advise on suitable calibration services and traceability options to match laboratory or workshop needs. Contact Metav Werkzeuge for specification matching and supply of the M313.072 setting ring gauge from Emmerich — our consultants will help select the correct gauge grade for the application Technical Data SKU: M313.072 GTIN: 4054469120928 ECLASS: 21170104 Norm: DIN 2250, DIN 286, JS 3 Facts Diameter: 72 mm Form: C Category: Gauges / Setting rings Special features Material: gauge steel, hardened and lapped Finish: lapped measuring surface Application: setting and inspection, workshop and toolroom use Tariff code: 90173000 FAQ What tolerance class does this setting ring conform to? The setting ring conforms to JS3 tolerance class as stated in the product data; this ensures a tight fit suitable for precise setting and inspection tasks. Is the ring suitable for routine calibration of external gauges? Yes — the M313.072 setting ring gauge is designed for use as a reference in setting external gauges and for verification work on inspection benches. Which standards apply to this ring gauge? The component is produced to DIN 2250 and DIN 286, which define form, tolerance and inspection practice for ring gauges and related metrological tools. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
75mm Limit Plug Gauge DIN 2245 H7 Hardened Gauge Steel 2.7kg - Metav IndustryLine
Data discrepancy: the product label specifies a weight of 2.3 kg while the weight_kg field states 2.7 kg. This inconsistency could lead to errors in processing, inventory management, or customer communication. To ensure accuracy, it is essential to verify the correct weight before using these details. Double-checking the source of the data and cross-referencing it with other records may help identify the correct value. Additionally, consider whether the discrepancy might be due to a typographical error, rounding differences, or changes in product specifications. Resolving this issue promptly will help maintain data integrity and prevent potential misunderstandings.
75mm Setting Ring Form C Hardened Gauge Steel DIN 2250/DIN 286 JS3 - Metav IndustryLine
Benefit from a robust, DIN‑compliant master for setting and verifying gauges: the hardened, lapped gauge steel construction and precise 75 mm diameter ensure repeatable setpoints and long service life. Order the setting ring directly via Metav Werkzeuge or consult our specialists for application advice. Setting ring 75 mm — hardened gauge steel, DIN 2250 / DIN 286 Setting ring 75 mm is a precision setting gauge for establishing and checking reference dimensions in workshop and calibration environments Hardened, lapped gauge steel Conforms to DIN 2250 / DIN 286 JS 3 Precise 75 mm setting diameter Form C profile for secure seating Reliable master for repeatable setpoints A hardened and lapped construction provides a stable reference that resists wear and preserves dimension over prolonged use. The combination of hardened and lapped gauge steel with a defined Form C seating reduces elastic deformation at contact points and ensures repeatability when used as a master for setting plug gauges, go/no‑go gauges or comparative fixtures. Conformance to DIN 2250 and DIN 286 JS 3 offers a verifiable baseline for quality processes and simplifies integration into documented inspection routines. Compact size with workshop practicality The compact 75 mm diameter makes this gauge suitable for bench‑top calibration rigs and production checks where space and handling convenience matter. The smaller footprint supports quick, confident positioning and rapid gauge setting without sacrificing stiffness. Built for everyday use in machine shops and toolrooms, the ring’s finish facilitates consistent contact geometry and reduces the need for frequent rework of settings, improving throughput in repetitive inspection tasks. Designed for traceable quality assurance Featuring clear identification and standards alignment, the ring serves as a traceable physical reference within a measurement chain. Markings and the supplied article coding allow straightforward documentation in quality records and inventory systems. Where definitive traceability is required, the ring is suitable as a master for calibration comparisons and process standardisation — helping to secure consistent production tolerances and clearer audit trails for statutory or customer requirements. Contact Metav Werkzeuge today to discuss how the hardened 75 mm setting ring from Metav IndustryLine fits into existing inspection workflows and to receive tailored advice from our technical team Technical data Article number: M313.075 GTIN: 4054469120935 Category: Gauges / Setting rings Facts Diameter: 75 mm eClass: 21170104 Tariff number: 90173000 Special features Material: gauge steel, hardened and lapped Standard: DIN 2250; DIN 286; JS 3 Form C SKU: M313.075 Brand: Metav IndustryLine FAQ What materials is the setting ring made from? The setting ring is manufactured from hardened and lapped gauge steel, providing high wear resistance and stable contact surfaces. Which standards does this gauge comply with? This gauge conforms to DIN 2250 and DIN 286 with a JS 3 tolerance class, supporting use as a workshop master and reference artefact. Can the ring be used as a master for setting plug gauges? Yes, the 75 mm diameter and Form C seating make the ring suitable as a master reference for setting and checking plug and go/no‑go gauges. How should the setting ring be stored to maintain accuracy? Store the ring in a clean, dry environment and protect it from impacts and corrosive agents; regular visual inspection and gentle handling will preserve the lapped surfaces. Is the ring appropriate for production and calibration lab use? The combination of hardened, lapped surfaces and DIN conformity makes the ring appropriate for both production setting tasks and calibration comparison measurements. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
78mm Go/No-Go Plug Gauge H7, Hardened Gauge Steel, DIN 2245 - Metav IndustryLine
Take advantage of a precise, workshop-ready checking tool that combines DIN 2245 conformity with a hardened gauge‑steel construction for consistent bore verification. The H7 tolerance and 78.0 mm nominal diameter enable rapid go/no‑go decisions while maintaining traceability. Order the limit plug gauge directly via Metav Werkzeuge or ask our consultants if needed. Limit plug gauge 78.0 mm H7 — DIN 2245 (Metav IndustryLine) A Limit plug gauge 78.0 mm H7 designed for fast, repeatable bore checks in production and workshop quality control. Hardened gauge steel construction Manufactured to DIN 2245 standard H7 tolerance for precise bore checking Compact design for workshop use Quick conformity checks to speed production The go/no‑go concept of this gauge provides an immediate, unambiguous result for bore acceptance. Manufactured to DIN 2245, the gauge is suited to shop‑floor routines where throughput and reliability matter; a simple pass or fail saves time compared with dimensional remeasurement. The built‑in H7 tolerance and 78.0 mm nominal size mean rapid decision‑making for batches, reducing inspection bottlenecks and supporting consistent process control. Robust materials for long service life Made from hardened gauge steel, the gauge resists wear and preserves measurement integrity over repeated cycles. The choice of hardened tool steel minimises profile change during normal use, which translates into fewer replacements and predictable maintenance intervals. This durability supports a lower total cost of ownership in production environments where tools are subject to frequent handling. Traceability and workshop integration The gauge is supplied with clear identifiers and conforms to relevant industry classification, easing incorporation into existing quality systems. With a defined nominal diameter and standard compliance, it supports documentation practices and audit trails. The compact design also simplifies storage on inspection trolleys or in control stations, enabling faster retrieval and consistent positioning during checks. Practical use and benefits for the team Ideal for component inspection, assembly verification and incoming goods control, the gauge reduces operator uncertainty and helps maintain product conformance. Its simple handling reduces training time and encourages routine checks, promoting a culture of quality on the shop floor. The robust construction and standard alignment provide reassurance that inspection results are reliable and repeatable. For reliable bore verification choose the Metav IndustryLine limit plug gauge (M314.078) and arrange supply through Metav Werkzeuge in Emmerich — consultants are available to advise on application and shop integration. Technical data Article number: M314.078 GTIN: 4054469121857 Standard: DIN 2245 Diameter: 78.0 mm Material: hardened gauge steel Facts Tolerance: H7 eClass: 21170218 Customs tariff number: 90173000 SKU: M314.078 Special features Designed for bore acceptance testing Go/no‑go limit plug configuration Compact format for workshop use Traceable product identifiers for quality records FAQ What nominal size and tolerance does this gauge check? The limit plug gauge checks a nominal bore of 78.0 mm with an H7 tolerance; the designation is reflected on the Metav IndustryLine item M314.078. Is the gauge suitable for repeated shop‑floor use? Yes. The limit plug gauge is manufactured from hardened gauge steel for wear resistance, making it suitable for frequent checks in production environments. Does this gauge comply with recognised standards? The gauge is produced to DIN 2245, ensuring compatibility with common inspection routines and documentation requirements. How should the gauge be stored to maintain accuracy? Store the gauge dry and protected from impacts; keeping it in a dedicated tray or drawer prevents nicks and contamination that could affect performance. Can the gauge be used for final acceptance testing? The go/no‑go limit plug is intended for conformity checks and routine acceptance; for detailed dimensional analysis, complementary measurement methods should be used. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
78mm Setting Ring Form C Hardened Gauge Steel DIN 2250, JS3 - Metav IndustryLine
Take advantage of a compact gauge that combines DIN-conform tolerance, hardened and lapped gauge steel construction and a stable Form C geometry for repeatable setting operations; procure the component directly via Metav Werkzeuge or consult the technical team for specification matching. Setting Ring 78 mm (DIN 2250) — Hardened, Lapped Gauge Steel — Metav IndustryLine The Setting Ring 78 mm is a precision ring gauge designed to set and verify dimensional measuring instruments and plug gauges where a robust, standards-compliant reference is required. Hardened, lapped gauge steel DIN 2250/DIN 286, JS 3 tolerance Precision diameter 78 mm Form C geometry for stable seating Stable reference for repeatable setup and inspection A compact, standards-oriented ring gauge provides a reliable datum for calibration benches and workshop checks. The reference is manufactured from hardened and lapped gauge steel, which reduces surface wear and preserves the reference diameter over extended use. Compliance with DIN 2250 and DIN 286 combined with the JS 3 tolerance class ensures that the ring serves as a verifiable master for setting plug gauges, bore gauges and comparators. By offering an unambiguous, machine-readable standard, the instrument supports consistent measurement chains and reduces downstream rework. Material and finishing that sustain accuracy The choice of gauge steel and a final lapping operation deliver a contact surface with low roughness and minimal run-out, which is crucial when repeatability is a priority. A Form C profile offers a stable seating form that minimises rocking during contact, translating into fewer measurement artefacts when instruments are set against the ring. The material and geometry together slow dimensional drift and limit surface degradation, which lowers the frequency of recalibration cycles and maintains process capability for longer production runs. Practical workshop integration and efficiency benefits This ring gauge is easy to integrate into shop-floor routines: its compact diameter and robust build permit secure clamping or mounting on inspection fixtures, while the clear nominal dimension simplifies inventory handling. Using a calibrated reference minimises setup times on gauges and reduces uncertainty in first-article inspections; the result is a faster throughput from measurement to production decision. The component has a small footprint and durable finish, so it suits both dedicated metrology benches and routine quality-control stations where a reliable reference is required. Discuss procurement and application details with Metav Werkzeuge to ensure the Setting Ring 78 mm meets the inspection requirements and integration needs of the production environment Technical Data Article number: M313.078 GTIN: 4054469120942 EClass: 21170104 Customs tariff number: 90173000 Facts Diameter: 78 mm Form: C Tolerance class: JS 3 Standards: DIN 2250, DIN 286 Materials / Special features Material: gauge steel, hardened and lapped Finish: lapped measuring faces Category: setting gauge / ring gauge FAQ What is the primary use of this setting ring? The Setting Ring 78 mm is intended as a calibration and reference standard for setting plug gauges, bore gauges and comparator masters in inspection and workshop environments. Which standards and tolerance class apply to the ring? The ring is manufactured to DIN 2250 and DIN 286 with a JS 3 tolerance, providing a clear conformity baseline for inspection tasks. How does the material choice affect longevity? Construction from hardened, lapped gauge steel reduces wear and surface degradation, preserving the nominal diameter for extended service life. Is the ring suitable for routine shop-floor use? Yes — the Form C geometry and robust finish make the ring well suited to both metrology benches and regular workshop setting operations. Can this ring be used as a master for comparator checks? The Setting Ring 78 mm is suitable as a master reference for comparator and gauge-setting sequences, owing to its standards conformity and stable surface finish. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
7mm Gauge Ball Pair, Hardened Chrome Steel, 0.003mm Accuracy, 0.00008mm Diameter Tolerance - Metav IndustryLine
Take advantage of the combination of 7 mm diameter, 0.003 mm accuracy and hardened chrome‑steel construction for dependable reference measurements in inspection and calibration. Order the gauge balls directly via Metav Werkzeuge or ask our consultants for application advice and delivery information. Gauge Ball Pair M318.417 — 7 mm hardened chrome steel, 0.003 mm accuracy (Metav IndustryLine) A gauge ball pair M318.417 designed for high‑precision dimensional checks, reference measurements and alignment tasks in metrology and inspection. Hardened chrome steel > HRC 62 Matched pair, diameter 7 mm High precision: 0.003 mm accuracy Diameter tolerance 0.00008 mm Ultra‑smooth surface Ra 0.00001 Precision where reproducibility matters The matched balls provide a defined, repeatable contact geometry that reduces setup variation and measurement uncertainty. With an accuracy of 0.003 mm and a diameter tolerance of 0.00008 mm, the set serves as a measurable reference for comparative checks, instrument verification and kinematic seating. The numerical specifications mean that deviations remain within tight, quantifiable limits, which supports process control and reduces the need for repeated rework. Durable material for long service life Manufactured from hardened chrome steel, the balls combine surface hardness and corrosion resistance for sustained performance in metrological environments. A hardness rating of > HRC 62 limits wear during repeated contact cycles, while the ultra‑smooth surface finish (Ra 0.00001) minimises micro‑asperity interaction and ensures low friction seating. These material properties translate into fewer measurement drifts over time and a longer interval between replacements. Ready for integration in inspection workflows The paired configuration and small 7 mm diameter make the set suitable for plug gauges, comparative masters, probe testing and calibration rigs where compact, high‑precision references are required. Delivered as a matched set of two, the balls ease mounting in fixtures and allow symmetrical reference points for alignment tasks. The combination of tight tolerance and matched pairing supports consistent results when used with tactile probes, optical comparators or gauge blocks. Confidence through traceable quality and support Production under a defined quality process ensures consistent dimensional integrity and surface condition. Backed by Metav’s position as a precision partner, the product benefits from a European quality filter based in Emmerich that simplifies procurement and aftermarket advice. The familiar workshop supply chain and technical consultation options help bridge the gap between technical requirements and practical application for both industry and trade. For application recommendations or to request a quotation for this gauge ball pair, contact Metav Werkzeuge for technical guidance and delivery from Emmerich. Technical Data Article number: M318.417 GTIN: 4054469184050 SKU: M318.417 Facts Diameter: 7 mm Accuracy: 0.003 mm Diameter tolerance: 0.00008 mm Surface roughness: 0.00001 Hardness: > HRC 62 Weight: 0.05 kg Special features Material: hardened chrome steel Set configuration: matched pair (2 pieces) Application: gauges / inspection / reference measurements Category: Lehren (gauges) FAQ What are the nominal size and accuracy of the balls? The gauge ball pair M318.417 has a nominal diameter of 7 mm and an accuracy of 0.003 mm, specified for use as a reference in inspection and calibration tasks. Can these balls be used as a reference for gauge calibration? Yes, the matched pair is intended for reference and alignment work; the tight diameter tolerance of 0.00008 mm supports comparative checks and kinematic seating in calibration setups. What material are the balls made from and how hard are they? The balls are made of hardened chrome steel with a hardness greater than HRC 62, providing wear resistance suitable for repeated measurement cycles. Are the balls supplied as a matched set and how many pieces are included? The product is supplied as a set of two matched balls, configured to provide consistent reference points for inspection fixtures and measuring devices. What surface finish and measurement reproducibility can be expected? The gauge balls feature an ultra‑smooth surface (0.00001), which reduces contact variability and helps maintain reproducible measurement results. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
7mm Gauge Pin, Single, ±0.001mm Accuracy, Length 50mm, Workshop Finish - Metav IndustryLine
Take advantage of the combination of shop‑ready robustness, ±0.001 mm dimensional accuracy and a compact 50 mm length for repeatable end‑dimension checks. Order the gauge pin directly via Metav Werkzeuge or consult the in‑house specialists for application advice. Gauge pin M323.700 – single, 7.00 mm, ±0.001 mm tolerance (50 mm length) The gauge pin, single, 7.00 mm offers a precision test pin for end‑dimension checks and go/no‑go verification in workshop and inspection environments. ±0.001 mm tolerance for high precision 7.00 mm diameter for tight‑fit checks 50 mm length for compact end‑dimension control Workshop design with transport case included Precision that shortens inspection time and reduces rework The compact pin delivers ±0.001 mm tolerance on a 7.00 mm diameter, enabling fast, decisive assessments of mating bores and seats. Such fine accuracy transforms manual checks into reliable go/no‑go verifications and supports consistent sampling in production. By compressing high resolution into a short 50 mm length, the component reduces the need for adjustment or auxiliary fixturing, which in turn lowers inspection cycle time and limits the risk of scrap due to undetected dimensional errors. Built for the shop floor: durable handling and organised storage Specified as a workshop design, the pin is manufactured from special steel chosen for wear resistance under repetitive use. The carefully proportioned mass and a total length of 50 mm ensure stable handling during routine checks, while the supplied transport case protects the gauge pin during storage and movement between workstations. These attributes keep downtime to a minimum and preserve measurement integrity across repeated use, supporting steady throughput on the production line. Practical fitment: where the pin adds value in measurement workflows Designed for end‑dimension checks and alignment tasks, this single gauge pin suits quality control, toolmaking and small‑batch production verification. The article M323.700 is ideal when space is limited but measurement certainty is required; its tight tolerance helps to verify press fits, guide bores and locating features without elaborate setups. Integration into inspection benches or quick‑change jigs is straightforward, enabling the pin to become a repeatable reference point in everyday measurement routines. For dependable end‑dimension verification with Metav IndustryLine quality, contact Metav Werkzeuge in Emmerich for ordering and technical consultation via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: M323.700 GTIN: 4061905059391 Label: Gauge pin, single, 7.00 mm, ±0.001 mm, length 50 mm Category: Gauge pins Facts Diameter: 7.00 mm Length: 50 mm Tolerance / accuracy: ±0.001 mm Weight: 0.019 kg eCl@ss: 21170231 Special features Workshop design Material: special steel Supplied in transport case Intended use: end‑dimension checks FAQ What measurement tolerance does the gauge pin offer? The gauge pin offers a tolerance of ±0.001 mm as specified for the single 7.00 mm test pin. Is the pin suitable for repeated shop‑floor use? Yes, the workshop design and special steel construction make the gauge pin suitable for repeated inspections and everyday handling. For which checks is this pin intended? The pin is intended for end‑dimension checks, go/no‑go verifications and alignment tasks in quality control and toolmaking. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
7mm Limit Plug Gauge Wear Measurement Tip, Hardened Steel, DIN 7162 - Filetta
The combination of hardened steel construction, DIN 7162 conformity and a built‑in wear allowance on the good side provides reliable, repeatable limit checks with low life‑cycle cost; order this limit plug gauge directly via Metav Werkzeuge or consult our specialists for application advice. Limit plug gauge G7 — 7 mm, hardened steel (Filetta) The limit plug gauge G7 is a precision limit gauge designed for rapid go/no‑go verification of bore diameters in production and inspection environments. Hardened steel for lasting dimensional stability Conforms to DIN 7162 for standardised tolerances Wear allowance on the 'good' side for reconditioning Ideal for rapid go/no‑go bore checks Fast, standards‑based inspection to keep throughput steady This limit gauge is manufactured from hardened steel and produced to DIN 7162, ensuring that each check delivers a clear, standards‑based decision: accept or reject. The compact pin form factor enables go/no‑go testing at production stations or in the quality lab with minimal setup time. By using a dedicated limit pin for a specific nominal diameter, process control becomes faster and less error‑prone than repeated measurement and calculation, improving overall line efficiency. Built for durability and easy maintenance The design incorporates an explicit wear allowance on the good side, which preserves functional limits after regrinding and extends service life. This intentional allowance means the pin can be reconditioned rather than replaced when surface wear appears, reducing total cost of ownership and downtime. The hardened surface resists abrasion in routine checks, while the clear distinction of the 'good' and 'no‑go' ends simplifies handling and reduces the risk of incorrect use. Practical fit for shop‑floor quality routines As a limit checking tool, the plug gauge integrates into visual and tactile inspection routines: a clear pass or fail removes ambiguity and accelerates decision loops. The small nominal diameter of 7 mm suits components in mechanical assemblies, hydraulic and pneumatic parts, and small‑bore workpieces where quick verification is required. Lightweight and compact, the gauge is easy to store at point of use and to include in inspection kits, helping standardise checks across operators and shifts. For procurement or technical clarification about Filetta limit plug gauges and availability via Metav Werkzeuge, contact our Emmerich team for tailored advice and stock information Technical data Article number: MS911.169 Brand: Filetta Nominal size: 7 mm Material: hardened steel Standard: DIN 7162 Facts Product type: limit plug gauge (go/no‑go) SKU: MS911.169 Typical application: bore diameter verification Format: pin / plug gauge Special features Wear allowance on the good side for regrinding Conforms to standardised tolerances (DIN 7162) Robust surface hardness for repeated checks FAQ What tolerance standard does this limit gauge follow? The limit plug gauge is manufactured to DIN 7162, which defines the dimensional and tolerance requirements used for standardised go/no‑go gauges. Can the gauge be reconditioned when worn? Yes, the built‑in wear allowance on the good side permits regrinding and requalification so the gauge remains serviceable over a longer period. Is this gauge suitable for quick shop‑floor checks of small bores? Yes, the 7 mm nominal diameter and pin format make the gauge well suited to rapid verification of small bores in production and inspection stations. Which materials is the gauge intended to inspect? The gauge is intended for dimensional verification of bores regardless of the workpiece material; material compatibility depends on the component, not the gauge itself. How is the pass/fail decision presented during inspection? The plug gauge provides an immediate pass/fail result: the go end should enter the bore, while the no‑go end must not, enabling unambiguous acceptance control. Manufacturer / Responsible: Schut Geometrische Meettechniek bv; Duinkerkenstraat 21; 9723 BN Groningen; The Netherlands; +31 50 5877877; schutnl@schut.com
7× Shore A Comparison Plates 36–94 HA ±2 HA, Case Included - Metav IndustryLine
Take advantage of a compact reference range and consistent tolerance to speed up hardness checks and maintain production quality; combine 36–94 HA coverage with a repeatable ±2 HA tolerance for efficient verification. Order the set through Metav Werkzeuge or consult our specialists for application advice. M208.361 Shore A Comparison Plate Set — 7 calibrated reference plates, 36–94 HA, ±2 HA tolerance (Metav IndustryLine) The M208.361 Shore A Comparison Plate Set provides standardised hardness references for quick verification of Shore A durometers in rubber and elastomer quality control, enabling straightforward checks at incoming inspection or on the shop floor. Seven calibrated Shore A reference plates Covers 36–94 HA hardness levels Tolerance ±2 HA for quick checks Suitable for Shore A / A0 durometers Reliable reference for faster hardness verification The set delivers a compact selection of reference plates that simplify routine checks of durometers. With clearly defined steps across the hardness curve and a declared ±2 HA tolerance, this kit offers a pragmatic balance between specificity and convenience. Using comparison plates reduces the need for time‑consuming instrument recalibration during frequent spot checks, supporting a continuous inspection flow and helping to detect drift before parts leave the production line. The construction and nominal dimensions ensure consistent contact geometry for repeatable readings with handheld Shore testers. Broad hardness range matched to common materials Covering 36–94 HA, the plates span the most used range for elastomers, soft rubbers and many polymer blends, making the set suitable for verification tasks in rubber goods, seals, gaskets and similar components. The graded hardness steps assist in assessing whether a durometer reading sits within expected process limits, aiding swift pass/fail decisions. Lightweight and compact, the comparison set can be kept at the inspection station for immediate cross‑checks, reducing throughput interruptions and improving traceability of routine measurements. Practical handling for everyday quality routines Designed as a straightforward comparator tool, the set supports quick tactile comparisons and visual documentation of instrument condition. Plates are numbered and laid out for logical sequence checks, helping operators to perform consistent measurements with minimal training. The low mass and standardised face size allow stable contact with most handheld Shore A testers, improving reproducibility during successive readings. For workshops seeking an uncomplicated verification method, the set offers an economical way to uphold measurement confidence between formal calibrations. Contact Metav Werkzeuge for tailored advice on integrating the M208.361 into existing quality workflows or to confirm suitability for specific elastomer classes Technical Data SKU: M208.361 Manufacturer: Metav IndustryLine Weight: 0.1 kg Set composition: 7 pieces Facts Hardness values: 36, 42, 55, 67, 75, 85, 94 HA Tolerance: ±2 HA Dimensions (per plate): 50 x 50 x 8 mm Special features Suitable for Shore A / A0 durometers Comparison plates for verification of durometer readings Designed for routine inspection and quick checks FAQ What hardness levels are included in the set? The set includes reference plates at 36, 42, 55, 67, 75, 85 and 94 HA, allowing checks across a broad part of the Shore A scale. Is the M208.361 intended for Shore A durometers only? The M208.361 is configured for Shore A / A0 testers and is intended to verify readings for soft to medium elastomers and similar materials. How should the comparison plates be used for a verification check? Place the durometer on a chosen plate, allow the instrument to stabilise, and compare the reading with the known plate value; the M208.361 offers a practical means to identify drift between formal calibrations. Does the set replace formal calibration? No, the set serves as a verification tool for routine checks and condition monitoring; it does not replace traceable calibration procedures performed by accredited laboratories. Can the plates be used for documentation and quality records? Yes, the plates provide repeatable reference points useful for documenting instrument condition and supporting in‑process quality records. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8 mm Ceramic Gauge Ball (Si3N4) 0.003 mm Accuracy, HV1400-1700 Hardness - Metav IndustryLine
Benefit from an 8 mm Si3N4 ceramic gauge ball that combines sub‑micrometre surface finish with a 0.003 mm accuracy and exceptional hardness for reproducible reference measurements; order directly via Metav Werkzeuge or consult our specialists for application advice. Ceramic gauge ball (Si3N4), 8 mm — 0.003 mm accuracy by Metav IndustryLine The Ceramic gauge ball (Si3N4) serves as a compact, highly stable reference sphere for dimensional checks, calibration and precision gauging across workshop and laboratory environments. 8 mm Si3N4 ceramic gauge ball Diameter tolerance 0.00008 mm Surface roughness Ra 0.00001 Precision that reduces inspection uncertainty A small reference sphere with a declared accuracy of 0.003 mm provides a direct benefit in traceable measurement chains: fewer correction steps, faster CMM probe verification and more consistent gauge results. The silicon nitride base material (Si3N4) offers a marked advantage in thermal stability and wear resistance compared with softer materials, so reference values remain reliable over repeated use. The combination of tight diameter tolerance and fine surface finish reduces contact‑induced errors and improves reproducibility in routine checks. Designed for tight spaces and repeatable setups The compact 8 mm size is ideal for confined assemblies, ball plates and miniature fixtures where a larger reference would be impractical. Its high hardness (HV1400–1700) makes the sphere resistant to deformation from clamping or probing forces, thereby preserving calibration intervals. The smooth finish (Ra 0.00001) lowers friction during touch probe contacts and helps maintain consistent kinematic behaviour, which is particularly useful when integrating the sphere into inspection sequences or quick verification routines. Low‑maintenance reference with clear traceability A hard, dense ceramic sphere demands minimal surface treatment and is simple to clean without affecting metrological properties; routine wiping is sufficient to remove residues. Traceability and identification are supported by the clearly assigned article number and GTIN, which simplify inventory and quality documentation. The reference sphere’s modest mass and geometry facilitate quick placement in test rigs and enable predictable handling for repeat measurements without complex fixturing. Contact Metav Werkzeuge for tailored calibration options and supply from our Emmerich quality hub, delivered with precise documentation and application advice. Technical Data Article number: M318.438 GTIN: 4054469184388 Diameter: 8 mm Material: Ceramic (Si3N4) Weight: 0.08 kg Core specifications Accuracy: 0.003 mm Diameter tolerance: 0.00008 mm Surface roughness: 0.00001 Hardness: HV1400–1700 Special features Suitable for gauge and reference measurements High wear resistance and thermal stability Smooth surface finish for low contact error Intended for laboratory and workshop use FAQ What measurement tasks is this sphere best suited for? The 8 mm ceramic reference sphere is intended for calibration, probe validation and reference measurements in gauging setups and CMM workflows; the M318.438 gauge ball provides a stable contact surface for these tasks. How does the material affect performance over time? Silicon nitride (Si3N4) offers high hardness and thermal stability, so the reference sphere resists wear and thermal distortion better than many metals, helping to keep calibration intervals consistent. Is the diameter tolerance sufficient for precision metrology? With a diameter tolerance of 0.00008 mm and an accuracy rating of 0.003 mm, this sphere meets the demands of many calibration and verification applications where reproducible reference geometry is required. Can the sphere be used with touch probes and optical systems? Yes; the combination of fine surface finish and robust material makes the sphere suitable for tactile probe contacts and for use as a reference in optical inspection where a stable, low‑friction surface is beneficial. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8 mm Ceramic Setting Ring 0.001 mm Accuracy, Stainless Antimagnetic Zirconia HV1250 - Metav IndustryLine
Benefit from the combination of sub-micron accuracy, exceptional surface hardness (HV 1250) and a wear‑resistant, antimagnetic zirconia ceramic construction for dependable reference dimensions in workshop and inspection tasks. Order the ceramic setting ring directly via Metav Werkzeuge or ask our consultants if needed. Ceramic setting ring 8 mm 0.001 mm (30x8) — Zirconia reference ring, ±0.001 mm | Metav IndustryLine A ceramic setting ring 8 mm 0.001 mm designed as a compact, workshop-grade reference for dimensional set‑up and short-range calibration tasks across machine shops and inspection benches. Zirconia ceramic, corrosion and wear resistant Precision ±0.001 mm for high-accuracy setups Antimagnetic and dimensionally stable under stress Workshop-grade hardness HV 1250 for durability Repeatable reference for precision set‑ups The ring serves as a compact reference standard where repeatability and minimal thermal or magnetic influence are essential. With a declared accuracy of ±0.001 mm, this reference component is suitable for fine adjustments and verification steps that reduce setup variance and shorten inspection loops. The high resolution capability translates into measurable time savings during assembly or tool adjustment because fewer iterative checks are required. The material choice further stabilises readings in environments where steel gauges would be affected by magnetism or corrosion. Durability that keeps calibration intervals long Made from zirconia ceramic, the ring combines very high hardness (HV 1250) with wear resistance, which reduces profile degradation under repeated contact. That hardness ensures the reference face remains true over many cycles, supporting consistent results and lowering the frequency of requalification or replacement. The antimagnetic nature of the ceramic eliminates magnetic distortion in proximity to magnetic fixtures or drives, preserving dimensional integrity in everyday workshop conditions and helping to secure long‑term process reliability. Compact form and practical workshop use The small 8 mm diameter makes this ring particularly useful for tight set‑up spaces and for use as a stepping standard in stack or step measurements. Its workshop-grade execution balances handling robustness with the finesse required for precision tasks, allowing easy incorporation into test rigs, setting stands or micrometre calibration procedures. Lightweight and chemically stable, the ring minimises thermal drift during short-term handling, enabling faster, more confident measurement sequences and fewer corrective passes. Secure Metav IndustryLine workshop quality — contact Metav Werkzeuge in Emmerich for technical advice, availability and supply details. Technical data Article number: M313.K08 Manufacturer: Metav IndustryLine Product name: Keramik-Einstellring 8 mm 0.001 mm (30x8) Facts Diameter: 8 mm Accuracy: ±0.001 mm Hardness: HV 1250 Special features Zirconia ceramic material Corrosion‑resistant / rust‑free behaviour Antimagnetic Wear‑resistant surface Workshop execution FAQ What tolerance can be expected from this reference ring? The ceramic setting ring 8 mm 0.001 mm from Metav IndustryLine is specified with an accuracy of ±0.001 mm, providing sub‑micron repeatability for short‑range reference tasks. Is the ring suitable near magnetic equipment? Yes. The ring is made from zirconia ceramic and is antimagnetic, so it does not interact with nearby magnetic fields and is appropriate for use close to magnetic machinery. How does the material affect longevity and wear? Zirconia ceramic offers very high hardness (HV 1250) and excellent wear resistance, which helps maintain the reference surface and extends the useful service life of the setting ring. Can this ring be used as a setting standard for micrometres and gauges? The ring’s compact 8 mm form and sub‑micron accuracy make it well suited as a short‑range setting standard in workshop calibration chains and for setting gauges where a small, stable reference is required. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8 mm Gauge Ball Pair, Hardened Chrome Steel, 0.003 mm Accuracy, Diameter Tolerance 0.00008 mm - Metav IndustryLine
Take advantage of the combination of hardened chrome steel, an 8 mm reference diameter and 0.003 mm calibrated accuracy for repeatable dimensional checks; order directly via Metav Werkzeuge or consult our specialists for application advice. Gauge Ball Pair M318.418 — 8 mm hardened chrome steel, 0.003 mm accuracy (Metav IndustryLine) A pair of gauge balls M318.418 designed as high-precision reference spheres for gauge fixtures and laboratory metrology. Hardened chrome steel construction 8 mm reference diameter 0.003 mm calibrated accuracy Tight diameter tolerance 0.00008 mm Precision where repeatability matters The paired reference spheres deliver consistent dimensional stability for comparative and calibration tasks. With a specified accuracy of 0.003 mm, these reference balls provide a verifiable basis for repeat measurements, improving process control in inspection routines. The tight diameter tolerance (0.00008 mm) reduces uncertainty when used as standards in gauge blocks, fixture set-ups or as reference contacts in coordinate measuring routines. This focus on numerical performance supports quick verification cycles and reliable traceability in quality workflows. Durable material for minimal deformation Constructed from hardened chrome steel and hardened to HRC 62, the spheres resist surface wear and local indentation, which preserves roundness under repeated contact. The finely finished surface, with an extremely low surface roughness, means contact points remain consistent and transfer forces predictably during measurements. These characteristics extend service life and reduce the risk of measurement drift caused by material fatigue, so the components remain reliable reference elements over many inspection cycles. Practical handling and application benefits Supplied as a set of two, the pair format supports symmetry checks and paired-fixture referencing without additional sourcing. At a total mass of 0.05 kg for the set, the spheres are easy to position and integrate into gauge assemblies or measuring jigs. The compact 8 mm diameter suits both bench-top metrology and fixture-mounted applications where small, high-precision reference points are required. The polished finish and robust chemistry simplify cleaning and maintenance, helping to keep handling routines efficient and contamination risks low. For precision reference measurements and immediate availability, contact Metav Werkzeuge to request the M318.418 gauge ball pair and to discuss stock, delivery and application support: info@metav-werkzeuge.com | +49 2822 7131930 Technical Data SKU: M318.418 GTIN: 4054469184067 Manufacturer: Metav IndustryLine Facts Diameter: 8 mm Accuracy: 0.003 mm Diameter tolerance: 0.00008 mm Surface roughness: 0.00001 Hardness: > HRC 62 Weight: 0.05 kg Pieces per set: 2 Special features Material: hardened chrome steel Delivered as a paired set for reference use Fine-ground, low-roughness finish Category: gauges / reference spheres FAQ What is the primary use of these gauge balls? The M318.418 gauge ball pair is intended as high-precision reference spheres for gauge fixtures, comparative checks and dimensional referencing in metrology applications. Are the spheres suitable for repeated contact with hardened materials? Yes. The hardened chrome steel construction and a hardness above HRC 62 make the spheres suitable for repeated contact with hard workpieces while preserving roundness. How precise is the diameter of each sphere? Each sphere is manufactured to an 8 mm nominal diameter with a diameter tolerance of 0.00008 mm and an accuracy of 0.003 mm, providing a stable reference for inspection tasks. Can these gauge balls be used in fixture assemblies and CMM probes? The paired format and compact size make them suitable as reference points in fixtures and for setups involving coordinate measuring equipment, provided the fixture design accommodates an 8 mm sphere. What routine maintenance is recommended? Clean the spheres with a lint-free cloth and appropriate solvent to remove contaminants; the polished finish and robust material simplify handling and help maintain measurement consistency. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8 mm Limit Go/No-Go Plug Gauge H7, Hardened Gauge Steel, DIN 2245 - Metav IndustryLine
The product data contains contradictory or inconsistent entries (for example, the condition flags are conflicting and the weight is stated as both 0.04 kg and 0.1 kg). These discrepancies make it difficult to ensure the accuracy and reliability of the information provided. It is essential to address these issues promptly to avoid confusion or errors in the final output. Please verify and correct the source data thoroughly, ensuring all entries are consistent and accurate, before a product description is produced. Taking the time to resolve these inconsistencies will help maintain the integrity of the product information and improve overall quality.
8 mm Limit Plug Gauge Wear Measurement Side, Hardened Steel DIN 7162 - Filetta
Combining hardened steel construction, DIN 7162 conformity and an integrated wear allowance on the good side, this limit plug gauge delivers repeatable go/no-go checks for inspection benches and production control; order the gauge directly via Metav Werkzeuge or consult our specialists for application advice. Limit plug gauge MS911.212 — hardened steel, DIN 7162 compliant A limit plug gauge for fast go/no-go checks in inspection and workshop environments, designed for robust repeatability and simple integration on control benches. Hardened steel to resist wear Compliant with DIN 7162 standard Wear allowance on the good side Ideal for go/no-go inspection Consistent results for routine inspection Made for straightforward limit gauging, this instrument provides a clear binary decision for hole acceptance. The DIN 7162 reference ensures the gauge meets established dimensional criteria, while the hardened steel construction reduces surface deformation during repeated use. For production lines and quality-control benches, the precise stop characteristics translate into fewer ambiguous measurements and a faster inspection cycle, improving throughput without sacrificing traceability. Long service life with built-in wear compensation The specified wear allowance on the good side compensates for gradual material loss at the gauge face, extending usable life and maintaining the integrity of acceptance limits. Because the working surfaces are hardened, abrasive contact produces less surface damage, so the interval between maintenance checks is lengthened. This durability lowers total cost of ownership for routine inspection equipment and contributes to stable production quality over time. Practical fit and traceability for workshop use The gauge is supplied in the nominal 8 mm size and is identified as MS911.212 for unambiguous ordering and stock control. Its compact geometry supports rapid manual checking of bores and through-holes on machined parts and assemblies. The simple go/no-go principle reduces operator training time and minimises interpretation errors; the result is a pragmatic measuring tool that integrates easily into incoming inspection, final control or shop-floor quality points. For availability and tailored advice on the Filetta limit plug gauge MS911.212 contact Metav Werkzeuge in Emmerich for fast supply and practical application support via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: MS911.212 Manufacturer: Filetta Material: hardened steel Standard: DIN 7162 Nominal size: 8 mm Facts Type: limit plug gauge Function: go/no-go inspection Identification: MS911.212 Category: gauges / measuring pins Special features Wear allowance on the good side Robust hardened contact faces Suitable for workshop and inspection benches FAQ What is the primary use of this limit plug gauge? The limit plug gauge MS911.212 by Filetta is intended for go/no-go checks of bores during incoming inspection and final part verification. Which standard governs the dimensions of this gauge? The gauge conforms to DIN 7162, which defines the dimensional and tolerance requirements applied to limit plug gauges like MS911.212. What material is the gauge made from and why? This Filetta gauge is manufactured from hardened steel to provide durable contact faces that resist wear during repeated checking. How does the wear allowance affect inspection results? The wear allowance on the good side extends the service life of the gauge while keeping acceptance limits consistent, reducing the need for frequent replacement. Manufacturer / Responsible: Schut Geometrische Meettechniek bv; Duinkerkenstraat 21; 9723 BN Groningen; The Netherlands; +31 50 5877877; schutnl@schut.com
8 mm Limit Plug Gauge Wear Side Measurement, Hardened Steel, DIN 7162 - Filetta
Take advantage of a hardened steel construction and compliance with DIN 7162 to secure reliable go/no-go checks and predictable tool life; the integrated wear allowance on the datum face ensures continued conformity during repetitive use — order the gauge via Metav Werkzeuge or contact our consultants for application advice. Limit plug gauge G7, Ø 8 mm — hardened steel, DIN 7162 The Limit plug gauge G7 is a hardened-steel checking pin designed for fast dimensional inspections of holes and bores in production and inspection environments, conforming to DIN 7162 for consistent limit testing. Hardened steel construction Complies with DIN 7162 tolerance standard G7 limit fit for quick go/no-go testing Wear allowance on datum face Precise limit testing for production control The gauge provides a simple, repeatable method for pass/fail acceptance of bores, reducing measurement time on the shop floor. Built to the DIN 7162 guideline and marked for a G7 fit, the checking pin delivers clear go/no-go decisions that streamline quality routines. Relying on a fixed limit geometry removes interpretation variability and supports faster throughput in batch checks, while the compact design suits manual handling at inspection benches or assembly stations. Robust construction that withstands routine use Made from hardened steel, the mandrel offers resistance to wear and deformation under repeated contact. The incorporated wear allowance on the datum face compensates for gradual material loss, extending usable life and maintaining conformity between inspections. This durability translates into less downtime for replacements and a lower total cost of ownership compared with softer or plated designs, especially where regular mechanical gauging is part of the process. Traceable specification and simple integration into QC workflows Identified as MS911.170 and produced by Filetta, the gauge is straightforward to document within inspection plans and work instructions. The uncomplicated go/no-go principle requires no electrical hookup or data output, so the tool integrates seamlessly into manual or semi-automated checks. The combination of standardised tolerance adherence and a rugged profile supports clear process control and easier training of operators, which benefits both small workshops and larger production environments. Contact Metav Werkzeuge in Emmerich for application guidance and to source the Filetta limit plug gauge MS911.170 for your quality-control needs Technical Data Article number: MS911.170 Name: Limit plug gauge G7 Manufacturer: Filetta Standard: DIN 7162 Facts Nominal size: 8 mm Fit/tolerance: G7 Special features Material: hardened steel Wear allowance on datum face Application: go/no-go checking of holes and bores FAQ What type of inspection is this gauge intended for? The limit plug gauge is intended for quick go/no-go acceptance tests of bores and holes, enabling clear pass/fail checks during incoming inspection or in-process control with the Filetta MS911.170. Is the gauge suitable for continuous production use? Yes, the hardened steel construction and the wear allowance on the datum face make the gauge suitable for repetitive use in production environments where frequent verification of bore conformity is required. Does the gauge conform to a recognised standard? The limit plug gauge is manufactured to the requirements of DIN 7162, ensuring compatibility with common metrology practices and documentation in quality systems. How is the gauge identified within inspection documentation? The tool should be recorded as Filetta MS911.170, described as a G7 limit plug gauge, 8 mm, which simplifies traceability in inspection plans and process control records. Manufacturer / Responsible: Schut Geometrische Meettechniek bv; Duinkerkenstraat 21; 9723 BN Groningen; The Netherlands; +31 50 5877877; schutnl@schut.com
8 mm Setting Ring Form C Hardened Gauge Steel DIN 2250, DIN 286 JS 3 - Metav IndustryLine
Take advantage of an industry‑grade combination of DIN‑compliance, hardened and lapped gauge steel, and compact geometry for reliable setting and repeatable inspection routines; order the setting ring directly via Metav Werkzeuge or consult our specialists if further clarification is required. Setting ring 8 mm — DIN 2250 hardened gauge steel (Metav IndustryLine) A Setting ring 8 mm designed as a precision reference gauge for setting and verifying internal diameters in production and inspection workflows. Form C geometry for standardised gauging Hardened, lapped gauge steel finish Conforms to DIN 2250 and DIN 286 standards Compact 8 mm nominal diameter Consistent accuracy for repeatable settings The ring serves as a traceable reference component where conformity matters: produced to DIN 2250 and DIN 286 with tolerance class JS 3, the component is intended to provide a stable datum for setting and checking measuring instruments. Manufactured from hardened and lapped gauge steel, the item offers a finely finished contact surface that minimises measurement scatter. This technical basis translates into fewer adjustment cycles at the machine and a reduction in process variation during setup. Robust surface and heat treatment reduce wear A hardened and lapped surface reduces abrasion and preserves the nominal diameter during frequent handling and contact with measuring tips. The material selection ensures high surface integrity and uniform hardness across the ring, which in turn maintains the original calibration state for longer intervals. For production environments that demand short downtimes, that durability supports continuous throughput and lowers the frequency of gauge replacement or corrective rework. Practical integration into workshop and inspection routines The geometry designated as Form C makes the ring suitable for standard gauging tasks and for use alongside calipers, bore gauges and setting fixtures. Its compact nominal diameter simplifies storage and handling while offering a clear, unambiguous reference for internal-dimension checks. Delivered as a ready-to-use gauge, the component assists metrology technicians and shopfloor staff in achieving fast, reproducible setups and in documenting conformity during routine inspections. For calibrated, robust reference gauges from Metav IndustryLine, request the setting ring through Metav Werkzeuge — our Emmerich team can advise on selection and delivery at info@metav-werkzeuge.com or +49 2822 7131930. Technical data Article number: M313.008 GTIN: 4054469120461 Diameter: 8 mm Facts EClass: 21170104 Tariff number: 90173000 Category: Messstifte / Lehren Special features Material: gauge steel, hardened and lapped Standard: DIN 2250, DIN 286, JS 3 Form: Form C FAQ What is the intended use of this setting ring? The setting ring is intended as a precision reference for setting and verifying internal diameters in production and inspection work; the Setting ring 8 mm supports quick, reproducible instrument adjustment. Does the ring comply with recognised metrology standards? Yes, the component is manufactured to DIN 2250 and DIN 286 with tolerance class JS 3, ensuring compatibility with standard inspection protocols. What material and treatment does the ring have? The ring is made from hardened and lapped gauge steel, providing a wear‑resistant contact surface suitable for repeated use in workshop environments. Is this product part of the Metav IndustryLine range and what is the SKU? This product belongs to the Metav IndustryLine range and is listed as M313.008 for ordering and reference. Can the ring be used together with bore gauges and calipers? Yes, the geometry and finish of the ring suit use alongside calipers, bore gauges and setting fixtures to provide a stable reference diameter. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8,01-9 mm Gauge Pin Set 100 Pieces, 0.01 mm Steps, Special Steel, Case - Metav IndustryLine
Take advantage of a combination of fine graduations and verified mechanical accuracy to speed up inspection work while reducing rework. The high-resolution increments and robust special-steel construction support repeatable results in gauge and tool setting; order directly from Metav Werkzeuge or consult the Metav team for technical advice. Gauge Pin Set M318.558 — precision gauge pins with 0.01 mm increments A gauge pin set designed for precise hole checking and gauge setting in inspection and toolmaking applications *High-resolution increments: 0.01 mm steps *Diameter range 8.01–9.00 mm for close fits *Accuracy down to 0.002 mm for reliable checks *Special steel construction for long service life Precision where consistent fits are required The set delivers consistent, repeatable sizing across the diameter range 8.01–9.00 mm, with fine 0.01 mm gradation that helps pinpoint tolerance deviations during first-article inspection or in-process checks. The declared accuracy of 0.002 mm positions the pins for tasks where small deviations influence assembly or running clearance; this numerical precision reduces the need for multiple verification steps and supports tighter process control workflows. The modular nature of the pins makes them suited for incremental measurement tasks and fine adjustment of gauges and fixtures. Robust construction to withstand frequent handling Manufactured from special steel, the pins resist wear and maintain dimensional stability during repeated insertion and withdrawal. The material choice and machining quality together extend tool life and reduce downtime for replacements, which translates into lower lifecycle costs and fewer interruptions on the shop floor. Surface finish and hardness are optimised for tight fits, so the set remains a stable reference for comparative gauging and for establishing a baseline in routine quality checks. Designed for integration in measurement routines Engineered as a precision gauge tool, the set complements bench and portable inspection equipment and is easy to incorporate into standard operating procedures for acceptance or maintenance tests. Marked dimensions and consistent increments make tracking and documentation straightforward in quality reports, while the compact layout supports orderly storage and quick retrieval during setup. The product code M318.558 is suitable for procurement records and inventory systems to streamline reordering and traceability within production environments. For dependable precision from the Metav IndustryLine, contact Metav Werkzeuge in Emmerich for tailored procurement and technical clarification — Metav Werkzeuge can advise on integration into existing inspection routines Technical data SKU: M318.558 GTIN: 4054469129419 ECLASS: 21170231 Customs tariff: 90173000 Facts Diameter range: 8.01–9.00 mm Increment/step: 0.01 mm Declared accuracy: 0.002 mm Pin length: 50 mm Weight: 3.8 kg Special features Material: Special steel Category: Gauge pins / plug gauges Set configuration: supplied as a matched range Intended use: inspection, gauge setting, dimensional checking FAQ What diameter range is covered by the set? The gauge pin set covers diameters from 8.01 to 9.00 mm and is intended for close-fit checking and gauge setting with fine gradations. What is the resolution of the increments? The pins are produced in 0.01 mm steps, providing high-resolution increments for incremental measurement and adjustment. What accuracy can be expected during checks? A declared mechanical accuracy of 0.002 mm supports reliable acceptance checks and tight-tolerance verification. What material are the pins made from? The pins are machined from special steel to provide wear resistance and dimensional stability under frequent use. Is a calibration certificate included with the set? The product data does not specify a factory calibration certificate; traceable calibration is not listed as supplied with this item Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

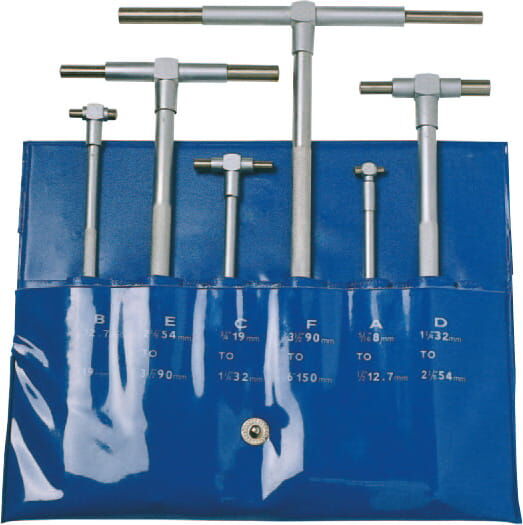

8-150 mm Telescopic Gauge Set, 6-Piece Hardened Chrome-Plated Measuring Pins - Metav IndustryLine
Benefit from a compact, six-piece telescopic gauge set that covers 8–150 mm, combining versatile range coverage with hardened, matt‑chrome measuring pins and measured depths for reliable internal checks. Order the set directly via Metav Werkzeuge or ask our consultants for application advice. Telescopic Gauge Set M318.101 — 6-piece, 8–150 mm, Metav IndustryLine The Telescopic Gauge Set M318.101 is a compact workshop kit designed for precise internal diameter measurement across small and medium bores. Six-piece set covering 8–150 mm range Hardened, matt‑chrome measuring pins Varied measuring depths up to 117 mm Factory standard for workshop use Reliable internal diameter checks across common workshop sizes The set provides a continuous coverage from 8–150 mm using six individually sized gauges, each tailored to a specific segment (8–12.7 / 12.7–19 / 19–32 / 32–54 / 54–90 / 90–150 mm). This segmented approach reduces tool swapping and streamlines inspection workflows while retaining the compact handling essential in everyday machining and maintenance. The different measuring depths up to 117 mm ensure access to deeper bores and recesses; for shallower pockets the shorter depths preserve rigidity and minimise deflection during measurement. The practical consequence is fewer interruptions and faster throughput in routine quality checks. Durable construction for consistent, repeatable results Constructed from steel with a matt‑chrome finish and hardened measuring pins, the gauges are engineered for durability in a workshop environment. The surface treatment reduces glare and offers basic corrosion resistance while hardened contact points limit wear during repeated use, supporting repeatable results over the life of the tool. The set’s low mass (approx. 0.4 kg) keeps it portable without compromising stiffness, so transfer measurements remain reliable when transferred to a micrometre or precision caliper. Efficient handling that integrates with existing measurement chains Telescopic gauges expand to the bore dimension and are locked for transfer; after withdrawing they are measured with a micrometre or precision caliper, converting the quick tactile check into a traceable numerical value. The six-piece configuration keeps the right gauge at hand for typical workshop diameters, reducing setup time and increasing inspection cadence. For metalworking, toolmaking and maintenance tasks this translates to a measurable gain in efficiency and fewer measurement-related delays on the shop floor. For a robust, workshop-ready measuring solution from Metav IndustryLine, contact Metav Werkzeuge for ordering and application guidance at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: M318.101 GTIN: 4054469127859 Weight: 0.4 kg Set: 6 pieces Facts Measurement range: 8–150 mm Segment ranges: 8–12.7; 12.7–19; 19–32; 32–54; 54–90; 90–150 mm Measuring depth: 100 / 100 / 100 / 117 / 117 / 117 mm Pieces per set: 6 Materials & features Steel construction, matt‑chrome finish Measuring pins hardened and matt‑chrome Factory standard (Werksnorm) Suitable for internal diameter measurement Customs tariff number: 90173000 FAQ How is the telescopic gauge used to measure a bore? The telescopic gauges are expanded inside the bore, locked at the contact position and withdrawn to be measured with a micrometre or precision caliper; the Telescopic Gauge Set M318.101 transfers the bore size into a repeatable external measurement. Which sizes are covered by this set? The set covers 8–150 mm across six ranges (8–12.7; 12.7–19; 19–32; 32–54; 54–90; 90–150 mm), making it suitable for typical workshop bores and medium‑sized components. Are the contact faces durable for frequent use? Yes — the measuring pins in the Metav IndustryLine Telescopic Gauge Set M318.101 are hardened and matt‑chrome plated to resist wear and to deliver consistent contact behaviour during repeated inspections. What applications suit this telescopic gauge set? The set is intended for internal diameter checks in machining, maintenance and toolmaking tasks where quick transfer measurements and reliable repeatability are required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8-9mm Ceramic Gauge Pin Set 0.01mm Steps, Stainless ZrO2, 50mm Length, Plastic Case - Metav IndustryLine
Take advantage of the combination of zirconia ceramic construction, HV 1250 hardness and sub-micron repeatability for reliable gauge performance in the workshop. The set covers the 8.00–9.00 mm range in precise 0.01 mm steps and is supplied in a protective plastic case with a measuring-stem holder. Order the set directly via Metav Werkzeuge or ask our consultants if clarification is required. Ceramic Gauge Pin Set M318.598 — Zirconia, 8.00–9.00 mm range, 0.01 mm increments (Metav IndustryLine) A ceramic gauge pin set intended for high‑precision verification of bores and holes in workshop metrology, designed for repeatable results in micro‑dimensional work. Zirconia-ceramic, corrosion- and wear-resistant High hardness HV 1250 for long service life Dimensional accuracy < ±0.0015 mm Supplied in protective plastic case Precision where repeatability counts The set is built from zirconia ceramic, a material prized for its wear-resistant surface and non‑magnetic behaviour; these properties reduce measurement drift and avoid interference with magnetically sensitive parts. With a stated accuracy of < ±0.0015 mm and a hardness of HV 1250, the pins deliver consistent results across repeated checks, which makes them suitable for routine quality control and fine adjustment tasks where even slight deviations matter. The fine 0.01 mm increments allow controlled stepwise inspection across the specified range. Suited to micro‑dimension workshop tasks Classified for the micro range (maximum measuring range up to 100 mm), this kit is optimised for compact components and tight tolerances typical in precision engineering, instrument making and small‑part production. The compact 50 mm pin length provides a stable contact area while remaining easy to handle, combining stiffness with manoeuvrability for accurate insertion into bores and gauges. Because the design focuses on workshop practicality, inspection cycles become more efficient and less prone to handling error. Practical handling and secure storage Each pin is supplied ready for immediate use in a protective plastic case, with a measuring‑stem holder included for safe handling and repeatable positioning during checks. The workshop variant emphasises durability under regular use: the ceramic composition resists galling and surface damage that would otherwise alter diameters over time. The organised coverage from 8.00–9.00 mm in 0.01 mm steps simplifies traceable inspection sequences without the need for guesswork or frequent tool swaps. Clear technical benefits and application logic Using ceramic pins reduces the risk of contaminating delicate surfaces and eliminates magnetic attraction that can affect small ferrous components, so the set works well where contact neutrality is required. The hard substrate helps maintain the nominal diameter under repeated loading, extending service life and lowering replacement frequency. For production environments that require documented and repeatable checks, the set provides a stable baseline measurement tool that supports clear decision‑making in quality control processes. For precise bore verification and reliable workshop inspection, request the Metav IndustryLine ceramic gauge pin set through Metav Werkzeuge — contact the Emmerich team to confirm suitability and delivery arrangements Technical data Article number: M318.598 Product name: Ceramic gauge pin set, 8.00–9.00 mm, 0.01 mm increment Brand: Metav IndustryLine Facts Material: zirconia ceramic Hardness: HV 1250 Accuracy: < ±0.0015 mm Pin length: 50 mm Measuring range: 8.00–9.00 mm; step: 0.01 mm Special features Workshop version Non-magnetic Wear-resistant Measuring-stem holder included Supplied in protective plastic case Continuous coverage from 8.00 to 9.00 mm in 0.01 mm steps FAQ What measurement range does the set cover? The set covers the 8.00–9.00 mm range in 0.01 mm steps, enabling incremental checks across that span. How accurate are the gauge pins? The pins are specified with an accuracy of < ±0.0015 mm, providing sub-micron repeatability for fine inspection tasks. What material are the pins made from and why? The pins are made of zirconia ceramic; this gives a wear-resistant, non-magnetic surface that maintains diameter and reduces contamination risk during repeated use. How is the set supplied for workshop use? The Metav IndustryLine ceramic gauge pin set (M318.598) is supplied in a protective plastic case and includes a measuring-stem holder for secure handling. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8.01-9.00 mm Gauge Pin Set 101 Pc With Pin Holder 0.01 mm Graduation - Metav IndustryLine
Benefit from a workshop-ready combination of precision and range: a pin gauge set in special steel covering 8.01–9.00 mm with 0.01 mm steps and an advertised repeatability of ±0.004 mm, designed for reliable go/no-go and intermediate gauging tasks; order directly via Metav Werkzeuge or consult our advisors for application support. Pin gauge set M318.578 — 101-piece kit, 8.01–9.00 mm, 0.01 mm increments (Metav IndustryLine) Pin gauge set M318.578 is a compact verification kit for fine workshop and quality‑control tasks, intended to check bore diameters and pin fits in the 8.01–9.00 mm micro range. 0.01 mm graduations for fine adjustment Range 8.01–9.00 mm for micro gauging Supplied with a dedicated pin holder Manufactured from special steel for durability Precise increments for consistent inspection results The 101‑piece kit provides systematic steps across the 8.01–9.00 mm span with 0.01 mm graduations, enabling controlled, repeatable increments when checking bore sizes or mating components. The combination of fine steps and an indicated repeatability of ±0.004 mm supports conservative decision-making in inspection routines, reducing ambiguous fits and downstream rework. This measured approach to gauging is especially useful where small deviations can cause assembly issues or quality rejects. Ideal for micro applications and compact workpieces Classified in the micro range, this pin set addresses measurement tasks where compact dimensions and stiffness matter: short pins resist bending and provide stable reference points on small bores, making the kit suitable for watchmaking, small‑part production and precision fixtures. The limited diameter span concentrates on the typical workshop needs around 8–9 mm, so technicians can perform targeted checks without sorting through unnecessarily large ranges. Organised handling and practical use in the workshop The set is supplied complete with a pin holder, which streamlines selection and handling during inspection cycles and minimises contact wear on individual pins. Stored and presented as an organised kit, the components help maintain workflow speed in repetitive checks, while the special steel construction balances surface hardness with corrosion resistance for everyday workshop conditions. Clear graduations and a systematic layout also ease documentation of inspection steps within standard quality workflows. Robust choice for production and maintenance environments Built as a set for routine gauging, this kit reduces inspection variability and supports consistent quality control across batches. The compact construction and durable materials make it a low‑maintenance option for inspectors and machinists who require a trustworthy reference for go/no‑go decisions and incremental fits. Its focused range and solid build help integrate the toolset into standard shop processes without adding complexity. For precision micro gauging and reliable workshop inspection, choose the Metav IndustryLine pin gauge set and contact Metav Werkzeuge for tailored advice and ordering support. Technical data Article number: M318.578 GTIN: 4054469168326 Manufacturer: Metav IndustryLine Material: Special steel Pieces: 101 Special feature: With pin holder Facts Diameter range: 8.01–9.00 mm Graduation: 0.01 mm Quoted repeatability: ±0.004 mm Pin length: 50 mm Weight: 3.61 kg Special features Set for checking bores and pin fits Customs tariff number: 90173000 Category: Gauge pins / Gauging tools Workshop version FAQ What sizes are covered by the set? The M318.578 pin gauge set covers diameters from 8.01 to 9.00 mm in 0.01 mm steps. How many pins are included and how are they organised? The kit contains 101 pieces arranged with a dedicated pin holder to simplify selection and handling during inspection routines. What level of precision can be expected? The pin gauge set is specified with step increments of 0.01 mm and an indicated repeatability of ±0.004 mm for conservative gauging decisions. Is the material suitable for routine workshop use? Yes, the M318.578 is made from special steel designed for durability and regular shop handling. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8.01mm Gauge Pin Single, ±0.001mm Accuracy, 50mm Length, Workshop Finish - Metav IndustryLine
Take advantage of the combination of sub‑micron accuracy (±0.001 mm), robust special steel construction and compact 50 mm length for dependable end‑dimension verification; order the gauge pin directly via Metav Werkzeuge or consult the product specialists for application advice Gauge pin M323.801 — single gauge pin, 8.01 mm, ±0.001 mm accuracy (Metav IndustryLine) A gauge pin M323.801 designed for precise end‑dimension checks and fixture verification in workshop metrology and quality inspection Sub‑micron tolerance ±0.001 mm accuracy Diameter precisely ground to 8.01 mm Robust special‑steel body, length 50 mm Accuracy that converts to confidence The pinned component provides ±0.001 mm tolerance, corresponding to a one‑micrometre deviation allowance, which places this measuring element in the high‑precision category for workshop inspection tools. Such fine tolerance supports reliable go/no‑go checks, plug‑gauge fits and repeatable end‑dimension verification in assembly and toolmaking applications. The ground diameter and controlled length ensure consistent seating in fixtures, minimising measurement scatter and reducing rework. Compact format for everyday workshop tasks With a compact 50 mm length and a precisely ground 8.01 mm diameter, this single gauge pin suits routine verification tasks where accessibility and handling matter. The special steel construction balances rigidity with manageable weight (0.024 kg), allowing quick insertion and removal in jigs, bores and checking fixtures. The workshop configuration supports frequent use and quick visual verification workflows without adding unnecessary bulk to the toolset. Practical fit into quality procedures The measuring element integrates easily into inspection sequences and small‑batch production checks, offering a straightforward means to validate end dimensions and repeatability. When used as part of a fixture or as a reference pin, the consistent geometry reduces setup time and supports traceable measurement practices. Supplied as a single, high‑accuracy pin from the Metav IndustryLine range, it contributes to stable quality outcomes across machining, assembly and maintenance operations. Contact Metav Werkzeuge for tailored advice on the Metav IndustryLine gauge pin and secure measurement components matched to workshop requirements Technical data Article number: M323.801 GTIN: 4061905064067 Category: Messstifte Label: Prüfstift, einzeln, 8,01mm, +/- 0.001 mm Länge 50 mm Facts Diameter: 8.01 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.024 kg Special features Material: Special steel Version: Workshop execution Single gauge pin High‑precision ground diameter FAQ What level of accuracy does this gauge pin offer? The gauge pin M323.801 provides an accuracy of ±0.001 mm (one micrometre), suitable for high‑precision end‑dimension checks in workshop inspection and fixture applications. Can the pin be used for repeatable plug‑gauge checks? Yes, the precisely ground 8.01 mm diameter and controlled length make the pin appropriate for repeatable plug‑gauge seating and go/no‑go verification in quality routines. What material is the pin made from and why does that matter? The pin is manufactured from special steel, offering rigidity and dimensional stability under normal workshop conditions; this supports reliable seating and minimal deformation during repeated use. Is this item supplied as a set or single piece? This listing is for a single gauge pin (single unit) designated M323.801, intended for individual use in fixtures, jigs or as a reference element. How does this pin support fast quality checks on the shop floor? Its compact 50 mm length and precise diameter enable quick insertion into bores and fixtures, reducing setup time and enabling efficient, repeatable measurement routines. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8.02mm Gauge Pin, Single, ±0.001mm, Length 50mm, Workshop Version - Metav IndustryLine
Take advantage of the combination of absolute repeatability and compact handling for reliable fit checks and faster inspection cycles; the ±0.001 mm tolerance and the 8.02 mm nominal diameter ensure traceable end‑size results. Order the gauge pins directly via Metav Werkzeuge or ask the consultants for application support. Gauge pin M323.802 — single, Ø 8.02 mm, ±0.001 mm accuracy (Metav IndustryLine) A gauge pin M323.802 engineered for precise end‑size inspection and fit verification in workshop environments, supplied as a single, workshop‑grade test pin. High-precision ±0.001 mm tolerance Solid special-steel construction Consistent 8.02 mm end dimension Workshop-grade 50 mm length Faster inspection thanks to micron-class accuracy The pin provides a ±0.001 mm (±1 µm) tolerance that removes guesswork from size verification. This high-precision specification shortens setup and measurement time by reducing rework and limiting pass/fail ambiguity in batch checks. For production environments where interchangeability and repeatable fits are critical, the micron-level control supports streamlined quality assurance and fewer downstream rejects. Robust material for dependable handling and longevity Manufactured from special steel, the pin combines dimensional stability with everyday workshop resilience. The nominal diameter of 8.02 mm and the 50 mm length form a balanced geometry that is easy to seat in bores and sockets while remaining stiff under handling. A low mass (approx. 0.024 kg) makes rapid manual indexing and fixture placement straightforward, supporting higher throughput during routine inspection tasks. Practical use in assembly and metrology workflows Designed as a single, workshop‑grade test pin, this component excels for end‑size inspection and fit testing of mating parts, gauges and fixtures. The consistent end dimension simplifies go/no‑go checks and partner‑part alignment, improving process reliability in toolrooms and production lines. Integration into inspection routines brings measurable efficiency gains and a clearer traceability chain when documenting size conformity. Contact Metav Werkzeuge for purchasing and application advice on high‑precision gauge pins from the IndustryLine — consultancy and supply from Emmerich for reliable fit checks Technical data Article number: M323.802 GTIN: 4061905064074 Manufacturer: Metav IndustryLine Description: Gauge pin, single, 8.02 mm, ±0.001 mm, length 50 mm Core data Diameter: 8.02 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.024 kg Special features Material: Special steel Workshop execution Supplied as single piece Intended for end-size inspection and fit testing FAQ What dimensional accuracy does this gauge pin offer? The gauge pin M323.802 from Metav IndustryLine is specified to ±0.001 mm, corresponding to ±1 µm, suitable for high‑precision end‑size verification. For which inspection tasks is this pin suitable? The pin is intended for end‑size inspection, fit verification and fixture alignment; the consistent 8.02 mm diameter supports go/no‑go checks and component mating tests. What material is used for the pin? This Metav IndustryLine pin is made from special steel, selected for dimensional stability and workshop durability. How is the product supplied and what is its form factor? The item is delivered as a single, workshop‑grade test pin with a 50 mm length and compact handling characteristics. Is this pin appropriate for routine workshop use? Yes; the workshop execution and robust material make it suitable for frequent handling and standard quality‑control cycles. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8.03mm Gauge Pin Single, ±0.001mm, 50mm Length, Workshop Version - Metav IndustryLine
High-precision inspection for reproducible fit checks: the single gauge pin delivers a stable reference with a diameter of 8.03 mm and a tight ±0.001 mm tolerance across its 50 mm length. The workshop‑grade special steel construction ensures durability under regular use; order directly via Metav Werkzeuge or consult our advisors for application support. Gauge pin M323.803 — single inspection pin, 8.03 mm ±0.001 mm, 50 mm length (Metav IndustryLine) The Gauge pin M323.803 is a single, workshop‑grade inspection pin designed for precise end‑measurements and plug‑fit checks in production and quality assurance. Diameter 8.03 mm with ±0.001 mm tolerance 50 mm overall length for end‑measurement tasks Workshop‑grade special steel construction Supplied in protective transport case Consistent reference for repeatable fits and go/no‑go tests A solid cylindrical gauge pin with a diameter of 8.03 mm and an uncertainty of ±0.001 mm becomes a reliable master for fit verification and functional clearance testing. The tight tolerance reduces measurement scatter and supports reproducible assembly checks, which speeds up pass/fail decisions on the shop floor. Using a defined cylindrical reference simplifies tolerance interpretation for inspection technicians and reduces rework by clarifying whether a bore or mating part conforms to specification. Durable workshop design for daily production use Constructed from special steel and specified as a workshop‑grade item, the pin combines wear resistance with dimensional stability under routine handling. The choice of material provides toughness for repeated insertion and withdrawal in metal housings and fixtures, maintaining the critical diameter over many cycles. The compact 50 mm length balances accessibility to recessed features with ease of handling, making the component practical for both bench‑level checks and inline quality control applications. Practical handling, storage and traceability advantages Supplied singly and delivered in a protective transport case, the pin is easy to store and to carry between production stations while remaining protected from knocks and corrosion. The single‑piece format eliminates ambiguity in selection during inspection runs; labelled stock keeps the workflow efficient and reduces downtime caused by tool searches. For procurement and inventory control the product is identified as M323.803 (Metav IndustryLine), allowing straightforward replenishment and part tracking across production batches. Contact Metav Werkzeuge today on +49 2822 7131930 or info@metav-werkzeuge.com to discuss the M323.803 gauge pin and receive tailored application advice from our specialists Technical data Article number: M323.803 GTIN: 4061905064081 Manufacturer: Metav IndustryLine Facts Diameter: 8.03 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.024 kg Special features Material: Special steel Workshop version Supplied in transport case Category: Messstifte FAQ What tolerance does the gauge pin achieve? The M323.803 gauge pin is specified to ±0.001 mm, providing a high‑precision reference for fit and clearance measurements. What are the exact dimensions of the pin? The inspection pin measures 8.03 mm in diameter with a 50 mm overall length, suitable for end‑measurement and plug checks. Which material is used for this inspection pin? The pin is manufactured from special steel in a workshop‑grade finish to combine durability with dimensional stability. Is the pin delivered ready for transport and storage? Yes, the gauge pin is supplied singly in a protective transport case to prevent damage and ease handling between inspection stations. For which applications is this pin intended? Designed for production and quality assurance, the M323.803 is intended for plug‑fit testing, clearance verification and repeatable end‑measurements in machining and assembly environments. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
8.04mm Gauge Pin ±0.001mm Length 50mm, Workshop Version - Metav IndustryLine
Take advantage of the combination of ultra‑tight tolerance (±0.001 mm), 8.04 mm nominal diameter and a 50 mm working length for reproducible end‑gauge checks; order the part directly via Metav Werkzeuge or consult our specialists for application advice. Gauge pin M323.804 — 8.04 mm, ±0.001 mm (Metav IndustryLine) The gauge pin M323.804 is a single precision end gauge designed for inspection, go/no‑go checking and fixture setting in workshop and fine‑mechanical environments. Precision tolerance ±0.001 mm Nominal diameter 8.04 mm 50 mm checking length Workshop‑grade special steel Consistent sub‑micron control for inspection and process reliability A gauge pin with a tolerance of ±0.001 mm provides exceptionally tight dimensional control for final inspection and reference measurements. The fine nominal size of 8.04 mm and the stated accuracy reduce measurement uncertainty, enabling repeatable go/no‑go checks and minimising rework. When integrated into a quality routine, this instrument supports traceable verification of mating bores and finished shafts and helps to maintain stable production tolerances. The precise fit and minimal form error are particularly valuable when gauging seating surfaces and critical end dimensions. Robust, workshop‑ready construction that keeps checks practical Made from special steel and specified at 50 mm length, the component combines stiffness with a compact footprint that suits bench‑top inspection and fixture use. The workshop execution emphasises durability under frequent handling, while the measured weight (approx. 0.024 kg) contributes to easy positioning without unnecessary mass. The solid construction simplifies repeated insertion cycles and supports reliable tactile feel during go/no‑go assessments. For production environments where rapid, repeatable checks are required, the robust material choice maintains geometric stability over many cycles. Designed for end‑gauge tasks, fixtures and precision assembly Intended as an end gauge for inspection and alignment, the pin is suitable for use in dedicated gauge sets, assembly jigs and comparative measuring fixtures. Its nominal diameter and fine tolerance make it appropriate for verifying bore fit, setting up spindles or confirming plug fits during final assembly. The compact, single‑piece format simplifies storage and identification in inspection kits and supports efficient workflow in small‑batch and series production alike. Where control of final mating dimensions is essential, the component provides a straightforward tactile and visual reference. For workshop‑grade end‑measurement and reliable inspection choose the Metav IndustryLine gauge pin M323.804 — contact Metav Werkzeuge for availability and technical consultation from Emmerich. Technical data SKU: M323.804 GTIN: 4061905064098 eClass: 21170231 Core specifications Diameter: 8.04 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.024 kg Features & materials Material: special steel Workshop execution Single gauge pin for end‑gauge use Category: Gauge pins FAQ What level of accuracy does this gauge pin provide? The gauge pin M323.804 delivers an accuracy of ±0.001 mm, making it suitable for highly precise end‑gauge and fit checks in workshop and inspection stations. Is the gauge pin suitable for use in production fixtures? Yes, the Metav IndustryLine gauge pin is designed for fixture and jig use; the 50 mm length and robust special steel construction suit repeated insertion and positioning tasks. Which applications is the part intended for? Typical uses include final bore checks, go/no‑go verification, setup of mating parts and comparative inspections where the 8.04 mm nominal size is required. How is the component identified for ordering? Order reference is M323.804 (Metav IndustryLine); the GTIN 4061905064098 can be used for electronic procurement and inventory systems. Can this pin be used as a reference gauge in inspection sets? Yes, the precision and compact format of the gauge pin make it a reliable reference element within inspection kits and assembled gauge sets. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Fast, tactile checks where electronics are impractical
Gauges and test pins provide unequivocal go/no-go results for threads, bores, gaps and radii without relying on electronics. The range covers plug gauges and ring gauges for internal and external threads, feeler gauges and precision feeler strips for micro‑gap assessment, plus probe pins and measuring pins for tactile diameter and pitch checks.
How these tools work in the production environment
Mechanical gauges operate as direct reference standards: a plug gauge or ring gauge verifies conformity to thread profiles and mating ability, while limit gauges separate accept from reject in a single step. Test pins are used to tactilely measure small bore diameters, centre‑to‑centre distances and radii. Manufactured from hardened gauge steel or ceramic and often precision lapped, these instruments deliver immediate physical results that are ideal for incoming inspection, machine‑side checks and final control.
Measurable benefits that affect production performance
- Reduced scrap and rework through rapid, unambiguous pass/fail assessment.
- Increased repeatability thanks to very low measurement uncertainty and fine lapping.
- Lower downtime: quick checks at the machine save cycle time and reduce setup periods.
- Durable construction with high wear resistance from specialised, low‑distortion alloys.
- Versatile delivery formats: individual gauges, organised sets in wooden cases or metre‑length feeler rolls compliant with DIN 2269.
Why Metav is the practical choice for precision supplies
Metav combines decades of expertise with a broad warehouse and quality filtering from Emmerich. As a precision partner for industry, craft and trade, Metav supplies a comprehensive selection of gauges and test pins alongside complementary tools such as precision calipers and setting rings. With over 48,000 customers and a catalogue exceeding 250,000 items, Metav is positioned to supply reliably, reduce vendor complexity and support traceable quality control to national standards.
Summary
Gauges and test pins are indispensable for dependable, repeatable quality assurance where tactile, mechanical verification is preferred. Choose these plug gauges, ring gauges, feeler strips and probe pins when immediate, robust measurement decisions are required on the shop floor.
FAQ
What materials are gauges and test pins typically made from?
Gauges and test pins are usually manufactured from hardened gauge steel for durability and wear resistance; ceramic variants are available where thermal stability and minimal wear are critical.
How do thread gauges ensure mating capability?
Thread plug gauges and ring gauges check flank diameters and thread form against standards, providing a clear go/no‑go verdict that confirms pairability with mating parts.
Which tolerance class should I choose for probe pins and gauge sets?
Select tolerance classes aligned with your inspection requirements; for high‑precision tasks, sets produced to DIN 2269 or equivalent tolerance classes ensure micrometre‑level control and repeatability.
Can feeler gauges measure contact gaps in valve and engine work reliably?
Yes. Feeler gauges and precision feeler strips, supplied either as a fan or metre‑length rolls, allow accurate assessment of valve clearances and contact gaps down to micrometre increments.
How do limit gauges speed up in‑process inspection?
Limit gauges separate good from bad in a single, tactile operation, enabling rapid go/no‑go checks at the machine and reducing both inspection time and the likelihood of human interpretation errors.
