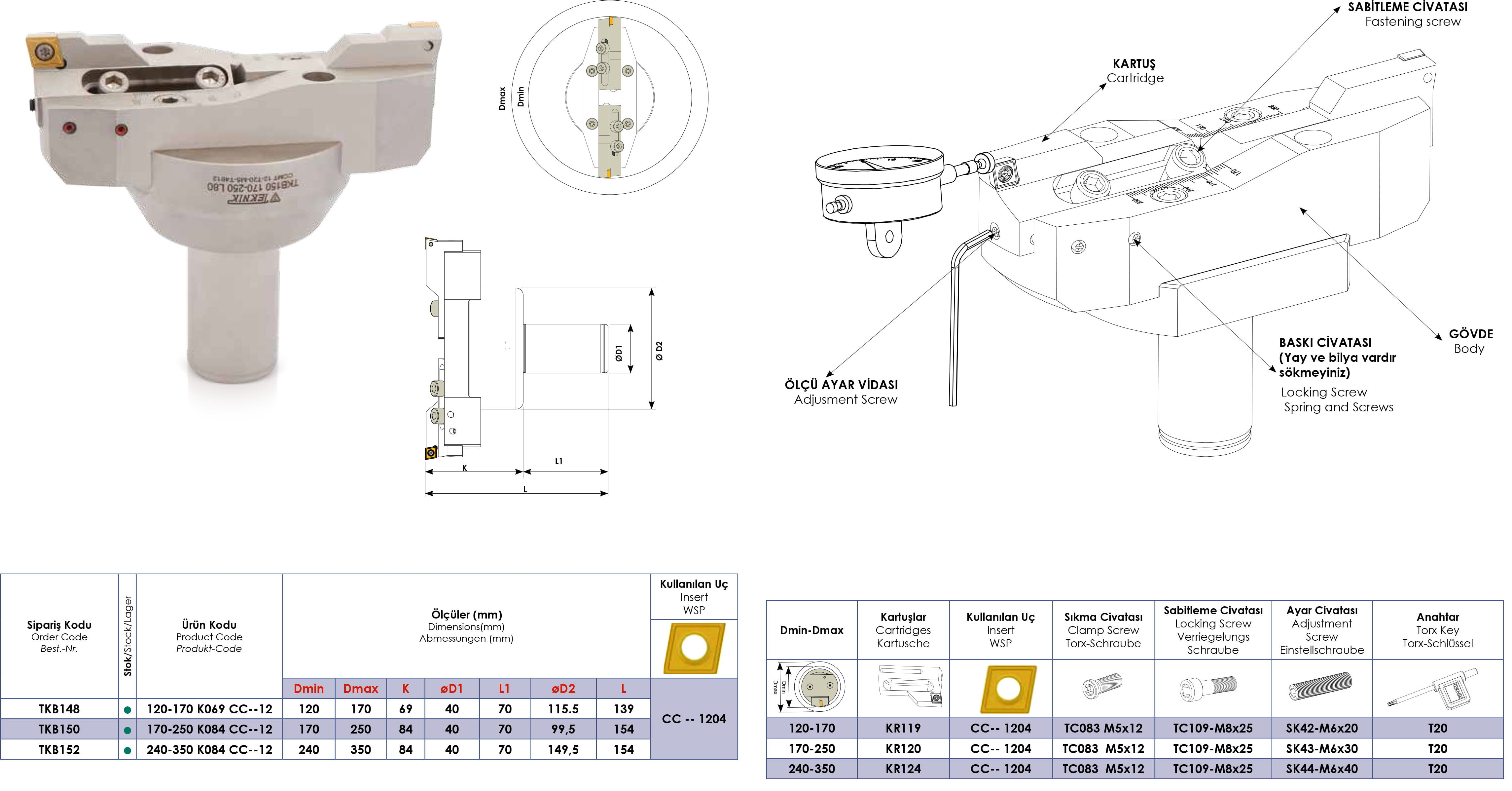

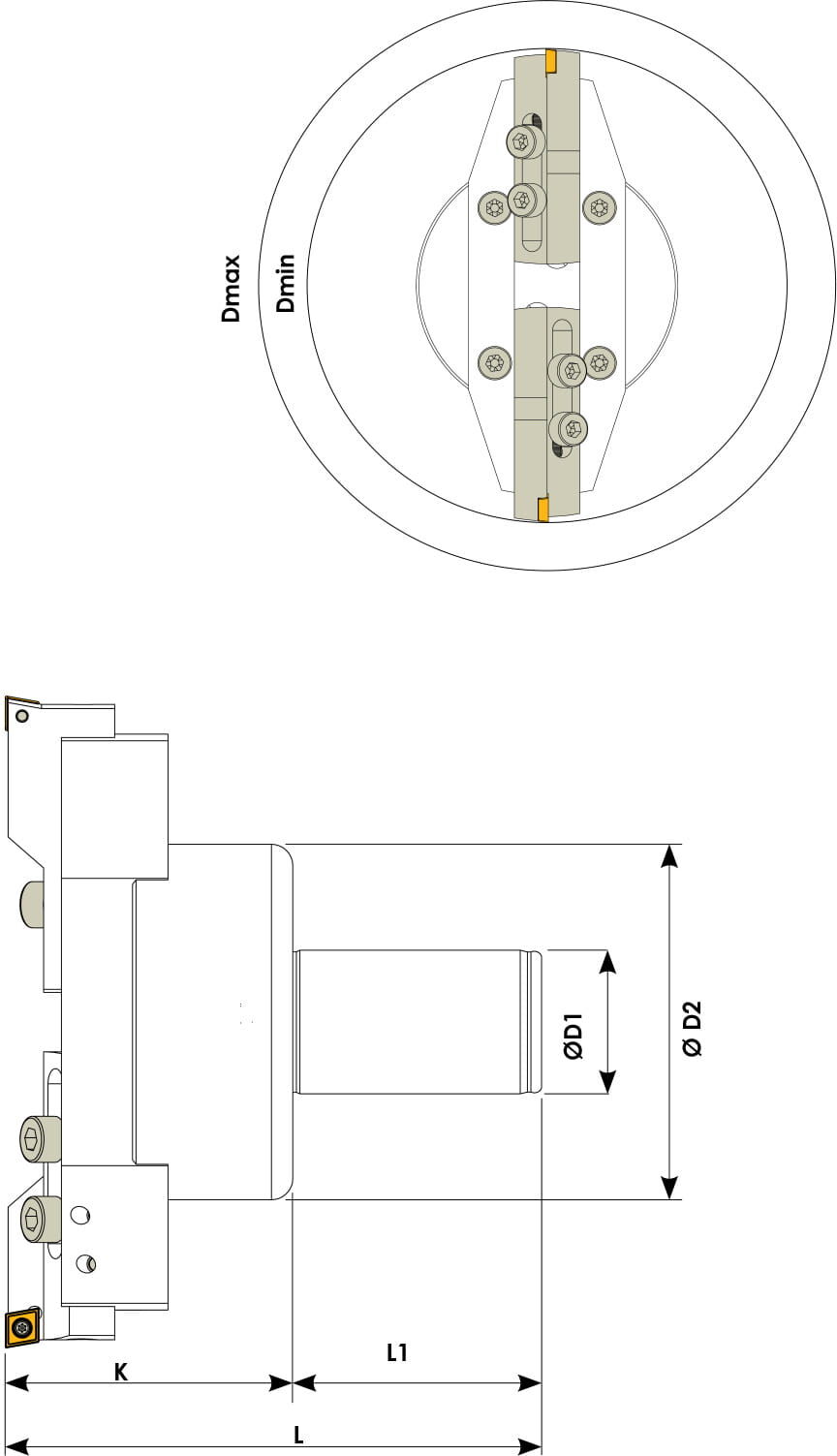

240-350mm Boring Tool for CCMT 1204 Indexable Inserts, 154mm Overall Length, 40mm Shank - Teknik Makina

Taking advantage of a precision cartridge that ensures a secure fit for CCMT 1204 inserts brings measurable improvements in machining stability and tool life; combine this with the straightforward replacement concept from Teknik Makina to reduce downtime and safeguard production continuity — order or request technical advice via Metav Werkzeuge for fast delivery and expert support. Cartridge for Boring Tool 240-350 CCMT 1204 by Teknik Makina — precision seating and fast replacement Cartridge for Boring Tool 240-350 CCMT 1204 is a dedicated insert carrier designed to provide stable seating and repeatable positioning for CCMT 1204 indexable inserts in medium to large boring applications Precision fit for CCMT 1204 inserts Robust construction for stable boring Quick, secure cartridge replacement Compatible with 240–350 boring range Consistent alignment that improves machining results The cartridge delivers a precision alignment between the indexable insert and the tool body, which reduces vibration and improves surface finish in internal turning and boring operations. By holding the CCMT 1204 insert in a stable seat, the component contributes directly to process reliability and predictable tool wear. For shops seeking reproducible results across batches, this part supports consistent tolerances without complex adjustments, making it a practical choice for production environments and jobbing workshops alike. Fast replacement that reduces downtime Designed for quick interchange, the cartridge enables rapid insert and carrier changes, shortening maintenance intervals and keeping machines productive. The secure mounting concept simplifies refitting and reduces the risk of incorrect seating that can lead to premature insert failure. As a result, cycle times and set-up labour are minimised, which translates into improved throughput and lower operational disruption when tool changes are required. Clear compatibility and straightforward integration Specified for use with the boring tool range indicated, the cartridge is intended to integrate directly into existing tool assemblies that accept CCMT 1204 inserts, providing a straightforward upgrade path. The compatibility reduces the need for additional adapters or customised fixtures, allowing the component to be adopted quickly in established tool flows. Where material or application guidance is required, the cartridge’s role as an insert carrier can be explained in simple terms to production planners and purchasing teams, supporting informed procurement choices. Contact Metav Werkzeuge for detailed compatibility checks or to arrange delivery of the Teknik Makina cartridge through Metav Werkzeuge GmbH — advice and swift supply from Emmerich by experienced precision partners Technical data Article number: KR124TM Name: Cartridge for Boring Tool 240-350 CCMT 1204 SKU: KR124TM Facts Compatible range: 240–350 Insert type compatibility: CCMT 1204 Special features For Boring Tool 240-350 CCMT 1204 Manufacturer: Teknik Makina UID: KR124TM FAQ What insert type does this cartridge accept? The cartridge accepts CCMT 1204 indexable inserts and is designed to provide a secure seat for that insert geometry. Is the cartridge suitable for different boring diameters? Yes; the cartridge is specified for the 240–350 range and integrates with the corresponding boring tool assemblies. How does this cartridge affect surface finish and tool life? By improving seating accuracy and reducing vibration, the cartridge contributes to a more consistent surface finish and can extend usable insert life through more stable cutting conditions. Who supplies this cartridge and where can it be ordered? The cartridge is supplied by Teknik Makina and can be ordered or specified via Metav Werkzeuge GmbH for delivery and technical support. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of precise M5 threading and a compact 12 mm length for secure, space-saving fastening; the Torx drive reduces cam‑out and speeds assembly. Order directly via Metav Werkzeuge or consult our product specialists for application advice. Torx screw TC083TM — M5 x 12 mm, Torx drive (Teknik Makina) Torx screw TC083TM for mechanical assemblies where compact form and reliable torque transfer are required M5 thread for standard metric assemblies Head diameter 7 mm for defined seatings Compact 12 mm overall length for confined spaces Torx drive compatible with T20 bits Consistent M5 thread for secure connections The fastener is engineered with a defined M5 thread that provides consistent engagement and predictable clamping behaviour. Where repeatability matters, the metric thread profile reduces the risk of loosening under light vibration and simplifies torque setting during assembly. The specification supports common production and maintenance environments, enabling standardised tooling and fewer inventory variants. Space-saving dimensions that simplify assembly With an overall length of 12 mm and a head diameter of 7 mm, this component is designed for installations where clearance is limited. The compact geometry allows secure fastening without protruding components, which benefits stacked or nested assemblies. Small form factor screws like this shorten installation time in cluttered assemblies and often remove the need for additional countermeasures such as washers or spacers. Torx drive for efficient torque transfer and less wear A Torx drive provides improved engagement between tool and fastener, allowing higher torque transmission with reduced cam‑out compared with slotted or Phillips drives. The drive compatibility with T20 bits enables rapid screwdriving with cordless or pneumatic drivers while protecting both the bit and the screw head from premature damage. The result is faster cycle times and lower tool‑replacement costs in production and workshop settings. Designed for straightforward procurement and workshop use Supplied under the Teknik Makina designation, the TC083TM is a practical choice for procurement managers seeking an economical, repeatable fastening solution. The concise specification and common drive type simplify stockkeeping and tool selection. For workshops, the screw’s straightforward geometry and compatibility with standard Torx tooling support quick decisions on repair and retrofit operations. For reliable fastening from Teknik Makina, contact Metav Werkzeuge to discuss compatibility, availability or to place an order for the TC083TM fastener — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: TC083TM EClass: 21189290 Manufacturer: Teknik Makina Key measurements Diameter: 7 mm Thread: M5 Overall length: 12 mm Angle: 60° Weight: 0.1 kg Features and compatibility Drive type: Torx Compatible driver: T20 Torx key Fastener type: screw FAQ What driver is required for this screw? The screw is designed for a Torx drive and is compatible with a T20 Torx key or bit; this ensures efficient torque transfer for the TC083TM. Is the TC083TM suitable for tight assemblies? Yes, the overall length of 12 mm and a head diameter of 7 mm make the TC083TM appropriate for compact or recessed fastening applications. Which thread does this fastener use? The fastener uses a metric M5 thread, suitable for common metric assemblies and compatible with standard M5 threaded holes and inserts. Can this screw be used with power drivers? The Torx drive and T20 compatibility allow use with cordless and pneumatic drivers; correct torque settings should be observed to avoid over‑tightening. Who manufactures this screw? The screw is supplied under Teknik Makina and listed with article number TC083TM for procurement and stock purposes. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a precision T20 drive and ultra-lightweight handling to speed up assembly tasks and reduce operator fatigue; the compact format keeps workshop inventory manageable. Order directly via Metav Werkzeuge or ask the consultants for procurement advice. Torx key T20 — compact T20 drive for workshop and assembly The Torx key T20 is a compact hand tool designed for fast, reliable engagement with T20 fasteners across maintenance, assembly and repair tasks Torx key T20 precision fit Lightweight, only 0.1 kg handling ease Ideal for assembly and repair tasks Teknik Makina original SKU T20TM Faster, more reliable engagement with Torx fasteners The Torx geometry reduces slipping under load and provides a precision fit that translates into fewer cam‑outs and faster screwdriving cycles. With the marked T20 drive size, this key matches the ISO‑defined Torx profile and is suited for repeatable operations where consistency matters. The drive form is explained here so non‑specialists understand the benefit: the star‑shaped recess transfers torque across multiple contact points, lowering the risk of tool and fastener damage and thereby improving process throughput and component longevity. Reduced fatigue through light handling and compact design At just 0.1 kg, the tool supports long routines without adding cumbersome weight to the toolbox. The low mass makes it suitable for technicians and assembly staff who perform many fastening actions per shift, supporting smoother workflows and improved ergonomics. The compact footprint keeps pockets and small toolkits organised and helps speed up task changes on the workbench. The direct consequence is shorter handling times and less strain during repetitive tasks, a practical plus in both workshop and production environments. Straightforward stock management and compatibility Available as SKU T20TM from Teknik Makina, the item is easy to catalogue and reorder for maintenance spares. The clear designation of the Torx size simplifies procurement and reduces the chance of incorrect parts being purchased. For companies consolidating suppliers, the short SKU and concise specification enable predictable replenishment and audit trails. The small, clearly identified tool supports lean inventory practices and swift identification on the workbench. For procurement or volume requirements of the Teknik Makina Torx key T20, contact Metav Werkzeuge in Emmerich for ordering and supply coordination at +49 2822 7131930 or info@metav-werkzeuge.com Technical data Article number: T20TM Manufacturer: Teknik Makina ECLASS: 21189290 Torx size: T20 Weight: 0.1 kg Numerical data Weight (kg): 0.1 ECLASS: 21189290 Features Suitable for Torx T20 fasteners SKU: T20TM Brand: Teknik Makina FAQ What size of fasteners does this tool fit? The tool fits Torx size T20 fasteners; the designation is indicated on the SKU T20TM. Is the T20 key suitable for repetitive assembly work? Yes, the T20 key by Teknik Makina is designed for regular use and its 0.1 kg mass supports reduced operator fatigue in repetitive tasks. How is the Torx drive beneficial compared with slotted or Phillips heads? The Torx drive distributes torque across multiple contact surfaces, reducing cam‑out and wear on both tool and fastener, which improves process reliability. Can the tool be identified easily for reordering? Yes, the clear SKU T20TM and the labelled Torx size simplify stock management and reordering. Who manufactures this Torx key? The tool is from Teknik Makina; the product is supplied under SKU T20TM and distributed via Metav Werkzeuge for European customers. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Couldn't find the right insert? Don't worry, we're here for you!► Send us a photo of your insert by e-mail.► Send us your drawing by e-mail.► Send us a sample insert or drawing by post Performance features for indexable inserts CCMT 120404 from MetavCUT Brand: MetavCUT Manufacturer Order Number: CCMT120404-Steel Data/ Figures: ISO-Code: CCMT120404 Clearance Angle: 7° Angle: 80° Thickness: 4,76mm Radius: 0.4 Features Material: cemented carbide Usage for: Steel with hole Hole Style: cylindrical hole + single-sided countersink (40°–60°) Form: rhombic Chip Breaker: single-sided Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; www.metav-shop.de; info@metav-werkzeuge.com 40START indexable-inserts-CCMT-120404-Stahl-MetavCUT 40END
