16mm Screw-In Cutter 90° For APKT 1003 Indexable Inserts, M8 Thread - Teknik Makina
€68.00
Product information "16mm Screw-In Cutter 90° For APKT 1003 Indexable Inserts, M8 Thread - Teknik Makina"
Take advantage of the combination of compact design, precise 90° cutting geometry and straightforward insert compatibility for consistent face-milling results; order directly via Metav Werkzeuge or consult their advisors for matching inserts and setup assistance.
Screw-in Milling Cutter VT136TM — 90° shank cutter for APKT 1003 indexable inserts by Teknik Makina
The Screw-in Milling Cutter VT136TM is a compact, 90° screw-in cutter intended for precision face milling and short overhang operations with Korloy APKT 1003 indexable inserts.
- 90° cutting angle for reliable face milling
- Compatible with Korloy APKT 1003 inserts
- M8 screw-in shank, Ø 16 mm
- Torx fastener M2.5x5.5, keyed with T8
High-precision mounting and stable tool geometry for repeatable results
The VT136TM is engineered as a screw-in milling cutter with a screw-in shank (M8) and a compact diameter of Ø 16 mm, enabling a low overhang and predictable tool behaviour. Compatibility with Korloy APKT 1003 indexable inserts ensures that proven insert geometries are available for a wide range of face-milling tasks. The design reduces setup variability: the central threaded connection and clear reference surfaces permit consistent orientation, while the cutter’s defined 90° cutting angle produces square shoulders and accurate board finishes. This combination supports process stability in repeated cycles and simplifies tool selection in mixed-production environments.
Rapid insert changes and secure clamping to reduce downtime
The tool uses a single Torx fastener (size M2.5x5.5) tightened with a T8 key for insert clamping, which provides a straightforward and secure retention method. With 2 cutting edges and an overall length of 41 mm, the cutter is optimised for short, controlled engagements where fast indexable-insert replacement keeps cycle times low. The compact dimensions and low mass (approx. 0.05 kg) contribute to lower centrifugal loads and make it well suited to machines with limited tool magazine capacity. Where quick changeovers are required, the simple Torx fixation minimises handling time and the risk of incorrect seating.
Practical applications and workshop benefits for everyday production
This screw-in tool is intended for workshops and production lines that require accurate face milling with standard APKT 1003 inserts and a robust 90° geometry. The compact form factor supports tight set-ups and confined work envelopes, while the proven insert family from Korloy provides options for finishing and general-purpose cutting. For users seeking predictable results and reduced set-up complexity, the unitary screw-in mounting and standardised insert interface make tool management more efficient and less error-prone. If further clarification on fitting or suitable insert grades is needed, Metav’s technical advisors can be consulted for application-specific guidance.
For delivery, technical matching and procurement of the Teknik Makina VT136TM screw-in milling cutter contact Metav Werkzeuge for supply and expert advice at info@metav-werkzeuge.com or call +49 2822 7131930

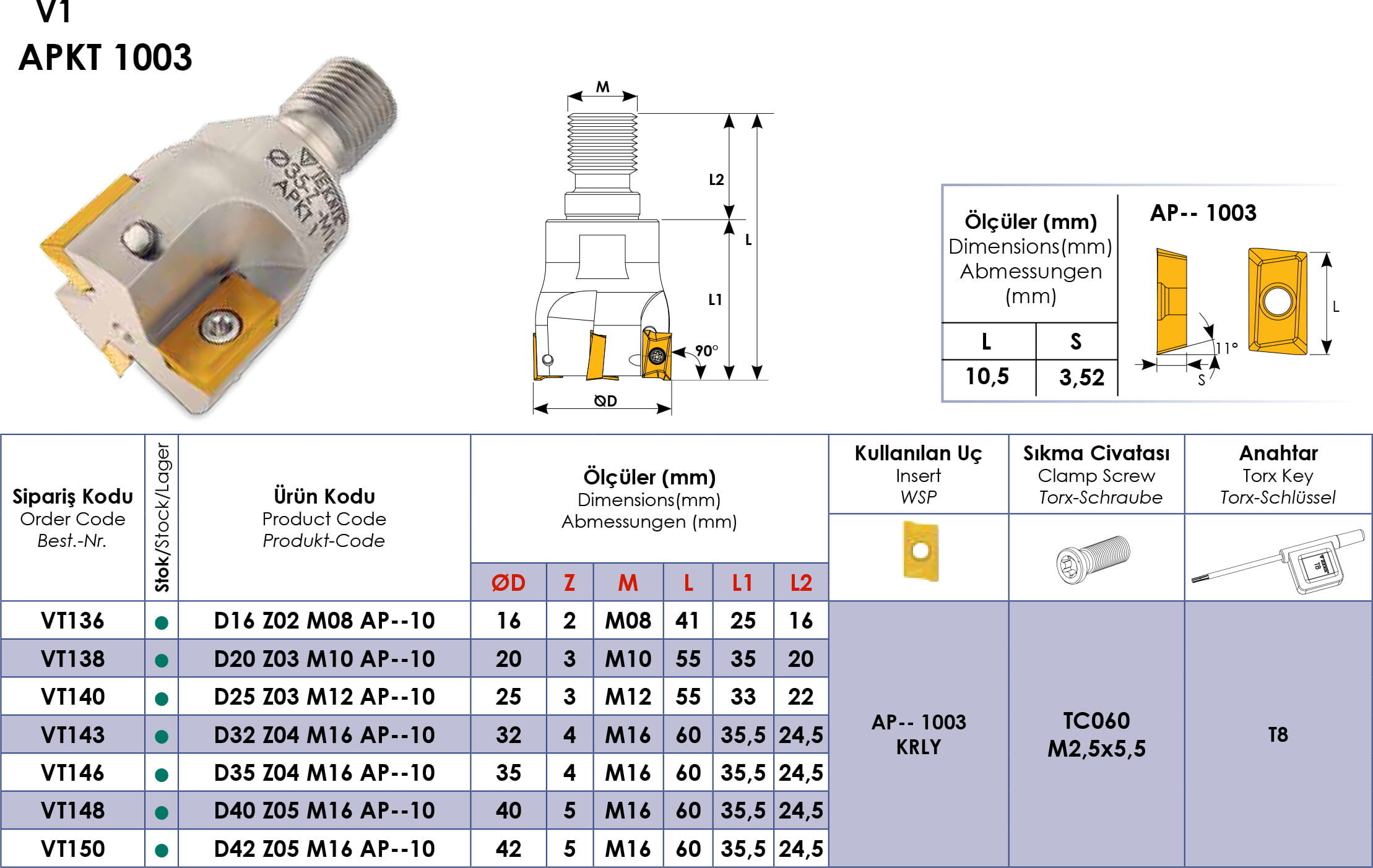

Technical data
- SKU: VT136TM
- Manufacturer: Teknik Makina
Facts

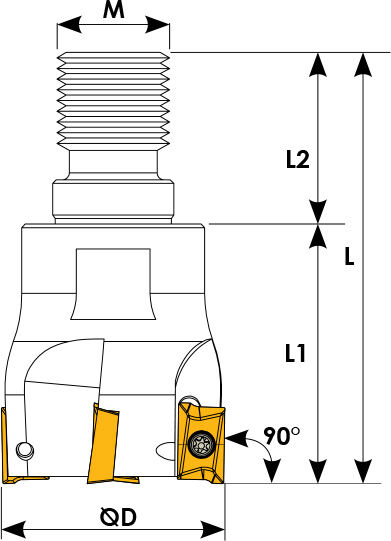

- Diameter: 16 mm
- Thread: M8
- Thread height: 16 mm
- Cutting-edge height: 25 mm
- Cutting angle: 90°
- Number of cutting edges: 2
- Overall length: 41 mm
- Weight: 0.05 kg
- Torx fastener: M2.5x5.5
- Torx key: T8
- Compatible inserts manufacturer: Korloy
Special features
- Screw-in mounting
- Compatible with APKT 1003 indexable inserts
- Compact design for reduced overhang
- Torx-secured insert clamping
FAQ
Which inserts are compatible with this cutter?
The cutter is compatible with Korloy APKT 1003 indexable inserts; the APKT family provides a range of grades for finishing and general-purpose milling.
What is the required fastening tool for insert changes?
Insert clamping is secured with a Torx fastener M2.5x5.5 and requires a T8 key for correct torque application.
How does the cutter’s geometry affect machining?
The 90° cutting angle creates square shoulders and precise face finishes; the compact Ø 16 mm body reduces overhang for improved rigidity during short engagements.
Is the cutter suitable for automated tool magazines?
With an overall length of 41 mm and a mass of approximately 0.05 kg, the design is compatible with many automatic tool-change systems and smaller tool magazines.
What machine applications are recommended for this type of cutter?
The tool is intended for face milling and short-reach operations in small to medium series production where standard APKT 1003 inserts deliver the required surface quality.
Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
| Cutting angle: | 90.0 |
|---|---|
| Designation: | Einschraubfräser |
| Diameter-1: | 16mm |
