APKT 160408 Indexable Insert for Aluminium - MetavCUT

Benefit from the combination of robust shank dimensions and indexable-insert compatibility to secure stable, repeatable milling results in daily production. Order the tool directly via Metav Werkzeuge or consult the technical team for precise pairing and setup advice. Shank milling cutter for APKT 1003-1604 Indexable Inserts – 40 mm dia, 25 mm shank (Teknik Makina) The Shank milling cutter for APKT 1003-1604 Indexable Inserts is a purpose-built insert milling cutter intended for efficient face and peripheral milling where quick insert changes and consistent cutting geometry are required. 40 mm cutting diameter 25 mm shank diameter Compatible with APKT1604 inserts Four cutting edges for smooth removal Consistent cutting performance for predictable results The tool is designed to deliver a reliable cutting pattern using a 40 mm diameter and 4 cutting edges, which together promote balanced material removal and reduced cutting forces. The 90° cutting geometry yields a defined shoulder finish and helps maintain dimensional accuracy during face milling operations. For users evaluating cycle time, the combination of cutter diameter and edge count supports higher material removal rates while preserving surface quality. The physical balance and mass distribution of the tool contribute to vibration damping, which results in fewer rework cycles and a steadier machining process. Secure clamping and straightforward insert handling Retention and repeatability are supported by a robust fastening arrangement: an M4x10 Torx screw with a T15 Torx key secures the indexable insert, ensuring consistent seat location and torque control. Compatibility with APKT1604 indexable inserts simplifies stock management and allows quick replacement during shift changes. For production environments where tool changeover speed matters, the standardised insert format and straightforward clamping reduce downtime and make insert rotation or replacement a routine, low-risk operation. Optimised geometry for workshop integration With a 25 mm shank, 45 mm cutting length, and 120 mm overall length, the cutter is sized for stability in common toolholders while still providing sufficient reach for many milling tasks. The listed 0.516 kg mass contributes to tool rigidity without imposing excessive spindle load, which is important for maintaining spindle life and consistent spindle dynamic behaviour. The tool’s dimensions are compatible with typical milling setups, supporting integration into existing tool lists where repeatability and simple tool management are priorities. Practical application guidance and production benefits The cutter is suitable for workshop and industrial settings that require dependable insert milling with standard APKT insert geometries. Compatibility with inserts from established manufacturers such as YG-1 helps to reduce logistics complexity and secures replacement availability. Specifying this cutter supports predictable cycle times, simplified tooling inventory and a clear maintenance routine for insert inspection and rotation. If a machining strategy requires assessment, technical consultation can be sought to establish optimal feeds, speeds and insert grades for particular materials and component tolerances. Contact Metav Werkzeuge for tailored advice on selecting the right Teknik Cutting Tools shank milling cutter and the optimal APKT1604 insert pairing to maximise production uptime Technical data Article number: S046TM Manufacturer: Teknik Makina Name: Shank milling cutter Description: for APKT 1003-1604 Indexable Inserts eClass: 21180806 ETIM: EC011860 Numbers Diameter: 40 mm Shank diameter: 25 mm Cutting length: 45 mm Overall length: 120 mm Number of cutting edges: 4 Weight: 0.516 kg Cutting angle: 90° Special features Compatible insert: APKT1604 Compatible insert manufacturer: YG-1 Torx screw: M4x10 Torx key size: T15 For APKT 1003-1604 indexable inserts FAQ What insert type fits this milling cutter? The cutter is designed for APKT1604 indexable inserts and accepts APKT 1003–1604 sizes as specified for secure seating and correct cutting geometry. Which manufacturers’ inserts are compatible? Compatibility is confirmed with YG-1 inserts; the cutter accepts APKT1604 inserts from standard suppliers, facilitating procurement and stocking. What is the shank diameter and why does it matter? Shank diameter is 25 mm; a solid shank of this diameter delivers greater rigidity in the holder, reducing deflection and improving dimensional stability in the machined component. Is the fastening method industry standard? Yes; the insert is secured with an M4x10 Torx screw requiring a T15 key, a common and reliable method that ensures repeatable clamping torque and precise insert location. Can this cutter be used for both face and peripheral milling? The cutter’s 90° cutting angle and multiple cutting edges make it suitable for defined shoulder and face milling operations where repeatable geometry and a consistent surface finish are required. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of secure M16 screw-in mounting, a Ø 42 mm cutting diameter and compatibility with APKT 1604 indexable inserts to speed set-up and maintain consistent surface quality; order the VT170TM screw-in cutter directly via Metav Werkzeuge or ask our consultants if needed VT170TM screw-in cutter – for APKT 1604 indexable inserts, Ø 42 mm (Teknik Makina) A screw-in cutter designed for face milling and shoulder work, combining a robust M16 thread with a 90° cutting angle for dependable mounting and predictable milling geometry Ø 42 mm cutting diameter Secure M16 screw-in thread 90° cutting angle for square shoulders Compatible with APKT 1604 indexable inserts Stable mounting for repeatable machining quality The VT170TM features a solid M16 screw-in connection and a dedicated Torx M4x10 fastening screw, tightened with a T15 key, which together reduce micro-movements at the tool seat. This mechanical stability lowers the risk of chatter, delivers consistent cutting geometry across batches and supports predictable tolerances in production. The result is fewer rejects and less time spent on rework, improving throughput in small-batch and serial milling alike. Geometry engineered for efficient face milling A Ø 42 mm cutter body with a 90° cutting angle and four cutting edges provides a balance between material removal and surface finish. The axial and radial proportions offer effective chip evacuation while maintaining a stable cutting line for square shoulders and pocketing. The specified cutting height of 35.5 mm ensures sufficient engagement with the insert, helping to sustain cutting performance under typical face-milling conditions and reducing the need for excessive finishing passes. Fast insert changes and broad compatibility This indexable system accepts APKT 1604 inserts and is compatible with Korloy-manufactured plates, enabling straightforward supply management and quick replacements on the shop floor. The Torx-secured clamping allows short tool-change cycles and reliable seating of the insert, which supports uninterrupted production runs. For operations using standard APKT plates, the tool reduces setup complexity and keeps machine idle time to a minimum. Lightweight handling with compact dimensions for workshop use Weighing just 0.251 kg and measuring 60 mm overall with a thread height of 24.5 mm, the cutter is easy to handle during tool preparation and fits compact tool magazines without adding excess inertia. Its modest mass aids safe manual handling and quick mounting, while the compact length suits machines with limited clearance. These physical attributes contribute to efficient tool logistics and faster cycle preparation in mixed-production environments. For reliable face-milling performance with Teknik Makina’s VT170TM and swift supply from Europe, contact Metav Werkzeuge in Emmerich for expert advice and immediate availability via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: VT170TM Manufacturer: Teknik Makina Name: screw-in cutter Compatible inserts: APKT 1604 Facts Diameter: 42 mm Overall length: 60 mm Cutting height: 35.5 mm Thread height: 24.5 mm Thread: M16 Cutting edges: 4 Weight: 0.251 kg Cutting angle: 90° Special features Torx screw: M4x10 Torx key size: T15 Compatible insert manufacturer: Korloy Suitable for APKT 1604 indexable inserts FAQ Which inserts fit this tool? The VT170TM is designed for APKT 1604 indexable inserts and is compatible with Korloy APKT plates. What is the mounting thread and how is the insert secured? Mounting uses an M16 screw-in thread; the insert is fixed with a Torx M4x10 screw tightened with a T15 key. What are the cutter diameter and cutting angle? The cutter has a Ø 42 mm diameter and a 90° cutting angle suitable for square-shoulder milling. How many cutting edges and what are the tool dimensions? The tool offers four cutting edges, an overall length of 60 mm and a cutting height of 35.5 mm. Is the tool suitable for quick changeover in production? Yes, the Torx-secured clamping and standard APKT 1604 interface enable short change cycles and simple insert replacement. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Specifications: Order Number: VT168TM Item: Modular End Mill usable with APKT 1604 Indexable Inserts of Korloy Brand: Teknik Makina Quantitative Specifications: Diameter: 40mm Cutting Edges: 4 Weight: 0.238kg Total length: 60mm Cutting Height: 35.5mm Thread: M16 Manufacturer Teknik Makina, Nolu Sokak, No 9, Selcuklu, Turkey, eMail: info@teknik-makina.com Responsible for Europe Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, Germany, eMail: info@metav-werkzeuge.com

Take advantage of the secure M16 screw-in connection, three cutting edges and APKT 1604 insert compatibility for efficient, repeatable milling; order directly via Metav Werkzeuge or consult the specialists for application advice. Teknik Makina Screw-in Milling Cutter VT166TM — 35 mm diameter, M16 thread for APKT 1604 inserts The screw-in milling cutter VT166TM is a compact, M16‑threaded tool designed for face and shoulder milling with APKT 1604 indexable inserts, providing a robust clamping solution for short‑setups. M16 screw‑in connection Compatible with APKT 1604 inserts Three cutting edges for stable cutting Torx M4x10 clamping screw, T15 key Secure clamping that reduces setup variability The M16 screw‑in connection with a thread engagement of 24.5 mm and a dedicated M4x10 Torx clamping screw (Torx key T15) gives mechanically secure tool retention and consistent repeatability. This rigid interface minimises micro‑movement during heavy cuts and shortens rework rates, so machine time becomes more predictable. The quick clamping arrangement also reduces changeover time, which supports higher overall equipment effectiveness and a leaner production flow. Stable cutting performance and predictable tool life With a 35 mm diameter and three cutting edges, the cutter distributes chip load evenly across inserts for controlled material removal. The 90° cutting angle and a cutting height of 35.5 mm deliver reliable face and shoulder milling performance, enabling efficient stock removal while maintaining surface finish. The robust geometry supports steady cutting conditions that translate into repeatable tool life and planning certainty for batch production or continuous operation. Compatibility and practical maintenance for uninterrupted production Designed for APKT 1604 indexable inserts (compatible with Korloy grades), the tool allows fast insert replacement and offers flexibility in carbide grades for different applications. The compact overall length (60 mm) and low mass (approx. 0.211 kg) limit spindle load and improve accessibility in confined set‑ups. Routine maintenance requires only a T15 key for the M4x10 screw, enabling safe, fast insert changes and minimal downtime for servicing the cutter. For tailored advice on integrating the Teknik Makina screw‑in milling cutter VT166TM into production, contact Metav Werkzeuge for application support and reliable supply from Emmerich: info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: VT166TM Name: Screw-in milling cutter for APKT 1604 indexable inserts Manufacturer: Teknik Makina Weight: 0.211 kg Facts Diameter: 35 mm Overall length: 60 mm Cutting height: 35.5 mm Thread engagement height: 24.5 mm Thread: M16 Number of cutting edges: 3 Cutting angle: 90° Torx screw: M4x10 Torx key: T15 ECLASS: 21180806 ETIM: EC011860 Special features Compatible with APKT 1604 indexable inserts Suitable for Korloy APKT 1604 insert grades Secure screw‑in connection for repeatable positioning Compact design for restricted workspaces FAQ Which inserts fit this cutter? The cutter accepts APKT 1604 indexable inserts; VT166TM is designed for standard APKT 1604 geometries and is compatible with Korloy insert grades. What is the thread specification and how is the tool secured? VT166TM uses an M16 screw‑in connection with a thread engagement of 24.5 mm and is secured by an M4x10 Torx clamping screw tightened with a T15 key. How many cutting edges are provided and what is the cutting angle? The tool is fitted with three cutting edges and a 90° cutting angle to provide stable face milling and predictable cutting performance. What are the main dimensions and mass of the cutter? Key figures for the cutter: diameter 35 mm, overall length 60 mm, cutting height 35.5 mm, weight approx. 0.211 kg. Which tool is required for insert changes? Insert and clamping screw changes are performed with a T15 Torx key for the M4x10 clamping screw on VT166TM. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, robust threaded arbor offering Ø 32 mm body diameter and an M16 screw connection combined with three cutting edges and a 90° cutting angle for reliable face and slot milling; order the tool via Metav Werkzeuge or consult our specialists for application advice. Screw-in cutter VT163TM for APKT 1604 indexable inserts – Ø 32 mm, M16 thread (Teknik Makina) The Screw-in cutter VT163TM is a compact threaded arbor designed for secure mounting and efficient use with APKT 1604 indexable inserts in general machining operations. Ø 32 mm body diameter M16 threaded mounting Compatible with APKT 1604 inserts Three cutting edges, 90° cutting angle Rigidity and repeatable accuracy for consistent results The screw-in design with a robust M16 thread and a thread engagement height of 24.5 mm ensures a firm connection to the holder, which translates into improved stability and repeatable tool positioning. With a cutting height of 35.5 mm and a compact overall length of 60 mm, the arbor minimises overhang and helps maintain cutting geometry under load. Such mechanical security reduces vibration and contributes to predictable machining outcomes, making the solution suitable where repeatability and tool life are priorities. Fast insert handling and predictable clamping Using common APKT 1604 indexable inserts keeps consumable logistics straightforward and cost-efficient, especially given compatibility with Korloy inserts. The head is secured with a Torx M4x10 screw; a T15 Torx key is required for insert changes and tightening. The presence of three cutting edges and a 90° cutting angle provides balanced engagement and even wear distribution, which simplifies tool management and lowers the frequency of unscheduled rework. The arbor’s low mass (0.18 kg) also reduces spindle load during tool changes. Straightforward integration and maintenance in production The compact geometry and standardised mounting form make the tool easy to integrate into modular tooling systems and common toolholders. Clear mechanical specifications support process planning: diameter 32 mm, thread M16, three cutting edges and defined cutting height permit predictable set-ups and shortened preparation times. Regular maintenance is limited to insert replacement and screw torque checks with the specified Torx key, keeping downtime to a minimum while preserving machining quality. For delivery options, stock status and technical guidance on integrating the VT163TM screw-in cutter into existing toolholders, contact Metav Werkzeuge directly at +49 2822 7131930 or info@metav-werkzeuge.com to discuss the right configuration for the workshop or production line Technical data Article number: VT163TM Manufacturer: Teknik Makina Description: Screw-in cutter for APKT 1604 indexable inserts Diameter: 32 mm Thread: M16 Thread engagement height: 24.5 mm Cutting height: 35.5 mm Overall length: 60 mm Weight: 0.18 kg Number of cutting edges: 3 Cutting angle: 90° Torx screw: M4x10 Torx key: T15 Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Design: screw-in arbor Application: indexable-insert face and slot milling FAQ Which insert type does this cutter accept? The VT163TM accepts APKT 1604 indexable inserts; the tool is specified for that insert size and form. Is the arbor compatible with Korloy inserts? Yes, compatibility with Korloy APKT 1604 inserts is indicated for the VT163TM screw-in cutter. What fastener and tool are required for insert changes? Insert clamping uses a Torx M4x10 screw; a T15 Torx key is specified for tightening and removal. What are the key dimensions to consider for set-up? Important set-up dimensions are Ø 32 mm body diameter, M16 thread, thread engagement height 24.5 mm, cutting height 35.5 mm and overall length 60 mm. How many cutting edges does the tool have and what is the cutting angle? The arbor carries three cutting edges and features a 90° cutting angle, giving balanced engagement and predictable wear. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact 25 mm diameter, a stable M12 screw-in connection and proven compatibility with APKT 1604 indexable inserts for reliable 90° shoulder milling — order the tool from Metav Werkzeuge or consult our specialists for application advice. Screw-in milling cutter VT160TM — 25 mm diameter, 90° shoulder, Teknik Makina A Screw-in milling cutter designed for precise 90° shoulder milling with APKT 1604 indexable inserts in confined setups 90° cutting angle for shoulder milling Compatible with Korloy APKT 1604 inserts M12 screw-in thread, 25 mm diameter Secure Torx clamping, M4x10 screw Accurate shoulder milling where space is limited The Screw-in milling cutter provides a compact solution for tight fixtures and multi-axis setups. With a 25 mm outer diameter and a defined 90° cutting angle, the tool is optimised for shoulder and face milling operations that demand perpendicular walls and repeatable corner geometry. Using established APKT 1604 indexable inserts reduces per-part tooling cost since worn cutting edges are replaced instead of the whole head. The result is predictable component tolerances and simplified spare-part logistics for production-focused workshops. Secure clamping and low-vibration performance for repeatability A robust M12 thread with 22 mm engagement and a close centre of mass (total length 55 mm, weight 0.107 kg) gives the assembly high clamping stability and low overhang oscillation. The insert is secured with a M4x10 Torx screw (Torx key size T15), providing consistent seat loading and repeatable positioning of the indexable cutting edge. With 2 cutting edges and a cutting height of 33 mm, the configuration balances material removal with tool life and allows for quick insert changes, reducing machine downtime and improving process uptime. Integration into machining processes and procurement advantages The tool’s adherence to common insert standards simplifies toolholder inventory: it accepts APKT 1604 inserts widely available from major suppliers such as Korloy. The compact design suits jobbing shops and production cells that need high process reliability without complex tool management. Supplied by a trusted distribution partner, the product benefits from Metav’s European logistics filter in Emmerich, which supports a broad catalogue and dependable supply chains — a practical advantage for buyers aiming to consolidate suppliers and secure consistent deliveries. For dependable 90° shoulder milling select the Teknik Makina VT160TM from Metav Werkzeuge — contact Metav Werkzeuge GmbH in Emmerich for ordering or technical clarification via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: VT160TM Manufacturer: Teknik Makina SKU: VT160TM Facts Diameter: 25 mm Overall length: 55 mm Cutting height: 33 mm Thread engagement height: 22 mm Thread: M12 Cutting edges: 2 Weight: 0.107 kg Cutting angle: 90° Torx screw: M4x10 Torx key size: T15 Special features For APKT 1604 indexable inserts Compatible with Korloy inserts Designed for 90° shoulder milling Compact screw-in mounting for tight setups FAQ Which indexable inserts fit this cutter? The cutter accepts APKT 1604 indexable inserts; Korloy APKT 1604 inserts are a compatible option for the VT160TM. How is the insert clamped? The insert is secured with a M4x10 Torx screw; a T15 key is required to achieve the correct clamping torque and repeatable seating. What machining tasks is the tool best suited for? This tool is intended for 90° shoulder and face milling where a compact tool body and repeatable corner geometry are required. Is the screw-in connection durable for continuous production? The M12 screw-in mounting with 22 mm engagement provides a stable connection suitable for regular production use when mounted correctly. Can the cutter be used on small machining centres? Yes — the compact 25 mm diameter and short overall length make the tool suitable for machines with limited clearance or short overhangs. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Combining a robust Ø 40 mm cutting diameter with a four‑flute geometry and a shank Ø 32 mm for stable clamping, this tool delivers reliable material removal and reduced vibration; the 350 mm overall length provides the reach required for deeper setups. Order the shank milling cutter directly via Metav Werkzeuge or ask the consultants for machining recommendations. Shank milling cutter S456TM – Ø 40 mm, 4 flutes by Teknik Makina A shank milling cutter S456TM designed for indexable‑insert milling with APKT 1604 inserts, suited to shoulder and face milling where secure clamping and repeatable insert changes are needed 40 mm cutting diameter Four cutting edges for even material removal Shank Ø 32 mm for stable clamping Compatible with APKT 1604 inserts Reliable indexable‑insert system for predictable productivity The cutter body is engineered to accept APKT 1604 indexable inserts and is compatible with Korloy insert variants, enabling fast insert changes and stocked spare parts strategies. A secure clamping interface using Torx M4x10 screws with a T15 key provides repeatable seating and minimises downtime during tool replacement. This construction supports consistent cutting performance and simplifies maintenance planning for production runs. Stable cutting performance through balanced geometry With a Ø 40 mm cutting diameter and 4 flutes, the tool offers a balanced chip load that is well suited to steady material removal and reduced harmonic excitation. The shank Ø 32 mm ensures firm retention in the spindle or holder, while the 90° cutting angle provides clean shoulder faces and predictable axial forces. The combination of these dimensions reduces the risk of chatter and contributes to improved surface quality on the workpiece. Extended reach while maintaining rigidity An overall length of 350 mm combined with a 55 mm cutting length permits access to recessed features and longer setups without resorting to multiple extensions. Despite the extended reach, the robust tool mass (approx. 2.375 kg) supports rigidity at the cutting zone, helping to keep tolerances tight and tool life consistent. The modular nature of the insert system also means that consumables can be optimised for cost‑efficiency without replacing the entire tool body. Specification guidance and workshop reliability As part of a pragmatic machining strategy, this cutter integrates with common insert inventories and workshop toolholders, reducing the number of special components required. Metav’s experience in precision tools supports selection of the correct insert grade and chipformer for the intended material and cycle time targets. The documented choice of clamping hardware and standard insert format enables straightforward stock management and predictable replenishment. Consult Metav Werkzeuge for a tailored recommendation on Teknik Cutting Tools' S456TM shank milling cutter and for assistance selecting the correct APKT 1604 inserts; call +49 2822 7131930 or e‑mail info@metav-werkzeuge.com Technical data SKU: S456TM Brand: Teknik Makina Designation: Shank milling cutter for APKT 1604 indexable inserts Core data Cutting diameter: 40 mm Shank diameter: 32 mm Cutting length: 55 mm Overall length: 350 mm Number of edges: 4 Weight: 2.375 kg Cutting angle: 90° Special features Compatible with APKT 1604 indexable inserts Suitable insert manufacturer: Korloy Clamping screw: M4x10 Torx Torx key size: T15 FAQ Which insert type fits this cutter? The cutter accepts APKT 1604 indexable inserts; Korloy APKT 1604 grades are compatible as specified for the tool body. How is an insert secured in the tool? Inserts are retained with a Torx M4x10 clamping screw tightened with a T15 key to ensure repeatable seating and safe clamping. What machining tasks suit this tool? The geometry and 90° cutting angle make it suitable for shoulder and face milling operations where a Ø 40 mm tool and a four‑flute arrangement provide a balance of material removal and surface finish. Does the tool provide sufficient reach for recessed features? Yes; the 350 mm overall length with a 55 mm cutting length allows access to deeper pockets and extended setups while maintaining rigidity. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust, long-reach shank design and precise compatibility with APKT 1604 indexable inserts to maintain steady production and predictable tool life; order the cutting solution directly via Metav Werkzeuge or consult our specialists for sizing and application advice. Shaft milling cutter S454TM – 35 mm diameter shank cutter for APKT 1604 indexable inserts by Teknik Makina The Shaft milling cutter S454TM is a long-reach shank cutter engineered for reliable face and shoulder milling with indexable inserts, suited to production and workshop environments where repeatable performance and straightforward insert changes matter. *Compatible with APKT 1604 Korloy inserts *35 mm cutting diameter for robust milling *32 mm shank, 350 mm overall length Reliable insert system for predictable machining results This shank cutter uses APKT 1604 indexable inserts, a widely available insert format that simplifies tool management and minimises downtime during regrinds or replacements. The insert interface ensures consistent seat location and repeatable cutting geometry; when paired with Korloy inserts the tool achieves uniform chip control and stable cutting forces. The main benefit is reduced clamping and setup time, which supports steady-cycle production and easier inventory handling of spare inserts. Stiff shank and extended reach reduce deflection in deep operations With a 32 mm shank and an overall length of 350 mm, the tool is designed for jobs requiring extended reach without sacrificing rigidity. The larger shank diameter improves resistance to bending and vibration, which in turn protects surface finish and tool life when performing shoulder milling or light slotting. For workshops facing occasional long-reach passes, this tool offers a balance between accessibility and stability, translating to fewer rejects and less rework. Efficient cutting geometry for shorter cycle times Equipped with three cutting edges and a 90° cutting angle, the cutter provides efficient material removal and good radial support for shoulder faces. The arrangement of edges supports even load distribution across inserts, allowing consistent feed rates and predictable machining times. Where throughput is critical, this geometry delivers a higher material removal rate compared with single-edge solutions, while still offering straightforward indexable-insert replacement for sustained productivity. Service-friendly assembly and clear maintenance cues Fast, tool-free insert changes are supported by a simple Torx fixing system (screw M4x10, key T15), enabling quick exchange of worn inserts on the shopfloor. The use of a standard Torx screw reduces the risk of incorrect fastening tools and helps maintain correct clamping torque for secure insert seating. As a result, maintenance intervals are easier to plan and the toolholder remains accessible to trained technicians, helping to keep uptime high. For a reliable Teknik Makina shank solution that fits existing APKT 1604 insert stocks, contact Metav Werkzeuge for tailored procurement and technical assistance by phone +49 2822 7131930 or by email at info@metav-werkzeuge.com Technical data Article number: S454TM Manufacturer: Teknik Makina Suitable for inserts: APKT 1604 Compatible insert brand: Korloy Torx screw: M4x10 Torx key: T15 Facts Cutting diameter: 35 mm Shank diameter: 32 mm Cutting length (shank cutting): 65 mm Overall length: 350 mm Number of cutting edges: 3 Cutting angle: 90° Weight: 2.332 kg Special features Indexable inserts system Long-reach shank design Standard Torx fastening for inserts Suitable for face and shoulder milling FAQ Which inserts fit this cutter? The cutter accepts APKT 1604 indexable inserts; compatibility has been specified for Korloy inserts and standard seat geometry. Is the shank suitable for heavy milling? The 32 mm shank and 350 mm overall length of the S454TM balance reach and rigidity; for heavy roughing, ensure clamping and machine rigidity are adequate. What fasteners are used for insert fixation? Insert fastening uses a Torx screw M4x10 and Torx key T15, enabling secure and repeatable clamping of the inserts. Can the cutter be used for finishing passes? Yes — with the correct choice of APKT 1604 finishing inserts, the toolhead is suitable for finishing shoulders and face milling where indexable-insert solutions are preferred. What are the main benefits of this Teknik Makina shank cutter? The Teknik Makina S454TM provides straightforward insert replacement, extended reach with reduced deflection thanks to its 32 mm shank, and efficient cutting via three cutting edges for improved cycle times. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of high stability, precise compatibility with APKT 1604 indexable inserts and an 80 mm cutting length for efficient milling cycles; order the cutter directly via Metav Werkzeuge or consult our specialists for process integration. S453TM – Shaft milling cutter by Teknik Makina, Ø 32 mm shank, 80 mm cutting length S453TM is a shank-type milling cutter designed for robust slotting and shoulder milling operations using APKT 1604 indexable inserts, ideal for medium‑ to heavy‑duty CNC applications Ø 32 mm shank diameter 80 mm cutting length for deep cuts Compatible with APKT 1604 indexable inserts Three cutting edges for smooth chip evacuation Faster cycle times through stable shank design The cutter delivers measurable productivity gains thanks to its Ø 32 mm shank, which increases rigidity at the tool holder and reduces chatter during interrupted cuts. With an 80 mm cutting length, the tool enables deeper engagement in a single pass, reducing the number of operations required to reach final dimensions. The combination of shank stability and generous cutting span supports higher feed rates and contributes directly to shorter cycle times on batch work. Fewer tool changes with standardised insert compatibility Built to accept APKT 1604 indexable inserts, the tool integrates seamlessly into workflows that already use common triangular‑style inserts. Compatibility with Korloy inserts gives access to a broad range of grades for steel, stainless steels and cast materials, so tooling can be adapted to the workpiece without replacing the holder. The insert is secured with a M4x10 Torx screw and a T15 key, ensuring repeatable clamping and quick index changes that keep machine downtime to a minimum. Consistent surface results from optimised geometry The cutter’s 90° cutting angle and three cutting edges were selected to balance stock removal and surface finish. Three flutes promote efficient chip evacuation while maintaining a uniform cutting load across the insert edges; this helps to achieve consistent shoulder faces and reduces the need for secondary finishing. The tool’s overall length of 350 mm and substantial mass provide damping that stabilises the cut, which is particularly beneficial when machining with longer overhangs. Clear specification and workshop support for confident procurement Technical clarity in the specification—shank Ø, cutting length, number of cutting edges and insert type—means purchasing decisions can be made with confidence and without unnecessary enquiries. Metav’s offering positions precision equipment within reach of workshops by combining product availability with application knowledge; for complex set‑ups the distributor can advise on insert grades and machine parameters to match material and productivity targets. This approach minimises sourcing risk while supporting efficient implementation on the shop floor. Contact Metav Werkzeuge for a tailored recommendation on the Teknik Cutting Tools S453TM shank milling cutter — call +49 2822 7131930 or email info@metav-werkzeuge.com to discuss insert grades and CNC parameters Technical Data Article number: S453TM Manufacturer: Teknik Makina SKU: S453TM Facts Shank diameter: 32 mm Cutting length: 80 mm Overall length: 350 mm Number of cutting edges: 3 Weight: 2.274 kg Cutting angle: 90° Special features For APKT 1604 indexable inserts Compatible with Korloy inserts Torx screw M4x10, Torx key T15 Three‑flute geometry for improved chip control FAQ What insert type does this cutter use? The cutter accepts APKT 1604 indexable inserts; compatible insert grades from Korloy are suitable depending on the workpiece material. Is the shank diameter suitable for standard tool holders? Yes — the Ø 32 mm shank is compatible with common 32 mm collet or shrink‑fit holders used in milling spindles. How many cutting edges are fitted and what benefit do they bring? The tool uses three cutting edges, which balance material removal and chip evacuation to deliver smoother cutting and stable surface quality. Can the screw be tightened with a standard key? The insert is secured by an M4x10 Torx screw requiring a T15 Torx key for reliable, repeatable clamping. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Optimise milling processes with a focus on stability and fast insert changes: robust 32 mm shank, a 70 mm cutting length for deep engagement, and compatibility with APKT 1604 indexable inserts. Order the component directly via Metav Werkzeuge or consult our specialists for machining advice. S450TM Shank Milling Cutter for APKT 1604 Indexable Inserts – Ø 40 mm, 32 mm shank (Teknik Makina) The S450TM is a shank milling cutter engineered for secure clamping and efficient indexable-insert milling in general workshop and light-industrial applications. Ø 40 mm cutting diameter 32 mm solid shank for stable clamping 70 mm cutting length for deep engagement Compatible with APKT 1604 inserts (Korloy) Stable clamping for consistent machining results The tool body delivers high stability through a 32 mm solid shank and an overall length engineered for balance; this reduces unwanted vibration and supports repeatable tolerances on serial parts. With a Ø 40 mm cutting diameter and a 90° cutting geometry, the design promotes an even load distribution across the cutting edges, which helps to achieve a consistent surface finish and prolongs tool life. These attributes translate into fewer scrapped parts and a more predictable production rhythm. Fast insert changes and predictable service intervals Designed to accept APKT 1604 indexable inserts, the cutter uses a standard Torx clamping system (M4x10 screw, T15 key) for rapid, repeatable insert replacement. Indexable inserts allow the cutting edge to be renewed without replacing the entire tool body, cutting overall tooling costs and downtime. The ergonomic clamping layout shortens maintenance steps and simplifies regrinding cycles at the insert level, which benefits workshops aiming to keep machines productive with minimal intervention. Application-focused geometry that supports throughput Featuring four cutting edges and a 70 mm cutting length, the cutter is suited to operations requiring extended axial engagement while maintaining chip control and dimensional stability. The 300 mm overall length and a weight of 1.922 kg have been balanced to suit spindle-holding systems frequently found in production mills, enabling stable feed rates and reduced chatter. For manufacturers prioritising output and process reliability, this configuration supports higher feed capacities without compromising surface quality. Contact Metav Werkzeuge for application advice and reliable supply of Teknik Cutting Tools shank milling cutters; phone +49 2822 7131930 or email info@metav-werkzeuge.com for tailored recommendations. Technical data SKU: S450TM Manufacturer: Teknik Makina Article description: Schaftfräser for APKT 1604 Indexable Inserts Core specifications Diameter: 40 mm Shank diameter: 32 mm Cutting length: 70 mm Number of cutting edges: 4 Overall length: 300 mm Cutting angle: 90° Weight: 1.922 kg eCl@ss: 21180806 ETIM: EC011860 Features & compatibility Compatible inserts: APKT 1604 Matched insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 Files available: ID 62de7e5bbd24461b3d5f7a30, 62de7eeba9cff922f4703d57 FAQ Is this cutter compatible with APKT 1604 inserts? Yes. The S450TM is designed specifically for APKT 1604 indexable inserts and is matched to Korloy insert geometry for secure seating and repeatable performance. What are the main dimensions and weight of the tool? The cutter has a Ø 40 mm cutting diameter, a 32 mm shank, 70 mm cutting length, 300 mm overall length and weighs 1.922 kg. Which screw and key are required to clamp the inserts? Insert clamping is performed with an M4x10 Torx screw and is tightened using a T15 Torx key. Who manufactures the cutter and who is responsible for supply in Europe? The tool is produced by Teknik Makina; for supply and distribution in Europe Metav Werkzeuge handles responsibility and logistics. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Efficient material removal and consistent stability: the S448TM combines a Ø35 mm cutting diameter with a rigid 32 mm shank and a 65 mm cutting length for reliable deep milling. Benefit from fast insert changes and reduced downtime by using APKT 1604 indexable inserts. Order the tool directly via Metav Werkzeuge or consult our specialists for machining advice. S448TM — Indexable shank cutter for APKT 1604 inserts, Ø35 mm, 3 flutes (Teknik Makina) A robust S448TM shank cutter engineered for secure clamping of APKT 1604 indexable inserts, ideal for heavy-duty milling and general-purpose metal removal. Ø35 mm cutting diameter, 3 cutting edges 32 mm shank for high rigidity 65 mm cutting length for deep cuts Compatible with APKT 1604 inserts (Korloy) Stable cutting for consistent process performance The main advantage of this shank cutter is its combination of a 32 mm shank and a Ø35 mm cutting diameter, which together increase rigidity and reduce vibration during machining. Reduced chatter results in a smoother surface finish and longer insert life, making the tool suitable for continuous production runs. The cutter’s three-flute geometry balances shear efficiency and chip evacuation, enabling steady metal removal rates without compromising tool life. Faster cycles thanks to an indexable insert system Using APKT 1604 indexable inserts with the S448TM allows rapid insert changes and consistent cutting geometry across inserts. The clamping system is secured with an M4x10 Torx screw tightened using a T15 key, ensuring repeatable seat positioning and safe fixation. This arrangement lowers machine downtime compared with solid-carbide alternatives, while indexable inserts cut operating costs through economical replacement of only the cutting edges rather than the whole tool body. Designed for reliable handling and straightforward maintenance With a 65 mm cutting length and a total length of 300 mm, the tool offers reach for deeper pockets and shoulder milling while keeping a compact overall profile for stable clamping. The 90° cutting angle is optimised for general milling tasks, providing predictable axial forces and straightforward programming. The cutter’s net weight (approx. 1.879 kg) reflects a robust construction that supports precision in heavy cuts and contributes to a controlled process window. For tailored machining solutions with Teknik Makina tools, contact Metav Werkzeuge in Emmerich to discuss application-matched tooling and availability: info@metav-werkzeuge.com • +49 2822 7131930 Technical data Article number: S448TM Manufacturer: Teknik Makina Numbers / Core technical data Diameter: 35 mm Shank diameter: 32 mm Cutting length: 65 mm Total length: 300 mm Cutting edges: 3 Weight: 1.879 kg Cutting angle: 90° Designs / Special features For APKT 1604 indexable inserts Compatible insert manufacturer: Korloy Torx screw M4x10 Torx key size: T15 FAQ Which insert type fits this cutter? The cutter accepts APKT 1604 indexable inserts; the S448TM is specified for this insert format for secure seating and correct geometry. Is the S448TM compatible with Korloy inserts? Yes, the S448TM is compatible with Korloy APKT 1604 inserts as stated in the product data. What fastening hardware is used for insert clamping? Insert clamping on the S448TM is performed using an M4x10 Torx screw and a T15 Torx key for repeatable fixation. What machining tasks suit this shank cutter? The cutter is optimised for general milling operations requiring rigidity and reach—shoulder milling and deeper pocket work are typical applications for this design. How does the cutter support production efficiency? By using indexable inserts and a robust 32 mm shank, the tool reduces downtime for tool changes and provides stable cutting conditions that extend insert life. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Benefit from a robust shank, extended cutting length and an indexable insert system that keeps tool changes fast and repeatable; the combination supports reliable cycle times and straightforward maintenance. Order the S446TM shank milling cutter directly via Metav Werkzeuge or ask the consultants if technical clarification is required. S446TM Shank milling cutter – Ø32 mm, for APKT 1604 indexable inserts (Teknik Makina) S446TM is a shank-mounted milling cutter designed for versatile machining with indexable inserts, ideal for production and job-shop environments where fast insert changes and stable cutting conditions are required Ø 32 mm shank diameter 70 mm effective cutting length Compatible with APKT 1604 inserts Torx screw M4x10, T15 key required Consistent cutting performance for efficient machining The tool delivers stable machining through a substantial 32 mm shank and a well-proportioned cutter body, which together reduce deflection in interrupted and continuous cuts. With a 70 mm cutting length and a 300 mm overall length, the design balances reach and rigidity so operators can programme longer axial engagements without compromising accuracy. The three robust cutting edges support repeatable chip formation and steady surface finish, making the cutter a pragmatic choice for batch work and series production. Fast insert changes and secure clamping to reduce downtime Designed for use with APKT 1604 indexable inserts and compatible with Korloy grades, the cutter prioritises quick insert replacement. The clamping system uses a M4x10 Torx screw and requires a T15 key, permitting safe, repeatable tightening torque and minimising setup time between operations. Reduced changeover duration translates directly into higher spindle utilisation and lower non-productive time on the shop floor. Built for workshop reliability and simple maintenance The cutter’s geometry—including a 90° cutting angle—supports predictable tool paths and straightforward programming on CNC milling centres. At 1.827 kg, the assembly is substantial enough to maintain stability while still being manageable for routine handling and inspection. The configuration with three inserts helps distribute cutting forces evenly, which contributes to longer insert life and lower overall tooling cost per part when paired with appropriate cutting data and insert grades. Practical advantages when sourced through Metav Sourcing the S446TM via Metav brings logistical and advisory benefits: the Emmerich location functions as a quality filter for European customers and provides access to technical consultation and coordinated supply. Combined with Metav’s broad catalogue and experience in precision tooling distribution, procurement of this shank milling cutter becomes part of a dependable workflow—from selection to delivery—so production planners can reduce supplier complexity and maintain consistent tool availability. For supply, technical advice or to discuss batch requirements for the S446TM from Teknik Makina, contact Metav Werkzeuge for personalised ordering and logistics support via info@metav-werkzeuge.com or call +49 2822 7131930. Technical Data SKU: S446TM Manufacturer: Teknik Makina Article: Shank milling cutter for APKT 1604 indexable inserts Core data Shank diameter: 32 mm Cutting length: 70 mm Overall length: 300 mm Weight: 1.827 kg Number of cutting edges: 3 Cutting angle: 90° Special features For APKT 1604 indexable inserts Compatible with Korloy inserts Torx screw M4x10 Torx key T15 FAQ Which indexable inserts fit this milling cutter? The S446TM shank milling cutter accepts APKT 1604 indexable inserts and is compatible with Korloy grades specified for that insert type. What are the key dimensions to check for toolholding? Relevant dimensions are a 32 mm shank diameter, 70 mm effective cutting length and 300 mm overall length for programme clearance and holder compatibility. Which fastening hardware is required for insert clamping? Insert clamping uses a M4x10 Torx screw tightened with a T15 key as supplied or specified for the clamping system. Is the cutter suitable for long axial engagements? The combination of a 32 mm shank, three cutting edges and a 70 mm cutting length gives the tool adequate rigidity for extended axial engagements within the specified setup and machine capabilities. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Take advantage of the combination of a 30 mm diameter and a 3‑cut geometry for reliable material removal and consistent cycle times; built for indexable insert systems and supplied with a secure Torx fastening, this shank milling cutter streamlines tool changeovers—order via Metav Werkzeuge or consult the technical team for application advice. Shank milling cutter S444TM — indexable cutter, 30 mm diameter, for APKT 1604 inserts (Teknik Makina) Shank milling cutter S444TM designed for medium‑duty milling applications where fast insert changes and robust clamping are required 30 mm cutting diameter for versatile use 3‑cut geometry for balanced cutting performance Compatible with APKT 1604 indexable inserts Secure Torx clamping M4x10, T15 key Improved productivity through engineered cutter geometry The 3‑cut design of this indexable milling cutter favours steady chip formation and reduced cutting forces, which leads to more predictable tool life and shorter cycle times. Because inserts are used instead of solid teeth, reconditioning is simple: worn cutting edges are replaced in seconds, keeping spindle downtime to a minimum. The combination of a 30 mm diameter with a 60 mm cutting length provides a practical reach for pocketing and face milling tasks while maintaining rigidity for consistent surface finish quality. Built for reliable clamping and fast maintenance A Torx clamping screw (M4x10) together with the supplied T15 key ensures a firm insert seat and repeatable torque when inserting APKT 1604 indexable inserts. This fastening arrangement, which is widely adopted in the industry, reduces the risk of insert movement under load and simplifies workshop procedures. The tool’s 25 mm shank is engineered for secure chucking or collet mounting, so spindle concentricity is maintained and vibration is minimised during operation. Material compatibility and application scope Configured for APKT 1604 insert geometry and compatible with Korloy insert types, the cutter is intended for general metalworking tasks where moderate depths of cut and stable feed rates are required. Its 90° cutting angle supports square shoulder milling and effective slotting routines. While designed primarily as an insert cutter for ferrous and non‑ferrous components, final process parameters should be matched to the insert grade and machine capabilities to achieve optimum results. Practical handling and workshop benefits With an overall length of 300 mm and a balanced mass of approximately 1.168 kg, the tool is easy to handle and aligns with common tool‑management workflows. The modular nature of indexable systems means inventory is reduced: fewer complete tools are needed when multiple insert grades and geometries are stocked. Additionally, the standardised Torx fixing and common insert format simplify training and spare‑part logistics across production teams. For procurement, availability checks or application guidance on the Teknik Makina S444TM shank milling cutter—compatible with APKT 1604 indexable inserts—please contact Metav Werkzeuge in Emmerich by e‑mail or phone for fast technical advice and local supply options Technical Data Article number: S444TM Manufacturer: Teknik Makina Product: Shank milling cutter for APKT 1604 indexable inserts Brand SKU: S444TM Diameter: 30 mm Shank diameter: 25 mm Cutting length: 60 mm Overall length: 300 mm Number of cutting edges: 3 Cutting angle: 90° Weight: 1.168 kg Compatible inserts: APKT 1604 Suitable for inserts by: Korloy Torx screw: M4x10 Torx key size: T15 Tool type: Indexable insert milling cutter FAQ What insert format does the cutter accept? The cutter accepts APKT 1604 indexable inserts; compatible Korloy inserts are listed among recommended options for this tool. Which shank diameter is provided for mounting? A 25 mm shank is specified for stable clamping in collets or chucks. Is the Torx fastening included for insert mounting? The tool uses an M4x10 Torx screw and requires a T15 key for secure insert fastening. What cutting operations is the tool suited to? The S444TM is intended for face milling, shoulder milling and light slotting where a 30 mm diameter and 3‑cut geometry deliver reliable material removal. How long is the tool and what is its cutting reach? Overall length is 300 mm, with a cutting length (effective) of 60 mm, offering a practical balance between reach and stiffness. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Take advantage of a robust, indexable milling solution that combines consistent cutting performance, simple insert clamping and service-friendly handling for a reliable production flow — order directly via Metav Werkzeuge or request advice from our consultants. Insert Milling Cutter S442TM by Teknik Makina — 25 mm shank, for APKT 1604 indexable inserts The Insert Milling Cutter S442TM is a sturdy indexable cutter body engineered for precise face and shoulder milling operations using APKT 1604 format inserts. 25 mm shank diameter for stable clamping Compatible with APKT 1604 inserts (Korloy) Two cutting edges with 90° cutting angle Overall length 300 mm for extended reach Reliable cutting performance that reduces cycle times The S442TM cutter body is engineered to deliver predictable metal removal through its two cutting edges and a perpendicular 90° cutting angle, which together provide even load distribution and controlled chip evacuation. Fitted with APKT-format inserts, this configuration supports efficient material engagement and consistent surface finish, helping to shorten machining cycles and lower per-part cost. The combination of repeatable insert geometry and a rigid tool body supports stable feeds and speeds in production environments. Secure clamping and straightforward maintenance The tool holder features a 25 mm shank for secure mounting in standard tool holders and spindles, contributing to vibration damping during heavy cuts. Inserts are fastened with an M4x10 Torx screw and require a T15 key for tightening, keeping changeover fast and repeatable without special fixtures. At weight 1.127 kg, the assembly balances rigidity and handling convenience for workshop staff, simplifying insert replacement and routine inspections while maintaining consistent tool runout. Broad compatibility and workshop-ready dimensions Designed specifically for APKT 1604 indexable inserts and compatible with Korloy plate geometry, the cutter supplies a practical solution for shops that standardise on replaceable-insert tooling. The 300 mm overall length provides additional reach for deeper shoulders and extended fixtures while the nominal 25 mm diameter supports common tool-holding systems. Supplied geometry and fastening details make this cutter body suitable for repeatable set-ups on CNC milling machines and milling centres where indexable insert systems are preferred for cost-effective roughing and finishing. For reliable, repeatable milling with a 25 mm shank and APKT 1604 compatibility, contact Metav Werkzeuge for personalised advice and ordering support from Emmerich: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: S442TM Manufacturer: Teknik Makina Brand: Teknik Makina Eclass: 21180806 ETIM: EC011860 Facts Shaft diameter: 25 mm Cutting length (shaft): 70 mm Overall length: 300 mm Number of cutting edges: 2 Cutting angle: 90° Weight: 1.127 kg Special features Compatible with APKT 1604 indexable inserts Suitable for Korloy inserts Fastening: M4x10 Torx screw Required key: T15 FAQ Is this cutter compatible with APKT 1604 inserts? Yes. The S442TM is designed specifically for APKT 1604 indexable inserts and is compatible with Korloy-standard plates. What shank diameter does the tool have and how does that help? The tool has a 25 mm shank, which provides stable clamping and reduced vibration for improved surface finish and tool life when the S442TM is used in appropriate tool holders. How are the inserts secured? Inserts are secured with an M4x10 Torx screw; a T15 key is used for tightening and removal to ensure reproducible clamping for the S442TM. What is the overall length and why does it matter? The cutter measures 300 mm overall, offering extended reach for deeper shoulders or fixtures while retaining sufficient rigidity for standard milling tasks. Which manufacturer produces this cutter and what is the SKU? This cutter is produced by Teknik Makina and sold under the SKU S442TM. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a rigid 32 mm shank, compatibility with APKT 1604 indexable inserts and a 60 mm effective cutting length for consistent milling performance; order the cutter body directly via Metav Werkzeuge or consult our specialists for application guidance. Shaft milling cutter S440TM — cutter body for APKT 1604 indexable inserts, 40 mm diameter The Shaft milling cutter S440TM is a heavy-duty cutter body engineered for indexable-insert milling on CNC machines and milling centres, suitable for a wide range of general and structural machining tasks. For APKT 1604 indexable inserts 32 mm shank for stable clamping 60 mm effective cutting length M4x10 Torx screw with T15 key Stability and performance for demanding milling operations The S440TM tool body delivers stable chip removal and repeatable geometry thanks to its robust design and generous 32 mm shank, which reduces vibration and improves surface finish during interrupted cuts. The combination of a 40 mm diameter and four cutting edges provides balanced cutting forces, enabling higher feed rates with predictable tool life. Where process reliability is paramount, this milling body converts the advantages of indexable inserts into consistent production output by securing the insert location and clamping force precisely. For production environments, the result is fewer rejects and reduced rework, as the tool body sustains accurate engagement with the workpiece over long runs. Designed for indexable insert systems — quick change and broad compatibility Configured specifically for APKT 1604 indexable inserts and compatible with Korloy grades, the cutter body simplifies insert handling and application choice. Using standardised inserts allows quick on-machine changes and access to a wide range of insert geometries and grades for different materials. The S440TM includes an M4x10 Torx screw and requires a T15 key, which secures the insert reliably while enabling fast replacement during shift changes. By pairing a proven insert system with a sturdy tool body, machining shops gain flexibility: choose coatings and grades for aluminium, steels or castings while retaining the same mechanical holder for repeatable set-ups. Practical handling, maintenance and process benefits Maintenance and setup are straightforward: the tool body’s modular nature and familiar torque interface mean minimal downtime when replacing inserts or reconditioning the holder. The 60 mm effective cutting length offers extended reach for pocketing and face milling without sacrificing rigidity, and the item’s 250 mm overall length suits standard tool pockets. For workshop managers and production engineers, a compact inventory approach is achievable — fewer dedicated solid tools, more interchangeable inserts and a resilient holder that supports batch processing. Documentation and repeatability are improved because the cutter body keeps insert datum positions consistent, easing process qualification and quality control. For procurement or process advice on the Teknik Cutting Tools S440TM, contact Metav Werkzeuge in Emmerich for delivery options and technical consultation via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: S440TM Manufacturer: Teknik Makina Suitable for indexable inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 Facts Shank diameter: 32 mm Effective cutting length: 60 mm Diameter: 40 mm Cutting edges: 4 Overall length: 250 mm Weight: 1.612 kg Cutting angle: 90° Special features For APKT 1604 indexable inserts Compatible with Korloy insert grades Supplied with M4x10 Torx screw Requires T15 Torx key for clamping Designed for indexable-insert milling applications FAQ What inserts fit this cutter body? The cutter body accepts APKT 1604 indexable inserts; Korloy grades are specified as compatible. Which shank size does the tool use? The tool features a 32 mm shank, providing a robust interface for stable clamping in the spindle or holder. How long is the cutting length and overall tool length? The effective cutting length is 60 mm, with a total tool length of 250 mm. What fastening components are included? The package references an M4x10 Torx screw and the corresponding T15 Torx key for insert clamping. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of precise geometry and straightforward insert compatibility for dependable milling results; the robust shank and 65 mm cutting length deliver stability in long-cycle work. Order the S438TM directly via Metav Werkzeuge or consult the specialists for application advice. S438TM Shank milling cutter for APKT 1604 indexable inserts, Ø35 mm, 3 cutting edges — Teknik Makina A practical S438TM shank milling cutter designed for indexable-insert milling with APKT 1604 inserts, intended for industrial and workshop CNC operations that require predictable, repeatable cutting performance Ø35 mm cutting diameter for wider material removal Compatible with APKT 1604 inserts by Korloy 3 cutting edges for stable, efficient milling High, consistent material removal with controlled geometry The tool body offers a Ø35 mm cutting diameter paired with a 65 mm cutting length, creating a balance between reach and rigidity that supports steady material removal. A 90° cutting angle produces largely perpendicular faces, which is beneficial where dimensional control of the machined surface is required. The three-edge configuration delivers fewer interruptions per revolution than multi-edge designs, helping to maintain consistent cutting forces and reducing chatter during interrupted cuts. These design elements combine to provide predictable cycle times in series production. Quick insert changes and secure clamping to reduce downtime Designed for use with APKT 1604 indexable inserts, the cutter accepts standard inserts from Korloy, enabling rapid replacement without lengthy regrinds. The clamping is effected via an M4x10 Torx screw engaged with a T15 key, a common fastener standard that simplifies maintenance procedures and minimises tool-change time. Indexable inserts remove the need to resharpen tools on site; worn cutting edges are replaced quickly, restoring full cutting geometry and maintaining process capability with minimal interruption. Robust shank dimensions and overall balance for reliable toolholding A 32 mm shank diameter and 250 mm overall length are chosen to provide reliable mounting in standard toolholders while offering sufficient reach for many milling tasks; the cutter weight of 1.567 kg reflects a solid construction that aids stability. The shank design focuses on secure clamping to reduce axial and radial runout, which supports repeatable positioning and contributes to consistent surface finish and tool life. The combination of shaft stiffness and cutter geometry suits a broad range of industrial milling setups where repeatability and machine time utilisation are priorities. Contact Metav Werkzeuge today for tailored application guidance on the S438TM shank milling cutter and to check current availability; phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: S438TM Manufacturer: Teknik Makina Product type: Shank milling cutter for APKT 1604 indexable inserts Bezeichnung (English): for APKT 1604 Indexable Inserts Facts Cutting diameter: 35 mm Shank diameter: 32 mm Cutting length: 65 mm Overall length: 250 mm Cutting edges: 3 Cutting angle: 90° Weight: 1.567 kg Torx screw: M4x10 Torx key: T15 Special features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Indexable-insert system for quick edge replacement Robust shank for standard toolholders FAQ What inserts fit this cutter? The cutter accepts APKT 1604 indexable inserts; inserts from Korloy are specified as compatible with the S438TM. How is the insert secured? Inserts are clamped with an M4x10 Torx screw; a T15 key is used to tighten and loosen the screw for maintenance. What is the effective cutting length? The tool offers a 65 mm cutting length, enabling deeper axial engagement when required while maintaining rigidity. Which shank size is required for toolholding? A toolholder compatible with a 32 mm shank diameter is required to mount the cutter securely. Is the cutter suitable for quick changeover in production? Yes, the indexable-insert concept combined with the standard Torx clamping enables rapid insert changes and short downtime. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of high compatibility with APKT 1604 indexable inserts, a 32 mm shank for rigidity and a long 60 mm cutting length for extended engagement. Order directly via Metav Werkzeuge or consult the Metav specialists for tailored advice. S436TM Shank Milling Cutter — 32 mm diameter, for APKT 1604 indexable inserts (Teknik Makina) S436TM is a precision shank milling cutter designed for use with APKT 1604 indexable inserts, offering robust toolholding and reliable insert clamping for demanding milling tasks. 32 mm shank diameter for stability For APKT 1604 indexable inserts Three cutting edges for productive material removal 250 mm overall length for deep reach High productivity through proven indexable insert technology The S436TM is engineered to exploit the advantages of indexable inserts: fast insert changes and consistent cutting geometry reduce downtime and secure reproducible results. With a 32 mm diameter shank and three cutting edges, the tool provides a stable platform that minimises vibration during feed, which in turn supports higher material removal rates and longer tool life. The compatibility with standard APKT formats keeps stocking simple and allows for immediate insert replacement during production. Secure clamping and quick serviceability for continuous operation Insert retention uses an M4x10 Torx screw tightened with a T15 key, ensuring repeatable clamping torque and quick servicing on the shop floor. The insert pocket accepts APKT 1604 inserts and matches insert geometries supplied by Korloy, enabling a wide choice of grades and chipbreakers. "Indexable insert" means the cutting part can be rotated or replaced independently of the tool body, which cuts tooling costs and shortens changeover times compared with solid-carbide solutions. Designed for stability and extended engagement A 60 mm cutting length combined with a 250 mm overall length gives the tool extended engagement for applications that demand reach while keeping the primary aim on rigidity. The tool’s mass of 1.52 kg contributes to a steady cutting behaviour and supports consistent surface finishes over longer passes. For operations where runout and chatter must be limited, this balance between diameter, length and weight helps to maintain process reliability. Practical procurement and support from Metav Werkzeuge Sourcing is simplified through Metav Werkzeuge’s European hub in Emmerich, which acts as a quality filter and logistics centre. The combination of a focused product range and technical competence means the S436TM can be supplied quickly and accompanied by practical application guidance. For complex machining tasks, the documented interface with APKT 1604 inserts allows process planners to match insert grade and geometry with cycle and material demands. For specialist advice on integrating the Teknik Makina S436TM shank milling cutter into an existing toolset or to arrange supply via Metav Werkzeuge (Emmerich), contact Metav Werkzeuge at info@metav-werkzeuge.com or by phone on +49 2822 7131930 for reliable, timely support. Technical data Article number: S436TM Manufacturer: Teknik Makina Designation: Shank milling cutter for APKT 1604 indexable inserts ECLASS: 21180806 ETIM: EC011860 Core specifications Diameter: 32 mm Cutting length: 60 mm Overall length: 250 mm Number of cutting edges: 3 Cutting angle: 90° Weight: 1.52 kg Special features Compatible with APKT 1604 indexable inserts Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 Brand: Teknik Makina SKU: S436TM FAQ What insert type fits this cutter? The cutter accepts APKT 1604 indexable inserts; the tool body is designed for that insert format and matches common APKT pocket geometries. Which screw and key are required for insert clamping? Insert clamping uses an M4x10 Torx screw and a T15 key for consistent torque and repeatable seating. What are the key dimensions of the cutter? Key dimensions are a 32 mm shank diameter, 60 mm cutting length and 250 mm overall length as specified for the S436TM. Is this tool compatible with Korloy inserts? Yes — the tool is noted as compatible with Korloy-manufactured APKT 1604 inserts, enabling use of those grades and chipbreakers. How does the cutter reduce downtime in production? By using indexable APKT 1604 inserts, the cutter allows quick insert changes and repeatable geometry, which shortens changeover times and reduces tooling inventory complexity. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, indexable solution that pairs APKT 1604 compatibility with a rigid Ø30 mm cutter body and a Shank Ø25 mm for secure clamping; the result is reduced setup time and stable machining. Order the tool directly via Metav Werkzeuge or contact our consultants for application advice. Shank cutter S434TM — for APKT 1604 indexable inserts, Ø30 mm, 3-edge, Teknik Makina Shank cutter S434TM is a shank-mounted milling cutter body designed for medium-duty indexable milling tasks with APKT 1604 inserts Compatible with APKT 1604 inserts Ø30 mm cutter body Shank Ø25 mm for rigid clamping Three cutting edges for steady removal Total length 250 mm for extended reach Precision compatibility for indexable milling The S434TM is built specifically for APKT 1604 indexable inserts and Korloy insert geometries, which allows a rapid insert change and consistent cutting geometry. The combination of a Ø30 mm cutter body and a Shank Ø25 mm provides a predictable stiffness profile; this reduces chatter and stabilises the cutting process. Since the insert type is standardised, insert inventory can be consolidated and downtime minimised without compromising the cutting edge position. Secure clamping and vibration control for improved surface finish A short 55 mm cutting length paired with a Total length 250 mm balances reach and rigidity for many shop-floor set-ups. The insert pocket is fastened with an M4x10 Torx screw tightened with a T15 key, ensuring positive clamping and repeatable seating of each indexable insert. The result is reliable torque transmission and reduced micro-movement at the cutting edge, which supports a more consistent surface finish and longer insert life when compared with loosely clamped assemblies. Consistent chip control and efficient material removal The tool’s 3 cutting edges and a 90° cutting angle deliver even chip distribution and predictable engagement with the workpiece, helping to control cutting forces and maintain cycle times. The cutter body format makes it suitable for interrupted and continuous cuts where indexable tooling is preferred for quick edge changes. The design focuses on operational efficiency: fewer tool changes, straightforward insert indexing and a stable cutting geometry for reproducible results. Contact Metav Werkzeuge today to discuss the Teknik Makina S434TM shank cutter’s suitability for specific milling applications or to request a bespoke quotation — phone +49 2822 7131930 or eMail info@metav-werkzeuge.com Technical Data SKU: S434TM Manufacturer: Teknik Makina Article: Shank cutter for APKT 1604 indexable inserts EClass: 21180806 ETIM: EC011860 Core dimensions Diameter: 30 mm Shank diameter: 25 mm Cutting length (shank): 55 mm Overall length: 250 mm Number of cutting edges: 3 Weight: 1.028 kg Cutting angle: 90° Features and compatibility Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 FAQ Which insert type is required for this cutter? The S434TM accepts APKT 1604 indexable inserts; inserts from Korloy in this format are compatible with the cutter body. What clamping hardware secures the insert? Inserts are secured with an M4x10 Torx screw; a T15 Torx key is specified for tightening. How does the shank diameter affect performance? The Shank Ø25 mm increases axial and torsional rigidity compared with slimmer shanks, improving stability for the cutter body during machining. What is the working reach of the tool? The overall length is 250 mm with a 55 mm cutting length; this offers extended reach while maintaining a compromise between accessibility and stiffness. How many cutting edges are fitted and what is the cutting geometry? The cutter body carries 3 cutting edges and a 90° cutting angle, designed for steady material removal and balanced chip formation. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Benefit from a rigid 25 mm shank, a 90° cutting angle and quick insert changes to maintain steady production with minimal downtime; Order the S432TM shank milling cutter directly via Metav Werkzeuge or ask our consultants if needed S432TM shank milling cutter — 25 mm shank, for APKT 1604 indexable inserts | Teknik Makina The S432TM is a shank milling cutter engineered for APKT 1604 indexable inserts, providing a compact 25 mm diameter and a 90° cutting angle for reliable shoulder and face machining in industrial milling applications 25 mm shank diameter Compatible with APKT 1604 inserts 90° cutting angle for square shoulders Includes M4x10 Torx screw T15 Greater rigidity for consistent machining results With a 25 mm shank and a total length of 250 mm, this shank milling cutter delivers enhanced rigidity that reduces chatter and improves surface finish. The robust design supports stable cutting conditions over longer runs, which translates into fewer rejects and a more predictable production flow. The single-line geometry with 2 cutting edges balances material removal and tool life, enabling efficient use of the insert system while maintaining dimensional accuracy on repetitive shoulder cuts. Fast, cost-effective indexable system to cut downtime Designed for APKT 1604 indexable inserts, the tool reduces maintenance time through quick insert replacements instead of complete tool swaps. The replaceable-insert concept is economical for batch production: worn edges are replaced swiftly using the supplied M4x10 Torx screw (tightened with a T15 key) without special fixtures. Compatibility with Korloy inserts broadens procurement options, supporting uninterrupted operation and simpler stocking of consumables for the workshop. Practical dimensions and handling for workshop integration The cutter features a 70 mm cutting length, which provides sufficient engagement for many face and shoulder milling operations while keeping the effective overhang modest. At approximately 0.939 kg, the tool is easy to handle during tool changes and balances well in most toolholders. The 90° cutting angle ensures reliable right-angle geometries, reducing the need for subsequent finishing passes and helping maintain throughput without sacrificing profile accuracy. For precise specification and supply of the S432TM shank milling cutter from Teknik Makina, contact Metav Werkzeuge to confirm compatibility with current toolholder systems and to secure reliable delivery from Emmerich Technical data Article number: S432TM Manufacturer: Teknik Makina For indexable inserts: APKT 1604 Compatible insert supplier: Korloy Torx screw: M4x10 Torx key size: T15 Core data Shank diameter: 25 mm Cutting diameter: 25 mm Cutting length: 70 mm Overall length: 250 mm Number of cutting edges: 2 Cutting angle: 90° Weight: 0.939 kg Special features Indexable insert system (APKT 1604) Supplied fastening screw M4x10 (Torx T15) Two-flute configuration for balanced cutting Compact overall length for reduced overhang Compatible with Korloy inserts FAQ What inserts fit this shank milling cutter? The S432TM is designed for APKT 1604 indexable inserts, and it is also compatible with inserts from Korloy as noted in the technical data. How is the insert secured to the cutter? Inserts are fastened with an M4x10 Torx screw, which is tightened using a T15 key; this arrangement allows quick and secure insert changes for continued productivity. What machining geometry does the tool offer? The cutter provides a 90° cutting angle, suitable for square shoulder and face milling where right-angle profiles and consistent step geometry are required. What are the key dimensions to consider for toolholder selection? Important dimensions include the 25 mm shank diameter, 70 mm cutting length, and 250 mm overall length; these values ensure the correct fit and acceptable overhang for the chosen toolholder. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust 40 mm cutting diameter, secure Torx M4x10 clamping and compatibility with APKT 1604 indexable inserts to increase uptime and machining consistency; order directly via Metav Werkzeuge or consult our specialists for application advice. Shaft milling cutter S283TM — insert milling cutter body for APKT 1604 indexable inserts (Teknik Makina) The Shaft milling cutter S283TM is a precision-engineered milling body for indexable APKT 1604 inserts, designed to deliver stable cutting performance and quick insert changes in demanding production and workshop environments Compatible with APKT 1604 indexable inserts 40 mm cutting diameter for robust removal Four cutting edges for balanced operation Torx M4x10 clamping screw with T15 key Stable rigidity for consistent surface quality The tool body provides a combination of diameter and shank proportions that prioritise stability during milling operations. With a 40 mm cutting diameter and a shank Ø 32 mm, the design reduces vibration and deflection, which yields a more consistent surface finish and longer insert life. The presence of four cutting edges contributes to a balanced cutting action that spreads cutting forces evenly; this is particularly beneficial when repeatability and dimensional reliability are required on serial parts. Fast insert replacement and predictable operating costs Designed around the widely used APKT 1604 insert form, the cutter allows for swift indexable insert changes that reduce downtime. The clamping system uses a Torx M4x10 screw and a T15 key for secure retention and repeatable seating of the insert. Indexable inserts mean that only the insert is replaced when wear occurs, lowering tooling costs per component and simplifying inventory: spare inserts are far less expensive to stock than complete cutters. Workshop-ready dimensions and handling benefit productivity The milling body measures 200 mm overall length with a 55 mm cutting length, providing a practical reach for many shoulder and face milling tasks while remaining manageable in setup. At 1.296 kg the assembly balances mass and handling convenience for manual mounting and machine tool changeovers. The compact package supports efficient tool management in busy machine shops and integrates smoothly into standard toolholding systems that accept a shank of Ø 32 mm. For tailored application guidance and reliable supply of Teknik Makina tooling, contact Metav Werkzeuge — Metav’s specialists in precision measurement and tooling can advise on insert grades, clamping torque and stocking options via info@metav-werkzeuge.com or +49 2822 7131930. Technical data Article number: S283TM Manufacturer: Teknik Makina Brand: Teknik Cutting Tools SKU / UID: S283TM Eclass: 21180806 ETIM: EC011860 Technical facts Cutting diameter: 40 mm Shank diameter: 32 mm Number of cutting edges: 4 Cutting length (shaft): 55 mm Overall length: 200 mm Weight: 1.296 kg Cutting angle: 90° Features & compatibility Compatible insert type: APKT 1604 Compatible insert manufacturer: Korloy Clamping screw: M4x10 Torx Required Torx key size: T15 Indexable-insert milling cutter body Files available: 2 (product documentation) FAQ What insert type fits this cutter? This cutter accepts APKT 1604 indexable inserts; compatibility with Korloy inserts is specified for straightforward procurement and interchangeability. How is the insert secured in the cutter body? The insert is retained with a Torx M4x10 clamping screw; use a T15 key for correct seating and repeatable clamping. Is the cutter suitable for shoulder and face milling? Yes, the tool body’s geometry and 55 mm cutting length make it suitable for common face and shoulder milling operations where APKT 1604 inserts are applicable. What are the key dimensions for toolholder selection? Important dimensions are shank Ø 32 mm, cutting diameter 40 mm and overall length 200 mm; these values help in selecting compatible toolholders and extensions. How does the cutter improve tool-change efficiency? By using indexable inserts (APKT 1604), only the insert needs replacement when worn, reducing downtime and lowering tool expenditure compared with solid-tool replacements. Manufacturer: Teknik Cutting Tools; Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Combining a robust Ø35 mm cutting diameter with a shank Ø32 mm and secure Torx clamping, the S282TM delivers stable, repeatable milling and efficient insert changes; order the S282TM directly via Metav Werkzeuge or consult our specialists for application support. S282TM — Indexable milling cutter for APKT 1604 Indexable Inserts, Ø35 mm, shank Ø32 mm (Teknik Makina) The S282TM is an indexable milling cutter designed for reliable material removal with APKT 1604 inserts in production and workshop environments. Insert cutter for APKT 1604 inserts Ø35 mm cutting diameter, 3 cutting edges Shank Ø32 mm, overall length 200 mm Torx M4x10 clamping, key T15 Stable clamping for vibration-free machining The cutter is engineered for a secure hold: the Torx M4x10 clamping screw and matching T15 key create consistent torque and minimise loosening under load. A solid shank Ø32 mm and a balanced body reduce runout and chatter, which leads to improved surface finish and longer tool life. This stability translates into fewer interruptions on the shop floor and a more predictable production rhythm, supporting efficient cycle times in batch and single-part machining. Productive cutting geometry that speeds up operations With a Ø35 mm cutting diameter and three cutting edges, the design focuses on steady chip removal and even tool engagement. The 90° cutting angle gives a robust cutting face for face and shoulder milling operations, while the 55 mm cutting length accommodates deeper passes when required. The insert system (suitable for APKT 1604 inserts, commonly supplied by Korloy) enables rapid insert indexing and replacement, reducing downtime and simplifying inventory management for cutting edges. Built for practical workshop use and easy serviceability A 200 mm overall length combined with a mass of 1.245 kg provides the rigidity needed for repetitive milling tasks without excessive overhang. The indexable concept means a lower total cost of ownership: only the small inserts are consumed rather than the whole cutter body, which supports sustainable consumption and straightforward maintenance. Compatibility with standard insert sizes and a simple Torx clamping routine make the tool well suited to both workshop benches and production lines requiring reliable, repeatable performance. For tailored advice on integrating the S282TM insert cutter from Teknik Cutting Tools into existing tooling setups, contact Metav Werkzeuge in Emmerich by phone +49 2822 7131930 or email info@metav-werkzeuge.com for application-oriented guidance and supply options Technical Data Article number: S282TM Manufacturer: Teknik Makina Designation: Schaftfräser (for APKT 1604 Indexable Inserts) SKU: S282TM Facts Diameter: 35 mm Shank diameter: 32 mm Cutting length: 55 mm Overall length: 200 mm Number of cutting edges: 3 Cutting angle: 90° Weight: 1.245 kg Torx screw: M4x10 Special features Compatible with APKT 1604 indexable inserts Recommended insert manufacturer: Korloy Torx key size: T15 3 cutting edges for stable engagement FAQ Which inserts fit this cutter? The cutter accepts APKT 1604 indexable inserts; the tool body is specified for that insert size and is commonly paired with Korloy inserts. How is the insert secured in the cutter? Inserts are clamped using a Torx M4x10 screw; tightening is performed with a T15 key to the specified torque for reliable retention. What is the cutter diameter and shank size? The tool features a Ø35 mm cutting diameter with a shank Ø32 mm, providing a balance between rigidity and accessibility. Is the tool suitable for production environments? Yes—the combination of a robust shank, secure Torx clamping and indexable inserts ensures repeatable performance and straightforward insert changes suited to production use. How heavy is the cutter and what is its overall length? The tool weighs 1.245 kg and has a 200 mm overall length, dimensions that support stable milling with moderate overhang. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of high material-removal capacity, precise insert clamping and compact shank design to keep machining runs efficient and predictable; order via Metav Werkzeuge or contact our advisors for specification matching. Shaft milling cutter S278TM — 30 mm diameter, for APKT 1604 indexable inserts (Teknik Makina) The S278TM shaft milling cutter is an indexable-insert tool designed for productivity-focused milling applications that require quick insert changes and secure fastening 30 mm cutting diameter 25 mm shank diameter 55 mm cutting length Compatible with APKT 1604 inserts Faster cycle times through stable cutting geometry The S278TM is engineered to deliver consistent material removal by combining a 30 mm cutting diameter with a three-flute cutter geometry. The balanced flute arrangement and the 90° cutting angle reduce vibration and enable more reliable chip evacuation, which in turn minimises rework and shortens cycle times. For production environments where throughput and repeatability are paramount, this configuration supports higher feeds while preserving surface integrity and tool life. The result is a measurable improvement in machining efficiency without compromising finish quality. Rapid insert change and secure clamping for less downtime Designed for APKT 1604 indexable inserts, the tool features a robust fastening system using an M4x10 Torx screw secured with a T15 Torx key, ensuring precise and repeatable clamping torque at every change. The use of standardised indexable inserts allows quicker replacement compared with brazed or solid-carbide cutters, reducing machine idle time and simplifying logistics for spare parts. This approach supports lean workshop practices by making consumable handling straightforward and reliable, while the compatibility with major insert manufacturers such as Korloy broadens sourcing options. Compact shank and robust length for versatile mounting A 25 mm shank diameter combined with a 200 mm overall length offers a practical balance between rigidity and accessibility. The 55 mm cutting length permits deeper engagement when required, while the shorter effective overhang improves stability on milling spindles and reduces chatter. At 0.783 kg, the cutter is light enough for nimble tool changes yet substantial enough to resist deflection during interrupted cuts. These dimensional choices were made to enhance mounting flexibility in standard tool holders and to promote predictable machining behaviour across a range of production set-ups. Built for predictable performance and simple integration The cutter’s design concentrates on predictable results rather than on unnecessary complexity. By employing indexable inserts and a straightforward Torx clamping system, the S278TM reduces operator intervention and makes tool management easier for teams tasked with maintaining high machine availability. Technical features focus on long-term maintainability: the standard screw size and key type reduce the chance of incorrect tooling, and the compatibility with APKT 1604 inserts ensures an established supply chain for replacements. This pragmatic design philosophy supports stable production planning and lowers the risk of avoidable stoppages. For technical matching or to specify the Teknik Makina S278TM for a particular application, contact Metav Werkzeuge for tailored advice and reliable supply directly from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: S278TM Manufacturer: Teknik Makina Brand: Teknik Makina Facts Diameter: 30 mm Shank diameter: 25 mm Cutting length: 55 mm Overall length: 200 mm Cutting edges: 3 Cutting angle: 90° Weight: 0.783 kg Torx screw: M4x10 Torx key: T15 Special features For APKT 1604 indexable inserts Compatible with Korloy inserts Three-flute cutter geometry Secure Torx clamping system FAQ Which insert type fits this cutter? The S278TM is designed specifically for APKT 1604 indexable inserts and accepts inserts with that designation. Is the cutter compatible with Korloy inserts? Yes, compatibility with Korloy is stated for the S278TM, enabling a wide choice of insert variants. What fastening hardware is used for the inserts? Insert clamping is achieved with an M4x10 Torx screw that is tightened using a T15 Torx key. What are the main dimensions to check for toolholder fitment? Key dimensions are a 25 mm shank diameter and a 200 mm overall length; the cutting diameter is 30 mm. How many cutting edges does the tool have and what is the cutting angle? The cutter has three cutting edges and a 90° cutting angle for stable face and peripheral engagement. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust, industry‑grade holder that combines compatibility with APKT 1604 indexable inserts and a rigid 25 mm shank to improve process stability and reduce tool change frequency. Order the tool via Metav Werkzeuge or consult the team for technical alignment with existing toolholders and insert grades. Shank milling cutter – for APKT 1604 indexable inserts, Ø25 mm shank (Teknik Makina, S276TM) The shank milling cutter S276TM is a purpose‑built cutter body for medium‑duty milling operations, engineered to accept APKT 1604 indexable inserts and to deliver predictable performance in serial production and jobbing environments. Indexable for APKT 1604 inserts 25 mm shank diameter for rigid clamping 65 mm effective cutting length Torx M4x10 fastening, T15 key Improved process reliability through stable clamping and geometry The tool body is designed around a 25 mm shank, which delivers increased stiffness and reduced deflection during interrupted cuts. This rigidity translates into better surface finish and more consistent tolerances when machining shoulders or face surfaces. With a cutting angle of 90° and two cutting edges, the geometry supports straightforward, repeatable machining strategies; fewer vibrations and stable engagement reduce the likelihood of premature insert wear, which in turn lowers overall machining cost per component. Faster tool changes and predictable setup for production environments Retention is secured with an M4x10 Torx screw and a T15 key, enabling quick insert replacement and reliable clamping torque without special fixtures. The 65 mm cutting length provides sufficient reach for many operations while keeping tool overhang low, thereby supporting higher metal removal rates under controlled cutting parameters. The standardised fastening and insert interface shortens downtimes and simplifies inventory management when using APKT 1604 inserts from suppliers such as Korloy. Compatibility, maintenance and selection guidance Compatibility with APKT 1604 indexable inserts makes the holder suitable for a broad range of materials and grades; selecting the correct insert grade allows optimisation for steel, stainless steel or cast materials depending on the insert specification. The modular concept avoids the need for special bodies for each application and supports simple maintenance procedures: periodic torque checks on the Torx screw and visual inspection of the pocket and seating face are sufficient to maintain safe, repeatable clamping. For assemblies where runout must be minimised, the robust shank diameter helps preserve concentricity between spindle and cutting edge. Why this cutter fits a workshop or production cell Engineered as a pragmatic solution, the holder delivers a balance of rigidity, ease of service and compatibility that benefits both single‑machine shops and larger production cells. The compact design and standardised insert interface reduce tooling complexity and enable quick adaptation to common milling tasks. In practical terms, adoption of this cutter body can lower tool change time, support predictable cycle times and contribute to a more efficient production flow when paired with appropriate insert grades and cutting data. For technical advice tailored to the application or to request S276TM components and accessories, contact Metav Werkzeuge for guidance and ordering assistance Technical data Article number: S276TM Manufacturer: Teknik Makina Diameter: 25 mm Shank diameter: 25 mm Cutting length: 65 mm Overall length: 200 mm Cutting edges: 2 Weight: 0.75 kg Cutting angle: 90° Compatible with APKT 1604 indexable inserts Insert manufacturer compatibility: Korloy Torx screw: M4x10 Torx key size: T15 Suitable for indexable insert machining FAQ What insert type fits this cutter? The cutter accepts APKT 1604 indexable inserts; it is specified for that insert geometry and mates with Korloy and other compatible APKT 1604 grades. Which shank diameter and overall length does the tool offer? The holder features a 25 mm shank with an overall length of 200 mm and an effective cutting length of 65 mm. How is the insert secured in the pocket? The insert is clamped with an M4x10 Torx screw; a T15 key is used for installation and torqueing. Is the tool suitable for heavy interruption or roughing cuts? The 25 mm shank provides enhanced rigidity for moderate interruption; selection of the appropriate insert grade and cutting parameters is recommended for demanding roughing operations. What is the SKU and who manufactures the tool? The product is listed as S276TM and is manufactured by Teknik Makina as a shank milling cutter for APKT 1604 inserts. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of robust compatibility with APKT 1604 inserts, stable shank design and efficient chip evacuation for reliable milling performance. Order directly via Metav Werkzeuge or consult our specialists for application-specific recommendations. Shank milling cutter S274TM — for APKT 1604 indexable inserts, Ø 40 mm Shank milling cutter S274TM is an indexable-insert tool designed for efficient face and slot milling where quick insert changes and consistent cutting geometry are required Compatible with APKT 1604 indexable inserts Ø 40 mm cutting diameter for medium-duty milling Shank Ø 32 mm for secure toolholding Four cutting edges with 90° cutting angle Consistent cutter geometry for predictable results The tool offers a stable cutting geometry that supports repeatable machining cycles and predictable surface quality. With a Ø 40 mm cutter body and four cutting edges, the design reduces vibration and evens out tool load, which helps to maintain dimensional accuracy on serial parts. The use of indexable inserts provides quick restoration of cutting performance: a worn edge is replaced faster than regrinding, which shortens machine downtime and contributes to a more economical production rhythm. Secure mounting and simple maintenance for workshop uptime A shank Ø 32 mm ensures firm clamping in standard toolholders and contributes to repeatable concentricity in multi-spindle setups. The tool is supplied for use with APKT 1604 inserts and includes standard fixing elements (Torx screw M4x10, Torx key T15) for straightforward insert changes. The practical assembly reduces set-up time and lowers the risk of assembly errors, so cycle starts are faster and maintenance remains low-effort — a clear advantage for busy fabrication environments. Broad application range and material compatibility Designed as a versatile milling solution, the cutter is suitable for typical industrial machining tasks where indexable inserts are preferred. The four-flute arrangement and 90° cutting angle allow efficient slotting and face milling operations while balancing cutting forces. Compatibility with Korloy APKT 1604 inserts opens access to a wide range of grades for different materials and cutting conditions, enabling adaptation to productivity or finish-focused requirements without changing the tool body. Contact Metav Werkzeuge today for expert guidance from Emmerich on deploying the Teknik Makina S274TM in production — our consultants can verify insert choices, clamping suitability and delivery options to match specific machining needs Technical data Article number: S274TM Manufacturer: Teknik Cutting Tools Product: Shank milling cutter For: APKT 1604 Indexable Inserts Compatible inserts manufacturer: Korloy Torx screw: M4x10 Torx key: T15 Facts Diameter: 40 mm Shank diameter: 32 mm Cutting length: 55 mm Overall length: 150 mm Cutting edges: 4 Weight: 0.96 kg Cutting angle: 90° Special features Suitable for APKT 1604 indexable inserts Compatible with Korloy inserts SKU S274TM — Teknik Makina FAQ Which insert type fits this cutter? The S274TM shank milling cutter is designed for APKT 1604 indexable inserts and is compatible with Korloy-manufactured inserts in that format. What are the key dimensions to check for toolholder compatibility? Check the shank diameter (32 mm) and the overall length (150 mm) to ensure secure clamping and sufficient reach for the intended operation. How many cutting edges does the tool have and what is their arrangement? The cutter features four cutting edges arranged for stable cutting forces and a 90° engagement geometry suited to face and slot milling. Which fastening parts are supplied for insert mounting? The tool requires a Torx fixing screw M4x10 and a T15 Torx key for insert clamping; these are the specified sizes for secure assembly. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a rigid, indexable solution that combines precise insert compatibility, a robust 32 mm shank and a Ø 35 mm cutting diameter for predictable machining results; order the S272TM directly via Metav Werkzeuge or ask the consultants if specification advice is required. S272TM Shank milling cutter for APKT 1604 indexable inserts — Ø 35 mm, 3-flute (Teknik Makina) S272TM is a shank milling cutter designed for indexable inserts and general metalworking, ideal where repeatable geometry and fast insert changes are essential. For APKT 1604 indexable inserts Ø 35 mm cutting diameter Three cutting edges for stable cutting Solid 32 mm shank for high rigidity High rigidity and consistent chip removal for stable production The S272TM is built around a Ø 35 mm cutting head and a 32 mm shank, offering a stiff connection between toolholder and cutting zone; this reduces deflection and improves dimensional consistency across batches. With a 90° cutting angle and three cutting edges, the cutter delivers predictable chip formation and surface finish while keeping cutting forces balanced. The robust shank diameter supports higher radial forces, which is particularly useful when slotting or shoulder milling is required. These design choices contribute to lower scrap rates and more consistent cycle times on the shop floor. Quick insert changes and straightforward clamping to cut downtime The indexable design accepts APKT 1604 inserts and is compatible with Korloy plate types, enabling operators to replace worn edges quickly instead of regrinding. Insert clamping uses an M4x10 Torx screw with a T15 key, a common configuration that simplifies maintenance routines and reduces tool-change time. The cutter’s 55 mm cutting length and 150 mm overall length balance reach and rigidity, helping to limit overhang without sacrificing accessibility. Fewer interruptions for tool servicing mean higher effective spindle utilisation and a smoother production flow. Practical dimensions and handling for workshop integration Weighing 0.915 kg, the tool is balanced for standard toolholders while its shank profile supports secure gripping in common collet or chuck systems. The head accepts three cutting edges, which spreads wear and prolongs the effective life of each insert, so replacement intervals are extended compared with single-edge alternatives. The S272TM’s straightforward geometry and indexable setup make it suitable for batch production as well as flexible jobbing environments where rapid turnaround and reproducible outcomes are priorities. Technical documentation and files are available for integration into tool lists and CAM setups. Contact Metav Werkzeuge today for specification checks and to reserve the S272TM for upcoming production runs — Metav Werkzeuge can advise on toolholder compatibility and supply logistics via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: S272TM Manufacturer: Teknik Makina Product designation: Schaftfräser for APKT 1604 Indexable Inserts Brand: Teknik Makina SKU: S272TM Facts Diameter: 35 mm Shank diameter: 32 mm Cutting length: 55 mm Overall length: 150 mm Number of cutting edges: 3 Weight: 0.915 kg Cutting angle: 90° Torx screw: M4x10 Torx key: T15 Special features For APKT 1604 indexable inserts Compatible with Korloy insert types Shank milling cutter design Three-flute geometry for balanced cutting Solid shank for increased rigidity FAQ Which insert type does this cutter accept? The S272TM is specified for APKT 1604 indexable inserts and is designed to secure those plates reliably for machining operations. Is the tool compatible with Korloy inserts? Yes, the cutter is compatible with Korloy-manufactured APKT 1604 inserts as indicated in the product specification. What are the main dimensions and mass of the cutter? Key dimensions are Ø 35 mm diameter, 32 mm shank diameter, 55 mm cutting length and 150 mm overall length; mass is 0.915 kg. How are the inserts fastened? Inserts are fastened with an M4x10 Torx screw that requires a T15 key for secure clamping and safe indexing. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of stable, repeatable machining thanks to the Ø32 mm shank and three cutting edges, combined with compatibility for APKT 1604 indexable inserts for fast insert changes and consistent surface finish. Order the S270TM directly via Metav Werkzeuge or ask our consultants if needed. S270TM — Indexable insert milling cutter, Ø32 mm shank, Teknik Makina S270TM is an indexable insert milling cutter designed for reliable roughing and finishing in general metalworking applications using APKT 1604 inserts. Ø32 mm shank diameter Compatible with APKT 1604 inserts Three cutting edges for stable cutting Overall length 150 mm for deeper reach Higher productivity with predictable metal removal The S270TM combines a 32 mm shank with a 55 mm effective cutting length to deliver a balance of rigidity and reach that supports consistent metal removal rates. Using APKT 1604 indexable inserts reduces downtime for tool changes: worn edges are replaced quickly without reclamping the holder, improving uptime at the machine. The cutter’s three cutting edges ensure smoother chip flow and reduced vibration compared with fewer-edge alternatives, which translates into a more reliable surface quality and longer insert life per edge. For planners and shop managers this means more predictable cycle times and easier process control. Robust design for everyday workshop demands Engineered for use in production and maintenance environments, the tool features a solid shank construction with a total length of 150 mm and a mass of approximately 0.876 kg, giving a stable feel in the toolholder. The 90° cutting geometry provides versatile face and peripheral milling capability, suitable for a wide range of steels and general-purpose applications. The assembly uses an M4x10 Torx screw secured with a T15 key, simplifying insert fastening and ensuring repeatable clamping torque. This practical, serviceable design reduces setup complexity and supports consistent part quality during extended runs. Versatile insert compatibility for flexible tooling strategies The cutter accepts standard APKT 1604 indexable inserts and is listed as compatible with Korloy inserts, enabling procurement flexibility and fast access to proven grades for different materials. By separating cutter body and insert grade decisions, users can adapt cutting data to component material — from general steels to alloyed materials — without replacing the holder. The modular approach lowers tooling inventory costs while offering quick on-machine changes. For operations seeking to streamline tooling, this configuration supports a clear cost-to-performance optimisation strategy. For reliable supply and application advice on the Teknik Makina S270TM indexable insert cutter, contact Metav Werkzeuge to arrange stock checking and technical guidance tailored to specific machining tasks. Technical data Article number: S270TM Brand: Teknik Makina Description: Indexable insert milling cutter for APKT 1604 indexable inserts Facts Shaft diameter: 32 mm Cutting length (effective): 55 mm Overall length: 150 mm Number of cutting edges: 3 Cutting angle: 90° Weight: 0.876 kg Special features For APKT 1604 indexable inserts Compatible inserts manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 SKU: S270TM FAQ Which inserts fit this milling cutter? The cutter is designed for APKT 1604 indexable inserts; Korloy grades are suitable choices for typical applications with the S270TM. What are the key dimensions of the tool? The S270TM has a 32 mm shank diameter, 55 mm effective cutting length and an overall length of 150 mm, providing a balance of rigidity and reach. How many cutting edges does it have and what is the geometry? This indexable cutter uses three cutting edges with a 90° cutting angle to enable stable peripheral and face milling operations. What fastening hardware is required for insert clamping? Insert clamping uses an M4x10 Torx screw, tightened with a T15 Torx key for secure and repeatable clamping on the S270TM. Who manufactures and supplies this tool? The tool is produced by Teknik Cutting Tools and is available through Metav Werkzeuge under SKU S270TM. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of robust shank support, precise insert compatibility and easy serviceability to maintain consistent milling results; order the tool via Metav Werkzeuge or contact the consultants for tailored advice. S268TM indexable shank cutter – 30 mm diameter, 25 mm shank (Teknik Makina) A S268TM indexable shank cutter designed for use with APKT 1604 indexable inserts, offering a compact overall length and secure shank for stable milling operations. 30 mm cutting diameter 25 mm shank for rigid clamping Compatible with APKT 1604 inserts Three cutting edges for smooth chip removal High-throughput milling with consistent chip control The S268TM is engineered as an indexable holder that combines a 30 mm diameter with three cutting edges and a 90° cutting geometry to enable steady material removal. The tool accepts APKT 1604 indexable inserts, so insert changes are rapid and downtime is reduced; this approach keeps running costs lower than solid-tool replacements. Precision of cut is supported by a well defined clamping interface and a short 55 mm cutting length, which together reduce chatter and improve process stability. The result is predictable performance in serial production and smaller batches alike. Stable clamping and straightforward setup for workshop environments A 25 mm shank and a compact 150 mm overall length contribute to high torsional stiffness and reliable toolholding when mounted in standard toolholders. The cutter is secured with an M4x10 Torx fixing screw and serviced with a T15 key, which simplifies maintenance routines and repeatable assembly. At a weight of 0.575 kg the tool balances manageable handling with the mass needed to dampen vibration, supporting improved surface finish and longer insert life. Assembly and index changes are kept simple, which benefits both experienced operators and general workshop staff. Compatibility, procurement and dependable sourcing Compatibility with APKT 1604 inserts from Korloy and the clear mechanical specification make this indexable milling solution easy to integrate into existing machining lines. Where tool selection must be justified, the facts are straightforward: standard insert format for broad availability, defined screw and key sizes for maintenance planning, and measurable dimensions for fixture checks. Procurement is simplified by ordering through Metav Werkzeuge, whose inventory and service ethos support reliable supply and technical backing for industrial and craft environments. Contact Metav Werkzeuge today for expert advice on Teknik Makina tools and to arrange supply of the S268TM indexable shank cutter; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: S268TM Manufacturer: Teknik Makina Product name: Indexable shank cutter for APKT 1604 indexable inserts ECLASS: 21180806 ETIM: EC011860 Facts Diameter: 30 mm Shank diameter: 25 mm Cutting length: 55 mm Overall length: 150 mm Number of cutting edges: 3 Weight: 0.575 kg Cutting angle: 90° Special features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Fixing screw: M4x10 Torx Torx key size: T15 FAQ What insert type fits this cutter? The cutter accepts APKT 1604 indexable inserts; Korloy is listed as a compatible insert manufacturer for straightforward sourcing. What are the main dimensions to check for toolholder compatibility? Key dimensions are 30 mm cutter diameter, 25 mm shank diameter and 150 mm overall length; these determine holder and fixture compatibility. Which screw and key are required for insert fixing? An M4x10 Torx screw secures the insert seat, and a T15 Torx key is specified for tightening and maintenance. Is this tool suitable for serial production? Yes, the indexable concept with three cutting edges and a short cutting length supports stable, repeatable milling that is well suited to batch and serial production. Who supplies and supports this product? The tool is supplied via Metav Werkzeuge and is designated under the manufacturer Teknik Makina with SKU S268TM for order and inventory reference. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a rigid 25 mm shank and compatibility with APKT 1604 indexable inserts for stable, repeatable cuts; the secure M4x10 Torx fastening and compact 150 mm overall length reduce setup time and vibration, supporting a smooth milling process. Order or request guidance via Metav Werkzeuge for application advice or procurement. Shank milling cutter S266TM – 25 mm shank, for APKT 1604 indexable inserts (Teknik Cutting Tools) The Shank milling cutter S266TM is a purpose-built insert cutter body engineered for face and slot milling with APKT 1604 indexable inserts, offering a compact overall length and secure Torx clamping for consistent tool performance 25 mm shank diameter for rigidity 2 cutting edges for efficient material removal Compatible with APKT 1604 indexable inserts Secured with M4x10 Torx screw (T15) High-precision insert compatibility for predictable results The cutter body is designed around the widely used APKT 1604 insert format and matched to major suppliers such as Korloy, which simplifies inventory and insert selection. The combination of standard insert geometry and a firm clamping concept—specified as an M4x10 Torx screw with a T15 key—reduces micro-movement during operation, improving surface finish and repeatability. For manufacturing planners this translates into fewer reworks and more predictable cycle times, since the modular insert system enables quick replacement without readjusting the toolholder or machine offsets. Robust shank and geometry for stable cutting performance With a 25 mm shank diameter and a total length of 150 mm, the tool provides a balance between accessibility and stiffness; the cutting length of 55 mm and 2 cutting edges at a 90° cutting angle enable efficient face milling and light slotting. The solid ergonomics lower vibration and allow higher feed per tooth within recommended limits, increasing throughput while maintaining tolerances. Calculations for fixture and spindle load become straightforward thanks to the clear dimensional data and the modest tool mass (0.544 kg), which helps in process planning and tool-change cycle optimisation on both small jobbing machines and larger production centres. Practical integration into workshop workflows The cutter body has been specified with common industry standards to ease adoption in mixed-workshop environments. Its compatibility with APKT 1604 inserts and recognition of Korloy as a fitting insert supplier reduce procurement complexity and support fast replacement during shift work. The compact design and standardised Torx fastening mean that the tool can be swapped and secured quickly, lowering downtime and supporting lean production routines. For operations managers, the result is a straightforward, durable insert milling solution that complements existing toolsets and enables consistent component quality across runs. For advice on applications, stock availability or to specify the S266TM shank milling cutter for production, contact Metav Werkzeuge in Emmerich for personalised guidance at info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: S266TM Manufacturer: Teknik Makina ECLASS: 21180806 ETIM: EC011860 Facts Shank diameter: 25 mm Cutting length (shank): 55 mm Overall length: 150 mm Number of cutting edges: 2 Cutting angle: 90° Weight: 0.544 kg Special features For indexable inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 SKU: S266TM FAQ What insert type does this cutter accept? The cutter accepts APKT 1604 indexable inserts; the S266TM is engineered around that insert geometry to ensure correct seating and reliable cutting behaviour. Is a specific insert supplier required? No single supplier is required, but the tool is marked as compatible with Korloy APKT 1604 inserts; equivalent inserts from other manufacturers with the same designation will fit. What clamping method secures the insert? Insert clamping is achieved via a Torx screw specified as M4x10, tightened with a T15 key to ensure secure fixation and minimise movement during cutting. Can the tool be used for both face milling and slotting? Yes, the cutter’s 90° cutting angle and 55 mm cutting length make it suitable for face milling and light slotting operations, offering versatility for various workshop tasks. How does the shank diameter affect performance? The 25 mm shank increases rigidity compared with smaller diameters, reducing deflection and vibration for improved surface finish and repeatability. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from efficient material removal, secure Torx clamping and broad compatibility with APKT 1604 indexable inserts for uninterrupted production. Order directly via Metav Werkzeuge or consult our specialists for application advice. S264TM Shaft milling cutter – Ø40 mm, 4 flutes (Teknik Makina) The S264TM is a shaft milling cutter engineered for face and shoulder milling using APKT 1604 indexable inserts, optimised for robust performance in production workshops. Solid 25 mm shank diameter Suitable for APKT 1604 indexable inserts Ø40 mm cutting diameter Includes M4x10 Torx clamping screw Stability and precision for consistent results The tool delivers reliable performance through a Ø40 mm cutting diameter and 4 flutes, which together provide a balance between material removal rate and surface finish. A 25 mm shank increases rigidity in the holder, reducing vibration and enhancing repeatability across batches. Compatibility with indexable inserts means insert geometry and grades can be selected to match different steels or aluminium alloys, enabling a predictable cutting process and consistent component quality. Quick insert change and secure clamping reduce downtime Clamping is handled by an M4x10 Torx screw and a T15 key interface, ensuring fast, repeatable insert changes and a positive locating position for every tool change. The secure clamping arrangement minimises micro-movement under load, improving tool life and reducing rework. This practical configuration supports shorter setup times and higher machine uptime, translating into measurable productivity gains on the shop floor. Versatile compatibility that supports workshop efficiency With a 45 mm cutting length and 120 mm overall length, the cutter is suited to a wide range of shoulder and face milling tasks; the 90° cutting angle provides square shoulder capability for accurate step formation and pocket walls. The tool is supplied ready for APKT 1604 inserts and is compatible with Korloy insert grades commonly stocked in industrial workshops. At 0.547 kg, the assembly offers straightforward handling and good balance for stable spindle operation. Together, these attributes make the cutter a practical choice for manufacturers seeking efficient, dependable milling with minimal adjustments. For tailored application recommendations or to secure the Teknik Cutting Tools S264TM for the next production run, contact Metav Werkzeuge in Emmerich by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 — our technical advisors will assist with insert selection and clamping setup Technical data Article number: S264TM Brand: Teknik Makina Fits inserts: APKT 1604 Compatible with: Korloy Facts Shank diameter: 25 mm Cutting diameter: 40 mm Cutting length: 45 mm Overall length: 120 mm Number of cutting edges: 4 Weight: 0.547 kg Clamping screw: M4x10 Torx key size: T15 Cutting angle: 90° Special features Shaft milling cutter design For APKT 1604 indexable inserts Suitable for face and shoulder milling Brand: Teknik Makina FAQ What insert type does the cutter accept? The cutter accepts APKT 1604 indexable inserts; Teknik Cutting Tools designed the tool for this insert format to ensure reliable seating and chip control. Is the tool compatible with Korloy inserts? Yes, the S264TM is compatible with Korloy insert grades, allowing use of commonly available chipbreaker and grade combinations. What are the shank and cutting diameters? The shank diameter is 25 mm and the cutting diameter is 40 mm, providing a stable connection to the tool holder for accurate milling. How is the insert secured on the cutter? Inserts are secured with an M4x10 Torx clamping screw; a T15 Torx key is specified for tightening to the correct torque. Which milling operations is this cutter best suited to? The tool is optimised for face and shoulder milling where a 90° cutting angle and a 45 mm cutting length are required for square shoulders and efficient material removal. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of precision, compatibility and straightforward maintenance: the combination of a Ø 35 mm cutting head, Shank Ø 25 mm and 3 cutting edges ensures stable milling with indexable inserts and predictable tool life. Order the shaft milling cutter directly via Metav Werkzeuge or ask the consultants for tailored cutting data. S262TM Shaft milling cutter for APKT 1604 indexable inserts by Teknik Makina — Ø 35 mm, Shank Ø 25 mm A robust milling solution: the S262TM is a shaft-mounted cutter designed for milling with APKT 1604 indexable inserts in typical precision and production environments Indexable cutter for APKT 1604 inserts Diameter 35 mm with 3 flutes Shank Ø 25 mm for secure clamping Torx M4x10 screw; T15 key required Reliable compatibility that simplifies tooling decisions The holder is engineered specifically for use with APKT 1604 indexable inserts and is compatible with inserts from Korloy, removing uncertainty when standardising tooling across a fleet of machines. With a Shank Ø 25 mm and a body Ø 35 mm, the tool is balanced for rotational stability; this reduces vibration and helps to protect insert edges. The 3 cutting edges arrangement offers a compromise between chip evacuation and cutting continuity, which supports consistent surface finishes in interrupted and continuous milling operations. As an indexable system, insert replacement is cost-effective and reduces downtime compared with solid-tool replacement. Performance characteristics that support efficient production A 90° cutting angle promotes predictable axial engagement and straightforward depth control in slotting and face milling tasks, while the Cutting length 45 mm allows deeper passes without changing the tool for many common setups. The cutter’s geometry is intended to deliver stable chip formation and even load distribution across inserts, contributing to repeatable cycle times and lower scrap rates. The M4x10 fixation with a T15 key provides secure clamping of the insert seat; this precise clamping translates into reproducible cutting behaviour across tool changes and supports high process reliability in serial production. Practical handling and maintenance for workshop workflows Insert changes are performed with the supplied Torx specification (M4x10 screw, T15 key), so replacements are rapid and require only basic tools. The indexable design means consumable wear is confined to inserts; the body remains in service, simplifying inventory and maintenance planning. The moderate overall length and the Shank Ø 25 mm make the tool straightforward to install in standard tool holders and collet chucks, reducing set-up time. Clear, repeatable clamping ensures the insert position remains constant after each change, which supports consistent part quality without extensive rework. Where this cutter adds value and how it fits production needs This shaft-mounted cutter suits CNC workshops, job shops and production lines that prefer indexable systems for economy and flexibility. The combination of Ø 35 mm, a robust shank and a 3-edge configuration means the tool adapts well to slotting, shoulder milling and light face-milling operations where insert-based tooling is preferred. Technical purchasers benefit from predictable stocking — only the inserts are consumed — and engineers benefit from repeatable results when standardising cutting parameters across machines. The product is listed under eClass 21180806 and ETIM EC011860, aiding integration into purchasing systems. For availability, technical parametrisation or to request compatible insert recommendations from Metav Werkzeuge, contact our specialists who can advise on cutting conditions and supply the Teknik Makina S262TM with fitting inserts and accessories Technical Data Article number: S262TM Manufacturer: Teknik Makina Description: Shaft milling cutter for APKT 1604 indexable inserts ECLASS: 21180806 ETIM: EC011860 Facts Diameter: 35 mm Shank diameter: 25 mm Cutting length: 45 mm Overall length: 120 mm Cutting edges: 3 Weight: 0.498 kg Cutting angle: 90° Special features Compatible with APKT 1604 indexable inserts Compatible insert brand: Korloy Torx screw: M4x10 Torx key size: T15 SKU: S262TM FAQ Which inserts fit this milling cutter? The S262TM is designed for APKT 1604 indexable inserts; Korloy APKT 1604 inserts are suitable and commonly used with this cutter. What clamping hardware is required for insert replacement? Insert clamping uses an M4x10 Torx screw; a T15 Torx key is specified for secure tightening. What are the main dimensions to check for holder compatibility? Key dimensions are Diameter 35 mm, Shank Ø 25 mm, Cutting length 45 mm and overall length 120 mm; these determine fit in tool holders. Is the cutter suitable for serial production? Yes — the indexable design of the Teknik Makina S262TM supports economical consumable replacement and consistent performance for serial production runs. How many cutting edges does the tool have and what is the effect? The tool has 3 cutting edges, balancing chip removal and surface quality to provide stable cutting in a range of milling tasks. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from stable clamping and efficient material removal thanks to a 32 mm cutting diameter and a shank Ø25 mm, combined with a three-edge geometry and a 90° cutting angle for predictable cycle times. Order the S260TM directly via Metav Werkzeuge or ask the consultants for tailored advice. S260TM indexable shank milling cutter – Ø32 mm, shank Ø25 mm (Teknik Makina) the S260TM indexable shank milling cutter is designed for precise face and shoulder milling using APKT 1604 indexable inserts in CNC and manual milling setups 32 mm cutting diameter Shank Ø25 mm, overall length 120 mm Compatible with APKT 1604 inserts Reliable machining performance with predictable results The tool delivers consistent cutting behaviour through a 32 mm cutting diameter and a balanced three cutting edges layout. This geometry reduces vibration and evens out tool wear, which supports repeatable tolerances in serial production. The 90° cutting angle enables efficient shoulder milling and square-sided features, translating into shorter cycle times and fewer tool changes for batch runs. Fast insert changes and secure clamping to reduce downtime Indexable inserts are secured with a M4x10 Torx screw, tightened using a T15 key, which simplifies maintenance and keeps setup time to a minimum. The cutter is specified for APKT 1604 inserts and is compatible with inserts from Korloy, allowing immediate use with established insert grades. Quick replacement of inserts supports uninterrupted production and straightforward service routines in a busy workshop. Stable mounting and compact handling for varied toolholders A shank diameter of 25 mm provides secure engagement with common collet and chuck toolholders while the overall length of 120 mm keeps the assembly compact for reduced overhang. The cutter’s modest mass (approx. 0.469 kg) contributes to lower spindle load during rapid traverses and is beneficial where tool change dynamics and balance are relevant. The design supports efficient inventory management by using widely available APKT 1604 inserts for fast replenishment. For order placement, specification checks or procurement advice for the S260TM by Teknik Makina, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 for prompt, expert assistance Technical data Article number: S260TM Manufacturer: Teknik Makina Name: Indexable shank milling cutter for APKT 1604 Indexable Inserts Facts Diameter: 32 mm Shank diameter: 25 mm Cutting length: 45 mm Overall length: 120 mm Cutting edges: 3 Cutting angle: 90° Weight: 0.469 kg Special features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 eClass: 21180806 ETIM: EC011860 FAQ How are the indexable inserts fixed in place? The S260TM secures APKT 1604 inserts with an M4x10 Torx screw; use a T15 key for clamping and removal. Can Korloy inserts be used with this cutter? Yes, the cutter is specified for APKT 1604 inserts and is compatible with Korloy APKT 1604 grades. What shank size is required for mounting? The tool features a shank diameter of 25 mm, suitable for standard collet and chuck toolholders that accept this diameter. How many edges does the cutter have and what is the machining benefit? The cutter has three cutting edges; this configuration provides a good compromise between material removal rate and surface finish, with balanced wear across inserts. What are the key dimensions to note for tool planning? Important dimensions are Ø32 mm cutting diameter, 45 mm cutting length and 120 mm overall length; weight is approximately 0.469 kg. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, insert-based milling solution that combines precise cutting geometry and sturdy shank support for reliable chip evacuation and consistent surface finish — compatible with APKT 1604 indexable inserts and fitted with a secure Torx clamping screw; order directly via Metav Werkzeuge or consult our technical advisers for application-specific guidance. Shaft milling cutter S258TM — for APKT 1604 indexable inserts, 30 mm diameter (Teknik Makina) Shaft milling cutter S258TM engineered for versatile face and slot milling operations using APKT 1604 indexable inserts, offering a stable 25 mm shank and three cutting edges for smooth material removal 30 mm cutting diameter, versatile milling 25 mm shank for stable clamping Three cutting edges for smooth removal Compatible with APKT 1604 Korloy inserts High cutting performance for repeatable production The S258TM body delivers consistent milling performance by combining a 30 mm cutting diameter with a robust 25 mm shank, ensuring secure clamping in standard toolholders. The tool body accepts APKT 1604 indexable inserts, which allow fast reconditioning of the cutting edge and predictable wear behaviour; this reduces downtime because inserts can be replaced without regrinding. The three-blade configuration improves chip flow and evens out cutting forces, which helps to maintain dimensional stability across serial runs while keeping spindle loads within expected limits. Fast insert changes and reliable clamping Designed for straightforward maintenance, the cutter uses a Torx M4x10 clamping screw and a T15 key for insert retention. The standardised screw interface ensures repeatable torque application and reduces the risk of incorrect fastening. Insert-based tooling minimises tool inventory complexity: worn edges are replaced quickly, which keeps setup times short and supports lean production. The combination of secure clamping and standardised insert geometry supports predictable machining cycles and repeatable component quality. Practical handling that boosts workshop throughput With a 120 mm overall length and 45 mm effective cutting length, the milling body balances reach and rigidity for common face and slot operations. Its modest mass of 0.46 kg makes handling and tool changes simple while still providing the stiffness required for accurate results. Using indexable inserts cuts indirect costs by avoiding full-tool reconditioning; the modular approach supports quick adaptions to varying cutting strategies, promoting efficient workshop workflows and reduced lead times for small to medium production batches. Robust specification for industrial use The milling body is compatible with Korloy-manufactured APKT 1604 inserts and is suitable for wide-ranging machining tasks where indexable tooling is preferred. The component’s design prioritises chip evacuation and stable cutting geometry, which contributes to improved surface finish and longer insert life under typical cutting conditions. For operations seeking a balance between flexibility and production reliability, the S258TM milling body represents a practical choice that integrates easily into existing tool systems. For tailored advice on integrating the S258TM shaft milling cutter into a machining cell, contact Metav Werkzeuge in Emmerich — technical consultants are available at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to assist with selection and ordering Technical data SKU: S258TM Manufacturer: Teknik Makina Article: Shaft milling cutter for APKT 1604 Indexable Inserts ETIM: EC011860 ECLASS: 21180806 Core measurements Cutting diameter: 30 mm Shank diameter: 25 mm Cutting length: 45 mm Overall length: 120 mm Number of cutting edges: 3 Weight: 0.46 kg Special features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Clamping screw: Torx M4x10 Torx key size: T15 FAQ Which inserts fit this milling body? The milling body accepts APKT 1604 indexable inserts; Korloy APKT 1604 inserts are specified as compatible. What are the main dimensions to consider for toolholder selection? Key dimensions are a 25 mm shank diameter and 120 mm overall length; these determine holder compatibility and reach. How many cutting edges does the tool body use and what is the benefit? The body uses three cutting edges, which smooths cutting forces and improves chip evacuation for a more consistent finish. Which screw and key are required for insert clamping? A Torx M4x10 clamping screw and a T15 Torx key are used for secure insert retention. Is this milling body suitable for high-production environments? Yes; the insert-based design and standard clamping interface facilitate fast insert changes and predictable tool behaviour suited to serial production. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from precise 90° shoulder milling combined with a robust 25 mm shank and 45 mm cutting length for consistent tool life and stable machining. The design for APKT 1604 indexable inserts reduces downtime through quick insert changes. Order the cutter directly via Metav Werkzeuge or contact our consultants for specification advice. S256TM Shaft Cutter — Indexable milling cutter for APKT 1604, 25 mm shank (Teknik Makina) S256TM is a 90° indexable milling cutter intended for robust shoulder and face milling operations with APKT 1604 inserts 90° cutting angle for square shoulders 25 mm shank for stable clamping Compatible with Korloy APKT 1604 inserts Torx M4x10 screw, T15 interface Accuracy and rigidity for repeatable shoulder milling The 90° geometry delivers consistently square shoulders and predictable tool engagement, which helps to maintain part tolerances in batch production. The combination of a 25 mm shank and an overall length of 120 mm improves axial rigidity and reduces chatter when compared with slender tooling. Where tight geometry is required, the 45 mm cutting length provides adequate reach without unnecessary overhang, assisting in maintaining surface finish and dimensional stability. These characteristics translate directly into fewer reworks and more reliable cycle times on production runs. Quick insert changes and secure clamping to reduce downtime Designed for indexable inserts, the cutter accepts APKT 1604 plates and secures them with a Torx M4x10 screw accessed via a T15 key interface. The use of indexable tooling means the cutting edge can be renewed rapidly by replacing the insert rather than the entire tool body, lowering tooling costs over time. With two cutting edges per insert, the system supports efficient use of insert geometry and enables straightforward rotation or replacement, contributing to higher machine uptime and simpler maintenance routines. The S256TM construction focuses on reliable clamping and repeatable seating of the insert pocket. Predictable throughput and simplified tool management Indexable systems like this cutter promote predictable total cost of ownership: indexable inserts concentrate the wearing element into small, replaceable parts while the tool body remains a long-term asset. For operations that favour batch processing or mixed-series production, the ability to standardise on APKT 1604 inserts simplifies inventory and reorder processes. The cutter’s balanced dimensions and specified geometry make it suitable for general industrial milling tasks where a 90° cutting angle is required; the result is sustained productivity with reduced planning complexity and straightforward tool change procedures. Supply reliability and partner expertise from Metav Procured through Metav Werkzeuge, this cutter benefits from a supplier positioned as a “quality filter” for the European market. Metav combines decades of precision competence with broad product availability, supporting workshops and manufacturing with a large catalogue and dependable logistics. The established customer base and comprehensive assortment reduce procurement risk and help centralise tooling needs. For purchasers seeking consistent supply and technical guidance, Metav’s expertise complements the cutter’s technical strengths and supports seamless integration into existing toolsets. Choose Teknik Makina’s S256TM for reliable 90° milling and contact Metav Werkzeuge for tailored technical advice and supply via info@metav-werkzeuge.com or by telephone on +49 2822 7131930 Technical Data Article number: S256TM Manufacturer: Teknik Cutting Tools Suitable for inserts: APKT 1604 Compatible insert manufacturer: Korloy Shank diameter: 25 mm Cutting length: 45 mm Cutting angle: 90° Number of cutting edges: 2 Overall length: 120 mm Weight: 0.43 kg Torx screw: M4x10 (T15) Core Data Shank diameter: 25 mm Cutting length: 45 mm Overall length: 120 mm Weight: 0.43 kg Cutting angle: 90° Cutting edges: 2 Special features For APKT 1604 indexable inserts Compatible with Korloy inserts Torx M4x10 screw, T15 interface SKU: S256TM Brand: Teknik Makina FAQ What inserts fit this cutter? The cutter is designed for APKT 1604 indexable inserts and is compatible with Korloy plates shaped to that designation. How is the insert secured in the cutter? Inserts are held by a Torx screw (M4x10) using a T15 key; the fastening system is designed for repeatable seating and reliable clamping. Is the S256TM suitable for shoulder milling? Yes — the 90° cutting angle makes the S256TM particularly suitable for square shoulder and face milling operations with predictable geometry. How many cutting edges are used per insert? Each insert provides two cutting edges, enabling rotation or replacement to extend usable life before disposal. Where can replacement inserts or spares be sourced? Replacement APKT 1604 inserts from Korloy and spare fastening screws can be supplied through Metav Werkzeuge as part of routine replenishment. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a high material‑removal rate and stable clamping thanks to the 30‑edge configuration and a 40 mm shank, ensuring reliable cycle times for roughing operations; order the Teknik Makina HF54TM via Metav Werkzeuge or contact our consultants for technical clarification. Igelfräser (multi‑insert milling cutter) HF54TM — Ø100 mm, 30 cutting edges (Teknik Makina) The Igelfräser (multi‑insert milling cutter) HF54TM is a robust milling tool intended for demanding roughing and heavy stock‑removal tasks on machining centres, designed to accept APKT 1604 indexable inserts for efficient, repeatable cutting performance. Ø100 mm diameter for wide coverage 30 cutting edges for aggressive stock removal Compatible with APKT 1604 Korloy inserts 40 mm shank for stable machine clamping Faster machining through optimised multi‑edge geometry The HF54TM is configured as a multi‑insert milling cutter with 30 cutting edges, a design that increases the number of contact points per revolution and thereby raises the effective material removal per spindle turn. This results in a measurable reduction in cycle time when compared with single‑edge tools, while the Ø100 mm tool diameter provides a broad cutting path that reduces the number of passes required. For production environments where throughput and reproducibility are priorities, the combination of many edges and a wide diameter translates into consistent process performance and predictable finishing allowances. Secure clamping and dimensional stability for repeatable results A key mechanical advantage is the 40 mm shank, which promotes rigid toolholding and reduces vibration during heavy cuts; the tool’s mass (approx. 4.329 kg) further contributes to damping. The cutter offers an extended engagement zone with a 75 mm cutting height, enabling deeper cuts without compromising stability. Fastener specification is integral to safe operation: the tool uses M4x10 Torx screws and a T15 Torx key for insert fixation, assuring reliable clamping torque and straightforward replacement. These features together reduce tool chatter and support predictable tool life, improving component quality and machine uptime. Simple insert management and compatibility with industry‑standard inserts This cutter is engineered for use with APKT 1604 indexable inserts (Korloy compatibility), which are widely available and allow economical restoration of cutting geometry without replacing the entire body. The indexable system permits quick rotation or replacement of individual inserts, lowering maintenance time compared with solid‑tool alternatives. The design supports efficient replacement cycles and inventory management: keeping a small stock of APKT 1604 inserts ensures minimal downtime and better cost control across production batches, enhancing overall process economics. Integration into workshop workflows and application scope The HF54TM suits applications where robust roughing is required prior to finishing passes; typical uses include bulk material removal, preparation of surfaces for subsequent finishing and operations where multiple passes would otherwise be necessary. The tool’s construction and insert system make it a practical choice for machining centres in general fabrication and component production. For technical queries or to confirm suitability for a specific material or machine set‑up, Metav Werkzeuge provides detailed advice and data sheets to support tool selection and process planning. Contact Metav Werkzeuge for tailored technical advice and to secure the Teknik Makina HF54TM multi‑insert milling cutter, compatible with APKT 1604 inserts, for immediate integration into production. Technical details Article number: HF54TM Manufacturer: Teknik Makina Shank diameter: 40 mm Diameter: 100 mm Cutting edges: 30 Cutting height: 75 mm Overall length: 100 mm Weight: 4.329 kg Compatible inserts: APKT 1604 (Korloy) Torx screw: M4x10 Torx key: T15 Suitable for heavy stock removal and roughing Indexable‑insert system for economical maintenance FAQ What insert type does the cutter accept? The HF54TM accepts APKT 1604 indexable inserts; the specification lists Korloy as a compatible insert supplier. Is the tool suitable for heavy roughing operations? Yes, the multi‑insert layout with 30 cutting edges and a 75 mm cutting height is intended for aggressive stock removal and roughing tasks. Which shank diameter is required for clamping? The cutter is supplied for a 40 mm shank diameter to ensure stable clamping in suitable toolholders. How are the inserts fastened and replaced? Inserts are secured with M4x10 Torx screws using a T15 key, allowing controlled torque and straightforward replacement of individual inserts without removing the whole tool body. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust, indexable‑insert milling solution that combines high material‑removal capability with secure mounting and straightforward service. The HF53TM’s Ø 80 mm body with 25 insert positions and a shank Ø 32 mm delivers fast cycle times and consistent surface results; order the indexable insert milling cutter HF53TM directly via Metav Werkzeuge or ask our consultants if needed. Indexable insert milling cutter HF53TM — Ø 80 mm, 25 insert positions (Teknik Makina) The HF53TM is an indexable‑insert milling body designed for medium‑ to heavy‑duty face milling and slotting operations, equipped for APKT 1604 inserts and workshop use Ø 80 mm cutter body Fits APKT 1604 indexable inserts 25 insert positions for fast stock removal Shank Ø 32 mm for secure mounting Boost throughput with a high‑capacity insert body This milling body is engineered to increase productivity through its 25 insert positions, enabling larger cutting widths without frequent tool changes. The combination of a compact Ø 80 mm diameter and a substantial 75 mm cutting height permits deeper engagement per pass where machines and fixtures allow, which reduces the number of passes and shortens cycle times. As a rational investment in throughput, the design supports higher metal‑removal rates while keeping setup times low. Simple maintenance and secure fastening to keep production running Maintenance is practical and fast: insert clamping uses Torx M4x10 screws and a T15 key for reliable torque and repeatable seating. The shank Ø 32 mm provides a rigid connection to tool holders and collets, reducing vibration and improving insert life. Minimal downtime for insert changes and the robust fixation system result in a measurable improvement in overall equipment effectiveness (OEE) in day‑to‑day shopfloor operation. Broad compatibility for flexible machining strategies Built to accept APKT 1604 indexable inserts and compatible with Korloy supply lines, the cutter body supports a wide range of grades and chip‑control geometries. This flexibility allows selection of optimised grades for cast iron, steel or aluminium workpieces depending on application needs. The modular approach to cutting geometry makes the tool suitable for one‑piece flow or batch production where different materials are processed under the same setup philosophy. Built for workshop reliability and repeatable results The solid construction and balanced layout—reflected in an overall length of 100 mm and a weight of 2.645 kg—deliver stability during extended runs. Repeatability is supported by precise insert seats and a consistent clamping concept, which translates into reliable surface finish and dimensional conformity across batches. The unit’s compatibility with standard indexable insert formats simplifies stocking and ensures swift replacement when required. For robust, high‑rate milling solutions from Teknik Makina, contact Metav Werkzeuge for tailored advice and assured supply from Emmerich: info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: HF53TM Manufacturer: Teknik Makina Product name: Indexable insert milling cutter HF53TM Facts Diameter: 80 mm Shank diameter: 32 mm Cutting height: 75 mm Overall length: 100 mm Cutting edges / insert positions: 25 Weight: 2.645 kg Special features Accepts APKT 1604 indexable inserts Compatible with Korloy inserts Torx screw M4x10 Torx key size T15 Designed for medium to heavy cutting applications FAQ What type of inserts does this cutter use? The HF53TM is designed for APKT 1604 indexable inserts; Korloy‑compatible grades and geometries are suitable for varied materials. How many insert positions are available and what does that mean for throughput? The body features 25 insert positions, which increases total cutting edge engagement and enables higher material‑removal rates compared with single‑insert cutters. What are the essential dimensions to check for holder compatibility? Key dimensions are a diameter of 80 mm, shank Ø 32 mm and an overall length of 100 mm; these determine fixture and tool‑holder compatibility. Is the clamping hardware standardised? Yes — insert clamping uses Torx M4x10 screws and a T15 key for repeatable and secure fastening of inserts. Which manufacturer produced this tool and what is the SKU? The milling body HF53TM is supplied by Teknik Makina and sold under SKU HF53TM through Metav Werkzeuge for European distribution. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

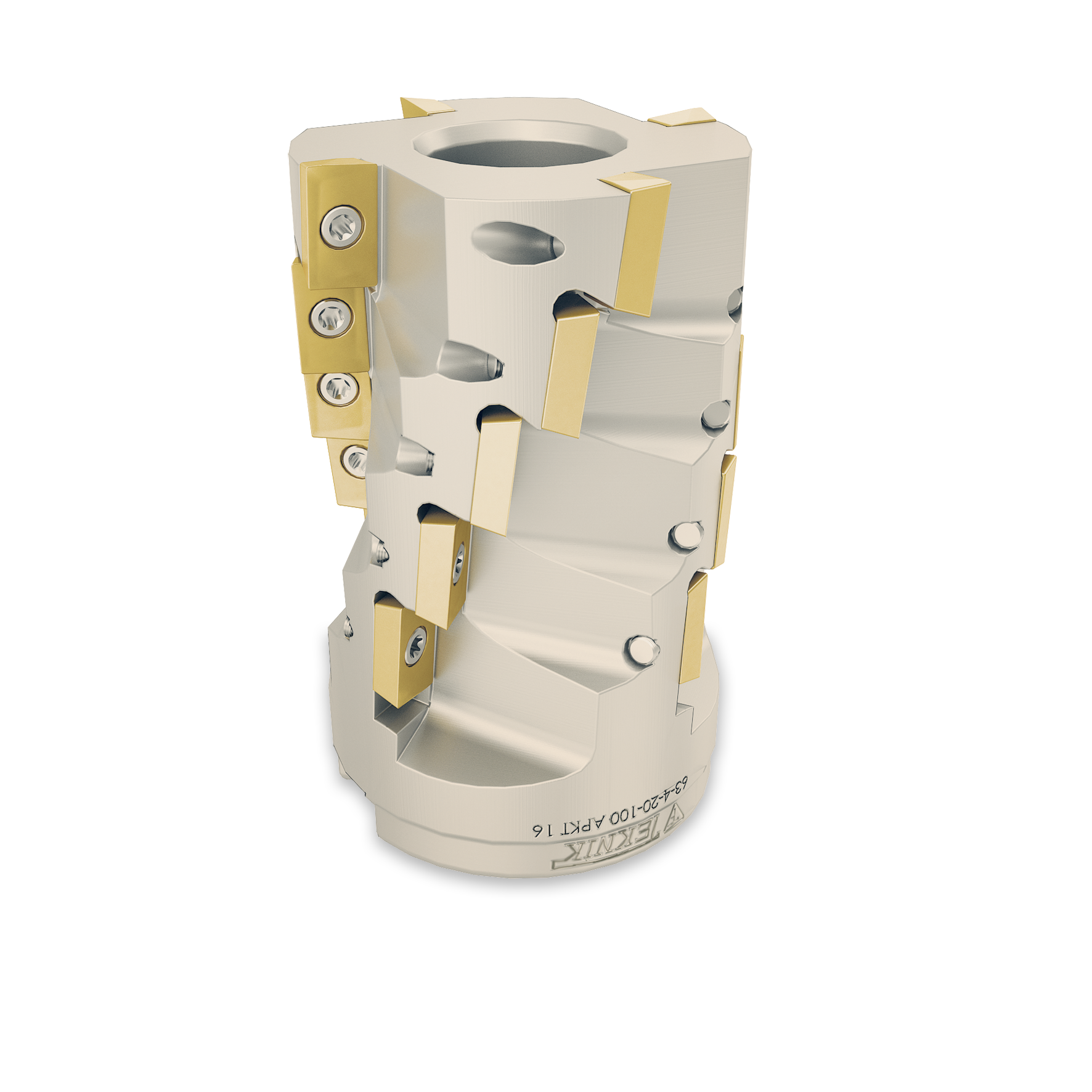

High material-removal rates and steady tool life result from the combination of a 63 mm diameter and 20 cutting edges, while the compatibility with APKT 1604 indexable inserts ensures efficient tool-cost management and rapid reconditioning. Order the cutter directly via Metav Werkzeuge or consult our technical advisors for application-specific guidance. Indexable-insert milling cutter by Teknik Makina — Ø63 mm, 20 cutting edges A robust indexable-insert milling cutter engineered for high-volume milling and face operations, compatible with APKT 1604 indexable inserts and suited to modern toolholders. Ø63 mm diameter for high removal rates 20 cutting edges for consistent surface finish Compatible with APKT 1604 Korloy inserts 32 mm shank for secure toolholder mounting Maximise throughput with a multi-edge design The solid construction and 20 cutting edges are designed to distribute cutting forces and reduce per-edge load, which results in longer service intervals and more consistent cycle times. The generous Ø63 mm diameter increases chip volume per pass, helping to shorten machining cycles on suitable operations. Where indexable inserts are used, the running costs become primarily a function of insert life rather than full-tool replacement, so maintenance planning is simplified and total cost of ownership improves. The combination of geometry and insert type supports steady production flow without frequent interruptions. Straightforward integration into existing setups Engineered with a 32 mm shank, the milling head fits common toolholders for straightforward retrofitting into existing tool inventories. Compatibility with APKT 1604 indexable inserts—notably supplied by Korloy—means spare-part sourcing is simple and inventory overlap with other insert-based cutters is high. The cutter integrates into standard milling processes without the need for specialised fixtures, enabling easy adoption on benches and in CNC centres that use indexable-insert tooling systems. Quick serviceability reduces downtime Insert retention utilises M4x10 Torx screws that are accessed with a T15 drive, allowing rapid insert changes and straightforward torque application. The clear fixing method shortens maintenance cycles and minimises the time a machine is offline. At approximately 1.455 kg, the assembly offers a manageable mass for balancing and handling while remaining rigid enough for stable cutting. Spare inserts and fixings can be replaced quickly, turning routine upkeep into a short, predictable task rather than a production bottleneck. Suited to demanding milling applications The tool’s 75 mm cutting height and 100 mm overall length provide an extended cutting capacity for deeper engagements and profile work where indexable inserts are preferred. The modular nature of insert tooling supports tailored cutting strategies: switches between grades and geometries allow adaptation to evolving process needs without replacing the tool body. This flexibility supports both small-batch specialist work and larger production runs, delivering a dependable balance between performance and economical tooling practice. Contact Metav Werkzeuge for tailored application advice and order support for Teknik Makina tools; our consultants can confirm compatibility and availability and assist with spare-part planning Technical data SKU: HF52TM Manufacturer: Teknik Makina eClass: 21180806 ETIM: EC011860 Core data Diameter: 63 mm Cutting edges: 20 Shank diameter: 32 mm Cutting height: 75 mm Overall length: 100 mm Weight: 1.455 kg Special features Compatible with APKT 1604 indexable inserts Suitable inserts from Korloy Torx screw: M4x10 Torx key: T15 For indexable-insert milling applications FAQ Which insert type is required for this cutter? The indexable-insert milling cutter accepts APKT 1604 inserts; Korloy is indicated as a compatible insert manufacturer for reliable supply and grades. What is the cutter diameter and how many teeth does it have? The cutter has a diameter of 63 mm and is equipped with 20 cutting edges to support high material removal rates and stable surface finish. What shank size and overall dimensions are specified? The tool uses a 32 mm shank, with a 75 mm cutting height and 100 mm overall length, offering extended engagement for deeper milling tasks. How are the inserts secured and what tool is required? Inserts are fastened with an M4x10 Torx screw; a T15 Torx driver is used for secure, quick insert changes. Is this cutter heavy to handle during balancing and setup? The cutter weighs approximately 1.455 kg, offering a balance between rigidity for cutting and manageability during handling and balancing. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust 90° turning solution that combines precise square-shoulder performance with straightforward insert compatibility; the rigid 60 mm shank and secure Torx fastening reduce setup time and improve process stability. Order the component directly via Metav Werkzeuge or consult our specialists for a tailored quotation and machining advice. Eckmesserkopf T193TM — 90° corner turning head for APKT 1604 indexable inserts by Teknik Makina A versatile 90° corner turning head, the Eckmesserkopf T193TM is designed for external turning and shoulder work with APKT 1604 indexable inserts, suited to heavy‑duty workshop environments Compatible with APKT 1604 inserts 90° cutting angle for square shoulders 60 mm shank diameter, rigid mounting Torx M4x10 screw with T15 key Engineered for accurate square-shoulder machining The turning head delivers a 90° cutting angle that simplifies shoulder and contour machining while maintaining consistent edge engagement. The geometry is optimised so that each indexed insert sits precisely in the pocket, allowing the tool to create true square shoulders without repeated adjustments. This stability translates into measurable reductions in rework and fixture time, ensuring the machining process is both dependable and predictable for batch production and single-part runs. Fast, secure insert changes for uninterrupted production Compatibility with APKT 1604 indexable inserts and Korloy standards enables quick insert replacement and wide availability of cutting grades. Fixing is via an M4x10 Torx screw operated with a T15 key, a familiar fastening standard in industrial tooling that supports controlled torque application and reduced risk of slip. The combination of standardised inserts and positive clamping supports fast changeovers, keeping machine downtime to a minimum and improving overall throughput. Robust design that reduces vibration and extends tool life A solid construction with a 60 mm shank diameter and substantial mass (approx. 6.37 kg) delivers enhanced rigidity at the toolholder interface. The increased stiffness helps dampen chatter and maintain cutting stability under load, which preserves insert life and supports superior surface finish. For workshops seeking consistent quality across varied batches, this turning head offers the mechanical stability required for repeatable results in turning operations. Integration and maintenance made straightforward The head’s nominal cutter diameter and compact overall length simplify integration into existing turret and toolpost arrangements without extensive modifications. Routine maintenance focuses on checking the M4x10 fastening and ensuring insert seats are free from chips and coolant residue; this straightforward service routine keeps the tool in peak condition and avoids unexpected interruptions. The component is supplied as SKU T193TM, making reorders and stock management unambiguous for procurement teams. For dedicated technical guidance or a tailored quotation for the Teknik Makina T193TM 90° corner turning head, contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: T193TM Name: Eckmesserkopf Type: Turning head for APKT 1604 indexable inserts Manufacturer: Teknik Makina ECLASS: 21181015 Numbers / Core technical data Shank diameter: 60 mm Weight: 6.37 kg Overall length: 63 mm Cutter diameter: 200 mm Cutting edges: 12 Cutting angle: 90° Designs / Special features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 Files: 62de7efa148ec6b71020ffcf, 62de7dc60aced56449540e7c FAQ Which indexable inserts fit this turning head? The T193TM is designed for APKT 1604 indexable inserts; Korloy APKT 1604 grades are directly compatible. What are the main mounting dimensions to check before fitting? Check for a 60 mm shank diameter and ensure turret or holder accepts a 63 mm overall length profile for correct integration. Is the tool suitable for heavy machining and long runs? Yes. With a substantial mass of 6.37 kg and a rigid 60 mm shank, the turning head is built for stable machining in extended production sequences. Which fastening hardware is required for insert retention? Insert retention uses an M4x10 Torx screw tightened with a T15 key to secure each APKT 1604 insert. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from the combination of a 40 mm shank for rigid clamping, a 90° cutting angle for versatile turning, and direct compatibility with APKT 1604 indexable inserts for consistent production results. Order the Corner tool head directly via Metav Werkzeuge or ask the consultants for tailored advice. Corner tool head – 90° cutting angle, for APKT 1604 indexable inserts (Teknik Makina) The Corner tool head is a compact CNC turning head designed for use with APKT 1604 indexable inserts, offering stable clamping and simple insert changes in machining centres and lathes. For APKT 1604 indexable inserts 90° cutting angle for versatile machining 40 mm shank diameter for stable clamping Torx screw M4x10; T15 key required Maximise process stability and rigidity on the lathe The Corner tool head delivers stable clamping through its solid 40 mm shank and a mass that supports steady cutting forces, which reduces vibration and improves surface finish. The 90° cutting angle provides flexibility across turning, profiling and shoulder cuts, enabling consistent results with a wide range of workpiece geometries. By pairing a robust tool head with industry-standard indexable inserts, the assembly promotes repeatable tool geometry and lowers scrap rates, translating into measurable productivity gains on batch production runs. Fast insert changes and low downtime for shops Designed for practical workshop maintenance, the head secures inserts with an M4x10 Torx screw operated via a T15 key, providing a fast and secure clamping method that shortens service intervals. Compatibility with common supplier inserts such as Korloy means stocked inserts can be swapped quickly without adapter work, helping to keep machines running. The straightforward fastening reduces the risk of incorrect assembly and supports predictable cycle times in mixed-production environments. Consistent geometry for precision machining tasks With a compact overall length and engineered contact surfaces, this turning head maintains cutting geometry across repeated insert indexings. The relatively short 62 mm overall length assists in confined tool positions while the construction supports stable tool overhangs up to the specified diameter, making it suitable for light to medium-duty turning applications. Specifying a dedicated head matched to APKT 1604 inserts simplifies tooling lists and ensures that insert performance is fully exploited for repeatable, high-quality finishes. For reliable delivery from Emmerich and expert advice on integrating Teknik Makina tooling into existing workflows, contact Metav Werkzeuge for tailored guidance and order support. Technical Data SKU: T192TM Name: Corner tool head Brand: Teknik Makina eClass: 21181015 Numbers / Core technical data Shank diameter: 40 mm Diameter: 160 mm Overall length: 62 mm Weight: 4.885 kg Cutting angle: 90° Special features / Compatibility For APKT 1604 indexable inserts Compatible with Korloy inserts Torx screw: M4x10 Torx key: T15 Cuts: 10 FAQ What inserts are compatible with this head? The Corner tool head is designed for APKT 1604 indexable inserts and is compatible with Korloy variants following that designation. Which fastening tool is required for insert changes? Insert clamping uses an M4x10 Torx screw; a T15 Torx key is needed for secure tightening. What shank diameter does the head use for mounting? The head has a 40 mm shank diameter suitable for standard toolholders accommodating that size. Is the head suitable for shoulder and profiling operations? Yes, the 90° cutting angle and rigid construction make it suitable for shoulder turning and general profiling tasks in CNC turning. What is the overall length and how does that affect setup? The overall length is 62 mm, which helps when working in compact setups by limiting tool overhang and improving stiffness. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust combination of secure toolholding and insert compatibility for precise, repeatable profiling — the compact design and 40 mm shank ensure stable machining and quick insert changes. Order the corner cutting head directly via Metav Werkzeuge or ask our consultants if needed. Corner cutting head for APKT 1604 indexable inserts (T190TM) — 125 mm diameter, 90° cutting angle Corner cutting head (T190TM) designed for medium‑duty indexable insert operations; suitable for milling tasks that require a stable tool body and fast insert replacement Compatible with APKT 1604 indexable inserts 125 mm cutter diameter for stable machining 40 mm shank diameter for secure toolholding Torx M4x10 fastening; T15 Torx key required Stable cutter geometry for consistent surface quality The robust body and the 125 mm diameter deliver stiffness that reduces chatter and improves surface finish during interrupted or continuous cuts. With a defined 90° cutting angle and 9 cutting edges, the head maintains a predictable cutting behaviour across multiple passes, which supports process reliability and reduces rework. The construction is intended to provide a consistent engagement with the workpiece, translating into measurable time savings on serial production and a reduced scrap rate. Fast insert clamping and straightforward maintenance Designed around the industry standard APKT 1604 format, the head accepts inserts from recognised suppliers such as Korloy, allowing flexible stocking and fast changeover. The inserts are secured by an M4x10 Torx screw and require a T15 key for replacement, enabling rapid, repeatable clamping without special tools. A 40 mm shank diameter ensures firm seating in standard toolholders, contributing to minimal runout and reliable reproducibility for batch work. Compact length for versatile set‑ups and reliable handling With an overall length of 62 mm and a weight of 3.642 kg, the tool head balances compact installation with the mass necessary to dampen vibration in many machining conditions. The combination of a shorter overhang and sturdy shank improves accessibility in confined setups while maintaining cutting stability. This makes the tool head suitable for workshops looking to streamline tool inventories while keeping flexibility for various milling operations. Application advantage: predictable results and efficient workflows Integrating this indexable head into a production line contributes to predictable cycle times: stable geometry and standardised insert interfaces simplify process planning and tool management. The ability to use widely available APKT 1604 inserts reduces procurement complexity and supports quick recovery from tool wear events. For machining centres requiring dependable repeatability, the head provides a practical balance between performance and operational simplicity. Contact Metav Werkzeuge in Emmerich for tailored application advice and supply of Teknik Cutting Tools components — technical consultation available at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: T190TM Manufacturer: Teknik Makina Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Cutter diameter (mm): 125 Shank diameter (mm): 40 Overall length (mm): 62 Number of cutting edges: 9 Cutting angle: 90° Fastening screw: M4x10 Required Torx key: T15 Weight (kg): 3.642 Core specifications eClass: 21181015 SKU: T190TM Story trigger: eckmesserkopf Materials & features Indexable insert system: APKT 1604 Designed for standard toolholders with 40 mm shank Torx screw fixation for repeatable clamping Compact overall length for close‑quarter machining FAQ What inserts fit this cutting head? The head is made for APKT 1604 indexable inserts; Korloy inserts in that format are a listed compatible option for this tool. Which toolholder dimension is required for mounting? A toolholder that accepts a 40 mm shank is required to mount this corner cutting head (SKU T190TM) securely. How are the inserts fixed in place? Inserts are secured with an M4x10 Torx screw; a T15 Torx key is used for tightening and removal to ensure consistent clamping torque. Is this tool head suitable for heavy interrupted cuts? The 125 mm diameter and compact design provide stiffness that helps manage interrupted cuts, offering improved stability and repeatability for many medium‑duty applications. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of precise 90° cutting geometry, secure 32 mm shank fixation, and straightforward maintenance for consistent corner turning and minimal tool-change downtime — order directly via Metav Werkzeuge or ask our consultants for application advice. Corner tool head for APKT 1604 indexable inserts (T189TM) — 90° cutting geometry, 32 mm shank The corner tool head is a 90° turning head designed for use in CNC lathe operations with APKT 1604 indexable inserts, offering rigid clamping and compatibility with common insert manufacturers for reliable corner machining. 90° cutting geometry for accurate corners 32 mm shank for secure toolholder fit Compatible with APKT 1604 indexable inserts M4x10 Torx clamping screw; T15 key Consistent corner machining that improves part quality The 90° cutting geometry delivers a predictable cutting direction that helps to reduce deflection and maintain consistent edge form across serial parts. The head’s rigid construction and defined cutting angle translate into repeatable results on turned profiles, particularly where precise shoulder and corner transitions are required. For operations that demand regular high-quality finishes, the defined geometry simplifies process control and reduces the need for corrective grinding. Secure clamping and straightforward maintenance reduce downtime A 32 mm shank and standard Torx clamping arrangement ensure a robust mechanical fit in standard toolholders, while the M4x10 Torx clamping screw and T15 key provide easy, safe insert changes. The simple screw-based clamping reduces setup time and the risk of incorrect torque, improving repeatability between tool changes. This combination of features supports efficient workshop routines and lowers the likelihood of unplanned stoppages. Broad insert compatibility to simplify tooling logistics Designed for APKT 1604 indexable inserts, the head accepts inserts from common suppliers, which reduces inventory complexity. Compatibility with Korloy inserts is stated, allowing selection from widely available grades and geometries for roughing, finishing or mixed duty cycles. Using standardised inserts supports a lean stocking strategy and shortens response time when specific grades are required for different materials. Practical design that supports reliable production workflows With a nominal diameter of 100 mm, eight cutting edges and an overall length engineered for compact integration, the tool head balances accessibility with effective cutting leverage. The construction prioritises repeatability and serviceability: when correctly mounted and fastened, the assembly offers stable engagement and consistent cutting performance across repeated cycles. Its weight and dimensions also suit a variety of turret and toolpost arrangements commonly used in production shops. Contact Metav Werkzeuge for tailored tooling advice and reliable supply from Emmerich — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: T189TM Manufacturer: Teknik Makina Product: Corner tool head for APKT 1604 indexable inserts Compatible inserts manufacturer: Korloy Clamping screw: M4x10 Torx Torx key size: T15 Facts Diameter: 100 mm Shank diameter (D): 32 mm Overall length: 52 mm Weight: 1.53 kg Cutting angle: 90° Cutting edges: 8 Special features Designed for APKT 1604 indexable inserts 90° corner cutting geometry Robust shank for secure fixation Standard Torx clamping for quick insert changes FAQ What materials is the corner tool head suitable for? The corner tool head (T189TM) is specified as a holder for APKT 1604 indexable inserts; insert grade selection determines suitability for specific materials such as steel, cast iron or aluminium. Which insert type fits this tool head? APKT 1604 indexable inserts are supported; the head is compatible with commonly available APKT 1604 inserts from suppliers such as Korloy for varied machining tasks. What is the required tightening tool for insert changes? Insert clamping is performed with an M4x10 Torx screw using a T15 key, as specified for the Teknik Makina corner tool head (T189TM). Can the head be fitted in standard toolholders? Yes, the 32 mm shank diameter allows integration into toolholders designed for that shank size, providing secure mechanical engagement. Is the cutting angle adjustable? The head provides a fixed 90° cutting angle; angle modification would require a different tool head configuration or a different insert geometry. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust combination of precise fitment and straightforward maintenance for dependable toolholding in production environments; the compact design and compatibility with APKT 1604 inserts ensure efficient index life and reduced changeover time — order or consult through Metav Werkzeuge for reliable supply and technical advice. Corner tool head T769TM — Indexable insert head by Teknik Makina, 80 mm diameter Corner tool head (Eckmesserkopf) T769TM for secure mounting of APKT 1604 indexable inserts in milling and lathe toolholders, designed for stable, repeatable operations 80 mm diameter for stable cutting Compatible with APKT 1604 inserts (YG-1) 27 mm shank diameter for secure mounting M4x10 Torx screw specification, T15 key Improved process stability with a compact cutting head The compact corner tool head is engineered to deliver consistent clamping and low run-out where precise orientation matters. With an 80 mm diameter and a 27 mm mounting bore, the component provides a firm interface to the toolholder that reduces vibration and enhances surface finish. The presence of six index positions extends the effective service life of the cutting system, allowing multiple reindexes before replacement is required. These design choices lower scrap rates and support predictable cycle times on medium- to high-volume batches. Faster set-up and simple mechanical retention A focus on practical workshop routines is reflected in the straightforward fixation method: retention via an M4x10 Torx screw with matching T15 key specification simplifies replacement and routine checks without specialised tools. The nominal overall length of 52 mm keeps the assembly compact, aiding access in tight fixtures and reducing interference in multi-axis arrangements. Features such as a standardised shank diameter and clear insert compatibility reduce the number of bespoke components held in stock, speeding up maintenance and contributing to leaner inventory management. Compatibility and serviceability for mixed-shop environments Designed to accept APKT 1604 indexable inserts and validated for use with inserts from YG-1, this head suits shops that combine turning and milling operations or that standardise on common ISO insert types. With a weight of 1.125 kg, the unit balances rigidity and handling convenience during tool changes. The clear technical specifications enable planners to verify fitment quickly and to incorporate the head into existing workflows with minimal trial-and-error. The result is a dependable toolholding option that supports sustained throughput while preserving component tolerances. For procurement or detailed machining advice on the Teknik Makina corner tool head T769TM, contact Metav Werkzeuge in Emmerich for expert assistance, transparent supply and fast delivery — eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 Technical data Article number: T769TM Manufacturer: Teknik Makina Designation: Corner tool head for APKT 1604 indexable inserts Compatible insert standard: APKT 1604 (YG-1) Torx screw specification: M4x10, key T15 Dimensions & core figures Diameter: 80 mm Shank / mounting bore: 27 mm Overall length: 52 mm Cutting edges / index positions: 6 Weight: 1.125 kg Features & compatibility Compatible with APKT 1604 indexable inserts Compatible insert supplier: YG-1 Fastening: Torx M4x10 (T15) Suitable for standard toolholders with 27 mm mounting FAQ Which insert format fits this head? The head accepts APKT 1604 indexable inserts and is specified for inserts compatible with YG‑1. How is the head secured to the toolholder? Retention is achieved using an M4x10 Torx screw, operable with a T15 key, providing straightforward fixation. How many index positions does the head provide? The component features six cutting edges / index positions, enabling multiple reindexes before replacement. What are the key mounting dimensions to check? Verify a 27 mm mounting bore/shank and clearance for an 80 mm head diameter and 52 mm overall length. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, robust indexable head that combines precise compatibility with APKT 1604 inserts and quick, tool-assisted clamping for reliable cycle times on turning and milling operations; order via Metav Werkzeuge or contact the consultancy team for application advice. Eckmesserkopf — indexable corner tool head for APKT 1604, 50 mm diameter, 22 mm shank (Teknik Makina) The Eckmesserkopf is a compact indexable tool head designed for machining operations that require adaptable cutting geometry and secure insert clamping, suitable where APKT 1604 indexable inserts are specified For APKT 1604 indexable inserts 50 mm diameter cutting head 22 mm shank diameter Torx screw M4x10; key T15 Reliable precision for repeatable component quality The compact head is engineered to support consistent machining results by matching the APKT 1604 insert geometry with a stable mounting platform. The combination of a 50 mm diameter cutter body and a 22 mm shank provides balanced contact with the machine spindle or turret, reducing vibration and enabling repeatable surface finishes. Compatibility with established insert suppliers such as YG‑1 ensures predictable cutting performance and straightforward procurement of spare inserts. This results in fewer set-up variations and a steadier production output for small- to medium-batch work. Quick clamping and low-maintenance changeover Maintenance and insert changes are simplified through a standardised fastening concept: the head is secured with a Torx M4x10 screw operated by a T15 key, which keeps tool changes efficient and reduces non-productive time at the machine. The indexable design means inserts can be rotated or replaced without replacing the whole head, offering an economical way to restore cutting geometry. Clear mechanical interfaces and accessible fastening points support fast, safe swaps and limit downtime during shifts or tool-side maintenance. Robust construction for workshop reliability Built with a focus on everyday workshop demands, the tool head’s compact 45 mm overall length and modest mass (approx. 0.381 kg) permit secure clamping with minimal overhang. Four effective cutting positions provide versatility in approach and extend the service interval per insert. The design balances rigidity and serviceability, helping to maintain cutting consistency across runs and contributing to predictable tool-life planning. As an off‑the‑shelf solution from Teknik Makina, the component is suited to integration where a standardised, dependable cutting head is required. For application advice or to order the Teknik Makina Eckmesserkopf (SKU T767TM) with APKT 1604 compatibility, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 — the Emmerich-based team will advise on fitment and delivery. Technical data Article number: T767TM Manufacturer: Teknik Makina Designation: Eckmesserkopf for APKT 1604 indexable inserts Numeric data Diameter: 50 mm Shank diameter (aufnahme): 22 mm Overall length: 45 mm Weight: 0.381 kg Cutting edges: 4 Special features Compatible with APKT 1604 indexable inserts Suitable insert supplier: YG-1 Fastening screw: M4x10 Torx Required Torx key: T15 FAQ Which insert type fits this head? The head accepts APKT 1604 indexable inserts; compatible inserts from YG‑1 are supported. What is the shank size required for mounting? Mounting requires a toolholder or turret accommodating a 22 mm shank diameter. Which fastening hardware is supplied or required? The head uses an M4x10 Torx screw, tightened with a T15 key for secure clamping. How many cutting positions are available per insert? The configuration supports four cutting edges, allowing multiple indexing positions before replacement. Is this head suitable for quick insert changes on the shop floor? Yes — the Torx M4x10 fastening and indexable insert format enable efficient, low‑effort insert changes. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from secure clamping, proven compatibility with APKT 1604 indexable inserts and a compact 22 mm shank that fits standard toolholders — ideal for stable facing and profiling operations. Order via Metav Werkzeuge or request application advice from our consultants for seamless integration into the production process. Corner turning head — indexable insert holder for APKT 1604, 22 mm shank (Teknik Makina) The Corner turning head is a compact indexable insert holder designed for precise facing, profiling and finishing with APKT 1604 inserts in CNC turning operations Secure clamping with M4x10 Torx screw Compatible with APKT 1604 indexable inserts 22 mm shank for standard toolholders Ø63 mm head diameter for high stability Consistent clamping for repeatable turning quality A robust clamping concept ensures consistent results across batches. The head secures inserts with an M4x10 Torx screw, requiring a T15 key for tightening, which reduces the risk of insert movement under load. This mechanical reliability translates into fewer interruptions for re‑zeroing and a more predictable production flow. The design reduces vibration at the cutting zone and supports consistent surface finish and dimensional control when using APKT 1604 indexable inserts. Seamless integration into common toolholder systems The compact 22 mm shank allows straightforward mounting in standard toolholders, making retrofitting and tool changeover efficient. Compatibility with inserts from established suppliers such as YG‑1 simplifies procurement and inventory management. The combination of a standard shank diameter and familiar insert format enables rapid adoption in workshops and small production cells without the need for special adapters. Stable cutting performance in confined set‑ups With a head diameter of Ø63 mm and a clearly defined overall length of 45 mm, the component is engineered to deliver a stable tool overhang and controlled cutting geometry. Its modest mass of 0.507 kg helps to balance toolpost dynamics while keeping the system responsive. These attributes are particularly beneficial for short‑run finishing and profiling where rigidity and positional certainty determine part quality. Designed for practical workshop use and predictable maintenance The holder accepts APKT 1604 inserts and is specified for five cutting edges where applicable, enabling economical use of indexable grades. Clear specification of fastening and shank dimensions supports fast tool preparation and documented tool lists for NC programmes. For application advice or technical drawings relating to installation and cutting data, Metav Werkzeuge provides direct consultancy and delivery from its Emmerich hub For tailored application advice and prompt supply from Metav Werkzeuge in Emmerich, contact our specialists about the Teknik Cutting Tools Corner turning head (SKU T768TM) via e‑mail or phone Technical Data Article number: T768TM Brand: Teknik Makina Product: Corner turning head for APKT 1604 indexable inserts Fixing screw: M4x10 Required Torx key: T15 Facts Head diameter: 63 mm Shank (clamping) diameter: 22 mm Overall length: 45 mm Weight: 0.507 kg Number of cutting edges (where applicable): 5 Special features Compatible inserts: APKT 1604 Suitable insert manufacturer: YG‑1 For use in standard toolholders with 22 mm shank SKU: T768TM Brand origin: Teknik Makina FAQ What inserts fit this turning head? The turning head accepts APKT 1604 indexable inserts; compatible grades from YG‑1 are commonly used for general turning and finishing operations. Which toolholder bore is required to mount the head? A standard toolholder able to accept a 22 mm shank is required for correct mounting and clamping of the head. What fastener is used to secure the insert? Insert clamping uses an M4x10 Torx screw; tightening is performed with a T15 Torx key. Is this component suitable for heavy roughing operations? The component is designed for stable facing and profiling; for heavy roughing the suitability depends on cutting parameters, insert grade and machine rigidity — consult Metav Werkzeuge for specific process recommendations. Which SKU should be referenced when ordering or requesting data? Reference SKU T768TM when enquiring about drawings, availability or application support for this corner turning head. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from precise chamfering with a robust 60 mm shank and a wide 86 mm cutting diameter; the cutter’s 60° geometry and six cutting edges combine stability and efficient material removal. Purchase or request expert advice via Metav Werkzeuge for tailored application support. Chamfer mill T455TM — indexable chamfer cutter with 60° cutting angle (Teknik Makina) The Chamfer mill T455TM is an indexable chamfering cutter for industrial chamfer and bevel operations, compatible with APKT 1604 inserts and designed for stable mounting on a 60 mm shank. 60° cutting angle for accurate chamfers Compatible with APKT 1604 indexable inserts 86 mm maximum cutting diameter 6 cutting edges for smooth material removal Faster, more consistent chamfering through engineered geometry The milling head’s 60° cutting angle is engineered to produce uniform chamfers with predictable material removal rates. By combining a large effective diameter (86 mm) with a stable 60 mm shank, the tool reduces vibrations and improves surface quality during high-volume runs. This geometry allows the cutter to maintain cutting engagement and distribute load across multiple cutting edges, resulting in a repeatable finish and fewer rework cycles for production parts. Cost-efficient insert system and straightforward maintenance Equipped for APKT 1604 inserts and compatible with Korloy insert grades, the cutter supports rapid index changes and simple inventory management. The tool is secured with M4x10 Torx screws and associated T15 key, enabling quick, toolroom-friendly insert replacement. For workshops seeking uptime, the indexable system reduces tooling costs per component and shortens maintenance intervals without specialised fixtures. Robust build for industrial duty and reliable handling With six cutting edges and a mass of 0.892 kg, this cutter balances rigidity with handling convenience. The combination of multiple edges and stable attachment minimises chattering and extends insert life by sharing wear. The tool’s overall length of 50 mm contributes to a compact setup, lowering cantilever forces on the spindle and promoting safer, higher-precision machining in repetitive chamfering tasks. Suitable for workshop and light production environments Designed for consistent chamfer production, the cutter is a pragmatic choice for CNC and milling centres that require dependable indexable tooling. Backed by Teknik Makina engineering and available through Metav Werkzeuge, the cutter benefits from broad aftermarket support and compatible insert availability. Metav’s distribution model focuses on dependable supply and industry-grade quality control, supporting efficient procurement and steady workshop operation. Contact Metav Werkzeuge for application-specific recommendations on Teknik Makina chamfering cutters and to arrange prompt delivery from Emmerich. Technical data Article number: T455TM Core specifications Maximum cutting diameter: 86 mm Shank diameter: 60 mm Overall length: 50 mm Number of cutting edges: 6 Weight: 0.892 kg Cutting angle: 60° Features and compatibility Insert type: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key: T15 FAQ Which insert type does the cutter accept? The cutter accepts APKT 1604 indexable inserts; compatible grades from Korloy are suitable for typical chamfering applications. What is the maximum cutting diameter of the tool? The maximum cutting diameter is 86 mm, allowing broad chamfer widths while retaining stability via the 60 mm shank. What shank size is required for mounting? A 60 mm shank diameter is specified for secure mounting and reduced vibration during operation. Are fastening screws and the key included? The tool is specified with M4x10 Torx screws and a T15 key for insert fixing and replacement. Is the cutter suitable for high-volume production? The cutter’s indexable design and 6 cutting edges make it appropriate for repetitive chamfering tasks in workshop and light production settings. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust combination of performance and compatibility: the head’s 125 mm diameter and 7 cutting edges deliver stable, repeatable face milling, while quick insert changes via the M4x10 Torx screw reduce downtime. Order the head directly through Metav Werkzeuge or consult the technical team for specification matching. Face milling head T313TM — 125 mm dia, 7 cutting edges (Teknik Makina) The face milling head T313TM is a compact cutter head engineered for high-stability face milling using APKT 1604 and APXT 1003 indexable inserts, suitable for production and workshop environments Face milling head for APKT 1604/APXT 1003 inserts 125 mm diameter for broad coverage 7 cutting edges for smooth material removal 40 mm arbor and M4x10 Torx fixing Stable cutting performance that reduces rework The cutter is designed to provide consistent material removal across wide faces. With a 125 mm diameter and 7 cutting edges, the attachment expands effective cutting length per revolution while distributing forces to lower vibration. The 75° cutting angle reduces radial forces, which helps preserve surface finish and prolong tool life; this is particularly valuable where repeatable tolerances are required in batches. The head’s mass of 3.047 kg contributes to steady running at typical spindle speeds, improving chip control and minimising chatter during finishing passes. Quick servicing and predictable set-up for production Tool change and maintenance are simplified by a standard Torx fixing: the clamp screw is M4x10 secured with a T15 driver, allowing safe, repeatable insert clamping without specialist tooling. The unit mounts on a 40 mm arbor, a common arbor size that supports secure fitting and straightforward integration into existing toolholders. Because the head accepts APKT 1604 and APXT 1003 indexable inserts, stocking spare inserts from compatible suppliers such as Korloy keeps machine downtime to a minimum and supports fast recovery in shift work. Clear application range and practical advantages The head is configured for versatile face milling tasks where efficient metal removal and surface quality matter. Designed for indexable insert use, it permits grading of insert grades and geometries to suit materials and machining regimes. The combination of a larger diameter and multiple edges enables lower axial depth per pass while maintaining material removal rates, which can be preferable for extending insert life. For buyers seeking a reliable cutter head that integrates with standard insert systems, the T313TM represents a pragmatic choice for workshops and production lines aiming to streamline tool management. Contact Metav Werkzeuge for tailored advice on integrating the Teknik Makina face milling head T313TM into current tool inventories and for delivery options from Emmerich Technical data SKU: T313TM Manufacturer: Teknik Makina Product type: Face milling head Compatible inserts: APKT 1604, APXT 1003 Facts Diameter: 125 mm Number of cutting edges: 7 Arbor bore: 40 mm Overall length: 62 mm Weight: 3.047 kg Cutting angle: 75° Features Torx screw: M4x10 Torx key size: T15 Compatible insert manufacturer: Korloy FAQ What inserts fit the T313TM? The T313TM accepts APKT 1604 and APXT 1003 indexable inserts; compatibility includes inserts from Korloy and other standard suppliers sized to these codes. How is the head secured to the arbor? The head seats on a 40 mm arbor and uses an M4x10 Torx screw tightened with a T15 driver to clamp the insert securely. Is the cutter suitable for finishing operations? Yes — the combination of 7 cutting edges and a 75° cutting angle provides stable cutting conducive to improved surface finish in many face milling applications. Can standard replacement screws and keys be used? Replacement fasteners follow the standard M4x10 Torx specification and require a T15 key, which are commonly available workshop items. What are the physical dimensions for machine setup? Relevant dimensions for setup are: 125 mm diameter, 62 mm overall length, and a 40 mm arbor bore, with a mass of 3.047 kg for balance considerations. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, purpose-built solution that combines a 90° cutting angle and a 22 mm shank for stable clamping and reproducible facing operations; order the angle tool head directly via Metav Werkzeuge or contact our advisors for tailored integration advice. Angle tool head (Eckmesserkopf) – 90° for APKT 1604 inserts by Teknik Makina Angle tool head (Eckmesserkopf) for facing and shoulder turning with APKT 1604 indexable inserts, designed for secure mounting and reliable repeatability in workshop turning applications 90° cutting angle for precise face turning Compatible with APKT 1604 indexable inserts 22 mm shank for stable clamping Secured by M4x10 Torx screw, T15 key Faster, more accurate facing with a 90° toolholder A compact toolholder with a 90° cutting angle delivers direct, square engagement for facing and shoulder operations; by using standard APKT 1604 indexable inserts the setup time is reduced and repeatability is improved. Indexable inserts allow the cutting edge to be rotated or replaced without changing the holder geometry, which maintains process stability and reduces downtime. This configuration is particularly effective where consistent shoulder quality and tight tolerances are required, combining efficiency and predictable results. Robust clamping and straightforward service for continuous runs Designed with a 22 mm shank and a head diameter of 50 mm, the unit offers a secure connection to the toolpost and good resistance to vibration. The insert is secured using an M4x10 Torx screw tightened with a T15 key, allowing quick insert changes and low-maintenance operation. The relatively short overall length of 45 mm and modest weight (~0.4 kg) contribute to low overhang and improved dynamic behaviour, which helps to extend insert life and maintain surface finish under production conditions. Seamless compatibility and practical workshop integration Built for use with APKT 1604 format inserts and optimised for brands such as Korloy, the toolhead integrates into existing turning toolsets without complex modification. The standardised insert format simplifies stocking and reduces tool management overhead. For workshops seeking dependable, repeatable cutting performance, the combination of standard insert formats and secure mechanical fixation means fast commissioning and predictable process outcomes — a practical choice for production and maintenance tasks alike. Contact Metav Werkzeuge for a personalised quote or technical clarification on the Teknik Makina Angle tool head T183TM; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: T183TM Manufacturer: Teknik Makina Product: Angle tool head (Eckmesserkopf) Application note: for APKT 1604 Indexable Inserts Compatible insert manufacturer: Korloy Securing screw: M4x10 Torx key: T15 Core figures Shank diameter: 22 mm Head diameter: 50 mm Overall length: 45 mm Weight: 0.4 kg Cutting angle: 90° Number of cutting edges: 5 Special features Compatible with APKT 1604 indexable inserts Suited for Korloy inserts Secure Torx fixing for fast insert changes SKU: T183TM FAQ Which insert type fits this toolhead? The angle tool head accepts APKT 1604 indexable inserts, a common format used for facing and shoulder turning. Can Korloy inserts be used with this head? Yes; the toolhead is specified as compatible with Korloy APKT 1604 inserts. What secures the insert in place? An M4x10 Torx screw secures the insert; a T15 key is required for tightening. What are the key dimensions to check for machine compatibility? Important dimensions are the 22 mm shank, 50 mm head diameter and 45 mm overall length; these determine clamping and overhang. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of compact geometry, secure Torx clamping and proven compatibility with APKT 1604 indexable inserts for reliable and repeatable external turning. Order the component directly via Metav Werkzeuge or consult our specialists for setup advice. Corner cutting head T181TM — 90° cutting angle, 16 mm shank (Teknik Makina) The Corner cutting head is a compact tool holder intended for precision external turning with APKT 1604 indexable inserts, ideal for workshop and light industrial CNC turning applications Compact 16 mm shank for constrained toolposts Compatible with APKT 1604 indexable inserts 90° cutting angle for consistent external turning Secure Torx M4x10 clamping screw, T15 key Stable clamping for consistent surface quality The holder is designed to provide secure clamping of indexable cutters so that machining results remain consistent across batches. With an M4x10 Torx screw and a T15 drive, the assembly minimises micro‑movement at the cutter seat; this reduces chatter and supports a more predictable tool life. As a result, tool changes are straightforward and the process stability contributes directly to fewer rejected parts and lower rework rates. Quick compatibility and predictable indexing Compatibility with APKT 1604 style inserts and recognised manufacturers such as Korloy enables rapid changeovers and access to commonly stocked grades. The holder accepts inserts with four usable edges, which permits multiple indexings before replacement—this conserves tooling costs while keeping uptime high. The combination of standardised insert format and robust clamping offers a pragmatic balance between performance and inventory efficiency for production environments. Space‑saving geometry that eases setup The compact dimensions—16 mm shank, 45 mm overall length and a head diameter of 40 mm—make this holder suitable for tight toolpost arrangements and multi‑station turrets. The 90° cutting angle is tailored for external turning tasks where perpendicular engagement improves dimensional control. At approximately 0.258 kg, the component is light enough to limit additional spindle load yet rigid enough for predictable cutting behaviour in general workshop applications. Choose the Teknik Makina corner cutting head T181TM for reliable 90° external turning and contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or +49 2822 7131930 for ordering and technical guidance Technical data Article number: T181TM Manufacturer: Teknik Makina Facts Shank diameter: 16 mm Overall length: 45 mm Head diameter: 40 mm Weight: 0.258 kg Cutting angle: 90° Number of cutting edges: 4 Special features Compatible with APKT 1604 indexable inserts Suitable for Korloy insert grades Clamping screw: M4x10 Torx Required Torx key: T15 ECLASS: 21181015 FAQ Which insert types fit this holder? The T181TM holder accepts APKT 1604 indexable inserts; compatibility with Korloy‑type inserts is confirmed and the insert is secured with an M4x10 Torx screw. What shank size is required for installation? A 16 mm shank diameter is specified for the holder; the compact form factor and 45 mm overall length suit constrained toolpost setups. What cutting geometry does the tool head provide? The component provides a 90° cutting angle optimised for external turning, offering a stable engagement and consistent dimensional control. How many indexings are available per insert? The compatible APKT 1604 inserts typically provide multiple usable edges; the holder supports four cutting edges per insert, enabling several indexings before replacement. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from stable 90° geometry and simple Torx clamping for fast indexable insert changes; the head’s Ø80 mm size and 27 mm mounting give predictable positioning for repeatable results. Order directly via Metav Werkzeuge or consult our specialists for matching inserts and delivery options. Teknik Makina Corner Tool Head — 90° for APKT 1604 Indexable Inserts, Ø80 mm The Corner Tool Head is a 90° turning head designed for use with APKT 1604 indexable inserts, offering a compact footprint for shoulder turning and profiling in general workshop and light industrial turning applications 90° cutting geometry for square operations Compatible with APKT 1604 indexable inserts Ø80 mm head with 27 mm mounting diameter Secured by M4x10 Torx screw (T15) Consistent 90° geometry for repeatable shoulders The 90° cutting angle delivers a predictable tool path for shoulder and face turning where perpendicular faces are required. Manufactured to provide stable seating and repeatable insert location, the head minimises setup variance and reduces rework. The Ø80 mm head diameter combines rigidity with good access to workpieces, while the proven clamping method ensures that insert position does not shift under typical cutting forces. Such mechanical consistency supports process stability on short production runs and prototype work alike. Fast insert changes and workshop practicality Designed for quick maintenance, this tool head accepts APKT 1604 indexable inserts and is secured with an M4x10 Torx screw operated with a T15 key. The straightforward fastening system shortens downtime for insert changes and tool rotation, which in turn improves machine uptime. A 27 mm mounting diameter gives a clear mechanical interface to compatible holders and reduces the need for adapters. Compatibility with Korloy inserts is indicated, allowing selection from a wide market of cutting grades and geometries for different materials and cutting conditions. Reliability and productivity in everyday turning By combining a compact overall length (52 mm) with a robust fixing concept and multiple cutting edges, the head supports productive workshop routines. The inclusion of seven usable cutting edges increases the effective lifetime of the consumable before replacement is required, yielding cost-efficient tool use in intermittent turning tasks. The head’s mass (approx. 1.249 kg) contributes to dampening of vibration when mounted correctly, which helps to maintain surface finish and dimensional repeatability. Where reliable shoulder control and fast tool servicing are priorities, this solution provides a practical balance of durability and accessibility. For procurement or technical advice on this 90° Corner Tool Head from Teknik Makina, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 to discuss suitability, available inserts and delivery lead times Technical Data Article number: T187TM Manufacturer: Teknik Makina Product name: Corner Tool Head for APKT 1604 indexable inserts Brand SKU: T187TM Facts Head diameter: 80 mm Overall length: 52 mm Mounting diameter: 27 mm Cutting angle: 90° Cutting edges: 7 Weight: 1.249 kg Special features Compatible inserts: APKT 1604 Compatible insert brand: Korloy Fastening: M4x10 Torx screw Torx key size: T15 FAQ What insert type fits this tool head? The head is designed for APKT 1604 indexable inserts; Korloy grades are indicated as compatible for a range of materials. Which fastening hardware is supplied for the insert? Fixing is by an M4x10 Torx screw, tightened with a T15 key for secure clamping of the insert. What is the required mounting diameter for the holder? The tool head uses a 27 mm mounting diameter for direct attachment to compatible holders. How does the head support workshop efficiency? The combination of quick Torx clamping and multiple cutting edges reduces downtime and extends consumable life, helping to keep machines productive. Is this head suitable for shoulder and profiling operations? Yes, the 90° geometry is specifically intended to produce square shoulders and accurate profiles in general turning tasks. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of precise, indexable-insert milling with a compact Ø32 mm tool that combines a generous 43 mm cutting height and six cutting edges for steady productivity; order directly via Metav Werkzeuge or consult the technical team for application advice. HF20TM indexable insert cutter by Teknik Makina – Ø32 mm, 6 cutting edges A robust HF20TM indexable insert cutter designed for milling with Korloy APKT 1604 inserts, engineered for demanding finishing and semi-finishing applications where stability and fast insert changes matter *Compatible with Korloy APKT 1604 inserts *32 mm diameter for confined toolpaths *Six cutting edges for smooth material removal *43 mm cutting height and 125 mm overall length Consistent machining quality through insert compatibility and geometry The HF20TM is built as an indexable insert cutter that accepts Korloy APKT 1604 inserts, providing a predictable cutting geometry across operations. The Ø32 mm diameter and the arrangement of six cutting edges lead to reduced vibration and a more uniform surface finish when compared with single-edge alternatives. A 43 mm effective cutting height allows deeper engagement without frequent re‑tooling, which supports longer uninterrupted runs and improves process reliability in batch production. Faster tool changes and predictable maintenance intervals Tool maintenance is simplified by a standardised fastening system: inserts are secured with a M4x10 Torx screw and require a T15 key for removal. This design reduces downtime during insert replacement and ensures repeatable clamping force, which benefits tool life and cutting consistency. The compact mass (0.658 kg) and the 125 mm overall length contribute to a stable setup that is straightforward to balance in most milling spindles, helping to keep maintenance predictable and efficient. Easy integration into existing setups and process planning With a common shank and compatible insert type, the cutter integrates into standard tool cycles and holder systems that accept a 32 mm interface. The modular nature of indexable inserts makes the cutter cost‑effective for workshops that prefer replaceable cutting edges over full-tool regrinds. By selecting this cutter, production planners gain a tool that supports quick insert swaps, repeatable part quality and streamlined inventory management, which suits both small-series and larger production environments. Discuss the HF20TM indexable insert cutter with Metav Werkzeuge for tailored application advice and reliable supply from Emmerich – email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: HF20TM Manufacturer: Teknik Makina Specifications Diameter: 32 mm Cutting height: 43 mm Cutting edges: 6 Overall length: 125 mm Weight: 0.658 kg Features / Compatibility Suitable for Korloy APKT 1604 inserts Torx screw: M4x10 Torx key: T15 ECLASS: 21180806 ETIM: EC011860 FAQ Which indexable inserts fit this cutter? The HF20TM indexable insert cutter accepts Korloy APKT 1604 inserts as specified, providing a standardised seating and clamping arrangement for reliable performance. What are the cutter’s main dimensions and cutting geometry? The cutter has a 32 mm diameter, 43 mm cutting height, six cutting edges and an overall length of 125 mm, optimised for stable finishing and semi‑finishing passes. How are the inserts fastened and serviced? Inserts are secured with a M4x10 Torx screw and require a T15 key for removal, enabling quick and repeatable insert changes. What milling tasks is this cutter suited to? This indexable insert cutter is intended for finishing and semi‑finishing milling operations where the use of replaceable inserts is preferred for economy and uptime. Does the cutter require a special holder or adapter? The cutter uses a 32 mm interface and is compatible with standard toolholders that accept a Ø32 mm shank; specific holder selection depends on the machine spindle and clamping method. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from a robust, indexable milling solution that combines a compact 40 mm diameter, 9 cutting edges and a 43 mm cutting height for stable material removal; order via Metav Werkzeuge or consult our experts for specification support. Indexable rotary cutter HF22TM — 40 mm diameter, 9 cutting edges (Teknik Makina) The indexable rotary cutter HF22TM is a compact milling head designed for use with APKT 1604 indexable inserts, suitable for general milling applications where fast insert changes and consistent cutting performance are required 40 mm diameter for compact milling heads 9 cutting edges for smoother material removal Compatible with APKT 1604 Korloy inserts Ø32 mm shank for secure machine mounting Consistent cutting performance with an indexable system The HF22TM is engineered as an indexable insert cutter to deliver repeatable results across short production runs and workshop tasks. Its 40 mm diameter and 9 cutting edges distribute cutting forces, reducing vibration and improving surface consistency. The 43 mm cutting height provides an extended engagement area, allowing each insert to contribute to material removal and increasing tool life through even wear. Designed for stability, the tool balances a compact footprint with sufficient cutting capacity to integrate into milling spindles or suitable tool holders. Fast insert replacement and low downtime An indexable system reduces the need for resharpening and keeps maintenance predictable. Inserts of the APKT 1604 style are secured with Torx M4x10 screws tightened by a T15 key, enabling quick changeovers and minimal setup time. The use of standardised inserts from Korloy simplifies stocking and replacement procedures. This approach translates into lower effective tooling costs and faster return to production when compared with full-solid tools that require regrinding. Secure mounting and workshop compatibility With a Ø32 mm shank and an overall length of 125 mm, the milling head provides a rigid connection to common holders and collets used in machine centres and milling spindles. The tool’s mass (0.821 kg) and geometry are balanced to reduce runout and ensure predictable cutting behaviour. The indexable concept combined with a compact form factor makes the cutter a practical option for workshops seeking to rationalise their tooling inventory while maintaining machining flexibility. Practical purchase and integration guidance Specification-focused purchasers benefit from objective data: the cutter accepts APKT 1604 inserts (Korloy), uses M4x10 Torx screws with a T15 key, and measures 40 mm in diameter with a 43 mm cutting height. For integration, select a clamping system that accepts a 32 mm shank and ensure the machine’s torque and speed range match the chosen inserts’ recommendations. Metav’s purchasing and technical teams can assist with matching insert grades and coolant strategies to the intended application. For tailored technical advice or to secure supply of the Teknik Makina HF22TM via Metav Werkzeuge, contact our specialists in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 to discuss machine compatibility and delivery options. Technical data Article number: HF22TM ECLASS: 21180806 ETIM: EC011860 Manufacturer: Teknik Makina Facts Diameter: 40 mm Cutting height: 43 mm Shank diameter: 32 mm Overall length: 125 mm Weight: 0.821 kg Cutting edges: 9 Special features Compatible with APKT 1604 indexable inserts Inserts manufacturer: Korloy Fixing screws: Torx M4x10 Torx key: T15 Manufacturer brand: Teknik Makina FAQ Which inserts are compatible with this milling head? The cutter accepts APKT 1604 indexable inserts; Korloy inserts are specified as compatible for the HF22TM. How are the inserts secured? Inserts are fixed with Torx M4x10 screws using a T15 Torx key for reliable clamping and straightforward replacement. What shank diameter is required for mounting? The tool has a Ø32 mm shank, so a holder or collet suitable for 32 mm is required for secure mounting. How many cutting edges does the tool provide and what is the benefit? The cutter provides 9 cutting edges, which helps distribute cutting forces and promotes smoother material removal with reduced vibration. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, rigid design and proven compatibility with APKT 1604 indexable inserts for reliable square-facing and profiling. With a 22 mm shank and a 50 mm head diameter the tool head offers high torsional stability and reduced overhang for improved surface quality. Order via Metav Werkzeuge or ask the consultants for application advice. Eckmesserkopf — Corner turning head for APKT 1604 indexable inserts, 22 mm shank (Teknik Makina) The Eckmesserkopf is a compact corner turning head designed for square-facing and profiling on CNC lathes using APKT 1604 indexable inserts for consistent 90° cuts 90° cutting angle for square profiles Compatible with APKT 1604 indexable inserts 22 mm shank diameter for secure clamping M4x10 Torx screw T15 for reliable assembly Rigidity and process stability for square-facing The corner turning head delivers predictable geometry thanks to its 90° cutting angle and sturdy construction. Fitted for APKT 1604 indexable inserts it provides a controlled cutting edge position that helps to achieve consistent part dimensions and a fine surface finish. The combination of a 22 mm shank and a modest 50 mm diameter reduces cantilever effects, which translates into lower vibration and steadier cutting conditions for demanding finishing passes Secure clamping and simple maintenance for uninterrupted production A robust clamping arrangement, completed with the M4x10 Torx screw (T15), ensures the insert is held firmly during interrupted cuts. The Torx drive offers consistent torque application and quick replacement when inserts are worn, reducing downtime. Routine inspection of the screw and insert seat keeps the tool head performing within tolerance and extends component life, lowering total operating costs in the long run Compact dimensions that free up turret space and increase rigidity The compact overall length of 45 mm and reduced head profile make this tool head suitable where turret space is limited. Shorter overhang improves rigidity, enabling higher feed rates in finishing operations without sacrificing surface quality. The restrained mass (approx. 0.406 kg) eases handling during tool changes and helps maintain balance in multi-tool setups Compatibility, application scope and practical benefits Designed to work with inserts from established manufacturers—notably Korloy—this turning head supports reliable insert availability and proven cutting geometries. With four cutting edges it allows systematic index changes to keep cycle times low. The head's dimensions and interface make it suitable for general turning, profiling and light shoulder work where a 90° approach is required. For traceability the item is stocked under SKU T182TM For precise 90° finishing with Teknik Makina reliability, contact Metav Werkzeuge in Emmerich for ordering and application support via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: T182TM Manufacturer: Teknik Makina Name: Eckmesserkopf For: APKT 1604 indexable inserts Compatible insert maker: Korloy Torx screw: M4x10, Torx key T15 Dimensions & weights Head diameter: 50 mm Shank diameter: 22 mm Overall length: 45 mm Number of cutting edges: 4 Weight: 0.406 kg Cutting angle: 90° Special features Designed for APKT 1604 indexable inserts Secure clamping via M4x10 Torx screw (T15) Compact form factor for reduced overhang Suitable for square-facing and profiling on CNC lathes FAQ Is this turning head compatible with standard APKT 1604 inserts? Yes. The turning head is specified for APKT 1604 indexable inserts and has been produced to match the seating geometry usually used with Korloy insert types What shank size is required for mounting the head? The tool head requires a 22 mm shank interface and is designed for conventional tool posts and holders that accept this diameter Which Torx drive is used to secure the insert and how tight should it be? The insert is secured with an M4x10 Torx screw using a T15 bit; follow the insert manufacturer's recommended torque values for secure fastening and to avoid over-tightening Can the head be used for roughing operations or is it intended for finishing only? The compact design and 90° geometry are optimised for finishing and profiling; it can perform light roughing where appropriate clamping and cutting data are observed What is the SKU for ordering and stock reference? The item is stocked as T182TM, which should be quoted when enquiring or placing an order Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from a compact, high-efficiency milling solution that combines a Ø40 mm cutter body, a 32 mm shank for stable clamping and compatibility with APKT 1604 indexable inserts — ideal for workshops seeking consistent tool life and quick insert changes. Order the HF26TM via Metav Werkzeuge or consult our specialists for tailored setup advice. Teknik Makina Igelfräser HF26TM — Ø40 mm indexable milling cutter, APKT 1604 compatible The Igelfräser is a compact indexable milling cutter engineered for versatile metalworking operations where fast material removal and easy insert replacement matter most. Indexable APKT 1604 compatibility Ø40 mm cutter diameter 32 mm shank for solid clamping 12 cutting edges for steady removal rate High removal rates with controlled stability The HF26TM delivers an efficient balance between material removal and tool stability thanks to its 12 cutting edges and Ø40 mm body. A larger number of cutting edges reduces individual chip load, which supports smoother feeds and extends insert life; this makes the device particularly suitable where consistent cycle times and predictable tool wear are required. The design promotes efficient chip evacuation while maintaining a steady cut, helping to reduce secondary operations and downtime. Quick insert changes and shop-floor friendliness Insert management is straightforward because the head accepts standard APKT 1604 indexable inserts and is compatible with Korloy grades. Inserts are secured with M4x10 Torx screws and serviced with a T15 key, enabling rapid index or replacement procedures on the shop floor. The use of industry-standard inserts lowers tooling inventory complexity and provides freedom to select coating and grade options that suit specific workpiece requirements. Rigid clamping and ergonomic dimensions for machining centres A 32 mm shank diameter provides a secure, vibration-resistant interface with toolholders, contributing to enhanced surface finish and longer tool life under moderate to demanding conditions. With an overall length of 150 mm and a 58 mm cutting height, the cutter offers a good reach-to-stability ratio, making it a practical choice for both compact machining centres and horizontal milling setups where accessibility and rigidity are both needed. Practical benefits for workshop workflows The cutter’s compact mass (approx. 0.95 kg) and standard insert format reduce handling complexity and spare-part logistics. Compatibility with widely available APKT 1604 inserts allows rapid reconditioning of cutting edges by indexation rather than full regrinds, cutting operating costs and shortening machine downtime. The tool’s straightforward geometry simplifies programming parameters and supports reproducible results across batches. Contact Metav Werkzeuge for personalised advice on HF26TM selection, compatible insert grades and clamping options; call +49 2822 7131930 or email info@metav-werkzeuge.com to arrange a technical consultation and secure supply from Emmerich. Technical data Article number: HF26TM Manufacturer: Teknik Makina eClass: 21180806 ETIM: EC011860 Dimensions & core data Diameter: 40 mm Number of cutting edges: 12 Cutting height: 58 mm Overall length: 150 mm Shank diameter: 32 mm Weight: 0.95 kg Features & compatibility Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 SKU: HF26TM FAQ Which insert type fits the cutter? The HF26TM uses APKT 1604 indexable inserts; compatible grades from Korloy are commonly applied depending on the workpiece and machining strategy. What is the cutter diameter and cutting height? The tool features a 40 mm diameter and a cutting height of 58 mm, offering a compact yet effective cutting envelope. What shank size is required for the holder? A 32 mm shank diameter provides the required clamping interface; this contributes to stable machining and reduced vibration. How many cutting edges does the head provide? The milling head has 12 cutting edges, which supports even chip distribution and steady removal rates in continuous operations. Which fastening tools secure the inserts? Inserts are secured with M4x10 Torx screws and require a T15 Torx key for replacement or indexing. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Benefit from robust face milling performance combined with broad insert compatibility and secure, repeatable clamping for reduced downtime and reliable surface finishes. Order the face milling head directly via Metav Werkzeuge or consult our specialists for application-specific guidance. Planmesserkopf — Face milling head, Ø100 mm, for APKT 1604 / APXT 1003 (Teknik Makina) The Planmesserkopf is a precision face milling head engineered for high-efficiency metal removal in milling and production environments; it is specially configured for use with APKT 1604 and APXT 1003 indexable inserts. Face milling head for APKT 1604/APXT 1003 inserts 100 mm diameter for stable metal removal Six cutting edges for high material removal 32 mm shank, secure toolholder fit Consistent heavy-duty milling performance and productivity gains The face milling head delivers a combination of Ø100 mm working diameter and six cutting edges, which together increase material removal rates while keeping cutting forces balanced. This geometry, with a defined 75° cutting angle, reduces vibration and promotes a consistent chipbreak pattern, which translates into smoother surfaces and less rework. For production lines where cycle time matters, the head’s design supports steady feed rates and predictable tool life, providing a measurable improvement in throughput without compromising finish quality. Secure mounting and efficient insert changeover Mounting and maintenance are simplified by the 32 mm toolholder interface and the dedicated fastening hardware. The head uses an M4x10 Torx screw and is tightened with a T15 Torx key, ensuring repeatable clamping torque and minimal setup variation between tool changes. Compatibility with Korloy indexable inserts and standard APKT 1604 / APXT 1003 geometries means replacement stock is straightforward to manage. The combination of standardised fixing and widely available inserts reduces downtime during tool swaps and simplifies inventory control. Built for workshop reliability and versatile application Constructed for robust everyday use, this milling cutter head balances mass and rigidity — weighing approximately 1.587 kg — to resist chatter under higher material removal conditions. The tool’s overall length of 52 mm keeps the centre of gravity close to the spindle, aiding stability for face milling on castings, plates and blocks. Where reliability and repeatability are required, the design supports long runs and predictable maintenance intervals while remaining suitable for a wide range of conventional workshop operations. Secure the Teknik Makina face milling head (SKU T312TM) via Metav Werkzeuge — phone +49 2822 7131930 or email info@metav-werkzeuge.com to confirm compatibility and arrange rapid delivery from Emmerich Technical Data SKU: T312TM Manufacturer: Teknik Makina Article: Planmesserkopf — for APKT 1604 and APXT 1003 Indexable Inserts Core specifications Diameter: 100 mm Number of cutting edges: 6 Shank diameter: 32 mm Overall length: 52 mm Cutting angle: 75° Weight: 1.587 kg Special features Torx screw: M4x10 Torx key: T15 Fits Korloy inserts Compatible inserts: APKT 1604, APXT 1003 FAQ Which indexable inserts are compatible with the face milling head? The face milling head accepts APKT 1604 and APXT 1003 indexable inserts; compatibility with Korloy-manufactured inserts is confirmed for these insert types. What are the key dimensions to check for machine compatibility? Check the 100 mm cutter diameter and 32 mm shank diameter; the overall length is 52 mm, which helps determine clearance and spindle overhang. How is the insert clamped and which tool is needed for replacement? Inserts are secured using an M4x10 Torx screw that requires a T15 Torx key for reliable tightening and repeatable changeovers. Is the head suitable for heavy material removal and stable finishing? Yes — with six cutting edges and a 75° cutting angle, the tool is designed to provide stable cutting conditions and consistent surface finishes under typical face milling loads. What should be considered for inventory and replacement parts? Maintain stock of APKT 1604 / APXT 1003 inserts and M4x10 Torx screws; the head’s use of common insert geometries facilitates straightforward spare-parts management. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a rigid 32 mm shank and a true 90° cutting angle to produce consistent square shoulders with fewer setups; the unit’s compatibility with APKT 1604 indexable inserts reduces tooling complexity and simplifies spare-part management. Order the head directly via Metav Werkzeuge or contact the consultants for application guidance. Eckmesserkopf — indexable angle head for APKT 1604 inserts, 90° cutting angle (Teknik Makina) The Eckmesserkopf is a compact indexable angle head designed for machining with APKT 1604 indexable inserts, offering a 90° cutting geometry and a 32 mm shank for stable mounting in standard holders 90° cutting angle for square shoulders Compatible with APKT 1604 indexable inserts Ø 100 mm head diameter 32 mm shank for standard toolholders Increased throughput from stable cutting geometry The angle head’s 90° cutting angle and substantial Ø 100 mm head deliver a predictable cutting direction beneficial for shoulder and face operations. This stable geometry reduces vibration and improves surface finish, which in turn diminishes rework and inspection times. Built for production runs, the assembly’s mass and form factor support consistent chip formation and tool life extension through controlled cutting forces. Practical handling and quick servicing for less downtime Designed with serviceability in mind, the head secures inserts with a Torx M4x10 screw and accepts a T15 key, enabling quick insert changes and repeatable clamping torque. Compatibility with Korloy APKT 1604 inserts lowers stocking requirements and speeds up replenishment cycles. The compact 52 mm overall length and clearly defined clamping interface make replacement simple, so machine availability is maximised and downtime is minimised. Robust construction for workshop reliability The component’s mass of 1.057 kg and the 32 mm shank combine to provide rigidity at the toolholder interface, improving cutting stability for demanding operations. The configuration supports seven cutting edges, which contributes to extended service life between regrinds or replacements and helps maintain consistent tolerances across batches. For plants seeking predictable performance from indexable tooling, the head is an efficient addition to a modular tooling strategy. Contact Metav Werkzeuge for precise application advice, reference Teknik Makina T188TM and arrange rapid delivery from our Emmerich warehouse via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number / SKU: T188TM Manufacturer: Teknik Makina Product name: Eckmesserkopf for APKT 1604 indexable inserts Torx screw: M4x10 Torx key: T15 Facts Head diameter: 100 mm Shank diameter (d): 32 mm Total length: 52 mm Weight: 1.057 kg Cutting angle: 90° Cutting edges: 7 Special features Compatible with APKT 1604 indexable inserts Suitable for inserts from Korloy Compact design for standard toolholders Quick-change insert clamping with Torx screw FAQ Which inserts fit this angle head? The angle head accepts APKT 1604 indexable inserts; it is specified for APKT 1604 geometry and is compatible with Korloy inserts as noted for Teknik Makina item T188TM. What shank size is required for mounting? A 32 mm shank diameter is specified for this head; the 32 mm dimension ensures compatible seating in standard holders and maintains rigidity during machining. How are the inserts secured and what tool is needed? Inserts are secured with a Torx M4x10 screw; a T15 Torx key is recommended for correct clamping and repeatable torque during insert changes. Is the head suitable for shoulder and face machining? Yes — the 90° cutting angle and robust head diameter are designed to produce square shoulders and face cuts with consistent surface quality using APKT 1604 inserts. Teknik Makina: Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, high-engagement cutting head with APKT 1604 insert compatibility and an efficient Ø32 mm mounting for stable machining; the combination of repeatable insert seating and a 58 mm cutting height supports consistent roughing cycles and simplified tool replacement. Order the Rotary rasp cutter HF24TM directly via Metav Werkzeuge or ask our consultants if needed. Rotary rasp cutter HF24TM — indexable cutter, Ø32 mm, APKT 1604 compatible (Teknik Makina) The Rotary rasp cutter HF24TM is an indexable milling tool designed for robust roughing and profiling operations on CNC machines, engineered to accept APKT 1604 triangular inserts and to fit a 32 mm holder diameter. Ø32 mm mounting diameter, compact 150 mm length Eight cutting edges for sustained engagement Compatible with Korloy APKT 1604 inserts 58 mm cutting height for deep roughing Stable performance for consistent machining results The rotary rasp design delivers a predictable cutting pattern and reduced vibration when used for heavy stock removal. Built around a 32 mm mounting diameter and a 150 mm overall length, the construction supports stable clamping and repeatable positioning in common spindle holders. The tool's eight cutting edges are arranged to distribute cutting forces evenly, which reduces load peaks and assists in achieving uniform surface roughness during roughing passes. For operations where cycle-time and tool-change frequency are critical, the combination of indexable inserts and a robust body ensures downtime is minimised while maintaining machining throughput. Flexible insert strategy and straightforward maintenance Accepting APKT 1604 indexable inserts from Korloy allows an economical and flexible approach to insert selection: coated grades for longer life, or tougher substrates for interrupted cuts. The use of standard triangular inserts simplifies inventory management across the production floor. The cutter secures inserts with an M4x10 Torx screw, tightened using a T15 key, so insert replacement is quick and does not require specialised tooling. This modularity reduces life-cycle costs and enables rapid adaptation to different materials or cutting conditions without replacing the entire tool body. Compact design that eases handling and set-up With a total weight of 0.771 kg and a modest footprint, the cutter is easy to handle during set-up while remaining rigid enough for demanding roughing tasks. The 58 mm cutting height provides sufficient axial engagement for deep passes without compromising balance. The overall geometry supports accessible chip evacuation, lowering the likelihood of recutting swarf in continuous machining. This combination of light handling and structural integrity speeds up machine set-up and reduces the physical strain on workshop staff, improving operational ergonomics. Application range and material suitability The indexable configuration makes this cutter particularly suited to rapid material removal in common engineering substrates where insert technology excels: steel, cast materials and a variety of alloyed steels when paired with the appropriate insert grade. The available data confirm compatibility with APKT 1604 inserts—widely used for rough milling—so users can select grades optimised for hardness, abrasion resistance or heat tolerance depending on the workpiece. For production environments seeking a balance between aggressive stock removal and controlled surface finish, this tool offers a practical compromise. Contact Metav Werkzeuge for application advice and local availability of the Teknik Cutting Tools HF24TM rotary rasp cutter; call +49 2822 7131930 or email info@metav-werkzeuge.com to discuss suitability for specific machining tasks and delivery from Emmerich Technical data SKU: HF24TM Manufacturer: Teknik Makina Article designation: Rotary rasp cutter Facts Diameter: 32 mm Mounting / shank diameter: 32 mm Cutting height: 58 mm Overall length: 150 mm Number of cutting edges: 8 Weight: 0.771 kg ECLASS: 21180806 ETIM: EC011860 Compatibility & features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 FAQ What clamping diameter is required for this cutter? The HF24TM rotary rasp cutter requires a 32 mm mounting or shank diameter for correct clamping and stable operation. Which insert type fits this tool? This indexable cutter is configured for APKT 1604 inserts; the tool body and screw arrangement are designed to accept triangular APKT inserts from suppliers such as Korloy. How many cutting edges does the cutter provide? The tool features eight cutting edges, distributed to ensure stable cutting forces and good material engagement during roughing. Is the cutter suitable for deep roughing passes? With a 58 mm cutting height and a robust mounting, the cutter is intended for demanding roughing operations when used with inserts selected for the specific material and cut depth. What accessory is needed to change inserts? Insert replacement uses an M4x10 Torx screw requiring a T15 key; no specialised spares are needed beyond that Torx key and replacement APKT 1604 inserts. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of an indexable design that reduces tooling cost while maintaining process stability: the combination of compatibility with APKT 1604 inserts and a robust 32 mm shank ensures dependable performance in serial milling. Order directly via Metav Werkzeuge or consult our specialists for application advice. Teknik Makina HF30TM indexable milling cutter — Ø32 mm, 8‑edge system The HF30TM indexable milling cutter is an industrial milling head designed for slotting and profile milling with APKT 1604 inserts, suitable for production environments requiring quick insert changes and steady cutting performance Indexable cutter for APKT 1604 inserts Ø 32 mm shank for stable clamping 58 mm effective cutting height 8 cutting edges for continuous operation Precision and cost efficiency through indexable inserts The HF30TM is built around an indexable milling concept that lowers running costs by allowing individual insert replacement rather than discarding the whole head. Fitted for APKT 1604 inserts from Korloy, the tool provides a predictable wear pattern and controlled chip formation, which contributes to longer tool life and consistent surface quality. The use of standardised fixing hardware (M4x10, T15) reduces spare‑part complexity and speeds up maintenance routines, so cycle time loss during servicing is minimised. Stable geometry for accurate cuts and process reliability A sturdy Ø 32 mm holder and a generous 58 mm cutting height give the cutter a favourable stiffness-to-reach ratio, improving vibration damping and dimensional repeatability on longer overhangs. The tool’s overall length of 200 mm balances accessibility with rigidity, while the distribution of 8 cutting edges supports continuous machining without frequent index changes. For shop floors that prioritise repeatability, this configuration reduces rework and keeps throughput steady. Fast serviceability and predictable production planning Designed for fast insert changes and uncomplicated assembly, this indexable head simplifies toolroom logistics. The clear compatibility with APKT 1604 inserts and the specified screw standard (M4x10 / T15) mean that replacement parts and tightening tools are widely available, shortening downtime. The cutter’s mass (approx. 1.12 kg) aids stable engagement and helps maintain consistent feed and finish during feed-sensitive operations. Overall, the design supports efficient scheduling and fewer unexpected interruptions. For tailored advice on integrating the Teknik Makina HF30TM indexable milling cutter into existing processes or to secure supply via Metav Werkzeuge, contact our team at info@metav-werkzeuge.com or call +49 2822 7131930 — Metav’s specialists in Emmerich will support specification and logistics planning Technical data Article number: HF30TM Manufacturer: Teknik Makina Facts Diameter / shank: 32 mm Cutting height: 58 mm Overall length: 200 mm Number of cutting edges: 8 Weight: 1.12 kg Features Compatible with APKT 1604 inserts Recommended insert manufacturer: Korloy Fixing screws: M4x10, Torx T15 Indexable milling cutter design FAQ What inserts does this cutter accept? The HF30TM is configured for APKT 1604 indexable inserts; Korloy inserts are a recommended match for consistent performance. What is the shank diameter and how does it affect stability? The cutter uses a 32 mm shank; the larger shank diameter increases rigidity and reduces vibration compared with smaller holders, improving surface finish and dimensional control. How many cutting edges are available and what is the benefit? The tool carries 8 cutting edges, enabling sustained machining with fewer interruptions for index changes and better productivity on long runs. Which screws and key are required for insert replacement? Insert fastening uses M4x10 screws tightened with a T15 Torx key, a common standard that simplifies maintenance and spare stocking. Is the HF30TM suitable for automated tool racks and indexed tool changes? Yes — the standardised shank diameter and indexable insert format make the HF30TM compatible with automated tool systems that accommodate Ø32 mm holders. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a stable 60 mm mounting and a true 90° cutting angle to achieve consistent corner finishes, while the APKT 1604 compatibility reduces tooling complexity and inventory. Order or request application advice directly from Metav Werkzeuge for seamless integration into production. Corner turning head – Teknik Makina (for APKT 1604 indexable inserts, 60 mm mounting) Corner turning head designed for 90° corner turning operations, accepting APKT 1604 indexable inserts and built for rigid 60 mm mounting in heavy‑duty tool turrets. Robust 60 mm mounting diameter Compatible with APKT 1604 inserts 90° cutting angle for precise cornering Torx M4x10 fixing, T15 key required Consistent 90° corner turning for repeatable parts The 90° design delivers a defined cutting geometry that simplifies set‑up and reduces trial cuts. With its 90° cutting angle and purpose‑built geometry, the head produces repeatable corner profiles, lowering scrap rates and minimising downstream rework. This precise orientation is particularly beneficial for batch production where consistent tolerances are required; the fixed cutting geometry means fewer alignment checks and faster cycle‑time stabilisation. Rigid mounting and mass for vibration damping Engineered with a 60 mm mounting diameter, the assembly provides mechanical stability and improved vibration damping during heavy cutting. The substantial 14.36 kg mass contributes to dynamic rigidity on the turret, which helps to extend insert life and maintain surface finish. These characteristics translate into longer uninterrupted runs and reduced tool change frequency, supporting higher overall machine utilisation on critical turning operations. Fast, secure insert retention to reduce downtime Insert changes are secured by an M4x10 Torx screw requiring a T15 key, offering a simple and robust clamping method familiar to most workshops. Compatibility with APKT 1604 indexable inserts means stocked inserts from common suppliers such as Korloy can be used directly, cutting logistics complexity. The secure fastener arrangement ensures reliable clamping force and straightforward serviceability, which shortens maintenance intervals and helps maintain production continuity. Designed dimensions for flexible integration and productivity With a 300 mm diameter interface and 62 mm overall length, the head balances reach and compactness for tight turning applications. The configuration includes 15 cutting edges, enabling economical use of indexable inserts by maximising available cutting positions before replacement. The geometry and dimensions support stable, predictable cutting performance, so machining strategies can focus on optimising metal‑removal rates rather than compensating for tool instability. Contact Metav Werkzeuge today for tailored application advice and procurement of the Teknik Cutting Tools corner turning head (SKU T195TM); our Emmerich team will advise on integration and delivery. Technical data Article number: T195TM Name: Corner turning head Brand: Teknik Makina Type: for APKT 1604 indexable inserts Facts Mounting diameter: 60 mm Weight: 14.36 kg Cutting angle: 90° Diameter: 300 mm Overall length: 62 mm Cutting edges: 15 Special features Compatible inserts: APKT 1604 Suitable insert manufacturer: Korloy Fastening screw: M4x10 Torx Required key: T15 SKU: T195TM FAQ Which inserts fit this corner turning head? The corner turning head accepts APKT 1604 indexable inserts; compatibility is specified for these insert dimensions and geometries. What mounting diameter is required? A 60 mm mounting diameter is required for stable installation of the Teknik Makina corner turning head (SKU T195TM). What fastener and key are used to secure inserts? Inserts are secured with an M4x10 Torx screw; a T15 key is used for tightening and replacement. What is the overall length and how does it affect reach? The overall length is 62 mm, providing a compact footprint suitable for close‑quartered turning while still offering sufficient reach for standard corner operations. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the 90° cutting geometry, secure APKT 1604 insert compatibility and a compact 16 mm shank for stable mounting; the result is consistent shoulder finishes, reduced vibration and reliable cycle times — order directly via Metav Werkzeuge or consult our specialists for integration advice. Corner Tool Head T180TM — 90° holder for APKT 1604 indexable inserts (Teknik Makina) The Corner Tool Head T180TM is a 90° right‑angle toolholder designed for precise shoulder turning and facing using APKT 1604 indexable inserts. 90° cutting angle for shoulder turning Compatible with APKT 1604 Korloy inserts 16 mm shank for secure toolholder mounting 40 mm head diameter, three cutting edges Accurate shoulder turning with repeatable geometry The right‑angle head delivers a 90° cutting angle that is engineered to produce consistent shoulder faces and axial transitions. With the ability to accept APKT 1604 inserts, the holder provides a predictable cutting edge position that reduces set‑up time and minimises rework. The toolholder’s geometry supports stable chip formation and predictable tool engagement, which together contribute to improved process reliability on turning centres and live‑tool applications. Stable mounting and straightforward insert retention Designed with a 16 mm shank, the holder ensures secure clamping in standard toolposts and turret adaptors, reducing the risk of chatter during interrupted cuts. Insert retention is achieved with a Torx M4x10 screw and requires a T15 key for removal and indexing, allowing rapid changeover of inserts when wear occurs. The compact head — 40 mm diameter with an overall length of 45 mm — keeps overhang minimal, improving rigidity and tool life while the nominal mass (0.267 kg) helps to dampen vibration in short‑overhang setups. Suited to steelworking and productivity improvement Matched with Korloy APKT inserts, this right‑angle head is positioned for general steel machining tasks where precise shoulders and small stepovers are required. The three cutting edges on the head support reliable cutting engagement and even wear distribution, extending the useful life of both insert and holder. In production contexts, the combination of robust mounting and standardised insert format enables faster tool changes and steady cycle times, translating into measurable productivity gains on multi‑batch turning operations. For enquiries about integrating the Teknik Makina corner head into workshop tooling systems or to secure supply from Metav Werkzeuge’s Emmerich quality hub, contact Metav Werkzeuge for personalised advice and immediate processing. Technical data Article number: T180TM Brand: Teknik Makina Description: 90° corner tool head for APKT 1604 indexable inserts Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Core specifications Shank diameter: 16 mm Head diameter: 40 mm Overall length: 45 mm Weight: 0.267 kg Cutting angle: 90° Number of cutting edges: 3 Special features Torx screw: M4x10 Torx key size: T15 Intended application: shoulder turning / facing ECLASS: 21181015 FAQ Which insert type fits this holder? The holder accepts APKT 1604 indexable inserts; it is specified for this insert format and is compatible with Korloy APKT 1604 grades. What shank size is required for mounting? A 16 mm shank connection is required for clamping in standard toolposts or turret adaptors. Which screw and key are used for insert clamping? Insert retention uses a Torx M4x10 screw; a T15 Torx key is required for tightening and removal. Is this head suitable for heavy‑duty roughing? The right‑angle head is optimised for shoulder turning and facing with short overhangs; suitability for heavy‑duty roughing depends on machine rigidity and cutting parameters. What are the key dimensional limits to consider for setup? Important dimensions are the 40 mm head diameter and 45 mm overall length; these define clearance and overhang for toolstation planning. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact chamfering solution that combines high edge quality with quick insert changes — the tool’s Ø35 mm body and 45 mm shank deliver stable clamping and reliable results in series production; order the tool directly via Metav Werkzeuge or ask our consultants for application support. Chamfer mill T457TM by Teknik Makina — 15° cutting angle, compatible with APKT 1604 The Chamfer mill is a solid chamfering cutter designed for indexable inserts and precise edge finishing in metalworking applications. Ø35 mm body diameter Compatible with APKT 1604 inserts 45 mm shank for stable clamping Six cutting edges for smooth chamfers Consistent chamfers for repeatable component quality The T457TM delivers precision chamfering through a compact geometry and carefully defined cutting angle. With a 50.5 mm cutting diameter at maximum and a nominal Ø35 mm body, the cutter is configured to produce uniform chamfers across batches, reducing rework and inspection time. The tool’s 6 cutting edges distribute cutting forces evenly, which helps to maintain a steady surface finish and extend insert life. This design suits metalworking environments where reproducibility and tight edge tolerances matter. Quick set-up and dependable toolholding for efficient cycles A short overall length of 60 mm and a robust 45 mm shank support stable clamping in standard toolholders, lowering vibration and improving surface integrity. Insert fixation uses an M4x10 Torx screw and a T15 key, enabling secure, fast replacements without specialised fixtures. The compatibility with APKT 1604 indexable inserts from major manufacturers gives flexibility when selecting grades for different materials, while the compact mass (0.415 kg) simplifies handling during tool changes and reduces spindle load during operation. Designed for workshop reliability and simple maintenance The cutter is built for frequent use and straightforward upkeep: replaceable insert geometry means maintenance is limited to routine insert changes rather than full-tool replacement. Compatibility with inserts from Korloy and standard clamping hardware ensures easy sourcing of consumables. The modest tool mass and standard shank diameter also support predictable balancing and integration into existing machining setups. Documentation and parts alignment are simplified by the clear use of standardised insert types and torque requirements. Contact Metav Werkzeuge for tailored advice and reliable supply from Emmerich — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: T457TM Article name: Fasenfräser Manufacturer: Teknik Makina Specifications Diameter (body): 35 mm Maximum cutting diameter: 50.5 mm Shank diameter: 45 mm Overall length: 60 mm Weight: 0.415 kg Cutting edges: 6 Cutting angle: 15° Torx screw: M4x10 Torx key: T15 Compatible inserts: APKT 1604 Compatibility & special features Suitable insert manufacturer: Korloy Angles available (as listed): 15°, 30°, 45°, 60°, 75° Indexable-insert design for quick replacement Compact construction for stable clamping FAQ What insert type does this chamfering cutter use? The chamfer mill T457TM is designed for APKT 1604 indexable inserts and is compatible with inserts from Korloy. What shank diameter is required for mounting? Mounting requires a toolholder that accepts a 45 mm shank, as specified for the T457TM. How many cutting edges does the cutter have and what is the benefit? The cutter has six cutting edges, which distribute cutting forces to produce smoother chamfers and extend insert life. Which cutting angles are available with this tool? The product data lists available angles of 15°, 30°, 45°, 60° and 75°, enabling a range of chamfer geometries. What size Torx screw and key are used for the inserts? Insert clamping uses an M4x10 Torx screw tightened with a T15 key, providing secure fixation for the indexable inserts. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Take advantage of a compact, compatible milling solution that combines straightforward insert interchangeability with robust assembly: the T310TM supports both APKT 1604 and APXT 1003 indexable inserts and features a compact 80 mm diameter with five cutting edges for steady material removal. Order directly via Metav Werkzeuge or request guidance from their consultants for application-specific recommendations. Planing cutter head T310TM — face milling head, 80 mm, compatible with APKT 1604 / APXT 1003 (Teknik Cutting Tools) A Planing cutter head T310TM engineered for face milling applications, optimised to accept APKT 1604 and APXT 1003 indexable inserts for consistent finishing and semi‑roughing in CNC operations. 80 mm diameter for compact face milling Accepts APKT 1604 and APXT 1003 inserts Five cutting edges for balanced engagement Torx fastening M4x10, key T15 Consistent compatibility reduces setup complexity The T310TM is built around standardised indexable inserts to simplify tooling logistics. Compatibility with APKT 1604 and APXT 1003 insert types means common insert inventories can be used across different cutters, reducing changeover time and inventory overhead. The specified acceptance of Korloy inserts ensures that established insert geometries and grades are supported, so the cutter can be integrated into existing machining routines without expensive adapter work. Geometry that stabilises cutting and improves surface quality A compact 80 mm diameter combined with a 75° cutting angle and five cutting edges delivers a balance between chip evacuation and engagement stability. The acute cutting angle reduces cutting forces on thin workpieces and helps maintain tool life, while multiple edges distribute wear for more uniform performance. For operations where surface finish and repeatability matter, this geometry supports reliable results on finishing passes and controlled material removal on semi‑finishing work. Robust fastening and compact mounting for reliable production Mechanical reliability is addressed through standard Torx fastening: M4x10 screws tightened with a T15 key ensure secure insert clamping and straightforward maintenance. A 27 mm interface (shank/holder connection) and a total length of 52 mm make the head suitable for many compact toolholders and turret setups. At 1.12 kg, the assembly is light enough to reduce toolholder load while remaining sufficiently rigid for stable machining. These attributes limit downtime and simplify workshop logistics when inserts are changed or inspected. For application advice or to obtain the T310TM from Teknik Cutting Tools, contact Metav Werkzeuge in Emmerich by e‑mail at info@metav-werkzeuge.com or by telephone at +49 2822 7131930 — consultants are available to discuss compatibility and delivery options Technical Data Article number: T310TM Manufacturer: Teknik Cutting Tools Product name: Planing cutter head Facts Diameter: 80 mm Shank / mounting diameter: 27 mm Total length: 52 mm Weight: 1.12 kg Number of cutting edges: 5 Cutting angle: 75° Special features Compatible with APKT 1604 and APXT 1003 indexable inserts Torx screw: M4x10 Torx key size: T15 Compatible insert manufacturer: Korloy Eclass: 21181015 FAQ What insert types fit this cutter head? The T310TM is designed to accept APKT 1604 and APXT 1003 indexable inserts, enabling use of standard Korloy geometries for finishing and semi‑finishing operations. Which fastening hardware is supplied or required? Fastening is executed with M4x10 Torx screws tightened using a T15 key; these secure the inserts reliably and are compatible with standard workshop torque practices. Is the T310TM suitable for compact toolholders? Yes — the 27 mm mounting diameter and 52 mm total length allow the head to be used in many compact holders and turret systems while maintaining rigidity. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of precise corner machining, robust Torx clamping and broad compatibility with APKT 1604 inserts for consistent cycle times and low set‑up effort. Order the cutter head directly via Metav Werkzeuge or consult the technical team for application advice. Corner cutter head — Indexable cutter head for APKT 1604, 90° (Teknik Makina) The Corner cutter head is an indexable cutter head engineered for accurate 90° corner machining with APKT 1604 indexable inserts, suitable for standard turning and light milling set‑ups Compatible with APKT 1604 indexable inserts 90° cutting angle for accurate cornering Secure M4x10 Torx fastening with T15 key 27 mm mounting shank diameter Precision corners with reliable geometry and stable repeatability The machining head delivers a controlled cutting geometry thanks to the 90° cutting angle and a rigid body that limits deflection under intermittent loads. Using APKT 1604 indexable inserts provides a predictable chip flow and simplifies tool inventory management, while the six cutting positions contribute to extended tool life. The design reduces set‑up time and supports repeatable corner quality, which aids throughput optimisation on batch runs and short production series. Bold material choices and a compact profile keep the effective cutting zone close to the spindle, improving process stability in typical workshop environments. Fast, secure insert clamping for reduced downtime A straightforward clamping arrangement with M4x10 Torx screws and a T15 key ensures quick insert changes and consistent seat contact, lowering the risk of chatter caused by loose fittings. The holder accepts inserts from Korloy and other manufacturers conforming to the APKT 1604 form, making it easy to integrate into existing toolsets. The torqueable Torx fixing provides repeatable preload across cycles, which supports consistent cutting conditions and reduces the need for frequent re‑checks. These features support higher machine utilisation and fewer interruptions for maintenance. Compact mounting with industrial compatibility The tool is engineered around a 27 mm mounting shank, offering a compact footprint while keeping sufficient mass for vibration damping. With an external diameter of Ø 80 mm and a total length of 52 mm, the head is suited to tight set‑ups where proximity to the workpiece matters. The unit weight of 1.159 kg contributes to stable rotational balance without excessive spindle load. Such dimensional data are useful when planning tool offsets, clearance envelopes and collision checks in CAM programming, enabling safer and more reliable NC routines. Practical workshop details that matter in daily use Six effective cutting edges and compatibility with standard insert geometries reduce tooling costs through longer insert rotation and simplified stocking. The robust construction and standard fastening parts mean spare parts are easy to source and replacement is straightforward. The head’s dimensions and mounting arrangement support quick verification with common workshop gauges, while the proven clamping method minimises the influence of operator variance on process outcomes. For procurement and planning, the modular nature of the holder supports staged upgrades without wholesale changes to holders or inserts. For application-specific recommendations or to secure the Teknik Cutting Tools indexable cutter head (SKU T186TM) contact Metav Werkzeuge in Emmerich — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data SKU: T186TM Manufacturer: Teknik Makina Mounting diameter: 27 mm External diameter: 80 mm Total length: 52 mm Weight: 1.159 kg Cutting angle: 90° Number of cutting edges: 6 Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 FAQ What insert type fits this cutter head? The head accepts APKT 1604 indexable inserts; Korloy APKT 1604 inserts are specified as compatible and standard APKT 1604 geometries will seat correctly. Which mounting shank diameter is required? A 27 mm mounting shank is provided for machine attachment and must match the toolholder or adapter in use for proper installation. How is the insert secured in the head? Inserts are clamped using M4x10 Torx screws tightened with a T15 key, ensuring consistent preload and fast changeover. Is the cutter head suitable for high‑speed applications? The head’s compact geometry and secure clamping support stable performance; final suitability depends on spindle dynamics and selected insert grade. What are the main dimensions to check for NC programming? Key dimensions include Ø 80 mm external diameter, 52 mm total length and the 27 mm mounting diameter for clearance and collision planning. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a compact, rigid solution that delivers repeatable bevel geometry and simple insert handling; the combination of a 48 mm shank and a 30° cutting angle ensures stable machining and consistent results. Order the tool directly via Metav Werkzeuge or consult their specialists for application-specific advice. Teknik Makina T454TM Chamfer Cutter — 35 mm, compatible with APKT 1604 The chamfer cutter by Teknik Makina is designed for precision beveling and edge preparation in milling operations, combining a compact tool body with indexable insert technology for efficient shop-floor performance 35 mm cutting diameter for precise chamfers Compatible with APKT 1604 indexable inserts 30° cutting angle for standard bevel geometry 48 mm shank for rigid toolholding Repeatable chamfers through measured geometry A controlled chamfer is achieved thanks to the tool's 35 mm diameter and 30° cutting angle, which together produce a consistent bevel across successive workpieces. The design uses indexable inserts that ensure the cutting edge can be restored quickly by rotation or replacement, so downtime is reduced and process stability is increased. For production environments where reproducibility matters, this configuration allows a predictable set-up that can be documented and repeated; the result is fewer rejects and an easier integration into existing machining cycles. Faster changeover and simplified tooling management Compatibility with APKT 1604 inserts and the common Korloy insert designation streamlines inventory: one insert type supports multiple operations. The cutter uses an M4x10 Torx screw together with a T15 key for secure seat clamping, enabling rapid insert changes with standard workshop tools. This reduction in SKU variety and the straightforward clamping concept help to shorten maintenance intervals and to lower logistical complexity, which is particularly useful for small series or mixed-production shops that value agility. Rigid shank, compact length — stability under load The tool's 48 mm shank and a 50 mm overall length create a compact, rigid assembly that resists deflection during chamfering. With six cutting edges, material removal is distributed to maintain surface quality while moderating cutting forces; the modest mass of 0.61 kg keeps spindle load predictable. Where chatter and vibration would otherwise compromise edge quality, this construction is intended to achieve a smoother finish and a more reliable cutting process, reducing rework and enhancing throughput. Speak with Metav Werkzeuge for tailored application guidance on the T454TM chamfer cutter — Metav's specialists in Emmerich can advise on insert selection, clamping procedures and rapid supply via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: T454TM Manufacturer: Teknik Makina Designation: Chamfer cutter Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key: T15 Facts Diameter: 35 mm Max. cutting diameter: 65 mm Shank diameter: 48 mm Number of cutting edges: 6 Cutting angle: 30° Overall length: 50 mm Weight: 0.61 kg SKU: T454TM Special features For indexable inserts APKT 1604 Six cutting edges for distributed cutting load Compact design for rigid toolholding Uses Torx M4x10 clamping screw, T15 key required FAQ How many cutting edges does the T454TM have? The T454TM is supplied with six cutting edges, which helps to distribute cutting forces and maintain surface quality during chamfering. Which insert type fits this chamfer cutter? This chamfer cutter accepts APKT 1604 indexable inserts; the designation matches widely used Korloy inserts for easy procurement. What clamping hardware is specified for insert fastening? Insert clamping is achieved with an M4x10 Torx screw; a T15 key is used to tighten and release the insert seat. What shank and length dimensions should be considered for setup? The tool features a 48 mm shank and a 50 mm overall length, which supports rigid mounting and reduced overhang in most milling setups. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

Take advantage of the high material removal rate from the combination of 12 cutting edges, a 40 mm cutting diameter and a 58 mm cutting height for consistent productivity. Secure clamping via the 32 mm shank and fast insert changes make the tool reliable for repetitive machining tasks; order the HF32TM through Metav Werkzeuge or contact our consultants for application advice. Igelfräser HF32TM — 40 mm indexable-insert milling cutter, 12 cutting edges (Teknik Makina) The Igelfräser HF32TM is an indexable-insert milling cutter designed for efficient roughing and semi-finishing in industrial toolrooms and production environments 40 mm cutting diameter 12 cutting edges for high stock removal Compatible with APKT 1604 inserts 32 mm shank for secure mounting Faster material removal with indexable inserts The cutter head is built around APKT 1604 indexable inserts, which enable rapid material removal while keeping running costs predictable. With 12 cutting edges, the design distributes cutting forces across multiple inserts, reducing vibration and extending the life of each insert. Indexable inserts mean downtimes are limited to quick insert changes rather than full tool regrinds, which improves machine uptime and lowers per-part machining costs. Compatibility with widely used insert sizes also simplifies inventory management. Ease of service and secure clamping for reliable production A 32 mm shank provides a stiff connection to standard toolholders, improving stability during heavy cuts and reducing chatter. Insert retention is accomplished with M4x10 Torx screws, tightened using a T15 key, which ensures quick and repeatable clamp force at each change. The straightforward screw-and-insert system reduces the time needed for routine maintenance and keeps set-up procedures simple, a practical advantage when cycle times and reproducibility matter. Stable geometry for consistent cut quality The cutter’s 40 mm diameter and 58 mm cutting height are balanced to allow deeper passes without sacrificing control. The 200 mm overall length offers reach where required, while the tool’s 1.28 kg mass contributes to dampening of minor spindle vibrations. These dimensional decisions translate into consistent surface results and predictable tool behaviour across batches, making the cutter suitable for repetitive production runs where part tolerance and surface integrity are priorities. Workshop compatibility and inventory efficiency Designed to accept inserts from established manufacturers such as Korloy, this milling head integrates easily into existing tool systems. The use of common insert forms like APKT 1604 reduces the need for bespoke consumables and enables rapid replenishment from standard suppliers. For engineers and buyers aiming to consolidate procurement without compromising on performance, the tool offers a practical balance between modularity and machining capability. Contact Metav Werkzeuge for application-specific guidance and to secure supply of the Teknik Makina HF32TM insert milling cutter with APKT 1604 compatibility Technical data Article number: HF32TM Manufacturer: Teknik Makina Product name: Igelfräser Compatible inserts: APKT 1604 (Korloy) Key dimensions Diameter: 40 mm Shank (d): 32 mm Cutting height: 58 mm Overall length: 200 mm Cutting edges: 12 Weight: 1.28 kg Special features Torx screw: M4x10 Torx key size: T15 Insert manufacturer compatibility: Korloy FAQ What type of inserts does this cutter accept? The HF32TM accepts APKT 1604 indexable inserts; the tool is compatible with inserts from Korloy and other suppliers offering the same designation. How many cutting edges are available and why does it matter? The cutter has 12 cutting edges, which spreads load across multiple inserts to increase removal rates and reduce vibration during heavy cuts. What shank size is required for mounting? The milling head uses a 32 mm shank diameter for secure mounting in standard toolholders, providing stiffness for stable machining. Which fastening parts are required for insert changes? Insert fastening uses M4x10 Torx screws and a T15 Torx key for quick and repeatable insert replacement. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Combining a 90° cutting geometry with a 63 mm head diameter and a secure 22 mm shank, this corner cutter head ensures stable shoulder machining and reliable insert clamping; order the component directly via Metav Werkzeuge or contact our consultants for application-specific advice. Corner cutter head T184TM – 90° head for APKT 1604 indexable inserts by Teknik Makina The Corner cutter head T184TM is a compact indexable insert holder engineered for precise 90° shoulder and profile machining using APKT 1604 indexable inserts. 90° cutting angle for precise shoulder cuts 63 mm head diameter for stable machining 22 mm shank diameter for secure mounting Compatible with APKT 1604 inserts by Korloy Accurate perpendicular faces through stable geometry The 90° cutting angle delivers consistent, perpendicular shoulder faces that reduce secondary operations and simplify fixture set-up. With a 63 mm head diameter, the design increases mass at the cutting zone to damp vibrations and improve surface finish during interrupted cuts. The head accommodates five cutting edges, enabling repeatable engagement geometry that supports predictable tool life and process stability in mixed production environments. Secure clamping and straightforward maintenance A 22 mm shank diameter provides a robust mounting that resists micro‑movement under load, while the overall mass of 0.577 kg contributes to axial and radial stability. Insert retention is achieved with an M4x10 Torx screw, tightened using a T15 key for reproducible clamp force and safe removal without specialised tooling. These practical fastening details reduce downtime during index changes and simplify routine inspections, supporting sustained throughput in small to medium batch runs. Broad insert compatibility and workshop integration Designed for APKT 1604 indexable inserts and tested for use with Korloy grades, the tool head integrates into common tooling kits and helps streamline inventory. The modular holder adapts to standard insert geometries, enabling economical regrinding and quick replacement cycles. Metav's product selection focuses on pragmatic interoperability: shops benefit from fewer bespoke holders and faster tool changes, while maintenance teams appreciate the use of common Torx hardware and widely available inserts. Discuss machining requirements with Metav Werkzeuge to confirm the best Teknik Cutting Tools corner cutter head configuration for specific materials and to arrange supply — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: T184TM Manufacturer: Teknik Makina For inserts: APKT 1604 Indexable Inserts Compatible insert manufacturer: Korloy Torx screw: M4x10 Facts Head diameter: 63 mm Shank diameter: 22 mm Overall length: 45 mm Weight: 0.577 kg Cutting angle: 90° Number of cutting edges: 5 Special features Torx key: T15 Compatible with APKT 1604 inserts Designed for secure insert clamping Compact design for shoulder and profile machining FAQ Which inserts fit this tool head? The Corner cutter head T184TM accepts APKT 1604 indexable inserts; compatibility with Korloy grades is specified for common machining applications. What mounting diameter is required? Mounting requires a 22 mm shank diameter, which provides a rigid connection to the toolholder or arbor. How are inserts secured in the head? Inserts are clamped using an M4x10 Torx screw, tightened with a T15 key, ensuring repeatable clamp force and straightforward replacement. What cutting angle does the head provide and what is it best for? The head provides a 90° cutting angle, making it suitable for perpendicular shoulder machining and profile work where defined right‑angle faces are required. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of a robust chamfering solution that combines a 76 mm cutting diameter, a 60 mm shank and compatibility with APKT 1604 indexable inserts for a reliable production flow; order the chamfer cutter directly via Metav Werkzeuge or ask our consultants if needed. Chamfer cutter by Teknik Makina — 45° chamfer, APKT 1604 compatible Chamfer cutter for industrial edge chamfering and face preparation, designed for indexable insert operation in CNC and milling applications *Compatible with APKT 1604 inserts *45° chamfer geometry for precise edge preparation *60 mm shank for secure machine clamping *Six cutting edges for efficient material removal Precision chamfering that reduces set-up time and scrap The chamfering solution is engineered to deliver consistent results on series production runs. With a 45° cutting geometry and a substantial 76 mm maximum cutting diameter, the tool reduces the need for multiple passes and avoids uncontrolled burr formation. The insert system using APKT 1604 indexable inserts allows quick replacement without regrinding, which shortens downtime and keeps machining cycles predictable. This focus on process efficiency translates into reduced setup time and less scrap across batches. Secure clamping and stable cutting for improved surface quality A 60 mm shank provides the required rigidity for heavy-duty milling and contributes to vibration damping, which improves finished-edge consistency. The tool features six cutting edges, a configuration that spreads the cutting load and extends insert life while maintaining a steady material flow. For workshops stepping up production or integrating larger workpieces, the robust shank and balanced geometry ensure repeatable quality and a lower risk of chatter or edge burn. Versatile indexable system explained for practical application Using APKT 1604 indexable inserts means the tool can be maintained with standard industry inserts from compatible manufacturers, keeping running costs predictable. Insert indexing requires only a simple Torx screw (M4x10) and a T15 key for secure retention and fast changeovers. This familiar indexable concept simplifies inventory management and training requirements, making the cutter suitable both for experienced toolrooms and for operations transitioning to indexable tooling. Discuss integration and availability with Metav Werkzeuge — specify Teknik Makina chamfer cutter (SKU T456TM) to receive tailored advice and order support from the Emmerich team Technical Data Article number: T456TM Manufacturer: Teknik Makina Core specifications Cutting diameter max: 76 mm Shank diameter: 60 mm Overall length: 50 mm Weight: 0.734 kg Cutting edges: 6 Chamfer angle: 45° Special features For indexable inserts APKT 1604 Compatible inserts manufacturer: Korloy Torx screw: M4x10 Torx key: T15 FAQ What materials is this chamfer cutter suitable for? The chamfer cutter by Teknik Makina (SKU T456TM) is designed for general milling and chamfering applications; selection of the correct APKT 1604 insert grade will determine suitability for specific materials. How are the inserts secured and replaced? Inserts are clamped with an M4x10 Torx screw; a T15 key is used for secure fastening and quick replacement when the APKT 1604 insert reaches wear limits. Can the tool be used on large-format CNC machines? Yes — the 60 mm shank provides the rigidity required for stable clamping in larger machine spindles, enabling reliable chamfering on bigger workpieces. How many cutting edges are available and what is the benefit? The cutter has six cutting edges, which distribute cutting forces and extend insert life while maintaining consistent material removal and surface finish. Is the cutter compatible with inserts from different manufacturers? The tool is specified for APKT 1604 inserts and is noted as compatible with Korloy inserts; using equivalent grades from other reputable insert manufacturers is possible if dimensions match. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of robust toolholding, a defined 75° chamfer geometry and easy insert replacement for consistent edge finishes and reduced setup time; order the component via Metav Werkzeuge or contact the consultants for tailored advice. Chamfer mill T458TM — 75° cutting angle, 60 mm shank (Teknik Makina) A chamfer mill T458TM designed for precision edge chamfering in industrial machining, compatible with APKT 1604 indexable inserts 75° cutting angle for precise chamfers Compatible with APKT 1604 indexable inserts 60 mm shank for stable toolholding Six cutting edges for efficient material removal Consistent chamfer geometry for reliable production The T458TM delivers a defined 75° cutting angle, engineered to produce repeatable chamfers with minimal setup variance. The combination of a rigid 60 mm shank and a compact overall length of 50 mm stabilises the tool in the holder, reducing vibration and improving surface finish. With six cutting edges arranged to share the load, wear is distributed evenly, which extends insert life and sustains process reliability. This configuration supports lean production by lowering the frequency of rework and by helping to maintain tolerances across batch runs. Efficient indexable system that speeds up changeover Designed around indexable inserts APKT 1604 (compatible with Korloy), the cutter reduces downtime through quick insert indexing and replacement. The indexable system permits consistent edge geometry without complex regrinding, which simplifies tool management in busy workshops and small production lines alike. The combination of multiple cutting edges and replaceable inserts enhances throughput and provides a predictable cost-per-edge metric for job costing and process planning. Serviceable design with clear maintenance steps Insert retention uses a Torx screw specification M4x10 and the required key size is T15, enabling straightforward replacement and secure clamping. The tool's balanced mass (approx. 1.256 kg) and robust construction aid in stable cutting performance, while the compatibility with Korloy inserts broadens sourcing options for spares. For traceability and ordering, reference T458TM and Teknik Makina when selecting holders or replacement parts; the model’s design supports routine maintenance without specialised fixtures. For tailored technical advice on integrating the Teknik Makina chamfer mill into existing tool setups or to confirm suitability for a specific application, contact Metav Werkzeuge in Emmerich for expert guidance and stock information Technical data Article number: T458TM Manufacturer: Teknik Makina Insert type: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key: T15 Core specifications Cutting angle: 75° Shank diameter: 60 mm Overall length: 50 mm Cutting edges: 6 Weight: 1.256 kg Max. cutting diameter: 94 mm Nominal diameter: 35 mm Features & versions Compatible with indexable inserts APKT 1604 Insert supplier compatibility: Korloy Secure clamping via M4x10 Torx screw Balanced design for reduced vibration FAQ What insert type is required for this chamfer cutter? The cutter is specified for APKT 1604 indexable inserts; compatibility with Korloy inserts is indicated and recommended for optimal fit and performance. Which toolholder diameter does the cutter require? This tool uses a 60 mm shank for rigid mounting and stable toolholding during chamfering operations. How many cutting edges are provided and what is the benefit? The tool features six cutting edges, which distribute wear across multiple cutting faces and increase effective machining time between indexings. What is the specified cutting angle and what does it mean for applications? A 75° cutting angle provides a defined chamfer geometry suitable for standard edge preparation tasks, delivering consistent results for assemblies requiring controlled edge breaks. Which fastener and key are needed for insert changes? Insert retention uses an M4x10 Torx screw and requires a T15 Torx key for secure and repeatable replacement. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Taking advantage of a compact 45 mm overall length and a 22 mm shank for secure fixture, this tool head provides a stable 90° cutting geometry that supports repeatable external turning with APKT 1604 indexable inserts; order via Metav Werkzeuge or contact our advisers for fitment guidance. Corner Tool Head T185TM — Corner turning head for APKT 1604 indexable inserts, 90° cutting angle (Teknik Cutting Tools) The Corner Tool Head T185TM is designed for external turning operations using APKT 1604 indexable inserts and offers a compact, rigid configuration for workshop and production environments. Compact 45 mm overall length for tight access Secure M4x10 Torx fastening, T15 key Compatible with Korloy APKT 1604 inserts 22 mm shank for stable mounting Rigidity and repeatability for accurate external turning A robust 22 mm shank combined with the 90° cutting angle provides a rigid mounting platform that reduces deflection and improves dimensional repeatability during external turning operations. The mass and geometry of the head are tuned to deliver stable cutting behaviour, which helps to maintain tool life and workpiece quality over series runs. Engineers benefit from consistent results when machining shoulders and faces because the head’s construction limits vibration and supports predictable tool engagement. Fast insert changes and standardised retention Compatibility with APKT 1604 indexable inserts—including those from Korloy—means insert selection is straightforward and tooling costs can be optimised through widely available grades. The insert is secured with an M4x10 Torx screw, tightened with a T15 key, enabling fast, repeatable clamping and minimal downtime for index changes. This standardised retention reduces maintenance complexity on the shop floor and keeps changeover times low in high-mix environments. Compact form factor for accessibility and balance With a 45 mm overall length and 63 mm diameter, the head presents a compact profile that improves accessibility in confined turning setups while offering sufficient mass (approx. 0.578 kg) for damping cutting forces. The relatively short overhang helps when working close to fixtures or when multiple operations are staged on a single spindle. The head’s design supports stable cutting across common turning tasks and simplifies integration into existing tool posts and holders with 22 mm mounting interfaces. For tailored advice or to arrange supply through Metav Werkzeuge, please contact our technical team in Emmerich by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930; our advisers can confirm compatibility and delivery options for the T185TM corner tool head. Technical data Article number: T185TM Manufacturer: Teknik Makina Product name: Corner tool head (Eckmesserkopf) For indexable inserts: APKT 1604 Facts Diameter: 63 mm Overall length: 45 mm Shank diameter (D): 22 mm Weight: 0.578 kg Cutting angle: 90° Number of cutting edges: 6 Special features For APKT 1604 indexable inserts Compatible with Korloy inserts M4x10 Torx screw retention Torx key size: T15 Compact design for confined machining FAQ Which inserts fit this tool head? The T185TM accepts APKT 1604 indexable inserts; compatibility with Korloy inserts is indicated in the product data. What fastening hardware is used to secure the insert? Insert retention is by an M4x10 Torx screw, tightened with a T15 key as specified for the Corner Tool Head T185TM. What shank size is required for mounting? The tool head uses a 22 mm mounting diameter (shank) for secure installation in compatible holders. Is the head suitable for tight access applications? Yes, the compact 45 mm overall length and 63 mm diameter were chosen to improve accessibility while maintaining stability during turning. How does the T185TM contribute to machining repeatability? The combination of a 22 mm shank, 90° cutting geometry and a robust clamping system reduces deflection and supports consistent dimensional results during series turning operations. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

Take advantage of the combination of a 75° cutting geometry, compatibility with standard indexable inserts and a compact Ø63 mm body for efficient facing operations; order directly via Metav Werkzeuge or consult the technical team for application support. Face cutter head — 75° geometry for APKT 1604 / APXT 1003 inserts by Teknik Makina Face cutter head designed for precision facing and light shoulder milling with APKT 1604 and APXT 1003 indexable inserts 75° cutting geometry for balanced cutting forces Ø63 mm body for stable machining 4 cutting edges for uninterrupted productivity Stable cutting performance with optimised 75° geometry The compact cutter head delivers dependable metal removal thanks to its 75° cutting angle, which balances radial and axial forces to give a stable cut while maintaining a good surface finish. The head’s Ø63 mm diameter and 4 cutting edges reduce vibration during light facing and finishing passes, making it suitable for jobbing shops and small-batch production. This balanced geometry supports consistent chip formation and helps to extend the service interval of the indexable inserts. Quick set-up and secure clamping for reduced downtime Designed for compatibility with APKT 1604 and APXT 1003 indexable inserts from Korloy, the tool head uses an M4x10 Torx screw and is tightened with a T15 key, enabling fast insert changes and secure clamping. The 22 mm shank (mount) ensures straightforward mounting in compatible tool holders and reduces alignment time at the machine. Clear mechanical interfaces mean less fiddling at the workbench and a rapid return to production after tool changes. Robust design for predictable tool life and handling With a total length of 45 mm and a weight of 0.51 kg, this cutter head offers a compact solution that is easy to handle during set-up while still providing the stiffness required for finishing and light-medium machining. The construction supports long tool life, as indicated in the technical notes, and the four-edge arrangement allows economical index changes. The combination of compact dimensions and proven insert compatibility makes the component a practical choice for workshops seeking reliable facing capability without unnecessary complexity. Contact Metav Werkzeuge for tailored technical advice or to reserve the Teknik Makina face cutter head (SKU T308TM) with 75° geometry — consultants available at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: T308TM Brand: Teknik Makina Description: Face cutter head for APKT 1604 and APXT 1003 indexable inserts SKU: T308TM Core dimensions Diameter: 63 mm Shank (mount) diameter: 22 mm Total length: 45 mm Weight: 0.51 kg Number of cutting edges: 4 Cutting angle: 75° Features Compatible inserts: APKT 1604, APXT 1003 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 Long tool life (as specified) FAQ What inserts fit this cutter head? The face cutter head accepts APKT 1604 and APXT 1003 indexable inserts; these are specified for secure seating and correct cutting geometry. Which screw and key are required for insert clamping? Insert clamping is performed with an M4x10 Torx screw, tightened using a T15 Torx key to ensure reliable fixation. Can this head be used with Korloy inserts? Yes — the component is specified as compatible with Korloy indexable inserts in the APKT/APXT formats. What is the overall diameter and how does it affect stability? The head measures Ø63 mm; this diameter contributes to rotational stiffness and improved stability during facing operations. Is the product suitable for heavy roughing? The head is optimised for facing and light to medium finishing; for heavy roughing, a tool with larger diameter and different geometry is recommended. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
