75kg Single-Point Load Cell Eloxated Aluminium, IP65, C3 OIML - KERN
€76.00
Product information "75kg Single-Point Load Cell Eloxated Aluminium, IP65, C3 OIML - KERN"
Combine dependable 75 kg capacity, robust anodised aluminium construction and IP65 protection for precise weighing on compact platforms; order the KERN CP.75-3P3 directly via Metav Werkzeuge or consult our specialists for tailored application advice.

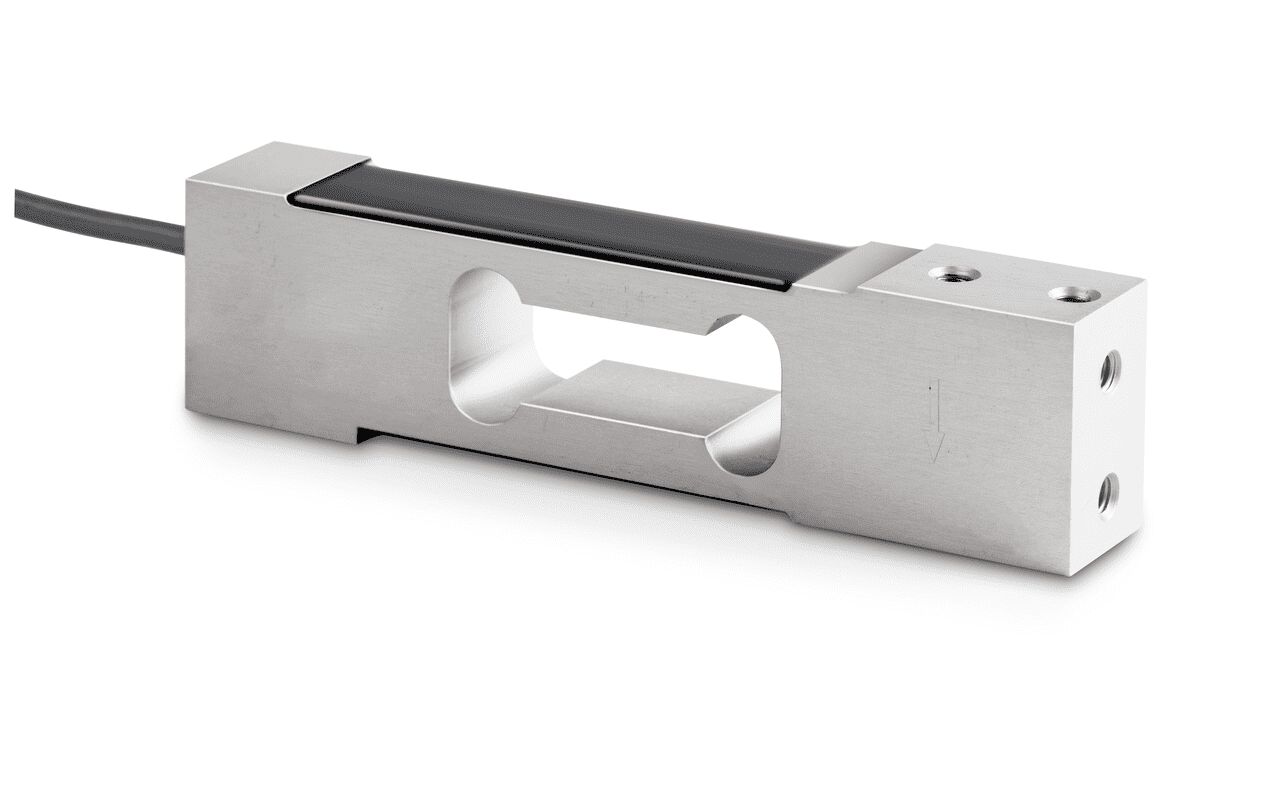

KERN CP.75-3P3 single-point load cell — 75 kg, anodised aluminium, IP65
KERN CP.75-3P3 is a single-point load cell designed for compact platform, bench and price-computing scales, delivering reliable performance in industrial and hygienic environments.
- CE and RoHS compliant
- IP65 protection for harsh environments
- Anodised aluminium construction
- 4-wire connection for simple integration
- Suitable for platforms up to 350×400 mm
Precision for compact platforms and commercial scales
The CP.75-3P3 is a single-point load cell engineered to deliver consistent, repeatable readings on small to medium platforms. Its OIML C3 classification confirms suitability for commercial weighing where regulatory accuracy matters. The device provides a rated output of 2 mV/V, a typical signal level for direct connection to precision weighing electronics; this ensures clear signal handling and straightforward calibration. The measurement characteristics make it an efficient choice when accuracy, regulatory compliance and consistent throughput are priorities in production, packaging or retail applications.
Built to withstand industrial conditions
Constructed from anodised aluminium, the weighing element balances light weight with mechanical resilience, supporting reliable mounting and long service life. With IP65 ingress protection and an operating range from −35°C to 65°C, the unit tolerates dust exposure and splash conditions common in food processing, packaging and many shop-floor environments. The compact mass (approx. 0.39 kg) reduces structural load on supporting frames while preserving mechanical stability, which helps maintain calibration and reduces maintenance intervals in continuous-use settings.
Integration made straightforward for system designers
Electrical and mechanical integration is simplified by the 4‑wire connection and a clear rated output, allowing compatibility with a wide range of summing boxes and digital indicators. The cell supports platforms up to 350×400 mm, enabling an even load distribution that is crucial for single-point technology; this reduces sensitivity to off-centre loading on small platforms. Conformance to EN 60529 (IP rating) and the option for OIML R60 C4 on request provide clear upgrade paths for tighter tolerances or specific regulatory requirements, easing selection for OEMs and scale manufacturers.
Application-focused benefits and industry fit
This load cell is configured for diverse sectors: industry and manufacturing, packaging, food and pharmaceuticals, machine construction and research and development. Its compact footprint and reliable signal output are ideal for price-computing scales, bench scales and small platform systems where space is limited but measurement integrity cannot be compromised. The product’s CE and RoHS conformity supports compliance-focused procurement, while the combination of low weight and durable finish reduces installation effort and supports hygienic cleaning regimes where required.
Choose the KERN CP.75-3P3 for precise 75 kg single‑point weighing—contact Metav Werkzeuge in Emmerich for application guidance or to discuss specifications at info@metav-werkzeuge.com or +49 2822 7131930
Technical data
- Article number: CP.75-3P3
- SKU: CP.75-3P3
- Manufacturer: KERN
- GTIN: 4045761221390
- ECLASS: 27320302
Facts
- Maximum weighing range: 75 kg
- Rated output: 2 mV/V
- OIML class: C3
- Ingress protection: IP 65 (EN 60529)
- Operating temperature: −35°C to 65°C
- Platform maximum size: 350×400×0 mm
- Weight: 0.39 kg
- Customs tariff number: 84239010
Special features
- Material: Anodised aluminium
- Connection: 4-wire connection
- CE and RoHS compliant
- Suitable for price-computing scales, bench scales, platform scales
- OIML R60 C4 execution on request
- Application sectors: Industry, packaging, food & pharma, machine building, R&D
FAQ
What is the maximum capacity of this load cell?
The CP.75-3P3 has a maximum weighing range of 75 kg, suitable for compact platform applications and small bench scales.
Is the unit protected against dust and water?
Yes. The CP.75-3P3 carries an IP65 rating according to EN 60529, making it resistant to dust ingress and splash water in typical industrial environments.
What accuracy class does the load cell meet?
The device is specified to OIML C3 class; an execution to OIML R60 C4 is available on request for applications requiring higher verification class.
How is the load cell connected to weighing electronics?
Electrical integration uses a 4‑wire connection with a rated output of 2 mV/V, compatible with standard precision indicators and summing amplifiers used in industrial weighing systems.
Which industries and devices is this cell suited for?
The product is intended for industry and manufacturing, packaging, food and pharmaceuticals, machine building and research, and it is commonly used in price-computing scales, bench scales and small platform systems.
Metav Werkzeuge, Emmerich am Rhein, info@metav-werkzeuge.com, +49 2822 7131930
