12mm Stechklemmhalter MGMN 200, 2mm Cutting Width, M4x10 Screw, T15 Hex Key, 1212, 2C MGMN 200, For MGMN 200 Inserts, Innenkühlung, Rechtsschneidend - Teknik Makina
€25.50
Product information "12mm Stechklemmhalter MGMN 200, 2mm Cutting Width, M4x10 Screw, T15 Hex Key, 1212, 2C MGMN 200, For MGMN 200 Inserts, Innenkühlung, Rechtsschneidend - Teknik Makina"
Benefit from secure 12 x 12 mm clamping, compatibility with Korloy MGMN 200 inserts and a compact 125 mm length for space-saving setups; order via Metav Werkzeuge or contact our consultants for specification checks.
Parting tool holder D010TM (MGMN 200) by Teknik Makina — 12 x 12 mm, 125 mm length
A parting tool holder (MGMN 200) engineered for reliable clamping of Korloy inserts in precise parting and grooving applications across workshop turning operations.
- Compatible with Korloy MGMN 200 inserts
- 12 x 12 mm robust clamping profile
- Max parting depth 12 mm
- Includes M4x10 clamping screw, T15 key
Consistent clamping for repeatable parting quality
The parting tool holder D010TM delivers a stable clamping platform through its 12 x 12 mm profile, ensuring repeatable results on short-run and series production. The 12.2 mm cutting-head width and the narrow 2 mm cutting edge support fine parting operations with minimal deflection. Where process stability is essential, the combination of compact geometry and low mass (0.13 kg) reduces vibration and helps maintain surface finish quality and dimensional control.
Easy integration and fast setup in the machine tool
With a total length of 125 mm and an overall height of 12 mm, the holder fits compact tool posts and is suited to tight turret positions. The clamping is secured with an M4x10 hex screw driven by a T15 key, providing a straightforward and fast insert change routine that supports uptime. Compatibility with the 2C MGMN 200 configuration and Korloy MGMN inserts simplifies inventory management and reduces set-up complexity for workshops standardised on this insert family.
Robust design backed by dependable supply
Designed for reliable everyday use, the holder’s dimensions follow the ISO-style 1212 designation to assist in selecting matching toolholders and inserts. The lightweight construction permits rapid handling without compromising clamping stability. Sourcing through a proven distributor ensures traceable supply: Metav provides consolidated stock and a quality filter for European workshops, supporting secure delivery and consistent availability for maintenance and production replacement needs.
Contact Metav Werkzeuge for tailored technical advice and reliable supply of the Teknik Makina parting tool holder D010TM; enquiries: info@metav-werkzeuge.com or call +49 2822 7131930

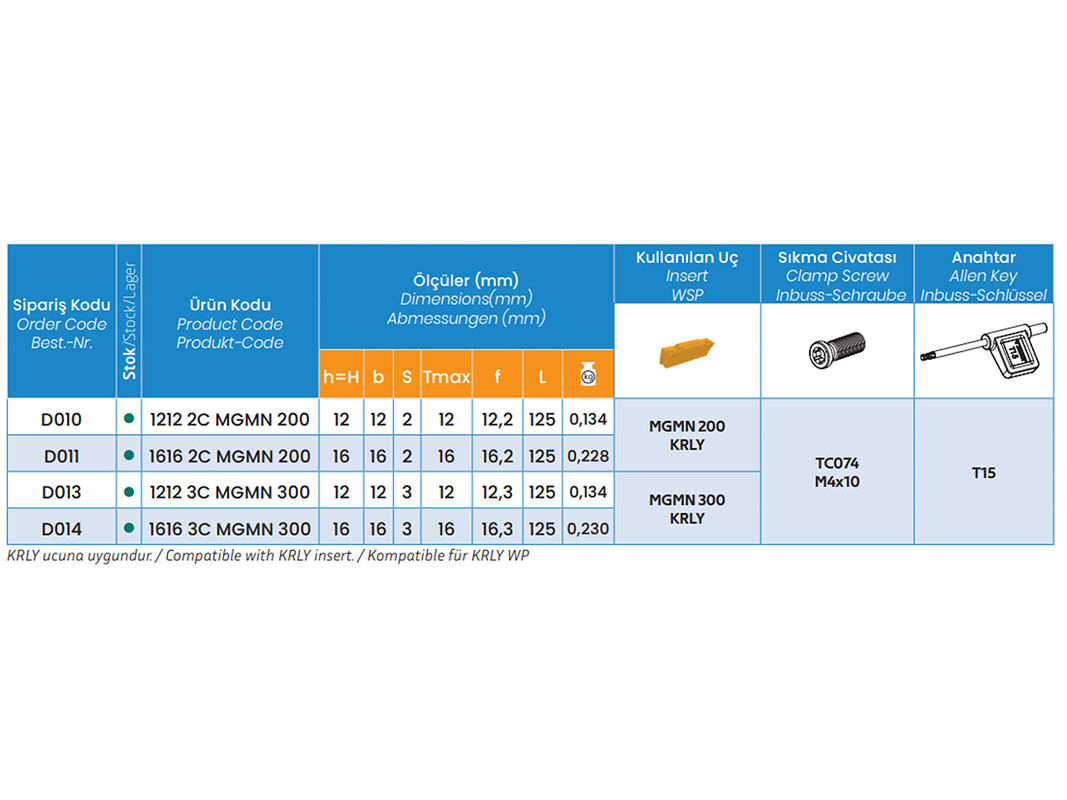

Technical Data
- SKU: D010TM
- Manufacturer: Teknik Makina
- ISO designation: 1212
- Compatible inserts: Korloy MGMN 200
- Bohrstangen designation: 2C MGMN 200

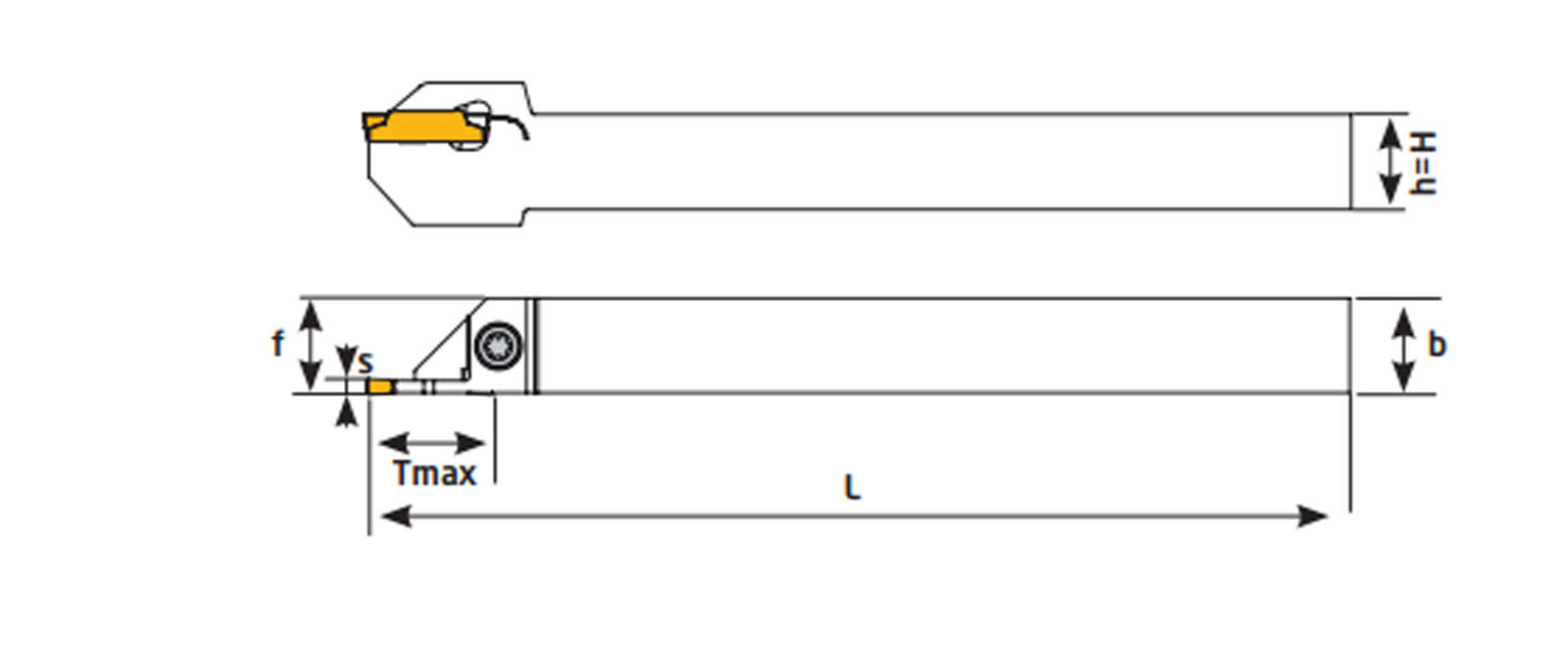

Dimensions & Weights
- Width: 12 mm
- Height: 12 mm
- Cutting head width: 12.2 mm
- Overall length: 125 mm
- Overall height: 12 mm
- Weight: 0.13 kg
- Max parting depth: 12 mm
- Cutting width: 2 mm
- Clamping screw size: M4x10
- Hex key size: T15
Features & Compatibility
- Fits MGMN 200 insert format
- Compact geometry for tight turrets
- Low-mass design to reduce vibration
- Correlates with ISO 1212 tooling conventions
FAQ
Which insert type fits this holder?
The holder accepts Korloy MGMN 200 inserts; the item is specified for the MGMN 200 insert format.
What is the maximum parting depth?
Maximum parting depth is 12 mm, as indicated by the holder’s stechschwert specification.
What fastening hardware is supplied or required?
Clamping is executed with an M4x10 screw; a T15 hex key is used to secure the insert.
What are the main dimensions to check for machine compatibility?
Key dimensions: 12 x 12 mm clamping profile, 125 mm overall length and 12.2 mm cutting-head width.
Is the holder suitable for compact tool posts?
Yes — the compact length and low overall height make it appropriate for tight turret positions and compact tool posts.
Teknik Makina: Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
| Designation: | Stechklemmhalter |
|---|---|
| Diameter-1: | mm |
Passende Wendeplatten MetavCUT
Not sure whether this tool is suitable for your application? Or are you still missing important technical details? No problem!Contact us - we will be happy to advise you. 📧 eMail: info@metav-werkzeuge.com ✔️ WhatsApp: +49 170 2837271 ☎️ Phone: +49 2822 7131930 Product specifications for MGMN 200-02 indexable inserts from MetavCUT Brand: MetavCUT Manufacturer Order Number: MGMN200-02-CastIron Facts for the tool: ISO-Code: MGMN200-02 Clearance Angle: 30° Angle: 86° Radius: 0.2 Features Material: cemented carbide Usage for: Cast steel without hole Form: rhombic Chip Breaker: without Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; www.metav-shop.de; info@metav-werkzeuge.com 40START indexable-inserts-MGMN-200-02-Cast Iron-MetavCUT 40END

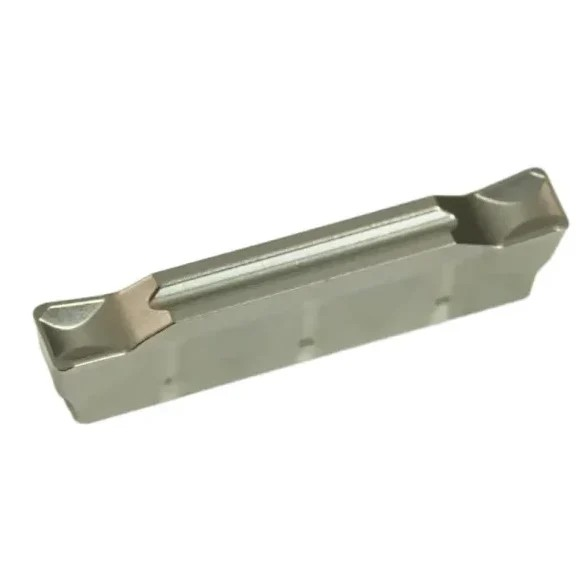

Areyou not sure whether this tool fulfils your requirements? Or do you need additional technical data?No problem - we will be happy to help you 📧 eMail: info@metav-werkzeuge.com ☎️ Phone: +49 2822 7131930 ✔️ WhatsApp: +49 170 2837271 Information on technical features for MGMN CERMET 200-TD indexable inserts from MetavCUT Brand: MetavCUT Manufacturer Order Number: MGMN200-TDC-CERMET ISO-Code: MGMN200-TD Material: CERMET Form: rhombic Clearance Angle: 30° without hole Chip Breaker: without Angle: 86° Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; www.metav-shop.de; info@metav-werkzeuge.com 40START indexable-inserts-MGMN CERMET-200-TD-MetavCUT 40END
