Turning Holder – SDJC for DCMT Indexable Inserts by Teknik Makina

The Turning Holder is a precision clamping solution designed for DCMT 11T3 indexable inserts, offering stable support and accurate right-hand turning for workshop and industrial applications.

• Turning Holder for DCMT 11T3 inserts
• SDJCR 1616 ISO shank for secure seating
• 100 mm overall length for versatile reach
• 93° cutting angle for precise right-hand cuts
• 20 mm cutting head width for stable support

Precision clamping that improves cut consistency

Built to accommodate DCMT 11T3 indexable inserts, this toolholder delivers predictable cutting behaviour by ensuring a secure seat and minimal play. The SDJCR 1616 ISO geometry provides a standardized interface that simplifies tool changes and keeps insert alignment consistent, which reduces vibration and supports repeatable surface quality. Technicians benefit from improved finish with fewer adjustments during setup.

Compact dimensions for reliable tool support

With an overall length of 100 mm and a shank profile of 16 mm x 16 mm, the holder offers a compact footprint while maintaining rigidity where it matters. The 20 mm cutting head width is sized to stabilize the insert under load, reducing deflection on longer overhangs. These measured proportions make the component suitable for confined spindle spaces and machining tasks that require both reach and stiffness.

Designed for accurate right-hand turning operations

This clamping solution is optimized for right-hand cutting tasks, using a 93° cutting angle to combine clearance and robust insert engagement. The geometry helps control chip flow and tool engagement, which in turn supports efficient metal removal and predictable tool life. For shops focusing on turning operations, that targeted design translates into fewer unplanned tool changes and steadier cycle times.

Who benefits: workshops, professionals, and precision machinists

Production machinists, toolroom specialists and small industrial workshops gain from this holder’s standardized interface and compact design. The Turning Holder is particularly useful where quick insert swaps and dependable alignment are required, such as short-run part production or prototype turning. For operators seeking a balance between accessibility and rigidity, this toolholder supports precise, repeatable results with common DCMT inserts.

Choose Teknik Makina’s Turning Holder for dependable, workshop-ready clamping — for personalised advice or to confirm compatibility with your machines, contact METAV Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930

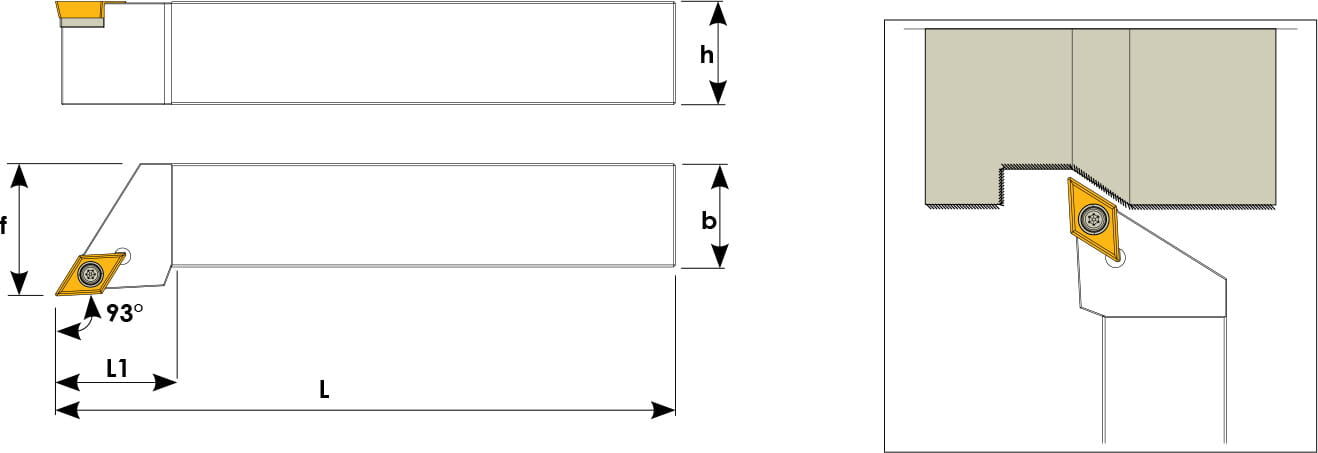

Technical Data

• Bezeichnung: Turning Holder
• Marke/Hersteller: Teknik Makina
• SKU: D224TM
• Compatible Indexable Inserts: DCMT 11T3
• Overall Length: 100 mm
• Weight: 0.204 kg
• ISO Designation: SDJCR 1616
• Secondary Designation: H11
• Width: 16 mm
• Height: 16 mm
• Cutting Head Width: 20 mm
• Cutting Height: 25 mm
• Cutting Direction: right
• Cutting Angle: 93°
• GTIN: 4061905153259
• Manufacturer: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Türkiye, eMail: info@teknik-makina.com
• Responsible Person: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, eMail: info@metav-werkzeuge.com

FAQ

What inserts fit the Turning Holder from Teknik Makina and which insert size is recommended?
The Turning Holder from Teknik Makina is designed for DCMT 11T3 indexable inserts; using standard DCMT 11T3 inserts ensures proper seating and expected cutting performance.

Is the Teknik Makina Turning Holder suitable for right-hand turning only?
Yes, the Teknik Makina Turning Holder is configured for right-hand cutting, utilizing a 93° geometry that supports right-hand turning operations and helps control chip evacuation.

How does the SDJCR 1616 designation affect setup and changeover?
The SDJCR 1616 ISO designation on this Turning Holder guarantees a standardized shank interface, which simplifies setup and accelerates insert changeover in production environments.

Can METAV Werkzeuge advise on whether the Turning Holder fits my machine?
If you are unsure whether this Turning Holder by Teknik Makina meets your requirements, METAV Werkzeuge provides expert consultation — contact them at info@metav-werkzeuge.com or call +49 2822 7131930 for detailed guidance.
