Accurate depth measurement for precision metalworking
Depth measurement tools such as depth gauges and depth callipers are designed to determine the exact depth of blind holes, internal grooves and similar features, providing machinists with reliable results for quality control and fitting tasks. Made from stainless steel or rust‑resistant steel, these gauges ensure durability and long‑term stability while maintaining measurement accuracy across repeated use. Available in analogue and digital variants, users can choose robust vernier instruments or digital models with a 0.01 mm resolution and features like unit switching, preset functions and IP67 protection for harsh environments. With interchangeable probes, hook or double‑hook tips and varying stem lengths and measuring ranges, depth gauges adapt to applications from shallow grooves to deep bores, improving process repeatability and assembly precision.
80mm Digital Depth Gauge With Point Tip, Metal Housing, 0.01mm Resolution, DIN 862, Supplied In Case - Metav IndustryLine
Take advantage of precise micro-depth measurement, rugged stainless-steel construction and a clear digital display for reliable quality control in small-part production; order directly via Metav Werkzeuge or consult the technical team for specification matching. Digital depth gauge M218.032.N — 80 mm range · stainless hardened steel · DIN 862 — Metav IndustryLine The Digital depth gauge M218.032.N is a compact, DIN 862‑compliant instrument designed for accurate depth measurement in fine mechanics, toolmaking and workshop quality checks. Compact 80 mm measuring range, ideal for micro work Stainless hardened steel body with metal housing Digital display 0.01 mm resolution with hold function Supplied in protective transport case Precision and performance for micro measurements The instrument delivers a clear numeric readout with a display resolution of 0.01 mm (and 0.0005 in), enabling repeatable depth readings where small tolerances matter. Conforming to DIN 862, the design focuses on traceable, industry‑standard measurement practice: the hardened stainless steel construction minimises wear, while the compact geometry keeps the measuring beam stable during short, precise strokes. For production environments that require consistent small‑part inspection, this configuration reduces rework and speeds up go/no‑go decisions by providing an objective numeric basis for quality control. Robust construction and straightforward handling for workshop use A welded metal housing and a 3 V power supply combine durability with practical operation: the display features ON/OFF, ZERO, UNIT and HOLD controls for rapid setup and temporary data retention during handling. At approximately 0.28 kg, the gauge remains easy to position yet substantial enough to resist accidental flex. The combination of hardened measuring faces and a rigid bridge gives a dependable contact geometry that reduces operator influence on readings, improving repeatability across batches and shifts and helping to maintain throughput without compromising on accuracy. Traceability, transport protection and suitable application range Classified in the Micro category for its 0–80 mm span, the device is particularly suited to watchmaking, precision fixtures and small assemblies where reach and stiffness must be balanced. An integrated data output (RB 5) supports documentation workflows and integration into measurement stations when digital capture is required. For transport and workshop handling the gauge is supplied in a protective case, which safeguards the calibrated geometry and simplifies storage between measurement tasks, thus preserving measurement integrity over time. For precise micro-depth measurements choose the Metav IndustryLine digital depth gauge M218.032.N — contact Metav Werkzeuge in Emmerich for delivery information and technical details: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: M218.032.N GTIN: 4054469160108 eClass: 21170349 Standard: DIN 862 Label: Digital depth gauge 80 x 50 mm, tip, metal housing, 3 V INOX, DIN 862 Facts Measuring range: 0–80 mm Bridge / depth blade: 50 mm Display resolution: 0.01 mm / 0.0005 in Weight: 0.28 kg Power supply: 3 V Tariff number: 90173000 Special features Hardened stainless steel measuring faces Metal housing for durability Digital display with ON/OFF, ZERO, UNIT and HOLD Data output: RB 5 Supplied in protective transport case Digital instrument, category: depth gauge FAQ What measuring range does this gauge cover? The Digital depth gauge M218.032.N from Metav IndustryLine covers a measuring range of 0–80 mm, classified in the Micro category for compact precision work. What resolution and units are available on the display? The instrument provides a resolution of 0.01 mm and 0.0005 in on the digital display, with selectable units via the UNIT function for straightforward documentation. Is this gauge suitable for fine mechanical or watchmaking tasks? Yes, the Micro classification and 0–80 mm range make the gauge well suited to fine mechanical, watchmaking and small‑assembly inspections where tight tolerances are required. Does the product conform to recognised standards? The device is manufactured to comply with DIN 862, ensuring compatibility with established workshop and inspection procedures. Is there a data interface for measurement logging? The depth gauge includes a data output marked RB 5, enabling digital capture of readings for traceable logging and integration into quality workflows. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
9 mm Depth Gauge With 25 mm Stop, 1.5 mm Probe, Digital, Preset And Reversible Measurement - Metav IndustryLine
Take advantage of a compact measuring instrument that combines high resolution (0.01 mm) with industry-grade accuracy (±0.02 mm) and intuitive operation via preset and reversible measuring direction; order or request advice from Metav Werkzeuge for swift delivery and reliable workshop integration. Digital depth gauge 9 mm, stop 25 mm with measuring pin Ø1.5 mm — Metav IndustryLine The Digital depth gauge 9 mm, stop 25 mm with measuring pin Ø1.5 mm is a compact electronic depth gauge engineered for precise depth checks in small bores and tight workpieces across precision engineering and toolroom environments. Digital display 0.01 mm resolution Compact 9 mm measurement range Preset and reversible measuring direction Measuring pin Ø1.5 mm for small bores Precision in confined spaces improves inspection confidence This compact instrument delivers a 9 mm measurement range with a fine 0.01 mm display resolution and an accuracy of ±0.02 mm, making it ideal where small tolerances matter. The slim measuring stem and Ø1.5 mm measuring pin are engineered for insertion into narrow bores and recesses, permitting repeatable depth checks without adapting fixtures. The electronic readout removes reading ambiguity associated with analogue scales, ensuring faster decisions during quality control and setup tasks. Faster, repeatable measurements reduce cycle time Equipped with a preset function and reversible measuring direction, the gauge allows pre‑setting of reference depths and quick switching between measurement directions for different operation flows. This reduces handling steps and the potential for operator error, supporting lean inspection processes. The device’s lightweight construction and clear digital display contribute to efficient routine checks, so single‑operator measurements can be completed more reliably and with less fatigue. Designed for workshop reliability and straightforward use Built to fit the demands of fine mechanical and workshop use, the instrument combines a robust digital module with a compact mechanical assembly weighing approximately 0.62 kg. The simple control scheme and clear readout make it accessible for staff with varied experience, while the precise mechanics support consistent results across repeated checks. Classification as a micro range depth gauge emphasises suitability for small bores and precision tasks where space and repeatability are decisive. For precision depth checking in small bores, contact Metav Werkzeuge to discuss the Metav IndustryLine digital depth gauge and to arrange purchasing or technical clarification; email info@metav-werkzeuge.com or call +49 2822 7131930. Technical data Article number: M301.053.2 GTIN: 4054469184586 Manufacturer: Metav IndustryLine Facts Measurement range: 0–9 mm Resolution: 0.01 mm Accuracy: ±0.02 mm Weight: 0.62 kg Measuring pin: Ø1.5 × 10 mm Stop length: 25 mm Special features Digital display Preset function Reversible measuring direction Compact micro range for small bores Category: Depth gauges (Messuhren) ECLASS: 21170308 FAQ What is the smallest depth this gauge can display? The gauge displays depths down to 0.01 mm increments; the device’s resolution is 0.01 mm, enabling fine differentiation within its 0–9 mm range. Is the instrument suitable for very small bore measurements? Yes. The slim Ø1.5 mm measuring pin and the compact micro range make it suitable for depth checks in small bores and narrow recesses. How repeatable are measurements with this digital depth gauge? Repeatability benefits from the digital readout and the preset plus reversible measuring direction functions, which reduce handling variation and support consistent measurements. Can the gauge be used for production spot checks? The combination of ±0.02 mm accuracy and fast electronic readout makes the gauge suitable for routine production spot checks and setup verification in precision work. Which brand and SKU identify this instrument? This instrument is the Metav IndustryLine digital depth gauge, SKU M301.053.2, intended for precise depth measurement in small components. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
9 mm Digital Depth Gauge With 16 mm Stop, 1.5 mm Probe, Preset And Reversible Direction, 0.01 mm Resolution - Metav IndustryLine
Take advantage of the combination of compact 9 mm range, 0.01 mm resolution and a slim probe Ø1.5 mm for reliable depth measurements in confined bores; the preset and reversible measuring direction speeds up repetitive checks. Order the depth gauge directly via Metav Werkzeuge or consult our technical advisors if required. Digital depth gauge M301.053.1 — 9 mm range, 0.01 mm resolution (Metav IndustryLine) A Digital depth gauge M301.053.1 designed for precise depth measurement in very small bores and micro‑components, offering a compact format and a robust stop for repeatable positioning. Preset and reversible measuring direction 9 mm measuring range for micro bores 0.01 mm display resolution, 0.02 mm accuracy Probe Ø1.5 mm with 16 mm stop Precise measurement in confined spaces improves inspection reliability This compact depth instrument delivers a 9 mm range tailored to very small bores and fine mechanical components, where access and repeatability matter most. The slim probe Ø1.5 mm (measuring insert Ø1.5 x 10 mm) reaches narrow holes that standard instruments cannot, while the 16 mm stop ensures reliable seating for repeat measurements. The preset feature together with the reversible measuring direction reduces handling steps and secures consistent start conditions, which in practice lowers operator‑induced variation and speeds up batch inspections. Clear digital readout and defined measurement tolerance for quality control Equipped with a digital display and 0.01 mm resolution, the instrument provides legible readings for routine checks and fine adjustments. The specified accuracy of ±0.02 mm corresponds to industrial expectations for compact digital gauges and is suitable for standard workshop quality control. Resolution and accuracy are different: resolution is the smallest step shown on the display, while accuracy describes the maximum deviation expected from the true value. This distinction supports informed decisions when documenting results or comparing to tolerance specifications on inspection sheets. Practical design for the workshop and production floor The gauge's compact design and modest weight (0.62 kg) make it easy to position on a bench or hold steadily for short measuring tasks, without sacrificing stability. A durable digital mechanism and the slim probe reduce the need for specialised fixturing in small‑part work, so setups are quicker and throughput improves. Typical applications include precision drilling checks, mould and tool inspection, electronics housings and watchmaker components — wherever tight access and reliable depth data are required. Metav IndustryLine positions this tool as an affordable precision aid for any workshop seeking consistent micro‑depth control. For professional micro‑depth measurement, request the Metav IndustryLine digital depth gauge through Metav Werkzeuge or contact our consultants at info@metav-werkzeuge.com / +49 2822 7131930 for tailored advice and delivery options. Technical Data Article number: M301.053.1 GTIN: 4054469184579 Manufacturer: Metav IndustryLine Category: Measuring instruments / Dial gauges Core data Measuring range: 0–9 mm Display resolution: 0.01 mm Accuracy: ±0.02 mm Weight: 0.62 kg Probe diameter: Ø1.5 mm Special features Preset function Reversible measuring direction Stop length: 16 mm Measuring insert: Ø1.5 x 10 mm Digital display FAQ What is the smallest depth this gauge can measure accurately? The instrument shows to 0.01 mm and the guaranteed accuracy is ±0.02 mm; for practical purposes depths within the 0–9 mm range are covered with industrial standard repeatability using the Metav IndustryLine digital depth gauge M301.053.1 (SKU M301.053.1). Is the probe suitable for very narrow or deep holes? Yes — the probe Ø1.5 mm with a measuring insert of Ø1.5 x 10 mm is specifically intended for small bores where a larger probe would not fit. How does the preset function help in serial measurements? The preset allows a reference position to be stored so that multiple parts can be measured against the same datum quickly, improving throughput and consistency during repetitive checks. Can this gauge be used in watchmaking and micro‑mechanics? The compact format, slim probe and 9 mm range make the instrument well suited to watchmaking, micro‑mechanical assemblies and similar fine‑precision tasks. What advantages does the reversible measuring direction offer? Reversible measuring direction enables readings to be taken whether the slide is moved in or out, reducing operator handling and avoiding repositioning of delicate parts during measurement. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

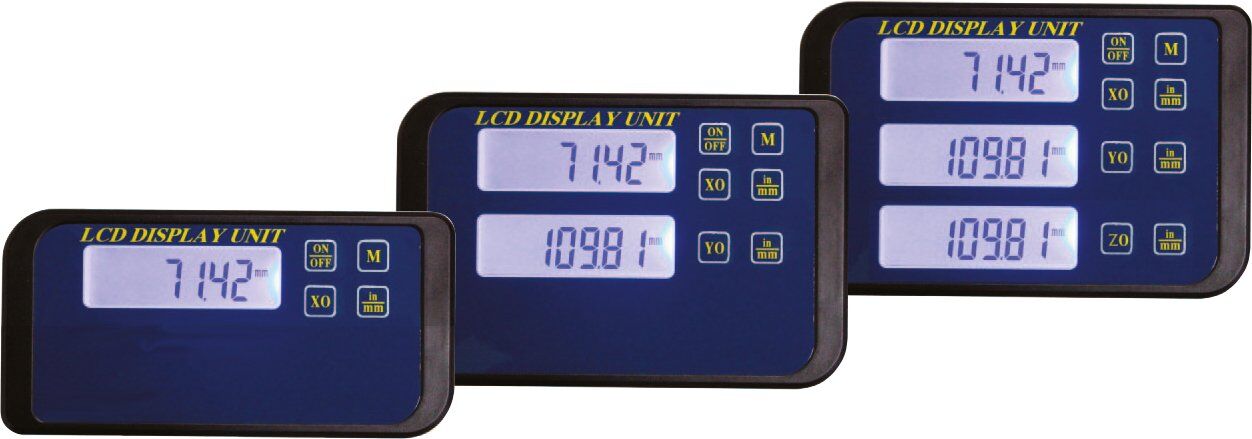

Digital-Anzeige für kapazitives Messsystem
Metav IndustryLine Anzeige mit zuschaltbarer Hintergrundbeleuchtung Zusammenfassung und Technische Daten: Hersteller: Metav IndustryLine Bezeichnung: Anzeige mit zuschaltbarer Hintergrundbeleuchtung Ablesung: 0.01 mm Digitalanzeige: 1x oder 3x je nach Ausführung Ablesung in inch entspricht: 0,0005mm Besonderheit: Rückseite mit Magnet Gewicht: 0,3 kg bis 0,58 kg Messsystem: für kapazitives Zubehör inklusive: mit RS232C-Anschlusskabel, ca. 2m Datenausgang: RB 5 Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren.
Digital-Anzeige für kapazitives Messsystem
Metav IndustryLine Anzeige mit zuschaltbarer Hintergrundbeleuchtung Zusammenfassung und Technische Daten: Hersteller: Metav IndustryLine Bezeichnung: Anzeige mit zuschaltbarer Hintergrundbeleuchtung Ablesung: 0.01 mm Digitalanzeige: 1x oder 3x je nach Ausführung Ablesung in inch entspricht: 0,0005mm Besonderheit: Rückseite mit Magnet Gewicht: 0,3 kg bis 0,58 kg Messsystem: für kapazitives Zubehör inklusive: mit RS232C-Anschlusskabel, ca. 2m Datenausgang: RB 5 Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren.
RB 4 USB-Interface für Dig.-Mikrometer
- Anschluss an PC via USB • mit dem USB-Interface können Messwerte direkt auf den PC übertragen und als Textdatei sowie Exceltabelle gespeichert werdenTechnische Daten- Beschreibung: USB-Interface für Dig.-Mikrometer mit Sende-Taste (Interface hat keine zusätzliche Send-Taste)/ USB interface for dig. micrometer with output key (Interface has no output key)- Länge: 200cm
RB 4.1 USB-Interface für Dig.-Mikrometer
- Anschluss an PC via USB • mit dem USB-Interface können Messwerte direkt auf den PC übertragen und als Textdatei sowie Exceltabelle gespeichert werdenTechnische Daten- Beschreibung: USB-Interface für Dig.-Mikrometer ohne Send-Taste (Interface hat eine Sende-Taste)/ USB interface for dig. micrometer without output key! (Interface has one output key)- Länge: 200cm
RB 4.1 USB-Interface für Dig.-Mikrometer
- Anschluss an PC via USB • mit dem USB-Interface können Messwerte direkt auf den PC übertragen und als Textdatei sowie Exceltabelle gespeichert werdenTechnische Daten- Beschreibung: USB-Interface für Dig.-Mikrometer ohne Send-Taste (Interface hat eine Sende-Taste)/ USB interface for dig. micrometer without output key! (Interface has one output key)- Länge: 200cm
Up to 10m Bluetooth Interface for RB6 Caliper, Transmitter With PC Receiver, Acoustic Confirmation, Auto Shut‑Off - Metav IndustryLine
Take advantage of wireless measurement logging, acoustic confirmation of each transfer and automatic power‑saving to speed up workshop routines while reducing manual entry errors. Order the device directly via Metav Werkzeuge or consult the technical team for integration support. Bluetooth Interface for Calipers, RB 6 — Transmitter with Bluetooth Receiver (Metav IndustryLine) The Bluetooth Interface for Calipers, RB 6 connects RB6‑equipped calipers to a PC, enabling wireless measurement transfer and streamlined data capture for inspection and production workflows. Wireless data transfer via Bluetooth Acoustic confirmation of data transmission Automatic power‑off to save battery Compatible with RB6 interface calipers Faster, error‑reduced data capture for metrology workflows The Bluetooth connection provides reliable data transfer from RB6‑equipped measuring devices straight to a PC, reducing manual transcription and its associated errors. Integration of the transmitter and Bluetooth receiver shortens the time between measurement and recording, which is particularly valuable in repetitive quality checks and batch inspections. Acoustic confirmation on successful transmission gives a clear operational cue, while the automatic shutdown preserves battery life, supporting continuous use across shifts without frequent battery replacement. Compact, lightweight design that fits the workshop Designed for straightforward incorporation into existing measurement setups, the unit is compact and lightweight (approx. 0.2 kg), so it does not interfere with handling or storage of precision tools. The transmitter is intended for direct connection with PC systems equipped with the supplied receiver, enabling a practical link between handheld measurement and digital logging. The minimal footprint and audible feedback make the interface suitable for bench use and production lines where clear confirmation and unobtrusive operation are required. Practical suitability for inspection and production environments As an accessory for RB6‑compatible calipers, the interface supports common metrology tasks such as dimensional checks and routine quality control. By transferring readings wirelessly and confirming each transfer acoustically, measurement routines become more reproducible and auditable. The automatic power management helps maintain readiness without constant user intervention, which benefits busy inspection stations and small to medium‑sized manufacturing shops looking to modernise data capture without complex network changes. Contact Metav Werkzeuge today for specialist advice on integrating the Metav IndustryLine Bluetooth interface RB 6 into existing measurement processes and to request procurement support Technical data Article number: M220.263 GTIN: 4054469146416 SKU: M220.263 eCl@ss: 19050110 Tariff code: 90179000 Numbers / Core technical data Weight: 0.2 kg Special features Suitable for calipers with RB6 interface Data transmission with acoustic confirmation Automatic shutdown for battery conservation Transmitter for PC with Bluetooth receiver No dimensions specified FAQ How does the interface connect to a PC? The interface transmits measurement data via Bluetooth to the supplied receiver, which is connected to the PC for direct logging of readings. Is the unit compatible with all calipers? The device is compatible specifically with calipers that have an RB 6 interface; it is intended as an accessory for those measuring instruments. Does the interface indicate successful data transfer? Yes, the interface provides an acoustic confirmation on successful transmission so operators have immediate feedback. Will the interface drain batteries quickly during long shifts? The interface includes an automatic shutdown function to conserve battery life and reduce downtime from battery changes. What support is available for installation and setup? Metav Werkzeuge can provide technical advice and guidance for integrating the Metav IndustryLine interface into existing measurement setups. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
USB Interface for ABS Measuring Instruments With German Decimal Comma, SPC C-04 - Metav IndustryLine
Take advantage of a compact USB solution that transfers measurements from an absolute measuring system using the German decimal‑comma format and RB 6 data output, reducing manual entry and improving traceability. Order the M220.281.D interface directly via Metav Werkzeuge or consult the team for integration support. M220.281.D USB interface — for ABS measuring instruments, German decimal‑comma output (Metav IndustryLine) A M220.281.D USB interface that links absolute measuring instruments to PC systems, delivering measurement data in the German decimal‑comma format and using the RB 6 data output for streamlined data logging Compatible with ABS (absolute) measuring systems German decimal‑comma export format RB 6 data output for PC integration Lightweight 0.06 kg compact design Fast, reliable data transfer for quality workflows The interface provides a direct USB connection to PC environments, enabling automatic transfer of readings from absolute measuring systems. By exporting values in the German decimal‑comma format and via the RB 6 output, the module reduces transcription errors and shortens inspection cycles. This rational advantage translates into fewer data corrections, faster statistical process control entries and a more efficient audit trail for production and quality teams. Consistent numeric formatting for downstream systems Delivering measurements with the German decimal‑comma separator ensures numerical values are parsed correctly by regionally configured software and spreadsheets. The device’s adherence to the expected data format prevents misinterpretation of decimal places when importing into local quality management tools. The small footprint and 0.06 kg weight mean the interface integrates neatly into bench setups without occupying valuable workspace, supporting reliable record keeping in production and inspection areas. Minimal footprint, maximum integration potential Designed as an accessory for digital measuring instruments, the interface focuses on pragmatic benefits: compact handling, simple USB connectivity and predictable data output via RB 6. This makes it suitable for serialising measurement data, linking inspection stations to PC‑based logging and reducing manual intervention. The product also supports standard measurement workflows in workshops and labs where regional numeric formats must be preserved for traceability and compliance. Contact Metav Werkzeuge today for application advice, compatibility checks and to order the M220.281.D USB interface from the Metav IndustryLine range. Technical data Article number: M220.281.D GTIN: 4054469182988 Weight: 0.06 kg Manufacturer: Metav IndustryLine ECLASS: 19050111 Facts Weight numerical value: 0.06 kg ECLASS code: 19050111 GTIN numeric code: 4054469182988 Special features Measurement system: Absolute Data output: RB 6 Label information: USB interface for measuring instruments German regional data format with decimal comma Compact accessory for PC connection FAQ What types of measuring systems are supported? The M220.281.D interface supports absolute measuring systems and is made for use with ABS‑type digital measurement equipment. How is the numeric data exported? Measurement values are exported in the German decimal‑comma format and transmitted via the RB 6 data output to the connected PC. Which interface and protocol are used for data transfer? Data transfer is performed over USB and delivered using the RB 6 output specification. Is the interface suitable for integration into SPC workflows? Yes, the M220.281.D is designed to feed measurement data directly into PC‑based logging and SPC tools, preserving the regional decimal format for accurate processing. What is the physical weight of the unit? The interface weighs 0.06 kg and has a compact design suitable for bench or workstation integration. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
USB Interface for Digital Caliper/Data Transfer To PC, Capacitive System, 95cm/100cm Cables - Metav IndustryLine
The combination of direct data transfer, a capacitive measurement interface and compact cabling speeds up documentation and reduces transcription errors in quality workflows; order the accessory directly via Metav Werkzeuge or consult the Metav team for integration advice. USB-Interface for measuring device M220.281.1 — Capacitive-system USB adapter, PC data export The USB-Interface for measuring device M220.281.1 is a compact data adapter that links select capacitive digital measuring instruments to a PC for immediate data capture and file export. Direct transfer of readings to PC Saves data as text and Excel files Compatible with capacitive measuring systems Compact cabling: PC ~95 cm, device ~100 cm Faster, error‑reduced documentation for inspection routines The interface enables direct data transfer from a capacitive digital gauge to a computer, removing manual entry and cutting the risk of transcription mistakes. When paired with the specified SPC models (216.171–216.173 SPC A and C‑04/C‑01), this adapter converts each measurement into a digital record that can be stored as a text file or an Excel spreadsheet, accelerating reporting and improving traceability for production control and incoming inspection. Compact, dependable connection that integrates with existing test benches Designed for simple integration, the adapter uses a capacitive system connection and a standard USB connection to the PC. The supply includes a cable to the PC (approx. 95 cm) and a cable to the instrument (approx. 100 cm), keeping the installation neat and avoiding cable clutter on the bench. The lightweight construction supports tidy handling and straightforward mounting near digital instruments, making it suitable for busy workshops where space and reliability matter. Better workflow and data handling for quality assurance By exporting measurements directly into files, the device reduces repetitive tasks and enables rapid statistical analysis or batch documentation. The adapter is an accessory tailored for precise, repeatable data capture and is particularly useful where regular logging of dimensions is required. Integration with measurement software or simple import into quality spreadsheets supports faster decision-making and consistent audit trails for manufacturers and inspection teams. For advice on integrating the USB interface into measurement processes or to confirm compatibility with existing instruments, contact Metav Werkzeuge for guidance and order support Technical data Article number: M220.281.1 GTIN: 4054469163086 Weight: 0.06 kg System: capacitive Tariff number: 90179000 ECLASS: 19050111 Facts Cable to PC: approx. 95 cm Cable to measuring device: approx. 100 cm Intended models: only for 216.171–216.173 SPC A + C‑04/C‑01 Category: Accessory (measuring devices) Special features Direct transfer of measured values to PC Saves data as text file and Excel spreadsheet Compact, lightweight adapter for bench use FAQ Which instruments are compatible with this USB adapter? The USB-Interface for measuring device M220.281.1 is designed exclusively for the specified SPC models 216.171–216.173 SPC A and C‑04/C‑01; compatibility beyond these models is not guaranteed. How are measurement values stored on the PC? Measurement values are transferred directly and can be saved either as a text file or as an Excel spreadsheet for further processing and archiving. Are cables included with the adapter? Yes, the delivery includes a cable to the PC (approx. 95 cm) and a cable to the measuring instrument (approx. 100 cm), as described in the product information. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
USB Interface for Measuring Device - Metav IndustryLine
Reliable PC integration and a German comma decimal format make this USB interface ideal for workshop data capture; its RB 6 output and compact 60 g form factor enable simple, low-effort connection to specific digital measuring devices. Order the USB interface directly via Metav Werkzeuge or ask our consultants if needed. M220.281.1D USB interface — USB data adapter for digital measuring devices (German comma format, RB 6) The M220.281.1D provides a straightforward USB link between selected digital calipers and a PC, transmitting measurements in German data format with a comma as the decimal separator for seamless integration into localised workflows Compatible with models 216.171–216.173 German data format, comma decimal RB 6 data output protocol Compact, lightweight 60 g interface Reliable, error‑reducing data transfer for production measurement The USB interface converts digital readings from compatible instruments into a PC‑ready stream, reducing manual transcription and improving traceability during production control. By outputting values in the German data format with a comma decimal separator, the interface avoids localisation mismatches when importing values into spreadsheets or databases, which is especially relevant in environments that require consistent numeric formatting. The concise design supports repeatable workflows and quicker data capture for routine quality checks. Technical compatibility and practical handling in the workshop Designed for the specified device series, the adapter communicates via the RB 6 data protocol and links devices using the instruments' capacitive measurement system. This means measured values are transmitted directly from the sensor electronics to the host computer, preserving resolution and eliminating manual conversion errors. The unit's compact 60 g weight and small footprint make it unobtrusive at the inspection bench while simplifying storage and deployment across multiple workstations. Integration into standard data‑logging routines is straightforward thanks to the native USB connection. Why this accessory supports reliable metrology processes Small accessories can have a disproportionate effect on measurement efficiency: consistent numeric formatting, protocol compatibility and a lightweight form factor together streamline data capture and reduce downstream correction work. Sourcing this accessory from a known precision partner ensures that it complements established measuring equipment and supports industrial documentation practices without unnecessary complexity. Contact Metav Werkzeuge for technical details and ordering of the M220.281.1D via Metav Werkzeuge’s sales team in Emmerich Technical Data Article number: M220.281.1D GTIN: 4054469182971 Manufacturer: Metav IndustryLine ECLASS: 19050111 Facts Weight: 0.06 kg Data output: RB 6 Measurement system: Cap Special features Compatible with models 216.171–216.173 German data format, comma as decimal separator For connection of digital calipers, depth gauges and micrometers Category: Measuring devices / Accessories FAQ Is this interface compatible with other measuring devices? The M220.281.1D is specified for use with models 216.171–216.173; compatibility outside these models is not guaranteed. How does the interface handle decimal separators? The interface transmits values in the German data format, using a comma as the decimal separator, preserving local numeric conventions. What does RB 6 mean for data transfer? RB 6 denotes the data output protocol used by the connected devices; the adapter passes measurement values via this protocol to the host system. Can the adapter be used for straightforward data logging on a PC? Yes, the adapter provides USB output suitable for direct capture into logging software or spreadsheets that accept the device's numeric format. Is the interface suitable for mobile workshop use? With a compact 60 g construction, the adapter is lightweight and convenient for bench use and for moving between test stations when required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
USB Interface For Measuring Device 95cm/100cm Cables, Data Export To Text/Excel, Absolute System SPC C-04 - Metav IndustryLine
Take advantage of direct PC connectivity, seamless data export and compact handling to speed up documentation and SPC processes; the interface reduces manual entry and improves traceability. Order the USB interface for measuring device (ABS system SPC C-04) directly via Metav Werkzeuge or ask our consultants if needed. USB interface for measuring device — ABS system SPC C-04, USB PC connection The USB interface for measuring device (ABS system SPC C-04) enables direct transmission of measurement values to a PC, simplifying documentation and statistical process control for workshops and inspection stations. Direct PC data transfer via USB Compatible with ABS SPC C-04 system Includes PC and device cables (~95/100 cm) Exports measurements as text and Excel files Speed up data capture and reduce transcription errors The USB interface transforms manual logging into automated capture: measurement values are transferred immediately to a PC and stored as a text file or Excel spreadsheet, which streamlines quality reports and shortens processing time. For production and inspection environments this direct data transfer reduces human error and accelerates traceability; fewer entry steps mean less rework and faster feedback loops. The compact unit and included cable set make integration into existing test benches straightforward. Reliable compatibility with absolute measurement systems Engineered specifically for the ABS system protocol, the interface is designed to communicate cleanly with devices that use the SPC C-04 standard. This ensures consistent signal interpretation and avoids the compatibility issues that can arise with generic converters. The clear system match supports established SPC workflows and prevents data format mismatches that would otherwise require custom software adjustments. Simple integration and practical data handling The interface includes two cables (one to the PC, one to the measuring instrument) with approximate lengths of 95 cm and 100 cm, allowing flexible placement without additional adapters. Measurement results can be saved directly as plain text or Excel files for immediate use in statistical analysis or quality documentation. The solution therefore supports rapid archiving, easy transfer into databases and uncomplicated handover to quality management systems. Compact design for the workshop environment With a low mass and modest dimensions the device is unobtrusive at the measuring station; it fits beside calipers and depth gauges without restricting movement. The lightweight construction reduces strain on mounting points and keeps bench layouts tidy while maintaining reliable electrical connection. The interface is a focused accessory for labs and workshops that aim to make measurement data collection more robust and repeatable. Contact Metav Werkzeuge for compatibility verification and secure the USB interface M220.281 for efficient PC data capture; reach our Emmerich team at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: M220.281 GTIN: 4054469158426 Eclass: 19050111 Tariff number: 90179000 Manufacturer: Metav IndustryLine Facts Weight: 0.06 kg Cable to PC: approx. 95 cm Cable to measuring device: approx. 100 cm Special features USB interface for ABS system SPC C-04 Direct data transfer to PC Save measurement data as text and Excel Includes connection cables FAQ Is this interface compatible with other measurement systems? This interface is designed specifically for the ABS system and communicates with devices using the SPC C-04 protocol; it is not a universal converter. Which file formats are created by the interface? Measurement results from the USB interface are saved as plain text files and as Excel spreadsheets for immediate use in documentation or SPC tools. What cable lengths are supplied with the interface? The package includes two cables: the connection to the PC is approximately 95 cm and the cable to the measuring device is approximately 100 cm. What is the product SKU and where is it listed? The interface is listed under SKU M220.281 and GTIN 4054469158426 for ordering and inventory purposes. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Zusatz-Anschlusskabel für 220.212/220.213 - Metav IndustryLine
Technical Data:Manufacturer:Model:
Achieve reliable depth measurement with robust depth calipers
Depth calipers, commonly used for depth measurement and depth gauging, are precision tools designed to determine the depth of blind holes, inner grooves and similar features. These instruments use a slender measuring rod which is inserted into the recess so that the depth can be recorded to the underside of the workpiece with high repeatability.
How depth calipers work and where they belong in the workshop
Primarily constructed from stainless steel, depth calipers resist wear and deformation, ensuring stable accuracy even after prolonged use. The measuring rod is guided by a sled or rail and locked in position to read the distance from the reference face to the deepest point. They are indispensable for checking non-through holes, internal grooves and stepped recesses during machining, assembly and quality control processes.
Clear advantages that improve shopfloor efficiency
- Faster, repeatable checks thanks to a guided measuring rod and clear readout, reducing inspection time and rework.
- Wide selection of measuring ranges and leg lengths — from compact 45 mm legs up to 150 mm legs, and measurement capacities from up to 100 mm up to 300 mm, so the right tool fits each task.
- Choice of analogue or digital models: analogue calipers with vernier offer 0.03–0.08 mm accuracy and battery-free operation; digital models provide 0.01 mm / 0.0005 in resolution and typical accuracy of ±0.03 mm.
- Enhanced functionality on digital variants such as preset start, unit conversion (mm/in), automatic on‑off and models with IP67 protection for use in wet or dusty environments.
- Interchangeable measuring tips (flat, spherical, disc) and specialised hooks or double hooks for grooves increase versatility for complex geometries.
Metav as your precision partner in depth measurement
Metav combines decades of sector expertise with a broad, quality-controlled assortment, acting as a practical single source for precision tools. Based in Emmerich, Metav supplies the european market from a centralised quality filter and has built trust with over 48,000 customers. With more than 250,000 products available, Metav simplifies procurement and helps reduce supplier complexity while ensuring consistent availability.
In short: dependable tools for exact depth measurement
Depth calipers and depth measurement tools offer a straightforward, durable solution for precise depth checks across production and maintenance environments, delivering reliable readings and adaptable functionality for diverse workshop demands.
FAQ
What is the difference between analogue and digital depth calipers?
Analogue depth calipers use a vernier and typically achieve 0.03–0.08 mm accuracy without batteries, making them robust for harsh conditions. Digital depth calipers offer 0.01 mm / 0.0005 in resolution, easy unit switching and extras such as preset functions and automatic on‑off, with typical accuracy of ±0.03 mm.
Can depth calipers be used in wet or dusty environments?
Yes. Some digital depth calipers are rated IP67, providing dust-tight and temporary immersion protection so measurements remain reliable under adverse shopfloor conditions.
Which measuring range should I choose for blind hole inspection?
Select a depth caliper with a measuring range that exceeds the maximum blind hole depth you need to check; compact models suit depths up to 100 mm, while larger calipers cover ranges up to 300 mm. Also consider measuring leg length — common options include 45 mm to 150 mm — to ensure accessibility and stability during measurement.
Are there specialised tips for measuring uneven or grooved surfaces?
Yes. Depth calipers can be fitted with flat, spherical or disc‑shaped tips, and there are designs with single or double hooks or a round depth rail specifically for grooves, enabling accurate contact with irregular or recessed features.
