Precision marking tools for accurate setup and machining
Precision marking tools such as scribing sets and scribers are essential for laying out work in metalworking and woodworking, enabling machinists and fitters to transfer exact lines and points for drilling, milling and cutting. These tools serve to produce fine reference lines on materials like metal, wood and plastic, ensuring correct alignment and repeatable results when combined with a precision caliper or other measuring aids. Using a quality scriber, scribing set and precision caliper improves setup speed, reduces setup errors and supports consistent tolerances across batches.
8.9x8.9 mm Carbide Scriber Tip 84x37 mm Clamp 8.9x20 - Metav IndustryLine
Take advantage of a solid carbide scribing pin that combines durable material and precise dimensions for repeatable layout work; its secure clamping interface reduces downtime and ensures stable marking. Order the replacement directly via Metav Werkzeuge or consult our specialists for fit verification. HM carbide scribing pin M219.096.A0 for height gauges — solid carbide, 8.9×8.9 mm head The HM carbide scribing pin M219.096.A0 is a replacement scribe tip designed for use with compatible digital and mechanical height gauges, offering a robust carbide tip and a precise clamping profile for workshop layout and marking tasks. Solid carbide tip for durable scribing Compatible with models 219.096 and 219.098 Precise 8.9×8.9 mm head for repeatable marks Secure 8.9×20 mm clamping for firm retention Consistent, industrial-grade marking for layout tasks The replacement scribe delivers consistent scribing by combining a wear-resistant solid carbide tip with a compact head profile of 8.9×8.9 mm, which produces repeatable, fine lines on a range of workpiece surfaces. This makes the component well suited to assembly preparation, tool setting and quality-control layouts where the predictability of the mark directly supports downstream machining steps. The use of carbide reduces the rate of wear compared with steel tips, extending service intervals and maintaining line quality across many parts. Designed for compatibility and secure retention Compatibility with established gauge models is a primary benefit: the part is specified for use with models 219.096 and 219.098 and features a dedicated 8.9×20 mm clamping interface that mates with the original holders. This secure clamping prevents lateral play during marking and simplifies replacement: the defined clamping geometry preserves alignment so that marks remain consistent after a tip change. For workshops juggling several gauges, the standardised fit reduces setup time and supports uninterrupted production. Material choice explained — why carbide matters Carbide is selected for its high hardness and resistance to abrasion; in practice this means a longer service life and steady line definition even when marking harder or abrasive materials. Where layout accuracy contributes directly to machining quality, the stability of the scribe edge avoids the creeping of tolerance stacks. In addition, the compact head dimensions and overall length (84 mm) ensure the scribe remains manageable in hand and compatible with most height-gauge holders, while the robust construction withstands regular workshop handling. Maintenance and workshop integration Routine maintenance is straightforward: inspect the tip for rounding and replace when line clarity diminishes. The component’s uncomplicated geometry allows rapid swaps with the original holder, restoring factory alignment without special tools. When paired with a calibrated height gauge, the scribe supports repeatable set-ups and clear transfer of reference lines — a pragmatic choice for machinists seeking operational reliability rather than frequent rework. For a durable, precision-tested scribing solution, request the M219.096.A0 replacement pin from Metav Werkzeuge and ask our advisors about compatibility with existing gauges and holders Technical data Article number: M219.096.A0 GTIN: 4054469168760 Category: Height gauges > Height scribers Manufacturer: Metav IndustryLine Facts Tip head: 8.9×8.9 mm Overall length: 84 mm Secondary height: 37 mm Clamping interface: 8.9×20 mm Weight: 0.1 kg Tariff number: 90179000 Special features Solid carbide scribing pin Compatible with models 219.096 and 219.098 Image asset available (m219096a0-main.jpg) ECLASS: 21049238 SKU: M219.096.A0 FAQ Is this scribing pin compatible with other height gauges? The scribing pin is specified for models 219.096 and 219.098; the fixed 8.9×20 mm clamping standard may fit other holders with the same interface, but compatibility should be confirmed against the gauge holder dimensions. What material is used for the tip and why is it beneficial? This part uses a solid carbide tip, chosen for high hardness and abrasion resistance that maintains sharp scribe lines longer than standard steel tips, reducing frequency of replacement for the M219.096.A0 scribing pin. How is the part installed and secured in the holder? Installation uses the defined clamping interface (8.9×20 mm); the design ensures firm retention and alignment when fitted into the original holder for models 219.096 and 219.098. How can one tell when the scribing pin needs replacement? Replace the scribing pin when marks lose sharpness or become indistinct; worn edges on the tip will degrade line quality and influence layout accuracy for subsequent machining. Does the pin have any protective coating or special finish? The product is supplied as a solid carbide scribing pin; no additional coating information is specified in the product data for M219.096.A0. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

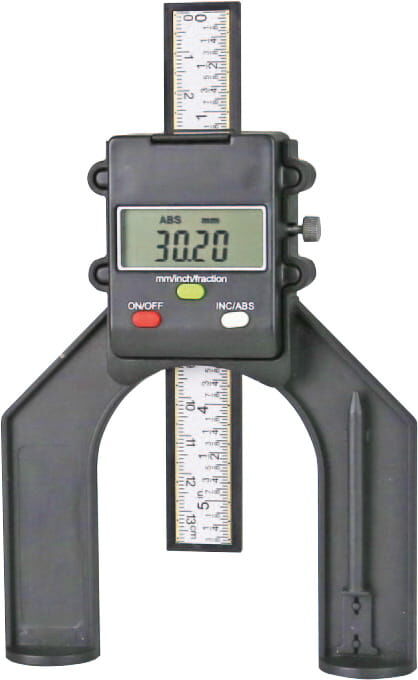

80mm Digital Height Setter With Magnetic Stop, On/Off Mm/Inch Zero Display - Metav IndustryLine
Take advantage of the combination of a precise 0–80 mm measuring range, a digital display with 0.01 mm resolution, and a magnetic stop for repeatable setups; these features speed up machine changeovers and reduce setup errors. Order the device directly via Metav Werkzeuge or consult our advisors for application-specific guidance. Digital height setting device 0 - 80 mm M218.092 — Metav IndustryLine digital height gauge with magnetic stop The Digital height setting device 0 - 80 mm M218.092 is a compact, workshop-oriented height gauge designed for fast and reliable adjustment of router cutters and table-saw blades, offering a straightforward digital readout and secure magnetic positioning Digital display with mm/inch and zero Magnetic stop for secure positioning 0–80 mm range for router and table saw Faster, repeatable cutter and blade setting for daily production Setting cutter heights and saw blade positions is a frequent but critical task in any woodworking or routing workflow. The digital display with a 0.01 mm resolution ensures that adjustments can be made with measurable repeatability rather than by eye or feel, which reduces the risk of rework. The instrument’s compact design keeps the adjustment path short and intuitive, enabling technicians to make reliable changes in a fraction of the usual time. As a result, machine downtime is lowered and throughput becomes more predictable. Secure positioning and stable handling for consistent results A magnetic stop secures the gauge against ferrous mounting points and prevents unwanted movement during adjustment, which directly improves the consistency of repeated setups. The unit’s mass—approximately 1.35 kg—contributes to a stable feel during operation, so the height setting remains steady while the final locking is performed. Together, these traits provide a robust foundation for repeatable processes in both small workshops and busier production environments, where even modest improvements in setup repeatability translate to measurable efficiency gains. Simple controls that reduce operator error and speed training Operation is kept deliberately straightforward: the display includes ON/OFF, mm/inch and zero functions to accommodate different measurement preferences and to enable quick re-zeroing at datum points. Clear, tactile controls make the instrument easy to teach to new operators and reduce the probability of input mistakes. The option to toggle imperial and metric readings (with an inch resolution of 0.0005 in) gives flexibility for mixed-spec projects and helps maintain a consistent workflow across different teams and documentation standards. Workshop-ready design focused on practical use Engineered for routine workshop tasks such as adjusting router depth and setting table-saw blade height, the gauge is conceived as a practical accessory rather than a laboratory tool. The robust, no-frills construction concentrates on the functions that matter most during repetitive setup tasks: clear readout, secure positioning and uncomplicated operation. This focus on pragmatic performance supports faster cycle times and fewer interruptions for verification, which benefits both craft shops and industrial workshops looking to streamline standard operating procedures. Contact Metav Werkzeuge for tailored advice on integrating the Metav IndustryLine digital height setting device into existing workflows — email info@metav-werkzeuge.com or call +49 2822 7131930 to discuss compatibility and ordering Technical data Article number: M218.092 GTIN: 4054469151991 Brand: Metav IndustryLine Facts Measuring range: 0–80 mm Resolution: 0.01 mm Resolution (inch): 0.0005 in Weight: 1.35 kg Special features Digital display with ON/OFF, mm/inch and zero Magnetic stop for positioning Suitable for setting saw blades and router depths Category: Anreisszeuge FAQ How large is the measurement range of the device? The Digital height setting device 0 - 80 mm M218.092 has a measuring range of 0–80 mm, making it suitable for typical router and table-saw adjustments. Can the readout be switched between metric and imperial units? Yes, the unit includes a mm/inch function so the display can be toggled; the device provides a 0.01 mm resolution and a 0.0005 in reading in imperial mode. What does the magnetic stop do for workshop use? The magnetic stop secures the gauge to ferrous mounting points, ensuring repeatable positioning during setup and reducing the risk of movement while locking a cutter or blade in place. Is the instrument suitable for professional workshop workflows? Yes, the gauge is designed for practical, repeatable adjustment tasks in workshops and production settings and is especially useful for setting router cutters and table-saw blades. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
90mm Pencil Lead D=2mm Hardness H, Pack of 10 - Metav IndustryLine
Take advantage of durable 2 mm leads with H hardness and a practical 90 mm length for consistent scribing and reduced rework; order directly via Metav Werkzeuge or contact our consultants for compatibility advice. Pencil lead for 214.035.N — 2 mm, H hardness (Metav IndustryLine) Pencil lead for 214.035.N designed as a refill for precision marking tools in workshops and production environments, providing consistent line quality for layout and scribing tasks. 2 mm diameter for robust, clear lines H hardness for precise, lasting marks 90 mm length for extended service life Consistent marking for production use These 2 mm marking refills deliver a uniform line that supports repeatable layout work on the shop floor. The H hardness produces a fine, controlled stroke that resists smudging while remaining visible for machining and assembly reference. Because the refills are 90 mm long and supplied as a pack of 10, downtime for replacement is minimised and workflow continuity is supported. The robust core diameter ensures good feed behaviour in mechanical holders and reduces breakage compared with thinner leads. Compatibility and practical handling benefits Designed for use with the compatible mechanical pencil model 214.035.N, the refills slot into existing holders without modification, simplifying stock management. The extended length allows several uses per refill before replacement, which reduces the frequency of tool servicing. The combination of 2 mm diameter and H hardness offers a balance between durability and precision, suitable for repetitive marking where line clarity and reproducibility matter most. Manufactured consistency and workshop reliability Metav IndustryLine production tolerances ensure each refill performs predictably when used in standard marking tools. Uniform core diameter and hardness classification result in consistent contact pressure and line thickness across multiple refills, helping to reduce measurement and layout errors that can lead to rework. The plain, compact packaging keeps spares organised in a toolbox or at a workstation for quick access. Efficient supply for everyday marking tasks A practical pack size of ten refills keeps resupply intervals economical and straightforward. The small weight and compact dimensions make storage and transport simple for workshop logistics, while the standardised dimensions mean spares are interchangeable across compatible holders. For procurement teams this means fewer SKU complexities and a dependable consumable for routine layout and scribing operations. For tailored advice on integrating Metav IndustryLine replacement leads into existing marking tools or to arrange a supply for your workshop, contact Metav Werkzeuge directly via info@metav-werkzeuge.com or by telephone; our consultants will advise on compatibility and delivery. Technical data Article number: M214.035.4 GTIN: 4054469182803 Brand: Metav IndustryLine Facts Diameter: 2 mm Length: 90 mm Weight: 0.001 kg ECLASS: 21049238 Special features Hardness: H Pack quantity: 10 refills Compatible with model 214.035.N FAQ What diameter are the leads and how durable are they? The leads are 2 mm in diameter; this thicker core gives robust performance and fewer breaks compared with finer refills, which improves handling during layout work. Which tool fits these refills? These refills are made for the holder referenced as 214.035.N; the Metav IndustryLine pencil lead M214.035.4 is fully compatible and fits without adjustment. How many refills are supplied and what is their length? The pack contains ten refills, each 90 mm long, providing extended use before replacement is required. What does the H hardness mean for marking? H hardness indicates a firmer core that produces precise, fine lines which are less prone to smudging—suitable for clear layout marks that must remain visible during machining. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Ø5x60 Scriber Needle for Digital Marking Gauge, 5 mm x 60 mm - Metav IndustryLine
Take advantage of the Ø 5 x 60 mm tip and model compatibility to ensure reliable, repeatable layout marks in daily workshop routines; the lightweight design minimises handling fatigue and keeps marking precise. Order this replacement scribing needle directly via Metav Werkzeuge or contact their consultants for technical clarification. Scribing needle M240.152.A1 — replacement tip, Ø 5 x 60 mm (Metav IndustryLine) Scribing needle M240.152.A1 is a precision replacement tip designed for use with compatible layout tools, providing a compact marking solution for workshop and metalworking tasks. Ø 5 x 60 mm tip size Compatible with models 240.152 and 240.153 Lightweight: approx. 10 g Consistent, measurable layout marks for shop-floor accuracy The compact Ø 5 x 60 mm geometry delivers a defined contact point that helps create consistent scribe lines on metal and other typical layout surfaces. Because the tip provides a narrow, stable contact radius, routine marking becomes more repeatable, reducing the need for corrective work and improving throughput. This measurable precision benefits quality control processes where clear, reproducible lines support efficient downstream operations and machining set-up. Low weight and straightforward replacement for efficient workflows Weighing approximately 10 g, the replacement tip contributes negligible additional mass to the marking instrument, which reduces operator fatigue during prolonged layout sessions. The design focuses on quick exchangeability with the specified layouts, enabling fast maintenance cycles and minimal downtime. The combination of small mass and straightforward fitment supports higher process reliability in busy workshops and on production benches. Suited to workshop and metalworking applications where control matters This replacement scribing needle is intended for standard layout and scribing tasks in metalworking, toolmaking and general workshop use. The compact form factor makes it suitable for tight access points and for marking detailed features on components prior to machining. Craftspeople and industrial operators benefit from the combination of compatibility and small form factor when preparing precise datum lines or transferring measurements to workpieces. Contact Metav Werkzeuge for a technical match to existing layout tools or to order this Metav IndustryLine replacement scribing needle via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: M240.152.A1 GTIN: 4054469178370 Weight: 0.01 kg Dimensions: Ø 5 x 60 mm Customs tariff number: 90173000 Facts Diameter: 5 mm Length: 60 mm Weight: 0.01 kg Special features Compatible with models 240.152 and 240.153 Category: marking tools / scribing accessory SKU: M240.152.A1 FAQ Which models is this replacement tip compatible with? The replacement scribing needle is compatible with layout tools designated as models 240.152 and 240.153 and is supplied under SKU M240.152.A1. What are the exact dimensions and weight of the tip? Dimensions are Ø 5 x 60 mm and the mass is approximately 0.01 kg for the replacement scribing needle. For which tasks is this scribing needle most suitable? The tip is suitable for precise layout marking in metalworking, toolmaking and general workshop applications where narrow, repeatable scribe lines are required. Is this a permanent tool or a replaceable consumable? The component is designed as a replaceable scribing tip for the compatible layout instruments, enabling simple replacement when wear affects marking quality. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Precision marking that speeds up workshop tasks
Marking tools are the foundation of accurate fabrication and repeatable setup in industrial workshops. From scribing parallel lines on metal to laying out joinery on timber, the right marking tools ensure cuts, drills and mill passes start from a clear, reliable reference.
How these tools perform on the shop floor
A typical set of marking tools includes the scriber, the scriber needle, the precision caliper and the marking gauge. Each instrument serves a defined purpose: the scriber and scriber needle create fine guide lines for drilling and milling; the precision caliper measures and transfers exact distances for internal and external features; the marking gauge produces parallel lines on wood and other sheet materials. Used correctly, these instruments reduce rework by turning layout into a measurable, repeatable process.
Practical benefits that matter in production
- Improved accuracy for millimetre work, enabling tighter tolerances and more first-pass success.
- Reduced setup time through repeatable marking and rapid transfer of dimensions.
- Versatility across materials — suitable for wood, metal and plastics.
- Ease of use: simple handling of the scriber needle and intuitive adjustment on the precision caliper speeds routine tasks.
- Better quality control: clear, durable scribed lines act as unambiguous guides during cutting, drilling and finishing.
Why Metav is the sensible sourcing partner
Metav stands for democratising precision. As a precision partner with decades of experience, Metav supplies workshop-grade marking tools from its Emmerich-based quality hub, combining a wide range with consistent quality control. With more than 48,000 customers and a portfolio exceeding 250,000 products, Metav offers reliable availability and expert advice, making it a practical choice for procurement managers and workshop professionals seeking a single dependable supplier.
Summary
Well-chosen marking tools — including the scriber, scriber needle, precision caliper and marking gauge — turn layout into a fast, accurate and repeatable step in every production process, raising throughput and reducing scrap.
FAQ
What is the difference between a scriber and a scriber needle?
A scriber produces continuous guide lines for edges and profiles, while a scriber needle creates single, fine marks or narrow lines that serve as precise reference points for drilling or aligning operations.
When should I use a precision caliper for marking?
Use a precision caliper whenever millimetre-accurate distances must be transferred directly to the workpiece, for both internal and external features; it is particularly useful in machine shops and metalworking where exact offsets are required.
Are marking gauges suitable for metalwork as well as woodworking?
A marking gauge is primarily designed for wood, where its sharp fence and beam produce clear parallel lines; for metal, the scriber and scriber needle are generally preferred because they provide the finer, more durable scribed lines needed for machining.
How do marking tools improve production efficiency?
By providing clear, repeatable layout references, marking tools reduce measurement errors and setup iterations, which shortens cycle times and increases first-pass yield on parts.
