20mm Precision Clamping Holder PWLNL 2020 K08 For WNMG 0804 Inserts Innenkühlung Left-Hand Cutting 95° - Teknik Makina
€47.00
Product information "20mm Precision Clamping Holder PWLNL 2020 K08 For WNMG 0804 Inserts Innenkühlung Left-Hand Cutting 95° - Teknik Makina"
Take advantage of the stable clamping and compact dimensions to keep turning operations precise and consistent; the left-hand orientation and 95° cutting angle make this toolholder suitable for a wide range of external turning tasks. Order the clamping holder directly via Metav Werkzeuge or request advice from their consultants.

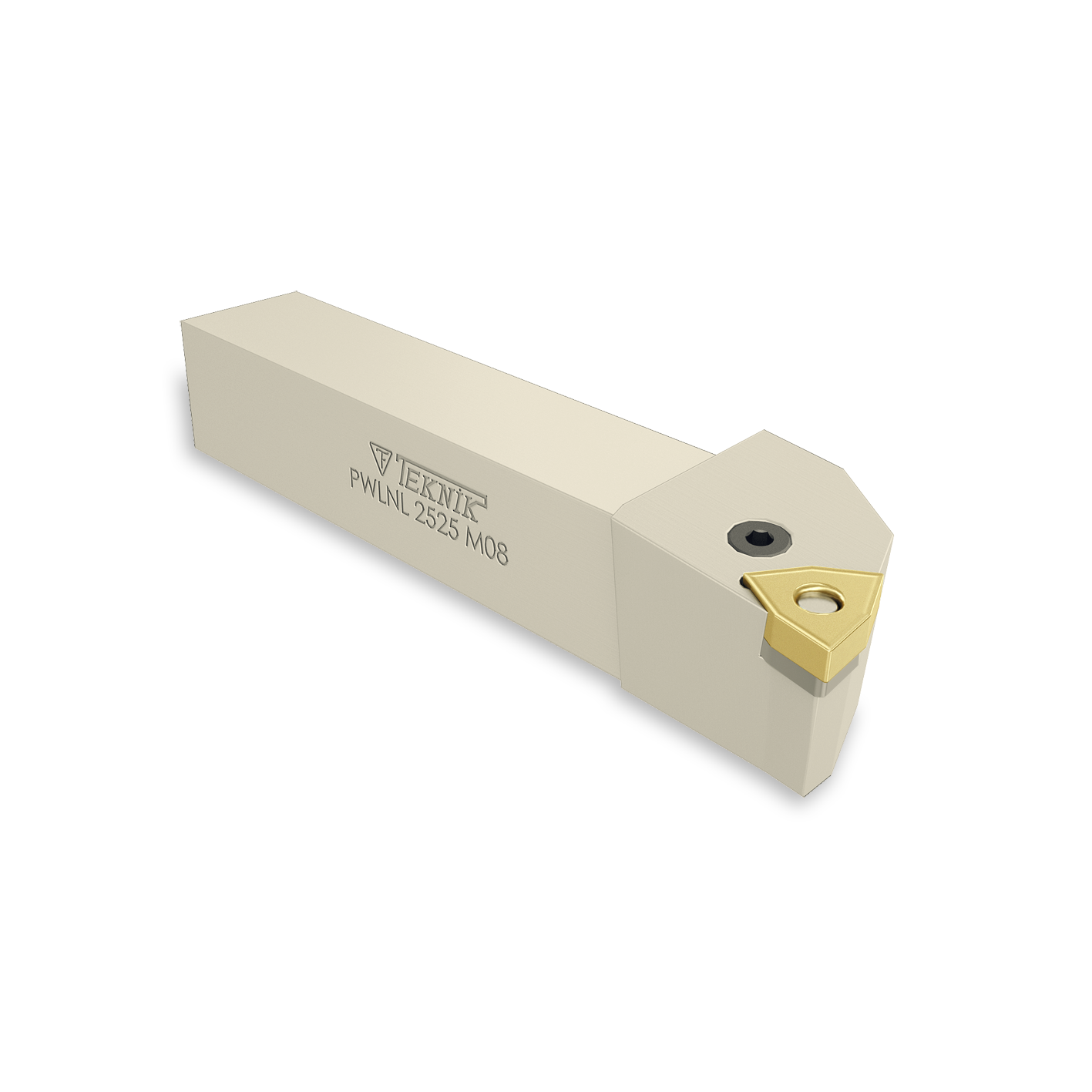

Clamping holder PWLN for WNMG Indexable Inserts – left-hand, 95° cutting angle (Teknik Makina)
The Clamping holder PWLN for WNMG Indexable Inserts is a left-hand turning toolholder engineered for secure clamping of WNMG 0804 inserts in general turning and finishing operations across industry workshops and production shops
- Left-hand turning orientation
- Compatible with WNMG 0804 inserts
- 95° cutting angle for versatile machining
- Solid construction with 125 mm overall length
Consistent clamping for repeatable turning accuracy
The primary benefit of this toolholder is secure clamping, which reduces insert movement under cutting forces and supports repeatable part quality. The clamping concept used with this holder keeps the indexable insert firmly located so that tool life is optimised and rework is minimised. By combining a compact design with a reliable clamp interface, the holder helps to maintain consistent surface finish and dimensional accuracy across production batches.
Broad compatibility and simple set-up that saves time
Compatibility with WNMG 0804 inserts means easy integration into existing tooling stocks and straightforward reloading when indices are changed. The holder carries the PWLNL 2020 ISO designation, matching common tooling standards for groove and profile turning. For users unfamiliar with indexable systems: WNMG inserts are four-edged cutters that are indexed when an edge wears, so the holder’s compatible pocket and clamp geometry are essential to ensure correct positioning and repeatable cutting geometry.
Robust dimensions and geometry for practical workshop use
Designed with a 125 mm overall length and a 30 mm cutting height, the holder balances rigidity and access to workpieces in confined set-ups. The 25 mm cutting-head width and 20 mm body width support stable seating and help resist vibration during cutting. With a mass of 0.43 kg, the toolholder is substantial enough to damp chatter yet light enough for easy handling and changeover. The 95° cutting angle and left-hand orientation provide a neutral approach geometry that is suitable for a variety of external turning tasks where clearance and finish are priorities.
Contact Metav Werkzeuge for tailored advice on compatibility and supply of the PWLN clamping holder—reliable delivery and stock information from Emmerich are available on request.
Technical data
- Article number (SKU): P155TM
- Manufacturer: Teknik Makina
- Designation: PWLN for WNMG Indexable Inserts
Facts
- Holder height: 20 mm
- Cutting-head width: 25 mm
- Holder body width: 20 mm
- Cutting height: 30 mm
- Weight: 0.43 kg
- Cutting angle: 95°
- Overall length: 125 mm
- Cutting direction: left
Features
- ISO designation: PWLNL 2020
- Suitable for WNMG 0804 inserts
- Shank designation: K08
- Left-hand turning toolholder
- Compact, rigid construction
FAQ
Which inserts fit this toolholder?
The clamping holder is specified for WNMG 0804 indexable inserts; the pocket and clamp geometry are matched to that insert size for correct seating and indexing.
What does the 95° cutting angle mean in practice?
A 95° cutting angle provides a near-neutral approach that balances clearance and strength at the cutting edge, suiting general external turning where a stable tool orientation is required.
Is the holder suitable for finishing or roughing operations?
The holder’s rigid construction and secure clamping make it well suited to finishing and medium-duty turning; for heavy roughing, insert grade and cutting parameters should be chosen accordingly.
How is the left-hand orientation applied on the lathe?
Left-hand orientation indicates the holder is arranged for turning where the cutting action proceeds in the opposite direction to a right-hand tool; the left-hand setup must match the machine and operation plan to ensure correct chip flow and tool clearance.
Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
| Cutting angle: | 95.0 |
|---|---|
| Designation: | Klemmhalter |
