Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
0-90mm Quick-Action Toggle Clamp, Screw Clamp Type, Zinc Plated, 8,000 N Thrust - Kukamet
Take advantage of the combination of a compact horizontal mounting, sturdy 8,000 N clamping force and a corrosion-resistant galvanized finish for reliable fixture work and faster set-up times. Order the Kukamet 831 quick-action lever clamp directly via Metav Werkzeuge or consult our specialists for integration advice. 831 Quick-Action Lever Clamp by Kukamet — 0–90 mm opening, 8,000 N clamping force The 831 is a robust quick-action lever clamp designed for horizontal mounting in assembly jigs, fixtures and workshop benches. Horizontal base for stable mounting Galvanized finish for corrosion resistance 0–90 mm adjustable opening 8,000 N clamping force for dependable hold Faster fixture set-up where repeatability matters The lever-action mechanism provides a quick-action workflow that reduces clamping time and increases throughput in repetitive tasks. The adjustable 0–90 mm opening allows flexible positioning of workpieces without extra adapters, while the specified 8,000 N rating indicates the maximum holding force available under normal operation. For practical terms: clamping force given in newtons describes the mechanical push the clamp can apply, ensuring a secure hold for many assembly and machining aid scenarios. This results in fewer re-clamps and improved consistency in small- to medium-batch production. Built for corrosive workshop environments and long service life Constructed with a galvanized finish, the clamp resists moisture and workshop contaminants, which reduces maintenance intervals and extends service life. At 1.61 kg, the unit is lightweight enough for easy handling during fixture assembly yet substantial enough to remain vibration-stable under load. The protective coating lowers the risk of surface corrosion on contact points and helps maintain reliable repeatability across shifts, so downtime for replacement or repair is minimised. Simple integration with horizontal fixtures and safe operation The horizontal foot design allows direct installation on fixture plates, machine tables or workbenches, providing a low-profile clamping solution where vertical clearance is limited. The combination of a screw-clamp style interface and lever action enables controlled closing and secure locking with visible mechanical engagement. This design supports precise positioning and reduces the likelihood of slippage, offering an operational advantage in quality-critical applications and improving operator confidence during clamping cycles. Contact Metav Werkzeuge for tailored fixture recommendations and to secure the Kukamet 831 for your production line from our Emmerich stock Technical Data SKU: 831-2 GTIN: 8680731505351 Brand: Kukamet eClass: 21020701 ETIM: EC011973 Facts Max clamping force: 8,000 N Opening range: 0–90 mm Weight: 1.61 kg Special features Material: galvanized Mounting: horizontal base Clamp type: screw-clamp style, lever-action Category: spanner FAQ What maximum clamping force does this clamp provide? The Kukamet 831 quick-action lever clamp delivers a maximum clamping force of 8,000 N, suitable for secure holding in many workshop and fixture applications. What is the adjustable opening range of the clamp? The 831 offers an adjustable opening of 0–90 mm, allowing flexible accommodation of varied workpiece thicknesses without additional adapters. How is the clamp mounted in a fixture? The clamp features a horizontal base for direct mounting to fixture plates or benches, providing a low-profile attachment for constrained workspaces. Is the clamp suitable for use in humid or corrosive workshop environments? Yes, the galvanised finish on the Kukamet lever clamp provides enhanced corrosion resistance, reducing maintenance and extending service life in demanding environments. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
0-160mm Machine Vice With Extra High Jaws, 24 kN Clamping Force - Vertex
Robust cast iron construction combined with a 24 kN clamping force delivers secure, repeatable holding for machining tasks; the very high jaws and 0–160 mm opening accommodate taller components without compromise. Order the machine vice directly via Metav Werkzeuge or consult our specialists for application advice. Vertex VQHJ-5 Machine Vice – Hydraulic & Standard, Very High Jaws The VQHJ-5 is a machine vice designed for milling and machining operations, featuring very high jaws and dual hydraulic and standard operation for versatile clamping of tall workpieces High clamping force 24 kN Opening range 0–160 mm Cast iron body for stability Very high jaws for tall components Built for dependable clamping and repeatable accuracy The vice’s cast iron body provides a stable, vibration-damping base that supports precision machining and repeatability. With a rated clamping force of 24 kN, the unit holds workpieces firmly during heavy milling or drilling, reducing the risk of movement that can cause defects. The robust construction contributes to long service life and consistent results, so production runs maintain part tolerances and surface finish quality. Designed to handle tall and awkward components without compromise The very high jaws allow secure gripping of taller or irregularly shaped components that standard vices struggle with, enabling vertical clamping and improved access for tool paths. The 0–160 mm opening range gives measurable flexibility for different workpiece sizes while preserving alignment and parallelism. This capacity reduces the need for complex fixturing, streamlines setup times and supports efficient workflow in jobbing and serial production. Dual operation for flexible workshop workflows Configured for both hydraulic and standard operation, the device adapts to workshop preferences and machine interfaces, offering automated clamping where required and manual control when precision adjustment is needed. The vice’s overall dimensions of 135 x 478.5 x 223 mm and a mass of 51.8 kg balance rigidity with manageable footprint, making it suitable for a broad range of machining centres. The combined features support higher throughput and lower rework rates by simplifying clamping procedures and improving process reliability. Contact Metav Werkzeuge in Emmerich for application-specific recommendations, availability and to arrange a specification check for this Vertex VQHJ-5 machine vice Technical Data Article number: VQHJ-5 GTIN: 4061905084744 Manufacturer: Vertex ECLASS: 21020601 ETIM: EC002173 Core specifications Dimensions: 135 x 478.5 x 223 mm Weight: 51.8 kg Clamping force: 24 kN Opening range: 0–160 mm SKU: VQHJ-5 Materials & special features Material: cast iron Type: hydraulic and standard operation Very high jaws for tall workpieces Product category: machine vice FAQ What clamping force does the vice provide? The Vertex VQHJ-5 machine vice provides a clamping force of 24 kN, ensuring secure holding during heavy machining. Is the vice suitable for tall workpieces? Yes, the device features very high jaws and an opening range of 0–160 mm, designed specifically to accommodate taller components. What material is the vice made from? The vice is manufactured from cast iron, chosen for rigidity and vibration damping to improve machining accuracy. Can the vice be used with hydraulic systems? The unit supports hydraulic and standard operation, allowing integration with hydraulic clamping where required and manual control when preferred. What are the physical dimensions and weight? Overall dimensions are 135 x 478.5 x 223 mm and the weight is 51.8 kg, offering a stable yet space-efficient footprint. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-165mm Universal Machine Vice Left-Hand Power-Assisted, 40 kN Clamp Force - Vertex
Take full advantage of the power-assisted clamping and 40 kN holding force for secure, repeatable setups in milling and drilling operations; select the left-hand version when machine orientation requires it. Order directly via Metav Werkzeuge or contact the consultants for application advice. VQCV-125H-L Universal machine vice (power-assisted, left-hand) by Vertex The VQCV-125H-L is a power-assisted universal machine vice designed for precision clamping in machining centres and workshop tables, suited to tasks that demand stable fixation and repeatable positioning Power-assisted design with 40 kN clamping force Left-hand configuration for specialised setups 0–165 mm opening range for versatile workpieces Secure, repeatable clamping for heavy machining The VQCV-125H-L combines a power-assisted mechanism with a rated 40 kN clamping force to reduce workpiece movement under load and minimise slippage during aggressive cuts. This repeatable clamping improves process reliability and reduces rework, which is particularly relevant for production environments and jobbing shops where throughput and consistency matter. The mechanical drive is straightforward to maintain, offering predictable behaviour across shifts and operators. Adaptable jaw travel and fine positional accuracy With an opening range of 0–165 mm and a specified positional accuracy of 0.01 mm, the vice accommodates a wide variety of component sizes while enabling precise alignment for sequential operations. The adjustable jaw travel supports quick set-ups for both short runs and prototype work, and the narrow tolerance contributes to repeatable reference points when using edge-finding or dial indicators. These characteristics make the tool suitable for both fixture work and direct machine table clamping. Stable mass and left-hand orientation for machine integration Weighing 53 kg, the vice provides substantial mass that dampens vibration and enhances stability on the machine bed, which helps preserve tool life and surface finish in heavy-duty milling. The left-hand configuration is useful where spindle approach, machine tool layout or workholding fixtures demand a handed arrangement. The robust mechanical construction supports frequent clamping cycles and reduces the need for repositioning during multi-step machining sequences. Delivered by a precision partner with European support Sourcing through Metav Werkzeuge ensures access to a curated selection of precision tools and an experienced advisory team. Metav stands for the democratisation of precision and supports workshop efficiency with a broad product range, a dependable European stock point and service that reflects decades of industry experience. The supply chain focus in Emmerich acts as a quality filter for the market, contributing to consistent availability and straightforward ordering for trade customers. Contact Metav Werkzeuge for application matching and to arrange supply of the Vertex VQCV-125H-L; expert advice is available if specification matching or integration details are required Technical data Article number: VQCV-125H-L GTIN: 4061905083372 Manufacturer: Vertex Facts Dimensions: 135 x 477.5 x 180 mm Weight: 53 kg Opening range: 0–165 mm Clamping force: 40 kN Accuracy: 0.01 Special features Left-hand version Power-assisted / force-amplified design Universal machine vice for machining applications Mechanical operation FAQ What clamping force does the vice provide? The clamping force is 40 kN for the Vertex VQCV-125H-L universal machine vice, delivering strong fixation for demanding cuts. Is the VQCV-125H-L suitable for small workpieces? Yes, the 0–165 mm opening range allows the vice to hold both small and medium-sized components securely for machining tasks. How precise is the positioning when using this vice? The vice is specified with an accuracy of 0.01 mm, providing the positional consistency needed for sequential machining and fixture work. Does the vice require special mounting or fixtures? Standard mechanical mounting on the machine table is used; the vice’s mass (53 kg) and left-hand arrangement support stable integration into most machining set-ups. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-170mm Hydraulic Machine Vice 2,500 kgf Clamping Force, 28 kg - Vertex
Take advantage of the combination of hydraulic power, high clamping force and fine accuracy to streamline machining operations; order the item directly via Metav Werkzeuge or consult the specialists for tailored recommendations. Vertex VH-4 Hydraulic Machine Vice – 2,500 kgf clamping force, 0–170 mm opening A Vertex VH-4 hydraulic vice engineered for secure and repeatable workholding in milling machines and machining centres. 2,500 kgf clamping force for heavy-duty work 0–170 mm adjustable opening range High precision with 0.02 mm accuracy Robust 28 kg construction for stability Consistent heavy-duty clamping for demanding machining The hydraulic drive delivers steady, repeatable clamping that minimises slippage during aggressive cuts. With a rated 2,500 kgf clamping force and an opening range of 0–170 mm, the vice secures a wide variety of workpieces without frequent repositioning. The substantial mass and robust construction contribute to vibration damping and stable machining, which reduces tool wear and extends cycle life. Designed for production and jobbing environments, this vice supports uninterrupted processing where firm workholding is critical. Engineered accuracy improves process reliability Precision is central to stable production; the vice is specified with 0.02 mm accuracy, improving positional repeatability between setups. This level of control helps maintain tolerances across batches and simplifies downstream inspection. The mechanical layout, combined with hydraulic actuation, ensures consistent jaw alignment and clamping pressure, resulting in fewer rejects and less rework. For users assessing process capability, the repeatability characteristics translate directly into predictable part quality and more efficient throughput. Ready for integration and straightforward operation Mounting and routine handling are uncomplicated thanks to clear external dimensions (443 x 270 x 135 mm) and a compact footprint that fits most machining worktables. At approximately 28 kg, the unit balances portability for repositioning with the mass required for stable cutting. The vice’s classification data (ECLASS and ETIM) support compatibility checks in engineering procurement systems, while the solid construction minimises maintenance intervals. Where uptime matters, reliable workholding and straightforward serviceability keep production moving. Contact Metav Werkzeuge for detailed integration advice and secure supply directly from our Emmerich quality hub Technical Data SKU: VH-4 GTIN: 4061905084171 Manufacturer: Vertex Type: Hydraulic Core specifications Clamping force: 2,500 kgf Opening range: 0–170 mm Accuracy: 0.02 mm Weight: 28 kg Dimensions: 443 x 270 x 135 mm Features & compatibility Hydraulic operation ECLASS: 21020601 ETIM: EC002173 Robust construction for vibration damping FAQ What clamping force does the vice provide? The vice offers a clamping force of 2,500 kgf, providing secure workholding for heavy-duty machining operations. Which opening range is supported for different workpieces? The vice supports an adjustable opening range of 0–170 mm, allowing adaptable clamping across a broad variety of part sizes. How precise is the workholding alignment? The vice is specified with 0.02 mm accuracy, ensuring high repeatability and consistent part tolerances during serial production. Is the vice suitable for mounting on standard milling tables? Yes, the compact footprint (443 x 270 x 135 mm) and mounting compatibility make it suitable for common milling and machining tables. What benefits does hydraulic actuation bring compared with mechanical vices? Hydraulic actuation provides smoother and more consistent clamping pressure, improving repeatability and reducing the risk of part movement under load. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-170mm Hydraulic Machine Vice Forward-Tilting, 2,500 kgf Clamping Force, 33.3 kg - Vertex
Combine the forward-tilting hydraulic design with a 2,500 kgf clamping force and 0.01 mm repeatability to secure workpieces reliably while reducing setup time — order the vice directly via Metav Werkzeuge or request advice from our consultants. Vertex VHT-4 Hydraulic Machine Vice (forward-tilting, 2,500 kgf clamping force) The VHT-4 Hydraulic Machine Vice is a forward-tilting clamping solution designed for demanding milling and machining applications where repeatable, high clamping forces and easy access to the workpiece are required Forward-tilting design for angled clamping 2,500 kgf clamping force 0–170 mm clamping range High precision: 0.01 mm repeatability Robust 33.3 kg construction Consistent clamping for repeatable production Hydraulic clamping delivers a predictable and steady force that minimises variability between cycles. The integrated hydraulic mechanism on this machine vice ensures a uniform 2,500 kgf of clamping pressure, which reduces the risk of slippage under heavy machining loads and improves part consistency. The result is shorter inspection runs and fewer rejected components, so throughput and shop-floor efficiency are improved without compromising safety. The design supports high cutting forces while protecting delicate fixturing and tooling through even pressure distribution. Easier setup and superior accessibility for complex parts A forward-tilting vice enables more versatile part placement and easier tool approach angles compared with fixed horizontal vices. With a 0–170 mm clamping range, the unit accommodates a broad spectrum of component sizes and profiles, making it suitable for prototyping as well as small-batch production. The tilting feature reduces the need for auxiliary fixtures to obtain angled clamping positions, which shortens setup time and simplifies repeated jobs. For machine shops aiming to reduce non-productive time, this configuration offers clear operational advantages. Precision and rigidity where it matters Accuracy is central to machining quality; the vice offers a nominal 0.01 mm repeatability that supports tight tolerance work. The substantial mass of the unit — approximately 33.3 kg — contributes to vibration damping and structural rigidity during heavy milling and boring operations. Those properties combine to maintain cutting stability and preserve tool life, which in turn lowers overall operating costs. The geometry and finish of the clamping faces are engineered to secure workpieces reliably while minimising deformation. Practical operation and workshop integration The hydraulic actuation on this vice reduces manual effort and streamlines clamping operations, enabling faster cycle times in automated or semi-automated environments. Its construction and finish are optimised for integration on standard machine tables; the vice is compatible with typical machining centre workflows and offers a compact footprint of 500x240x230 mm. For purchasers seeking scalable solutions, the unit’s repeatable hydraulic performance and robust build make it a dependable choice for continuous production environments. For tailored specification advice or to arrange supply of the Vertex VHT-4 via Metav Werkzeuge, please contact Metav’s sales team in Emmerich — they will assist with suitability assessments and order processing Technical data SKU: VHT-4 GTIN: 4061905084850 ECLASS: 21020601 ETIM: EC002173 Type: Hydraulisch Designation: Hydraulischer Maschinenschraubstock (kippbar) Special feature: vorwärts kippbar Dimensions: 500x240x230 mm Core measurements Clamping force: 2,500 kgf Opening range: 0–170 mm Accuracy / repeatability: 0.01 mm Weight: 33.3 kg Features & specifications Forward-tilting clamping capability Hydraulic actuation for consistent force Suitable for milling and machining applications Compact footprint for bench and machine table use Manufacturer: Vertex FAQ What clamping force does this vice provide? The vice delivers a clamping force of 2,500 kgf, specified for the Vertex VHT-4 hydraulic machine vice to secure heavy machining loads. What workpiece sizes are supported? The unit accepts workpieces within a 0–170 mm clamping range, allowing flexible use for small to medium components. How precise is the clamping repeatability? Repeatability is rated at 0.01 mm, which supports precision machining and consistent part quality with the Vertex VHT-4. Is the vice suitable for angled clamping setups? Yes, the forward-tilting design enables angled-clamping arrangements without complex additional fixtures, improving accessibility for tool approaches. What are the vice dimensions and weight for machine-table planning? The vice measures 500x240x230 mm and weighs approximately 33.3 kg, providing stability while keeping a compact footprint. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

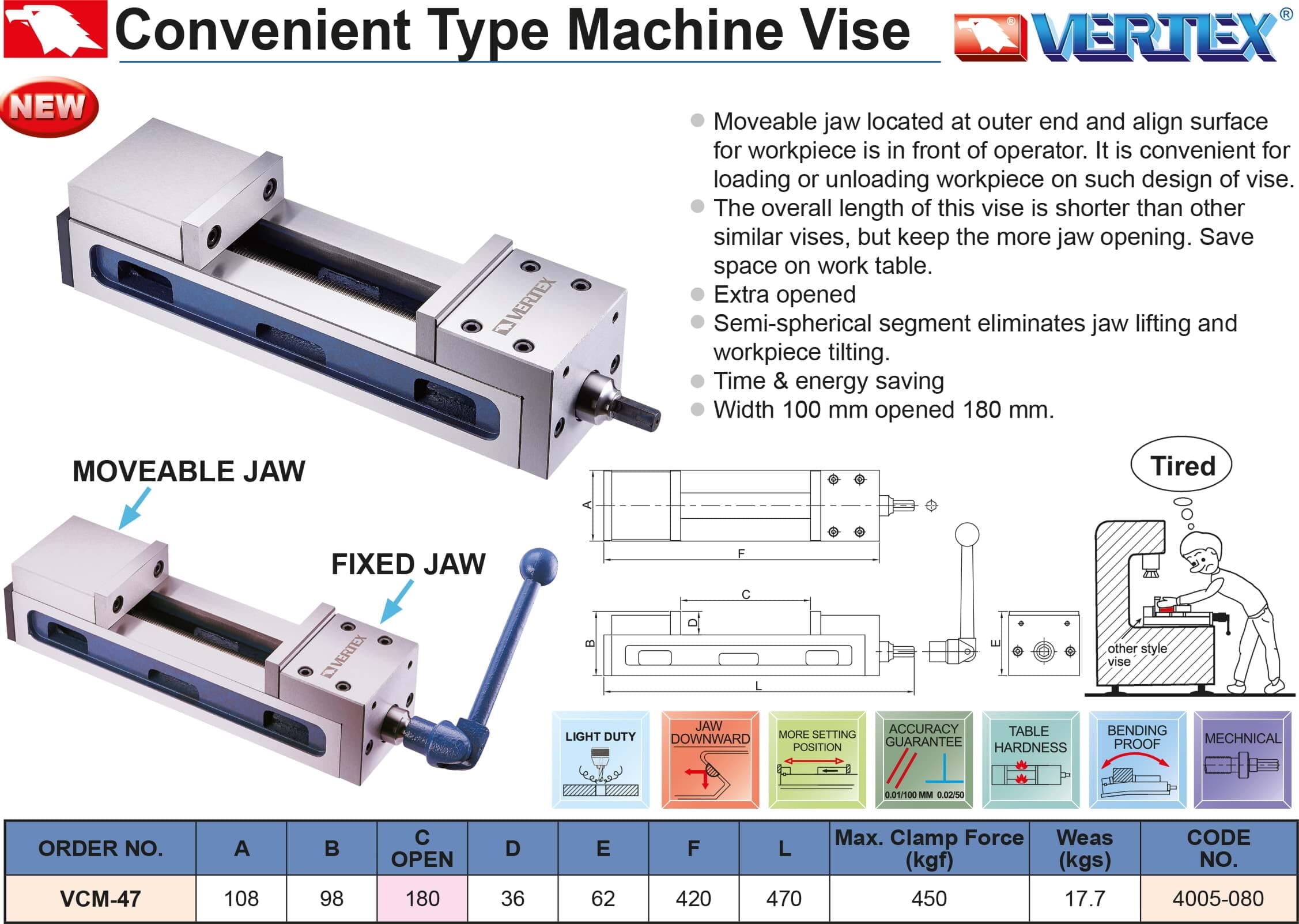

0-180 mm Machine Vice VCM-47 450 kgf Clamp Force, 108x470x98mm - Vertex
Take advantage of a combination of high clamping force and wide opening for dependable workholding; the robust mechanical construction supports stable machining and consistent results. Order the vice directly via Metav Werkzeuge or request personalised advice from our consultants in Emmerich for specification checks. VCM-47 mechanical machine vice — 450 kgf clamping force, 0–180 mm opening The VCM-47 is a mechanical machine vice designed for secure clamping in milling and general machining applications, offering a wide opening and precise hold for diverse workpieces. 450 kgf clamping force for secure gripping 0–180 mm opening to accept varied workpiece sizes Accuracy 0.01 mm for precise machining Robust 17.7 kg body for vibration damping Secure, reliable workholding for consistent machining results The vice excels where repeatable clamping and process reliability matter. With a 450 kgf rated clamping capacity and a 0–180 mm jaw opening, the unit keeps components firmly located during cutting and finishing operations. This level of hold reduces workpiece movement and tool wear, supporting higher throughput and fewer rejects. The design suits bench-mounted and machine-table applications where a dependable machine vice is required for milling, drilling or light planing tasks. Precision and stability that support tight tolerances A guaranteed positioning accuracy of 0.01 mm underlines the vice's suitability for jobs demanding fine tolerances. The substantial mass — 17.7 kg — contributes to stability by damping machine vibrations and preventing micro-movements during machining. For customers new to metrology terms: the accuracy figure denotes the repeatability of the jaw position, ensuring identical set-ups across multiple runs and predictable surface finishes. The combined effect is fewer reworks and improved process control. Simple integration and durable mechanical design for the workshop The mechanically driven construction provides a maintenance-friendly alternative to complex hydraulic or pneumatic systems, reducing potential downtime. The mechanical design uses proven components for long service life and straightforward adjustments at the workbench. Supplied dimensions make planning for fixture layouts simple — the compact footprint aids in mounting on standard machine tables while the robust build supports heavy-duty clamping cycles. As a partner, Metav Werkzeuge offers practical purchasing and logistics support from its Emmerich location to streamline supply into the workshop. For tailored specification support or to arrange supply through Metav Werkzeuge in Emmerich, please contact our sales team via info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number / SKU: VCM-47 GTIN: 4061905083259 Type: Mechanical ECLASS: 21020601 ETIM: EC002173 Facts Dimensions: 108 × 470 × 98 mm Weight: 17.7 kg Clamping force: 450 kgf Opening range: 0–180 mm Accuracy: 0.01 mm Special features Mechanical vice for machine table use Robust construction for vibration damping Suitable for milling and general machining Brand: Vertex FAQ What clamping capacity does the vice offer? The vice provides a clamping force of 450 kgf, ensuring secure gripping of workpieces during machining operations with the VCM-47 mechanical machine vice. What is the usable jaw opening range? The jaw opening spans 0–180 mm, allowing versatile accommodation of components of different widths for various machining tasks. How precise is the positioning of the jaws? The unit is specified to an accuracy of 0.01 mm, offering repeatable positioning suitable for tasks requiring close tolerances. Is the vice suitable for heavy-duty milling? The robust 17.7 kg construction and high clamping force make the vice well suited to demanding milling operations where vibration damping and secure workholding are required. Can the vice be mounted on standard machine tables? Yes, the compact dimensions and mechanical design facilitate mounting on common machine tables and fixture setups for straightforward integration. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-185mm Self-Centring Machine Vice 450 kgf Clamping Force, 17.7 kg - Vertex
Benefit from a combination of rapid set‑up, a 450 kgf clamping force and 0.01 mm repeatability to maintain tight tolerances across serial runs; order the VCV‑44 directly via Metav Werkzeuge or consult our specialists for application advice. VCV-44 — Self‑centring machine vise with 450 kgf clamping force and 0.01 mm accuracy (Vertex) The VCV-44 is a self‑centring machine vise engineered for precision clamping in milling machines and machining centres, providing consistent alignment and reliable holding across a broad range of component sizes. Self‑centring operation for quick set‑up 450 kgf clamping force for secure hold 0.01 mm repeatability for precision work 0–185 mm clamping range for versatile parts Faster set‑up through self‑centring alignment The self‑centring mechanism reduces fixture time and ensures symmetric gripping of round or irregular components. By automatically aligning the jaws, the vise shortens preparation cycles and lowers setup variance — a clear advantage when handling repetitive batches. The self‑centring function also simplifies the positioning process compared with single‑jaw fixtures, supporting faster throughput without sacrificing alignment quality. Secure clamping that stabilises machining High holding force is essential for chip removal and surface finish. The VCV‑44 delivers a 450 kgf clamping force that maintains a steady grip during heavy cuts and interrupted machining. Its mass contributes to overall stability: at 17.7 kg, the vice provides damping against vibration, helping to protect cutting tools and machine spindles while improving part quality and reducing rework rates. Precision repeatability for tight tolerances Repeatable positioning is vital for process control. With a documented 0.01 mm repeatability, the vice allows reliable re‑clamping of parts to the same datum, which supports tighter statistical process control and repeatable inspection results. For shops moving from manual fixturing to more consistent setups, this level of precision reduces scrap and shortens the feedback loop between setup and quality assurance. Practical dimensions and workshop integration Compact installation dimensions of 469 x 108 x 98 mm and a jaw opening of 0–185 mm make the vice adaptable to a wide range of components without wasting machine table space. The VCV‑44’s clear specification and robust design permit straightforward integration into standard vice plates or T‑slot tables. As a Vertex product, the unit fits established industrial workflows and can be referenced by its SKU VCV‑44 when ordering or specifying fixtures. Choose the Vertex VCV‑44 for dependable, repeatable clamping and contact Metav Werkzeuge in Emmerich for detailed application advice — info@metav-werkzeuge.com | +49 2822 7131930 | WhatsApp +49 170 2837271 Technical data Article number: VCV-44 GTIN: 4061905084652 Manufacturer: Vertex Facts Opening: 0–185 mm Clamping force: 450 kgf Accuracy / repeatability: 0.01 mm Weight: 17.7 kg Dimensions: 469 x 108 x 98 mm Special features Self‑centring machine vise SKU: VCV-44 Eclass: 21020601 ETIM: EC001959 FAQ What is the maximum jaw opening of the vise? The VCV‑44 has a jaw opening range of 0–185 mm, suitable for a broad spectrum of workpieces. How much clamping force does the vice provide? The vice delivers a clamping force of 450 kgf, ensuring secure holding during demanding machining operations. What level of repeatability can be expected? Repeatability for the VCV‑44 is specified at 0.01 mm, supporting tight tolerances and consistent re‑clamping. Is the VCV‑44 suitable for use on vertical and horizontal milling machines? Yes, the VCV‑44 is designed for integration into milling machines and machining centres where precision clamping is required. How heavy is the unit and what are the external dimensions? The vice weighs 17.7 kg and measures 469 x 108 x 98 mm, making it compact yet stable for workshop use. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

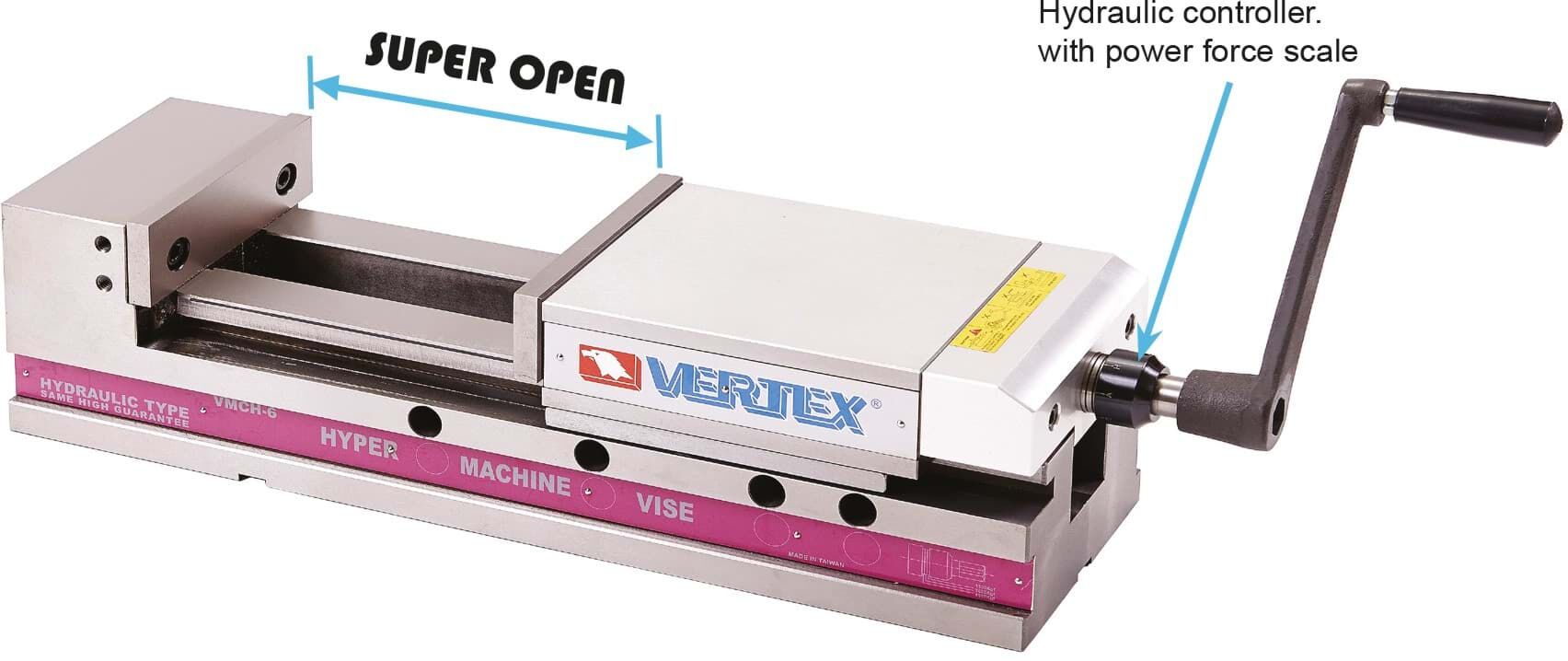

0-200mm Hydraulic Machine Vice Extra-Large Opening, 2,500 kgf Clamping Force - Vertex
Take advantage of the combination of robust 2,500 kgf clamping, a wide 0–200 mm opening and reliable hydraulic actuation for steady production processes; order the vice directly via Metav Werkzeuge or consult our specialists for application advice. VMCH-4 Hydraulic machine vice (Vertex) — 2,500 kgf clamping, 0–200 mm opening The VMCH-4 hydraulic machine vice is a high-capacity clamping solution designed for heavy-duty machining and precision workshops, offering a hydraulic drive and an extra-large opening for versatile workholding. Hydraulic drive with high clamping force Extra-large 0–200 mm opening Cast iron construction for stability High precision: 0.01 mm Weight approx. 26 kg for easy handling Secure heavy and awkward workpieces with consistent force The vice delivers a 2,500 kgf clamping capability via a robust hydraulic system, ensuring consistent seating of components during milling, drilling and other machining tasks. The extra-large 0–200 mm opening permits secure gripping of larger or asymmetrical parts without the need for frequent re-fixturing, which reduces setup time and improves throughput. Hydraulic actuation smooths pressure application, minimising chatter and helping maintain surface quality under load, a decisive advantage for repetitive production runs. Precision and rigidity that support tight tolerances Built from cast iron, the vice provides a stable contact surface and resistance to distortion during clamping cycles, supporting repeatable positioning with an accuracy of 0.01 mm. This level of precision translates to predictable results when finishing or reaming operations are required; the nominal accuracy figure indicates the consistency of jaw alignment and the vice's suitability for jobs where small deviations matter. At approximately 26 kg, the unit balances mass for stability with manageable handling for installation or reorientation on machine tables. Practical workshop integration and dependable provenance The vice is a hydraulic model intended for integration on machine tables where reliable clamping force and a wide opening are priorities. The model VMCH-4 from Vertex fits applications ranging from toolroom work to serial production where secure, repeatable clamping reduces scrap and rework. Its constructive simplicity supports routine maintenance and inspection, and the robust design reduces the frequency of resets or shimming. The overall package promotes steady productivity and lower process variance in the workshop environment. Contact Metav Werkzeuge to discuss specific application requirements and reserve the Vertex VMCH-4 hydraulic vice with 2,500 kgf clamping force from our Emmerich stock Technical data Article number: VMCH-4 GTIN: 4061905083891 Manufacturer: Vertex Type: Hydraulic ECLASS: 21020601 ETIM: EC002173 Key figures Dimensions: 121 x 435 x 118 mm Opening: 0–200 mm Clamping force: 2,500 kgf Accuracy: 0.01 mm Weight: 26 kg Material & features Material: Cast iron Extra-large opening Hydraulic operation Accuracy class: 0.01 mm FAQ What clamping force can be expected from this vice? The vice provides a clamping force of 2,500 kgf, giving the VMCH-4 sufficient holding power for heavy machining and demanding setups. What is the usable jaw opening range? The jaw opening spans 0–200 mm, which accommodates larger workpieces without additional fixtures. Is the VMCH-4 suitable for precision machining? Yes. With a specified accuracy of 0.01 mm and a cast iron body for stability, the vice is suitable for tasks requiring repeatable positioning and tight tolerances. How heavy is the vice and how easy is it to mount? The vice weighs approximately 26 kg, which provides rigidity on the machine table while remaining manageable for mounting and repositioning. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

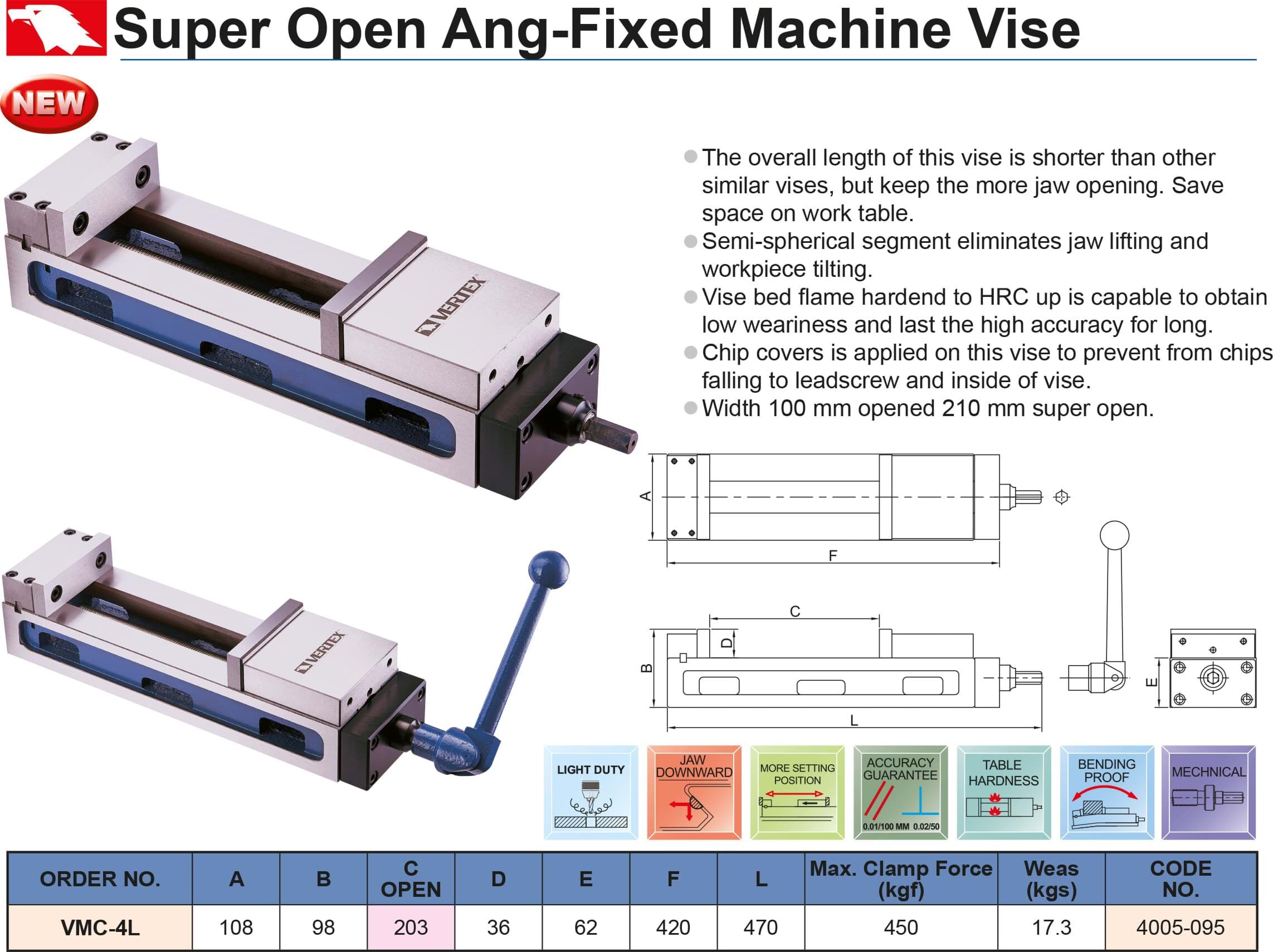

0-203 mm Machine Vice VMC-4L Three-Point Mechanical, 450 kgf Clamping Force - Vertex
Take advantage of 0.01 mm repeatability, 450 kgf clamping force and a generous 0–203 mm jaw opening to improve machining reliability and reduce rework. Order the VMC-4L directly via Metav Werkzeuge or ask our consultants if needed. VMC-4L Machine vice by Vertex — 450 kgf clamping force, 0–203 mm opening A VMC-4L mechanical machine vice designed for secure, repeatable clamping in milling and general machining applications High 450 kgf clamping force Wide 0–203 mm jaw opening Precision to 0.01 mm Stable 17.3 kg mass for secure clamping Consistent precision for repeatable results The vice delivers 0.01 mm positioning accuracy, ensuring repeated setups hold within narrow tolerances. Such precision reduces the need for downstream adjustments and minimises scrap rates in batch production. For users unfamiliar with the figure: 0.01 mm corresponds to one hundredth of a millimetre, a level of repeatability that supports fine finishing and tight-tolerance features on machined parts. The mechanical design is optimised to maintain this accuracy under typical milling loads, supporting steady throughput and process reliability. Strong clamping and flexible workpiece handling With a rated clamping force of 450 kgf and an adjustable jaw opening from 0–203 mm, the vice accommodates a broad range of workpiece sizes while maintaining secure hold during high-torque operations. The specified clamping force refers to kilogram-force (kgf), a unit indicating the downward holding capability; this capacity helps prevent slippage during aggressive feeds or deep cuts. The wide opening range supports both small fixtures and larger blocks, offering a versatile workholding solution that shortens changeover times and increases machine utilisation. Robust build to support workshop productivity The vice’s 17.3 kg mass contributes to inherent stability on the machine table, damping chatter and improving surface finish during demanding cuts. As a mechanical machine vice, it operates without hydraulic systems, simplifying maintenance and integration into standard tooling regimes. The compact footprint (see technical data) permits close fixturing and multi-part setups on typical vertical machining centres. This combination of mass, mechanical simplicity and repeatable clamping promotes uninterrupted production and predictable part quality. Contact Metav Werkzeuge for an application assessment and specify the VMC-4L by Vertex to ensure rapid integration into existing machining processes Technical data SKU: VMC-4L GTIN: 4061905083860 Type: Mechanical Facts Accuracy: 0.01 mm Clamping force: 450 kgf Jaw opening: 0–203 mm Weight: 17.3 kg Dimensions: 108 x 470 x 98 mm ECLASS: 21020601 ETIM: EC002173 Special features Mechanical operation for low maintenance Compact footprint for versatile fixturing Designed for milling and general machining applications FAQ What level of accuracy can be expected from this vice? The VMC-4L machine vice by Vertex provides 0.01 mm repeatability, suitable for fine finishing and tight-tolerance machining. What is the maximum clamping force and why does it matter? The vice offers 450 kgf clamping force; higher holding force reduces workpiece movement under load and improves surface consistency. Which workpiece sizes fit in the vice? Jaw opening from 0–203 mm allows the vice to accept a wide range of component sizes for milling and machining tasks. Is the vice hydraulic or mechanical? This is a mechanical vice; the VMC-4L uses mechanical clamping to simplify maintenance and integration. What is the product identifier for ordering or stock checks? Refer to SKU VMC-4L and GTIN 4061905083860 when specifying the Vertex machine vice Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-205mm Hydraulic Machine Vice 25 kN Clamping Force, Cast Iron Body - Vertex
Reliable clamping power paired with fine positional control ensures uninterrupted machining and reduced rework; benefit from a robust cast-iron body, 25 kN clamping force and precise 0.01 mm repeatability. Order the hydraulic machine vice directly via Metav Werkzeuge or consult our specialists for specification matching. Vertex VNC-100H Hydraulic machine vice — 25 kN clamping force, 0.01 mm accuracy Vertex VNC-100H is a hydraulic machine vice engineered for secure, repeatable clamping in precision metalworking and machine-tool applications. 25 kN clamping force for heavy-duty work Precise 0.01 mm repeatability Cast-iron body for vibration damping 0–205 mm adjustable jaw opening Stable clamping that improves machining yield The vice delivers a consistent 25 kN clamping force that keeps workpieces stable under cutting loads, reducing vibration and tool chatter. With a rated positional accuracy of 0.01 mm, the device supports close-tolerance milling and drilling operations where minimal repositioning is required. The combination of steady clamping and fine repeatability translates into fewer rejects and lower rework costs, making this solution suitable for production runs that demand both throughput and precision. Robust construction for long-term workshop use Built around a cast-iron housing and weighing 23 kg, the unit provides inherent damping and a solid foundation on the machine table. The mass and material choice reduce transmitted vibrations, which benefits surface finish and prolongs tool life. The vice's durable construction also minimises the need for frequent alignment corrections, supporting a reliable day-to-day workflow in busy machining environments. Flexible workholding that speeds setup A jaw opening range of 0–205 mm gives the vice broad versatility for clamping a wide span of component sizes without additional adapters. The hydraulic actuation provides uniform, controllable force distribution across the jaws, simplifying clamping cycles and saving setup time compared with manual screw vices. For operators, this means quicker fixture changes and more time available for value-adding machining operations. Practical installation and straightforward upkeep Compact external dimensions of 100x464x107 mm keep the vice compatible with common machine tables while still providing a substantial clamping range. Routine checks of hydraulic connections and seals, combined with standard lubrication of sliding faces, maintain performance and prolong service life. The device is designed for integration into standard machining workflows; periodic inspection and basic hydraulic maintenance are generally sufficient to preserve accuracy and clamping integrity. Arrange a specification review with Metav Werkzeuge to match the Vertex hydraulic vice to production requirements — contact info@metav-werkzeuge.com or call +49 2822 7131930 for personalised advice Technical Data Article number: VNC-100H GTIN: 4061905083297 Manufacturer: Vertex Machinery Works Co., Ltd. Facts Dimensions: 100x464x107 mm Weight: 23 kg Accuracy: 0.01 mm Clamping force: 25 kN Jaw opening: 0–205 mm Special features Material: Cast iron Type: Hydraulic eClass: 21020601 ETIM: EC002173 FAQ What clamping force does the vice provide? The Vertex VNC-100H hydraulic machine vice provides a clamping force of 25 kN, suitable for secure holding during heavy machining tasks. What is the achievable positional accuracy? The vice has a rated positional accuracy of 0.01 mm, enabling precise repeatable setups for close-tolerance operations. What jaw opening is available for different workpieces? Jaw opening ranges from 0 to 205 mm, offering flexibility for a variety of component sizes without additional adapters. What material is the vice body made from and how heavy is it? The housing is made from cast iron and the unit weighs 23 kg, combining rigidity with effective vibration damping. Is this vice suitable for standard machine-table installation? Yes; the vice’s compact footprint and hydraulic actuation are designed for integration on conventional machine tables and for efficient setup workflows. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-220 mm Hydraulic Milling Vice Precision 0.01mm Accuracy 36.5kg - Vertex
Benefit from high clamping accuracy (0.01 mm), steady hydraulic pressure and a versatile 0–220 mm jaw opening for reliable milling results; order the VHO‑5 directly via Metav Werkzeuge or contact our consultants for specification advice. VHO-5 Hydraulic milling vice (0–220 mm opening) by Vertex The VHO-5 hydraulic milling vice is a durable, high-precision clamping solution designed for use on milling machines and machining centres. High clamping accuracy 0.01 mm Hydraulic actuation for steady clamping Adjustable opening 0–220 mm Robust 36.5 kg construction Consistent precision for repeatable production The vice delivers measurable improvements in process stability thanks to its 0.01 mm clamping accuracy and even hydraulic pressure distribution. The hydraulic actuation reduces jaw slip and micro-movement during cutting, which lowers scrap rates and minimises rework. For production engineers, this translates into higher first-pass yield and reduced inspection effort, while operators benefit from predictable set-ups and less manual re-tensioning after each cycle. Stable mounting and wide part compatibility With a mass of 36.5 kg and a compact footprint of 920 x 190 x 129 mm, the unit provides a steady base for heavier milling passes and coarse cutting. The adjustable jaw opening of 0–220 mm allows clamping of a broad range of workpieces without frequent fixture changes, helping to shorten changeover times. The vice’s construction is engineered to reduce vibration and jaw flex, supporting better surface finish and dimensional stability during demanding operations. Easy specification and line integration The vice is straightforward to include in procurement and production documents, with clear technical identifiers and a compact set of core specifications. The VHO‑5 by Vertex is suitable for integration into machining centres where reliable clamping repeatability and reduced cycle variation are priorities. When combined with routine inspection and scheduled maintenance, the unit supports predictable throughput and contributes to lower lifetime operating costs. Contact Metav Werkzeuge today for tailored advice on Vertex hydraulic clamping solutions and to discuss whether the VHO‑5 meets the specific requirements of the workshop or production line. Technical data Article number: VHO-5 GTIN: 4061905084980 Brand: Vertex Core specifications Dimensions: 920 x 190 x 129 mm Opening range: 0–220 mm Accuracy: 0.01 mm Weight: 36.5 kg Features & applications Type: Hydraulic milling vice eClass: 21020601 ETIM: EC002173 Suitable for machine-tool clamping in milling operations FAQ What clamping accuracy can be expected with this vice? The vice offers a specified clamping accuracy of 0.01 mm, enabling tight machining tolerances for precision milling. What is the maximum jaw opening of the unit? The opening range is 0–220 mm, which allows the vice to accommodate a wide variety of workpiece sizes. Is the VHO‑5 suitable for heavy-duty milling operations? Yes, the robust construction and weight of 36.5 kg provide stability for heavier milling passes and help maintain cutting accuracy. Which machines is the vice intended for? The VHO‑5 hydraulic milling vice is designed for use on milling machines and machining centres where repeatable clamping is required. How is the VHO‑5 identified for procurement and asset tracking? The product is listed under SKU VHO-5 with GTIN 4061905084980 and the classification codes eClass 21020601 and ETIM EC002173. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
185mm Milling Vice With Extra-Wide Jaw Opening, 1500 Kgf Clamp Force, 0.02mm Accuracy - Vertex
Benefit from the combination of reliable 1,500 kgf clamping force, an extra-wide 0–185 mm opening and 0.02 mm repeatability to keep milling operations consistent and reduce rework. Order the Vertex VJ-400 milling vice directly via Metav Werkzeuge or ask our consultants if needed. Vertex VJ-400 milling vice — extra-wide opening and high clamping force The Vertex VJ-400 milling vice is a mechanical workholding solution designed for demanding milling and machining tasks that require wide jaw capacity and steady clamping. Extra-wide 0–185 mm opening 1,500 kgf clamping force 0.02 mm repeatability accuracy Robust 25 kg construction Consistent clamping for precision machining The vice combines a wide jaw span with measured repeatability to maintain part position throughout machining cycles. With a documented 0.02 mm accuracy and a 1,500 kgf clamping capability, the unit reduces the risk of workpiece shift and minimises corrective machining. This level of stability supports predictable tool paths and contributes to lower scrap rates in series production, offering a tangible productivity advantage for precision-oriented workshops. Faster setup and handling of larger parts An extra-wide opening of 0–185 mm means fewer fixture changes and simpler handling of bulky components. The vice’s mass, approximately 25 kg, provides inherent stability that dampens vibration during heavy cuts, shortening cycle times and reducing the need for frequent re-clamping. As a result, machining sequences can be arranged more efficiently, improving throughput on both manual and CNC milling machines without complex fixturing. Mechanical simplicity for dependable uptime Built as a mechanical design, the vice avoids the failure modes associated with electronic actuation and keeps maintenance straightforward. Fewer moving subsystems translates into predictable service intervals and easy inspection routines, which supports continuous operation in a busy workshop. The straightforward construction also simplifies routine checks and keeps total cost of ownership low over the product’s service life. Compact footprint that fits workshop workflows With external dimensions of 386 x 270 x 135 mm, the vice offers a compact profile that still accepts larger workpieces thanks to its wide opening. The combination of a modest footprint and a generous clamping range makes it suitable as a standard workholding device on many milling tables and benches, improving adaptability across jobs without dedicating extra machine space. Contact Metav Werkzeuge in Emmerich for tailored technical advice and to discuss the Vertex VJ-400 milling vice — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data SKU: VJ-400 Manufacturer: Vertex GTIN: 4061905084140 ECLASS: 21020601 ETIM: EC002173 Facts Opening: 0–185 mm Clamping force: 1,500 kgf Accuracy: 0.02 mm Weight: 25 kg Dimensions: 386 x 270 x 135 mm Special features Milling vice with extra-large opening range Mechanical type Robust construction suitable for milling operations FAQ What opening range does the vice offer? The Vertex VJ-400 milling vice provides an opening range of 0–185 mm, allowing secure clamping of larger workpieces without complex fixtures. How much clamping force is available? The Vertex VJ-400 delivers a clamping force of 1,500 kgf, which supports heavy-duty milling cuts and stable workholding. Is the vice precise enough for fine machining tasks? Yes. The vice is specified with a repeatability of 0.02 mm, making the VJ-400 suitable for many precision milling applications where positional stability is required. What are the dimensions and weight of the unit? The vice measures 386 x 270 x 135 mm and weighs approximately 25 kg, combining a compact footprint with substantial mass for stability. Which machines is this vice intended for? The vice is designed for milling machines and general machining tables where mechanical workholding with a wide opening and high clamping force is needed. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

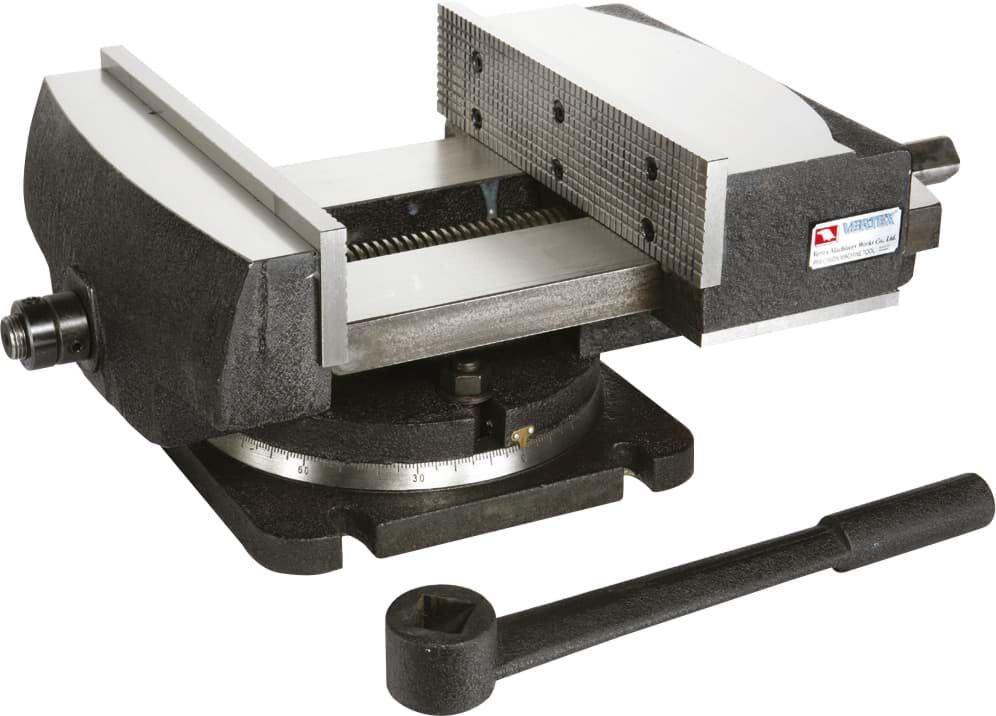

0-290mm Milling Vise Mechanical 800 kgf Clamping Force, Cast Iron, 0.01mm Accuracy - Vertex
Benefit from cast iron rigidity, 800 kgf clamping force and a 0–290 mm opening for reliable workholding; these features support precise, repeatable milling and stable setup. Order the VSM-12 directly via Metav Werkzeuge or ask our consultants if needed. VSM-12 mechanical milling vice — 800 kgf clamping force, 0–290 mm opening (Vertex) VSM-12 is a mechanical milling vice intended for secure workholding in production and toolroom milling, offering robust clamping and consistent positioning for repeatable machining operations 800 kgf clamping force Cast iron construction for stiffness 0–290 mm opening range Accuracy 0.01 mm Consistent clamping that improves machining accuracy The vice combines a cast iron construction with a high clamping force 800 kgf, delivering the rigidity required to reduce vibration and maintain tool engagement during milling. This structural stability translates into fewer reworks and tighter tolerances on finished parts. With a documented accuracy 0.01 mm, the unit supports applications where repeatable positioning is essential, such as precision component manufacture or small-batch production. The mechanical drive avoids electronic calibration, simplifying inspection routines and supporting predictable performance over long runs. Flexible setup and reduced cycle times A wide 0–290 mm opening allows accommodation of a broad range of workpiece sizes without frequent jaw changes, speeding up job changeovers and lowering setup time per operation. The compact footprint, at 304 x 604 x 198 mm, pairs well with many milling machines and table configurations, while the mass of 84 kg helps the vice resist movement under heavy cuts. The mechanical design supports straightforward fixturing and clamping adjustments, which benefits shops that prioritise quick, reproducible setups and efficient use of machine time. Designed for lasting workshop use and easy integration Built as a mechanical vice, the unit emphasises serviceability and robust function over complexity; routine maintenance is limited to inspection and lubrication of moving parts. The combination of durable materials and proven mechanics ensures a long service life in demanding environments. Supplied under the Vertex brand and identified as SKU VSM-12, the vice is suitable as a core element of a workholding strategy where dependability, repeatability and straightforward maintenance matter most. Discuss the Vertex VSM-12 milling vice with Metav Werkzeuge for tailored clamping solutions and assured European supply from our Emmerich quality filter — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: VSM-12 GTIN: 4061905083495 Manufacturer: Vertex Facts Material: Cast iron Clamping force: 800 kgf Opening: 0–290 mm Accuracy: 0.01 Weight: 84 kg Dimensions: 304 x 604 x 198 mm Type: Mechanical Special features Robust cast iron body High clamping capacity for heavy workholding Suitable for production and toolroom milling Simple mechanical drive for low-maintenance operation FAQ What is the maximum workpiece width the vice can clamp? The vice accepts workpieces up to a 0–290 mm opening range, allowing a wide variety of part sizes to be secured. How precise is the positioning with this vice? Positioning repeatability is specified at 0.01 mm, supporting precision milling and applications that demand consistent tolerances. Is the VSM-12 suitable for heavy-duty milling? The VSM-12, with its cast iron construction and 800 kgf clamping force, is designed to withstand heavy cuts and provide stable workholding in demanding milling operations. Which manufacturer produces this milling vice? This milling vice is produced by Vertex and is listed under SKU VSM-12 and GTIN 4061905083495. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-32mm Precision Grinding Vice With Screw Clamp, 60x90x50mm - Vertex
Take advantage of precise clamping, compact dimensions and rapid integration into grinding setups for steady production results; order the part directly via Metav Werkzeuge or consult our advisers for specification matching. Vertex V-VE20 — Precision grinding vice with screw clamp, 0–32 mm opening The Vertex V-VE20 precision grinding vice is a compact vice designed for secure workholding on surface grinders and small machining fixtures High-precision clamping with screw clamp Compact footprint for bench and machine use 0–32 mm opening for small workpieces Robust, low-mass design for repeatable setups Consistent surface accuracy for finishing tasks The precision clamping mechanism delivers a secure hold that reduces vibration and ensures consistent contact during grinding operations. With a manually actuated screw clamp, the vice provides controlled closing force that is suitable for delicate finishing passes and repeatable setups. The 0–32 mm opening accommodates a range of small components commonly encountered in toolrooms and jigs, while the engineered jaw alignment keeps workpieces square to the grinding face. This results in fewer reworks and a measurable improvement in surface finish consistency. Space-saving design to improve workflow Thanks to its compact dimensions of 60 x 90 x 50 mm and modest mass, the vice integrates easily into tight machine tables and crowded benches without compromising accessibility. The small footprint allows multiple fixtures to be arranged on a single grinding table, improving throughput for batch work. Where shop floor space is at a premium, the vice's reduced envelope simplifies loading and unloading, shortening cycle times and helping maintain a steady production rhythm. Stable clamping that supports repeatable quality A carefully engineered clamping path and the screw-actuated mechanism promote repeatable positioning and minimal slippage under light to moderate grinding forces. The unit’s balanced construction contributes to reliable performance across identical setups, reducing the need for frequent recalibration. For precision workshops seeking predictable results from series or prototype runs, this vice represents a practical combination of stability and ease of use, lowering scrap rates and saving operator time. Contact Metav Werkzeuge for tailored advice on integrating the Vertex V-VE20 into existing grinding processes and to arrange purchase from our Emmerich warehouse Technical data Article number: V-VE20 GTIN: 4061905083990 eClass: 21020601 ETIM: EC002173 Brand: Vertex Facts Opening: 0–32 mm Dimensions: 60 x 90 x 50 mm (L x W x H) Weight: 1.62 kg Special features Precision grinding vice with screw clamp Compact, low-mass design SKU: V-VE20 Image available: v-ve20.jpg FAQ Is the vice suitable for surface grinding operations? Yes. The Vertex V-VE20 precision grinding vice is intended for secure workholding on surface grinders and is optimised for finishing and light grinding tasks. What size of workpiece can be clamped? The clamping range is 0–32 mm, which accommodates small components typically encountered in toolrooms and precision workshops. How does the screw clamp affect repeatability? The screw clamp on the Vertex V-VE20 provides controlled closing force and a defined clamping path, supporting repeatable positioning and reduced slippage during finishing passes. Can the vice be used on a small bench grinder or fixture table? Yes. The compact footprint (60 x 90 x 50 mm) and modest weight make the vice suitable for bench and machine-table mounting where space is limited. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-50mm Precision Grinding Vice With Screw Clamp, 35mm Height, 100mm Jaw - Vertex
Take advantage of the combination of high 0.005 mm repeatability, a compact low-profile design and a reliable screw clamp for consistent, fast clamping in surface grinding and precision finishing. Order via Metav Werkzeuge or consult the sales team for application advice. Precision grinding vice VSTV-20 by Vertex — 0–50 mm opening, 0.005 mm accuracy The Precision grinding vice VSTV-20 secures small workpieces for accurate surface grinding and precision bench operations in toolrooms and machine shops. High repeatability 0.005 mm accuracy Low-profile 35 mm height for wheel clearance Compact weight 1.2 kg for easy handling Screw clamp mechanism for secure holding Built for consistent precision in production environments The VSTV-20 is engineered to deliver 0.005 mm repeatability, which reduces rework and shortens setup time for serial grinding tasks. This level of precision means that tolerances can be maintained across multiple parts without frequent readjustment, improving throughput and lowering scrap rates. Where "precision" is required but machine table space is limited, the vice offers a reliable means of transferring clamping stability directly into measurable production benefits. Space-saving design that adapts to tight setups A low-profile height of 35 mm and a compact body help the vice fit under grinding wheels and inside confined fixtures. At 1.2 kg the tool is lightweight enough for rapid repositioning yet sturdy for repeatable clamping. The overall length of 100 mm and the slim form factor make it suitable for bench work, jig mounting or use on small surface grinders, supporting flexible workshop layouts without sacrificing stability. Secure screw clamp for repeatable workholding The integrated screw clamp provides a controlled closing action across the 0–50 mm jaw opening, enabling consistent clamping force on components of varying dimensions. The mechanical screw drive offers fine adjustment and a firm grip, which is particularly beneficial for thin or delicate parts where clamping pressure must be precise. This mechanism supports safer grinding operations by reducing vibration and part movement during machining. For application guidance or to request a specification sheet for the Vertex VSTV-20, contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com Technical data Article number: VSTV-20 GTIN: 4061905084621 Brand: Vertex Key specifications Accuracy: 0.005 mm Weight: 1.2 kg Height: 35 mm Length: 100 mm Opening: 0–50 mm Features & applications Screw clamp for precise clamping Low-profile design for grinding use Suitable for small workpieces and precision finishing FAQ What tolerance can be expected from this vice? The vice provides a repeatability of 0.005 mm, making the VSTV-20 suitable for tight-tolerance surface grinding and precision finishing. What is the usable jaw opening range? The jaw opening spans 0–50 mm, allowing secure clamping of a variety of small parts commonly processed on bench grinders and small machining centres. Is the vice suitable for low-clearance grinding wheels? Yes, the 35 mm low-profile height is designed to fit under many grinding wheel arrangements while preserving access to the workpiece. How heavy is the unit and how portable is it? The device weighs 1.2 kg, combining portability with the mass required for stable clamping in repetitive tasks. Can the screw clamp handle delicate components? The screw-driven clamp offers controlled pressure and fine adjustment, which helps protect thin or fragile components during clamping and machining. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

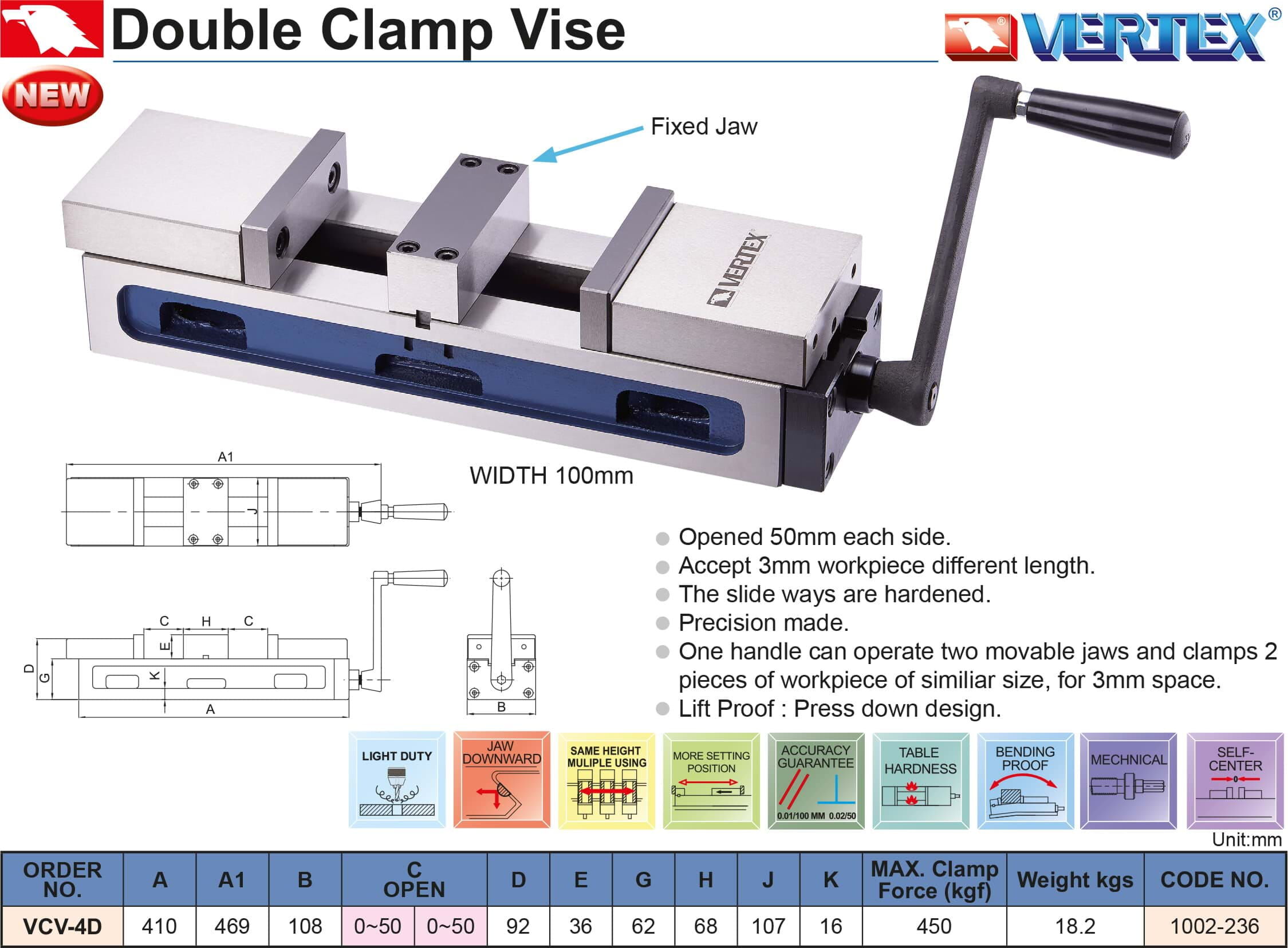

0-50mm Two-Opening Machine Vice 450 kgf Clamping Force, 469x108x92mm - Vertex
The combination of 450 kgf clamping force, a double opening 0–50 mm capacity and a compact 18.2 kg build delivers stable, repeatable clamping for demanding machining tasks; secure reliable throughput and consistent accuracy for production environments. Order the machine vice directly via Metav Werkzeuge or contact our consultants for application advice. VCV-4D Machine vice by Vertex – double opening, 450 kgf clamping force The VCV-4D is a precision machine vice with dual opening jaws designed for reliable clamping during milling, drilling and general machining operations Double opening 0–50 mm (two jaws) 450 kgf clamping force High repeatability with 0.01 mm accuracy Robust 18.2 kg construction Precise, repeatable clamping that raises machining quality The VCV-4D stands out for its accuracy and consistency: a specified repeatability of 0.01 mm ensures that workpieces remain within tight tolerances across repeated setups. This high level of precision reduces scrappage and rework, improving first-pass yield in series production. The measurable repeatability also simplifies process validation and quality documentation for production control, making the vice suitable for toolrooms and small-batch manufacturing where dimensional integrity is essential. Faster setup and improved workflow through a dual-jaw concept The vice's double opening design, with two jaws operating across an opening range of 0–50 mm, enables parallel clamping of paired parts or rapid repositioning without full re-clamping. The configuration shortens cycle times for batch tasks and supports effective fixturing strategies on the machine table. For operations that require frequent part changes, the dual jaws reduce downtime and help sustain machining throughput, presenting a clear efficiency advantage in both prototyping and repetitive machining. Built for durability under workshop conditions Constructed to a total weight of 18.2 kg, the device provides a stable base that resists vibration during heavy cuts, supporting consistent tool life and surface finish. The specified 450 kgf clamping force delivers secure grip on a wide range of components without overloading the workpiece. Robustness in mechanical design translates into longer service intervals and predictable performance, which lowers total cost of ownership in the medium term and supports continuous production cycles. Simple integration and straightforward handling for everyday use The vice requires no specialised consumables and integrates easily with standard machine tables and fixtures. Adjustment and mounting follow familiar workshop practises, enabling fast commissioning on CNC mills or manual machines. The compact footprint (469 x 108 x 92 mm) balances clamping capacity and table space, allowing for flexible fixturing layouts. For teams seeking dependable, low-complexity clamping, this device combines practical ergonomics with the technical features needed for repeatable results. Contact Metav Werkzeuge to discuss how the Vertex VCV-4D’s 450 kgf clamping force and dual 0–50 mm jaws can increase machining reliability; Metav’s advisors in Emmerich are available by email at info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical data Article number: VCV-4D GTIN: 4061905084133 eClass: 21020601 ETIM: EC002173 Key measurements Dimensions: 469 x 108 x 92 mm Weight: 18.2 kg Clamping force: 450 kgf Opening: 0–50 mm (two jaws) Accuracy: 0.01 mm Special features Machine vice Double opening (two jaws) Robust workshop construction Vertex brand FAQ Is the vice suitable for repeated production runs? The vice offers a repeatability of 0.01 mm, which makes the VCV-4D well suited to repeated production tasks where consistent clamping and dimensional control are required. Can the vice clamp two separate parts at once? Yes, the dual opening arrangement and the 0–50 mm range allow parallel or staggered clamping, enabling handling of paired components or faster changeovers. What clamping force can be expected during heavy machining? The vice provides a clamping force of 450 kgf, delivering secure hold for a wide range of milling and drilling operations without compromising stability. Does the VCV-4D require special fixtures to mount on a machine table? The unit is designed to integrate with standard machine tables and common fixturing methods; no specialised mounting equipment is mandatory. How does the vice contribute to process reliability? By combining high repeatability and a stable structural mass (18.2 kg), the vice reduces movement and vibration, helping to maintain tool life and surface finish consistency across production cycles. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-80 mm Low-Profile Machine Vice, Quick-Action Low-Draw Design, 48x155x93.5mm - Vertex
Take advantage of the low-profile design and 0–80 mm opening to secure components in confined workspaces while keeping the bench area organised; the compact footprint and manageable weight ensure stable clamping and straightforward handling. Order the vice directly via Metav Werkzeuge or consult the advisors for application-specific guidance. Vertex SVB-20 Low-Profile Vice — 0–80 mm opening, compact footprint A SVB-20 low-profile vice engineered for secure clamping of small to medium components where headroom is limited, suitable for precision workshop and general bench duties. Low-profile design for limited headroom Opening range 0–80 mm Compact 48 × 155 × 93.5 mm footprint Stable mass 4.4 kg for firm clamping Space-saving design that increases usable bench area The low-profile design reduces vertical obstruction around the workpiece, allowing operations under limited headroom without compromising access from above. With external dimensions of 48 × 155 × 93.5 mm, the unit occupies minimal bench space while providing sufficient jaw travel for many routine assembly and machining tasks. The compact format makes it straightforward to position multiple clamping points along a workbench, supporting efficient component handling and minimising set-up time in tight production cells. Versatile clamping range for diverse workshop tasks A jaw opening of 0–80 mm provides a practical clamping range for gripping small parts, fixtures and workpieces used in light machining, soldering or inspection tasks. The stated opening indicates the maximum clear gap between the jaws; for everyday applications this offers flexibility to hold a variety of cross-sections and shapes without frequent tool swaps. For teams working on small-series production or repeat maintenance, the measurable opening supports quick selection of the correct vice for each job, reducing downtime and supporting consistent results. Weight that balances portability with stability At 4.4 kg, the tool offers a compromise between ease of repositioning and the mass needed to resist movement under light to moderate clamping loads. The weight contributes to a steady clamping platform when mounted or secured to a bench, while remaining light enough for reorganisation of the workshop layout when workflows change. This balance is particularly useful in training environments or service areas where fixtures are moved frequently yet reliable clamping is still required. Practical integration into professional workflows Designed for straightforward inclusion in workshop setups, the vice pairs well with common bench arrangements and modular fixture systems thanks to its small footprint and measurable specifications. Clear dimensional data and the defined 0–80 mm opening make it simple to plan jigs and fixtures around the clamping envelope. For buyers seeking predictable performance and easy procurement, the documented measures and SKU support streamlined stock management and compatibility checks within production tool lists. Contact Metav Werkzeuge in Emmerich for specialist advice on the SVB-20 low-profile vice and precise delivery options from our European quality hub Technical data Article number: SVB-20 GTIN: 4061905084539 Manufacturer: Vertex Machinery Works Co., Ltd. Facts Dimensions: 48 × 155 × 93.5 mm Jaw opening: 0–80 mm Weight: 4.4 kg EClass: 21020601 ETIM: EC002173 Special features Category: Vertex SKU: SVB-20 Compact bench vice type Designed for limited headroom applications FAQ What is the maximum jaw opening of the vice? The maximum jaw opening is 0–80 mm, which defines the clear gap available to grip workpieces with the SVB-20 low-profile vice. How large is the vice and how much bench space does it need? External dimensions are 48 × 155 × 93.5 mm, giving a compact footprint that is suitable for dense bench layouts and multiple clamping stations. Is the weight suitable for stable clamping on a workbench? With a mass of 4.4 kg, the vice provides a balance between portability and stability for routine bench clamping tasks. Which applications is this vice suited to in a professional workshop? The SVB-20 is intended for general bench clamping of small to medium components where limited headroom and precise positioning are priorities Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-85 mm Drill Vise With 167x287x56mm Base, 3.5 kg - Vertex
Take advantage of the combination of precise clamping, a 0–85 mm opening and a compact footprint for consistent drilling results. Order the vice directly via Metav Werkzeuge or consult our specialists for application advice. DV-85 Drill Vice by Vertex — 0–85 mm opening, compact design A DV-85 drill vice designed for secure clamping on drill presses and small machine tables, offering a wide adjustable 0–85 mm opening for varied workpiece widths. Secure clamping across 0–85 mm Compact footprint for tight workspaces Lightweight at 3.5 kg for easy repositioning Consistent hole quality through controlled clamping The vice provides a reliable gripping range of 0–85 mm, ensuring repeatable positioning for sequential drilling tasks. By holding components firmly, the device reduces workpiece movement and thus lowers the risk of misaligned holes and rework. The controlled clamping action supports stable machining conditions, which translates directly into improved productivity and fewer rejects during batch operations. Clear mechanical limits make set-up times predictable and help maintain the same datum across multiple parts. Space-saving design that integrates with workshop layouts With external dimensions of 167 x 287 x 56 mm, this vice offers a compact footprint that fits on small drill press tables and crowded benches. The moderate mass of 3.5 kg balances stability with portability, allowing the unit to be repositioned when workflows change or when different machines require the vice. The design supports efficient use of floor and table space, enabling workshops to maintain flexibility without sacrificing the solidity needed for accurate drilling tasks. Practical reliability for everyday machining processes Engineered for straightforward use in a production or repair setting, the vice simplifies routine operations by combining a wide clamping range with a compact form factor. The model aids in reducing setup variance between operations, promoting smoother process flows and consistent results. Suitable for shop environments that prioritise repeatability and ease of handling, this vice contributes to a dependable machining chain that supports uptime and steady throughput. Contact Metav Werkzeuge today to discuss how the DV-85 can fit into current workflows or to receive tailored advice from our Emmerich-based team Technical Data Article number: DV-85 GTIN: 4061905083907 eClass: 21020601 ETIM: EC002173 SKU: DV-85 Facts Opening range: 0–85 mm Dimensions: 167 x 287 x 56 mm Weight: 3.5 kg Special features Product type: Drill vice Brand: Vertex Suitable for drill press and bench use Compact design for small workspaces FAQ What maximum workpiece width does the vice accept? The vice accommodates workpieces up to 85 mm thanks to its 0–85 mm adjustable opening, allowing flexibility for a range of component sizes. What are the external dimensions and weight? External measurements are 167 x 287 x 56 mm and the unit weighs 3.5 kg, offering a compact and manageable solution for workshop tables. Which manufacturer produces this vice? The vice is produced by Vertex; the product is listed as the DV-85 drill vice from Vertex. What identifying codes are associated with the product? Relevant identifiers include SKU: DV-85, GTIN: 4061905083907, eClass: 21020601, and ETIM: EC002173. Is the vice suitable for bench-mounted drill presses? The design and footprint make it suitable for use on drill press tables and benches where a compact, adjustable clamping solution is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
800 N Push Rod Clamp, Vertical Foot, Zinc Plated, 35 mm Spindle M5x35, 970 N Holding Force - Kukamet
Take advantage of the combination of robust holding force, compact construction and corrosion‑resistant finish to keep fixtures accurate and production moving. Order the clamp directly via Metav Werkzeuge or ask the consultants for tailored delivery from the Emmerich warehouse. Schubstangenspanner 512 — Kukamet push‑rod clamp with vertical base and zinc‑plated finish The Schubstangenspanner 512 is a compact push‑rod clamp suited to fixtures and jigs where secure, repeatable holding is required Zinc-plated for corrosion resistance Vertical base for bench mounting Max holding force 970 N Lightweight 0.135 kg for compact fixtures Consistent clamping and dependable force for production The clamp provides a reliable holding force of 970 N and a maximum clamping force of 800 N, values that ensure repeatable results in batch production and manual assembly tasks. The integrated M5x35 pressure spindle allows fine adjustment of contact pressure, reducing set‑up time and the need for constant re‑adjustment. Because the unit is zinc‑plated, surface protection against corrosion is improved, which prolongs service life in mixed workshop environments and maintains clamping performance over time. Space‑saving mounting that simplifies fixture design A vertical base configuration enables direct bench or fixture mounting without complex adaptors, saving assembly height and simplifying layout. The compact form factor and a mass of 0.135 kg make the clamp easy to integrate into existing jigs where weight and footprint matter. For manufacturing cells that require frequent reconfiguration, the combination of small size and robust fixation contributes to faster changeovers and more efficient use of workbench space. Low‑maintenance construction for continuous operation The zinc‑plated finish reduces the need for intensive upkeep and keeps the contact surfaces protected under typical workshop conditions. The solid construction supports long service intervals and predictable performance, so downtime for repairs or replacements is minimised. Supplied through Metav Werkzeuge, the product benefits from a dependable logistics chain and quality control that supports consistent availability for both small businesses and larger industrial customers. Contact Metav Werkzeuge in Emmerich for a precise supply recommendation and to secure the Kukamet 512 push‑rod clamp for immediate dispatch — eMail: info@metav-werkzeuge.com, Tel: +49 2822 7131930 Technical Data SKU: 512-1 GTIN: 8680731502657 Manufacturer: Kukamet Facts Max clamping force: 800 N Max holding force: 970 N Pressure spindle: M5x35 Weight: 0.135 kg eCl@ss: 21041716 ETIM: EC011973 Special features Push‑rod clamp design Vertical base mounting Zinc‑plated finish Compact, lightweight construction FAQ What materials is this clamp suitable for? The Kukamet 512 push‑rod clamp is designed as a general‑purpose clamping device for fixtures and jigs; its zinc‑plated finish makes it suitable for typical workshop materials and indoor environments. How is the clamp fixed to a workbench or fixture? Mounting is via the vertical base; the vertical base allows direct attachment to benches and fixture plates for a secure installation of the Kukamet 512 (SKU 512-1). Can the clamping pressure be adjusted? Yes, the clamp uses an M5x35 pressure spindle to fine‑tune the contact pressure, enabling accurate setting of the required clamping force for consistent results. Is the clamp corrosion resistant? The zinc‑plated surface provides corrosion protection appropriate for standard workshop use, helping to maintain performance and reduce maintenance needs. What holding and clamping forces can be expected in daily use? Typical performance figures are 970 N holding force and 800 N maximum clamping force, values that support repeatable clamping in assembly and fixture applications. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
10mm T-Slot Nut Single, M8 Threaded - Vertex
Take advantage of a compact component that delivers a secure clamping interface and straightforward compatibility with standard 10 mm profiles; combine reliable fastening, precise fit and rapid procurement via Metav Werkzeuge for uninterrupted workshop workflows. Order the part directly through Metav Werkzeuge or consult the technical team for application guidance. 3412M — Vertex T-slot nut, compatible with 10 mm profiles and M8 threading 3412M is a compact T-slot nut designed for secure fixture in 10 mm T-slots, suitable as a single supply item for machine tables and fixture systems Compatible with 10 mm T-slot profiles M8 thread for secure fastening Compact dimensions 9.7x22x6 mm Supplied as a single item Precise engagement with 10 mm profiles for dependable fixturing The T-slot design offers a consistent mechanical interface that aligns with standard 10 mm slot profiles, ensuring repeatable positioning and reduced setup time. The low-profile, compact geometry (9.7x22x6 mm) minimises interference within assemblies while providing a stable bearing surface for clamping elements. In practice, this results in fewer alignment checks during part changeovers and a more efficient workflow when integrating the nut into modular fixturing systems. Secure M8 fastening that supports reliable clamping forces Threaded engagement is provided by an M8 thread, which is widely used in workshop and industrial fixtures for its balance of strength and accessibility. The internal thread allows conventional bolts or studs to be used without additional adapters, simplifying inventory and assembly processes. As a result, clamping assemblies can be tightened to the required torque using standard tools, delivering consistent holding forces and lowering the risk of slippage under operational loads. Engineered compatibility and supply reliability through a trusted channel Manufactured by Vertex, this component is intended for integration into fixture plates, machine tables and clamping rails where a standard T-slot nut is required. Supplied individually, the item is well suited for targeted replacements or small runs where bulk packs are unnecessary. Procuring the part via Metav Werkzeuge provides access to quality-controlled stock and the specialist know-how of a precision partner, supporting seamless procurement and installation in industrial and trade environments. For application advice or compatibility checks for the Vertex 3412M T-slot nut, contact Metav Werkzeuge to request a fitment recommendation or technical clarification through their sales and consultancy channels Technical Data Article number: 3412M GTIN: 4061905084157 EClass: 21029107 Core dimensions Overall size: 9.7 x 22 x 6 mm Slot compatibility: 10 mm Thread: M8 Features & suitability Type: T-slot nut, single item supply Brand: Vertex Images: technical drawing and product detail available FAQ What slot size is this nut designed for? The item is intended for 10 mm T-slot profiles and provides a standardised interface for fixture systems. Which thread size does the nut accept? The nut features an M8 internal thread suitable for common bolts and studs used in clamping assemblies. Can this part be used as a replacement in existing fixtures? Yes, the Vertex 3412M T-slot nut is designed for straightforward replacement in compatible 10 mm profile systems. Is the product supplied individually or in sets? This entry is supplied as a single item, indicated by the single-item designation for targeted replacements. Where can technical drawings be obtained? Technical drawings and product images are available via the product listing and can be consulted before installation to confirm fitment. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
1,200 N Vertical Clamp With Safety Lock, Zinc Plated, M6x40 Spindle - Kukamet
Reliable, space-saving clamping with a galvanised body and an integrated safety lock ensures secure workholding and long service life; combine the compact vertical-foot mounting and clear performance figures for efficient jig design. Order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. Vertical clamp 212 — Kukamet vertical lever clamp with safety lock and galvanised finish The Vertical clamp 212 is a lever-operated vertical clamp designed for secure, repeatable clamping in confined jigs and workshop fixtures. Galvanised corrosion protection Integrated safety lock mechanism Max clamping force 1,200 N Lightweight 0.23 kg construction Secure, repeatable clamping to speed up production This lever-type vertical clamp delivers consistent, measurable holding performance that supports reliable cycle times on the shop floor. The 1,200 N maximum clamping force, combined with a 1,400 N holding capacity, provides a clear technical basis for fixture design and risk assessment; those figures enable predictable deformation limits and more accurate process control. Where repeatability matters, a clamp that specifies force values removes guesswork and reduces set-up time, improving throughput without compromising part quality. Robust materials and safety features for everyday use Constructed from galvanised steel, the device resists corrosion in humid or workshop environments and maintains functional surfaces for longer service life. The integrated safety lock prevents unintended release during machining operations, reducing the likelihood of workpiece movement and associated rework. The compact body (approx. 0.23 kg) suits dense fixture layouts and makes retrofitting straightforward; a lightweight clamp simplifies handling while preserving mechanical resilience for daily use. Practical installation and technical compatibility Mounting is by a vertical foot, permitting direct attachment to plates and jigs where a low profile is required. The supplied pressure spindle is M6×40, a common specification that fits standard clamping interfaces and allows straightforward replacement if necessary. As a lever-operated solution, the clamp integrates easily into manual and semi-automated fixtures, offering fast actuation and confident locking. Technical documentation (PDF) is available to verify dimensional fitment when planning installations. Contact Metav Werkzeuge to discuss how the Kukamet Vertical clamp 212 (SKU 212-2-L) can be integrated into existing fixtures and to request precise mounting guidance from our Emmerich-based technical team Technical data SKU: 212-2-L GTIN: 8680731501575 eClass: 21041717 ETIM: EC011973 Performance data Max clamping force: 1,200 N Max holding force: 1,400 N Weight: 0.23 kg Pressure spindle: M6x40 Design & features Mounting: vertical foot Material: galvanised Safety lock integrated Lever-type vertical clamp FAQ What maximum clamping force does the clamp provide? The Kukamet vertical clamp 212 specifies a maximum clamping force of 1,200 N and a holding capacity of 1,400 N, values useful for fixture calculations. Is the safety lock mechanical or automatic? The safety lock on the Vertical clamp 212 is a mechanical locking feature that secures the lever in position to prevent unintended release during machining. What is the mounting arrangement for this clamp? Mounting is via a vertical foot, allowing the clamp to be bolted directly to fixture plates or bases for compact, low-profile installations. Which pressure spindle size is supplied with the clamp? The clamp is supplied with a pressure spindle sized M6×40, compatible with standard clamping interfaces. Is the clamp suitable for corrosive workshop environments? The body is galvanised, providing corrosion resistance appropriate for general workshop conditions and extending service life. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

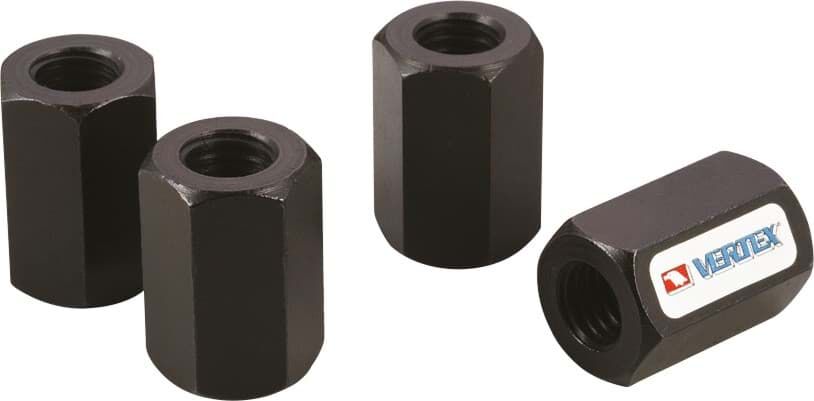

13x22mm Coupling M8x1.25mm Thread, Precision Mechanical Joint - Vertex
Take advantage of the compact dimensions and standard M8x1.25 thread to speed up assembly and reduce part mass in confined installations; the lightweight design and Vertex quality ensure consistent handling and simple stocking via Metav Werkzeuge — order directly through Metav Werkzeuge or consult the team for procurement guidance. Vertex coupling 2612M – compact coupling with M8x1.25 thread A Vertex coupling designed for mechanical connections in confined assemblies, offering a compact 13 x 22 mm footprint and compatibility with standard M8x1.25 threaded components. Compact 13 x 22 mm footprint Compatible with M8 x 1.25 thread Lightweight at 0.033 kg Technical drawing and detail images available Space-saving form that keeps assemblies compact and predictable The compact 13 x 22 mm format reduces the installation envelope, enabling denser layouts on fixtures and jigs without compromising service access. With a mass of 0.033 kg, extra rotating or moving masses are minimised, which can contribute to lower inertia in dynamic assemblies. The standard M8x1.25 specification denotes a metric thread with a 1.25 mm pitch, meaning the part will mate reliably with common M8 fasteners and tapped holes. This combination of small footprint and standard threading supports faster component selection and simpler inventory management, while the clear dimensional data aids in collision checks and CAD planning. Designed for straightforward integration and dependable mechanical connection The coupling functions as a mechanical connector for threaded interfaces, designed to join components where a compact threaded junction is required. Compatibility with the M8x1.25 thread ensures interchangeability with widely used fasteners, reducing the need for bespoke machining. The visible technical drawing and detailed images allow quick verification of fit and orientation before assembly. Where thread engagement is critical, matching the mating thread quality and ensuring appropriate tightening practice secures a consistent connection; the compact geometry also simplifies access with standard hand tools, reducing assembly time and the potential for rework. Procurement reliability and workshop-ready supply from Metav Sourcing the part through established channels reduces lead-time risk for production and maintenance operations. Metav Werkzeuge operates as a quality filter for the European market, providing a central supply point for precision parts and workshop essentials. Stocking a concise, standardised coupling such as this supports predictable reordering and helps maintain continuity in production processes. The Vertex name indicates manufacturer origin for traceability, while the available technical files support purchasing decisions and quality checks during incoming inspection. Secure the Vertex coupling 2612M for your next compact assembly via Metav Werkzeuge — contact Metav Werkzeuge in Emmerich for order placement or procurement advice and benefit from their European stock and quality filter. Technical data SKU: 2612M GTIN: 4061905084799 eClass: 21131711 Facts Size: 13 x 22 mm Thread: M8 x 1.25 mm Weight: 0.033 kg Special features Designation: Coupling Brand: Vertex Technical drawing and detailed images available FAQ What thread does the coupling use? The coupling is specified with an M8 x 1.25 thread, compatible with standard M8 fasteners and tapped holes. What are the external dimensions of the part? External dimensions are 13 x 22 mm, suitable for installations with limited space. How much does the coupling weigh? The coupling weighs 0.033 kg, approximately 33 grams. Are technical drawings available for fit verification? Yes, technical drawings and detailed images are provided for the coupling 2612M to assist with fit checks and planning. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
1-7/8" Collet Chuck V-Clamp Style 120x84mm, 47.63mm Jaw Depth - Vertex
Efficient precision clamping and a compact footprint combine to improve setup speed and machining consistency; order the collet directly via Metav Werkzeuge or consult our specialists for application advice. VCL-2C collet — Vertex precision clamping, 1-7/8" opening, compact 120×84 mm The VCL-2C is a precision collet intended for secure workpiece retention in machining and light workholding applications, offering a defined opening for standardised clamping. Precision clamping for consistent concentricity 1-7/8" bore for oversized toolholders Compact 120×84 mm footprint Lightweight design 0.22 kg Reliable concentricity for repeatable results The collet is engineered to provide precision clamping that helps maintain concentricity across repeated setups. By centring the workpiece accurately within the holder, the clamping sleeve reduces runout and contributes to consistent machining tolerances, which translates into fewer rejects and less rework. A focused design for axial alignment ensures stable cutting conditions and predictable outcomes in serial production. Space-saving format that eases workshop workflows With a compact 120×84 mm footprint and lightweight construction of 0.22 kg, this clamping component minimises the space required in storage and on the workbench. The modest dimensions support efficient tool changes and simpler handling during fixture preparation. As a result, throughput can be improved where bench or turret space is at a premium, while still retaining robust clamping performance suitable for routine shopfloor tasks. Faster setups through consistent clamping behaviour Consistent mechanical behaviour is the foundation for reduced setup times. The collet's geometry delivers reliable grip and repeatability, helping to shorten alignment and verification steps between jobs. Reduced variation in clamping force supports quicker measurement cycles and easier interchangeability of parts, enabling operators to maintain machining momentum and keep production schedules on track. Transparent identification and industrial compatibility Manufactured by Vertex, the component is documented for straightforward procurement and inventory control, with clear identifiers for ordering and classification. The plain specification of the opening and dimensions enables straightforward matching to compatible toolholders and machine spindles. Where exact machine compatibility or integration questions arise, the technical data provides a concise reference for selection and planning. Contact Metav Werkzeuge for procurement and application guidance on Vertex collets such as the VCL-2C — email info@metav-werkzeuge.com or call +49 2822 7131930 for tailored advice and fast supply from Emmerich Technical specifications SKU: VCL-2C GTIN: 4061905083921 ECLASS: 21041712 Designation: Collet Core dimensions Opening: 1-7/8" Overall dimensions: 120×84 mm Clamping depth: 47.63 mm Weight: 0.22 kg Features & references Brand: Vertex Image assets available Category: Clamping technology / collets FAQ What clamping diameter does this component provide? The VCL-2C collet offers an opening of 1-7/8", sized for workpieces and toolholders that match this nominal bore. What are the overall dimensions and weight for storage planning? Overall dimensions are 120×84 mm and the unit weight is 0.22 kg, simplifying storage and handling calculations. How does the clamping geometry affect machining accuracy? The clamping geometry of this collet promotes consistent concentricity and repeatability, which supports tight machining tolerances and reduced rework. Which toolholders or spindles is this compatible with? Compatibility is determined by the 1-7/8" opening and standard collet interfaces; verify the receiving toolholder or spindle specification against these nominal values for correct pairing. What identifiers should be used when ordering or specifying this part? Use the SKU VCL-2C and GTIN 4061905083921 for unambiguous ordering and classification. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
1.2kN Vertical Clamp With Horizontal Foot, Massive Holding Arm & Safety Lock - Kukamet
Take advantage of the robust combination of a massive holding arm, a safety lock and compact mounting to secure fixtures reliably in small production runs. The clamp delivers high holding performance with a 112 mm lever while remaining lightweight for simple positioning. Order the vertical clamp directly via Metav Werkzeuge or consult their advisors for application support. Vertical clamp 211 by Kukamet — 112 mm arm, safety lock The Vertical clamp 211 is a vertical lever clamp designed for secure workholding in jigging, assembly and light fixture applications across workshops and small-batch production environments. Massive holding arm with safety lock 112 mm operating arm length Horizontal mounting foot for stability 1,400 N maximum holding force Consistent clamping force for reliable fixing The clamp is engineered to provide repeatable holding capacity, making it suitable for fixtures where consistent pressure prevents part movement and rework. With a 1,400 N maximum holding force and a separate closing capacity of 1,200 N, the unit keeps clamped components stable under load, reducing process interruptions. The integrated safety lock prevents accidental release during handling or machining, which contributes directly to process reliability and operator confidence. The construction supports frequent operation in production jigs without complex adjustments, allowing a smoother workflow and fewer checks between cycles. Space-saving mounting and easy integration A horizontal mounting foot and compact geometry make the clamp straightforward to install on benches, fixture plates or brackets. The 112 mm lever arm provides sufficient reach for many standard holding tasks while the low mass—just 0.235 kg—keeps added inertia minimal when fitted to moving assemblies. The external finish is a blackened finish, offering basic surface protection and a professional appearance that integrates well with existing toolroom hardware. These design choices mean the device can be incorporated into new or existing tooling layouts with minimal redesign, saving engineering time and reducing machine downtime. Durable mechanism and practical operation A massive holding arm and robust lever mechanism deliver durable performance under frequent actuation. The clamp’s lever action allows rapid engagement and disengagement, which accelerates repeat operations on assembly lines or test stations. The blackened surface treatment and solid construction support long service intervals with straightforward maintenance; regular cleaning and occasional lubrication of pivot points suffice to retain smooth function. Where secure, quick clamping is required without complex hydraulic or pneumatic systems, this lever-type clamp combines simplicity with industrially relevant performance. Contact Metav Werkzeuge to discuss delivery options and application suitability for the Kukamet vertical clamp 211; request technical details or a tailored supply recommendation by phone or email Technical data Article number: B211-2-D-L-C2 Brand: Kukamet eClass: 21041717 ETIM: EC011973 Facts Arm length: 112 mm Maximum pressing force: 1,200 N Maximum holding force: 1,400 N Weight: 0.235 kg Special features Massive holding arm and safety lock Horizontal mounting foot Finish: blackened FAQ What is the maximum holding force of the clamp? The Kukamet vertical clamp 211 provides a maximum holding force of 1,400 N, suitable for secure positioning in jig and assembly operations. How is the clamp mounted to a fixture? Mounting is via the horizontal mounting foot supplied; the design allows direct attachment to fixture plates or bench surfaces for rigid installation. Which parts of the clamp improve safety during use? The integrated safety lock prevents unintentional opening, while the robust arm construction ensures stable clamping under repeated actuation. Is the clamp suitable for frequent industrial use? Yes. The lever mechanism and solid arm construction are intended for repetitive use in workshop and light production settings with routine maintenance. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
