Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
1200N Toggle Clamp Horizontal Base, Metal Handle, Zinc Plated, 23mm Thread Length - Kukamet
Take advantage of a compact, galvanised toggle clamp that combines a high holding force with a sturdy metal handle for reliable fixturing; order the part directly via Metav Werkzeuge or consult the Metav team for specification support. Verschlussspanner 361 – Horizontal-foot toggle clamp, galvanised (Kukamet) Verschlussspanner 361 is a durable closure clamp designed for repetitive locking and secure fixtures in workshop and light industrial applications. Horizontal-foot for firm mounting Galvanised finish for corrosion resistance Metal handle for durable operation Consistent clamping performance for repeatable processes Built for repeated use, this toggle clamp delivers measurable force values that support predictable results. With a maximum pressing force of 1000 N and a holding force of 1200 N, the device provides the technical basis for secure workholding during assembly or light machining. The horizontal base plate ensures stable mounting on jigs or fixtures, reducing slippage and aligning with common workshop setups. The mechanical action converts handle movement into firm clamping pressure, allowing quick engagement and disengagement while maintaining repeatability. Compact design that speeds up installation and handling The compact dimensions and low mass make the clamp simple to integrate into existing tooling without adding unnecessary bulk. A thread length of 23 mm permits straightforward adjustment and fine positioning of the clamping point, while the overall weight of 0.055 kg keeps the unit unobtrusive on fixtures. The built-in hook option enables flexible anchoring positions, and the horizontal-foot arrangement aligns with standard mounting holes, cutting installation time and enabling fast changeovers on production or test benches. Corrosion resistance and robust grip for long service life Plated with a galvanised finish, the clamp resists surface corrosion in standard workshop environments, extending service intervals and lowering replacement frequency. The metal handle increases wear resistance compared with plastic alternatives and ensures tactile stability when operating the lever. These material choices translate into long-term economy: less downtime for maintenance and fewer unexpected part failures. For tasks where a secure mechanical latch is key, the combination of finish and construction contributes directly to operational reliability. Suitable applications and straightforward selection This closure latch is suitable for general fixturing, assembly work and light clamping tasks on standard materials. The hardware’s clear numeric specifications make it simple to compare with other clamping elements when designing production tooling. The galvanised surface and metal handle make the component appropriate for workshop environments where occasional exposure and frequent handling occur. When selecting clamping elements, prioritise match between the required holding force and the stated 1200 N retention capability to ensure safe and effective fixation. Contact Metav Werkzeuge for a technical consultation or to request the detailed product sheet for the Kukamet toggle clamp 361; assistance is available by e‑mail at info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical data Article number: 361-1 GTIN: 8682843521076 SKU: 361-1 ECLASS: 21041718 ETIM: EC011973 Facts Maximum pressing force: 1000 N Maximum holding force: 1200 N Thread length: 23 mm Weight: 0.055 kg Special features Material: galvanised Mounting: horizontal foot Handle: metal handle With hook: yes FAQ What is the main clamping force of this toggle clamp? The Kukamet Verschlussspanner 361 provides a maximum pressing force of 1000 N and a holding force of 1200 N, suitable for light industrial and workshop fixtures. Is the clamp suitable for outdoor or humid environments? The galvanised finish on the closure clamp increases corrosion resistance, making it appropriate for standard workshop conditions; extreme outdoor exposure may require additional protection. How is the unit mounted to a fixture? Mounting is via a horizontal foot plate designed for secure attachment to jigs and fixture plates; the horizontal-foot arrangement matches common mounting patterns. Does the clamp include an adjustable spindle? Yes, the clamp includes an adjustable threaded spindle with a thread length of 23 mm for fine positioning of the clamping point. Which materials is the clamp intended to hold? The clamp is intended for general fixturing and assembly tasks on common workshop materials; verify that the stated holding force meets the application’s requirements before selection. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1.5 kN Horizontal Toggle Clamp With Hook, Zinc-Plated, 1725 N Holding Force - Kukamet
Take advantage of a compact, corrosion‑resistant fastening that combines a horizontal-foot mounting with a zinc-plated finish and strong clamping force for reliable fixture performance; order the part directly via Metav Werkzeuge or consult our specialists for application advice. Toggle Latch Clamp 363 — Horizontal-foot latch with zinc-plated finish (Kukamet) A Toggle Latch Clamp 363 designed for secure, repeatable fastening in jigs, fixtures and enclosure assemblies where quick locking and corrosion resistance are required Horizontal-foot mounting for stable attachment Zinc-plated finish resists corrosion Clamping force up to 1,500 N, holding 1,725 N Consistent clamping that keeps processes running The latch delivers a defined clamping force of 1,500 N, with a tested holding force of 1,725 N, ensuring reliable retention of components during machining and assembly. The lever mechanism converts operator input into a secure lock with little variation, which reduces repositioning and rejects. Where repeatability matters on production lines or in manual assembly cells, the horizontal-foot configuration provides a low-profile attachment that keeps fixtures stable and vibration-free, improving overall throughput and part quality. Corrosion protection and compact mounting for workshop use Finished in zinc-plated steel, the latch is optimised for environments where occasional humidity or shop contaminants occur. The compact construction and a mass of 0.05 kg make the device easy to integrate into existing jigs without overloading mounting points, and the included hook permits secure engagement with mating plates or loops. For maintenance teams and workshop planners, the result is a durable fastening that requires minimal intervention and preserves alignment over long production runs. Rapid operation with low upkeep for daily workflows The lever action supports fast open/close cycles, enabling quicker clamping and unclamping compared with threaded or bolted solutions; this saves time on repetitive tasks and reduces ergonomic strain. The mechanical design focuses on simple serviceability so replacements or adjustments can be completed without specialised tools. Supplied by a reputable industrial partner, the clamp suits applications from fixture production to lightweight enclosure closures where a dependable, repeatable lock is essential. For specification confirmation or to discuss fixture integration, contact Metav Werkzeuge — local supply with a European quality filter; email info@metav-werkzeuge.com or call +49 2822 7131930 to request technical advice or place an order Technical data SKU: 363-2 GTIN: 8680731504620 Article name: Toggle latch clamp 363 Manufacturer: Kukamet Numbers / Core technical data Max. clamping force: 1,500 N Max. holding force: 1,725 N Weight: 0.05 kg eClass: 21041718 ETIM: EC011973 Special features / Materials Material: zinc-plated steel Mounting: horizontal foot With hook: yes FAQ What mounting method does the clamp use? The Toggle Latch Clamp 363 mounts via a horizontal foot; the flat base is intended for stable attachment to jigs and fixture plates. What clamping performance can be expected? Rated clamping force is 1,500 N with a holding force up to 1,725 N for reliable retention under typical assembly loads. Is the surface protected against corrosion? Yes, the part is zinc-plated, providing corrosion resistance suitable for workshop and light industrial environments. Can the latch be used on compact or lightweight fixtures? Yes, at approximately 0.05 kg the latch is lightweight and designed for easy integration into small jigs and enclosures. Which SKU should be ordered for this latch? Order SKU 363-2 for the Toggle Latch Clamp 363 from Kukamet Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1.5″/1.25″ X/Y Präzisionsfeinverstellung mit rotierender Bühne, 3,25″x4,25″, Metall - Dino-Lite
Dino-Lite XY Table — Precision X/Y Stage for Detailed Inspections The Dino-Lite XY Table is a compact precision tabletop stage that provides controlled X/Y movement and a rotating platform for accurate positioning during microscopy and inspection tasks. Compact X/Y Travel: 1.5" x 1.25" Smooth Knurled Rotation Controls Precision Machined Metal Construction Compatible with All Dino-Lite Handheld Microscopes Stable Metal Construction for Reliable Positioning The Dino-Lite XY Table combines a Metal X/Y Stage and a Rotating Platform designed for steady, vibration-minimized operation in bench-top environments. The robust Body Material ensures longevity and repeatable results even with frequent adjustments. This construction benefits laboratory and industrial users by providing a firm base for high-magnification observation, reducing the need for repeated refocusing and improving throughput during inspection tasks. Precision Movement That Simplifies Finding Targets Fine, calibrated travel of X: 1.5" and Y: 1.25" gives accurate lateral control for tracing features and aligning specimens. The knurled rotation knobs and the integrated rotating table permit subtle angular adjustments without disturbing the specimen. For end-users, this translates into faster task completion and reduced handling errors when measuring, documenting, or comparing small subjects under the microscope. Optimized for Hobbyists, Collectors, and Professionals Designed for collectors, hobbyists, graphic artists, and classroom use, this XY Stage delivers repeatable working distances and fixed magnification positions thanks to its base and insert adapter compatibility. The tabletop format is particularly suitable for users who need a dependable, compact staging solution that supports consistent imaging workflows and close observation without large, complex setups. Quick Integration and Broad Compatibility The XY Table connects easily to Dino-Lite handheld microscopes and accepts a rotating stage that mounts directly to the top plate, enabling simple rotation of the subject. Compatibility with a wide range of Dino-Lite models makes this unit a versatile addition to inspection benches, educational labs, and craft workstations. The included rotating stage and XY Base reduce setup time and improve measurement repeatability. Strongly recommend the Dino-Lite XY Table for situations requiring precise two-axis positioning and rotational control — for expert advice or help selecting the right setup contact METAV Werkzeuge via 📧 info@metav-werkzeuge.com, ☎️ +49 2822 7131930 or ✔️ WhatsApp +49 170 2837271 Highlighted Product Features High-Precision X/Y Travel Area The Stage provides a Travel Area of X: 1.5" / Y: 1.25", allowing fine lateral adjustments for locating and scanning small features. This range is optimized for close-up inspection tasks where controlled, incremental movement is required to capture multiple fields of view without moving the specimen. Rotating Table for Simple Angular Adjustment A dedicated Rotating Stage sits atop the XY Base, enabling fast and smooth rotation of the Subject without re-clamping. The rotation feature assists in examining specimens from multiple orientations, which is particularly useful for inspection of textures, edges, and part geometries. Precision Machined Components and Smooth Controls Precision machine-crafted components and knurled rotation knobs ensure consistent, low-friction motion and ergonomic control. These characteristics reduce operator fatigue during prolonged sessions and provide reliable repeatability when documenting or measuring repeatable sample positions. Technical Information Product Name: Dino-Lite XY Table Travel Area: X: 1.5" / Y: 1.25" X/Y Table Size: 3.25" x 4.25" Dimensions: 12.7 cm (W) x 15.2 cm (L) x 7.6 cm (H) Package Includes: XY Base, Rotating Stage Weight: 907 g (1.99 lb) Warranty Period: 1 year Body Material: Metal Manufactured In: China Compatible With: MS36A-C2, MS36A-A2, MS36A-A3, MS54B, MS22B, All Dino-Lite Handheld Microscopes Regulatory Approval: ROHS Manufacturer: AnMo Electronics Corporation; 17F-1, No. 97, Sec. 4, Chongxin Road, Sanchong Dist., New Taipei City 241513, Taiwan; Tel:+886-2-29749126; E-Mail:Sales@anmo.com.tw FAQ What applications is the Dino-Lite XY Table best suited for? The Dino-Lite XY Table is ideal for detailed inspection, measurement, and documentation tasks where precise lateral positioning and rotation are necessary. The Dino-Lite tabletop stage is frequently used in education, hobbyist work, quality control, and small-part inspection. Can the Dino-Lite XY Table be used with any Dino-Lite handheld microscope? The Dino-Lite XY Table is compatible with a wide range of Dino-Lite Handheld Microscopes as listed in the technical data. For specialized models or high-magnification variants, confirm compatibility with METAV Werkzeuge if uncertain. How does the rotating stage improve inspection workflows with the Dino-Lite XY Table? The rotating table included with the Dino-Lite XY Table enables quick angular adjustments of the Subject without re-clamping, making it easier to reveal surface contours, edges, and orientation-dependent features while maintaining alignment for imaging. Is setup and maintenance of the Dino-Lite XY Table complicated? Setup is straightforward: the rotating stage mounts directly to the top plate of the XY Base. Routine maintenance involves keeping the machined surfaces clean and occasionally checking fasteners; for further assistance, METAV Werkzeuge provides competent advice and support.
1650 N Clamping Force Horizontal Base Toggle Clamp With Hook, Zinc Plated - Kukamet
Take advantage of the combination of robust galvanised corrosion protection, a compact horizontal mounting base, and proven clamping and holding forces for reliable fixture performance; order the locking clamp directly via Metav Werkzeuge or consult the Metav team for specification advice. Locking clamp 362 — horizontal-base toggle clamp, galvanised (Kukamet) A Locking clamp 362 designed for secure, repeatable clamping on jigs and fixtures, featuring a horizontal foot for stable mounting and an integrated hook for versatile applications. Galvanised corrosion protection Horizontal mounting base Clamping force 1,400 N Integrated hook, 25 mm thread length Proven clamping performance for production use The Locking clamp 362 delivers consistent results through a defined clamping force of 1,400 N and a higher holding force of 1,650 N, values that translate directly into secure workholding under dynamic load. These numerical ratings indicate the clamp’s capacity to resist displacement during machining or assembly; in practice this means fewer re-checks and improved cycle consistency. The galvanised finish contributes to long-term dimensional reliability by limiting corrosion on critical surfaces, while the compact mass of 0.14 kg keeps moving parts light and responsive. Space-saving design that speeds up set-up A horizontal-foot mounting arrangement enables easy installation on jigs, fixtures and assembly tables, where a low profile is essential. The integrated hook together with a 25 mm thread length provides adjustment range for variable material thicknesses without changing attachments, reducing downtime between jobs. The clamp’s lever action is optimised for rapid engagement and repeatability, supporting efficient batch processing and reducing manual repositioning. These characteristics make the component suitable for small-batch work as well as integration into automated production fixtures. Built for durability and dependable supply Constructed from galvanised steel and presented as a lever-style clamp, the device is intended to withstand everyday workshop stresses with minimal upkeep; periodic inspection and light lubrication of the pivot points are sufficient for prolonged service life. Supplied by Kukamet and distributed via Metav Werkzeuge, the part benefits from established logistics and quality oversight at the Emmerich location, offering reliable availability for workshops and production lines. For applications that demand consistent clamping and uncomplicated installation, this clamp provides a pragmatic balance of robustness and simplicity. Choose the Kukamet locking clamp 362 through Metav Werkzeuge for dependable clamping in jigs and fixtures — contact Metav Werkzeuge for tailored advice or detailed specifications at info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical data Article number: 362-1 GTIN: 8680731505160 ECLASS: 21041718 ETIM: EC011973 Material: galvanised Core technical data Weight: 0.14 kg Clamping force: 1,400 N Holding force: 1,650 N Thread length: 25 mm Special features Horizontal foot mounting With hook Lever-style clamp (hebelspanner) Category: Spanner SKU: 362-1 Manufacturer: Kukamet FAQ What clamping force can be expected from this clamp? The clamp provides a clamping force of 1,400 N and a holding force of 1,650 N, suitable for secure workholding in many fixture and assembly applications. Is the clamp suitable for repeated industrial use? Yes, the galvanised finish and lever design make the clamp suitable for repeated cycles; light maintenance of pivot points is recommended to preserve performance. How is the clamp mounted and adjusted? Mounting is via a horizontal foot; adjustment is achieved using the integrated hook and the 25 mm thread for compensating material thickness. Which materials is the clamp compatible with? The clamp serves as a mechanical workholding device and can be used with fixtures that secure a wide range of materials; selection should match the required clamping pressure and fixture design. What are the dimensions and weight? The unit weighs 0.14 kg and features a 25 mm thread length; further dimensional details are available on request via Metav Werkzeuge. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1.66kg Vertical Clamp 118.5mm Arm, 4.5kN Closing Force, Massive Hold Arm, Zinc Plated - Kukamet
Take advantage of the combination of a galvanised finish, a solid holding arm and high clamping forces to secure workpieces reliably in production and workshop environments; order directly via Metav Werkzeuge or consult our technical advisors for application-specific guidance. Vertical clamp 213 — Kukamet vertical lever clamp with galvanised finish and solid holding arm The Vertical clamp 213 is a vertical lever clamp designed for firm, repeatable workholding on jigs, fixtures and assembly benches in industrial and workshop settings Galvanised steel construction Solid holding arm for stable clamping Angle base for secure mounting Up to 5,000 N holding force Robust construction for dependable daily use Built for repetitive operation, this vertical clamp combines a galvanised surface treatment with a solid holding arm to resist corrosion and bending under load. The robust arm reduces deflection during clamping cycles, so the clamping position remains consistent. This stability is particularly beneficial for assembly and welding jigs where repeatability minimises rework. The unit's compact mass (approx. 1.66 kg) keeps fixture inertia low while maintaining mechanical strength for frequent operation. Precise clamping performance that supports process reliability Designed to deliver measurable clamping capacity, the device provides a max holding force of 5,000 N and a max pressing force of 4,500 N, which are suitable for a wide range of medium-duty clamping tasks. The arm length of 118.5 mm provides an extended lever for effective force transmission without requiring excessive handle travel. Where consistent clamp pressure is required, the mechanical design ensures forces are applied predictably, contributing to reduced variability in downstream machining, inspection or assembly steps. Simple mounting and long-term durability for production workflows Mounted via an angle base, the clamp can be fixed securely to plates or fixture rails, enabling quick integration into existing setups. The galvanised finish prolongs service life in workshop environments, and the straightforward mechanical construction allows for fast replacement or repositioning when layouts change. Weight and form factor make the clamp suitable for portable fixtures as well as fixed production jigs, offering a practical balance between robustness and adaptability. For secure, repeatable clamping from Kukamet choose the Vertical clamp 213 — contact Metav Werkzeuge for order placement or technical advice at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: 213-5-D-C1 GTIN: 8680731502114 Model: 213 Manufacturer: Kukamet ECLASS: 21041717 ETIM: EC011973 Core technical data Weight: 1.66 kg Arm length: 118.5 mm Max holding force: 5,000 N Max pressing force: 4,500 N Special features Material: galvanised steel Mounting: angle base Solid holding arm Type: vertical lever/toggle clamp Category: Clamping technology — clamp FAQ What maximum holding force does the clamp provide? The clamp delivers a maximum holding force of 5,000 N, specified for the Vertical clamp 213 to ensure secure fixation of workpieces. Which materials is the clamp suitable for in workshop use? The galvanised steel construction is suitable for general workshop environments and fixtures; selection of contact pads or workpiece support should be matched to the work material to prevent marking. How is the clamp mounted to a fixture? Mounting is carried out via the angle base; the clamp can be bolted to plates or fixture rails for stable installation. What is the arm length and why does it matter? The arm length is 118.5 mm, which provides effective lever action for force transmission while keeping handle travel moderate for rapid operation. Is the clamp suitable for repetitive production cycles? Yes, the robust design and solid holding arm are intended for repetitive clamping in production and workshop workflows. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
550N Pushrod Clamp Horizontal Foot Metal Handle, 700N Holding Force, Zinc Plated - Kukamet
Reliable clamping with a galvanised body and metal handle ensures durable, repeatable performance; the compact design and horizontal foot enable fast integration into assembly jigs. Take advantage of the combination of sturdy construction, clear force ratings and simple mounting for dependable small-part workholding. Order the push-rod clamp directly via Metav Werkzeuge or consult our specialists for application advice. Push-rod clamp 511 — lever clamp with galvanised finish and horizontal foot (Kukamet) The Push-rod clamp 511 is a compact lever clamp designed for secure temporary fixturing in workshop and light industrial assembly applications. Galvanised steel construction for corrosion resistance Metal handle for durable operation Horizontal foot mounting for fixed installation Holding force up to 700 N Durable construction that keeps fixtures reliable The galvanised steel body delivers long-term corrosion protection while the metal handle resists wear under frequent operation, reducing lifecycle costs and downtime. With a rated pressing capacity of 550 N and a measured holding capability beyond that, the design provides a reliable margin for repetitive clamping tasks. This combination of corrosion resistance and mechanical resilience means less maintenance and fewer replacement purchases for routine shop use. Consistent holding and straightforward mounting for repeatable results Engineered for predictable performance, the clamp offers a clear holding force rating of 700 N, making load planning and fixture design straightforward. The horizontal foot mounting allows a low-profile installation on jigs, plates or assembly benches, enabling quick alignment and secure fixation of components. Where process repeatability matters, this clamp contributes to consistent cycle times and reduced rework. Compact format to save space and speed up setups Weighing only 0.087 kg and equipped with an M4x25 pressure spindle, the unit fits into compact fixtures without adding bulk, simplifying layout in constrained work areas. The small footprint and lever action permit rapid engagement and release, improving operator efficiency during batch assembly or test cycles. As a practical workholding element, it supports a smoother workflow and easier integration into existing fixtures. For reliable lever clamping from Kukamet, order the Push-rod clamp 511 via Metav Werkzeuge in Emmerich — for technical guidance or procurement assistance contact info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 511-0-M SKU: 511-0-M GTIN: 8680731504941 ECLASS: 21041716 ETIM: EC011973 Facts Weight: 0.087 kg Pressing force: 550 N Holding force: 700 N Spindle thread: M4x25 Special features Material: galvanised (zinc-plated) steel Foot type: horizontal foot Handle: metal Category: clamp (lever/rod clamp) FAQ What is the maximum holding force of this clamp? The clamp offers a holding force of up to 700 N; the Push-rod clamp 511 from Kukamet is specified for reliable short-term fixturing at that rating. Which mounting orientation is required for installation? A horizontal foot is provided for fixed mounting; the horizontal foot design supports low-profile installation on plates and jigs. Is the clamp corrosion-resistant for workshop use? Yes, the body is galvanised (zinc-plated), giving the clamp improved resistance to rust in normal workshop environments. What spindle specification does the clamp use? The pressure spindle is M4x25, suitable for fine adjustment within the clamp’s operating range. Can this clamp be used for repetitive production cycles? The robust metal handle and galvanised construction make the clamp well suited to frequent operation and short-cycle production tasks. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000N Horizontal Foot Clamp With Hook, Zinc Plated, 45mm Thread Length, 1500N Holding Force - Kukamet
Take advantage of the combination of durable, zinc-plated construction and reliable clamping performance to improve fixture security and cycle consistency on the shop floor. Order the clamp directly via Metav Werkzeuge or consult the Metav team for integration advice. Toggle clamp 351 — horizontal-foot toggle clamp with zinc-plated finish (Kukamet) The Toggle clamp 351 is a horizontal-foot toggle clamp designed for secure workpiece retention in production jigs and workshop fixtures, offering a balanced combination of compact size and industrial clamping force. Horizontal-foot mounting for stable fixation Zinc-plated surface for corrosion protection Clamping force up to 1,000 N Holding force up to 1,500 N with hook Secure clamping that supports production reliability The clamp delivers consistent clamping force thanks to a lever mechanism engineered for repeatable action. With a rated clamping force of 1,000 N and a holding force of 1,500 N, the device separates the active securing action from the static retention capacity, which helps prevent slippage under dynamic loads. The mechanical arrangement reduces variability across cycles, making the clamp suitable for assembly jigs and repetitive machining tasks where reproducible positioning is required. The robust kinematics mean fewer interruptions for readjustment and therefore a smoother production flow. Corrosion resistance and workshop suitability Constructed from zinc-plated steel, the clamp resists surface oxidation that commonly affects plain-steel fixtures in humid or workshop environments. The protective finish extends service life and reduces maintenance frequency, which benefits workshops aiming to keep tool downtime low. Despite its protective coating, the component remains compact and lightweight (approx. 0.135 kg), allowing easy integration into existing fixtures without significantly increasing moving mass. The inclusion of a hook enhances retention options for threaded adjustments and adaptable fixturing setups. Integration, adjustment and practical dimensions Designed for horizontal-foot mounting, the clamp installs on flat bases for straightforward alignment with fixture plates. The thread length of 45 mm facilitates secure engagement with adjustable spindle assemblies and standard fixtures. Its compact footprint supports dense fixture layouts in space-constrained jigs while providing the leverage needed for reliable closure. Where precision repeatability matters, the clamp’s simple mechanics enable quick visual inspection of engagement state, supporting fast-cycle operations and reducing secondary checks. Choose Kukamet's zinc-plated toggle clamp for reliable, compact fixturing — contact Metav Werkzeuge in Emmerich for procurement and integration assistance: info@metav-werkzeuge.com, +49 2822 7131930 Technical data Article number: 351-1 GTIN: 8680731502442 SKU: 351-1 Name: Toggle clamp 351 Facts Weight: 0.135 kg Clamping force: 1,000 N Holding force: 1,500 N Thread length: 45 mm eCl@ss: 21041718 ETIM: EC011973 Special features Material: zinc-plated Mounting: horizontal foot Includes hook No special extras noted FAQ What is the maximum clamping force of this clamp? The clamp provides a maximum clamping force of 1,000 N, with a holding capacity rated at 1,500 N for secure retention. Is the surface treatment suitable for workshop environments? Yes, the clamp features a zinc-plated finish that offers corrosion resistance suitable for general workshop and industrial settings. How is the clamp mounted? The device is designed for horizontal-foot mounting, enabling stable attachment to flat fixture plates and jig bases. Does the clamp include adjustable features for different workpiece heights? The product includes a hook and a thread length of 45 mm, allowing for spindle adjustments and adaptable engagement with various workpiece profiles. Which SKU should be referenced when ordering or specifying this clamp? Refer to SKU 351-1 or GTIN 8680731502442 for accurate specification and ordering. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000N Toggle Clamp Horizontal Base Zinc-Plated With Hook, Holding Force 1500N - Kukamet
Reliable quick-action latch clamp with 1,000 N clamping force and 1,500 N holding capacity, finished in galvanised steel and supplied with a hook and horizontal-foot mount for secure fixture fixing. Order the Kukamet latch clamp 321 directly via Metav Werkzeuge or ask our consultants if needed. Kukamet latch clamp 321 — horizontal-foot toggle latch with hook, galvanised finish The Kukamet latch clamp 321 is a compact horizontal-foot toggle latch clamp designed to secure panels, jigs and light assembly fixtures where repeatable fastening and quick release are required. Galvanised corrosion protection Horizontal-foot mounting Max clamping force 1,000 N Hook latch with 1,500 N holding force Faster setup, dependable clamping for small-series and jigs A quick-action latch that delivers repeatable results reduces setup time on frequent changeovers. The mechanism provides a 1,000 N clamping action combined with a 1,500 N holding capacity, which translates into secure retention for small workpieces and fixture plates. The toggle design converts lever movement into consistent pressure, helping maintain process reliability and minimize rework. This compact fastening solution supports efficient production flow in light assembly and maintenance tasks. Durable finish and low-maintenance operation for workshop use The body is galvanised, giving robust resistance against rust in everyday workshop conditions and prolonging service life with minimal care. At 0.115 kg, the component is lightweight yet sturdy, reducing additional load on fixtures and enabling straightforward retrofitting. The corrosion-resistant surface and simple mechanical design mean only occasional inspection is necessary, lowering lifecycle upkeep while ensuring consistent performance in standard industrial environments. Practical integration and adjustable engagement for versatile fixtures Mounting on a horizontal foot ensures stable attachment to benches and plates, while the 45 mm thread length allows fine adjustment of engagement and tension during installation. The integrated hook latch provides positive capture and quick release for panels and covers. Compatibility with common fixture layouts and the compact footprint of the clamp make it suitable for both production fixtures and service jigs, offering a balance of secure holding and fast accessibility. For secure, low-maintenance fixture fastening choose the Kukamet latch clamp 321 — contact Metav Werkzeuge for ordering and technical guidance at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 321-1 GTIN: 8680731505634 Brand: Kukamet Facts Max clamping force: 1,000 N Max holding force: 1,500 N Weight: 0.115 kg Thread length: 45 mm Special features Material: galvanised Mounting: horizontal foot Hook latch included ETIM: EC011973 ECLASS: 21041718 FAQ What clamping and holding forces does this latch provide? The Kukamet latch clamp 321 offers a clamping force of 1,000 N and a holding capacity of 1,500 N, suitable for securing light fixtures and panels. Is the finish suitable for humid workshop environments? Yes, the galvanised finish on the Kukamet latch clamp 321 provides corrosion resistance for typical workshop and light industrial use. How is the clamp mounted and adjusted? The clamp mounts via a horizontal foot and includes a 45 mm threaded engagement for tension adjustment during installation. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000N Vertical Foot Toggle Clamp With Hook, Zinc Plated, 45mm Thread Length - Kukamet
Take advantage of a compact, corrosion-resistant toggle clamp that combines dependable holding and pressing force with easy fixture integration; order directly via Metav Werkzeuge or ask the consultants for tailored advice. Kukamet 332 vertical toggle clamp — galvanised vertical-base latch clamp with hook and 1,500 N holding force A Kukamet 332 vertical toggle clamp designed for reliable latching and repeatable clamping in jigs, fixtures and assembly stations. Galvanised steel corrosion protection Vertical base for panel mounting Holding force up to 1,500 N Compact 95 g lightweight design Consistent clamping performance for production use The vertical toggle clamp delivers precise, repeatable retention by combining a pressing force of 1,000 N with a holding force up to 1,500 N, providing the mechanical security required in short-cycle assembly and fixturing applications. The galvanised finish ensures resistance to corrosion in workshop environments, while the integrated hook secures latching under vibration. As a mechanical latch, the device avoids electronic actuation, offering predictable behaviour and minimal maintenance compared with powered systems. This makes the clamp suitable where dependable mechanical locking and simple manual operation are priorities. Small footprint and straightforward machine integration With a compact 95 g mass and a thread length of 45 mm, the clamp fits tight fixture layouts and allows fine adjustment of the contact point via the threaded spindle. The vertical base configuration provides a stable mounting surface for panels or frames and simplifies alignment in stacked or gantry-mounted assemblies. The narrow profile reduces interference with tooling and improves access for operators, enabling fixtures to be designed with higher part density and shorter cycle times. The galvanised surface maintains functionality in mixed-material production areas without requiring special coatings. Robust construction for safe, long-term use Manufactured from galvanised steel and equipped with a locking hook, the clamp offers consistent performance and secure latching throughout repeated cycles. The simple mechanical design minimises wear points and supports straightforward inspection and replacement of consumable parts if required. For buyers seeking reliable components from a traceable European supply chain, the Kukamet clamp is offered via Metav Werkzeuge, whose quality-filtering and logistics in Emmerich aim to ensure rapid availability and predictable delivery. Technical documentation and the mounting footprint are provided to support safe integration into fixtures and to aid in conformity checks. Contact Metav Werkzeuge today to discuss the Kukamet 332 vertical toggle clamp and its suitability for specific fixturing needs; technical advice and prompt supply are available from Metav Werkzeuge in Emmerich. Technical data SKU: 332-1 GTIN: 8682843520970 EClass: 21041718 ETIM: EC011973 Facts Weight: 0.095 kg Pressing force: 1,000 N Holding force: 1,500 N Thread length: 45 mm Special features Galvanised finish Vertical base (senkrechter Fuß) With hook Category: Spanner Manufacturer: Kukamet FAQ What materials is this clamp suitable for? The Kukamet vertical toggle clamp 332 is constructed from galvanised steel and is intended for general-purpose use in fixtures where metal and mixed-material handling occur. How is the clamp mounted? Mounting uses the vertical base for panel or plate attachment; the threaded spindle (45 mm) allows fine adjustment of the contact point on the workpiece. What forces can be expected from the clamp? The toggle clamp provides a pressing force of approximately 1,000 N and a holding force up to 1,500 N for secure latching in manual and automated fixtures. Is the clamp corrosion-resistant? Yes, the galvanised finish provides corrosion protection suitable for standard workshop conditions and reduces the need for additional surface treatment. Which SKU should be ordered for this model? Order the Kukamet 332 under SKU 332-1; referencing the SKU helps ensure the correct vertical-base latch clamp is supplied. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000 N Combination Clamp Horizontal Base Zinc-Plated, 0.405 kg - Kukamet
Benefit from the compact design, galvanised corrosion resistance and a reliable 1,000 N clamping force for secure bench work; order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. Kombispanner 712 — horizontal-foot combination clamp, galvanised, lever operation (Kukamet) A robust combination clamp designed for workshop and light industrial bench mounting, the Kombispanner 712 combines a compact build with dependable holding power for a wide range of clamping tasks. Compact combination clamp for workshop use Galvanised finish for corrosion protection 1,000 N clamping and holding force Horizontal-foot mounting for bench installation Secure clamping where consistency matters The clamp delivers a defined clamping force of 1,000 N, providing repeatable pressure for jigs, fixtures and assembly tasks. The measured holding force ensures components remain stationary during machining or inspection, reducing rework and downtime. Where process stability is essential, the lever-style actuator gives quick engagement and clear tactile feedback, turning manual clamping into a predictable, efficient step within production sequences. Built for durable, space-saving integration With a galvanised finish and a horizontal foot for bench mounting, this clamp resists workshop environments while occupying minimal space. The lightweight construction (approx. 0.405 kg) enables easy retrofitting into existing fixtures or portable test rigs without heavy modification. The lever mechanism is designed for rapid operation, supporting frequent clamp/unclamp cycles while keeping setup times short and shop-floor ergonomics straightforward. Practical advantages for purchasing and implementation Sourcing through Metav brings operational benefits beyond the component itself: centralised availability from Emmerich, a broad product range and a documented track record in precision supplies support predictable procurement and stock management. For technical questions or to verify suitability with specific fixtures and materials, Metav’s advisory team can supply application guidance and additional specifications by email or phone. Contact Metav Werkzeuge today to secure the Kukamet Kombispanner 712 and ensure reliable, repeatable clamping in your workshop — advice and order support available from Metav Werkzeuge. Technical data Article number: 712-1 GTIN: 8680731504293 Brand: Kukamet Facts Weight: 0.405 kg Maximum clamping force: 1,000 N Maximum holding force: 1,000 N eClass: 21041716 ETIM: EC011973 Special features Material: galvanised Mounting: horizontal foot Operation: lever clamp style Category: clamp FAQ What maximum clamping force does this clamp provide? The Kombispanner 712 (Kukamet clamp, SKU 712-1) offers a maximum clamping force of 1,000 N and an equivalent holding force for secure fixation. Is the clamp suitable for bench mounting? Yes, the unit features a horizontal foot for bench or fixture mounting, designed to integrate with workbenches and jig plates. What finish protects the clamp against corrosion? The clamp is supplied with a galvanised finish, improving resistance to workshop humidity and general corrosion. Can the clamp be used for frequent clamp/unclamp cycles? The lever clamp operation is suited to repetitive manual use; the design supports rapid engagement while maintaining consistent clamping pressure. Who supplies the clamp and where can technical advice be obtained? The clamp is supplied by Kukamet and distributed via Metav Werkzeuge; for technical queries, Metav Werkzeuge can be contacted for application advice. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000 N Combination Clamp Horizontal Foot, Zinc Plated, 0.4 kg - Kukamet
A compact galvanised combination lever clamp that provides up to 1,000 N clamping and holding force and mounts via a horizontal foot for secure, repeatable fixturing. Order the Kombispanner 711 directly via Metav Werkzeuge or ask our consultants for detailed specification support. Kombispanner 711 — galvanised combination lever clamp with horizontal-foot mount (Kukamet) The Kombispanner 711 is a robust, compact combination lever clamp designed for light- to medium-duty workshop fixtures and production jigs, offering fast setup and reliable holding performance. Galvanised finish for corrosion resistance 1,000 N clamping/holding force Horizontal-foot mount for bench fitting Lightweight at 0.4 kg for easy handling Secure clamping that reduces setup time The combination lever clamp delivers dependable holding power with a rated 1,000 N clamping and holding capacity, enabling secure fixation of small workpieces during machining, assembly or inspection tasks. The galvanised finish provides corrosion resistance, keeping contact surfaces stable over repeated cycles and reducing the need for frequent replacement. Designed for repetitive use, this clamp shortens fixture build time and lowers the risk of movement during processing, contributing directly to improved process stability and fewer scrapped parts. Flexible mounting and straightforward operation The horizontal-foot mounting arrangement allows bench or fixture-plate attachment with simple fastening, making the clamp suitable for modular jig systems and bench fixtures. With a weight of 0.4 kg, the component is easy to position and handle during setup yet substantial enough to remain vibration-resistant in typical workshop environments. The device separates clamping action from holding action: clamping force refers to the pressure applied during engagement, while holding force indicates the residual resistance against displacement once the clamp is engaged. This distinction helps in selecting the correct fixture strategy and in calculating safety margins for delicate components. Low maintenance and dependable supply for professional use Galvanised steel construction ensures long service life with minimal upkeep, requiring only occasional inspection and lubrication at pivot points. The simple lever mechanism is engineered for repeatability and can be integrated into manual or semi-automated workflows. Backed by Metav’s quality filter and European distribution from Emmerich, this clamp benefits from reliable stock management and consistent product quality—factors that support uninterrupted production. Metav’s experience and broad product range further simplify procurement and spare-part planning for industrial and trade customers. For personalised advice on integrating the galvanised Kukamet combination lever clamp into existing fixtures, contact Metav Werkzeuge for expert procurement and technical consultation. Technical Data Article number: 711-1 GTIN: 8680731504286 Facts Clamping force (max): 1,000 N Holding force (max): 1,000 N Weight: 0.4 kg eCl@ss: 21041716 ETIM: EC011973 Special features Material: Galvanised steel Mounting: Horizontal foot Type: Combination lever clamp FAQ What clamping force can be expected from this clamp? The Kombispanner 711 provides a maximum clamping and holding force of 1,000 N, suitable for light- to medium-duty fixtures. Is the clamp suitable for bench mounting? Yes, the horizontal-foot mount is designed for secure bench or fixture-plate attachment and is compatible with standard workshop fastening methods. What material is the clamp made from and how durable is it? The clamp is made from galvanised steel; the coating increases corrosion resistance and extends service life under normal workshop conditions. Can the clamp be used in modular jig systems? The compact design and horizontal-foot fixing make it well suited for integration into modular jig systems and repeatable production setups. What is the article number and brand of this clamp? This product is the Kukamet combination lever clamp, article number 711-1, marketed as the Kombispanner 711. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000 N Pneumatic Clamp Horizontal Foot, Zinc Plated - Kukamet
Compact, galvanised construction combined with a 1,000 N clamping and holding force ensures dependable, repeatable performance in medium-duty fixture applications; order the Kukamet 691 directly via Metav Werkzeuge or consult their specialists for integration advice. Pneumatic clamp 691 by Kukamet — 1,000 N clamping force, galvanised 691 is a pneumatic clamp engineered for horizontal mounting and consistent holding in assembly and jig applications. Galvanised steel construction 1,000 N clamping and holding force Horizontal base for bench mounting Lightweight 0.641 kg for easy integration Consistent force for repetitive production The pneumatic clamp delivers a 1,000 N clamping and holding force that supports repeatable fixtures and short cycle times. Pneumatically actuated motion replaces manual lever operation, which reduces operator variability and speeds up set-up. The measured holding force and actuation principle translate into fewer rejected parts and less rework, improving overall line efficiency. For production planners, the emphasis is on reliable performance under repeated cycles rather than on ad-hoc clamping. Space-saving design that eases fixture integration With a horizontal base and a compact mass of 0.641 kg, the unit integrates into existing jigs with minimal alteration. The low profile of the mounting foot is suited to bench-mounted fixtures and allows close placement of multiple clamps for distributed clamping strategies. The galvanised finish keeps the surface resilient in workshop environments, while the compact envelope reduces the footprint on tooling plates, enabling more flexible layout designs in workholding systems. Durable finish and straightforward specification for procurement A galvanised surface treatment provides corrosion resistance suitable for general industrial atmospheres. The simple specification—actuation type: pneumatic; mounting: horizontal base; material: galvanised steel—facilitates quick comparison during procurement and supports traceable component lists. Identifiers such as SKU 691-1 and GTIN 8680731504965 enable direct ordering and inventory management, reducing administrative overhead for purchasing and workshop stores. Contact Metav Werkzeuge today for application guidance or to secure the Kukamet 691 with 1,000 N clamping capacity for your fixtures Technical data Article number: 691-1 GTIN: 8680731504965 Brand: Kukamet Facts Clamping force: 1,000 N Holding force: 1,000 N Weight: 0.641 kg eClass: 21021004 ETIM: EC011973 Special features Material: galvanised steel Mounting: horizontal base Category: Clamps / Spanner SKU: 691-1 FAQ What clamping force does the pneumatic clamp provide? The pneumatic clamp delivers a clamping and holding force of 1,000 N, suitable for medium-duty jigs and assembly fixtures with the Kukamet 691 specification. Is the clamp protected against corrosion? Yes, the unit features a galvanised finish that provides general corrosion resistance appropriate for workshop conditions. How is the clamp mounted in a fixture? The clamp uses a horizontal base for bench or plate mounting, enabling straightforward integration into existing tooling layouts. What identifiers are available for ordering and stock control? The product is listed as SKU 691-1 with GTIN 8680731504965 for procurement and inventory systems. Can the clamp be used for automated production cells? The pneumatic actuation and consistent holding force make the clamp suitable for repetitive automated or semi-automated operations where 1,000 N is sufficient. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000 N Toggle Clamp Horizontal Base Zinc Plated With Hook - Kukamet
Take advantage of a compact, corrosion‑resistant latch clamp that combines a high holding force of 1,500 N with a practical horizontal‑foot mounting and a built‑in hook for secure, repeatable fixturing — available through Metav Werkzeuge or via consultation with our advisors. Latch clamp 331 – horizontal‑foot closure clamp, galvanised (Kukamet) The Latch clamp 331 is a compact closure clamp with a horizontal‑foot base, designed for secure workholding in production jigs, fixtures and general workshop assembly. Horizontal-foot mounting base Galvanised corrosion-resistant finish Holding force 1,500 N Lightweight: 95 g for easy handling Secure clamping capacity for repeatable production The 331 delivers a defined clamping force of 1,000 N and a holding force of 1,500 N, providing measurable stability for repetitive assembly tasks. These values indicate the clamp’s capacity to keep components fixed under load, reducing vibration and the risk of movement during machining or assembly. The thread length 45 mm allows straightforward adjustment of the contact point, so set‑up time is reduced and tolerances can be maintained across batches. This measurable performance supports process reliability and lower scrap rates in small‑ to medium‑scale production. Space‑saving design and corrosion resistance A shallow horizontal‑foot mounting profile permits the clamp to be integrated into tight fixtures and confined workspaces without compromising accessibility. The body is galvanised, offering basic protection against corrosion where indoor shop use or occasional damp conditions occur. The integrated hook facilitates rapid engagement and release, while a mass of 95 g keeps the assembly lightweight for manual positioning or modular fixture construction. These features combine to simplify installation and improve ergonomics when building or modifying jigs. Fits into an efficient supply chain with clear identification The item is listed under SKU 331-1 and carries a GTIN for traceability in procurement and inventory systems. As a compact closure clamp from Kukamet, it is suitable for standard jigging and fixture applications where consistent repeatability is required. Procuring the clamp via Metav Werkzeuge aligns with a supply approach that values accessibility and dependable fulfilment — a practical choice for workshops that require straightforward, verifiable tooling from a single source. Request product specification advice from Metav Werkzeuge to confirm suitability of the Kukamet latch clamp 331 for specific fixtures — contact Metav Werkzeuge at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data SKU: 331-1 GTIN: 8680731502411 eCl@ss: 21041718 ETIM: EC011973 Facts Weight: 0.095 kg Holding force: 1,500 N Clamping/pressing force: 1,000 N Thread length: 45 mm Special features Material: galvanised Mounting: horizontal foot With hook: yes Manufacturer: Kukamet FAQ How much holding force does the clamp provide? The latch clamp 331 provides a holding force of 1,500 N and a clamping force of 1,000 N, giving secure retention for typical jigging and assembly tasks. What mounting does the clamp require? Mounting is via a horizontal‑foot base suitable for attachment to flat fixture plates or bench surfaces. Is the clamp corrosion resistant? The clamp is galvanised, offering protection against corrosion for workshop environments and occasional exposure to moisture. What are the weight and adjustment details? The clamp weighs approximately 95 g and features a 45 mm thread length for adjustable contact positioning. How is the product identified for ordering and inventory? The item is listed as SKU 331-1 and has GTIN 8680731502411 for procurement and stock management purposes. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1000 N Toggle Clamp Vertical Foot Zinc Plated With Hook, 1500 N Holding Force - Kukamet
Combining zinc-plated durability, a vertical-foot mounting for stable fixtures and clearly specified clamping and holding capacities ensures dependable temporary fastening in workshop and production settings; order the unit via Metav Werkzeuge or consult our specialists for configuration advice. 312 latch clamp — vertical-foot toggle clamp, zinc-plated (Kukamet) The 312 latch clamp is a compact toggle-style closure clamp with a vertical foot and hooked end, intended for secure temporary fastening in jigs, fixtures and general workshop applications. Zinc-plated corrosion protection Vertical-foot mounting for stability Max clamping force 1,000 N Hooked design with 1,500 N holding Secure force where it matters The latch provides defined mechanical performance with a clamping force of 1,000 N and a holding force of 1,500 N, values that make it suitable for repeatable fixture tasks and light production use. Specified forces convey predictability in setup and release cycles, reducing rework and downtime. The mechanical toggle action converts operator input into stable clamping pressure, enabling faster part changeover and consistent results in assembly or inspection stations. The design benefits processes that require quick engagement without complex adjustment. Compact footprint for fast integration A vertical foot mounting and a hooked end mean the clamp installs where space is limited and access is vertical rather than lateral. The compact mass (approx. 0.135 kg) and thread length 45 mm allow straightforward attachment to plates or tooling blocks; the short thread provides secure adjustment without excess protrusion. The light weight and reduced profile help keep moving masses low, which is advantageous for fixtures on manipulators or portable jigs. Integration is simplified: the clamp can be positioned, adjusted and locked with standard workshop hardware. Durable finish and straightforward handling Finished in zinc-plated steel for basic corrosion resistance, the clamp resists surface wear in typical workshop environments and requires minimal maintenance. The hooked closure offers reliable engagement with a mating latch or receiver, while the toggle mechanism ensures positive locking under vibration. A robust surface finish and simple mechanical parts make servicing and replacement predictable and cost-effective. For manufacturing contexts seeking reliable, low-complexity clamping, this clamp delivers practical longevity and ease of use. Contact Metav Werkzeuge for tailored advice on integrating the Kukamet 312 latch clamp into production fixtures and to arrange prompt supply from our Emmerich centre — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: 312-1 GTIN: 8680731502329 Brand: Kukamet EClass: 21041718 ETIM: EC011973 Facts Clamping force: 1,000 N Holding force: 1,500 N Thread length: 45 mm Weight: 0.135 kg Special features Material: zinc-plated Mounting: vertical foot Hooked end for latch engagement Category: clamps FAQ What is the maximum clamping force of the 312 latch clamp? The 312 latch clamp from Kukamet provides a clamping force of 1,000 N and a holding force of 1,500 N (SKU 312-1). Can the clamp be mounted on vertical plates? Yes, the clamp features a vertical-foot mounting that is intended for vertical-plate installation and compact fixture layouts. What material and surface finish does the clamp have? The closure clamp is made from zinc-plated steel, offering basic corrosion resistance suitable for standard workshop conditions. Is the 312 latch clamp suitable for portable jigs? Its compact mass (approx. 0.135 kg) and short thread length (45 mm) make the clamp well suited to portable jigs and light fixtures. How does the hooked end affect function? The hooked end provides positive engagement with a receiver or strike plate, ensuring secure retention when the toggle is closed. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
10000 N Druckkraft, waagerechter Fuß Verschlussspanner 341, Gewindelänge 95 mm, Haken, Schwarz brüniert mit Gusskörper - Kukamet
Nutzen Sie die Kombination aus robuster Konstruktion, hoher Druckkraft und einfacher Montage für zuverlässige Spannlösungen in Werkstatt und Produktion. Bestellen Sie den Verschlussspanner direkt über Metav oder fragen Sie unsere Beratung an, wenn technische Details zu Ihrer Anwendung geklärt werden sollen. Verschlussspanner von Kukamet Der Verschlussspanner ist ein kompakter Hebelspanner für präzise Spannaufgaben in Werkstatt und Fertigung, geeignet für wiederholte Montage- und Fixierarbeiten. Kompakte Bauform mit waagerechtem Fuß Druckkraft bis 10.000 N Haltekraft bis 12.000 N Gewindelänge 95 mm Mit Haken für zusätzliche Sicherung Robuste Konstruktion für dauerhaften Einsatz und Belastbarkeit Der Spanner überzeugt durch einen Gusskörper, der in Kombination mit der Schwarz brünierten Oberfläche korrosionsbeständig und verschleißarm arbeitet. Diese Materialwahl sorgt für lange Lebensdauer und reduziert Stillstandszeiten in der Werkstatt. Ein robustes Gehäuse schützt bewegliche Teile, sodass wiederholte Betätigungen auch unter rauen Bedingungen sicher möglich sind. Klare Leistungswerte für planbare Spannkräfte Mit einer maximalen Druckkraft von 10.000 N und einer Haltekraft von 12.000 N bietet der Spanner definierte Kennwerte, die die Auswahl für Spannaufgaben erleichtern. Diese Zahlen ermöglichen eine zuverlässige Berechnung von Belastung und Sicherheit bei Vorrichtungen und Montagearbeiten. Anwender profitieren von der Planbarkeit und können Spannprozesse effizienter auslegen. Schnelle Montage durch durchdachte Befestigungsdetails Die Befestigungsart mit waagerechtem Fuß und die Gewindelänge von 95 mm erlauben eine flexible Integration in Vorrichtungsplatten und Spannvorrichtungen. Dank der Bauform lässt sich der Spanner zügig positionieren und festschrauben, wodurch Rüstzeiten reduziert werden. Der integrierte Haken bietet zusätzliche Sicherung bei beweglichen Bauteilen und erhöht die Betriebssicherheit. Vielseitiger Einsatz und passende Zielgruppe Als kompakter Hebelspanner richtet sich das Produkt an Industrie, Handwerk und Fachhandel, die stabile und schnell montierbare Spannlösungen benötigen. Mit einem Gewicht von 1,05 kg ist der Spanner ausreichend robust und dennoch handlich für Mobilität auf der Werkbank. Die Kombination aus Materialien und Kennwerten macht ihn zur praktischen Wahl für Serienmontage und Einzelbearbeitung. Metav empfiehlt den Verschlussspanner von Kukamet für Anwender, die Wert auf definierte Spannkräfte und schnelle Montage legen; bei Fragen erreichen Sie uns per E‑Mail unter info@metav-werkzeuge.com oder telefonisch unter +49 2822 7131930 Produktmerkmale Artikelnummer: 341-3 Marke: Kukamet Bezeichnung: Verschlussspanner 341 Daten Druckkraft maximal: 10000 N Haltekraft maximal: 12000 N Gewindelänge: 95 mm Gewicht: 1,05 kg Besonderheiten Befestigungsart: waagerechter Fuß Material: Schwarz brüniert mit Gusskörper Mit Haken: Ja Storytrigger: hebelspanner ECLASS: 21041718 (Industrieklasse) ETIM: EC011973 (Klassifikation) FAQ Wie hoch ist die maximale Druckkraft des Spanners? Die maximale Druckkraft beträgt 10.000 N; der Verschlussspanner von Kukamet (SKU 341-3) ist damit für viele Spannaufgaben in Werkstatt und Montage ausgelegt. Ist der Spanner für mobile Einsätze geeignet? Ja, mit einem Gewicht von 1,05 kg ist der Spanner handlich genug für den flexiblen Einsatz auf der Werkbank und in Vorrichtungen. Welche Befestigungsoptionen bietet der Spanner? Der Spanner verfügt über einen waagerechten Fuß mit einer Gewindelänge von 95 mm, was eine einfache Integration in Spannplatten und Vorrichtungen ermöglicht.

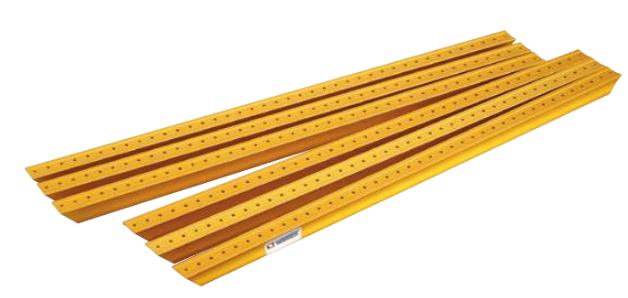

300mm Cover For Milling Table Slot, Anodised Aluminium, 8mm Height, Set Of 6 - Vertex
Take advantage of a compact, anodised aluminium solution that seals a 10 mm slot while keeping dust and debris under control; the slim 8 mm profile and 300 mm length ensure a precise fit and simple replacement. Order directly via Metav Werkzeuge or consult the Metav team for compatibility checks and availability. VST-10 — Cover for Milling Table Slot (Vertex), anodised aluminium, 300 mm The VST-10 is a low-profile cover designed to close a 10 mm slot in milling and router tables, improving safety and reducing chip ingress during routine machining. Anodised aluminium construction Length 300 mm, height 8 mm Set of 6 for 10 mm slots Increased safety and cleaner working area The cover provides a straightforward way to reduce the risk of small tools or swarf entering the table slot; by closing the gap the slot cover contributes to a tidier and safer workbench. Its flat, low-profile design minimises interference with fences and sliding jigs while maintaining access when the cutter requires it. This translates into fewer interruptions for cleaning and less chance of loose debris affecting feed accuracy, a practical improvement for everyday workshop routines. Robust material and precise dimensions for lasting performance Manufactured from anodised aluminium, the component offers improved corrosion resistance compared with untreated aluminium and remains dimensionally stable under normal shop conditions. The 300 mm length and 8 mm height deliver a predictable, repeatable fit for standard table slots; compatibility is specified for a 10 mm slot width. The item’s lightweight nature (0.1 kg) reduces strain during handling yet provides sufficient rigidity for routine use, supporting long-term reliability in production or a busy maintenance bay. Set configuration for rapid maintenance and standardisation Supplied as a set of six, the covers simplify inventory management and mean rapid replacement across multiple machines or stations. Standardised components reduce downtime and make it easier to maintain consistent safety and dust-control practices across the workshop. The straightforward geometry allows quick inspection and swap-out without the need for special tools, helping to keep machine availability high and maintenance effort low. Choose the Vertex VST-10 for dependable slot protection; contact Metav Werkzeuge for current stock information and expert advice at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: VST-10 GTIN: 4061905083525 Material: anodised aluminium Weight: 0.1 kg Dimensions & measurable data Length: 300 mm Height: 8 mm Suitable slot width: 10 mm Pieces per set: 6 Features & compatibility Set configuration for multiple stations Low-profile slot cover Classification eClass 21189223 FAQ What slot width is the cover designed for? The cover is designed for a 10 mm slot and the VST-10 ensures a close fit for standard milling and router table slots. How is the VST-10 protected against corrosion? The VST-10 is made from anodised aluminium, which increases corrosion resistance compared with untreated aluminium. How many pieces are supplied per set? The product is supplied as a set of six, allowing for rapid replacement or use across several machines. Will the cover interfere with table fences or jigs? The low-profile 8 mm height of the cover minimises interference with fences and sliding jigs while maintaining slot sealing. Is the cover heavy to handle during installation? At 0.1 kg, each cover is lightweight, facilitating quick handling and replacement without additional tools. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
4-Jaw independent chuck plain back
Technische Daten: Bezeichnung: Vierbackenfutter VHM Durchmesser: 100 mm bis 200 mm Gewicht: 3,5 kg - 905 kg T-Nut: 4-M10 - 8-M20 Geschwindigkeit: 1100r.p.m. bis 850r.p.m. Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren. Der Hersteller: Vertex Mit einer Erfahrung von über vier Jahrzehnten hat VERTEX sich als größter Hersteller für Maschinenteile in Taiwan einen Namen gemacht. Seit der Gründung im Jahr 1978 hat das Unternehmen kontinuierlich in seine Produktionskapazitäten investiert und verfügt nun über eine beeindruckende Fläche von mehr als 15000 m². VERTEX ist stolz darauf, sich auf Forschung und Entwicklung zu konzentrieren, um innovative Designs zu schaffen, die den steigenden Anforderungen der Branche gerecht werden. Darüber hinaus ist VERTEX dafür bekannt, dass 98% aller Artikel sofort ab Lager verfügbar sind. Diese hohe Lagerverfügbarkeit ermöglicht es den Kunden, ihre Produktionsausfallzeiten zu minimieren und ihre Maschinen reibungslos zu betreiben. VERTEX bleibt seiner Mission treu, qualitativ hochwertige Maschinenteile herzustellen und den Kunden einen erstklassigen Service zu bieten.

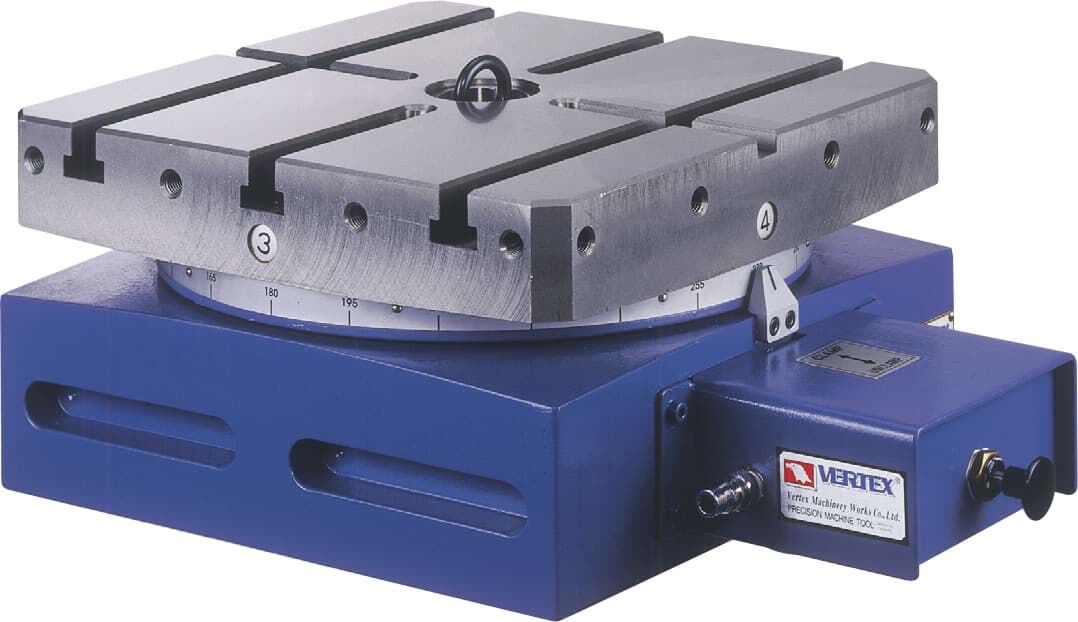

300x300mm Precision Indexing Table 15° Rotation Bidirectional, 14mm T‑Slot - Vertex
Compact and reliable: the combination of a 300 x 300 mm table and 15° indexing provides precise, repeatable angular positioning for machining and assembly tasks. Order the precision indexing table directly via Metav Werkzeuge or ask the consultants for tailored advice. VIT-300-15 Precision Indexing Table — 300 x 300 mm tabletop, 15° indexing — Vertex A VIT-300-15 is a precision indexing table designed for repeatable angular positioning in workshop and production environments. 300 x 300 mm rigid table surface 15° indexing for quick repositioning Rotates clockwise and counter-clockwise 14 mm T-slots for secure clamping Precision that keeps production on schedule The unit delivers consistent angular steps thanks to its 15° indexing, enabling fast, repeatable set-ups that reduce non-productive time. With an emphasis on measurable accuracy (listed as accuracy class 3), the rotary solution supports processes where positional certainty is essential. The generous 300 x 300 mm working surface simplifies fixture placement and, when combined with the indexing mechanism, decreases cycle variability—resulting in improved throughput and predictable component quality. Robust workholding for reliable processes Built for stability, the table’s substantial mass (94 kg) and integrated 14 mm T-slots provide a secure platform for clamping standard tooling and workpieces. The design allows rotation clockwise and counter-clockwise, which supports flexible machining sequences and eases toolpath planning in both manual and automated workflows. These mechanical properties translate into fewer re-clamps, reduced vibration during operation and a lower risk of setup-related rejects, so production runs remain consistent. Integration and set-up made straightforward The indexing table is engineered for straightforward integration into existing benches and machines, providing repeatable angular positioning without complex adjustments. Explanation: indexing means the table stops at defined angular increments (here 15°), so cuts, drilling or measuring steps can be executed with minimal alignment effort. The compact footprint and standard clamping interfaces support quick installation and compatibility with common workshop fixtures, helping to maintain a steady production flow with minimal training required. Contact Metav Werkzeuge for tailored technical advice and order handling; phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data SKU: VIT-300-15 GTIN: 4061905084492 Eclass: 36600310 Manufacturer: Vertex Facts Table dimensions: 300 x 300 mm Height: 160 mm Indexing step: 15° T-slot width: 14 mm Weight: 94 kg Accuracy class: 3 Special features Rotates clockwise and counter-clockwise Precision indexing for repeatable angular positioning Rigid table surface for stable clamping Suitable for workshop and production environments FAQ What indexing increment does the table provide? The VIT-300-15 provides a 15° indexing increment for defined angular steps, suitable for rapid repositioning during machining and assembly. Can the table rotate in both directions? Yes, the Vertex precision indexing table rotates clockwise and counter-clockwise, enabling flexible operation sequences and easier alignment. What are the tabletop dimensions and clamping options? The tabletop measures 300 x 300 mm and includes 14 mm T-slots for secure attachment of fixtures and standard clamps. How heavy is the unit and what stability does that give? At 94 kg, the device offers a stable base that reduces vibration and improves repeatability, supporting reliable machining cycles. Is the table suitable for both manual and CNC-assisted setups? The precision index table from Vertex is designed for workshop and production use, integrating easily with manual benches and automated systems where repeatable angular positioning is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
M8x1.25 Thread Clamp Screw 75mm, Zinc Plated - Vertex
The combination of fine-thread accuracy, compact length and very low weight ensures reliable clamping performance in confined assemblies; the M8 x 1.25 thread and 75 mm length provide a predictable fit and consistent clamp force. Order the clamping screw directly via Metav Werkzeuge or ask our consultants for assistance. Clamping Screw 1323M by Vertex – M8 x 1.25 thread, 75 mm length the Clamping Screw 1323M is designed for secure fixture and jig assembly in workshop and industrial clamping applications M8 x 1.25 thread precision 75 mm overall length Lightweight 23 g for easy handling Secure clamping that keeps setups stable A compact clamping element can make a measurable difference to process reliability. The clamping screw here combines a standard M8 x 1.25 metric thread with a defined length to deliver consistent engagement in threaded holes or tapped clamping plates. For production jigs and short-reach fixtures this reduces play and repeatability issues, resulting in fewer set-up adjustments and less downtime. The practical benefit is a steadier machining or assembly process and predictable component location during processing. Thread and length explained for compatibility The fine pitch M8 x 1.25 thread offers a balance between holding strength and fine adjustment; it engages more gradually than coarse alternatives, allowing precise tightening without overshoot. The 75 mm overall length gives sufficient reach for many clamping configurations while avoiding unnecessary protrusion that could interfere with tooling or adjacent parts. Specifying a standard metric thread simplifies procurement and inventory management, especially when multiple fixtures share the same fasteners. Benefits at the bench and on the line In workshop environments where multiple clamping points are required, the low mass of the fastener makes handling and rapid assembly easier. At just 23 g, these screws are simple to position during repetitive operations and reduce operator fatigue when compared with heavier alternatives. The consistent geometry supports modular fixture systems and quick-change setups, helping to maintain throughput while protecting finished tolerances. Robust use cases and quality expectations Supplied under the Vertex name, this clamping hardware suits general fixture assembly, small machine guards and toolholding adaptors where a reliable threaded connection is needed. While the specification here focuses on geometry and weight, the practical outcome is improved process control: fewer reworks, faster cycle starts and a tidy parts list for purchasing. Where higher-level material or coating specifications are required, refer to the manufacturer’s technical documentation for confirmation. Choose Vertex clamping hardware for dependable fixture performance and contact Metav Werkzeuge for tailored advice or to secure the 1323M for your next project through our Emmerich quality filter Technical data SKU: 1323M GTIN: 4061905084010 Manufacturer: Vertex Facts Length: 75 mm Thread: M8 x 1.25P Weight: 0.023 kg Special features Intended for clamping applications Compact form for confined spaces Standard metric thread for broad compatibility FAQ What thread standard does this clamping screw use? The clamping screw is specified with an M8 x 1.25 metric thread, suitable for standard tapped holes and common clamping plates. What is the overall length and is it suitable for short-reach fixtures? Length is 75 mm, which is designed for short to medium reach applications such as jigs and compact fixtures. Is the material or coating specified for this product? Material and coating are not specified in the available data; consult Vertex technical documentation for confirmed material and surface treatment details. Can this fastener be used in modular fixture systems? Yes. The standard metric thread and compact length make the screw appropriate for modular fixtures and repeatable clamping setups. What identifiers help with ordering and traceability? Use SKU 1323M and GTIN 4061905084010 for ordering and inventory tracking Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
50mm Height Setting Device Set High Precision 0.005mm Resolution - Vertex
Take advantage of the combination of precise 0.005 mm repeatability, a compact 50 mm measuring range and low weight for faster setups and reduced scrap in the workshop; order the height setting device directly via Metav Werkzeuge or ask our consultants if needed. HP-50Z Height Setting Device Set (50 mm, 0.005 mm precision) — Vertex The HP-50Z height setting device set offers a compact solution for repeatable height transfer and tool presetting in toolrooms and production workshops. Precise 0.005 mm repeatability 50 mm measuring range Compact, lightweight 0.32 kg Delivered as a complete set Faster, repeatable setup for production The compact gauge is designed to reduce setup time and to increase process reliability through consistent height transfer. With a stated accuracy of 0.005 mm, the device lowers the risk of misaligned tools and dimensional rejects, enabling smoother tool changes and shorter machine downtime. The measurable benefit is fewer trial cuts and quicker ramp-up to series production, which supports lean workshop processes and improved throughput. Compact design that supports workshop logistics A small footprint and 50 mm working height make the unit easy to store alongside other presetting equipment and to carry between workstations. At only 0.32 kg, the assembly is noticeably lightweight while still offering stable placement for precise measurements. Supplied as a complete set, the solution simplifies procurement and reduces the number of items to manage in the tool cabinet, supporting orderly workflows and faster access during shift changes. Integration with toolroom routines and traceable accuracy Built for integration into standard metrology routines, the instrument suits tool presetter benches, jigging stations and manual inspection tasks. The repeatability characteristic ensures comparable readings across operators and shifts, which is beneficial when documenting setup parameters or feeding values into machine controllers. The model HP-50Z from Vertex is suitable for workshops that prioritise reproducible setup data and straightforward inspection protocols. Contact Metav Werkzeuge in Emmerich for supply and technical advice on the Vertex HP-50Z height setting device set — email info@metav-werkzeuge.com or call +49 2822 7131930 to discuss availability and delivery from our European stock Technical data Article number: HP-50Z GTIN: 4061905084881 Manufacturer: Vertex Facts Accuracy: 0.005 mm Height / Measuring range: 50 mm Weight: 0.32 kg ECLASS: 21170532 Special features Delivered as a set Type: Standard Category: Vertex FAQ What level of precision can be expected from this device? The device provides a precision of 0.005 mm, enabling fine height transfer suitable for tool presetting and inspection tasks with the Vertex HP-50Z set. Is the height setting device portable between workstations? Yes, the compact form and low weight of 0.32 kg make the tool portable and practical for moving between benches or machines. What measuring range does the instrument cover? The unit covers a measuring height of 50 mm, which is adequate for common tool and cutter setup operations in the workshop. Is the product supplied as a complete kit? The HP-50Z is delivered as a set, ensuring all required components for standard height setting are included. Can the device support documented repeatability across operators? The design focuses on repeatability; consistent readings contribute to traceable setup data and reproducible machine starts. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
50mm Height Setting Device With LED And Magnetic Base, HP-50EM - Vertex
Take advantage of the compact 50 mm measuring range, integrated LED illumination and secure magnetic base to speed up tool pre-setting and reduce setup errors. Acquire the instrument directly via Metav Werkzeuge or consult our specialists for tailored application advice. HP-50EM Height Setting Gauge — LED illumination, magnetic base (Vertex) The HP-50EM Height Setting Gauge offers a compact workshop solution for quick height reference and tool pre-setting in bench and machine environments Compact 50 mm measuring range Integrated LED for clear visibility Magnetic base for secure attachment Robust brand-quality from Vertex Faster, more reliable presetting thanks to precise reference height A compact height gauge delivers measurable time savings during setup by providing a consistent reference plane. The HP-50EM combines a 50 mm range with focused LED illumination to make edges and tool tips easier to see, which lowers the risk of misalignment and reduces rework. By establishing a stable reference, the instrument improves repeatability between successive setups and shortens changeover time without adding complexity to existing workflows. Secure mounting and clear readings for workshop conditions The magnetic base ensures a steady attachment to ferrous tables and machine beds, so readings remain stable while adjustments are made. Paired with the LED illumination, the device supports rapid visual checks even in poorly lit areas of the shop floor. The design balances robust construction with a lightweight feel, enabling easy relocation between workstations while maintaining a dependable reference point for tool and workpiece height. Streamlined processes that reduce errors and increase throughput Integrating a dedicated height reference helps standardise setup procedures and supports consistent production quality. The instrument's straightforward operation and visible measuring plane make it suitable for both skilled machinists and workshop technicians who need fast, unambiguous height checks. As a simple addition to a measuring kit, the gauge contributes to fewer stoppages, more predictable cycle times and a smoother production flow. Contact Metav Werkzeuge for personal advice and rapid supply of the Vertex HP-50EM height setting gauge with LED and magnetic base from our Emmerich warehouse Technical data SKU: HP-50EM GTIN: 4061905083846 Manufacturer: Vertex Facts Measuring height: 50 mm Weight: 0.6 kg eCl@ss: 21170532 Special features LED illumination for clear readings Magnetic base for secure attachment Compact height gauge design Image available (hp-50em-main.jpg) FAQ What is the measuring range of the HP-50EM? The HP-50EM Height Setting Gauge from Vertex provides a measuring height of 50 mm, offering a compact reference for quick presetting. Does the instrument include a light source for better visibility? Yes — the HP-50EM is equipped with LED illumination to improve visibility of edges and tips during fine adjustments. Is the base suitable for use on machine tables? The device features a magnetic base that secures the gauge to ferrous machine beds and workshop tables for stable, repeatable readings. How portable is the HP-50EM for moving between workstations? Weighing 0.6 kg, the HP-50EM is lightweight enough for easy relocation while retaining a robust feel for everyday workshop use. Who manufactures the HP-50EM and what is the SKU? The gauge is produced by Vertex and sold under SKU HP-50EM; the GTIN is 4061905083846. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Horizontalspanner 111 mit waagerechtem Fuß
Technische Übersicht: Hersteller: Kukamet Bezeichnung: Horizontalspanner Material: Edelstahl oder Verzinkt je nach Ausführung Abmessung Andruckspindel: M10x70 - M8x50 Befestigungsart: waagerechter Fuß Maximale druckkraft: 450 N - 4500 N Gewicht: 0,042 kg - 1,58 kg Haltekraft Max.: 520 N bis 5000 N Mit massivem Arm Mit Sicherheitsverriegelung Bestelle jetzt bequem online Horizontalspanner!
100mm Parallel Gauge Block Set Ground, Assorted Sizes 2x–22x with Clamps, 0.01mm Accuracy - Vertex
Take advantage of the combination of precision-ground reference surfaces and a 0.01 mm tolerance to ensure repeatable set-ups and reduced rework; order the set directly via Metav Werkzeuge or consult our specialists for application advice. VP-100 Parallel block set by Vertex — precision-ground, calibrated to 0.01 mm The VP-100 Parallel block set is a precision-ground toolkit for accurate workholding and setup in machining and inspection applications, designed to provide stable reference faces and reliable height support. Precision-ground parallels, tolerance 0.01 mm Comprehensive range from small to larger sizes Includes two clamping brackets for secure holding Heavy, stable set for vibration-free setup Constant reference for repeatable machining accuracy A precision-ground set delivers a stable datum that reduces setup variation and scrap. The ground surfaces provide an exact bearing that is easy to replicate across multiple jobs, enabling repeatable set-ups and consistent part quality. With an indicated tolerance of 0.01 mm, the kit supports fine positional control when aligning workpieces for milling, drilling or inspection. These characteristics shorten alignment time and improve throughput by reducing the need for frequent re-measurement. Flexible support for a wide range of workpieces The included parallels cover a broad spectrum of heights and contact areas, allowing secure support for small components as well as larger workpieces. This comprehensive selection simplifies fixture construction and makes it possible to adapt quickly to different clamping scenarios on a machine table or inspection bench. The presence of dedicated clamping brackets means the parallels can be locked in place for vibration-free operation, improving machining consistency and reducing operator intervention between cycles. Robust design tailored for everyday workshop use Designed for regular workshop handling, the set offers a balanced mass that contributes to stability during machining. The overall weight of 11.7 kg gives the kit a sturdy feel and helps resist movement under cutting forces. Surfaces finished by precision grinding are less prone to rapid wear, which maintains accuracy over time and lowers lifecycle costs. The kit’s layout and solid build support efficient storage and rapid retrieval, so setups remain quick without compromising on durability. For precision-critical setups, request the Vertex VP-100 parallel block set through Metav Werkzeuge and discuss the optimal configuration for specific applications with our Emmerich-based specialists Technical Data Article number: VP-100 Manufacturer: Vertex GTIN: 4061905084270 eClass: 21170610 Facts Dimensions: 390 × 292 × 84 mm Weight: 11.7 kg Accuracy: 0.01 mm Pieces per set: 18 Special features Precision-ground finish Contents: parallels 5×16×100 mm, 6×18×100 mm, 8×24×100 mm, 10×30×100 mm, 12×36×150 mm, 14×48×150 mm, 18×60×150 mm, 22×62×150 mm Includes two clamping brackets 15×31×2.5×200 mm Suitable for machining table setup and inspection fixtures FAQ What level of accuracy can be expected from this set? The VP-100 parallel block set from Vertex is specified with an accuracy of 0.01 mm, providing a precise reference for alignment and measurement tasks. Which sizes are included in the set? The kit contains a range of parallels from small to larger footprints (examples: 5×16×100 mm up to 22×62×150 mm) plus two clamping brackets, offering versatile support options for various workpieces. Can the set be used for both setup and inspection tasks? Yes, the precision-ground reference faces make the VP-100 suitable for workholding on machine tables and as stable supports on inspection benches. How should the parallels be maintained to preserve accuracy? Keep the parallels clean and dry, avoid shocks, and store them in their protective case or a reserved drawer to maintain the ground surfaces and dimensional stability. Are clamping brackets supplied with the set? Yes, the set includes two clamping brackets that allow secure fixation of the parallels for machining and measurement operations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100mm Pneumatic Clamp Horizontal Base, 3,000 N Thrust, 95° Arm, Galvanised – Kukamet
The combination of a 100 mm heavy-duty arm, up to 3,300 N holding force and a zinc-plated, corrosion-resistant construction ensures consistent, repeatable clamping in production environments; order the clamp directly via Metav Werkzeuge or consult our technical advisers for application guidance. Pneumatic clamp 631 — Kukamet, 100 mm arm, zinc-plated The Pneumatic clamp 631 is a pneumatic clamping device engineered for robust fixture work and repetitive clamping tasks in industrial and workshop settings. 100 mm heavy-duty arm Horizontal base mounting Up to 3,300 N holding force Zinc-plated corrosion resistance Secure, repeatable clamping for continuous production The pneumatic design delivers a controlled actuation with a max. actuation force of 3,000 N and a holding force of 3,300 N, offering reliable retention for series production. This level of clamping stability reduces part movement during machining and assembly, decreasing scrap rates and increasing process reliability. The pneumatic actuation provides consistent stroke motion and repeatability, which is especially valuable where manual clamping would introduce variability. For users less familiar with pneumatic systems, the key point is that the actuator converts compressed air into a steady mechanical force that maintains workpiece position without continuous manual intervention, supporting higher throughput and predictable cycle times. Robust construction for long service intervals Built with a massive holding arm and finished in zinc-plated material, the clamp resists wear and corrosion in demanding shop-floor conditions. The heavy-duty arm reduces flex under load and helps maintain precise alignment over repeated cycles, lowering the frequency of adjustments and unscheduled maintenance. The corrosion-resistant surface treatment extends component life in humid or industrial atmospheres, while the sturdy design minimises the risk of deformation under sustained clamping loads. As a result, maintenance intervals are extended and total life-cycle cost is reduced compared with lighter-duty alternatives. Flexible mounting and practical reach for fixtures The clamp features a horizontal base for secure mounting and a lever geometry with a 95° operating angle, providing accessible clearance in tight jig assemblies. The 100 mm arm grants useful reach for a variety of part sizes and tooling arrangements, allowing integration into custom jigs, fixture plates and automated cells. The compact footprint and standard base make it straightforward to position the device where repeated access and unobstructed tool paths are required. The mechanical simplicity of the lever-style clamp supports straightforward retrofitting into existing fixtures without complex redesign. Dependable supply and industrial readiness Supplied by Kukamet and distributed via Metav Werkzeuge, the clamp is positioned for workshop and industrial environments where consistent availability and verified quality matter. Metav’s role as a quality filter for the European market, combined with a broad product range, supports reliable procurement and reduced supplier complexity. The device’s measurable parameters — arm length, actuation and holding forces and mounting type — provide a clear basis for specifying and verifying suitability for production tasks, aligning purchasing decisions with technical requirements and operational goals. Discuss application requirements with Metav Werkzeuge to ensure the Kukamet Pneumatic clamp 631 meets individual fixture demands and to receive tailored procurement advice from our technical consultants Technical Data Article number: 631-4-D-C1 Product name: Pneumatic clamp 631 Manufacturer: Kukamet Facts Arm length: 100 mm Actuation force max: 3,000 N Holding force max: 3,300 N Angle: 95° Special features Mounting: horizontal base Material: zinc-plated Massive holding arm Category: Clamping devices FAQ What clamping forces can be expected from the 631 clamp? The Kukamet Pneumatic clamp 631 provides a max. actuation force of 3,000 N and a holding force of up to 3,300 N, suitable for demanding fixture applications. How is the clamp mounted in a jig? The device uses a horizontal base mounting, allowing secure attachment to fixture plates and jig blocks for stable operation. Is the clamp suitable for harsh shop-floor conditions? Yes, the zinc-plated finish and robust arm design give the Pneumatic clamp 631 improved corrosion resistance and durability in industrial environments. What advantages does the 100 mm arm provide? The 100 mm arm offers extended reach and clearance in fixtures, enabling access to a wider range of part geometries without obstructing tooling. Who supplies and distributes this clamp in Europe? The clamp is manufactured by Kukamet and distributed via Metav Werkzeuge; the SKU is 631-4-D-C1 for order and specification purposes. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
