Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
100mm Pneumatic Clamp Vertical Handle Massive Holding Arm 3,000 N Force 3,300 N Hold Zinc-Plated, 90° - Kukamet
Take advantage of the combination of robust holding force, a galvanised, maintenance-friendly design and a compact 100 mm arm for reliable, repeatable clamping in production. Order the unit directly via Metav Werkzeuge or consult our experts for specification support. Pneumatikspanner 651 — Pneumatic toggle clamp with vertical handle and solid holding arm (Kukamet) The Pneumatikspanner 651 is a pneumatic toggle clamp designed for secure, repeatable workpiece holding in production, assembly and fixture applications, featuring a vertical handle and a massive holding arm. Vertical handle for ergonomic actuation Massive holding arm for stable clamping Up to 3,300 N holding force Galvanised finish for corrosion resistance Reliable clamping that keeps processes moving The pneumatic toggle clamp delivers a clear, measurable benefit: repeatable clamping with a maximum holding force of 3,300 N and actuator pressure capability up to 3,000 N. This translates into consistent part positioning and reduced scrap rates on the production line. The closed clamping geometry and robust toggle mechanism ensure that clamping force is maintained throughout machining or assembly cycles, supporting faster cycle times and predictable throughput. Built to last — less maintenance, more uptime Constructed with a galvanised finish and a solid holding arm, the clamp resists corrosion and mechanical wear in workshop environments. The vertical handle and substantial arm profile reduce flex during operation, which lowers the frequency of adjustments and extends service intervals. As a result, fixture maintenance time is decreased and the overall equipment availability improves — a direct contribution to production reliability and lower long-term running costs. Compact mounting with flexible integration Designed for vertical-base installation, the unit features a vertical foot for straightforward attachment to jigs and fixtures. The 100 mm arm length and fixed 90° clamp orientation make the device suitable for tight work envelopes while still providing ample reach for typical assembly and holding tasks. The compact footprint and standard mounting arrangement simplify retrofitting into existing fixtures and support modular jig design. Pneumatic actuation for controlled, safe operation Pneumatic actuation provides smooth, controllable motion and predictable force output, separating pressure force from the resulting holding force so that process engineers can match supply pressure to application requirements. The toggle action gives positive mechanical locking at full stroke, improving safety in automated cells and reducing the risk of accidental release during machining. Where repeatability and operator safety matter, the clamp’s design supports both objectives without complex controls. Contact Metav Werkzeuge for tailored technical advice on the Kukamet Pneumatikspanner 651 and to arrange prompt supply from our Emmerich distribution centre Technical Data Article number: 651-4-H-D-C1 Product name: Pneumatikspanner 651 Category: Spanner SKU: 651-4-H-D-C1 Facts Arm length: 100 mm Holding force max: 3,300 N Pressure force max: 3,000 N Angle: 90° eClass: 21021004 ETIM: EC011973 Special features Material: galvanised Mounting: vertical foot Vertical handle and massive holding arm Massive arm construction Lever-style (toggle) clamp design FAQ What is the maximum holding force of the clamp? The Pneumatikspanner 651 provides a maximum holding force of 3,300 N, suitable for a wide range of fixturing and assembly tasks. How is the clamp mounted to a fixture? Mounting uses the clamp’s vertical foot design, allowing direct attachment to vertical plates or jig bases for stable installation and easy integration. Which materials is the clamp suitable for in production use? The clamp’s robust design and galvanised finish make it suitable for general industrial applications, including repeated use in metalworking and assembly environments. Does the clamp require special maintenance? Routine checks of pneumatic connections, a visual inspection of the solid holding arm and occasional lubrication of pivot points are recommended to maintain performance; the galvanised finish reduces corrosion-related upkeep. Can the clamp be used in automated cells? Yes — pneumatic actuation and the toggle locking action offer controlled movement and secure holding that integrate well with automated production and assembly systems; reference SKU 651-4-H-D-C1 for ordering. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Universal Jaws With Soft Stop For Irregular Parts, 145x38x49mm - Vertex
Combine a soft stop for irregular components with precision to 0.01 mm and a compact footprint to achieve reliable clamping and consistent measurement results in daily workshop use. Order the Vertex Universal Jaws directly via Metav Werkzeuge or ask our consultants for fitting and compatibility advice. Vertex Universal Jaws VWSJ-R100 — universal caliper jaws with soft stop and precision contact The Vertex Universal Jaws VWSJ-R100 are replacement jaws for precision calipers, engineered to secure uneven or delicate workpieces while preserving repeatable measurement contact in inspection and assembly tasks. Soft stop for irregular workpieces Compatible with calipers 100–110 mm Precision to 0.01 mm Compact dimensions 145 x 38 x 49 mm Improve measurement repeatability with precision contact Replacing worn or generic jaws with a purpose-designed set offers an immediate gain in repeatability. The VWSJ-R100 provides a precision 0.01 mm contact surface that reduces measurement scatter when used with calipers having a jaw width of 100–110 mm. The controlled contact force delivered by the integrated soft stop minimises deformation of delicate parts and lessens the need for repeated checks, thereby improving throughput in quality-control routines. Streamline inspection workflows with a compact retrofit A compact footprint of 145 x 38 x 49 mm means these jaws integrate without obstructing access to the workpiece or measuring scale, supporting faster setup and clearer reading. The design enables quick replacement on compatible calipers and keeps handling straightforward during repetitive measurement sequences. As a practical result, inspection stations benefit from reduced downtime and more consistent data capture during batch checks. Protect sensitive components while maintaining clamp reliability The inclusion of a soft stop is especially valuable when measuring irregularly shaped or fragile items; it absorbs uneven contact points and prevents marring. This function combines with the jaws’ engineered contact geometry to maintain reliable grip without excessive clamping force. For workshops handling small series, prototypes or mixed-material assemblies, this balance safeguards components while preserving the integrity of measurement results and assembly operations. Contact Metav Werkzeuge for tailored advice on fitting the Vertex Universal Jaws VWSJ-R100 to existing calipers and to arrange prompt delivery from our Emmerich quality hub Technical Data Article number: VWSJ-R100 GTIN: 4061905083914 ECLASS: 21029107 Core specifications Dimensions: 145 x 38 x 49 mm Accuracy: 0.01 mm Caliper jaw width suitability: 100–110 mm Special features Soft stop for irregular workpieces SKU: VWSJ-R100 Brand: Vertex FAQ What calipers are compatible with these jaws? The Vertex Universal Jaws VWSJ-R100 are compatible with calipers featuring a jaw width of 100–110 mm and are intended as a direct replacement set for such instruments. Will the soft stop prevent damage to delicate parts? Yes, the soft stop on the VWSJ-R100 reduces point loading on uneven surfaces, helping to protect delicate components while maintaining stable contact for measurements. How precise are measurements when using these jaws? When fitted and used on compatible calipers, the VWSJ-R100 supports repeatable contact with an accuracy of 0.01 mm, improving consistency across inspection cycles. Is the VWSJ-R100 suitable for high-volume workshop use? The compact design and reliable contact behaviour make the Vertex jaws suitable for frequent measurement tasks in production and inspection environments where quick jaw changes and consistent results are required. Can these jaws be used on calipers from other manufacturers? Compatibility depends on the caliper jaw width and mounting arrangement; the VWSJ-R100 is specified for 100–110 mm jaw width—confirm mechanical fit before installation. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100mm Vertical Clamp Three-Point Heavy-Duty Holding Arm With Safety Lock, 1.5kN Thrust - Kukamet
Take advantage of the combination of robust clamping power, a compact 68 mm arm and a secure safety lock for reliable fixture performance. Order the 241 vertical clamp directly via Metav Werkzeuge or ask our consultants if needed. Kukamet 241 Vertical Clamp — Horizontal-base toggle clamp with safety locking and 68 mm arm The 241 Vertical Clamp is a durable horizontal-base toggle clamp designed for secure workpiece retention in jigs, fixtures and assembly stations, delivering high holding capability in a compact format Horizontal base for stable mounting 68 mm heavy-duty holding arm Holding force 5,000 N for secure clamping Safety locking mechanism for process security Consistent clamping force for reliable production flow The vertical toggle unit offers a clear technical advantage through its high holding force of 5,000 N combined with a maximum pressing force of 1,500 N, which together ensure stable clamping without frequent readjustment. This consistent mechanical performance reduces cycle variability in repetitive assembly or welding operations and supports process reliability. The compact 68 mm arm keeps the fixture footprint small while transferring clamping energy efficiently, allowing shorter clamp travel and faster repositioning in automated or semi-automated setups Integration made straightforward for jig and fixture builders Mounting is effected via a horizontal base, which simplifies alignment on flat fixture plates and ensures predictable load paths under dynamic conditions. The clamp’s opening angle of 100° and modest weight (1.288 kg) make it suitable for retrofitting into existing tooling layouts where space and mass are constrained. Clear numeric specifications support quick engineering decisions and allow precise calculations for fixture stiffness and cycle kinematics, shortening design iterations and minimising downtime during changeover Built for safety and long service life A massive holding arm and a dedicated safety locking mechanism prevent accidental release during machining or handling operations, addressing occupational safety and minimizing scrap risk. The component is finished in a black blued finish, which offers basic corrosion resistance and an industrial appearance that integrates well with workshop hardware. Robust mechanical construction reduces maintenance intervals and supports a predictable lifetime under regular production loads, contributing to lower total cost of ownership over time Suitable applications and practical benefits This toggle-style clamp is primarily intended for general industrial clamping tasks in assembly, welding fixtures and test rigs where firm retention is essential. The combination of high holding force and compact geometry supports clamping of medium to heavy parts while maintaining easy access for operators and automation tooling. The design balances power and compactness, enabling firms to standardise on a single clamp type across multiple stations and thereby simplify spare parts management and inventory Contact Metav Werkzeuge in Emmerich for a tailored application review or to discuss the suitability of the 241 vertical clamp for specific fixture requirements — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: 241-4-D-L-C1 GTIN: 8682843520635 Manufacturer: Kukamet Core technical data Max holding force: 5,000 N Max pressing force: 1,500 N Arm length: 68 mm Opening angle: 100° Weight: 1.288 kg Mounting: horizontal base SKU: 241-4-D-L-C1 Special features Massive holding arm Safety locking mechanism Black blued finish Category: Toggle clamp (vertical) eClass: 21041717 ETIM: EC011973 FAQ What clamping forces can be expected from this toggle clamp? The 241 vertical clamp provides a holding force of 5,000 N and a maximum pressing force of 1,500 N, values suitable for medium to heavy-duty fixture tasks Is the clamp suitable for retrofitting into existing fixtures? Yes, the horizontal base and compact 68 mm arm length make the clamp easy to integrate into existing jigs and fixture plates Does the clamp include a safety lock? The clamp features a dedicated safety locking mechanism, designed to prevent unintended release during handling or machining What finish does the clamp have and what does it mean for workshop use? The unit is supplied with a black blued finish, offering basic corrosion protection and a durable surface for industrial environments How can Metav Werkzeuge help specify this clamp for an application? Metav Werkzeuge can assist with application assessment and technical matching for the 241 vertical clamp (SKU 241-4-D-L-C1) to ensure the clamp meets the fixture and process requirements Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
180° Vertical Clamp 2,500 N Closing Force, Vertical Base, Blackened Finish - Kukamet
Take advantage of a compact, high‑force clamping solution that combines 2,500 N holding power with a lightweight design and a vertical foot for secure fixture mounting. Order the clamp directly via Metav Werkzeuge or contact their consultants for application advice. Vertikalspanner 222 – Vertical clamp with 2,500 N clamping force (Kukamet) A Vertikalspanner 222 is a compact vertical toggle clamp for fixed fixturing and assembly tasks, optimised for repetitive positioning and stable holding in workshop environments 2,500 N clamping force for secure hold Vertical foot mounting for stable attachment Blackened finish for corrosion resistance 180° lever angle for versatile handling Reliable hold for repetitive production The 2,500 N rated clamping action delivers precise and repeatable force, making this vertical toggle clamp ideal where consistent fixture pressure is required. The mechanism converts lever travel into a controlled vertical clamp stroke, ensuring repeatable positioning and reduced cycle variation. Designed for use in production jigs and assembly stations, the device reduces setup time and supports uninterrupted workflow by maintaining component placement under load. Compact build with robust surface protection Manufactured with a blackened finish, the clamp resists surface wear and offers improved corrosion protection in everyday workshop conditions. The compact construction and 0.24 kg mass enable easy integration into existing fixtures without significant added weight. A vertical foot mounting provides a secure attachment point on flat surfaces or fixture plates, while the 180° lever articulation allows installation in confined spaces and flexible access during clamping operations. Practical advantages in handling and installation The lever‑actuated design is straightforward to install and operate, supporting quick locking and unlocking during assembly cycles. The simple mechanical concept reduces maintenance intervals and simplifies replacement of worn components. By choosing a mechanically reliable clamp, shops benefit from lower downtime and predictable process behaviour—an advantage for batch work and serial assembly where throughput and consistency matter. Suitable applications and integration notes Engineered for clamping tasks in small to medium production setups, the unit suits fixture plates, jigs and assembly benches where vertical holding is required. The low mass and compact footprint allow implementation in multi‑station fixtures without compromising accessibility. Compatibility with standard fixturing practices means the clamp can be integrated alongside other holding elements for combined functionality and improved process stability. For tailored advice on integrating the Kukamet Vertikalspanner 222 into a production setup, contact Metav Werkzeuge in Emmerich for expert consultation at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: 222-2 GTIN: 8680731505917 Material: blackened finish Mounting: vertical foot Max. clamping force: 2,500 N Weight: 0.24 kg Angle: 180 eClass: 21041717 ETIM: EC011973 Facts Clamping force: 2,500 N Weight: 0.24 kg Angle: 180° GTIN: 8680731505917 SKU: 222-2 Special features Blackened (brüniert) finish Vertical foot mounting Lever‑type vertical clamp No additional special features listed Brand: Kukamet FAQ What is the maximum clamping force of the Vertikalspanner 222? The maximum clamping force is 2,500 N; the Kukamet Vertikalspanner 222 is specified for consistent vertical holding at that force. How is the clamp mounted? Mounting is via a vertical foot; the clamp is secured to flat fixture plates or benches using the foot as the primary attachment point. Is the surface treated for corrosion resistance? Yes—the unit has a blackened (brüniert) finish that offers improved surface protection under normal workshop conditions. Can the clamp be used in tight installation spaces? The compact form factor and 180° lever articulation make it suitable for installations with limited space where vertical clamping is required. What identifying information is available for ordering or inventory? Order or reference the item by SKU 222-2 or GTIN 8680731505917 for accurate identification. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
180° Vertical Clamp 1.5 kN Closing Force, 5 kN Holding Force, Blackened Steel - Kukamet
Efficient, reliable workholding through a combination of 1,500 N clamping thrust and 5,000 N holding capacity, delivered in a compact vertical-foot design that simplifies fixture mounting; order the Kukamet vertical clamp directly via Metav Werkzeuge or consult our advisors for integration support. Vertikalspanner 224 — Vertical lever clamp with 1,500 N clamping force (Kukamet) The Vertikalspanner 224 is a vertical lever clamp engineered for secure fixturing and quick-action locking in production jigs and fixture plates Holding force up to 5,000 N Clamping force 1,500 N Vertical foot mounting for secure fixing 180° swivel lever, blackened finish Predictable clamping performance for consistent results The device provides clearly defined load values: 5,000 N holding force and 1,500 N clamping force, which allow planners to calculate retention and active engagement separately. The holding figure indicates the static retention capacity when the clamp is locked, while the clamping thrust is the force applied during actuation. This separation supports more accurate fixture design and reduces the risk of workpiece movement during machining, helping to maintain repeatable tolerances across batch runs. Compact mounting that saves space on the fixture plate A vertical foot mounting keeps the unit close to the base, enabling direct attachment to plates and blocks without bulky adapters. At 1.12 kg, the clamp balances low mass and serviceable robustness, making it suitable where compactness and predictable mass distribution matter. The blackened finish provides a uniform surface treatment that helps reduce glare in inspection areas, while the 180° lever travel offers flexible positioning to suit confined layouts and ergonomic loading. Fast, simple operation to accelerate set-up times The clamp follows a lever-actuated mechanism that converts manual input into a repeatable locking action; this lever clamp principle supports quick part changes and consistent engagement force. The quick-action characteristic of the mechanism shortens changeover intervals and simplifies operator workflows in assembly or short-run machining operations. Routine upkeep is straightforward: periodic light lubrication and visual checks at pivot points sustain reliable function and long service life. Designed for fixture integration and traceable procurement Produced by Kukamet, the unit listed under SKU 224-4 is intended for industrial and workshop fixtures where repeatability and a compact footprint are priorities. Traceability is assisted by GTIN 8680731504651, which supports stock control and procurement processes. As a medium-duty workholding element, the clamp complements modular fixturing systems and can be specified where reliable, repeatable clamping is required. Contact Metav Werkzeuge to discuss specification matching and procurement of the Kukamet vertical clamp 224-4 from our Emmerich stock for rapid integration into production fixtures Technical data SKU: 224-4 GTIN: 8680731504651 eClass: 21041717 ETIM: EC011973 Key figures Max clamping force: 1,500 N Max holding force: 5,000 N Angle: 180° Weight: 1.12 kg Features Vertical foot mounting Blackened finish Lever clamp design Category: Clamp FAQ What is the difference between the clamping and holding figures? The clamping figure refers to the active thrust during engagement (1,500 N), while the holding figure indicates static retention after locking (5,000 N) for the Kukamet Vertikalspanner 224-4. Can the clamp be mounted directly to a fixture plate? Yes — the vertical foot mounting is intended for direct attachment to plates or fixture blocks, allowing straightforward integration of the Kukamet vertical clamp 224-4. How much lever travel is available for positioning? The lever provides 180° travel, offering flexible positioning to accommodate part loading and access in confined arrangements. Is maintenance complicated for this clamp? Maintenance is minimal; the Vertikalspanner 224 benefits from light lubrication of pivot points and routine inspection to maintain reliable, repeatable operation. Which applications are typical for this clamp model? The clamp is suited to production jigs, assembly fixtures and medium-duty machining fixturing where compact, repeatable clamping is required; refer to SKU 224-4 for procurement and stock details. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Safety Lock, 1.5kN Thrust, 5kN Hold Force, Blackened - Kukamet
Take advantage of the combination of compact design, high retention force and a secure safety lock to speed up fixture cycles without compromising on workplace safety. Order the clamp direct from Metav Werkzeuge or consult our specialists for application advice. Vertikalspanner 242 – Vertical toggle clamp with safety lock, 1,500 N clamping force (Kukamet) The Vertikalspanner 242 is a vertical toggle clamp designed for secure, repeatable holding in jig and fixture applications across metalworking and assembly stations Vertical base foot for stable mounting Safety lock prevents unintended release 1,500 N clamping force for firm hold Holds up to 5,000 N retention force Consistent holding power for production environments The clamp delivers a clear performance advantage through its 1,500 N rated clamping capability combined with a 5,000 N maximum retention force. This ratio of clamping to holding force provides a secure grip on parts during machining or assembly, reducing rework and stoppages. The mechanism locks positively, so the safety lock maintains engagement under vibration and intermittent loads. For production planners the result is a measurable improvement in process stability and fewer manual interventions. Robust construction that speeds up cycle times A compact, blackened finish body and a vertical base mounting allow rapid integration into existing fixtures while offering corrosion-resistant surface protection. The lever-driven action of this type of clamp shortens the motion path, enabling quicker part securing and release compared with multi-component systems. At a lightweight 1.47 kg the unit is easy to position during jig building yet substantial enough to withstand repeated cycles, supporting higher throughput without adding bulk to the fixture. Safety and installation advantages for workshop fixtures Designed as a classic lever clamp, the device opens to a 100° travel angle, giving good access for loading and unloading components while maintaining a compact footprint. The integrated safety lock prevents accidental opening, which is beneficial where unattended machines or automated feeders are in use. Clear mechanical behaviour and straightforward mounting on a vertical foot make it suitable for clamping, assembly and testing fixtures where repeatability and operator safety are priorities. The model is supplied as a single, ready-to-install clamp with a defined SKU for traceability. Contact Metav Werkzeuge for tailored technical advice and to specify the Kukamet Vertikalspanner 242 (SKU 242-4-L) for reliable fixture integration in your workshop Technical data Article number: 242-4-L GTIN: 8680731505696 SKU: 242-4-L Facts Weight: 1.47 kg Max clamping force: 1,500 N Max holding force: 5,000 N Angle: 100° Special features Material: blackened finish Mounting: vertical base foot Safety lock: yes Category: Spanner eClass: 21041717 ETIM: EC011973 FAQ What is the primary application for this vertical clamp? The Vertikalspanner 242 from Kukamet is intended for use in jigs, fixtures and assembly fixtures where secure, repeatable clamping and compact mounting are required. Can the clamp be mounted on production fixtures with limited space? Yes. The vertical base foot and compact design of the Vertikalspanner 242 (SKU 242-4-L) allow straightforward installation in confined fixture layouts. How does the safety lock improve workshop safety? The integrated safety lock prevents unintended release under vibration or incidental impact, so the clamp keeps a positive hold until deliberately released. Is the lever action suitable for high-cycle automation? The lever-driven mechanism offers short actuation and reliable engagement, making this model suitable for higher cycle rates in manual or semi-automated processes. What finish does the clamp have and what does it mean for maintenance? The unit features a blackened finish that provides basic surface protection; this reduces the need for frequent touch-up while supporting standard workshop maintenance routines. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100V-240V Waterproof LED Machine Lamp IP67, Long Arm 448mm - Vertex
Benefit from reliable machine illumination with IP67 waterproof protection and wide 100–240 V compatibility for uninterrupted operation; the compact 448 mm form and 2.2 kg build combine robustness with simple machine integration. Order the product directly via Metav Werkzeuge or ask our consultants for assistance. Vertex LED machine lamp (VLED-W13) — IP67 waterproof, 100–240 V The Vertex LED machine lamp is a waterproof machine-mounted light designed for demanding workshop and production environments, delivering steady illumination where precision matters. Robust IP67 waterproof rating Wide voltage 100–240 V compatibility Stable 448 mm length for close‑up lighting Solid 2.2 kg construction for secure mounting Consistent illumination that reduces errors The LED array provides bright, even light that minimises shadows at the cutting edge, helping to reduce visual fatigue and inspection mistakes. The high‑efficiency LED source offers long service life and low energy consumption compared with filament lamps, which translates into fewer replacements and lower operating costs. This technical reliability supports lean production by contributing to consistent part quality and fewer interruptions on the shop floor. Built for wet and dusty workshop conditions With an IP67 rating the luminaire is dust‑tight and protected against temporary immersion, ensuring performance in splashy, coolant‑exposed or dusty areas. The robust housing combined with a 2.2 kg mass gives the unit stability once mounted, while the compact 448 mm length keeps the light close to the workpiece without obstructing access. The 100–240 V input range removes the need for special power adaptors in most industrial settings, simplifying international deployment and reducing installation complexity. Simple integration and low maintenance Electrical and mechanical integration is straightforward thanks to the lamp's broad voltage acceptance and standard form factor, which eases planning for retrofits or new machine installations. The LED design is effectively maintenance‑free compared with bulb‑based alternatives, reducing downtime and spare‑parts management. For procurement and traceability the item is identified as VLED‑W13, with Vertex documentation available to support correct installation and compliance in industrial applications. Contact Metav Werkzeuge to confirm compatibility for your machines and to arrange supply from our Emmerich warehouse; our specialists will advise on seamless integration of the Vertex VLED‑W13 into existing production lines Technical data Article number: VLED‑W13 GTIN: 4061905005671 Brand: Vertex Core specifications Weight: 2.2 kg Length: 448 mm Voltage: 100V–240V Protection class: IP 67 Features & compatibility Waterproof construction (IP67) Wide input voltage range 100–240 V Suitable for 12 W incandescent bulb (as stated) SKU: VLED‑W13 FAQ What environments is this lamp suitable for? The Vertex LED machine lamp (VLED‑W13) is designed for workshop and industrial use, with an IP67 rating that protects against dust and temporary immersion. What power supply does the lamp require? The unit accepts 100–240 V, allowing connection to common industrial and international supplies without additional converters for the Vertex VLED‑W13. How large and heavy is the lamp? The lamp measures 448 mm in length and weighs 2.2 kg, dimensions that support close machine mounting while remaining compact. Is the lamp easy to integrate into existing machines? Yes, the VLED‑W13’s standard form factor and wide voltage compatibility simplify electrical and mechanical integration and reduce retrofit planning time. Where can the product identification be found for ordering? The lamp is listed under SKU VLED‑W13 and GTIN 4061905005671; Vertex documentation accompanies the product for installation reference. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100x100x100mm Magnetic Chuck VCP-31 High Pull Force - Vertex
Benefit from a compact, space-saving workholding solution that supports consistent clamping and simplifies setup. The combination of a small footprint, robust build and rapid dispatch ensures reliable shop-floor performance. Order the magnetic clamping block directly via Metav Werkzeuge or ask our consultants for application advice. VCP-31 Magnetic clamping block – compact 100×100×100 mm design, 6.5 kg (Vertex) The VCP-31 magnetic clamping block is a compact magnetic workholding device designed for precise fixturing and efficient clamping tasks in general workshop and light industrial applications. Compact 100×100×100 mm footprint Robust 6.5 kg construction Fast dispatch from Emmerich warehouse Suitable for precise fixturing operations Space-efficient design that optimises workshop layout The small physical footprint of this magnetic workholding unit means a compact footprint with minimal impact on bench or machine table space. With external dimensions of 100×100×100 mm the unit is easy to position and integrate into existing setups, enabling better workflow around milling machines, drill presses or inspection benches. The compact form contributes to a tidier workspace and supports a more organised production cell, which in turn reduces non-productive movement and contributes to measurable time savings during repetitive operations. Stable magnetic clamping for consistent machining accuracy Magnetic clamping delivers steady holding force without the need for complex mechanical fixturing; this reduces setup complexity and improves repeatability. The block’s magnetic clamping principle allows workpieces to be located and released swiftly, lowering setup times and increasing machine uptime. For operations that prioritise positioning accuracy, the design supports consistent contact and minimal movement during machining, helping to protect tool life and maintain process reliability across repeated cycles. Robust build and ready availability for production continuity Constructed for workshop use, the unit’s robust construction and 6.5 kg mass provide stability during routine machining tasks and handling. The physical weight contributes to steadiness on the machine table while its format supports easy handling and storage. With rapid dispatch offered from Metav’s Emmerich facility and the option to order via invoice in the webshop, procurement is straightforward and predictable. The combination of immediate availability and trusted distribution helps avoid production delays and supports steady supply to the shop floor. Choose the Vertex VCP-31 for compact, reliable magnetic workholding and contact Metav Werkzeuge in Emmerich for product details and immediate dispatch. Technical data Article number: VCP-31 GTIN: 4061905085093 ECLASS: 21020807 Facts Dimensions: 100×100×100 mm Weight: 6.5 kg Special features Brand: Vertex Rapid dispatch Orderable on invoice via webshop FAQ What is the primary advantage of a magnetic clamping block? A magnetic clamping block provides fast, repeatable workholding with reduced mechanical setup; the VCP-31 magnetic clamping block supports quicker fixture changes and steadier positioning for repetitive tasks. Is the VCP-31 suitable for small machining centres? Yes. The compact size and stable mass of the VCP-31 make it well suited to small machining centres and bench-top equipment where space and rigidity are important. How is the VCP-31 ordered and delivered? The VCP-31 can be ordered through Metav Werkzeuge’s webshop with invoice billing available; items are dispatched from the Emmerich warehouse to maintain reliable delivery. Can the block be repositioned quickly during setup? Yes. The magnetic workholding principle used in this block enables rapid placement and release, helping to shorten overall setup durations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
75x100x75mm Precision Angle Clamp, ±0.005mm Accuracy, Alloy Steel 2.2kg - Vertex
Combining 0.005 mm metrological accuracy with a robust alloy steel design and a compact 75 x 100 x 75 mm footprint delivers repeatable, space‑efficient fixturing for precision machining and inspection. Order the VRS-33 directly via Metav Werkzeuge or consult our experts for application advice VRS-33 — Precision clamping angle, 0.005 mm accuracy (Vertex) the VRS-33 is a precision clamping angle designed for stable right‑angle fixturing in small‑part machining and metrology applications High accuracy 0.005 mm tolerance Robust alloy steel construction Compact 75 x 100 x 75 mm footprint Stable 2.2 kg mass for vibration damping Consistent tolerances for finished parts The VRS-33 provides a declared 0.005 mm accuracy, which translates into reliable squaring and repeatability when setting up workpieces for milling, drilling or inspection. This level of precision reduces the need for iterative adjustments on the machine and shortens setup cycles. The stated tolerance should be interpreted as the maximum deviation under normal operating conditions; in practice, the fixture supports high‑precision tasks where controlled geometries and consistent datum alignment are essential. Explanation of the figure: 0.005 mm denotes the permissible deviation from true 90° after manufacturing and quality control. Durable construction that supports process stability Manufactured from alloy steel, the unit combines structural rigidity with long service life. The dense material contributes to a higher mass for passive damping, which helps reduce vibrational influence during cutting operations and contributes to consistent finishes. The design focuses on secure clamping and stable contact surfaces; the construction therefore benefits both short production runs and repetitive tasks where fixture wear could otherwise affect accuracy. The robust build also eases handling during frequent mounting and demounting. Space-saving design with easy integration With compact dimensions of 75 x 100 x 75 mm and a mass of 2.2 kg, this clamping angle is suited to confined set‑ups and multi‑fixture arrangements on smaller machine beds. The reduced footprint allows closer packing of workholding devices while maintaining stable support for small to medium components. The moderate weight provides sufficient inertia for vibration damping without imposing excessive load on positioning stages or rotary fixtures. When paired with complementary tooling, the unit supports versatile fixturing strategies without consuming valuable bench or table space. Contact Metav Werkzeuge for tailored application advice and availability from our Emmerich stock: info@metav-werkzeuge.com, +49 2822 7131930 Technical Data SKU: VRS-33 GTIN: 4061905083150 Manufacturer: Vertex Material: alloy steel Accuracy: 0.005 mm Dimensions: 75 x 100 x 75 mm Weight: 2.2 kg eClass: 21020601 Facts Accuracy: 0.005 mm Weight: 2.2 kg Dimensions: 75 x 100 x 75 mm GTIN: 4061905083150 Special features Product type: precision clamping angle Manufacturer: Vertex Compact, high‑rigidity design FAQ What level of angular accuracy can be expected from this clamping angle? The VRS-33 offers an indicated angular accuracy of 0.005 mm, providing high repeatability for right‑angle fixturing in both machining and inspection contexts. Which material is the VRS-33 made from and why does it matter? Constructed from alloy steel, the VRS-33 delivers structural rigidity and improved damping compared with lighter materials, which supports stable machining and longer service life. Is the VRS-33 suitable for use on smaller machine tables? Yes, the compact 75 x 100 x 75 mm format and 2.2 kg mass make the VRS-33 well suited to confined set‑ups and multi‑fixture arrangements on smaller tables. How does the clamping angle contribute to shorter setup times? By providing a precise, repeatable datum, the VRS-33 reduces the need for iterative alignment and corrective machining, accelerating the transition from setup to production. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

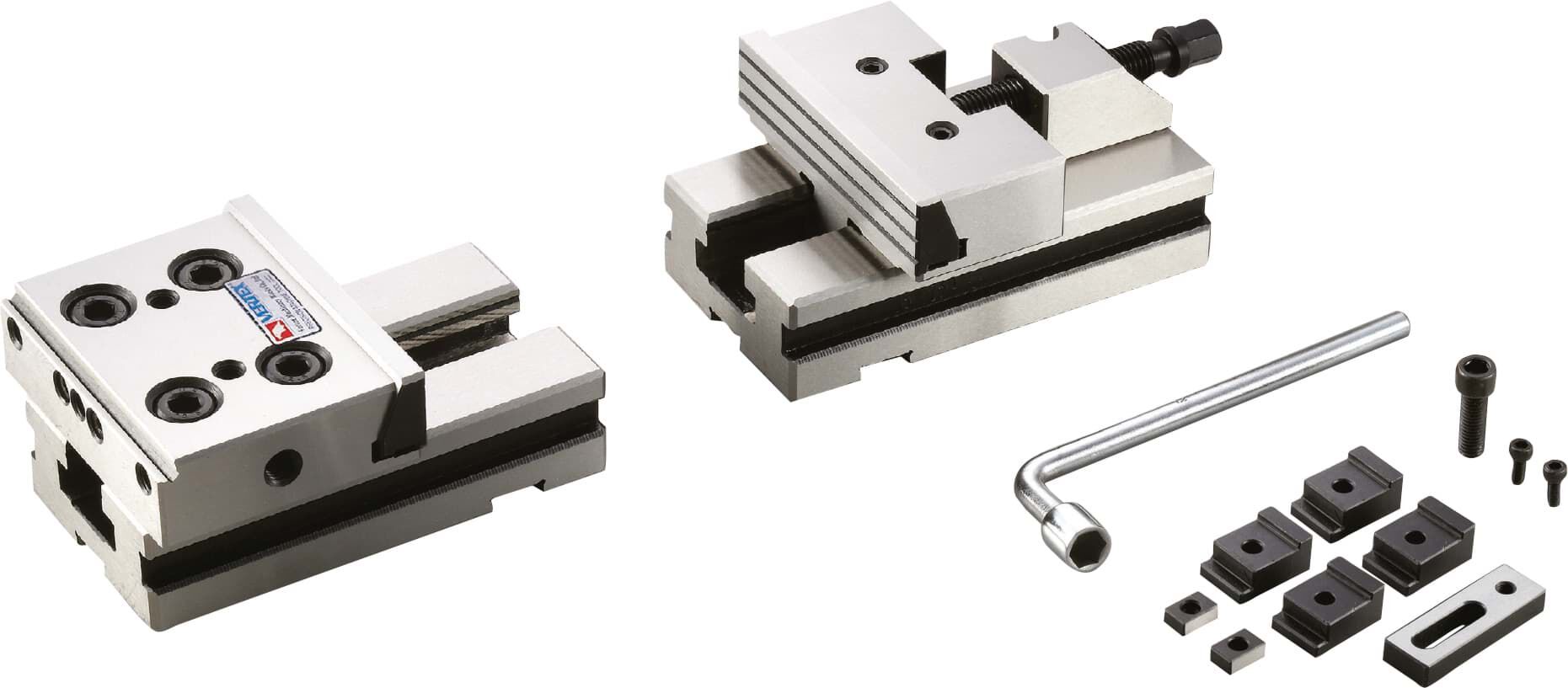

100x140x65mm Modular Machine Vice Quick-Release, 0.01mm Accuracy, 8.5kg - Vertex
Take advantage of a compact, modular clamping solution with 0.01 mm repeatability and a solid 8.5 kg mass to stabilise machining operations; order the Vertex VMP-44D directly via Metav Werkzeuge or consult our specialists for application advice. VMP-44D – Modular machine vice by Vertex, 0.01 mm accuracy The VMP-44D is a modular machine vice designed for precise clamping in machining environments, offering a compact footprint and reliable repeatability for milling, drilling and general workshop tasks Modular design for flexible fixturing High precision: 0.01 mm accuracy Solid 8.5 kg mass for improved stability Compact dimensions 100 x 140 x 65 mm Consistent precision for repeatable results A declared accuracy of 0.01 mm provides measurable control over part positioning, which translates into fewer rejected parts and reduced rework. In practice, this level of repeatability supports tight tolerances in batch production and prototype work alike, allowing engineering teams to trust positional outcomes. The specification is particularly relevant where consistent clamping pressure and minimal lateral play are essential for downstream operations. Modular configuration that accelerates setup The vice’s modular concept reduces fixture complexity by enabling adaptable clamping arrangements. By allowing straightforward reconfiguration, the system shortens setup cycles and supports a wider range of workpiece geometries without extensive tooling inventories. For process planners, this means less machine downtime and improved throughput when switching between jobs that require different clamping schemes. Compact mass and footprint for stable machining With a mass of 8.5 kg and external dimensions of 100 x 140 x 65 mm, the assembly combines a small footprint with sufficient inertia to dampen vibration on a machine table. The resulting stability helps maintain cut quality and dimensional integrity during feed and speed variations. Its compact size also makes it suitable for smaller machining centres where table space is at a premium while still delivering dependable clamping force distribution. Built for workshop integration and predictable performance Designed as a practical clamping unit, the vice integrates easily into existing setups and complements modular tooling systems. The straightforward specification supports maintenance planning and inventory control; the compact design eases handling and storage when not mounted. For operations focused on predictable cycle times and consistent output, the vice provides a balanced combination of precision, versatility and robustness. For procurement of the Vertex VMP-44D or to review compatibility with specific machines, contact Metav Werkzeuge for tailored advice and supply options by email at info@metav-werkzeuge.com, by phone at +49 2822 7131930 or via WhatsApp at +49 170 2837271 Technical data SKU: VMP-44D GTIN: 4061905083211 Brand: Vertex ECLASS: 21020601 ETIM: EC002173 Facts Accuracy: 0.01 mm Weight: 8.5 kg Dimensions: 100 x 140 x 65 mm Special features Type: Modular Product: Machine vice Title in shop: Maschinenschraubstock Vertex FAQ What level of positional accuracy can be expected from this vice? The VMP-44D machine vice is specified with an accuracy of 0.01 mm, which supports tight repeatability for precision machining tasks and helps reduce scrap and rework. Is the vice suitable for small machining centres with limited table space? Yes, the compact external dimensions of 100 x 140 x 65 mm and a mass of 8.5 kg make the vice appropriate for machines where footprint and stability must be balanced. How does the modular design benefit fixture planning? The modular configuration of the vice enables adaptable fixturing and quicker reconfiguration between jobs, which simplifies fixture inventories and shortens machine setup times. Which manufacturer produces this product and what is the model designation? The product is the Vertex VMP-44D modular machine vice, produced by Vertex and supplied under the SKU VMP-44D. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100x150mm Hydraulic Machine Vice Modular, 20 kN Clamping Force, Cast Iron - Vertex
Taking advantage of the vice's 20 kN clamping force together with a cast iron construction and a compact 103 mm profile ensures secure workholding and consistent accuracy on medium‑duty machining tasks; order the vice directly via Metav Werkzeuge or consult the Metav team for application advice. Hydraulic machine vice VNC-100FV by Vertex — modular 20 kN clamping for precise machining The Hydraulic machine vice VNC-100FV is a modular clamping unit designed for workshop and production machines, providing robust hydraulic clamping for reliable part fixation. 20 kN clamping force for secure fixation Modular design for flexible setup Cast iron construction for high rigidity Accuracy 0.01 mm for precise positioning Consistent clamping for reliable production The hydraulic design delivers repeatable clamping pressure, which, combined with a 20 kN rated hold, reduces part movement during cutting and finishing. The vice's cast iron body dampens vibration and helps maintain tool life, while the hydraulic actuation removes manual torque variation that can affect outcomes. This combination translates into fewer rejects and a steadier machining cycle, supporting stable throughput on milling and drilling machines. Modular layout adapts to varied setups A modular concept reduces changeover time: the vice is offered in two table sizes (100×150 mm and 100×228 mm), enabling selection according to part dimensions and fixture space. The modular approach allows integration into different machine tables and fixture recipes, simplifying repeatable positioning. For applications where multiple part formats are processed, modularity minimises downtime and streamlines fixture management. Precision that reduces rework and saves time Designed for accurate positioning, the unit achieves accuracy 0.01 mm, which helps to meet tight tolerances on small to medium components. Its compact vertical profile of 103 mm and a mass of 19 kg contribute to a low centre of gravity and secure mounting, supporting high‑precision setups without excessive bulk. As a result, less manual rework is required and cycle time consistency is improved in serial production. Robust build for workshop environments The vice is a hydraulic machine vice built from durable materials suited to industrial use. The solid construction and clean hydraulic actuation reduce maintenance points compared with purely mechanical clamping systems. Where consistent clamping force and long‑term stability are priorities, this clamping unit provides a balance of durability and predictable performance that fits machine shops and jobbing environments alike. Contact Metav Werkzeuge to assess how the Vertex VNC-100FV hydraulic vice with 20 kN clamping force can be integrated into production fixtures and machining cells Technical Data Article number: VNC-100FV GTIN: 4061905083235 Manufacturer: Vertex Machinery Works Co., Ltd. Numbers / Core Technical Data Clamping force: 20 kN Accuracy: 0.01 mm Weight: 19 kg Height: 103 mm Dimensions: 100×150 mm; 100×228 mm ECLASS: 21020601 ETIM: EC002173 Special features / Design Material: Cast iron Type: Hydraulic Modular design SKU: VNC-100FV Brand: Vertex FAQ What clamping force does this vice provide? The vice delivers a rated clamping force of 20 kN; the Vertex VNC-100FV uses hydraulic actuation to apply that force consistently for secure machining. Is the vice suitable for different workpiece sizes? Yes, the modular design and available table sizes (100×150 mm and 100×228 mm) make the vice adaptable to varied part dimensions and fixture layouts. What level of precision can be expected with this clamping unit? The product achieves an accuracy of 0.01 mm, enabling precise positioning and reduced rework when used in repeatable machining processes. Which material is the vice made from and why does it matter? Constructed from cast iron, the vice offers rigidity and vibration damping, qualities that support stable cutting conditions and longer tool life when machining. Is the vice intended for manual or automated machines? The hydraulic design of the VNC-100FV is suited to machine shop integration, including automated or CNC setups that benefit from repeatable, remote‑actuated clamping. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100x175mm Magnetic Chuck 50mm Height 26 N/cm² Holding Force - Vertex
High clamping performance combined with a compact footprint and a solid mass delivers stable, repeatable workholding for small to medium components; the low-profile 50 mm height and 7.2 kg mass reduce vibration and improve surface finish. Order the VG-407 magnetic chuck directly via Metav Werkzeuge or ask our consultants for tailored advice. Vertex VG-407 Magnetic Chuck — 100 x 175 mm, 26 magnetic force A compact VG-407 magnetic chuck engineered for secure clamping in metalworking, machining and inspection tasks. Compact 100 x 175 mm footprint Low-profile 50 mm height for tight set-ups Stable 7.2 kg mass reduces vibration Magnetic clamping force rated at 26 Stable clamping for consistent productivity The VG-407 delivers repeatable holding that supports steady machining cycles and consistent results. With a compact 100 x 175 mm footprint and a 50 mm profile, the unit fits into constrained work envelopes while maintaining a rigid contact surface. The 7.2 kg mass adds inertia to dampen vibrations during cutting or measurement operations, which can reduce rework and improve throughput. These characteristics translate into measurable benefits on the shop floor: fewer set-up interruptions and better part-to-part consistency. Simple magnetic clamping for improved access Magnetic clamping secures ferromagnetic workpieces without obstructive mechanical clamps, enabling clearer access to part faces and edges. The VG-407’s magnetic force (26) provides a reliable grip across the rated contact area while permitting rapid placement and removal of components. For operations where unobstructed tool approach is required or frequent part changes are the norm, a magnetic clamping plate offers a practical balance between speed and holding power. The design supports efficient workflows while preserving the workpiece surface. Robust design that supports uptime Constructed for workshop resilience, the unit’s compact build and solid mass contribute to a durable workholding solution that requires minimal intervention. The VG-407 is intended for repetitive use in industrial conditions and helps reduce set-up times thanks to its straightforward clamping principle. Regular checks of the contact surfaces and routine cleaning will sustain performance; the result is a dependable component that contributes to steady production and lower cumulative maintenance demands. Versatile fit for measurement and machining tasks The VG-407 is suitable where precision fixturing and stable holding are priorities, such as inspection stages and light to medium machining operations. Its compact dimensions make it suitable for small tables and measuring stands, while the flat clamping surface supports accurate seating of components. By combining a small footprint with a pronounced holding characteristic, this magnetic clamping plate aids in achieving consistent measurement and machining outcomes without complex fixtures. Choose Vertex reliability via Metav Werkzeuge in Emmerich — contact our consultants at info@metav-werkzeuge.com or +49 2822 7131930 to discuss the VG-407 magnetic chuck and find the right configuration for the workshop Technical data SKU: VG-407 GTIN: 4061905083853 ECLASS: 21020809 Core specifications Dimensions: 100x175mm Height: 50mm Weight: 7.2 kg Magnetic force: 26 Special features Brand: Vertex Image: vg-407-main.jpg Category: Vertex FAQ How large is the clamping area of the VG-407? The VG-407 magnetic chuck has a nominal footprint of 100 x 175 mm, providing a compact contact area for small to medium-sized workpieces. What holding power does the unit provide? The VG-407 is specified with a magnetic force value of 26, giving a consistent grip suited to routine machining and inspection tasks. What are the physical dimensions and mass of the product? The device measures 100 x 175 mm with a profile height of 50 mm and a weight of 7.2 kg, designed to add stability during operation. Can the VG-407 be used for precision measurement setups? Yes, the VG-407 magnetic clamping plate is designed to offer stable seating for measurement and inspection stages, improving repeatability in those applications. Where can the VG-407 be sourced and who manufactures it? The VG-407 is a Vertex product; Metav Werkzeuge supplies the unit and can advise on suitability for specific applications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100x175mm Magnetic Chuck Fine Pole Distribution, 30 N/cm² Holding Force - Vertex
Compact size combined with a very fine pole distribution delivers precise, repeatable clamping for small workpieces, while the 50 mm profile and manageable weight ensure straightforward handling and stable machining. Order the magnetic chuck directly via Metav Werkzeuge or consult our product specialists for tailored advice. VRTW-1018A magnetic chuck with very fine pole distribution (Vertex) A VRTW-1018A magnetic chuck designed to secure small ferrous components on milling, grinding and general machining setups with a compact footprint and high holding consistency Very fine pole distribution Compact 100 x 175 mm footprint Robust 50 mm profile Approx. 7 kg handling weight Consistent clamping for precision tasks The VRTW-1018A is a compact magnetic chuck with a usable face of 100 x 175 mm and a low profile of 50 mm, intended for workshop and light industrial applications where space and repeatability matter. Rated with a magnetic force 30, the unit provides reliable attraction for ferrous parts, reducing the need for mechanical fixtures and minimising set-up time. The modest mass allows easier positioning without specialised lifting equipment, while the design supports short changeover cycles and consistent machining results. Better grip on small and fragile workpieces Thanks to the very fine pole distribution, the plate increases contact points across the workpiece, which improves precision holding and reduces local distortion during machining. This fine-pole layout is particularly beneficial for thin or small components that traditional coarse-pole chucks struggle to secure. By spreading the magnetic field over a denser pattern of poles, the clamping force is distributed more evenly, helping to protect delicate parts and support improved machining accuracy with less marking. Easy integration and safe operation on busy benches The compact footprint and slim profile help the chuck integrate into confined setups and multi-step operations where bench space is limited. Its straight-edged design and robust construction allow secure mounting to machine tables or fixture bases, supporting safe clamping and straightforward alignment. With no complex interfaces or auxiliary systems required, the plate simplifies workflow and keeps the focus on productive machining rather than on bespoke fixturing. Dependable supply and industry-grade backing Sourced under the Vertex brand and distributed via Metav, the unit benefits from a supply chain that emphasises consistent quality and availability. Metav’s role as a European “quality filter” and its established customer base—over 48,000 customers—means the product comes with predictable delivery and the reassurance of an experienced precision partner. For businesses seeking to reduce supplier complexity while maintaining industrial-grade clamping performance, this magnetic clamping plate is a pragmatic choice. Contact Metav Werkzeuge in Emmerich for personal advice or detailed technical data: info@metav-werkzeuge.com · +49 2822 7131930 · WhatsApp +49 170 2837271 Technical data Article number: VRTW-1018A GTIN: 4061905083983 Manufacturer: Vertex Facts Dimensions: 100 x 175 mm Height: 50 mm Weight: 7 kg Magnetic force: 30 ECLASS: 21020809 Special features Very fine pole distribution Type A FAQ What are the working dimensions of the clamping surface? The VRTW-1018A offers a clamping face of 100 x 175 mm with an overall profile height of 50 mm. Is the plate suitable for thin or small components? Yes, the very fine pole distribution improves contact for smaller ferrous parts and helps maintain stability without excessive local pressure. Which machining operations is this chuck suited for? The magnetic clamping plate is suitable for milling, grinding and general machining where a compact, low-profile holding solution is required. How heavy is the unit and what handling is recommended? The plate weighs approximately 7 kg; safe repositioning with correct lifting practice is recommended and two-person handling for awkward setups may be advisable. What basic maintenance keeps magnetic performance consistent? Regular cleaning of the pole surface and protection from heavy contamination will preserve holding power; periodic inspection of the face and storage under dry conditions is advised for long-term use. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

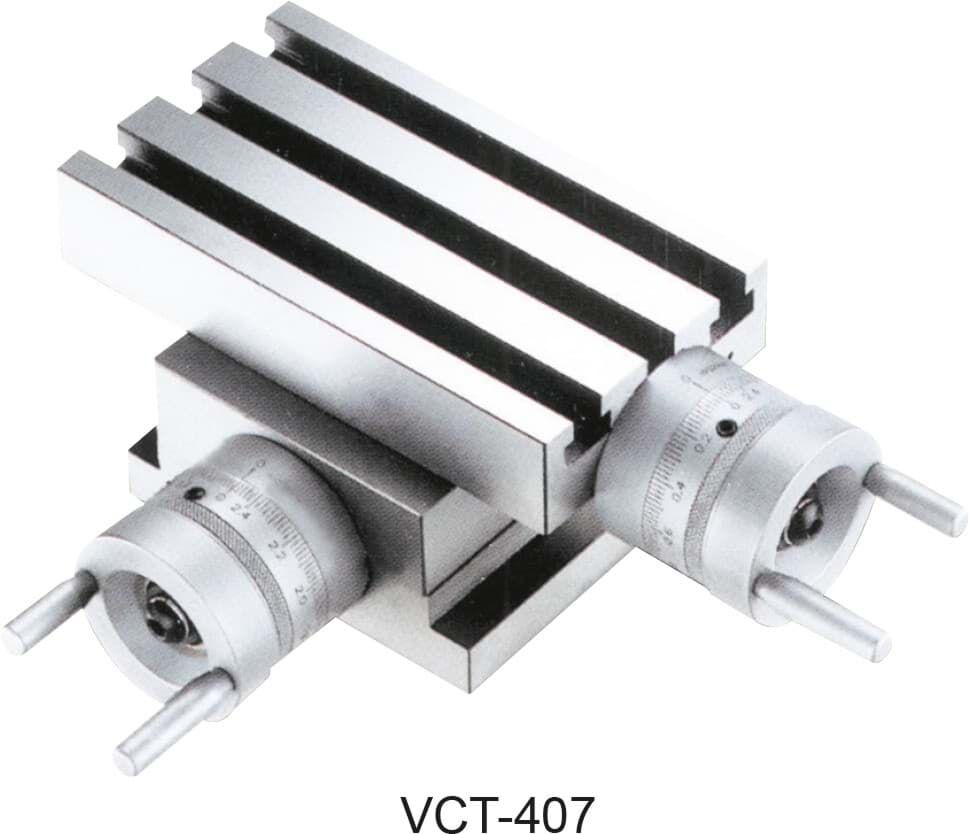

100x180mm Precision Cross Table 0.02mm Accuracy 35 Kg Load, 3/8" T-Slot - Vertex
Benefit from the combination of high positional accuracy and robust load capacity—ideal for repeatable setups and precise machining tasks; order directly via Metav Werkzeuge or consult our advisors for application-specific guidance. VCT-407 Precision Cross Slide Table by Vertex — 100 x 180 mm table, 35 kg load The VCT-407 is a precision cross slide table engineered for accurate positioning in machine shops and inspection rigs, designed to support small fixtures and measuring tasks with reliable repeatability. Compact 100 x 180 mm working table High positioning accuracy 0.02 mm 35 kg maximum load capacity T-slot 3/8 inch for secure fixturing Repeatable positioning for precise results The cross slide is built to deliver consistent positioning: with a specified positioning accuracy of 0.02 mm, the unit reduces setup variability and shortens inspection cycles. The working surface of 100 x 180 mm allows for controlled movement across two axes while maintaining alignment; this is beneficial where sub-millimetre tolerances are required. The mechanism is designed to translate manual adjustments into accurate linear displacement, so measuring and machining tasks proceed with predictable outcomes and fewer reworks. Sturdy construction that supports demanding setups A focus on durability ensures that the table copes with everyday workshop stresses. The assembly provides a maximum load of 35 kg while keeping a modest overall weight of 12 kg, balancing portability and stability. This combination allows the unit to be mounted on benches or integrated into small machine stations without excessive support structures. The design minimises deflection under load, which maintains positional accuracy during clamping and operation and supports reliable process control in production and measurement environments. Secure fixturing and straightforward integration The integrated T-slot 3/8 inch on the top plate simplifies fixture attachment and repeatable clamping, enabling direct mounting of vices, probes or small tooling plates. The cross slide’s layout supports modular fixturing concepts commonly used in quality control and light machining, making it easier to interchange setups while preserving datum references. The product’s configuration reduces setup time and helps maintain consistent datum points between jobs, which improves throughput and traceability in batch processes. Practical handling and maintenance for workshop use Operation and upkeep are uncomplicated: the unit’s dimensions and mechanical design favour quick cleaning and periodic lubrication routines without the need for specialised tools. For workshops upgrading their measuring or positioning capabilities, the table integrates with standard clamping hardware and measuring devices, providing a pragmatic path to finer control. The compact footprint and mechanical simplicity make the table a pragmatic choice where space is limited but precision remains essential. Contact Metav Werkzeuge in Emmerich for a detailed application consultation on the Vertex VCT-407; email info@metav-werkzeuge.com or call +49 2822 7131930 to discuss fixturing and delivery options Technical Data Article number: VCT-407 Manufacturer: Vertex GTIN: 4061905083327 Facts Table size: 100 x 180 mm Base size: 100 x 130 mm Positioning accuracy: 0.02 mm Weight: 12 kg Maximum load: 35 kg T-slot: 3/8 inch Special features Precision cross slide table design T-slot for secure clamping Compact footprint for bench or machine integration FAQ What level of accuracy can be expected from this cross slide table? The VCT-407 provides a positioning accuracy of 0.02 mm, suitable for precision measuring and light machining tasks where sub-millimetre repeatability is required. What is the maximum load the table can support? The unit is specified for a maximum load of 35 kg, allowing secure mounting of small fixtures and measuring devices without significant loss of positional stability. Which table and base dimensions are available for mounting space planning? The working plate measures 100 x 180 mm and the base footprint is 100 x 130 mm, making the table suitable for compact benches and integration into inspection rigs. How does the T-slot support fixturing? The T-slot 3/8 inch on the top surface accommodates standard clamping hardware, enabling repeatable and secure attachment of vices, tooling plates or probes. Is the VCT-407 suitable for integration with measuring equipment? Yes, the precision cross slide layout and compact dimensions make the VCT-407 compatible with common inspection setups and measuring instruments where controlled two-axis movement is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
98x76x45mm Axial Drive With Smooth Jaws For VNC-FV, - Vertex
Take advantage of the combination of a compact footprint, precise axial drive and smooth jaws for controlled, damage-free clamping; order the accessory directly via Metav Werkzeuge or consult the team for compatibility advice. VNC-4AD Axial drive with smooth jaws for VNC-FV (Vertex) The VNC-4AD is an axial-drive clamping accessory with smooth jaws, designed to deliver concentric, damage-free holding for chucks and fixtures in turning and light-duty workshop applications. Axial drive for uniform clamping Smooth jaws for delicate components Compatible with VNC-FV chucks Compact dimensions 98x76x45 mm Consistent concentric clamping for repeatable workflows The axial-drive mechanism provides a controlled, axial movement of the jaws that supports concentric clamping without complex adjustments. This approach reduces runout variability during turning operations, which translates into fewer reworks and more predictable cycle times. For workshops seeking to optimise throughput, the axial drive is a practical method to maintain part accuracy while keeping set-up effort low. Safe, non-marking gripping for finished surfaces The set of smooth jaws is intended for applications where surface integrity matters, such as finishing, assembly fixturing or machining of pre-finished components. Smooth contacting faces distribute clamping load and lower the risk of imprinting or marring, allowing delicate workpieces to be held securely. The result is improved part presentation and reduced post-process handling. Designed for compact installation and easy integration With compact dimensions of 98x76x45 mm and a mass of 1.57 kg, the unit fits into constrained setups and can be incorporated into existing fixtures or chucks without significant rework. The accessory is purpose-built for the VNC-FV chuck family and facilitates rapid retrofitting; technical teams benefit from straightforward mechanical compatibility rather than time-consuming adaptations. Practical notes on use and benefits The axial-drive and smooth-jaw combination is particularly suitable where a balance between precision and gentle part handling is required. For operators unfamiliar with axial clamping, the principle is simple: axial movement converts into uniform jaw action, maintaining grip while mitigating radial distortion. This makes the device a pragmatic choice for mixed-production workshops and precision maintenance shops that demand reliable results with minimal setup complexity. Contact Metav Werkzeuge for a tailored compatibility check and prompt supply — email info@metav-werkzeuge.com or call +49 2822 7131930; Metav’s consultants will advise on the VNC-4AD and suitable clamping configurations Technical data Article number: VNC-4AD GTIN: 4061905084423 eClass: 21130302 Facts Dimensions: 98x76x45 mm Weight: 1.57 kg Special features Axial drive Smooth jaws Compatible with VNC-FV Image available: vnc-4ad-detail.jpg FAQ What is the primary function of this accessory? The VNC-4AD provides an axial-drive solution with smooth jaws to enable concentric, non-marking clamping for VNC-FV chucks. Can the smooth jaws hold delicate components without damage? Yes, the smooth jaws fitted to the VNC-4AD are intended to distribute clamping force and reduce the risk of surface damage on finished or delicate parts. Will the unit fit existing VNC-FV chucks directly? The VNC-4AD is designed for compatibility with the VNC-FV series; specific mounting details should be checked against the chuck variant to ensure exact fit. What are the physical dimensions and weight of the accessory? The accessory measures 98x76x45 mm and weighs 1.57 kg, offering a compact form factor suitable for constrained installations. How does the axial drive improve machining results? By converting axial motion into uniform jaw closure, the axial drive enhances concentric clamping and reduces runout variability, helping to produce more repeatable machining outcomes. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100x49x37mm L-Angle Stop For VQC Vices - Vertex
Take advantage of the combination of precision positioning, a compact footprint and industrial stability to streamline repetitive clamping tasks. Order the component directly via Metav Werkzeuge or consult our specialists for application-specific advice. VQC-100FPF L-stop — Vertex compact stop for VQC vises, 100×49×37 mm VQC-100FPF L-stop is a compact precision stop designed for use with VQC vises, enabling repeatable part location and reliable clamping in workshop and light-production environments. Precision stop for VQC vises Compact 100×49×37 mm footprint Robust construction, 0.81 kg mass Ideal for repeatable positioning tasks Reduce setup time with precise, repeatable positioning The L-stop delivers consistent reference positioning for fixtures and workpieces, reducing downtime between consecutive operations. Fitted to compatible VQC vises, the stop creates a defined datum that simplifies alignment and accelerates set-up, which is especially valuable for small-batch production and precision workshop tasks. The compact design minimises interference with toolpaths while still providing a stable reference for machining or inspection operations. By converting ad hoc jigs into a repeatable stop, the L-stop contributes to process reliability and measurably shorter cycle preparation. Space-saving design that improves stability on the bench With a compact footprint of 100 × 49 × 37 mm and a mass of 0.81 kg, the component balances low spatial impact with sufficient mass to resist shifting under light clamping forces. The geometry supports secure contact without occupying excessive vice throat space, allowing multiple fixtures or stops to be used on the same vice when required. The small footprint is particularly advantageous in confined set-ups or on crowded benches, where maintaining access to the workpiece and tools is essential. Where a predictable stop surface is needed, this L-stop offers durable physical support for accurate, repeatable operations. Straightforward integration for workshop workflows Engineered as an accessory for VQC vises, the product installs quickly into existing clamping arrangements and functions as a straightforward mechanical datum. The clear technical drawing supplied with the item assists with planning and confirms fitment dimensions for custom jigs and fixtures. For users with modest metrology needs, the stop is a pragmatic alternative to bespoke fixtures: it reduces complexity while increasing repeatability. The design supports routine maintenance and inspection routines, and its compatibility with standard vice interfaces keeps implementation time to a minimum, helping teams focus on production rather than fixturing. For application advice or to request a quotation for the Vertex VQC-100FPF, contact Metav Werkzeuge in Emmerich — info@metav-werkzeuge.com, +49 2822 7131930, WhatsApp +49 170 2837271 — our team will advise on fitment and availability Technical data Article number: VQC-100FPF GTIN: 4061905083228 Manufacturer: Vertex ECLASS: 21029210 Facts Dimensions: 100 x 49 x 37 mm Weight: 0.81 kg Special features L-stop for VQC vises Compact design for repeatable positioning Technical drawing available in product images FAQ Is this stop compatible with all VQC vises? Compatibility is intended for VQC vises; the VQC-100FPF is designed to fit the standard interfaces used on Vertex VQC vice models and similar clamping systems. What are the exact dimensions and weight of the stop? The stop measures 100 × 49 × 37 mm and weighs 0.81 kg, providing a compact, stable reference for bench and light-production tasks. Can the L-stop be used for repeatable production runs? Yes, the L-stop creates a defined datum for repeatable positioning, making it suitable for small-batch production and frequent changeovers where consistent part location is required. Is a technical drawing available to check fitment? A technical drawing is provided with the product images to assist with measurement checks and integration into existing fixtures. Is the component suitable for heavy-duty machining? The L-stop is intended for workshop and light-production applications where the dimensions and mass provide stability; for heavy-duty machining, suitability should be assessed against the specific clamping forces involved Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
63x70mm V-Block Pair With Clamping Strap, 3.1 kg - Vertex
Take advantage of a compact footprint and tangible mass for steady support: the prism pair combines a 63 x 70 mm base and 3.1 kg mass with an integrated clamping bracket to secure round or prismatic workpieces during inspection and light machining. Order the VBC-195 directly via Metav Werkzeuge or consult our advisors for application advice. VBC-195 Prism pair with clamping bracket — compact 63 x 70 mm base, 3.1 kg A VBC-195 prism pair with clamping bracket designed for reliable, repeatable workpiece support in inspection benches and assembly jigs Precision V-contact for repeatable support Compact 63 x 70 mm base Integrated clamping bracket for secure hold Robust 3.1 kg mass for stability Stable support that reduces setup time and variation A prism pair provides a simple, mechanical method for locating cylindrical or prismatic parts with high repeatability. The paired V-surfaces guide the workpiece into a defined datum so that measurements and secondary operations are consistent. The 63 x 70 mm base ensures a compact footprint on fixtures or inspection plates, while the 3.1 kg mass helps damp vibration and resists movement during light handling. This combination of geometry and mass leads to fewer re‑setups and clearer inspection results, delivering measurable time savings in routine processes. Clamping bracket for secure alignment and safe handling The integrated clamping bracket transforms passive support into an active holding solution. By pressing the workpiece into the V‑seats, the clamp reduces slip and axial movement without complex fixturing. For operators less familiar with fixturing terminologies: a prism pair locates the part against two inclined faces that form a V, and the clamp keeps the part seated against those faces. This approach improves positional stability during visual inspection, gauging, or low‑force machining operations, thereby reducing the risk of measurement error or scrap. Compact design for flexible workshop integration The compact dimensions make the unit straightforward to position on benches, gauge blocks or portable inspection plates, allowing easy reconfiguration of workstations. The modest footprint is particularly useful where bench space is limited but metrological rigour is required. As a purpose‑built accessory from Vertex, the prism pair suits a range of standard metrology and light production tasks, enabling teams to adopt precise referencing without large, complex fixtures. The simple, rugged design also supports straightforward cleaning and low maintenance between shifts. Contact Metav Werkzeuge in Emmerich for a tailored selection of precision fixturing — Metav Werkzeuge offers application advice and fast supply from the European quality filter; info@metav-werkzeuge.com • +49 2822 7131930 Technical data Article number: VBC-195 GTIN: 4061905084645 Manufacturer: Vertex Machinery Works Co., Ltd. Facts Base footprint: 63 x 70 mm Weight: 3.1 kg eClass: 21160304 Special features Prism pair with clamping bracket Brand: Vertex SKU: VBC-195 FAQ What is the primary function of this prism pair? The VBC-195 prism pair is used to locate and support cylindrical or prismatic workpieces reliably, providing a fixed datum for inspection and light machining tasks. Can the VBC-195 be used directly on an inspection plate? Yes, the compact 63 x 70 mm base of the VBC-195 makes it suitable for mounting or positioning on inspection plates and benches where space is limited. How does the clamping bracket improve measurement repeatability? The integrated clamping bracket holds the workpiece against the V‑seats so that the position remains stable between measurements, reducing variation and improving repeatability with the VBC-195. Is the prism pair heavy enough to prevent movement during handling? With a mass of 3.1 kg, the VBC-195 offers appreciable stability for bench operations and light handling, helping to damp small disturbances during inspection routines. Who manufactures the VBC-195 and where is it made? The VBC-195 is supplied by Vertex; detailed manufacturer information is provided below. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
60x35x15mm Lamella Prism Set, 2 Pieces - Vertex
Take advantage of compact dimensions, a paired set configuration and reliable workshop usability to streamline fixture setups; order via Metav Werkzeuge or consult the product experts for application advice. Lamella blocks and prisms VCP-0 — compact clamping prisms by Vertex A Lamella blocks and prisms set designed for secure, space-saving clamping and precise part support in workshop fixtures and jigs. Compact 60 x 35 x 15 mm footprint Supplied as a set of 2 for paired clamping VCP-0 — practical precision accessory Space-saving precision for fixture and jig design The compact format of these components combines a small footprint with repeatable alignment, making them suited to tight fixture layouts where stability matters. With dimensions of 60 x 35 x 15 mm, the units allow close placement to the workpiece without adding bulk to the clamping station. The relatively low weight contributes to easy repositioning in modular setups and supports quick changeovers between jobs while maintaining consistent clamping geometry. Paired configuration for balanced support and stability Delivered as a set of 2, the components enable symmetrical support of cylindrical or prismatic parts, reducing the risk of tilt and improving contact distribution. The lamella-style contact face adapts to irregularities and helps spread clamping forces evenly; this results in secure holding during machining and inspection operations. The set format also simplifies inventory management for recurring fixture builds and ensures that matched components are always available together. Integration into common workshop workflows The item is supplied under the part code VCP-0 and is suitable for incorporation into standard jigs, vice jaws and custom fixture plates. The clear identification via GTIN 4061905084874 assists traceability in procurement and stores. Where rapid setup is required, the small footprint and paired design reduce assembly time while enabling precise positioning; technicians and engineers benefit from easier alignment and fewer adjustments during initial clamping. Practical benefits for small-batch and precision tasks For applications that call for controlled contact and repeatable support — such as finishing, measurement checks or light machining — these prisms provide a compact solution that improves process reliability. The items are a pragmatic addition to a tooling range, offering dependable support without demanding specialised fixturing. Combined with standard clamping hardware, they contribute to faster throughput and a reduction in setup variability. Contact Metav Werkzeuge in Emmerich by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to discuss VCP-0 integration and availability Technical Data Article number: VCP-0 GTIN: 4061905084874 Eclass: 21020803 Brand: Vertex Facts Dimensions: 60 x 35 x 15 mm Weight: 0.48 kg Supplied as set: yes Pieces per set: 2 Special features Type: Lamella prism Category: Vertex Set configuration: paired clamping FAQ What are the exact dimensions of these clamping prisms? The dimensions are 60 x 35 x 15 mm for the Lamella blocks and prisms VCP-0, suited to compact fixture designs. How many pieces are supplied in one set? Each set of VCP-0 is supplied as a set of 2 pieces for paired support and balanced clamping. Is the VCP-0 suitable for precision measurement fixtures? Yes, the VCP-0 Lamella blocks and prisms are intended for stable, repeatable support, making them appropriate for inspection fixtures and measurement aids. Can these prisms be used directly in a vice or must they be mounted? The VCP-0 units are designed for integration into vice jaws and custom fixture plates where compact, paired supports are required. Is the material specified for the prisms? Material is not specified in the available product data for the VCP-0 lamella blocks and prisms Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
75x67x150mm Adjustable Jaw Chuck 900 kgf Clamping Force, Includes 2x M12x75L & 2x M12x125L - Vertex
Take advantage of the combination of high clamping force, compact footprint and robust construction for consistent workholding. Benefit from the adjustable design and included mounting bolts to reduce setup time. Order the FV-350 adjustable chuck jaws directly via Metav Werkzeuge or ask our consultants if needed. FV-350 Adjustable Chuck Jaws by Vertex — 900 kgf clamping force, compact size the FV-350 adjustable chuck jaws provide a versatile clamping solution for workshop and industrial setups, designed for reliable holding of medium to large workpieces 900 kgf clamping force for secure workholding Adjustable design for versatile clamping setups Compact dimensions: 75×67×150 mm Includes two M12x75L and two M12x125L Consistent high-force clamping for repeatable results The jaws deliver a rated 900 kgf clamping force, which translates into stable fixation during machining and grinding processes and reduces the risk of workpiece movement. The high clamping force is particularly valuable where precise tolerances matter: it minimises vibration and supports repeatable results across batches. With a mass of 7.5 kg, the device provides inherent stability on the chuck, improving overall machining accuracy without the need for additional mass. These characteristics make the component a dependable element in production workflows that demand consistent performance. Quick set-up and adaptable holding options Designed as an adjustable clamping system, the jaws allow quick repositioning and fine adjustment to match varied part geometries, cutting down non-productive time between jobs. The inclusion of mounting hardware — M12x75L and M12x125L bolts — means the unit can be fitted with standard tooling fixtures immediately, simplifying integration into existing chucks and fixtures. The compact footprint of 75 × 67 × 150 mm supports use in constrained setups where space is limited, while still offering sufficient bite depth for secure gripping. This combination of adaptability and fast mounting improves throughput and reduces setup complexity. Robust design and practical accessories for workshop use Manufactured for industrial use, the workholding jaws feature a construction aimed at durability and dependable service life under regular load cycles. The set comes complete with the specified fastening bolts, enabling straightforward installation and replacement of jaws when required. The product’s chuck jaws design focuses on practical usability: clear mechanical interfaces and standardised mounting reduce the need for special tools. Where predictable clamping and minimal rework are priorities, this workholding solution supports efficient processes and lowers the likelihood of downtime caused by insufficient gripping performance. For tailored advice or to request fast dispatch from Metav Werkzeuge in Emmerich, contact our specialists today by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 — Metav Werkzeuge supports precise procurement and reliable delivery across Europe Technical data Article number: FV-350 GTIN: 4061905084393 Eclass: 21029107 Facts Dimensions: 75 × 67 × 150 mm Weight: 7.5 kg Clamping force: 900 kgf Special features Adjustable chuck jaws Accessories included: 2x M12x75L, 2x M12x125L Manufacturer brand: Vertex FAQ What clamping force can be expected from these jaws? The FV-350 adjustable chuck jaws provide a rated clamping force of 900 kgf, ensuring secure fixation for machining and grinding operations. Are mounting bolts supplied with the jaws? Yes. The delivery includes two M12x75L and two M12x125L bolts for immediate installation. What are the overall dimensions and weight of the unit? The jaws measure 75 × 67 × 150 mm and weigh 7.5 kg, offering a compact yet stable workholding solution. Can these jaws be adjusted for different part geometries? The adjustable design of the FV-350 allows fine repositioning to match a variety of workpiece shapes and sizes, reducing set-up time. Is the FV-350 suitable for industrial production environments? Yes. The construction and clamping capacity of the FV-350 make it suitable for repeated use in workshop and industrial settings where reliable workholding is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
120° Vertical Clamp 2,500 N Zinc-Plated Vertical Hold-Down Clamp - Kukamet
Take advantage of reliable 2,500 N clamping force and a compact, low-weight design to secure workpieces efficiently in jigs and assemblies; the horizontal foot allows stable mounting while the toggle action delivers repeatable pressure for production use. Order the vertical clamp directly via Metav Werkzeuge or ask our consultants if needed. Vertical clamp 221 — Kukamet vertical toggle clamp with 2,500 N force and horizontal foot Vertical clamp 221 provides secure vertical clamping for assembly, welding and fixture applications where reliable, repeatable holding is required 2,500 N maximum clamping force Horizontal foot for stable mounting Compact design, low weight 0.24 kg Boosted throughput with dependable clamping performance The 2,500 N maximum clamping force of this toggle device ensures secure workpiece retention under repeated cycles, reducing stoppages and rework. The vertical toggle mechanism converts a short manual lever travel into a high holding force, which is especially useful for assembly and fixturing tasks where consistent pressure is essential. The robust action of the clamp offers measurable productivity advantages in serial operations while remaining straightforward to integrate into existing jigs. Easy integration and compact fixture design Weighing just 0.24 kg, the component is intentionally compact to keep fixture mass low and simplify handling during installation. The horizontal foot enables a stable, low-profile mounting on standard plates or rails and reduces the need for elaborate subframes. For engineers planning fixture layouts, this means less material, faster set-up and a smaller footprint on the assembly bench without sacrificing holding capability. Versatile toggle action and practical geometry The clamp provides a generous 120° opening angle, offering an extended range for part insertion and removal while maintaining firm clamping at the end of travel. The toggle action delivers a positive mechanical lock when closed, which prevents creep under vibration or thermal load. This makes the device appropriate for light-to-medium industrial applications where repeatable positioning and resistance to accidental release are priorities. For reliable toggle clamping with 2,500 N force, request Kukamet’s Vertical clamp 221 through Metav Werkzeuge — technical advice and ordering assistance are available from Metav Werkzeuge via info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical data SKU: 221-2 GTIN: 8682843520352 Manufacturer: Kukamet Core technical data Clamping force: 2,500 N Weight: 0.24 kg Opening angle: 120° Mounting: horizontal foot ECLASS: 21041717 ETIM: EC011973 Special features Toggle (lever) clamp action Compact, low-mass design No special additional features specified FAQ What is the maximum holding force of this clamp? The clamp delivers a maximum clamping force of 2,500 N, which provides secure retention for many assembly and fixture tasks when used as intended. How is the clamp mounted in a fixture? Mounting is via a horizontal foot, allowing the clamp to be fixed to plates or fixture bases for stable installation in jigs and assemblies. Is the opening range suitable for larger parts? The device offers a 120° opening angle, giving an extended insertion range that supports workpieces with moderate height before clamping. How heavy is the clamp and what does that mean for fixture design? At 0.24 kg the clamp is lightweight, simplifying fixture balancing and reducing the need for heavy support structures while enabling swift manual handling during assembly. Can this clamp resist vibration and accidental release? Yes; the toggle mechanism provides a positive mechanical lock in the closed position, increasing resistance to vibration and accidental opening during operation. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

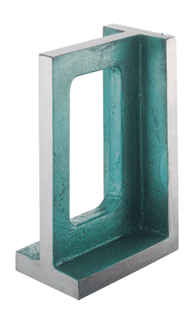

102x126x150mm Angle Plate, High-Strength Cast Steel, 0.01mm Accuracy, 6.3kg - Vertex
Take advantage of precision and robust construction to secure repeatable right-angle setups on the shop bench; the combination of 0.01 mm accuracy and high-strength cast steel ensures long-term stability and reliable measurement references. Order via Metav Werkzeuge or consult our specialists for fast delivery and tailored advice. VRH-4 Angle Plate by Vertex — high-strength cast steel, 102 x 126 x 150 mm VRH-4 is a precision angle plate designed to provide stable, perpendicular reference surfaces for inspection and setup tasks in metalworking and toolrooms. High-strength cast steel construction Accuracy 0.01 mm for precise alignment Compact footprint 102 x 126 x 150 mm Stable 6.3 kg mass reduces vibration Reliable right-angle reference that keeps setups consistent The VRH-4 angle plate delivers repeatable alignment thanks to its declared 0.01 mm accuracy, which corresponds to tight tolerances required in inspection and fine machining tasks. A reference plate with this level of precision reduces the need for repeated adjustments and re-measurements, improving throughput and lowering the risk of scrap. The measured flatness and perpendicularity act as an objective baseline for calibrations and setup procedures, so fewer process checks are necessary and machine time can be used more efficiently. Durable construction for a stable working base Manufactured from high-strength cast steel, the fixture is engineered to resist deformation under typical bench use. The substantial 6.3 kg mass dampens minor vibrations and helps maintain contact stability during measuring or marking operations. This robustness supports consistent results over time and reduces the impact of incidental knocks or tool contact, contributing to a longer service life and lower maintenance needs compared with lighter, less rigid alternatives. Space-conscious design for versatile bench use With an overall size of 102 x 126 x 150 mm, the unit occupies a compact footprint while still offering sufficiently broad faces for clamping, scribing and inspection. The geometry makes it suitable for constrained workbenches and allows multiple fixtures to be used together when larger assemblies require square references. The compact dimensions also simplify storage and transport within a busy workshop, enabling rapid reconfiguration of workspaces without compromising accuracy. Integrates easily into quality workflows As a stable perpendicular reference, the angle plate helps streamline common processes such as layout, inspection and component set-up. The solid construction and precise surfaces reduce the number of verification steps required during a production run, supporting faster changeovers and consistent part quality. Documentation and inspection protocols benefit from a measurable baseline, and the component's build quality aligns with standard shop metrology practices for dependable results. Contact Metav Werkzeuge for a tailored recommendation on the Vertex VRH-4 angle plate and secure fast delivery from our Emmerich warehouse Technical data SKU: VRH-4 GTIN: 4061905085031 EClass: 21170130 Manufacturer: Vertex Core specifications Dimensions: 102 x 126 x 150 mm Weight: 6.3 kg Accuracy: 0.01 mm Materials & images Material: high-strength cast steel Images: VRH-4-main.png, VRH-4-detail.png FAQ What tolerance can be expected from the VRH-4 angle plate? The Vertex VRH-4 angle plate is specified with an accuracy of 0.01 mm, providing a reliable tolerance reference for inspection and setup tasks. Is the VRH-4 suitable for use on a regular workshop bench? Yes, the VRH-4 angle plate's compact footprint (102 x 126 x 150 mm) and 6.3 kg mass make it appropriate for standard benches while offering stable support for measuring operations. What material is the angle plate made from and why does that matter? The component is made from high-strength cast steel, which gives the plate dimensional stability and resistance to deformation, ensuring consistent perpendicular reference surfaces over prolonged use. Can the VRH-4 be combined with other fixtures for larger workpieces? The VRH-4 is designed as a modular reference element; multiple plates can be arranged together on the bench to create larger fixturing setups while maintaining precise right-angle references. Who manufactures the VRH-4? The VRH-4 is produced by Vertex and supplied with details suitable for integration into professional metrology and setup workflows Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
1035mm Mobile Chip Collector, Trolley Mounted – Vertex
Benefit from the combination of a mobile design, low weight and straightforward integration to keep chip handling efficient and machine uptime high; order the VCC-19 mobile chip collector directly via Metav Werkzeuge or ask our consultants for guidance. VCC-19 mobile chip collector — mobile chip collector by Vertex, lightweight 1.5 kg A VCC-19 mobile chip collector engineered as a compact solution for collecting machining chips and metal swarf in workshops and toolrooms, ideal where mobility and quick repositioning are required. Mobile chip collector VCC-19 by Vertex Lightweight construction, only 1.5 kg Length 1,035 mm for easy integration Keep production flowing with compact chip collection The VCC-19 serves as a simple, focused device for chip collection close to machining centres, reducing the need for manual clearing and the associated production interruptions. Its compact footprint and measurable dimensions permit installation where space is limited, while the mobile concept supports rapid redeployment between workstations. By capturing swarf at source, the unit contributes to a cleaner work environment and lowers the frequency of unscheduled stops, supporting continuous operation and predictable cycle times. Flexible placement and fast workshop adaption Thanks to its low weight — just 1.5 kg — and elongated profile of 1,035 mm, the unit can be repositioned without heavy lifting equipment, enabling flexible workflow layouts. The design suits dynamic production cells where machines are frequently reconfigured; the collector integrates into existing setups without extensive modification. For production planners this means improved floor-space utilisation and simplified logistics when organising machining sequences or temporary workstations. Practical benefits: maintenance, handling and reliability Designed for routine workshop use, the collector focuses on straightforward operation and minimal upkeep. The simple configuration limits maintenance tasks and shortens service intervals, while the light construction eases handling during emptying and cleaning cycles. Specifying a compact, mobile collector like this supports shop-floor efficiency by lowering labour spent on chip management and by providing a repeatable, auditable process for waste handling that aligns with modern workshop routines. Contact Metav Werkzeuge in Emmerich for local availability and tailored advice on integrating the VCC-19 mobile chip collector into existing machining cells Technical data Article number: VCC-19 Manufacturer: Vertex Eclass: 21101790 GTIN: 4061905083662 Facts Weight: 1.5 kg Length: 1,035 mm Special features Mobile (fahrbar) Category: Vertex FAQ What is the primary purpose of this unit? The VCC-19 mobile chip collector is intended to gather and contain machining chips and swarf at the source, simplifying waste management on the shop floor. Can the unit be moved between machines easily? Yes, the collector’s mobile design combined with a low weight of 1.5 kg allows quick repositioning for temporary or reconfigurable workstation layouts. Which dimensions matter for integration into a production cell? Length is the primary consideration; the unit measures 1,035 mm, which should be checked against machine clearance and available floor space before positioning. Is the collector suitable for heavy-duty metalworking environments? The VCC-19 is intended for routine chip collection tasks; assess specific process demands against the unit’s compact design and handling characteristics to confirm suitability. How does this collector improve workshop efficiency? By reducing manual chip clearing and enabling rapid redeployment, the VCC-19 supports uninterrupted machining cycles and lowers labour time spent on housekeeping tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

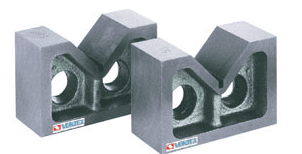

27x50x32mm Prismenblock, feinkörniges Gusseisen, 0,05mm - Vertex
Combine compact size, consistent accuracy and robust material for dependable workholding in inspection and set-up operations. Use the compact dimensions and measured repeatability to streamline fixture routines; order directly from Metav or request a technical consultation for complex applications. Prism Block Vertex A Prism Block Vertex designed as a compact support for precise measurement and stable workpiece seating in workshop and inspection environments. Prism Block by Vertex for precise workholding Fine-grained cast iron construction for stability Compact footprint: 27 x 50 x 32 mm High repeatability with 0.05 listed accuracy Lightweight at 0.5 kg for easy handling Stable reference for measurements and set-ups Built from fine-grained cast iron, this prism block provides a vibration-damping base that helps preserve reference positions during measurement and inspection tasks. The combination of material and geometry reduces micro-movements, so datum lines and contact points stay consistent — an advantage when repeatability matters in machining or quality control. The listed accuracy of 0.05 underlines suitability for workshop-grade metrology and fixture work. Compact format for versatile workshop use With a small footprint of 27 x 50 x 32 mm and a weight of 0.5 kg, the prism block fits easily into measurement benches, jigs and vice set-ups. Its size makes it simple to position or clamp without occupying space that could interfere with other tools. The compact format also supports mobile inspection workflows where quick re-location of fixtures is required. Durable construction that supports everyday handling The choice of fine-grained cast iron offers wear resistance and dimensional stability over long service cycles. That material resists surface deformation from repeated contact and provides thermal mass that moderates short-term temperature swings during shop processes. As a result, the component maintains its profile and contact integrity, extending usable life and reducing rework. Who benefits from this prism block Professional machinists, toolmakers and quality inspectors will find the Prism Block Vertex particularly useful for routine set-ups, repeat checks and small-part inspection. Its balance of portability and accuracy suits both bench-top laboratories and on-machine verification tasks. Hobby engineers who require reliable reference points for precision projects will also find it practical. Choose the Vertex Prism Block V-2V from Metav for consistent, workshop-ready precision — order through Metav or request advice by eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 | WhatsApp: +49 170 2837271 Product details SKU: V-2V Manufacturer: Vertex Material: Fine-grained cast iron Dimensions: 27x50x32mm Weight: 0.5 kg Accuracy: 0.05 Facts Dimensions: 27x50x32mm Weight: 0.5 kg Accuracy: 0.05 Features Material: Fine-grained cast iron Application: Workholding / Measurement support Use case: Bench and inspection setups FAQ What is the primary use of this prism block? The Prism Block Vertex serves as a stable support and reference for measurement, inspection and workpiece seating in machining or quality-control environments; its compact form makes it suited to bench-top and on-machine checks. Is the material suitable for heavy-duty shop use? Yes, the fine-grained cast iron construction of the Prism Block Vertex provides wear resistance and damping characteristics appropriate for regular shop handling and fixture work. How precise is the Prism Block Vertex in practical terms? The unit is specified with an accuracy of 0.05, indicating tight repeatability for workshop metrology and reliable reference performance during routine set-ups. Can the Prism Block Vertex be easily repositioned on a vice or jig? Its compact dimensions (27 x 50 x 32 mm) and weight (0.5 kg) allow for straightforward handling and quick repositioning on vices, jigs or measurement fixtures. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Kukamet 66mm Extension Lever Metal - Kukamet
Take advantage of the compact metal design and minimal weight to extend reach and improve leverage in lever-clamping setups; order the part via Metav Werkzeuge or ask the technical team for compatibility advice. Extension lever 220 — metal accessory for lever clamps (Kukamet) The Extension lever 220 is a compact metal accessory designed to extend the handle of lever clamps and support precise clamping in fixtures and jigs. Solid metal construction Compact dimensions 66 × 11 × 5 mm Lightweight at 0.025 kg Compatible with lever clamps Built for dependable clamping performance The extension is produced in robust metal, providing a stiff and wear-resistant interface that preserves clamping accuracy under repeated operation. By increasing lever length in a controlled manner, the component improves mechanical advantage and enables the same clamping force with reduced operator effort. The simple geometry minimises stress concentrations and supports a consistent contact point, which is beneficial for repeatable positioning and longer tool life. Fits into existing fixtures with minimal adjustment With compact dimensions of 66 × 11 × 5 mm and a lightweight profile of 0.025 kg, the Extension lever 220 integrates into jigs and toggle-clamp assemblies without significantly affecting balance or cycle dynamics. The small footprint allows close mounting to toggle mechanisms and reduces interference in confined workstations. If uncertainty about fitment exists, Metav’s technical advisers can review compatibility with specific clamp models and fixture layouts. Reliable sourcing and workshop-ready supply Sourcing this Kukamet accessory through Metav ensures access to a curated supply chain and consistent part quality. Metav combines a broad product range with central stock management from Emmerich, supporting stable delivery for production and maintenance needs. The combination of Kukamet engineering and Metav’s distribution helps reduce downtime and simplifies procurement for workshops and industrial buyers seeking dependable clamping components. Contact Metav Werkzeuge to request compatibility details or to source the Kukamet Extension lever 220 for reliable clamping upgrades — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: 220-2-06 GTIN: 4061905074882 Brand: Kukamet Facts Dimensions: 66 × 11 × 5 mm Weight: 0.025 kg ECLASS: 21170613 Special features Material: metal Category: spanner / clamping accessory Suitable for lever clamps and toggle-clamp applications FAQ What is the primary application of this extension lever? The extension lever is intended as a handle extension for lever clamps and toggle-clamp fixtures, providing increased reach and leverage for clamping tasks with the Kukamet accessory (SKU 220-2-06). What are the exact dimensions and weight? Dimensions are 66 × 11 × 5 mm and the weight is 0.025 kg, which keeps added mass to a minimum while extending handle reach. Which material is used for the lever? The part is manufactured from metal, selected for its stiffness and wear resistance suited to repetitive clamping operations. Is the component compatible with standard lever clamps? Yes, the design is compatible with lever clamps and toggle mechanisms; Metav can confirm fitment against specific clamp models where required. Can this lever be used in compact fixtures with limited clearance? The compact footprint and low weight make it suitable for confined jigs and fixtures where space and balance are important. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
