15-15000mm Radius Measuring Device Color 2.4" Touchscreen, Wireless USB, ISO 17025 Calibrated - Microtech Metrology
€1,220.00
Product information "15-15000mm Radius Measuring Device Color 2.4" Touchscreen, Wireless USB, ISO 17025 Calibrated - Microtech Metrology"
Combine the extreme measuring range with wireless data transfer and traceable ISO 17025 calibration to ensure reliable, large-scale radius inspection. Order the Radius measuring device directly via Metav Werkzeuge or consult our technical advisors for tailored application support.

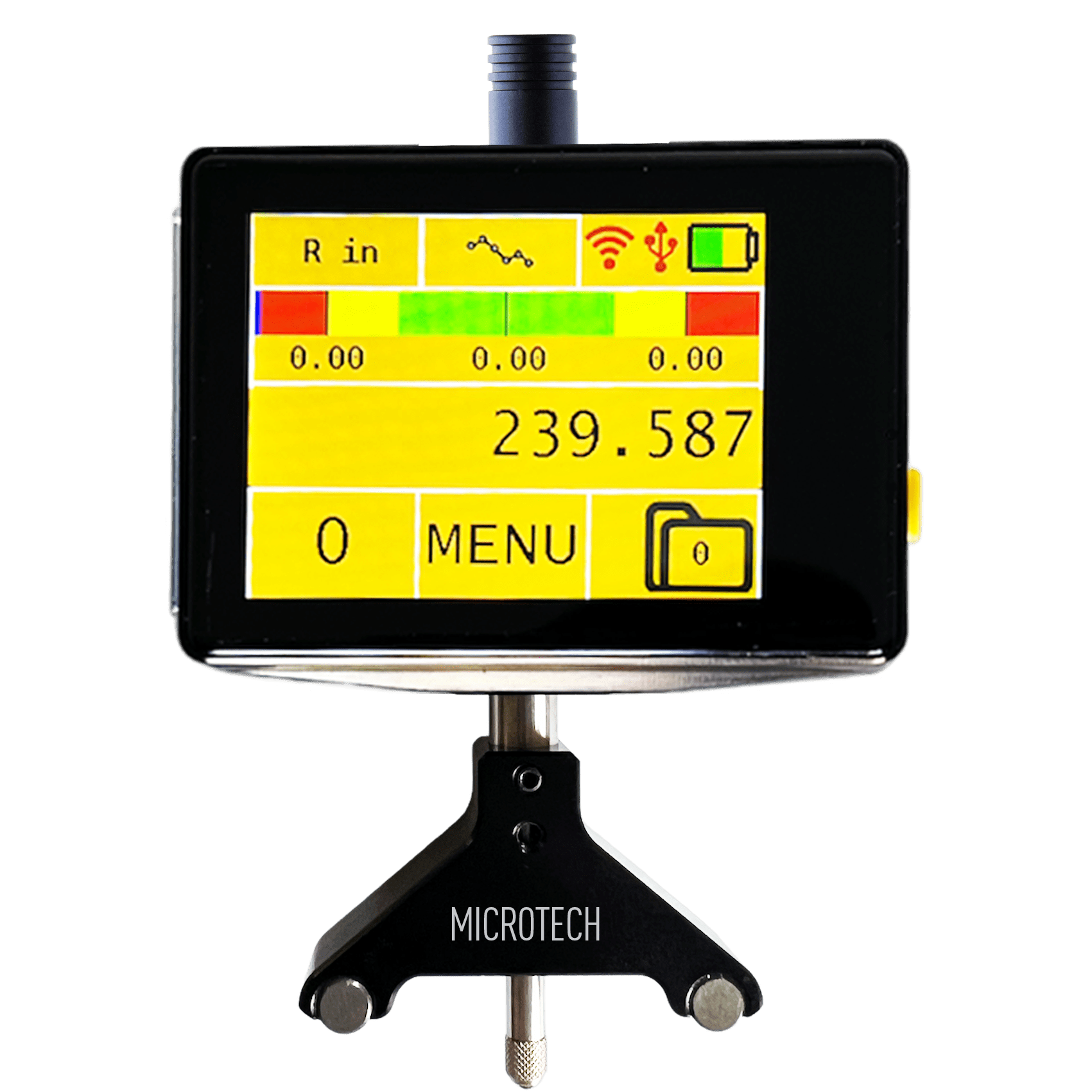

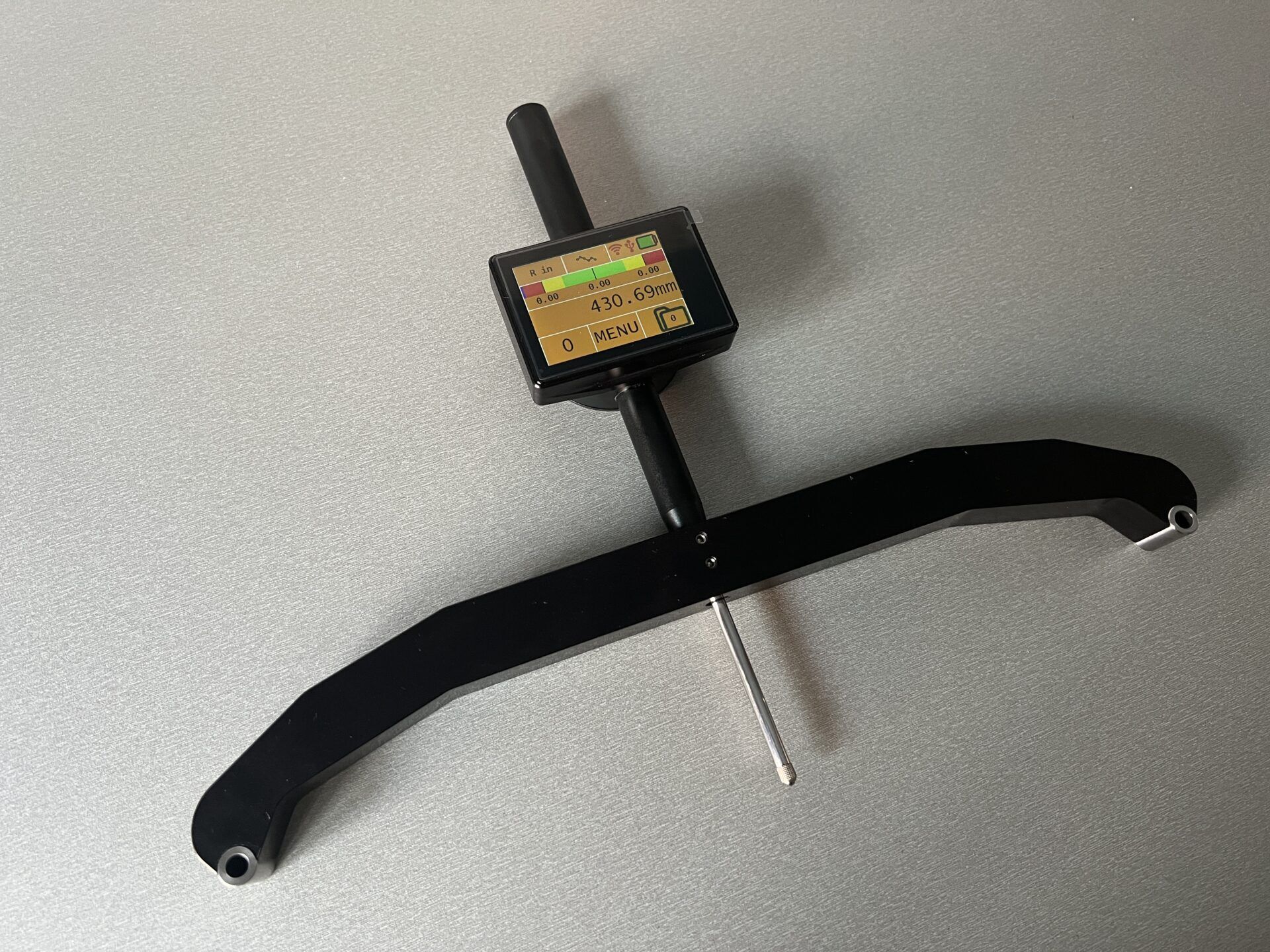

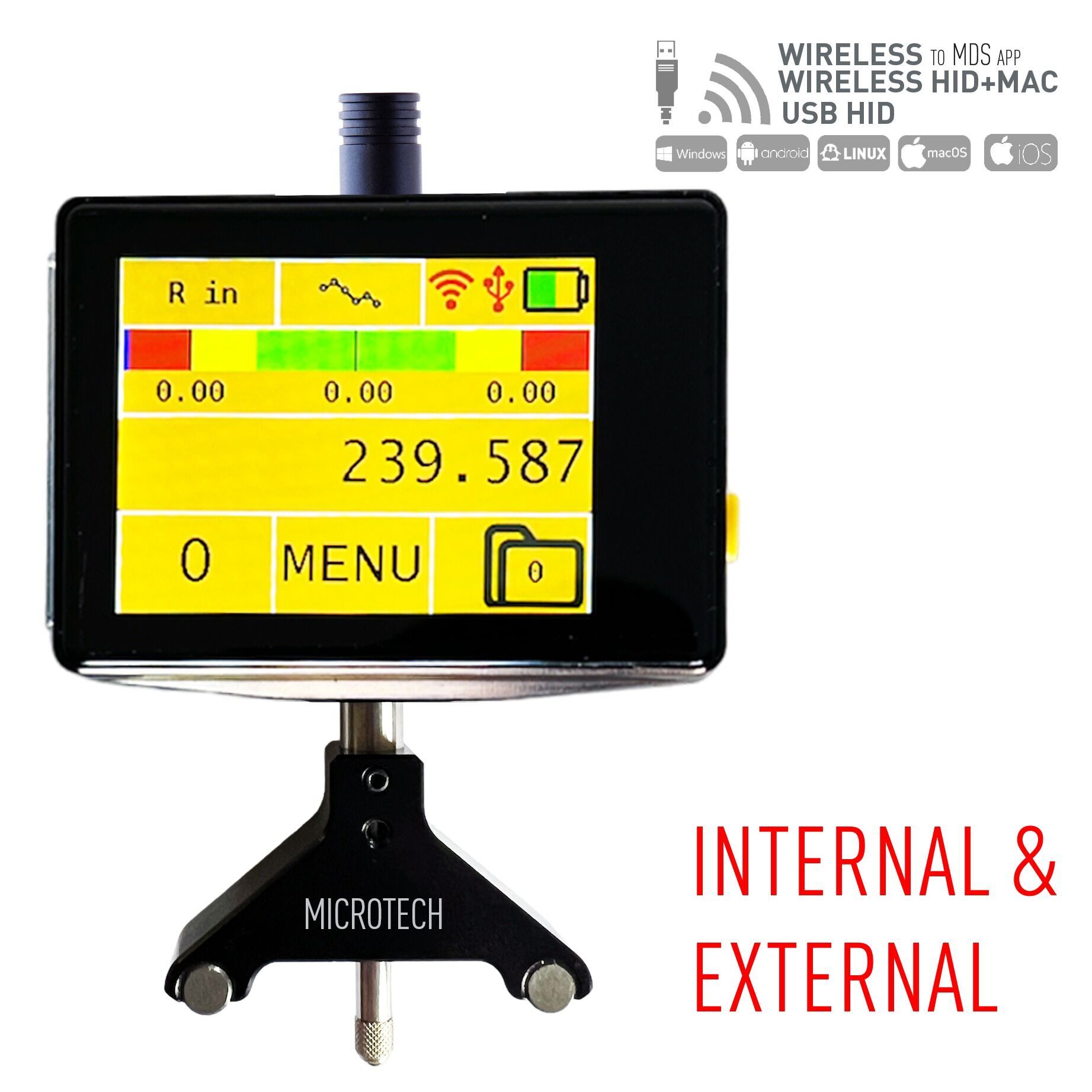

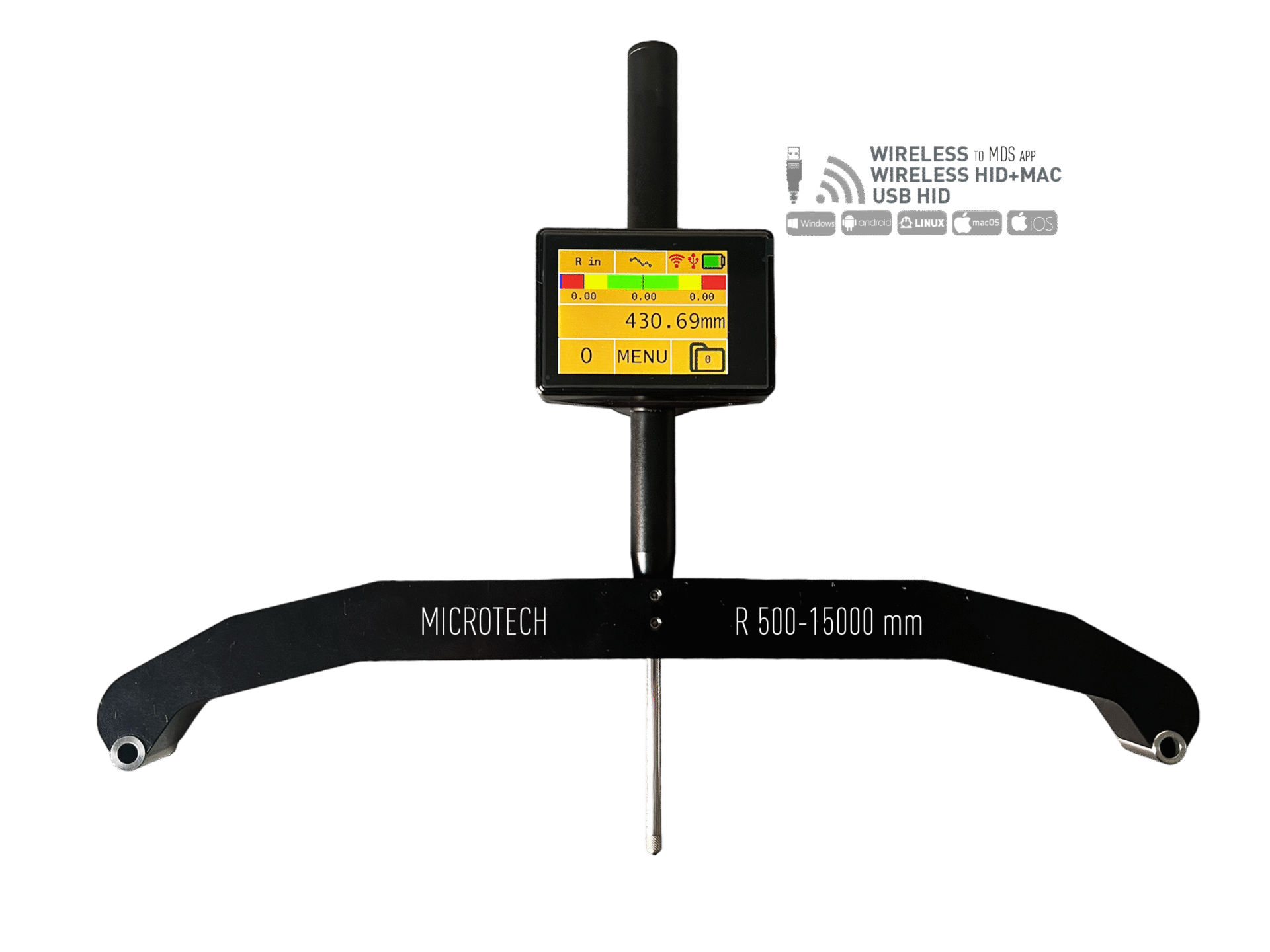

Radius measuring device – Mega‑range radius gauge with Wireless + Colour 2.4" touchscreen (Microtech Metrology)
The Radius measuring device is a specialist instrument for fast, traceable internal and external radius measurement across very large components, designed for use in heavy industry, pipework and large-format quality control.
- Measurement range up to 15,000 mm
- Colour 2.4" touchscreen display
- Wireless and USB data output
- Delivered fully calibrated to ISO 17025
Measure very large radii with consistent repeatability
This gauge offers a measuring range from 40 to 15,000 mm, placing it in the mega/special class for very large components. The extended range suits applications such as pipe bends, large gears and rotor assemblies where standard instruments fall short. With a readability of 0.001 mm and an indicated accuracy from 0.4–1%, it combines broad reach with measurable resolution; the result is fewer transfers between tools and a reduced need for time‑consuming fixtures. The large-format capability therefore supports efficient production workflows and fewer handling steps.
Built for modern workflows and documented quality assurance
Data capture is simplified through Wireless transmission and USB output, paired with a colour 2.4" touchscreen for intuitive operation and quick parameter entry. The internal rechargeable battery ensures mobile use without frequent interruptions. Importantly, the instrument is delivered fully calibrated to ISO 17025 and includes the calibration certificate, which provides direct traceability for quality records and simplifies incoming inspection or audit processes. These features make the device a dependable link between shop‑floor measurement and digital quality systems.
Practical handling for demanding measurement tasks
Engineered for internal and external radius measurement, the tool is supplied as a set to support immediate deployment. The compact control interface and touchscreen reduce operator training time, while wireless data transfer integrates with measurement software or inspection routines to speed reporting. Backed by Microtech Metrology, the construction emphasises ruggedness for on‑site use and repeatable contact geometry across long spans. When paired with Metav’s logistics and advisory services, this instrument brings professional metrology into workshops that require scalable precision.
Contact Metav Werkzeuge for a bespoke consultation or to request a technical quotation for Microtech Metrology’s Radius measuring device, supplied fully calibrated and ready for immediate large‑scale inspection.
Technical data
- Article number: 1250516007
- GTIN: 4061905452260
- Manufacturer: Microtech Metrology
- Calibration: ISO 17025 certificate included
- Display: Colour 2.4" touchscreen
- Data output: Wireless + USB
- Battery: Rechargeable
Numbers / Core technical data
- Measuring range: 40–15,000 mm
- Readability / resolution: 0.001 mm
- Accuracy: 0.4–1%
Designs / Special features
- Internal and external radius measurement
- Delivered as a set
- Colour touchscreen for parameter entry
- Wireless and USB connectivity
- Rechargeable battery for mobile use
- Fully calibrated to ISO 17025 with certificate
FAQ
What measurement range does the instrument cover?
The instrument covers a measuring range from 40 to 15,000 mm, suitable for very large radii and classified for mega‑range applications.
Is the device delivered calibrated for official records?
Yes, the Radius measuring device from Microtech Metrology is delivered fully calibrated to ISO 17025 and includes the calibration certificate for traceability.
How is measurement data exported from the device?
Data can be exported via Wireless transmission or through the USB interface for integration with inspection software and quality documentation.
Can the instrument measure both inside and outside radii?
The device supports both internal and external radius measurement, making it appropriate for a wide variety of components and assemblies.
Is the display easy to use in industrial environments?
The colour 2.4" touchscreen provides clear readouts and straightforward parameter entry, reducing setup time and simplifying operator interaction.
