15,000mm Radius Gauge With 2.4" Colour Touchscreen, Wireless/USB, ISO 17025 Calibrated - Microtech Metrology
€1,480.00
Product information "15,000mm Radius Gauge With 2.4" Colour Touchscreen, Wireless/USB, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of the combination of an exceptionally wide measurement range, reliable Wireless + USB data transfer and delivered ISO 17025 calibration for reproducible results across large components. The rechargeable power supply and colour touchscreen simplify on‑site operation and data capture. Order the radius measuring device directly via Metav Werkzeuge or ask our consultants for application support.

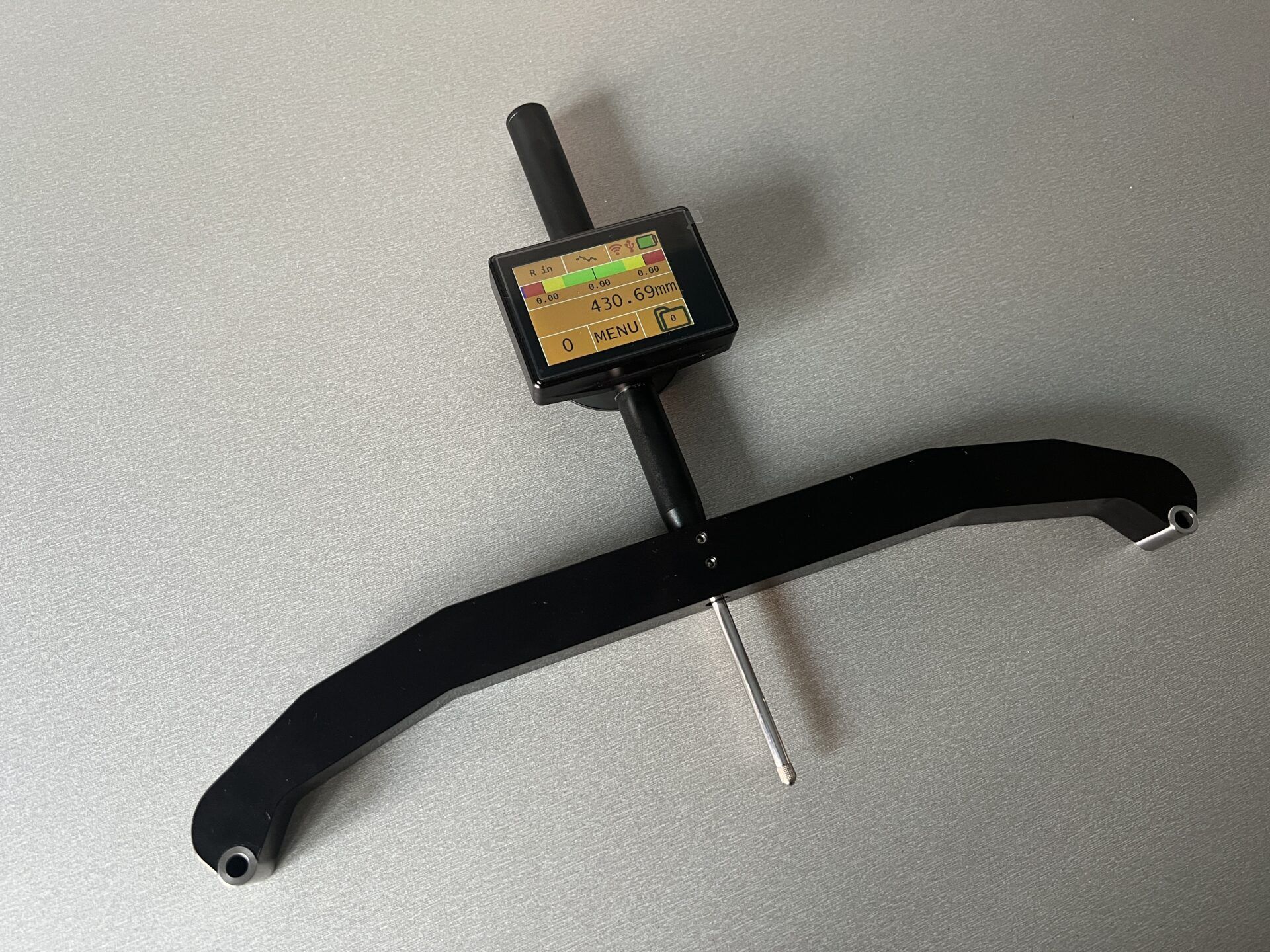

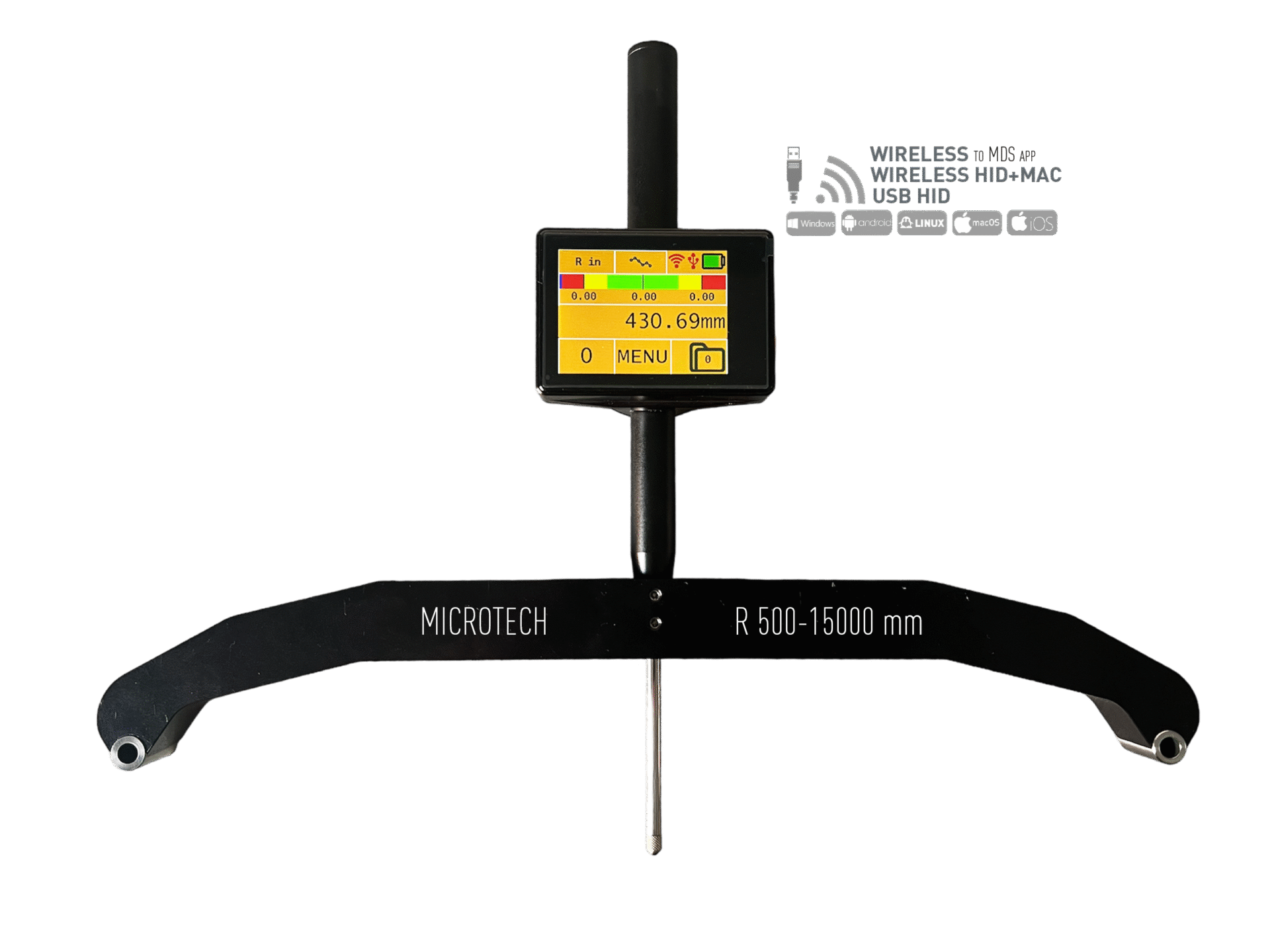

Radius measuring device — Microtech Metrology, rechargeable, Wireless + USB, 2.4" touchscreen
The radius measuring device from Microtech Metrology is designed for precise internal and external radius measurement across a very wide span of components in workshop and production environments.
- Wide measurement span 5–15,000 mm for very large radii
- ISO 17025 calibrated with certificate

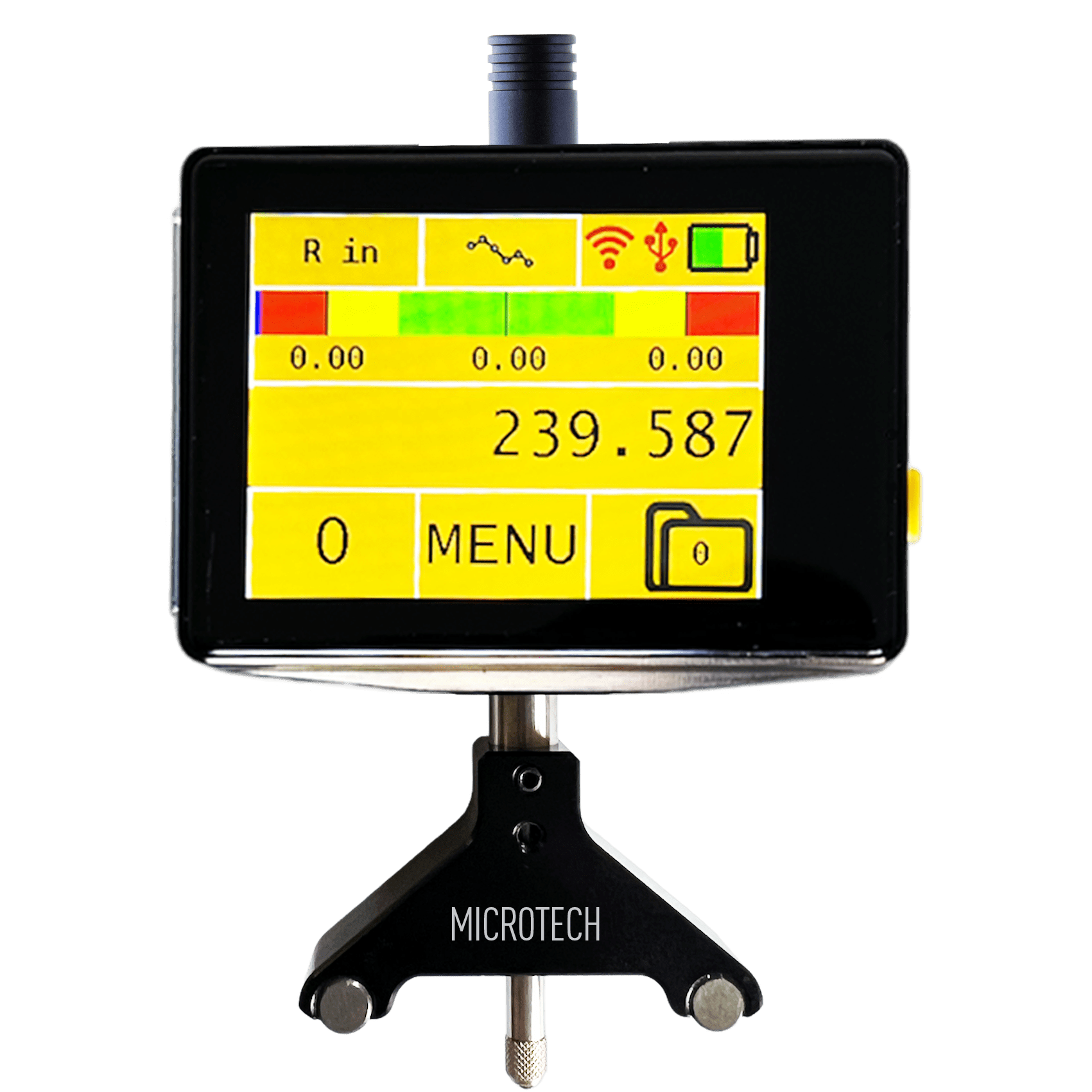

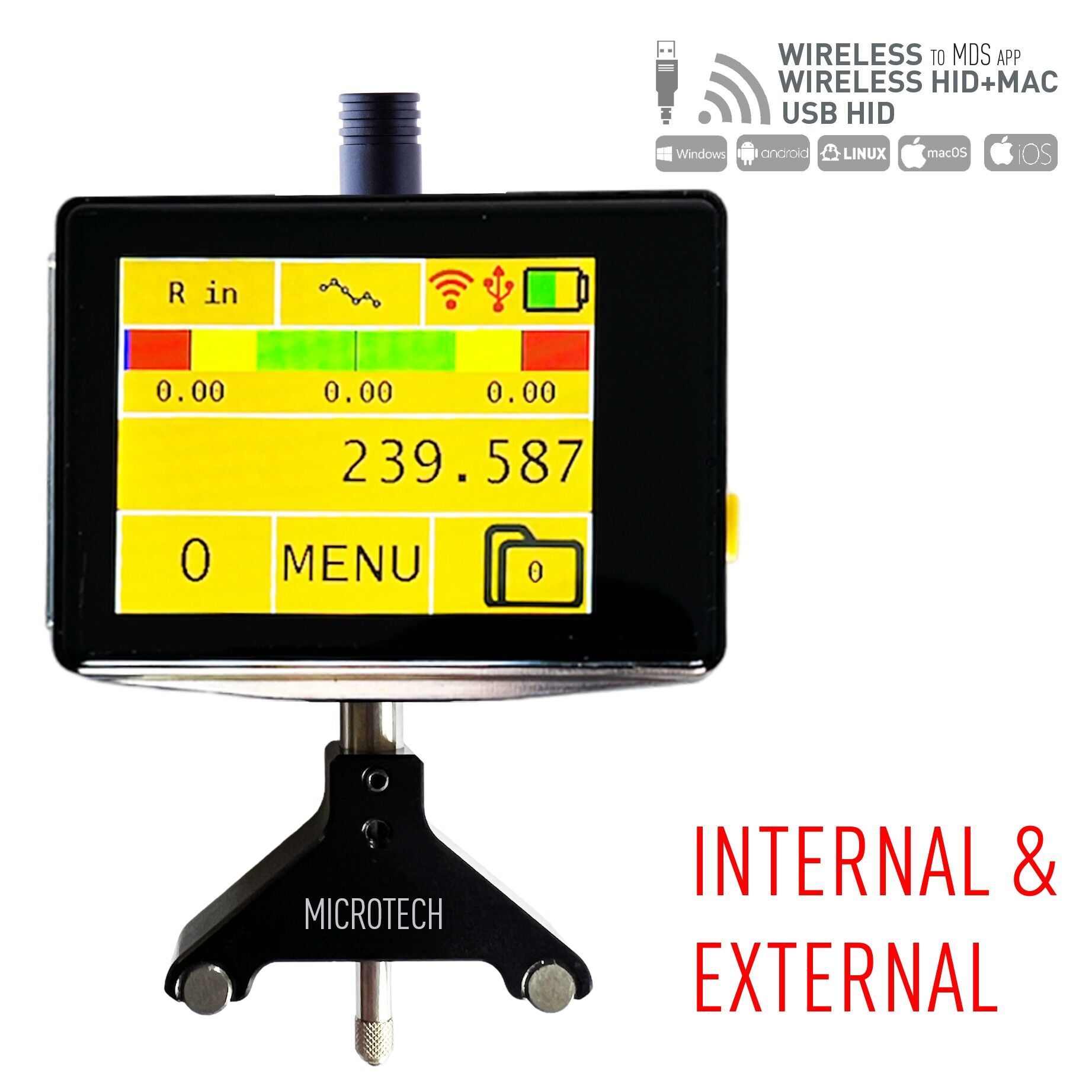

- Colour 2.4" touchscreen with 0.001 mm readout
- Wireless and USB data export for automated logging
Precise large‑scale measurement without workflow compromise
The device delivers a measurement range of 5–15,000 mm, which places it in the mega/special category for long‑span inspection tasks (10,000–30,000 mm). This makes it suitable for large‑format components such as pipes, housings and segmented assemblies where conventional gauges cannot reach. The substantial span, combined with a 0.001 mm display resolution, enables consistent measurement of contours and radii while reducing the need for multiple instruments. The rechargeable power supply supports mobile use on the shop floor and the robust construction supports repeatable handling during longer inspection runs.
Calibrated accuracy for traceable quality control
Delivered fully calibrated to ISO 17025, the instrument includes a calibration certificate that documents conformity with laboratory standards. The stated accuracy range of 0.4–1% should be interpreted as a relative tolerance across the measuring span: larger radii produce proportionally larger absolute deviations. For production tolerance checks this means straightforward traceability and transparent error budgets when integrating the device into inspection plans. The ISO 17025 calibration underpins audits and helps ensure measured values are accepted across supply chains.
Streamlined data capture and integration
Data transfer is available via Wireless and USB, enabling direct export to inspection software or quality databases and avoiding transcription errors. The colour 2.4" touchscreen provides immediate visual confirmation of measured values and simple menu navigation, while the internal electronics support stable readings and rapid handover to downstream quality processes. Together, these features speed up batch checks and support automated logging for traceability without lengthy manual steps.
Built for shop‑floor application and broad use cases
Configured as a complete set, the device addresses both internal and external radius measurement needs, reducing tool changes and setup time. Its suitability spans heavy industry, vessel and pipe fabrication, gearbox housings and large moulds, where consistent radius control matters for fit and function. Manufactured by Microtech Metrology, the unit combines long‑range capability with a compact operator interface to balance reach and usability for inspection technicians and quality engineers alike.
For tailored advice on Microtech Metrology's radius measuring device and delivery options, contact Metav Werkzeuge in Emmerich by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to discuss specification and lead times.
Technical data
- Article number: 1250517007
- GTIN: 4061905452277
- Manufacturer: Microtech Metrology
Facts
- Measurement range: 5–15,000 mm
- Resolution / reading: 0.001 mm
- Display: Color 2.4" touchscreen
- Accuracy: 0.4–1% (relative)
Special features
- Data output: Wireless + USB
- Power: Rechargeable battery
- Delivered calibrated to ISO 17025 with certificate
- Set configuration included
- Suitable for internal and external radius measurement
- Colour touchscreen for direct operation
FAQ
What measurement span does the radius measuring device cover?
The radius measuring device covers a range from 5 mm to 15,000 mm, making it suitable for very large radii and long‑span components.
Is the instrument supplied with a calibration certificate?
Yes, the device is delivered fully calibrated to ISO 17025 and includes the corresponding calibration certificate for traceable quality assurance.
How are measured values exported from the instrument?
Measured values can be transferred via Wireless or USB, enabling integration with inspection software and automatic logging to quality systems.
What level of accuracy can be expected in practical use?
The instrument specifies an accuracy range of 0.4–1%, which is a relative figure across the measuring span; absolute deviation increases with radius size and should be considered in tolerance planning.
For which applications is this device most suitable?
It is aimed at large‑component inspection such as pipes, housings, moulds and assemblies where internal and external radius measurement over long spans is required.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
