180mm Test Stand Colour 2.4" Touchscreen, Wireless+USB, ISO 17025 Calibrated - Microtech Metrology
€1,590.00
Product information "180mm Test Stand Colour 2.4" Touchscreen, Wireless+USB, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of the combination of 1000 N capacity, 0.001 N resolution and Wireless + USB data output to secure reproducible force testing and traceable results; the included ISO 17025 calibration certificate supports audit-ready documentation. Order the test stand directly via Metav Werkzeuge or consult our advisors for tailored specification help.

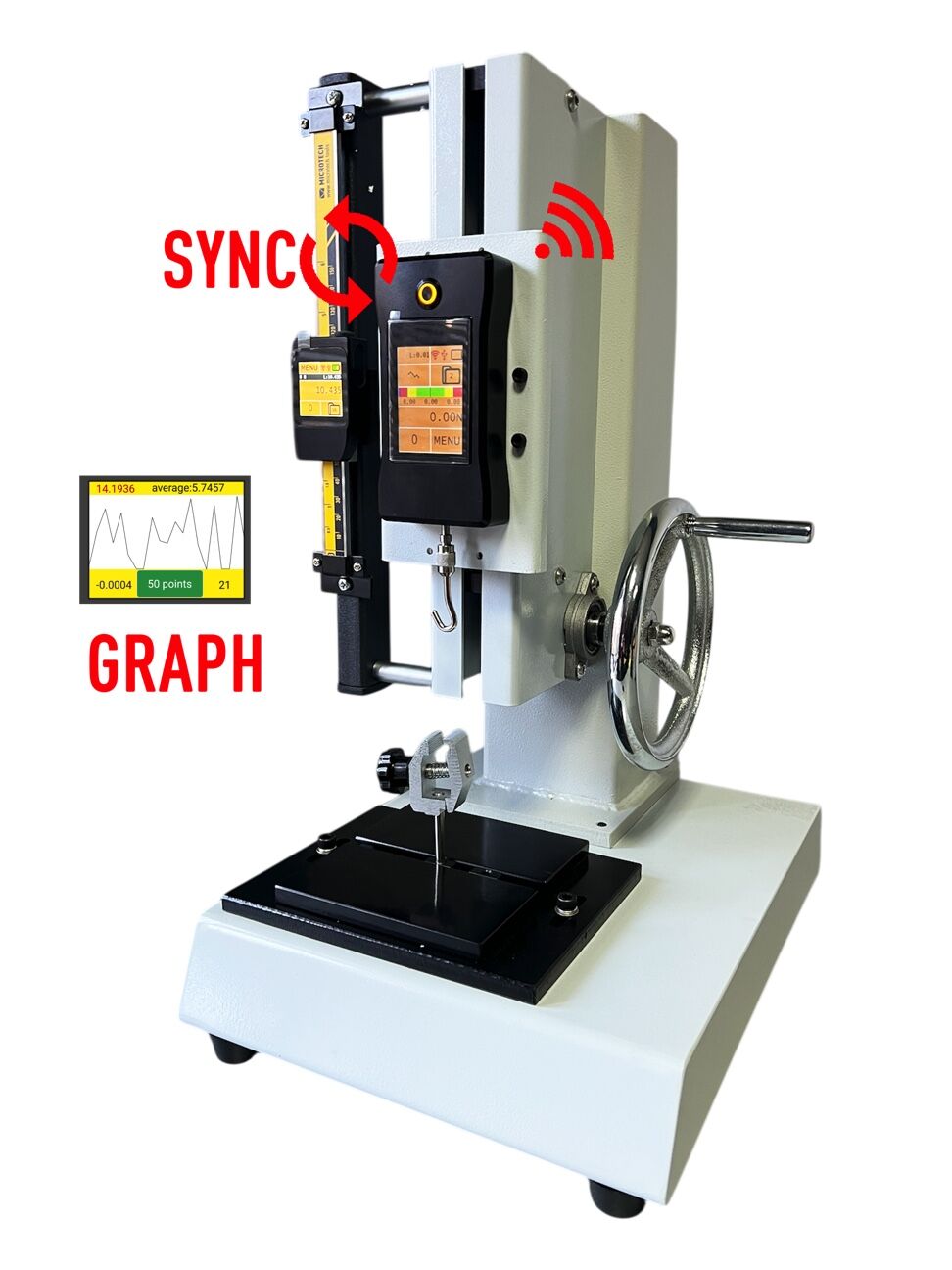

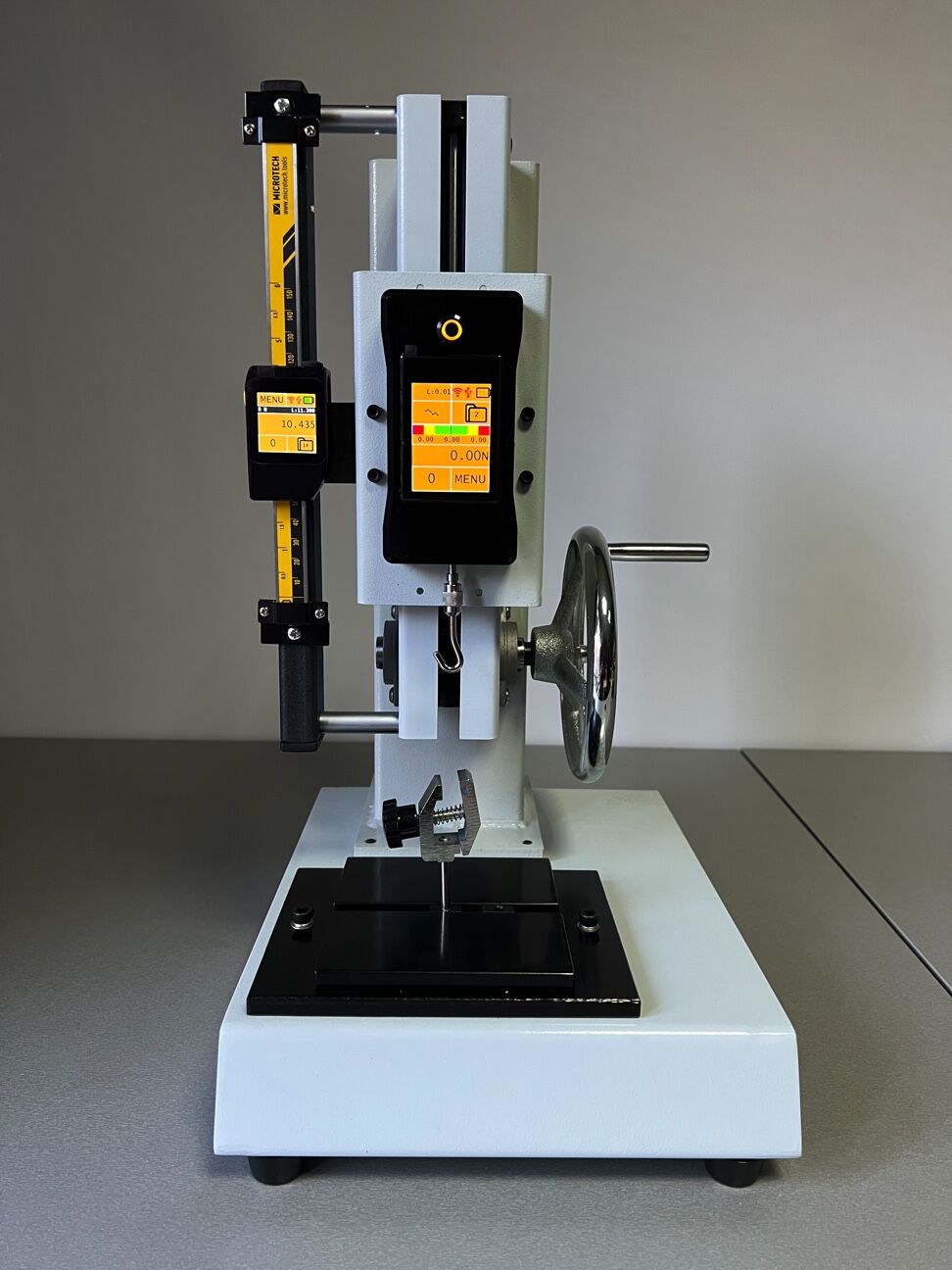

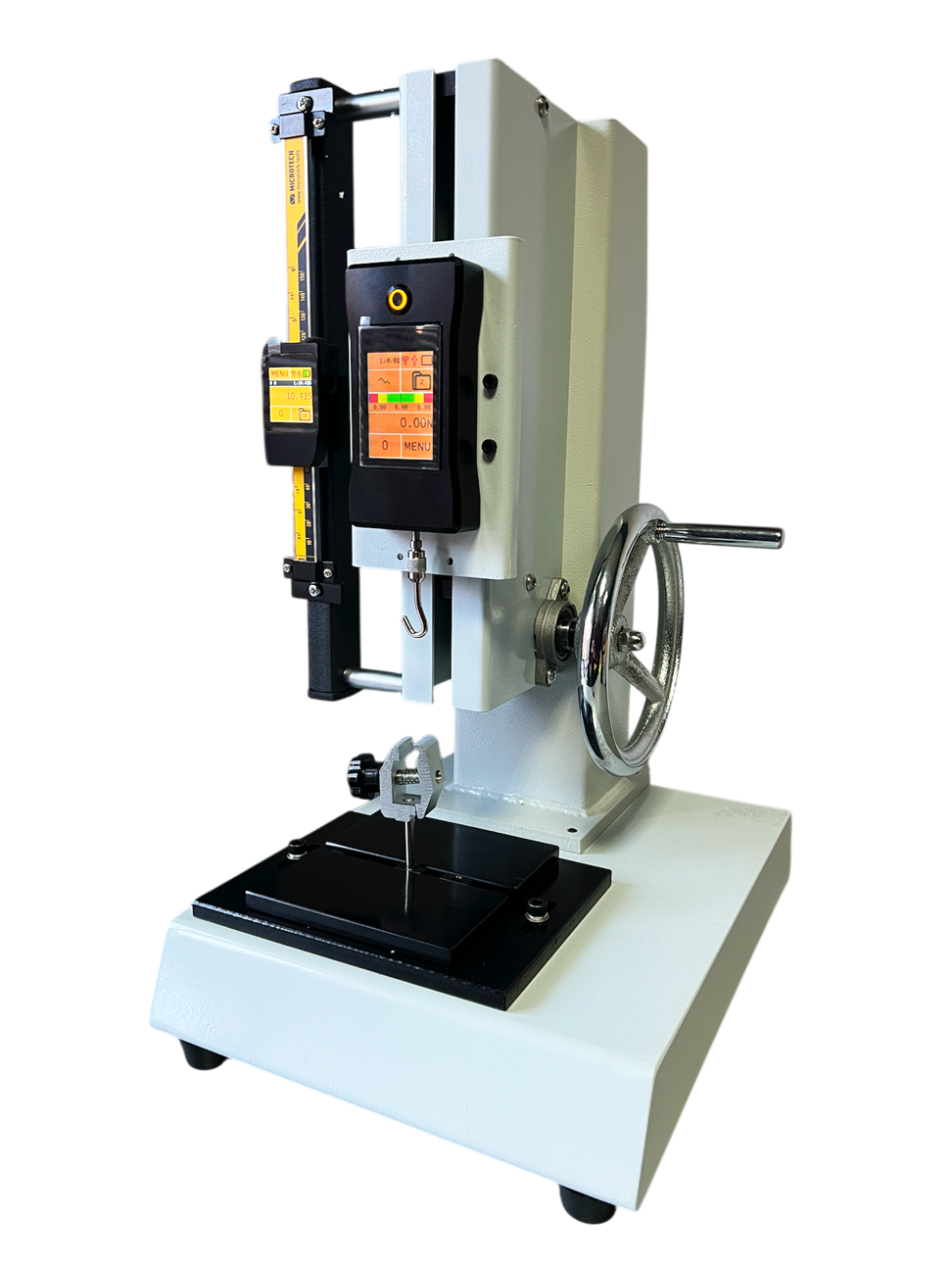

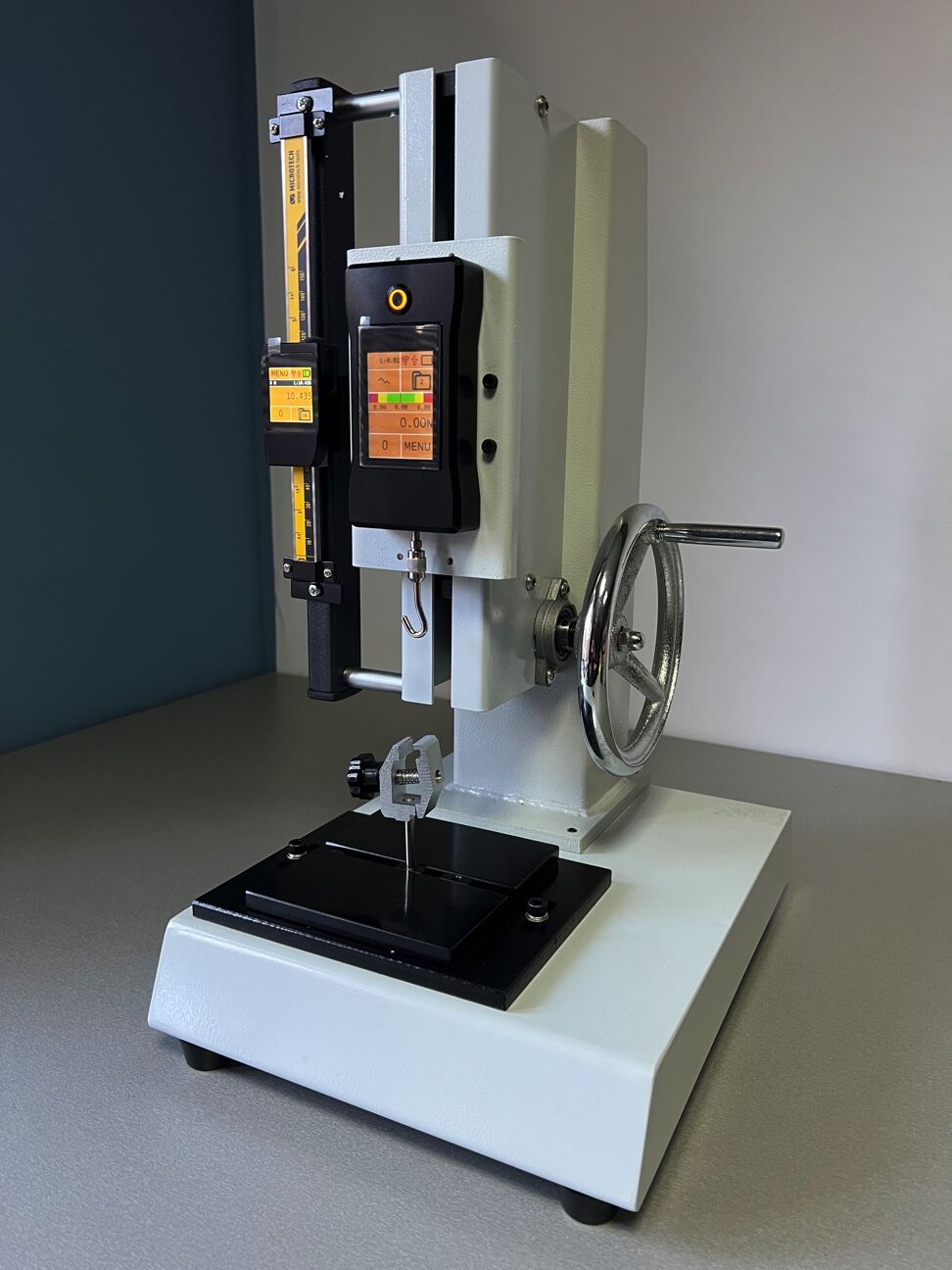

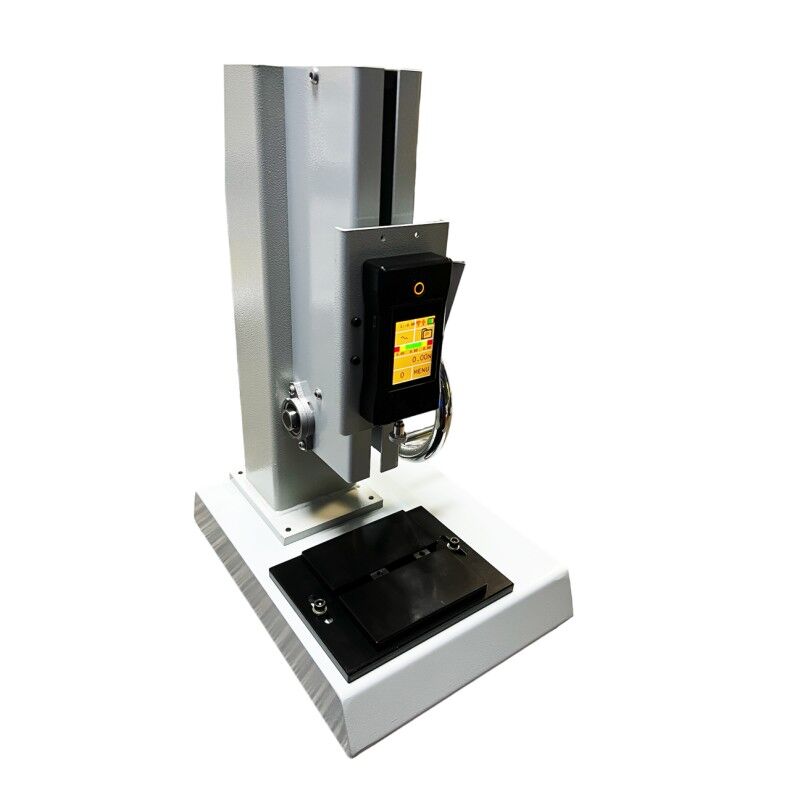

Test stand — Manual force test stand with 1000 N capacity and touchscreen control (Microtech Metrology)
The Test stand is a compact, manually operated force test rig designed for precise force and displacement checks across workshop and laboratory applications.
- 1000 N maximum load
- 0.001 N resolution for fine measurement
- 2.4" colour touchscreen display
- Wireless and USB data output
Precision force measurement with traceable results
The rig delivers high-resolution force readings thanks to a 0.001 N display increment and a maximum capacity of 1000 N, which together permit reliable capture of small load changes while still covering common workshop requirements. The unit is supplied with an ISO 17025 calibration certificate, ensuring measurement traceability and suitability for quality assurance processes. Where applied in inspection routines or R&D, the combination of sub-millinewton resolution and accredited calibration reduces uncertainty and simplifies compliance with internal and external audit demands.
Intuitive operation and streamlined data handling
A 2.4" colour touchscreen provides direct control of test parameters and clear readout of live values, shortening setup times and lowering operator training effort. Data are exported via Wireless + USB, enabling immediate integration into lab PCs or networked data-collection systems without manual transcription. The manual drive mechanism maintains straightforward operation for repetitive checks, while digital outputs support statistical process control or long-term logging for trending and reporting.
Built for workshop and laboratory workflows
As a manually driven test rig, the device balances compactness and rigidity: the measurement range 0–180 mm offers sufficient travel for most component tests while keeping the assembly manageable in bench environments. The construction and documented performance make the unit suitable for incoming inspection, routine component verification and small-batch testing where repeatability and clear documentation are required. The unit’s specification aligns with common metrology lab practices and supports integration into broader quality-management routines.
Quality assurance, documentation and compatibility
Beyond raw performance, the system is configured for practical traceability: the ISO 17025 calibration is delivered with the instrument, stating that measurements can be referenced to accredited standards. Wireless and USB outputs ensure compatibility with modern measurement software or spreadsheet-based workflows, and the clear touchscreen reduces interpretation errors. Combined, these elements contribute to a dependable test process that supports both immediate decision-making and long-term record keeping.
For precise force testing with Microtech Metrology’s manual test stand and its ISO 17025 calibration certificate, contact Metav Werkzeuge for a specification review and supply from our Emmerich quality hub.
Technical Data
- Article number: 278170106
- GTIN: 4061905456473
- SKU: 278170106
Facts
- Max load: 1000 N
- Measurement range: 0–180 mm
- Resolution / reading increment: 0.001 N
- Digital display: 2.4" colour touchscreen
- Data output: Wireless + USB
- Calibration: ISO 17025 certificate included
Special features
- Type: Manual test stand
- Digital: yes
- Manufacturer: Microtech Metrology
- Category: 2D profile measuring device
FAQ
What level of calibration is supplied with the instrument?
The instrument is delivered fully calibrated to ISO 17025 and includes a calibration certificate from Microtech Metrology confirming traceable measurement performance.
What is the smallest force change that can be resolved?
Resolution is 0.001 N, permitting detection of very small force variations when using the manual test rig for fine measurements.
How can measurement data be exported for analysis?
Measurement data are available via Wireless + USB, allowing direct transfer to PCs or data-collection systems for further statistical evaluation.
Is the unit suitable for both workshop checks and laboratory use?
Yes; the combination of 1000 N capacity, fine resolution and accredited calibration makes the test stand appropriate for routine workshop verification and laboratory-level quality assurance.
What travel or stroke is available for displacement-based tests?
The device provides a measurement range of 0–180 mm, offering sufficient travel for most component-level force and displacement checks.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Datenübertragung Sets

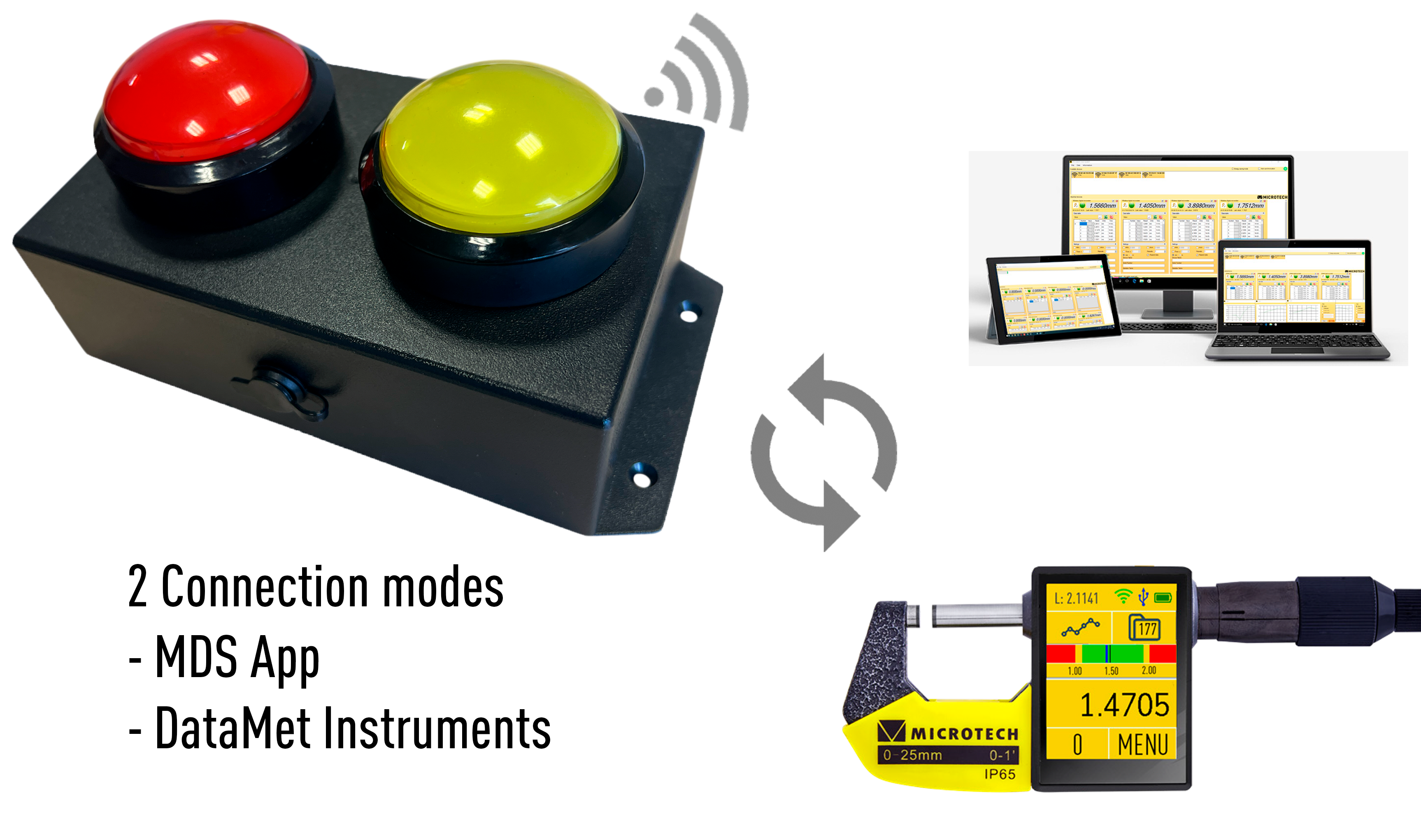

Take advantage of a compact, wireless two‑button control that combines effortless ZERO setting with direct data saving to instrument memory or the Microtech MDS application; its rechargeable Li‑Pol 2000 mAh battery and desktop or mobile variants support uninterrupted production routines. Order directly via Metav Werkzeuge or consult our specialists for integration advice. DataMET DESKTOP multifunctional desktop control — two‑button interface with rechargeable Li‑Pol battery (2000 mAh) by Microtech Metrology DataMET DESKTOP is a compact multifunction control unit for industrial metrology, designed to set a precise zero and store measurement results to Microtech instruments or the MICROTECH MDS app for Windows as a desktop two‑button panel. Two‑button interface for ZERO and save Rechargeable Li‑Pol 2000 mAh battery Desktop and mobile (2‑button stick) variants Streamlined recording for faster measurement workflows The unit acts as a dedicated wireless input for metrology systems, reducing manual entry and speeding routine checks. With direct saving to an instrument’s internal memory or synchronisation with the MDS app for Windows, the interface removes steps between capture and documentation. This results in fewer process interruptions, clearer traceability and a measurable gain in throughput for quality control stations and production test benches. Precise zeroing and dependable data transfer A short, two‑button operation provides both a ZERO setting and an immediate save command, designed for repeatable results during batch inspections or single‑part checks. The device features an LED status indicator to confirm successful synchronisation or stored events. These elements combine to lower the risk of operator error while ensuring measurement records are consistently captured in the chosen destination. Integration flexibility for workshop and lab environments Available as a desktop panel or a mobile two‑button stick, the control unit fits different workflows without changing measurement procedures. Custom functions can be implemented on request to match specific instrument protocols or a lab’s data flow. The compact interface supports simple embedding into existing test setups and is compatible with Microtech instruments and the MICROTECH MDS Windows application for centralised data handling. Compact format with sustained operation Measuring 186 x 96 x 53 mm and weighing approximately 0.40 kg, the controller keeps the footprint small on crowded benches. The rechargeable Li‑Pol 2000 mAh battery provides extended runtime for uninterrupted shifts, and the 60 mm button size delivers clear, tactile feedback for repetitive use. Together, these design choices favour reliable daily operation and easy handling during long inspection cycles. Contact Metav Werkzeuge for advice on integrating Microtech Metrology control units into existing measurement chains and to discuss customised function options — info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 299900013 Label: DataMET DESKTOP Manufacturer: Microtech Metrology Facts Buttons: 2 Battery capacity: 2000 mAh Button size: 60 mm Dimensions: 186 x 96 x 53 mm Weight: 0.40 kg Special features Function: ZERO setting and data saving to instrument memory Connectivity: Synchronisation with MICROTECH MDS app for Windows Variants: Desktop 2‑button panel; mobile 2‑button stick LED status indication Rechargeable Li‑Pol battery Custom functions available upon request FAQ How does the controller save measurement data? The controller performs direct saving either to the connected Microtech instrument’s memory or via synchronisation to the MICROTECH MDS app for Windows, ensuring recorded values are stored where required. Is the device available in a mobile version? Yes, a mobile two‑button stick variant is offered alongside the desktop 2‑button panel for flexible placement and handheld operation. What feedback confirms a successful zero or save action? An LED status indicator on the unit signals successful zeroing and data transfer operations, providing immediate visual confirmation. How long does the battery last between charges? The unit uses a rechargeable Li‑Pol 2000 mAh battery designed for extended operation; actual runtime depends on usage and synchronisation frequency. Can custom functions be implemented for specialist workflows? Custom functions are available on request to tailor the control behaviour to specific instrument protocols or data‑flow requirements. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

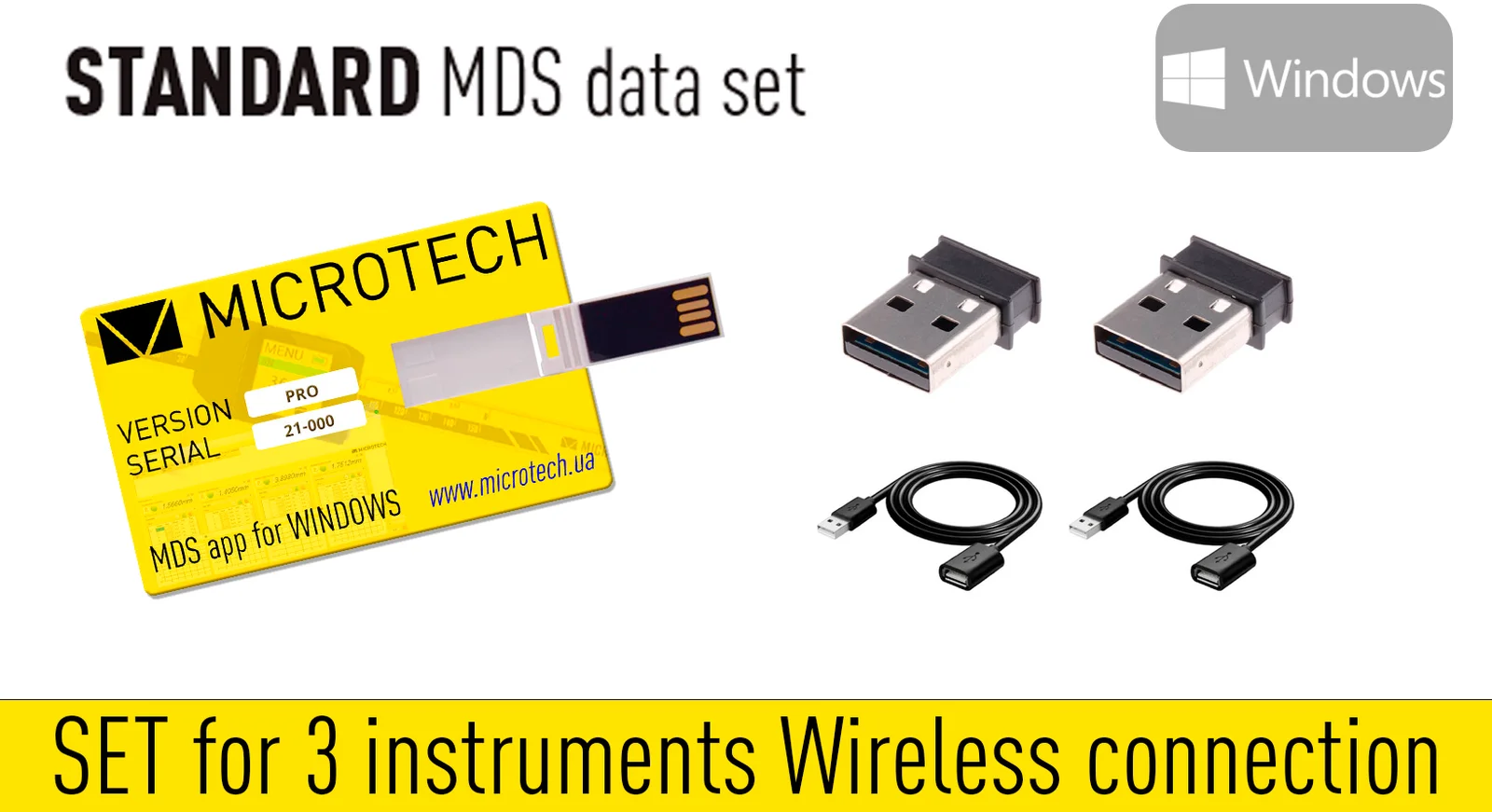

Take advantage of a ready-to-run data-collection kit with MDS 5.5 STANDARD compatibility, USB dongle activation and automatic connection management to streamline measurement logging and reduce manual entry errors — order the set directly via Metav Werkzeuge or consult the team for integration advice. MDS Standard Accessory Set — Windows data-collection kit for Microtech Metrology The MDS Standard Accessory Set is a compact accessory kit that turns compatible instruments into a synchronised data-collection system, ideal for workshop measurement logging and quality-control workflows. Ready-to-run data-collection kit Supports Microtech instruments connectivity Includes USB dongle for secure activation Windows MDS 5.5 compatible Fast, out-of-the-box data acquisition for production The accessory kit provides a ready-to-run solution that gets measurement data into production systems quickly. Delivered as a compact set, it includes a single USB dongle for licence activation and integrates with the MDS 5.5 STANDARD application on Windows, enabling immediate data capture from connected instruments. Because autoconnection and synchronising are built in, manual transcription is minimised, reducing transcription errors and saving operator time. The practical result is faster inspection cycles and more consistent traceability of recorded values. Reliable integration that reduces process interruptions Designed for use with Microtech instruments, the kit supports zero-setting and offers optional peripherals such as DataMet Buttons or a footswitch for hands-free data capture and zeroing. These options are beneficial in environments where operators handle components during measurement and need a repeatable, low-latency method for recording readings. The accessory set’s connection modes and synchronising routines are intended to maintain stable data streams into spreadsheet or database workflows, improving the reliability of subsequent quality checks. Practical benefits for workshops and quality control By centralising measurement collection and automating connection handling, the kit supports more efficient documentation and easier audit trails. Integration with the Windows-based application simplifies downstream data processing and reduces the administrative burden on technicians. For routine inspection tasks, the ability to collect consistent, timestamped readings enhances process control and allows faster reactions to deviations, which supports both operational efficiency and product quality. For a seamless upgrade to organised measurement logging, contact Metav Werkzeuge to arrange supply of the Microtech MDS Standard accessory set or to discuss compatibility with specific instruments — info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: 299110504 GTIN: 4061905452109 Label: Standard MDS data set for Windows Manufacturer: Microtech Metrology Facts Max connections: 3 USB dongles: 1 Special features Ready data-collecting solution from box Collects data from Microtech instruments and supports zero setting Autoconnection and data reading synchronising Connection modes for stable data transfer Optional DataMet Buttons and footswitch for data capture Application: MDS 5.5 STANDARD app for Windows Supplied as a set FAQ How many instruments can be connected at the same time with this set? The accessory set supports up to three simultaneous connections so multiple Microtech instruments can be logged in parallel. Is there a licence or dongle required to run the software? Yes, the package includes one USB dongle for activation of the MDS 5.5 STANDARD application on Windows. Can measurements be recorded hands-free? Yes, the set supports optional DataMet Buttons and a footswitch for hands-free data capture and zero setting during measurement tasks. Which application is required to use this accessory kit? The kit is designed for use with the MDS 5.5 STANDARD app for Windows and integrates measurement streams into that environment. What is the SKU for ordering or referencing the product? The SKU for this accessory set is 299110504 and it is listed under the Standard MDS data set for Windows. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Reliable, compact hands‑free data capture that integrates with the Microtech MDS software makes measurement workflows faster and less error‑prone; the one‑button USB foot switch combines single‑button operation with straightforward Windows connectivity. Order direct via Metav Werkzeuge or consult our specialists for tailored integration advice. Microtech USB Foot Switch — 1‑button USB pedal for Windows A compact USB Foot Switch that provides single‑action measurement saving and zero setting for Windows‑based metrology setups, designed for benchtop and inspection environments. One-button operation for fast data capture USB connection compatible with Windows Saves measurements to memory or sets zero Compact footprint 60 × 60 × 20 mm Streamline measurement logging with hands‑free control The USB pedal offers a simple method to transfer measurement events without interrupting manual handling or changing grip on instruments. Linked to the Microtech MDS app, the device sends a save or zero command via a standard USB link, reducing transcription errors and speeding data collection. Thanks to the single‑button design, operators benefit from a predictable, repeatable input: the result is fewer interruptions in the measuring process and a measurable increase in throughput for routine inspection tasks. Practical compactness for busy benches and tight spaces With a footprint of 60 × 60 × 20 mm and a weight of 0.2 kg, this foot switch fits easily beside gauges, callipers or test stands without consuming valuable workspace. The small form factor simplifies placement under test rigs or alongside operator stations, so the pedal can be reached comfortably without changing posture. The reduced need to handle instruments during data capture improves repeatability and diminishes the chance of handling‑induced errors, particularly during repetitive quality checks. Clear integration with Microtech software and Windows systems The peripheral is engineered for straightforward integration: plug the pedal into a workstation running Windows and pair it with the Microtech MDS app to log measurement events or perform zero setting directly from the app interface. The device supports saving to memory via the software, which allows buffered recording where native instrument outputs are limited. For workshops standardising digital data capture, this method provides a robust, low‑effort route to create reliable logs and reduce manual entry steps. Suitable applications and operational benefits The pedal is well suited to production inspection, toolroom checks and small‑series measurement tasks where hands‑free confirmation speeds cycle times. As a dedicated input device for measurement software, it complements digital gauges and inspection routines and is particularly effective where operators must keep both hands on a part or tool. The simplified controls reduce training time and, combined with software logging, support traceability in routine quality assurance workflows. For hands‑free data capture with Microtech technology, contact Metav Werkzeuge for tailored advice and delivery from Emmerich: info@metav-werkzeuge.com / +49 2822 7131930 Technical Data SKU: 299190000 GTIN: 4061905048036 Brand: Microtech Metrology Facts Dimensions: 60 × 60 × 20 mm Weight: 0.2 kg Special features USB connection for Windows 1‑button foot switch Saves data to memory via Microtech MDS app Function: save to memory or zero setting FAQ Is the pedal compatible with macOS or Linux? The Microtech USB Foot Switch is designed for use with Windows systems and the Microtech MDS app; macOS or Linux compatibility is not specified for this product. Can the device trigger a zero setting on digital callipers? Yes, the foot switch sends a zero command via the Microtech MDS interface when configured, enabling hands‑free zeroing where supported by the connected measurement setup. Does the switch store measurements independently? The pedal functions as an input device; saving to memory is managed by the Microtech MDS app, which records the events and stores measurement entries. What are the physical dimensions and how portable is the device? The unit measures 60 × 60 × 20 mm and weighs 0.2 kg, making it compact and easy to position on crowded benches or move between workstations. Is special software required to use the foot switch? The Microtech MDS app for Windows is required to access the device’s memory‑save and zero‑setting functions; basic switch operation via simple USB input may be possible where a host application recognises generic input events. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

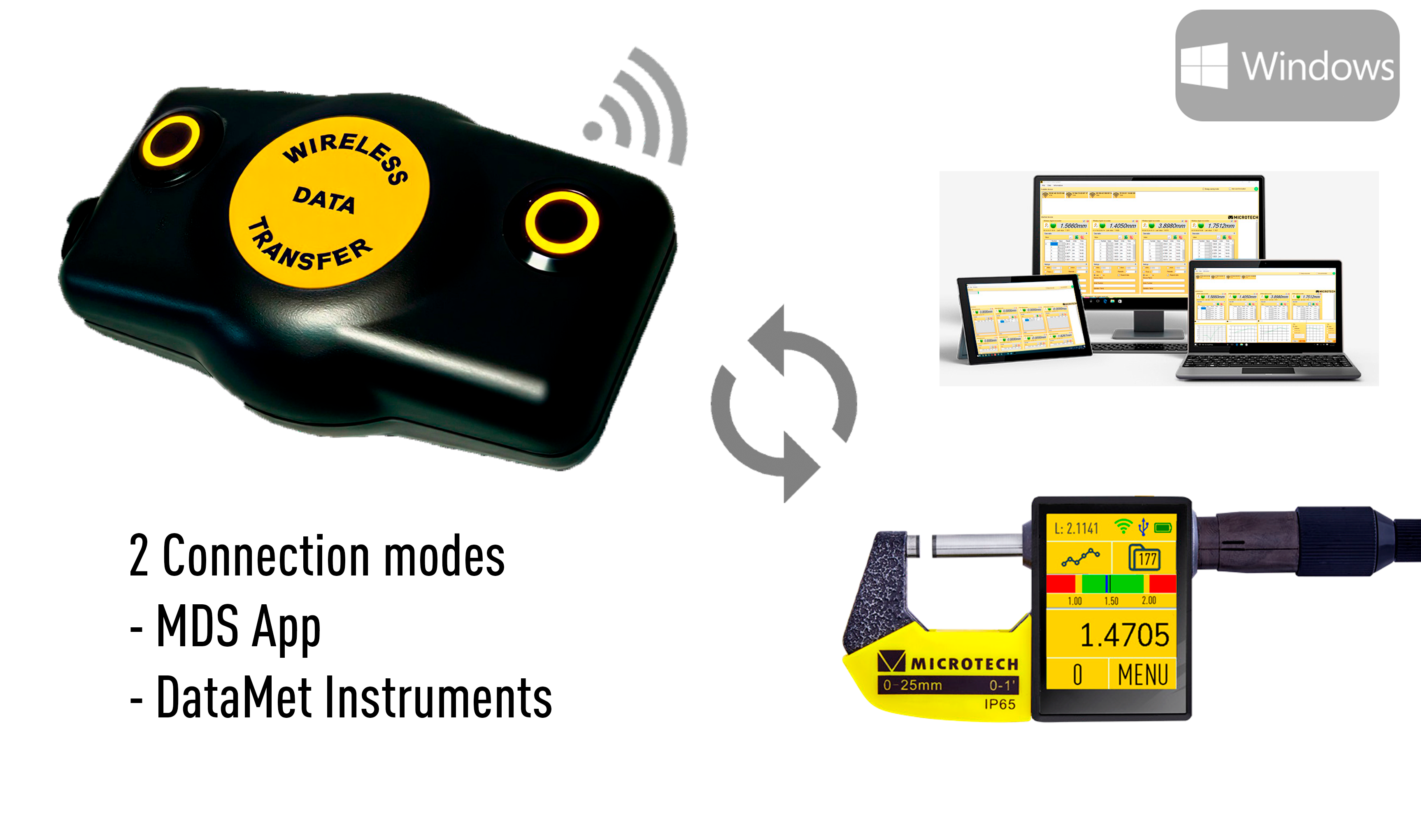

Take advantage of robust wireless data capture combined with IP67 protection and a rechargeable Li‑Pol battery for uninterrupted workflow control; the compact two‑button layout enables quick ZERO setting and direct data saving to instrument memory or the MDS app. Order the unit via Metav Werkzeuge or consult our specialists for integration advice. DataMet Mobile Button IP67 — Wireless control unit with IP67 protection and rechargeable battery (Microtech Metrology) DataMet Mobile Button IP67 is a compact wireless control unit for simple ZERO setting and reliable data transfer with Microtech instruments and the MICROTECH MDS app for WINDOWS. Wireless connection to Microtech instruments IP67 waterproof rating for harsh environments Rechargeable Li‑Pol 500 mAh battery Two‑button control with LED status indication Keep measurement workflows error‑resistant and auditable The compact mobile control unit integrates wireless operation and direct data logging to provide consistent traceability for repetitive measurement tasks. Using the device, operators may perform a ZERO setting at the workpiece and immediately save data either to the instrument’s internal memory or to the MDS app for WINDOWS, reducing manual transcription and the risk of input errors. The clear LED status indications communicate successful synchronisation, battery state and connection status, which supports faster decision cycles and fewer interrupted operations. Designed for harsh workshop conditions and continuous use With an IP67 rating and a sealed construction, the control unit resists dust ingress and temporary immersion, making it suitable for production floors and maintenance environments. The built‑in Li‑Pol battery (500 mAh) provides a rechargeable power source housed in a compact enclosure (75 x 50 x 30 mm) that weighs only 0.15 kg, allowing flexible placement as a handheld stick or fixed desktop panel. These characteristics help maintain measurement availability even when the workplace is exposed to coolant spray, workshop dust or frequent handling. Flexible form factors and custom configuration options Available as a mobile two‑button stick or as a desktop two‑button panel, the device adapts to bench, machine or gauging‑station setups. The simple two‑button operation focuses on the most frequent functions — ZERO and data transfer — so training time is minimised and cycle times are shortened. Custom functions can be commissioned on request, enabling adaptation to specific logging routines or bespoke digital workflows without complex hardware changes. Practical integration for metrology and production environments The unit connects wirelessly to Microtech instruments and synchronises with the MICROTECH MDS app for WINDOWS, enabling central data collection and archiving for quality records. This integration supports standardised measurement routines, allowing consistent measurement protocols across operators and shifts. Where audits or batch traceability are required, the direct saving to instrument memory or to the MDS application simplifies compliance and data retrieval for quality control. For procurement or technical integration of the DataMet Mobile Button IP67, contact Metav Werkzeuge in Emmerich for tailored advice and ordering assistance via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: 299900012 Product: DATA BUTTONS DataMet IP67 Manufacturer: Microtech Metrology Facts Buttons: 2 Button size: 10 mm Dimensions: 75 x 50 x 30 mm Weight: 0.15 kg Battery: Li‑Pol 500 mAh Special features Protection: IP67 waterproof Functions: ZERO setting; save data to instrument memory or MDS app for WINDOWS Connectivity: Wireless connection to DataMet MICROTECH instruments LED status indication Versions: Mobile 2‑button stick; Desktop 2‑button panel Custom functions: available on request FAQ How does the wireless data saving work with this control unit? The control unit pairs with Microtech instruments and can save measurement values directly to the instrument’s memory or synchronise with the MICROTECH MDS app for WINDOWS for central logging and archiving. Can the device be used in wet or dusty production areas? Yes; the DataMet Mobile Button IP67 is built to IP67 standards, which protects against dust ingress and temporary immersion, making it suitable for demanding workshop conditions. What power source does the unit use and how is battery status communicated? The unit contains a rechargeable Li‑Pol 500 mAh battery; battery condition and connection status are shown by the LED status indicators for clear runtime management. Are there different versions for bench and handheld use? The product is offered as a mobile two‑button stick and as a desktop two‑button panel, allowing selection according to the installation and operator requirements. Can the control unit be customised for special measurement workflows? Custom functions are available on request, enabling adaptation of button behaviour and data flow to specific measurement routines and integration scenarios. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Take advantage of an out-of-the-box data-collection solution that combines easy deployment, reliable autoconnection and synchronised measurement logging for smoother inspection routines; order directly via Metav Werkzeuge or consult the specialists for deployment advice. MDS Connection Set – data-collection accessory set with ready configuration and synchronisation The MDS Connection Set is an accessory kit designed to enable straightforward data collection and zeroing with Microtech metrology instruments, intended for integration into laboratory and workshop measurement workflows. Ready data-collection solution from the box Autoconnection and synchronised data reading Includes USB dongles and 1m connection cables Optional DataMet buttons and footswitch support Faster, more reliable data capture for quality control The connection kit is built to reduce manual steps in measurement acquisition: the bundled Windows application and device interfaces turn instrument readings into immediately usable data, eliminating repetitive transcription. By using the MDS 5.5 PRO software together with the hardware set, laboratories and shopfloors gain a repeatable data flow that reduces documentation errors and shortens inspection cycles. This increases throughput without compromising traceability or auditability. Plug-and-play networking that minimises setup time Automatic device pairing and persistent link management mean fewer interruptions during measurement campaigns. The set contains the essential interface hardware for rapid installation, enabling autoconnection and file synchronisation across the collection chain. Support for multiple simultaneous links maintains workflow continuity when several gauges are read in sequence, improving operational uptime and scaling easily with existing processes. Hands-free controls to keep operators productive Integration options for DataMet buttons and a footswitch allow zeroing and data capture without returning to the PC, which is particularly useful during fixtures or where both hands are occupied. This ergonomic function speeds repetitive tasks and reduces handling errors, translating into fewer rejects and less rework. The accessory approach supports both bench and production environments where consistent operator technique matters. Scalable package that fits existing metrology fleets The set is optimised as a pragmatic entry point for automated data capture: a compact hardware bundle with the MDS 5.5 PRO application provides a cost-effective route to digital measurement logging. Its design supports staged roll-out, from a single workstation to a multi-device arrangement, and integrates with Microtech instruments for standardised zero setting and synchronisation. For organisations seeking dependable results, the accessory kit offers measurable gains in data integrity and process efficiency. Contact Metav Werkzeuge today for tailored advice on integrating the Microtech Metrology MDS Connection Set into existing measurement processes and to arrange supply from Emmerich—email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 299110810 GTIN: 4061905452673 Manufacturer: Microtech Metrology Facts Pieces per set: 5 USB dongles (PRO): 2 Connection cables (1 m): 2 Maximum connections supported: 10 Special features Ready data collecting solution from box MDS 5.5 PRO app for Windows Autoconnection and synchronisation of readings Zero setting support for instruments Optional DataMet buttons and footswitch for control FAQ What instruments can be used with this accessory set? The accessory set is intended for use with Microtech Metrology instruments and provides the interface and software required for data capture and zero setting. Is the MDS 5.5 PRO application included and which platform does it require? Yes, the MDS 5.5 PRO Windows application is part of the solution and is required to manage connections and synchronise measurement data. Can several gauges be connected at the same time? The set supports a multi-connection setup and is specified to manage up to ten simultaneous connections for coordinated data collection. Are there hands-free options for triggering measurements? Yes, the package supports optional DataMet buttons and a footswitch to enable hands-free zeroing and capture during measurement tasks. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Take advantage of a ready-to-run data-collection solution that combines autoconnection, rapid synchronisation and portable hardware for efficient workshop integration; the kit includes multiple USB dongles and an IP67-rated DataMET unit for robust on-site operation. Order the set directly via Metav Werkzeuge or ask our consultants if needed. Microtech Metrology MDS PRO Accessory Set — ready data-collection kit with USB dongles and DataMET IP67 The Microtech Metrology MDS PRO Accessory Set is a preconfigured collection of hardware and software designed to capture and synchronise measurement data from Microtech instruments in both workshop and laboratory environments. Ready-to-run data-collection kit Autoconnection and synchronised reading Includes DataMET IP67 2-button unit Up to 18 simultaneous connections Faster, more reliable data capture for everyday metrology The kit is presented as a ready-to-run solution that reduces setup time and minimises manual handling of measurement results. With the included MDS 5.5 PRO app for Windows and a set of USB dongles, the solution supports automatic device detection and continuous synchronised reading, which lowers transcription errors and streamlines traceability. This rational advantage translates into fewer interruptions during production checks and a measurable uplift in data consistency for routine quality control. Seamless networked operation across multiple instruments Designed for multi-device workflows, the accessory set provides hardware for distributed data collection and a robust connection strategy: autoconnection routines, a waterproof DataMET IP67 2-button interface and footswitch options for hands-free capture. The system supports a high number of endpoints — up to 18 connections — enabling consolidated logging from various gauges and instruments without additional bespoke integration work. For procurement officers and workshop managers, this means reduced integration time and a predictable roll-out path. Practical benefits in workshop and lab use Beyond raw connectivity, the set emphasises usability and durability. The included 1 m cables and multiple dongles permit flexible station layouts, while the IP67-rated input device withstands harsher environments where splash resistance matters. Optional DataMet buttons and a footswitch enable ergonomic operation during repetitive tasks, and the zero-setting capability simplifies reference procedures. For teams seeking to modernise measurement routines, the kit offers a cost-effective route to digital data capture without complex IT overhead. For a tailored discussion of how the Microtech Metrology MDS PRO Accessory Set can be deployed in a specific production environment, contact Metav Werkzeuge for expertise and fast delivery from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: 299110840 GTIN: 4061905452680 Manufacturer: Microtech Metrology Set: Accessory set Facts USB dongles (PRO): 3 Cables (1 m): 3 DataMET IP67 (2-button): 1 Maximum connections: 18 Special features MDS 5.5 PRO app for Windows Ready-to-run data-collection solution Autoconnection and synchronised reading Optional DataMet Buttons and footswitch Zero-setting function FAQ What is included in the accessory set? The accessory set contains three USB dongles (PRO), three 1 m cables and one DataMET IP67 2‑button unit, together with the configuration files for the MDS 5.5 PRO application. Can the kit collect data from multiple instruments at once? Yes, the system supports up to 18 simultaneous connections and is intended for consolidated data capture across multiple Microtech metrology instruments. Is the DataMET interface suitable for workshop use? The DataMET IP67 2-button unit is splash-resistant and built for rugged conditions, making it suitable for demanding workshop environments where durability is required. Which software is used to manage the collected data? Measurement data are managed via the MDS 5.5 PRO app for Windows, which handles autoconnection, synchronised reading and basic data routing for downstream processing. Microtech Metrology: Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

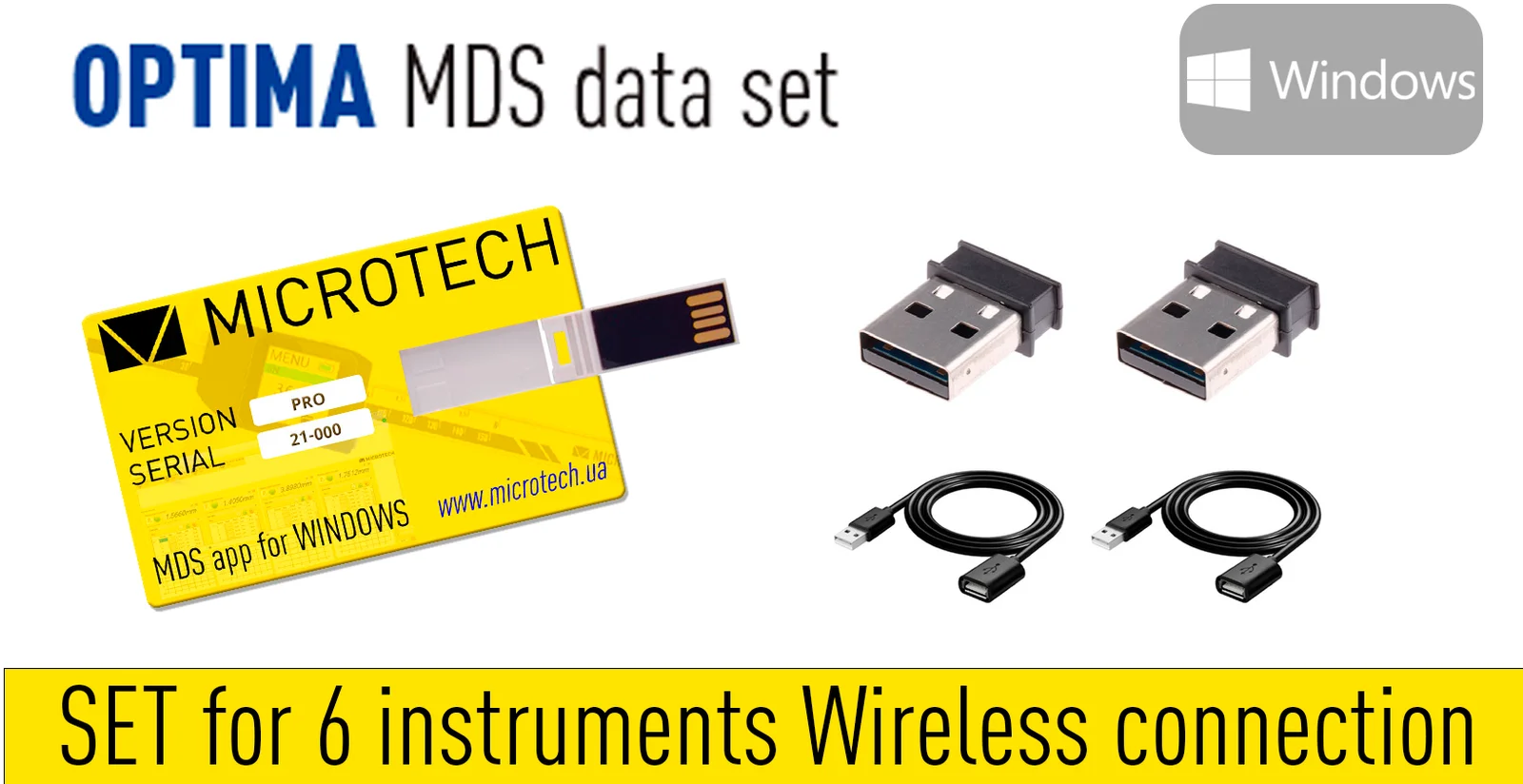

Take advantage of a ready-to-use data-collection solution that combines MDS 5.5 software, autoconnection and reliable zero setting to streamline measurement logging. Benefit from included USB dongles and cables together with support for up to six simultaneous connections; order the kit directly via Metav Werkzeuge or contact their consultants for tailored advice. OPTIMA MDS data set – Data-collection kit with MDS 5.5 and multi-device support (Microtech Metrology) The OPTIMA MDS data set is a compact, ready-to-deploy solution for collecting measurement data from Microtech instruments, offering automated connection management and zero setting for efficient workshop and laboratory workflows. Ready data-collection kit with MDS 5.5 app Autoconnection and synchronised data reading Includes two USB dongles and two 1 m cables Supports up to six simultaneous connections Faster, more reliable measurement logging for production environments The kit centres on the MDS 5.5 Windows application and a preconfigured interface that enables rapid data collection from compatible instruments. Automated device discovery and autoconnection reduce setup time and minimise manual errors during batch work or repetitive checks. The built-in zero setting function ensures repeatable reference points across series measurements, so traceable results are produced with less operator interaction. This focus on process reliability supports throughput without compromising measurement integrity. Flexible connectivity that adapts to mixed instrument fleets Connection options in the set include USB dongles, standard USB cabling and configurable connection modes designed for mixed Microtech instrument environments. The system permits up to six simultaneous device links, allowing consolidated readout of gauges, calipers or other digital measuring heads. Synchronous data reading keeps values current across sessions, enabling downstream systems to receive organised measurement records and simplifying quality-control routines on the shop floor. Ergonomic operation and optional hands-free controls Operator workload is reduced by automatic synchronisation and optional accessories such as DataMet Buttons and a footswitch for remote data capture and zero setting. These options promote safer and quicker measurement cycles, especially when handling small or delicate parts. By limiting manual keystrokes and offering simple physical triggers, the solution improves repeatability and lowers the chance of transcription errors during high-rate inspection tasks. Ready for integration and everyday workshop use Delivered as a complete package, the set is intended to be operational straight from the box with the MDS software installed for Windows. The result is a practical entry point for digital measurement workflows that supports standard quality-control tasks and can be incorporated into existing documentation routines. Clear, synchronised outputs are suited to traceable record keeping and to feeding measurement data into production reports or inspection logs. For integration advice or to place an order for the Microtech Metrology OPTIMA MDS data set, contact Metav Werkzeuge in Emmerich for personalised guidance and procurement support at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 299110506 Label: OPTIMA MDS data set Manufacturer: Microtech Metrology Facts Maximum connections: 6 USB dongles: 2 Cable length: 1 m (2 pieces) Application: MDS 5.5 Standard app for Windows Special features Ready data-collecting solution from the box Autoconnection and data reading synchronising Zero setting capability included Connection modes configurable Optional DataMet Buttons and footswitch for data capture FAQ How many devices can be connected at the same time? The OPTIMA MDS data set supports up to six simultaneous connections for consolidated data capture. Is the MDS software compatible with standard Windows PCs? Yes, the MDS 5.5 Standard application is designed for Windows and is supplied as part of the kit for immediate use. Are hands-free controls available for the system? Optional accessories such as DataMet Buttons and a footswitch can be used with the OPTIMA MDS data set to enable hands-free data capture and zero setting. What is included for cabling and dongles? The set includes two USB dongles and two one-metre USB cables to connect instruments and host PCs. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

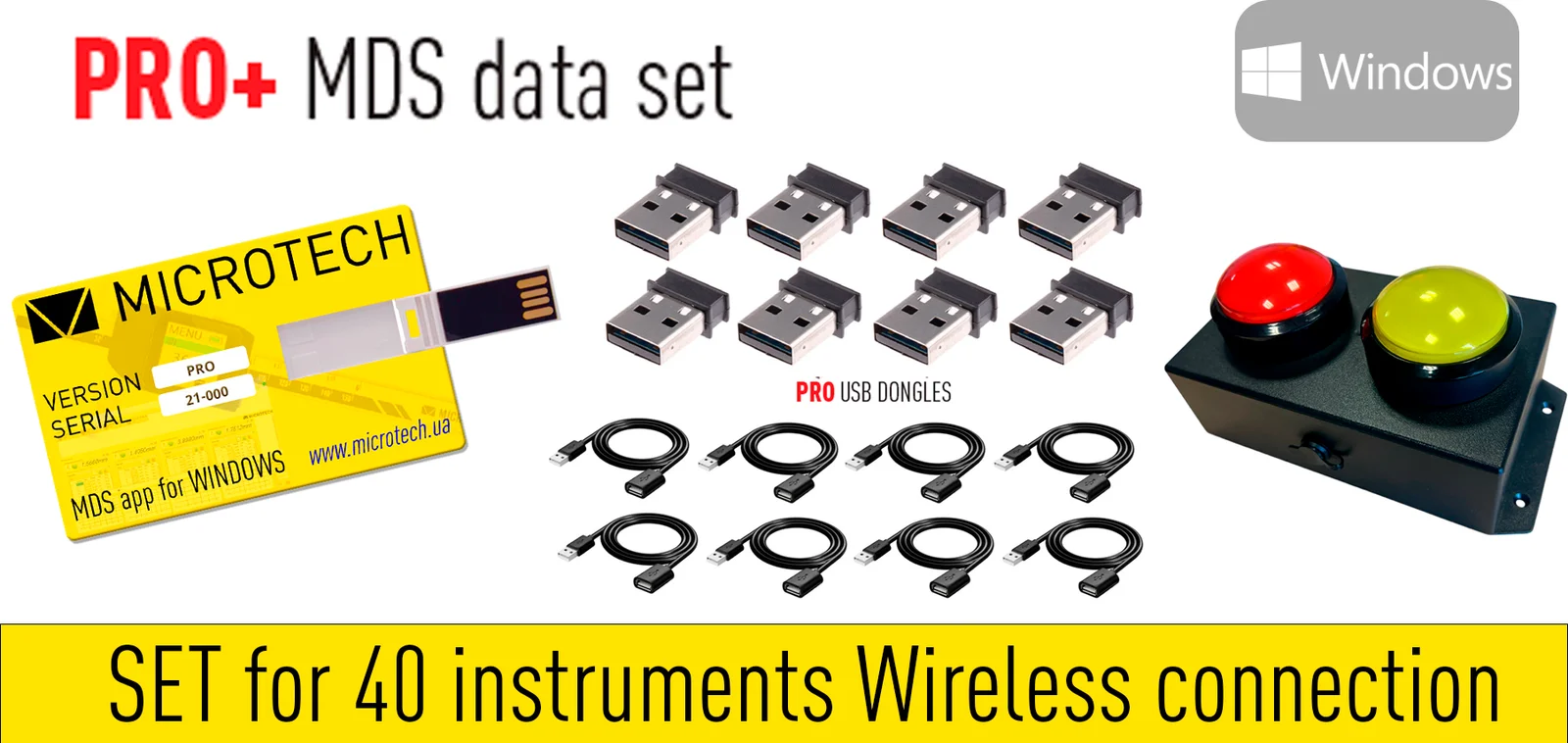

Benefit from a ready-to-use data-collection solution that combines autoconnection, synchronisation and hands-free capture options to speed up measurement workflows; the kit supports up to 40 simultaneous connections and is available through Metav Werkzeuge for rapid deployment. PRO-DESK MDS data set — Data-collection kit with MDS 5.5 PRO and multi‑connection capability (Microtech Metrology) The PRO-DESK MDS data set is a compact, ready-to-use data acquisition solution for Microtech instruments, designed for Windows-based environments and optimised for synchronised multi-device measurement. Ready out-of-box data collection Autoconnection and synchronisation Includes MDS 5.5 PRO for Windows Supports up to 40 simultaneous connections Faster, more reliable capture through automated connection and synchronisation Modern shopfloors demand error-free, traceable measurement data; the connection set delivers this by providing autoconnection and robust synchronisation between instruments and the host application. By removing repeated manual copying and by enabling a consistent zero setting, the system reduces transcription errors and shortens cycle times. The result is smoother data flow from the measuring point to quality records, with clear benefits for process reliability and throughput thanks to the kit’s capability to handle 40 connections concurrently. Complete kit designed for immediate integration and hands-free operation The package contains the MDS 5.5 PRO application for Windows together with the hardware required for a rapid start: USB dongles (PRO) (8), eight 1 m cables, and one DataMet Desktop Button. Optional accessories such as additional DataMet Buttons and a footswitch provide hands-free data capture and allow zeroing without interrupting the operator’s workflow. Because the set is supplied as an out-of-box solution, installation and initial configuration focus on adapting connection modes and device mapping rather than assembling disparate components, which accelerates commissioning. Scalable integration that centralises measurement data and improves workflow Integration with Microtech instruments is implemented to keep the measurement chain short and auditable: the system collects readings directly from the instruments, synchronises the data stream and supports multiple connection modes for flexible deployment. For production and inspection environments this centralised approach enables consistent reporting, simplified downstream processing and fewer lost readings. The connection set acts as a compact data acquisition centre that scales from small benches to larger test stations while preserving a clear audit trail for quality documentation. Discuss configuration and delivery with Metav Werkzeuge in Emmerich — contact info@metav-werkzeuge.com or call +49 2822 7131930 to tailor the PRO‑DESK MDS data set to your measurement setup Technical data Article number: 299110860 Product: PRO-DESK MDS data set Manufacturer: Microtech Metrology Core specifications USB dongles (PRO): 8 Cables (1 m): 8 DataMet Desktop Button: 1 Maximum connections: 40 Special features MDS 5.5 PRO app for Windows Collects data from Microtech instruments and zero setting Autoconnection and data reading synchronisation Connection modes for flexible deployment Optional DataMet Buttons and footswitch Ready data-collecting solution from the box FAQ Which instruments are supported by the connection set? The kit collects data directly from Microtech instruments; the PRO‑DESK MDS data set (SKU 299110860) is engineered to interface with Microtech measurement devices and to centralise their outputs in the MDS 5.5 PRO application. How many devices can be connected at the same time? The system supports up to 40 simultaneous connections, allowing multiple benches or instruments to be linked for consolidated data capture and synchronisation. What components are included in the package? The PRO‑DESK MDS data set includes the MDS 5.5 PRO Windows application, 8 USB dongles (PRO), eight 1 m cables and one DataMet Desktop Button as standard; additional DataMet Buttons and a footswitch are available as options. Is hands-free data capture possible with this solution? Yes; the kit supports optional DataMet Buttons and a footswitch to trigger data capture and zero setting without interrupting the operator’s activity. Is the solution ready for immediate use after delivery? Yes; the PRO‑DESK MDS data set is supplied as a ready-to-use package, with autoconnection and synchronisation designed to reduce setup time and to speed initial commissioning. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Datenübertragung

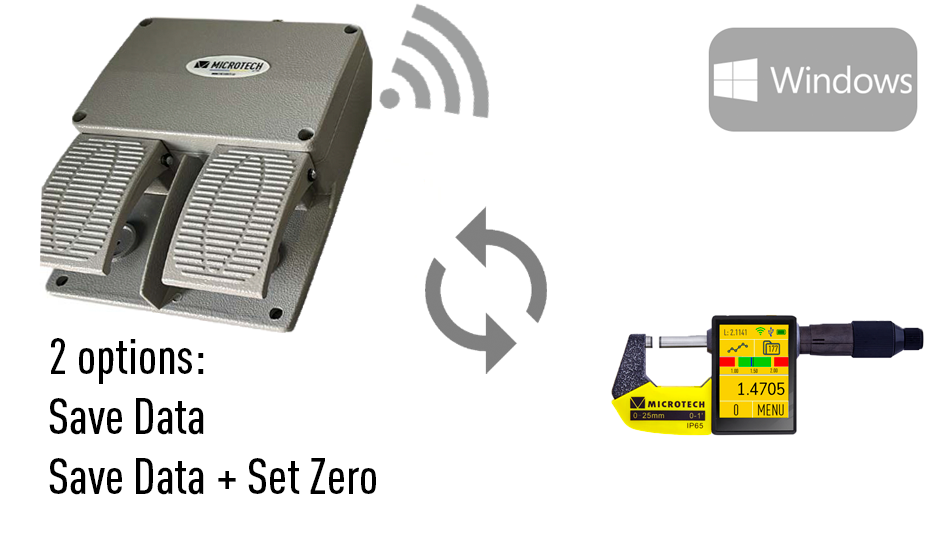

Combine hands-free zeroing with secure data saving and a compact, rechargeable power source for uninterrupted measurement cycles; take advantage of the multifunction connectivity and built‑in 500 mAh Li‑Pol battery and order the DataMet FOOTSWITCH Double Touch directly via Metav Werkzeuge or ask our consultants if needed DataMet FOOTSWITCH Double Touch — multifunction footswitch with rechargeable battery (Microtech Metrology) The DataMet FOOTSWITCH Double Touch is a compact pedal controller designed to perform hands‑free zeroing and data saving for DataMet Microtech instruments and the MICROTECH MDS app on Windows, ideal for measurement benches and production stations Multifunction connection to DataMet instruments One‑ or two‑button operation Built‑in rechargeable 500 mAh Li‑Pol battery LED status indication and Windows MDS sync Hands‑free zeroing and reliable data capture for faster inspection The pedal delivers direct control for zeroing and immediate data saving to measurement devices, reducing cycle times on repetitive tasks. Designed for seamless integration with DataMet instruments and the Windows MDS app, the controller allows automatic recording of results into instrument memory or synchronisation with the desktop application. This setup streamlines traceable workflows and reduces manual transcription errors, improving throughput while preserving data integrity. Compact power and clear operational feedback for uninterrupted shifts With a built‑in Li‑Pol 500 mAh rechargeable battery, the unit removes reliance on external cabling and simplifies workstation layout. The compact footprint (120 x 90 x 40 mm) and low mass (0.2 kg) make it easy to position beside measuring equipment without obstructing operators. LED status indication provides an immediate visual confirmation of readiness and successful saves, allowing staff to keep focus on the workpiece rather than on peripheral checks. Flexible control options and custom functions to suit processes Available in one‑button or two‑button variants, the pedal supports straightforward operation patterns — single action for zeroing or dual action for zeroing plus save — and can be adapted with custom functions on request. Connectivity is engineered for reliable communication with DataMet instruments and the MICROTECH MDS app on Windows, enabling both local memory saves and synchronised data transfer to the software for centralised record‑keeping. Customisation allows the device to match specific test routines or integration requirements. Built for industrial benches and repetitive measurement tasks The design focuses on robust daily use: a tactile pedal action lowers operator fatigue and keeps hands free for part handling, while the compact enclosure resists workshop clutter. By moving routine commands to a foot controller, cycle reliability improves and process consistency is enhanced — a rational upgrade for assembly lines, quality control stations or calibration benches that demand repeatable results. Integration with existing DataMet ecosystems preserves investment in current metrology hardware. For tailored advice or to order the Microtech Metrology footswitch, contact Metav Werkzeuge in Emmerich for product matching and configuration: info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: 299900022 Label: DataMet FOOTSWITCH Double Touch Manufacturer: Microtech Metrology Facts Battery capacity: 500 mAh Dimensions: 120 x 90 x 40 mm Weight: 0.2 kg Special features Function: ZERO and saving data Connectivity: DataMet instruments; MICROTECH MDS app (Windows) Operation: 1-button or 2-button versions LED status indication Built‑in rechargeable Li‑Pol battery Custom functions available on request FAQ How does the pedal perform a zeroing operation? The pedal sends a zero command to the connected DataMet instrument; the DataMet FOOTSWITCH Double Touch triggers the instrument to set the current position as the reference and can save that value into instrument memory. Can the device save measured values directly to the MICROTECH MDS app? Yes — the footswitch supports synchronisation and data saving to the MICROTECH MDS app on Windows, enabling direct transfer from the controller to the software for logging and analysis. Is there an option for two separate functions on different buttons? A two‑button version is available and configured so that one button can perform zeroing while the other triggers data saving, or alternate custom mappings can be specified on request. What are the physical dimensions and weight of the controller? The unit measures 120 x 90 x 40 mm and weighs approximately 0.2 kg, making it suitable for compact workstations. Is the battery replaceable or rechargeable only? The device is supplied with a built‑in rechargeable Li‑Pol 500 mAh battery for cordless operation; for specific service or replacement options, consult the product documentation. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

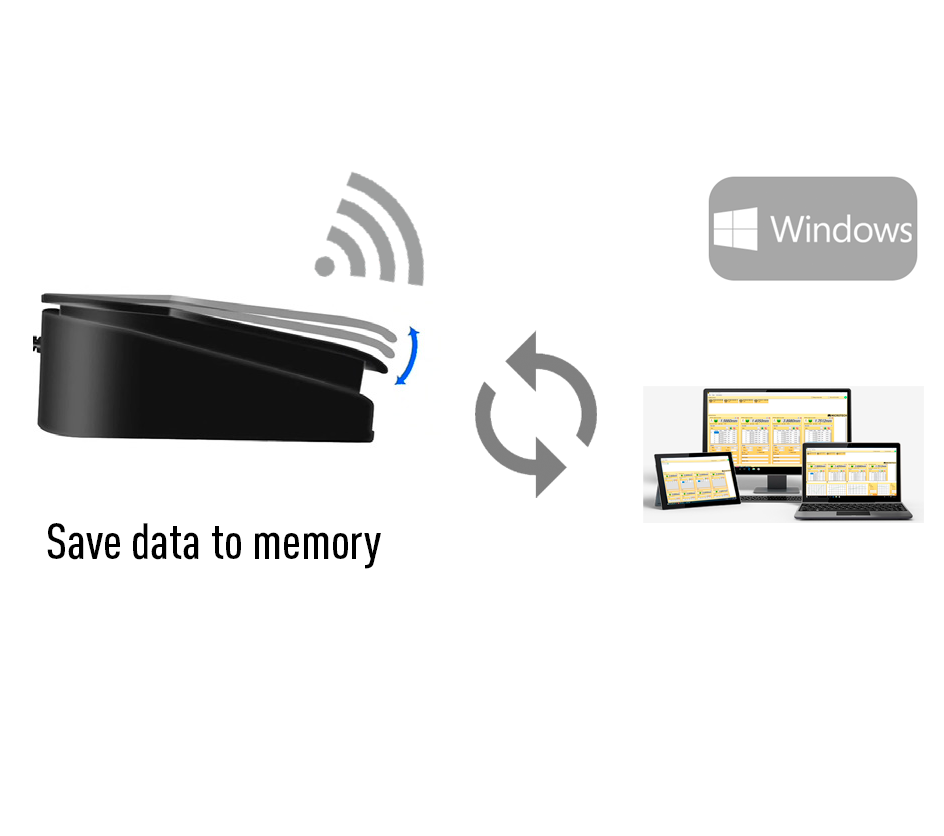

Take advantage of a compact control unit that combines single‑step zeroing, reliable data saving and a rechargeable power source to streamline measurement routines; order the DataMet FOOTSWITCH One Touch directly via Metav Werkzeuge or consult our specialists for application advice. DataMet FOOTSWITCH One Touch — Hands‑free data capture footswitch with Li‑Pol power (Microtech Metrology) The DataMet FOOTSWITCH One Touch is a sturdy footswitch for Microtech DataMet measuring instruments and the MDS Windows app, designed to perform zeroing and to save measurement data directly to the instrument memory or to the MDS software One- or two-button configuration Built‑in rechargeable Li‑Pol 500 mAh Single-step zeroing and data saving Compact 60×60×20 mm footprint Streamlined capture to reduce process steps The footswitch enables single‑step workflows: press the pedal to perform zeroing or to transmit and store a measurement, removing the need for manual entry and lowering the risk of transcription errors. Integration with Microtech instruments and the MDS Windows application allows measured values to be synchronised directly with device memory or with the PC software, supporting efficient data collection in production and quality control. The clear LED status indication provides immediate visual confirmation of connectivity and action, helping to keep throughput steady. Compact, rechargeable design for continuous use With a built‑in rechargeable Li‑Pol 500 mAh cell and a small footprint of 60 × 60 × 20 mm, the unit fits tidy workstations while offering dependable portable power. The rechargeable battery removes the need for disposable cells and simplifies logistics in workshops where uninterrupted operation matters. The low weight and rugged casing make the switch easy to position near benches or machine controls; maintenance is straightforward and downtimes are minimised thanks to the internal charging option. Flexible integration and custom options for specialised workflows Available as a one‑button or two‑button variant, the footswitch can be tailored to simple or multi‑function tasks. Standard operation covers zeroing and data saving to either the instrument memory or the MDS software on Windows, while custom functions can be implemented on request to match particular measurement sequences or automation steps. The unit’s role as a hands‑free input device makes it especially suitable where operator focus and safety are priorities, such as machining centres or assembly lines. For hands‑free data capture with Microtech Metrology instruments, contact Metav Werkzeuge for tailored supply and technical advice by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: 299900021 Name: DataMet FOOTSWITCH One Touch Brand: Microtech Metrology Facts Battery capacity: 500 mAh Dimensions: 60 x 60 x 20 mm Weight: 0.2 kg Buttons: 1 or 2 Special features Connects to DataMet instruments and MDS app for Windows Functions: zero value and save data to instrument memory or app LED status indication Built‑in rechargeable Li‑Pol battery Custom functions available on request FAQ Is the footswitch compatible with all Microtech DataMet instruments? Compatibility depends on the instrument interface; the DataMet FOOTSWITCH One Touch is designed to connect with Microtech DataMet devices and to synchronise with the MDS Windows app as specified by Microtech Metrology What actions can be triggered by the footswitch? Standard actions are zeroing and saving measured values; additional control sequences can be configured as custom functions for specialised applications Does the unit require external power while operating? The footswitch uses an internal rechargeable Li‑Pol 500 mAh battery and does not require constant external power during normal use Are there variants with different button counts? Yes, the device is offered in one‑button and two‑button configurations to support both single‑action and dual‑action workflows Can the LED status be used to verify data transfer? The LED indicates connection and operation status, providing quick visual confirmation that a zero or save command has been issued Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

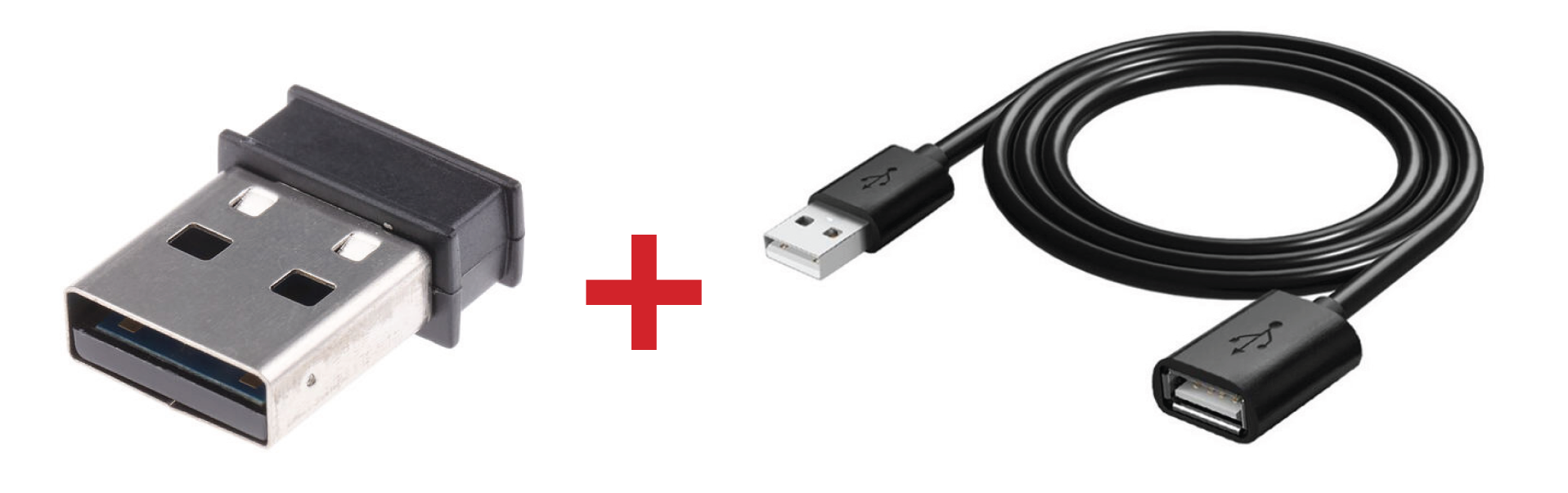

Take advantage of the PRO edition for reliable multi‑instrument networking and the option of a 1 m cable extension for flexible setup; the dongle connects Microtech instruments to the Microtech MDS app on Windows and supports up to 8 simultaneous connections. Order the accessory through Metav Werkzeuge or ask our consultants for compatibility advice. USB Dongle — PRO for Windows, Microtech MDS connectivity, up to 8 connections The USB Dongle is a compact interface designed to link Microtech measuring instruments to the Microtech MDS app on Windows, providing stable, plug‑and‑play data transfer and device networking for workshop and lab environments PRO edition supports up to 8 connections Designed for Microtech MDS app on Windows Optional 1 m cable extension available Plug-and-play USB connection for instruments Stable multi-device connection for consistent data flow The PRO variant offers a robust solution for synchronising several measuring devices at once, supporting up to 8 simultaneous connections for concurrent data capture. As a dedicated interface for the Microtech MDS app, the dongle reduces manual transfer steps and streamlines inspection routines; this leads to fewer transcription errors and faster reporting. The hardware is intended for straightforward integration with standard PC setups, delivering reliable data transfer across measurement sessions and helping to maintain consistent throughput on the shop floor. Simplified setup and compatible cabling for flexible layouts Compatibility is intentionally focused: the interface is made for the Microtech MDS app on Windows and is not configured for iOS, macOS, Android or HID modes. A 1 m cable extension is available as an option to bridge short distances between instruments and a workstation, enabling tidier bench layouts and easier positioning of measurement tools. The plug‑and‑play character of the device keeps installation time to a minimum, which is beneficial in production environments where setup speed and repeatability are priorities. Scalable workflow improvements for small labs and production cells Using a dedicated USB interface to collect measurement data centrally supports traceable digital records and faster analysis. The PRO edition's multi‑connect capability is particularly useful when several gauges or sensors must be monitored together; this reduces the need for staggered measurements and allows quality checks to be performed more efficiently. For workshops investing in digital measurement workflows, the accessory enables a step towards connected inspection without extensive system changes. Arrange supply of the Microtech PRO USB Dongle via Metav Werkzeuge in Emmerich for prompt dispatch, or speak with Metav’s consultants on +49 2822 7131930 or info@metav-werkzeuge.com for tailored compatibility guidance Technical Data Article number: 299190002 GTIN: 4061905452086 Brand: Microtech Metrology Core data Version: PRO (max 8 simultaneous connections) Compatibility: Microtech MDS app (Windows only) Connection: USB Cable extension: optional 1 m Special features STANDARD version available (max 3 connections) Not compatible with iOS, macOS, Android or HID modes Intended exclusively for use with the MDS app for Windows FAQ What does the PRO designation mean for the USB Dongle? The PRO version of the USB Dongle from Microtech Metrology supports up to 8 simultaneous connections, enabling multiple instruments to be linked to the Microtech MDS app on Windows. Can the dongle be used with macOS or mobile devices? No, the interface is designed for the Microtech MDS app on Windows and is not compatible with macOS, iOS, Android or general HID modes. Is a longer cable available for flexible placement of instruments? Yes, an optional 1 m cable extension is offered to increase the connection distance between instruments and the PC running the MDS app. How does the PRO version differ from the STANDARD edition? The PRO edition permits up to 8 connections, while the STANDARD edition supports up to 3 connections, allowing selection based on the scale of the measurement setup. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Take advantage of stable wireless data transfer and the option to connect multiple measuring instruments simultaneously; the Microtech Metrology USB Dongle ensures reliable integration with the Windows MDS application and includes a 1 m MDS USB extension cable. Order the adapter directly via Metav Werkzeuge or consult Metav's specialists for configuration advice. Microtech Metrology USB Dongle – wireless MDS interface, up to 50 m range A USB Dongle for secure wireless connection of Microtech measuring instruments to the MDS application on Windows, suitable for indicators, calipers, micrometers and bore gauges. Wireless MDS connection up to 50 m Standard: connects up to 3 instruments Pro: connects up to 8 instruments Includes 1 m MDS USB extension cable Reliable wireless data transfer that speeds up inspection workflows The dongle provides a stable and secure data transfer channel between workshop instruments and the Windows MDS application, reducing manual entry and the associated risk of transcription errors. With an operational range of up to 50 m, the adapter supports measurement collection across larger benches or test stations, enabling centralised logging without interrupting production flow. This wireless link is optimised for common metrology tools such as indicators, calipers, micrometers and bore gauges, so data capture becomes a seamless part of established inspection routines. Scalable connectivity to match test-rig requirements Two performance levels accommodate different setups: the STANDARD variant allows simultaneous connection of up to three instruments, while the PRO variant increases capacity to eight devices, making it easier to consolidate several gauges at a single PC. The included 1 m MDS USB extension cable facilitates flexible placement of the receiver on a bench or PC tower for better signal reception. By consolidating instrument outputs into the MDS data stream, throughput is improved and traceability is strengthened without changing measurement habits. Simple integration with focused compatibility and secure operation The adapter is intended exclusively for the MDS software on Windows and is not used with iOS, macOS, Android or HID modes; this focused compatibility avoids unnecessary complexity and ensures predictable behaviour in standardised IT environments. Installation follows a plug-and-play pattern with the MDS application, minimising setup time and training effort. The combination of a purpose-built wireless receiver and Microtech’s proven instrument protocols supports consistent measurement logging and reliable audit trails across recurring inspection tasks. For reliable Windows integration and faster measurement workflows, choose the Microtech Metrology USB dongle from Metav Werkzeuge — contact Metav Werkzeuge in Emmerich for technical guidance and ordering support: info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: 299190001 GTIN: 4061905048005 Brand: Microtech Metrology Category: Data transfer and software Facts Range: up to 50 m Simultaneous connections: Standard 3 / Pro 8 Extension cable length: 1 m Special features Stable and secure wireless data transfer Supports indicators, calipers, micrometers, bore gauges Required only for MDS for Windows; not used with iOS, macOS, Android or HID modes Available in STANDARD and PRO variants Includes 1 m MDS USB extension cable FAQ Which instruments are compatible with the dongle? The Microtech Metrology USB Dongle is compatible with Microtech indicators, calipers, micrometers and bore gauges and integrates their output into the MDS application. What is the effective wireless range of the receiver? The adapter supports wireless communication over distances of up to 50 m under typical workshop conditions. How many instruments can be connected at the same time? The STANDARD dongle supports up to 3 simultaneous connections; the PRO variant supports up to 8 simultaneous connections (Microtech Metrology USB Dongle, SKU 299190001). Is the dongle usable with MDS on macOS or mobile platforms? No — the USB dongle is required only for the MDS software on Windows and is not used with iOS, macOS, Android or any HID modes. Is an extension cable included with the product? Yes — a 1 m MDS USB extension cable is included in the delivery to assist with receiver placement and signal reception. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Datenausgabe

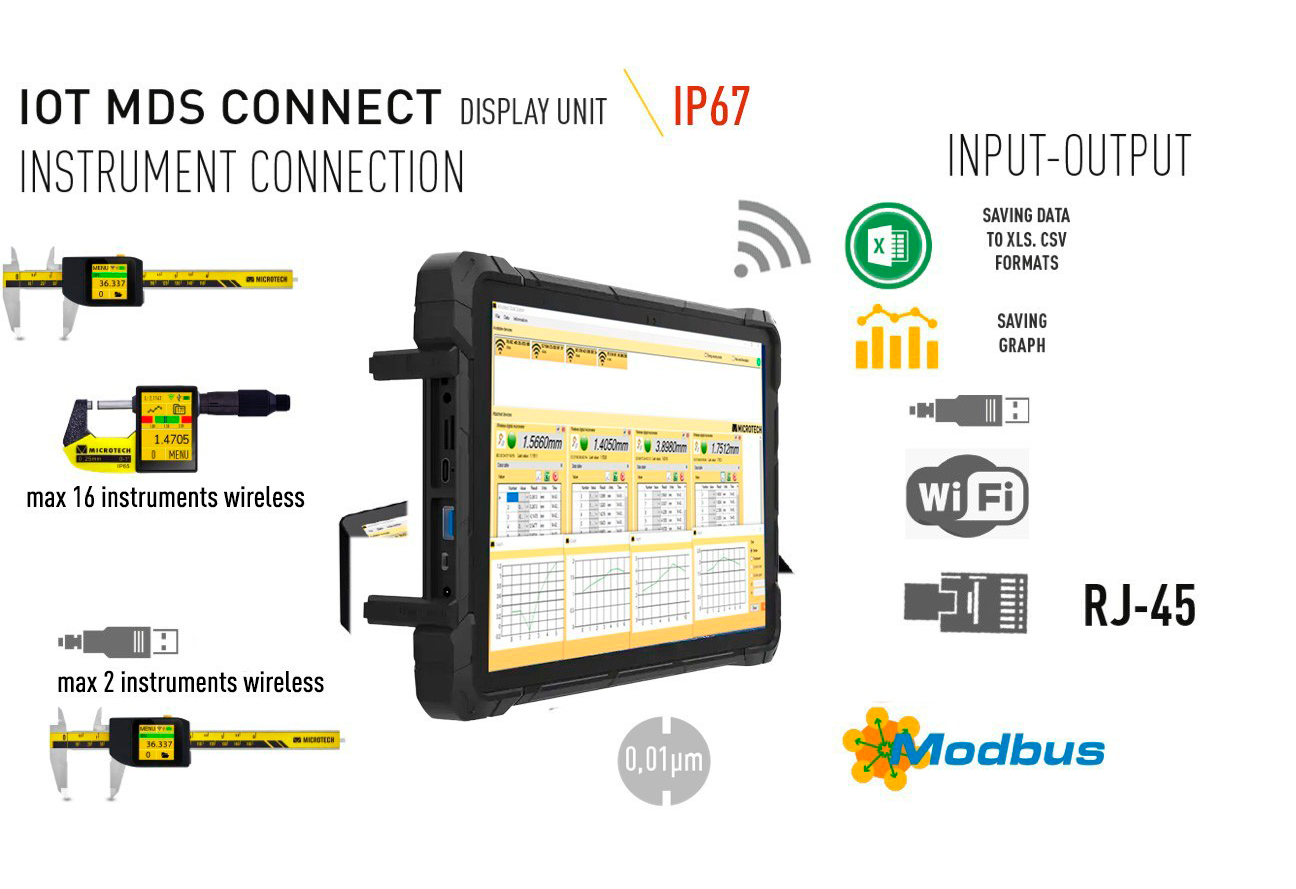

Take advantage of a rugged, shop‑ready data collector that combines IP67 protection with a built‑in Windows 10 tablet and flexible export options; the result is stable data capture, quick integration into existing systems and reduced manual logging. Order the device directly via Metav Werkzeuge or request advice from our consultants for system configuration and deployment. MDS DataMet display unit IP67 – rugged Windows tablet data collector (Microtech Metrology) The MDS DataMet display unit IP67 is a portable, impact‑resistant display and data‑collection platform designed for direct connection to Microtech metrology instruments, enabling on‑the‑fly measurement capture on the shop floor. *IP67 dust and splash protection for harsh environments *Integrated Windows 10 tablet with MDS PRO software *8000mAh battery for extended operation *Exports to csv, xls and pdf plus graphical png output Reliable, protected capture for the production environment The display unit delivers robust data acquisition under demanding shop conditions thanks to its IP67 rating and a capacious 8000mAh rechargeable Li‑Pol battery. These characteristics translate into fewer interruptions during production shifts and a lower risk of data loss when measurements are taken in wet or dusty work areas. The compact construction and light weight (approx. 1.15 kg with a footprint of 280×184×26 mm) make the unit easy to handle, mount or carry between workstations while maintaining the physical resilience expected in industrial settings. Fast instrument integration and seamless data flow to ERP/CAD Equipped with Windows 10 and the MDS PRO application, the system provides automatic device pairing and autoconnection, enabling immediate reading synchronisation from Microtech instruments. Multiple interfaces (wired and wireless), a USB dongle option and standard serial/USB support allow direct export to systems such as Excel, SAP or SolidWorks. Collected values can be saved as csv, xls or pdf, and graphical results exported as png, facilitating rapid inclusion in quality reports or process records and reducing transcription effort. Clear visual feedback and user‑oriented controls for repeatable checks The wide 10" touchscreen (1280×800) displays measurement values alongside graphs and Go/NoGo indicators, making pass/fail decisions visible at a glance. The Graphical mode and 2D‑Graphical mode provide visual traces of measurement trends for immediate interpretation, while user management and configurable resolution selection support controlled inspection routines. Optional footswitches and data‑collection buttons enable hands‑free operation, improving ergonomic handling and consistency across repeated measurements. Designed to fit established workflows and boost productivity Connectivity options including Wi‑Fi, RJ‑45 and RS‑232 ensure compatibility with legacy and modern instruments alike, while the ability to resend data to external apps and a built‑in file editor simplify workflow automation. Multilanguage support and onboard functions such as mm/inch conversion, timers and Go/NoGo checks reduce training time and increase throughput. The device is optimised for efficient data chains: from measurement capture to formatted exports and image saves, it supports traceable, auditable records for production and quality assurance. For a tailored quotation, supply options and integration planning from Metav Werkzeuge in Emmerich, please contact our team to discuss the MDS DataMet display unit IP67 and configuration choices. Technical Data Article number: 299999003 Touchscreen display: 10" (1280x800) Protection: IP67 Platform: Windows 10 / MDS 5.5 PRO Rechargeable battery: Li‑Pol 8000mAh Dimensions (mm): 280×184×26 Weight (kg): 1.15 Facts USB ports: 2 + 1 USB‑HID: 2 Wireless devices: 8 (max 16) USB‑dongles: 1 (optional 8) RS‑232: 1 Multilanguage: 10 languages Touchscreen resolution: 1280×800 Special features Autoconnection Reading synchronizing User manager Foot‑switch connection (wired and wireless option) mm/inch conversion Go/NoGo functions Graphical mode 2D‑Graphical mode Timer Resolution selection Resend to external apps Save data to csv, xls, pdf Save graph as png *.xls, *.csv, *.doc file editor HDMI RJ‑45 Wi‑Fi Card reader App installation support FAQ What protection class does the display unit have? The MDS DataMet display unit IP67 features an IP67 enclosure, providing dust tighting and protection against immersion, which is suited to typical shop‑floor conditions. Which data formats are supported for export? Measurement and graphical outputs from the MDS DataMet system can be exported as csv, xls and pdf files; graphs can be saved as png images for inclusion in reports. Can the unit connect to older instruments with serial interfaces? Yes, the device offers an RS‑232 port in addition to USB and wireless interfaces, ensuring compatibility with legacy measurement equipment. How long does the battery last under typical use? The built‑in 8000mAh Li‑Pol battery is designed for extended operation to minimise interruptions; actual runtime depends on display and wireless usage patterns. Is the MDS software preinstalled and ready for use? The unit ships with MDS PRO on a Windows 10 platform, enabling immediate configuration and data collection once paired with Microtech instruments; optional dongles and footswitches can be added for customised workflows. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

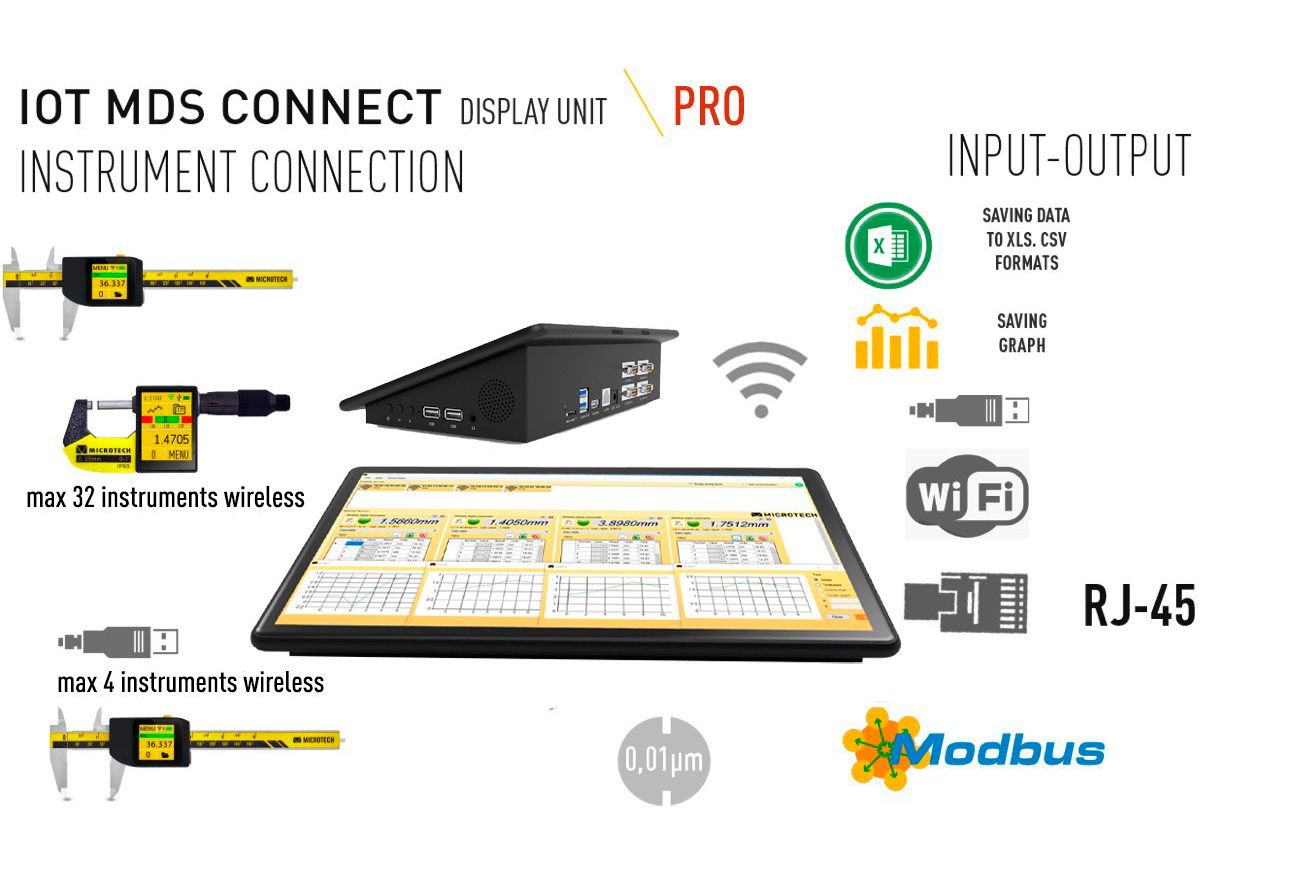

Take advantage of a ready-to-run data-collection station that combines an 11.6" Full HD touchscreen, robust connectivity and flexible export options. The unit’s Windows platform with the MDS PRO app ensures rapid integration with Microtech measuring instruments and direct export to CSV, XLS or PDF for immediate processing — order the MDS DataMet display unit DESKTOP directly via Metav Werkzeuge or consult our specialists for configuration advice. MDS DataMet display unit DESKTOP — Windows-based data-collection display with 11.6" touchscreen (Microtech Metrology) The MDS DataMet display unit DESKTOP is a compact, Windows-based data terminal engineered for production and laboratory environments to collect, synchronise and export measurement data from Microtech instruments. 11.6" Full HD touchscreen display Windows 10 with MDS 5.5 PRO included Multi-protocol wired and wireless connectivity Direct export to csv, xls and pdf formats Streamlined data capture that accelerates inspection cycles The system is delivered as a ready data-collection solution, combining a Windows tablet PC running MDS PRO with a USB dongle for immediate use. This configuration enables automatic device pairing, autoconnection and reading synchronisation so measurement transfers occur reliably without a separate PC or tablet. The result is a measurable reduction in manual entry time and fewer transcription errors, which translates directly into faster inspection throughput and clearer audit trails for quality records. The included software supports user management and Go/NoGo checks to keep repetitive tasks consistent. Broad connectivity and seamless integration with enterprise tools Designed for industrial metrology, the display unit supports multiple physical and wireless interfaces (USB, RS‑232, RS‑485, RJ‑45 and Wi‑Fi) and offers HID modes for peripherals. Data can be exported in csv, xls and pdf formats and sent on‑line to external applications such as Excel, SAP or SolidWorks; export settings (decimal separator, column symbols) are adjustable to match local workflows. A graphical mode and 2D plotting save visual results in PNG format, making trend analysis and reporting straightforward. These capabilities simplify integration into existing production IT and reduce time spent on data conversion. Ergonomic design for shop‑floor reliability Measuring tasks are supported by practical functions such as mm/inch conversion, timer, resolution selection and optional footswitch or button inputs for zeroing and data capture, which maintain operator ergonomics and speed. At 283 × 177 × 73 mm and approximately 1.25 kg, the unit is compact enough for bench or mobile use while still offering a clear 11.6" viewing area for graphs and tables. The compact form factor, combined with multi‑language support, makes it suitable for small inspection stations through to multi‑machine quality cells, helping firms standardise measurement processes across sites. Secure, auditable workflows and adaptable operation The platform supports multiple dongle and wireless connections to interface with several instruments concurrently, enabling centralised collection from several heads or benches. File editing of common office formats is supported directly on the device, and graphical exports allow immediate visual checks without additional software. These features make the device a practical hub for both daily quality control and traceable reporting, bringing industry‑grade data handling within reach of standard workshop teams. Contact Metav Werkzeuge today to discuss Microtech Metrology’s MDS DataMet display unit DESKTOP, confirm compatibility with specific gauges and systems, or request a tailored configuration; Metav Werkzeuge can be reached at info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: 299999001 Label: MDS DataMet display unit DESKTOP Manufacturer: Microtech Metrology Facts Touchscreen: 11.6" (1920 × 1080) Platform: Windows 10 / MDS 5.5 PRO Dimensions, mm: 283 × 177 × 73 Weight, kg: 1.25 USB ports: 4 RS‑232 ports: 3 RS‑485 ports: 1 Wireless connections: 8 (max 32) USB‑dongles: 1 (optional up to 8) Special features Ready data-collection solution with tablet PC and MDS PRO app USB dongle PRO included Autoconnection and reading synchronizing Save data to csv, xls, pdf; save graphs as png On‑line export to Excel, SAP, SolidWorks Graphical mode and 2D graphical mode Go/NoGo functions and user manager mm/inch conversion, timer and resolution selection HDMI, RJ‑45, card reader Optional footswitch and DataMet buttons Multilanguage support (10 languages) *.xls, *.csv, *.doc file editor on device FAQ What interfaces are available for connecting gauges? The unit supports USB, RS‑232, RS‑485 and Wi‑Fi connectivity; HID over USB and wireless HID modes are supported for peripherals and measuring instruments. Can measurement data be exported to enterprise systems? Yes — the device exports to csv, xls and pdf and can resend data to external applications such as Excel, SAP and SolidWorks with adjustable format settings. Is a dedicated software licence included? The package includes the MDS PRO app on a Windows 10 tablet and a USB dongle PRO for licensing and secure operation. Is graphical data available for quality documentation? Graphical and 2D graphical modes are available and plotted charts can be saved as PNG files for reports and traceable visual evidence. How many instruments can be connected simultaneously? Multiple instruments can be paired; the unit supports up to 8 wireless connections by default (expandable up to 32) and multiple USB/serial peripheral connections. Is a footswitch available for hands‑free capture? A footswitch is offered as an optional accessory for zeroing and data capture to improve ergonomics and throughput. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Software
Take advantage of the fast, wireless data capture, flexible export options and the absence of a USB dongle to streamline measurement workflows and reduce manual transcription errors; order the MicrotechData LITE directly via Metav Werkzeuge or ask our consultants for integration advice. MicrotechData LITE — Android measurement-data app with wireless instrument support (Microtech Metrology) The MicrotechData LITE app is an Android-based measurement data manager for connecting multiple DataMet and WIRELESS SwissMet instruments and handling collection, visualisation and export in workshop and inspection environments Wireless connection to DataMet/WIRELESS instruments Export measurements to XLS and CSV No USB dongle required for setup Faster digitisation through wireless collection The app provides a FREE MDS application for Android (minimum Android 6.0), enabling rapid transfer of readings from compatible instruments without manual entry. By supporting wireless links to DataMet and WIRELESS SwissMet instruments and no USB-dongle requirement, the solution reduces setup complexity and accelerates routine checks. This direct transfer shortens cycle times on the shop floor and lowers the risk of transcription errors during data capture. Ready-to-use exports and on-device analysis Measurement series can be saved and analysed immediately: export to XLS or CSV, save graphs and access a complete measuring history for traceable documentation. Built-in functions such as Go/NoGo, Timer, Linear correction and statistics mode simplify repetitive testing and provide decision-ready results. Graphical mode and voice mode add clarity and accessibility during inspections, supporting efficient quality control and a smooth handover to SPC or reporting processes. Practical features for workshop resilience and multilingual teams Designed for mixed workshops, the application reports instrument battery status and supports standard and energy saving mode, extending on-device runtime for WIRELESS SwissMet instruments. The app allows the management of multiple users via a user manager and offers multilanguage support across twelve languages, improving usability across shifts and international teams. The MDS application is downloadable from Google Play and connects up to eight instruments concurrently, making it suitable for production and mobile inspection tasks. Contact Metav Werkzeuge today to discuss MicrotechData LITE integration, request pre-sales technical information or receive tailored advice via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: 299100040 GTIN: 4061905048067 Label: MDS Software für Android Manufacturer: Microtech Metrology Facts Platform: Android 6.0 Max. instruments: 8 Multilanguage: 12 languages File export: XLS, CSV Special features FREE MDS application for Android Connection with DataMet / WIRELESS SwissMet instruments NO USB-DONGLE requested Standard and energy saving mode (for WIRELESS SwissMet instruments) Go/NoGo function Timer and linear correction Statistics mode and graphical mode Measuring history and save graph Voice mode User manager Instrument battery status mm/inch conversion Save data to xls and csv FAQ What platforms are supported by the app? The MicrotechData LITE application runs on Android devices (minimum Android 6.0) and is available for download from Google Play. How many instruments can be managed at the same time? The app supports simultaneous connections to multiple instruments, permitting up to eight DataMet or WIRELESS SwissMet devices in parallel. Can measurement data be exported for further analysis? Yes — readings and graphs can be saved and exported in XLS and CSV formats for use in spreadsheets or SPC tools. Is a USB dongle required to connect the instruments? No; MicrotechData LITE operates without a USB dongle, simplifying installation and reducing accessory requirements. Which inspection functions are included for pass/fail checks? The software includes Go/NoGo, timer, linear correction and statistics mode, enabling rapid pass/fail assessments and basic on-device analysis. Microtech Metrology: Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Take advantage of seamless wireless logging, real‑time visualisation and CSV export to speed up inspection cycles; the free iOS MDS app removes the need for dongles and supports up to eight simultaneous instrument connections. Order the software through Metav Werkzeuge or contact our consultants for integration advice. MicrotechData LITE — mobile measurement data interface for DataMet/WIRELESS (iOS) The MicrotechData LITE is a free iOS application designed for wireless connection, data capture and basic analysis of DataMet and WIRELESS SwissMet measuring instruments across workshop and quality‑control environments Free MDS app for iOS and macOS Connects up to 8 DataMet/WIRELESS instruments No USB dongle required for connection CSV export and graphical data saving Faster inspection cycles through wireless logging and visual checks The app offers wireless data transfer and real‑time visualisation, enabling rapid pass/fail decisions directly at the workbench. By supporting simultaneous connections to 8 instruments, the software reduces manual entry and waits for individual transfers, which shortens overall cycle time. With integrated Go/NoGo logic and an on‑screen timer, the workflow becomes more reproducible and less dependent on paper notes. The application is available on the App Store and installs quickly on compatible Apple devices for immediate use. Secure data handling, export and simple analysis for traceability Measurement history is stored locally and can be exported as CSV for downstream processing or archived with saved graphs for visual traceability. The software includes statistics mode and linear correction, supporting standard quality checks and compensations without additional tools. Unit conversion (mm/inch) is built in, while the user manager keeps operator entries distinct for audit trails. Instrument battery status and a voice mode for hands‑free alerts add practical reliability during long inspection runs. Practical integration into workshop routines and energy‑aware operation Designed for use with DataMet and WIRELESS SwissMet instruments, the application supports a standard and an energy saving mode to prolong sensor battery life during extended sessions. No external dongle is required, which simplifies set‑up and reduces desk clutter in instrument banks. Multilingual support and voice prompts improve accessibility for mixed teams, while graphical output and export options make the app a compact replacement for basic desktop logging systems. The combination of wireless connectivity and simple data export delivers measurable gains in throughput and documentable quality. Contact Metav Werkzeuge to download MicrotechData LITE from the App Store and discuss wireless integration for DataMet/WIRELESS instruments; consultants are available at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Item number: 299100060 GTIN: 4061905047909 Manufacturer: Microtech Metrology Platform: iOS Price: FREE Facts Max. instruments: 8 Multilanguage: 3 languages mm/inch conversion: yes Special features Free MDS application for iOS and macOS For connection with DataMet / WIRELESS SwissMet instruments NO USB‑DONGLE required Standard and energy saving mode for instruments Functions: Go/NoGo, Timer, Linear correction, Statistics mode Data Export: CSV and saved graphs Measuring history and graphical mode User manager and voice mode Instrument battery status display FAQ Is MicrotechData LITE compatible with DataMet instruments? Yes. MicrotechData LITE supports wireless connection to DataMet and WIRELESS SwissMet instruments for real‑time logging and control. How many instruments can be connected at once? The application permits simultaneous connections to up to 8 instruments, enabling parallel data capture from multiple measuring stations. Can measurement results be exported for further analysis? Yes. Measurement data can be exported as CSV and saved graphs can be exported for documentation or further processing. Is a USB dongle required for using the app? No. MicrotechData LITE operates without a USB dongle, simplifying setup and avoiding additional hardware. Where is the app available and is there a cost? The MDS application is offered free of charge on the App Store and can be downloaded to compatible Apple devices. Microtech Metrology: Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

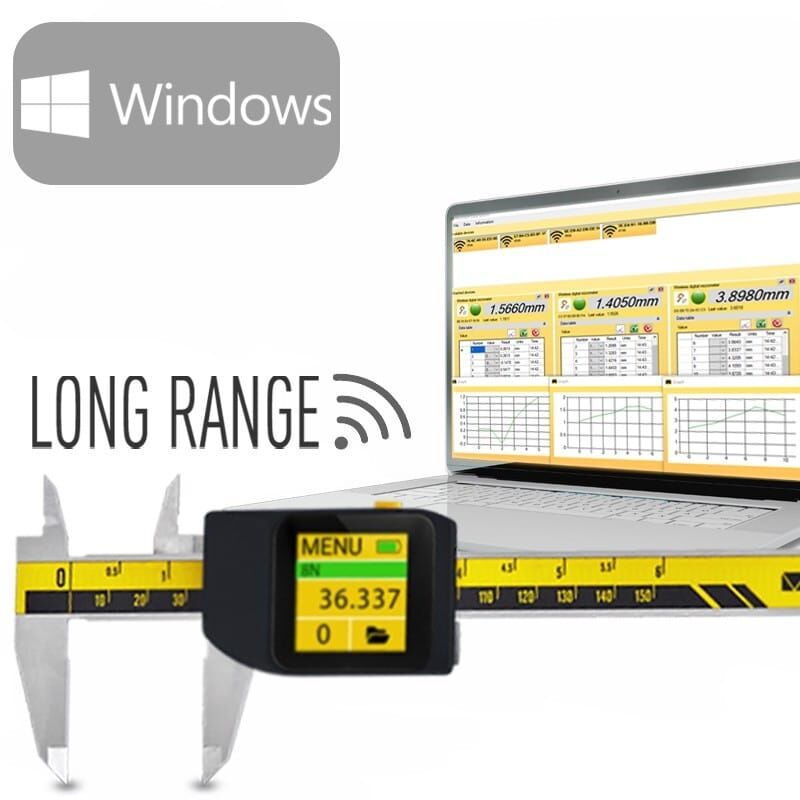

Take advantage of the combination of seamless data capture, autoconnection to Microtech instruments and straightforward export options for a smoother inspection workflow; obtain the software directly via Metav Werkzeuge or consult our specialists for integration support. MicrotechData LITE for Windows — Free connection software for Microtech instruments (Microtech Metrology) The MicrotechData LITE for Windows is a compact PC application designed to collect, synchronise and export measurement data from Microtech instruments for routine inspection and documentation tasks. Free download for Windows 7–11 Autoconnection with Microtech instruments Export to external programs (CSV, Excel) mm/inch conversion and Go/NoGo functions Faster measurement routines through automated data capture The primary advantage of this Windows application is its focus on efficiency: autoconnection and data synchronising reduce manual data entry and transcription errors, so inspection cycles complete more quickly and reproducibly. Integration with DataMet and WIRELESS SwissMet instruments allows direct reading of values, while the export function streams results into spreadsheet or quality-management software for immediate analysis. For production environments where throughput and traceability matter, the software turns raw readings into usable records with minimal operator intervention. Clear outputs and compatible formats for immediate use Recording measurement results in an industrial setting becomes practical with straightforward output options. The tool supports mm/inch conversion, selectable resolution, a timer and Go/NoGo functions, enabling concise pass/fail checks as part of a digital inspection routine. Export to external programmes ensures captured data can be archived, processed or integrated into reporting workflows without rework. These capabilities suit both shop-floor quality checks and simple documentation tasks in technical offices. Reliable connection and device management on standard Windows platforms Compatibility with Windows 7–11 ensures the application runs on a wide range of existing PCs; the software manages one instrument connection at a time while allowing the controlled use of a single USB dongle where required. Device filtering and a basic user manager ease deployment in shared workstations by limiting visible instruments and tracking access. The overall result is consistent measurement transfer from instrument to PC, lowering the risk of missed or lost data during routine inspections. Practical fit for workshops and small labs seeking straightforward integration This lightweight solution is aimed at workshops, maintenance teams and small metrology labs that require reliable digital capture without complex configuration. Delivered as a download, the package provides essential functions—autoconnection, export, unit conversion and basic device filtering—without adding unnecessary complexity. For facilities that later need broader integration, the software serves as a familiar entry point to digital workflows and can be paired with further Microtech tools or data-management routines. Download MicrotechData LITE for Windows via Metav Werkzeuge's download centre or contact the Metav Werkzeuge specialists for tailored advice and installation guidance: info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: 299100530 GTIN: 4061905452055 Brand: Microtech Metrology Delivery: Download Platform: Windows 7, 8, 10, 11 Facts Max. instruments connected: 1 USB-dongles (max qty): 1 SKU: 299100530 Special features MDS app for Windows for connection with Microtech instruments Instruments connection: DataMet / WIRELESS SwissMet Autoconnection Data reading synchronising Filtering Microtech devices mm/inch conversion Go/NoGo functions Resolution selection Timer User manager Export to external programs (CSV, Excel) FAQ Which Windows versions are supported? The software supports Windows 7, 8, 10 and 11 and is provided as a downloadable package for installation on compatible PCs. How many instruments can be connected at once? MicrotechData LITE permits a single instrument connection at a time; the application is configured to manage one tool per session for consistent data transfer. Can measurement data be exported to quality systems? Yes. The application provides export to external programmes (CSV/Excel), enabling transfer of captured readings into quality-management or reporting systems. Does the software support unit conversion and pass/fail checks? The tool includes mm/inch conversion and Go/NoGo functions, allowing both unit flexibility and quick pass/fail evaluation during inspections. Is there support for wireless Microtech instruments? Connection modes include compatibility with DataMet and WIRELESS SwissMet instruments for direct data capture where wireless options are available. What formats and options are available for data capture? MicrotechData LITE offers selectable resolution, timer-controlled readings, device filtering and a user manager, alongside standard data export formats for downstream processing. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Fast integration and comprehensive export capabilities make MicrotechData PRO the pragmatic choice for centralising measurement workflows: support for up to 48 instruments, autoconnection and flexible export to CSV, XLS and PDF improves traceability and reduces manual transfer errors. Order the MicrotechData PRO directly via Metav Werkzeuge or ask our consultants if needed. MicrotechData PRO — data management software for metrology with USB-stick distribution and support for up to 48 instruments A powerful Windows-based data-collection and export solution designed for connection with Microtech measuring instruments and SwissMet wireless devices. Connects up to 48 instruments Export to CSV, XLS and PDF Graphical and 2D graphical modes USB-stick format with optional dongle Centralised data capture to speed up quality workflows The software offers a structured way to collect and record measurement values, improving efficiency in production and inspection. Designed for Windows 7–11, MicrotechData PRO provides autoconnection and data synchronisation so readings are transferred automatically into the database, reducing manual entry and associated errors. The ability to set instrument ZERO values and to filter devices streamlines repeatable processes and supports audit-ready traceability for routine quality checks. Integration that fits existing IT environments Compatibility with common office and ERP tools is built in: exports are available in CSV, XLS and PDF, while graphical output can be saved as PNG for reporting. Export formatting is adjustable (dot/comma settings and symbol options), which simplifies import into systems such as Excel, SAP or SolidWorks. The software’s capacity to produce both tabular and 2D graphical representations helps convert raw measurements into actionable data for engineering and process teams. Flexible capture options and ergonomic operation Multiple input methods reduce handling time and improve measurement ergonomics: optional DataMet Buttons, wired or wireless footswitches, and USB footswitch compatibility allow hands-free capture where needed. The package requires a USB-DONGLE for licence or connection purposes and supports mm/inch conversion and Go/NoGo functions to speed pass/fail decisions on the shop floor. Graphical modes assist visual inspection tasks and simplify reporting of trend or deviation data. Ready for everyday workshop use and multi-language teams Delivered on a USB-stick, the application is available in 10 languages, easing deployment across international teams. The software handles up to 10 USB-dongles concurrently and can manage the connection of many instruments without complex configuration, reducing commissioning time. This combination of practical delivery and broad language support suits industrial measurement environments where quick uptake and consistent results are priorities. For configuration advice, licence clarification and secure delivery from Metav Werkzeuge, contact our specialists at info@metav-werkzeuge.com or call +49 2822 7131930 to request MicrotechData PRO on USB-stick. Technical Data Article number: 299100570 GTIN: 4061905452079 Brand: Microtech Metrology Format: USB-stick Platform: Windows 7, 8, 10, 11 Facts Max. instruments connected: 48 USB-dongles (max qty): 10 Languages supported: 10 Special features Data export: csv, xls, pdf Graphical mode and 2D graphical mode, save graph as png Autoconnection and data reading synchronising Instrument ZERO setting and filtering of Microtech devices Integration with Excel, SAP, SolidWorks (online export) Optional DataMet Buttons and wired/wireless footswitch mm/inch conversion and Go/NoGo functions USB-DONGLE requested for operation FAQ Is MicrotechData PRO compatible with older Windows versions? MicrotechData PRO supports Windows 7, 8, 10 and 11 as stated in the product specification and runs from the supplied USB-stick. How many instruments can be managed simultaneously? The software can connect and manage up to 48 instruments, allowing centralised collection from multiple measuring devices. Which export formats are available for reporting? Export formats include CSV, XLS and PDF; graphical output can be saved as PNG for inclusion in reports. Is a special dongle required to run the software? A USB-DONGLE is requested for licence/connection purposes; the product listing notes the dongle requirement explicitly. Can the software interface with ERP or CAD systems? Online export to external programmes such as Excel, SAP and SolidWorks is supported, with adjustable data formats to match import requirements. Are hands-free capture options available for use in production? Yes—optional DataMet Buttons and footswitches (wired and wireless) are supported to facilitate hands-free data capture. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

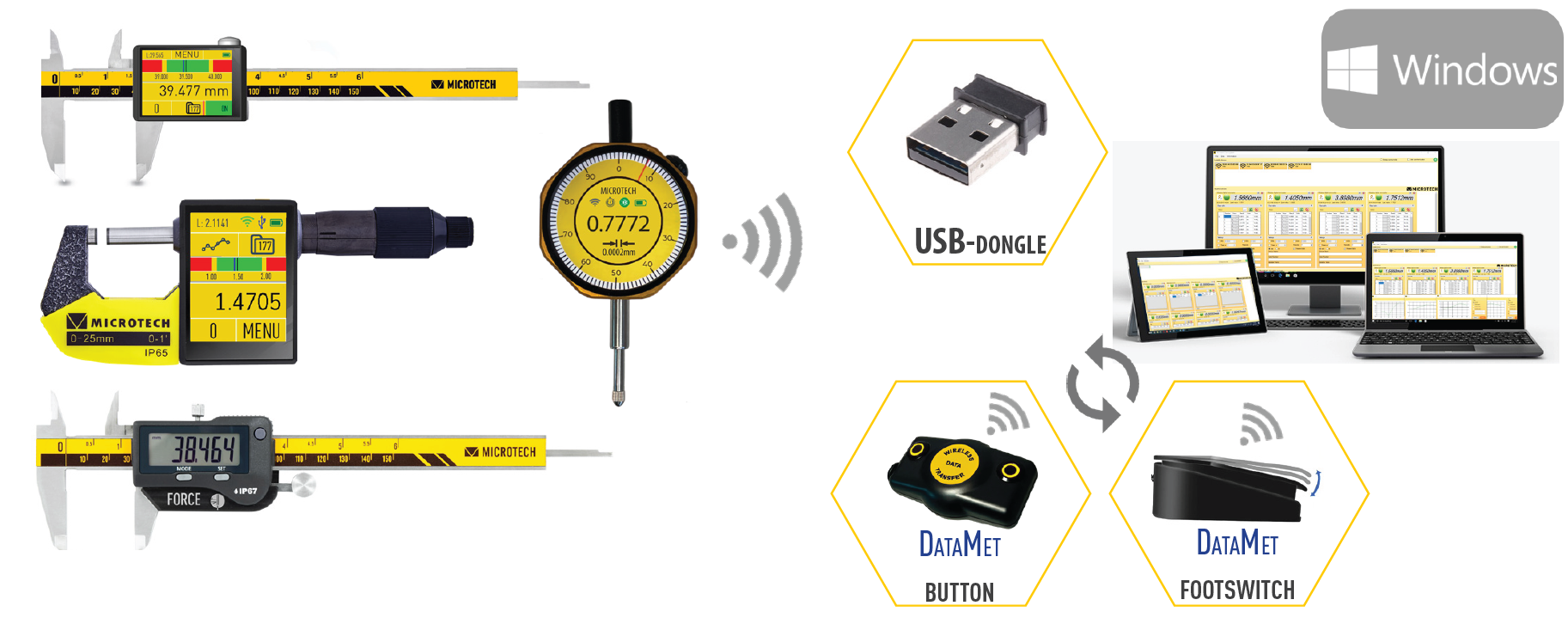

Take advantage of reliable instrument connectivity, automatic synchronisation and multi-format export for consistent measurement workflows. Order the Optima App Microtech for Windows directly via Metav Werkzeuge or ask our consultants if needed. Optima App Microtech for Windows — Instrument connectivity and multi-format data export (Microtech Metrology) The Optima App Microtech for Windows is a Windows application designed to connect Microtech measuring instruments, synchronise readings and export measurement data into production and reporting systems for laboratory and workshop use. Connects up to 8 instruments Exports CSV, XLS and PDF Autoconnection and device filtering Windows 7–11 compatible Seamless integration with production systems The software provides autoconnection and device filtering to keep measurement data flowing into existing workflows with minimal intervention. Compatible with Windows 7–11, the application supports collection from up to 8 instruments and relays results to external programmes such as Excel, SAP and SolidWorks. The configuration for decimal separators and data formatting ensures CSV, XLS and PDF files are immediately usable in reporting systems, reducing manual rework and accelerating traceability. Reliable data capture that reduces process uncertainty Built-in synchronisation routines and instrument zero setting secure repeatable readings across measurement sessions. Features such as DataMet connection modes, Wireless and USB footswitch options and a user manager reduce operator influence and speed cycle times. Functions like Go/NoGo checks, resolution selection and a timer help to embed objective pass/fail logic into routine inspections, improving throughput and minimizing human error on the shop floor. Flexible reporting and visual analysis for clear decisions The application supports multi-format data export and a Graphical mode for immediate visualisation of trends and individual readings. Saving graphs as PNG and exporting datasets in csv, xls, pdf formats allows seamless integration into quality documentation and statistical tools. Adjustable output formats and on-line export options mean measurement results can be routed directly to database systems or CAD‑linked workflows without reformatting, saving administrative time and strengthening audit readiness. Practical operation for workshop and laboratory environments Installation on a standard Windows workstation is straightforward and supports up to two USB dongles for licence or connectivity needs. The app includes multilanguage support (10 languages) and straightforward hardware pairing for Wireless and USB accessories. Optional DataMet buttons and footswitches add hands‑free data capture, making the system suitable for both bench‑top lab use and production‑line measurement points while keeping training needs limited. Contact Metav Werkzeuge for tailored advice on Microtech integration, licence and accessory options and assistance with compatibility checks and setup Technical data Article number: 299100560 Name: Optima App Microtech for Windows Manufacturer: Microtech Metrology Core specifications Max instruments connected: 8 USB-dongles (max qty): 2 Multilanguage: 10 languages Supported Windows versions: 7, 8, 10, 11 Features and interfaces Autoconnection DataMet connection modes / WIRELESS SwissMet Instrument ZERO setting (DataMet) Data reading synchronising User manager WIRELESS footswitch connection USB footswitch connection mm/inch conversion Go/NoGo functions Graphical mode Timer and resolution selection Export to external programmes (Excel, SAP, SolidWorks) Save data to csv, xls, pdf Save graph png Optional DataMet buttons and footswitches FAQ How many instruments can be connected at the same time? The Optima App Microtech for Windows supports connection of up to 8 instruments simultaneously, enabling consolidated data collection from multiple measuring points. Which export formats are available for reports and data exchange? Measurement results can be saved and exported as csv, xls and pdf files, and graphs may be saved as PNG for inclusion in reports or statistical software. Is wireless operation supported and are external switches available? Yes, the application supports Wireless connections and both Wireless and USB footswitches; optional DataMet buttons are also supported for hands‑free capture. Which Windows versions are compatible with the software? The software is compatible with Windows 7, 8, 10 and 11, allowing deployment on common laboratory and workshop PCs. Can data be sent directly to ERP or CAD systems? On-line export to external programmes such as Excel, SAP and SolidWorks is provided; export formats and separators are adjustable to match target systems. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
