28-38mm Boring Tool for CCMT 09T3 inserts - Teknik Makina
Technical Data: Item: Boring Tool Brand: Teknik Makina Order Number: TKB176TM usable with CCMT 09T3 Indexable Inserts Diameter: 28-38mm Total length: 74.5mm Thread: M16 Weight: 0.213kg Manufacturer Teknik Makina, Nolu Sokak, No 9, Selcuklu, Turkey, eMail: info@teknik-makina.com Responsible for Europe Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, Germany, eMail: info@metav-werkzeuge.com
28-44mm Cartridge For Boring Tool Set CCMT 0602, T8 Torx Screw - Teknik Makina
Take advantage of the combination of flexible diameter coverage and secure Torx clamping for reliable internal boring operations; order the cartridge directly via Metav Werkzeuge or contact our consultants for compatibility checks and fast supply. Cartridge THB06TM – 28–44 mm cartridge for boring tool, CCMT 0602 compatible (Teknik Makina) The Cartridge THB06TM is a compact toolholder component designed for integration into boring tool sets to cover internal diameters from 28 to 44 mm and to accept indexable CCMT 0602 inserts for finishing and facing tasks. 28–44 mm cartridge range Compatible with CCMT 0602 inserts Fastening via M2.5x5.5 Torx screw Torx T8 key for secure adjustment Greater flexibility with a wide diameter range The 28–44 mm range allows a single holder to serve several internal bore diameters, reducing the number of changeovers in the tool room and streamlining setup routines. Thanks to compatibility with CCMT 0602 indexable inserts, the holder supports common carbide grades and geometries used for finishing cuts; this simplifies inventory management and accelerates turnaround, while the standardised insert form ensures predictable cutting behaviour and repeatable surface quality. Robust clamping for consistent finish and stability Secure clamping is provided by the M2.5x5.5 Torx screw, tightened with a T8 key, producing a reliable mechanical connection between insert and holder. Stable fixation minimises micro-vibration during light finishing passes, which directly contributes to improved surface integrity and dimensional consistency. The straightforward Torx fastening system also enables rapid insert changes while maintaining the repeatability required in CNC turning and boring operations. Efficient integration into workshop toolsets Designed for use within established boring tool sets, this holder offers practical compatibility with standard toolholder interfaces and common insert types to support everyday machining operations. The cartridge form factor promotes quick replacement within a modular boring bar assembly, shortening machine downtime and supporting higher throughput in production. Specification THB06TM by Teknik Makina aligns with workshop requirements for modularity, precision and ease of maintenance. Contact Metav Werkzeuge today to specify the Cartridge THB06TM for integration into a boring tool set and to confirm CCMT 0602 insert compatibility—call +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: THB06TM Name: Cartridge (Kartusche) Application: 28–44 mm for boring tool Compatible inserts: CCMT 0602 Fastening screw: M2.5x5.5 (Torx) Adjustment key: T8 Torx Manufacturer: Teknik Makina eCl@ss: 21041590 Core data Diameter range: 28–44 mm Torx screw size: M2.5 x 5.5 Torx key: T8 SKU: THB06TM Special features Designed for boring tool sets Compatible with CCMT 0602 indexable inserts Secured by M2.5x5.5 Torx screw Adjustment with T8 Torx key FAQ What diameter range does the cartridge cover? The cartridge THB06TM covers internal diameters from 28 to 44 mm for boring operations. Which insert type fits this holder? The holder accepts CCMT 0602 indexable inserts for finishing and facing applications. What fastening method secures the insert? Securing is via an M2.5x5.5 Torx screw; adjustment and tightening are performed with a T8 Torx key. Is the cartridge suitable for standard boring tool sets? Yes, the design is intended for integration into modular boring tool sets and supports common indexable insert geometries. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
28mm Boring Tool 20mm Shank 105mm Cutting Length, CCMT 09T3 Compatible - Teknik Makina
Take advantage of the combination of robust indexable design, a rigid 20 mm shank and a 105 mm effective cutting length for consistent internal bores; order the TKB108TM boring tool directly via Metav Werkzeuge or ask the advisors for tailored cutting data. TKB108TM Boring tool – for CCMT 09T3 inserts, Ø 28 mm (Teknik Makina) The TKB108TM boring tool is a compact internal boring bar designed for precision internal turning with indexable inserts, ideal for integration into CNC lathe and boring operations. Solid indexable design for CCMT 09T3 Ø 28 mm cutting capability 20 mm shank for high rigidity 105 mm effective cutting length Precision bores with stable geometry The TKB108TM is engineered to deliver repeatable bore accuracy by pairing a rigid tool body with standard indexable inserts. Compatibility with CCMT 09T3 inserts allows controlled cutting-edge replacement without full regrinding, reducing setup variability. The tool’s 20 mm shank and optimised mass distribution increase stiffness at the cutting edge, which helps to limit vibration and to preserve the intended bore diameter over longer runs. For manufacturers seeking predictable part-to-part consistency, this configuration translates into fewer reworked components and less inspection overhead. More parts per shift through efficient tool life Designed around replaceable inserts rather than solid tooling, this boring bar targets reduced cycle time and lower operating cost per part. Using indexable inserts means worn cutting edges are swapped quickly, minimising machine downtime. The 105 mm effective cutting length provides enough reach for many internal operations while the compact overall length of 155 mm keeps overhang low — a key factor in extending insert life and maintaining surface finish. The modest mass (0.376 kg) also facilitates handling and fast tool changes in high-mix environments, supporting higher throughput without compromising stability. Straightforward fit into existing turning programmes Integration into established CNC turning and boring workflows is straightforward: the unit accepts standard ISO-style inserts and is intended for mounting where a stable, short overhang is required. The TKB108TM boring bar simplifies tooling lists by using widely available CCMT 09T3 inserts, enabling easy sourcing and replacement. For technicians with less experience of indexable systems, the concept of an indexable insert can be summarised as a replaceable cutting tip that provides the same geometry every time it is refitted — an immediate route to consistent surface finish and dimensional control. Where special cutting data or coating recommendations are needed, Metav Werkzeuge can advise on ideal insert grades and feeds for the specific component material. For a robust indexable solution from Teknik Makina, contact Metav Werkzeuge to specify the optimal insert grade and cutting parameters for the TKB108TM and ensure the tool matches the production requirements Technical data Article number: TKB108TM Manufacturer: Teknik Makina Product type: Boring tool for indexable inserts Facts Max cutting diameter: 38 mm Nominal cutting diameter: 28 mm Shank diameter: 20 mm Effective cutting length: 105 mm Overall length: 155 mm Weight: 0.376 kg Special features Compatible with CCMT 09T3 indexable inserts Indexable insert system for quick tip changes Short overhang for improved rigidity SKU: TKB108TM FAQ Which insert type is compatible with this boring tool? The TKB108TM boring tool is specified for use with CCMT 09T3 indexable inserts, which are standard ISO‑style turning tips used for internal boring and turning operations. What are the key dimensions to check for mounting? Important dimensions for mounting are the 20 mm shank diameter, the 105 mm effective cutting length and the overall length of 155 mm; these determine overhang and clearances in the toolpost. What is the maximum cutting diameter achievable? The tool data lists a maximum cutting diameter of 38 mm, while a nominal cutting diameter of 28 mm is indicated for typical setups, so the selected insert and holder geometry should be checked against the required bore size. Is the tool suitable for high-speed internal turning? The holder is designed for rigid mounting and indexable inserts; suitability for high-speed applications depends on the chosen insert grade and machine stability rather than the holder alone. How does the indexable design affect workshop efficiency? By using replaceable inserts such as CCMT 09T3, the TKB108TM reduces downtime for resharpening and simplifies inventory management, allowing faster tip replacement and consistent cutting geometry. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
28mm Boring Tool CCMT 09T3 Insert, 25mm Shank 274mm Cutting Length, 330mm Overall - Teknik Makina
Take advantage of precise deep-bore performance and robust shank stability: the tool combines a 38 mm maximum cutting diameter with a 274 mm cutting length for efficient machining of deep bores using economical indexable inserts. Order directly via Metav Werkzeuge or consult our specialists for application guidance. Boring Tool TKB111TM — long-reach indexable boring bar, 38 mm cutting diameter, Teknik Makina The Boring Tool TKB111TM is a long-reach indexable boring bar designed for accurate internal turning and boring on CNC lathes and medium-duty turning centres. 38 mm maximum cutting diameter 274 mm cutting length for deep bores Accepts CCMT 09T3 indexable inserts Improved productivity on deep bore operations The combination of a 38 mm cutting capacity and an extended 274 mm cutting length enables stable, efficient machining of deeper bores without frequent tool changes. The geometry is optimised for consistent chip control when used with CCMT 09T3 inserts, which keeps cycle times low and reduces downtime. This makes the bar a pragmatic choice where throughput and repeatability are priorities, delivering measurable improvements in machining time per component. Stable shank design for vibration reduction A 25 mm shank diameter and an overall length of 330 mm provide a balance between reach and rigidity. The robust shank reduces chatter and improves surface finish when cutting internal diameters, allowing trouble-free finishing passes. For operators adapting standard toolholders, the bar’s dimensions make it straightforward to fit into common adaptors while maintaining the head stiffness required for precision work in production environments. Cost-effective indexable solution with easy servicing Accepting CCMT 09T3 indexable inserts, the tool offers economical reconditioning: worn inserts can be rotated or replaced quickly, lowering total tooling costs compared with solid-carbide alternatives. The modular nature of indexable tooling also simplifies inventory management and shortens maintenance intervals. For workshops seeking a practical compromise between performance and operating cost, this bar provides a durable, service-friendly option from Teknik Makina. Contact Metav Werkzeuge for tailored technical advice or to arrange procurement details for the Teknik Makina TKB111TM — email info@metav-werkzeuge.com or call +49 2822 7131930 for prompt assistance Technical data SKU: TKB111TM Manufacturer: Teknik Makina Product type: Boring tool ECLASS: 21181208 Files: 62de7eef0f56dbb4de4dbf60, 62de7e6333927e49dbf32755 Dimensions & core data Max cutting diameter: 38 mm Shank diameter: 25 mm Cutting length (shaft cutting): 274 mm Overall length: 330 mm Diameter: 28 mm Weight: 1.342 kg Materials & features Accepts CCMT 09T3 indexable inserts Long-reach design for internal boring Suitable for CNC lathe and medium-duty turning centres FAQ What type of inserts does this boring bar use? The boring bar accepts CCMT 09T3 indexable inserts, offering economical rotation and replacement for continuous production. Which machines is the bar suitable for? The bar is intended for CNC lathes and medium-duty turning centres where long-reach internal turning is required; its dimensions suit standard toolholders. How deep can the tool reach reliably? With a 274 mm cutting length and 330 mm overall length, it is optimised for deeper internal bores while maintaining stiffness. Is the shank compatible with common adaptors? The 25 mm shank diameter is compatible with usual adaptors and toolholders used in workshop and industrial settings. What are the main benefits of choosing this boring solution? The combination of extended reach, rigidity and use of CCMT 09T3 inserts reduces cycle time and tooling costs while simplifying maintenance. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
28mm Boring Tool For CCMT 09T3 Inserts 25mm Shank 174mm Cutting Length, 230mm Overall - Teknik Makina
Benefit from precise internal machining and reduced downtime thanks to a robust 25 mm shank and a long 174 mm cutting length that together ensure stable clamping and deep-bore capability. The tool accepts CCMT 09T3 indexable inserts for quick insert changes and consistent cutting performance. Order the boring tool directly via Metav Werkzeuge or ask our consultants for application advice. Boring tool TKB110TM — indexable insert bar with 25 mm shank, 174 mm cutting length (Teknik Cutting Tools) The TKB110TM boring tool is a purpose-built indexable insert bar for internal machining, designed for medium-depth bores using CCMT 09T3 inserts and offering a stable 25 mm shank for vibration-resistant operation 25 mm shank for stable clamping Accepts CCMT 09T3 indexable inserts 174 mm effective cutting length Ø up to 38 mm for internal bores Accurate internal machining with measurable stability The design of this indexable insert bar focuses on repeatable results in production. The 25 mm shank delivers secure clamping in standard toolholders, reducing chatter and improving surface finish. With an effective cutting length of 174 mm, the tool enables deeper passes without frequent repositioning, which increases throughput on serial jobs. The combination of a rigid shank and extended cutting reach translates into predictable dimensional control and shorter cycle times, a tangible efficiency gain for machining centres and toolrooms. Fast changeover and predictable cutting performance Acceptance of CCMT 09T3 indexable inserts means quick, tool-less insert swaps and consistent geometry from one tip to the next. This reduces non-productive time while maintaining cutting-edge quality. The tool’s compatibility with a widely used insert geometry supports easy sourcing of consumables and helps standardise tooling across a fleet of machines. For operations that prioritise uptime and reliable repeatability, the indexable system offers a pragmatic balance between performance and maintenance effort. Broad application range and process clarity With a maximum cutting diameter of Ø 38 mm and an overall length of 230 mm, the bar is suited for internal turning and finishing in a range of common materials where insert geometry CCMT is recommended. The 25 mm shaft diameter provides secure seating for mill-turn and lathe tool posts alike, enabling multi-axis setups where rigidity and accessibility are required. Where deeper internal features are necessary, the extended cutting length minimises the need for multiple tools or complex setups, simplifying programme logic and tool inventory. Practical benefits for procurement and production planning Lightweight at approximately 0.267 kg, the tool is easy to handle and fits into existing tool management routines without adding significant logistical burden. The modular insert approach reduces scrap from worn solid tools and allows predictable maintenance schedules based on insert life rather than whole-tool replacement. For purchasing teams and production planners, this translates into lower lifecycle costs and fewer interruptions — advantages that support continuous operation and easier stock management for consumables. For specialist advice on integrating the TKB110TM into a specific machining process or for guidance on compatible inserts and holders, contact Metav Werkzeuge for tailored recommendations and regional supply options Technical data Article number: TKB110TM Manufacturer: Teknik Cutting Tools Product type: Boring tool / indexable insert bar Suitable inserts: CCMT 09T3 Core data Maximum cutting diameter: 38 mm Shaft diameter: 25 mm Effective cutting length: 174 mm Overall length: 230 mm Weight: 0.267 kg Special features Indexable insert system Designed for internal machining Compatible with standard toolholders Lightweight construction for easy handling FAQ What applications suit this boring tool best? The TKB110TM boring tool by Teknik Cutting Tools is intended for internal turning and finishing where medium-depth bores up to Ø 38 mm are required, offering stable performance with CCMT 09T3 inserts. Which inserts are recommended for the TKB110TM? CCMT 09T3 indexable inserts are specified for the TKB110TM; using these inserts ensures correct geometry, secure seating and straightforward changeover. Is the shaft diameter compatible with standard holders? Yes. The 25 mm shaft diameter of the TKB110TM fits common toolholders and provides the stiffness needed for consistent internal machining. How long is the cutting reach and what does it mean for setup? The cutting length of 174 mm on the TKB110TM allows deeper access into bores, reducing the need for multiple tool changes and simplifying fixture and programme requirements. What are the handling and storage considerations? At around 0.267 kg, the TKB110TM is lightweight and convenient to handle; storing the bar with matched CCMT inserts helps maintain readiness and reduces setup time Manufacturer/Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
28mm Cartridge for Boring Tool 28-38 CCMT 09T3, Precision - Teknik Makina
Take advantage of secure compatibility with CCMT 09T3 inserts and straightforward integration into existing boring tool setups; this cartridge delivers repeatable seating for the 28–38 mm range while simplifying spare-part management. Order directly via Metav Werkzeuge or consult our specialists for application advice. Cartridge for Boring Tool 28-38 CCMT 09T3 (KR102TM) The Cartridge for Boring Tool 28-38 CCMT 09T3 is a precision spare part intended to secure CCMT 09T3 inserts within compatible boring bar systems for industrial and workshop use Cartridge for CCMT 09T3 insert system Fits boring tools 28–38 mm diameter range Produced by Teknik Makina, industrial quality Consistent insert seating that boosts repeatability A correctly matched cartridge provides the mechanical seating required for repeatable cutting performance. This component is specified for the CCMT 09T3 insert family and the 28–38 mm diameter range, which ensures consistent clamping geometry across replacements. By maintaining stable insert position and orientation, the unit helps reduce variation in component production and supports reliable precision in turning operations, leading to predictable part tolerances and fewer adjustments at set-up. Streamlined maintenance and reduced operational interruptions Designed as a direct spare part for existing boring units, the cartridge reduces the complexity of spare-part inventories and shortens exchange times during scheduled maintenance. Compatible replacement units allow maintenance teams to restore tool readiness quickly, lowering downtime and improving machine utilisation. Sourcing this part through Metav Werkzeuge benefits from centralised supply and technical advice, enabling quicker decisions and less administrative overhead in procurement. Suited to workshop and industrial machining environments The cartridge is intended for professional environments where repeatable tool behaviour matters—toolrooms, production lines and contract workshops. Its role in providing a predictable interface for indexable inserts supports smoother production runs and reduces the risk of inconsistent tool seating that can create scrap or rework. As a manufacturer-specified component from Teknik Makina, the unit aligns with industrial expectations for compatibility and serviceability. Integration with CNC tooling routines and process stability When integrated into standard tooling cycles, the cartridge helps maintain process stability by preserving the insert datum and clamping forces over multiple replacements. This stability supports more efficient tool-change procedures and simplifies documentation of tooling assets within CNC programmes and maintenance logs. For operations that track tool life or perform regular insert rotations, the consistent mechanical interface contributes to straightforward scheduling and fewer unplanned interventions. For genuine Teknik Makina spare parts and expert application advice, contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 to arrange procurement and technical guidance. Technical data Article number: KR102TM Name: Cartridge for Boring Tool 28-38 CCMT 09T3 Manufacturer: Teknik Makina Core specifications Compatible diameter range: 28–38 mm Insert type compatibility: CCMT 09T3 Special features Intended for boring tool assemblies SKU: KR102TM Supplied via Metav Werkzeuge distribution FAQ Is this cartridge compatible with CCMT 09T3 inserts? Yes. The cartridge is specified for the CCMT 09T3 insert family and provides the correct seating geometry for that insert type. Which boring tool diameters is this spare part suitable for? The spare part is intended for boring tools in the 28–38 mm diameter range as indicated by the designation for Boring Tool 28-38 CCMT 09T3. What is the SKU for ordering or referencing this component? The SKU for the cartridge is KR102TM and it should be quoted when requesting the part from Metav Werkzeuge or other authorised distributors. Can this component be used in a production toolroom environment? Yes. The cartridge is designed for workshop and industrial machining environments where repeatable insert seating and process stability are required. Who manufactures the cartridge and who handles distribution? The cartridge is produced by Teknik Makina; procurement and distribution can be arranged through Metav Werkzeuge as the responsible distributor. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
290mm Boring Bar for CCMT 09T3 Indexable Inserts, 350mm Max Cutting Diameter - Teknik Makina
Benefit from precise insert compatibility and a robust shank design that ensure stable internal turning and predictable cycle times; order the THB103TM boring tool directly via Metav Werkzeuge or ask our consultants if needed. Boring tool THB103TM by Teknik Makina — 290 mm capacity, for CCMT 09T3 indexable inserts The Boring tool THB103TM is a heavy‑duty internal turning tool engineered for machining centres, optimised for use with CCMT 09T3 indexable inserts and medium to large bore diameters. Compatible with CCMT 09T3 indexable inserts 290 mm cutting diameter for extended reach Shank diameter 40 mm for stable clamping Cutting height 93.7 mm for secure insert seating Precise insert compatibility for repeatable finishes The tool is designed around the widely used CCMT 09T3 insert geometry to provide repeatable edge placement and consistent surface quality. By using a standard insert family, tool change and stocking are simplified and process stability is improved. The assembly ensures accurate insert seating and clearance, which reduces vibration and prolongs insert life; this results in fewer interruptions for re‑grind or replacement and more predictable machining cycles. Compatibility with established indexable inserts also enables faster setup times in shops that standardise on common cutting grades. Robust shank and bore capacity for stable machining A solid shank diameter of 40 mm combines with an effective cutting diameter of 290 mm (with a maximum cutting diameter of 350 mm) to provide the rigidity required for deep internal turning. The design reduces deflection under load, permitting heavier material removal rates while maintaining dimensional accuracy. The tool’s cutting height of 93.7 mm secures the insert in a stable pocket, reducing the risk of chatter during interrupted cuts. For production environments where tolerance and surface finish are critical, the mechanical stability of the assembly translates directly into reduced scrap rates and fewer rework operations. Easier integration, fewer interruptions in the workflow Integration into existing toolholders and turret stations is straightforward thanks to the standardised form factor and clear specification of mounting dimensions. Shops benefit from predictable tool behaviour when switching between similar setups, leading to reduced setup time and improved overall equipment effectiveness (OEE). Metrology and quality checks are simplified because the tool produces stable results with standard inserts; as a consequence, process documentation and quality protocols remain consistent across batches. For procurement, the association with a recognised supplier streamlines replenishment and aftermarket support. For reliable integration of Teknik Makina tooling into precision workshops, contact Metav Werkzeuge for procurement advice and specification support at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: THB103TM Designation: 290 mm boring tool for CCMT 09T3 Manufacturer: Teknik Makina ECLASS: 21041590 Facts Cutting diameter: 290 mm Maximum cutting diameter: 350 mm Shank diameter: 40 mm Cutting height: 93.7 mm Special features Compatible inserts: CCMT 09T3 Product type: Boring tool SKU: THB103TM Suitable for internal turning operations FAQ What insert type is required for this boring tool? The THB103TM is designed for CCMT 09T3 indexable inserts; the toolbed and pocket geometry match this insert family for secure seating and consistent cutting geometry. What are the key dimensions to check for mounting? Check the shank diameter (40 mm) and the cutting diameter specifications (290 mm nominal, 350 mm maximum) to ensure compatibility with the machine turret or toolholder when fitting the THB103TM. Can this tool be used for large bore machining? Yes — the tool’s nominal cutting capacity of 290 mm and its maximum cutting diameter of 350 mm make it suitable for medium to large bore internal turning applications with stable clamping. How does the cutting height affect performance? The cutting height of 93.7 mm secures the insert in the pocket and reduces deflection and vibration, which improves surface finish and increases insert life on the THB103TM. Is this tool suitable for high‑volume production environments? The THB103TM’s robust shank and standardised insert compatibility support repeatable performance and reduced downtime, making it appropriate for series production where process stability is essential. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
290mm Boring Bar For Fine Finishing For CCMT 09T3 Indexable Inserts, 350mm Max Cutting Diameter - Teknik Makina
Take advantage of the combination of high‑rigidity design and precise insert compatibility for consistent fine finishing; the robust 290 mm cutting capability and 40 mm shank ensure stable machining and fewer tool changes. Order the tool directly via Metav Werkzeuge or request technical advice from our consultants. Fine‑finishing boring tool for CCMT 09T3 indexable inserts — 290 mm cutting capacity The Fine‑finishing boring tool for CCMT 09T3 indexable inserts is engineered for accurate internal finishing in medium to large bores, providing a stable platform for fine machining operations with standard CCMT 09T3 inserts. Large 290 mm cutting capacity Compatible with CCMT 09T3 inserts 40 mm shank for enhanced rigidity Up to 350 mm maximum cutting diameter Precision and productivity for fine finishing The head is designed to support fine finishing tasks where dimensional accuracy and surface quality are decisive. With a substantial 290 mm nominal diameter and dedicated compatibility for CCMT 09T3 inserts, the tool reduces the need for multiple passes by enabling consistent chip control and predictable radial engagement. This translates into shorter cycle times and improved throughput on components where tight tolerances and low surface roughness are required. The construction aims to maintain repeatability across batches, supporting justifiable process planning in production environments. Stability and rigidity to reduce rework A robust 40 mm shaft provides a solid connection to the machine spindle or toolholder, increasing rigidity and reducing deflection during finishing cuts. The combination of a high‑stiffness shank and the tool’s geometry allows controlled use up to a 350 mm cutting diameter, while the specified 93.7 mm cutting height gives the necessary reach for deeper bores without compromising stability. Reduced vibration means fewer surface defects and lower risk of premature insert wear, contributing to predictable tool life and reduced rework rates. Workflow advantages in the machine shop Compatibility with indexable inserts such as the CCMT 09T3 family offers operational advantages: fast insert changes, standardised inventory, and the ability to tailor grades for different steels or finishing needs. The modular approach supports rapid setup changes and keeps spindle downtime to a minimum — a clear benefit where small series and varied job orders dominate. Backed by the experience of Teknik Makina, the design supports streamlined workflows and better utilisation of machining capacity, helping to align productivity with quality targets. Compatibility, setup and handling explained Mounting and adjustment are straightforward when the tool is integrated into standard tooling systems; the head accepts CCMT 09T3 style inserts and is labelled internally for the correct orientation and clamping procedure. The product designation and SKU THB113TM should be referenced when preparing tooling lists or ordering replacement heads and inserts. For commissioning, basic checks of clamping torque and run‑out are recommended to ensure ideal performance; correct setup further enhances the tool’s ability to deliver consistent fine finishes over extended runs. For fine finishing tasks that demand rigidity and reproducible results, choose the Teknik Makina THB113TM — contact Metav Werkzeuge in Emmerich for ordering or to discuss application details at info@metav-werkzeuge.com or +49 2822 7131930. Technical Data SKU: THB113TM Manufacturer: Teknik Makina eClass: 21041590 Facts Diameter: 290 mm Max cutting diameter: 350 mm Shank diameter: 40 mm Cutting height: 93.7 mm Special features Compatible with CCMT 09T3 indexable inserts Label: 290mm Ausdrehwerkzeug für die Feinbearbeitung CCMT 09T3 Product type: Fine‑finishing boring tool FAQ Which insert type fits this tool? The tool is designed for CCMT 09T3 indexable inserts and accepts standard CCMT 09T3 geometries for fine finishing applications. What is the maximum recommended cutting diameter? The maximum cutting diameter listed is 350 mm; machining strategy and machine rigidity will determine safe cutting parameters for each setup. How does the 40 mm shank benefit machining? A 40 mm shank increases overall stiffness and reduces deflection, which helps maintain dimensional accuracy and surface quality during finishing cuts. Is the tool suitable for deep bore finishing? With a 93.7 mm cutting height and the specified geometry, the boring head is suitable for deeper finishing operations within the tool’s reach and machine capabilities. How should the tool be referenced when ordering spares or inserts? Use the model designation and SKU THB113TM together with the note that the head is compatible with CCMT 09T3 inserts to ensure correct spare parts and insert selection. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
300mm Boring Tool For Finishing For CCMT 09T3 Indexable Inserts L212mm - Teknik Makina
Take advantage of precise internal finishing combined with large-diameter capacity and reliable insert compatibility to reduce cycle times and improve surface quality; order via Metav Werkzeuge or consult the technical team for application-specific configuration. Internal Boring Tool for Fine Finishing (THB133TM) — 300 mm nominal diameter, for CCMT 09T3 indexable inserts (Teknik Makina) The Internal Boring Tool for Fine Finishing is designed for precision internal turning operations where surface quality and dimensional control are paramount, compatible with CCMT 09T3 indexable inserts for quick tool changes. Compatible with CCMT 09T3 indexable inserts 300 mm nominal diameter for large bores Max cutting diameter 360 mm Overall length 212 mm (L212mm) Achieve consistent surface finish with large-bore capability The tool has been engineered for fine finishing of internal bores where minimal vibration and consistent chip control are essential. With a 300 mm nominal diameter and a max cutting diameter of 360 mm, the holder delivers stability across wider diameters that would otherwise require multiple setups. Using CCMT 09T3 indexable inserts enables predictable cutting geometry and repeatable results; indexable inserts also simplify maintenance cycles and reduce downtime by allowing rapid insert changes without regrinding. Rigidity and engagement designed for repeatable geometry A high cutting height (142 mm) and a robust overall construction maintain cutting edge engagement throughout the pass, which reduces deflection and secures diameter conformity. The combination of a tall cutting face and the tool body length of 212 mm provides improved leverage against bending moments, increasing the probability of first-pass accuracy. This design focus makes the system suitable for series production environments where process stability and part interchangeability are priorities, improving throughput while protecting downstream finishing operations. Practical integration for shop floors and CNC centres The holder is suitable for integration with standard turning tool mountings in lathes and CNC turning centres; the use of standard CCMT 09T3 inserts ensures broad availability of insert grades and coatings to match materials and cutting conditions. For workshops transitioning from smaller-diameter tools, the larger nominal diameter simplifies handling of deep or wide internal profiles by reducing the number of incremental tool changes. The result is a more efficient process flow, fewer tool set-ups and a shorter route to acceptable surface tolerances. Application guidance and material suitability This tool is optimised for fine internal turning across a range of metals when fitted with the appropriate insert grade. Selection of insert grade and cutting data remains critical: carbide grades with appropriate coatings should be chosen to match workpiece materials and desired surface finish. If parabolic or shoulder profiles are required, configuring the THB133TM with specialised insert geometries allows controlled feed and improved surface integrity, making it a versatile choice for precision turning work. Contact Metav Werkzeuge to discuss configuring the Teknik Makina THB133TM for specific production needs or to request an application assessment via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: THB133TM Label: 300mm Ausdrehwerkzeug für die Feinbearbeitung CCMT 09T3 L212mm Manufacturer: Teknik Makina Facts Nominal diameter: 300 mm Max cutting diameter: 360 mm Cutting height: 142 mm Overall length: 212 mm ECLASS: 21041590 Special features For CCMT 09T3 indexable inserts Product type: Internal boring tool for fine finishing SKU: THB133TM UID: THB133TM FAQ Which insert type is compatible with this boring tool? The boring tool is designed for CCMT 09T3 indexable inserts; the THB133TM accepts standard CCMT geometries for finishing applications. What maximum bore diameter can be achieved with this holder? With correct setup the tool supports a maximum cutting diameter of 360 mm, providing capacity for large internal profiles. Is the tool suitable for series production? Yes, the combination of rigidity, cutting height and insert interchangeability makes the THB133TM suitable for series production where repeatability is required. What length and reach does the tool provide? The overall length is 212 mm, offering sufficient reach for many internal turning tasks while maintaining stiffness. Can different insert grades be used for various materials? Different CCMT 09T3 insert grades and coatings can be selected to match the workpiece material and finishing requirements for optimal results. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32-40mm Boring Bar for CCMT 0602 Indexable Inserts M16 Thread, 74.3mm Length - Teknik Makina
Combine secure M16 mounting with a flexible Ø 32–40 mm capacity and CCMT 0602 insert compatibility for controlled internal turning and reliable fine finishing to 0.01 mm. Order the turning holder directly via Metav Werkzeuge or request specialist advice from its consultants for application-specific recommendations. Internal Turning Holder THKB104TM – for CCMT 0602 Inserts, Ø 32–40 mm, M16 by Teknik Makina The Internal Turning Holder THKB104TM is a compact, precision tool holder designed for internal turning operations using CCMT 0602 indexable inserts, suited to bore diameters in the 32–40 mm range *Compatible with CCMT 0602 inserts *Covers Ø 32–40 mm bores *Enables fine finishing 0.01 mm *Secured by M16 thread, 74.3 mm length Consistent bore finishes through defined insert compatibility The holder is engineered to work with CCMT 0602 indexable inserts, providing a predictable cutting geometry that helps achieve fine finishing 0.01 mm in internal turning operations. Using a standard insert format simplifies tool management and reduces set-up variability, so cycle-to-cycle surface quality becomes more reproducible. For shops seeking fewer rework passes, the controlled insert geometry delivers measurable improvements in finish and reduces downstream grinding or polishing effort. Secure mounting and a dimensional range for flexible setups A robust M16 thread and an overall length of 74.3 mm ensure the tool holder seats firmly in common internal tool adapters, which reduces chatter and improves dimensional stability. The holder covers a Ø 32–40 mm bore range, allowing one tool to serve multiple bore sizes without frequent replacement. The relatively modest mass of 0.287 kg aids handling during tool changes and contributes to a stable centre of gravity once mounted, supporting repeatable positioning and prolonged tool life under normal operating conditions. Productivity advantages for batch and single-piece production By combining a universal insert format with a compact, rigid holder design, the system reduces the number of tool variants required at the workstation and shortens changeover intervals. The integration of widely available inserts and the holder’s straightforward geometry supports faster reconditioning and less downtime. These attributes translate into reduced cycle time and improved shop-floor throughput, especially where internal turning tasks are frequent and precision tolerances are required. Practical handling, insert changes and technical support Insert mounting and indexing are uncomplicated with the standard clamping interface; replaceable inserts restore cutting performance quickly without the need for full holder exchange. For assembly guidance, selection of the optimal insert grade or cutting data adapted to a specific application, Metav Werkzeuge’s technical advisors can provide tailored recommendations and clarifications on set-up and maintenance. Clear documentation and a focused selection of inserts keep the operational routine efficient and cost-effective. Contact Metav Werkzeuge for tailored tooling recommendations and to confirm that the Internal Turning Holder THKB104TM suits the intended applications and machine interfaces Technical data Article number: THKB104TM Manufacturer: Teknik Makina eCl@ss: 21041590 Compatible inserts: CCMT 0602 Core dimensions and measurable data Weight: 0.287 kg Overall length: 74.3 mm Fine finishing: 0.01 mm Diameter range: Ø 32–40 mm Thread: M16 Special features and compatibility Designed for internal turning applications Uses CCMT 0602 indexable inserts Compact, rigid construction for reduced vibration SKU: THKB104TM FAQ Which insert format is required for the holder? The holder accepts CCMT 0602 indexable inserts, which are specified for the Internal Turning Holder THKB104TM and enable standardised cutting geometry. What bore diameters can be machined with this tool? This turning tool covers a Ø 32–40 mm range as stated in the technical data, enabling a single holder to serve several bore sizes. How is the holder fixed in the turret or adapter? A secure M16 thread is provided for mounting; this thread size ensures stable clamping and reduced vibration during internal turning. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm Boring Bar For Fine Machining 0.01mm Tolerance, CCMT 0602 Compatible - Teknik Makina
Take advantage of precise finishing with a stable shank and wide compatibility: the combination of a 0.01 mm finishing tolerance, compatibility with CCMT 0602 indexable inserts and a rigid 25 mm shank helps maintain consistent surface quality and repeatable results. Order directly via Metav Werkzeuge or consult our specialists for application-specific advice. Ausdrehwerkzeug für die Feinbearbeitung — internal boring tool, accepts CCMT 0602 inserts, Ø 32 mm The Ausdrehwerkzeug für die Feinbearbeitung is an internal boring tool engineered for fine finishing in turned components, combining controlled cutting engagement with straightforward insert replacement. Precision finish to 0.01 mm Holds CCMT 0602 indexable inserts 25 mm shank for increased rigidity 160 mm overall length for deeper bores Engineered for repeatable precision and consistent surface quality The design targets finishing operations where tight form and surface requirements are crucial. With a specified finishing capability of 0.01 mm, the tool reduces the need for secondary processes by producing a more consistent bore dimension on the first pass. The combination of a well-proportioned cutting geometry and controlled overhang minimises chatter and delivers a repeatable surface, which directly lowers scrap rates and rework time. The use of established insert geometry means the cutting edge can be renewed quickly, preserving the initial machining quality over longer production runs. Stable shank and balanced geometry for reliable cutting performance Rigidity is central to achieving fine finishes, and the holder’s 25 mm shank and compact form provide improved rigidity compared with slender alternatives. That stability translates into less tool deflection, better dimensional control and extended insert life. The tool’s Ø 32 mm body and mass distribution reduce vibration in medium-depth bores, assisting consistent chip formation and a cleaner contact zone between insert and workpiece. These mechanical advantages are particularly relevant when machining softer alloys or when tight roundness and surface roughness values are specified. Simple compatibility and practical setup for efficient workflows Compatibility with CCMT 0602 indexable inserts enables the use of a wide range of grades and chip breakers to match different materials and cutting speeds. The tool accepts inserts commonly stocked in machine shops, simplifying logistics and reducing downtime. With a maximum effective cutting diameter near 40 mm, a cutting-to-shank length of 104 mm and an overall length of 160 mm, the boring bar adapts to many internal turning tasks. The combination of standardised inserts and a conventional clamping interface means the rig can be set up rapidly and adjusted without special fixtures. Versatile choice for independent workshops and production lines Whether integrated into a jobbing shop or a longer production cell, this boring bar offers a rational balance of precision and practicality. Its measured stiffness and standard insert format support both one-off precision components and batches where consistent finish is required. Through predictable performance and proven insert compatibility, the tool assists in reducing process variability and supports steady throughput — a clear operational advantage when meeting tight tolerances and delivery commitments. Contact Metav Werkzeuge for tailored cutting recommendations on Teknik Makina boring tools and ensure the selected configuration matches specific component tolerances and machine capabilities Technical data SKU: THKB128TM Manufacturer: Teknik Makina Finishing capability: 0.01 mm For indexable inserts: CCMT 0602 Core measurements Cutting diameter max: 40 mm Shank diameter: 25 mm Cutting-shank length: 104 mm Overall length: 160 mm Diameter: 32 mm Weight: 0.76 kg Compatibility & features For fine finishing operations Indexable insert system CCMT 0602 Designed for reduced vibration and improved rigidity FAQ Which insert type is required for this boring bar? The boring bar is designed for CCMT 0602 indexable inserts; using the correct grade and chip breaker adapts the tool for different materials and surface finish requirements. What is the maximum bore diameter achievable with this tool? The tool supports a cutting diameter up to 40 mm, making it suitable for many internal finishing tasks in turning applications. How does the 25 mm shank influence machining performance? A 25 mm shank increases rigidity and reduces deflection compared with smaller shanks, improving dimensional control and extending insert life during fine finishing cycles. Is the tool suitable for automated production runs? Yes—its standard insert format and stable geometry make it suitable for repetitive production where consistent finishing and quick insert changes are required. What level of dimensional accuracy can be expected? Designed for fine finishing, the tool supports a finishing capability of around 0.01 mm, helping to meet tight bore tolerances when used with appropriate machine settings and insert grades. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
340mm Boring Bar for CCMT 1204 Indexable Inserts L208mm - Teknik Makina
Combining a 340 mm cutting capacity with compatibility for CCMT 1204 indexable inserts and a compact 208 mm overall length delivers efficient large-bore machining with reduced setup time and straightforward maintenance – ideal for production runs and repair work. Order the tooling directly via Metav Werkzeuge or consult our specialists for application advice. Boring tool for CCMT 1204 indexable inserts – 340 mm cutting diameter, 208 mm overall length (Teknik Makina) The boring tool for CCMT 1204 indexable inserts is a robust, purpose-built solution for large internal diameters on lathes and turning centres, designed to accept standard CCMT 1204 inserts for flexible, low-downtime machining. Compatible with CCMT 1204 indexable inserts 340 mm cutting diameter 208 mm overall length Engineered for reliable large-bore machining The design combines a large nominal diameter of 340 mm with proven compatibility for CCMT 1204 indexable inserts to enable stable, repeatable internal machining. This configuration reduces the need for specialised single-edge tools by allowing the use of standard inserts, which shortens downtime for edge changes and keeps inventory simple. The result is a practical balance between rigidity and accessibility for medium to heavy bore turning operations in production and maintenance workshops. Maintenance and insert handling for productive shifts Using indexable inserts means that cutting edges are replaced quickly without regrinding, contributing to predictable cycle times and lower per-part tooling costs. The tool’s 208 mm overall length keeps overhang acceptable for many turning centres, improving vibration resistance and surface finish consistency. Clear compatibility with CCMT-format inserts simplifies procurement and allows established grades to be selected for steel, castings or alloy workpieces, depending on the insert chosen. Integration into the workshop and process benefits The modular nature of the system supports standard workshop workflows: familiar insert geometry (CCMT 1204) makes selection straightforward, while the tool’s nominal dimensions facilitate programming and setup on conventional machine controls. For purchasing managers and shopfloor engineers, the combination of a high cutting diameter, standardised insert format and compact overall length delivers both flexibility and reduced logistical overhead, reinforcing predictable throughput in mixed-batch production. For procurement advice, technical clarification or to order the Teknik Makina TKB162TM boring tool contact Metav Werkzeuge in Emmerich by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 for prompt, expert support. Technical data Article number: TKB162TM Product: Boring tool for CCMT 1204 indexable inserts Manufacturer: Teknik Makina Facts Nominal diameter: 340 mm Max cutting diameter: 450 mm Overall length: 208 mm eClass: 21181208 Special features Compatible inserts: CCMT 1204 Product type: Boring tool Label: 340mm Ausbohrwerkzeug CCMT 1204 L208mm SKU: TKB162TM FAQ What insert format does this boring tool accept? The tool is designed for CCMT 1204 indexable inserts; using the specified insert format ensures correct seating, cutting geometry and expected performance for the Teknik Makina TKB162TM boring tool. What are the nominal and maximum cutting diameters? Nominal cutting diameter is 340 mm and the data sheet notes a maximum cutting diameter value of 450 mm, enabling selection of the appropriate set-up for the intended bore. Is the overall length suitable for standard lathes? With an overall length of 208 mm, the TKB162TM is suited to many turning centres where moderate overhang and rigidity are required; machine capability and clamping should be checked prior to operation. Can standard CCMT grades be used for different materials? Yes; the tool accepts standard CCMT 1204 inserts, allowing selection of insert grades optimised for steel, cast iron or non-ferrous materials to match the machining task. How does using indexable inserts affect workshop efficiency? Indexable inserts reduce downtime for edge changes and simplify inventory by using standardised inserts, which supports predictable cycle times and easier reconditioning workflows. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
350mm Boring Tool for CCMT 1204 Indexable Inserts L154mm, 400mm Max Cutting Diameter - Teknik Makina
Take advantage of a large‑diameter solution that combines substantial cutting capacity and rapid insert changes for uninterrupted production. The robust construction and standard CCMT 1204 compatibility support efficient internal turning and lower tooling overheads; order the component directly via Metav Werkzeuge or consult Metav's specialists for integration advice. Boring tool TKB153TM — 350 mm diameter, L 154 mm (Teknik Makina) A compact precision boring tool, Boring tool TKB153TM, engineered for heavy internal turning using CCMT 1204 indexable inserts. Boring tool for CCMT 1204 inserts Large cutting diameter 350 mm Overall length 154 mm for deep cuts Solid construction, weight 4.37 kg Maximise throughput with a 350 mm cutting capacity The large 350 mm cutting diameter and compatibility with CCMT 1204 inserts enable the machining of substantial internal bores without repeated re‑setups. By consolidating large‑bore operations on a single tool body, cycle times are reduced and fixture changes become less frequent. For production environments the combination of wide cutting capacity and standardised insert geometry supports scalable output while maintaining process repeatability. Rigidity and stability for consistent bore quality An overall length of 154 mm combined with a mass of 4.37 kg gives the tool the necessary rigidity to resist deflection during deep internal cuts. Reduced vibration and stable tool behaviour translate into improved surface finish and tighter dimensional control. The tool body is designed to work with indexable inserts, so cutting edges can be renewed quickly without discarding the tool holder — a practical route to sustained precision and less scrap. Faster downtime recovery through replaceable inserts Use of standard CCMT 1204 indexable inserts keeps maintenance actions short and predictable. When an insert is worn, a replacement can be fitted and aligned in minutes, restoring cutting performance without tool regrinding. This approach lowers operating costs by extending the life of the holder assembly and keeping spare‑part inventories focused on a small number of common inserts rather than many bespoke cutters, improving overall equipment effectiveness. Integration into mixed production environments Supplied under Teknik Makina, the TKB153TM format is intended for straightforward incorporation into existing tool sets and turret systems that accept indexable tooling. The tool's labelling and SKU (TKB153TM) simplify stock management and traceability. Metav's European distribution hub ensures reliable availability for workshop replenishment, supporting uninterrupted machining schedules and predictable lead times. Contact Metav Werkzeuge in Emmerich for tailored advice on integrating the Teknik Makina TKB153TM boring tool and securing reliable supply for high‑precision machining Technical data Article number / SKU: TKB153TM Label: 350mm Ausbohrwerkzeug CCMT 1204 L154mm Manufacturer: Teknik Makina Facts Diameter: 350 mm Maximum cutting diameter: 400 mm Overall length: 154 mm Weight: 4.37 kg eClass: 21181208 Special features Compatible with CCMT 1204 indexable inserts Product type: Boring tool Category: Machining FAQ What insert type fits this boring tool? The boring tool accepts CCMT 1204 indexable inserts; this standard geometry allows quick replacement of cutting edges and straightforward procurement of spares. What is the maximum bore that can be machined? The tool supports a cutting diameter of 350 mm, with a specified maximum cutting diameter of 400 mm noted in the technical data. Why does overall length matter for bore quality? An overall length of 154 mm limits overhang and helps preserve rigidity, which is important for achieving consistent bore diameter and surface finish with the TKB153TM. How are worn tips handled during production? Worn tips are replaced as indexable inserts, restoring cutting performance rapidly and keeping downtime to a minimum for continuous machining operations. How is the tool identified for ordering and stock control? The product is listed under SKU TKB153TM by Teknik Makina; using the SKU ensures the correct boring tool and compatible insert configuration are supplied. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
350mm Boring Tool for Fine Machining for CCMT 09T3 Indexable Inserts L212mm - Teknik Makina
Take advantage of a compact combination of precision and machining range: robust fine-finishing capability for internal bores with compatibility for CCMT 09T3 indexable inserts and a substantial maximum cutting diameter of 410 mm — available through Metav Werkzeuge for direct procurement or technical consultation. THB134TM — 350 mm fine-finishing boring tool for CCMT 09T3 inserts by Teknik Cutting Tools The THB134TM is a purpose-built boring tool for fine machining, designed for internal turning operations and compatible with CCMT 09T3 indexable inserts. For CCMT 09T3 indexable inserts Max cutting diameter 410 mm Overall length 212 mm Cutting height 142 mm Superior finish quality through vibration control and rigidity This boring bar is engineered to deliver a consistently high-quality surface finish in fine machining applications. The tool's substantial diameter and construction provide enhanced rigidity, which reduces chatter and improves repeatability across workpieces. Compatibility with CCMT 09T3 inserts enables precise edge geometry selection for delicate cuts and optimised chip control. For machine shops focused on tight tolerances, the combination of mechanical stability and suitable insert geometry translates into fewer reworks and steadier production runs. Designed to accelerate workflow and reduce setup times With an overall length of 212 mm and a clearly defined cutting height of 142 mm, this tool integrates easily into standard turning setups. The clear dimensional data simplifies fixture planning and tool offset programming, supporting faster changeovers on multi-operation lathes and CNC turning centres. By streamlining the setup and delivering consistent cutting conditions, the boring tool helps to improve throughput and operational efficiency without compromising on finishing quality. Practical integration and maintenance for busy toolrooms Installation and replacement of CCMT 09T3 inserts are straightforward, enabling quick maintenance and minimal downtime during production shifts. The tool's measured parameters, including the max cutting diameter of 410 mm, allow planning for a wide range of internal bore sizes while keeping stock and handling requirements manageable. For production managers and technical planners, the clear specifications support accurate simulation and toolpath verification, reducing the risk of costly collisions or improper tool selection. Contact Metav Werkzeuge to discuss integration, request technical drawings or confirm suitability for specific turning centres — Metav's specialists will advise on application fit and delivery from Emmerich. Technical data SKU: THB134TM Product: Boring tool for fine machining For inserts: CCMT 09T3 Manufacturer: Teknik Cutting Tools Label: 350mm Ausdrehwerkzeug für die Feinbearbeitung CCMT 09T3 L212mm Facts Diameter: 350 mm Max cutting diameter: 410 mm Overall length: 212 mm Cutting height: 142 mm eClass: 21041590 Special features Compatible with CCMT 09T3 indexable inserts Optimised for fine finishing operations Compact dimensions for standard turning centres FAQ What insert type does the tool accept? The THB134TM accepts CCMT 09T3 indexable inserts, providing a balance of edge strength and fine-finishing geometry suitable for internal turning. Which bore sizes can be machined with this tool? The tool supports operations up to a max cutting diameter of 410 mm, with a nominal tool diameter of 350 mm and an overall length of 212 mm for planning and clearance calculations. Is the tool suitable for high-precision workshop applications? Yes, the design emphasises rigidity and repeatability for fine machining, making it appropriate for toolrooms and production environments where surface finish and dimensional accuracy are priorities. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
350mm Boring Tool For Finishing For CCMT 09T3 Indexable Inserts, 410mm Cutting Diameter - Teknik Makina
Take advantage of a combination of high rigidity, large bore capacity and reliable insert compatibility to maintain a consistent finishing quality. The 350 mm design with a 40 mm shank and compatibility with CCMT 09T3 indexable inserts delivers stable performance for demanding finishing operations. Order the boring tool directly via Metav Werkzeuge or ask our consultants if required. Boring tool for fine machining (350 mm) – for CCMT 09T3 indexable inserts, Teknik Makina A precision boring tool for fine machining designed for large-diameter finishing tasks and compatible with CCMT 09T3 indexable inserts. 350 mm diameter Compatible with CCMT 09T3 inserts 40 mm shank diameter Up to Ø410 mm cutting diameter Consistent finishing through optimised rigidity and geometry The boring bar is engineered to provide stable cutting for finishing passes. With a substantial 40 mm shank and a body designed for minimal deflection, the system reduces vibration and improves repeatability. This results in a more consistent surface finish and reduces the need for rework. The compatibility with CCMT 09T3 indexable inserts allows straightforward tool replacement and fine-tuning of cutting parameters without changes to the holder setup. Large bore capability that shortens cycle times Designed for bore diameters around 350 mm with a maximum cutting diameter of Ø410 mm, the tool enables larger envelope machining without multiple set-ups. Fewer tool changes and a reduced number of passes translate into measurable time savings on finishing operations. The tool’s cutting height of 93.7 mm supports secure insert seating and helps maintain cutting geometry during longer cuts, contributing to higher process efficiency. Practical benefits for workshop workflows By using standard indexable inserts, workshop maintenance becomes more predictable: inserts are fast to replace, and worn grades can be swapped to suit material and speed requirements. The result is a lower effective tooling cost per component and less downtime for replenishment. For mixed production environments and contract machining, this translates to improved throughput and a dependable finishing process. Application range and integration into toolrooms The boring assembly is intended for precision finishing tasks in tooling shops, general machining and components production where tight surface quality and dimensional stability are required. The combination of large diameter capability and insert compatibility makes it suitable for turning centres and boring mills handling medium to large components. For suitability queries or detailed application advice, Metav’s specialists provide technical guidance to align cutting data and insert selection with individual requirements. Contact Metav Werkzeuge for application-specific recommendations and to arrange procurement of the Teknik Makina THB114TM boring tool for precision finishing Technical Data Article number: THB114TM Product: Boring tool for fine machining Manufacturer: Teknik Makina Label: 350 mm boring tool for fine machining CCMT 09T3 ECLASS: 21041590 Facts Diameter: 350 mm Shank diameter: 40 mm Max cutting diameter: Ø410 mm Cutting height: 93.7 mm Special features Compatible with CCMT 09T3 indexable inserts Intended for fine machining / finishing Product type: Boring tool for fine machining SKU: THB114TM FAQ What insert type is compatible with this boring tool? The tool is designed for CCMT 09T3 indexable inserts and uses the standard clamping and seat geometry associated with that insert family. What bore diameter range does the tool cover? The boring assembly is optimised for a nominal diameter of 350 mm and supports a maximum cutting diameter of Ø410 mm for finishing operations. What is the shank diameter and how does it affect rigidity? The tool features a 40 mm shank, which contributes to higher rigidity and reduced deflection during finishing passes. Can this tool be used for roughing as well as finishing? The design is intended for fine machining and finishing; for heavy roughing applications, a dedicated roughing tool or insert grade may be more suitable. What is the exact product reference for ordering? Order under SKU THB114TM, described as a 350 mm boring tool for fine machining by Teknik Makina. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com

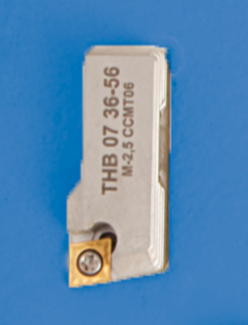

36-56mm Cartridge For Boring Tool, Torx T8/M2.5x5.5 - Teknik Makina
Benefit from the precise 36–56 mm clamping range and compatibility with CCMT 0602 inserts to reduce setup time and improve bore accuracy. The secure Torx T8 fastening with M2.5x5.5 screws delivers consistent repeatability under production conditions. Order the cartridge directly via Metav Werkzeuge or consult their specialists for tailored application support. Cartridge THB07TM (Kartusche) — 36–56 mm cartridge for boring tool set by Teknik Makina A Cartridge for modular boring tool sets, designed to secure indexable inserts for precise internal turning and adaptable bore diameters. Fitted for boring tool sets 36–56 mm range Compatible with CCMT 0602 indexable inserts Torx T8 screw and M2.5x5.5 fastening Robust component from Teknik Makina Faster set-up and reliable bore results The compact holder is built to simplify internal turning operations: the adjustable 36–56 mm clamping range removes the need for multiple fixed adapters, while compatibility with CCMT 0602 indexable inserts keeps tooling costs predictable. By standardising on a single, adaptable holder, machine time is maximised and changeover procedures are shortened. The combination of a defined insert fit and consistent clamping geometry supports repeatable bore diameters with fewer adjustments, contributing directly to improved process efficiency. Secure fastening for repeatability in production A robust fastening system using a Torx T8 driver and M2.5x5.5 screws ensures a reliable mechanical connection between the holder and the cutting insert. This configuration reduces the risk of loosening under load and minimises micro-movements that can affect finish and tolerance. The mechanical design emphasises precision and vibration resistance, attributes that matter in medium- to high-volume runs where consistent part quality and reduced rework translate into clear time and cost savings. Seamless integration with existing tooling systems The cartridge is intended for direct use within standard boring tool sets, enabling straightforward replacement or upgrade of existing tool holders. Marked under SKU THB07TM, the component was conceived for easy integration and clear identification in workshop inventories. Its compatibility with widely used insert geometries simplifies procurement and stock management for production teams. For workshops seeking to increase flexibility without extensive retooling, this holder offers a pragmatic route to improved internal turning capability. For secure, precise internal boring choose the Teknik Makina cartridge and contact Metav Werkzeuge in Emmerich for application advice and reliable supply via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: THB07TM Name: Kartusche EN designation: 36-56mm for Boring Tool Manufacturer: Teknik Makina Facts Compatible inserts: CCMT 0602 Torx key: T8 Torx screw: M2.5x5.5 ECLASS: 21041590 Special features For boring tool set SKU: THB07TM Story trigger: ausdrehwerkzeug FAQ What insert size does the cartridge accept? The cartridge accepts CCMT 0602 indexable inserts, which are specified for the holder to ensure correct seating and cutting geometry. Which clamping range is covered by this holder? The holder is designed for a clamping range of 36–56 mm, making it suitable for a range of internal bores within that span. What fastening hardware is required for installation? Installation uses a Torx T8 driver and M2.5x5.5 screws as supplied for secure mounting of the insert and holder. Is this component compatible with existing boring tool sets? Yes, the cartridge is intended for modular boring tool sets and is identified under SKU THB07TM for straightforward replacement and inventory control. Who manufactures this cartridge? The cartridge is produced by Teknik Makina and is supplied for workshop use where reliable internal turning and repeatability are required. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
37-48 CCMT 09T3 Boring Tool Cartridge, Replacement Part - Teknik Makina
Take advantage of a precise fit and clear compatibility with the 37–48 CCMT 09T3 boring tool to maintain stable cutting conditions and reduce setup time; the compact design facilitates quick replacement and consistent performance on the shop floor. Order the KR104TM cartridge directly via Metav Werkzeuge or ask the consultants for tailored advice. KR104TM Cartridge for Boring Tool 37–48 CCMT 09T3 — Secure insert retention, Teknik Makina A KR104TM Cartridge engineered to provide secure insert clamping in the boring tool 37–48 CCMT 09T3, intended for internal and light external boring and turning applications Compatible with Boring Tool 37–48 CCMT 09T3 Precision fit for stable insert retention Robust construction for workshop use Improved machining stability through precise insert retention The KR104TM cartridge delivers consistent insert clamping, which reduces micro‑movement and vibration during cutting. By securing the CCMT 09T3 insert firmly, the assembly supports stable cutting conditions that help to extend insert life and maintain surface finish quality. For unfamiliar readers: CCMT 09T3 denotes a common carbide insert geometry used for finishing and semi‑finishing; ensuring correct retention prevents chipping and irregular wear while supporting predictable tool performance. Faster maintenance and predictable production flow Designed for quick exchange, the cartridge simplifies replacement procedures and shortens machine downtime. The compact design of the retention unit and its clear compatibility with the boring tool 37–48 range mean setup changes are straightforward and repeatable. This ease of maintenance translates into a more efficient production rhythm and lower indirect costs, since tool change intervals become predictable and less time‑consuming for operators and maintenance staff. Ready for everyday workshop demands and varied turning tasks Manufactured by Teknik Makina with workshop use in mind, the cartridge is intended to withstand regular handling and the rigours of turning and boring operations. The construction supports use with standard CCMT 09T3 inserts across a range of materials commonly machined in light to medium duty processes. The result is a compact retention solution that supports reliable performance, helps to achieve consistent part quality and integrates seamlessly into existing toolholders for straightforward adoption. Choose the Teknik Makina KR104TM cartridge via Metav Werkzeuge for assured compatibility and dependable stock—contact Metav Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 for expert guidance and order support Technical Data Article number: KR104TM Manufacturer: Teknik Makina Description: Cartridge for Boring Tool 37–48 CCMT 09T3 Facts Compatible boring range: 37–48 Insert type compatibility: CCMT 09T3 SKU: KR104TM Special features For CCMT 09T3 inserts Compatible with Boring Tool 37–48 Replacement cartridge for boring assemblies FAQ Is the cartridge compatible with other insert types? The KR104TM cartridge is specified for use with CCMT 09T3 inserts; alternative insert geometries require verification of fit and clamping geometry before use. How does the cartridge affect tool life? By providing reliable insert retention and reducing micro‑movement, the cartridge helps to lower insert wear and can contribute to more consistent tool life for CCMT 09T3 applications. Can the cartridge be used for both internal and external operations? The cartridge is intended primarily for boring and related turning tasks within the 37–48 range; suitability for specific external operations depends on the toolholder configuration and machining parameters. Is installation complicated for workshop staff? Installation is designed to be straightforward for technicians familiar with insert assembly; the cartridge fits the matching boring tool and enables repeatable clamping for routine maintenance. What should be checked during regular inspection? Inspect the clamping faces and seating for wear or contamination and confirm correct seating of the CCMT 09T3 insert to maintain secure retention and machining stability. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
37mm Boring Bar CCMT 09T3 Tip, 25mm Shank 204mm Cutting Length, 260mm Overall - Teknik Makina
Take advantage of a robust indexable-insert boring bar that combines extended reach, stable shank dimensions and proven insert compatibility to keep internal turning operations precise and productive. Order directly via Metav Werkzeuge or consult the Metav team for application advice. Boring Bar TKB116TM — indexable-insert boring bar for CCMT 09T3, 204 mm cutting length (Teknik Makina) The Boring Bar TKB116TM is a purpose-built indexable-insert tool suited to internal boring and precision turning tasks where extended reach and reliable insert clamping are required. Extended 204 mm cutting length for deep bores Stable 25 mm shank reduces vibration and runout Compatible with CCMT 09T3 indexable inserts Practical overall length of 260 mm for machine clearance Consistent internal accuracy for repeatable components This boring bar is engineered to deliver stable cutting performance in series production. With a 25 mm shank diameter and a long 204 mm cutting length, the tool minimises deflection during deep internal cuts, which translates into improved roundness and surface finish. The use of indexable inserts reduces the variability inherent in solid-carbide solutions, as worn cutting edges can be replaced quickly, restoring cutting geometry without regrinding. Where process stability matters, this approach supports tighter tolerances and predictable cycle times. Productivity gains through quick insert changes and proven geometry Designed for fast maintenance, the bar accepts CCMT 09T3 inserts — a widely used grade and geometry that balances good chip control with durable cutting edges. The insert format enables straightforward seat location and clamping, shortening downtime for insert changes and reducing tooling logistics. The tool’s configuration supports efficient workshop workflows: fewer interruptions, fewer speciality grinding operations and consistent cutting-edge geometry that helps shops reach planned throughput targets sooner. Practical dimensions that suit most turning centres Measured dimensions support practical machine setup: an overall length of 260 mm and a cutting diameter range up to 48 mm provide the reach and clearance required for many internal operations. The listed diameter value of 37 mm indicates the tool’s working envelope, while the mass of 1.597 kg gives a tangible sense of its robustness. These numeric specifications make it straightforward to check spindle limits, holder compatibility and balance requirements before installation, so setups are completed with minimal iteration. Reliability and planning advantages for the workshop The bar’s design focuses on repeatable performance and minimised service intervention. Using standard indexable inserts reduces dependence on specialist regrinds and supports predictable inventory management for cutting edges. Combined with Metav’s logistics and quality filtering from Emmerich, the solution is intended to improve supply certainty and reduce the risk of production interruptions. For purchasers planning toolsets, the TKB116TM provides clear, measurable parameters for fixture design and process documentation. Contact Metav Werkzeuge for tailored application advice on the Teknik Makina TKB116TM boring bar and to discuss stock availability and delivery from Emmerich; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: TKB116TM Manufacturer: Teknik Makina Type: Boring bar (indexable-insert) Key measurements Maximum cutting diameter: 48 mm Nominal diameter: 37 mm Shaft diameter: 25 mm Cutting length: 204 mm Overall length: 260 mm Weight: 1.597 kg Materials & features Compatible inserts: CCMT 09T3 Indexable-insert system Files: 62de7e6333927e49dbf32755, 62de7eef0f56dbb4de4dbf60 FAQ What insert type does this bar require? The TKB116TM accepts CCMT 09T3 indexable inserts; this insert format is common for finishing and medium-cutting operations and allows quick edge replacement. What is the maximum recommended cutting diameter? The tool is specified for a maximum cutting diameter of 48 mm, with a nominal working diameter reference of 37 mm for standard setups. Which shank diameter is used for mounting? The bar has a 25 mm shank diameter, providing stiffness for deep internal cuts and compatibility with appropriately rated toolholders. How long is the cutting portion for deep boring? The cutting length is 204 mm, which is suitable for extended-reach internal machining without the need for custom extensions. Is the tool supplied with inserts? The product is supplied as an indexable-insert boring bar; inserts are not listed as included in the supplied data and should be ordered separately according to workshop requirements. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
38mm Boring Tool CCMT 09T3 Inserts 20mm Shank 55mm Cutting Length, 105mm Overall - Teknik Makina
Take advantage of a compact, indexable solution that combines reliable clamp stability and easy insert changes for fast, repeatable internal machining. The tool’s 20 mm shank and 55 mm effective cutting length deliver improved rigidity and consistent finishes while the CCMT insert interface keeps tooling costs low — order the boring bar directly via Metav Werkzeuge or consult our specialists for application advice. TKB106TM boring bar — indexable internal boring tool with CCMT interface (Teknik Makina) The TKB106TM boring bar is designed for precision internal machining in workshop and production environments, accepting CCMT 09T3 indexable inserts for adaptable finishing and roughing operations Indexable insert holder for CCMT 09T3 20 mm shank for secure toolholder clamping 55 mm effective cutting length Suitable for bores up to 38 mm diameter Greater cutting stability through a compact, precision shank The bar’s 20 mm shank and balanced mass (0.378 kg) increase rigidity at the holder, which reduces vibration and improves concentricity during internal turning. A firmer support in the toolpost translates directly into more consistent bore diameters and longer insert life. For workshops seeking repeatable results, this means fewer reworks and more predictable cycle times — the result of combining a well-dimensioned shank with a compact overall length. Efficient insert system that lowers operating costs Equipped to accept CCMT 09T3 indexable inserts, the boring bar enables quick insert replacement without regrinding, cutting downtime and consumable costs. CCMT inserts are a widely used grade for finishing and semi-finishing; using them allows an operator to restore cutting performance in minutes. This modular approach delivers a clear economic benefit on production runs where frequent edge restoration would otherwise interrupt throughput. Effective cutting reach with controlled overhang for precision bores The 55 mm effective cutting length and total length of 105 mm balance reach and stiffness, supporting machining of medium-deep bores while limiting overhang-related deflection. With a maximum cutting diameter parameter indicating suitability up to 38 mm, the bar fits common internal turning tasks across automotive, hydraulic and general engineering components. The design focuses on delivering predictable tool behaviour so that setup times are reduced and process stability is improved. Choose Teknik Cutting Tools’ TKB106TM via Metav Werkzeuge for dependable internal machining — contact Metav Werkzeuge for tailored application support and ordering guidance at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: TKB106TM Manufacturer: Teknik Makina Designation: Ausbohrwerkzeug Facts Cutting diameter max: 38 mm Shank diameter: 20 mm Effective cutting length: 55 mm Overall length: 105 mm Weight: 0.378 kg Compatible insert: CCMT 09T3 Special features Indexable insert interface CCMT 09T3 Compact construction for improved rigidity Nominal diameter reference: 28 Suitable for precision internal machining FAQ What insert type does the boring bar use? The boring bar accepts CCMT 09T3 indexable inserts, allowing fast edge changes and adaptable grades for finishing or semi-finishing. Which bore diameters are suitable for this tool? The bar is configured for internal bores up to 38 mm cutting diameter and is particularly effective where a moderate reach is required. How does the 20 mm shank affect machining performance? A 20 mm shank provides a secure clamp fit and improved rigidity, which reduces vibration and contributes to more consistent bore accuracy. Is the cutting length sufficient for medium-deep bores? With a 55 mm effective cutting length and 105 mm overall length, the tool offers a practical balance between reach and stiffness for many workshop applications. Can the bar be used for both finishing and roughing passes? Yes — paired with appropriate CCMT insert grades, the bar is suitable for semi-finishing and finishing operations where insert geometry and grade are selected to match the application. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Boring Tool For Fine Finishing 0.01mm Resolution, CCMT 0602 Compatible - Teknik Makina
Take advantage of precise, repeatable finishing and robust clamping to reduce rework and secure consistent bore quality; the combination of a 25 mm shank, Ø40 mm max cutting diameter and compatibility with CCMT 0602 inserts supports efficient production. Order or discuss delivery options via Metav Werkzeuge for prompt supply and expert advice. Fine boring tool for fine finishing – Teknik Makina Fine boring tool for fine finishing designed for internal finishing applications and compatible with standard CCMT 0602 indexable inserts Fine finishing to 0.01 mm tolerance Compatible with CCMT 0602 inserts 25 mm shank for stable clamping Ø40 mm max cutting diameter Consistent fine finishes with measurable precision The boring bar is engineered to deliver high-precision internal finishes, enabling achievable tolerances down to 0.01 mm for demanding components. Its geometry and recommended insert grade are optimised for minimal vibration and uniform material removal, which reduces the need for secondary operations. By pairing the holder with CCMT 0602 indexable inserts, machinists obtain a reliable combination for repeatable bore quality in series production and prototype runs alike. Stable set-up for higher metal-removal efficiency A 25 mm shank and a substantial effective length provide the rigidity required for stable clamping and improved tool life. The tool’s dimensions—60 mm cutting length on the shank and an overall length of 116 mm—support secure seating in standard toolholders while allowing access into deeper bores. This stability permits slightly higher cutting parameters where the workpiece and machine permit, helping to increase throughput without compromising surface integrity. Flexible integration and practical workshop benefits Compatibility with commonly available indexable inserts simplifies stocking and tool change routines; the use of CCMT 0602 inserts ensures an economical, proven cutting edge for finishing operations. With a maximum cutting diameter of 40 mm and a tool weight around 0.51 kg, the holder balances manoeuvrability and mass for controlled cutting dynamics. For shops aiming to streamline tooling logistics, the tool integrates well with existing setups and supports predictable cycle times and quality outcomes. Contact Metav Werkzeuge today to review specifications, check availability or request a tailored delivery from our Emmerich stock Technical data SKU: THKB126TM Manufacturer: Teknik Makina Facts Max cutting diameter: 40 mm Shank diameter: 25 mm Cutting shank length: 60 mm Overall length: 116 mm Fine finishing capability: 0.01 mm Weight: 0.51 kg Special features Compatible inserts: CCMT 0602 Designed for internal fine finishing Balanced design for reduced vibration FAQ What tolerance can be achieved with this boring bar? The boring bar supports fine finishing down to 0.01 mm, enabling consistent internal surface quality suitable for precision components. Which insert type is required for the holder? The holder accepts CCMT 0602 indexable inserts; this common size facilitates economical tool changes and simple procurement. Is the tool suitable for deeper bores? With an overall length of 116 mm and a 60 mm effective cutting shank, the tool is intended for moderate-depth internal finishing where rigidity can be maintained. What is the article SKU and the supplying brand? The article is listed as THKB126TM and is supplied by Teknik Makina; the design focuses on fine internal finishing and compatibility with standard workshop inserts. Manufacturer: Teknik Cutting Tools; Buyukkayacık OSB Mah.422 Nolu Sokak No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Boring Tool For Fine Machining 0.01mm Precision, CCMT 0602 - Teknik Makina
Take advantage of 0.01 mm finishing accuracy combined with a 25 mm shank for stable machining and reduced rework; the tool's compatibility with CCMT 0602 inserts ensures rapid indexable insert changes and consistent surface quality. Order the boring tool directly via Metav Werkzeuge or consult the team for application-specific advice. Boring tool for fine finishing — Teknik Makina fine-finishing boring bar with CCMT 0602 compatibility Boring tool for fine finishing designed for precision internal finishing in production workshops and toolrooms High-precision finishing to 0.01 mm Accepts CCMT 0602 indexable inserts 25 mm shank for stable clamping 125 mm overall length for deep bore access Consistent fine finishing for demanding internal bores The boring bar delivers a proven capability for tight-surface tolerances, with a documented fine finishing capability of 0.01 mm. This level of control reduces the need for subsequent polishing or rework and supports parts that must meet tight geometrical and surface specifications. Built to accept CCMT 0602 indexable inserts, the holder enables predictable chip formation and an easily repeatable finish quality. For production lines where cycle consistency and first-pass yield matter, the combination of fine tolerance and indexable inserts translates directly into fewer rejects and lower downstream labour costs. Rigid design that minimises chatter and improves productivity A 25 mm shank and compact overall length of 125 mm provide a stiff tool-holding solution that resists deflection in finishing passes. The tool's cutting portion extends 69 mm, allowing access into deeper bores while maintaining the necessary rigidity for high-quality finishes. Reduced vibration and improved tool stability lead to longer insert life and steadier cutting parameters, which in turn lowers setup time and increases machine throughput. These mechanical advantages support efficient machining on both CNC lathes and conventional turning centres. Fast insert replacement and straightforward integration into toolcycles Compatibility with standard CCMT 0602 inserts makes insert procurement and replacement simple and economical. Indexable inserts allow quick corner changes without the need for regrinding, reducing machine downtime and simplifying tooling logistics. The design supports common clamping systems and can be integrated into existing tool racks and presetting routines, so shops benefit immediately from lower setup complexity and faster return on tooling investment. Applications, target users and workshop benefits Intended for precision internal finishing tasks up to a 50 mm cutting diameter, this boring bar suits toolrooms, precision engineering shops and serial production environments that value surface integrity and dimensional accuracy. The rigour of the mechanical design and insert system brings practical benefits: fewer quality inspections, predictable maintenance intervals and consistent part quality. For workshops seeking dependable finishing solutions, the tool offers a clear productivity uplift and helps maintain standards across batches. Contact Metav Werkzeuge to arrange supply or a technical consultation on the Teknik Makina fine finishing boring tool THKB132TM — eMail: info@metav-werkzeuge.com, Tel: +49 2822 7131930 Technical data Article number: THKB132TM Manufacturer: Teknik Makina Numerical data Maximum cutting diameter: 50 mm Shank diameter: 25 mm Cutting length: 69 mm Overall length: 125 mm Weight: 0.722 kg Fine finishing capability: 0.01 mm Designs / Special features Compatible inserts: CCMT 0602 Designed for fine finishing internal bores Indexable insert holder for rapid replacement FAQ What diameter range is suitable for machining with this boring bar? This boring bar is designed for internal finishing operations up to a 50 mm cutting diameter and is optimised for fine finishing work with the Teknik Makina boring tool THKB132TM. Which insert type is required for this holder? The holder is compatible with CCMT 0602 indexable inserts; using these standard inserts with the Teknik Makina fine finishing boring tool THKB132TM enables quick changes and consistent results. How does the shank diameter affect performance? The 25 mm shank diameter increases rigidity and reduces deflection during finishing passes, improving surface quality and insert life when using the Teknik Makina boring bar THKB132TM. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
45mm Boring Tool CCMT 09T3 Indexable Inserts 200mm Cutting Length, 32mm Shank - Teknik Makina
Take advantage of a robust combination of large cutting capacity and a long cutting reach for efficient internal machining; the high rigidity and compatibility with CCMT 09T3 indexable inserts support reproducible results and reduced set-up times. Order via Metav Werkzeuge or consult the team for application-specific guidance. Boring tool TKB122TM by Teknik Makina — Ø 56 mm capacity, for CCMT 09T3 inserts Boring tool TKB122TM designed for precision internal machining in production and workshop environments, providing extended cutting reach and stable support for indexable inserts. Compatible with CCMT 09T3 inserts Max cutting diameter Ø 56 mm Shaft diameter 32 mm Cutting length 200 mm Large cutting capacity for fewer re‑set operations The TKB122TM offers a max cutting diameter of Ø 56 mm, enabling larger internal bores without multiple tool changes. This capacity reduces non-productive time and simplifies process planning in batch production or repair work. The compatibility with CCMT 09T3 indexable inserts means inserts can be replaced quickly when worn, preserving toolholder alignment and avoiding extended downtime. For shops seeking predictable cycle times, the combination of insert system and cutting reach translates into measurable efficiency gains. Stiff shaft and extended reach for steady cutting performance A substantial shaft diameter of 32 mm and a cutting length of 200 mm give the tool a favourable stiffness-to-length ratio. Increased rigidity reduces chatter and improves surface finish during internal machining; the design supports consistent chip evacuation when paired with suitable insert geometry. The tool’s overall length 260 mm and mass (listed as weight 2.385 kg) contribute to stable cutting dynamics, particularly when machining demanding profiles. The result is improved dimensional control and fewer reworks, which directly benefits production reliability. Efficient integration and supply from a trusted partner The TKB122TM is designed for straightforward integration into existing tooling setups that accept CCMT insert formats. Its use of a proven insert standard supports flexibility: the same insert grade can be used across multiple toolholders to simplify inventory. Metav Werkzeuge supplies this Teknik Makina tool from Emmerich with an emphasis on dependable logistics and technical support. Metav’s role as a precision partner is reflected in a broad product range and a track record of thousands of satisfied industrial customers, ensuring the boring bar arrives promptly and ready for installation. For a technical assessment or to secure supply of the Teknik Makina TKB122TM, contact Metav Werkzeuge for tailored advice and ordering from Emmerich. Technical data SKU: TKB122TM Manufacturer: Teknik Makina Max cutting diameter: 56 mm Nominal diameter: 45 mm Shaft diameter: 32 mm Cutting length: 200 mm Overall length: 260 mm Weight: 2.385 kg Special features Compatible insert type: CCMT 09T3 Indexable insert system for fast replacement Designed for internal boring applications Robust shaft geometry for reduced vibration FAQ What insert type fits this boring bar? The TKB122TM is designed for CCMT 09T3 indexable inserts, allowing quick replacement and consistent cutting geometry. Can the boring bar handle deep internal bores? With a cutting length of 200 mm and overall length of 260 mm, the tool is intended for extended internal reach while maintaining stiffness. How does shaft diameter affect performance? A shaft diameter of 32 mm increases rigidity and reduces deflection, which improves surface finish and dimensional accuracy during boring operations. Is the TKB122TM suitable for production use? Yes; the combination of a large cutting capacity, indexable inserts and a stable shaft design supports reproducible results in production environments. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
45mm Boring Tool CCMT 09T3 Insert Compatibility, 32mm Shank 70mm Cutting Length - Teknik Makina
Take advantage of the combination of a 32 mm shank for high rigidity, a 70 mm cutting length for deeper bore finishing and compatibility with CCMT 09T3 indexable inserts to reduce tooling costs and downtime. Order the Ausbohrwerkzeug directly via Metav Werkzeuge or consult our specialists for application advice. Ausbohrwerkzeug TKB118TM – Internal boring bar, indexable system, Ø up to 56 mm (Teknik Makina) The Ausbohrwerkzeug TKB118TM is an internal boring bar designed for precision bore enlargement and finishing using indexable CCMT 09T3 inserts; suited to workshop and production environments where repeatability and fast insert changes are required Indexable for CCMT 09T3 inserts Max cutting diameter 56 mm 32 mm shank diameter for rigid clamping 70 mm cutting length for deep bores Precision bore finishing with indexable inserts The tooling is engineered to deliver consistent bore geometry through a rigid 32 mm shank and a substantial cutting reach. By accepting CCMT 09T3 indexable inserts, the system separates cutting edge performance from the tool body: worn cutting edges are replaced quickly while the holder remains in use. This approach reduces per-hole cost and supports continuous production where repeatability matters. The 56 mm maximum cutting diameter and 70 mm effective cutting length ensure compatibility with a wide range of internal machining tasks, offering a predictable process window for setup and programming. Faster cycle times and lower operating costs Interchangeable carbide inserts provide the primary economic benefit: reduced regrind cycles, simplified inventory of cutting edges and minimal downtime for tool reconditioning. The indexable format used by this boring bar enables quick insert indexing or replacement, which can shorten maintenance intervals and maintain cutting performance during long runs. For operational planners, the combination of insert availability and a robust holder means fewer full-tool changes and improved machine uptime without sacrificing bore quality or surface finish. Stable support and reliable machining performance A compact overall length of 130 mm and a mass of 1.035 kg contribute to the holder's stability in the toolpost or turret, reducing vibration and improving surface integrity. The substantial shank diameter enhances clamping stiffness, which is especially beneficial when machining harder or interrupted cuts. The construction supports steady tool life for the insert and consistent dimensional results. Where process reliability and predictable tolerances are required, the tool’s geometry and mass distribution assist in holding form and concentricity throughout production batches. Discuss application requirements with Metav Werkzeuge for a tailored recommendation on the Teknik Makina TKB118TM and compatibility with existing insert stocks — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: TKB118TM Manufacturer: Teknik Makina Name: Ausbohrwerkzeug Facts Max cutting diameter: 56 mm Shank diameter: 32 mm Cutting length: 70 mm Overall length: 130 mm Weight: 1.035 kg Nominal diameter: 45 Special features Compatible inserts: CCMT 09T3 Indexable insert system Designed for internal boring and finishing FAQ What inserts fit this boring bar? The boring bar accepts CCMT 09T3 indexable carbide inserts, enabling quick edge changes and cost-effective resharpening cycles. What is the maximum cutting diameter? The Ausbohrwerkzeug TKB118TM is specified for a maximum cutting diameter of 56 mm. How long is the effective cutting reach? The tool provides a cutting length of 70 mm, suitable for deeper bore operations where extended reach is required. What shank diameter ensures clamping rigidity? A 32 mm shank diameter gives the holder high rigidity for stable internal machining and improved surface finish. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
45mm Boring Tool For CCMT 09T3 Indexable Inserts L182mm, Ø90mm Cutter Height 60mm - Teknik Makina
Combining compatibility with CCMT 09T3 indexable inserts, a sturdy 45 mm shank and a 90 mm maximum cutting diameter, this boring tool delivers efficient, repeatable machining for medium‑diameter bores; order directly via Metav Werkzeuge or consult their specialists for selection and setup assistance. Boring Tool for CCMT 09T3 Indexable Inserts — 45 mm Ø, 182 mm Length (Teknik Makina) The boring tool for CCMT 09T3 indexable inserts is designed for precise internal and external boring in turning applications, optimised for stable clamping and quick insert changes 45 mm shank for stable clamping Compatible with CCMT 09T3 inserts Up to 90 mm cutting diameter Compact overall length 182 mm Precision and throughput for medium‑diameter bores The boring tool accepts CCMT 09T3 indexable inserts and is dimensioned to support consistent bore production across short to medium runs. A 45 mm shank provides a rigid interface with the holder, reducing deflection during cutting, while the 90 mm maximum cutting diameter expands the operational range without the need for multiple setups. With an overall length of 182 mm and a mass suited to robust machining (weight 2.168 kg), the design promotes repeatable process parameters and predictable cycle times, enabling planners to specify feeds and speeds with confidence. Stable clamping reduces vibration and extends service intervals A toolholder and bar that transfer forces effectively into the machine spindle yield measurable improvements in surface finish and component conformity. This configuration improves tool life by lowering chatter and peak loads on insert corners; combined with quick, indexable inserts, it minimises downtime for grade changes. The option to select carbide grades for roughing or finishing within the CCMT family makes the system adaptable to varying workpiece materials and order sizes, helping production managers balance cost per part against finish requirements. Straightforward integration into the production line Classification data and clear dimensional specifications simplify procurement and fixture design: measurements for shank diameter, cutting diameter and cutting height are supplied for immediate use in CAM setups and jigs. As part of a machine shop’s tooling kit, the unit supports efficient workflows by reducing set‑up complexity and streamlining insert logistics. For operations seeking reliable, economical boring performance, the combination of solid mechanical design and indexable inserts technology offers a pragmatic route to steadier output and lower per‑part tooling costs. For procurement and technical matching of Teknik Makina boring tools, contact Metav Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 for detailed advice and supply coordination Technical Data SKU: TKB181TM Label: 45mm Ausbohrwerkzeug CCMT 09T3 L182mm Manufacturer: Teknik Makina Dimensions & weight Shank diameter: 45 mm Overall length: 182 mm Max cutting diameter: 90 mm Cutting height: 60 mm Weight: 2.168 kg Features & classification Compatible inserts: CCMT 09T3 Product type: Boring tool eClass: 21181208 FAQ Which indexable inserts are required? The tool uses CCMT 09T3 indexable inserts; the system is designed for quick insert changes to suit roughing or finishing operations with SKU TKB181TM from Teknik Makina. What is the maximum cutting diameter achievable? Maximum cutting diameter is 90 mm, enabling bore work in the medium diameter range without additional tooling stages. What are the shank and overall length dimensions? Shank diameter is 45 mm and overall length is 182 mm, information that assists in holder selection and fixture planning. Is the tool suited for internal and external boring? The geometry and dimensions support typical internal and external boring tasks in turning setups, offering stable clamping and predictable cutting behaviour. How heavy is the tool and what does that imply for handling? Weight is 2.168 kg; the mass contributes to stability during cutting and should be considered when selecting toolholders and balancing assemblies. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
