Precision dial indicators for accurate length and runout checks
Dial indicators and related gauges provide precise measurement of small lengths and deviations, serving applications such as concentricity, flatness and comparison checks on lathes and milling machines, and offering both digital and analog options to suit different measuring ranges. These instruments are used with appropriate accessories for tasks like depth measurement or runout testing and feature hardened contact faces or balls for reliable contact; typical variants include dial indicators, test indicators and depth gauges. Analog types transmit spindle movement via rack and pinion to the pointer and may include a drag pointer to prevent gear damage, while digital versions give straightforward numeric readouts for quick interpretation. Using these gauges improves setup accuracy, process control and the repeatability of measurements in metalworking and workshop environments.
40mm Extension For Dial Indicators M2.5 Thread, Ø4.5mm Stainless Steel - Metav IndustryLine
A compact stainless steel extension with a secure M2.5 thread and 40 mm length delivers precise probe offsetting for confined inspection setups; its slim Ø 4.5 mm profile supports standard probe shanks while keeping the inspection path clear. Order the extension directly via Metav Werkzeuge or ask our consultants if needed. Extension for dial indicators M208.063.4 – 40 mm, M2.5 thread The Extension for dial indicators M208.063.4 is a 40 mm stainless-steel probe spacer with an M2.5 mounting thread, intended for precise positioning of indicator probes in tight measurement situations. Stainless steel construction 40 mm extension length Thread M2.5 for standard dial indicators Precise probe positioning for tight inspection points The 40 mm stainless-steel spacer provides a stable, repeatable offset when the measuring point lies beyond the standard indicator stem. Built from stainless steel, the rod resists corrosion and maintains dimensional stability over repeated use, which supports consistent precision during batch inspections. The slim Ø 4.5 mm profile keeps the probe path unobstructed, making the component suitable for confined bores or recessed features where direct indicator access is limited. Faster setup and reliable mechanical integration A dedicated M2.5 thread ensures compatibility with common dial indicator mounts and holders, simplifying assembly and reducing downtime between inspection tasks. The plain mechanical design avoids electronic complexity while delivering reliable repeatability, helping to streamline quality-control routines. This simple accessory integrates with existing metrology fixtures and minimises the need for bespoke fixturing, supporting efficient inspection workflows in production and workshop environments. Robust material choice and workshop suitability Made from corrosion‑resistant stainless steel, the extension withstands routine shop conditions and cleaning procedures without surface degradation that could affect fit. The compact geometry aids handling and storage while preserving the stiffness needed for reproducible measurements. As an accessory for precision measuring instruments, it complements standard dial indicators and measuring stands, offering a cost‑effective way to adapt instruments to challenging inspection geometries. For straightforward procurement or technical advice on integrating this extension into existing inspection rigs, contact Metav Werkzeuge for personalised support and ordering information. Technical Data Article number: M208.063.4 GTIN: 4054469104195 ECLASS: 21170613 ETIM: EC002219 Tariff number: 90179000 Category: Accessories for measuring instruments Material: stainless steel Length: 40 mm Thread: M2.5 Diameter: 4.5 mm Facts Length: 40 mm Diameter: 4.5 mm Thread specification: M2.5 GTIN: 4054469104195 ECLASS: 21170613 Special features Corrosion‑resistant stainless steel construction Designed for dial indicator probe extension Slim profile for confined measurement areas Simple mechanical mounting, no electronics required FAQ What dial indicators fit this extension? The Extension for dial indicators M208.063.4 fits indicators and holders with an M2.5 mounting interface and accepts probe shanks up to Ø 4.5 mm where applicable. Is the extension resistant to workshop environments? Yes, the component is manufactured from stainless steel, so the Extension for dial indicators M208.063.4 offers good resistance to corrosion and routine workshop cleaning. Can this extension be used with magnetic stands or fixed holders? The M2.5 thread of the Extension for dial indicators M208.063.4 is compatible with many standard indicator holders and magnetic stands that accept M2.5-mounted probes. Does the extension require calibration? As a mechanical accessory, the Extension for dial indicators M208.063.4 does not require separate calibration; calibration applies to the measuring instrument itself rather than to passive mounting extensions. Which application areas benefit most from this accessory? Inspection work in confined bores, recessed features and assembly controls benefits from the Extension for dial indicators M208.063.4, where a reliable probe offset and slim profile improve access and repeatability. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
420mm Ø20 Column With 390mm Ø16 Cross Arm Chrome Rod Mounting Arm - Metav IndustryLine
Take advantage of a chrome-plated rod assembly with a Ø20 × 420 mm main shaft and a Ø16 × 390 mm cross arm to increase mounting rigidity and measurement reach; the modular design is supplied without a magnet for flexible integration into existing inspection rigs. Order directly via Metav Werkzeuge or consult the Metav specialists for compatibility advice. M208.106.5 measuring stand rod assembly (Ø20×420 shaft, Ø16×390 cross arm) — Metav IndustryLine A M208.106.5 measuring stand rod assembly for precision indicator mounting and modular inspection setups, supplied without a magnet and optimised for stable, repeatable positioning. Chrome-plated rod for corrosion resistance Ø20 × 420 mm main shaft, M12 thread Ø16 × 390 mm cross arm for extended reach Supplied without magnet for modular use Stable anchoring that reduces measurement error The rod assembly is engineered to deliver mechanical stability where repeatable results matter. The Ø20 × 420 mm main shaft, with an M12 fixing, provides a stiff mounting column that resists twist under indicator load, while the Ø16 × 390 mm cross arm gives lateral reach without compromising support. This rigidity reduces vibration and play at the probe tip, translating into fewer re-measurements and a faster inspection loop. The chrome-plated finish also eases cleaning and resists workshop contaminants, so accuracy is maintained over time. Faster setups through a modular, toolroom-ready layout The arm geometry allows quick positioning of dial gauges and indicator holders across a useful working envelope. Supplied without a magnet, the assembly integrates with magnetic bases or dedicated clamps—this modular approach enables one configuration to serve multiple tasks, from bench top quality checks to on‑machine fixtures. The M12 thread at the shaft simplifies secure attachments and interchange of accessory parts, reducing setup times and improving throughput in repetitive tasks. Durable workmanship for everyday industrial use Finished in chrome plating, the component resists corrosion and wear encountered in daily workshop environments, supporting long service intervals and predictable performance. At approximately 1.9 kg, the assembly combines mass for steadiness with portability for flexible use across benches. As part of the Metav IndustryLine, the product benefits from a practical supply chain and quality control that aims to make precision equipment accessible to shops and maintenance departments without compromising specification or reliability. For tailored advice on system compatibility or to reserve the Metav IndustryLine M208.106.5 measuring stand rod assembly, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 for expert guidance and prompt supply Technical data SKU: M208.106.5 GTIN: 4054469104669 Weight: 1.9 kg Material: chrome-plated rod Tariff code: 90319000 Core dimensions Main shaft: Ø20 × 420 mm, M12 thread Cross arm: Ø16 × 390 mm Cross arm length: 390 mm Features / Applications Supplied without magnet Designed for use with 208.106.4 bar Category: magnetic stands Suitable for dial gauges and indicator clamps FAQ Is the rod assembly compatible with magnetic bases? The M208.106.5 measuring stand rod assembly is supplied without a magnet and is designed for modular use; it can be mounted on compatible magnetic bases or paired with the 208.106.4 bar for secure positioning. What is the material and finish of the assembly? The M208.106.5 features a chrome-plated rod construction, providing corrosion resistance and easy cleaning for workshop environments. How does this assembly improve measurement stability? With a Ø20 × 420 mm main shaft and a Ø16 × 390 mm cross arm, the M208.106.5 offers increased rigidity and reduced play at the indicator, which helps lower measurement variation and rework. Can the assembly carry standard dial indicators and holders? Yes; the M208.106.5 accepts common indicator clamps and dial gauges, with an M12 fixing on the main shaft for secure attachment of accessories. Is the product delivered as a complete measuring stand? The delivery comprises the rod assembly only (M208.106.5) and does not include a magnet or base; it is intended for integration into existing measuring stand systems. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
430mm Magnetic Stand With Central Mechanical Clamp, Heavy Duty, M10 - Metav IndustryLine
Take advantage of the combination of stable holding, precise central clamping and fine adjustment for reproducible measurement set-ups; the heavy-duty magnetic base and 430 mm reach speed up inspection tasks and reduce re‑alignment time. Order the magnetic stand directly via Metav Werkzeuge or ask our consultants if clarification is required. M208.109.4 magnetic stand — heavy magnetic base with central mechanical clamp, 430 mm (Metav IndustryLine) M208.109.4 is a magnetic stand designed for secure positioning of dial indicators and measuring probes in workshop and inspection environments; the heavy version features a central mechanical force clamp and M10 thread for versatile fixturing. Heavy magnetic base with central clamp Fine adjustment for micro positioning Compatible with 8 mm stem dial indicators Robust M10 thread for diverse attachments Stable, repeatable holding for inspection tasks The combination of a heavy magnetic base and a central mechanical clamp provides a reliable foundation for measurement operations where repeatability matters. The central clamp locks the column and arm in a single action, eliminating multiple clamping steps and reducing setup time. With integrated fine adjustment, delicate repositioning is possible without disturbing the overall alignment, which is particularly valuable for comparative measurements and short series inspections. Built to deliver consistent contact pressure, the stand supports reproducible results across repeated cycles and shifts. Robust construction and workshop compatibility Constructed as a heavy version with an M10 mounting, the stand balances reach and rigidity: the overall height of 430 mm and the articulated arm dimensions (163 x 139 x 65) provide good access to larger workpieces while maintaining profile stiffness. The base geometry (61 x 50 x 55, M8) offers a compact footprint that centres mass near the magnetic surface for secure adhesion. At approximately 2 kg, the unit is portable enough for bench use yet substantial enough to resist vibration and incidental knocks. The magnetic force: 80 ensures firm attachment to ferrous surfaces, supporting steady measurement conditions in production and inspection areas. Compatibility, versatility and workshop benefits Designed to accept standard inspection tools, the stand accommodates dial gauges and test indicators with an 8 mm stem, enabling immediate use with common metrology instruments. The M10 connection opens the option to fit a range of holders or probe mounts, turning the stand into a flexible fixturing element for measuring, set‑up and run‑out checks. As a practical workshop solution, the unit reduces the need for repeated re‑clamping and streamlines typical measurement workflows, helping to save operator time and minimise the risk of measurement error. For tailored advice on integrating this Metav IndustryLine magnetic stand into existing inspection routines, contact Metav Werkzeuge for technical guidance and procurement assistance. Technical data Article number: M208.109.4 GTIN: 4054469104768 Manufacturer: Metav IndustryLine Facts Overall height: 430 Weight: 2 Magnetic force: 80 Arm dimensions: 163x139x65 Special features Central mechanical force clamp Heavy duty version M10 thread for attachments Fine adjustment included Base dimensions: 61x50x55, M8 Compatible with dial indicators (8 mm stem) FAQ How does the central mechanical clamp improve setup time? The central mechanical clamp locks column and arm in one motion, so the M208.109.4 achieves rapid, repeatable positioning without multiple fastenings, reducing total setup time for inspection tasks. Can this stand hold a standard dial indicator? Yes, the magnetic stand accepts dial indicators and test indicators with an 8 mm stem, making it compatible with common metrology instruments used on shop floors. What does the heavy version mean for stability? The heavy version provides increased mass and a stronger magnetic base, improving resistance to vibration and accidental movement during measurement procedures. Is the M10 thread suitable for custom fixturing? The M10 thread on the stand enables attachment of a variety of holders and probes, allowing integration with bespoke fixtures or probe adaptors. What surfaces are recommended for the magnetic base? The base is designed for ferrous, flat surfaces where the magnetic force of 80 can achieve secure adherence and stable measurement conditions. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
45 mm Extension For Dial Gauges M2.5 Thread Ø4.5 mm Stainless Steel - Metav IndustryLine
A compact 45 mm stainless steel extension with an M2.5 thread and 4.5 mm shank offers low mass and secure attachment for dial indicators; take advantage of precise adaptation and corrosion resistance for repeatable inspection setups. Order the extension directly via Metav Werkzeuge or ask our consultants if needed. Extension for dial indicators, 45 mm, M2.5 thread — Metav IndustryLine Extension for dial indicators, 45 mm, M2.5 thread is a compact stainless-steel rod that increases reach and enables secure mounting of measuring heads in confined or awkward inspection positions. *45 mm stainless-steel extension rod *M2.5 thread for secure mounting *Ø 4.5 mm shank for compact adaptation Improved measurement repeatability for small offsets The slim 45 mm extension provides a low‑inertia connection between the measuring head and its fixture, reducing unintended leverage and parasitic movement during probe contact. Made from stainless steel, the adapter keeps mass to a minimum while maintaining rigidity; this combination supports more repeatable readings when the indicator is used in offset or recessed positions. Compatible with standard indicator threads, the adapter is intended for integration into existing inspection rigs and gauge setups where a small, reliable extension is required. Robust mounting and corrosion resistance for workshop use With a precise M2.5 thread and a 4.5 mm shank diameter, the part secures the measuring head and preserves alignment under typical workshop loads. The corrosion‑resistant finish ensures long service life even in humid or coolant‑exposed environments, which reduces replacement frequency and supports continuous operation. As an accessory classified for measuring equipment, the component serves as a practical spare part for maintenance, enabling quick restoration of measurement capability without recalibrating the entire assembly. Practical spare‑part design that simplifies inspection workflows Weighing only a fraction of larger adaptors, the extension minimises added load on the indicator spindle while giving the necessary reach for awkward geometries. The compact form factor and standardised thread facilitate straightforward swaps between fixtures, supporting flexible measurement strategies on the shop floor and in quality control. Supplied as an accessory from the Metav IndustryLine range, the item is designed for consistent performance and straightforward logistics for production and inspection environments. Request procurement and compatibility advice for the Metav IndustryLine extension via Metav Werkzeuge — email info@metav-werkzeuge.com or call +49 2822 7131930 for immediate technical guidance and ordering support Technical Data Article number: M208.063.D GTIN: 4054469104287 Manufacturer: Metav IndustryLine Category: Zubehör ECLASS: 21170613 ETIM: EC002219 Tariff number: 90179000 Facts Length: 45 mm Shank diameter: 4.5 mm Thread: M2.5 Special features Material: stainless steel Accessory for dial indicators / measuring heads Compact, low-mass design Corrosion-resistant FAQ What is the exact purpose of this extension? The extension for dial indicators increases the reach of a measuring head and allows secure mounting using an M2.5 thread, making it suitable for recessed or difficult-to-access measurement points with the Metav IndustryLine accessory. Will the adapter fit other brands of dial indicators? The adapter uses a standard M2.5 thread and a 4.5 mm shank, so it is compatible with indicators and fixtures that accept these common connections; the Metav IndustryLine unit has been designed for broad workshop interoperability. Is the extension suitable for use in humid or coolant-prone environments? Yes — the stainless steel construction provides corrosion resistance appropriate for workshop and inspection environments where occasional exposure to coolant or humidity occurs. How lightweight is the part and why does that matter? The design focuses on very low added mass to reduce lever effects and maintain measurement stability; this supports repeatable readings when the indicator probes small offsets or thin parts. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
4mm Ball Probe For Indicator With M2.5 Thread - Metav IndustryLine
Reliable, compact contact tip combining a 4 mm precision ball with an M2.5 connection for compatible dial indicators; low mass (0.1 kg) supports swift, repeatable checks in inspection routines. Order the M208.166 directly via Metav Werkzeuge or ask our consultants if needed. M208.166 Contact tip for dial indicator — 4 mm ball, M2.5 thread (Metav IndustryLine) The M208.166 is a precision contact tip designed for dial indicators with an M2.5 connection thread, providing defined point contact for dimensional checks on small features in workshop and inspection environments. 4 mm precision contact ball M2.5 connection thread for dial indicators Compact accessory for quick retrofit Lightweight 0.1 kg for easy handling Repeatable measurements with a defined contact point The small 4 mm ball geometry creates a defined contact area that reduces measurement ambiguity when probing small radii or shoulders. Fitted via the standard M2.5 thread, the accessory integrates into existing gauge setups without adapters, enabling precision checks to be performed repeatedly. The compact design keeps measurement dynamics predictable and helps preserve instrument responsiveness during frequent point-contact tests. Fast compatibility that keeps inspection workflows moving Engineered as a direct accessory for standard dial indicators, the tip simplifies retrofitting and reduces downtime during tool changes. Its compact form factor and lightweight 0.1 kg mass make handling straightforward, particularly when multiple checks are required across a production run. The accessory supports efficient measurement sequences, making it practical for quality-control benches and mobile inspection tasks where quick interchangeability is valuable. Clear benefit for small-feature and routine dimensional control By providing a precisely shaped contact element, the tip improves repeatability on small components and helps to standardise routine checks across operators and shifts. The accessory suits common inspection tasks such as verifying bore seats, shaft runout and small-step heights where a small, reproducible contact point is essential. As a simple spare or replacement part, it contributes to overall process reliability and smoother quality-control cycles. Contact Metav Werkzeuge for advice on matching this Metav IndustryLine contact tip to existing dial indicators; technical enquiries welcome via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: M208.166 GTIN: 4054469105185 Weight: 0.1 kg Description: Ball Ø 4 mm Suitable for: Dial indicators with M2.5 connection thread Core data Ball diameter: 4 mm Connection thread: M2.5 Mass: 0.1 kg Category: Accessory Features Accessory for dial indicators Compact, easy to retrofit Designed for defined point contact SKU: M208.166 FAQ Which dial indicators are compatible with this contact tip? The contact tip fits dial indicators that have an M2.5 connection thread; the M208.166 from Metav IndustryLine is intended for direct mounting to such instruments. Can the contact tip be used for internal and external measurements? Yes, the small 4 mm ball is suitable for creating a reproducible contact point on both internal and external features when used with a compatible dial indicator. Is the product supplied with any certification or documentation? The product is supplied as an accessory; specific calibration or certification details are not included by default unless stated separately in the product listing. How does the small ball diameter affect measurement results? A 4 mm ball concentrates contact to a defined point, improving repeatability on small geometries and reducing ambiguous seating compared with larger probes. What is the SKU for ordering spare tips? Order using SKU M208.166 to ensure the correct Metav IndustryLine contact tip is supplied. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

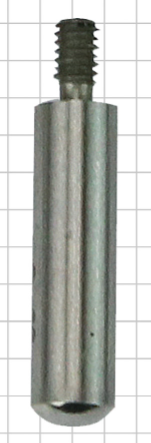

4mm Gauge Insert Set Lengths 16/26/36mm Round Measuring Faces, Thread 2.5mm - Metav IndustryLine
A compact set of three precision contact tips with a Ø 4 mm rounded measuring face and standard 2.5 mm threaded mounting gives flexible probe reach for routine inspection and retrofit applications; order directly via Metav Werkzeuge or consult our advisers for compatibility and supply. Measuring Contact Set M208.193 – contact tips for dial indicators, Ø 4 mm, 2.5 mm thread Measuring Contact Set M208.193 provides three rounded probe tips in different lengths for reliable contact with small and medium components when used with dial indicators Set of three precision contact tips Ø 4 mm rounded measuring face 2.5 mm threaded mounting Lengths 16 mm, 26 mm and 36 mm Compact probe reach for reliable contact and repeatability The set supplies three purpose‑chosen tip lengths that extend measuring capability without compromising handling. With a Ø 4 mm rounded measuring face the tips reduce local stress on workpieces and improve repeatability when compared with pointy probes; this is particularly useful for shallow contours and small radii. The configuration supports fast inspection cycles by offering immediate alternatives for different geometries, so measurement throughput is raised while maintaining consistent contact behaviour. Secure mounting and quick changeover for efficient workflows Designed for standard threaded spindles, the 2.5 mm thread allows direct replacement or upgrade of probe tips on most dial indicator stems. The package presents a set of three lengths (16 mm, 26 mm and 36 mm) so the correct reach can be selected without improvisation, reducing set‑up time and the risk of using unsuitable extensions. The kit’s low mass (approx. 0.1 kg total) keeps inertia low and prevents undue loading of delicate measuring instruments, supporting stable readings during repeated measurements. Workshop practicality and trustworthy supply chain This compact kit is aimed at bench and shop environments where small‑part inspection is frequent: the three tips cover common inspection needs from close‑tolerance components to slightly recessed features. Supplied as a coherent set, the pieces simplify inventory and procurement for maintenance and inspection teams. Backed by Metav’s commitment to making precision accessible, the set combines pragmatic design with availability from a European supplier that supports consistent replenishment and transparent order handling. For secure fitting and to ensure the tips match a specific dial indicator stem, contact Metav Werkzeuge for tailored advice or to place an order – eMail: info@metav-werkzeuge.com · Tel: +49 2822 7131930 Technical data Article number: M208.193 GTIN: 4061905450235 Manufacturer: Metav IndustryLine Facts Diameter: 4 mm Thread: 2.5 mm Weight: 0.1 kg Lengths: 16 mm, 26 mm, 36 mm Pieces per set: 3 Special features Measuring face: round Pack type: set Intended for: dial indicators Category: dial gauges FAQ Are these tips compatible with standard dial indicators? The Measuring Contact Set M208.193 is designed for dial indicators with a 2.5 mm threaded stem and fits common manufacturers that use that thread size. What lengths and faces are included in the set? The set contains tips of 16 mm, 26 mm and 36 mm length, each with a rounded measuring face of Ø 4 mm for repeatable contact. How many pieces are supplied and what is the total weight? Three pieces are supplied per set; the complete set weighs approximately 0.1 kg. Can these tips be used for delicate surfaces? The rounded measuring face on the M208.193 contact tips minimises local pressure, making them suitable for measurements where surface marking must be avoided. Is the set suitable for retrofitting existing indicators? Yes, the 2.5 mm threaded mounting is a common standard, so the kit is suitable for retrofitting many dial indicators to extend probe reach and flexibility. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
4mm Round Contact Tip 26mm Length Thread 2.5mm, Round Measuring Face - Metav IndustryLine
Compact, precisely machined measuring tip with a Ø 4 mm round contact face and a standard M2.5 thread, offering dependable repeatability and straightforward replacement; order directly via Metav Werkzeuge or consult our specialists for fitment advice. Measuring tip M208.191 for dial gauge — Ø 4 mm round contact, M2.5 thread (Metav IndustryLine) The M208.191 is a compact measuring tip for dial gauges, designed to provide a small, well defined contact area for repeatable contact measurements in workshop and inspection applications. Precision round contact Ø 4 mm M2.5 threaded mounting for quick fit 26 mm shaft length for secure engagement Lightweight 0.1 kg Consistent contact geometry for repeatable, reliable readings A small, round contact face reduces contact uncertainty and helps maintain a stable point of engagement on curved or flat surfaces. With a diameter of Ø 4 mm, the contact area is large enough to avoid excessive local indentation yet small enough to target fine features; this balance supports repeatability in routine comparative checks and setup tasks. The compact profile and modest mass minimise inertia and permit precise manual positioning, which benefits both bench inspection and machine-probing applications. Standardised mounting for quick integration into existing setups The M2.5 thread provides a standardised mounting interface that simplifies replacement and retrofitting on many dial indicators. The 26 mm shaft length supplies sufficient reach into shallow recesses while keeping the contact point rigidly supported; this reduces wobble during measurement and helps preserve geometrical stability. Where frequent tip changes are required, the threaded system enables fast swaps without special tools, contributing to shorter downtime and a more efficient inspection workflow. Practical design that supports workshop productivity Engineered as a pragmatic spare part for dial gauges, the tip is lightweight at 0.1 kg, which keeps handling straightforward and storage simple. The uncomplicated geometry makes the component easy to clean and service, lowering maintenance effort and cost of ownership. For quality-conscious operations that rely on consistent contact points for comparative or go/no-go measurements, this tip represents a durable, low-fuss option that helps maintain throughput without compromising measurement integrity. Contact Metav Werkzeuge for fitment advice or to order the M208.191 measuring tip from the Metav IndustryLine — expert support from Emmerich ensures the right spare part for each dial gauge application Technical data Article number: M208.191 GTIN: 4061905450211 Manufacturer: Metav IndustryLine Facts Diameter: 4 mm Length: 26 mm Thread: 2.5 mm Weight: 0.1 kg Special features Round measuring face Threaded mounting M2.5 Category: Dial gauges No special features FAQ Will this tip fit my dial gauge? Compatibility depends on the gauge's contact-thread size; the M208.191 uses an M2.5 thread and fits indicators accepting M2.5 contact points. How does the Ø 4 mm round contact affect measurements? A Ø 4 mm round face offers a compact, defined contact area that balances minimal indentation with stable engagement, improving repeatability for small to medium features. Is the 26 mm shaft long enough for recessed measurements? The 26 mm length provides secure engagement for many shallow recesses and fixture setups; deeper access may require a longer specialist tip. Can this tip be used for precise micro-measurements on small parts? Yes — the small contact diameter is suitable for focused contact checks and fine features where a defined, repeatable contact point is required. Is this part intended for frequent replacement? The threaded design supports quick replacement and is suitable for operations where contact points are changed regularly. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50 mm Extension For Dial Indicators Thread M2.5, Ø4.5 mm, Stainless Steel - Metav IndustryLine
Take advantage of a compact, corrosion‑resistant extension that increases probe reach while keeping added mass to a minimum; the stainless‑steel 50 mm rod with M2.5 connection and 4.5 mm stem diameter delivers repeatable adaptations for workshop and lab gauges. Order the extension directly via Metav Werkzeuge or ask the consultants if additional compatibility details are required. Extension for Dial Gauges M208.063.5 — 50 mm stainless steel, M2.5 thread (Metav IndustryLine) The Extension for Dial Gauges M208.063.5 provides a 50 mm stainless‑steel rod with an M2.5 threaded connection and a 4.5 mm stem diameter to extend the reach of precision dial gauges for confined or recessed measurements 50 mm stainless extension rod M2.5 threaded connection 4.5 mm stem diameter Lightweight, corrosion‑resistant stainless steel Extend reach without compromising measurement integrity The 50 mm extension is designed to add reach to standard measuring probes while preserving the intrinsic measurement characteristics of the indicator. Made from stainless steel, the rod resists corrosion and mechanical wear, so contact geometry remains stable over time. The M2.5 threaded interface ensures a standardised mechanical connection to most dial gauges with matching fittings, reducing setup time. With a nominal stem Ø 4.5 mm and an overall lightweight construction (approx. 0.01 kg), the extension minimises additional inertia and potential deflection, which supports reliable results in repetitive inspection tasks. Faster setups and consistent results for workshop routines A short, robust extension like this improves process efficiency by allowing gauges to access bores, recesses and stepped features without improvised fixtures. The compact form factor keeps the gauge balance close to its original state, contributing to repeatable mounting and stable contact pressure on the measured surface. For quality control and frequent checks, the accessory reduces fixture changes and accelerates batch inspections, providing a practical productivity advantage in both small workshops and production cells. Built for durability and broad compatibility The component is intended as an accessory for precision measuring instruments and is suitable where a small, corrosion‑resistant extension is required. The stainless‑steel material gives long service life in industrial environments, while the standard thread and common stem diameter facilitate integration into existing gauge fleets. As part of a comprehensive metrology supply chain, this accessory complements calibratable instruments and supports consistent measurement routines across inspection benches and maintenance tasks. For reliable measurement extensions from Metav IndustryLine, contact Metav Werkzeuge in Emmerich for supply and tailored advice on gauge compatibility and delivery. Technical data Article number: M208.063.5 GTIN: 4054469104201 eClass: 21170613 ETIM: EC002219 Manufacturer: Metav IndustryLine Material: stainless steel Length: 50 mm Weight: 0.01 kg Tariff number: 90179000 Facts Length: 50 mm Stem diameter: 4.5 mm Thread: M2.5 Weight: 0.01 kg Special features Accessory for dial gauges Corrosion‑resistant stainless steel construction Compact, low‑mass design for reduced deflection Category: Measuring instruments — accessory FAQ What thread is used to attach the extension to a dial gauge? The extension uses an M2.5 threaded connection, matching common miniature gauge fittings for easy attachment to compatible dial gauges. What is the overall length and stem diameter of the accessory? The rod measures 50 mm in length with a stem diameter of 4.5 mm, suitable for extending probe reach into shallow bores and recesses. Is the extension resistant to corrosion for workshop environments? Yes, the stainless‑steel construction provides corrosion resistance and long service life under normal workshop conditions. Will the extension significantly affect measurement accuracy? The low mass (approx. 0.01 kg) and compact design limit added inertia and deflection; when used appropriately the accessory maintains repeatable mounting and does not materially degrade gauge performance. Can this accessory be used with all dial gauges? Compatibility depends on the gauge’s probe thread and stem geometry; the extension is intended for gauges with an M2.5 connection and matching Ø 4.5 mm stem receiving feature. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50-100mm Internal Micrometer Fine-Reading 0.01mm, Delivered Calibrated in Case - Metav IndustryLine
Benefit from precise internal measurements with an analogue dial that offers 0.01 mm graduation and a repeatability of 0.005 mm, combined with a 150 mm reach for deeper bore checks; these features support reliable quality control and reduced rework. Order the Internal Dial Bore Gauge M208.023 directly via Metav Werkzeuge or consult our specialists for application advice. Internal Dial Bore Gauge M208.023 – Analogue 0.01 mm graduation, 50–100 mm range (Metav IndustryLine) The Internal Dial Bore Gauge M208.023 is an analogue instrument for precise internal diameter checks in workshop and production settings Analogue dial with 0.01 mm graduation Repeatability 0.005 mm for consistent checks Measuring range 50–100 mm with extensions Supplied in protective case for transport Reliable measurement accuracy for production control The instrument delivers 0.01 mm resolution and a measured repeatability of 0.005 mm, which makes it appropriate for routine inspection and process control where small deviations affect part fit and function. The 50–100 mm nominal range covers common bore sizes, while the included measuring positions extend the usable span to 105 mm. With a measuring depth of 150 mm, the gauge reaches recessed bores without compromising stability. These technical characteristics translate into fewer rejected parts and more consistent batch quality during serial production. Built for robust handling and straightforward operation A clear analogue dial and a matt chrome-plated holder provide durability and intuitive readings on the shop floor. The set includes six measuring pins and a series of twelve measuring positions (50–105 mm ±0.7 as supplied) to adapt quickly to varying diameters; the complete kit is delivered in a protective case for safe transport and storage. For operators new to metrology: graduation (0.01 mm) describes the smallest step visible on the dial, while repeatability (0.005 mm) indicates the instrument’s ability to produce the same result under unchanged conditions, which together ensure reproducible checks. Integrating the gauge into workshop quality routines The instrument’s analogue design demands minimal maintenance and is compatible with existing manual inspection workflows, making it a pragmatic choice where digital networking is not required. Its modest weight (approx. 1.3 kg) and balanced construction simplify handling over repetitive checks. For procurement and stocking, sourcing from a dedicated supplier in Emmerich ensures reliable supply and consistent quality control across deliveries. The configuration supports fast setup for incoming inspection and in-process control, helping to keep assembly lines running within tolerance. Contact Metav Werkzeuge in Emmerich to discuss the Internal Dial Bore Gauge M208.023, arrange delivery from our stock and confirm the exact set of measuring pins and extensions required for specific applications — eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 Technical Data SKU: M208.023 GTIN: 4061905042294 Manufacturer: Metav IndustryLine Category: Dial gauges Weight: 1.3 kg Core technical data Measuring range: 50–100 mm Graduation: 0.01 mm Repeatability: 0.005 mm Measuring depth: 150 mm Measuring pins: 6 Measuring positions included: 12 (50–105 mm ±0.7) Materials and features Holder: matt chrome-plated Analogue dial display Supplied in protective case Extensions/messtaster included Designed for internal diameter measurement FAQ What measuring range does this instrument cover? The Internal Dial Bore Gauge M208.023 covers a nominal range of 50–100 mm, with supplied measuring positions extending the set up to 105 mm. What resolution and repeatability are provided? The instrument features a graduation of 0.01 mm and a repeatability of 0.005 mm, suitable for precise internal checks and consistent comparative measurements. Is the gauge suitable for workshop and production use? Yes; the analogue design, robust holder and protective case make the gauge appropriate for regular use on the shop floor and in production inspection stations. Which accessories are included with the set? The delivery contains the base instrument with a matt chrome-plated holder, six measuring pins, a set of twelve measuring positions for diameters from 50 to 105 mm, and a protective case for transport. Can the gauge reach deep bores? With a measuring depth of 150 mm, the set is intended for deeper internal checks within the specified measuring range. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50-160mm Internal Micrometer Fine-Reading 0.01mm Resolution, 12 Probes, Protective Case - Metav IndustryLine
Take advantage of precise inside measurement over the 50–160 mm range, the 0.01 mm analogue graduation and the high repeatability of ±0.005 mm to standardise bore inspections in workshop and production environments. Order the instrument directly via Metav Werkzeuge or consult the technical team for specification matching. Internal Precision Bore Gauge 50–160 mm — 0.01 mm Graduation (Metav IndustryLine) The Internal Precision Bore Gauge 50–160 mm is an analogue bore measuring set designed for accurate inspection of internal diameters in machining and maintenance applications 50–160 mm measuring range for bore inspection 0.01 mm graduation on analogue dial Repeatability ±0.005 mm for reliable results Matt‑chromed device holder for robust mounting Reliable accuracy for routine quality control The 0.01 mm dial graduation combined with a measured repeatability of ±0.005 mm delivers consistent results suited to workshop quality control and toolroom checks. The analogue readout is familiar to many inspectors and allows quick trend recognition during batch inspections; the fine graduation supports tolerance assessments that align with common engineering practice. Using a mechanically robust measuring concept ensures stable readings even during repetitive use, reducing rework and inspection variance. Robust design that supports everyday measurement tasks Built around a matt‑chrome device holder, the set is engineered for stable positioning and simple handling. The instrument includes 6 measuring pins and a measuring depth of 150 mm, permitting access into deep housings and larger bores within the 50–160 mm range. At approximately 1.35 kg, the set remains portable without sacrificing rigidity, and the included gauge shims (0.5, 1, 2 and 3 mm) facilitate quick calibration and reference checks on the shop floor. These features together shorten setup time and support repeatable measurement routines. Practical integration into inspection workflows This analogue bore gauge is intended for tasks such as incoming part inspection, maintenance checks and occasional process monitoring where a clear mechanical indication is preferred. The measuring range of 50–160 mm covers many common internal diameters for bearings, housings and sleeves, while the analogue dial provides an immediate visual indication of deviation from nominal. The set’s construction and measured repeatability make it a straightforward tool for technicians and quality personnel aiming to keep production within specified tolerances. Choose the Metav IndustryLine internal bore gauge for dependable internal measurements and contact Metav Werkzeuge for tailored technical advice at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: M208.024 GTIN: 4061905042300 Brand: Metav IndustryLine Weight: 1.35 kg Material: matt‑chrome device holder Numerical data Measuring range: 50–160 mm Graduation / reading: 0.01 mm Repeatability: 0.005 mm Measuring depth: 150 mm Special features Analogue dial display, 0.01 mm graduation 6 measuring pins for bore contact Pass shims included: 0.5, 1, 2, 3 mm Category: Dial gauges FAQ What is the usable measuring range of the instrument? The instrument covers internal diameters from 50 to 160 mm, making it suitable for medium‑sized bores. What level of resolution and repeatability can be expected? The analogue dial provides a 0.01 mm reading and the set demonstrates a repeatability of ±0.005 mm under consistent measuring conditions. Are extension gauges or pins included for different diameters? The set includes 6 measuring pins and pass shims (0.5, 1, 2, 3 mm) to adapt the gauge to the required internal diameters. Is this instrument suitable for deep bores? With a measuring depth of 150 mm, the gauge can reach into relatively deep housings and components within its measuring range. Which applications is this set intended for? The instrument is designed for workshop inspection, maintenance and incoming part checks where reliable analogue indication and repeatable internal measurements are required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50-180mm Internal Precision Bore Gauge With 5mm Dial, 0.01mm Resolution, Repeatability 0.005mm, Supplied In Case - Metav IndustryLine
Take advantage of a compact instrument that combines a wide 50–180 mm measuring range with a fine 0.01 mm dial resolution to ensure reliable internal dimension checks; the robust matt chrome-plated holder and 0.005 mm repeatability support consistent quality control. Order the internal precision gauge directly via Metav Werkzeuge or consult our specialists for application advice. Internal precision gauge M208.054 — 50–180 mm range, 0.01 mm dial resolution (Metav IndustryLine) An Internal precision gauge M208.054 designed for precise measurement of bores, recesses and internal diameters in workshop and quality‑control environments. 50–180 mm measuring range 0.01 mm dial resolution Repeatability 0.005 mm Measuring depth 150 mm Accurate internal measurement for routine inspection The instrument delivers a clear advantage where internal dimensions must be tracked regularly: the 50–180 mm range covers the typical span for component bores encountered in general machining, while the 0.01 mm analogue dial resolution provides readable increments for controlled adjustments. The compact design combines reach and handling so that measurement tasks remain efficient without sacrificing precision. Built for repeatable checks, this tool supports process stability in production and inspection routines. Engineered for workshop durability and access Classified as a Standard range instrument (suitable for everyday machine‑shop and metal‑working tasks), the device features a matt chrome‑plated holder that resists surface wear and eases handling. The measuring depth 150 mm allows access into deeper bores and stepped features, reducing the need for multiple tools. Where space is restricted, the construction minimises bending of the gauge beam so measurements remain reliable across the stated span. Repeatable results through controlled indicator travel A 5 mm dial travel on the analogue dial indicator smooths out small variations during adjustment, while the documented repeatability of 0.005 mm reflects the instrument’s ability to reproduce the same reading under repeated conditions. In practical terms, this consistency reduces the influence of operator technique on results and shortens the time spent validating parts during serial inspection. The mechanical readout also offers immediate visual feedback for set‑up and adjustment tasks. Practical kit and application scope The instrument is supplied with a comprehensive set of interchangeable measuring pins to match common internal diameters, covering typical increments from 50 to 125 mm, together with pass gauges for reference (0.5 / 1 / 2 / 3 mm). At a net weight of 1.15 kg the tool is substantial enough for stable handling yet light enough for regular bench or bench‑mounted use. Its configuration makes it suitable for workshop quality control, fixture checks and component acceptance tests where precise internal measurement is required. For dependable internal dimension control choose the Metav IndustryLine M208.054 — contact Metav Werkzeuge in Emmerich for procurement and technical guidance at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: M208.054 GTIN: 4061905042515 Manufacturer: Metav IndustryLine Facts Measuring range: 50–180 mm Minimum range: 50 mm Maximum range: 180 mm Resolution: 0.01 mm Repeatability: 0.005 mm Dial travel: 5 mm Measuring depth: 150 mm Weight: 1.15 kg Analogue indicator Special features Matt chrome-plated device holder 16 interchangeable measuring pins covering common increments Pass gauges included: 0.5 / 1 / 2 / 3 mm Standard range instrument for workshop quality control FAQ What measuring range does the instrument cover? The internal precision gauge covers a measuring range of 50–180 mm, suitable for many internal diameter checks in general machine work. How fine is the reading and how repeatable are the measurements? The dial indicator reads 0.01 mm increments and the instrument demonstrates a repeatability of 0.005 mm, supporting reliable repeated checks. Which feature helps when measuring deeper bores? A measuring depth of 150 mm provides access to deeper internal features; the matt chrome‑plated holder maintains rigidity during extended reach measurements. What accessories are supplied for different diameters? The instrument includes a set of interchangeable measuring pins covering common increments from 50 to 125 mm and pass gauges of 0.5 / 1 / 2 / 3 mm for reference. Is this instrument suitable for standard workshop quality control? Yes; designed as a standard‑range internal measuring instrument, the M208.054 is intended for everyday use in machine shops and quality inspection benches. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50.8mm Dial Indicator Colour 2.4" Touchscreen, Wireless/USB, ISO 17025 Calibrated, IP54 - Microtech Metrology
Take advantage of the combination of high-resolution measurement, traceable ISO 17025 calibration and seamless data transfer to keep inspection routines efficient and auditable. Order the digital indicator directly via Metav Werkzeuge or ask our consultants if needed. Digital indicator with 2.4‑inch colour touchscreen and Wireless+USB by Microtech Metrology Digital indicator designed for precision inspection tasks in production and quality control, offering tactile touchscreen operation and flexible data connectivity for modern metrology workflows Colour 2.4‑inch touchscreen display Wireless and USB data output ISO 17025 calibration certificate included IP54 splash and dust protection Precise measurement that stands up to shop‑floor demands The instrument delivers a stated measurement accuracy of ±0.003 mm across its measuring range of 0–50.8 mm, combined with a display resolution of 0.0005 mm for fine incremental reading. Such numerical performance makes the device suitable for demanding inspection tasks where reproducibility and traceability matter. The specified measuring force of 1.3–2.0 N reduces operator‑induced variation and helps to produce consistent contact conditions; this is particularly relevant when measuring delicate components or small tolerances. Included factory calibration performed to ISO 17025 standards and supplied with a calibration certificate ensures results can be documented and relied upon for internal quality records or external audits. Modern connectivity for data integrity and traceable documentation Equipped with Wireless+USB interfaces and a 2.4‑inch colour touchscreen, the instrument supports quick transfer of measurement sets to inspection software or data loggers without manual transcription. Wireless data transfer speeds up serial inspections and eliminates paperwork, while USB connectivity provides a direct, robust route for archival and report generation. The touchscreen simplifies parameter changes and zeroing functions at the bench, making the instrument both efficient and straightforward to operate in repetitive workflows. IP54 protection maintains reliable function in typical production environments, shielding the electronics from dust ingress and splashing fluids. Built for repeatable handling and everyday use A compact, ergonomic construction allows one‑handed operation and rapid positioning in tight fixtures or on small components. The combination of tactile control, robust enclosure and measured contact force reduces measurement scatter and supports faster cycle times at the inspection station. The device is intended for integration into routine quality checks, receiving inspection and first article verification where documented, traceable readings are required. As a product from Microtech Metrology, it aligns with industry expectations for digital indicators used in machine shops, assembly lines and laboratory benches. Contact Metav Werkzeuge in Emmerich to request the Microtech Metrology digital indicator (SKU 120139508), confirm delivery options or discuss calibration traceability on +49 2822 7131930 or info@metav-werkzeuge.com Technical data Article number: 120139508 GTIN: 4061905043079 Manufacturer: Microtech Metrology Numerical data Measuring range: 0–50.8 mm Accuracy: ±0.003 mm Resolution / reading: 0.0005 mm Measuring force: 1.3–2.0 N Display size: 2.4‑inch colour touchscreen Protection class: IP54 Special features Digital display with colour touchscreen Wireless + USB data output Delivered with ISO 17025 calibration certificate Suitable for production and laboratory inspection Category: digital indicator / dial gauge replacement FAQ What measurement range does the instrument cover? The digital indicator covers a measuring range of 0–50.8 mm, which is suitable for fine inspection tasks and small to medium components. Is a calibration certificate supplied with the instrument? Yes, the device is delivered fully calibrated according to ISO 17025 and a calibration certificate is included with the Microtech Metrology digital indicator. How are measurement values exported from the device? Measurement data can be transferred via the built‑in Wireless connection or through the USB port for direct logging and integration into inspection software. What does IP54 protection mean for daily use? IP54 indicates protection against limited dust ingress and splashing water; the instrument is therefore appropriate for typical workshop and production environments but not for immersion. How accurate is the instrument for traceable quality checks? With an accuracy of ±0.003 mm and a resolution of 0.0005 mm, the instrument provides repeatable, auditable readings suitable for routine quality control. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50.8mm Dial Indicator Digital Absolute 0.001mm Resolution, USB, IP76, ISO 17025 Calibrated - Microtech Metrology
Take advantage of the combination of high-resolution measurement, reliable data transfer and traceable calibration for consistent inspection results. Order the digital indicator directly via Metav Werkzeuge or consult the Metav team for application advice and availability. Digital Indicator 0–50.8 mm (Absolute) by Microtech Metrology The Digital Indicator 0–50.8 mm (Absolute) is a compact, workshop-ready measuring instrument for repeatable thickness, runout and position checks in production and quality control. Absolute measuring system with USB output Resolution 0.001 mm and mm/inch display ISO 17025 calibration certificate included Consistent precision that speeds up inspection The device delivers a resolution of 0.001 mm and a stated accuracy of ±0.005 mm, offering a reliable basis for pass/fail decisions in incoming inspection and process control. The absolute measuring system preserves the reference zero after switching off, eliminating the need for repeated re-zeroing and reducing cycle time during batch checks. With solid numeric performance and a stable measurement force, the instrument supports faster set-up and fewer re-measurements, which directly benefits throughput and traceability. Seamless data capture and versatile readout Integrated USB output and a clear digital display with mm/inch, PRESET, HOLD and MODE functions simplify data handling on the shop floor. Measurements can be taken and recorded without intermediate transcription, reducing clerical errors and enabling straightforward transfer to spreadsheets or inspection software. The battery is a CR2032 3V cell, which keeps the electronics compact while supporting long intervals between replacements. The practical control keys help to standardise routines and make the instrument suitable for both manual checks and semi-automated data collection. Robust contact and reliable handling for daily use A specified contact force of 1.2–2.2 N ensures consistent probe engagement and less operator-induced variation during tactile measurement. The instrument is engineered for routine workshop use and bears an ingress rating indicated as IP 76, underlining resistance to particulates and splashes encountered in production environments. The combination of a compact form factor, straightforward controls and digital readout makes it suitable for toolroom work, machine set-up and on-bench quality inspection where repeatability and clear documentation are required. Traceability and conformity for quality assurance This indicator is supplied fully calibrated to ISO 17025, and a calibration certificate is included with the instrument. The delivered calibration provides documented traceability and supports internal quality systems or external audits, demonstrating that measurement results meet recognised laboratory standards. Contact Metav Werkzeuge for tailored technical advice on the Microtech digital indicator or to arrange delivery from our Emmerich warehouse — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 120125503 GTIN: 4061905081989 Category: Digital indicators Facts Measuring range: 0–50.8 mm Resolution: 0.001 mm Accuracy: ±0.005 mm Measuring force: 1.2–2.2 N Battery: CR2032 3V Data output: USB IP protection: IP 76 Display: mm/inch Special features Measuring system: Absolute Display functions: PRESET, HOLD, MODE Calibration: ISO 17025 certificate included Digital: yes FAQ Is the indicator delivered calibrated? The Digital Indicator 0–50.8 mm (Absolute) is supplied fully calibrated to ISO 17025 and includes the calibration certificate for traceability. How are measurements exported to a PC? Data is transferred via the built-in USB interface; the indicator provides standardised numeric output and a selectable mm/inch display for integration into inspection workflows. What resolution and accuracy can be expected? Resolution is 0.001 mm with an accuracy specified at ±0.005 mm, suitable for routine quality control and precise shop‑floor measurements. Which battery does the device use? Power is provided by a CR2032 3V cell, keeping the unit compact while maintaining stable electronics for measurement tasks. For which applications is this indicator suited? The indicator is appropriate for runout checks, thickness and position measurements in machine shops, toolrooms and incoming inspection, where repeatable digital readout and traceable calibration are required. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50.8mm Dial Indicator Digital Absolute USB, 0.01mm Readout, IP74, ISO 17025 Calibrated - Microtech Metrology
Reliable precision with USB data export and ISO 17025 calibration for immediate traceability. The 0–50.8 mm absolute measuring system and ±0.02 mm accuracy provide consistent repeatability for quality control. Order the calibrated instrument directly via Metav Werkzeuge or consult the specialists for application advice. Digital dial gauge — 0–50.8 mm range, USB output, ISO 17025 calibrated Digital dial gauge for workshop and laboratory measurement, offering absolute measurement, direct USB data transfer and ready-to-use traceability. Absolute measuring system for stable repeatability USB data output for traceable data transfer ISO 17025 calibration with certificate included Compact 0–50.8 mm range for workshop and lab Precision and seamless data capture for quality workflows The gauge combines an absolute measuring system with a 0–50.8 mm range, enabling rapid, reproducible readings without repeated referencing. With a display resolution of 0.01 mm (0.0005 in), and a guaranteed accuracy of ±0.02 mm, the instrument suits standard workshop metrology and incoming inspection tasks where reliable tolerances matter. The built-in USB interface allows immediate transfer of readings into inspection software or spreadsheets, reducing transcription errors and speeding up data collection for statistical process control. Robust operation and consistent contact behaviour Designed to deliver repeatable contact conditions, the indicator applies a controlled measuring force of 1.2–2.2 N, keeping deformation of delicate parts to a minimum while ensuring stable contact. The front panel provides mm/inch switching plus PRESET, HOLD and MODE keys for fast setup and on-the-fly adjustments. Protected to IP74, the enclosure resists common workshop contaminants, and the user-replaceable CR2032 3V cell ensures simple maintenance. These features translate into fewer interruptions and a longer service life in everyday use. Traceability and calibration-ready delivery This instrument is delivered fully calibrated in accordance with ISO 17025, including a calibration certificate suitable for quality records and audit trails. The calibrated status removes the immediate need for in-house certification before use and simplifies integration into laboratory procedures. The digital output supports straightforward logging of measurements for traceability, making the device a practical choice for both production inspection and laboratory environments where documented evidence of measurement quality is required. Practical handling and application benefits Compact and intuitive, the indicator fits into bench workflows as well as portable inspection rigs. The absolute encoder means no homing cycle is required after battery changes, so setup time is reduced. The combination of compact dimensions, sturdy protection and clear display supports fast part verification, go/no-go checks and dimensional trend analysis. For procurement managers and metrology technicians, the unit provides a cost-effective balance of accuracy, data connectivity and certified calibration that supports efficient quality assurance. For calibrated measuring instruments from Microtech Metrology with USB data transfer and ISO 17025 certification, contact Metav Werkzeuge for tailored advice and prompt delivery from Emmerich. Technical data Article number: 120125500 GTIN: 4061905081965 Manufacturer: Microtech Metrology Facts Measuring range: 0–50.8 mm Resolution: 0.01 mm / 0.0005 in Accuracy: ±0.02 mm Measuring force: 1.2–2.2 N Battery: CR2032 3V Protection rating: IP 74 Special features Absolute measuring system USB data output Digital display with mm/inch, PRESET, HOLD, MODE Delivered calibrated to ISO 17025 with certificate FAQ Is the instrument supplied calibrated? Yes. The digital dial gauge is delivered fully calibrated to ISO 17025 and includes a calibration certificate suitable for audit and quality records. How are measurements recorded from the gauge? Measurement data is transferred via the USB interface for direct logging into inspection software, spreadsheets or data-collection systems. What accuracy and resolution can be expected? The instrument provides a resolution of 0.01 mm (0.0005 in) with an accuracy of ±0.02 mm, appropriate for workshop and standard laboratory control. Can the gauge be used in harsher workshop environments? The unit carries an IP74 rating for protection against common contaminants; it is designed for everyday workshop and inspection use but not for continuous immersion. Which battery does the device use and is replacement straightforward? The indicator uses a CR2032 3V battery; replacement is simple and does not require re-referencing thanks to the absolute measuring system. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine; tool@microtech.tools
50.8mm Dial Indicator Digital Colour Touchscreen, Wireless USB, IP54, ISO 17025 Calibrated - Microtech Metrology
Benefit from high-resolution measurement, robust IP54 protection and integrated Wireless + USB data transfer to speed up inspection cycles and reduce documentation errors; the unit is delivered calibrated to ISO 17025, ensuring immediate traceability. Order the Microtech Metrology digital dial gauge directly via Metav Werkzeuge or ask our consultants if needed. Digital Dial Gauge by Microtech Metrology — Wireless + 2.4" colour touchscreen The Digital Dial Gauge is a compact electronic indicator for workshop inspection and precision control, offering a 0–50.8 mm measuring range and reliable data capture via Wireless and USB outputs. Wireless + USB data output 2.4" colour touchscreen display Delivered calibrated to ISO 17025 IP54 splash- and dust-resistant Faster, more reliable inspections through traceable accuracy The combination of a 0–50.8 mm range and ±0.0022 mm accuracy makes this instrument well suited for routine quality checks where repeatability and traceability matter. The high readout resolution of 0.0005 mm and the electronic measurement chain reduce reading errors that typically occur with analogue gauges, so inspection cycles become both quicker and more dependable. Integration of Wireless + USB data transfer allows measured values to be logged automatically into quality-control systems, shortening process times and reducing transcription mistakes. Clear results and simple documentation for production control A 2.4" colour touchscreen provides an intuitive interface for selecting measurement modes and reviewing values, while the electronic output options support seamless data collection. The gauge is delivered calibrated to ISO 17025, complete with a calibration certificate, which simplifies audit preparation and ensures results are accepted within formal quality systems. The compact electronic indicator format supports rapid sampling tasks in assembly and inspection stations where reliable documentation is required. Durable design for workshop conditions and long-term use Constructed for everyday use, the instrument carries an IP54 rating that protects against splashes and dust, extending service life in typical industrial environments. The specified measuring force of 1.3–2.0 N maintains consistent contact behaviour across measurements, thereby stabilising results when checking small features or stepped surfaces. Robust data export and touchscreen operation also reduce handling time, helping maintain throughput without sacrificing measurement quality. Contact Metav Werkzeuge today for a tailored supply of Microtech Metrology digital dial gauges, including ISO 17025 calibration and data-interface options to fit existing inspection workflows Technical data SKU: 120139509 GTIN: 4061905043185 Manufacturer: Microtech Metrology ECLASS: 21170308 ETIM: EC003591 Numbers / core technical data Measuring range: 0–50.8 mm Resolution / reading: 0.0005 mm Accuracy: ±0.0022 mm Measuring force: 1.3–2.0 N IP rating: IP54 Special features / versions Colour 2.4" touchscreen display Wireless + USB data output Digital indicator (electronic) Delivered calibrated to ISO 17025; calibration certificate included FAQ What measuring range does this gauge cover? The digital dial gauge covers a measuring range of 0–50.8 mm, suitable for small to medium workshop inspection tasks. Is the instrument calibrated and traceable? Yes, the Microtech Metrology digital dial gauge is delivered calibrated to ISO 17025 and includes a calibration certificate for traceability. How can measurement data be exported from the device? Measurement values can be transferred via Wireless or USB interfaces, enabling integration with data-collection software and quality systems. What does the IP54 rating mean for daily use? An IP54 rating indicates protection against dust ingress to a degree that will not interfere with operation and resistance to splashing water, making the gauge suitable for standard workshop environments. Which applications suit this electronic indicator best? The instrument is ideal for routine inspection, production sampling and quality-control checks where precise, documented measurements and fast data capture are required. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50.8mm Dial Indicator Wireless USB Colour 2.4" Touchscreen Adjustable Tablet, 0.003mm Accuracy - Microtech Metrology
Take advantage of 0.0001 mm resolution and reliable Wireless+USB data transfer for consistent quality control; the compact 0–50.8 mm measuring range and controlled measuring force ensure repeatable readings in bench and workshop environments. Order this instrument directly via Metav Werkzeuge or consult our specialists for integration advice. Digital Dial Gauge — Microtech Metrology, 2.4" colour touchscreen & Wireless+USB output The Digital Dial Gauge is a compact, high-resolution indicator for precise workshop and laboratory measurements up to 50.8 mm, offering touchscreen operation and versatile data export. 2.4" colour touchscreen display Wireless and USB data output 0.0001 mm resolution, 0.003 mm accuracy Measurement range 0–50.8 mm Precision where repeatability matters The instrument combines a fine resolution of 0.0001 mm with a specified accuracy of 0.003 mm, which converts measurement capability into verifiable control of critical tolerances. For applications in component inspection and small-assembly verification, the high display resolution reduces reading ambiguity and supports faster decision cycles. The built-in reversal span of 0.5 mm helps to detect and report small-runout or hysteresis effects, making the gauge suited to detailed comparative checks and short-series quality control. Seamless data capture for traceable workflows Equipped with a 2.4" colour touchscreen, the indicator simplifies setup and on‑the‑fly configuration while keeping readouts easy to interpret on the shop floor. Both Wireless and USB outputs enable direct transfer of measurement data to spreadsheets or quality-management systems, removing transcription errors and accelerating reporting. The combination of fast digital output and stable reading behaviour supports rational, measurable improvements in inspection throughput and documentation. Stable contact and gentle measuring force for consistent results The contact system applies a controlled measuring force of 1.2–2.2 N, which reduces variation caused by operator pressure and improves repeatability on delicate surfaces. The construction and feedback of the plunger mechanism were designed to give uniform contact dynamics, so comparative measurements across several operators remain consistent. This stability is particularly useful when assessing dimensional features on small housings, shafts or precision fittings, where slight force differences can alter outcomes. Compact range tailored to precision tasks With a measuring span to 50.8 mm, the gauge is ideal for fine mechanical parts and assembly aids where space and access are limited. The compact format delivers a balance between reach and rigidity, avoiding flex-related errors typical of longer instruments while still covering the most common small-part inspection needs. Integration capacity and digital interfacing create a rational upgrade path for workshops moving from manual recording to automated data collection. For product selection, demonstration of data integration or purchasing options for the Microtech Metrology digital dial gauge, contact Metav Werkzeuge at info@metav-werkzeuge.com or by phone on +49 2822 7131930 — our team provides expert application advice and supply from Emmerich. Technical data Article number: 120139508R GTIN: 4061905453557 Manufacturer: Microtech Metrology Facts Measuring range: 0–50.8 mm Resolution (display): 0.0001 mm Stated accuracy: 0.003 mm Measuring force: 1.2–2.2 N Reversal span: 0.5 mm Special features Digital display: Colour 2.4" touchscreen Data output: Wireless + USB Digital instrument (true) Suitable for bench and laboratory inspection FAQ What is the display resolution and practical advantage? The display resolution is 0.0001 mm, which provides very fine gradation for distinguishing close tolerances and reduces rounding errors during logging with the Digital Dial Gauge by Microtech Metrology (SKU 120139508R). How are measurements exported for documentation? Measurement data can be exported via the gauge's Wireless interface or through USB, enabling direct capture into quality systems or spreadsheets for traceability and reporting. Is the instrument suitable for delicate parts? Yes — the controlled measuring force of 1.2–2.2 N minimises deformation risk and supports consistent contact pressure for delicate components and small assemblies. Which inspection tasks is this gauge intended for? The gauge is intended for precision inspection of small to medium parts where a compact measuring range up to 50.8 mm and high resolution are required, such as precision fittings, small shafts and assembly checks. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50.8mm Dial Test Indicator Digital Color Touchscreen With 2m Cable ISO 17025 Calibration - Microtech Metrology
Take advantage of the combination of high repeatability (0.003 mm), a 2.4" colour touchscreen for clear readings and wireless + USB data output to streamline inspection workflows; order the measuring probe directly via Metav Werkzeuge or ask our consultants if needed. Measuring probe — digital touch probe with 2.4" colour touchscreen and wireless + USB (Microtech Metrology) The Measuring probe is a compact digital touch probe designed for precise displacement measurement and workshop inspection tasks across small to medium components 2.4" colour touchscreen display Wireless and USB data output ISO 17025 calibrated with certificate High accuracy: 0.003 mm repeatability Reliable micrometre-level precision for workshop inspection With a stated accuracy of 0.003 mm (3 µm) and a measuring span of 0–50.8 mm, this digital probe delivers measurable improvements in quality control and setup checks where micrometre-level repeatability matters. The narrow measurement range makes the device well suited to component metrology, gauge checking and fine mechanical inspection. The proven repeatability reduces scrap and rework by offering consistent comparative readings, while the small form factor keeps the instrument usable on fixtures and bench-mounted setups. The enclosed 2 m cable also provides a convenient tether option for fixed arrangements while retaining wireless data transfer for mobile tasks. Clear readings and integrated data workflows to save time A 2.4" colour touchscreen with a fine display resolution of 0.0001 mm ensures measurements are easy to read and interpret at the machine or bench. As the probe offers wireless + USB data output, measured values can be logged directly into inspection software or a spreadsheet without manual transcription, reducing human error and accelerating documentation. The combination of a responsive display and digital output supports traceable data collection, enabling faster report generation and seamless integration into SPC routines or quality control systems. Traceable calibration and dependable sourcing for production continuity This instrument is supplied fully calibrated to ISO 17025 with an accompanying calibration certificate, providing documented traceability for internal quality systems and audits. Sourcing through Metav Werkzeuge adds a further quality filter: consistent stock levels, technical competence and broad product availability for workshops and industry buyers. The calibration certificate and digital output together support compliance and long-term reproducibility, while the robust digital electronics reduce drift compared with older mechanical indicators. Contact Metav Werkzeuge for specification matching and procurement of the Microtech Metrology measuring probe with ISO 17025 calibration and integrated wireless + USB data output Technical data Article number: 120129508L GTIN: 4061905042911 Manufacturer: Microtech Metrology Core specifications Measuring range: 0–50.8 mm Accuracy: 0.003 mm Resolution (display): 0.0001 mm Display: 2.4" colour touchscreen Cable length: 2 m Features Data output: Wireless + USB Digital indicator: yes ISO 17025 calibration with certificate Digital product (colour touchscreen) Special feature: supplied with 2 m cable FAQ What level of accuracy can be expected from this probe? The probe achieves an accuracy of 0.003 mm and repeatable readings suitable for micrometre-level inspection; the certificate supplied confirms the calibration status. Is a calibration certificate included with the instrument? Yes, the measuring probe is delivered fully calibrated to ISO 17025 and includes the appropriate calibration certificate. Which data interfaces are available for logging measurements? Data can be transferred via the instrument's wireless output or over USB for direct connection to inspection software or a PC. Can the display show very small increments for precision checks? The 2.4" colour touchscreen displays values with a resolution of 0.0001 mm, allowing clear presentation of fine measurements. Is the probe suitable for fixed bench use as well as mobile checks? The device supports both: wireless transfer for mobile checks and a 2 m cable for stable bench or fixture mounting. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50.8mm Digital Dial Gauge 0.0005mm Resolution Rechargeable USB Battery, Auto-Off - Metav IndustryLine
Take advantage of the combination of ultra‑fine resolution, reliable repeatability and USB rechargeability for precise, uninterrupted inspection routines; order directly via Metav Werkzeuge or consult the technical team for integration advice. Digital Dial Indicator M301.088 — 0–50.8 mm, 0.0005 mm resolution (Metav IndustryLine) The Digital Dial Indicator M301.088 is a compact digital test gauge designed for high‑resolution linear measurement in workshop inspection and quality control applications. *High resolution: 0.0005 mm reading *Rechargeable Li‑ion battery via USB *Repeatability ±0.0015 mm Precision where it matters Aimed at tasks that demand sub‑micron sensitivity, this digital indicator delivers a 0.0005 mm display step with a stated accuracy of ±0.003 mm and repeatability of ±0.0015 mm. Such figures mean that small deviations in components are detected reliably, which is essential in fine mechanical assemblies and precision rework. The technical specifications are expressed so measurement results can be compared objectively and traced in inspection reports. Convenient power and clear controls Power is handled by a built‑in rechargeable lithium battery, charged via USB for convenient bench use without frequent battery swaps. The instrument features an intuitive digital interface with ON/OFF, ZERO and DATA buttons for quick zeroing and data capture. An automatic shut‑off function reduces power consumption and can be disabled when continuous operation is required, supporting both intermittent checks and longer measurement sessions. Shop‑ready design and system integration Constructed for regular workshop handling, the indicator has a compact dial of 61 mm diameter and weighs 0.298 kg, offering a stable feel during measurement. The measuring span is 0–50.8 mm, making the gauge suitable for small parts and mounting in fixture setups. A standard 8 h6 stem is provided for secure attachment. For process data capture the unit provides an RB 7 data output, enabling integration into digital readout systems and statistical documentation workflows. Contact Metav Werkzeuge for tailored procurement or integration advice on the Metav IndustryLine digital dial indicator M301.088 and to discuss compatible data interfaces and mounting options Technical data Article number: M301.088 GTIN: 4054469182452 Label: Digital‑Dial Indicator 0–50.8 mm × 0.0005 mm, USB rechargeable Manufacturer: Metav IndustryLine Facts Measuring range: 0–50.8 mm Resolution / reading: 0.0005 mm Accuracy: 0.003 mm Repeatability: 0.0015 mm Dial diameter: 61 mm Weight: 0.298 kg Special features Rechargeable lithium battery, USB charging included Digital display with ON/OFF, ZERO and DATA buttons Automatic shut‑off (switchable) Data output: RB 7 Mounting stem: 8 h6 Digital instrument for precise incremental measurement FAQ What measuring range does this indicator cover? The Digital Dial Indicator M301.088 covers a measuring range of 0–50.8 mm, suitable for small‑part inspection and fixture measurement. What resolution and accuracy can be expected? Resolution is 0.0005 mm with an overall accuracy quoted as ±0.003 mm; repeatability is ±0.0015 mm, enabling detection of very small dimensional changes. Is the battery user‑replaceable? The instrument has a built‑in rechargeable lithium battery and is recharged via USB; the battery is not specified as interchangeable. Can measurement data be exported to a PC or data logger? Yes, the indicator provides an RB 7 data output for connection to compatible data acquisition systems; compatibility depends on the receiving device and cable/interface used. What mounting interface does the gauge use? The indicator is supplied with an 8 h6 stem for secure fixture mounting and conventional holder systems. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50.8mm Digital Dial Indicator Absolute System With USB, IP75, ISO 17025 Calibrated - Microtech Metrology
Precise, traceable measurements are delivered by the combination of an absolute measuring system, high resolution and USB data output, ensuring efficient integration into inspection workflows; benefit from ISO 17025 calibration and a supplied certificate. Order directly via Metav Werkzeuge or request tailored advice from our consultants. Digital Absolute Dial Indicator by Microtech Metrology — 0–50.8 mm, USB The digital absolute dial indicator from Microtech Metrology is a compact, shop‑ready measuring instrument for repeatable length checks and setup tasks across inspection benches and production machines. Absolute measuring system for traceable values USB data output for quick logging ISO 17025 calibrated with certificate Resolution 0.001 mm and mm/inch display Integrates measurement data into productive workflows Equipped with an absolute measuring system and a USB data output, this gauge simplifies digital record keeping and SPC collection directly from the workshop. The absolute system preserves the zero point after power cycles, reducing setup time and avoiding cumulative errors. The combination of mm/inch toggling and preset functions facilitates cross‑machine transfers while the USB interface enables fast logging to inspection software, increasing throughput and reducing transcription mistakes. Reliable, repeatable readings suited to quality control With a resolution of 0.001 mm and an stated accuracy of ±0.007 mm, the instrument meets the demands of routine industrial quality control. A consistent measuring force of 1.2–2.2 N helps produce repeatable contact conditions, which is essential when comparing small deviations across batches. The device’s digital display provides PRESET, HOLD and MODE functions that assist in stable readouts and eliminate uncertainty during manual handling. Built for everyday workshop conditions The indicator is designed for pragmatic handling: the absolute measuring system avoids re‑zeroing during shifts, the battery is a standard CR2032 3V, and the housing carries an IP75 rating for added resistance against dust and splash exposure typical on shop floors. Controls are laid out for intuitive operation, so operators can focus on measurement rather than instrument management. Robustness and straightforward battery serviceability reduce downtime and total cost of ownership. Traceability and calibration tailored for professional use Delivered fully calibrated under ISO 17025, the instrument includes a calibration certificate to support quality documentation and audit trails. For applications that require documented traceability—laboratory checks, incoming inspection or assembly verification—this certificate confirms conformity and shortens acceptance procedures. The absolute measuring principle together with certified calibration makes the tool suitable for both production monitoring and formal inspection tasks. Contact Metav Werkzeuge for integration advice and to order the Microtech Metrology digital absolute indicator with ISO 17025 calibration and USB data output; our specialists in Emmerich will advise on configuration and delivery options Technical data Article number: 120125502 GTIN: 4061905081972 Manufacturer: Microtech Metrology Core specifications Measuring range: 0–50.8 mm Resolution: 0.001 mm / 0.00005 in Accuracy: ±0.007 mm Measuring force: 1.2–2.2 N Protection class: IP 75 Features & delivery Measuring system: Absolute Display functions: mm/inch, PRESET, HOLD, MODE Data output: USB Power supply: CR2032 3V battery Calibration: Delivered with ISO 17025 calibration certificate FAQ What measuring range does the indicator cover? The Microtech Metrology digital absolute indicator covers a measuring range of 0–50.8 mm. Can measurement data be exported directly to a computer? Yes, the gauge offers a USB data output for direct export of readings into logging or SPC software. Is the device supplied calibrated for traceability? The instrument is delivered fully calibrated under ISO 17025 and includes a calibration certificate for quality documentation. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50.8mm Digital Indicator With 0.0001mm Resolution Colour Touchscreen, Wireless/USB Output - Microtech Metrology
Take advantage of the combination of 0.003 mm accuracy, a 50.8 mm measuring range and flexible data transfer via Wireless and USB for reliable inline checks and repeatable bench measurements. Order the instrument directly via Metav Werkzeuge or contact our consultants for integration advice. Messuhr — Digital indicator with 2.4" colour touchscreen and Wireless/USB output (Microtech Metrology) The Messuhr is a compact electronic measuring indicator designed for precise displacement measurement in inspection benches and production control environments. *High accuracy 0.003 mm *50.8 mm measuring range for compact parts *2.4" colour touchscreen for intuitive operation *Wireless and USB data output for integration Reduce scrap with laboratory-grade repeatability An accuracy of 0.003 mm delivers measurement certainty where tolerance margins are tight. The instrument’s 50.8 mm measuring range covers small to medium components while keeping a compact footprint suited to quality-control benches. This precision reduces rework and speeds up go/no-go decisions by providing a clear, verifiable measurement result every time. Streamline data collection and process control Equipped with Wireless and USB interfaces, the indicator simplifies transfer of readings into inspection software and traceability systems. Wireless transfer avoids cable clutter on the bench; USB provides a reliable direct link for batch logging. Both options support quick incorporation of measurement data into statistical process control and documentation workflows. Consistent contact and straightforward operation A controlled measuring force of 1.2–2.2 N ensures consistent contact pressure, which limits variability from manual handling and improves repeatability. The 2.4" colour touchscreen presents readings and menus clearly, shortening training time and reducing operator errors. The user interface is designed for swift measurement tasks common in workshop and laboratory routines. Built for workshop inspection and inline quality checks This electronic indicator is a practical choice for component inspection, gauge checks and incoming goods control. The robust digital design combines dependable electronics with easy integration into inspection chains, making it suitable for small series production as well as laboratory applications. Traceable data capture supports quality documentation and audit requirements. Contact Metav Werkzeuge for a technical consultation on integrating this Microtech Metrology digital indicator into existing inspection systems Technical data Article number: 120139508M GTIN: 4061905453465 ECLASS: 21170308 Manufacturer: Microtech Metrology Facts Measuring range: 0–50.8 mm Accuracy: 0.003 mm Measuring force: 1.2–2.2 N Display size: 2.4" colour touchscreen Special features Digital indicator (electronic) Wireless + USB data output Colour 2.4" touchscreen Digital display FAQ What level of precision can be expected from this instrument? The Messuhr from Microtech Metrology provides an accuracy of 0.003 mm, suitable for high-precision bench measurements and tight-tolerance quality checks. How can measurement data be exported for analysis? Readings can be exported via the instrument’s Wireless connection or through the USB port for integration into SPC software or laboratory databases. Is the measuring force adjustable or fixed? The instrument operates with a measuring force in the range of 1.2–2.2 N, designed to provide consistent contact and repeatable readings across standard inspection tasks. Which applications suit this digital indicator best? This electronic indicator is ideal for component inspection, incoming goods control and bench-level process checks where compact range and high accuracy are required. Does the product have an identifiable model or article number for ordering? Yes — the model is listed under article number 120139508M and is offered by Microtech Metrology. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
500mm Magnetic Base Stand With 420mm Ø20 Stem And 390mm Ø16 Crossarm Three-Point Prism Base With On/Off Switch - Metav IndustryLine
Take advantage of the combination of 80 kg holding force, a prismatic sole with on/off switch and precise fine adjustment to secure repeatable indicator readings and faster set‑up at the workbench; order the magnetic stand directly via Metav Werkzeuge or ask our consultants for tailored application advice. Magnetic measuring stand "Bosch" – 80 kg magnetic base, 500 mm height The Magnetic measuring stand "Bosch" is a workshop-grade magnetic base designed to hold dial indicators and small test instruments steadily for inspection and setup work in metalworking and quality control environments. 80 kg magnetic pull with on/off switch Fine adjustment for precise positioning Chrome-plated Ø20 mm column for stiffness Cross arm Ø16 x 390 mm for extended reach A secure foundation for repeatable measurements The combination of a magnetic base with a prismatic sole and an integrated on/off switch provides a reliable anchoring system on ferrous surfaces that reduces slippage during probing and gauging. The high 80 kg holding force is specifically beneficial when working on vertical or irregular surfaces, ensuring stable contact so that readings can be taken without re‑clamping. The practical result is fewer measurement errors and less time spent re‑aligning test equipment, which directly increases throughput in routine inspection tasks. Micro‑adjustment and reach for accurate alignment A mechanical fine adjustment mechanism permits controlled, sub‑millimetre movements of the probe or indicator, enabling precise coaxing into position without disturbing the setup. The chrome‑plated Ø20 x 420 mm column delivers stiffness and resistance to torsion, while the Ø16 x 390 mm cross arm extends reach for awkward or recessed measurement points. Together these features allow accurate orientation of gauges with minimal operator effort, turning a potentially fiddly process into a fast, reproducible step in the measurement workflow. Built for everyday workshop use and compatibility With an overall height of 500 mm and a compact base footprint, this magnetic support balances reach and stability for bench and shop‑floor use; the unit weighs 4.2 kg, which aids portability while preserving robustness. The stanchion and arm are chrome‑plated to resist corrosion and to maintain surface finish where clamping parts and accessories interface. The design suits common dial indicators and test probes used in machine shops and inspection departments, offering a practical, long‑lasting accessory that simplifies set‑ups and sustains measurement quality over repeated cycles. Contact Metav Werkzeuge today to request tailored advice on this Bosch magnetic measuring stand with 80 kg holding force and fine adjustment — Metav Werkzeuge in Emmerich can support specification checks and ordering via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: M208.106.4 GTIN: 4054469104652 eClass: 21170601 Manufacturer: Metav IndustryLine Facts Magnetic force: 80 kg Overall height: 500 mm Column: Ø20 x 420 mm, M12 Cross arm: Ø16 x 390 mm Weight: 4.2 kg Base dimensions: 75 x 60 x 80 mm Special features Magnet with prismatic sole and on/off switch Fine adjustment for precision alignment Chrome-plated rod and arm M12 thread for accessory mounting Suitable for dial indicators and small test instruments FAQ How strong is the magnetic holding force and what does it mean in use? The magnetic base provides an 80 kg holding force; this ensures secure attachment to ferrous surfaces and reduces the risk of movement during indicator readings. Can the stand be adjusted finely for delicate alignment? Yes, the stand includes a mechanical fine adjustment that allows controlled positional changes for exact indicator alignment. What are the main dimensions to consider when planning a setup? Key dimensions are overall height 500 mm, column Ø20 x 420 mm, and cross arm Ø16 x 390 mm, which determine reach and clearance for most bench and shop applications. Is the unit suitable for portable use between workstations? Weighing 4.2 kg and featuring a compact base, the stand is portable enough for routine repositioning while remaining stable during measurements. Which measurement instruments are compatible with this magnetic stand? The stand is compatible with standard dial indicators and small test probes commonly used in inspection and setup work; the M12 thread and cross arm permit straightforward mounting of typical holders. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Capacitive Linear Probe Digital 0.1µm Resolution 2m Cable - Microtech Metrology
Take production measurement to a controlled level: precise 0.003 mm accuracy combined with 0.0001 mm resolution and a compact 50 mm range ensure repeatable inspection results; order the probe directly via Metav Werkzeuge or contact our consultants for application advice. Probe 0–50 mm (digital, 0.003 mm accuracy) — Microtech Metrology The probe is a compact digital displacement sensor designed for precision inspection and process control in metrology benches and fine mechanical workshops. Digital output with 0.0001 mm resolution ±0.003 mm accuracy for tight tolerances 50 mm measuring range for small parts Included 2 m cable for immediate connection Ø8 h6 mounting shank for standard fixtures Accurate measurement that stabilises production Built for reproducible results, this compact probe delivers ±0.003 mm accuracy and a 0.0001 mm display resolution, pairing fine measurement capability with a small footprint. The combination of tight tolerance and digital readout reduces interpretation errors and speeds up inspection cycles, so quality checks become a reliable gatekeeper for downstream processes. This technical stability supports consistent parts acceptance rates and lowers the risk of rework. Designed for easy integration and dependable performance The sensor provides a digital output and is supplied with a 2 m cable, allowing straightforward connection to measurement interfaces, data loggers or CNC inspection routines. The Ø8 h6 shank is compatible with standard toolholders and fixture systems, which simplifies mechanical mounting. A measuring force of 1.2–2.2 N ensures stable contact without deforming delicate edges, making the device suitable for routine gauge tasks and inline checks. Practical benefits for workshop and lab environments Short setup times and robust electrical output make this compact instrument a practical choice for both bench metrology and production lines. The small measuring range of 50 mm focuses the device on fine components and assemblies where high repeatability matters. Clear numeric output combined with the sensor’s accuracy translates to fewer subjective interpretations and a shorter path from measurement to decision — a rational upgrade for quality-controlled environments. Proven partner network and traceable supply Sourcing through Metav means access to a European distribution and a quality filter located in Emmerich. Metav’s broad product range and established supply chain reduce procurement complexity and support quick replacement or scaling across workshops. The technical specification and compatibility of the sensor make it a dependable element within a measured production strategy, backed by Metav’s industry experience. Contact Metav Werkzeuge for tailored integration advice and to arrange delivery of the Microtech Metrology probe — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: 120129508P GTIN: 4061905458200 Manufacturer: Microtech Metrology Measurements Measuring range: 0–50 mm Resolution (display): 0.0001 mm Accuracy: ±0.003 mm Measuring force: 1.2–2.2 N Mounting shank: Ø8 h6 Design & accessories Output: digital Cable included: 2 m ECLASS: 21170308 Reversal span: 0.5 FAQ What measurement accuracy and resolution does the probe offer? The Microtech Metrology probe (SKU 120129508P) provides an accuracy of ±0.003 mm and a display resolution of 0.0001 mm, suitable for tight-tolerance inspection tasks. Can the sensor be connected to a data acquisition system? Yes. The probe features a digital output and is supplied with a 2 m cable for immediate connection to controllers, data loggers or inspection interfaces. How does the measuring force affect delicate parts? With a measuring force of 1.2–2.2 N, the sensor maintains stable contact while minimising the risk of deforming soft or thin workpieces during measurement. What mounting options are available for the device? Mechanical mounting is via a Ø8 h6 shank, compatible with standard fixtures and holders used in bench and inline metrology setups. Which applications suit this probe best? The sensor is optimised for fine mechanical inspection, small-part quality control and repeatable bench measurements where a 50 mm range and high resolution are required. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50mm Depth Gauge Bridge 50 x 16mm, Ø8mm Holder, Ground Lap Finished - Metav IndustryLine
Combine the matt-chromed finish, lapped measuring faces and secure Ø 8 mm mounting to ensure stable, repeatable depth readings; order the depth measuring bridge directly via Metav Werkzeuge or consult our specialists for application advice. Depth measuring bridge M208.061.0 – 50 mm effective depth, Ø 8 mm dial-gauge mount (Metav IndustryLine) The Depth measuring bridge M208.061.0 is a compact, precision attachment that provides a rigid, repeatable mounting for dial gauges, ideal for depth, slot and step measurements in workshop and inspection environments. Matt-chromed with lapped measuring faces 50 × 16 mm compact bridge design Ø 8 mm universal dial-gauge mounting Reliable mounting for consistent measurements A stable gauge mount reduces variability in workshop inspection. The bridge’s Ø 8 mm mounting accepts standard dial-gauge stems and secures them in a rigid fixture, which translates directly into repeatable depth checks and fewer measurement corrections. The matt-chromed outer finish resists finger marks and light corrosion, while the lapped measuring faces ensure a flat contact area that minimises wear and runout over time. These characteristics make the accessory suitable for repetitive quality-control tasks where consistent results matter. Compact design that fits fixtures and benches With a bridge footprint of 50 × 16 mm and an effective depth of 50 mm, the attachment balances reach and stiffness for everyday shop tasks. The small overall height and modest mass result in a compact footprint that integrates easily into jigs, inspection benches or portable test setups without adding undue bulk. This compactness is advantageous for work on small to medium assemblies where handling space is limited, while the robust construction maintains alignment under normal workshop handling. Practical application and measurement scope Engineered for use with dial gauges, the accessory enables depth, slot, step and internal shoulder measurements when combined with a suitable indicator. The ground and lapped contact surfaces reduce surface deformation during measurement and improve repeatability over prolonged use. As an accessory from a metrology line, it supports standard workshop inspection workflows by delivering a simple way to convert handheld indicators into a stable depth-measuring arrangement, promoting faster checks and reliable pass/fail decisions. Contact Metav Werkzeuge for tailored advice on integrating the Metav IndustryLine depth measuring bridge with existing dial gauges and fixtures – email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: M208.061.0 GTIN: 4061905041952 Brand: Metav IndustryLine Facts Bridge dimensions: 50 × 16 mm Effective depth: 50 mm Overall height: 34 mm Weight: 0.3 kg Mounting diameter: Ø 8 mm Special features Finish: matt-chromed, measuring faces ground and lapped Suitable for dial gauges with 8 mm mounting Category: Accessory for measuring instruments FAQ Which dial gauges are compatible with this bridge? The bridge is compatible with all dial gauges featuring an 8 mm stem; the Ø 8 mm mounting secures standard gauge stems for stable readings. What kinds of measurements can be performed with this accessory? Combined with an indicator, the bridge enables depth, slot, step and internal shoulder measurements, converting a dial gauge into a rigid depth-measuring fixture. How does the finish affect durability? The matt-chromed surface offers corrosion resistance and the lapped measuring faces reduce wear, supporting long-term repeatability of measurements. Is the bridge suitable for fixture integration in production? Yes; the compact 50 × 16 mm design and modest weight make it easy to mount in jigs or inspection benches for routine quality-control tasks. Does the product support high-frequency inspection routines? The robust construction and flat, lapped contact faces are designed for repetitive use, delivering consistent results in frequent inspection cycles. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Dial Gauge With Rotary Bezel, 0.01mm Resolution, Plastic Case, Tolerance Marks - Metav IndustryLine
Combine 0.01 mm reading accuracy with a 50 mm measuring range and a rotatable bezel to speed comparative checks and run‑out inspections; order the dial indicator directly via Metav Werkzeuge or consult our specialists for application guidance. Dial Indicator M208.008 — 50 mm range, 0.01 mm graduation (Metav IndustryLine) The Dial Indicator M208.008 is a workshop dial gauge designed for comparative, alignment and run‑out measurements, offering fine 0.01 mm graduations across a 50 mm measuring range for reliable process control 50 mm measuring range 0.01 mm resolution Rotating dial bezel for easy zeroing Precision that supports production efficiency The instrument delivers a 0.01 mm graduation and an indicated accuracy of ±0.055 mm, making it suitable for routine inspection and quick comparative measurement tasks. The analogue dial provides immediate visual feedback, which accelerates repeat checks and reduces cycle time at the inspection bench. Where digital instruments are unnecessarily complex, this mechanical gauge combines simplicity with repeatable results, supporting faster decision making on the shop floor. The rotating bezel simplifies setting a reference zero, enabling rapid comparative readings without recalibration between successive parts. Built for practical mounting and everyday use Compatibility with an 8 h6 mount ensures straightforward attachment to common indicator holders and magnetic stands, so the gauge integrates quickly into existing fixturing. The presence of tolerance marks on the dial supports go/no‑go style checks and visual pass/fail assessment at a glance. At approximately 0.24 kg, the device is light enough for easy handling while remaining stable in clamped setups. These design choices reduce handling time and improve operator ergonomics, which contributes directly to throughput in machine shops and maintenance departments. Applied benefits: inspection, alignment and traceability This dial gauge is optimised for comparative inspection, run‑out verification and general alignment work, offering a practical balance of range and fineness for daily quality tasks. Supplied to Werksnorm, the instrument is intended for reliable workshop use where a straightforward, proven measuring method is preferred. Choosing a tried form factor like this one supports consistent measurement routines and facilitates staff training, while the analogue readout and clear markings help prevent misreads during repetitive inspections. Purchasing through Metav provides access to a broad selection of compatible accessories and the reassurance of a European quality filter. Contact Metav Werkzeuge for tailored advice on integrating the M208.008 dial indicator into inspection routines — Metav Werkzeuge in Emmerich can advise on mounting options and application fit by phone or email Technical data Article number: M208.008 GTIN: 4054469103693 Category: Messuhren Numbers / Core technical data Measuring range: 0–50 mm Resolution: 0.01 mm Indicated accuracy: 0.055 mm Weight: 0.24 kg Dial diameter: 76 mm Special features Analogue dial reading Rotating dial bezel (outer ring adjustable) Tolerance marks on the dial Mounting: 8 h6 FAQ What measuring range does this gauge cover? The M208.008 dial indicator covers a 0–50 mm measuring range, suitable for comparative and run‑out checks within that span. How fine is the reading on the dial? Resolution is 0.01 mm, enabling clear, repeatable readings for standard workshop inspections with an indicated accuracy of ±0.055 mm. Can the indicator be mounted on common holders? Yes — the instrument uses an 8 h6 mount, which is compatible with typical indicator holders and magnetic stands used in workshop setups. Is the dial adjustable for zeroing and tolerance checks? The outer bezel is rotatable, allowing quick zeroing and alignment with the tolerance marks for fast go/no‑go style assessments. Is this gauge suitable for regular machine‑shop use? Designed to Werksnorm standards, the gauge is intended for everyday inspection, alignment and run‑out measurement tasks in production and maintenance environments. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Precise measurements with dial indicators for workshop and production use
Dial indicators are high-quality measuring devices designed for a variety of measuring ranges and fine-tuning tasks. These instruments, available in digital and analogue versions, enable precise assessment of concentricity, flatness and comparative measurements in confined or critical areas.
How dial indicators work and where they are essential
Analogue dial indicators transmit the linear movement of the probe via a rack-and-pinion mechanism to the pointer, with an additional revolution counter showing extended travel. Many types operate in both compression and tension, so a wide effective measuring range is covered. Lever-type indicators use a lever system instead of a rack, offering a smaller range but finer resolution. Typical workshop applications include runout checks at the lathe, setting up depth on milling tables or circular saws, and comparative checks during series production.
Tangible benefits for everyday production
- Fast, repeatable readings for comparison work, reducing setup and inspection time.
- Stable measuring force and hardened contact tips for reliable, wear-resistant contact and consistent results.
- Broad selection: digital dial indicators, mechanical dial indicators, depth gauges, lever-type test indicators, fine‑point test indicators and thickness gauges cover most shop tasks.
- Reduced risk of measurement error through appropriate instrument choice and accessories, improving first-pass yield.
- Flexible deployment on machines and inspection benches thanks to standardised mounts and probes.
Why choose Metav as your precision partner
Metav stands for the democratisation of precision, combining decades of expertise with a comprehensive inventory for industry, crafts and trade. From Emmerich, Metav operates as a practical quality filter for the European market, supplying over 48,000 satisfied customers and more than 250,000 products. For buyers who prioritise dependability and a single-source approach, Metav’s range of dial indicators and related measuring equipment provides a technically sound and convenient solution.
Core takeaway
Dial indicators deliver precise, repeatable measurements across a variety of specialised tasks; selecting the correct type—whether digital, analogue or lever-type—ensures reliable results and smoother production processes.
FAQ
What is the main difference between analogue and digital dial indicators?
Analogue dial indicators transmit movement via a rack-and-pinion and show mechanical pointer travel, which can be advantageous for visual trend detection; digital dial indicators provide direct numerical readout and often allow data output for logging and analysis, both of which are available from Metav.
When should I use a lever-type test indicator instead of a standard dial indicator?
Use a lever-type indicator when you need finer resolution over a small measuring range or when the probe must access tight spaces; lever-type instruments are particularly useful for checking runout and small surface variations.
How do I avoid damaging an analogue dial indicator’s gearing?
Avoid forcing the probe beyond its travel range; where significant overtravel is possible, choose a model with an appropriate range or a built-in stop. A drag pointer or anti-backlash feature can also reduce the risk of gear damage by preventing delayed pointer return.
Are special contact tips necessary for different materials?
Yes. For consistent results and reduced wear, choose hardened contact tips or balls appropriate to the material and surface finish being measured; Metav’s product range includes a variety of probe tips and accessories for this purpose.
