Precision dial indicators for accurate length and runout checks
Dial indicators and related gauges provide precise measurement of small lengths and deviations, serving applications such as concentricity, flatness and comparison checks on lathes and milling machines, and offering both digital and analog options to suit different measuring ranges. These instruments are used with appropriate accessories for tasks like depth measurement or runout testing and feature hardened contact faces or balls for reliable contact; typical variants include dial indicators, test indicators and depth gauges. Analog types transmit spindle movement via rack and pinion to the pointer and may include a drag pointer to prevent gear damage, while digital versions give straightforward numeric readouts for quick interpretation. Using these gauges improves setup accuracy, process control and the repeatability of measurements in metalworking and workshop environments.
50mm Dial Indicator, 0.01mm Graduation, Rotating Bezel, Plastic Case - Metav IndustryLine
Take advantage of the combination of 0.01 mm resolution and a clear 60 mm dial for fast, reproducible shop‑floor checks; order the M208.006 Dial Indicator directly via Metav Werkzeuge or contact our consultants for detailed application advice. M208.006 Dial Indicator — 60 mm dial, 0.01 mm resolution A compact, analogue dial indicator designed for precise dimensional checks and tolerance control in workshop and production environments. 0–50 mm measuring range 0.01 mm resolution for fine readings 60 mm easy-to-read dial Rotatable bezel with tolerance marks Precise, repeatable readings to speed up quality checks The analogue dial combines a large 60 mm dial with a fine 0.01 mm resolution, making rapid visual comparisons and go/no‑go evaluations straightforward. The instrument’s specified accuracy (0.055) and factory standard traceability ensure measurements are consistent across repetitive tasks, reducing rework and inspection time. This compact format is particularly suited to frequent in‑process control where quick decision cycles matter and where a clear, scalable indication of deviation keeps production moving. Practical design that supports everyday workshop use A rotatable bezel with integrated tolerance marks simplifies transfer of limit values from drawings to the measuring instrument, supporting faster set‑up and fewer interpretation errors. The robust dial diameter increases legibility under workshop lighting, while the overall form factor delivers ergonomic handling during repetitive checks. Classified within the micro measuring range, the instrument suits fine mechanical work and tasks that demand precision on small components, combining usability with technical clarity to foster operator confidence. Versatile applications for assembly and maintenance tasks Engineered for routine dimensional controls, the device performs reliably for shaft run‑out checks, fixture set‑up and component inspection where quick comparative readings are required. The 0–50 mm measuring range covers many common inspection tasks in metalworking and general engineering, while the large dial aids fast visual evaluation on the shop floor. Supplied to a factory standard, this dial indicator integrates smoothly into quality workflows and offers a practical balance of reach, readability and repeatability for daily use. Contact Metav Werkzeuge for purchase and technical guidance on the M208.006 Dial Indicator — call +49 2822 7131930 or email info@metav-werkzeuge.com to discuss suitability for specific measurement tasks Technical data Article number: M208.006 GTIN: 4054469103679 Dial diameter: 60 mm Measuring range: 0–50 mm Resolution: 0.01 mm Facts Accuracy: 0.055 Weight: 0.37 kg Display type: analogue Standard: Werksnorm ECLASS: 21170308 ETIM: EC003591 Tariff number: 90178090 Special features Rotatable bezel with tolerance marks Clear, large dial for quick reading Compact design for workshop usage Suitable for routine dimensional and run‑out checks FAQ How accurate is the M208.006 Dial Indicator? The M208.006 Dial Indicator is specified with an accuracy of 0.055, offering consistent repeatability for routine inspection and shop‑floor comparisons. What measurement range does this dial indicator cover? This indicator covers a measuring range of 0–50 mm, making it suitable for micro‑range applications and precise checks on small components. Is the dial easy to read under workshop conditions? Yes, the 60 mm dial and clear graduation provide good legibility for quick visual assessments and tolerance checks. Does the instrument include tolerance marks for go/no‑go checks? A rotatable bezel with tolerance marks is provided to simplify transfer of limit values and speed up setup during inspection. Can the M208.006 be used for run‑out measurements? Its resolution and dial format make the device appropriate for run‑out checks and other comparative measurements commonly required in assembly and maintenance. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Dial Indicator, Tolerance Marks, ISO 17025 Calibrated, 0.01mm Resolution - Microtech Metrology
Take advantage of the combination of precise readout, factory calibration and easy limit checks to keep inspection routines efficient and reproducible — the gauge is factory‑calibrated to ISO 17025, offers 0.01 mm resolution across a 0–50 mm span and features clear tolerance marks for rapid go/no‑go assessment. Order the instrument directly via Metav Werkzeuge or ask our consultants for application advice. Microtech dial indicator 0–50 mm, Ø60 mm dial, ISO 17025 calibrated The dial indicator for comparative, runout and setup measurements in workshop and inspection environments 0.01 mm resolution for fine readings 0–50 mm measuring range, Ø60 mm dial Delivered with ISO 17025 calibration certificate Tolerance marks for fast limit checks Precision where visual clarity speeds decisions This analogue measuring instrument delivers a fine 0.01 mm graduation and a stated accuracy of ±0.035 mm, permitting reliable comparative and runout measurements on small to medium components. The 60 mm dial combines legibility with a compact footprint so readings are quick and less error‑prone during repetitive tasks. The measurement span of 0–50 mm covers routine inspection work and many assembly checks; the robust mechanical movement gives a tactile feel that experienced technicians trust for repeatable results. Faster inspection with integrated tolerance marks and proven calibration Clear tolerance marks on the dial enable immediate go/no‑go evaluation without additional templates, reducing inspection time on the shop floor. The instrument is supplied fully calibrated to ISO 17025, and a traceable calibration certificate is included, which supports quality documentation and audit trails. This combination of marked limits and accredited calibration helps to integrate the gauge smoothly into formal quality systems and keeps measurement uncertainty transparent. Designed for everyday workshop and metrology tasks The analogue mechanism is suited to comparative checks, height bench work and spindle runout inspection in toolrooms and maintenance departments. Readings are taken visually from the large dial and transferred to process documentation or spot checks; the scale and movement are engineered for stable performance during frequent use. For tasks that require quick alignment or verification, the gauge provides a reliable, low‑complexity solution compared with more complex digital systems. Durable construction for continuous use in inspection environments Manufactured by Microtech Metrology, the indicator combines a sturdy case with a precise movement to withstand normal workshop handling. The mechanical design minimises drift and provides consistent index behaviour over repeated cycles. Where reproducibility and documented accuracy are required, this instrument fits into a practical measuring set‑up and supports both routine QC and sporadic troubleshooting without special training. Contact Metav Werkzeuge for purchasing advice and delivery from our Emmerich stock — technical consultants can confirm fit‑for‑purpose use and arrange supply with the included ISO 17025 calibration certificate Technical Data Article number: 120121500 GTIN: 4061905451805 Manufacturer: Microtech Metrology Facts Measuring range: 0–50 mm Resolution: 0.01 mm Accuracy: ±0.035 mm Dial diameter: 60 mm Special features Analogue dial indicator Tolerance marks on dial Delivered calibrated to ISO 17025 with certificate Suitable for runout, comparative and height measurements FAQ Is the indicator delivered calibrated? Yes. The Microtech dial indicator is supplied fully calibrated to ISO 17025 and includes a calibration certificate with the delivery. What is the smallest readable increment on the dial? The instrument provides a reading increment of 0.01 mm, allowing fine comparative and adjustment work. Can this gauge be used for spindle runout and bearing checks? Yes. The design and accuracy of this dial indicator make it suitable for runout, bearing and alignment checks in maintenance and inspection tasks. How is the dial marked for limit checks? The dial includes tolerance marks for quick visual go/no‑go assessment, speeding up repetitive inspection routines. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
50mm Digital Dial Gauge 0.001mm Resolution Absolute System Rotating Display 330° IP54 - Metav IndustryLine
Benefit from 0.001 mm resolution, an absolute measuring system and a rotatable display for dependable shop‑floor readings; order the digital indicator directly via Metav Werkzeuge or consult the specialists for application advice. Digital dial indicator M301.039 — 0–50 mm, 0.001 mm resolution, rotatable display (Metav IndustryLine) The Digital dial indicator M301.039 is a compact electronic measuring gauge designed for precise displacement and run‑out checks in workshop, inspection and production environments. High resolution 0.001 mm readout Rotatable display up to 330° for flexible viewing IP54 splash and dust protection Absolute measuring system with 3 V supply Precision that maintains process reliability The electronic gauge delivers a 0–50 mm measuring range with a fine 0.001 mm display step, making it suitable for fine dimensional checks and quality assurance tasks. The combination of a low measurement force (>2.2 N) and a repeatability of ±0.005 mm reduces operator‑induced variation, while the stated accuracy of 0.008 mm provides a clear performance expectation for toleranced work. The absolute measuring system preserves the reference position after power cycles, which simplifies set‑up and reduces cycle time in serial inspection. Designed for robust workshop use and ergonomic operation A display that rotates through 0–330° improves readability in confined fixturing and allows the instrument to be mounted in a variety of orientations without losing sight of the reading. The unit meets IP54 protection, offering reliable resistance to splashes and tool‑shop dust. A glass scale rail ensures stable scanning and consistent signal pickup, while the overall weight of 0.29 kg keeps handling comfortable for frequent checks. Delivery in a protective case supports safe transport and storage between job sites and inspection benches. Digital functions for efficient data handling and flexible measurement The indicator includes a comprehensive set of front‑panel controls (ON/OFF, ORIGIN, 0/ABS, PRESET, TOL, mm/inch and +/- keys) for rapid switching between measurement modes and units. Data output is provided via the RB 6 interface, permitting straightforward connection to data collectors and SPC systems where required. These features make the gauge a practical choice for bench inspection, small‑batch production control and integration into digitised quality workflows without excessive operator training. Contact Metav Werkzeuge today to discuss how the Metav IndustryLine digital indicator M301.039 can be integrated into measurement routines and to arrange delivery in its protective case Technical data Article number: M301.039 GTIN: 4054469164878 ECLASS: 21170308 ETIM: EC003591 Label: Digital dial indicator, 50 x 0.001 mm, Absolute system, rotatable display, IP54 Facts Measuring range: 0–50 mm Resolution / reading: 0.001 mm Accuracy: 0.008 mm Repeatability: 0.005 mm Weight: 0.29 kg Protection rating: IP54 Measuring force: >2.2 N Power / measuring system: Absolute with 3 V Special features Rotatable display 0–330° Glass scale rail for improved scanning Data output: RB 6 Digital functions: ON/OFF, ORIGIN, 0/ABS, PRESET, TOL, mm/inch, +/- keys Delivered in protective case FAQ How accurate is the instrument for routine inspection tasks? The M301.039 digital dial indicator provides an accuracy of 0.008 mm with a repeatability of 0.005 mm, which suits common workshop and quality‑control applications where sub‑hundred‑micrometre consistency is required. Can the display be read when the gauge is mounted in different orientations? Yes, the display rotates through 0–330°, allowing the indicator to be read comfortably from most mounting positions without re‑orienting the whole assembly. Is the unit suitable for use at the machine bench or only in clean inspection rooms? With an IP54 rating and a protected glass scale rail, the instrument is designed for typical machine‑shop environments and bench‑top inspection where splash and dust resistance are beneficial. Does the indicator provide a data output for SPC systems? The gauge offers a data output via the RB 6 interface for connection to data loggers and SPC equipment, facilitating digital recording and process monitoring. What digital functions are available on the display? The display provides ON/OFF, ORIGIN, 0/ABS, PRESET, TOL, mm/inch switching and +/- keys, enabling flexible measurement modes and quick unit changes during inspection routines. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Digital Indicator 0.001mm Resolution Rotating Display USB-C Rechargeable - Metav IndustryLine
Take advantage of high-resolution measurement, robust repeatability and flexible data transfer for precise inspection cycles. Combine 0.001 mm resolution with USB-C output and a rotatable display for improved process efficiency — order the digital indicator directly via Metav Werkzeuge or ask the consultants for tailored advice. Digital indicator 0–50 mm × 0.001 mm — Metav IndustryLine; rotatable display, USB-C The Digital indicator 0–50 mm × 0.001 mm is a compact, high-resolution measuring dial designed for workshop inspection, fixture set-up and component testing where fine resolution and repeatable results matter. High-resolution 0.001 mm reading Rotatable display, 270° adjustment USB-C data output for easy transfer Rechargeable lithium battery included Faster decisions through measurable precision The compact digital dial delivers 0.001 mm resolution and a specified accuracy of ±0.003 mm, providing measurable benefits where tight tolerances are enforced. High-resolution readings reduce interpretation error and shorten inspection times, while repeatability 0.002 mm ensures consecutive measurements remain consistent. For production environments and quality control benches, this performance translates into fewer rework loops and a clearer trace of dimensional compliance. Flexible handling that fits the bench A 270° rotatable display and outer ring Ø 60 mm make the instrument easy to read from different angles and mounting positions. The reversible measuring direction supports diverse fixturing arrangements, and the moderate weight of 0.298 kg aids handheld use without fatigue. The combination of compact form and ergonomic adjustment simplifies set-up when comparing parts, aligning gauges or checking small assemblies. Reliable data flow and low-maintenance operation Equipped with USB-C data output and a built-in rechargeable lithium battery, the indicator supports direct data transfer to inspection software and avoids frequent battery swaps. The display integrates an analogue bar-graph alongside function keys (ABS, SET/TOL, HOLD) for rapid status checks and tolerance references. A glass scale sensor provides stable sensing over time; this reduces drift and lowers the need for frequent readjustment, benefitting busy inspection routines. Practical advantages for workshop and lab use The digital display combines clear numeric resolution with an analogue trend indicator to help operators spot deviations at a glance. The instrument’s design prioritises repeatable contact and simple reversal of measuring direction, which is useful for comparative checks and fixture-based measurement tasks. Where traceable documentation is required, the USB-C output helps integrate readings into digital records and QC protocols. Contact Metav Werkzeuge for expert advice on integrating the Metav IndustryLine digital indicator into inspection workflows or to request detailed technical documentation Technical Data SKU: M301.078 GTIN: 4054469182421 Manufacturer: Metav IndustryLine Facts Measuring range: 0–50 mm Resolution: 0.001 mm Accuracy: ±0.003 mm Repeatability: 0.002 mm Weight: 0.298 kg Dial Ø: 60 mm Special features Rotatable display, 270° Glass scale sensor USB-C data output Rechargeable lithium battery, USB cable included Analogue bar-graph and ABS/SET/TOL/HOLD keys Reversible measuring direction possible FAQ What resolution does the instrument provide? The digital indicator offers a resolution of 0.001 mm, suitable for fine inspection tasks and precise setting operations. What accuracy and repeatability can be expected? The device specifies an accuracy of ±0.003 mm with a repeatability of 0.002 mm, providing stable results for routine quality control. How are measurements exported or recorded? Measurements are transferred via USB-C data output, enabling connection to inspection software or data-loggers for documentation. Is the display adjustable for different working positions? Yes — the instrument features a 270° rotatable display so the readout remains legible from multiple mounting orientations. Is the battery replaceable and how is it charged? A built-in rechargeable lithium battery is supplied and charged using the included USB cable for convenient, low-maintenance operation. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Digital Indicator 0.01mm Absolute Output RB6 With On/Off Origin Preset Mm/Inch Display, Glass Scale, Supplied In Case - Metav IndustryLine
Optimise measurement workflows with the combination of 0.01 mm resolution, an Absolute measurement system and integrated RB 6 data output for reliable process integration. Order the M301.023 directly via Metav Werkzeuge or consult our specialists for application advice. Digital dial gauge M301.023 — 50 × 0.01 mm, Absolute system with RB 6 data output (Metav IndustryLine) Digital dial gauge M301.023 provides precise displacement measurement for workshop and production quality control, ideal for bench testing, fixture set‑up and integration into digital measurement chains. 0.01 mm resolution for fine measurements Absolute system with RB 6 data output Glass guide scale for more accurate scanning Measuring range 0–50 mm and robust construction Seamless data flow for production control The M301.023 is designed for efficient integration into measurement routines thanks to its RB 6 data output, which facilitates direct transfer of readings into SPC systems or inspection software. The instrument’s Absolute system retains zero reference after power cycles, so repeatable part-to-part comparisons are faster and less error-prone. With a clear digital display and straightforward keys (ON/OFF, ORIGIN, PRESET, mm/inch), the gauge reduces operator steps and accelerates throughput while preserving traceability in documented inspection processes. Dependable precision where it matters Engineered for repeatable short‑travel measurement, this digital indicator combines a fine 0.01 mm reading step with an overall accuracy of 0.015 mm, offering the balance between sensitivity and robustness needed in machine shops and quality labs. The scale runs on an Absolute measuring system with 3 V supply and the scanning element is guided by a glass guide, which improves signal stability and reduces measurement noise compared with simpler sliding systems. The instrument’s consistent measuring force (>1.2 N) helps to standardise contact conditions during routine checks. Practical design for everyday inspection tasks With a measuring range of 0–50 mm and a compact construction, the unit is suited to fixture set‑up, comparative checks and bench verification of small to medium components. The housing and internal mechanics are arranged to offer a low‑mass feel (approx. 0.4 kg) without sacrificing durability, enabling steady handling and fast repositioning during repetitive operations. The combination of tactile control keys and the digital readout supports rapid value capture in both mm and inch modes, simplifying multi‑standard workflows and reducing conversion errors. Contact Metav Werkzeuge in Emmerich for tailored advice or to arrange delivery of the M301.023 with RB 6 data output — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: M301.023 Label: Digital-Messuhr, 50 x 0,01 mm, Absolute System Datenausgang RB 6 GTIN: 4054469168906 Category: Dial indicators Manufacturer: Metav IndustryLine Facts Measuring range: 0–50 mm Resolution / Reading: 0.01 mm Stated accuracy: 0.015 Weight: 0.4 kg Measuring force: >1.2 N Supply: Absolute system with 3 V Special features Scale with glass guide for more accurate scanning RB 6 data output for digital integration Digital display with ON/OFF, ORIGIN, PRESET and mm/inch keys Suitable for bench and fixture measurements Category: Messuhren (dial indicators) FAQ What measuring range does this instrument cover? The instrument covers a measuring range of 0–50 mm, making the M301.023 suitable for small to medium component checks and fixture set‑up. How fine is the resolution and how accurate are readings? Resolution is 0.01 mm with a stated accuracy of 0.015, which supports precise comparative measurements in routine quality control. Which data interface is provided for process integration? This model offers an RB 6 data output so readings can be transferred directly into inspection and SPC systems. Is the dial gauge easy to switch between metric and imperial units? Yes, the digital display includes a mm/inch key for quick unit switching and simplified logging across standards. Who manufactures this indicator and what is the SKU? The gauge is supplied via Metav IndustryLine; product SKU is M301.023 and the brand is Metav IndustryLine. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Digital Indicator Absolute Display 0–330° Rotatable, IP54 - Metav IndustryLine
Take advantage of a compact, workshop-ready solution that combines high repeatability, absolute measuring technology and a rotatable display for efficient set-ups; order the gauge directly via Metav Werkzeuge or consult our specialists for application advice. Metav IndustryLine Digital Indicator M301.033 — 50 mm range, 0.01 mm resolution, 330° rotatable display A compact digital indicator designed for precise workshop and inspection tasks, offering an absolute measuring system, fine resolution and a display that can be rotated by up to 330° for ergonomic reading. 50 mm measuring range, resolution 0.01 mm Rotatable display up to 330° Absolute measuring system with 3 V power IP54 splash and dust protection Reliable measurements that save time on the shop floor This instrument is built to deliver consistent, repeatable readings in everyday industrial use. With a resolution of 0.01 mm and a measured repeatability of 0.008 mm, the gauge reduces rework caused by measurement variability and accelerates quality checks. The Absolute measuring system preserves the reference position even after power cycles, which eliminates time-consuming re-zeroing and supports faster set-up in production runs. The compact form factor and robust construction make it suitable for routine dimensional inspection in metalworking and assembly environments. Designed for ergonomic handling and tight spaces A 330° rotatable display allows the readout to be orientated for the operator, reducing the need to reposition workpieces or the indicator itself. The device’s lightweight build and the provided 8 h6 mounting interface simplify attachment to stands or holders, while the measuring force above 2.2 N ensures reliable contact without excessive pressure. The combination of a glass-guided scale and stable electronics gives improved scanning accuracy, especially when taking repeated measurements in limited access areas. Clear digital functions and data connectivity for process control The digital readout offers a comprehensive control set — ON/OFF, origin, 0/ABS, preset, tolerance, mm/inch and +/- keys — supporting flexible measurement workflows and quick toggling between modes. Data output is provided via an RB 6 interface, enabling straightforward connection to downstream logging equipment or a readout unit for traceable documentation of measurement results. For traceability and quality records, the indicator’s absolute system ensures consistent reference behaviour that integrates well into inspection routines and production control. Built to withstand industrial environments With an IP54 rating, the instrument resists dust ingress and splashing liquids typical of workshop conditions, helping to maintain measurement integrity over time. The specified accuracy of 0.015 mm positions this gauge for demanding dimensional control tasks where precise tolerances are required but where a compact, portable instrument is preferred over bench-mounted metrology. The device’s construction emphasises robustness and low maintenance, supporting frequent use across inspection benches and set-up stations. Discuss application requirements or request a tailored quotation from Metav Werkzeuge – contact details below for prompt technical guidance and local supply from Emmerich. Technical Data Article number: M301.033 GTIN: 4054469158372 Category: Messuhren Manufacturer: Metav IndustryLine Core specifications Measuring range: 0–50 mm Resolution: 0.01 mm Accuracy: 0.015 mm Repeatability: 0.008 mm Weight: 0.29 kg Measuring force: >2.2 N Display rotation: 0–330° Protection rating: IP54 Features & materials Measuring system: Absolute with 3 V Data output: RB 6 Digital functions: ON/OFF, ORIGIN, 0/ABS, PRESET, TOL, mm/Inch, +/- Scale guidance: glass slide for improved scanning Mounting: 8 h6 FAQ What precision can be expected in repeated measurements? Repeatability is specified at 0.008 mm; the Metav IndustryLine digital indicator M301.033 provides consistent results for serial inspection tasks thanks to its stable mechanical guidance and electronic processing. Is the display orientation adjustable for awkward set-ups? Yes, the display rotates by up to 330°, allowing the readout to be positioned ergonomically without moving the workpiece or the measuring stand. Can the instrument be integrated into data-collection systems? The unit offers an RB 6 data output interface for connection to readout or logging systems, enabling straightforward transfer of measured values from the Metav IndustryLine gauge. Is the indicator suitable for a workshop environment with occasional splashes and dust? With an IP54 protection rating, the indicator tolerates typical workshop dust and splashes, making it suitable for routine shop-floor measurement tasks. Which mounting standard is used for attaching the indicator? The device uses an 8 h6 mounting interface, compatible with common indicator holders and stands for stable fixturing during inspection. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Digital Indicator With Adjustable Tolerance Limits, CR2025 Battery, Plastic Case - Metav IndustryLine
Combine a 0–50 mm measuring range with 0.01 mm resolution and adjustable tolerance limits to speed up inspection and reduce rework; order the instrument directly via Metav Werkzeuge or consult our advisors for application support. Digital Dial Gauge M907.652 (Metav IndustryLine) — 0–50 mm, 0.01 mm resolution Digital Dial Gauge M907.652 is a compact precision instrument for workshop inspection and quality control, offering a 0–50 mm range with quick mm/inch switching for flexible use 0–50 mm measuring range for standard workshop use 0.01 mm resolution with 57 mm digital display Adjustable tolerance limits for pass/fail checks Supplied in protective case with CR2025 battery Consistent measurement precision for routine inspection The instrument delivers a 0–50 mm measuring range with a display resolution of 0.01 mm, making it suitable for typical machine‑shop and quality‑control tasks. The specification for accuracy is ±0.04 mm, which defines the expected measurement deviation under standard conditions; this combination of fine resolution and defined accuracy enables reliable trend control and comparative measurements on components and tools. The 57 mm display diameter ensures readings remain legible even on busy workbenches, and the integrated mm/inch switch simplifies cross‑reference between drawing units. Built‑in tolerance control to speed decision making An adjustable tolerance function embedded in the electronics turns the device into a practical go/no‑go checker during serial inspection runs. By setting upper and lower tolerance limits, the gauge signals when a measurement falls outside acceptable bounds, reducing manual evaluation time and lowering the chance of downstream rejects. This feature is especially beneficial for repetitive checks where fast visual or audible feedback reduces cycle times and supports consistent product quality without complex setup. Robust handling and long service in industrial environments Designed as a digital measuring instrument for shop and inspection use, the gauge runs on a CR2025 battery and includes essential display controls (ON/OFF, ABS/INC, RESET and mm/inch). The instrument is supplied in a protective case for transport and storage, which helps maintain calibration integrity and prevents impact damage between uses. The compact form factor and straightforward button layout contribute to quick single‑hand operation and minimal training time for workshop staff. Practical applications and workshop compatibility The digital dial gauge is well suited to routine tasks in metalworking, tooling and assembly: alignment checks, run‑out measurement, and small‑part inspection all benefit from the instrument’s resolution and tolerance functions. Its specification matches typical shop requirements for speed and repeatability, while the clear display and simple controls support use by technicians and inspectors alike. The instrument integrates readily into existing quality workflows and complements other measuring equipment in a standard inspection kit. Choose Metav IndustryLine digital dial gauges for repeatable inspection results — contact Metav Werkzeuge in Emmerich for tailored advice and reliable supply: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: M907.652 GTIN: 4061905041884 Category: Dial gauges Brand: Metav IndustryLine Facts Measuring range: 0–50 mm Resolution: 0.01 mm Accuracy: ±0.04 mm Dial diameter: 57 mm Battery: CR2025 Special features Digital display with ON/OFF, ABS/INC, RESET, mm/inch Adjustable tolerance limits for pass/fail checks Supplied in protective case for transport and storage Digital instrument for workshop inspection FAQ What resolution and accuracy does the instrument provide? The Metav IndustryLine digital dial gauge M907.652 has a resolution of 0.01 mm and an accuracy of ±0.04 mm, making it suitable for standard workshop inspection tasks. Can tolerance limits be set for quick pass/fail checks? Yes, the instrument includes adjustable tolerance limits that allow immediate visual or audible feedback when measurements fall outside the set range, streamlining repetitive inspections. Is the display operation suitable for mixed unit work? The gauge features an mm/inch selector and dedicated keys (ON/OFF, ABS/INC, RESET), enabling fast conversion and straightforward operation during unit changes. What is included in the delivery? Delivery of the Metav IndustryLine digital dial gauge M907.652 includes the instrument, battery (CR2025) and a protective case for secure transport and storage. Is the instrument appropriate for shop‑floor use? Yes, the instrument is designed for workshop and inspection environments where legible readings, practical controls and tolerance checking improve measurement efficiency. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm Inductive Digital Dial Indicator 0.001mm Resolution, 0.025mm Accuracy, Incremental Display, Supplied in Case - Metav IndustryLine
Take advantage of the combination of high-resolution measurement, robust inductive sensing and straightforward data output to speed up inspection cycles and reduce rework; order the gauge directly via Metav Werkzeuge or consult the specialists for application advice. Digital dial gauge M301.083 — inductive indicator, 50 mm range, 0.001 mm resolution The Digital dial gauge M301.083 is an inductive displacement indicator for workshop inspection and production control, offering fine-resolution readings and digital data connectivity in routine metrology tasks. Inductive measuring system for long life 0.001 mm resolution for fine detail ±0.025 mm stated accuracy for reliable control RB 7 data output for process integration Accurate measurement that speeds up quality checks The instrument delivers 0.001 mm resolution, combined with a stated accuracy of ±0.025 mm and a repeatability of 0.008 mm, which translates into measurable gains in process control and fewer repeat measurements. The inductive sensing principle reduces mechanical wear on the probe and ensures stable readings even during frequent use. For production environments where cycle time matters, the compact and responsive display shortens the inspection loop and supports faster decision making. Digital workflow: faster logging and traceability Equipped with an electronic display offering mm/inch, 0/OFF, PRESET, TOL and DATA keys, the indicator simplifies setup and tolerance checks at the bench. The integrated RB 7 data output enables straightforward transfer of measured values to SPC systems or data collectors, reducing transcription errors and accelerating documentation. For traceable batch control or spot checks during setup, the combination of preset and tolerance functions reduces operator steps and standardises acceptance criteria. Built for everyday workshop use The measuring head includes a 56 mm dial footprint and an inductive measurement system that tolerates typical workshop conditions while maintaining repeatability. With a compact mass of 0.3 kg, the indicator is easy to mount and reposition on test stands or fixtures without compromising stability. The inductive sensor also avoids direct mechanical gearing at the sensing interface, which lowers maintenance needs and preserves calibration intervals over extended use. Where this indicator brings value This digital indicator suits machine shops, toolrooms and inspection benches that require repeatable fine measurements across small to medium components. Its mix of precise resolution, straightforward tolerance functions and digital output makes it well suited for first-article inspections, in-process checks and final acceptance tests. For integrators and quality managers, the device supports rational measurement workflows while remaining simple enough for routine operator use. Contact Metav Werkzeuge for personalised application guidance, integration options with existing data systems, or to arrange a tailored quotation for the Metav IndustryLine digital indicator M301.083 Technical data Article number: M301.083 GTIN: 4054469164892 Category: Messuhren Manufacturer: Metav IndustryLine Facts Measuring range: 0–50 mm Resolution/readability: 0.001 mm Stated accuracy: 0.025 mm Repeatability: 0.008 mm Dial diameter: 56 mm Weight: 0.3 kg Tariff number: 90173000 Special features Measuring system: inductive Digital display functions: mm/inch, 0/OFF, PRESET, TOL, DATA Data output: RB 7 eClass: 21170308 ETIM: EC003591 FAQ How precise is the indicator for routine inspection tasks? The indicator delivers 0.001 mm resolution with a stated accuracy of ±0.025 mm and a repeatability of 0.008 mm, making it suitable for precise workshop and production checks. Can the display be switched between metric and imperial units? Yes, the digital display provides an mm/inch function and includes PRESET and TOL keys to support unit changes and quick tolerance checks. Does the indicator support data transfer to PC or SPC systems? Values can be exported using the RB 7 data output; this enables direct logging into compatible data collectors or SPC software for traceability. What is the measuring range and intended application area? The measuring range is 0–50 mm, ideal for component inspection, toolroom measurements and bench testing where fine displacement sensing is required. Is the device part of a recognised product line? This instrument is supplied under Metav IndustryLine as a workshop-oriented digital indicator (SKU M301.083), combining practical functions with industrial connectivity. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
53mm Dial Indicator Cover With Eyelet, 4 Mounting Holes For Models 208.005/208.006/208.007/208.009 - Metav IndustryLine
Benefit from a compact accessory that ensures a secure attachment for dial indicators and straightforward integration into existing measuring setups; the small footprint and reliable four‑hole fixing combine stability and easy handling. Order the accessory directly via Metav Werkzeuge or consult the team for fitment advice. M208.132 – Cover for Dial Indicator with Eyelet, 4‑hole, 53 mm (Metav IndustryLine) The M208.132 is a cover for a dial indicator that provides a compact mounting solution with an integrated eyelet and four‑hole fixing, suitable for workshop and portable measuring rigs. Compatible with MM205.005–MM208.007 and MM208.009 Compact 53 mm diameter for tight spaces Four‑hole fixing for stable attachment Lightweight: 0.15 kg for easy handling Stable mounting that keeps readings consistent The accessory is designed as a compact mounting interface that secures a dial indicator by means of a four‑hole fixing and an integrated eyelet, which prevents rotation and reduces measurement noise. With a compact 53 mm diameter, the part is well suited to confined setups where conventional clamps would obstruct access. By fixing the instrument close to the measured surface, reproducible readings are supported and the risk of micro‑vibration affecting the indicator is minimised. Simple integration into existing inspection workflows This cover is prepared for quick retrofitting to compatible dial indicators and can be incorporated into bench‑top jigs or portable measurement rigs without modification. The low mass of 0.15 kg makes handling straightforward and reduces load on small fixtures, while the four fixing points distribute forces evenly to preserve alignment. Compatibility with a range of indicator models ensures flexible use across common inspection duties, improving workflow efficiency and reducing setup time. Built for reliable everyday use in the workshop As a precision accessory from a recognised industrial line, the component is intended to support repeatable metrology tasks rather than replace primary instruments. Its straightforward design prioritises mechanical stability and ease of use, aiding technicians who require dependable mounting for comparative or inspection measurements. The product complements standard measuring equipment and is a practical addition for maintenance, quality checks and assembly stations. Contact Metav Werkzeuge for procurement and technical assistance regarding the M208.132 cover and its application in specific measurement setups Technical data Article number: M208.132 SKU: M208.132 GTIN: 4061905041945 Label: Deckel für Messuhr mit Öse, 4 Löcher für 208.005, 208.007, 208.006 und 208.009 Facts Diameter: 53 mm Weight: 0.15 kg Special features Suitable for dial indicators MM205.005–MM208.007 and MM208.009 Four‑hole fixing for secure attachment Integrated eyelet for hanging or securing accessories FAQ Which dial indicators are compatible with this cover? The M208.132 cover is compatible with dial indicators listed as MM205.005–MM208.007 and MM208.009 and will fit those models without modification. What are the key dimensions and weight of the cover? The cover has a diameter of 53 mm and a mass of 0.15 kg, giving a compact footprint and easy handling in inspection setups. How is the cover mounted to achieve stable readings? Stability is achieved via a four‑hole fixing that distributes load and prevents rotation; the eyelet also allows secure hanging or anchoring in jigs when required. Is the M208.132 suitable for portable measurement work? Yes, the low weight and compact design make the M208.132 suitable for both bench and mobile measuring arrangements where space and ease of handling matter. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
55mm Extension For Dial Gauges, M2.5 Thread, Ø4.5mm Stainless Steel - Metav IndustryLine
Combining robust stainless steel construction with a standard M2.5 thread and a compact 55 mm length, this extension delivers precise probe reach in confined measurement tasks; order directly via Metav Werkzeuge or consult our advisors for application support. Extension for dial indicators, 55 mm, M2.5 thread — Metav IndustryLine The Extension for dial indicators, 55 mm, M2.5 thread is an accessory designed to extend probe reach for dial gauges and test indicators in tight or recessed measurement points. 55 mm stainless steel extension M2.5 thread for standard dial indicators 4.5 mm probe diameter for narrow bores Lightweight 0.01 kg for easy handling Precision where space is tight When access is limited, extending the stylus without sacrificing measurement integrity matters. The compact extension features a 55 mm overall length and a 4.5 mm probe diameter, enabling reliable contact inside narrow bores or recessed features while maintaining a stable measuring line. Fitted with a standard M2.5 thread, it connects to most dial indicators and test gauges used in workshop and inspection environments; this interchangeability reduces setup time and avoids non‑standard adaptors. The extension’s low mass (approx. 0.01 kg) minimises added inertia on the indicator spindle, supporting consistent readings and reducing the risk of oscillation during touch‑offs. Robust design that supports repeatable results Manufactured from stainless steel, the component resists corrosion and keeps its dimensional stability under routine shop conditions. This material choice ensures long service life and repeatable contact geometry, which directly contributes to fewer recalibrations and less downtime. Where traceability and repeatable procedures are essential, a simple mechanical accessory such as this improves process reliability by preserving gauge alignment and probe orientation. The compatibility with established metric threads also supports rapid swapping between instruments in a metrology bench or on the shop floor, enhancing workflow efficiency. Practical integration and supply confidence The extension is a straightforward means to adapt existing gauges for specialised tasks without investing in bespoke probes. For procurement and technical clarification Metav positions itself as a reliable partner: stock availability from Emmerich, clear product identification and consistent quality control reduce lead times and purchasing complexity. For users assessing fixture fitment or planning measurement sequences, the stainless construction and standard M2.5 thread simplify fixture design and spare‑parts management. Confidence in the component’s performance is further supported by Metav’s experience in supplying precision tools to industry and trade. Contact Metav Werkzeuge for purchase and integration advice on the Metav IndustryLine dial indicator extension (SKU M208.063.E) and benefit from fast, reliable delivery from Emmerich. Technical Data SKU: M208.063.E GTIN: 4054469104294 ECLASS: 21170613 ETIM: EC002219 Customs tariff number: 90179000 Category path: Measuring instruments > Accessories Image file: 2080631-main.jpg Facts Length: 55 mm Diameter: 4.5 mm Thread: M2.5 Weight: 0.01 kg Special features Material: stainless steel Application: accessory for dial indicators Brand: Metav IndustryLine FAQ Is this extension compatible with standard dial indicators? Yes. The extension uses a standard M2.5 thread and is designed for use with most dial indicators and test gauges; the product is listed under the Metav IndustryLine range (SKU M208.063.E). What material is the extension made from and why does that matter? The extension is manufactured from stainless steel, which provides corrosion resistance and dimensional stability, ensuring consistent contact geometry during repeated measurements. Can the extension be used for narrow bores? Yes. With a 4.5 mm probe diameter and a 55 mm length, the extension is suitable for accessing narrow bores and recessed features where a standard stylus would be too short. How much additional mass does the extension add to the indicator? The component weighs approximately 0.01 kg, adding minimal mass to the indicator spindle and helping to maintain measurement stability. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
58mm Depth Measuring Attachment For Dial Indicator 16mm Diameter, 8mm Shank – Metav IndustryLine
Take advantage of precise depth control and quick mounting for reliable repeatable measurements; the compact design suits confined bores while compatibility with 8 mm shank dial indicators keeps setup efficient. Order the accessory directly via Metav Werkzeuge or consult our specialists for application advice. Depth measuring stop for dial indicator, 16 mm contact, 58 mm length (Metav IndustryLine) A compact depth measuring stop designed as an accessory for dial indicators, providing a small contact pad and a short overall length for depth checks in confined bores and tight assemblies. Designed for dial indicators with Ø8 mm shank 16 mm contact pad for confined holes 58 mm overall length for tight spaces Exact contact in restricted spaces The accessory offers a 16 mm contact pad on a compact body, making it suited to depth checks where access is limited. Its short profile and 58 mm overall length minimise interference inside narrow bores and small housings, enabling consistent positioning of the dial gauge. Designed for use with dial indicators, the component reduces fixturing effort and limits operator-induced variance, which improves throughput in routine inspection tasks. Secure mounting and mechanical stability Mounting is achieved via the standard Ø8 mm shank interface, ensuring a snug fit on common indicator stems and quick interchangeability between gauges. The accessory’s geometry provides a stable contact that helps keep the indicator movement free from lateral play; this stability supports repeatable results across multiple measurements. A clear operational note requires the use of a measuring insert with diameter below 3 mm to avoid overloading the contact area and to maintain measurement integrity. Practical workshop integration and traceable reference As a workshop-ready accessory, the depth stop fits established inspection workflows and is straightforward to store with other metrology tools. Its compatibility with dial indicators (suitable for gauges up to 25 mm face size with an 8 mm shank) keeps set-ups simple and reduces downtime when switching tasks. The component is listed under SKU M208.062.6, making procurement and inventory management straightforward for purchasing and quality teams. Contact Metav Werkzeuge to specify the Metav IndustryLine depth stop for reliable depth measurements; our consultants in Emmerich are available at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: M208.062.6 GTIN: 4054469183695 Category: Dial indicator accessories Facts Weight: 0.43 kg Overall length: 58 mm Diameter (contact): 15.8 mm Special features Compatible with dial indicators (up to 25 mm face) with Ø8 mm shank Use only with measuring insert diameter < 3 mm Suitable for depth measurement in confined bores FAQ What is this accessory intended for? The depth measuring stop is intended as a gauge accessory for depth checking with a dial indicator; it provides a compact contact pad and short overall length for confined measurements. Which dial indicators fit this depth stop? This depth stop fits dial indicators that accept an Ø8 mm shank; it is referenced for gauges up to 25 mm face size and mounts directly to the indicator stem. Are there special requirements for the measuring insert? Yes, operation requires a measuring insert with a diameter below 3 mm to ensure correct contact and to avoid overloading the contact pad. Can this stop be used in very narrow bores? The compact design and 16 mm contact pad make the stop suitable for narrow bores and tight assemblies where longer accessories would interfere. What is the product reference for ordering? The item is listed as SKU M208.062.6 and is supplied as a Metav IndustryLine accessory for dial indicators. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
59mm Magnetic Dial Indicator Cap 4 Holes Three-Point Hold 10kg Magnetic Force - Metav IndustryLine
Take advantage of a compact magnetic mounting that combines a 10 kg holding force with a four-hole fixing pattern for secure, repeatable readings; lightweight construction and compatibility with common dial gauge models simplify inspection workflows. Order directly via Metav Werkzeuge or consult our specialists for integration advice. Magnet cover for dial gauge M208.131 — four-hole mount, 10 kg magnetic force (Metav IndustryLine) The Magnet cover for dial gauge M208.131 is a compact magnetic mount designed to secure a dial indicator to iron or steel surfaces for reliable measurements in inspection, tooling and workshop setups. Strong 10 kg magnetic hold Four-hole mounting pattern Fits dial gauges MM205.03–MM208.007 Stable magnetic fixation for consistent readings The magnetic cover provides a stable fixation for a dial indicator, using a 10 kg magnetic holding force and a four-hole mounting pattern to prevent rotation or slippage during measurement. This stability reduces setup variation and helps achieve repeatable measurements, which is essential when performing batch inspections or adjusting tooling. The compact geometry keeps the mass low while providing a rigid contact to ferrous surfaces, making the accessory suitable for bench work and machine-side checks where consistent datum reference is required. Compact, workshop-friendly design that saves handling time A compact footprint and a light weight of 0.15 kg make the accessory easy to position and reposition on iron or steel components without adding significant bulk to the measurement set-up. The nominal diameter of 59 mm supports close clearance in confined spaces while the four-hole layout allows secure attachment of many common dial indicator models. Because the unit is expressly intended for ferrous substrates, it integrates cleanly into inspection benches, fixture adjustments and jig work where rapid, repeatable placement speeds up throughput and reduces non-productive time. Practical accessory that improves measurement workflow As an accessory for dial indicators, this magnetic cover streamlines repetitive measurement tasks by offering a secure, low-profile base that keeps the instrument in the intended orientation. The combination of a compact profile, four-hole fixation and strong magnetic hold reduces the need for temporary clamping or improvisation, contributing to smoother workflow in quality control and maintenance operations. The component is particularly useful in environments where frequent repositioning is required, enabling fast transitions between measuring points while maintaining a consistent reference point. Contact Metav Werkzeuge today to discuss how the M208.131 magnetic cover can be integrated into existing inspection fixtures or to request compatibility details — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: M208.131 GTIN: 4061905042560 Brand: Metav IndustryLine Weight: 0.15 kg Diameter: 59 mm Facts Magnetic force: 10 kg Mounting holes: 4 Compatible with: MM205.03–MM208.007 Special features Four-hole mounting pattern Magnetic holding force 10 kg Designed for iron and steel surfaces Compact, lightweight accessory for dial indicators FAQ Is the magnetic cover suitable for non-ferrous surfaces? The magnetic cover requires a ferrous substrate; it secures a dial indicator on iron or steel surfaces and is not effective on non-ferrous materials. Which dial gauges are compatible with this magnetic mount? Compatibility is indicated for the specified range MM205.03–MM208.007; the M208.131 accepts dial indicators that match the four-hole mounting pattern used by these models. How strong is the magnetic hold and what does that mean in practice? The magnetic holding force is 10 kg, which provides a reliable grip for typical inspection and workshop scenarios, reducing the risk of accidental movement during measurement. Can the magnetic cover be used on irregular or curved surfaces? Effective use requires a reasonably flat contact area on iron or steel; small surface irregularities may reduce holding force, so a flat or gently curved region is preferred. Does the magnetic cover include any additional mounting hardware? The magnetic cover is supplied as the mounting component; specific fixing screws or additional adapters should be selected according to the dial indicator and fixture requirements. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
5mm Ball Probe For Dial Test Indicator Thread M2.5 - Metav IndustryLine
A compact ball contact insert that combines a 5 mm contact ball with a secure M2.5 thread for reliable, repeatable tactile measurements; ideal for replacing worn tips or adapting existing dial indicators. Order the insert directly via Metav Werkzeuge or consult our specialists for fitment advice. Dial gauge contact insert — ball Ø5 mm, M2.5 thread (Metav IndustryLine) A Dial gauge contact insert with a 5 mm ball and M2.5 thread for precise contact measurement on standard dial indicators 5 mm precision ball contact tip M2.5 thread for secure mounting Smooth contact to reduce surface marking Compact, durable design for repeatability Precision contact for repeatable tactile measuring results The Dial gauge contact insert, ball Ø5 mm, M2.5 thread provides a consistently defined contact geometry that improves measurement repeatability when used with compatible dial indicators. The spherical contact concentrates the probing point while limiting contact area, which helps to reduce local surface deformation and provides a stable measuring interface. This results in reduced variability between successive readings and supports dependable process control in workshop and inspection environments. Easy adaptation and robust fitment for routine metrology tasks Machined to fit a standard M2.5 thread, the contact insert can be mounted quickly to most dial indicators with an M2.5 mounting connection, offering a straightforward way to restore worn tips or to adapt an indicator for specific part geometries. The compact format and secure thread engagement ensure minimal play at the contact point, delivering repeatable contact under typical measuring forces and making the insert suitable for frequent use in production and quality‑control settings. Reduced marking and application versatility for delicate surfaces The spherical tip design moderates contact pressure concentration compared with sharper probes, which helps to minimise visible marks on sensitive workpiece surfaces during comparative or reference checks. This makes the insert appropriate for finishing inspections or measurements on softer materials where preserving surface integrity is important. Compatibility details and compact form factor make this accessory a practical addition to a metrology kit, enhancing the functional range of standard dial indicators without extensive modification. For tailored advice or to secure the Metav IndustryLine measuring insert (SKU M208.167) with a 5 mm ball and M2.5 thread, contact Metav Werkzeuge for expert guidance and order support. Technical Data Article number: M208.167 GTIN: 4054469105192 Category: Zubehör Facts Weight: 0.1 kg Ball diameter: 5 mm Thread: M2.5 Tariff number: 90319000 Special features Compatible with dial indicators with M2.5 mounting thread Smooth spherical contact tip for reduced marking Compact accessory for tactile measuring applications FAQ What types of dial indicators are compatible with this insert? Compatibility is for dial indicators that feature a M2.5 mounting thread; the insert is designed to screw directly into those standard connections. Will the 5 mm ball tip damage delicate surfaces? The spherical geometry reduces concentrated indentation compared with sharper probes, so the 5 mm ball is less likely to cause visible marks on softer materials during typical inspection use. Is the insert supplied ready to use with calibration documentation? The insert is supplied as an accessory; calibration documentation is not included unless specifically stated for a calibrated product. For traceable calibration options, please consult Metav Werkzeuge. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
5mm Dial Gauge 0.001mm Resolution Plastic Case, Ø60mm Werksnorm - Metav IndustryLine
There is inconsistent product information: the product label describes a plastic housing while the material specification indicates a metal housing. This contradiction affects a core characteristic of the item and prevents a reliable product description from being produced. The discrepancy between the label and the specification creates confusion regarding the true nature of the product, which is essential for accurate communication with potential customers. Please confirm which housing is correct (plastic or metal) and whether the supplied case is intended for transport as stated. Once the housing material and packaging are clarified, a complete, accurate British English product text can be generated to ensure clarity and consistency.

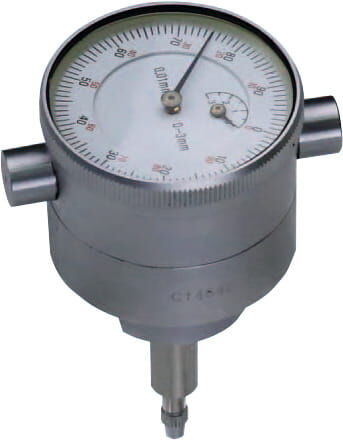

5mm Messuhr, 0,01mm, Werksnorm - Metav IndustryLine
Der von Ludwig Josef Bayer 1989 gegründete Traditionsvertrieb von Messwerkzeugen steht mit seiner Eigenmarke Metav IndustryLine für Premium-Messwerkzeuge zu einem hervorragenden Preis. Das wichtigste für 5mm Messuhr mit rückwärtiger Messspindel Messbereich: bis 5mm Ablesung: 0,01mm Material: Metallgehäuse Unsicher, ob das Werkzeug das Richtige ist? Oder fehlen technische Daten? Sprechen Sie uns einfach an! 📧 eMail: info@metav-werkzeuge.com ☎️ Telefon: +49 2822 7131930 ✔️ WhatsApp: +49 170 2837271 Produktspezifikationen: Marke: Metav IndustryLine Bezeichnung: Messuhr Bestellnummer: M208.044 Zahlen und Daten: Messbereich: 0 bis 5mm Norm: Werksnorm Ablesung: 0,01mm Genauigkeit: 0,017mm Durchmesser der Uhr: 42mm Aufnahme: 8 h6mm Besonderheiten Ausführung: analog Material: Metallgehäuse mit rückwärtiger Messspindel Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; www.metav-shop.de; info@metav-werkzeuge.com
5mm Small Dial Indicator 0.01mm Resolution Rotating Bezel Plastic Case - Metav IndustryLine
Inconsistent product data detected: the product designation states a plastic housing, while the material field specifies a metal housing. This discrepancy could lead to confusion or errors in product descriptions, inventory management, and customer expectations. Please verify and correct the housing information (plastic vs metal) for SKU M208.016 before further processing or publication. Ensuring accurate and consistent product data is essential to maintain the integrity of listings and prevent potential issues during sales or distribution. Double-check the source of the conflicting information and update the relevant fields accordingly to avoid any misunderstandings or complications in the future.
6-10mm Internal Precision Bore Gauge 0.01mm Graduation, 9 Probes, 50mm Depth - Metav IndustryLine
The combination of 0.01 mm resolution, 0.005 mm repeatability and a compact 6–10 mm measuring range supports reliable bore inspection workflows; order the internal dial gauge directly via Metav Werkzeuge or consult our specialists for tailored advice. Metav IndustryLine Internal Dial Gauge M208.018 — Analogue internal measurement, 0.01 mm reading A Metav IndustryLine analogue instrument for precise internal measurements in confined bores, designed for consistent shop-floor inspection of small diameters. Analogue dial with 0.01 mm resolution Repeatability 0.005 mm for consistent results Compact 6–10 mm internal measurement range Matt chrome-plated holder for stable mounting Precision where space is limited This analogue internal measuring device delivers 0.01 mm resolution and a repeatability of 0.005 mm, making it suitable for routine quality checks where small tolerances matter. The compact measuring range of 6–10 mm places the instrument in the micro measurement category, which is intended for extremely compact bores and fine mechanical parts; in such contexts the reduced probe length minimises bending and contributes to reproducible readings. The clear dial and fine graduation support quick visual assessment, while the mechanical design avoids dependence on batteries or electronic interfaces, offering a straightforward inspection routine that integrates easily into standard workshop processes. Robust mechanical design for dependable results A matt chrome-plated device holder provides a stable mounting surface and corrosion resistance appropriate for industrial use. The instrument features two measuring pins and a measuring depth of 50 mm, allowing access into confined internal spaces while maintaining structural rigidity. Mechanical details such as the hardened contact points and the precise gearing behind the dial translate small contact movements into accurate pointer deflection, reducing operator influence on the measurement. The analogue format is advantageous where simple, repeatable checks are required without the complexity of digital data handling. Practical benefits that reduce rework and save time Using an instrument with fine resolution and tight repeatability helps to detect out-of-tolerance conditions early, reducing the frequency of costly rework. The gauge’s compact form factor and mechanical reliability enable fast set-up and repeated checks during production runs. Where traceable calibration is required, the instrument can be integrated into a quality control routine; clear mechanical behaviour means that routine verification and comparison against master standards can be performed quickly, supporting efficient decision-making on the shop floor. Suitable applications and typical users This internal dial gauge is aimed at precision workshops, toolrooms and small-part manufacturers that perform frequent bore inspections on components such as bushings, sleeves or miniature housings. The device is appropriate for machinists and quality inspectors who value tactile feedback and immediate visual confirmation rather than electronic readouts. Its characteristics make it particularly useful in environments where compact measurement tools are necessary and where durability and simplicity are prized. Contact Metav Werkzeuge for supply and individual application advice on the Metav IndustryLine internal dial gauge M208.018 and ensure the instrument fits the intended inspection tasks Technical data Article number: M208.018 GTIN: 4061905042058 Manufacturer: Metav IndustryLine Facts Measuring range: 6–10 mm Resolution: 0.01 mm Repeatability: 0.005 mm Measuring depth: 50 mm Weight: 0.4 kg Special features Analogue dial gauge 2 measuring pins Device holder matt chrome-plated Category: Dial gauges eCl@ss: 21170310 SKU: M208.018 FAQ What is the smallest bore this instrument can inspect? The instrument is specified for internal diameters from 6 mm to 10 mm and is optimised for small, confined bores. How precise are the readings from the gauge? The dial gauge provides a 0.01 mm reading with a repeatability of 0.005 mm, ensuring tight control over small-diameter measurements. Is this device suitable for shop-floor use? Yes; the analogue construction and matt chrome-plated holder make the Metav IndustryLine internal dial gauge M208.018 rugged and well suited to regular workshop inspection tasks. Can the gauge reach deep into a bore? The instrument offers a measuring depth of 50 mm, which permits access into relatively deep recesses for its size class. How many contact points are provided for measurement? The gauge uses two measuring pins, arranged to transfer internal contact reliably to the dial mechanism for stable readings. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
60 mm Extension for Dial Gauges M2.5 Thread Ø4.5 mm Stainless Steel - Metav IndustryLine
Take advantage of the 60 mm length and robust stainless steel construction to gain reliable extra reach for recessed or hard‑to‑access measurements; order the extension for dial test indicators directly via Metav Werkzeuge or ask our consultants if needed. Extension for dial test indicators M208.063.6 — 60 mm, M2.5 thread, stainless steel (Metav IndustryLine) Extension for dial test indicators M208.063.6 is a 60 mm stainless steel adapter with an M2.5 connection, designed to extend the reach of measuring probes when inspecting recessed bores, stepped components or awkward features in workshop and inspection environments. 60 mm extension for deeper access M2.5 thread for standard dial indicators Stainless steel for corrosion resistance Reach confined measuring positions with confidence The 60 mm adapter provides a straightforward solution when standard probe lengths are not sufficient. By adding a rigid, corrosion‑resistant spacer between the measuring instrument and the probe, repeatable access to recessed bores and internal steps is enabled without compromising alignment. The M2.5 thread links directly to common dial test indicators and similarly threaded measuring heads, maintaining the instrument optical and mechanical axis and therefore preserving precision during transfer measurements. Durable construction for daily shop use Made from stainless steel, the extension offers practical corrosion resistance and mechanical stability in production and quality control environments. The material choice reduces the risk of contamination and wear in regular use and supports a long service life for inspection fixtures. As an accessory the design focuses on minimal added mass while preserving rigidity, so the measuring chain remains stable and vibrations are not amplified during manual or fixture‑mounted measurements. Easy system integration and clean results The adapter accepts a 4.5 mm holder diameter and is supplied with a standard M2.5 connection, ensuring compatibility with a wide range of dial indicators and measuring probes. This simple mechanical interface keeps setup time low and reduces fixture complexity: install the spacer, re‑zero the indicator if necessary, and continue measurements with restored access. The straightforward geometry also makes it suitable for machine‑side checks and portable inspection rigs where predictable behaviour and quick interchangeability are priorities. For extended, corrosion‑resistant probing in inspection tasks, choose the Metav IndustryLine extension M208.063.6 — order via Metav Werkzeuge or contact our consultants at info@metav-werkzeuge.com / +49 2822 7131930 for procurement and technical advice. Technical data SKU: M208.063.6 GTIN: 4054469104218 Material: stainless steel Length: 60 mm Connection thread: M2.5 Holder diameter: 4.5 mm Customs tariff number: 90179000 Facts Length: 60 mm Holder diameter: 4.5 mm Connection thread: M2.5 GTIN: 4054469104218 Special features Metav IndustryLine accessory Fits dial indicators and measuring probes with M2.5 thread Corrosion‑resistant stainless steel construction Designed for recessed, stepped and hard‑to‑reach measurements FAQ What instruments does the extension fit? The extension fits dial test indicators and measuring probes that use an M2.5 thread; compatibility is ensured by the standardized connection of the Metav IndustryLine adapter. Is the adapter suitable for workshop environments? Yes, the adapter's stainless steel construction makes the M208.063.6 suitable for regular workshop and inspection use, offering resistance to corrosion and mechanical wear. Can the extension affect measurement accuracy? When correctly mounted, the adapter preserves the instrument alignment and provides repeatable access; however, final accuracy depends on the entire measuring chain and the indicator used. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
60-80mm Digital External Probe 0.001mm Resolution, Ø3x6 Round Tips, IP65, Supplied in Case - Metav IndustryLine
Take advantage of high-resolution 0.001 mm measurement and a compact 60–80 mm measuring range to speed up precision checks of bores and slots, while the IP65 protection ensures reliable performance in workshop environments. Order the Metav IndustryLine measuring solution directly via Metav Werkzeuge or consult the Metav advisers for specification support and application advice. Digital External Probe M209.264 — 60–80 mm, 0.001 mm resolution (Metav IndustryLine) The Digital External Probe M209.264 is a compact, high-resolution measuring instrument designed for fast external checks of bores, slots and similar features within a short working range. High-resolution 0.001 mm reading Measurement range 60–80 mm IP65-rated for workshop use Fast checks of bores and slots Precision for compact components and repeatable results Designed for short-range inspection tasks, this probe falls into the micro measuring class with a 60–80 mm span that suits fine mechanical work and quick on-machine checks. The 0.001 mm display resolution provides very fine incremental feedback while the device-level accuracy of ±0.03 mm offers predictable tolerances for standard quality-control routines. Because the instrument focuses on external measurements, it removes the need for larger instruments when small components or confined features must be verified quickly and reproducibly. A robust digital interface that speeds up inspection The instrument’s digital display includes a run bar and selectable mm/inch, 0/off, preset, tolerance and “+/-” keys, enabling straightforward switching between units and fast tolerance checks without manual conversion. The rounded probe tips (Ø3x6) and a probe shank length of 55 mm make access to bores and slots easier, reducing setup time during serial inspections. With an IP65 rating, the electronics are protected against dust ingress and water jets, which extends service life in demanding workshop environments and reduces downtime. Built for practical workshop workflows Weighing approximately 1.2 kg, the probe balances stability with portability, so it can be used at the bench or in situ on assemblies. The clear, repeatable readings and dedicated tolerance functions support efficient non-conformance detection, while the compact format preserves manoeuvrability in tight spaces. The device is particularly suited to production and maintenance teams that require fast, reliable external measurement without the overhead of larger metrology systems. Contact Metav Werkzeuge for tailored advice on the Metav IndustryLine M209.264 — specify the intended measurement tasks and tolerances to ensure the probe meets inspection requirements Technical Data Article number: M209.264 GTIN: 4054469181646 Brand: Metav IndustryLine Category: Dial gauge (Messuhr) Facts Measuring range: 60–80 mm Resolution / reading: 0.001 mm Accuracy: 0.03 mm Weight: 1.2 kg Probe shank length: 55 mm Probe tip: Ø3 x 6 mm Special features Digital display with run bar Unit selection mm/inch, 0/off, preset, tol, +/- Suitable for external measurements Designed for quick measuring of bores and slots Protection rating IP 65 FAQ What measurement tasks is this probe best suited for? This digital external probe M209.264 is optimised for quick external checks such as bores, slots and simple part features within the 60–80 mm range. How fine are the readings and how reliable are they? Readings are shown at 0.001 mm resolution; the M209.264 provides repeatable results with an accuracy of approximately ±0.03 mm for standard inspection use. Can the device be used in a production workshop environment? Yes, the IP65 protection and robust digital interface make the M209.264 suitable for routine workshop and production inspections. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
60kg Magnetic Base M10 With On/Off Switch And Prism Foot - Metav IndustryLine
Take advantage of a compact, high‑holding solution with a 60 kg nominal holding force, an M10 threaded connection and a practical on/off switch for fast clamping and release; order the magnetic base directly via Metav Werkzeuge or ask our consultants for tailored advice. Magnetic base 60 kg M10 (M208.101) by Metav IndustryLine — 60 kg holding force, M10 thread The Magnetic base 60 kg M10 (M208.101) is a compact magnetic mounting with an integrated on/off switch and a prism foot, designed for secure attachment to flat and round machine surfaces and for use with indicator stands in metrology and workshop inspection. 60 kg nominal holding force M10 threaded connection On/off switch for quick release Prism foot for round surfaces Secure mounting for precise measurement and inspection A rated holding force of 60 kg provides a robust foundation for measurement setups, reducing the risk of movement during delicate inspections. The integrated on/off switch changes the magnetic circuit state quickly, enabling safe positioning before activation and fast release afterwards. This combination minimises downtime during repetitive checks and supports consistent measurement routines. The prism foot improves contact on cylindrical or curved workpieces, so readings remain repeatable even when the base is used on shafts or round housings. Compact design that fits standard indicator posts and stands With a threaded M10 connection the base accepts a wide range of indicator posts and extension rods commonly found in metrology kits and magnetic stands. The small footprint and the stated dimensions (59 x 50 x 55 mm) keep the assembly compact and easy to position in confined spaces without compromising stability. The relatively low weight supports quick relocation across the shop floor and simplifies use with portable dial indicators or digital probes, enhancing workflow flexibility in inspection, maintenance and setup tasks. Practical benefits for workshop workflows and reliability Engineered for everyday metrology and quality control, the magnetic base speeds up fixture changes and setup of dial indicators, test indicators and small cameras. The switching mechanism reduces the need for manual clamping force and lowers the chance of inadvertent movement when fixing the base. As a result, measurement cycles become more efficient and less error‑prone, which supports quality assurance targets and shorter inspection lead times. The durable construction and straightforward connection standard mean long service life and compatibility with existing stands. For secure, repeatable inspection setups choose the Metav IndustryLine magnetic base M208.101 — contact Metav Werkzeuge for expert guidance and reliable supply from Emmerich. Technical data Article number: M208.101 GTIN: 4054469104508 ECLASS: 21170601 Tariff number: 90319000 Category: Magnetic stands Facts Holding force: 60 kg Thread: M10 Weight: 1 kg Dimensions: 59 x 50 x 55 mm Special features On/off switch Prism foot for round surfaces Compatible with standard indicator posts Suitable for metrology and workshop inspection FAQ What holding force does the magnetic base provide? The magnetic base provides a nominal holding force of 60 kg, ensuring stable attachment for indicator stands and inspection fixtures. Is the connection compatible with common indicator posts? Yes, the unit features an M10 thread that matches widely used indicator posts and extension rods for measurement setups. Can the base be used on cylindrical surfaces? The prism foot is designed specifically to improve contact on round or cylindrical components, making it suitable for shafts and housings. How does the on/off switch improve handling? The integrated switch enables safe positioning before magnetisation and rapid release afterwards, reducing the risk of incidental movement during setup. What are the physical dimensions and weight? Dimensions are 59 x 50 x 55 mm and the weight is 1 kg, which keeps the base compact and easy to relocate in the workshop. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
60kg Magnetic Base M8 With On/Off Switch And Prism Foot - Metav IndustryLine
Take advantage of the combination of firm magnetic anchoring and compact handling for reliable inspection set-ups; the 60 kg nominal holding force and M8 threaded stud ensure fast, reproducible fixturing for measurement tasks. Order the magnetic base directly via Metav Werkzeuge or ask our consultants if needed. Magnetic Base 60 kg M8 — switchable magnetic mount with prism foot (Metav IndustryLine) The Magnetic Base 60 kg M8 is a compact, switchable holding device for securing indicators and fixtures during inspection and workshop measurement tasks. 60 kg nominal holding force M8 threaded stud for universal mounts Integrated on/off switch and prism foot Stable anchoring for precision inspection A firm magnetic anchor is essential for repeatable measurement. The 60 kg nominal holding force provides a dependable contact to ferrous surfaces, reducing micro‑movement during readings and improving traceability of results. Fitted with an M8 threaded stud, this magnetic mount integrates with common indicator stems and articulated holders used across metrology benches, enabling quick set‑ups and minimising non‑productive time. The result is a measurable increase in workflow efficiency where consistent fixturing matters. Easy operation and versatile contact geometry The integrated on/off switch simplifies positioning: the base can be released for adjustment and re‑engaged without sliding the device across the workpiece, which protects delicate surfaces. The prism foot gives a secure seating on cylindrical parts, preventing lateral slip when measuring shafts or round housings. Compact dimensions of 59 x 50 x 55 mm and a mass of 0.95 kg make handling straightforward, while the design supports rapid repositioning in tight inspection cells. Workshop compatibility and practical benefits Designed for routine shop and inspection use, the magnetic mount connects directly to standard stands and holders via the M8 interface, supporting a broad range of indicator types and fixtures. Its compact footprint preserves access to the component and makes it suitable for fixtures with limited clearance. By reducing set‑up time and improving fixturing stability, the device contributes to lower rework rates and smoother production control in maintenance, quality assurance and assembly operations. Choose the Metav IndustryLine magnetic base for dependable anchoring in your metrology workflow and contact Metav Werkzeuge for ordering or technical advice: info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: M208.100 GTIN: 4054469104492 Tariff number: 90319000 Facts Holding force: 60 kg Thread: M8 Dimensions: 59 x 50 x 55 mm Weight: 0.95 kg Special features Integrated on/off switch Prism foot for cylindrical parts Suitable for magnetic stands and indicator mounting Category: Magnetstative FAQ How strong is the magnetic holding force and what does it mean in practice? The magnetic base provides a 60 kg nominal holding force; in practice this ensures stable fixture contact on ferrous surfaces for consistent measurement and reduced deflection during indicator readings. Can the base be used on round shafts and how is it prevented from slipping? Yes. The prism foot is designed to seat cylindrical parts securely, so the magnetic base holds round components without lateral movement when the magnet is engaged. Which mounting thread is fitted and which accessories will attach? The unit is fitted with an M8 threaded stud, compatible with standard indicator stems, articulated holders and many universal mounts used in metrology benches. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
63mm Depth Gauge Bridge For Dial Indicator 63 x 16mm, 8mm Mount, Ground And Lapped Measuring Faces - Metav IndustryLine
Benefit from compact, repeatable depth measurement thanks to the 63 mm working depth, a rigid 63 x 16 mm bridge profile and precision-ground contact faces that ensure consistent readings; order the depth measuring bridge directly via Metav Werkzeuge or ask our consultants if needed. Depth measuring bridge for dial gauge, 63 x 16 mm, Ø 8 mm mount — Metav IndustryLine A matt-chrome-plated depth measuring bridge for dial gauges with an 8 mm mount, intended for confined fixtures and precise depth checks in workshop and inspection environments. Depth 63 mm for compact setups 63 x 16 mm rigid bridge design Ø 8 mm mounting for dial gauges Ground and lapped measuring faces Repeatable depth checks where space is tight The matt-chrome-plated bridge is engineered for repeatable depth measurement in cramped work areas. A 63 mm measuring span combined with a narrow 63 x 16 mm profile reduces obstruction around the test piece while maintaining sufficient rigidity. The ground and lapped measuring faces provide low friction seating and minimise measurement scatter, which translates into fewer retests and faster inspection cycles for production and maintenance tasks. Robust finish and contact geometry for longer life A corrosion-resistant surface finish and carefully prepared contact faces ensure long-term stability. The matt chrome plated surface resists workshop contaminants and the machined contact areas remain flat under normal handling, supporting consistent probe seating. With an overall height of 34 mm and a compact mass, the bridge offers the mechanical stiffness required for reproducible results without adding significant bulk to the test set-up. Simple integration with standard dial gauges and fixtures Designed for compatibility with all dial gauges that use an Ø 8 mm mounting, the bridge slots directly into existing indicator stands and fixtures. The accessory supports quick mounting and accurate alignment, reducing set-up time on the shop floor. As a metrology accessory it complements manual inspection benches and quality-control rigs where a compact, stable depth reference is required. Practical workshop benefits and operation clarity Measured parts are easier to position against the broad, flat faces, which improves throughput and reduces operator fatigue. The modest weight (0.3 kg) makes the bridge straightforward to handle while still providing the necessary mass for contact stability. Clear, objective construction means the device remains a reliable tool for routine depth checks and supplementary inspection tasks in metalworking and assembly. Contact Metav Werkzeuge today to confirm compatibility with specific dial gauges and to arrange supply directly from our Emmerich warehouse Technical data Article number: M208.061.1 GTIN: 4061905042577 Brand: Metav IndustryLine Facts Weight: 0.3 kg Overall height: 34 mm Bridge dimensions: 63 x 16 mm Working depth: 63 mm Mounting diameter: Ø 8 mm Special features Finish: matt chrome plated Measuring faces: ground and lapped Suitable for all dial gauges with 8 mm mount Category: accessory for inspection equipment FAQ What mounting size is required for this depth bridge? The depth measuring bridge fits dial gauges with an Ø 8 mm mounting; compatibility is stated for devices using an 8 mm stem. Can this bridge be used in a production inspection fixture? Yes, the rigid 63 x 16 mm profile and flat, lapped faces make the bridge suitable as a repeatable reference in fixtures and inspection benches. What material and finish does the bridge have? The bridge is matt chrome plated with ground and lapped measuring faces to provide corrosion resistance and stable contact geometry. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
65mm Extension For Dial Indicators M2.5 Thread Ø4.5mm Stainless Steel - Metav IndustryLine
Benefit from the stainless steel construction, a 65 mm reach and secure M2.5 mounting for reliable access to recessed measuring points; order the extension directly via Metav Werkzeuge or ask our consultants if needed. Extension for dial indicators — 65 mm reach, M2.5 thread (Metav IndustryLine) The Extension for dial indicators delivers a compact stainless-steel spacer with an M2.5 mounting thread and a slim Ø 4.5 mm shank, designed to extend the reach of standard workshop dial indicators for confined or recessed measurement tasks. 65 mm extension length for recessed access M2.5 mounting thread for standard indicator spindles Ø 4.5 mm shank for slim fixture clearance Corrosion-resistant stainless steel construction Precise reach for confined measurement points A short, rigid extension can make the difference when measuring inside recesses or behind clamps. The 65 mm length provides sufficient reach while keeping lateral deflection minimal; combined with the stainless steel body, the extension offers stable, repeatable positioning. Its slim Ø 4.5 mm shank slips into tight fixtures and maintains alignment, reducing the risk of off-axis loads that compromise reading accuracy. This accessory is intended to support reliable contact between the indicator stylus and the workpiece, improving throughput in inspection routines without complex fixturing. Secure mounting and workshop compatibility The metric M2.5 thread matches the common mounting interfaces found on many dial indicators and holders, ensuring straightforward installation on existing setups. The threaded connection gives mechanical security under light probing forces and allows quick changes between probes or extensions. Lightweight at approximately 0.01 kg, the part adds minimal inertial load to the measuring chain, preserving the indicator’s responsiveness. Use in quality-control benches, assembly jigs or mobile inspection kits where compact, repeatable extensions are required. Durable accessory from a precision partner Manufactured in corrosion-resistant stainless steel, this accessory resists workshop contamination and stands up to repeated handling. As part of the Metav IndustryLine range, the extension benefits from a supplier ecosystem focused on dependable metrology tools and accessories that simplify procurement and reduce downtime. The slim profile and robust finish make it a practical choice for maintenance departments, toolrooms and inspection stations seeking a low-complexity way to access difficult measuring points. For precise reach adjustments and workshop-ready compatibility, choose the Metav IndustryLine extension and contact Metav Werkzeuge in Emmerich for tailored advice or ordering at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: M208.063.F GTIN: 4054469104300 eClass: 21170613 ETIM: EC002219 Customs tariff number: 90179000 Facts Length: 65 mm Weight: 0.01 kg Thread: M2.5 Shank diameter: Ø 4.5 mm Special features Material: stainless steel Accessory for dial indicators and holders Slim profile for confined spaces Corrosion-resistant finish FAQ Which indicators is this extension compatible with? The extension for dial indicators is compatible with indicators and holders that accept an M2.5 mounting thread; the Metav IndustryLine accessory M208.063.F fits standard workshop dial indicator spindles. Does the extension affect measurement accuracy? When used within its design limits, the stainless-steel extension maintains stable contact and minimal deflection; correct fixturing and alignment ensure that the accessory does not introduce significant additional measurement error. What material is the extension made from? The part is produced from stainless steel, offering corrosion resistance and durable handling in workshop environments. Is the extension suitable for mobile inspection kits? Yes, the lightweight design (approx. 0.01 kg) and slim Ø 4.5 mm shank make the accessory well suited to portable inspection kits and compact test setups. Can the extension be used with indicator holders and adaptors? The M2.5 thread allows direct mounting to many holders and adaptors designed for dial indicators; compatibility should be checked against the holder’s thread specification or mounting interface. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
6mm Ball Probe For Test Indicator Thread M2.5 - Metav IndustryLine
The compact 6 mm ball contact combined with an M2.5 threaded connection makes this measuring insert a practical choice for straightforward comparative and point measurements; benefit from reliable compatibility with dial indicators and quick, tool-free replacement when needed. Order the insert directly via Metav Werkzeuge or consult our specialists for application advice. Measuring insert M208.169 – 6 mm ball contact, M2.5 thread (Metav IndustryLine) The Measuring insert M208.169 is a precision contact point for dial indicators, designed to provide stable point contact for dimensional checks and comparative measurements in workshop and inspection settings. 6 mm spherical contact tip M2.5 threaded connection For dial indicators with M2.5 interface Precise point contact for repeatable checks The 6 mm ball contact delivers a clearly defined point of contact that helps reduce measurement variability when comparing features or checking runout. Matched to the industry-standard M2.5 thread, the insert allows fast replacement of worn tips and ensures consistent geometry at the measurement point. This stability supports efficient inspection routines by reducing rework and increasing throughput in repetitive tasks. Quick compatibility with existing dial indicators Designed specifically for dial gauges with an M2.5 mounting, the insert simplifies tooling logistics by offering direct compatibility with a broad range of contact stems. The threaded M2.5 connection provides a secure mechanical fit that requires minimal setup, enabling rapid tool changes during multi-operation measuring sequences. Clear compatibility reduces downtime and the need for adapters, making the accessory well suited to busy workshop environments. Practical accessory for everyday metrology tasks As an accessory in the metrology toolbox, this measuring insert supports a variety of routine uses—from comparative checks to spot measurements on components and assemblies. The spherical geometry aids in locating contact on curved or slightly angled surfaces, improving contact reliability without complex fixturing. Labelled and traceable via SKU and GTIN, the insert fits seamlessly into organised inspection workflows and stock management systems. Contact Metav Werkzeuge for tailored advice on fitment or to place an order with our Emmerich team Technical data Article number: M208.169 GTIN: 4054469105208 Customs tariff number: 90319000 Weight: 0.1 kg Manufacturer: Metav IndustryLine Core technical data Ball diameter: 6 mm Thread: M2.5 Suitable for: Dial indicators with M2.5 connection Special features Spherical contact tip for point measurements Threaded attachment for rapid replacement Accessory for precision measuring instruments FAQ What dial indicators are compatible with this insert? The measuring insert M208.169 is compatible with dial indicators that accept an M2.5 threaded contact point; check the indicator's stem thread before fitting. Can the 6 mm ball contact be used on curved surfaces? Yes, the 6 mm spherical geometry of this contact point is suitable for making repeatable contact on slightly curved or angled surfaces during comparative and spot checks. Is the insert supplied with traceability information? The SKU M208.169 and GTIN 4054469105208 allow clear identification within inspection and inventory systems; further traceability can be provided through Metav Werkzeuge on request. How is the insert mounted and replaced? The insert screws into the indicator's M2.5 threaded socket and can be replaced by hand or with light pliers if required; no special tools are necessary for standard workshop use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Precise measurements with dial indicators for workshop and production use
Dial indicators are high-quality measuring devices designed for a variety of measuring ranges and fine-tuning tasks. These instruments, available in digital and analogue versions, enable precise assessment of concentricity, flatness and comparative measurements in confined or critical areas.
How dial indicators work and where they are essential
Analogue dial indicators transmit the linear movement of the probe via a rack-and-pinion mechanism to the pointer, with an additional revolution counter showing extended travel. Many types operate in both compression and tension, so a wide effective measuring range is covered. Lever-type indicators use a lever system instead of a rack, offering a smaller range but finer resolution. Typical workshop applications include runout checks at the lathe, setting up depth on milling tables or circular saws, and comparative checks during series production.
Tangible benefits for everyday production
- Fast, repeatable readings for comparison work, reducing setup and inspection time.
- Stable measuring force and hardened contact tips for reliable, wear-resistant contact and consistent results.
- Broad selection: digital dial indicators, mechanical dial indicators, depth gauges, lever-type test indicators, fine‑point test indicators and thickness gauges cover most shop tasks.
- Reduced risk of measurement error through appropriate instrument choice and accessories, improving first-pass yield.
- Flexible deployment on machines and inspection benches thanks to standardised mounts and probes.
Why choose Metav as your precision partner
Metav stands for the democratisation of precision, combining decades of expertise with a comprehensive inventory for industry, crafts and trade. From Emmerich, Metav operates as a practical quality filter for the European market, supplying over 48,000 satisfied customers and more than 250,000 products. For buyers who prioritise dependability and a single-source approach, Metav’s range of dial indicators and related measuring equipment provides a technically sound and convenient solution.
Core takeaway
Dial indicators deliver precise, repeatable measurements across a variety of specialised tasks; selecting the correct type—whether digital, analogue or lever-type—ensures reliable results and smoother production processes.
FAQ
What is the main difference between analogue and digital dial indicators?
Analogue dial indicators transmit movement via a rack-and-pinion and show mechanical pointer travel, which can be advantageous for visual trend detection; digital dial indicators provide direct numerical readout and often allow data output for logging and analysis, both of which are available from Metav.
When should I use a lever-type test indicator instead of a standard dial indicator?
Use a lever-type indicator when you need finer resolution over a small measuring range or when the probe must access tight spaces; lever-type instruments are particularly useful for checking runout and small surface variations.
How do I avoid damaging an analogue dial indicator’s gearing?
Avoid forcing the probe beyond its travel range; where significant overtravel is possible, choose a model with an appropriate range or a built-in stop. A drag pointer or anti-backlash feature can also reduce the risk of gear damage by preventing delayed pointer return.
Are special contact tips necessary for different materials?
Yes. For consistent results and reduced wear, choose hardened contact tips or balls appropriate to the material and surface finish being measured; Metav’s product range includes a variety of probe tips and accessories for this purpose.
