Precision micrometers for reliable dimensional control
Micrometers deliver precise length and depth measurements in metalworking, enabling repeatable control over component tolerances and process stability. These instruments—available as outside micrometers, inside micrometers and depth micrometers—offer hardened contact faces and fine-thread spindles to ensure long-term accuracy and resistance to wear, with digital versions providing data transfer via USB or Bluetooth for seamless integration into inspection software. Typical uses include measuring small bores, depths and diameters in precision engineering, where features must be defined to micrometre-level accuracy; features such as ratchet thimbles and insulated frames help maintain consistent measuring force and temperature compensation. Choose between robust analog models, IP54-protected digital micrometers or micrometers with an integrated minicomputer for advanced functions like unit conversion, temperature correction and Go/NoGo evaluations.
150–300 mm Digital Micrometer With Six Interchangeable Anvils, 0.001 mm Resolution, Ratchet, Supplied In Case - Metav IndustryLine
Reliable workshop metrology combining 0.001 mm resolution, a 150–300 mm measuring range and a ratchet mechanism for consistent contact force; supplied with six interchangeable anvils in a protective case. Secure precision and flexibility for production and inspection tasks — order via Metav Werkzeuge or consult our specialists for application advice. Digital Micrometer M302.025.C – 150–300 mm, 0.001 mm resolution (Metav IndustryLine) The Digital Micrometer M302.025.C is a workshop-grade measuring instrument for accurate external measurements across the standard 150–300 mm range, designed with interchangeable anvils for flexible fixturing. 0.001 mm resolution, digital display Six interchangeable measuring anvils Integrated ratchet for repeatable force RB 4.1 data output for external logging High-resolution readings for production control The controlling benefit of this micrometer is its 0.001 mm display resolution combined with a specified accuracy of ±0.013 mm, which supports reliable pass/fail decisions in shop-floor quality control. The spindle advances with a spindle pitch 0.5 mm and a robust spindle diameter 8 mm, while the integrated ratchet ensures a consistent measuring force across repeated measurements — reducing operator-induced variation and improving reproducibility. These characteristics make the instrument particularly suitable for tasks where tight tolerances and traceable repeatability are required. Flexible range and quick adaptation to different parts Covering the 150–300 mm range places the instrument in the Standard category for workshop metrology, offering an effective balance of reach and stiffness for typical machine-shop components. The set of six interchangeable anvils allows fast adaptation to different part geometries and holding fixtures without requiring multiple micrometers. The measuring faces are hardened, providing wear resistance and stable contact geometry over long service life, while the matt chrome-plated measuring drum resists glare for clear reading. Supplied in a protective transport case, the device is ready for safe storage and mobility between inspection stations. Digital interfacing and workplace integration A clear digital display with ON/OFF/SET, ABS/INC and UNIT functions simplifies zeroing and unit changes at the bench. The built-in RB 4.1 data output enables direct transfer of measured values to data-logging systems or SPC software, supporting documentation and process control without manual transcription. Supplied to factory standard (Werksnorm) and designed for routine workshop use, the unit balances robust mechanical design with modern data connectivity, making it suitable for incoming inspections, in-process checks and final testing in production environments. Contact Metav Werkzeuge in Emmerich (+49 2822 7131930 / info@metav-werkzeuge.com) to configure the Metav IndustryLine digital micrometer for specific applications and secure prompt delivery from stock Technical Data Article number: M302.025.C GTIN: 4054469151717 Category: Micrometers / Measuring instruments Facts Measuring range: 150–300 mm Resolution: 0.001 mm Specified accuracy: ±0.013 mm Weight: 3.1 kg Spindle diameter: 8 mm Spindle pitch: 0.5 mm Special features Six interchangeable anvils Digital display with ON/OFF/SET, ABS/INC and UNIT Ratchet for repeatable measuring force Data output RB 4.1 Hardened measuring faces Matt chrome-plated measuring drum Supplied in transport case Factory standard: Werksnorm FAQ Is this micrometer suitable for routine workshop inspections? The Metav IndustryLine Digital Micrometer M302.025.C is designed for workshop and inspection use across the 150–300 mm range and is well suited to routine dimensional checks. What resolution and accuracy can be expected? The instrument provides a resolution of 0.001 mm with a specified accuracy of ±0.013 mm. Are the interchangeable anvils included? Yes, six interchangeable measuring anvils are supplied to adapt the micrometer to different part geometries. Does the micrometer support data logging? The unit features a RB 4.1 data output for direct value transfer to compatible logging or SPC systems. Is the device supplied ready for transport and storage? The micrometer is supplied in a protective transport case to ensure safe handling and storage. What standard is the instrument delivered to? The micrometer is supplied to the manufacturer's factory standard (Werksnorm); any special calibration options can be discussed with Metav Werkzeuge. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
150–300mm Digital Micrometer With Interchangeable Anvils, Touchscreen, Wireless/USB, ISO17025 Calibration - Microtech Metrology
Combine accuracy of 0.004 mm, wireless data transfer and interchangeable anvils for seamless measurement routines; order the micrometer directly via Metav Werkzeuge or ask our consultants if needed. Microtech Metrology Micrometer (150–300 mm) – Wireless data output & 2.4" touchscreen The Microtech Metrology Micrometer is a precision instrument designed for workshop and laboratory measurement tasks, offering a robust 150–300 mm measuring range with digital touchscreen control and seamless data connectivity. *Microtech 2.4" colour touchscreen display *Wireless and USB data output options *Interchangeable anvils and setting rods *Calibration certificate included Precise digital measurement that integrates with modern workflows The instrument combines a display resolution of 0.0001 mm with a certified accuracy of 0.004 mm, providing a reliable basis for quality control and shop‑floor inspection routines. Its digital touchscreen facilitates quick mode selection and readout, while several automatic functions — Max/Min, Go/NoGo, formula calculation and linear and temperature correction — reduce manual processing errors. The device's memory manager stores up to 2,000 values in a folder structure, enabling traceable measurement series and straightforward statistical evaluation. These technical capabilities translate into measurable time savings in routine inspection tasks and fewer transfer errors when compiling reports. Designed for adaptable measurement and repeatable results Interchangeable anvils and setting rods are supplied, allowing measurement of varied features without disassembly; the scope of delivery includes five setting standards and five anvils. The solid CNC‑machined aluminium housing gives the instrument structural stability, while the integrated measuring hub supports wireless instrument synchronisation and multiple data modes (Wireless to MDS app, Wireless HID, Wireless HID+Mac, USB HID). Together, these elements ensure repeatable results across repeated runs and simplify integration into digital quality‑management systems. The combination of sturdy mechanical design and digital control reduces operator influence and keeps measurement uncertainty low over extended use. Practical benefits for workshops and quality departments With a measuring span classified in the standard workshop range (150–300 mm), this instrument suits many common inspection tasks in mechanical engineering and metalworking, offering the best compromise between reach and stiffness for one‑hand operation. Built‑in functions such as timer, probe mode and 2D graphing help identify trends or deviations during setup and series production. The device supports wireless data transfer to Windows, Android, iOS and macOS environments and can act as a Wireless MICROTECH instrument hub, which speeds up data capture and reduces post‑measurement administrative work. These features result in a more efficient inspection cycle and quicker process feedback for production teams. Accuracy assurance and readiness for use The micrometer is supplied with a calibration certificate and is delivered ready for immediate use; documented calibration ensures the instrument can be introduced into measurement processes with confidence. The robust memory and versatile data‑export options make this unit suitable for traceable quality control tasks and for inclusion in digital measurement workflows. The combination of precise digital readout, modular anvils and extensive transfer modes supports both manual inspection benches and automated data collection environments, maximising return on investment through improved throughput and fewer repeat measurements. Speak to Metav Werkzeuge to discuss how the Microtech metrology micrometer can streamline measurement workflows and to arrange delivery from our Emmerich quality hub—email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 110183039 GTIN: 4061905453410 Manufacturer: Microtech Metrology Data Measuring range: 150–300 mm Display resolution: 0.0001 mm Accuracy: 0.004 mm Repeatability: 1 Data output: Wireless + USB Digital display: Touchscreen Memory: 2,000 values Special features 2.4" colour touchscreen Interchangeable anvils (5 pcs) and setting rods (5 pcs) included Functions: Go/NoGo, Max/Min, Formula, Timer, Linear correction, Temperature correction Measuring hub: Wireless instrument connection, 2D mode, Probe mode, Synchronisation Housing: CNC‑machined aluminium block Delivery: Calibration certificate included FAQ What measuring range does the micrometer cover? The micrometer covers a 150–300 mm measuring range, placing it in the standard workshop category suitable for general mechanical and metalworking inspection tasks. How is measurement data transferred from the device? Data can be exported wirelessly (MDS app, Wireless HID, Wireless HID+Mac) or via USB HID, enabling direct integration with Windows, Android, iOS and macOS systems. Are interchangeable anvils supplied? Yes; the delivery includes five anvils and five setting rods for flexible measurement setups and quick adaptation to different part geometries. What accuracy and resolution can be expected? The instrument offers a display resolution of 0.0001 mm and a stated accuracy of 0.004 mm, supported by onboard correction functions to maintain measurement quality. Is a calibration certificate provided with the micrometer? A calibration certificate is included with the micrometer, ensuring documented traceability for quality assurance. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
150–300mm Micrometer Caliper With Six Interchangeable Carbide Anvils, Matt Chrome Sleeve, Ratchet, Case - Metav IndustryLine
Take advantage of robust workshop accuracy, wear‑resistant measuring faces and a ratchet stop for repeatable contact force — the combination supports reliable inspection across medium workshop components. Order directly via Metav Werkzeuge or consult the team for application guidance. M304.032 — Outside micrometre set, 150–300 mm, 6 interchangeable anvils (Metav IndustryLine) M304.032 is an outside micrometre set intended for precise dimensional checks of medium‑sized components in metalworking and toolrooms, covering a standard workshop range. Outside micrometre 150–300 mm range Six interchangeable anvils for adaptibility Tungsten carbide measuring faces Ratchet stop for consistent contact force Consistent accuracy across standard workshop tasks This set is designed for the Standard measurement class (max. 300 mm), balancing reach with rigidity for reliable single‑operator use. The instrument offers an analogue reading resolution of 0.01 mm combined with a measured accuracy of ±0.011 mm, delivering quantifiable repeatability for assembly, jig set‑up and incoming inspection. The ratchet stop ensures a reproducible contact force so that measurement variation from manual pressure is reduced; the 0.5 mm spindle pitch provides fine adjustment for controlled approach and definitive contact. Durable contact and adaptable inspection options Wear resistance is central to long service life: the contact faces are tungsten carbide, chosen for abrasion resistance where frequent checks on hard materials are routine. The set includes six interchangeable anvils, allowing the same instrument to be configured for different contact geometries and component profiles without compromising the reference surface. The measuring drum is matte chrome plated, which reduces glare and improves tactile control when taking incremental readings. These features permit flexible inspection routines, reducing the need for multiple fixed micrometres. Workshop‑ready supply and protected transport Supplied as a set with the sizes 150/175/200/225/250/275 mm provided for staged measuring tasks, the unit is finished to factory standard (Werksnorm) and presented ready for immediate use in the workshop. The robust construction and clear analogue scale suit routine shop‑floor measurement, while the overall package is protected for transport and storage to keep calibration and set‑up intact. With a practical mass of 3.1 kg, handling and positioning are straightforward for one or two operators depending on the application. Contact Metav Werkzeuge for tailored technical advice and supply of the Metav IndustryLine M304.032 outside micrometre set from Emmerich, including delivery and application support Technical data Article number: M304.032 GTIN: 4054469115894 Category: Micrometers Facts Measuring range: 150–300 mm Minimum range: 150 mm Maximum range: 300 mm Resolution (reading): 0.01 mm Accuracy: ±0.011 mm Spindle pitch: 0.5 mm Setting sizes: 150 / 175 / 200 / 225 / 250 / 275 mm Weight: 3.1 kg Special features 6 interchangeable anvils Tungsten carbide measuring faces Ratchet stop for repeatable force Matte chrome measuring drum Analogue scale Delivered in a protective plastic or wooden case Norm: factory standard (Werksnorm) Measuring spindle: 8 FAQ What measuring range does the micrometre cover? The M304.032 covers 150–300 mm, classified as the Standard workshop range suitable for machine and metalworking inspection. Are the anvils replaceable for special contact profiles? Yes — the set includes six interchangeable anvils, enabling configuration for different part geometries without loss of reference. What resolution and accuracy can be expected? The instrument provides an analogue reading resolution of 0.01 mm and an accuracy of ±0.011 mm, giving precise, repeatable results for standard shop applications. Is the measuring face resistant to wear from regular use? The measuring faces are tungsten carbide, selected to resist abrasion and maintain a consistent reference surface during frequent inspections. How is the instrument supplied and to what standard? The M304.032 is supplied as a protected set to factory standard (Werksnorm) and presented ready for workshop use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
152.4 mm Extension for Three-Point IMS 12–16/16–20 mm, Ø11.8 mm - Metav IndustryLine
Take advantage of the combination of precise fit, extended reach and reliable mounting to measure recessed features with confidence; the extension’s 152.4 mm length and Ø 11.8 mm stem give stable support for three‑point probes and make integration into existing setups straightforward. Order the extension directly via Metav Werkzeuge or ask the consultants for compatibility advice. Extension for three‑point IMS 12–16 / 16–20 mm — 152.4 mm length, Ø 11.8 mm (Metav IndustryLine) The Extension for three‑point IMS 12–16 / 16–20 mm is an accessory that increases probe reach for precise, repeatable measurements in narrow or recessed components and is designed for use with compatible three‑point IMS measuring systems. Precision fit Ø 11.8 mm stem 152.4 mm reach for recessed features M8 thread for secure mounting Lightweight construction at 0.2 kg Measure recessed features with consistent repeatability The extension delivers a controlled increase in reach while maintaining alignment between probe and workpiece. Its 152.4 mm length extends access into deep bores and recessed geometries, while the Ø 11.8 mm stem ensures a snug, low‑play fit in the probe holder. For workshop applications that demand repeatable contact points, this accessory reduces the need for complex fixturing and speeds up inspection cycles without compromising the integrity of the measurement process. Secure fixing and mechanical reliability for industrial use A standard M8 mounting thread provides a mechanically secure connection that resists loosening during handling and measurement. The extension’s compact mass (approx. 0.2 kg) keeps inertia low, which helps preserve probe responsiveness and repeatability during sequences of successive measurements. This mechanical reliability supports rational workflows by reducing re‑set times and avoiding time‑consuming recalibration between short production runs. Suited to the micro measurement category and common three‑point ranges Classified for the micro measurement range, the accessory matches measuring setups covering the 12–16 mm and 16–20 mm three‑point probe ranges and is therefore appropriate for fine mechanical and small‑part inspection tasks. By matching the probe’s intended measuring band, the extension keeps measurement geometry within expected tolerances and supports consistent results across batches and operators. Practical workshop benefits and compatibility notes Designed as an accessory for three‑point IMS probes, the extension integrates with existing metrology equipment to expand capability without replacing the primary instrument. Its standardised interface allows simple installation and repeatable positioning, which decreases setup complexity and improves throughput. For procurement planning, this approach delivers a cost‑effective enhancement to existing inspection rigs while preserving investment in calibrated probes. Contact Metav Werkzeuge today to confirm compatibility for your three‑point IMS system and to order the Metav IndustryLine extension M312.331; our consultants in Emmerich will advise on integration and delivery — eMail info@metav-werkzeuge.com, Tel +49 2822 7131930 Technical data Article number: M312.331 GTIN: 4054469178516 Category: Zubehör Manufacturer: Metav IndustryLine Facts Length: 152.4 mm Diameter: 11.8 mm Thread: M8 Weight: 0.2 kg Zolltarifnummer: 90173000 eClass: 21170613 ETIM: EC002219 Special features Suitable for measuring ranges 12–16 mm and 16–20 mm Accessory for three‑point IMS probes Lightweight construction for minimal inertia FAQ Is this extension compatible with standard three‑point IMS probes? Yes. The extension is designed for three‑point IMS probe assemblies covering the 12–16 mm and 16–20 mm ranges and mounts via a standard M8 thread for secure connection. Will the extension affect measurement repeatability? When fitted correctly to a compatible probe holder, the extension preserves repeatability by keeping probe alignment; its slim Ø 11.8 mm stem and controlled length minimise play and deflection during typical workshop use. What mounting interface is required? A standard M8 threaded interface is required for installation; the extension was produced to mate with common three‑point IMS holders used in precision measurement set‑ups. Is the extension suitable for handheld use or only for fixed fixtures? Its lightweight construction (approx. 0.2 kg) makes it practical for both careful handheld positioning and use in fixed fixtured inspection stations, depending on the application and operator technique. Can this accessory be used to extend probes for deep bores and recesses? Yes. The 152.4 mm reach is aimed at accessing recessed features and deep bores where the base probe cannot reach while maintaining reliable contact geometry. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
152.4 mm Extension for Three-Point IMS 20–25 / 25–30 mm, Ø 15.8 mm - Metav IndustryLine
Take advantage of the combination of extended reach, secure M10 connection and precise dimensional fit for efficient inspection routines; order the extension directly via Metav Werkzeuge or ask our consultants if needed. Extension for three‑point internal measuring system M312.332 — 152.4 mm length, Ø 15.8 mm (Metav IndustryLine) The Extension for three‑point internal measuring system M312.332 is an accessory designed to extend the reach of three‑point internal probes for the 20–30 mm measuring ranges, enabling precise positioning in confined inspection geometries. Extension for three‑point internal probes Length 152.4 mm for extended reach Diameter 15.8 mm with M10 thread Compatible with 20–30 mm measuring ranges Reach confined bores and pockets with repeatable geometry The extension rod delivers a controlled increase in probe reach without compromising alignment: with a length of 152.4 mm and an outer diameter of 15.8 mm, it allows established internal measuring setups to access deeper features while maintaining probe stability. As an accessory for three‑point internal measuring systems, the component ensures that the original probe geometry is preserved and that measurements remain comparable across repeated checks. The measurable dimensions and threaded connection reduce uncertainty during fixture changeover and support efficient in‑line inspection. Secure mechanical interface for consistent results A standard M10 thread provides a familiar and robust mechanical interface to existing probe mounts and adapters. The threaded connection ensures low play and quick assembly, which improves repeatability in tight production cycles. With a mass of approximately 0.3 kg, the extension balances rigidity and handling: it is heavy enough to damp minor vibrations but light enough for easy installation. These characteristics translate into fewer setup iterations and a higher yield from first‑pass inspections. Seamless integration into inspection workflows Designed as a practical accessory rather than a bespoke component, the extension integrates with common three‑point internal measuring fixtures for 20–25 mm and 25–30 mm probe arrangements. The product supports faster tooling changes and reduces downtime when different measuring ranges are required on the same machine or gauge set. Backed by the Metav IndustryLine range, this accessory contributes to a predictable supply chain and consistent quality control in workshops and inspection departments. Contact Metav Werkzeuge to confirm compatibility with existing three‑point measuring fixtures and to arrange supply of the M312.332 extension; consultants in Emmerich are available by phone or e‑mail to advise on integration and inventory Technical data Article number: M312.332 GTIN: 4054469178523 Manufacturer: Metav IndustryLine SKU: M312.332 Category: Zubehör ETIM: EC002219 eClass: 21170613 Harmonised tariff code: 90173000 Core dimensions and identifiers Length: 152.4 mm Diameter: 15.8 mm Weight: 0.3 kg Thread: M10 Compatibility and features Accessory for three‑point internal measuring systems Suitable for measuring ranges 20–25 mm and 25–30 mm Intended for use in inspection and gauge setups Category: Measuring instruments — accessories FAQ Is this extension compatible with existing three‑point internal probes? Yes. The extension M312.332 is designed for three‑point internal measuring systems and fits probe arrangements for the 20–25 mm and 25–30 mm measuring ranges. What are the exact dimensions of the extension? The extension has a length of 152.4 mm, an outer diameter of 15.8 mm and a weight of approximately 0.3 kg. Which thread is used to attach the extension? Attachment is via an M10 thread, a standard interface for many probe mounts and adaptors. Can the extension be used to reach deeper bores without altering probe geometry? Yes. The component extends probe reach while preserving the probe’s relative geometry, supporting repeatable internal measurements. Who supplies this accessory and what is the product code? The accessory is supplied by Metav IndustryLine and is listed under the article number M312.332. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
152.4 mm Extension for Three-Point IMS, Ø 23.5 mm, Fits 50–63; 62–75; 75–88; 87–100 mm Calipers - Metav IndustryLine
Take advantage of an extended measuring reach combined with robust mounting: the extension delivers 152.4 mm of added length and a 23.5 mm diameter interface with an M21 thread, enabling simple adaptation of three‑point internal measuring rigs for internal ranges from 50 to 100 mm. Order the extension via Metav Werkzeuge or consult our team for adaptation guidance. Extension for three‑point internal measuring system (IMS) — 152.4 mm length, D 23.5 mm (Metav IndustryLine) The Extension for three‑point internal measuring system (IMS) adds controlled reach to internal measuring setups, providing a 152.4 mm long adapter that keeps measuring geometry stable across mid‑range bores 152.4 mm extension length for extended reach Compatible with M21 thread connections Fits internal ranges 50–100 mm Reliable access into confined bores while preserving alignment The extension supplies a consistent, repeatable means of reaching deeper or recessed internal diameters without modifying the base measuring head. With a defined outer diameter of 23.5 mm and a fixed length of 152.4 mm, the adapter limits lateral play at the interface and helps maintain the original contact geometry of the internal measuring device. This stability reduces the need for repeated fixture adjustments and supports faster inspection cycles when several depths must be checked in sequence. The accessory integrates into the measuring chain as a dedicated spacer rather than a makeshift extension, improving process repeatability. Seamless integration with three‑point systems and common workshop ranges Delivered with an M21 mounting thread, the component interfaces with three‑point internal measuring systems that accept this connection standard. It is specified for internal diameter applications spanning the typical workshop bands 50–63 mm, 62–75 mm, 75–88 mm and 87–100 mm, allowing the same measuring head to cover multiple bore sizes through rapid changeover. The adapter’s mass (1.3 kg) contributes to a balanced assembly in many bench and fixture arrangements, reducing the influence of unwanted vibrations during manual gauging or light automated cycles. Designed for dependable use in inspection and production environments As a purpose‑built accessory from Metav IndustryLine, the extension focuses on functionality and integration rather than on additional user calibration or complex interfaces. The simple threaded connection preserves the familiar handling and maintenance routines of standard measuring systems, while the clearly defined geometry supports traceable setups in quality control workflows. When used as part of a controlled measuring process, the adapter helps to shorten setup time between diameters and keeps inspection throughput predictable under routine workshop conditions. Contact Metav Werkzeuge in Emmerich for technical clarification and supply of the Metav IndustryLine extension; email info@metav-werkzeuge.com or call +49 2822 7131930 to discuss compatibility and delivery options Technical data Article number: M312.334 GTIN: 4054469178547 Manufacturer: Metav IndustryLine Weight: 1.3 kg Thread: M21 Length: 152.4 mm Diameter: 23.5 mm Facts Weight — 1.3 kg Length — 152.4 mm Diameter — 23.5 mm Thread type — M21 Suitable internal ranges — 50–63 mm, 62–75 mm, 75–88 mm, 87–100 mm Special features Extension for three‑point internal measuring systems Designed for mid‑range bore adaptation Category: Accessory (Zubehör) Intended for workshop and inspection use FAQ Is this extension compatible with all three‑point internal measuring systems? Compatibility depends on the mounting interface; the extension uses an M21 thread and is designed for three‑point internal measuring systems that accept this connection and the listed bore ranges. Which internal diameters can be measured when this extension is fitted? When used with compatible three‑point systems, the adapter supports the internal diameter bands 50–63 mm, 62–75 mm, 75–88 mm and 87–100 mm as specified for the product. What mounting and handling considerations apply? The extension attaches via an M21 thread; attention to correct torque and alignment is advised to preserve contact geometry and repeatability during inspection routines. Will the extension affect measuring accuracy? The adapter is intended to preserve the original measuring geometry; correct mounting and stable fixturing limit additional sources of error, but final accuracy depends on the complete measuring chain and calibration practice. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
152.4mm Extension for Three-Point IMS 30–50mm, D 23.5mm - Metav IndustryLine
Take advantage of the combination of extended reach and secure M18 mounting for reliable internal inspections; the 152.4 mm length and Ø 23.5 mm profile enable access to deeper bores while maintaining stability. Order the extension directly via Metav Werkzeuge or consult our technical advisers for compatibility checks. Extension for three-point IMS 30–40 / 40–50 mm — 152.4 mm length, Ø 23.5 mm (Metav IndustryLine) The Extension for three-point IMS 30–40, 40–50 mm is an accessory designed to extend the probing range of three-point internal measuring systems, enabling inspection of deeper bores and internal features in production and quality-control environments. 152.4 mm extended reach Ø 23.5 mm mounting profile M18 threaded connection for secure fit Compatible with 30–50 mm three-point IMS Reach deeper bores without compromise Extending the probing range by 152.4 mm allows internal measurements that would otherwise require disassembly or a specialised probe. The extension rod is engineered to preserve the probe’s alignment; the Ø 23.5 mm profile provides a stable contact interface that reduces bending and lateral play. As a result, inspection routines become more efficient and less disruptive to production, saving time on part handling and machine downtime. The accessory’s design supports consistent measuring geometry so that repeatability is prioritised over makeshift solutions. Preserves alignment for repeatable measurement results A secure, threaded connection is crucial when adding length to a probe. The M18 thread ensures a firm mechanical interface between the main measuring head and the extension, reducing the risk of loosening or misalignment during use. At approximately 0.5 kg, the component adds reach without excessive mass, limiting additional dynamic effects on the measuring system. For quality-control workflows, this stability translates into fewer rechecks and more reliable pass/fail decisions, improving throughput while maintaining traceable measurement integrity. Workshop-ready accessory that integrates smoothly Supplied as a straightforward accessory for three-point internal measuring systems, this extension is intended for fast integration into existing setups. Compatibility with the 30–40 and 40–50 mm ranges makes it a practical choice for workshops and inspection benches that frequently handle small to medium bore diameters. Backed by the reliability of Metav IndustryLine, the component supports a pragmatic approach to precision: extend capability where needed instead of investing in a full new probe set. The robust mounting concept and compact profile make handling and storage simple, while enabling technicians to keep inspection processes lean and consistent. Contact Metav Werkzeuge today for a tailored compatibility check and order the Metav IndustryLine extension M312.333 with assured delivery from Emmerich. Technical data Article number: M312.333 GTIN: 4054469178530 Category: Accessories (Zubehör) ECLASS: 21170613 ETIM: EC002219 Facts Length: 152.4 mm Diameter: 23.5 mm Thread: M18 Weight: 0.5 kg Customs tariff number: 90173000 Special features Accessory for three-point internal measuring system (IMS) Compatible with 30–40 mm and 40–50 mm IMS ranges Secure threaded mounting for reduced measurement uncertainty Designed for production and quality-control environments FAQ What does this extension do and when is it used? The extension increases the reach of a three-point internal measuring system, enabling measurements in deeper bores where the standard probe cannot reach; it is ideal for production and inspection tasks that require extended access. Which probe ranges are compatible with the extension? This accessory is compatible with three-point IMS ranges for 30–40 mm and 40–50 mm and is intended to extend those probe configurations without altering the measuring head geometry. How is the extension fixed to the measuring system? The extension uses an M18 threaded connection to ensure a secure, vibration-resistant fit when assembled with the three-point internal measuring system. What is the article number for ordering and identification? Order or reference the extension by article number M312.333 (GTIN 4054469178530) when enquiring about compatibility or placing an order. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
15mm Depth Gauge, Flat-Parallel Measuring Faces, 5mm Spindle, 0.01mm Graduation - Metav IndustryLine
Take advantage of a compact, micro‑range measuring solution that combines precise 0–15 mm range, a fully hardened spindle and a matt‑chrome drum for durable, repeatable results; order the instrument directly via Metav Werkzeuge or consult our specialists for integration advice. Built‑in micrometer M303.120 — 0–15 mm range, hardened spindle The Built‑in micrometer M303.120 is a compact, micro‑range mechanical micrometer designed for precise thickness and detail measurements in fine mechanical, instrument and small‑component applications. Micro-range 0–15 mm for fine measurements Fully hardened spindle, matt‑chrome drum Mechanical reading with 0.01 mm graduation Compact 61 mm length, weight 0.1 kg Precision for miniature work and reliable readings The micrometer is built for micro‑range measurement tasks where repeatability matters. With a measuring range of 0–15 mm and a reading of 0.01 mm, the instrument delivers the fine resolution expected in precision workshops and instrument making. The spindle is fully hardened, which preserves the measuring geometry under repeated use, while the matt‑chrome drum reduces reflections and wear. The compact body (approx. 61 mm) and low mass (0.1 kg) make the device easy to mount and handle in confined setups without sacrificing stability. These characteristics support consistent measurements and faster inspection cycles in small‑part production. Robust construction for repeatable results Mechanical design choices focus on durability and clarity of indication. The spindle geometry and spindle pitch 0.5 mm ensure smooth, predictable travel per turn, while the plan‑parallel measuring faces provide flat contact surfaces for accurate thickness readings. As a mechanical micrometer with an analogue scale, the instrument avoids electronic dependencies and is therefore well suited to environments where simple, long‑term reliability is required. The hardened spindle and chrome finish on the drum resist corrosion and surface damage, maintaining measurement integrity over long service periods. Integration, handling and application benefits Engineered as a built‑in or panel‑mountable measuring element, this micrometer is ideal where space is limited yet high precision is needed—examples include gauge fixtures, small jigs and instrument calibration benches. Its compact form factor and mechanical operation mean that no power supply is required, simplifying installation and reducing points of failure. The combination of hardened components and a clear 0.01 mm scale supports both routine quality control and finer inspection tasks, making it a reliable choice for workshops, toolrooms and small‑series production. Contact Metav Werkzeuge today to request advice on fitting the M303.120 built‑in micrometer into existing gauges or fixtures and to obtain procurement support from our Emmerich specialists Technical data SKU: M303.120 GTIN: 4054469115696 Category: Messschrauben Label: Einbaumess, 15 mm, planparallel MB 0 - 15 mm, Spindel 5 mm Brand: Metav IndustryLine Operation: Mechanical (analogue) Key measurements Measuring range: 0–15 mm Resolution / reading: 0.01 mm Spindle diameter: 5 mm Spindle pitch: 0.5 mm Length: 61 mm Weight: 0.1 kg Zolltarifnummer: 90173000 Special features Spindle fully hardened Drum matt‑chrome plated Plan‑parallel measuring faces Compact built‑in design for fixtures Mechanical micrometer, analogue reading Classification: Micro (0–100 mm), micro‑range at 0–15 mm FAQ What is the measuring range of this instrument? The measuring range is 0–15 mm; the M303.120 built‑in micrometer from Metav IndustryLine is intended for micro‑range tasks. What resolution can be read on the scale? The mechanical scale provides a reading resolution of 0.01 mm for fine, repeatable indication. Are the measuring faces flat and aligned? Yes — the device features plan‑parallel measuring faces to ensure flat, reproducible contact during measurements. What materials are used for the spindle and drum? The spindle is fully hardened for wear resistance and the drum is matt‑chrome plated to reduce surface wear and glare. In which workshop applications is this micrometer best used? The micrometer is suited to fine mechanical work, instrument making and small‑component inspection where a compact, accurate built‑in measuring element is required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
15mm Dial Thickness Gauge With 0.01mm Reading Large 60mm Dial, Hardened Measuring Faces, Supplied In Case - Metav IndustryLine
Take advantage of precise analogue readings and robust measuring faces for reliable thickness checks in production and inspection. The combination of a 0–15 mm measuring range, 0.01 mm resolution and a ratcheted spindle ensures repeatable contact force and consistent results; order directly via Metav Werkzeuge or consult the team for specification support. M309.051 Dial Micrometre (0–15 mm, 0.01 mm) — Metav IndustryLine The M309.051 Dial Micrometre is an analogue precision instrument designed for fine external measurements and sheet‑thickness checks in workshop and quality‑control environments. Large 60 mm dial for easy readings 0.01 mm resolution for precise checks Carbide measuring faces, 6.5 mm diameter Ratcheted spindle for reproducible contact Precision where small differences matter This analogue gauge delivers 0.01 mm resolution across a 0–15 mm measuring range, placing it in the Micro measurement class for fine mechanical work. The large 60 mm dial improves visual clarity, reducing reading errors during routine inspections. The combination of fine graduation and a clear scale enables quick decision‑making on the shop floor, turning measurement data into actionable quality control without unnecessary complexity. Consistent measurements through controlled contact Reproducibility is supported by the ratcheted spindle and a screw pitch of 1 mm, which together provide repeatable contact force and steady spindle travel. The hardened carbide measuring faces (6.5 mm diameter) resist wear, so calibration intervals are extended and measurement drift is reduced. These features make the instrument well suited to serial checks of sheet metal and small components where consistent results save rework time and material. Built for practical workshop use Constructed as a robust, analogue instrument, the gauge balances stiffness with manageable weight (approx. 0.5 kg), allowing single‑person handling without compromising stability. The design focuses on longevity: carbide faces for abrasion resistance and a protected dial mechanism reduce the risk of damage during daily use. Supplied in a transport case, the unit is ready for safe storage and movement between bench and inspection station. Integrating into inspection routines The dial micrometre is straightforward to include in existing measurement workflows: its 0–15 mm range covers common thickness checks, and the visible dial speeds up comparison testing. For documented quality procedures, results from this analogue device provide a reliable first‑level control; for traceable certification or statistical process control, its stable readings support meaningful sampling and trend analysis without introducing unnecessary complexity. For professional use in workshops and inspection labs, choose the Metav IndustryLine M309.051 for dependable analogue precision and long‑term robustness — contact Metav Werkzeuge GmbH in Emmerich for technical advice or further product details at info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: M309.051 GTIN: 4054469163819 Product type: Dial micrometre (analogue) Facts Measuring range: 0–15 mm Resolution: 0.01 mm Accuracy: 0.01 mm Measuring face diameter: 6.5 mm Weight: 0.5 kg Dial size: 60 mm Special features Carbide measuring faces Ratcheted spindle for reproducible contact Spindle pitch: 1 mm Analogue dial display FAQ What measuring range does this instrument cover? The M309.051 dial micrometre measures from 0 to 15 mm, suitable for micro‑range external and sheet‑thickness checks. What resolution and accuracy can be expected? Readings are taken at 0.01 mm resolution with an accuracy of 0.01 mm, offering fine discrimination for workshop inspection tasks. Are the measuring faces wear‑resistant? Yes, the measuring faces are made of carbide, providing high abrasion resistance and stable performance over extended use. Does the micrometre include a ratchet for consistent force? The instrument features a ratcheted spindle, which helps to apply a reproducible contact force and improves measurement repeatability. Is the gauge ready for transport and safe storage? The micrometre is supplied in a protective transport case to ensure safe storage and movement between the workshop and inspection areas. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

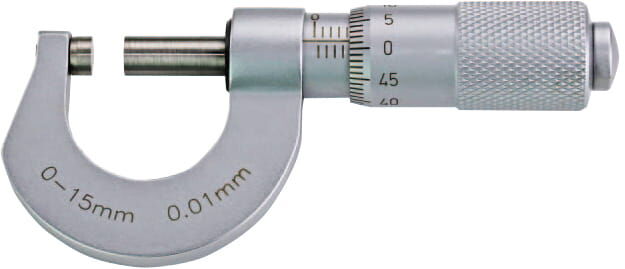

15mm Micrometer Gauge, Matt Chrome Frame, No Ratchet, Supplied In Case - Metav IndustryLine
Take advantage of a compact, mechanically reliable measuring tool that pairs 0–15 mm range with 0.01 mm reading accuracy and a matt‑chrome measuring drum for consistent, low‑glare readings. Order the instrument directly via Metav Werkzeuge or consult our technical advisers for application-specific guidance. M304.107 — Outside micrometer 0–15 mm, 0.01 mm analogue (Metav IndustryLine) The M304.107 is an analogue outside micrometer designed for precise external measurements in workshop and quality‑control environments. Analogue 0.01 mm reading accuracy Measuring range 0–15 mm Matt chrome measuring drum finish Silver‑lacquered frame for robust handling Repeatable accuracy for everyday quality checks The instrument delivers a 0–15 mm measuring range with an 0.01 mm reading increment, combining short measuring span with fine resolution for repeatable external measurements. The mechanical thimble and graduated sleeve ensure tactile control over the spindle movement, while the spindle pitch 0.5 mm gives a predictable axial advance per thimble revolution. This configuration supports fast, reliable inspections of shafts, pins and small components where reproducible results are essential for production control. Simple analogue reading that supports rapid workflows An analogue reading system reduces electronic dependency and simplifies routine checks on the shop floor. The clear graduations on the drum and sleeve allow quick interpretation and immediate decision making during incoming inspection or set‑up tasks. The mechanical design also facilitates maintenance and long service life: the absence of electronics means fewer failure modes and easy cleaning. For users who perform high‑frequency checks, the analogue instrument provides a robust, low‑complexity option that integrates smoothly into established inspection routines. Durable finishes for longevity in working environments The matt chrome measuring drum reduces reflection for clearer readings under workshop lighting, while the silver‑lacquered frame resists everyday wear. The instrument is supplied without a ratchet, favouring direct spindle control for users who prefer manual feel and fine pressure regulation during contact measurement. These material choices help maintain dimensional stability and visual legibility over prolonged use, contributing to lower life‑cycle costs and fewer rejects caused by unreadable scales. Trusted origin and practical service benefits As part of the Metav IndustryLine, this instrument benefits from a distribution and quality‑assurance network based in Emmerich that focuses on accessible precision. Metav’s approach combines broad product availability with technical support, making reliable measuring tools affordable for workshops and small manufacturers. The brand’s established presence emphasises predictable supply and product consistency, reinforcing confidence in everyday measuring tasks. Choose the Metav IndustryLine outside micrometer for dependable 0–15 mm measurements and contact Metav Werkzeuge for tailored advice or to arrange procurement by e‑mail or phone. Technical Data Article number: M304.107 GTIN: 4054469116167 ECLASS: 21170328 ETIM: EC003590 Tariff number: 90173000 Facts Measuring range: 0–15 mm Resolution / reading increment: 0.01 mm Spindle pitch: 0.5 mm Reading type: analogue Special features Measuring drum matt chrome‑plated Frame silver‑lacquered Supplied without ratchet Category: Micrometers FAQ How precise is the instrument for routine measurements? The M304.107 outside micrometer (Metav IndustryLine) offers a 0–15 mm range with a 0.01 mm reading increment, providing the resolution expected for standard workshop inspection tasks. Is this micrometer suitable for daily shop‑floor use? Yes; the matt‑chrome drum and lacquered frame are specified for durability in workshop environments, and the analogue design reduces electronic vulnerability during frequent use. What type of reading and spindle control does the instrument use? The instrument uses a mechanical thimble with a 0.5 mm spindle pitch and analogue graduations, allowing direct tactile control and predictable advance per revolution. Can the instrument be used for calibration‑grade measurements? The instrument is designed for reliable workshop and quality‑control checks; for traceable calibration requirements, refer to Metav Werkzeuge’s calibration services and recommended procedures. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
15mm Mounting Dial Gauge Ball Tip Spindle 5mm 0.01mm Graduation 0.5mm Pitch - Metav IndustryLine
Take advantage of the combination of compact inset design, micrometre‑grade 0–15 mm measuring range and reliable mechanical read‑off for precise small‑part inspection. Order the micrometer directly via Metav Werkzeuge or ask the consultants for integration advice. M303.121 Inset Micrometer (0–15 mm) — Analogue, Spherical Faces The M303.121 is an inset analogue micrometer for fine mechanical measurement tasks, designed to be mounted into fixtures for repeatable short‑range inspection up to 15 mm. Analogue reading with 0.01 mm graduation Fully hardened spindle for long-term accuracy Matt‑chrome drum for glare‑free read-off Spherical measuring faces for reliable contact Precision where space is limited This inset micrometer is tailored for minimal‑space measuring tasks where precision and compactness matter. Classified in the micro range (maximum measuring range up to 100 mm), the instrument covers 0–15 mm with a reading step of 0.01 mm, enabling clear, fine graduations on the thimble for vernier‑style or barrel read‑off. The short overall form factor keeps leverages and bending moments low, which benefits repeatability when the device is integrated into fixtures or small gauges. Suitable for fine mechanical workshops, instrument making and component inspection, the compact construction preserves stiffness where centimetre‑scale tools would be oversized. Reliable contact and long‑term repeatability Mechanical design choices reduce drift and maintain measurement integrity: the fully hardened spindle resists wear, while the matt‑chrome drum reduces reflection for easier reading under workshop lighting. The spindle advances with a 0.5 mm pitch, meaning each full rotation corresponds to 0.5 mm axial travel; combined with the fine graduation this yields consistent, predictable displacement per division. The spherical measuring faces ensure stable point contact on slightly curved surfaces and reduce tilting errors during clamping, so results remain reproducible across repeated checks. Integration into fixtures and common applications As an inset micrometer with an analogue mechanism, the unit is designed for straightforward installation into measuring jigs, custom fixtures or test benches where a flush or protected mounting is required. The compact length (61 mm) and robust contact geometry make it useful for watchmaking, precision turning, and small‑scale quality control where fast, repeatable checks are needed. The mechanical read‑off removes dependency on batteries or electronics, offering a low‑maintenance solution for long‑term shop‑floor use while still delivering micrometre‑level resolution and reliable handling. Contact Metav Werkzeuge to discuss integration options for the M303.121 inset micrometer and arrange supply directly from Emmerich. Technical Data Article number: M303.121 GTIN: 4054469115702 Eclass: 21170330 Facts Measuring range: 0–15 mm Resolution / reading: 0.01 mm Spindle diameter: 5 mm Spindle pitch: 0.5 mm Length: 61 mm Customs tariff number: 90173000 Special features Analogue micrometer (mechanical) Spherical measuring faces Spindle fully hardened Matt‑chrome plated drum Category: Micrometers (inset) FAQ What is the measuring range and resolution of this micrometer? The M303.121 inset micrometer measures from 0 to 15 mm with a reading resolution of 0.01 mm, suitable for fine‑scale inspection tasks. Are the measuring faces suitable for curved surfaces? Yes. The spherical measuring faces on the M303.121 provide stable point contact on slightly curved or irregular surfaces, improving repeatability for such geometries. How is the spindle protected against wear? The spindle is delivered fully hardened and is paired with a matt‑chrome drum to reduce surface wear and reflection, preserving long‑term accuracy. Can the micrometer be mounted into fixtures? The inset design is specifically intended for integration into gauges and fixtures; the compact body and mounting format simplify installation for repetitive testing. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16-20 mm Three-Point Internal Micrometer With Measured Drum And Scale, IP65 - Metav IndustryLine
Benefit from high repeatability and robust workshop protection: the micrometer’s digital readout, three‑point measuring system and IP65 rating deliver reliable blind‑bore measurements with ±0.005 mm accuracy. Order the instrument directly via Metav Werkzeuge or ask our consultants for application advice. Three‑point internal micrometer M312.234.M — digital instrument with IP65 A Three‑point internal micrometer M312.234.M designed for precise measurement of blind bores and small internal diameters in the 16–20 mm range. Digital display with ABS/INC/UNIT functions Three‑point measuring system for concentric contact Accuracy ±0.005 mm for high repeatability IP65 protection for workshop environments Accurate internal measurement for critical bore tolerances The micrometer combines a three‑point measuring system with a finely graduated measuring drum to deliver stable contact around the circumference of a bore, reducing eccentricity errors common with two‑point probes. The instrument’s accuracy of ±0.005 mm places it in the high‑precision bracket suitable for quality control tasks where small deviations matter. The digital display supports ABS/INC and unit selection, allowing quick transcriptions and fewer manual conversions. These technical characteristics translate into measurable time savings during inspection routines and fewer rework cycles on production parts. Rugged design and calibrated readiness for the workshop Constructed with a matt‑chrome plated scale and vernier for durable legibility, the micrometer meets DIN 863 standards and is supplied with a setting ring and an extension (150×Ø11.7) for flexible use in deeper or awkward bores. The IP65 rating ensures reliable performance in environments with dust and coolant exposure, while the total weight and compact 80 mm length make the instrument easy to handle for repetitive measurements. The inclusion of a clear scale on the drum supports a fast visual check, complementing the electronic readout for redundancy during routine inspections. Designed for blind‑bore workflows and data capture Specifically suited to blind bores, this instrument covers the measurement range 16–20 mm, a category commonly required for precision components and small assemblies. The three‑point contact geometry provides concentric pressure around the bore, improving repeatability in serial checks. For traceability and integration into digital measurement systems, a data output RB 4.1 is provided, enabling straightforward transfer of readings into SPC or inspection software. Supplied as a ready‑to‑use precision tool from Metav IndustryLine, it supports both standalone measurements and automated data collection within a connected quality process. For a tailored specification check and prompt supply, contact Metav Werkzeuge — the Metav IndustryLine team will recommend the best configuration and confirm compatibility with existing inspection systems Technical Data Article number: M312.234.M GTIN: 4054469156408 ECLASS: 21170335 ETIM: EC003590 Facts Measurement range: 16–20 mm Accuracy / resolution: 0.005 mm Length: 80 mm Weight: 1 kg Protection class: IP 65 Special features Digital display with ON/OFF/SET and ABS/INC/UNIT Measuring drum with scale Includes setting ring and extension (150×Ø11.7) Suitable for blind bores Scale and vernier matt‑chrome plated Complies with DIN 863 Data output: RB 4.1 FAQ How accurate is the three‑point internal micrometer for small bore inspection? The micrometer achieves an accuracy of ±0.005 mm, making it suitable for high‑precision checks and repeatable quality control of internal diameters. Can the instrument measure blind bores reliably? Yes, the three‑point contact design is specifically intended for blind bores, providing concentric contact and improved repeatability in such applications. Is the micrometer workshop‑ready against dust and coolant? The instrument is rated IP65, offering protection against dust ingress and low‑pressure water jets typically encountered in machining environments. What accessories are supplied with the micrometer? Delivery includes a setting ring and an extension (150×Ø11.7) to adapt the instrument for deeper or recessed bores. Can measurement data be exported for SPC or inspection software? A data output RB 4.1 is available for digital transfer of readings into external data capture or SPC systems. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16-20mm Digital Three-Point Internal Micrometer Carbide Measuring Faces, RB6, No Setting Ring - Metav IndustryLine
Take advantage of precise three-point centring, a clear digital display and carbide measuring faces for durable, repeatable bore checks; order via Metav Werkzeuge or consult our specialists for application advice. Digital three-point internal micrometer M312.214 – 16–20 mm, carbide faces (RB6) by Metav IndustryLine Digital three-point internal micrometer M312.214 for fast, repeatable measurement of small bores and blind holes in workshop and production environments. Digital readout with mm/inch and hold function Three-point internal measuring for bores 16–20 mm Carbide measuring faces for extended wear resistance Suitable for blind-hole measurements Reliable precision for bore measurement The Digital three-point internal micrometer M312.214 combines a compact measuring head with a three-point contact system to centre consistently in cylindrical bores, reducing eccentricity and operator error. The instrument delivers a declared accuracy of ±0.005 mm, which positions it for fine workshop verification and quality control tasks where repeatable internal dimensions are critical. The three-point geometry stabilises the contact position and minimises tilting, so measurements of bores and blind holes remain reproducible across multiple operators and cycles. Streamlined digital handling and traceability A clear digital readout with ON/OFF/SET, HOLD and mm/inch functions accelerates readings and reduces transcription mistakes during measurement routines. The unit supports RB6 data output, enabling direct data capture for logging or SPC workflows and simplifying traceability in production processes. Fast numeric results and a hold function shorten cycle time for repetitive checks and make integration into digital quality systems straightforward, improving process throughput without sacrificing precision. Built for workshop durability and repeatable results The measuring contacts are equipped with carbide (HM) faces, offering superior wear resistance for longer service life under frequent use on metallic materials. The instrument is supplied without setting ring and without extension, keeping the tool compact for confined bores while remaining suited to blind-hole measurement tasks. With a lightweight construction and robust contact geometry, the device combines handling ease with long-term dimensional stability, making it a practical choice for mechanical workshops and inspection benches. For tailored advice on integrating the Metav IndustryLine digital three-point internal micrometer M312.214 into production or inspection routines, contact Metav Werkzeuge by e‑mail at info@metav-werkzeuge.com or by telephone on +49 2822 7131930 to discuss suitability and ordering options Technical data Article number: M312.214 GTIN: 4054469169118 Label: Digital three-point internal micrometer, 16 - 20 mm, RB6 with carbide measuring faces, without setting ring, without extension Manufacturer: Metav IndustryLine Facts Measuring range: 16–20 mm Resolution / display step: 0.001 mm (digital display typical) Accuracy: ±0.005 mm Weight: 1 kg Length: 45 mm Data output: RB6 Special features Digital display with ON/OFF/SET, HOLD and mm/inch functions Three-point internal measuring principle Carbide (HM) measuring faces Suitable for blind-hole measurements Supplied without setting ring and without extension FAQ What is the measuring range of this internal micrometer? The M312.214 covers a measuring range of 16–20 mm, suitable for small-bore inspection tasks. How precise is the device for quality control use? The instrument offers an accuracy of ±0.005 mm, making the Metav IndustryLine micrometer appropriate for fine workshop verification and repeatable inspection. Can it measure blind holes? Yes, the design is suitable for blind-hole measurements, and the three-point contacts stabilise readings in such conditions. Is the display available in both metric and imperial units? The digital readout on the M312.214 features mm/inch conversion and a HOLD function for flexible measurement recording. Are the measuring faces wear-resistant for frequent use? The micrometer is equipped with carbide (HM) measuring faces to extend service life under regular workshop use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16-20mm Three-Point Interior Micrometer Colour Touchscreen, ISO 17025 Calibrated - Microtech Metrology
Take advantage of the combination of 0.004 mm accuracy, 0.0001 mm resolution and wireless data transfer to speed up inspection routines and reduce transcription errors; order the instrument directly via Metav Werkzeuge or consult our specialists if further advice is required. Three‑point internal micrometer – digital, calibrated, 16–20 mm The Three‑point internal micrometer is a compact, digitally read instrument for precision internal diameter measurement in fine mechanical, toolmaking and inspection environments. ISO 17025 calibration included 0.004 mm measurement accuracy Wireless + USB data output Colour 1.5" touchscreen display Precision adapted to compact components The instrument delivers high repeatability for internal measurements of small bores thanks to its three‑point contact configuration and compact geometry. Classified as Micro in terms of measuring range (16–20 mm), this class is optimised for fine mechanical work where short anvils and minimal torsion preserve stability. The stated accuracy of 0.004 mm and a display resolution of 0.0001 mm provide an objective basis for quality control decisions and reduce the need for multiple cross‑checks, improving throughput in routine inspection tasks. Fast digital workflows and traceable data Built for modern metrology processes, the device supports Wireless + USB transfer so measurement logs can be exported directly to inspection software or spreadsheets. The colour 1.5" touchscreen allows clear read‑out and simple menu navigation, while the integrated setting ring facilitates fast zeroing and repeatable set‑ups. These digital capabilities cut manual recording time and lower the risk of transcription errors, which translates into faster reporting cycles and more reliable process control across production lines. Practical design for workshop use The micrometer combines a compact form with a 230 mm measuring depth, allowing access to recessed or deep internal features that would otherwise require alternative gauges. Its three‑point measuring principle centres on contact consistency, which simplifies alignment in small bores and reduces operator influence on results. The instrument’s ergonomics and robust digital readout make it suited to daily use in workshops, metrology labs and toolrooms where concise, dependable measurement is required. Certified calibration and quality assurance Delivered fully calibrated according to ISO 17025, the micrometer arrives with a calibration certificate that documents traceability and measurement uncertainty, supporting quality management systems and audits. The inclusion of an accredited calibration report ensures measurements can be confidently referenced in inspection records and process documentation without additional setup. This certified status reinforces the device’s role as a dependable reference instrument in standardised QA workflows. Contact Metav Werkzeuge for tailored advice and reliable supply from Emmerich — our consultants will advise on integration, accessories and delivery for this Microtech Metrology three‑point internal micrometer (SKU 133702010) Technical Data Article number: 133702010 GTIN: 4061905074226 Manufacturer: Microtech Metrology Digital display: Colour 1.5" touchscreen Data output: Wireless + USB Facts Measuring range: 16–20 mm Measuring depth: 230 mm Resolution: 0.0001 mm Accuracy: 0.004 mm Calibrated to: ISO 17025 Special features Three‑point contact measuring principle Incl. setting ring Delivered with ISO 17025 calibration certificate Compact Micro class instrument for fine mechanical work FAQ What measuring range does the micrometer cover? The three‑point internal micrometer covers a measuring range of 16–20 mm, making it suitable for small internal diameters and precision components. Is the instrument delivered calibrated and traceable? Yes, the micrometer is supplied fully calibrated to ISO 17025 and includes a calibration certificate for traceability and audit documentation. How are measurement results exported? Measurement data can be exported via the Wireless and USB interfaces; the micrometer’s digital output supports direct transfer to inspection software and data logging systems. What accuracy and resolution can be expected? The instrument offers an accuracy of 0.004 mm with a display resolution of 0.0001 mm, providing reliable results for routine quality control. Which applications is this micrometer intended for? It is designed for fine mechanical, toolmaking and precision inspection tasks where compact internal measurements and traceable data are required; the three‑point contact ensures repeatable centring in small bores. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
16-20mm Three-Point Internal Micrometer Pistol Grip Touchscreen Wireless/USB ISO 17025 Calibrated - Microtech Metrology
Take advantage of the combination of ISO 17025 calibration, high-resolution digital readout and reliable wireless data transfer for traceable, efficient internal measurement workflows. Order this precision instrument directly via Metav Werkzeuge or consult our technical advisers for application-specific guidance. Three-point internal micrometer — digital, 16–20 mm measuring range (Microtech Metrology) The Three-point internal micrometer is a compact, digital gauge designed for exact internal diameter checks in small bores and fine mechanical assemblies, offering fast data capture and laboratory-grade calibration for traceable results. Wireless + USB data output Colour 1.54" touchscreen display ISO 17025 calibration certificate included 0.003 mm accuracy and 0.0001 mm reading Precise, repeatable internal measurement for fine assemblies The instrument uses a three-point measuring geometry that centres automatically in a bore, reducing alignment error and delivering consistent measurement contact across small diameters. With a measuring range 16–20 mm and a reading of 0.0001 mm, the device closes the gap between handheld convenience and laboratory-level precision. The stated accuracy 0.003 mm provides clear, quantifiable limits for process control and quality documentation, making the tool suitable for precision components in watchmaking, micro-assemblies and fine-tool inspection. Digital ergonomics that speed up inspection routines A colour 1.54" touchscreen simplifies on-device functions such as zeroing, unit selection and menu navigation, while the integrated display reduces transcription errors during repetitive checks. The combination of Wireless+USB data output supports direct logging to inspection software or portable data collectors, shortening inspection loops and improving traceability. The supplied adjustment ring permits fine setting without interrupting workflow, and the digital interface helps to standardise measurement procedures across operators. Calibrated and ready for accredited quality systems This measuring instrument is delivered with a full ISO 17025 calibration certificate, ensuring results are traceable to national standards and ready for integration into formal quality management systems. The factory calibration covers the instrument’s stated performance and simplifies incoming inspection for suppliers and end users. Having the calibration documentation included reduces administrative effort and accelerates device deployment on the shop floor or in the metrology lab. Compact format for high-precision, small-bore work Classified within the micro range for short-span gauges, the tool’s compact dimensions make it ideal where stiffness and low deflection are essential. The three-point contact provides stable engagement in confined spaces, while the digital measurement chain minimises manual reading uncertainty. For applications that demand reproducible internal diameters in small components, this instrument offers a balance of reach, rigidity and precise readout. Contact Metav Werkzeuge for a tailored quotation and advice on integrating this Microtech Metrology three-point internal micrometer into existing inspection routines Technical data Article number: 133502010 GTIN: 4061905041785 Manufacturer: Microtech Metrology Numbers / Core technical data Measuring range: 16–20 mm Measuring depth: 65 + 150 mm Reading: 0.0001 mm Accuracy: 0.003 mm Display: Colour 1.54" touchscreen Data output: Wireless + USB Special features / Versions Three-point measuring anvils Adjustment ring included Digital instrument ISO 17025 calibration certificate included FAQ What is the measuring range of this micrometer? The measuring range is 16–20 mm for this three-point internal micrometer from Microtech Metrology (SKU 133502010). Is a calibration certificate supplied with the instrument? Yes, the micrometer is supplied fully calibrated with an ISO 17025 certificate, confirming traceability and documented performance. How are measurement results recorded from the device? Results can be exported via the instrument’s Wireless+USB interface for direct logging into inspection software or data collection systems. What accuracy and resolution can be expected during inspection? The instrument offers a resolution of 0.0001 mm and a stated accuracy of 0.003 mm, suitable for high-precision internal measurements in small components. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
16-20mm Three-Point Internal Micrometer Self-Centering, Calibrated in Wooden Case - Metav IndustryLine
Take advantage of self‑centring three‑point measuring, compact dimensions and a finely graduated reading for consistent blind‑bore checks; the combination of repeatable centring, carbide measuring faces and analogue robustness supports efficient workshop workflows. Order the Three‑point internal micrometer directly via Metav Werkzeuge or ask our consultants if needed. Three‑point internal micrometer MS908.654 — self‑centring, 16–20 mm range (Metav IndustryLine) The Three‑point internal micrometer MS908.654 is a precision instrument designed for reliable measurement of blind bores in the 16–20 mm band, combining a three‑point contact head with a compact frame for confined spaces Self‑centring three‑point head Measurement range 16–20 mm Carbide measuring faces (HM) Delivered in protective case Precise bore measurement where space is limited The three‑point contact design ensures automatic centring inside a blind bore so that the measuring points engage evenly; this reduces eccentricity and improves repeatability compared with single‑point probes. With a defined measurement range of 16–20 mm the instrument falls into the micro class of calipers, making it especially suitable for fine mechanical tasks and small assemblies where controlled measuring force and stable contact geometry are decisive for consistent results. The compact geometry helps to keep torsion low and supports reproducible checks in confined geometries. Workshop‑grade contact surfaces and durability Hard‑facing on the contact surfaces gives dependable wear resistance: the carbide measuring faces resist abrasion in routine shop use and extend service life under frequent contact with metal workpieces. The micrometer’s analogue construction avoids batteries and electronic vulnerabilities, favouring simple maintenance and immediate readiness. Supplied in a protective case, the instrument is shielded during transport and storage, supporting reliable deployment across different production stations. Readability and measurement certainty The instrument provides a fine reading step alongside a verified accuracy that supports confident decision making. With a display increment of 0.005 mm and an assessed accuracy of ±0.004 mm, the micrometer allows precise comparative measurements and go/no‑go assessments in production and quality control. The three‑point mechanism shortens setup time for successive measurements and reduces correctional effort, which increases throughput without compromising measurement integrity. Applications, classification and practical benefit Classified as a micro‑range internal micrometer, the tool is suited to watchmaking, valve seats, small hydraulic components and other blind‑hole checks where a short, rigid measuring system is required. The self‑centring function removes an additional alignment step, while the robust contact material supports mixed workshop environments. As a compact analogue instrument it combines mechanical simplicity with measurement quality, making it an efficient choice wherever repeatable internal diameters must be verified. For procurement or technical advice on Metav IndustryLine measuring instruments, contact Metav Werkzeuge in Emmerich for personalised guidance and secure delivery from our European warehouse Technical data SKU: MS908.654 Manufacturer: Metav IndustryLine Type: Three‑point internal micrometer Core specifications Measurement range: 16–20 mm Accuracy: ±0.004 mm Reading increment: 0.005 mm Overall length: 80 mm Analogue operation Features and materials Self‑centring three‑point head Carbide measuring faces Suitable for blind‑hole bores Delivered in protective case Compact micro‑range instrument FAQ What measurement range does this instrument cover? The Three‑point internal micrometer MS908.654 covers a range of 16–20 mm, designed for precise checks in small blind bores. How accurate is the micrometer for production checks? The instrument offers an assessed accuracy of ±0.004 mm with a reading increment of 0.005 mm, allowing reliable comparative measurements on small components. Are the contact faces suitable for regular shop use? Yes, the measuring faces are made of carbide, providing increased wear resistance and extended service life in routine workshop conditions with the Three‑point internal micrometer. Is this micrometer suitable for very tight or confined bores? Its compact frame and self‑centring three‑point head make the tool especially suitable for confined blind‑hole applications where stable contact and low torsion are required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16-20mm Three-Point Internal Micrometer Self-Centring, 0.005mm Accuracy, Supplied in Case - Metav IndustryLine
The combination of high repeatability, self‑centring three‑point geometry and a fine resolution of 0.005 mm delivers dependable internal measurements for precision subassemblies; order the instrument via Metav Werkzeuge or consult the team for application advice. Three‑point internal micrometer (16–20 mm) — analogue, self‑centring precision Three‑point internal micrometer for short‑range, high‑precision internal measurements in fine mechanical and general workshop applications. Self‑centring three‑point design Measuring range 16–20 mm Accuracy ±0.005 mm Analogue reading 0.005 mm Repeatable internal measurement where every micron counts The three‑point internal micrometer combines a mechanically stable frame with a kinematic contact system to reduce operator‑dependent variation. The instrument’s self‑centring principle ensures the measuring anvils align automatically in bore centres, which improves repeatability and shortens setup time during serial checks. With a resolution of 0.005 mm and a stated accuracy of ±0.005 mm, the device is suited to inspection tasks where sub‑millimetre conformity is critical, for example in precision bearings, small bores and gauge verification. Compact range designed for micro and fine mechanical work Classified in the micro range (10–100 mm), this short‑span model (16–20 mm) offers the stiffness and handling advantages required for watchmaking, instrument construction and small‑part assembly. The compact geometry minimises deflection and enables controlled contact pressure, so measurements remain stable even when taken by hand. The analogue operation provides tactile feedback preferred in many metrology benches and workshops where straightforward, robust instruments are required. Practical advantages for workshop routines and inspection Mechanically simple construction reduces maintenance and supports long service life under normal workshop conditions. The three‑point contact spreads the measuring force evenly, reducing local deformation of soft components and enabling reliable readings on cylindrical bores. The analogue scale with 0.005 mm graduations is immediately interpretable without batteries or electronics, making the instrument a practical choice for routine quality control and on‑bench verifications. Integration into quality processes and tooling sets The micrometer’s compact measuring range makes it an efficient addition to existing inspection kits and fixture checks. Its self‑centring action and fine graduation help standardise procedures: fewer adjustments are needed, inspection throughput increases and process capability feedback becomes more consistent. For environments seeking to improve first‑pass yields, this instrument provides a low‑complexity solution that complements digital and high‑precision gauges without duplicating functionality. For reliable, compact internal measurement choose the Metav IndustryLine three‑point internal micrometer and contact Metav Werkzeuge for tailored advice or ordering at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: M836.708 GTIN: 4061905041426 eCl@ss: 21170335 ETIM: EC003590 Numbers / Core Technical Data Measuring range: 16–20 mm Resolution (reading): 0.005 mm Accuracy: ±0.005 mm Analogue instrument Special features Self‑centring three‑point measuring system Precision measuring faces Classification: Micro range (10–100 mm) Category: internal micrometer FAQ What measuring tasks suit this three‑point internal micrometer? The three‑point internal micrometer is ideal for short‑range internal diameter checks on bearings, small bores and components in instrument and watch manufacture; its 16–20 mm span matches fine mechanical inspection needs. How precise are the readings with this instrument? Readings are taken on an analogue scale with a resolution of 0.005 mm and an accuracy of ±0.005 mm, which supports repeatable small‑part inspection in routine quality control. Does the instrument centre automatically inside the bore? Yes, the device uses a self‑centring three‑point geometry that aligns the measuring contacts within the bore to reduce setup variation and improve repeatability. Can this micrometer replace digital gauges in a production line? This analogue instrument complements digital systems by offering a battery‑free, robust option for quick checks; it is particularly useful where tactile feedback and mechanical simplicity are preferred. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16-20mm Three-Point Internal Micrometer With Setting Ring And Extension In Wooden Case - Metav IndustryLine
Precise three-point measurement for blind bores combines 0.005 mm accuracy, a robust three‑point measuring head and a matt‑chrome scale for dependable shop‑floor checks. Order the three‑point internal micrometer directly via Metav Werkzeuge or consult the team for application guidance. Three‑point internal micrometer M312.134.P — 16–20 mm range, 0.005 mm accuracy (Metav IndustryLine) The three‑point internal micrometer is designed for precise checking of blind bores and small internal diameters in the 16–20 mm range for workshop and inspection use Three‑point head for blind‑bore measurement Measuring range 16–20 mm Accuracy 0.005 mm for fine work Includes setting ring and extension Reliable accuracy for repeatable bore checks The instrument delivers 0.005 mm accuracy via a mechanical vernier system, giving a clear and repeatable reading for fine inspection work. The three‑point measuring head centres itself in the bore and reduces alignment errors that commonly occur with two‑point probes; this improves repeatability when inspecting series of components. Hardened contact faces and a matt‑chrome scale provide durable metrological references, so measurements remain stable under routine workshop conditions and calibration cycles. Practical handling and workshop durability A compact 75 mm frame and a substantial build ensure the gauge is straightforward to handle while remaining robust against knocks and routine use. The matt‑chrome scale and vernier resist glare for easy reading under workshop lighting, while the included setting ring allows quick verification against a master standard and the supplied extension increases the usable reach for deeper blind bores. The analogue design keeps operation simple and reliable without dependence on batteries, supporting continuous production checks. Focused application: blind bores and small components Engineered for internal inspection tasks, this micrometer is particularly suited to blind‑hole checks in assemblies, components and toolroom parts within the 16–20 mm band. Its three‑point geometry is advantageous for cylindrical bores where concentric seating and elimination of tilt are essential. As part of the Metav IndustryLine range, the tool pairs practical workshop usability with a verified build quality, making it appropriate for quality control, incoming inspection and maintenance checks across metalworking and mechanical assembly environments. For repeatable blind‑bore measurement choose the Metav IndustryLine three‑point internal micrometer and contact Metav Werkzeuge in Emmerich for tailored application advice via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: M312.134.P GTIN: 4054469158631 Brand: Metav IndustryLine Data Measuring range: 16–20 mm Accuracy: 0.005 mm Reading / Resolution: 0.005 mm Length: 75 mm Weight: 0.9 kg Special features Three‑point measuring head for blind bores Scale and vernier matt chrome‑plated Hardened measuring faces Includes setting ring and extension (100xØ11,7) Analog instrument FAQ Is this micrometer suitable for blind bores? Yes. The three‑point internal micrometer M312.134.P is designed specifically for blind‑hole measurement and centres itself to reduce tilt errors. What is the declared accuracy and resolution? The instrument provides an accuracy of 0.005 mm with a vernier reading of 0.005 mm, as stated for the Metav IndustryLine three‑point internal micrometer. Does the gauge include accessories for calibration? Calibration aids are included: the delivery contains a setting ring and an extension to verify and extend the measuring range during inspections. Are the measuring faces durable for shop use? Yes. The measuring faces are hardened and the scale is matt‑chrome plated to withstand regular workshop handling while maintaining reliable readings. Which applications suit the 16–20 mm range? Typical uses are small internal diameters on components, blind‑hole checks in assemblies and incoming inspection of machined parts where repeatable internal measurement is required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
1600-1800 mm Digital Bore Micrometer With Friction Ratchet, IP65, ISO 17025 Calibrated - Microtech Metrology
Reliable large‑format measurement is achieved through the combination of a robust digital micrometer head, a 1,600–1,800 mm measuring range and factory ISO 17025 calibration; order directly from Metav Werkzeuge or consult our specialists for application advice. Digital Micrometer (1,600–1,800 mm) by Microtech Metrology — IP65, ISO 17025 A Digital Micrometer (1,600–1,800 mm) intended for long‑span workshop metrology, offering rugged IP65 protection and a factory ISO 17025 calibration certificate for traceable results. ISO 17025 calibration certificate included IP65 protection for harsh environments Measuring range 1,600–1,800 mm 0.001 mm digital resolution, ratchet stop Reliable measurement for large components This long‑span measuring instrument is designed to deliver consistent results on components too large for standard micrometres. Placed in the Long category (measuring ranges up to 2,000 mm), it provides a practical compromise between reach and rigidity for heavy‑duty assemblies and long shafts. The digital readout with 0.001 mm resolution reduces reading errors compared with analogue gauges, while the ratchet mechanism ensures reproducible contact pressure during each measurement. Together, these features support repeatable dimensional checks on fixtures, housings and long bar stock. Traceable accuracy with laboratory calibration Accuracy is backed by a laboratory calibration: the instrument is supplied with an ISO 17025 calibration certificate (Ilac MRA), which documents measurement traceability and allows integration into quality systems. The specified accuracy is ±0.03 mm, which is stated on the calibration certificate, and the fine 0.001 mm display resolution enables users to detect small deviations during in‑process checks. For procurement and quality teams this means clear evidence of conformity and easier acceptance into inspection routines. Built to withstand workshop conditions The measuring head is rated IP65, meaning the unit resists dust ingress and low‑pressure water jets, making it suitable for workshop environments where contamination and coolant mist are present. Large measuring faces Ø50 mm distribute contact force and reduce local deformation on softer specimens. The construction balances robustness and handling: although the instrument has significant mass, its design supports stable measurement over extended spans and reduces the influence of accidental knocks. Practical handling and setup for production use Delivery includes setting rods, enabling quick adaptation to different measuring tasks without extra accessories. The large measuring range of 1,600–1,800 mm accommodates long shafts and assemblies without resorting to multiple gauges, simplifying inspection workflows. The digital interface provides immediate, easy‑to‑read values that speed up throughput, while the ratchet ensures consistent measuring force across operators, reducing operator‑induced scatter and improving process reliability. Contact Metav Werkzeuge today to secure the Microtech Metrology digital micrometer (SKU 110171801) with ISO 17025 calibration and receive expert advice from our Emmerich team. Technical data SKU: 110171801 GTIN: 4061905040436 Manufacturer: Microtech Metrology Facts Measuring range: 1,600–1,800 mm Resolution: 0.001 mm Accuracy: ±0.03 mm Measuring face diameter: Ø50 mm Weight: 16.2 kg IP rating: IP65 Special features Digital micrometer head Ratchet / friction stop Setting rods included Calibration certificate ISO 17025 (Ilac MRA) Wide‑range long micrometer FAQ What measuring range does this instrument cover? The instrument covers a measuring span of 1,600–1,800 mm as supplied by Microtech Metrology (SKU 110171801). Is the micrometer supplied calibrated and documented? Yes — the digital micrometer is delivered fully calibrated with an ISO 17025 calibration certificate, which documents traceability and measurement uncertainty. Can the tool be used in dusty or damp workshop conditions? The device is rated IP65, so it is protected against dust ingress and low‑pressure water jets, making it suitable for demanding workshop environments. What resolution and repeatability can be expected? The digital readout provides 0.001 mm resolution and the specified accuracy on the calibration certificate is ±0.03 mm, with a ratchet to support repeatable measuring force. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
16mm Digital Three-Point Internal Measuring Gauge With Carbide Measuring Faces, IP65, Setting Ring - Metav IndustryLine
Take advantage of precise, repeatable bore inspection with IP65 protection and carbide measuring faces for long service life; order the instrument directly via Metav Werkzeuge or consult our advisors for application support. M312.233.PN — Digital three-point internal micrometer, 12–16 mm, IP65, carbide faces (Metav IndustryLine) The M312.233.PN is a compact digital three-point internal micrometer designed for fast, accurate measurement of small bores and blind holes in workshop and production environments. Digital readout with mm/inch and HOLD function IP65 protection for dust and coolant resistance Carbide measuring faces for wear-resistant contact Repeatable small-bore measurement for production control The three-point contact geometry ensures stable centring inside bores, producing highly repeatable results in tight diameters. With a measurement range of 12–16 mm classified in the micro category, this instrument is ideal where compactness and stiffness matter for precision work on small components. The combination of a 0.001 mm resolution and a specified accuracy of 0.005 mm provides a clear, quantitative basis for in-process inspection and sorting, reducing rework and increasing throughput. Robust construction that survives the shop floor Built with carbide measuring faces, the gauge resists wear from repeated contact and abrasive contaminants, extending service intervals and preserving calibration. The IP65 rating protects the electronics from dust and washdown fluids, which means stable performance even in harsher production conditions. The unit’s overall design balances durability with a compact footprint, making it suitable for bench use or on jigs where access is restricted. Digital functionality and traceability for modern workflows The instrument features a clear digital display with ON/PRESET, mm/inch conversion and a HOLD function for reading in awkward positions. A data interface (RB 6) is provided for straightforward transfer to inspection systems or SPC software, enabling faster documentation and trend analysis. Conformity with DIN 863 ensures the measuring concept follows established standards, supporting quality records and audits. Ready-to-use delivery and practical accessories The micrometer is supplied with a setting ring for quick zeroing and an extension (150 x Ø11.8) to reach recessed or difficult-to-access bores, so measurement routines can begin immediately. Delivery in a protective case ensures safe transport and storage between jobs. The construction and included accessories make this a turnkey solution for workshops requiring reliable internal diameter checks, especially for blind-hole measurements where contact stability is critical. Order the Metav IndustryLine M312.233.PN through Metav Werkzeuge for assured precision and dedicated technical advice — email info@metav-werkzeuge.com or call +49 2822 7131930 to confirm suitability for specific applications Technical data Article number: M312.233.PN GTIN: 4054469179094 ECLASS: 21170335 ETIM: EC003590 Core technical values Measurement range: 12–16 mm Resolution: 0.001 mm Accuracy: ±0.005 mm Weight: 1 kg Protection rating: IP65 Designs and special features Carbide measuring faces Digital display with ON/PRESET, mm/inch and HOLD Setting ring included Extension 150 x Ø11.8 included Delivery in protective case for transport Suitable for blind-hole measurement Data output: RB 6 Compliant with DIN 863 FAQ What is the smallest diameter the instrument measures? The instrument covers a measurement range of 12–16 mm and is tailored for precise checks within that span. Is the gauge suitable for blind-hole inspection? Yes, the M312.233.PN is specifically configured for blind-hole measurement and includes an extension to access recessed bores. How precise is the digital readout? The digital display provides a 0.001 mm resolution with an overall accuracy of ±0.005 mm, suitable for demanding workshop checks. Can measured values be exported to quality systems? Yes, data can be transmitted via the RB 6 interface for integration with SPC or inspection software. Are replacement measuring faces available? Carbide faces are standard on this model; replacements or service should be requested through Metav Werkzeuge or an authorised service channel. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16–20 mm Digital Three-Point Internal Measuring Gauge With Carbide Measuring Faces, IP65, Setting Ring - Metav IndustryLine
Taking advantage of the IP65 protection together with carbide measuring faces and a fine 0.001 mm display ensures reliable, repeatable internal diameter readings for confined bores; order the digital three-point inside micrometer directly via Metav Werkzeuge or consult the Metav advisors for application-specific advice. Digital three-point inside micrometer M312.234.PN — 16–20 mm, IP65, carbide anvils The Digital three-point inside micrometer M312.234.PN is a compact electronic instrument for precise internal diameter measurement in small bores and blind-hole applications. Digital readout 0.001 mm resolution Carbide measuring faces for wear resistance IP65 dust- and splash-proof construction Includes setting ring and extension Accurate centring for blind-hole measurements The three-point measuring head provides automatic centring inside cylindrical bores, which makes it especially effective for blind-hole bores and short internal diameters. Classified as a micro-range instrument (measurement range 16–20 mm), this tool combines compact geometry with high stiffness so that the short anvils remain torsion-resistant during measurement. The hardened carbide measuring faces preserve measuring geometry over intensive use, extending service life and reducing rework caused by worn contacts. Traceable numerical precision and robust shop-floor design With a display resolution of 0.001 mm and a stated accuracy of ±0.005 mm, the instrument meets demanding dimensional control tasks on the production line. The electronic module offers ON/PRESET, mm/inch and HOLD functions and an RB 6 data output for integration into measurement data collection systems. The sealed IP65 housing protects the electronics from chips and coolant—supporting consistent readings in workshop environments while maintaining compliance with DIN 863 for measuring instruments. Practical features that support everyday metrology Delivery includes a setting ring (Ø 16 mm) and an extension (150 x Ø11.8) for expanded measuring reach and straightforward calibration checks. The lightweight construction (approx. 1 kg) and simple key layout reduce handling time during repeated measurements. Designed for industrial use, the instrument suits machine shops and quality departments that require compact, repeatable internal measurements without the need for complex fixtures. For specification clarifications or measurement strategy, Metav’s technical team can provide further guidance based on production requirements. Discuss measurement needs with Metav Werkzeuge and secure the M312.234.PN for reliable internal-diameter control on the shop floor Technical data SKU: M312.234.PN GTIN: 4054469179100 Label: Digital three-point inside micrometer, 16–20 mm, IP65 with carbide measuring faces, setting ring Facts Measuring range: 16–20 mm Resolution: 0.001 mm Accuracy: ±0.005 mm Weight: 1 kg Protection class: IP 65 Standard: DIN 863 Customs tariff number: 90173000 Special features Carbide measuring faces (HM) Digital display with ON/PRESET, mm/inch and HOLD functions Data output: RB 6 Includes setting ring (Ø 16 mm) and extension (150 x Ø11.8) Suitable for blind-hole bores (three-point centring) FAQ What measurement range does this instrument cover? The M312.234.PN covers internal diameters from 16 to 20 mm and is therefore classified as a micro-range measuring instrument suitable for fine mechanical work. How precise is the digital readout? The digital module provides a resolution of 0.001 mm and an accuracy of approximately ±0.005 mm for the specified measuring range. Can the device be used in wet or dusty workshop conditions? Yes. The instrument’s IP65 protection rating keeps the electronics safe from dust ingress and low-pressure water jets, aiding reliable operation at the machine. Is the micrometer suitable for blind-hole measurements? The three-point measuring head is expressly designed for internal measurements in blind holes, supplying automatic centring for consistent results. Which accessories are delivered with the micrometer? Delivery includes a setting ring (Ø 16 mm) and an extension (150 x Ø11.8) for adaptation to specific measuring situations. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16–20 mm Three-Point Internal Micrometer With Carbide Measuring Faces, Adjustment Ring, Supplied In Case - Metav IndustryLine
Benefit from a compact, high-precision instrument that combines a 16–20 mm measuring range, carbide measuring faces and a dedicated setting ring for reproducible internal checks; order directly via Metav Werkzeuge or consult our specialists for application advice. Three-point inside micrometer 16–20 mm — carbide faces, setting ring | Metav IndustryLine The Three-point inside micrometer 16–20 mm is a precision tool for internal diameter measurement in fine mechanical and workshop environments, optimised for repeatable bore checks and blind‑hole applications Carbide measuring faces for wear resistance High precision ±0.005 mm accuracy Compact 16–20 mm measuring range Delivered with setting ring and protective case Precision where it counts for internal bores The instrument uses a three-point measuring mechanism that centres automatically in a bore, producing stable, repeatable contact with minimal operator influence. This design, combined with carbide measuring faces, reduces wear and preserves measurement integrity over many cycles, which is crucial when tolerance margins are tight. The specified ±0.005 mm accuracy makes the gauge suitable for metrology tasks that demand finer-than-standard control, while compliance with DIN 863 ensures compatibility with established workshop practices and inspection protocols. Designed for reliable blind‑hole and internal measurements A dedicated setting ring is included to verify and adjust the gauge at the reference diameter, simplifying zeroing before series checks. The geometry of the three contact points permits measurements in shallow and blind‑hole bores where conventional two‑point probes struggle to centre. As an analogue instrument with a matt finish on the scale and vernier, the device offers tactile feedback and quick visual readout, making it effective for both bench inspection and in‑process checks where digital readouts are not required. Workshop durability and practical handling The scale and vernier are matt‑chrome plated for reduced reflection and improved legibility under workshop lighting, while the carbide faces withstand abrasive conditions typical in production environments. The gauge is supplied in a protective case for safe transport and storage, and it accepts the listed compatible extensions for extended reach tasks. Together, these features aid efficient measurement cycles and lower the likelihood of rework, supporting a smoother production flow and predictable quality control in small‑part manufacturing. For tailored measurement advice or a supply review from Metav Werkzeuge — including information on setting rings, compatible extensions and delivery options from our Emmerich facility — contact our consultants to discuss the application in detail. Technical data Article number: M312.134 GTIN/EAN: 4054469119472 EClass: 21170335 ETIM: EC003590 Standard: DIN 863 Category: Micrometers Dimensions & accuracy Measuring range: 16–20 mm Accuracy / resolution: 0.005 mm Setting ring size: 16 mm Length: 80 mm Materials & features Scale and vernier: matt‑chrome plated Measuring faces: carbide Analogue instrument with mechanical vernier Suitable for blind‑hole bores Delivered with setting ring and protective case Compatible extensions: 150×Ø11.7 FAQ How accurate is the three-point inside micrometer? The instrument achieves an accuracy of 0.005 mm, making the Three-point inside micrometer 16–20 mm suitable for high‑precision internal diameter checks. Can it measure blind holes? Yes — the three‑point contact geometry is designed to perform reliable checks in blind‑hole bores, and the gauge is specified for that application. Is a calibration standard supplied? A setting ring (16 mm) is included to verify zeroing; for formal calibration services please contact Metav Werkzeuge for options. What materials are the measuring faces made from? The measuring faces are made of carbide, selected for wear resistance in workshop and production environments. Does the product include storage or transport protection? The gauge is supplied in a protective case for transport and safe storage and ships with the setting ring and compatibility for the listed extensions. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
16–20mm Three-Point Internal Micrometer 0.001mm Resolution With Setting Ring And Extension, In Case - Metav IndustryLine
Take advantage of the combination of precise three‑point measurement, ultra‑fine 0.001 mm resolution and hardened measuring faces for reproducible bore inspection; order the instrument directly via Metav Werkzeuge or consult our technical team for application advice. Three‑point internal micrometer M312.434 — 16–20 mm, 0.001 mm resolution (Metav IndustryLine) A three‑point internal micrometer M312.434 designed for high‑precision measurement of small bores, supplied with a setting ring and extension for adaptable, repeatable inspection. Three‑point internal measurement for bore accuracy 0.001 mm resolution for sub‑micron control Includes setting ring and extension Supplied in protective case with hardened anvils Precision where bore geometry counts The three‑point measuring principle ensures rapid centring in cylindrical bores and reduces measurement deviation caused by off‑axis contact. Using three contact points produces a stable datum that is particularly effective for blind bores and short‑run features; the result is repeatable diameter readings and fewer rechecks during quality control. This compact instrument is purpose‑built for fine mechanical tasks where consistent internal measurement is essential. Measurable benefits from fine resolution With a 0.001 mm resolution and a stated accuracy of ±0.005 mm, the micrometer bridges the gap between routine workshop gauges and specialist metrology equipment. These figures permit confident inspection of tight tolerances in small components and reduce the need for conservative tolerances that can inflate manufacturing costs. The micro‑range of 16–20 mm makes the tool ideal for precision components in watchmaking, medical devices and small assemblies where small geometry changes matter. Accessories that increase throughput and reliability Supplied with a setting ring and a calibrated extension (152.4 × Ø11.8 mm), the instrument adapts to stepped bores and deeper features without compromising stability. The measuring faces are hardened, improving wear resistance and long‑term stability; a protective case keeps the set organised and safe in workshop environments. Together, these accessories shorten setup time and support a consistent measuring routine that saves labour and reduces scrap. Practical fit for workshop workflows Compact and ergonomically balanced, this internal micrometer is suitable for bench inspection or integration into routine incoming‑goods checks. The solid construction and matt‑chrome scale provide clear readings while resisting workshop contamination. For operations seeking dependable repeatability and a small footprint instrument, the M312.434 offers a robust solution that complements existing precision toolsets without extensive retraining. Contact Metav Werkzeuge for detailed application advice and secure the Metav IndustryLine M312.434 three‑point internal micrometer with 0.001 mm resolution for precise bore inspection at your facility. Technical data Article number: M312.434 GTIN: 4054469182162 Manufacturer: Metav IndustryLine Facts Measuring range: 16–20 mm Resolution: 0.001 mm Accuracy: ±0.005 mm Weight: 0.9 kg Special features Three‑point internal measurement Setting ring: 16 mm Extension: 152.4 x Ø11.8 mm Measuring faces: hardened Scale and vernier: matt chrome‑plated Delivered in protective case Suitable for blind bores FAQ What is the measuring range of this micrometer? The three‑point internal micrometer M312.434 measures internal diameters from 16 to 20 mm. What resolution and accuracy can be expected? The instrument offers a resolution of 0.001 mm and an accuracy of ±0.005 mm, suitable for fine‑tolerance inspection. Can the micrometer measure blind bores reliably? Yes, the three‑point geometry and included extension make the M312.434 well suited to blind bore measurement. What accessories are included with the tool? The delivery contains a setting ring and an extension (152.4 × Ø11.8 mm) plus a protective case for safe storage. Are the measuring faces durable for daily use? The measuring faces are hardened to resist wear, supporting stable readings over extended workshop use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
170-230mm Universal Bore Gauge With Replaceable Anvils, Wireless/USB Digital Output - Microtech Metrology
Take advantage of the combination of a wide 170–230 mm measuring range, high 0.006 mm accuracy and modern Wireless + USB data transfer for reproducible results and faster inspection cycles. The instrument supports interchangeable anvils for flexible measuring tasks; anvils are not included. Order the micrometer directly via Metav Werkzeuge or consult our specialists for application advice. Universal Micrometer 170–230 mm — Digital outside micrometer with Wireless + USB by Microtech Metrology The Universal Micrometer 170–230 mm is a robust digital outside micrometer designed for large-range external measurements in production and inspection environments, offering precise readings and integrated data transfer for streamlined quality workflows. 170–230 mm measurement range High accuracy ±0.006 mm Wireless and USB data output Interchangeable anvils (anvils not included) Accurate control for production quality The instrument delivers a consistent 0.006 mm accuracy across the measuring span, backed by a fine resolution of 0.0001 mm on the digital display. This level of precision reduces process variation and lowers reject rates when used for final checks or in-process control. The long measuring span allows inspection of larger external diameters and stepped parts without frequent tool changes, improving throughput in small-series and batch environments. The robust frame and 110 mm measuring depth maintain stability during contact, ensuring reproducible results. Faster documentation and fewer errors Integrated Wireless and USB data outputs eliminate manual transcription and accelerate statistical process control. Measurement values can be transferred directly into SPC systems or spreadsheets, cutting administrative time and the risk of clerical mistakes. The digital readout and microcontroller-driven electronics provide clear numeric output and rapid sampling, which suits inspection stations that feed measurement data into production reports. Where traceability is required, the instrument’s digital interface supports systematic archiving of measured values. Flexible configuration for diverse tasks Designed as a universal outside micrometer, this instrument accepts interchangeable anvils so the same base unit adapts to different part geometries; note that anvils are not supplied with the device. The interchangeable system preserves the core calibration while allowing tailored contact faces for shafts, steps or specialised fixtures. The 170–230 mm working range and 110 mm depth make this micrometer appropriate for components commonly found in machine construction, toolmaking and assembly work. Its digital electronics and data links make it suitable for integration into modern inspection workflows. For reliable high‑accuracy measurement and integrated data capture, choose the Microtech Metrology digital micrometer and contact Metav Werkzeuge for application guidance and purchase support at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: 115052377 GTIN: 4061905458262 Manufacturer: Microtech Metrology Facts Measuring range: 170–230 mm Measuring depth: 110 mm Accuracy: ±0.006 mm Resolution: 0.0001 mm Special features Digital instrument with Wireless + USB data output Interchangeable anvils, not included Category: Micrometers (outside micrometer) Digital display and microcontroller electronics FAQ What is the measuring range of the micrometer? The measuring range of the Universal Micrometer covers 170–230 mm, suitable for larger external diameters and stepped components. Does the micrometer include interchangeable anvils? The micrometer accepts interchangeable anvils for versatile contact geometries, however the anvils are not included with the unit. How are measurement values exported? Measurement values can be transmitted via Wireless connection or USB, enabling direct transfer to SPC systems or data logging software. What level of accuracy and resolution does the instrument provide? The instrument achieves an accuracy of ±0.006 mm with a display resolution of 0.0001 mm, offering a high level of reproducibility for production inspection. Is the micrometer suitable for integration into production inspection workflows? Yes, the combination of digital output and a wide measuring range makes the device well suited for integration into automated or semi‑automated inspection routines. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Precision micrometers built for repeatable accuracy
Micrometers—also referred to as micrometer screw gauges or micrometer callipers—are compact, robust instruments for fast, highly accurate length measurement of small to medium workpieces. Designed for routine use on the shop floor, these tools combine mechanical reliability with options for digital data capture, making them indispensable where repeatable tolerances matter.
How micrometers work and where they belong in production
Micrometers operate on a finely threaded spindle that brings two measuring faces into alignment with the workpiece; many designs follow the Abbe comparator principle so that the measuring axis and scale are collinear, reducing tilting errors. Typical outside micrometers (bühlermessschrauben) provide readings down to 1/1000 mm (0.001 mm) in analogue form; internal micrometers and specialised two- or three-point gauges enable accurate diameter and bore measurements, while depth micrometers cover depths from 0–300 mm. Hardened carbide (HM) measuring faces are standard to prevent wear and maintain accuracy over time. Digital variants offer easy reading, unit switching (mm/inch) and data output via USB, RS interface or Bluetooth; advanced models with an integrated minicomputer support Go/NoGo checks, temperature compensation and wireless transmission up to 50 m.
Practical benefits that improve shop‑floor performance
- Reduced rework and higher first-pass yield thanks to repeatable accuracy and carbide-tipped measuring faces.
- Faster, safer measurement cycles by using the ratchet/coupling to limit measuring force to 5 N to 10 N, protecting both part and instrument.
- Flexible inspection workflows with analogue, digital and minicomputer options, including wireless data transfer and mm/inch toggle.
- Versatile coverage with outside, internal, depth and built-in micrometers offering measuring ranges from a few millimetres up to 300 mm and resolution down to 2 µm (internal) or 0.003 mm (standard depth micrometers).
- Durable operation in workshop environments: mechanical models resist dust and moisture, while digital versions are available with IP54 protection.
Metav — a precision partner you can rely on
Metav combines decades of technical expertise with a broad, quality-filtered product range from its Emmerich hub. Over 48,000 customers trust Metav’s offer of more than 250,000 products, which simplifies procurement and secures reliable supply for industry, trade and specialist retailers. For buyers seeking micrometers with consistent performance and traceable data capture, Metav’s selection and technical support make it a practical, long-term choice.
In short
Micrometers provide robust, highly repeatable measurement for external, internal and depth applications, available in analogue, digital and minicomputer formats to match precision requirements and data‑management needs.
FAQ
How precise are micrometers for internal measurements?
Internal micrometers in the micrometers category can achieve accuracies around 2 µm when correctly used; digital and minicomputer models improve readout convenience and data integration for traceable inspection results.
When is a digital micrometer preferable to an analogue one?
Choose a digital micrometer when easy readout, unit conversion (mm/inch), or data transmission is required. Digital models with IP54 rating also offer dust and splash protection, while analogue micrometers remain the most robust option in harsh environments.
What measuring force should be used to ensure consistent results?
The recommended measuring force for micrometers is 5 N to 10 N. Use the ratchet or friction thimble to apply this consistent force and rely on the insulating sleeve to minimise heat transfer from the hand.
Can depth micrometers measure small bores and tight features?
Yes. Depth micrometers use a fine needle or flat measuring face and, with suitable extensions, cover narrow or deep features; standard depth micrometers typically span 0–300 mm with accuracies near 0.003 mm, while specialised digital systems offer even higher resolution.
