170-230mm Universal Bore Gauge With Replaceable Anvils, Wireless/USB Digital Output - Microtech Metrology
€1,590.00
Product information "170-230mm Universal Bore Gauge With Replaceable Anvils, Wireless/USB Digital Output - Microtech Metrology"
Take advantage of the combination of a wide 170–230 mm measuring range, high 0.006 mm accuracy and modern Wireless + USB data transfer for reproducible results and faster inspection cycles. The instrument supports interchangeable anvils for flexible measuring tasks; anvils are not included. Order the micrometer directly via Metav Werkzeuge or consult our specialists for application advice.
Universal Micrometer 170–230 mm — Digital outside micrometer with Wireless + USB by Microtech Metrology
The Universal Micrometer 170–230 mm is a robust digital outside micrometer designed for large-range external measurements in production and inspection environments, offering precise readings and integrated data transfer for streamlined quality workflows.
- 170–230 mm measurement range
- High accuracy ±0.006 mm
- Wireless and USB data output
- Interchangeable anvils (anvils not included)
Accurate control for production quality
The instrument delivers a consistent 0.006 mm accuracy across the measuring span, backed by a fine resolution of 0.0001 mm on the digital display. This level of precision reduces process variation and lowers reject rates when used for final checks or in-process control. The long measuring span allows inspection of larger external diameters and stepped parts without frequent tool changes, improving throughput in small-series and batch environments. The robust frame and 110 mm measuring depth maintain stability during contact, ensuring reproducible results.
Faster documentation and fewer errors
Integrated Wireless and USB data outputs eliminate manual transcription and accelerate statistical process control. Measurement values can be transferred directly into SPC systems or spreadsheets, cutting administrative time and the risk of clerical mistakes. The digital readout and microcontroller-driven electronics provide clear numeric output and rapid sampling, which suits inspection stations that feed measurement data into production reports. Where traceability is required, the instrument’s digital interface supports systematic archiving of measured values.
Flexible configuration for diverse tasks

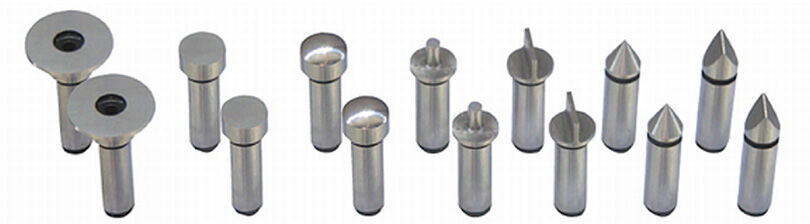

Designed as a universal outside micrometer, this instrument accepts interchangeable anvils so the same base unit adapts to different part geometries; note that anvils are not supplied with the device. The interchangeable system preserves the core calibration while allowing tailored contact faces for shafts, steps or specialised fixtures. The 170–230 mm working range and 110 mm depth make this micrometer appropriate for components commonly found in machine construction, toolmaking and assembly work. Its digital electronics and data links make it suitable for integration into modern inspection workflows.
For reliable high‑accuracy measurement and integrated data capture, choose the Microtech Metrology digital micrometer and contact Metav Werkzeuge for application guidance and purchase support at info@metav-werkzeuge.com or by phone on +49 2822 7131930
Technical Data
- Article number: 115052377
- GTIN: 4061905458262
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 170–230 mm
- Measuring depth: 110 mm
- Accuracy: ±0.006 mm
- Resolution: 0.0001 mm
Special features
- Digital instrument with Wireless + USB data output
- Interchangeable anvils, not included
- Category: Micrometers (outside micrometer)
- Digital display and microcontroller electronics
FAQ
What is the measuring range of the micrometer?
The measuring range of the Universal Micrometer covers 170–230 mm, suitable for larger external diameters and stepped components.
Does the micrometer include interchangeable anvils?
The micrometer accepts interchangeable anvils for versatile contact geometries, however the anvils are not included with the unit.
How are measurement values exported?
Measurement values can be transmitted via Wireless connection or USB, enabling direct transfer to SPC systems or data logging software.
What level of accuracy and resolution does the instrument provide?
The instrument achieves an accuracy of ±0.006 mm with a display resolution of 0.0001 mm, offering a high level of reproducibility for production inspection.
Is the micrometer suitable for integration into production inspection workflows?
Yes, the combination of digital output and a wide measuring range makes the device well suited for integration into automated or semi‑automated inspection routines.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
