Precision gauge blocks and plug gauges for reliable dimensional control
Mechanical gauge blocks and plug gauges are essential for tactile verification of threads, bores and gap dimensions, providing fast, unambiguous go/no-go results that enhance process reliability and reduce scrap. Designed for industrial metalworking and toolmaking, these precision tools support incoming inspection and final quality checks by delivering traceable measurements in applications such as thread inspection, bore diameter testing and spacing checks. Manufactured from specially hardened, low-distortion alloys and fine-lapped for minimal measurement uncertainty, the range includes thread plug gauges, precision plug gauges and calibration gauge blocks to ensure long-term repeatability and wear resistance.
0.51mm Test Pin Single ±0.001mm Length 50mm Workshop Version - Metav IndustryLine
Take advantage of the combination of ±0.001 mm accuracy, a 0.51 mm diameter and robust workshop construction to secure repeatable end‑dimension checks. Order the pin directly via Metav Werkzeuge or contact our advisers for application guidance. M323.051 gauge pin — 0.51 mm, ±0.001 mm, 50 mm (Metav IndustryLine) The M323.051 gauge pin is a workshop‑grade inspection pin for precise end‑measure verification and tight‑tolerance plug checks in metrology and quality control applications. Workshop version for robust daily use Diameter 0.51 mm with ±0.001 mm accuracy Length 50 mm compact reach Made from special hardened steel Precision that stabilises production quality The inspection pin delivers an exceptionally fine tolerance of ±0.001 mm, making it suitable for tasks where micrometric repeatability is decisive. In small‑bore checks, tool setting and go/no‑go testing the controlled diameter reduces interpretative scatter and supports faster decision‑making in the inspection loop. The declared 0.51 mm nominal size and the tight tolerance translate directly into fewer reworks and clearer acceptance criteria for incoming or finished parts, which strengthens process reliability across batch runs. Built for workshop handling and longevity Presented in a workshop execution, the pin is manufactured from special steel chosen for wear resistance and dimensional stability under frequent handling. At 50 mm overall length the pin balances reach and stiffness, allowing confident probing in jigs and fixtures without excessive bending. The compact form factor eases storage in tool cabinets and enables straightforward use with height gauges, bore gauges and manual fixtures, while the hardened finish helps preserve the critical measuring diameter over extended service intervals. Efficient integration into inspection routines Supplied as a single precision pin with a clear product identity, the component integrates cleanly into existing inspection kits and custom jigs. The low mass and defined geometry make it easy to index or clamp for comparative checks, supporting both rapid spot checks and measured validation chains. For bespoke requirements or batch supply, Metav Werkzeuge can advise on inventory sizing and compatible measurement workflows to ensure the pin becomes a reliable element of the quality assurance chain. Contact Metav Werkzeuge for tailored supply and technical advice on the M323.051 gauge pin and its use in metrology processes. Technical data Article number: M323.051 GTIN: 4061905055164 Label: Prüfstift, einzeln, 0,51 mm, +/- 0.001 mm Länge 50 mm Facts Nominal diameter: 0.51 mm Length: 50 mm Accuracy / tolerance: ±0.001 mm Weight: 0.003 kg Special features Material: special steel Version: workshop execution Delivery form: single inspection pin Category: gauge pins (Messstifte) FAQ What is the measurement tolerance of this pin? The pin is specified with an accuracy of ±0.001 mm, which makes it suitable for very fine end‑dimension checks and high‑precision go/no‑go tasks. Is the M323.051 suitable for fixture and jig use? Yes, the M323.051 gauge pin is designed for workshop use and its 50 mm length and hardened special‑steel construction make it appropriate for clamps, jigs and manual fixtures. How is the product supplied and identified? The item is supplied as a single inspection pin and is identified by Article number M323.051 and GTIN 4061905055164 for traceability and stock handling. Can Metav provide advice on matching the pin to measurement equipment? Technical guidance and recommendations for integration into measurement routines are available from Metav Werkzeuge; contact details are provided below. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.52mm Gauge Pin 50mm Length ±0.001mm Workshop Version - Metav IndustryLine
Take advantage of workshop-grade construction, ±0.001 mm accuracy and a compact 50 mm shank for reliable end‑measurement and gauge checks. Order the precision gauge pin directly via Metav Werkzeuge or consult our specialists for integration advice. Gauge pin, single, 0.52 mm, ±0.001 mm (M323.052) — Metav IndustryLine workshop version The gauge pin M323.052 is a workshop‑grade precision test pin intended for high‑accuracy end‑measurement and fixture inspection in metrology and production control. Workshop‑grade execution Diameter 0.52 mm, tolerance ±0.001 mm Length 50 mm for deep reaches Made from special steel Supplied in a transport case Accuracy that secures process quality A tolerance of ±0.001 mm (1 µm) places this test pin at the upper end of tactile inspection accuracy, making it suitable where minimal deviation is critical. The fine 0.52 mm diameter combined with the tight tolerance ensures reproducible fits in gauge blocks, plug gauges and inspection fixtures. For production environments, this level of precision reduces scrap and rework by providing an objective reference for end‑measurement, so decisions about part conformity rely on measurable, repeatable data rather than estimates. Robust workshop design for daily use Built as a workshop‑grade item from special steel, the pin resists wear under frequent seating and insertion, maintaining dimensional integrity through repeated cycles. The 50 mm shank length supports measurements in deeper bores or recessed features while keeping the handling comfortable and controlled. Delivery in a secure transport case protects the ground surface during storage and transit, preserving the reference geometry and extending service life under shop conditions. Practical applications and handling benefits This single‑piece test pin is ideal for end‑measure checks, go/no‑go gauge inserts, and inspection routines in general machining and assembly workflows. Its light mass and compact form facilitate quick manual positioning and mounting in fixtures or test stands. When paired with standard gauge housings or comparators, the pin provides a reliable datum for pass/fail assessments and dimensional traceability in routine quality control. Workshop teams benefit from predictable measurement results and a simple inspection workflow based on objective criteria. For a practical evaluation of suitability and to procure the Metav IndustryLine gauge pin M323.052 for production or inspection use, contact Metav Werkzeuge in Emmerich for product advice and order coordination. Technical data Article number: M323.052 GTIN: 4061905055171 Material: Special steel Diameter: 0.52 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.003 kg Brand: Metav IndustryLine Facts Accuracy: ±0.001 mm Execution: Workshop version Packaging: Supplied in transport case Special features Single test pin for end measurement Suitable for precision inspections and gauges SKU: M323.052 FAQ What level of accuracy does this gauge pin provide? The gauge pin offers ±0.001 mm accuracy, providing micrometre‑level repeatability suitable for precision inspection and end‑measurement tasks with the Metav IndustryLine test pin (M323.052). Can the pin be used in standard gauge housings and fixtures? Yes, the M323.052 is designed for integration into common gauge housings and inspection fixtures; its 0.52 mm diameter and 50 mm length suit recessed features and standard holding devices. What material is the test pin made from and how does that affect wear? Manufactured from special steel, the pin combines hardness and surface integrity to resist wear during repeated seating, helping to maintain dimensional stability under normal workshop use. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.53mm Gauge Pin, Single, ±0.001mm Accuracy, Length 50mm, Workshop Version - Metav IndustryLine
High-precision inspection with a 0.53 mm diameter and ±0.001 mm tolerance, combined with a 50 mm length and special steel for stable seating, makes this gauge pin ideal for reliable end‑measure checks; order the M323.053 directly via Metav Werkzeuge or request technical advice from our consultants. M323.053 Gauge Pin — single test pin, 0.53 mm diameter, ±0.001 mm (Metav IndustryLine) The M323.053 is a single gauge pin designed for precision end‑measurement and fixture alignment in workshop metrology, offering micrometre‑class repeatability for small bores and reference points. Exceptional ±0.001 mm tolerance Fine 0.53 mm diameter for narrow features Sturdy 50 mm length for secure seating Supplied in a transport case for protection Precision that supports repeatable inspection The core benefit of this test pin is its micrometre-level accuracy. With a ±0.001 mm tolerance the component serves as a trustworthy reference for end‑measure checks, plug gauges and alignment tasks where even minor deviations matter. The fine 0.53 mm diameter is tailored to narrow bores and small features, enabling quality control processes to rely on consistent contact geometry. In practice, this precision reduces rework and shortens corrective loops in production, because measurements taken against a stable reference point lead to better process control. Robust design for workshop conditions Built in a workshop design and manufactured from special steel, the pin resists handling and retains form under routine use. The 50 mm length provides a confident seating depth in most fixture situations without compromising handling, and the low mass supports quick manual placement. Delivery in a transport case protects the pin during storage and transit, preserving the calibrated geometry and reducing the risk of surface damage that would affect measurement repeatability. For machining shops and maintenance benches this balance of durability and fine geometry delivers dependable daily performance. Simple integration into quality workflows The single test pin complements standard inspection setups and can be used as a reference for plug gauge checks, optical comparisons and fixture pre‑setting. Marked and traceable as part of inventory, the component supports traceable inspection routines and helps shorten setup times when matching parts or verifying end‑masses. Backed by the Metav IndustryLine ethos of accessible precision, this compact reference element brings laboratory‑grade repeatability to the shop floor while remaining straightforward to handle and deploy. For micrometre‑grade end‑measurement in production environments, contact Metav Werkzeuge to secure the Metav IndustryLine M323.053 gauge pin or to discuss its fit for specific fixture and inspection tasks Technical data Article number: M323.053 GTIN: 4061905055188 Description: Gauge pin, single, 0.53 mm, ±0.001 mm, length 50 mm Brand: Metav IndustryLine Specifications Diameter: 0.53 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Features Material: special steel Workshop version Delivered in transport case Single gauge pin FAQ What is the exact diameter and tolerance of this test pin? The M323.053 gauge pin has a diameter of 0.53 mm and a tolerance of ±0.001 mm. Which material is used for the pin? The test pin is manufactured from special steel chosen for wear resistance and dimensional stability. For which applications is this gauge pin suitable? This single gauge pin is suitable for end‑measure checks, plug gauge references, fixture alignment and fine‑feature verification in workshop metrology. Is the pin delivered with protective packaging? Yes, the M323.053 is supplied in a transport case to protect the surface and ensure repeatable contact geometry. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.54mm Gauge Pin Length 50mm ±0.001mm Workshop Version - Metav IndustryLine
Take advantage of workshop-grade precision combined with robust construction: a 0.54 mm diameter pin with ±0.001 mm tolerance and a 50 mm length delivers reliable end-size checks and repeatable setting operations. Order directly via Metav Werkzeuge or consult our specialists for application guidance. Gauge pin M323.054 — 0.54 mm diameter, ±0.001 mm tolerance (Metav IndustryLine) The gauge pin M323.054 is a workshop-grade precision end gauge designed for dimensional verification, tool setting and fine-feature inspection in routine metrology tasks. Workshop-grade for routine inspections Diameter 0.54 mm, tolerance ±0.001 mm 50 mm length for easy handling Supplied in a transport case Accuracy engineered for repeatable checks The core advantage is the ±0.001 mm tolerance, which makes this pin suited to pass/fail gauging and fine-setting where small deviations matter. The small 0.54 mm diameter allows access to narrow bores and tight features while the controlled manufacturing keeps repeatability high across multiple checks. In practical terms, the combination of diameter and tolerance reduces setup iterations and shortens inspection cycles in production environments, supporting consistent component conformity. Robust workshop design for daily use Constructed from special steel, the pin balances wear resistance with fine surface finish to limit mating-part damage over repeated use. The 50 mm length provides a secure grip for handling and stable support in fixtures, while the low mass aids quick manual positioning. Supplied as a single, workshop-orientated unit, this design focuses on frequent use, straightforward handling and longevity under typical shopfloor conditions, delivering dependable dimensional references for assembly and verification tasks. Practical integration for quality workflows Integration into existing gauging benches and pin blocks is straightforward thanks to the standardised diameter and length; the compact form factor is ideal for in-process checks and tool-setting stations. The product supports faster decision-making during inspection and reduces rework through precise reference measurements. For traceability and procurement, the item is listed under SKU M323.054 and GTIN 4061905055195, enabling easy inventory control and replacement planning within quality systems. For routine workshop measurement rely on Metav IndustryLine’s precision—contact Metav Werkzeuge in Emmerich for supply and technical advice at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: M323.054 GTIN: 4061905055195 Label: Gauge pin, single, 0.54 mm, ±0.001 mm, length 50 mm ECLASS: 21170231 Facts Diameter: 0.54 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.003 kg Special features Material: special steel Workshop execution Single gauge pin for end-size checks Supplied in a transport case FAQ What is the measurement tolerance of this pin? The M323.054 gauge pin from Metav IndustryLine has a tolerance of ±0.001 mm, suitable for high-precision pass/fail checks and setting tasks. Which material is used for the pin? This gauge pin is manufactured from special steel, selected to balance surface finish and wear resistance for workshop use. What applications suit this gauge pin? The gauge pin M323.054 is intended for end-size verification, tool setting and inspection of narrow bores or small features in production and assembly workflows. Is the gauge pin supplied calibrated? No calibration certificate is specified for the M323.054 in the product data; calibration options can be arranged separately if traceable verification is required. How should the pin be handled and stored? Handle the pin by its shank to avoid contaminating the measuring surface, store it dry in its transport case and avoid contact with abrasive materials to preserve accuracy. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.55mm Gauge Pin, Single, ±0.001mm, 50mm Length, Workshop Version - Metav IndustryLine
Benefit from workshop‑grade reliability and micrometre‑class accuracy for repeatable bore checks: the 0.55 mm diameter with a ±0.001 mm tolerance and a 50 mm working length ensure dependable end‑measurement results. Order the gauge pin directly via Metav Werkzeuge or consult their advisers for application guidance. Gauge pin M323.055 — single 0.55 mm measuring pin, ±0.001 mm tolerance (Metav IndustryLine) The Gauge pin M323.055 is a workshop‑grade measuring pin designed for precise verification of small bores and end measurements in mechanical inspection and quality control. Workshop‑grade execution Diameter 0.55 mm ±0.001 mm Length 50 mm, supplied in transport case Accurate checks for micro‑diameters and end measurements The small diameter and tight tolerance make this measuring pin ideal where repeatability is critical. With a nominal diameter of 0.55 mm and a declared ±0.001 mm variation, the pin supports fine inspection tasks such as go/no‑go verifications and precise end‑length checks. Its dimensional stability reduces measurement uncertainty in routine control plans, enabling faster decision‑making in production environments and helping to maintain acceptance criteria without time‑consuming setup changes. Robust workshop design that keeps inspection fast Built as a workshop‑grade tool from special steel, the pin combines corrosion‑resistant surface behaviour with a geometry optimised for handling and insertion. The 50 mm length gives sufficient engagement for many small‑bore applications while remaining easy to position by hand or in simple fixtures. The compact mass and slim profile minimise disturbance to delicate parts during inspection so that throughput is maintained without sacrificing accuracy. Practical supply and inventory advantages for the workshop Supplied as a single measuring pin, the item is lightweight (approx. 0.003 kg) and comes with a transport case for safe storage and movement between workstations. The compact packaging supports straightforward inventory management and clear traceability in the workshop. For systems that record component identifiers, the item can be referenced by its article number and GTIN to simplify documentation and reorder procedures. Integration into quality routines with Metav backing As part of the Metav IndustryLine range, this measuring pin benefits from the supplier’s focus on accessible precision: products are selected to bridge day‑to‑day workshop needs and industrial quality standards. The combination of a narrow nominal diameter, micrometre tolerance and a practical length reduces non‑conforming results and supports lean inspection cycles. The tool is suited to machinists, quality technicians and fixture builders who require dependable small‑bore verification without complex setup. For reliable micro‑diameter verification, order the Metav IndustryLine gauge pin (M323.055) via Metav Werkzeuge in Emmerich or contact Metav Werkzeuge for application advice at info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: M323.055 GTIN: 4061905054075 Category: Gauge pins Facts Diameter: 0.55 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.003 kg Special features Material: Special steel Workshop version Supplied in transport case Single measuring pin FAQ What tolerance does the gauge pin offer? The Gauge pin M323.055 (Metav IndustryLine measuring pin) has a declared tolerance of ±0.001 mm, permitting micrometre‑class acceptance checks for small bores. Which inspection tasks suit this measuring pin? This measuring pin is intended for verification of small bore diameters and end measurements in workshop and production quality control; it is particularly useful for go/no‑go checks and simple dimensional confirmations. Is the product supplied ready for use in the workshop? The M323.055 is supplied as a single measuring pin in a transport case; the product data does not indicate a calibration certificate as part of the standard delivery. Can this pin be used with fixtures or measuring stands? Yes, the slim geometry and 50 mm length make the pin compatible with simple fixtures and manual measuring setups where a single‑pin check is required. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.56mm Gauge Pin Single ±0.001mm Length 50mm Workshop Version - Metav IndustryLine
Take advantage of consistent micro‑precision, compact geometry and workshop‑grade robustness for reliable inline inspection and end‑of‑line checks; the combination supports faster go/no‑go decisions and reduces rework. Order the gauge pin M323.056 directly via Metav Werkzeuge or ask our consultants if needed. Gauge pin M323.056 — 0.56 mm diameter, ±0.001 mm tolerance (50 mm length) The gauge pin M323.056 is a workshop‑grade measuring pin designed for precise end‑measure checks and fitting verifications in assembly and inspection routines. Workshop‑grade precision design 0.56 mm diameter with ±0.001 mm accuracy 50 mm length for deep or recessed checks High micro‑accuracy for tight tolerances This measuring pin delivers micro‑accuracy where small clearances determine functionality. With a nominal diameter of 0.56 mm and a certified accuracy of ±0.001 mm, the component provides repeatable reference points for plug and end‑measure checks. The compact geometry reduces measurement uncertainty caused by leverage or deflection, so inspections and pass/fail decisions become more reliable. As a result, inspection cycles are shortened and scrap rates are reduced, supporting production efficiency in fine‑tolerance manufacturing. Robust, workshop‑ready construction Manufactured from special steel, the pin is finished for resistance to wear while maintaining the fine edge required for tight fits. The workshop‑grade execution balances durability with the dimensional stability needed in regular inspection use. Its 50 mm length allows access to recessed bores or assemblies while keeping handling straightforward; the low mass supports quick alignment and reduces operator fatigue during repetitive checks. This combination of materials and form factor suits both bench measuring and integration into gauging fixtures. Practical integration and inspection benefits As a precision measuring tool, the pin is suitable for end‑measure comparison, assembly gauging and as a reference for plug checks in small‑bore components. The gauge pin format simplifies inclusion in standard inspection kits and jigs, and its controlled tolerance reduces the need for corrective measures after first‑article inspection. Traceability is supported by the clear product identification and consistent manufacturing standard, helping maintenance of quality records and conformity checks in serial production environments. For workshop‑grade micro‑measuring from Metav IndustryLine, contact Metav Werkzeuge for tailored procurement and technical advice at info@metav-werkzeuge.com or +49 2822 7131930. Technical Data Article number: M323.056 GTIN: 4061905054082 Label: Prüfstift, einzeln, 0,56 mm, +/- 0.001 mm Länge 50 mm Facts Diameter nominal: 0.56 mm Diameter tolerance: ±0.001 mm Length: 50 mm Weight: 0.003 kg Special features Material: special steel Delivery: single item Execution: workshop version Application hint: end‑measure checks / gauging FAQ What is the nominal diameter and tolerance of this pin? The pin has a nominal diameter of 0.56 mm with a manufacturing tolerance of ±0.001 mm for the M323.056 gauge pin. Is the pin suitable for use in assembly gauging of small bores? Yes; the 50 mm length and compact diameter make the pin suitable for plug and end‑measure checks in small‑bore components and recessed assemblies. What material is used for the pin and how does that affect wear? The pin is made from special steel, chosen to provide balanced wear resistance while preserving dimensional stability for repeated inspection cycles. Can the pin be integrated into gauging fixtures or inspection kits? The gauge pin format and controlled tolerance allow straightforward integration into jigs, fixtures and inspection kits for repeatable reference measurements. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.57 mm Test Pin, Single, ±0.001 mm, 50 mm Length, Workshop Version - Metav IndustryLine
Benefit from the combination of ultra-fine diameter, laboratory-grade accuracy and a compact 50 mm length for consistent end-dimension checks; order the test pin directly via Metav Werkzeuge or consult our specialists for tailored specification support. Test Pin M323.057 – Gauge Pin, 0.57 mm Diameter, ±0.001 mm (Metav IndustryLine) A Test Pin M323.057 for precise end-dimension verification and repeatable inspection tasks in workshop and small-part quality control. Precision diameter 0.57 mm Tolerance ±0.001 mm Length 50 mm for deep measurements Workshop-grade special steel High-precision measurement that reduces rework The compact gauge pin delivers precision where small deviations matter: a nominal 0.57 mm diameter with a declared ±0.001 mm tolerance translates into measurable reductions in fitment rejects and corrective machining. Because the part is produced and finished for minimal form error, the pin serves as a reliable reference in go/no-go checks and comparative gauging; this direct link between specification and result streamlines inspection routines and improves process yield. Compact form factor for confined inspection spaces With a 50 mm length and a lightweight profile, this precision pin is designed for access to narrow bores and cavities encountered in small assemblies. The short, stiff geometry reduces bending and operator-induced variance during manual handling, enabling repeatable inspection even in dense fixtures. Its workshop-oriented design suits bench measuring, plug gauges and fixture verification where space and stability are both critical. Durable material and consistent handling for everyday use Manufactured from special steel, the test pin combines wear resistance with a stable surface finish to preserve nominal dimensions over repeated cycles. The robust material choice supports frequent use in production environments and contributes to long service life, lowering replacement frequency. Traceable identification and a consistent production standard ensure that the pin integrates smoothly into calibrated inspection sets and documented quality procedures. Contact Metav Werkzeuge today for specification advice or to secure the Metav IndustryLine M323.057 for precise end-dimension control Technical Data Article number: M323.057 GTIN: 4061905054099 Label: Prüfstift, einzeln, 0,57 mm, +/- 0.001 mm Länge 50 mm Facts Diameter: 0.57 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Special features Material: Special steel Workshop version Single test pin Intended for end-dimension inspection FAQ What measurement accuracy does the pin provide? The pin is specified with an accuracy of ±0.001 mm, allowing the M323.057 to be used where micrometric control is required. Is this pin suitable for checking small bores and precision fits? Yes. The 0.57 mm diameter and compact 50 mm length make the gauge pin suitable for bore checks and small-fit verification in workshop inspection tasks. Which material is used for the pin and what are the benefits? The pin is made from special steel, chosen for wear resistance and dimensional stability during repeated use. Can the pin be integrated into fixture and gauge assemblies? The workshop-grade design and consistent geometry of this gauge pin support integration into fixture checks and comparative gauges. How is the product identified for traceability? The test pin is identified as M323.057 (GTIN 4061905054099) to support inventory and inspection traceability Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.58 mm Test Pin Single ±0.001 mm Length 50 mm Workshop Version - Metav IndustryLine
Take advantage of the combination of ultra-fine tolerance, compact form and robust special-steel construction for consistent inspection results; order the gauge pin directly via Metav Werkzeuge or consult our specialists for compatibility and complementary gauges. M323.058 Gauge Pin — 0.58 mm, ±0.001 mm, 50 mm (Metav IndustryLine) M323.058 is a single high-precision gauge pin designed for end-dimension checks and fits inspection in workshop and quality-control environments Single gauge pin, 0.58 mm nominal diameter Ultra-fine tolerance ±0.001 mm for precise checks 50 mm working length, special steel construction Exceptional measurement certainty for critical fits The pin delivers ±0.001 mm tolerance on a 0.58 mm nominal diameter, offering a level of precision that supports tight acceptance criteria and reduces uncertainty in go/no-go checks. Small-diameter reference pins like this are particularly valuable when verifying bore sizes, plug fits and mating features where even micrometre deviations have process impact. The combination of fine diameter and close tolerance means fewer repeat measurements and faster inspection cycles, improving throughput without sacrificing confidence in results. Robust design for repeatable inspection cycles Constructed from special steel, the pin resists wear during repeated use and maintains form stability over many cycles, which translates to repeatable measurements and less frequent replacement. The 50 mm working length provides sufficient engagement for many common bore checks while keeping handling simple. Because the geometry and material minimise elastic deformation, the pin gives a consistent reference for calibration jigs, depth checks and end-dimension gauging tasks—helping technical teams make reliable decisions faster. Simple handling and integration into inspection routines The compact, single-piece format fits into standard gauge blocks, fixture seats and manual inspection routines with minimal adaptation. Finished surfaces on the shaft ensure smooth entry into bores and reduce the risk of false readings caused by burrs or uneven contact. Lightweight yet stiff, the item is easy to position with basic tools and to clean between uses, supporting a tidy workflow in production or the metrology room. For inventories, the clear GTIN and manufacturer marking support traceability in quality documentation. For assistance in selecting complementary gauges or verifying fixture compatibility, contact Metav Werkzeuge in Emmerich by phone +49 2822 7131930 or by e‑mail at info@metav-werkzeuge.com — our specialists will advise on matching sets and application-specific options Technical data Article number: M323.058 GTIN: 4061905054105 Manufacturer: Metav IndustryLine Label: Prüfstift, einzeln, 0,58 mm, +/- 0.001 mm Länge 50 mm Numeric data Diameter: 0.58 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.003 kg Measuring range: 0.58 mm Materials / Special features Material: special steel Workshop version Single item delivery High-precision tolerance class FAQ What dimensional accuracy can be expected from this gauge pin? The M323.058 gauge pin is specified at ±0.001 mm, which supports micrometre-level acceptance criteria and precise fit verification. For which inspection tasks is this pin suitable? The pin is intended for end-dimension checks, bore verification and plug-fit testing where a 0.58 mm reference is required; it is suitable for workshop and quality-control environments. What is the construction material and its benefit? Made from special steel, the pin combines surface stability and wear resistance to ensure repeatable measurements over many cycles. Is the length suitable for standard fixtures? With a 50 mm working length, the pin offers sufficient engagement for most fixture seats and gauge block setups while remaining easy to handle. How is the item supplied and identified? The product is supplied as a single gauge pin and is identified by article number M323.058 and GTIN 4061905054105 for inventory and traceability. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.59mm Test Pin Single ±0.001mm Length 50mm Workshop Style - Metav IndustryLine
Take advantage of high-precision control with a 0.59 mm diameter and ultra-fine ±0.001 mm tolerance, combined with durable special-steel construction for consistent end measurements; order directly via Metav Werkzeuge or consult the Metav team for application advice. Metav IndustryLine test pin — single gauge pin, 0.59 mm, ±0.001 mm tolerance The Metav IndustryLine test pin is a single, workshop-grade inspection pin designed for precise end measurements and fixture checks in metalworking and quality control. Single test pin 0.59 mm diameter Tolerance ±0.001 mm for high precision 50 mm overall length for reach Workshop-grade special-steel construction Repeatable accuracy for process control Precision measurement begins with stable reference tools. This inspection pin offers a diameter of 0.59 mm and a declared tolerance of ±0.001 mm, delivering repeatable results for gauging and reference tasks. The narrow tolerance reduces measurement uncertainty, which helps to lower rework rates and shortens inspection cycles. Where small-bore checks or fine fixture alignments are required, the pin’s dimensional stability provides a quantifiable basis for reliable pass/fail decisions and traceable quality control. Practical design for workshop integration Built as a single test pin in a workshop configuration, the component balances reach and handling: at 50 mm overall length it reaches into assemblies and bores while remaining easy to position in jigs or measurement fixtures. The special-steel construction enhances wear resistance under frequent use, maintaining the measuring edge longer than untreated materials. Its low mass supports quick manual handling and minimises the risk of disturbing delicate setups during inspection routines. Clear application fit and workflow benefits This inspection pin is intended for end measurements, bore verification and component alignment in machining and inspection workflows. As a precision reference it simplifies go/no-go checks, set-up verification and comparative measurements against master gauges. Integrating such a pin into a standardised checking routine increases throughput by enabling fast, dependable decisions and by reducing the need for repeated, time-consuming measurements. Contact Metav Werkzeuge today for tailored advice or to secure this Metav IndustryLine test pin (SKU M323.059) for immediate workshop use Technical data SKU: M323.059 GTIN: 4061905054112 Manufacturer: Metav IndustryLine Material: Special steel Dimensions & accuracy Diameter: 0.59 mm Measuring range min: 0.59 mm Measuring range max: 0.59 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Special features Workshop version Single test pin Intended for end measurements Story trigger: end measurement FAQ What accuracy can be expected from this test pin? The Metav IndustryLine test pin (SKU M323.059) is specified at ±0.001 mm, providing micrometre-level accuracy for precise inspection tasks. Which materials is the pin suitable for during inspection use? The pin is manufactured from special steel, making it suitable as a dimensional reference for typical metal components during gauging and alignment operations. How is this item supplied and identified? The product is listed under SKU M323.059 and GTIN 4061905054112, enabling straightforward procurement and inventory tracking. Can this pin be used for fixture set-up and small-bore checks? Yes, the 0.59 mm diameter and 50 mm length make the pin well suited to fixture set-up, small-bore verification and precise end-measurement tasks. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.5mm Brass Feeler Gauge Set 8pc, Nickel-Plated Case, 0.01mm Steps, Antimagnetic - Metav IndustryLine
Take advantage of a compact, precise set that combines fine resolution, corrosion-resistant materials and a secure metal sheath for tidy storage and fast workshop set‑up. The set’s 0.05–0.50 mm range in 0.01 mm steps and non‑magnetic blades make it ideal for delicate clearance checks; order directly via Metav Werkzeuge or consult our advisers for application support. Brass Feeler Gauge Set M318.016.1 — 8-piece, 0.05–0.50 mm, non‑magnetic (Metav IndustryLine) The Brass Feeler Gauge Set M318.016.1 is a compact thickness set for precision gap measurement in assembly, maintenance and fine mechanical inspections 8 precision blades, 0.05–0.50 mm in 0.01 mm steps Brass blades with nickel-plated case Antimagnetic design for sensitive applications Compact metal sheath for secure storage Faster, measurable set‑up through fine resolution and repeatability The set delivers systematic thickness control with a 0.05–0.50 mm measurement range and 0.01 mm increments, enabling repeatable gap checks during machine set‑up and routine inspection. Each blade provides a verified, uniform thickness that simplifies calibration of clearances and reduces trial‑and‑error time. By converting micro‑clearance decisions into a straightforward, numeric workflow, the set supports more efficient set‑up and fewer rejects in production environments while retaining the tactile simplicity engineers appreciate. Durable materials that preserve measurement integrity Manufactured from brass with a nickel‑plated sheath and housed in a compact metal case, the set resists surface corrosion and maintains blade geometry over repeated use. The non‑magnetic construction prevents interaction with magnetised components or sensitive electronic assemblies, preserving the actual gap during measurement. Blades measure 100 mm in length with a working width of 12.7 mm, dimensions that balance reach and rigidity for stable insertion into narrow joints and valve seats. Compact toolkit for maintenance, adjustment and inspection tasks This ready‑to‑use set contains 8 blades in graduated thicknesses to cover fine adjustments from clearance bedding to precision shimming. The lightweight design (approx. 0.02 kg) and secure sheath keep blades organised and immediately available at the bench or on the service trolley. Supplied to factory standard (Werksnorm), the set fits workflows in mechanical workshops, automotive maintenance and instrument shops where small, reliable increments are required for consistent performance and quick corrective action. Consult Metav Werkzeuge for application advice or to order the Metav IndustryLine set M318.016.1; experts in Emmerich can advise on compatible gauges and supply from stock — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: M318.016.1 GTIN: 4054469162515 Set: 8 pieces Facts Thickness range: 0.05–0.50 mm Step size: 0.01 mm Blade length: 100 mm Blade width: 12.7 mm Accuracy: 0.012 Special features Material: brass; sheath nickel‑plated Non‑magnetic Metal storage case Weight: 0.02 kg FAQ What thicknesses are included in the set? The blades cover thicknesses from 0.05 mm up to 0.50 mm in 0.01 mm increments; the Brass Feeler Gauge Set M318.016.1 provides the full graduated sequence for fine adjustment tasks. Is the set suitable for use near magnetic components? Yes — the blades are non‑magnetic, making the set appropriate for use around magnetised parts and sensitive assemblies without influencing the measured gap. How is the set supplied and what standard applies? The set is supplied as a complete 8‑piece kit in a metal sheath and is manufactured to Werksnorm (factory standard). Can this set be used for valve clearances and spark plug gaps? The graduated steps and slim blade profile make the set well suited for valve lash adjustment, spark plug gap checks and other routine workshop clearances. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.5mm Gauge Pin Set 31pc 0.2–0.5mm Step 0.01mm Special Steel, Case - Metav IndustryLine
Take advantage of the combination of exact incremental sizing, compact handling and durable construction to streamline bore checking and process control. Order the set directly via Metav Werkzeuge or ask the consultants for application advice. Metav IndustryLine Gauge Pin Set M318.549 — 31-piece, 0.20–0.50 mm, 0.01 mm steps The Gauge Pin Set M318.549 is a precision inspection kit designed for fine bore verification and fit testing in production and quality-control workshops. 0.20–0.50 mm range with 0.01 mm steps Hardened special steel for long service life Compact case for organised transport and storage High nominal accuracy ±0.002 mm Precision where small clearances matter This gauge pin collection delivers a continuous sequence of 31 precision pins across the 0.20–0.50 mm band in 0.01 mm increments, enabling reproducible checks of small bores, reamed holes and mating parts. The nominal accuracy of ±0.002 mm establishes a clear, verifiable tolerance for pass/fail decisions and supports traceable inspection routines in small-part manufacture. The incremental spacing reduces interpolation error and speeds up determination of the closest fit, so measurement lead time is cut without compromising confidence in results. Built for routine use in demanding environments Manufactured from special steel, each pin is dimensionally stable and wear resistant, providing consistent contact geometry over repeated use. The set’s arrangement in a compact case keeps pins protected and clearly organised for quick selection, while the modest total weight of 0.5 kg makes the kit easy to handle at the bench or on the shop floor. Robust material choice and straightforward design mean minimal maintenance: occasional surface protection and correct handling preserve measurement integrity and service life. Practical applications and quality benefits This inspection kit is suited to quality control, toolroom checks and first-article inspections where small-diameter precision matters. Typical applications include verification of drilled or reamed holes, checking fit on precision dowels, and cross-referencing small-bore measurements during assembly. The graduated setup simplifies process documentation and supports consistent production decisions, contributing to reduced scrap rates and faster throughput. Supplied by Metav IndustryLine, the set brings dependable measurement capability to workshops that require repeatable, fine-resolution gauging. For confident bore inspection and compact workshop efficiency, choose the Metav IndustryLine gauge pin set M318.549 — contact Metav Werkzeuge in Emmerich for ordering and technical clarifications at info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: M318.549 GTIN: 4054469166971 Tariff number: 90173000 Core data Measurement range: 0.20–0.50 mm Step size: 0.01 mm Accuracy: ±0.002 mm Pieces per set: 31 Weight: 0.5 kg Pin length: 50 mm Special features Material: special steel Delivery: supplied in a protective case Configuration: graduated gauge pins for small-diameter inspection Category: Gauge pins / inspection gauges FAQ What measurement range does the set cover? The set covers a nominal range from 0.20 mm to 0.50 mm with 0.01 mm increments. How many pins are included and how are they arranged? The kit contains 31 pins arranged in a graduated sequence suitable for stepwise bore checks. What is the declared accuracy of the pins? The pins are specified with a nominal accuracy of ±0.002 mm for reliable small-diameter inspection. What material are the pins made from and how does this affect use? Pins are made from special steel, offering dimensional stability and wear resistance for repeated contact inspections. Is the set delivered in a case and is it portable? Yes, the gauge pins are supplied in a compact protective case that keeps components organised and portable. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.5mm Precision Feeler Gauge Set 21-Piece 0.1–0.5mm 0.02mm Steps Length 100mm - Metav IndustryLine
Take advantage of a compact, precision-engineered 21-blade set that covers 0.10–0.50 mm in 0.02 mm steps for repeatable gap checks; the robust special steel blades and 100 mm length ensure dependable handling and long service life. Order the set directly via Metav Werkzeuge or consult our sales team for application advice. M318.012 Feeler Gauge Set – 21-piece precision blades, 0.10–0.50 mm, 0.02 mm steps The M318.012 is a compact feeler gauge set designed for precise clearance and gap measurement in maintenance, assembly and quality inspection tasks across workshops and production environments. 21 precision blades in metric steps Blade length 100 mm for reliable handling Thickness range 0.10–0.50 mm in 0.02 mm steps Special steel construction for durability Accurate measurement for consistent assembly quality The set provides precise thickness control with blades stepping every 0.02 mm, enabling reliable measurement of valve clearances, bearing play and component gaps. The fine graduation delivers a measurable advantage during setting and inspection tasks: where a single incorrect clearance can cause early wear or noise, the controlled increments reduce uncertainty and support repeatable results. The blades’ combined accuracy (±0.012 mm) and the uniform 0.10–0.50 mm range make this set suitable for fine mechanical adjustments and routine quality checks, translating directly into fewer reworks and shorter commissioning times. Fast selection and straightforward handling to speed workflows A 21-piece configuration simplifies the selection process: the required thickness is available without complex stacking calculations, which saves time during setup and maintenance. The 100 mm blade length and 12.7 mm width give a practical balance between reach and rigidity, improving access to tight recesses while keeping the blade stable during insertion. This pragmatic design reduces the number of measurement steps and helps technicians maintain production rhythm — a practical efficiency gain for repeated tasks on engines, gearboxes and precision assemblies. Built for workshop resilience and dependable performance Constructed from special steel, the blades resist routine wear and retain accurate geometry under normal workshop conditions. The set is built to a factory standard that ensures consistent tolerances across all 21 blades; that consistency matters when multiple operators share tools or when parts are serviced in shifts. The material choice and finish support longevity in ambient workshop environments, offering a cost-effective, serviceable tool that contributes to a reliable maintenance regime. Compact set layout for organised storage and clear identification The blades are supplied as a compact 21-piece set, arranged for quick identification of each thickness and straightforward storage between jobs. The grouping minimises handling time and the robust construction keeps the blades aligned for repeatable insertion depth, which helps maintain measurement integrity during fast-paced tasks. For workplaces requiring clear traceability of measuring tools, the set’s markings and SKU facilitate inventory control and tool management. Choose the Metav IndustryLine M318.012 feeler gauge set for precise, repeatable gap measurement — contact Metav Werkzeuge in Emmerich for order details and application guidance Technical data SKU: M318.012 GTIN: 4054469164731 EClass: 21170212 Article label: Präzisions-Fühlerlehren, 21-tlg. Data Thickness range: 0.10–0.50 mm Step size: 0.02 mm Blade length: 100 mm Blade width: 12.7 mm Pieces per set: 21 Accuracy: ±0.012 mm Weight: 0.02 kg Special features Material: special steel Standard: factory standard Set type: 21 blades, metric increments Typical applications: gap measurement, valve clearance, maintenance FAQ What measurement range does the set cover? The set covers 0.10–0.50 mm in 0.02 mm increments, allowing fine adjustment and accurate gap determination with the M318.012 feeler gauge set. How many blades are included and how are they identified? This is a 21-piece set; each blade is marked with its thickness for immediate identification when using the M318.012 feeler gauges. Is the material suitable for regular workshop use? Yes. The blades are made from special steel, chosen for wear resistance and durability under typical workshop conditions. What level of accuracy can be expected? The blades are manufactured to a precision that corresponds to an accuracy of approximately ±0.012 mm, supporting repeatable measurements for maintenance and assembly tasks. Is the set suitable for engine valve clearance checks? Yes. The incremental range and 100 mm blade length make the set well suited to valve clearance checks and similar maintenance procedures. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.5mm Precision Feeler Gauge Set 8 Blades Stainless Steel Tapered, 0.05–0.5mm Range, 0.07kg - Metav IndustryLine
Take advantage of a compact, corrosion‑resistant set that combines stainless steel construction, an ultra‑fine measurement range and repeatable workshop accuracy for reliable gap checks in precision environments. The kit’s 8 blades cover 0.05–0.50 mm, offering fast, repeatable measurements for fine mechanical and quality‑control tasks; order the set directly via Metav Werkzeuge or consult the team for application advice. Precision Feeler Gauge INOX M318.026 — 8‑blade set, 0.05–0.50 mm A Precision Feeler Gauge INOX M318.026 supplied as a compact eight‑blade set for fine gap and clearance measurement in metalworking and precision inspection. Stainless steel blades, nickel-plated sheath 8 precision blades 0.05–0.50 mm Compact, lightweight set for micro measurements Workshop accuracy 0.012 mm Accurate feeler blades for consistent gap control The gauge set delivers reliable precision across a finely graduated range, where each blade is finished for consistent thickness. With an advertised accuracy of 0.012 mm, the blades provide repeatable comparative checks and simple verification steps that shorten inspection cycles. The combination of narrow blade steps and stable blade geometry reduces the need for repeated adjustment, so measurement tasks in small assemblies or tool settings become more efficient and less error‑prone. Robust construction built for routine use Manufactured from INOX stainless steel with a nickel‑plated sheath, the set resists corrosion and wear in workshop atmospheres. This material choice lowers maintenance needs and preserves blade flatness and edge integrity over time, which matters when taking frequent feeler checks on precision components. The factory standard finish supports dependable tactile feedback during insertion and withdrawal of blades, aiding judgement in fitment work and loose/tight evaluations without complex instrumentation. Designed for micro and fine mechanical applications With a maximum range of 0.05–0.50 mm, the set falls into the Micro category, tailored for very small clearances such as those found in watchmaking, micro‑mechanics and small gearbox assemblies. The eight blade thicknesses (0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40, 0.50 mm) enable close stepping for precise adjustment and detection of minimal play. Supplied as a compact set, the feeler blades are easy to handle and store, supporting quick selection during setup or inspection without sacrificing measurement integrity. Practical benefits for workshop quality control The tool is well suited for entry‑level metrology tasks and as a complementary instrument within a broader measurement routine. Its compact design and clear gradation reduce setup time when checking mating surfaces, valve clearances or shim thicknesses. Produced to a factory standard, the set offers a straightforward means to verify fits and tolerances before committing parts to further processing, contributing to more predictable outcomes on the shop floor. Contact Metav Werkzeuge today to equip your workshop with the Metav IndustryLine Precision Feeler Gauge M318.026 — benefit from Emmerich‑based stocking, expert product advice and a reliable supply chain for precision measurement tools Technical data Article number: M318.026 GTIN: 4054469127750 ECLASS: 21170212 Tariff number: 90173000 Numbers / Core technical data Measurement range: 0.05–0.50 mm Minimum blade: 0.05 mm Maximum blade: 0.50 mm Accuracy: 0.012 mm Length: 100 mm Number of blades: 8 Designs / Special features Material: INOX stainless steel Sheath: nickel‑plated Delivered as set of 8 blades Factory standard (Werksnorm) finish FAQ What measurement range does the set cover? The feeler gauge set covers 0.05–0.50 mm, supplied as eight blades for fine gradation. Is the set suitable for very small mechanical assemblies? Yes, the blades fall into the Micro category, making the set well suited to watchmaking, micro‑mechanics and small gearbox work. What material are the blades made from and how are they protected? Blades are manufactured from INOX stainless steel and supplied with a nickel‑plated sheath for corrosion resistance and long service life. How many blades are included and what are their thicknesses? The kit contains eight blades with thicknesses: 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40 and 0.50 mm. What level of precision can be expected in routine checks? The set is produced to a factory standard and specifies an accuracy of 0.012 mm, appropriate for workshop verification and comparative gap measurement. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.5mm Precision Feeler Gauges, Tapered, 8‑Piece Set 0.05–0.5mm, 500mm Length - Metav IndustryLine
Take advantage of the combination of fine-grain accuracy, a tapered blade profile and extended reach for reliable gap setting and inspection tasks; order this precision set directly via Metav Werkzeuge or contact our consultants for technical advice. Precision feeler gauges on ring — 8-piece set, 0.05–0.50 mm, 500 mm Precision feeler gauges on ring provide a set of tapered blades for reliable measurement and adjustment of narrow gaps and clearances in production and inspection environments. Tapered blades for precise gap measurement Range 0.05–0.50 mm in eight increments 500 mm length for extended access Accurate gaps and repeatable results for production use The Precision feeler gauges on ring deliver a repeatable measuring option where fine adjustments matter. The blades follow a tapered profile, which allows gradual insertion and clear tactile feedback when the correct thickness is reached, reducing cycle time during setup and inspection. The set lists the nominal thicknesses 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40 and 0.50 mm, enabling incremental checks without calculation. With an indicated accuracy of 0.012 mm, this set is suitable for workshop checks and fine mechanical adjustments where consistent results are required. Practical length and handling for workshops and jigs A 500 mm blade length extends access to recessed joints and fixtures while remaining manageable in single-handed operations; the elongated blades are particularly helpful for checking clearances across wider assemblies. At approximately 0.12 kg total weight and with a blade width of 12.7 mm, the set balances reach with low inertia, which helps to avoid the feeler flexing during careful insertion. The ring-mounted design keeps the eight-piece selection organised and quick to deploy on the shop floor or beside a machine. Clear set composition and factory standard delivery The set is supplied as a complete eight-piece set on a retention ring, covering the small-step thickness range needed for fine tuning and calibration tasks. Delivery follows the manufacturer's factory standard (Werksnorm) and the set is intended for routine inspection, adjustment and setup work. The conical blade shape ensures a progressive contact surface for more sensitive detection of gap closure, helping technicians to avoid overloading fragile parts during measurement. Where this set adds value in the process chain These feeler blades are ideal for gap setting, valve and seal inspection, tool adjustment and repetitive quality checks in production environments. The combination of a tapered blade geometry and a compact organised set reduces time spent searching for the correct thickness and lowers the risk of measurement error during machine setup. Backed by Metav’s positioning as a precision partner, the gauges support consistent workflows and easier supplier consolidation for maintenance and small-batch production. For purchase advice or to secure this Metav IndustryLine precision feeler gauge set for the shop floor, contact Metav Werkzeuge in Emmerich — phone +49 2822 7131930 or email info@metav-werkzeuge.com — our consultants will confirm suitability for the intended application Technical data Article number: M318.022.4 GTIN: 4054469162744 Manufacturer: Metav IndustryLine Length: 500 mm Thickness range: 0.05–0.50 mm Thickness steps: 0.05 / 0.10 / 0.15 / 0.20 / 0.25 / 0.30 / 0.40 / 0.50 mm Pieces per set: 8 Accuracy: 0.012 mm Weight: 0.12 kg Blade width: 12.7 mm Tapered (conical) blade profile Supplied on ring for organised storage Factory standard (Werksnorm) Eight distinct increments for fine adjustment FAQ What thicknesses are included in the set? The set contains eight blades with thicknesses of 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40 and 0.50 mm, covering small incremental gaps. Is the blade shape suitable for delicate parts? Yes, the conical or tapered blade profile offers a progressive contact area that reduces the chance of catching or damaging delicate edges during insertion. Can these gauges be used for valve and seal setting? The gauges are well suited to valve clearance, seal gap checks and tool adjustment where precise, repeatable thickness selection is required. What tolerance or accuracy should be expected? The set is specified with an accuracy of 0.012 mm, appropriate for workshop inspection and fine adjustment tasks. How is the set supplied and stored? The blades are supplied as an organised eight-piece set mounted on a retention ring for easy selection and secure transport. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.5–20 mm Gauge Pin Set 40 Pieces, 0.5 mm Steps, With Probe Holder, Plastic Case - Metav IndustryLine
Take advantage of precise manufacturing tolerance of ±0.004 mm and a comprehensive size range from 0.5–20.0 mm with 0.5 mm steps for reliable inspection and quick assembly control; the set’s pin holder and transport case keep tooling organised and ready for production checks. Order the gauge pin set directly via Metav Werkzeuge or consult our specialists for a recommendation. Gauge pin set 0.5–20.0 mm (40 pcs) — Precision gauge pins with pin holder | Metav IndustryLine The gauge pin set 0.5–20.0 mm (40 pcs) is a compact inspection kit for workshop and inspection bench use, designed for rapid dimensional checks and reference standards across general machining and quality control tasks Gauge pin set 0.5–20.0 mm, 0.5 mm increments 40 precision pins in special steel Supplied in a protective transport case Includes pin holder for secure handling Reliable precision that speeds up inspection The set delivers consistent measurement performance across a practical range from 0.5–20.0 mm, making it suitable for checking bores, plug gauges and internal recesses without the need for time‑consuming setup. The pins are manufactured with a stated accuracy of ±0.004 mm, which reduces uncertainty in pass/fail assessments and supports clear quality decisions. Using a complete set in 0.5 mm steps avoids interim gauges and speeds up the inspection loop, which in turn improves throughput and lowers the cost per check. Robust design for workshop conditions Constructed from special steel, the pins combine wear resistance with stable geometry for repeated use in production environments. The inclusion of a dedicated pin holder simplifies handling and reduces the risk of dropping or mixing pins during transfer between machine and inspection bench. Supplied in a transport case, the kit remains organised and protected during storage and movement, ensuring that the set is ready for immediate use when a measurement task arises. Clear advantages for everyday metrology Having a complete set in one kit eliminates guesswork when determining the correct gauge and supports faster process control. The 0.5 mm gradation presents a practical compromise between resolution and coverage, so fewer tool changes are required compared with single‑size gauges. The compact kit format and the 40 pins weigh about 0.7 kg, which makes it straightforward to handle on the shop floor and reduces downtime between checks. How the set supports quality assurance workflows As a workshop reference, this kit is useful for quick go/no‑go verifications, setup checks, and as a complement to external micrometres or plug gauge systems. The simple, standardised increments and robust construction support repeatable outcomes, which help maintain stable process capability. The presence of clearly defined size steps and a secure holder also improves traceability of measurement routines during audits and tool changeovers. For a tailored recommendation or delivery from Metav IndustryLine, contact Metav Werkzeuge to discuss how this gauge pin set fits into current inspection routines and to arrange swift dispatch from Emmerich Technical data Article number: M318.521 GTIN: 4054469129143 eClass: 21170231 Tariff number: 90173000 Set: 40 pins Facts Measurement range: 0.5–20.0 mm Increment: 0.5 mm Accuracy: ±0.004 mm Weight: 0.7 kg Pin length: 50 mm Special features Material: special steel Supplied in transport case Includes pin holder Set configuration: 40 pieces Workshop version for general inspection tasks FAQ Which sizes are included in the set? The gauge pin set 0.5–20.0 mm (40 pcs) contains pins from 0.5 mm up to 20.0 mm in 0.5 mm increments. What is the stated accuracy of the pins? The pins are manufactured to a tolerance of ±0.004 mm, providing a reliable reference for routine inspection and go/no‑go checks. What material are the pins made from and is it suitable for workshop use? The pins are made from special steel; the material and finish are chosen for durability and consistent geometry in workshop environments. Is a holder or case supplied for transport and organisation? Yes, the set is supplied in a protective transport case and includes a pin holder for secure handling and organised storage. Can this set be used for internal dimension checks and reference measurements? Yes, the set is suitable for internal checks, reference standards in setup operations and quick verification tasks on the shop floor. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.61mm Gauge Pin Single, ±0.001mm, 50mm Length, Workshop Version - Metav IndustryLine
Take advantage of the combination of high‑precision measurement (±0.001 mm), compact 0.61 mm diameter and robust 50 mm length for reliable end measurements; order the gauge pin directly via Metav Werkzeuge or consult our specialists for application advice. Gauge pin M323.061 — single 0.61 mm gauge pin, ±0.001 mm accuracy (Metav IndustryLine) The Gauge pin M323.061 is a single, workshop‑grade precision plug designed for exact end measurements and go/no‑go checks in quality control and final inspection. Single gauge pin 0.61 mm, tolerance ±0.001 mm Length 50 mm for precise end measurements Workshop version in special steel construction Supplied individually with traceable GTIN Reliable precision for critical end measurements Manufactured with an accuracy of ±0.001 mm, this gauge pin delivers high‑precision dimensional control where tolerances are tight. The 0.61 mm diameter and 50 mm working length are optimised for reproducible end‑face and bore verification; using a defined, calibrated reference pin minimises subjective measurement error and reduces rework in production. In statistical process control, a stable master gauge like this reduces measurement scatter and supports consistent conformity assessments. Robust workshop design for frequent use The workshop edition is made from special steel, offering mechanical stability and surface integrity under regular handling. The compact geometry and slim profile ensure fast access into narrow bores and mating features while the material choice preserves roundness and wear resistance over repeated cycles. These attributes translate into fewer replacements, less machine downtime and dependable nominal checks during routine inspection tasks. Traceability and simple inventory integration Each unit carries a GTIN and clear SKU identification to simplify stock management and traceability through the quality system. Delivered as an individual item, the gauge pin integrates easily into existing gauge sets or inspection kits and allows straightforward substitution in documented measurement procedures. Clear labelling and consistent dimensional performance support auditability and help maintain documented measurement chains. Contact Metav Werkzeuge today to specify the M323.061 gauge pin for precise end‑measurement tasks or to request tailored application advice from our consultants Technical data SKU: M323.061 GTIN: 4061905054143 Label: Gauge pin, single, 0.61 mm, ±0.001 mm, length 50 mm ECLASS: 21170231 Numbers / Core technical data Diameter: 0.61 mm Length: 50 mm Accuracy: ±0.001 mm Weight: 0.003 kg Special features / Versions Workshop version Material: Special steel Single item delivery Story trigger: end measurements FAQ What level of accuracy does this plug gauge deliver? The Gauge pin M323.061 is specified with an accuracy of ±0.001 mm, providing micrometre‑class repeatability for end‑face and bore checks. For which inspection tasks is a 0.61 mm gauge pin suitable? A 0.61 mm diameter pin is suitable for precise end measurements, small bore verification and final inspection tasks where very small diameters must be checked for conformity. Is the M323.061 supplied as a single item or in sets? The M323.061 is supplied individually, allowing flexible integration into existing gauge sets or bespoke inspection kits. What is the construction material and why does it matter? The pin is made from special steel, chosen for mechanical stability and resistance to wear; this preserves dimensional integrity during regular workshop use. How is this gauge pin identified for traceability? The product is identified by SKU M323.061 and GTIN 4061905054143 to support inventory control and quality documentation Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.62 mm Test Pin Length 50 mm ±0.001 mm Workshop Version - Metav IndustryLine
The combination of workshop‑grade construction, ±0.001 mm tolerance and a compact 50 mm length ensures reproducible end‑dimension checks and reliable fit verification. Order the gauge pin directly via Metav Werkzeuge or consult the specialists for application advice. M323.062 Gauge pin (single) — 0.62 mm diameter, ±0.001 mm, 50 mm length M323.062 Gauge pin (single) is a precision measuring pin designed for end‑dimension verification and go/no‑go fit checks in workshop and quality‑control environments. Workshop version, robust design 0.62 mm diameter, ±0.001 mm accuracy 50 mm length for deep bore checks Supplied in transport case for safe storage High precision for reliable tolerance control The gauge pin provides a ±0.001 mm tolerance that supports high‑precision inspection steps where repeatability matters. Expressed practically, this degree of accuracy keeps dimensional uncertainty at the micrometre scale and therefore reduces the risk of scrap or rework in serial production. The narrow 0.62 mm diameter is ideal for small bores and detailed end‑dimension checks, while the solid construction maintains concentricity and contact stability during measurement tasks. This level of control is particularly relevant for final inspection routines and for setting up gauging fixtures where tight clearances are common. Durable workshop design for everyday metrology use Built as a workshop version, the pin is made from special steel selected for wear resistance and dimensional stability under routine handling. The 50 mm shaft length enables checks in deeper seats and retention bores without compromising axial stiffness. A protective transport case is provided to limit handling damage and preserve the measuring surface between uses. These mechanical choices translate into lower maintenance effort and longer service life, so inspection routines remain dependable even under frequent use in a production environment. Practical application and integration in inspection workflows The single gauge pin is suitable for end‑dimension and fit verification in component inspection, fixture checking and tool setting. As a compact dimensional standard, the pin can be used directly in bore checks, paired with micrometres or dial indicators, or integrated into small jigs as a reference dowel. Traceability is supported by the clear labelling and SKU, enabling straightforward inventory control for quality teams. Where interchangeability and narrow tolerances are required, this pin serves as a simple, reproducible reference that complements existing metrology equipment. For tailored advice or to arrange supply of the M323.062 gauge pin, contact Metav Werkzeuge in Emmerich at +49 2822 7131930 or info@metav-werkzeuge.com to discuss application specifics and delivery options Technical data Article number: M323.062 GTIN: 4061905055034 Category: Gauge pins (Messstifte) Brand: Metav IndustryLine Facts Diameter: 0.62 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Special features Material: Special steel Workshop version Supplied in transport case Single gauge pin for end‑dimension checks FAQ What level of accuracy does this gauge pin provide? The M323.062 gauge pin is specified with a tolerance of ±0.001 mm, which is suitable for high‑precision end‑dimension and fit checks in workshop inspection tasks. What materials is the pin made from and how does that affect use? The pin is made of special steel, chosen for wear resistance and dimensional stability; this makes it suitable as a durable reference for metallic components and repeat inspection cycles. Is a calibration certificate supplied with this gauge pin? No calibration certificate is specified for the M323.062 in the product data. Calibration options can be discussed with Metav Werkzeuge where traceable verification is required. What is included in the delivery? Delivery comprises a single gauge pin in a protective transport case to keep the measuring surface secure during storage and transport. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.63mm Gauge Pin Single ±0.001mm Length 50mm Workshop Finish - Metav IndustryLine
Take advantage of workshop-grade construction, ±0.001 mm tolerance and a compact 50 mm length for reliable end‑measure checks; order the gauge pin directly via Metav Werkzeuge or ask our consultants if needed. M323.063 gauge pin — 0.63 mm, ±0.001 mm, 50 mm (Metav IndustryLine) A M323.063 gauge pin designed for precise end‑measure checks and small‑bore verification in workshop and inspection settings. Workshop-grade design Diameter 0.63 mm precision Tolerance ±0.001 mm Delivered in transport case High‑precision performance for repeatable checks The compact design delivers measurable benefits where fine tolerances matter: a nominal diameter of 0.63 mm combined with a verified ±0.001 mm tolerance ensures exceptionally consistent contact during plug‑style measurements. As a hardened gauge element, the component provides excellent repeatability for short‑run verification and go/no‑go fits. The small form factor reduces thermal and bending influences, helping to maintain measurement integrity in routine workshop environments. Robust construction tuned to everyday use Made from special steel, the pin is produced in a workshop‑grade execution that tolerates handling without sacrificing dimensional stability. The 50 mm length offers an effective grip and adequate engagement for most small‑bore checks while keeping the element easy to mount in fixtures or test rigs. Supplied in a transport case, the pin stays protected in transit and on the bench, reducing the risk of damage that could impair accuracy. Practical applications across metrology and assembly Ideal for end‑measures, alignment, fixture set‑up and small‑bore verification, this gauge element suits inspection benches, assembly jigs and toolrooms that require compact, high‑accuracy reference pieces. The low mass supports quick manual positioning and limits inertial effects during tactile gauging. When integrated into comparative checks or simple plug gauges, the component serves as a reliable reference that helps shorten inspection cycles and raises confidence in pass/fail decisions. For workshop-ready precision from Metav IndustryLine, contact Metav Werkzeuge to request the M323.063 gauge pin or to discuss compatible reference sets with our consultants at Metav Werkzeuge. Technical data Article number: M323.063 GTIN: 4061905055041 SKU: M323.063 Facts Diameter: 0.63 mm Tolerance: ±0.001 mm Length: 50 mm Weight: 0.003 kg Special features Material: special steel Workshop execution Supplied in protective transport case Accuracy class: ±0.001 mm FAQ What measurement tasks is this pin best suited for? The M323.063 gauge pin is optimised for end‑measure checks, small‑bore verification and fixture alignment tasks where a 0.63 mm reference with ±0.001 mm tolerance is required. Can the pin be used in inspection jigs and plug gauges? Yes, the Metav IndustryLine gauge pin is intended for integration into jigs and plug‑type gauging where compact, high‑precision elements are needed. How robust is the surface and material under regular handling? Constructed from special steel and issued in a workshop version, the pin tolerates normal workshop handling while maintaining dimensional stability. Is the pin suitable for comparative or tactile gauging? The low mass and compact length make the pin suitable for tactile comparators and quick comparative checks on the inspection bench. What protection is provided for transport and storage? The gauge pin is supplied in a protective transport case to reduce the chance of damage during transport and bench storage. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.64mm Gauge Pin, Workshop Version, ±0.001mm, 50mm Length - Metav IndustryLine
The combination of ±0.001 mm tolerance, a 0.64 mm diameter and robust workshop design ensures reliable reference measurements and long-term repeatability; order the gauge pin directly via Metav Werkzeuge or consult the team for application advice. Gauge pin M323.064 – single 0.64 mm, ±0.001 mm | Metav IndustryLine The gauge pin M323.064 is a single inspection pin designed for precise diameter checks and end-measurements in workshop and inspection environments. Diameter 0.64 mm precision pin Tolerance ±0.001 mm accuracy 50 mm length, special steel Workshop version, supplied in case Precision where form and fit matter The small-diameter inspection pin offers sub-micron-level control over fit and clearance checks in assemblies. With a stated tolerance of ±0.001 mm, the pin functions as a traceable reference for go/no-go checks and verification tasks in manufacturing and quality control. Its compact geometry and slender profile make it particularly suited for measuring small bores, alignment points and end faces where a conventional gauge would be too large. The 0.64 mm diameter and 50 mm length provide a balance between accessibility and handling stability, while the high tolerance reduces uncertainty during repeated use. Built for repeatable workshop use Constructed from special steel, this workshop-grade pin resists wear under frequent contact and retains dimensional integrity for longer intervals between inspections. The robust finish and material choice deliver consistent contact conditions that support repeatable readings and minimise the need for frequent replacement. Supplied in a protective case for safe transport, the pin is ready for routine inclusion in inspection kits or mobile measurement sets, helping to keep downtime low and inspection cycles efficient. Practical integration into measurement workflows As a single gauge pin, the component serves as a precise datum for manual verification and can be used alongside optical comparators, height gauges and pin gauges for comparative checks. Its lightweight construction and compact dimensions make handling straightforward during repetitive checking operations; the pin’s geometry is compatible with standard fixture setups for quick positioning. When documented inspection traces are required, the pin’s stable characteristics support clear pass/fail criteria and assist in process validation and production control. For tailored advice on integrating the M323.064 gauge pin into existing inspection routines, contact Metav Werkzeuge for technical guidance and local supply options. Technical Data SKU: M323.064 GTIN: 4061905055058 Label: Gauge pin, single, 0.64 mm, ±0.001 mm, length 50 mm Category: Gauge pins Measurements Diameter: 0.64 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Materials & Features Material: special steel Workshop design Supplied in protective transport case Manufacturing brand: Metav IndustryLine FAQ What tolerance does this gauge pin offer? The M323.064 gauge pin is manufactured to a tolerance of ±0.001 mm, making it suitable for high-precision diameter checks. Can the pin be used for small-bore measurements? Yes, the 0.64 mm diameter and 50 mm length make the pin appropriate for small-bore and end-face inspections in workshop environments. Is the gauge pin durable for regular use? Constructed from special steel and supplied in a protective case, the pin is designed for routine workshop handling and repeatable checks. How does the M323.064 fit into a measurement workflow? The gauge pin serves as a reference for go/no-go checks, comparative verification with height gauges or optical systems, and for validating fit and clearance in assemblies. Which brand manufactures this inspection pin? The component is offered under the Metav IndustryLine brand and delivered as a workshop-grade inspection pin, SKU M323.064. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.65mm Gauge Pin Length 50mm ±0.001mm Workshop Version, Special Steel - Metav IndustryLine
Take advantage of a compact inspection solution that combines 0.65 mm nominal diameter, ±0.001 mm tolerance and a 50 mm working length for reproducible end‑measurement checks; order directly via Metav Werkzeuge or consult the team for application advice. M323.065 Gauge Pin — 0.65 mm, ±0.001 mm, 50 mm length (Metav IndustryLine) The M323.065 gauge pin is a precision inspection pin designed for fine end‑measurement and bore verification in workshop environments. Precise ±0.001 mm tolerance Compact 0.65 mm diameter for micro bores 50 mm length for deeper access Workshop execution with special steel Precision where microns matter The small nominal diameter and tight tolerance deliver repeatable measurement results for critical quality checks. With a declared accuracy of ±0.001 mm, this inspection pin is suitable for dimensional verifications where small deviations can cause assembly problems or functional failures. The narrow profile supports checks in small bores and tight tolerances, reducing the need for trial‑and‑error adjustments and minimising rework. By translating the technical tolerance into a practical benefit, the pin ensures that inspection routines become more reliable and efficient in the production flow. Built for practical workshop use Constructed in special steel and supplied as a single, ready‑to‑use pin, this workshop version balances durability with manageable handling. The 50 mm length gives sufficient reach for many common internal checks without compromising stiffness, while the light weight supports rapid manual use across inspection stations. The compact design and resilient material choice keep wear low under typical workshop conditions; this reduces replacement frequency and helps maintain consistent measurement quality over time. The result is a robust tool that integrates well with standard inspection benches and handheld gauges. Clear applications and workflow benefits Designed primarily for end‑measurement tasks and bore verification, the gauge pin assists in fast go/no‑go checks, PID documentation and incoming part controls. The slim profile and high accuracy make it a practical choice for small components, precision turned parts and assembly controls where nominal diameters around 0.65 mm are to be confirmed. Using a dedicated inspection pin simplifies the measurement sequence, shortens cycle times and supports traceable quality processes that feed into larger quality assurance systems. For precise end‑measurement checks with the Metav IndustryLine M323.065 gauge pin, contact Metav Werkzeuge at info@metav-werkzeuge.com or +49 2822 7131930 for suitability advice and ordering Technical Data Article number: M323.065 GTIN: 4061905055065 Manufacturer: Metav IndustryLine Facts Diameter: 0.65 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Materials & Features Material: special steel Workshop execution Single piece delivery Application: end measurement / bore verification FAQ What tolerance does this gauge pin offer and how precise is it? The M323.065 gauge pin from Metav IndustryLine is specified with a tolerance of ±0.001 mm, making it suitable for high‑precision end measurements and fine bore checks. Can the pin be used for internal bore verification on small parts? Yes, the 0.65 mm diameter and 50 mm length of the gauge pin make it well suited to internal bore verification for small turned or machined parts. What material is the gauge pin made from and what does that mean for durability? The pin is made from special steel, which provides a balance of hardness and wear resistance appropriate for workshop inspection tasks in repeated use. Is the product supplied as a single item or in sets? The product is supplied as a single gauge pin; the designation indicates individual delivery for targeted inspection tasks. Which inspection tasks are most appropriate for this type of pin? Use the pin for routine go/no‑go checks, incoming inspection of small components and end‑measurement tasks where a compact, high‑accuracy probe is required. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

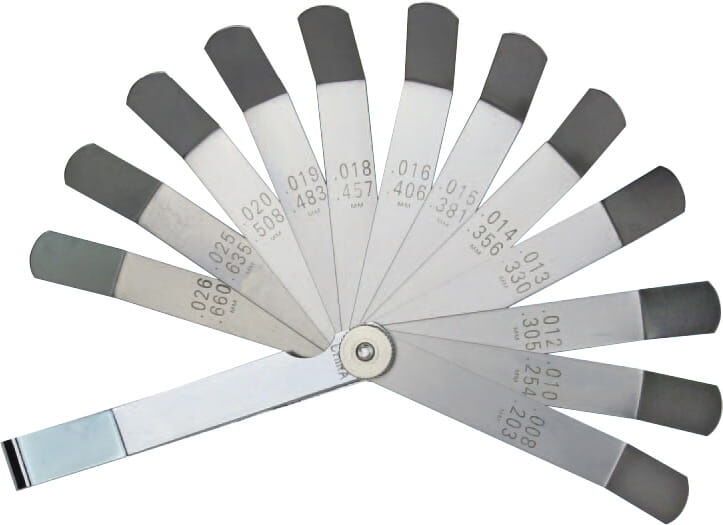

0.660mm Twist Gauge Set, 12 Pieces, 30° Angled Tapered Blades - Metav IndustryLine
Take advantage of precise gauge selection, compact angled blades and repeatable thickness control for faster engine reassembly. Benefit from a 12-piece imperial set that covers common spark-plug and valve clearances and order directly via Metav Werkzeuge or consult their specialists for specification advice. Precision feeler gauge set (12-piece) — 0.203–0.660 mm / 0.008–0.025" — 30° angled — Metav IndustryLine A Precision Feeler Gauge Set for fine engine and workshop gap measurement, offering a compact range of imperial blade sizes and a 30° offset for access in confined areas 12-piece imperial blade set 30° angled blades for tight spaces Conical blade profile for precise insertion Range 0.203–0.660 mm / 0.008–0.025" Accurate thicknesses for reproducible adjustments This feeler set provides blade thicknesses from 0.203 mm to 0.660 mm, supplied as twelve distinct steps to match common engineering tolerances. The stated accuracy of 0.012 mm gives a clear, quantifiable basis when checking ignition gaps, valve clearances or sheet-metal fitments; this level of precision reduces iterative adjustments and limits rework. Using discrete blades rather than improvised shims improves repeatability across multiple measurements and supports a controlled assembly process in repair shops and maintenance bays. Designed for access and handling in confined engine bays The 30° angled configuration and conical blade profile make it straightforward to reach recessed gaps where straight blades cannot be manoeuvred. Blades are 100 mm long with a 12.7 mm width, combining sufficient reach with low flex for confident feel during insertion. At just 0.02 kg for the set, the format keeps the kit pocketable and easy to handle, enabling quicker checks in situ and fewer interruptions to workflow. The geometry is especially useful on cylinder heads, distributor contacts and other compact assemblies. Workshop-ready set that fits established practice Supplied as a 12-piece set, this tool mirrors the nominal imperial sizes technicians expect when servicing classic engines and contemporary spark-ignition systems. The set is built to work within common workshop standards (Werksnorm) and is presented for practical use in mechanical repair contexts. The conical blades assist controlled entry into gaps while the stepped thicknesses allow selection of the nearest standard value, supporting documented quality checks and easing acceptance in service procedures. For tailored advice or to source the Metav IndustryLine Precision Feeler Gauge Set for engine work, contact Metav Werkzeuge in Emmerich for specification support and logistics information Technical Data Article number: M318.019 GTIN: 4054469164946 Brand: Metav IndustryLine eClass: 21170207 Tariff number: 90173000 Facts Measurement range: 0.203–0.660 mm (0.008–0.025") Blade thicknesses: 0.203, 0.254, 0.305, 0.356, 0.381, 0.406, 0.457, 0.483, 0.508, 0.635, 0.660 mm Accuracy: 0.012 mm Blade length: 100 mm Blade width: 12.7 mm Weight (set): 0.02 kg Pieces per set: 12 Special features 30° angled blades Conical blade profile Imperial sizes for engine repairs Compliance: Werksnorm Intended application: motor repairs and workshop gap measurement FAQ How precise are the gauges in this set? The Precision Feeler Gauge Set M318.019 (Metav IndustryLine) is specified with an accuracy of 0.012 mm, suitable for repeatable gap checks in routine engine maintenance. Which measurement range is covered by the blades? The blades cover 0.203–0.660 mm (0.008–0.025"), providing the typical imperial increments used for spark-plug and valve clearance work. Why are the blades angled at 30°? The 30° offset on the blades allows access to recessed or awkward gaps in engine bays where straight blades would be difficult to position. Is this set suitable for professional engine repairs? Yes—the 12-piece imperial set from Metav IndustryLine is designed for motor repairs and workshop use, delivering practical thickness steps and an insertion-friendly blade shape. What is included in the set? The set includes twelve individual blades in imperial sizes, presented as a compact kit for workshop measurement tasks, designated under SKU M318.019. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.66mm Gauge Pin, Length 50mm, ±0.001mm, Workshop Version, Special Steel - Metav IndustryLine
Take advantage of the combination of high‑precision ±0.001 mm tolerance, a compact Ø 0.66 mm diameter and resilient special steel construction for repeatable end‑dimension control; order the gauge pin directly via Metav Werkzeuge or ask our consultants for application advice. Gauge pin M323.066 — single gauge pin, Ø 0.66 mm, ±0.001 mm A gauge pin designed for precise end‑dimension checks and plug gaging in workshop and inspection environments. High‑precision ±0.001 mm tolerance Diameter Ø 0.66 mm for fine bores Workshop‑grade 50 mm length Precision where miniature dimensions matter The M323.066 gauge pin delivers exceptionally fine resolution thanks to its ±0.001 mm specification, making it suitable for tasks that demand tight end‑dimension control. The small Ø 0.66 mm shaft is ideal for verifying tiny bore diameters and ensuring component conformity in micro‑mechanical assemblies. Built for repeatability, the narrow diameter minimises clearance error and supports reliable pass/fail evaluations in quality checks. Durable construction for everyday workshop use Manufactured from special steel, this probe provides a balance of hardness and wear resistance that supports frequent handling in a production setting. The 50 mm length offers enough engagement for secure probing while remaining compact for easy handling and positioning. The workshop version implies robustness in finish and tolerances so that routine measurements remain consistent without excessive tool care. Practical benefits for inspection and metrology Designed for end‑dimension verification and plug gaging, the measuring pin reduces setup time in inspection routines and complements standard gauge sets. The compact format helps in accessing confined features, and the tight tolerance reduces measurement uncertainty during comparative checks. Supplied as a single item, the component is straightforward to integrate into existing inspection procedures and tool kits. Contact Metav Werkzeuge for product availability and technical consultation on the Metav IndustryLine gauge pins — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: M323.066 GTIN: 4061905055072 Label: Prüfstift, einzeln, 0,66 mm, +/- 0.001 mm Länge 50 mm Facts Diameter: 0.66 mm Tolerance / Accuracy: ±0.001 mm Length: 50 mm Weight: 0.003 kg Special features Material: special steel Single piece delivery Workshop execution Intended for end‑dimension checks Category: gauge pins FAQ What tolerance can be expected from this gauge pin? The gauge pin offers a tolerance of ±0.001 mm, suitable for fine end‑dimension verification and high‑precision plug gaging. Which materials is the pin made from? This measuring pin is manufactured from special steel, chosen for wear resistance and dimensional stability in workshop conditions. Is the pin supplied individually or in sets? The item is supplied as a single gauge pin (M323.066) for flexible integration into inspection workflows. What applications suit a Ø 0.66 mm pin? A diameter of 0.66 mm is aimed at checking small bores, micro‑mechanical parts and detailed end‑dimension control tasks. How does the length affect handling? At 50 mm length the pin offers secure engagement for repeatable measurements while remaining compact for access in confined assemblies. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.67 mm Gauge Pin Single, ±0.001 mm Accuracy, 50 mm Length, Workshop Version - Metav IndustryLine
High-precision inspection of micro components is achieved by the combination of 0.67 mm nominal diameter, ±0.001 mm tolerance and a 50 mm working length; order the precision gauge pin directly via Metav Werkzeuge or ask our consultants if needed. Precision gauge pin M323.067 — single micro gauge pin, 0.67 mm diameter, ±0.001 mm tolerance (Metav IndustryLine) The Precision gauge pin M323.067 is a single, workshop‑grade inspection pin designed for micro measurement tasks and end‑dimension checks in fine mechanical work and precision engineering. Precision diameter 0.67 mm Tolerance ±0.001 mm 50 mm hardened length Delivered in protective transport case Reliable micro‑measurement where every micron counts This micro‑class gauge pin is engineered for tasks that demand reproducible results at very small diameters. With a nominal diameter of 0.67 mm and a guaranteed ±0.001 mm tolerance, the pin supports high‑accuracy go/no‑go and comparative checks on miniature bores, pins and features. Classified within the micro measurement range, it offers the stiffness and surface quality needed to reduce measurement uncertainty on compact components. The emphasis on measurable performance makes this item particularly suited to inspection processes where traceable, repeatable readings are essential. Robust design and material for workshop conditions Designed as a workshop version, the pin is manufactured from special steel that combines wear resistance with dimensional stability. The 50 mm length provides practical reach for small assemblies while retaining rigidity, and the precision ground finish ensures consistent contact geometry. These attributes reduce the influence of handling and allow integration into existing gauge sets or holding fixtures. The single‑piece construction simplifies handling and minimises sources of fit error during routine checks. Practical handling and application scenarios The pin supports end‑measurement and small‑bore verification in toolrooms, assembly lines and repair benches. Typical applications include component sorting, final inspection of turned parts and validation of mating elements for micro‑mechanical assemblies. Supplied in a protective transport case, the item is easy to store and transport without compromising the ground surface. The compact dimensions and clear specification make the pin compatible with manual gauges, comparator setups and fixture‑based inspection systems used in precision workshops. Why Metav IndustryLine matters for everyday precision Sourcing this component from Metav IndustryLine brings the advantage of a dedicated quality filter located in Emmerich: practical availability of precision parts combined with consistent product oversight. Metav’s approach to democratising precision ensures reliable supply for small and medium‑sized operations as well as specialised industrial users. The result is a dependable inspection aid that supports quality assurance workflows and reduces rework through accurate initial checks. For dependable micro inspection, choose the Metav IndustryLine precision gauge pin and contact Metav Werkzeuge for tailored advice or ordering from Emmerich. Technical data Article number: M323.067 GTIN: 4061905055089 Label: Precision gauge pin, single, 0.67 mm, ±0.001 mm, length 50 mm Brand: Metav IndustryLine Facts Diameter: 0.67 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Special features Material: special steel Workshop version Delivered in transport case Single probe design FAQ What tolerance is guaranteed for this gauge pin? The precision gauge pin M323.067 is specified with a ±0.001 mm manufacturing tolerance, suitable for high‑accuracy micro inspection. Which applications suit a 0.67 mm pin? This pin is intended for micro‑mechanical checks such as small‑bore verification, end‑dimension control and inspection of miniature turned parts. Is the pin supplied with protective packaging? Yes, the M323.067 is delivered in a protective transport case to preserve the ground finish during storage and transit. What material is used for the pin? The gauge pin is made from special steel in a workshop‑grade finish to provide wear resistance and dimensional stability. Can the pin be integrated into gauge sets or fixtures? The single‑piece design of M323.067 allows straightforward use in manual gauge sets, fixtures and comparator arrangements for routine inspection. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.68 mm Test Pin Single, ±0.001 mm Tolerance, 50 mm Length Workshop Version - Metav IndustryLine
Take advantage of the combination of ultra‑fine ±0.001 mm tolerance, a 0.68 mm diameter and a compact 50 mm length for reliable end‑measurement tasks; the single‑piece test pin is supplied in a protective transport box for safe handling. Order the test pin directly via Metav Werkzeuge or consult the Metav team for application advice. Test pin M323.068 — single precision probe, 0.68 mm, ±0.001 mm A Test pin M323.068 designed for precision end‑measurements and micro‑gauging in workshops and inspection environments. Precision tolerance ±0.001 mm Diameter 0.68 mm Length 50 mm workshop version Delivered in transport box Accurate small‑diameter gauging for repeatable checks The compact 0.68 mm diameter and ±0.001 mm tolerance make this pin ideal where repeatability and minimal contact area are crucial. As a single‑piece probe, the component reduces measurement uncertainty during end‑dimension verification or comparative checking; the narrow profile allows access to tight bores and fine features while maintaining a stable reference. The combination of fine geometry and consistent tolerance supports faster inspection cycles and fewer rechecks, improving throughput in small‑part production. Robust construction tailored to workshop conditions Manufactured from special steel, the probe combines wear resistance with dimensional stability under routine handling. The workshop execution signifies practical design choices that favour resilience during frequent use: resistance to accidental abrasion, a consistent contact face and a balanced length‑to‑diameter ratio. Supplied in a protective transport box, the item arrives ready for storage or immediate use, lowering the risk of damage in transit and ensuring the probe retains its calibrated condition until deployment. Practical benefits for quality control and tooling The minimal mass and compact geometry keep handling simple and permit quick positioning in jigs and fixtures. For inspection tasks that demand a defined reference point, the probe provides a dependable solution for end‑measurements and plug checks. The lightweight design reduces operator fatigue during repetitive checks, while the precise bore compatibility supports integration with existing gauging setups. This focus on measurable performance helps maintain consistent quality across batches and reduces downtime associated with ambiguous fit checks. For reliable micro‑gauging and workshop‑grade durability from Metav IndustryLine, request a quote or technical consultation from Metav Werkzeuge — specialists are available to advise on suitability and delivery from Emmerich. Technical data Article number: M323.068 GTIN: 4061905055096 Manufacturer: Metav IndustryLine Facts Diameter: 0.68 mm Length: 50 mm Tolerance: ±0.001 mm Weight: 0.003 kg Special features Material: Special steel Workshop execution Single piece test pin Supplied in a protective transport box FAQ What level of accuracy can be expected from this test pin? The M323.068 test pin from Metav IndustryLine delivers an accuracy of ±0.001 mm, suitable for high‑precision end‑measurement tasks in micromechanics and detailed inspection work. Which materials is the probe made from? The probe is manufactured from special steel, chosen for dimensional stability and wear resistance appropriate to workshop use. Is the test pin ready for immediate use on arrival? Yes, the single test pin is supplied in a protective transport box and is suitable for immediate deployment in inspection routines. For which applications is this probe best suited? The M323.068 probe is optimised for end‑dimension verification, plug checks and access to tight bores in precision engineering and small‑part production. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Fast, tactile checks where electronics are impractical
Gauges and test pins provide unequivocal go/no-go results for threads, bores, gaps and radii without relying on electronics. The range covers plug gauges and ring gauges for internal and external threads, feeler gauges and precision feeler strips for micro‑gap assessment, plus probe pins and measuring pins for tactile diameter and pitch checks.
How these tools work in the production environment
Mechanical gauges operate as direct reference standards: a plug gauge or ring gauge verifies conformity to thread profiles and mating ability, while limit gauges separate accept from reject in a single step. Test pins are used to tactilely measure small bore diameters, centre‑to‑centre distances and radii. Manufactured from hardened gauge steel or ceramic and often precision lapped, these instruments deliver immediate physical results that are ideal for incoming inspection, machine‑side checks and final control.
Measurable benefits that affect production performance
- Reduced scrap and rework through rapid, unambiguous pass/fail assessment.
- Increased repeatability thanks to very low measurement uncertainty and fine lapping.
- Lower downtime: quick checks at the machine save cycle time and reduce setup periods.
- Durable construction with high wear resistance from specialised, low‑distortion alloys.
- Versatile delivery formats: individual gauges, organised sets in wooden cases or metre‑length feeler rolls compliant with DIN 2269.
Why Metav is the practical choice for precision supplies
Metav combines decades of expertise with a broad warehouse and quality filtering from Emmerich. As a precision partner for industry, craft and trade, Metav supplies a comprehensive selection of gauges and test pins alongside complementary tools such as precision calipers and setting rings. With over 48,000 customers and a catalogue exceeding 250,000 items, Metav is positioned to supply reliably, reduce vendor complexity and support traceable quality control to national standards.
Summary
Gauges and test pins are indispensable for dependable, repeatable quality assurance where tactile, mechanical verification is preferred. Choose these plug gauges, ring gauges, feeler strips and probe pins when immediate, robust measurement decisions are required on the shop floor.
FAQ
What materials are gauges and test pins typically made from?
Gauges and test pins are usually manufactured from hardened gauge steel for durability and wear resistance; ceramic variants are available where thermal stability and minimal wear are critical.
How do thread gauges ensure mating capability?
Thread plug gauges and ring gauges check flank diameters and thread form against standards, providing a clear go/no‑go verdict that confirms pairability with mating parts.
Which tolerance class should I choose for probe pins and gauge sets?
Select tolerance classes aligned with your inspection requirements; for high‑precision tasks, sets produced to DIN 2269 or equivalent tolerance classes ensure micrometre‑level control and repeatability.
Can feeler gauges measure contact gaps in valve and engine work reliably?
Yes. Feeler gauges and precision feeler strips, supplied either as a fan or metre‑length rolls, allow accurate assessment of valve clearances and contact gaps down to micrometre increments.
How do limit gauges speed up in‑process inspection?
Limit gauges separate good from bad in a single, tactile operation, enabling rapid go/no‑go checks at the machine and reducing both inspection time and the likelihood of human interpretation errors.
