Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
30x300 mm Cylindrical Test Mandrel, Both Ends Centre‑Drilled, Runout Accuracy 0.005 mm - Metav IndustryLine
Take advantage of precise runout control and robust construction for consistent inspection results; the combination of 0.005 mm runout accuracy and hardened gauge steel provides measurable repeatability on shop and metrology benches. Order the inspection mandrel directly via Metav Werkzeuge or contact our consultants for specification advice. Inspection mandrel M318.911 — cylindrical test mandrel, Ø30×300 mm, runout accuracy 0.005 mm (Metav IndustryLine) An Inspection mandrel M318.911 designed for high-precision runout checks in component inspection and assembly fixtures, offering a compact diameter with extended length for versatile gauging tasks across production and quality control environments. Cylindrical inspection mandrel Ø30×300 mm Runout accuracy 0.005 mm Hardened gauge steel construction Both ends centred for secure mounting Consistent runout verification for reliable quality control The mandrel delivers a measurable runout accuracy of 0.005 mm, which translates into tighter process control and fewer escaped defects during assembly and finishing. By using a fixed-diameter, straight shaft the operator benefits from reduced measurement scatter and improved repeatability compared with ad‑hoc fixturing. Where concentricity and spindle alignment affect downstream performance, this tool enables quick go/no‑go checks and objective documentation of part condition, reducing rework and protecting downstream processes. Robust materials and centred mounting for stable measurements Manufactured from hardened gauge steel, the mandrel combines stiffness with wear resistance to preserve geometry over repeated use. The shaft’s Ø30 mm section and 300 mm overall length maintain adequate rigidity for medium-length components while the specification of both ends centred ensures reproducible mounting in chucks or fixtures. The resulting stability means fewer positional deviations during rotation, allowing measurement instruments and dial indicators to record truer values with less need for operator compensation. Practical integration into inspection workflows Designed as a straightforward go‑to tool for runout inspection, the mandrel fits into existing benches and inspection routines without complex setup. Its solid construction and clear dimensional spec simplify traceability in quality records and make it suitable for routine checks in machine shops, toolrooms and incoming inspection. The compact footprint eases handling between fixtures; the clear numeric tolerance facilitates immediate decision making in first‑article inspections or batch sampling. For assured runout control and integration into existing inspection setups, contact Metav Werkzeuge for ordering and technical advice on the M318.911 inspection mandrel Technical data Article number: M318.911 GTIN: 4054469183831 Material: hardened gauge steel Dimensions: Ø30×300 mm Weight: 3.3 kg Runout accuracy: 0.005 mm Facts Diameter: 30 mm Length: 300 mm Runout tolerance: 0.005 mm Weight: 3.3 kg Category: Gauges Special features Both ends centred for mounting Hardened gauge steel construction Category: Gauges (Lehren) Suitable for runout inspection and alignment checks FAQ What is the primary purpose of this inspection mandrel? The inspection mandrel M318.911 is intended for checking and verifying runout accuracy of shafts and bores, providing a fixed reference for concentricity and alignment checks. Which materials is the mandrel made from and why does that matter? The shaft is manufactured from hardened gauge steel, chosen for dimensional stability and wear resistance so that the mandrel maintains geometry and repeatable results over time. How is the mandrel mounted during an inspection? The mandrel features both ends centred, allowing secure mounting in chucks, collets or fixture spindles to ensure stable rotation and reproducible measurement conditions for runout assessment. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
310x141mm Cross Slide Table 115mm Height, 16mm T-Slot, 20 Kg Load Capacity - Vertex
Take advantage of the combination of compact benchtop dimensions, secure 16 mm T-slot fixturing, and a 20 Kg load capacity for consistent, repeatable setups; order the unit directly via Metav Werkzeuge or contact our consultants for specification support. VCT-512 Cross Table by Vertex — 310 x 141 mm table, 16 mm T-slot The VCT-512 is a compact cross table designed for precision positioning and fixturing in small machine-shop and inspection applications, offering a stable platform for light milling, drilling and measurement tasks. Precision table 310 x 141 mm 16 mm T-slot for versatile fixturing Max load 20 Kg for stable machining Consistent positioning for accurate results The cross slide delivers repeatable travel across both axes, based on a machined table area of 310 x 141 mm that supports precise workpiece alignment. The solid construction and a listed weight of 16.5 kg reduce vibration during cutting and measuring, which improves surface finish and measurement reliability. For workshops seeking predictable throughput, the combination of compact size and mass reduces the need for frequent rework and simplifies set-up times. Secure clamping reduces rework and downtime Integrated 16 mm T-slot configuration enables flexible clamping with standard fixtures and clamps, allowing modular setups without custom adaptors. A rated maximum load of 20 Kg means the table handles typical small-part machining and inspection duties while maintaining positional integrity. Explaining the term: a T-slot is a standard channel for bolt-head engagement, making fixture changes quick and mechanically secure, which cuts fixture-change time and lowers risk of clamping errors. Compact footprint for easy integration on the bench With a base footprint of 225 x 200 mm and an overall height of 115 mm, the table fits onto crowded benches and machine tables while providing sufficient travel surface. The compact form factor supports flexible placement beside mills, drill presses or measuring rigs without significant reorganisation of the workstation. The result is a practical compromise between stability and space efficiency that benefits small shops and labs where bench real estate is at a premium. Request a specification check from Metav Werkzeuge to confirm mounting, clamping options and to reserve the Vertex VCT-512 for the next production run Technical Data Article number: VCT-512 GTIN: 4061905083198 Manufacturer: Vertex Facts Table size: 310 x 141 mm Base (foot) dimensions: 225 x 200 mm Height: 115 mm Maximum load: 20 Kg Weight: 16.5 kg T-slot width: 16 mm Special features Type: Cross table Suitable for light milling, drilling and inspection fixtures Compact benchtop design FAQ What are the exact table dimensions? The table surface measures 310 x 141 mm, which on the VCT-512 provides a versatile working area for small parts. What is the load capacity for clamping operations? The Vertex VCT-512 is rated for a maximum load of 20 Kg, suitable for typical small-workpiece machining and inspection tasks. Which T-slot size is provided for fixturing? A 16 mm T-slot is fitted to the cross table for standard clamp and fixture compatibility. How much space does the unit occupy on the bench? The base dimensions are 225 x 200 mm with an overall height of 115 mm, allowing easy placement on crowded workbenches. Is the table heavy enough to reduce vibration during cutting? With a weight of 16.5 kg, the cross table offers sufficient mass to dampen minor vibrations for improved finish and measurement stability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
32x300 mm Runout Test Mandrel, 0.005 mm Runout Accuracy, Hardened Gauge Steel, DIN 229 - Metav IndustryLine
Take advantage of the high-precision 0.005 mm runout and robust, hardened gauge steel construction to ensure reliable spindle alignment and repeatable quality checks; order the inspection mandrel directly via Metav Werkzeuge or consult our technical team for application advice. Inspection Mandrel MT4 – Ø32×300 mm, runout 0.005 mm (Metav IndustryLine) The Inspection Mandrel MT4, Ø32×300 mm is a precision test arbor for runout measurement and alignment of machine spindles with a Morse taper fitting. Runout accuracy 0.005 mm MT4 taper for spindle fitting Hardened gauge steel construction Total length 430 mm, weight 3.5 kg Precision that reduces rework and protects tooling The mandrel delivers a guaranteed runout of 0.005 mm, which provides a reliable reference for concentricity checks and helps to reduce scrap and rework in precision machining. By using a stable reference element with Ø32×300 mm working length and a well-defined taper, inspection cycles become faster and more decisive. The measurable improvement in setup reproducibility translates into lower downtimes and longer tool life, a clear advantage in production and maintenance environments. Robust build for long-term consistency Manufactured from hardened gauge steel and produced to DIN 229 standards, the device resists wear and maintains dimensional stability under repeated handling. The heavier mass and total length 430 mm contribute to a stable measuring condition when seated in the spindle, reducing vibration influence during assessment. These construction choices ensure that the reference stays accurate over time, supporting consistent quality control without frequent replacement. Practical use for alignment and inspection tasks Designed for runout testing and spindle alignment, the inspection mandrel fits directly into machine spindles with an MT4 taper and serves as a true radial reference for a dial indicator or displacement sensor. The mandrel’s balance and clear cylindrical tolerance allow quick verification of spindle concentricity and the detection of bearing or taper seating faults. Suitable for workshop calibration routines and maintenance checks, this test arbor is a straightforward tool for technicians seeking repeatable alignment results with minimal setup complexity. Contact Metav Werkzeuge for tailored application guidance or to reserve the MT4 inspection mandrel; technical consultants at Metav Werkzeuge in Emmerich are available by phone or email to advise on compatibility and delivery options. Technical Data Article number: M318.934 GTIN: 4054469183930 Type: MT4 inspection mandrel Standard: DIN 229 Facts Diameter: 32 mm Working length: 300 mm Total length: 430 mm Weight: 3.5 kg Runout accuracy: 0.005 mm Special features Material: hardened gauge steel Mounting: MT4 taper Suitable for runout testing and spindle alignment Category: Gauges (Lehren) FAQ What runout precision can be expected from this mandrel? The Inspection Mandrel MT4 provides a runout accuracy of 0.005 mm, suitable for high-precision spindle checks. Which spindles will the mandrel fit? The mandrel is designed for spindles accepting an MT4 (Morse taper 4) fitting and is intended for direct seating in such spindle noses for alignment work. What material and standard apply to this tool? This Metav IndustryLine inspection mandrel is made from hardened gauge steel and manufactured to DIN 229 specifications. How is the mandrel used during a runout check? The mandrel is seated in the spindle taper and a dial indicator or displacement sensor measures radial deviation along the cylindrical portion to assess spindle concentricity. Which product code identifies this item? This item is listed as M318.934 from Metav IndustryLine and is provided for workshop and maintenance inspection tasks. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
34.3mm Self‑Gripping Drill Chuck B10 Taper, 8XHSP Series - Vertex
Take advantage of the combination of precision clamping, robust construction and fast tool changes to keep production moving reliably; order directly via Metav Werkzeuge or consult the sales team for application advice. Vertex self-tightening drill chuck 8XHSP — B10 taper, 34.3 mm nominal diameter A Vertex self-tightening drill chuck 8XHSP designed for secure, keyless clamping on machines equipped with a B10 taper. Self-tightening clamping for fast tool changes B10 taper for machine spindle compatibility 34.3 mm maximum chuck diameter Robust construction for consistent concentricity Faster changeover through secure self-tightening The self-tightening mechanism reduces set-up time by allowing tool changes without additional accessories, delivering a measurable efficiency gain on repetitive drilling tasks. With a B10 taper interface, the chuck provides a secure mechanical fit to compatible spindles, ensuring that clamping force is transferred reliably. The specified 34.3 mm nominal diameter identifies the practical clamping range and helps planners match tooling to application requirements. This combination supports continuous operation with fewer interruptions and predictable throughput. Stability and process consistency from mass and design Weighing 13 kg, the unit offers a substantial mass that contributes to vibration damping and improved concentricity during drilling operations. The robust design reduces oscillation at the cutting edge, which in turn helps maintain hole position and finish over series production. For workshop environments where repeatable results matter, the physical stability of this chuck supports tighter tolerances and fewer reworks, translating into lower scrap rates and steadier component quality. Clear compatibility and straightforward integration The chuck’s B10 taper is a recognised mounting interface for small to medium machine spindles, simplifying selection and installation planning. Engineers and maintenance staff can assess machine compatibility quickly by checking for the corresponding taper; the standardised fit minimises the need for adaptors and keeps spindle concentricity intact. The product type designation 8XHSP and SKU facilitate procurement and inventory management, supporting efficient replacement cycles and spare-part logistics. Low complexity maintenance for uninterrupted use The keyless clamping principle reduces the number of wear parts and simplifies routine checks: visual inspection for wear, cleaning of contact surfaces and basic lubrication are typically sufficient to preserve function. The straightforward mechanical design shortens downtime for maintenance and inspection, enabling predictable preventive intervals. For customers seeking dependable clamping with manageable upkeep, this solution balances operational resilience with practical serviceability. Contact Metav Werkzeuge for tailored advice on using the Vertex self-tightening drill chuck 8XHSP in specific machine setups and to arrange prompt supply from the Emmerich warehouse — info@metav-werkzeuge.com | +49 2822 7131930 | WhatsApp +49 170 2837271 Technical Data SKU: 11015 GTIN: 4061905083167 Type: 8XHSP ECLASS: 21020490 ETIM: EC002125 Facts Diameter: 34.3 mm Weight: 13 kg Taper: B10 Special features Self-tightening (keyless) chuck Category: Vertex Suitable for machines with B10 taper FAQ What clamping range does the chuck support? The chuck supports a nominal clamping capacity of 34.3 mm as specified for this Vertex self-tightening drill chuck (SKU 11015). Which spindle taper is required for installation? This unit is designed for machines with a B10 taper; ensure the spindle matches B10 for proper fit and mechanical engagement. Is the chuck keyless or requires a key? The product uses a self-tightening keyless mechanism, enabling faster tool changes without a separate key. How does the weight affect performance? Weighing 13 kg, the chuck’s mass contributes to vibration damping and helps maintain concentricity during drilling operations. What identifiers are useful for ordering or spare parts? Use SKU 11015 and GTIN 4061905083167 when ordering or checking stock for this Vertex drill chuck Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
35.6mm Drill Chuck APU Self‑Tightening SK40-APU08, DIN 69871A - Vertex
Benefit from a self‑tightening APU design, standardised DIN 69871A taper and compatibility with SK40-APU08 collets (Ø0.5–8 mm) to secure tools reliably and reduce rework; order via Metav Werkzeuge or contact our consultants for specification support. Drill chuck SK-511 (APU) — self‑tightening, SK40, DIN 69871A (Vertex) A self‑tightening drill chuck, Drill chuck SK-511 (APU), engineered for SK40 taper spindles and intended for precision clamping of small-diameter tools across general workshop and production applications Self‑tightening APU design for secure clamping Compatible with SK40-APU08 collets Collet range Ø0.5–8 mm DIN 69871A taper for standard spindles Secure clamping for repeatable machining results The self‑tightening mechanism delivers consistent clamping force that simplifies tool changes while maintaining concentricity. Designed to work with SK40 collet systems, the chuck supports a collet range Ø0.5–8 mm, enabling precise mounting of drills and small cutters. This reliability reduces the need for repeat operations and contributes to stable process quality in batch and single-piece production. The chuck’s balanced design supports steady rotation, improving surface finish and extending tool life. Standardised mounting for easy integration Compliance with DIN 69871A ensures the chuck mates with common machining centres and toolholders, allowing straightforward retrofit and interchangeability. The combination of the standard taper and the SK40-APU08 collet interface simplifies machine setup and inventory management. For production planners and toolroom managers, this means fewer bespoke adapters and a predictable equipment footprint, which supports streamlined maintenance schedules and faster changeovers. Practical workshop benefits and handling Weighing approximately 1.4 kg, the unit is robust without being cumbersome, which helps during manual handling and fixture changes. The compact diameter (35.6 mm) and the proven Vertex workmanship make the chuck suitable for tight spindle noses and constrained tool magazines. The design emphasises both ergonomic handling and compatibility with existing collet inventories, so integration into daily workflows is efficient and low-friction. Built for precision, specified for professionals As a plain but essential toolholder, the chuck prioritises measurable performance: repeatable concentricity, secure clamping and standardised mounting. Those responsible for quality assurance will value the clear specification and the ability to verify performance with routine checks. Where process reliability matters, choosing a standardised, self‑tightening chuck reduces variability and supports consistent production output without requiring complex user adjustments. Contact Metav Werkzeuge for tailored advice on the Vertex SK-511 — our specialists in Emmerich assist with compatibility checks and specification choices to ensure the chuck meets the intended application Technical data Article number: SK-511 GTIN: 4061905084836 Manufacturer: Vertex Facts Weight: 1.4 kg Diameter: 35.6 mm Collet range: Ø0.5–8 mm eCl@ss: 21020490 ETIM: EC002125 Special features Self‑tightening (APU) Taper interface: DIN 69871A Collet type: SK40-APU08 FAQ Which collet sizes does the chuck support? The chuck supports collets in the range Ø0.5–8 mm, suitable for small drills and reamers. Is the spindle interface compatible with standard SK40 holders? Yes; the chuck uses the SK40-APU08 collet interface and mounts to a DIN 69871A taper. Is the clamping mechanism self‑tightening or manual? The device features a self‑tightening APU mechanism for secure and repeatable clamping. What is the weight and typical handling impact? The unit weighs 1.4 kg, offering a balance between robustness and manageable handling during tool changes. Can the chuck be used for high-precision applications? Designed for repeatable concentricity and stable clamping, the chuck is suitable for precision toolholding in toolrooms and production settings. Who manufactures the chuck and where is it sourced from? The chuck is produced by Vertex and is supplied via Metav Werkzeuge for the European market. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
3500 N Quick-Acting Screw Clamp With Mounting Rail, Zinc-Plated - Kukamet
Benefit from a galvanised finish, compact 1.32 kg construction and a max clamping force of 3,500 N for fast, secure fixturing; the clamp’s mounting‑rail compatibility reduces setup time and improves repeatability. Order the clamp directly via Metav Werkzeuge or consult our specialists for application support. Quick-action clamp 841 — galvanised toggle clamp, mounting-rail fitting The Quick-action clamp 841 is a galvanised toggle clamp designed for rapid fixing on a mounting rail, suitable for production jigs and workshop fixturing where reliable and repeatable holding is required. Galvanised finish for corrosion resistance Mounting rail for quick installation Max clamping force 3,500 N Compact 1.32 kg robust design Fast, reliable clamping that keeps production moving The clamp delivers a clear efficiency advantage through its quick-action toggle mechanism and measurable forces: 3,500 N clamping power with 4,000 N holding capacity ensures components remain secure during machining or assembly. The 82° operating angle provides consistent leverage and makes force transmission predictable, which helps reduce setup variability and scrap rates. These quantifiable characteristics support faster cycle times and greater process stability for repetitive tasks in small-series or high-volume environments. Robust, low-maintenance construction for continuous use Constructed in galvanised steel and finished for workshop conditions, the clamp resists corrosion and wear to extend service intervals. Its screw-clamp style design combines mechanical simplicity with durability, so maintenance is limited to routine inspection and lubrication. At just 1.32 kg, the unit is compact enough for dense fixture layouts yet substantial enough to withstand industrial handling, giving a favourable balance between portability and longevity for bench and line applications. Simple mounting and intuitive handling reduce downtime Fitting the clamp to a mounting rail enables fast repositioning or replacement, shortening setup and changeover time. The lever principle is straightforward: engage the toggle to apply force and lock the workpiece; release to remove it. This familiar operation minimizes training effort and lowers the risk of operator error in small teams or multi-shift operations. Backed by a reliable supply chain and product verification from a European quality filter, the clamp supports predictable uptime and consistent clamping performance. Contact Metav Werkzeuge today to specify the Kukamet Quick-action clamp 841 for your fixtures and jigs — Metav’s consultants can advise on rail compatibility and application details, email info@metav-werkzeuge.com or phone +49 2822 7131930 Technical data SKU: 841-2 GTIN: 8682843521809 ECLASS: 21020701 ETIM: EC011973 Core specifications Max clamping force: 3,500 N Max holding force: 4,000 N Weight: 1.32 kg Operating angle: 82° Category: Spanner / Clamp Special features Material: galvanised steel Mounting: with mounting rail Style: screw-clamp type Application: lever / toggle clamping FAQ What materials is the clamp suitable for? The Kukamet Quick-action clamp 841 is a general-purpose clamp; material suitability depends on fixture design and cutting forces, with the clamp providing repeatable holding for a wide range of workshop applications. How is the clamp mounted to a workbench or jig? The clamp is designed for attachment to a mounting rail, allowing quick positioning and secure fixing in modular fixture systems. What maintenance is required to keep clamping performance? Periodic visual inspection, light lubrication of the toggle pivot and checking of fastenings preserve the clamp’s performance; the galvanised finish reduces the need for corrosion-specific upkeep. Can the clamp withstand continuous industrial use? Yes, the galvanised construction and screw-clamp design of the 841 are geared toward regular workshop and production use, offering robust service life under typical operating conditions. Is the holding and clamping force measured or rated? The clamp is specified with a max clamping force of 3,500 N and a holding force of 4,000 N, values intended to support reliable selection for specific fixturing needs. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

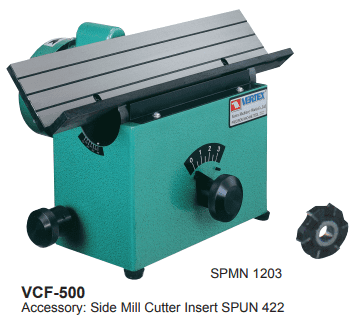

500x320mm Chamfering And Deburring Machine With Replaceable Carbide Inserts, 3500 rpm - Vertex
Take advantage of a compact, high-speed solution for edge finishing: interchangeable carbide inserts reduce downtime while the 3,500 r.p.m. spindle ensures consistent chamfering quality. Order directly via Metav Werkzeuge or contact the consultants for specification support and fast delivery from Emmerich. VCF-500 Chamfering and Deburring Machine — 3,500 r.p.m., interchangeable carbide inserts (Vertex) The VCF-500 is a robust chamfering and deburring machine designed for efficient edge finishing in workshops and production lines Interchangeable carbide inserts for long service life 3,500 r.p.m. high-speed spindle Includes side milling insert SPUN 422 Versatile voltage options for varied installations Faster throughput with consistent edge quality The VCF-500 combines a 3,500 r.p.m. spindle with a compact layout (500 x 320 mm) to deliver reliable edge preparation without occupying excessive shop floor space. High rotational speed translates into shorter cycle times for repetitive chamfering and deburring tasks, improving production throughput. The measured weight of 28.5 kg provides a stable base that reduces vibration during operation, contributing to uniform results and less rework. This section explains how speed and stability convert into measurable time savings on routine finishing jobs. Lower downtime thanks to quick-change carbide tooling Equipped with interchangeable carbide inserts, the unit simplifies maintenance and tool replacement. Carbide inserts are engineered for wear resistance and long life; when an insert reaches its service limit it can be swapped without complex realignment, so machine availability remains high. For workshops new to carbide tooling: inserts are small hard pieces of tungsten carbide brazed or clamped into the cutter body and designed to be rotated or replaced when blunt, avoiding full-tool regrind and reducing overall tool costs. Flexible integration into diverse electrical environments The machine supports multiple supply configurations — single-phase and three-phase options across common voltages and both 50 Hz and 60 Hz frequencies — allowing installation in varied facilities without additional power conversion. The package includes the side milling insert SPUN 422, enabling immediate use for typical edge finishing tasks and reducing lead time for tooling. This flexibility helps production planners integrate the chamfering unit into existing lines or use it as a bench-top station for ad hoc finishing work. Practical design that supports daily workshop use The VCF-500’s design balances accessibility with sturdy construction: ergonomic access to the cutter area speeds up set-up and cleaning, while the robust chassis endures continuous operation. Routine maintenance is straightforward, with clearly accessible fastenings for insert changes and cleaning. The machine’s specification and included tooling mean that small to medium-sized metalworking shops can adopt professional edge finishing capability without complex retrofitting. Contact Metav Werkzeuge to discuss how the Vertex VCF-500 fits specific production needs and to arrange prompt delivery from our Emmerich warehouse Technical data SKU: VCF-500 GTIN: 4061905083129 Manufacturer: Vertex Core specifications Dimensions: 500 x 320 mm Speed: 3,500 r.p.m. Weight: 28.5 kg Supply voltage options: single-phase 110 V / 220 V; three-phase 220 V, 380 V / 415 V; 50 Hz / 60 Hz Special features Interchangeable carbide inserts Included accessory: side milling insert SPUN 422 Compact footprint suitable for workshop stations FAQ What materials can this chamfering and deburring machine process? The VCF-500 is built as a universal edge-finishing unit; specific material compatibility depends on the selected insert grade and cutting parameters, and Vertex offers recommended insert options for typical workshop applications. How are the carbide inserts replaced and aligned? Carbide inserts for the VCF-500 are designed for quick change with standard screws; replacement requires no complex re-alignment, as the insert seat and locating features ensure repeatable positional accuracy. Is the machine ready to run on delivery? The Vertex VCF-500 is supplied including the side milling insert SPUN 422 and can be connected to the appropriate supply voltage for operation; final commissioning should follow the local electrical installation rules. Can the VCF-500 be used in a production line or as a standalone bench unit? The VCF-500’s compact dimensions and flexible supply options make it suitable for both inline integration and standalone workshop use, depending on process layout and installation. What service intervals are recommended for sustained performance? Service frequency depends on usage intensity; routine checks of insert condition, spindle bearings and clamping screws are advised to maintain the Vertex unit’s precision and to prevent unplanned downtime. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
36mm Integrated Self‑Locking Drill Chuck MT‑2, Ø0.5–8mm Capacity - Vertex
A compact, self‑tightening drill chuck with an MT‑2 Morse taper and a clamping range of Ø0.5–8 mm offers secure, low‑slip tool holding and simple integration into conventional tailstocks and spindles; combine this precision clamping with the fast handling and reliable build for smoother workflows. Order the component directly via Metav Werkzeuge or consult the specialists for application advice. Drill chuck INT-8-MT2 – integrated self‑tightening, MT‑2 taper (Vertex) A drill chuck INT‑8‑MT2 designed for secure, self‑tightening clamping of twist drills and small tooling in workshop and light‑duty lathe applications. Integrated self‑tightening mechanism MT‑2 taper mount for standard tailstocks Capacity Ø0.5–8 mm for versatile use Compact 36 mm body, robust 0.8 kg weight Precise clamping that reduces slippage and tool wear The integrated self‑tightening mechanism is designed to increase clamping force as torque is applied, which improves retention of small drill bits and reduces the risk of slippage during operation. This behaviour supports consistent hole quality and lowers the chance of tool breakage, making the chuck suitable for repetitive drilling tasks where reliability matters. The compact design contributes to lower radial runout potential, supporting precision and repeatable results across series production and maintenance jobs. Easy mounting with proven Morse taper for concentricity Mounting is straightforward via the MT‑2 taper, a widely accepted standard for tailstocks and many light machines. The taper ensures secure axial alignment and helps to maintain concentricity between spindle and tool, which is critical for accurate drill guidance. The chuck’s modest mass (about 0.8 kg) and compact 36 mm body minimise added inertia and support stable rotation, leading to improved surface quality and fewer rework cycles in precision tasks. Broad clamping range for workshop flexibility With a clamping range of Ø0.5–8 mm, the unit covers most small twist drills and precision reamers used in model making, toolrooms and small‑batch production. The holding range is also compatible with standard setting tools and precision calipers for quick setup and verification of drill diameter. Built to Vertex quality standards, the chuck combines flexibility with consistent performance, helping to streamline workflow and reduce set‑up time on common machining assignments. Order the Vertex INT‑8‑MT2 drill chuck from Metav Werkzeuge for reliable, precision clamping and fast delivery from our Emmerich quality filter — contact the Metav technical team for application support and fitment guidance. Technical data Article number: INT-8-MT2 GTIN: 4061905084577 Manufacturer: Vertex Core specifications Body diameter: 36 mm Clamping range: Ø0.5–8 mm Weight: 0.8 kg Taper: MT‑2 eClass: 21020490 ETIM: EC002125 Special features Integrated self‑tightening mechanism Suitable for precision calipers Ø0.5–8 mm Compact, low‑inertia body SKU: INT-8-MT2 FAQ What drill sizes can the chuck hold? The INT‑8‑MT2 supports a clamping range of Ø0.5–8 mm, suitable for small twist drills and comparable tooling. How is the chuck mounted to a machine? Mounting is via a standard MT‑2 Morse taper, which fits tailstocks and spindles designed for this taper size. Is the chuck suitable for precision drilling tasks? Yes. The combination of the self‑tightening mechanism, compact 36 mm body and stable mounting via MT‑2 supports low runout and consistent hole quality. Does the chuck require a key to tighten? The unit features a self‑tightening design that increases clamping force under torque; this reduces reliance on external tightening during operation. Which machines are compatible with this chuck? Machines and accessories accepting an MT‑2 taper—such as many bench drills and light lathes—are compatible with the Vertex INT‑8‑MT2 Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
36° 20W Halogen Task Lamp Wide Beam IP20 AC 220V - Vertex
Reliable workshop illumination with a wide beam and precise positioning: the combination of 20 W halogen output, a 500 mm arm and IP20 protection ensures steady, shadow‑reduced lighting for inspection and assembly. Order the VHL-50FT directly via Metav Werkzeuge or consult our technical advisers for application guidance. VHL-50FT – Vertex workshop lamp, 20 W halogen, 500 mm arm The VHL-50FT is a compact workshop lamp with a wide 36° beam, designed to provide consistent, high‑contrast illumination for inspection, fine assembly and bench work in indoor workshop environments. 20 W halogen illumination Wide 36° beam angle 500 mm adjustable arm IP20 protection for indoor use Consistent, high‑contrast illumination for inspection and testing The lamp uses a halogen light source at 20 W, offering a continuous spectral output that supports accurate visual inspection and colour judgement where precise detail matters. The wide 36° beam reduces deep shadows and provides an even light field across small assemblies and measuring setups. For quality control and assembly benches, this translates into fewer visual errors and a more efficient inspection process, since parts and markings remain clearly visible under steady, non‑flickering light. Accurate positioning and ergonomic handling for repetitive tasks An articulated mounting arrangement with a 500 mm arm allows careful positioning of the light over the workpiece, improving task ergonomics and repeatability in production routines. At a compact mass of 1.69 kg, the unit remains easy to move and re‑aim while maintaining stability once set. The lamp operates from AC 220 V, matching standard workshop supplies and integrating smoothly into existing benches and test rigs without additional power conditioning. Built for workshop continuity and dependable sourcing Designed for indoor workshop use with IP20 ingress protection, the device is intended to provide reliable service in controlled environments such as inspection benches, electronics assembly and precision tooling areas. Supplied under the Vertex name, the VHL‑50FT benefits from established manufacturing practices and can be procured through Metav as a trusted European distribution partner. Metav’s logistical presence in Emmerich supports consistent availability and application advice, helping to keep production lines and inspection stations running with minimal downtime. Contact Metav Werkzeuge for tailored application advice or to arrange delivery of the Vertex VHL-50FT from our Emmerich warehouse Technical Data Article number: VHL-50FT GTIN: 4061905084560 Brand: Vertex Facts Weight: 1.69 kg Arm length: 500 mm Beam angle: 36° Light power: 20 W (halogen) Light temperature: 28000 K Supply voltage: AC 220 V Special features Halogen light source Wide beam for reduced shadowing IP20 protection — indoor use Compact, bench‑oriented design FAQ What type of light source does this lamp use? The VHL-50FT uses a 20 W halogen lamp, chosen for its continuous spectrum and consistent output for inspection tasks. Is the VHL-50FT suitable for outdoor or wet environments? No. The lamp has IP20 protection, which is intended for indoor workshop use and does not provide protection against water ingress. How far can the lamp be positioned from the workpiece? Positioning is supported by a 500 mm arm that allows precise placement over the work area; the VHL-50FT’s reach is intended for benches and close inspection setups. What supply voltage is required for this unit? The device operates on AC 220 V, compatible with standard workshop mains. Which applications benefit most from this lamp? Inspection, fine assembly and detailed bench work in workshops and production cells benefit from the VHL-50FT’s wide beam and consistent halogen illumination. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

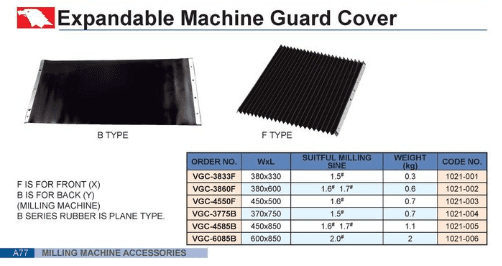

380x330mm Machine Guard Expandable Front Caliper Access - Vertex
Take advantage of an extendable, compact protection solution that keeps measurement devices and exposed machine parts safe while taking up minimal space; the low weight allows fast retrofitting and flexible deployment. Order directly via Metav Werkzeuge or request advice from our consultants for specification guidance. VGC-3833F — Vertex extendable machine guard, 380 × 330 mm The VGC-3833F is an extendable machine guard designed to protect exposed controls and measuring devices on production equipment, providing front-side accommodation for calipers and a compact footprint suited to tight machine environments. Extendable protection for machine components Compact footprint 380 x 330 mm Front-side mounting for precision calipers Lightweight 0.3 kg for easy retrofitting Protection that minimises downtime and supports productivity The extendable design provides a targeted barrier against chips and incidental contact, delivering a practical way to reduce unplanned stops. With a compact footprint of 380 × 330 mm, the guard offers space-efficient protection that protects sensitive components without requiring significant machine rearrangement. The low mass (0.3 kg) simplifies retrofitting, allowing fast installation that supports continuous production. These features translate into measurable operational benefits: fewer interruptions, reduced repair work and a smoother workflow driven by reliable shielding rather than cumbersome enclosures. Designed for measuring setups and precision workflows Integration with measuring equipment is a key strength: the cover is configured for front-side mounting of precision calipers, enabling gauges to remain accessible while shielded from interfering debris. This arrangement helps maintain measurement integrity by keeping instruments clear of contaminants that can skew readings. For workshops that pair frequent in-process checks with compact machine cells, the combination of protective coverage and accessible measurement mounting supports consistent quality control and quicker measurement cycles. Simple adaptation and modular use in workshop environments The extendable nature of the guard supports modular deployment across varied machine types, making it suitable for retrofits where full enclosures are impractical. The guard’s slim profile and lightweight construction mean minimal mechanical load on mounting points, easing integration into existing setups. Where flexibility and quick reconfiguration are required—for instance during tool changes or process trials—the design enables fast adjustments without compromising protection. The result is a pragmatic balance between safety, accessibility and operational flexibility. For tailored advice on deploying the Vertex VGC-3833F in a production environment and fast supply from Metav Werkzeuge in Emmerich, contact our consultants via info@metav-werkzeuge.com or call +49 2822 7131930 to discuss configuration and delivery options. Technical Data Article number: VGC-3833F GTIN: 4061905083938 ECLASS: 24322502 Designation: Machine guard (extendable) Suitable for precision caliper: front side Numbers / Core Technical Data Dimensions: 380 x 330 mm Weight: 0.3 kg SKU: VGC-3833F Special features / Versions Extendable design Front-side caliper mounting Brand: Vertex Category: Machine protection FAQ What is the primary function of this machine guard? The machine guard provides a compact, extendable shield for exposed machine parts and measuring devices; the Vertex VGC-3833F reduces contamination and incidental contact while keeping calipers accessible. Can the guard be mounted where a precision caliper is used? Yes, the VGC-3833F is configured for front-side mounting of a precision caliper, preserving access for in-process measurements while offering protective coverage. Is the guard suitable for retrofitting older machines? The guard’s lightweight construction (0.3 kg) and compact dimensions make the VGC-3833F suitable for retrofitting into existing machine arrangements with minimal modification. Does the extendable design allow use on different machine sizes? The extendable configuration enables modular application across varied machine setups, allowing the guard to be adapted where a slim protective solution is required. Which standards or class is the product listed under? The item is listed under ECLASS code 24322502 and is supplied as the Vertex VGC-3833F machine guard. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
375mm Hand Drift Carbon Steel - Vertex
Robust carbon steel construction paired with a 375 mm length ensures dependable reach and impact for alignment and removal tasks; its 1.3 kg mass provides controlled handling for repetitive use. Order the tool directly via Metav Werkzeuge or consult our advisors for application-specific advice. Hand Drift VHD-1 — Vertex manual drift punch, carbon steel, 375 mm The Hand Drift is a manual drift punch designed for precise alignment, pin removal and light demolition tasks in workshop, maintenance and assembly environments. Carbon steel construction for tough conditions 375 mm length for extended reach and leverage 1.3 kg weight for balanced manual control SKU VHD-1 for easy identification and reorders Dependable performance for precise alignment and drift work Built for repeatable results, this manual punch combines carbon steel robustness with a design that supports controlled impact work. The heavier head and longer shaft give steady momentum, reducing the number of strikes needed to shift pins or loosen fitted parts. As a consequence, workshop throughput improves because fewer corrective operations are required, and wear on adjacent components is minimised. The tool’s straightforward form means maintenance is limited to routine inspection, supporting continuity in production and repair tasks. Practical length and weight that improve accessibility and control A 375 mm overall length delivers extended reach into confined assemblies and behind structural components where shorter tools cannot access. The tool’s 1.3 kg mass is balanced to offer both driving force and tactile control, enabling accurate strikes without excessive fatigue during repeated use. For technicians working on fixtures, frames or maintenance jobs, this combination of reach and handling reduces the need for awkward positioning or additional aids, speeding up task completion while maintaining safe working postures. Lower downtime through rugged materials and clear identification Constructed from carbon steel, the tool resists deformation under impact and retains shape over prolonged use, translating into fewer replacements and lower indirect costs. Clear labelling with SKU VHD-1 and manufacturer details simplifies inventory management and reorder processes, helping workshops keep necessary spares at hand. The tool’s simple geometry also means compatibility with existing hammers and holders, avoiding investment in special accessories. Reliability in everyday tasks supports steady workflow and predictable maintenance planning. Contact Metav Werkzeuge to discuss the Vertex Hand Drift VHD-1 and confirm suitability for specific workshop applications; our consultants are available to advise on integration into existing toolsets. Technical data Article number: VHD-1 GTIN: 4061905084195 Manufacturer: Vertex Material: Carbon steel Length: 375 mm Weight: 1.3 kg Facts 375 mm 1.3 kg eClass: 21040790 GTIN: 4061905084195 Special features Manual drift punch Carbon steel construction Vertex brand SKU VHD-1 FAQ What tasks is this drift punch suitable for? The Hand Drift VHD-1 from Vertex is intended for alignment, pin removal and light impact tasks in workshops and maintenance operations. Is the material suitable for heavy-duty use? Yes, the carbon steel construction of the Hand Drift VHD-1 provides the durability required for repeated impact work in industrial and workshop settings. How does the 375 mm length help in practical use? The 375 mm length increases reach into tight assemblies and improves leverage, allowing technicians to work in confined or hard-to-access areas without repositioning large components. Can the tool be identified easily for reordering? The tool carries SKU VHD-1 and GTIN 4061905084195 for straightforward inventory management and replenishment of Vertex drift punches. Is the weight appropriate for repetitive tasks? With a weight of 1.3 kg, the Hand Drift VHD-1 balances driving force and user control to reduce fatigue during repetitive striking operations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
380mm 12V/20W Dustproof Halogen Work Lamp, 110V/220V - Vertex
Take advantage of a combination of robust, dustproof design and reliable halogen illumination to keep inspection and machining stations consistently lit; the compact 380 mm arm and dual-voltage compatibility ensure fast integration into existing setups. Order the device directly via Metav Werkzeuge or consult the Metav team for tailored advice. VHL-600FT Dustproof Halogen Work Lamp (380 mm arm) by Vertex the VHL-600FT is a dustproof halogen work lamp designed for precise inspection and focused task lighting in workshops and industrial environments Vertex VHL-600FT halogen 12V/20W lamp Dustproof construction for workshop use 380 mm adjustable arm for focused illumination Steady, high-contrast illumination for precision work The halogen light module rated 12V/20W delivers a consistent beam with good contrast, making scratches, burrs and surface irregularities easier to spot during inspection and assembly tasks. Unlike LEDs that can shift tone with ageing, the halogen source provides stable colour rendering over typical service intervals; this supports reliable visual checks and reduces the need for repeated inspections. The specification of the light is clear and verifiable, supporting efficiency in quality control processes. Built to withstand workshop conditions while remaining manoeuvrable A dustproof housing keeps the optical system free from particulate ingress in busy shop environments, extending service life and reducing maintenance intervals. The articulated 380 mm arm permits precise positioning above fixtures or workpieces, enabling operators to direct light exactly where needed without risking shadowing. At 1.7 kg, the unit balances portability with stability, allowing relocation between benches or machines while maintaining a robust mounting for repeatable alignment. Simple electrical compatibility and low-complexity upkeep With 110V/220V input compatibility the lamp integrates with common supply systems across facilities, minimising the need for additional transformers or adapters. The design focuses on straightforward replacement of consumables and uncomplicated installation, so downtime for upkeep is kept to a minimum and productivity remains high. As a Vertex product assembled to industry expectations, the lamp pairs straightforward operation with dependable performance for routine inspection and maintenance tasks. Contact Metav Werkzeuge in Emmerich for specification advice and fast, reliable supply of the VHL-600FT; email info@metav-werkzeuge.com or call +49 2822 7131930 for personalised guidance and order coordination Technical Data Article number: VHL-600FT GTIN: 4061905084065 Weight: 1.7 kg Arm length: 380 mm Light: 12V/20W Power: 110V/220V Facts Weight: 1.7 kg Arm: 380 mm Power input: 110V/220V Lamp rating: 12V/20W Special features Dustproof housing Halogen light source Brand: Vertex SKU: VHL-600FT FAQ What type of light source does this work lamp use? The VHL-600FT uses a halogen light module rated at 12V/20W, chosen for steady output and consistent colour rendering during inspection tasks. Is the lamp suitable for dirty or dusty workshop environments? Yes, the lamp features a dustproof housing intended to reduce particulate ingress and to prolong reliable operation in workshop conditions. How is the lamp positioned over the workpiece? The articulated 380 mm arm provides accurate adjustment for focused illumination and repeatable positioning above benches or machines. Which voltages are supported by the lamp? The unit accepts 110V and 220V supplies, enabling straightforward integration into most industrial and workshop electrical systems. What is the manufacturer and where is the lamp made? The VHL-600FT is supplied by Vertex and carries the company’s product designation and SKU for identification in procurement. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

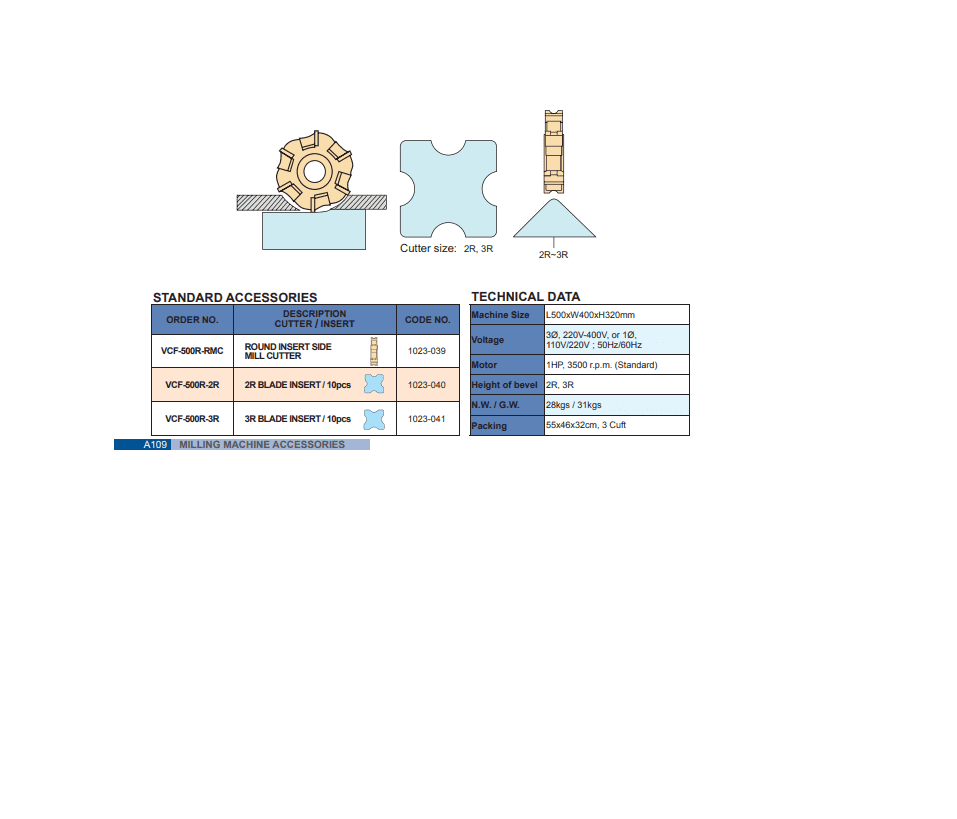

VCF-500R-RMC Accessory For Chamfering And Deburring Machine, Round Cutter - Vertex
Die Kombination aus präziser Kantenvorbereitung und passgenauer Ersatzteilqualität sorgt für konstante Fertigungsresultate; der round cutter-Aufbau erlaubt gleichmässige Anfasungen und sauberes Entgraten, während die Original-Vertex-Herkunft die Kompatibilität mit VCF-Systemen sichert — direkt über Metav Werkzeuge bestellbar oder bei Unklarheiten gern Beratung anfragen. VCF-500R-RMC — Accessory for VCF chamfering and deburring machine, round cutter, Vertex The VCF-500R-RMC is an accessory designed for use with chamfering and deburring machines in the VCF family, providing a dedicated round cutter configuration for consistent edge finishing across workshop applications. Accessory for VCF chamfering systems Round cutter configuration for edge finishing Genuine Vertex component, SKU VCF-500R-RMC Optimised for consistent edge finishing The accessory features a round cutter arrangement that supports reproducible chamfering and deburring operations, reducing manual rework and minimising cycle variability. By concentrating on a single finishing geometry, the component helps to keep edges uniform across batches, which is particularly useful for production runs where component interchangeability and downstream assembly are critical. The rounded cutting profile smooths transitions between surfaces, lowering the likelihood of stress concentrators and improving the visual and functional quality of machined parts. Seamless integration with VCF systems for reliable fit As an original Vertex accessory, the VCF-500R-RMC ensures precise compatibility and straightforward installation on VCF chamfering units, helping to maintain machine uptime and toolpath accuracy. The part is manufactured to match Vertex tolerances so the mechanical fit and rotational behaviour remain predictable; this simplifies replacement planning and inventory control. Reduced setup time can translate into measurable productivity gains on the shop floor, while consistent component interfaces support easier validation of finishing parameters. Boosting workshop efficiency with dependable supply and expertise Selecting a manufacturer-approved accessory contributes to long-term operational efficiency by lowering the risk of premature wear and unforeseen adjustment needs. For purchasing, Metav Werkzeuge acts as a quality filter for the European market, offering a broad range of compatible items and logistics tailored to industry needs. Relying on established supply channels and recognised components helps workshops preserve precision standards while simplifying procurement and reducing the number of suppliers involved in tooling and maintenance. For a reliable Vertex accessory and assured compatibility with VCF chamfering systems, contact Metav Werkzeuge in Emmerich to arrange supply or technical clarification — Metav Werkzeuge supports professional customers with focused advice and a broad spare-part offering Technical Data Article number: VCF-500R-RMC GTIN: 4061905083563 Brand: Vertex Product type: Accessory for chamfering and deburring machine Facts eClass: 21049248 File size (main image): 16426 bytes Special features Content: Round cutter Suitable for: Chamfering and deburring machine VCF series Original Vertex accessory Quick dispatch available FAQ What machines is this accessory compatible with? The accessory is intended for Vertex VCF chamfering and deburring systems and is specified as compatible with the VCF family of machines. What does the package contain? The delivery comprises the accessory configured for a round cutter application as specified under the designation VCF-500R-RMC. Is this an original Vertex part? Yes, the item is an original Vertex accessory, supplied under the SKU VCF-500R-RMC for reliable fit and performance. For which finishing tasks is this accessory suitable? The component is suitable for chamfering and deburring tasks where a rounded cutting profile is required to produce consistent edge radii and smooth transitions. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
3x Prisms 10°/15°/30° + 6x Angles 0.5°–5° Precision Angle And Prism Set - Vertex
Benefit from a compact reference set that combines precise angle coverage, quick inspection workflows and a robust workshop-ready design; the combination ensures consistent alignment checks and shorter set-up times. Order the set directly via Metav Werkzeuge or consult our specialists for application advice. AB163 Precision Angle and Prism Set — Vertex 9-piece angle and prism set with fine angle blocks The AB163 Precision Angle and Prism Set provides a ready-to-use reference for comparative angle measurement and optical alignment tasks across workshop metrology and toolmaking applications. Complete 9-piece set for angle inspection High-precision prisms: 10°, 15°, 30° Fine angle blocks from 0.5° to 5° Faster, more reliable angle verification for everyday metrology This set is designed to reduce inspection time by offering a coherent selection of reference elements: prisms for optical alignment and angle blocks for direct mechanical comparison. The organised combination of reference angles eliminates repeated set changes, improving repeatability in comparative checks. For workshop engineers and quality technicians, the result is fewer measurement steps and a clearer traceability path during first-off and set-up inspections. Practical benefits for toolrooms and assembly stations Delivered as a compact kit, the components enable immediate use at gauges, comparators and inspection tables. The mix of medium-angle prisms (10°, 15°, 30°) and small-step angle blocks (0.5°–5°) supports both coarse alignment and precise angular adjustments, making the set suitable for valve seats, fixture set-up and optical squaring. The selection reduces the need for multiple single-purpose tools, streamlining workflows and saving bench space. Simple handling with measurable process advantages The clear allocation of angles aids documentation and quick selection during inspection routines, which helps maintain consistent process parameters and reduces rework. As a reference kit from Vertex, the set is appropriate for repeat verification tasks and comparative measurements where a stable set of known angles improves control over assembly tolerances. Compatibility with standard inspection practices ensures easy integration into existing quality procedures. Contact Metav Werkzeuge in Emmerich for application guidance on the Vertex AB163 Precision Angle and Prism Set — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: AB163 GTIN: 4061905083815 Manufacturer: Vertex Pieces: 9 Weight: 2 kg Prisms: 10°, 15°, 30° Angle blocks: 0.5°, 1°, 2°, 3°, 4°, 5° Set type: Precision angle and prism set Application: Comparative angle measurement, optical alignment Intended for: Workshop metrology, toolrooms, inspection benches FAQ What is included in the set? The set contains three prisms (10°, 15°, 30°) and six angle blocks (0.5°, 1°, 2°, 3°, 4°, 5°) as supplied with the AB163 Precision Angle and Prism Set from Vertex. Can the set be used for optical squaring and alignment? Yes; the combination of prisms and angle blocks is suitable for optical squaring, alignment checks and comparative angle verification in metrology operations. Is the AB163 suitable for bench inspection and production set-up? The AB163 kit is intended for both bench inspection and production set-up tasks where repeatable reference angles speed up set-up and reduce adjustment iterations. How does this kit improve measurement repeatability? A fixed selection of known reference angles reduces tool changes and variation in set-up procedures, improving repeatability during comparative inspections with the Vertex AB163 set. Which trades and applications benefit most from this set? Toolmakers, quality technicians and workshop engineers performing angle checks, fixture alignment or optical inspection will find the set particularly useful. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

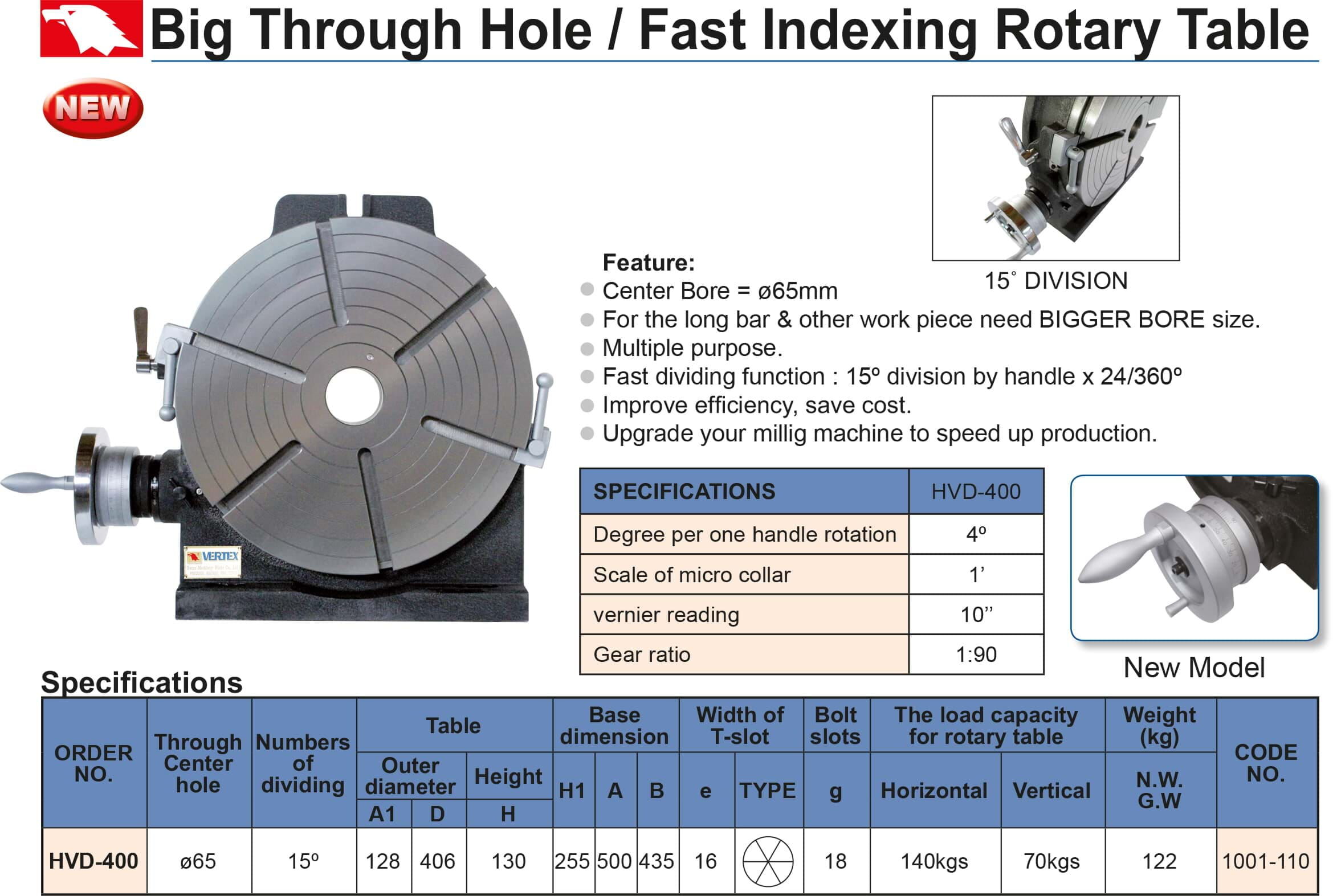

406mm Indexing Rotary Table Three-Point Clamping 65mm Bore, 4°/Rev, 10" Readout, T-Slots 6x16mm - Vertex
Take advantage of precision indexing, robust load capacity and secure fixturing to keep production repeatable and efficient. The combination of a 406 mm working diameter and a reliable 4° indexing increment supports accurate multi-face machining while robust construction ensures vibration resistance. Order the rotary table directly via Metav Werkzeuge or contact our consultants for specification support. HVD-400 Round indexing rotary table — 406 mm diameter, 4° indexing (Vertex) The HVD-400 is a compact round dividing table designed for precision machining and fixture applications where repeatable angular indexing and secure clamping are required 406 mm working diameter 4° indexing per spindle revolution T-slots 6 x 16 mm for secure fixturing Max load 140 kg horizontal, 70 kg vertical Accurate indexing for reproducible multi-face machining The rotary table delivers precise angular positioning through its 4° indexing per spindle revolution combined with a fine 10″ vernier reading, enabling repeatable setups for series work. Indexing here means that the table rotates in defined angular increments, so complex operations such as evenly spaced hole patterns or staged toolpaths are executed with consistent accuracy. The clear graduated scale reduces setup time and the risk of cumulative error, making the component flow more reliable and lowering scrap rates in medium-volume production. Robust construction that stabilises heavier workpieces A solid platform with a 406 mm diameter and a mass of approximately 122 kg provides a stable base for machining. The heavy build dampens vibration, which improves surface finish and cutter life during milling or peripheral grinding. Practical features such as T-slots 6 x 16 mm and a 65 mm mounting bore allow flexible clamping and compatibility with common fixtures, while rated capacities of 140 kg horizontal and 70 kg vertical define safe working limits for different orientations. These characteristics support confident workholding of bulky or asymmetrical parts with reduced re‑fixtures. Versatile integration for workshop and production cells Designed for use as a dividing table in milling, drilling and custom fixture setups, this rotary indexing table enhances workflow when incorporated into automated or manual stations. As a compact rotary indexing table, it suits toolrooms and small batch production where space is at a premium but precision is essential. Clear mechanical indexing and standardised mounting dimensions make retrofitting straightforward; end users benefit from reduced engineering time and faster changeovers. The construction and feature set are aligned with common clamping technology standards, simplifying the selection of accessories and reducing procurement complexity. Contact Metav Werkzeuge today to discuss the Vertex HVD-400 rotary indexing table for your machining application, or request detailed mounting and fixturing advice by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data SKU: HVD-400 GTIN: 4061905084959 eClass: 36600610 Diameter: 406 mm Height: 130 mm Mass: 122 kg Max load horizontal: 140 kg Max load vertical: 70 kg Core data Indexing increment: 4° per spindle revolution Reading resolution: 10″ vernier Mounting bore / clamping: 65 mm T-slots: 6 x 16 mm Manufacturer: Vertex Special features Round dividing/rotary table design Designed for fixture and indexing tasks Suitable for milling and drilling applications Robust construction for vibration damping FAQ What level of angular accuracy does the unit provide? The HVD-400 dividing table offers a 4° indexing increment with a 10″ vernier reading, enabling fine manual positioning and consistent repeatability for indexed operations. Which materials and workpiece sizes can be clamped reliably? With a 406 mm diameter, T-slots 6 x 16 mm and rated loads of 140 kg horizontal and 70 kg vertical, the table suits medium-sized workpieces across common machining materials where secure fixturing is required. How is the table mounted to a machine or fixture plate? Mounting uses the 65 mm bore and T-slot pattern for direct clamping or adapter plates; the dimensions follow standard workshop fixture practice for straightforward integration. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

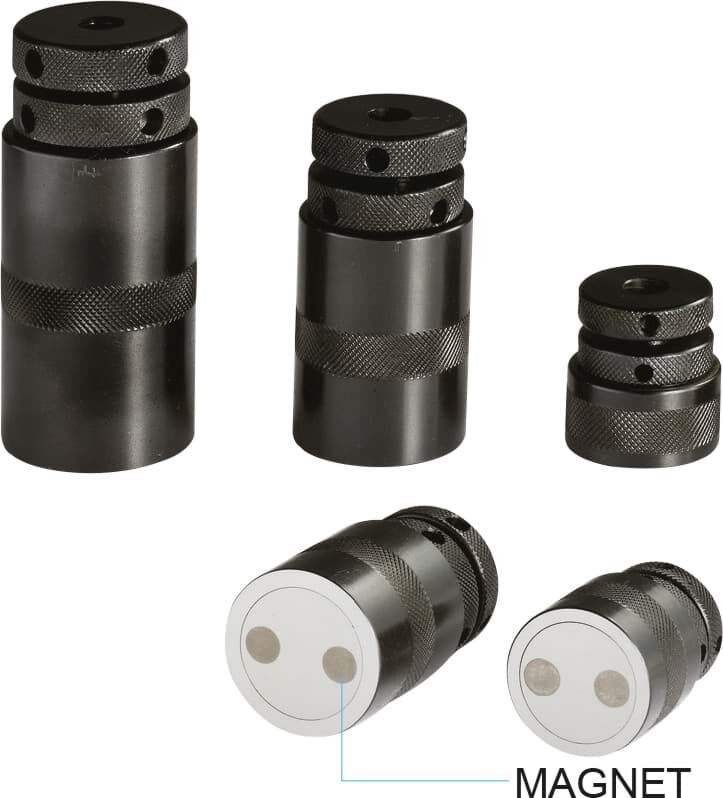

40mm Threaded Rod With Magnet, 30 Kg Load Capacity - Vertex
Compact magnetic fixturing is achieved with a 40 mm diameter body and an integrated magnet, delivering a secure 30 kg holding capacity for reliable workshop use; order the part via Metav Werkzeuge or consult the team for application advice. Vertex Threaded Rod VSJM-50 — magnetic fixturing, 40 mm diameter The Threaded Rod with Magnet is a compact fixturing element designed for rapid magnetic clamping in workshop and light industrial setups. Magnetic fastening for quick securing 40 mm diameter for stable support Rated max load 30 kg Lightweight 0.4 kg for easy handling Faster setup through secure magnetic holding The integrated magnet provides magnetic holding that significantly reduces setup time compared with mechanical clamping solutions. With a 40 mm diameter and a rated max load of 30 kg, the component is dimensioned to deliver consistent holding force for jigs, temporary fixtures and small assembly tasks. The magnetic function allows workpieces to be positioned and repositioned swiftly, which improves throughput and reduces non-productive time. Technical terms such as “holding capacity” refer to the force the magnet exerts on a ferrous surface; in practice this means stable support during light machining and inspection operations. Compact format that supports flexible workflows A compact height of 47 mm and a low mass of 0.4 kg make the rod easy to handle and integrate into existing setups. The small footprint is advantageous where space on tooling plates or workbenches is limited, and the modest weight simplifies storage and transport between workstations. The form factor suits modular fixturing systems and portable test rigs, enabling faster changeovers without the need for heavy clamping hardware. For users with varied batch sizes, the component’s portability contributes to a more agile production flow while maintaining reliable contact with workpieces. Consistent performance and clear industrial use cases Manufactured under the Vertex brand, the VSJM-50 is specified for workshop fixturing, temporary holding during assembly and inspection operations where magnetic attachment is appropriate. The design combines a straightforward mechanical interface with the practical benefits of a magnetised element, making it suitable for applications such as toolroom setups, light milling jigs and gauge fixtures. Material information is not specified in the available data, so compatibility is assumed for ferrous substrates only; the magnetic function will not perform on non-ferrous materials. The clear specification of diameter, height and load rating supports selection decisions and reduces the need for trial-and-error in procurement. For reliable magnetic fixturing with the Vertex VSJM-50, contact Metav Werkzeuge for purchasing and application guidance via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: VSJM-50 GTIN: 4061905084164 Brand: Vertex ECLASS: 23110301 Facts Diameter: 40 mm Height: 47 mm Max. load: 30 kg Weight: 0.4 kg Special features Integrated magnet Compact design for fixturing Suitable for workshop applications FAQ What load can the threaded rod carry? The Vertex threaded rod VSJM-50 is rated for a maximum load of 30 kg. Is the magnetic function suitable for vertical fixturing? The integrated magnet provides secure holding on ferrous surfaces for both vertical and horizontal positioning in light-duty applications. What are the key dimensions to consider for integration? Diameter 40 mm, height 47 mm and weight 0.4 kg are the primary dimensions to plan for when incorporating the part into fixtures. Is the material of the rod specified in the product data? The available product data does not specify the material used for the component. Which applications are typical for this component? Common uses include workshop fixturing, temporary clamps for assembly and inspection fixtures where magnetic attachment to ferrous materials is acceptable. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
40x300 mm Runout Test Mandrel 0.005 mm Accuracy, Hardened Gauge Steel, DIN 229 - Metav IndustryLine
Take advantage of precise spindle alignment thanks to a runout accuracy of 0.005 mm and a hardened gauge steel construction that ensures long-term stability; order the Test Mandrel MT5 directly via Metav Werkzeuge or consult our experts for application advice. Test Mandrel MT5, 40 x 300 mm — high-precision runout reference for spindle inspection (Metav IndustryLine) The Test Mandrel MT5, 40 x 300 mm is a purpose-built inspection mandrel for checking and aligning machine spindles with a Morse taper connection, designed for workshop and production metrology tasks where repeatable concentricity is required. Runout accuracy 0.005 mm Hardened gauge steel construction MT5 (Morse taper) mounting for spindles Ideal for spindle alignment and testing Achieve consistent concentricity with measurable benefits A runout accuracy of 0.005 mm provides a clearly verifiable baseline for spindle condition and concentricity checks. Expressed as a measurable tolerance, this degree of precision reduces rework and scrap by enabling earlier detection of spindle eccentricity. The mandrel serves as a stable reference piece in test setups, giving a quantifiable means to compare spindle behaviour before and after maintenance. Using a calibrated reference such as this mandrel shortens diagnostic cycles and supports quality-control routines with objective data. Robust construction for repeatable inspections Manufactured from hardened gauge steel and produced to DIN 229, the mandrel combines dimensional stability with wear resistance so that results remain consistent over many measurement cycles. The 40 mm diameter with a 300 mm functional shank and a total length of 460 mm gives sufficient reach for typical spindle checks while preserving a rigid profile. At approximately 5 kg, the component balances mass for vibration damping during rotation with manageable handling for workshop personnel. This construction supports repeatable measurements and reduces uncertainty caused by instrument deformation. Practical compatibility and workshop use Equipped with an MT5 (Morse taper) mounting, the mandrel integrates directly into conventional spindle sockets and test fixtures used in machining centres and inspection benches. The simple seating principle allows rapid installation and removal without auxiliary tooling, streamlining inspection workflows. As a purpose-made inspection gauge it is suited to both periodic maintenance checks and acceptance testing after spindle rebuilds. The design focuses on usability and traceable results, helping teams maintain production uptime while documenting spindle condition objectively. Contact Metav Werkzeuge for tailored advice on integrating the MT5 test mandrel into existing inspection procedures or to request a formal quotation from Metav Werkzeuge GmbH in Emmerich Technical Data Article number: M318.935 GTIN: 4054469183947 Material: Hardened gauge steel Standard: DIN 229 Dimensions: Ø40 x 300 mm Total length: 460 mm Weight: 5 kg Runout accuracy: 0.005 mm Mounting: MT5 Facts Category: Gauges / Inspection mandrels Use: Runout testing and spindle alignment Brand: Metav IndustryLine SKU: M318.935 Special features Precision ground shank Suitable for workshop and production environments Robust, wear-resistant finish FAQ What level of concentricity can be expected with this mandrel? The Test Mandrel MT5, 40 x 300 mm offers a runout accuracy of 0.005 mm, providing a reliable reference for high-precision spindle inspection and alignment checks. Is the mandrel compatible with common machine spindles? Yes, the MT5 (Morse taper 5) mounting is compatible with spindles and fixtures designed for this taper size; the mandrel is intended for direct insertion into MT5 sockets for inspection tasks. What material is used and how does it affect measurement stability? The mandrel is made from hardened gauge steel, a material chosen for its dimensional stability and wear resistance, which helps maintain consistent measurement results over time. Can this mandrel be used for diagnostic checks after spindle repair? The mandrel is suitable for acceptance testing and post-repair diagnostics; its 0.005 mm runout accuracy allows clear before-and-after comparisons of spindle behaviour. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
50mm ER-32 Collet Chuck, High-Precision Clamping - Vertex
Take advantage of precision clamping and a compact, lightweight design to improve setup consistency and spindle efficiency; the ER-32 taper and 50 mm form factor make this collet chuck a reliable choice for standard toolholding tasks. Order the unit directly via Metav Werkzeuge or contact the team for application advice. V-101 collet chuck — ER-32, 50 mm diameter, precision clamping The V-101 is a precision collet chuck designed for secure toolholding in milling and turning setups, featuring an ER-32 taper for broad compatibility with standard collets Precision ER-32 taper for secure clamping 50 mm outer diameter for compact toolholding Lightweight design, approx. 0.7 kg Rapid dispatch from Metav Werkzeuge stock Consistent clamping that reduces rework and downtime The ER-32 taper and robust collet interface deliver a repeatable clamping solution that supports accurate machining cycles. By relying on a collet chuck with a standard ER-32 taper, shops benefit from wide compatibility with available collet sizes and accessories, which simplifies tool inventory and changeover. The proven geometry of this toolholder minimises axial and radial play during operation, helping to maintain surface finish quality and reduce the frequency of corrective rework. This focus on repeatability translates directly to higher first-pass yield and predictable production throughput. Compact format and low mass for flexible integration With a nominal diameter of 50 mm and a weight of approximately 0.7 kg, the toolholder offers a compact footprint that suits constrained spindle noses and stacked tooling assemblies. The reduced mass lowers inertial load on the spindle during rapid acceleration and deceleration, which can improve dynamic response in high-feed operations. The compact dimensions also facilitate closer proximity of adjacent tools in multi-tool setups, enhancing overall machine utilisation. The lightweight construction supports faster, safer tool changes while maintaining the rigidity expected from a professional clamping system. Engineered for workshop reliability and supply chain confidence Manufactured by Vertex, the chuck is intended for everyday industrial use and straightforward integration into existing ER-32 toolholding ecosystems. Availability from Metav Werkzeuge and the company’s established logistics in Emmerich ensures predictable procurement for production planning; Metav’s position as a precision partner is backed by decades of experience and a broad product range. The combination of a recognised manufacturer and a dependable distributor reduces procurement risk and supports continuous operation, particularly important for institutions that require consistent replacement parts and tooling standards. Contact Metav Werkzeuge in Emmerich for tailored application advice or to confirm compatibility with existing ER-32 collets — email info@metav-werkzeuge.com or call +49 2822 7131930 for a prompt response Technical data Article number / SKU: V-101 GTIN: 4061905084362 Manufacturer: Vertex Numbers / Core technical data Diameter: 50 mm Weight: 0.7 kg Taper: ER-32 eClass: 21020405 Designs / Special features Collet chuck design ER-32 taper compatibility Compact 50 mm form factor Produced by Vertex FAQ What taper standard does this collet chuck use? The V-101 collet chuck uses an ER-32 taper, making it compatible with standard ER-32 collets and accessories from Vertex and other manufacturers. Is the V-101 suitable for compact spindle noses? Yes, the 50 mm diameter and lightweight build of the collet chuck support integration in compact spindle configurations where space is limited. How heavy is the unit and what impact does that have? The toolholder weighs approximately 0.7 kg; the lower mass helps reduce spindle inertia and can improve dynamic response during high-speed tool changes. Can this chuck be used with existing ER-32 collets? Compatibility with standard ER-32 collets is a core feature of the product; the chuck is intended for use with commonly available ER-32 collet ranges. Who manufactures the V-101 and where can it be sourced? The chuck is manufactured by Vertex and is available through Metav Werkzeuge for rapid dispatch from Emmerich stock. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
42x500 mm Cylindrical Gauge Mandrel Two-Sided Centreing Roundness Accuracy 0.005 mm - Metav IndustryLine
Take advantage of high-precision runout and a robust, hardened gauge-steel body to ensure reproducible spindle and bearing checks; the substantial 500 mm length and solid mass support stable measurements on larger components. Order the cylindrical test mandrel directly via Metav Werkzeuge or consult our specialists for integration advice. Cylindrical test mandrel Ø42 x 500 mm by Metav IndustryLine — runout accuracy 0.005 mm Cylindrical test mandrel Ø42 x 500 mm for precise runout verification in workshop and inspection environments High runout accuracy 0.005 mm Hardened gauge steel construction Both ends centred for stable support 500 mm length for larger components Precision that reduces rework and inspection time The mandrel is engineered for repeatable runout verification, offering a specified runout accuracy of 0.005 mm which translates into measurable gains in process control and reduced scrappage. The combination of hardened gauge steel and careful centring on both ends provides a rigid support that minimises bending and vibration during rotation, so measurements stay consistent across repeated checks. This clarity in results supports faster decisions in maintenance and quality assurance routines. Built for stable handling and larger parts With a diameter of 42 mm and a length of 500 mm, this mandrel supplies the reach and mass required for checking medium-sized spindles, shafts and assemblies. The substantial construction gives predictable thermal and mechanical behaviour during short-term handling, improving the reliability of comparative measurements. The product’s weight of 11 kg contributes to rotational stability, which is particularly beneficial when inspecting components that demand high concentricity standards. Practical design for workshop integration The shaft is finished from hardened gauge steel, offering wear resistance and long service life under normal workshop conditions. Both ends are produced with centring, enabling simple mounting in chucks, centres or lathe spindles without additional adapters in many setups. The straightforward geometry makes the mandrel easy to inspect visually and measure with standard instruments, supporting efficient workflows in inspection benches or maintenance shops. Reliability and traceability for quality processes As part of the Metav IndustryLine range, the mandrel reflects a focus on accessible precision: consistent manufacturing tolerances and a clear specification facilitate its use as a reference or comparison artefact in incoming goods inspection and maintenance surveys. The clear specification of 0.005 mm runout and defined dimensions help integrate the mandrel into documented test plans and quality records, aiding traceability and audit readiness. Secure precise runout verification with Metav IndustryLine’s cylindrical test mandrel — contact Metav Werkzeuge for product matching and technical guidance via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: M318.913 GTIN: 4054469183855 Material: Gauge steel, hardened Facts Diameter: 42 mm Length: 500 mm Runout accuracy: 0.005 mm Weight: 11 kg Special features Both ends centred Category: Gauges (Lehren) Suitable for runout testing FAQ What level of runout accuracy can be expected from this mandrel? The cylindrical test mandrel delivers a rated runout accuracy of 0.005 mm, enabling precise verification of spindle and bearing concentricity. Which materials and dimensions define this inspection mandrel? The mandrel is manufactured from hardened gauge steel, with a diameter of 42 mm and a length of 500 mm (Article number M318.913). How should the mandrel be supported during a runout check? Stable support is recommended at both ends; the mandrel’s both ends centred design allows mounting in conventional centres or chucks to ensure reproducible readings. Is the mandrel suitable as a reference artefact for workshop quality control? Yes, the combination of robust material and specified 0.005 mm runout makes the mandrel suitable for comparative checks and routine inspection documentation. What types of components are typically tested with this mandrel? The mandrel is appropriate for medium-sized shafts, spindles and assemblies where concentricity and runout must be assessed reliably. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
4500 N Push Rod Clamp M10x70 Horizontal Base With Safety Lock, Zinc Plated - Kukamet
Take advantage of a compact, galvanised clamp that combines 4,500 N clamping force with a high 7,200 N holding force for stable, repeatable workholding; the horizontal foot and M10x70 spindle allow straightforward fixture integration. Order directly via Metav Werkzeuge or contact our consultants for application advice. Pushrod Clamp 541 — Horizontal foot clamp with safety lock, galvanised construction (Kukamet) The Pushrod Clamp 541 is a compact horizontal clamp designed for secure workholding in fixtures and jigs across workshops and small-series production. Horizontal foot for stable mounting Safety lock prevents unintentional release Galvanised steel construction for corrosion resistance 4,500 N clamping force, 7,200 N holding force Reliable clamping that reduces rework and downtime The clamp delivers a 4,500 N clamping force with a maximum holding force of 7,200 N, values that translate directly into fewer slippages and more consistent machining results. The spindle accepts an M10x70 connection which simplifies integration into existing fixtures; the robust force figures mean shorter inspection cycles and lower scrap rates in repetitive operations. By converting rated forces into expected production outcomes, the device supports more efficient cycle times and consistent quality in routine assembly and machining tasks. Built for long service with low maintenance needs A galvanised finish gives the unit effective corrosion resistance while the compact construction keeps mass low at 0.915 kg, facilitating handling during set-up and changes. The simple mechanical design reduces the need for frequent adjustment; maintenance tasks are limited to occasional lubrication and visual inspection. The integrated safety lock prevents accidental release during loading or transport, adding a passive layer of operator protection and reducing the risk of workpiece damage in busy environments. Fast integration into jigs and fixture systems The horizontally mounted foot provides a stable base for bolting the clamp into place and ensures repeatable alignment when used in modular fixtures. The clamp’s piston diameter of 18 mm transmits force efficiently into the pushrod, and the M10x70 spindle thread is a commonly available standard that eases replacement or custom adaptation. The mechanical simplicity enables toolroom staff and fixture designers to implement secure clamping without complex controls or pneumatics, keeping the system accessible to workshops with limited specialised resources. Versatile applications across workshop and production tasks Suitable for bench work, jigs and small batch production, the device performs well where reliable mechanical clamping is required and where corrosion resistance is beneficial. As a Kukamet component supplied through Metav’s distribution, the unit fits the needs of maintenance teams, fixture builders and contract manufacturers seeking dependable, easy-to-install clamps. The combination of sturdy materials, clear force ratings and a safety interlock provides both operational confidence and measurable performance improvements. For precise fixture recommendations and supply, contact Metav Werkzeuge for technical guidance and ordering—Metav’s specialists can advise on integrating the Kukamet Pushrod Clamp 541 into existing tooling systems and ensure fast delivery from Emmerich: info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: 541-4-L-Q18 GTIN: 8680731505498 SKU: 541-4-L-Q18 eClass: 21041716 ETIM: EC011973 Facts Weight: 0.915 kg Clamping force max: 4,500 N Holding force max: 7,200 N Piston diameter: 18 mm Special features Material: galvanised steel Spindle connection: M10x70 Mounting: horizontal foot Safety lock included FAQ What force ratings can be expected from this clamp? The clamp provides a clamping force of 4,500 N and a holding force of 7,200 N, values specified for the Kukamet Pushrod Clamp 541 to support robust workholding. Is the clamp suitable for use in humid or corrosive workshop environments? Yes, the galvanised steel construction offers enhanced corrosion resistance, making the 541 appropriate for workshops where moisture or light corrosion is a concern. How is the clamp mounted to fixtures and jigs? Mounting is via the horizontal foot; the connector accepts standard attachments and the M10x70 spindle simplifies mechanical integration into common fixture designs. Does the safety lock prevent accidental release during handling? The included safety lock is designed to secure the pushrod during loading and transport, reducing unintended opening and protecting the workpiece and operator. Can the clamp be used in automated stations or only manual fixtures? The mechanical design allows use in both manual fixtures and semi-automated stations where a compact, mechanically actuated clamp is required; confirm interface requirements with Metav Werkzeuge for integration details. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
60x75mm Mounting Bracket For LED Lamps, Zinc-Plated - Vertex
Reliable mounting solution that combines a compact footprint and low weight for fast, efficient LED installation; order the bracket directly via Metav Werkzeuge or consult our specialists for application advice. Vertex V-20 mounting bracket 60 x 75 mm for LED lamps The V-20 mounting bracket provides a compact mounting option for attaching LED luminaires where space is limited, suitable for workshop and commercial installations. Compact 60 x 75 mm mounting bracket Designed for LED lamps and luminaires Lightweight at 0.28 kg Vertex product, SKU V-20 Faster, neater installations in confined spaces The 60 x 75 mm footprint of this mounting bracket reduces the space required behind or beside a fitting, enabling installations where larger brackets would be impractical. The small profile helps keep cable runs and fixation points tidy, which translates into a shorter assembly time on site and fewer follow-up adjustments. At 0.28 kg, the component is lightweight, easing manual handling during fitting and reducing strain during repeated installations, so teams can work more efficiently and focus on completing jobs on schedule. Seamless integration with LED luminaires for reliable results Designed specifically as an accessory for LED lamps, the bracket offers a standardised point of attachment that simplifies alignment and support of modern luminaires. Standard workshop fixings can be used to secure the bracket to existing structures, thereby cutting preparation work and minimising downtime. By standardising the mounting approach, the bracket contributes to consistent visual results and predictable load distribution, supporting professional installations in retail, office or industrial settings. Supply reliability and quality assurance for procurement Sourced from Vertex, the bracket benefits from a clear production lineage and straightforward logistics through Metav's European supply chain. Stocking at the Emmerich warehouse acts as a quality filter and ensures dependable availability for workshop procurement. Choosing this component supports streamlined purchasing: a compact, purpose-built accessory that reduces the need for custom brackets and helps maintain a consistent installation standard across multiple sites. Contact Metav Werkzeuge today to secure Vertex V-20 mounting brackets and benefit from reliable supply and prompt delivery from Emmerich; enquiries can be directed to Metav Werkzeuge for further application guidance. Technical Data Article number: V-20 GTIN: 4061905084317 Product type: Mounting bracket 60 x 75 mm Weight: 0.28 kg Data Dimensions: 60 x 75 mm Weight: 0.28 kg ECLASS: 27110390 SKU: V-20 Special features Suitable for LED lamps Accessory for luminaires Brand: Vertex Category: Accessories for LED lamps FAQ Is the bracket suitable for LED lamps? Yes. The Vertex V-20 mounting bracket is specified as an accessory for LED lamps and is intended to support luminaires in compact installations. What are the exact dimensions and weight? The V-20 measures 60 x 75 mm and weighs 0.28 kg, providing a small footprint and lightweight handling for installers. Can the bracket be used with all types of luminaires? The bracket is designed for LED luminaires; compatibility with specific fittings depends on the luminaire’s mounting points and should be checked against the Vertex V-20 product details. Is outdoor suitability stated for this bracket? Outdoor suitability is not specified in the available product data; for exterior applications, verify environmental protection requirements against the Vertex V-20 specifications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
45° Pneumatic Angle Grinder 30mm Arbor 23,000 rpm, 160mm Length - Vertex
Compact 45° head and high rotational speed combine to deliver fast, precise material removal in restricted areas, while the lightweight 0.3 kg construction reduces operator fatigue. Order the unit directly via Metav Werkzeuge or consult our specialists for application-specific advice. VAG-8241 Pneumatic Angle Grinder — 45° head, 23,000 rpm (Vertex) The VAG-8241 is a compact pneumatic angle grinder with a 45° head designed for precision work in confined workshop spaces Compact 45° head for tight access High-speed rotation at 23,000 rpm Small 30 mm wheel for precision work Lightweight 0.3 kg for reduced fatigue Precision performance in confined spaces The combination of a 45° head and a small 30 mm wheel diameter makes this air-powered tool particularly well suited to jobs where access is limited and accuracy matters. High rotational speed at 23,000 rpm enables efficient cutting back of material and rapid surface refinement, while the compact overall length of 160 mm allows entry into narrow assemblies. Operators benefit from reduced effort thanks to the 0.3 kg mass, which lowers fatigue during repetitive finishing tasks and improves consistency in manual operations. Stable pneumatic power for continuous operation A pneumatic drive provides a favourable power-to-weight ratio and steady performance under load. The design reduces the need for electrical components in the tool head, which simplifies maintenance and keeps downtime low in a production environment. Consistent speed under varying load conditions supports repeatable results during grinding and light material removal, making this grinder a practical choice for frequent workshop use and inline finishing processes. Simple handling, fast integration into workflows Ergonomics and compact geometry enable comfortable one-handed use and faster cycle times on assembly or repair tasks. The grinder’s configuration supports close-up work on assemblies where a larger tool would be impractical, helping to improve throughput without sacrificing control. For procurement and workshop managers the unit offers an easy fit into existing compressed-air tool fleets; Metav Werkzeuge supplies the product from its European stock and can advise on selection and logistics to ensure rapid availability. Contact Metav Werkzeuge for tailored advice on integrating the Vertex VAG-8241 into production or maintenance operations from our Emmerich stock Technical Data Article number: VAG-8241 GTIN: 4061905084126 Brand: Vertex Core technical data Speed: 23,000 rpm Wheel / disc diameter: 30 mm Weight: 0.3 kg Overall length: 160 mm Head angle: 45° Special features Pneumatic / air-powered operation Compact 45° head for tight access Designed for precision grinding and finishing Lightweight design for reduced operator fatigue FAQ What is the primary use of this tool? The VAG-8241 pneumatic angle grinder is intended for precision grinding and finishing in confined areas where access and control are critical. What disc size does the grinder accept? The tool is specified for a 30 mm wheel or disc diameter, suitable for detailed surface work. What rotational speed does the unit achieve? The grinder runs at up to 23,000 rpm, providing high-speed material removal for efficient finishing. How heavy is the grinder? The Vertex VAG-8241 weighs approximately 0.3 kg, which helps reduce operator fatigue during repetitive tasks. Is this tool suitable for workshop integration? The compact format and pneumatic drive of the VAG-8241 allow straightforward integration into existing compressed-air tool fleets and production workflows. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
U2‑E Accessory For Universal Tool Grinder, Grinding Attachment For Shank Cutters - Vertex
Take advantage of the combination of precision, proven compatibility with universal cutter grinders and straightforward mounting for minimal set-up time; the result is reliable finishing of shank cutters with consistent repeatability. Order the accessory directly via Metav Werkzeuge or request advice from our consultants if further technical data is required. U2-E — Grinding attachment for shank cutters by Vertex (compact, workshop-ready) U2-E is a compact grinding attachment intended for the machining of shank cutters on universal cutter grinders, designed to streamline regrinding operations in small to medium workshops. Compatible with universal cutter grinders Designed for shank cutter grinding Robust 2 kg accessory for workshop rigs Easy mounting on standard tool grinders Consistent precision for repeatable cutter geometry The grinding module delivers a focused solution for restoring and reconditioning the cutting edges of shank cutters, supporting consistent tool geometry across batches. By integrating a dedicated attachment into existing universal grinders, shops achieve repeatable results without investing in separate, specialised machines. The compact design and defined mass of 2 kg contribute to stable rotation and reduced vibration during light regrinds, which helps to preserve edge geometry and prolong service intervals. Faster set-ups reduce non-productive time Designed for quick installation on compatible universal grinders, this accessory shortens set-up cycles and simplifies changeovers between tools. A straightforward fixture concept and clear compatibility with standard machine interfaces mean the grinding process can be resumed with minimal adjustments, improving throughput. The result is a measurable improvement in workflow efficiency: less time spent on mounting and aligning, more time devoted to value-adding machining operations. Suited to workshop environments and versatile tool care This attachment is intended as a practical workshop tool for maintaining shank cutters used in a range of materials and machining tasks. Its role is to provide a cost-effective maintenance option that keeps tooling in service without outsourcing, supporting on-site tool care and faster turnaround. The module complements a toolbox of workshop solutions and aligns with routine maintenance practices to sustain cutting performance and reduce the need for frequent tool replacement. Contact Metav Werkzeuge in Emmerich for tailored advice and to secure the Vertex U2-E grinding attachment for your universal cutter grinder Technical Data Article number: U2-E GTIN: 4061905083808 ECLASS: 21059113 Type: Grinding attachment for shank cutters Manufacturer: Vertex Core data Weight: 2 kg SKU: U2-E Special features Suitable for: Universal cutter grinders Application: Shank cutter regrinding Asset image: U2-E-main.png FAQ What machines is the attachment compatible with? The U2-E attachment is compatible with universal cutter grinders; compatibility depends on the grinder’s mounting interface and available spindle configuration. Can the U2-E be used for different shank cutter diameters? Yes, the U2-E is designed for the regrinding of shank cutters across a range of diameters, subject to the limitations of the host grinder and the chosen grinding wheel. Does the accessory require special fixtures? Standard mounting interfaces on universal grinders are supported; specific fixtures depend on the individual machine and the cutter geometry to be ground. How does the attachment affect grinding repeatability? By providing a dedicated grinding interface and stable mass distribution (2 kg), the attachment supports improved repeatability and reduced vibration during regrinds. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

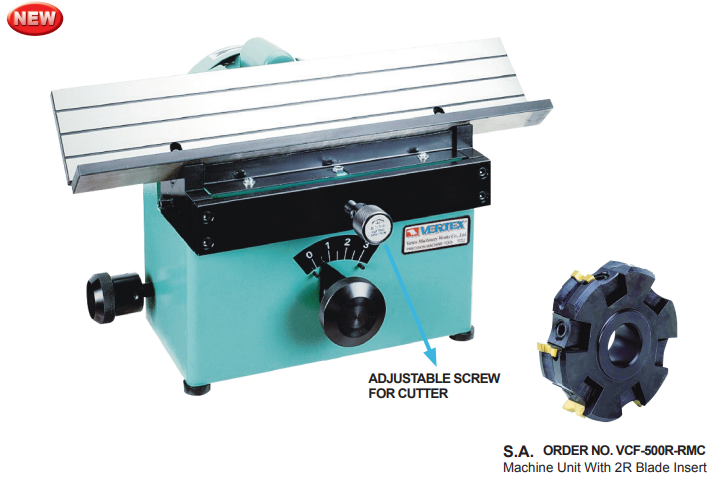

500x400x320mm Chamfering and Deburring Machine for R Double Angles 3Ø/1Ø 3500rpm 1HP - Vertex
Take advantage of a compact yet powerful solution that combines consistent edge quality, a 3,500 r.p.m. spindle and flexible electrical options for seamless integration into production. Order the machine directly via Metav Werkzeuge or consult our advisors for specification support and delivery from Emmerich. VCF-500R Bevelling and Deburring Machine — 3,500 r.p.m., 1 HP (Vertex) A robust VCF-500R bevelling and deburring machine engineered for efficient processing of R double-angle components in workshop and light-production settings 3,500 r.p.m spindle speed for efficient bevelling Compact footprint 500×400×320 mm for tight shops Flexible supply 1 HP, 110–220 V or 220–400 V options Designed for R double-angle deburring and chamfering Consistent edge quality for repeatable production The machine delivers precise bevelling and deburring by maintaining a stable spindle speed at 3,500 r.p.m., which reduces variation between workpieces and shortens secondary finishing operations. For fabricators and small production lines, this translates into fewer rework cycles and more predictable output. The built-in capacity to process R double-angle profiles ensures consistent chamfer geometry, supporting quality control and repeatability across batches. Space-saving design that simplifies workflow With a compact footprint of 500 × 400 × 320 mm and a net weight of 28 kg, the unit integrates into constrained workbenches or mobile setups without extensive rearrangement. The reduced floor space requirement supports leaner workshop layouts and easier access to adjacent machinery. The relatively low mass allows relocation within the shop when production needs change, helping to optimise material flow and minimise handling time. Electrical flexibility and robust drive for varied installations Equipped with a 1 HP standard drive and configurable supply options — 110–220 V single-phase or 220–400 V three-phase at 50/60 Hz — the machine adapts to differing electrical infrastructures commonly found in trade and industrial environments. This compatibility reduces installation complexity and supports deployment at multiple sites without major electrical modifications. The reliable drive assembly is designed for continuous operation, contributing to steady cycle times. Practical operation that reduces processing steps The system focuses on practicality: its task-specific construction for chamfering and deburring of R-profile edges cuts processing steps by combining two functions in one compact unit. Operators benefit from straightforward setup and predictable results, while production planners gain from simpler process chains and lower downstream finishing requirements. The device’s specification suits workshops seeking measurable efficiency gains with limited floor space. Contact Metav Werkzeuge today for an individual specification and fast delivery from Emmerich — our consultants assist with compatibility checks and order processing for Vertex machines Technical data SKU: VCF-500R GTIN: 4061905083136 ECLASS: 36639025 Type: Bevelling and deburring machine for R double-angle Core specifications Dimensions: 500 × 400 × 320 mm Spindle speed: 3,500 r.p.m. Net weight: 28 kg Power: 1 HP (standard) Supply voltage: 110–220 V (single-phase) / 220–400 V (three-phase) Frequency: 50/60 Hz Features & suitability Brand: Vertex Application: Chamfering and deburring of R double-angle parts Ideal for workshops and light-production environments Compact, mobile-capable design FAQ What materials can be processed with this bevelling and deburring machine? The VCF-500R by Vertex is designed for general metal deburring and chamfering tasks; suitability depends on the chosen tooling and process parameters for specific alloys. Is the machine compatible with single-phase power supplies? Yes, the unit supports single-phase operation at 110–220 V as well as three-phase 220–400 V, allowing flexible installation in different electrical environments. How large is the machine and can it fit on a standard workbench? The compact footprint of 500 × 400 × 320 mm and a weight of 28 kg mean the device fits comfortably on standard benches and in constrained workshop layouts. What spindle speed does the machine use for bevelling operations? The machine operates at a spindle speed of 3,500 r.p.m., providing steady performance for consistent chamfering and deburring results. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
