Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
50mm SK40 Collet Chuck Integrated Self‑Locking, Ø0.5–13mm Capacity, M16 Thread - Vertex
Take advantage of the combination of a compact SK40 mounting, self-tightening clamping and a wide capacity of Ø0.5–13 mm for reliable workshop drilling; order the chuck directly via Metav Werkzeuge or ask our consultants if needed. Vertex SK40-VRL13 Drill Chuck — self-tightening, Ø0.5–13 mm The Vertex SK40-VRL13 is a self-tightening drill chuck designed for secure tool clamping in machine-tool spindles and toolholders Self-tightening, integrated mechanism Capacity Ø0.5–13 mm SK40 taper with M16 thread Length 85 mm for compact mounting Increased machining reliability through secure clamping The integrated self-tightening mechanism converts spindle torque into higher clamping force, reducing slippage during heavy cuts and supporting consistent tool concentricity. With a clamping range of Ø0.5–13 mm, the chuck accommodates common twist drill sizes for general workshop and industrial applications. This mechanical principle lowers chatter and extends useful tool life, which translates into fewer tool changes and steadier cycle times on milling machines and drill presses. Compact design that speeds up set-up and fits standard spindles A short overall length of 85 mm and the SK40 mounting mean the chuck occupies minimal overhang while maintaining rigidity. The M16 thread ensures secure fastening to the spindle adaptor without additional components, simplifying installation and repeatable repositioning. Reduced assembly time and a compact profile support tighter tolerance work and quicker changeovers, helping to keep production flow efficient and predictable. Practical durability and integration into the workshop Designed for regular workshop use, the chuck’s integrated design minimises exposed parts and makes routine checks straightforward. The clear, measurable capacity (Ø0.5–13 mm), the SK40 interface and the M16 connection allow compatibility verification with existing toolholders and adaptors before purchase. This transparency supports informed procurement decisions and reduces the risk of unsuitable fittings in the tool chain. Contact Metav Werkzeuge today to discuss the Vertex SK40-VRL13 drill chuck and confirm compatibility with existing spindles — email info@metav-werkzeuge.com or call +49 2822 7131930 for prompt advice from our Emmerich-based team Technical data Article number: SK40-VRL13 GTIN: 4061905083556 Manufacturer: Vertex Numbers / Core technical data Capacity: Ø0.5–13 mm Diameter: 50 mm Length: 85 mm Thread: M16 eCl@ss: 21020490 ETIM: EC002125 Special features / Versions Integrated and self-tightening Mounting: SK40 taper Suitable for precision caliper measurement range Ø0.5–13 mm FAQ What clamping range does this chuck support? The Vertex SK40-VRL13 supports a clamping capacity of Ø0.5–13 mm, suitable for a wide range of twist drill sizes used in general machining. Which spindle taper and thread are required for mounting? Mounting is via an SK40 taper and the chuck uses an M16 thread for secure attachment to the adaptor or spindle. Is the chuck suitable for frequent tool changes in production? Yes, the compact 85 mm length and integrated design reduce setup time and support frequent, repeatable tool changes in a production environment. Can this chuck be used on milling machines as well as drill presses? The SK40 interface and self-tightening action make the chuck appropriate for compatible milling machines and drill spindles where SK40 mounting is used. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
50x500 mm Runout Test Mandrel MK6 Roundness Accuracy 0.005 mm, Hardened Gauge Steel DIN 229 - Metav IndustryLine
Take advantage of the combination of high rotational accuracy, robust hardened-steel construction and standard-compliant design to speed up spindle alignment and reduce rework. Order the test mandrel directly via Metav Werkzeuge or consult the technical team for application-specific guidance. Test Mandrel MT6 – 50 x 500 mm, Runout 0.005 mm (Metav IndustryLine) The Test Mandrel MT6 – 50 x 500 mm, Runout 0.005 mm is a hardened gauge-steel mandrel for precise runout testing and spindle alignment in machine tool maintenance and quality control. Runout accuracy 0.005 mm Hardened gauge steel construction MT6 taper for spindle checks Complies with DIN 229 Ensure spindle concentricity with micrometre-level certainty The mandrel delivers 0.005 mm runout, a tolerance that supports accurate spindle alignment and reliable concentricity checks on rotating tooling. This level of precision reduces the need for repeated adjustments and limits scrap caused by eccentric rotation. The controlled runout is particularly important when verifying high-speed spindles or precision chucks; by measuring and correcting the spindle axis early, downstream machining variances are minimised and process stability improves. The mandrel’s defined tolerance is a measurable input for quality documentation and corrective action. Built for repeatable workshop use and simple handling Constructed from hardened gauge steel, the mandrel combines rigidity with wear resistance for frequent inspection routines. The Ø50 x 500 mm working section and MT6 taper permit direct use with compatible spindle bores and test fixtures. The robust design and balanced mass distribution support steady measurements across the mandrel length, while the overall build conforms to DIN 229, assuring compatibility with established gauge and inspection practices. The unit’s total length of 715 mm and weight of 12 kg reflect a stable, workshop-friendly tool that remains firm during measurement without excessive operator strain. Practical application: how it integrates with inspection workflows Designed for runout testing and alignment tasks, the mandrel is ready for use in spindle diagnostics, chuck checks and machine acceptance tests. The tool seats in MT6 taper fittings and provides a precise reference for dial indicators or rotational measuring systems. When used as part of a corrective routine, the mandrel helps identify bearing play, taper wear or mounting errors quickly, allowing targeted maintenance rather than broad downtime. The sturdy material choice and standard compliance also facilitate traceable measurement protocols that fit into quality-management systems. Reliability from a trusted precision partner This mandrel is offered under the Metav IndustryLine, reflecting Metav’s focus on making high-precision tools accessible to workshops and production facilities across Europe. With a broad product range and local stocking in Emmerich, the supplier network supports consistent availability and straightforward logistics. Investing in a clearly specified test mandrel simplifies routine checks and contributes to predictable machine performance, which in turn supports on-time delivery and cost control in production. Contact Metav Werkzeuge in Emmerich on +49 2822 7131930 or info@metav-werkzeuge.com to arrange supply of the MT6 test mandrel (SKU M318.936) and obtain tailored technical advice Technical data SKU: M318.936 GTIN: 4054469183954 Type: MT6 Standard: DIN 229 Facts Mandrel diameter × length: Ø50 × 500 mm Total length: 715 mm Runout accuracy: 0.005 mm Weight: 12 kg Special features Material: hardened gauge steel Suitable for runout testing and spindle alignment Category: Lehren Brand: Metav IndustryLine FAQ What level of concentricity can be expected from this mandrel? The Test Mandrel MT6 – 50 x 500 mm, Runout 0.005 mm provides a runout accuracy of 0.005 mm, making it suitable as a tight reference for spindle and chuck checks. Which taper fits this mandrel for machine tool testing? This mandrel uses an MT6 taper, enabling direct seating in MT6-compatible spindles and fixtures for runout measurement. What material and standard compliance does the mandrel have? The mandrel is made from hardened gauge steel and complies with DIN 229, ensuring durability and conformity with established inspection practices. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

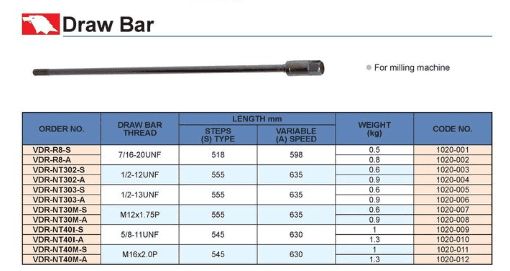

518mm Pull Rod 7/16-20UNF Thread, 0.5kg – Vertex
Take advantage of reliable tool retention and simple handling thanks to the combination of a 7/16-20UNF threaded connection and a 518 mm shaft that ensures deep engagement, while the lightweight construction (0.5 kg) simplifies workshop handling — order the drawbar directly via Metav Werkzeuge or ask our consultants for application advice. VDR-R8-S drawbar — 518 mm shaft, 7/16-20UNF threaded connection (Vertex) The VDR-R8-S is a drawbar designed for R8 toolholders, providing robust tool retention for machining tasks where secure clamping and straightforward integration are required Precision drawbar for R8 spindles 7/16-20UNF threaded connection 518 mm shaft for deep engagement Lightweight at 0.5 kg for easy handling Consistent clamping for dependable machining results The engineered connection uses a 7/16-20UNF thread to deliver repeatable axial retention, reducing play between toolholder and spindle and helping to maintain concentricity during operation. With a shaft length of 518 mm, the component enables secure seating for extended toolholders or applications requiring deeper drawbar reach. This mechanical reliability supports stable cutting conditions and consistent part quality, improving process predictability in series production or precision one-off runs. Practical handling that speeds up workshop workflows Weighing just 0.5 kg, the component combines secure function with ease of handling, making tool changes less strenuous for operators and shortening changeover times on the shop floor. The compact mass contributes to reduced setup fatigue and quicker alignment when installing tooling, which in turn helps maintain throughput. Clear thread specification and standardised interface simplify inventory management and ensure compatibility with established R8 tooling systems. Supply and quality assurance through Metav Werkzeuge Sourcing via Metav Werkzeuge links the component to a European supply chain governed by a strict quality filter in Emmerich. Metav's decades of precision expertise and broad product range support procurement efficiency and continuity of supply for workshops and industry alike. Trust indicators such as a substantial customer base and a centralised stock for precision equipment minimise the risk of delivery gaps and support long-term operational planning. For secure R8 tool retention and easy workshop integration, request the VDR-R8-S from Metav Werkzeuge — consultants in Emmerich can advise on fitment, stock availability and delivery Technical Data Article number: VDR-R8-S GTIN: 4061905084058 eClass: 23309104 Facts Length: 518 mm Weight: 0.5 kg Thread: 7/16-20UNF Special features Type: Drawbar Brand: Vertex SKU: VDR-R8-S FAQ What spindle systems is this drawbar compatible with? The VDR-R8-S is designed for R8 toolholder systems and uses a 7/16-20UNF threaded connection for direct retention in compatible setups. How does the 518 mm shaft benefit deep-reach applications? A 518 mm shaft allows deeper engagement of the drawbar into extended toolholders, improving axial retention for long tooling and reducing the risk of pull-out during operation. Is the drawbar heavy to handle during tool changes? At 0.5 kg the drawbar offers lightweight handling, which reduces operator fatigue and speeds up manual tool changes without compromising on clamping performance. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
51mm Horizontal Clamp Low Base Self-Adjusting Foot Zinc-Plated, 2500N Closing Force / 3200N Holding Force - Kukamet
Take advantage of the combination of a galvanised finish, a self-adjusting low foot and proven clamping figures for consistent, time-saving workholding. Order the clamp directly via Metav Werkzeuge or consult the technical team for application advice. Horizontal clamp 551-3 – Galvanised horizontal toggle clamp with low, self-adjusting foot (Kukamet) A Horizontal clamp 551-3 designed for secure temporary workpiece holding in welding, assembly and fixture applications, featuring a low-profile foot for tight setups. Galvanised finish for corrosion resistance Self-adjusting low foot for uneven workpieces Clamping force 2,500 N Holding force 3,200 N Secure clamping for repeatable fixtures The 551-3 delivers quantifiable performance: a clamping force of 2,500 N combined with a holding force of 3,200 N ensures repeatable results in series production and jigs. These figures translate into reliable retention during machining or assembly, reducing rework and downtimes. The toggle mechanism converts lever travel into stable pressure, providing efficient, mechanical advantage without complex adjustments. Compact, low-profile design for tight setups A low-profile foot and compact footprint allow the clamp to be mounted where space is limited. With a width of 55.5 mm, a height of 51 mm and a mass of 0.53 kg, the unit fits into confined fixtures and on thin fixture plates while keeping overall weight low. The reduced clearance requirement simplifies fixture layout and enables closer part spacing, supporting higher throughput in constrained work envelopes. Durable finish and automatic alignment for long service life The galvanised surface protects against corrosion in workshop and light industrial environments, extending service intervals and preserving appearance. The self-adjusting foot compensates for slight part variation or uneven clamping surfaces, ensuring full-face contact and even force distribution. Together, these features reduce maintenance needs and help maintain consistent clamping behaviour over prolonged use. Easy integration into existing fixture systems As a horizontal toggle clamp with a lever-actuated design, the unit integrates smoothly into assembly rigs, welding jigs and manufacturing fixtures. The simple mounting geometry and standard dimensions permit quick replacement or addition to existing setups, while the robust construction supports repetitive cycles in production. Where predictable mechanical clamping is required, this solution offers a pragmatic balance of reliability and compactness. Choose Kukamet quality for dependable clamping—contact Metav Werkzeuge for stock information and application guidance at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 551-3 GTIN: 8680731502855 ECLASS: 21041719 ETIM: EC011973 Facts Width: 55.5 mm Height: 51 mm Weight: 0.53 kg Clamping force (max): 2,500 N Holding force (max): 3,200 N Special features Galvanised finish Self-adjusting low foot Horizontal toggle clamp design Category: Spanner FAQ What clamping and holding forces does this clamp provide? The clamp provides a clamping force of 2,500 N and a holding force of 3,200 N for secure temporary workpiece retention. Is the foot adjustable for uneven surfaces? Yes, the unit features a self-adjusting low foot that compensates for minor surface irregularities to ensure even contact. What environments is the clamp suited for? With a galvanised finish, the clamp is suitable for workshop and light industrial environments where corrosion resistance is required. Can the clamp be integrated into existing fixtures? The horizontal toggle design and compact dimensions allow straightforward integration into assembly, welding and fixture systems. Which manufacturer produces this clamp and what is the SKU? The clamp is produced by Kukamet and listed under SKU 551-3. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
6 mm Pneumatic File 3,700 Cycle/min, 175 mm Length - Vertex
Take advantage of the combination of fast finishing, compact handling and wide material compatibility for efficient workshop results; order the VAG-318 directly via Metav Werkzeuge or ask our consultants for application advice. VAG-318 Pneumatic file with 6 mm collet and 3,700 strokes/min — Vertex The VAG-318 is a compact pneumatic file designed for precision shaping and finishing in metalworking, woodworking, shoemaking and mould maintenance. 6 mm collet for standard file bits 3,700 strokes per minute performance Lightweight 1.25 kg housing for ease of handling Compact 175 mm length for tight spaces Fast material removal that keeps production moving With a rated 3,700 strokes per minute, this air-powered finishing tool accelerates stock removal and produces a consistent surface texture across different substrates. The high stroke rate translates directly into shorter processing times for deburring and profiling tasks on metal and wood, while the steady reciprocating action supports controlled finishing on shoe components and moulds. For workshops focused on throughput, the measurable increase in cycle speed offers a clear efficiency gain without complex setup. Precision access in confined or detailed workpieces The short 175 mm overall length and balanced mass make the tool particularly suitable where space is limited or fine control is required. The 6 mm collet accepts standard file bits, enabling straightforward replacement and compatibility with widely used consumables. At 1.25 kg, the unit reduces operator fatigue during extended use, improving repeatability when shaping edges or working on delicate contours. These physical attributes provide practical benefits in everyday workshop tasks where accuracy matters. Simple integration and consumable compatibility Designed as a pneumatic tool, the VAG-318 integrates with standard compressed-air systems commonly found in industrial and small-scale workshops, allowing quick adoption without electrical modifications. The standard collet size means common file inserts are compatible, simplifying inventory and reducing downtime for part changes. This compatibility supports a smoother workflow and helps maintain consistent quality across varied jobs, from prototype finishing to repeat production runs. Reliability, ergonomics and workshop productivity As a tool from Vertex, the product combines focused design for finishing tasks with handling features that support continuous operation. The compact form factor and measured stroke rate reduce the need for multiple specialised tools, streamlining the toolset required at the bench. Alongside tangible productivity improvements, users gain confidence from consistent performance and adaptable use across metal, wood, shoe and mould applications, contributing to a dependable everyday workflow. Contact Metav Werkzeuge for tailored advice on integrating the Vertex VAG-318 into the workshop or to request detailed application guidance from our consultants Technical data Article number: VAG-318 GTIN: 4061905083464 Manufacturer: Vertex Facts Stroke rate: 3,700 strokes per minute Collet / shank: 6 mm Weight: 1.25 kg Length: 175 mm Applications & features Tool type: pneumatic file Suitable for: metal, wood, shoes, moulds FAQ What file bit shank size does the tool accept? The VAG-318 uses a 6 mm collet and accepts standard 6 mm shank file bits for straightforward replacement. Which materials can be processed with this pneumatic file? The tool is suitable for metal, wood, shoe materials and moulds, providing versatile finishing across workshop applications. How fast does the tool operate in typical use? Rated at 3,700 strokes per minute, the VAG-318 delivers high-frequency reciprocating motion for efficient material removal and consistent surface finish. Is the tool suitable for tight or confined spaces? Yes. With a compact 175 mm length and a lightweight design, the file is intended for precise work in restricted areas. What is the model and manufacturer information for replacement parts? Replacement parts and consumables can be specified using the SKU VAG-318 and Manufacturer Vertex; use these references when enquiring about compatible file bits. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
60mm LED Signal Light Waterproof Bright, IP54 - Vertex
Compact, IP54-rated LED signalling with a Ø60 mm housing and robust 0.7 kg construction ensures reliable visual status indication in harsh environments; order the VLED-3SL directly via Metav Werkzeuge or consult the Metav advisors for specification matching and supply. VLED-3SL LED signal light — Vertex, IP54 protection, compact Ø60 mm The VLED-3SL LED signal light is a compact, IP54-rated signalling device designed for industrial control panels and machinery, offering high-visibility indication in environments exposed to dust and splashing water. IP54 protection against dust and splash High-intensity LED signalling Compact Ø60 mm housing Robust 0.7 kg industrial design Consistent visual signalling for demanding workflows The unit delivers clear visual indication through high-intensity LED illumination that remains legible under bright ambient light and factory conditions. Thanks to the IP54 rating, the device is protected against limited dust ingress and splashing water, which reduces the likelihood of signalling faults in routine production environments. This reliability supports continuous process monitoring and contributes to smoother machine operation by minimising unclear status signals and downtime. Compact footprint that simplifies installation planning With a Ø60 mm housing and a compact profile, the signal beacon occupies minimal panel space, enabling denser arrangement of indicators and controls within existing switchgear or control cabinets. The comparatively light 0.7 kg mass supports secure mounting without imposing significant load on panels or brackets. The compact design therefore aids efficient control layout and facilitates retrofitting into systems where space is constrained, while maintaining robust signalling performance. Durable design aimed at long-term operational uptime Constructed for industrial settings, the device combines a resilient enclosure with high-visibility LEDs to provide dependable service over extended operating periods. The unit’s resistance to environmental influences and mechanical resilience reduces the need for frequent replacement, contributing to lower maintenance intervals and predictable operational costs. Manufactured under the Vertex name, the product aligns with established industrial quality expectations and supports steady production workflows. Discuss the Vertex VLED-3SL IP54 LED signal light with Metav Werkzeuge — contact info@metav-werkzeuge.com or call +49 2822 7131930 to confirm suitability and arrange supply Technical data Article number: VLED-3SL GTIN: 4061905084102 Brand: Vertex Facts Diameter: 60 mm Weight: 0.7 kg ECLASS: 27110631 ETIM: EC001959 Special features Protection rating: IP 54 Description: LED signal light Marketing note: water-resistant and bright SKU: VLED-3SL FAQ What environments is the signal light suitable for? The VLED-3SL is intended for industrial environments such as control panels and machinery areas where IP54 protection against dust and splashing water is required. How does the IP54 rating affect performance? An IP54 rating means the enclosure provides protection against limited dust ingress and splash water, helping the VLED-3SL maintain reliable signalling in exposed workshop conditions. What is the installation footprint of the unit? The unit features a Ø60 mm housing that is optimised for compact panel mounting and space-conscious control layouts. Is the device heavy to handle during installation? At approximately 0.7 kg, the signal light is sufficiently robust while remaining light enough for straightforward mounting in standard control panels. How can the VLED-3SL be ordered or specified for a project? Specification and ordering for the Vertex VLED-3SL can be arranged through Metav Werkzeuge; refer to the SKU VLED-3SL and GTIN 4061905084102 when placing enquiries. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
60° Live Centre For High Speeds MT3A, 0.005mm Accuracy, 176mm Length - Vertex
Efficient high-speed operation combined with tight runout accuracy and a standard MT3 interface ensures reliable production turning. Order the VLC‑MT3A directly via Metav Werkzeuge or consult our specialists for application matching. VLC‑MT3A live centre (MT3) by Vertex — high-speed 4,000 r.p.m., 60° centre VLC‑MT3A is a rotating live centre engineered for high-speed lathe work, delivering consistent concentricity and compatibility with standard MT3 spindles High-speed operation 4,000 r.p.m Accuracy 0.005 mm runout MT3 taper mounting 60° hardened centre angle Faster cycle times with stable high-speed support The high-speed design supports up to 4,000 r.p.m., enabling shorter cycle times on turning operations where rotational speed improves surface finish and throughput. By using a rotating live centre rather than a fixed dead centre, the bearing load and friction at the tailstock are reduced, which helps to maintain tool life and minimise heat build-up during continuous production. The result is improved process efficiency and fewer interruptions for bearing or workpiece adjustments. Precision that reduces scrap and rework With an accuracy of 0.005 mm, the rotating centre provides repeatable concentric support for long or short workpieces, which translates directly into fewer rejects and lower finishing effort. This level of precision stabilises taper and roundness measurements during machining and is particularly valuable when producing turned parts to tight tolerances. The stated accuracy gives planners and operators a clear basis for process capability assessments and quality control. Standard MT3 interface for straightforward integration Fitted to a MT3 taper, the centre installs into commonly used tailstocks without adapters, simplifying tool change and reducing downtime. The overall length of 176 mm and a mass of 1.3 kg balance rigidity and ease of handling, allowing rapid mounting and safe storage between shifts. The 60° centre angle is compatible with established centre-point geometries used in general turning and supports a wide range of material forms without the need for special workholding. Built for workshop reliability and consistent delivery Produced by Vertex and intended for regular production use, this rotating centre combines robust construction with serviceable components to ensure dependable running across shifts. The compact design and proven interface mean the component slots into existing processes quickly, while the documented runout and speed ratings help planners justify its use in productivity-focused applications. For operations seeking both throughput and precision, the rotating centre offers a practical balance of benefits. Contact Metav Werkzeuge in Emmerich for tailored application advice or to confirm compatibility with existing lathes — eMail: info@metav-werkzeuge.com • Tel: +49 2822 7131930 • WhatsApp: +49 170 2837271 Technical data Article number: VLC‑MT3A SKU: VLC‑MT3A GTIN: 4061905083594 Manufacturer: Vertex Facts Speed: 4,000 r.p.m. Accuracy: 0.005 mm Length: 176 mm Weight: 1.3 kg Centre angle: 60° Special features MT3 taper mounting Rotating live centre for high speeds Suitable for production turning applications Vertex brand FAQ What maximum speed is recommended for this rotating live centre? The VLC‑MT3A is rated for up to 4,000 r.p.m., a specification that supports high-speed turning while maintaining the centre’s stated accuracy. Which taper does the centre use and will it fit standard tailstocks? The device uses an MT3 taper and is compatible with tailstocks designed for that standard, allowing straightforward integration. How precise is the support provided by this centre? The rotating centre offers an accuracy of 0.005 mm, giving repeatable concentric support for tight-tolerance turning operations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

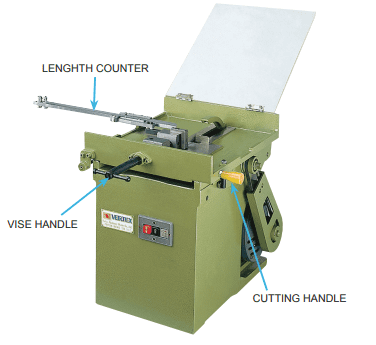

620x420x450mm Ejector Pin Cutting Machine 3600rpm, 0.1mm Accuracy - Vertex
Take advantage of the combination of high cutting speed, measured precision and a compact footprint for consistent productivity in mould and tool workshops. Order the unit directly via Metav Werkzeuge or consult our specialists for setup and integration. VEC-100 Ejector Pin Cutting Machine — 3,600 rpm, 0.1 mm accuracy (Vertex) The VEC-100 is a precision ejector pin cutting machine designed for mouldmaking and toolroom applications, delivering fast, repeatable cuts for small, high-precision components. High-speed 3,600 rpm for efficient throughput Repeatable accuracy to 0.1 mm per cut Solid, vibration-damping construction at 94.5 kg Compact footprint: 620x420x450mm Consistent, measurable precision for small parts The VEC-100 offers reliable precision that supports repeatable production of ejector pins and similar small parts. With a specified accuracy of 0.1 mm, the cutter reduces the need for manual rework and length matching, which shortens downstream processing time. The stated tolerance refers to the reproducibility of the cut length under normal operating conditions; this allows workshop planners to calculate yield and set-up intervals with confidence. Precision in this context means fewer rejects and a more predictable production rhythm. Faster cycle times through controlled high speed A nominal spindle speed of 3600 rpm enables shorter cycle times while maintaining cut quality when paired with appropriate tooling and feed. High rotational speed improves throughput for small-diameter pins where multiple cuts are required, and the machine’s design prioritises stable cut conditions to avoid burr formation. By combining rotational speed with steady workholding and a stiff frame, the unit achieves a balance between productivity and surface integrity, supporting lean manufacturing workflows in toolmaking environments. Robust, compact build that fits the workshop Engineered for stability, the machine’s robust construction and mass of 94.5 kg reduce vibration and contribute to consistent cutting results. Its compact footprint (620x420x450mm) makes it suitable for benches or dedicated cells without sacrificing rigidity. The compact design also simplifies integration into existing production lines and allows planners to make efficient use of floor space. Maintenance is straightforward thanks to accessible service points, helping to keep downtime predictable and limited. Contact Metav Werkzeuge to discuss integration of the Vertex VEC-100 into the workshop and to arrange a tailored delivery and setup plan close to your facility Technical Data Article number: VEC-100 GTIN: 4061905084096 Manufacturer: Vertex Facts Accuracy: 0.1 mm Speed: 3600 rpm Weight: 94.5 kg Dimensions: 620x420x450mm Special features eClass: 23120390 ETIM: EC001959 SKU: VEC-100 FAQ What materials can be processed with this cutter? The VEC-100 is intended for cutting standard ejector-pin materials used in mouldmaking; compatibility depends on the chosen cutting tool and process parameters. How does the specified accuracy affect production planning? An accuracy of 0.1 mm for the VEC-100 allows planners to minimise post-cut matching and to set realistic yield and inspection intervals for small-part production. Is the machine suitable for bench mounting in a small workshop? Yes; the compact footprint (620x420x450mm) and solid 94.5 kg construction are designed for placement on benches or in compact cells typical of toolrooms. Which brand manufactures this machine? The VEC-100 is manufactured by Vertex and is supplied through Metav Werkzeuge for European customers. What information is needed to order spare parts or tooling? Provide the machine SKU (VEC-100) and the part description; Metav Werkzeuge can assist with correct tooling and spare-part selection. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
63mm Rotary Chuck Angle Plate With Chuck, 15 Kg Load Capacity, 0.01mm Accuracy - Vertex
Take advantage of the combination of high repeatability, robust load capacity and a compact footprint for efficient clamping operations; order the unit directly via Metav Werkzeuge or consult our specialists for tailored integration advice. VUA-100J mounting angle with rotary chuck — 63 mm chuck, 0.01 mm accuracy (Vertex) VUA-100J is a mounting angle fitted with a rotary chuck for precise orientation and secure clamping in workshop and inspection setups. *Precision ±0.01 mm for repeatable setups *63 mm rotary chuck for secure clamping *Rated load up to 15 kg for heavy workpieces *Compact footprint 180×110×136 mm for space-saving Precise alignment that reduces setup time The unit delivers 0.01 mm repeatability, a level of precision that supports tight tolerances in inspection, calibration and light machining tasks. Accurate positioning is achieved through the integrated rotary chuck, which promotes consistent concentricity and simplifies indexing of the workpiece. For operations that demand reproducible reference points, the device acts as a stable fixturing element, helping to reduce rework and maintain production throughput. Reliable support for medium-weight components With a rated capacity of 15 kg, the mounting angle accommodates a broad range of parts commonly encountered in small-batch production and metrology fixtures. The solid construction and balanced mass (approx. 12 kg) keep the assembly stable during handling and when rotating the chuck, so the clamped item remains secure. This stability supports repeatable measurements and safer handling compared with lighter, less rigid fixtures. Small footprint, simple integration into existing rigs The compact dimensions of 180×110×136 mm make the device easy to position on machine tables, measuring stations or assembly benches without consuming valuable workspace. Its modest size and standard chuck diameter allow it to be incorporated into modular clamping arrangements or combined with other tooling elements. Where floor or table space is limited, the mounting angle provides a space-efficient solution without sacrificing functional capability. Clear technical advantages for everyday workshop use The 63 mm rotary chuck offers a familiar interface for clamping cylindrical or faced parts, enabling quick workpiece changes and precise angular adjustment. The design concentrates on predictable behaviour: precise indexing, secure holding and compatibility with common shop practices. For users seeking consistency in routine setups, the component reduces variability and supports faster, quality-driven workflows. For guidance on integrating the Vertex VUA-100J into existing fixtures or for bespoke clamping recommendations, contact Metav Werkzeuge — our Emmerich-based team provides practical advice and reliable supply from stock. Technical Data Article number: VUA-100J GTIN: 4061905084386 eClass: 21020601 Facts Accuracy: 0.01 mm Max load: 15 kg Weight: 12 kg Dimensions: 180×110×136 mm Chuck diameter: 63 mm Special features Mounting angle with rotary chuck Chuck diameter: 63 mm Compact design for bench or table mounting FAQ What level of positional precision can be expected? The VUA-100J offers a repeatability of 0.01 mm, which ensures consistent positioning for inspection and light machining tasks. Which workpiece weight is supported by this clamping angle? The device is rated for loads up to 15 kg, making it suitable for medium-weight components commonly handled in workshops. What does the 63 mm chuck diameter mean for clamping options? A 63 mm rotary chuck provides a versatile clamping interface for cylindrical and flanged parts and facilitates quick changeover during repetitive setups. Can the mounting angle be used on machine tables and measuring stands? Yes. The compact footprint of 180×110×136 mm allows straightforward placement on machine tables, measuring fixtures and workbenches. Is the VUA-100J suitable for repeatable indexing and alignment tasks? Designed with a rotary chuck and precise mechanics, the VUA-100J supports accurate indexing and alignment for routine metrology and fixture tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
65.5mm Horizontal Clamp Low Base Self-Adjusting Foot, Zinc-Plated, 2.5kN Thrust 3.2kN Hold - Kukamet
Compact, low-profile design combined with a self-adjusting foot and zinc-plated finish ensures dependable clamping with minimal setup time. Benefit from a clamping force of 2,500 N and a holding force of 3,200 N for stable, repeatable fixtures. Order the Kukamet horizontal toggle clamp (SKU 552-3) directly via Metav Werkzeuge or ask our consultants if needed. Kukamet Horizontal toggle clamp »low-base« — compact horizontal clamping with self-adjusting foot A Kukamet horizontal toggle clamp with a low-profile base, designed for secure horizontal clamping in confined jigs and fixtures Low-profile horizontal toggle clamp Self-adjusting foot for uneven surfaces Zinc-plated corrosion resistance Clamping force up to 2,500 N Secure clamping where space is limited The low-profile base and compact footprint are engineered for use in tight jigs and assembly stations, reducing interference with adjacent tooling while maintaining accessibility. With a width of 55.5 mm and a height of 65.5 mm, this model fits into narrow fixture layouts without sacrificing stability. The moderate mass of 0.555 kg keeps moving parts light and responsive, which simplifies manual handling and faster fixture changes. The horizontal arrangement suits repeatable positioning tasks, enabling consistent orientation of workpieces on the production line. Consistent force for repeatable production outcomes Designed to deliver measurable workholding performance, the clamp provides a clamping force of 2,500 N and a holding force of 3,200 N, values that support reliable fixation during secondary operations and inspection. The self-adjusting foot compensates for slight surface irregularities, distributing pressure evenly and reducing the need for frequent fine adjustments. This mechanical consistency improves batch-to-batch repeatability and shortens setup time, making the device well suited to small-series production, assembly benches and jigs where predictable clamping is essential. Durable finish and integration into workshop workflows Finished with a zinc-plated coating, the clamp resists corrosion in standard workshop environments and preserves moving surfaces for longer service intervals. The toggle/lever design offers straightforward actuation and positive locking under load, supporting fast manual operation and clear tactile feedback. As a compact horizontal toggle clamp, it integrates into custom fixtures and modular clamping systems, where durability and compactness reduce interruptions and maintenance effort. Supplied by Kukamet and distributed through Metav, the component arrives with the assurance of a quality filter and steady supply for industrial and trade customers. Speak with Metav Werkzeuge for tailored advice on integrating the Kukamet horizontal toggle clamp (SKU 552-3) into existing fixtures—our Emmerich team can advise on compatibility and application specifics Technical data Article number: 552-3 GTIN: 8680731502862 Manufacturer: Kukamet eClass: 21041719 ETIM: EC011973 Facts Width: 55.5 mm Height: 65.5 mm Weight: 0.555 kg Clamping force (max): 2,500 N Holding force (max): 3,200 N Special features Zinc-plated material Horizontal, low-profile base Self-adjusting foot Toggle / lever clamp design FAQ What clamping and holding forces does the product provide? The Kukamet horizontal toggle clamp (SKU 552-3) delivers a maximum clamping force of 2,500 N and a holding force of 3,200 N for secure fixation during machining and assembly. Is this clamp suitable for tight fixture spaces? Yes. The low-profile base and compact dimensions of the Kukamet horizontal toggle clamp (SKU 552-3) make it appropriate for fixtures with limited vertical clearance. How does the self-adjusting foot affect setup and repeatability? The self-adjusting foot on the Kukamet horizontal toggle clamp (SKU 552-3) compensates for uneven contact surfaces, ensuring even pressure distribution and reducing the need for frequent manual readjustment. What finish does the clamp have and how does it help? The Kukamet horizontal toggle clamp (SKU 552-3) is zinc-plated, which enhances corrosion resistance and extends service life in typical workshop conditions. Which mounting orientation is intended for this clamp? This device is designed for horizontal clamping applications; the low-base format of the Kukamet horizontal toggle clamp (SKU 552-3) supports secure, horizontal-held workpieces in jigs and fixtures. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
7000 N Toggle Clamp With Horizontal Base, Hook, Zinc Plated, 65mm Thread Length - Kukamet
Galvanised construction and a horizontal base deliver robust, corrosion-resistant clamping; 7000 N closing force and 8000 N holding force provide secure fixation for production fixtures; the compact 0.815 kg unit integrates easily into jigs and assembly rigs. Order the toggle clamp directly via Metav Werkzeuge or consult the specialists for application guidance. 371 light series toggle clamp — Kukamet toggle clamp with horizontal base, galvanised finish 371 light series toggle clamp is a compact lever clamp designed for horizontal mounting in fixtures and jigs, providing repeatable clamping and secure closure for assembly, welding and inspection tasks. Horizontal base for stable mounting Galvanised steel for corrosion resistance Hook-equipped for secure closure 7000 N closing force, 8000 N holding force Secure, measurable clamping performance for production use The clamp offers a clearly defined mechanical performance: a closing force of 7000 N and a holding force of 8000 N, values that ensure dependable fixation under dynamic loads. These rated forces support fast, repeatable operations on production lines and in manual assembly stations, reducing rework and downtime. As a mechanical device without electronic control, the unit provides predictable behaviour under load and can be specified where consistent mechanical retention is required. The performance data are suitable for integration into process documentation and risk assessments. Durable design for workshop and light industrial environments Constructed from galvanised steel with a horizontal base, the clamp resists corrosion while offering a flat mounting face for secure attachment to tooling plates and benches. The presence of a hook ensures positive engagement of the workpiece or fixture, preventing unintended release during handling or vibration. With a compact mass of 0.815 kg, the device minimises added load on movable fixtures and simplifies retrofitting into existing jigs. The robust surface finish and straightforward geometry support long service intervals and low maintenance demands. Practical applications and operational benefits The lever-style locking mechanism suits a wide range of tasks, including repetitive clamping in fixtures and jigs, light welding clamps, and fastening during inspection. The mechanical retention provided by this class of clamp allows rapid cycle times and hands-free locking once engaged, which aids operator efficiency and workplace ergonomics. For applications where predictable mechanical restraint matters—such as assembly, short-run machining or quality control—the clamp contributes to faster set-ups and more stable processing conditions. Identification and specification for procurement and integration Technical classification codes and identifiers facilitate procurement and ERP integration: SKU 371-4, GTIN 8682843523407, eClass 21041718 and ETIM EC011973. The clamp is supplied in the light series configuration and is particularly suited to applications requiring a horizontal mounting foot. The specified thread length 65 mm facilitates secure attachment, while the galvanised material supports general workshop environments. These details enable precise ordering and ensure compatibility with existing tooling systems. For supply or technical advice on the Kukamet 371 light series toggle clamp, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 for tailored recommendations and reliable delivery. Technical Data Article number: 371-4 GTIN: 8682843523407 eClass: 21041718 ETIM: EC011973 Facts Weight: 0.815 kg Closing force: 7000 N Holding force: 8000 N Thread length: 65 mm Special features Material: galvanised steel Mounting: horizontal base With hook: yes Series: 371 light series Category: Clamps (Spanner) FAQ What closing and holding forces does the clamp provide? The Kukamet 371 light series toggle clamp delivers a closing force of 7000 N and a holding force of 8000 N, values intended for reliable mechanical retention in fixtures and jigs. Is the clamp suitable for use on welding fixtures? Yes; the galvanised finish and mechanical locking action make the clamp appropriate for many welding and assembly fixtures, provided the working temperatures and exposure are within standard workshop conditions. How is the clamp mounted to a tooling plate? Mounting is via the horizontal base; the supplied thread length of 65 mm allows secure bolting to plates and benches for stable installation. What material is the clamp made from? The device is made from galvanised steel, chosen for corrosion resistance and durability in general workshop environments. Which identifiers help to order the correct item? Use SKU 371-4 or GTIN 8682843523407; classification codes include eClass 21041718 and ETIM EC011973 for procurement systems. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

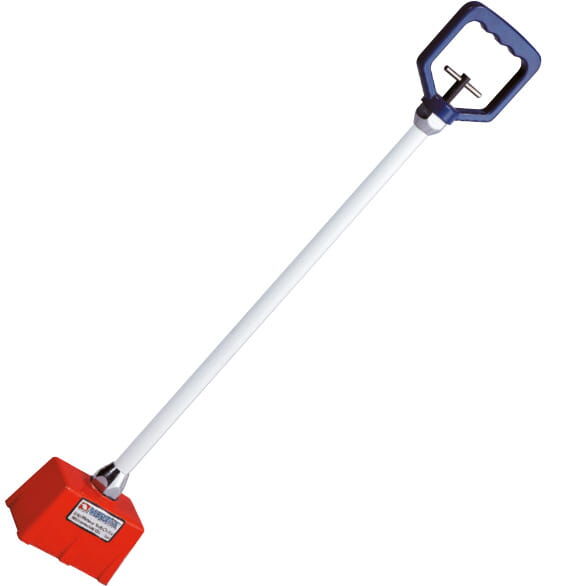

700mm Chip Collector With Adjustable Arm, 120x70mm Base, 0.7kg Capacity - Vertex
Take advantage of the combination of precise chip control, a compact footprint and straightforward positioning to keep bench work uninterrupted; order the unit directly via Metav Werkzeuge or consult the specialists for compatibility advice. VCC-17A Swarf Collector – adjustable arm, 700 mm reach (Vertex) The VCC-17A swarf collector with adjustable arm is a bench-mounted solution for capturing machining chips and light parts in small workshops and inspection stations. Adjustable arm with 700 mm reach Compact 120 × 70 mm base footprint Accepts parts up to 0.7 kg Lightweight design, approx. 2 kg Improve bench cleanliness with precise chip capture The adjustable arm permits targeted positioning of the collection point, so deposits are gathered where they form. This focused control reduces time spent on clearing work surfaces and keeps measuring tools free from contamination. The adjustable arm and 700 mm reach enable flexible placement for milling, turning or deburring tasks, while the ability to handle parts up to 0.7 kg supports common small-component workflows. The result is a measurable improvement in process continuity and a reduction in lost minutes between operations. Minimal footprint that supports measurement accuracy A narrow base of 120 × 70 mm preserves valuable bench space and allows the collector to be set close to gauges and fixtures without obstructing access. At roughly 2 kg, the assembly is easy to reposition while remaining stable during routine use. This compact arrangement supports repeatable measurement work and inspection sequences by keeping the immediate workspace tidy, which is particularly relevant when handling precision tools such as a precision caliper. Simple integration into existing workstations The straightforward design of the collector facilitates rapid integration into established benches and jigs. The articulated arm provides fine adjustment for alignment with cutting or grinding points, enabling containment of swarf at source and lowering the risk of stray particles affecting delicate components. By directing chips away from fixtures and measuring instruments, the device supports consistent quality control and fewer interruptions for cleaning, contributing directly to operational efficiency. A reliable procurement choice from a specialist supplier Sourced from Vertex, the unit complements a pragmatic procurement approach that favours durable, easy-to-deploy solutions. Metav Werkzeuge acts as a quality filter for the European market, combining broad product choice with dependable logistics from Emmerich. For workshops and trade buyers seeking a small, effective swarf management tool, the collector provides a pragmatic balance of reach, compactness and handling capability that supports daily production and inspection routines. Contact Metav Werkzeuge for ordering details or expert guidance on integrating the Vertex VCC-17A into existing workstations Technical data SKU: VCC-17A GTIN: 4061905083723 Manufacturer: Vertex Facts Length: 700 mm Base footprint: 120 × 70 mm Weight: 2 kg Suitable for parts up to 0.7 kg Special features Adjustable arm Bench-mounted swarf collector Brand: Vertex FAQ What is the maximum part weight the collector can handle? The collector accepts parts up to 0.7 kg, which suits common small components in assembly and inspection tasks. How much reach does the arm provide? The articulated arm offers a reach of 700 mm, allowing flexible positioning over machining or measuring areas. Is the unit suitable for use near precision measuring tools? Yes, the compact 120 × 70 mm base and targeted positioning help keep swarf away from precision tools such as a precision caliper, supporting consistent measurements. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
70mm Cold Light Photoelectric Barrier 36 W, Cable 1.8m - Vertex
Die robuste combination of precise detection and straightforward installation keeps production moving: reliable 36 W cold-light output for consistent sensing, compact form for easy mounting and a supplied 1.8 m cable for immediate installation. Order the VHL-W36D-PL directly via Metav Werkzeuge or consult Metav’s specialists for system integration. VHL-W36D-PL light barrier — 36 W cold light, compact 70 mm diameter (Vertex) The VHL-W36D-PL is a compact light barrier designed for industrial sensing tasks, delivering bright cold light output for reliable object detection in production, conveyor and inspection applications. High-intensity 36 W cold light output Compact 70 mm diameter for space-saving installation Supplied with 1.8 m cable for fast connection Robust build at 2.9 kg for stable industrial use Consistent detection that reduces stoppages The bright 36 W cold-light source ensures a stable light beam that improves detection reliability across varying surface finishes and ambient conditions. As a photoelectric sensor, it converts the interruption of this beam into a clear switching signal, helping to avoid false positives and unplanned production stops. The unit’s output characteristic is designed for continuous operation, supporting uninterrupted cycles in assembly lines and material handling systems while maintaining detection accuracy. Simple installation and durable, service-ready design Designed for practical integration, the sensor’s compact 70 mm diameter and overall length of 621 mm make it compatible with common mounting arrangements without requiring significant machine modifications. The included 1.8 m cable allows immediate wiring to control cabinets or signal processors. The housing and connector arrangement are engineered for industrial environments; the comparatively modest weight of 2.9 kg contributes to secure mounting and reduced mechanical stress on supports. Technical terms: “cold light” refers to a high-lumen output with low heat transfer to the target, reducing thermal effects on sensitive parts during prolonged operation. Supply reliability and partnership benefits from Metav Sourcing through Metav combines product availability with expert support. Metav’s inventory and quality filter in Emmerich ensure rapid dispatch and consistent product quality for serial users and workshop managers alike. This distribution model reduces procurement complexity and helps maintain production uptime. For integrators seeking compatibility advice, Metav provides specification guidance and can assist in matching the VHL-W36D-PL to existing control logic or light-receiver units, ensuring smooth commissioning and long-term reliability. Discuss integration options with Metav Werkzeuge — specify the VHL-W36D-PL and its 36 W cold-light output to evaluate mounting, control compatibility and delivery from stock at Metav’s Emmerich facility. Technical data Article number: VHL-W36D-PL GTIN: 4061905083365 Brand: Vertex ECLASS: 27270914 Key figures Power: 36 W Diameter: 70 mm Length: 621 mm Weight: 2.9 kg Special features Cold light source Cable included: 1.8 m Supplied connector and mounting-ready form factor FAQ How does the VHL-W36D-PL detect objects on a conveyor? The VHL-W36D-PL uses a bright cold-light beam as a sensing reference; interruption or reflection changes the received signal and is converted into a switching output by the photoelectric circuitry in the unit supplied by Vertex. Is the VHL-W36D-PL suitable for use with reflective targets? Yes, the light barrier is configured for both through-beam and reflected sensing scenarios depending on the installation geometry; the 36 W cold-light intensity improves detection of low-reflectivity surfaces. What connection options are available for the sensor? The unit is supplied with a 1.8 m cable for direct wiring to control systems; further connection choices depend on the receiving controller and cabling standards in the installation. Can the VHL-W36D-PL be used in continuous-production environments? Yes, the product’s design and stable cold-light output make it suitable for continuous operation in industrial lines, offering consistent performance and reduced need for frequent recalibration. Which industries commonly deploy this type of light barrier? Typical applications include assembly automation, conveyor inspection, packaging lines and general machine safety or presence detection tasks where reliable optical sensing is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
70x101,6x95,3mm Magnetprisma für runde und rechteckige Werkstücke, 3,9kg - Vertex
Das Magnetprisma VCP-25 überzeugt durch starke Magnetkraft und kompakte Bauform, wodurch präzise Fixierung von runden und rechteckigen Werkstücken bei Messungen zuverlässig gewährleistet wird. Nutzen Sie die Kombination aus robuster Stabilität und einfacher Handhabung für präzisere Messabläufe; Bestellungen und Beratung über Metav Werkzeuge möglich. Magnetprisma VCP-25 von Vertex Das Magnetprisma VCP-25 ermöglicht sichere Fixierung runder und rechteckiger Werkstücke für präzise Messungen in Werkstatt und Messraum. Magnetprisma von Vertex für Werkstückfixierung Stabile Magnetkraft für sichere Positionierung Kompakte Abmessungen für einfachen Transport Geeignet für runde und rechteckige Werkstücke Sichere Fixierung für präzise Messungen Dank der starken Magnetkraft bietet dieses Prisma eine belastbare Halterung, die Vibrationen reduziert und Messabweichungen minimiert. Anwender profitieren von einer stabilen Fixierung bei Einsatz mit Messschiebern und ähnlichen Messmitteln. Zur Erklärung: Unter Magnetprisma wird ein Werkzeug verstanden, das durch magnetische Haftung Werkstücke so positioniert, dass sich Messinstrumente leichter und genauer anlegen lassen. Kompakte Bauform und einfache Handhabung Die kompakten Abmessungen und das moderate Gewicht ermöglichen einen flexiblen Einsatz direkt an der Werkbank oder mobil im Betrieb. Durch die handliche Größe lässt sich das Prisma schnell positionieren, ohne dass aufwändige Spannvorrichtungen erforderlich sind. Dies erleichtert wiederkehrende Messabläufe und reduziert Rüstzeiten. Einsatzbereiche und Zielgruppe Entwickelt für Werkstätten, Messräume und Produktionslinien, eignet sich das Magnetprisma insbesondere für Betriebe, die häufig zwischen Innen- und Außenmessungen wechseln. Es ist optimal für Anwender, die mit Messschiebern arbeiten und runde oder rechteckige Werkstücke prüfen müssen. Kleinere Prüfstationen profitieren von der platzsparenden Lagerung. Vorteil durch robuste Verarbeitung Obgleich detaillierte Materialangaben fehlen, sorgt das durchdachte Design für zuverlässige Gebrauchseigenschaften im täglichen Einsatz. Die robuste Konstruktion unterstützt wiederholte Fixiervorgänge und gewährleistet langfristige Funktionalität. Dadurch lässt sich die Effizienz bei standardisierten Messprozessen steigern. Empfehlung: Das Vertex Magnetprisma VCP-25 als kompakte Lösung für sichere Werkstückfixierung wählen und über Metav Werkzeuge beziehen; bei Rückfragen steht der Metav Kundenservice per eMail, Telefon oder WhatsApp zur Verfügung Produktmerkmale Artikelnummer: VCP-25 Marke: Vertex Bezeichnung: Magnetprisma ECLASS: 21160390 Gewicht: 3,9 kg Abmessungen: 70x101,6x95,3mm Fakten Gewicht: 3,9 kg Abmessungen: 70 x 101,6 x 95,3 mm Besonderheiten Geeignet für Messschieber: runde und rechteckige Werkstücke UID: VCP-25 FAQ Wie stark ist die Magnetkraft und eignet sich das Prisma für empfindliche Messungen? Das Magnetprisma VCP-25 von Vertex bietet eine ausgelegte Magnetkraft, die stabile Fixierung gewährleistet und so die Messgenauigkeit bei empfindlichen Anwendungen unterstützt. Für welche Werkstückgeometrien ist das Magnetprisma geeignet? Das Vertex Magnetprisma VCP-25 ist speziell für die Fixierung von runden und rechteckigen Werkstücken ausgelegt und damit vielseitig in Prüfumgebungen einsetzbar. Kann das Magnetprisma mit handelsüblichen Messschiebern verwendet werden? Ja, das Magnetprisma VCP-25 ist kompatibel mit Messschiebern und erleichtert das Anlegen und Festhalten von Werkstücken während der Messung. Ist das Magnetprisma mobil einsetzbar und wie beeinflusst das Gewicht die Handhabung? Mit einem Gewicht von 3,9 kg ist das Magnetprisma VCP-25 kompakt genug für den mobilen Einsatz, bietet zugleich ausreichende Masse für stabile Fixierung ohne zusätzlichen Aufwand. Welche Vorteile bietet der Kauf über Metav Werkzeuge? Beim Kauf des Vertex Magnetprisma VCP-25 über Metav Werkzeuge profitieren Anwender von geprüftem Qualitätsfilter, zuverlässiger Logistik aus Emmerich und fachkundiger Beratung für präzise Messtechnik. Hersteller: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
71° 2500 N Horizontal Clamp With 2800 N Holding Force, Zinc Plated - Kukamet
Take advantage of secure, repeatable clamping with robust zinc-plated construction and a max clamping force of 2,500 N for reliable fixture holding; order the Horizontal clamp 122 directly via Metav Werkzeuge or consult our specialists for application advice. Horizontal clamp 122 — Kukamet horizontal-foot lever clamp, zinc-plated, 2,500 N The Horizontal clamp 122 is a compact lever clamp designed for stable workholding in jigs and fixtures, featuring a horizontal foot mounting and corrosion-resistant zinc plating for workshop use. Horizontal foot mounting Zinc-plated corrosion protection Max clamping force 2,500 N Compact weight 0.49 kg for easy positioning Consistent clamping performance for production workflows The lever design delivers a repeatable clamping force that supports efficient fixture set-up and reduces rework. With a rated clamping force of 2,500 N and a holding force of 2,800 N, the device secures components reliably during machining, assembly or inspection operations. The specified forces translate into predictable contact pressure; this helps maintain part position under lateral loads and contributes to shorter cycle times in batch production. The compact mass and low profile reduce added inertia on moving fixtures while maintaining the required holding capability. Durable materials and stable mounting for workshop environments Constructed from zinc-plated steel, the clamp resists common forms of surface corrosion found in everyday workshop conditions, extending service life and lowering maintenance cycles. The horizontal foot mounting provides a stable, low-profile attachment to fixture plates and tooling boards; this geometry keeps the clamping vector parallel to the workpiece datum and simplifies integration into existing jigs. The lever mechanism is optimised for rapid engagement and release, enabling quick changeovers without compromising clamp rigidity. Practical handling and integration for fixture design The clamp’s compact dimensions and modest weight make it straightforward to position in confined setups or on modular tooling systems. An operating angle of 71° provides favourable leverage for manual actuation while keeping the handle clearance minimal, useful where adjacent clamps or gauges are present. As a simple, mechanical workholding element, the unit minimises the need for auxiliary power or controls, supporting lean production principles and reducing points of failure. The familiar lever format ensures easy training and immediate adoption on the shop floor. Contact Metav Werkzeuge for supply and specification assistance on the Kukamet Horizontal clamp 122 — our Emmerich-based team will advise on integration and availability Technical data Article number: 122-3 GTIN: 8680731501094 Manufacturer: Kukamet Facts Max clamping force: 2,500 N Max holding force: 2,800 N Weight: 0.49 kg Operating angle: 71° Special features Material: zinc-plated steel Mounting: horizontal foot Design: lever/hand-actuated clamp FAQ What maximum clamping force does this clamp provide? The clamp provides a maximum clamping force of 2,500 N, giving the Horizontal clamp 122 sufficient holding capacity for many fixture and assembly tasks. Is the clamp suitable for workshop environments prone to humidity? Yes, the zinc-plated finish on the Horizontal clamp 122 offers basic corrosion protection appropriate for general workshop conditions, extending service life compared with untreated steel. How is the clamp mounted to a fixture plate? The clamp uses a horizontal foot mounting that fastens to fixture plates or tooling boards; this arrangement keeps the clamp low-profile and aligned with the workpiece datum. What advantage does the 71° operating angle provide? A 71° lever angle balances handle clearance and mechanical advantage, allowing straightforward manual actuation while maintaining a compact footprint in tight fixture layouts. Who supplies this clamp and where can further advice be obtained? The clamp is supplied by Kukamet and distributed via Metav Werkzeuge; Metav can provide application guidance and delivery information for the Horizontal clamp 122 (SKU 122-3). Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
71° 2500 N Horizontal Clamp, Zinc Plated, 2800 N Holding Force, 0.46 kg - Kukamet
Take advantage of a compact, galvanised design with 2,500 N clamping force and a 2,800 N holding capacity to secure repeatable clamping results in light- to medium-duty applications; order through Metav Werkzeuge or consult the sales team for specification matching. Horizontal clamp 121 – lever-operated horizontal base clamp by Kukamet, galvanised, 2,500 N clamping force The Horizontal clamp 121 is a lever-operated hold-down designed for horizontal mounting where fast, reliable securing of workpieces is required across workshop and industrial settings Lever-operated horizontal base mounting Galvanised steel for corrosion resistance 2,500 N clamping force, 2,800 N holding force Lightweight 0.46 kg compact design Consistent force for repeatable processes The clamp delivers a defined 2,500 N clamping force and a 2,800 N holding capacity, values that support reproducible fixing across successive operations. Expressing these forces in newtons provides an objective basis for process planning: the first value denotes the applied clamping pressure while the second quantifies the passive retention under stress. For assembly jigs and fixture setups, the measurable performance reduces variation and shortens cycle validation time. The lever mechanism ensures the force is applied quickly and without complex adjustment, improving throughput in repetitive tasks. Corrosion-resistant construction for long service life Constructed from galvanised steel, the component resists surface corrosion commonly encountered in workshop environments and light manufacturing. The low mass of 0.46 kg and compact footprint make integration into existing fixtures straightforward, while the horizontal foot mounting enables flush installation on worktops or tooling plates. The surface finish reduces maintenance intervals and preserves clamping geometry, which translates into fewer interruptions for replacement or refurbishment and steadier long-term accuracy. Efficient operation and ergonomic handling The lever-based actuation operates over a 71° travel angle, offering a balance between grip range and operator ergonomics; the lever action provides tactile feedback at the clamping point, aiding repeatable closure without electronic aids. Where rapid part changeover is required, the compact mechanism reduces downtime and simplifies fixture layout. The unit’s straightforward design allows easy visual inspection of engagement and quick verification that the workpiece is secured before machining or assembly. Discuss specification matching or request a quote from Metav Werkzeuge for the Kukamet Horizontal clamp 121 (SKU 121-3) — contact info@metav-werkzeuge.com or call +49 2822 7131930 to confirm suitability for the intended application Technical Data Article number: 121-3 GTIN: 8680731501087 Brand: Kukamet Mounting: horizontal foot Facts Clamping force: 2,500 N Holding force: 2,800 N Weight: 0.46 kg Angle: 71° eClass: 21041719 ETIM: EC011973 Special features Material: galvanised Category: Spanner Special feature: none FAQ What clamping and holding forces does this clamp provide? The Kukamet Horizontal clamp 121 provides a clamping force of 2,500 N and a holding force of 2,800 N, suitable for repeatable light- to medium-duty fixture work. How is the clamp mounted to a fixture or workbench? Mounting is via a horizontal foot; the Kukamet unit is designed for flush installation onto tooling plates or bench tops using the horizontal base. What material is the clamp made from and how does that affect durability? The clamp is made from galvanised steel, which improves resistance to surface corrosion and reduces maintenance needs in workshop environments. Is the clamp suitable for quick part changeovers? Yes. The lever-operated mechanism with a 71° travel angle enables fast engagement and release, supporting efficient changeovers in repetitive processes. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
85.725-86mm Horizontal Drill Head Max 2000rpm, Type R - Vertex
Benefit from the combination of precise Type R compatibility, a substantial 25.7 kg build and a reliable maximum speed of 2,000 r.p.m. — designed to improve hole quality and minimise rework. Order the VHA-R-8 drill head attachment directly via Metav Werkzeuge or consult the Metav team for application advice. Drill head attachment VHA-R-8 — Horizontal orientation, max. 2,000 r.p.m. (Vertex) Drill head attachment VHA-R-8 is a horizontal drill head designed for retrofit and workshop installation, compatible with Type R drill heads and suited to production and toolroom applications. Horizontal drill head attachment 85.725–86 mm drill head diameter Max. 2,000 r.p.m. operational speed Robust 25.7 kg construction Accurate fit for Type R drill heads and retrofit projects The unit is engineered for a precise mechanical fit with Type R drill heads in the 85.725–86 mm diameter range, enabling straightforward integration into existing horizontal setups. This dimensional compatibility simplifies installation planning and reduces the need for additional adapter work. For production environments where repeatability matters, the defined interface ensures consistent alignment and contributes to predictable hole position and size — a direct benefit for quality control procedures and downstream assembly. Stable operation that improves hole quality and tool life A compact, heavy-duty design (weighing 25.7 kg) provides the mass and rigidity required to attenuate vibration during drilling. When used within its rated limit of 2,000 r.p.m., the head delivers steady cutting conditions that reduce chatter, which in turn improves surface finish and extends cutter life. The correlation between structural stability and machining outcomes is clear: less vibration means fewer rejects and lower tooling costs, making the attachment an economical choice for repetitive drilling tasks. Designed for workshop integration with clear service advantages Configured for horizontal mounting, the attachment supports rapid deployment on compatible machines and is suitable for use in production cells and maintenance workshops. The mechanical simplicity of the design facilitates routine inspection and keeps maintenance intervals predictable. Delivered by Vertex and distributed through Metav, the component benefits from a reliable supply chain: Metav’s Emmerich hub acts as a quality filter for the European market, combining extensive product range and technical competence to support implementation and spare-part availability. Contact Metav Werkzeuge in Emmerich for compatibility checks and application guidance on the Vertex VHA-R-8 drill head attachment — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: VHA-R-8 GTIN: 4061905083341 Manufacturer: Vertex Core specifications Weight: 25.7 kg Maximum speed: 2,000 r.p.m. Compatible drill head diameter: 85.725–86 mm (Type R) Special features Horizontal orientation for retrofit and workshop mounting Robust construction for reduced vibration and stable cutting Delivered and distributed via Metav for European market availability FAQ What drill head diameters does the attachment accept? The VHA-R-8 accepts Type R drill heads in the 85.725–86 mm diameter range, providing a defined interface for retrofit and replacement. Can the unit be run at higher speeds for smaller cutters? The design rating is 2,000 r.p.m.; running above this speed is not recommended. Operation within the specified limit ensures stability and longevity of both the Vertex drill head attachment and mounted cutters. Is the VHA-R-8 suitable for production or single-machine workshops? Yes. The VHA-R-8 is intended for both production cells and workshop retrofit applications where consistent hole quality and repeatability are required. How does the weight affect machining results? The 25.7 kg mass increases rigidity and reduces vibration, which improves surface finish and extends tool life on the Vertex VHA-R-8 drill head attachment. What information is needed to confirm compatibility with an existing machine? Provide spindle or mounting interface dimensions and intended operating speed; the VHA-R-8’s Type R compatibility and dimensional data will be checked against those values. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
85° 821 Quick Clamp Vertical Base Screw Clamp, 3.5 kN Thrust / 4 kN Holding, Zinc-Plated - Kukamet
Take advantage of a galvanised, lever-operated clamp that combines compact mounting and dependable holding power for secure fixture integration; order the clamp directly via Metav Werkzeuge or consult our specialists for specification support. Schnellspanner 821 — Galvanised quick-action lever clamp with vertical foot (Kukamet) The Schnellspanner 821 is a compact, vertical-foot quick-action lever clamp designed for robust workpiece retention in industrial fixtures and workshop jigs. Galvanised construction for corrosion resistance Vertical foot for compact fixture mounting Clamping force up to 3,500 N Holding force up to 4,000 N Secure clamping where space is limited The compact design of this lever clamp makes it well suited to tight fixturing situations. Thanks to the vertical foot, the device occupies minimal lateral space while enabling a low-profile attachment to plates or bases. The galvanised finish provides a durable protective layer against corrosion, reducing the frequency of replacement in harsh workshop environments. The unit’s modest mass (0.81 kg) contributes to easier handling during assembly of jigs and keeps overall fixture weight low without compromising structural integrity. High holding performance for reliable production processes Engineered for repeatable securing, the clamp delivers a clamping force of up to 3,500 N and a holding force of up to 4,000 N, values that translate directly into stable workpiece immobilisation under machining or assembly loads. The lever-actuated mechanism converts user input into consistent pressure, helping to reduce set-up time and minimise variability between clamping cycles. For applications where fixture repeatability and process stability are priorities, this quick-action lever clamp provides measurable operational advantages. Robust construction for continuous workshop use Constructed from galvanised steel, the clamp resists surface corrosion and maintains functional surfaces for extended service life. The screw-clamp style arrangement offers fine adjustment of the clamping contact, making it adaptable to slight variations in workpiece height while preserving a secure hold. An 85° operating angle provides predictable ergonomic actuation in confined spaces. Overall, the component is intended as a practical, long-term element of industrial fixtures and manual jigs where reliability and straightforward maintenance are required. Consider Metav Werkzeuge’s Kukamet lever clamp for dependable fixture performance; contact Metav Werkzeuge for application advice or to confirm compatibility with existing jigs — Metav Werkzeuge is ready to assist from its European distribution centre in Emmerich Technical Data Article number: 821-2 GTIN: 8680731504422 Manufacturer: Kukamet Core specifications Weight: 0.81 kg Clamping force (max): 3,500 N Holding force (max): 4,000 N Operating angle: 85° eClass: 21020701 ETIM: EC011973 Features and materials Material: galvanised steel Fastening method: vertical foot Special feature: screw-clamp type Product family: lever/quick-action clamp Included files: product image, catalogue PDF FAQ What is the maximum clamping force of this clamp? The clamp provides a maximum clamping force of 3,500 N, which ensures firm retention in typical fixture and jig applications. How much holding force can be expected during operation? A holding force of up to 4,000 N is specified for this unit, offering reliable resistance against displacement under load. What type of mounting does the clamp use? The clamp is fitted with a vertical foot for compact and low-profile mounting to fixture bases or plates. Is the clamp suitable for use in damp workshop conditions? The galvanised finish enhances corrosion resistance, making the clamp more resilient in environments with occasional moisture, though long-term exposure may require additional protection. Can the clamp be adjusted to different workpiece heights? The screw-clamp style allows fine adjustment of the contact point, enabling compensation for small height variations while maintaining secure clamping. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
85° Quick-Acting Toggle Clamp Horizontal Base, Screw-Type, Zinc-Plated, 3500N Push/4000N Hold - Kukamet
Take advantage of the combination of robust clamping performance, a corrosion-resistant zinc-plated finish and compact handling to keep assembly and jigging tasks efficient; order directly via Metav Werkzeuge or consult the sales team for technical advice. Kukamet 822 Quick Clamp – Zinc-plated, 3,500 N clamping force The Kukamet 822 is a quick-action clamp engineered for workshop and light industrial fixturing, offering a screw-clamp design with a horizontal foot for stable mounting. Zinc-plated corrosion protection 3,500 N clamping force capacity Horizontal foot for fixed mounting Consistent clamping for reliable production flow The primary advantage of a quick-action clamp with a 3,500 N rated clamping force is predictable, repeatable holding during machining and assembly. The screw-type mechanism provides controlled pressure while the specified 4,000 N holding force reduces the risk of workpiece movement under load. This translates into fewer setup checks and less rework, supporting a smoother manufacturing rhythm and measurable time savings per batch. Durable finish suited to demanding shop environments A zinc-plated surface finish protects the clamp against corrosion and routine workshop wear, extending service intervals and preserving clamping geometry. For operations where humidity or occasional coolant exposure occurs, the plated surface maintains function without complex maintenance routines. The corrosion resistance contributes to longer tool life, which in turn lowers lifetime costs and supports uninterrupted production. Stable mounting and ergonomic handling for repeated tasks The clamp’s horizontal foot mounting offers a secure base when fixed to jigs, benches or machine tables, improving alignment stability compared with temporary or handheld clamping. The lever-style action combined with the screw-clamp characteristic balances rapid engagement with fine adjustment capability, enabling efficient cycle times while still allowing precise pressure control for delicate components. Compact design that supports versatile workshop use At approximately 0.83 kg and with an 85° operational angle, the unit is lightweight yet robust enough for repeated use in fixtures and assembly stations. The compact footprint preserves bench space and integrates into multi-clamp setups without obstructing adjacent operations. Where shop floor layout and accessibility matter, the appliance’s size and mounting method make it a practical choice for versatile fixture design. Contact Metav Werkzeuge today for availability and tailored application guidance on the Kukamet 822 quick clamp, shipped from Emmerich with expert advice tailored to production needs. Technical data Article number: 822-2 GTIN: 8682843521793 Brand: Kukamet Facts Weight: 0.83 kg Max clamping force: 3,500 N Max holding force: 4,000 N Angle: 85° ECLASS: 21020701 ETIM: EC011973 Material & features Zinc-plated Horizontal foot mounting Screw-clamp design Category: Clamps SKU: 822-2 FAQ What clamping force can be expected from this clamp? The Kukamet 822 quick clamp delivers a rated clamping force of 3,500 N and a maximum holding force of 4,000 N, suitable for many assembly and light machining tasks. Is the clamp suitable for fixed jig mounting? Yes, the clamp’s horizontal foot is designed for secure fixed mounting to jigs, benches or machine tables to provide stable fixturing. How durable is the surface finish in workshop conditions? The zinc-plated finish on the Kukamet 822 protects against corrosion and routine wear, making it well suited to standard workshop environments. Can the clamp be used where precise pressure control is needed? The screw-clamp characteristic provides controlled tightening and fine adjustment, allowing precise pressure management during sensitive assembly operations. What is the weight and typical application area for this clamp? With a weight of 0.83 kg, the clamp is compact and practical for fixture setups, assembly stations and light industrial applications where space and accessibility matter. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
90mm Horizontal Clamp With Massive Holding Arm, 850N Thrust / 1000N Hold Force - Kukamet
Combine compact design with robust clamping performance: the solid holding arm and angled base deliver dependable fixture mounting and high clamping force for repeatable production. Order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. Horizontal clamp 113 — Kukamet horizontal clamp with 90 mm arm and 1,000 N holding force A sturdy Horizontal clamp 113 designed for horizontal fixturing and reliable workpiece retention in jigs and fixtures. Solid holding arm, 90 mm length Max. holding force 1,000 N Pressing force up to 850 N Angled base for fixture mounting Secure clamping for precision fixtures The Horizontal clamp 113 combines a solid holding arm with clearly specified forces to provide predictable clamping behaviour in series production. The distinction between pressing force (850 N) and holding force (1,000 N) gives planners measurable data for fixture design: pressing force defines the actuation load, while holding force indicates the maximum sustained grip on the workpiece. This transparent specification supports process planning and reduces setup iteration, contributing to shorter cycle times and higher first-pass yield. Compact footprint that fits tight jigs With a 90 mm arm and a light overall mass, the clamping device is suited to constrained fixture layouts where space optimisation matters. The angled base enables secure mounting on fixture plates or subplates without additional adapters, simplifying assembly and saving space in multi-clamp arrangements. A restrained form factor paired with a robust arm translates into efficient use of bench or fixture real estate while maintaining the clamping reach required for many machining and assembly tasks. Durable finish and dependable operation Durability is delivered through a blackened finish and a massive holding arm, designed for repeated actuation and consistent integrity under production loads. The combination of specified forces and materials supports use across standard metalworking and assembly applications, providing long service life with minimal maintenance. Identifiers such as SKU B113-1-D-C2 and GTIN 8682843522202 make procurement and inventory management straightforward, while the measurable technical data allow integration into tooling documentation and quality records. Discuss integration of the Kukamet Horizontal clamp 113 with Metav Werkzeuge in Emmerich — request tailored advice by phone +49 2822 7131930 or by e‑mail at info@metav-werkzeuge.com Technical data SKU: B113-1-D-C2 GTIN: 8682843522202 Brand: Kukamet Finish: blackened finish Facts Arm length: 90 mm Angle: 90° Weight: 0.156 kg Max. holding force: 1,000 N Max. pressing force: 850 N ECLASS: 21041719 ETIM: EC011973 Special features Mounting type: angled base Solid holding arm Material: blackened, burnished steel Category: clamp FAQ What is the difference between pressing force and holding force? Pressing force is the actuation load of the clamp; holding force is the maximum sustained grip. The Horizontal clamp 113 lists 850 N pressing force and 1,000 N holding force so fixture design can be dimensioned accurately. Which mounting options are available for this clamp? The unit features an angled base for direct fixture mounting; the design is intended for plate or subplate installation in jigs and fixtures. Is the clamp suitable for frequent cycle applications? Yes. The robust construction, solid holding arm and protective blackened finish are intended for repeated actuation in production environments where consistent retention is required. How is the clamp identified for ordering and stock control? Use SKU B113-1-D-C2 or GTIN 8682843522202 when ordering or registering the component in inventory systems. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
90° Vertical Clamp Horizontal Base Zinc Coated 470 N Thrust, 700 N Holding Force - Kukamet
Take advantage of a reliable, galvanised vertical clamp that combines robust holding force with compact installation; its horizontal foot mounting and 90° orientation make it suitable for repetitive jigs and fixtures. Order the unit directly via Metav Werkzeuge or contact our consultants for technical clarification. Vertikalspanner 251 – Vertical toggle clamp with galvanised finish and 90° angle (Kukamet) Vertikalspanner 251 is a compact vertical toggle clamp designed to secure workpieces at a fixed right angle in fixtures, assembly jigs and production aids. Galvanised steel construction Compact 90° vertical clamping Holding force up to 700 N Secure, measurable clamping for repeatable assembly The 251 model delivers precise, repeatable retention thanks to a defined clamping force and a higher holding force that keeps components stable during machining or assembly. The specified values of 470 N (clamping) and 700 N (holding) indicate the forces available during engagement and static retention respectively; this distinction helps when selecting a fixture for dynamic operations versus static holding. Using clear numerical data supports integration into process planning and risk assessment, ensuring the clamp meets required safety and functional margins. Built for workshop durability with a corrosion-resistant finish Constructed from galvanised steel, the clamp resists corrosion and routine workshop wear, extending maintenance intervals and reducing downtime. Its lightweight design at approximately 0.065 kg keeps added mass on moving fixtures minimal, which is beneficial for manual jigs or automated handlers where inertia and balance matter. The protective finish also simplifies cleaning and inspection routines, translating technical longevity into tangible productivity for everyday shop-floor use. Simple integration into fixtures and precise 90° positioning The clamp’s horizontal foot mounting enables straightforward attachment to plates and bases commonly used in jig construction, while the fixed 90° angle ensures consistent part orientation without adjustments. As a lever-operated toggle clamp, it offers rapid engagement and release, making it suitable for high-frequency production sequences and manual assembly stations. For bespoke fixture layouts or verification of compatibility with existing tooling, Metav’s specialists can provide application guidance and specification checks. Contact Metav Werkzeuge for personalised advice on the Kukamet Vertikalspanner 251, technical compatibility and delivery options from our Emmerich facility Technical data Article number: 251-2 GTIN: 8680731504231 Brand: Kukamet eClass: 21041717 ETIM: EC011973 Facts Clamping force: 470 N Holding force: 700 N Angle: 90° Weight: 0.065 kg Special features Material: galvanised steel Mounting: horizontal foot Type: vertical toggle clamp Special feature: none FAQ What forces does this clamp provide? The Vertikalspanner 251 provides a clamping force of 470 N and a holding force of 700 N, values intended for secure retention in assembly and light machining tasks. Is the clamp suitable for corrosive workshop environments? Yes, the galvanised finish on the Vertikalspanner 251 offers enhanced resistance to corrosion and workshop contaminants. How is the clamp mounted to a fixture? The clamp uses a horizontal foot mounting arrangement, allowing direct attachment to base plates and fixture boards used in jigs. Can the clamp be used for high-frequency manual assembly? Its lever-operated toggle mechanism is designed for rapid engagement and release, making the clamp well suited to frequent manual cycles. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
90° Horizontal Clamp Heavy-Duty Zinc-Plated Horizontal Foot, 1.75 kN Thrust / 2.6 kN Hold - Kukamet
Benefit from a compact, corrosion‑resistant clamp that combines a galvanised finish with a solid arm for reliable rigidity and repeatable fixture performance; order the Horizontal clamp 141 directly via Metav Werkzeuge or consult our technical advisers for application support. Horizontal lever clamp 141 by Kukamet — galvanised, solid‑arm horizontal base clamp The Horizontal lever clamp 141 is a 90° horizontal base clamp designed for secure, repeatable workholding in jigs and fixtures across general workshop and light industrial applications. Galvanised steel finish for corrosion resistance Solid arm design for high rigidity Holding force up to 2,600 N Clamping force up to 1,750 N Reliable clamping for repeatable fixture work The clamp delivers a defined clamping force of up to 1,750 N and a holding force of up to 2,600 N, values that ensure components remain stationary during machining and assembly. The forces are given in newtons (N) to allow straightforward comparison with technical requirements; clamping force denotes the applied pressure on the workpiece, while holding force indicates the static retention capability once the lever is engaged. The combination of a solid arm and a robust mechanism reduces deflection under load, which directly supports higher process reliability and consistent quality in repetitive production runs. Fast integration into horizontal fixtures and jigs Configured with a horizontal base mounting and a 90° orientation, this clamp is intended for integration into flat fixture plates and modular tooling systems. Its compact mass—approximately 0.5 kg—keeps the added weight on the fixture low while preserving rigidity, simplifying layout calculations and reducing the need for heavy supporting structures. The galvanised surface protects against corrosion in workshop environments, extending service intervals and preserving repeatability over time. Where quick setup and repeatable positioning are priorities, this type of lever clamp provides an efficient mechanical solution without complex actuation. Durability and maintenance advantages that reduce downtime Constructed from galvanised steel and featuring a massive arm, the design focuses on longevity and low upkeep. A corrosion‑resistant finish minimises surface degradation, while the sturdy arm reduces wear on contact points, lowering the frequency of replacements. For workshop managers aiming to keep fixtures operational with minimal intervention, the robust construction translates into fewer interruptions and predictable maintenance cycles. The straightforward lever operation supports rapid manual cycles and can be combined with existing clamping patterns to speed changeovers and increase machine utilisation. Contact Metav Werkzeuge for tailored advice on fixture integration and secure the Kukamet horizontal lever clamp 141 for durable, repeatable workholding in your production process. Technical data Article number: 141-4 GTIN: 8682843520161 Manufacturer: Kukamet SKU: 141-4 ECLASS: 21041719 ETIM: EC011973 Facts Weight: 0.5 kg Clamping force: 1,750 N Holding force: 2,600 N Angle: 90° Special features Material: galvanised steel Mounting: horizontal base Design: solid (massive) arm Category: clamp (spanner) FAQ What materials is this clamp suitable for? The Horizontal lever clamp 141 is manufactured in galvanised steel and is suitable for general fixture use; material compatibility depends on the workpiece and fixture design rather than the clamp itself. How are the force figures defined for this clamp? Clamping force (1,750 N) refers to the pressure applied to the workpiece during engagement; holding force (2,600 N) is the static retention capability when the lever is locked, both stated for the Horizontal lever clamp 141 by Kukamet. Is the clamp suitable for modular fixturing plates? Yes—its horizontal base mounting and 90° orientation are intended for integration into flat fixture plates and modular tooling systems. What maintenance is required to preserve performance? Periodic inspection for wear at contact points and ensuring the galvanised finish remains intact are recommended; the solid arm design reduces maintenance frequency for the Kukamet clamp. Can the clamp be used in corrosive environments? The galvanised finish offers basic corrosion resistance suitable for typical workshop conditions; for aggressive environments, consider additional protective measures. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
90° Pneumatic Clamp With Horizontal Base, 2.5 kN Thrust, 9 kN Holding Force, Zinc Plated - Kukamet
Take advantage of robust performance, fast pneumatic actuation and reliable corrosion protection for consistent workholding in production and jigs. Benefit from compact mounting with a horizontal base and high holding capacity to reduce fixture downtime. Order the Pneumatic toggle clamp 681 directly via Metav Werkzeuge or ask our consultants if needed. Pneumatic toggle clamp 681 by Kukamet — horizontal base, zinc-plated finish The Pneumatic toggle clamp 681 is a pneumatic workholding device designed for secure fixture tasks where rapid, repeatable clamping and strong holding capacity are required. Zinc-plated finish for corrosion protection Horizontal base for secure bench mounting Pneumatic cylinder enables rapid clamping Max clamping force 2,500 N for firm fixation Holding force 9,000 N for safe workholding Faster cycle times through pneumatic actuation and defined forces The combination of a pneumatic cylinder and toggle geometry provides fast, repeatable actuation, which reduces cycle times in batch production and jig applications. With a max clamping force of 2,500 N and a holding force of 9,000 N, the device delivers clear, measurable performance that supports process reliability and part repeatability. The high holding capacity is particularly useful where vibration or secondary operations might otherwise unsettle the workpiece. The zinc-plated surface offers basic corrosion resistance, keeping the clamping surfaces serviceable in workshop environments and minimising unplanned maintenance. Robust design for secure fixtures and simplified integration The clamp’s horizontal base design allows stable bench or fixture mounting and simplifies alignment in existing tooling. The combination of lever-style mechanics and pneumatic drive results in a compact actuator with a predictable clamping stroke, making it suitable for repetitive production, assembly fixtures and inspection jigs. Because the device is zinc-plated, wear points are protected against surface corrosion, which supports longer uptime and steadier repeatability. The overall mass of 5.565 kg contributes to a solid feeling during operation while remaining manageable for fixture designers. Practical installation and straightforward upkeep for long service life Installation is straightforward: the horizontal mounting foot permits direct bolting to plates or tooling blocks at a right angle (90°), and the pneumatic actuation is compatible with standard compressed-air systems. Routine upkeep is limited to checking pneumatic connections and ensuring sliding or pivot surfaces remain clean; the protective finish reduces corrosion-related wear. For applications that demand consistent clamping force and fast cycles, this model integrates reliably into both small-series and medium-volume production setups, providing a balance between compact design and measurable holding performance. Contact Metav Werkzeuge in Emmerich to confirm mounting details and secure the Kukamet Pneumatic toggle clamp 681 for prompt delivery from stock. Technical Data Article number: 681-4 GTIN: 8680731506600 Brand: Kukamet Facts Max. clamping force: 2,500 N Max. holding force: 9,000 N Weight: 5.565 kg Angle: 90° Special features Material: Zinc-plated Mounting: Horizontal base Actuation: Pneumatic cylinder Model: 681 SKU: 681-4 FAQ What is the maximum clamping force of this clamp? The Kukamet Pneumatic toggle clamp 681 provides a maximum clamping force of 2,500 N and a holding force rated at 9,000 N. Can the clamp be mounted directly to a workbench or fixture plate? Yes; the horizontal base is designed for direct bolting to bench tops or fixture plates at a 90° orientation. Is the surface finish resistant to workshop conditions? The device is zinc-plated, which offers corrosion protection suitable for many workshop environments and helps extend service intervals. Which actuation media does the clamp require? The clamp uses a pneumatic cylinder and is compatible with standard compressed-air supplies; it is intended for integration with pneumatic control lines. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
90° Horizontal Clamp Heavy-Duty Zinc-Plated Three-Point Fast Action, 1,750 N Thrust / 2,600 N Hold - Kukamet
Take advantage of a galvanised, solid-arm design and precise 90° mounting to secure workpieces reliably. The combination of robust construction, clear force ratings and compact weight supports consistent fixture performance — order the Horizontal clamp 142 directly via Metav Werkzeuge or consult our specialists if required. Horizontal clamp 142 — Kukamet horizontal lever clamp, galvanised, 90° mounting A robust Horizontal clamp 142 for fixture and jig applications, engineered to lock workpieces with defined clamping and holding forces in welding, assembly and general workshop fixtures. Galvanised finish for corrosion resistance Solid arm construction for high rigidity 90° horizontal base for secure fixture mounting Clamping force 1,750 N – holding force 2,600 N Reliable holding where precision counts The clamp is manufactured with a galvanised surface to resist corrosion in workshop environments and features a solid arm that reduces flex under load, improving positional stability. For production jigs and assembly stations, consistent component placement is essential; the specified force figures make the performance predictable and measurable. Explaining the numbers: the 1,750 N value denotes the maximum clamping force generated by the lever mechanism, while the 2,600 N rating indicates the static holding capacity once the clamp is engaged — both values aid in selecting the right fixture solution for a given workpiece. Designed for repeatable workflows and straightforward integration The horizontal base with a fixed 90° orientation simplifies integration into bespoke fixtures and modular tooling racks. The lever-operated mechanism enables rapid engagement and release, supporting short cycle times in repetitive tasks. Lightweight yet sturdy, at 0.39 kg, the device minimises added mass on moving fixtures and is easily mounted using the horizontal-foot configuration. The clamp’s defined mechanical properties reduce setup variation, which in turn helps to cut rework and maintains consistent throughput in serial operations. Compact workshop solution with transparent specification Engineered as a practical, no-frills toggle clamp, the unit suits welding jigs, assembly benches and inspection fixtures where a secure, repeatable hold is required. Corrosion protection and a robust arm construction extend service life in demanding environments; maintenance needs are limited to regular inspection and lubrication of pivot points. Supplied under the Kukamet name, the component fits into broader tooling strategies where clear, comparable technical data supports purchasing decisions and process planning. Contact Metav Werkzeuge today to discuss the Kukamet Horizontal clamp 142 for your fixture needs or to request stock and technical information directly from our Emmerich location. Technical data Article number: 142-4 GTIN: 8682843520185 Brand: Kukamet Facts Weight: 0.39 kg Clamping force max: 1,750 N Holding force max: 2,600 N Angle: 90° ECLASS: 21041719 ETIM: EC011973 Special features Galvanised material Solid arm design Horizontal foot mounting Lever-operated toggle clamp Compact workshop clamp FAQ What materials is this clamp suitable for? The Kukamet horizontal clamp 142 is a general-purpose lever clamp designed for standard workshop materials; suitability depends on the specific workpiece and fixture design, with the force ratings provided for selection guidance. How should the clamping and holding forces be interpreted? Clamping force (1,750 N) refers to the force applied by the lever during engagement; holding force (2,600 N) refers to the maximum static resistance when the clamp is closed. Can the clamp be used in welding fixtures? Yes, the galvanised finish and solid-arm construction make the clamp appropriate for welding and assembly jigs where a reliable, repeatable hold is required. Is the clamp easy to integrate into modular fixtures? The 90° horizontal base and compact form factor allow straightforward mounting in bespoke or modular fixture systems; the lightweight design reduces added mass on moving parts. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
