Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
180x290mm Rotary Tilting Worktable With 16mm T-Slot, Height 206mm - Vertex
Take advantage of the combination of a rotating base, compact 180 x 290 mm table and a secure T-slot 16 mm for reliable fixture flexibility in medium‑duty machining. Order the clamping table directly via Metav Werkzeuge or consult the team for application advice. VP-250S Clamping Table – rotating base, swivel indexing by Vertex The VP-250S is a compact clamping table with a rotating base and swivel indexing, designed for precise positioning and flexible fixturing in machine shops and toolrooms Robust rotating base with swivel function Table surface 180 x 290 mm T-slot 16 mm for secure fixture Solid mass: 36 kg adds stability Greater positional accuracy for complex setups The combination of a rotating base and swivel indexing provides a clear benefit for angular machining tasks: faster alignment and repeatable positioning reduce setup time and minimise rework. The compact 180 x 290 mm table offers a stable work area for fixtures and small components while keeping the machine envelope efficient. For shops that process varied components, the ability to index the workpiece precisely translates into improved cycle consistency and measurable gains in throughput. The rotating mechanism is engineered for controlled movement, supporting accurate angular adjustments rather than coarse alignment. Secure clamping and reduced vibration for finer finishing Equipped with a T-slot 16 mm, this clamping table enables standard clamps and T‑nuts to be fitted quickly, turning fixture changes into an efficient, repeatable routine. The substantial mass—36 kg—acts as a vibration dampener, improving surface finish and dimensional stability during cutting or grinding operations. For applications where chatter and deflection compromise results, the combination of secure fixturing and inert mass helps maintain tool life and part quality. The engineered interface between table and fixture ensures that clamping forces are transferred consistently into the workholding system. Designed for straightforward shop integration and traceability The VP‑250S is classified under eClass 21020702, making specification and procurement straightforward within industrial catalogues. Its compact footprint and clear identification (SKU: VP‑250S, GTIN: 4061905085024) support efficient inventory handling and shop-floor organisation. Built by Vertex, the unit aligns with standard clamping practices so that existing clamps and tooling remain compatible. This predictability reduces the learning curve for operators and supports a reliable production flow for maintenance, small batch work and prototyping. For stable and accurate fixturing solutions from Vertex, contact Metav Werkzeuge to discuss the VP-250S clamping table and receive tailored application guidance — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VP-250S GTIN: 4061905085024 eClass: 21020702 Manufacturer: Vertex Data Table surface: 180 x 290 mm Height: 206 mm Weight: 36 kg T-slot: 16 mm Special features Rotating base with swivel indexing Clamping table for fixture use Compact footprint for machine integration FAQ What are the dimensions of the table surface? The table surface measures 180 x 290 mm on the VP-250S clamping table. Does the unit allow angular adjustment? Yes. The VP-250S features a rotating base with a swivel mechanism for indexed angular positioning. Which T-slot size is available for fixturing? The clamping table is fitted with a T-slot 16 mm for standard T-nuts and clamps. What is the overall height and weight? Height is 206 mm and weight is 36 kg for the VP-250S. How can the product be identified for ordering? Identification: SKU VP-250S, GTIN 4061905085024, manufacturer Vertex Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
180° Vertical Clamp, 2,500 N Clamping Force, Blackened Finish - Kukamet
Compact and reliable clamping delivered: the combination of a 2,500 N clamping force, a 180° lever swing and a lightweight 0.2 kg body ensures secure, repeatable workholding in confined fixtures. Order directly via Metav Werkzeuge or ask our consultants for specification support. Kukamet Vertikalspanner 232 – Vertical lever clamp with 2,500 N clamping force The Vertikalspanner 232 is a compact vertical lever clamp designed for fast, secure clamping in jigs, fixtures and small assembly stations. Robust 2,500 N clamping force 180° lever swing for versatile positioning Vertical foot mounting for stable attachment Black oxide finish for corrosion resistance Compact clamping that keeps production moving This vertical lever clamp delivers a high clamping force in a compact package, making it suitable where space is limited but process reliability is essential. The combination of a firm 2,500 N holding capacity and a short, efficient lever reduces cycle times during manual and semi-automatic operations. The vertical foot mounting simplifies integration into fixtures and tooling plates, while the low mass of 0.2 kg minimises added load on moving jigs. For production planners and maintenance teams, this equates to fewer fixture redesigns and a predictable clamping performance that supports consistent part positioning. Smooth handling and versatile positioning for fixtures The clamp’s 180° lever swing enables flexible approach angles and clear access for loading and unloading components. The lever mechanism functions as a reliable toggle-style action, converting operator input into a stable clamping force with minimal adjustment. For applications that require quick cycle times, the design reduces operator fatigue and speeds repeatability. Engineers unfamiliar with toggle mechanics will find the principle straightforward: the lever locks the clamp in place, creating a secure mechanical advantage that maintains grip without continuous effort. Durable finish and construction for workshop environments Finished in a black oxide coating, the clamp resists corrosion and maintains appearance in workshop conditions. The surface treatment improves longevity where occasional coolant splash or humid storage might otherwise accelerate wear. Constructed for repetitive use, the component parts are dimensioned to suit jigs and light-duty fixtures common in metalworking and assembly shops. Where traceability matters, the clamp’s SKU and GTIN facilitate inventory management and procurement within existing systems. For purchase recommendations or to discuss integration of the Kukamet vertical lever clamp into existing tooling, contact Metav Werkzeuge for expert advice and fast, reliable supply from Emmerich: info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 232-2 GTIN: 8680731505955 ECLASS: 21041717 ETIM: EC011973 Core measurements Clamping force: 2,500 N Weight: 0.2 kg Lever angle: 180° Mounting type: vertical foot Materials & features Finish: black oxide Application: lever/ toggle clamping for fixtures Category: clamps Brand: Kukamet FAQ What clamping force does the clamp provide? The vertical clamp provides a clamping force of 2,500 N, suitable for light to medium workholding tasks in fixtures and jigs. How is the clamp mounted to a fixture? Mounting is via a vertical foot, enabling direct attachment to plates or jig surfaces for stable positioning. Is the finish resistant to workshop conditions? Yes, the black oxide finish offers improved corrosion resistance and is suited to general workshop environments. Can the clamp be used in automated fixtures? The compact design and toggle action make it appropriate for semi-automated or automated fixtures where the lever motion can be accommodated. What is the product SKU for ordering and inventory? The SKU is 232-2 and the GTIN is 8680731505955 for procurement systems. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
180° Vertical Clamp With Vertical Base 2 500 N Clamping Force, Blackened - Kukamet
Take advantage of the combination of high holding force, compact weight and corrosion-resistant finish for safe fixture clamping in demanding workshop environments. Combine the 2500 N clamping capacity with vertical-foot mounting and a compact black blued finish to keep set-ups stable. Order the vertical clamp directly via Metav Werkzeuge or consult our advisers if needed. Vertical clamp 223 — Kukamet vertical clamp with 2500 N clamping force and black blued finish A vertical clamp 223 engineered for secure vertical mounting in jigs, fixtures and assembly stations, providing a compact solution for repeatable clamping tasks across production and repair workshops. 2500 N clamping force Vertical-foot mounting Black blued finish Compact weight 0.22 kg Consistent performance where repeatability matters The clamp delivers a clear technical advantage through its 2500 N maximum clamping force, which ensures reliable retention of parts during machining or assembly. Specified for vertical-foot mounting, the device integrates directly into workholding fixtures and baseplates, reducing setup complexity. The mechanical design provides steady holding power with minimal play, helping to maintain process repeatability and reduce scrap rates in batch production. Compatibility with common jig layouts makes it a practical choice for small-series and repair workshops. Space-saving design that eases handling and installation Weighing only 0.22 kg, the unit is intentionally light to simplify manual placement and repositioning on tooling plates without compromising stability. The compact dimensions and 180° swing or adjustment angle enable flexible orientation inside tight fixture arrangements. This balance of low mass and robust clamping capacity supports ergonomic handling for technicians while enabling quick changes between operations, which can improve throughput on manual and semi-automated lines. Durable finish for everyday workshop conditions The black blued finish provides an additional layer of protection against corrosion and surface wear, extending service life under typical shop-floor conditions. Materials and surface treatment make the clamp suitable for general mechanical environments where occasional coolant or humidity exposure occurs. The straightforward construction minimises maintenance requirements; periodic visual checks and routine lubrication of moving parts are usually sufficient to preserve function and accuracy over time. Practical integration and application notes Designed as a standard clamp element for fixtures and workholding assemblies, the product suits a broad range of applications from assembly jigs to holding small components for inspection. The simple geometry and vertical-foot mounting reduce the need for elaborate adapters; where bespoke mounting is required, standard plate machining suffices. The component’s measured characteristics support selection decisions when calculating fixture load capacities and determining clamping sequences in multi-station processes. For dependable, compact clamping from Kukamet, request the Vertical clamp 223 via Metav Werkzeuge or contact our Emmerich team for application advice and ordering guidance. Technical data Article number: 223-2 GTIN: 8680731502183 ECLASS: 21041717 ETIM: EC011973 Facts Maximum clamping force: 2500 N Weight: 0.22 kg Angle: 180° SKU: 223-2 Special features Mounting: vertical foot Finish: black blued Category: Clamp (Spanner) Manufacturer: Kukamet FAQ What is the maximum holding force of the clamp? The Kukamet vertical clamp 223 offers a maximum clamping force of 2500 N, suitable for secure retention in many fixture applications. How is the clamp mounted to a fixture? Mounting is via a vertical foot; the vertical-foot mounting design of the 223 allows direct installation on plates and bases used in jigs and fixtures. Is the finish resistant to workshop conditions? The black blued finish on the vertical clamp 223 provides enhanced corrosion resistance and everyday wear protection for standard workshop environments. Can the clamp be used in tight spaces? Yes, at only 0.22 kg and with a 180° adjustment angle, the clamp is designed for compact installations and flexible orientation within confined fixtures. Which applications suit this clamp best? The clamp is intended for use in jigs, fixtures and assembly stations where reliable, repeatable vertical clamping is required; it is well suited to small-series production and maintenance tasks. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
180° Vertical Clamp, Vertical Base, 2,500 N Thrust, Blackened Finish - Kukamet
Benefit from the combination of compact mass, reliable 2.5 kN clamping force and a corrosion-resistant black oxide finish for dependable, repeatable holding in light workshop and production fixtures. Order the clamp directly via Metav Werkzeuge or consult the specialists for application-specific advice. Vertical clamp 233 — Kukamet, 2.5 kN clamping force The Vertical clamp 233 is a compact vertical clamp with vertical-foot mounting, designed for secure, repeatable clamping in light-duty workshop and fixturing applications. 2.5 kN maximum clamping force Vertical-foot mounting for stable installation Black oxide finish for corrosion resistance Compact design at 0.2 kg for minimal load Reliable holding force for small fixtures The 2.5 kN maximum clamping capacity offers a clear technical advantage when consistent, medium-duty clamping is required. Specified clamping force is a measurable assurance of performance: the force rating explains how firmly components are held during assembly or light machining and provides a basis for fixture design. With a focus on predictable performance and repeatable clamping, the unit supports quality control by reducing part movement and rework in jigs and small production runs. Quick mounting and precise positioning for repeatable results Designed for a vertical foot mounting, this clamp integrates directly into benches and fixture plates with minimal adaptation. The mechanism allows a full 180° operating arc, enabling flexible lever positioning where space is restricted or multiple clamps must be arranged close together. The straightforward fixing method reduces setup time and supports consistent part indexing in repetitive processes, which improves throughput and reduces layout errors during batch production. Corrosion-protected finish and light overall mass A black oxide finish gives surface protection while keeping the visual appearance discreet in manufacturing environments. The low mass of 0.2 kg reduces the load on fixture assemblies and minimises inertia in dynamic setups, aiding fast handling and lowering the mechanical strain on substructures. These physical characteristics combine to extend life in regular use and simplify handling when reconfiguring fixtures or relocating jigs between workstations. Where this clamp adds the most value The lever-style construction and compact footprint make the clamp particularly suitable for assembly jigs, inspection fixtures, welding aids and light machining operations where space and repeatability matter. The lever-action provides a tactile and audible confirmation of clamping, useful on busy production floors for quick visual checks. The compact design supports modular fixturing philosophies and is especially beneficial where many clamping points must be integrated without excessive bulk. Contact Metav Werkzeuge to confirm technical suitability and to secure the Kukamet Vertical clamp 233 from our Emmerich stock, including application advice and order processing Technical Data SKU: 233-2 Manufacturer: Kukamet GTIN: 8680731505962 Facts Clamping force max: 2,500 N Weight: 0.2 kg Angle: 180° eCl@ss: 21041717 ETIM: EC011973 Special features Mounting: vertical foot Finish: black oxide finish Typical application: lever clamp / spanner Catalog page: 232-233-katalogseite.pdf FAQ What clamping force can be expected from this clamp? The clamp achieves a maximum clamping force of 2,500 N; the Kukamet Vertical clamp 233 is specified for reliable medium-duty holding in fixtures and light machining tasks. How is the clamp mounted to a fixture plate? Mounting is via a vertical foot, which secures the clamp directly to benches or fixture plates for stable installation and straightforward alignment. Is the finish suitable for industrial environments? Yes, the black oxide finish provides corrosion resistance appropriate for workshop conditions while maintaining a low-maintenance surface. Will the clamp fit into compact fixturing arrangements? The compact mass (0.2 kg) and 180° operating arc make this clamp well suited to tight layouts and modular fixtures where space and repeatability are priorities. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
187mm Assembly Aid Horizontal And Vertical, BT-#40x2 Adapter Holder - Vertex
Benefit from the combination of BT-40 compatibility and a compact, stable base to speed up assembly tasks in both horizontal and vertical setups; the robust footprint and precise taper interface support reliable machine integration. Order the assembly aid directly via Metav Werkzeuge or ask our consultants if needed. VTD-1 Assembly Aid by Vertex — BT-40 Compatibility, Horizontal & Vertical Mounting The VTD-1 is an assembly aid for horizontal and vertical mounting, designed to integrate with BT-40 tooling and to support precise positioning tasks in workshop and machine-tool environments. BT-40 compatibility for fast integration Supports horizontal and vertical mounting Stable base 238 x 305 mm footprint Solid construction, weight 22.4 kg Faster set-ups through dual-orientation support The assembly aid enables both horizontal and vertical operation, reducing the need for multiple fixtures and shortening changeover times in mixed production runs. By allowing orientation changes without replacing the support, the unit simplifies workflow sequencing and minimises handling steps, which benefits production environments that require frequent repositioning or staged assembly. The design focuses on operational efficiency and repeatability rather than decorative aspects. Compact footprint with robust stability for secure positioning A stable base of 238 x 305 mm and a nominal height of 187 mm deliver a compact but sturdy platform that fits bench space or machine tables where space is at a premium. The overall weight of 22.4 kg contributes to low susceptibility to movement during alignment tasks, providing a dependable support for positioning operations. Clear dimensional data helps planners assess integration without ambiguity and supports ergonomic placement on shop floors. Seamless integration with BT-40 spindles and adapter holder The taper interface is configured for BT-40 tooling and includes an adapter holder arrangement for straightforward connection to compatible toolholders. This standard interface ensures the unit aligns with common spindle and holder systems, enabling straightforward transfer of tools and fixtures between machines and the aid. The mechanical simplicity of the taper connection supports repeatable seating and rapid reconfiguration, which is advantageous for shops seeking consistent alignment and reduced set-up times. Contact Metav Werkzeuge in Emmerich for tailored advice on Vertex BT-40 assembly aids and to arrange procurement or technical consultation Technical Data Article number: VTD-1 GTIN: 4061905084904 ECLASS: 21029203 Facts Height: 187 mm Foot: 238 x 305 mm Weight: 22.4 kg Taper: BT-40x2 (adapter holder) Special features Horizontal and vertical mounting BT-40 compatibility Assembly aid Manufacturer: Vertex FAQ Is the unit suitable for both horizontal and vertical assembly tasks? Yes. The VTD-1 is designed for both horizontal and vertical use, allowing flexible orientation without the need for multiple fixtures. Which taper standard does the assembly aid use? The assembly aid uses a BT-40 interface with an adapter holder, making it compatible with standard BT-40 toolholders. What are the main dimensions and weight of the device? The VTD-1 has a foot of 238 x 305 mm, a height of 187 mm and a weight of 22.4 kg. Can the device be integrated with CNC machines that use BT-40 tooling? Yes. The VTD-1’s BT-40 taper and adapter holder permit integration with machines and tooling systems that conform to the BT-40 standard. What is the SKU and GTIN for ordering and inventory purposes? SKU VTD-1, GTIN 4061905084904 are provided for procurement and inventory tracking. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
18x42x23mm T-Slot Clamping Jaws Set, 4 Pieces - Vertex
Compact, repeatable clamping for T-slot tables: the compact dimensions and the set composition allow flexible fixturing with minimal interference. Benefit from stable workholding provided by a set of four, compact T-slot clamping jaws, and order or consult via Metav Werkzeuge for rapid supply from Emmerich. Vertex T-slot clamping jaws (CK-3712) – compact 18×42×23 mm, set of 4 A Vertex T-slot clamping jaw set engineered to secure workpieces on T-slot tables for milling, drilling and general workholding applications. Compact 18 x 42 x 23 mm design Set of 4 for versatile fixturing Total weight 0.6 kg for stable clamping Consistent, compact workholding that reduces setup time The set of 4 compact clamping jaws delivers a pragmatic solution for fixtures where space is limited and repeatability matters. With nominal dimensions of 18×42×23 mm, these components occupy minimal table area while providing defined contact points for accurate positioning. The compact profile reduces collision risk with rotating tools and enables closer approach in multi-axis setups, which contributes directly to shorter batch cycle times and fewer manual adjustments. Compatibility with standard T-slot tables allows integration into existing fixturing concepts without the need for custom adapters. Reliable stability for repeatable machining results Designed for steady contact and predictable behaviour, the jaws offer a balance between low bulk and effective clamping force. The modest total mass of 0.6 kg for the set improves the inertial stability of the clamping assembly while keeping handling straightforward during setup changes. By ensuring consistent seating and minimal movement under cut loads, the components support repeatability across consecutive workpieces, which aids quality control and reduces scrap rates. The CK-3712 SKU is particularly useful where repeatable datum points and reliable clamping are required in serial production or precision repair tasks. Flexible fixture design for varied workshop demands Supplied as a matched set, the jaws simplify layout choices: mixtures of pairs and single units can be combined to create bespoke vice arrangements, stepped clamps or multi-point fixtures. The compact profile makes the parts suitable for close-tolerance clamping on small assemblies and for use as auxiliary clamps in larger setups. Material-specific guidance and maximum clamping forces are determined by the parent fixturing components and machine capabilities; the modular nature of the pieces focuses effort on optimal placement rather than on part-specific hardware. Availability from a specialised supplier streamlines procurement and ensures consistent replacements when scaling up. Contact Metav Werkzeuge for personalised advice, stock availability and fast supply from our Emmerich warehouse to integrate the Vertex CK-3712 T-slot clamping jaw set into existing fixturing workflows Technical Data Article number: CK-3712 GTIN: 4061905085017 Manufacturer: Vertex Data Dimensions: 18 x 42 x 23 mm Weight: 0.6 kg Pieces per set: 4 Special features For T-slot clamping applications Supplied as a matched set of four Compact design for reduced tool interference FAQ What tables are these clamping jaws compatible with? The Vertex T-slot clamping jaw set CK-3712 is designed for standard T-slot tables and can be incorporated into typical milling, drilling and general workholding fixtures. How many pieces are included in one delivery unit? One set contains four clamping jaws; this composition simplifies multi-point fixturing and modular clamping strategies. Are the dimensions suitable for tight fixtures? Yes, the compact 18×42×23 mm footprint of the CK-3712 makes these jaws suitable for tight layouts where minimal interference with tools is required. Does the product ensure repeatable clamping across batches? When installed and tightened consistently, the Vertex clamping jaws provide stable contact and contribute to repeatable positioning and consistent machining results. Can these jaws be used as part of a customised fixture? The matched set format allows flexible combinations—pairs or individual pieces can be arranged to form custom fixtures aligned to the workpiece geometry. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
195x140x110mm Demagnetiser One-Way AC-330VA 110V/220V - Vertex
Take advantage of fast, reliable demagnetisation with the combination of a compact footprint and robust 7.4 kg construction for continuous workshop use; the unit’s AC-330VA power rating and 110/220V compatibility provide stable performance. Order the VDM-68 Demagnetiser directly via Metav Werkzeuge or ask our consultants if needed. VDM-68 Demagnetiser by Vertex – AC-330VA, 110/220V The VDM-68 is a one-way demagnetiser designed for bench-top removal of residual magnetism from tools and small components in industrial and workshop environments Compact one-way demagnetiser design AC-330VA power rating Dual voltage 110/220V compatibility Robust 7.4 kg metal housing Fast, dependable demagnetisation that preserves tool accuracy The compact demagnetiser delivers controlled demagnetisation using a rated AC-330VA supply, enabling consistent removal of residual magnetism from ferrous tools and gauges. That reduction in residual magnetism helps to maintain measurement accuracy and milling or turning quality by preventing magnetic adhesion of swarf. The controlled, single-direction operation reduces the risk of partial demagnetisation cycles and supports predictable results in routine workshop processes. Simple integration and electrical compatibility for diverse setups With 110/220V supply compatibility, the unit fits a wide range of mains environments without additional transformers, easing deployment across multiple workstations. Its moderate electrical rating supports repeated short cycles typical for production or inspection areas. The clear electrical specification makes planning for power distribution straightforward, and the single voltage selector simplifies setup for both 110 V and 220 V systems. Compact footprint for bench-top use and stable handling Measuring 195 x 140 x 110 mm, the device occupies minimal bench space while offering a substantial mass of 7.4 kg, which contributes to steadiness during operation. The compact dimensions make it suitable for installation close to inspection benches or tool rooms, reducing handling time and streamlining workflows. The unit’s physical robustness reduces the likelihood of vibration-related issues and supports secure placement in busy work environments. Built to fit workshop routines and reduce downtime The one-way design and solid construction focus on reliability and repeatability, which in turn minimise interruptions to production. The device’s compact design supports quick placement and retrieval of handheld tools or small components, helping to integrate demagnetisation as a standard step in quality assurance routines. Where consistent magnetic neutralisation is required, this unit offers a pragmatic balance of performance and practicality. For reliable, workshop-ready demagnetisation from Vertex, contact Metav Werkzeuge in Emmerich for a tailored supply solution or technical advice by email or phone Technical data Article number: VDM-68 GTIN: 4061905083105 SKU: VDM-68 Manufacturer: Vertex ECLASS: 21020801 Facts Dimensions: 195 x 140 x 110 mm Weight: 7.4 kg Power: AC-330VA Supply voltage: 110V/220V Special features Type: one-way demagnetiser Category: Vertex FAQ How does the demagnetiser remove residual magnetism? The VDM-68 demagnetiser reduces residual magnetism by applying an alternating magnetic field at the rated AC-330VA power level, which gradually neutralises remanent magnetisation in ferrous tools and components. Which mains voltages are supported? This unit accepts both 110 V and 220 V supply voltages, making the VDM-68 suitable for different regional power systems without extra conversion equipment. What are the physical dimensions and mass of the device? The VDM-68 measures 195 x 140 x 110 mm and weighs 7.4 kg, providing a compact footprint and a stable mass for bench-top operation. Is the demagnetiser suitable for large components? Given its compact dimensions, the VDM-68 is optimised for handheld tools and small components; larger workpieces will require assessment against the unit’s physical size and operational envelope. Who manufactures this demagnetiser and what is the product code? The device is produced by Vertex and sold under the SKU VDM-68, with GTIN 4061905083105 for identification and procurement Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
19mm Flange According To DIN 6331, M8x1.25 Thread, 13mm Height - Vertex
Take advantage of the DIN 6331 standardisation and the compact dimensions — M8 x 1.25 mm thread and 19 mm diameter — for reliable, repeatable joins in precision assemblies. Order the flange directly via Metav Werkzeuge or ask the consultants for application advice. Flange CFN0814 — DIN 6331, M8 x 1.25 mm thread (Vertex) A Flange CFN0814 intended for standardised mechanical joining in precision fixtures and assemblies, manufactured to DIN 6331 DIN 6331 compliant for standardised mounting Metric thread M8 x 1.25 mm for secure fastening Compact 19 mm diameter, 13 mm height Lightweight 15 g for minimal added mass Reliable alignment for repeatable assemblies The flange is engineered to deliver consistent alignment where interchangeability matters. Conforming to DIN 6331 ensures that mating components fit without bespoke machining, reducing setup time and variation in assembled parts. The combination of a defined thread form and precise outer diameter provides a predictable seating surface, which supports reproducible torque values and stabilises connections in fixtures and subassemblies. This predictability translates into measurable process benefits — fewer reworks and more stable production runs. Space-saving design that eases integration With a 19 mm diameter and a 13 mm profile, the component suits compact layouts where access and clearance are constrained. The small mass (approx. 15 g) minimises inertial load on moving subassemblies and contributes negligibly to bearing or drive demands. Because the part occupies limited axial and radial space, it can be integrated into tight clamping systems, jigs or precision fixturing without requiring design changes to adjacent components. The metric M8 x 1.25 mm thread provides a widely available fastening option that simplifies assembly logistics. Standardised compatibility reduces assembly errors Using a standardised flange removes guesswork from procurement and assembly planning. The standard designation signals compatibility across suppliers and tooling, making stock management and replacement straightforward. This component is suitable where a reliable mechanical interface is required and where adherence to established norms supports quality control processes. The clear dimensional references and thread specification aid inspection routines and permit quick verification during incoming goods checks. Supply confidence and a partner for precision Sourcing from a reputable brand such as Vertex and through a specialist distributor like Metav Werkzeuge supports continuity of supply and traceable quality. Metav acts as a quality filter for the European market, combining a broad product range with decades of application knowledge; this ensures that the flange arrives with the consistency expected for industrial use. For procurement teams and workshop managers, the emphasis on standard conformity and compact form factor makes this part a practical choice for both new designs and maintenance inventories. Contact Metav Werkzeuge to confirm compatibility with existing assemblies and to secure reliable delivery of the Vertex flange CFN0814; expert consultants can provide technical clarification and lead-time information Technical data Article number: CFN0814 GTIN: 4061905084409 eClass: 37029205 Manufacturer: Vertex Facts Diameter: 19 mm Height: 13 mm Thread: M8 x 1.25 mm Weight: 0.015 kg Special features Standard: DIN 6331 Compact flange for precision fixtures Metric fastening for broad compatibility Brand: Vertex FAQ What standard does this flange follow? The flange is manufactured to DIN 6331, which ensures standardised dimensions and interchangeability for compatible components, as used with the Vertex flange CFN0814. What are the critical dimensions to consider for integration? Key dimensions are 19 mm diameter, 13 mm height and the M8 x 1.25 mm thread; these determine fit and clearance in assemblies that use the Vertex CFN0814 flange. Can this flange be used in compact assemblies? Yes, the compact profile and low mass (approx. 15 g) make the flange suitable for tight layouts and lightweight subassemblies without significant added inertia. How does DIN 6331 compliance benefit production? DIN 6331 compliance simplifies procurement, inspection and replacement, reducing assembly errors and enabling reliable interchangeability across suppliers for parts like the Vertex flange CFN0814. Is material information available for this flange? Material details are not specified in the available data for this SKU; please consult Metav Werkzeuge for material verification and any application-specific recommendations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

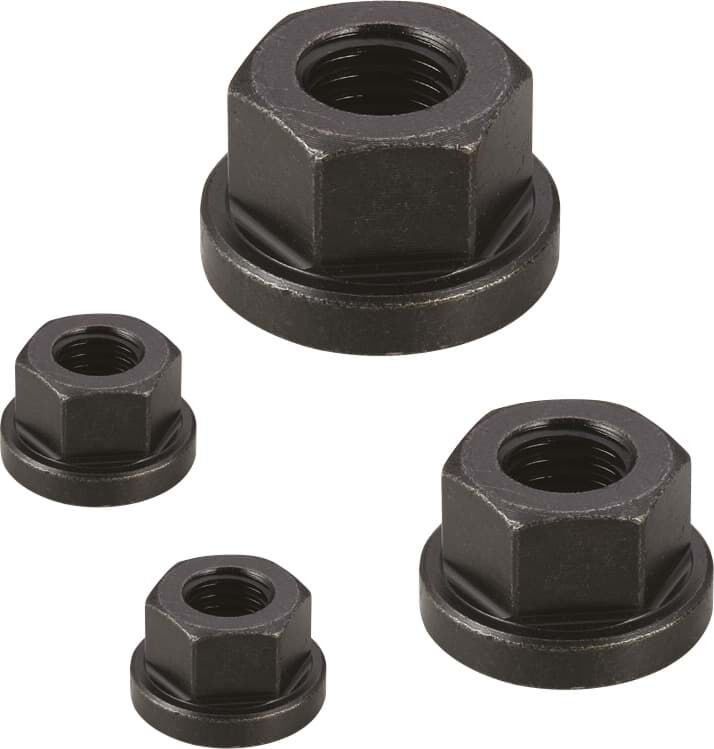

19x8mm Flange With M8x1.25 Thread, 13g - Vertex
Take advantage of a compact component that combines a standard M8x1.25 metric thread with a minimal footprint of 19×8 mm for secure fixtures in confined assemblies; the low weight (0.013 kg) minimises added mass while simplifying handling and logistics. Order the flange directly via Metav Werkzeuge or ask our consultants if needed. Flange 4512 – compact metric-thread fixing element, M8x1.25, 19×8 mm The Flange 4512 is a small, precision component intended for mechanical assemblies and tooling where a secure metric-thread connection and minimal space usage are required. M8x1.25 thread for standard fittings Compact 19×8 mm footprint Lightweight at 13 g Precision fit for confined assemblies The flange delivers a reliable mechanical interface through its M8x1.25 metric thread and compact 19×8 mm dimensions, making it suitable for tight installation spaces. The defined thread pitch ensures consistent axial engagement with standard M8 fastenings, reducing play and enabling repeatable clamping forces. With a mass of just 0.013 kg (13 g), the part contributes negligible inertia to moving sub-assemblies, which is advantageous in precision mechanisms and low-mass fixtures. The compact geometry also facilitates access in multi-component layouts and supports streamlined assembly sequences for production lines. Standard metric compatibility that simplifies procurement Using a familiar thread standard means the flange integrates seamlessly with off-the-shelf fasteners and mating parts, lowering the need for custom items and simplifying stock management. The M8x1.25 designation denotes an 8 mm nominal diameter with a 1.25 mm pitch, a combination commonly used in machinery and tooling. This compatibility translates into shorter setup times and predictable mechanical behaviour under load. Where interchangeability and maintenance speed are priorities, such standardisation improves operational uptime and reduces procurement complexity across workshops and industrial suppliers. Practical benefits for logistics and workshop routines The small dimensions and low weight support economical storage and transport: more items fit per container and handling is easier on the shop floor. The compact design also aids in modular fixture concepts, allowing designers to place fixing elements close to functional interfaces without compromising clearance. Sourced from a recognised manufacturer, the component aligns with standard inventory hierarchies and can be ordered as a repeatable catalogue item, helping purchasing teams maintain supply continuity for routine replacements and serial production. For reliable supply of Vertex components such as this flange and tailored ordering advice, contact Metav Werkzeuge in Emmerich for stock information and allocation; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4512 GTIN: 4061905083396 Manufacturer: Vertex Key measurements Dimensions: 19×8 mm Thread: M8x1.25 mm Weight: 0.013 kg Special features eClass: 37029205 Gallery files included: 3 images FAQ What thread standard does this flange use? The flange uses a metric M8x1.25 thread, compatible with standard M8 fasteners and mating components suitable for that pitch. Is the flange suitable for confined installation spaces? Yes, the compact 19×8 mm footprint and low weight make the component suitable for installations with limited clearance. How much does the component weigh? The part weighs 0.013 kg (approximately 13 g), which minimises added mass in assemblies. Can this flange be sourced as a catalogue item? The part is supplied by Vertex and listed under article number 4512, enabling repeatable procurement and stock replenishment. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
2.25x Fluorescent Work Lamp With Halogen Light, IP20, 1.8m Cable - Vertex
Take advantage of precise close-up illumination and reliable workshop compatibility to speed up inspection tasks while maintaining stable operation; order the inspection light directly via Metav Werkzeuge or consult our advisors for tailored guidance. VHL-30TEB work lamp — fluorescent with 2.25× magnification and halogen light (Vertex) The VHL-30TEB is a fluorescent work lamp with integrated magnifier, designed for close inspection and fine assembly work in workshop and laboratory environments. Fluorescent light with halogen option 2.25× magnification, 5 dioptre lens 1.8 m power cable included Fits 110 V or 220 V power supplies Clearer detail for faster inspection and quality control The combination of a 2.25× magnifying lens and a 5 dioptre optical system provides enlarged, crisp views that reduce eye strain and improve visual accuracy during inspection. The lamp’s halogen illumination option delivers a warm, continuous light spectrum useful for colour-critical tasks, while the fluorescent mode offers broad-area illumination for general inspection. These features translate into measurable time savings and fewer rechecks, supporting a more efficient workflow in precision-oriented settings. Built for practical workshop use and flexible installation With an IP rating of IP 20, the unit is designed for indoor industrial environments where splash protection is not required but reliable dust protection is beneficial. The assembly rests on a base length of 292 mm and weighs 3.5 kg, offering a stable platform for repetitive tasks. Electrical compatibility with 110 V or 220 V supplies and the included 1.8 m cable makes integration into existing workstations straightforward, reducing downtime and simplifying setup for mixed-voltage operations. Designed to support precision trades and routine maintenance The lamp’s optical clarity and robust construction make it suitable for electronics inspection, jewellery and watch repair, textile inspection and other close-up trades that demand consistent illumination. Supplied by Vertex and prepared for standard workshop conditions, the unit helps technicians achieve repeatable, high-quality results. Practical details such as the integrated magnifier and dependable light source reduce interruptions and support sustained concentration during delicate procedures. Contact Metav Werkzeuge for expert advice on integrating the Vertex VHL-30TEB into workshop processes and arrange fast delivery from our Emmerich warehouse (info@metav-werkzeuge.com / +49 2822 7131930) Technical data Article number: VHL-30TEB GTIN: 4061905083532 Manufacturer: Vertex Facts Weight: 3.5 kg Base length: 292 mm Magnification: 2.25× Dioptre: 5 Cable length: 1.8 m Voltage: 110 V / 220 V IP rating: IP 20 Special features Halogen light option Fluorescent illumination Includes 1.8 m power cable Intended for inspection and close-up work Brand: Vertex FAQ What magnification does the lamp provide? The lamp offers a magnification of 2.25× with a 5 dioptre lens, which is suitable for detailed inspection and fine assembly tasks. Is a power cable included with the VHL-30TEB? Yes, the VHL-30TEB is supplied with a 1.8 m cable to simplify installation at the workstation. Which light types are available on this inspection lamp? The unit combines fluorescent illumination for broad coverage with a halogen option for a warmer, continuous light spectrum. Can the lamp be used with both 110 V and 220 V supplies? The VHL-30TEB is specified for operation at 110 V or 220 V, enabling use in different regional power systems. What does the IP20 rating mean for workshop use? An IP20 rating indicates protection against solid objects larger than 12 mm but not against water ingress, making the lamp suitable for typical indoor workshop environments. Who manufactures the VHL-30TEB? The VHL-30TEB is manufactured by Vertex and supplied through Metav Werkzeuge for European workshop customers. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
2500 N Holding Force U-Base Toggle Clamp With Hook, Zinc Plated, 41mm Thread Length - Kukamet
Combine galvanised construction with a holding force of 2,500 N and a secure U-base to ensure reliable, repeatable fixture clamping; order the latch clamp directly via Metav Werkzeuge or ask our consultants if needed. Latch clamp 413 — Hook latch clamp, galvanised, U-base (Kukamet) A Latch clamp 413 for secure fastening of jigs and fixtures, designed as a hook-type closure with a U-base for stable mounting. Galvanised steel construction Holding force 2,500 N U-base mounting for stable fit Integrated hook and 41 mm thread Heavy-duty performance where it matters The latch is engineered for demanding clamping tasks, offering a holding force of 2,500 N and a pressing force of 2,000 N, which together provide a clear performance advantage in repetitive assembly and fixturing applications. The lever-style mechanism translates operator motion into consistent clamping pressure, reducing setup variability. By specifying the force values, this closure clamp allows planners to match the component tolerances and fixture design to a defined load class, supporting predictable production processes and fewer reworks. Robust mounting and compact dimensions Designed for straightforward integration, the model features a U-base mounting style that ensures lateral stability on fixture plates and frames. The 41 mm thread length permits secure adjustment and fine alignment of the hook engagement, while the unit weight of 0.285 kg keeps the component lightweight without compromising rigidity. These measurable attributes translate into easier positioning in fixtures and predictable mechanical behaviour under load, simplifying both initial installation and later modifications to tooling layouts. Corrosion resistance and serviceability for long runs Constructed from galvanised steel, the closure resists surface corrosion in workshop environments, extending service life and reducing maintenance frequency. Galvanising provides a protective zinc layer that slows oxidation compared with untreated steel; where occasional lubrication or inspection is scheduled, the protective coating supports continued reliable operation. The hook-type design allows quick engagement and disengagement, maintaining production flow while keeping clamp service needs minimal and easy to plan. Practical applications and operational benefits Suitable for fixture building, transport lids, access panels and repeatable assembly operations, this hook latch clamp shortens cycle times by enabling fast, repeatable securing and release. Integration into jigs benefits from the clearly stated force ratings and compact footprint, which together reduce the need for oversized fixtures and enable closer component positioning. The combination of consistent clamping force and corrosion-resistant finish supports uptime and gives operators confidence in handling and repeatability during continuous production shifts. For ordering, specification checks or technical advice on the Kukamet hook latch clamp, contact Metav Werkzeuge for direct assistance and reliable supply from Emmerich — info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 413-3 GTIN: 8680731502589 ECLASS: 21041718 ETIM: EC011973 Facts Weight: 0.285 kg Pressing force (max): 2,000 N Holding force (max): 2,500 N Thread length: 41 mm Special features Material: galvanised steel Mounting: U-base (U-Fuß) With hook SKU: 413-3 FAQ What load capacities does this clamp provide? The Latch clamp 413 (Kukamet, SKU 413-3) provides a maximum holding force of 2,500 N and a pressing force of 2,000 N, specified for predictable fixture loading. Is this clamp suitable for outdoor or humid workshop conditions? The galvanised finish on the Kukamet latch clamp offers improved corrosion resistance, making it suitable for humid workshop environments though not a substitute for stainless steel in highly corrosive settings. How is the latch fastened to a fixture plate? The clamp uses a U-base mounting arrangement; the U-base allows stable attachment to fixture plates and frames and the 41 mm thread length permits fine adjustment of the hook engagement. What maintenance does the hook latch require? Routine visual inspection and light lubrication at pivot points are recommended for the Kukamet hook latch clamp to preserve smooth lever action and prolong the galvanised finish. Which applications are typical for this hook-type latch clamp? Typical uses include jigs and fixtures, transport closures, access panels and repeatable assembly tasks where fast, repeatable securing is required; the Latch clamp 413 is specified for such applications due to its force ratings and compact design. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
2000N Pneumatic Clamp 90° Vertical Base Zinc Plated, 2500N Holding Force - Kukamet
Take advantage of the clamp’s combination of reliable pneumatic actuation, galvanised durability and compact weight to maintain steady production flow. Benefit from a right‑angle mounting design with a 2,000 N actuation capacity and a 2,500 N holding force for secure fixturing; order directly via Metav Werkzeuge or ask the consultants for application advice. Kukamet Pneumatic Clamp 652 — Vertical‑foot clamp with 2,000 N actuation The 652 Pneumatic Clamp is a vertical‑foot, right‑angle pneumatic clamping solution intended for industrial and workshop fixture applications. Vertical foot for rigid right‑angle mounting Max. actuation force 2,000 N Holding force up to 2,500 N Galvanised steel for corrosion resistance Consistent force for reproducible clamping Engineered for repeatable operation, the 652 Pneumatic Clamp delivers a controlled actuation of 2,000 N, enabling consistent part retention in production cycles. Pneumatic actuation translates compressed‑air energy into linear clamping motion, which reduces operator variability and speeds up cycle times compared with manual toggles. The specified 2,500 N holding capacity indicates the maximum static retention the device can sustain once engaged; this separation of actuation versus holding values helps in selecting the clamp for assemblies that require brief high forces to engage and sustained clamping during machining or inspection. Robust construction for workshop conditions Constructed from galvanised steel and weighing 0.91 kg, the clamp balances durability with low mass to simplify integration into multi‑station fixtures. The corrosion‑resistant finish extends service life in mixed workshop environments, while the compact design minimises inertia on moving fixtures. The vertical‑foot mounting provides a stable base for right‑angle clamping arrangements, reducing torsional stress on the clamped component. Where frequent part changes occur, the lightweight assembly helps maintain agility without compromising structural integrity. Practical installation and operational advantages Mounting via a vertical foot at a 90° angle allows straightforward installation on fixture plates and sub‑assemblies, supporting modular fixturing concepts. The clamp’s mechanical simplicity lowers maintenance demand: periodic checks of pneumatic supply and pivot lubrication ensure reliable performance. The compact footprint is suited for dense fixture layouts, freeing space for tooling or sensors. Specifying the clamp by SKU 652‑3 and confirming the galvanised finish supports procurement clarity and compatibility checks for production planners. Contact Metav Werkzeuge to discuss fitment and delivery of Kukamet clamps or request technical assistance via info@metav-werkzeuge.com or +49 2822 7131930 Technical Data SKU: 652-3 GTIN: 8680731505252 Category: Spanner Article name: Pneumatic clamp Facts Max. actuation force: 2,000 N Max. holding force: 2,500 N Weight: 0.91 kg Angle: 90° ECLASS: 21021004 ETIM: EC011973 Special features Material: galvanised steel Mounting: vertical foot Arm: not applicable Particular feature: none FAQ What clamping and holding forces does the clamp provide? The 652 pneumatic clamp offers an actuation force of 2,000 N and a holding force of up to 2,500 N, specified for engagement and static retention respectively. Is the clamp suitable for wet or corrosive workshop environments? Yes, the galvanised finish on the Kukamet clamp provides enhanced corrosion resistance suitable for mixed workshop conditions. How is the clamp mounted to a fixture plate? Mounting is by a vertical foot designed for rigid right‑angle installation, enabling straightforward attachment to fixture plates and sub‑assemblies. What weight and footprint considerations apply for fixture design? The clamp weighs 0.91 kg and has a compact footprint, making it suitable for dense fixture layouts where minimising mass is beneficial. Can the clamp be used in automated pick‑and‑place or CNC machining fixtures? The pneumatic actuation and robust holding capacity make the clamp appropriate for automated fixtures and machining operations where reliable, repeatable clamping is required. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
200mm Closure Clamp With Vertical Base, Extended Arm, 10000N Thrust, Zinc-Plated - Kukamet
Take advantage of a galvanised finish, a 200 mm extended special arm and high clamping/holding forces for reliable, repeatable fixture work. Order the clamp directly via Metav Werkzeuge or consult the Metav team for technical advice and fast delivery. Toggle clamp 333 – Vertical‑foot locking clamp with 200 mm extended arm (Kukamet) A Toggle clamp 333 is a vertical‑foot locking clamp engineered for secure holding in industrial fixtures and jigs, combining a galvanised finish with an integrated hook for rapid fastening. Galvanised steel for corrosion resistance 200 mm extended special arm Vertical foot for secure mounting 10,000 N clamping, 12,000 N holding force Durable construction that reduces downtime The clamp is built from galvanised steel and designed for heavy workshop use, offering corrosion resistance where repeated cycles and mixed environments are encountered. At approximately 0.95 kg, the unit stays compact without compromising stability, so it integrates easily into fixtures and portable jigs. The galvanised surface reduces maintenance intervals and protects moving parts from premature wear, which helps to keep production lines running with fewer interruptions. High clamping and holding forces for secure processes With a maximum clamping force of 10,000 N and a holding capacity of 12,000 N, this locking device delivers the retention needed for demanding assembly and machining operations. The 200 mm thread length allows for reliable adjustment and precise positioning of the clamping arm, ensuring consistent pressure across repeated cycles. These measurable values translate into improved process reliability and lower reject rates when parts must remain immobile under cutting, welding or assembly loads. Quick integration and ergonomic fixture design The vertical‑foot mounting ensures firm attachment to workbenches or fixture plates while the 200 mm extended special arm provides the clearance necessary for larger or awkwardly shaped workpieces. An integrated hook supports rapid engagement and simple part handling, speeding up changeovers. The compact footprint and straightforward mounting concept make this clamp suitable for bespoke jigs, modular fixtures and production lines where space and cycle time are critical. The product is supplied under SKU 333-4-L-M10 and fits standard workshop mounting patterns. For robust clamping performance and rapid supply of the Kukamet 333 toggle clamp, contact Metav Werkzeuge in Emmerich for stock information and expert technical guidance at +49 2822 7131930 or info@metav-werkzeuge.com Technical data SKU: 333-4-L-M10 GTIN: 8682843520987 ECLASS: 21041718 ETIM: EC011973 Core specifications Clamping force max: 10,000 N Holding force max: 12,000 N Arm length: 200 mm Thread length: 200 mm Weight: 0.95 kg Special features Material: Galvanised Mounting: Vertical foot With hook: Yes Special arm: Extended special arm Category: Spanner FAQ How much clamping power does the clamp provide? The Kukamet 333 toggle clamp provides a clamping force of 10,000 N and a holding force of 12,000 N, giving strong retention for industrial fixturing tasks. What mounting arrangement does this clamp use? The clamp is designed with a vertical foot mounting that allows secure fastening to bench tops and fixture plates while keeping the clamp stable under load. Is the finish suitable for humid or mixed environments? Yes, the galvanised surface offers corrosion resistance suitable for workshops where moisture or variable conditions are present. What advantages does the extended arm bring? The 200 mm extended special arm increases reach and clearance, simplifying clamping of larger or irregular workpieces and improving accessibility during setup. Which model reference should be used when ordering or specifying? Refer to Kukamet model 333 or SKU 333-4-L-M10 when ordering or specifying the clamp for fixtures and jigs. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
200mm Workpiece Stop Without Teeth T‑Slot 16mm - Vertex
Combining a 200 mm height, a 16 mm T-slot interface and a toothless contact face, the VWS-123 delivers dependable, repeatable end stops for machining and fixturing applications; order the workpiece stop directly via Metav Werkzeuge or consult our specialists for integration advice. Workpiece stop VWS-123 — 200 mm height, 16 mm T-slot (Vertex) The Workpiece stop provides consistent end stops for machining and fixturing on T-slotted tables, designed for straightforward integration into workshop and machine setups. 200 mm height for versatile positioning Compatible with 16 mm T-slots Toothless clamping face for smooth contact Lightweight at 0.9 kg for easy handling Repeatable positioning that reduces setup time Engineered for reliable alignment, the VWS-123 workpiece stop secures components against a defined datum so that setups are repeatable across multiple runs. The 200 mm height offers an extended stop surface for taller or uneven workpieces, while the toothless contact face prevents marking on delicate parts. This combination supports faster fixturing and fewer adjustments, improving throughput on small-batch and serial operations. Simple compatibility with standard T‑slot tables The compact design is tailored to fit a 16 mm T‑slot, enabling immediate compatibility with many common machine tables and modular fixturing systems. The T‑slot interface allows secure mounting without complex adaptors, which simplifies retrofitting into existing workflows and reduces downtime during changeovers. Described dimensions and mounting type provide clear criteria for planners and workshop engineers when preparing fixtures. Lightweight handling and workshop practicality At 0.9 kg, the stop is easy to position and reposition by hand, making it suitable for bench setups and quick jigs as well as machine tool use. The toothless contact face allows safe contact with finished surfaces, reducing the risk of cosmetic damage while maintaining a stable end stop. Built for everyday workshop tasks, the device balances manoeuvrability with the dimensional control expected in production environments. Contact Metav Werkzeuge today for tailored advice on integrating the Vertex VWS-123 into existing fixturing — Metav’s team in Emmerich can advise on compatibility, delivery and application-specific solutions via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: VWS-123 GTIN: 4061905084348 ECLASS: 21029210 Manufacturer: Vertex Core data Weight: 0.9 kg Height: 200 mm T‑slot: 16 mm SKU: VWS-123 Special features Type: Toothless (without teeth) Category: Vertex Image: vws-123-main.jpg FAQ What T‑slot size is required for mounting? The VWS-123 is designed for a 16 mm T‑slot, ensuring direct compatibility with tables and fixtures that use this standard slot width. Is the stop suitable for delicate or finished workpieces? Yes. The toothless contact face prevents surface marking, making the component suitable for parts where cosmetic integrity matters. How much does the device weigh and is it easy to handle? The stop weighs 0.9 kg, which allows manual positioning for quick setups and straightforward transfer between bench and machine use. Can the component support repeatable serial production setups? Its dimensional design, notably the 200 mm height and T‑slot mounting, provides the consistency needed for repeatable fixturing and short changeover times. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
VMJ-6 165mm Four-Jaw Square Self-Centring Chuck, 900 kgf Clamping Force - Vertex
Take advantage of the combination of self-centring 4‑jaw clamping, substantial 900 kgf holding force and a compact footprint for steady, repeatable machining results. Order the chuck directly via Metav Werkzeuge or ask the consultants for tailored advice. Vertex VMJ-6 chuck — self‑centring 4‑jaw with 900 kgf clamping force A Vertex VMJ-6 chuck engineered for precise, repeatable clamping of square workpieces and general machining tasks in workshop environments. Self‑centring 4‑jaw design High clamping force 900 kgf Compact footprint 165x215x96mm Accuracy 0.03 Secure clamping that speeds up set‑up and saves cycles The self‑centring, four‑jaw mechanism delivers reliable concentricity with fast engagement, reducing the time required for repeated set‑ups. The combination of a robust jaw configuration and a rated clamping force of 900 kgf offers a clear operational advantage: workpieces stay stable under load, which minimises rework and improves throughput. For operations focused on repeatability, this clamping solution provides measurable benefits in cycle time and process reliability. Tight tolerances for consistent part quality An accuracy figure of 0.03 indicates a high degree of concentricity, allowing finer tolerances to be maintained during turning or machining operations. A stable mass of 13.5 kg helps dampen vibration, contributing to surface finish and dimensional stability. For teams that validate parts against defined tolerances, the precision characteristics of this chuck support predictable outcomes and reduce inspection exceptions. Compact design to integrate into constrained workspaces With external dimensions of 165x215x96mm, the chuck occupies a modest footprint while still delivering performance suited to many workshop set‑ups. The square‑jaw option increases flexibility for clamping non‑round components without additional fixtures. This compactness supports efficient use of machine table space and simplifies handling during tool changes, aiding leaner workflows on the shop floor. Practical features and workshop compatibility The unit’s four‑jaw, self‑centring concept allows a balance between grip versatility and operational simplicity. The design reduces the number of adjustments needed for common jobs and works well where a mix of square and round parts are processed. Clear marking of SKU and traceability simplify stock management and ensure correct replacement parts and accessories are ordered when required. Contact Metav Werkzeuge today to discuss how the Vertex VMJ-6 chuck can be integrated into existing clamping systems or to request a tailored supply proposal from our specialists in Emmerich. Technical data SKU: VMJ-6 GTIN: 4061905084911 ECLASS: 21020590 Facts Dimensions: 165x215x96mm Weight: 13.5 kg Accuracy: 0.03 Clamping force: 900 kgf Special features Self‑centring four‑jaw design Square jaw capability Manufacturer brand: Vertex Suitable for a variety of machining setups FAQ What workpieces is this chuck suited for? The Vertex VMJ-6 chuck is designed for both square and round components thanks to its four‑jaw, self‑centring concept, offering flexible clamping for a range of machining tasks. How does the 900 kgf rating affect performance? A clamping force of 900 kgf provides strong grip for secure machining, which helps maintain concentricity and reduces the risk of part movement during cutting operations with the Vertex VMJ-6 chuck. Is the accuracy value relevant for precision parts? Yes, the stated accuracy of 0.03 supports tight concentricity demands and assists in achieving consistent dimensional outcomes when using the chuck. How compact is the chuck for workshop integration? With external dimensions of 165x215x96mm and a weight of 13.5 kg, the chuck combines compact size with sufficient mass for stability in many machining setups. What identifiers help with ordering and traceability? Orders and inventory management can reference SKU VMJ-6 and GTIN 4061905084911 to ensure correct identification of the Vertex chuck. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
340x359x235mm Universal Dividing Head Three-Point Support, MT-4 Collet, 25mm T-Slot - Vertex
Take advantage of the combination of stable construction, precise MT‑4 spindle compatibility and easy mounting to standard tables for reliable indexing operations; order the Universal dividing head directly via Metav Werkzeuge or consult our specialists for application advice. Vertex BS-2 Universal Dividing Head – MT‑4 spindle, 25 mm T‑slot base A Vertex BS-2 Universal Dividing Head for accurate indexing and angular machining on machine tables and milling machines Robust 65 kg solid construction MT‑4 Morse taper spindle Base compatible with 25 mm T‑slot Stable setup for repeatable indexing and machining The heavy 65 kg mass gives the unit a stable platform that minimises vibration during indexing and light machining operations, helping to maintain repeatable results. With compact overall dimensions of 340 x 359 x 235 mm, the head occupies little table space while providing a rigid mounting point. The combination of mass and compact footprint is designed to reduce chatter and support consistent angular positioning when used on suitable machine tables and fixtures. Precision spindle interface and secure mounting Equipped with a Morse taper (MT‑4) spindle, the device offers a widely used, serviceable interface for collets and arbors, enabling straightforward tool and workpiece attachment. The base is designed for a 25 mm T‑slot mounting, allowing direct clamping to compatible tables without additional adapters. These features simplify integration into existing setups while supporting accurate rotational indexing and repeatable alignment for chamfering, slotting or light dividing tasks. Practical workshop handling and set-up benefits The unit’s dimensions and mounting specification facilitate straightforward positioning on a workshop table; the compact footprint reduces the need for extensive retooling of the work area. The robust construction supports stable operation across routine machining cycles and helps to protect positional accuracy over time. Clear, measurable data on weight and size enable planning for handling and fixturing in machine shops, supporting effective workflow integration. Suited for professional shop environments Designed by Vertex as a universal indexing solution, the BS‑2 offers reliable mechanical features that support efficient set-up and reduced rework. The MT‑4 spindle interface and 25 mm T‑slot compatibility contribute to fast installation and repeatable operation, delivering a pragmatic combination of adaptability and mechanical stability that aligns with professional production demands. Contact Metav Werkzeuge in Emmerich for detailed mounting advice or application consultation via info@metav-werkzeuge.com or call +49 2822 7131930 to discuss specifications and delivery options Technical data Article number: BS-2 GTIN: 4061905084485 Manufacturer: Vertex Facts Weight: 65 kg Dimensions: 340 x 359 x 235 mm T‑slot width: 25 mm Special features Spindle taper: MT‑4 (Morse taper) Product type: Universal dividing head ECLASS: 21020590 FAQ What is the primary function of this dividing head? The BS-2 Universal dividing head by Vertex is intended for accurate indexing and angular machining on machine tables and milling machines. How is the unit mounted to a machine table? Mounting is achieved via the base designed for a 25 mm T‑slot, allowing the Vertex BS-2 to be clamped securely to compatible T‑slot tables. What spindle taper does the product use? The Vertex BS-2 uses a Morse taper spindle, specified as MT‑4, for collets and arbors. What are the dimensions and weight for planning installation? The BS-2 has dimensions of 340 x 359 x 235 mm and a weight of 65 kg, allowing for straightforward handling and fixture planning. Is the dividing head suitable for heavy-duty machining? The robust mass and compact design of the Vertex BS-2 provide good stability for indexing and light to moderate machining tasks; suitability for specific heavy-duty operations should be evaluated against machine capability and fixturing. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
203mm Rotary Indexing Table With Three-Point Chuck, 250mm Faceplate, 20" Dial Reading, 44mm Arbor - Vertex
Take advantage of the combination of robust build, precise indexing and a complete accessory set for reliable, repeatable dividing tasks on the shop floor. Order the unit directly via Metav Werkzeuge or consult Metav's experts for application advice and fast dispatch. CS-6 Rotary Indexing Table — 203 mm diameter · 4° indexing per spindle turn · Vertex The CS-6 is a compact rotary indexing table designed for precision dividing and machining operations in small to medium workshops. 203 mm precision table diameter 4° indexing per spindle revolution 44 mm spindle bore for standard centres Includes 3-jaw chuck and 250 mm faceplate Consistent indexing for precision production The CS-6 rotary indexing table offers repeatable indexing thanks to a clear spindle division of 4° per full spindle revolution and a fine vernier reading of 20", which together allow controlled, stepwise rotation for milling, drilling and layout operations. This combination reduces setup time and rework, delivering measurable improvements in throughput and part consistency. For firms seeking reproducible results in batch work, the precise division increments translate directly into fewer machine interventions and more predictable production cycles. Compact design that supports stable machining A 203 mm table surface on a compact footprint (250 × 150 × 235 mm) gives access to a wide range of workpiece sizes while keeping space requirements low. At 43.6 kg the unit provides a stable base that dampens chatter during cutting, improving surface finish and tool life. The 44 mm spindle bore accepts common mounting centres and arbor fittings, simplifying integration with existing tooling and reducing the need for special adaptors. The modest overall size and predictable weight make the table suitable for benchtop and machine-table installation alike. Ready-to-use set for flexible applications Supplied accessories make the CS-6 immediately productive: a 3-jaw chuck, 250 mm faceplate and a set of cover plates for common indexing divisions are included. These items broaden application possibilities from simple drilling and slotting to more complex dividing patterns without additional procurement. The accessory package supports quick changeovers and reduces downtime between operations, so workshop tasks can proceed with minimal disruption. Workshop-proven quality and dependable supply Built under the Vertex name, the indexing table reflects a pragmatic balance of robust construction and serviceable design that suits everyday industrial use. Metav Werkzeuge acts as a European quality filter and logistics partner, offering rapid dispatch and a stocked supply chain from Emmerich that supports steady production. With a long track record and a broad product range, Metav provides the procurement reliability expected by industrial buyers, making the table a pragmatic choice for workshops seeking durable, easy-to-integrate dividing solutions. Contact Metav Werkzeuge for specific application advice on the Vertex CS-6 rotary indexing table and ensure rapid dispatch from Emmerich — email info@metav-werkzeuge.com or phone +49 2822 7131930 for tailored recommendations Technical Data SKU: CS-6 GTIN: 4061905084966 Eclass: 36600610 Manufacturer: Vertex Facts Diameter: 203 mm Dimensions: 250 × 150 × 235 mm Weight: 43.6 kg Spindle bore: 44 mm 1 spindle rotation: 4° Reading division: 20" Special features Set contents: 1x 3-jaw chuck, 1x 10"/250 mm faceplate, cover plates 2, 3, 4, 6, 8, 12 Model designation: CS-6 Super Includes protective cover plates FAQ What level of indexing precision does the table provide? The CS-6 rotary indexing table provides a basic division of 4° per spindle revolution with a vernier reading of 20" for fine adjustments, allowing accurate stepwise rotation for common dividing tasks. Which items are supplied with the machine? Delivery of the CS-6 includes a 3-jaw chuck, a 250 mm faceplate (10") and a set of cover plates for standard division patterns, enabling immediate use after mounting. What spindle or arbor sizes does the table accept? The table features a 44 mm spindle bore, compatible with standard centres and arbors used in small to medium workshop setups. Is the CS-6 suitable for benchtop installation in a small workshop? Yes. The compact dimensions and a weight of 43.6 kg give the CS-6 enough mass for stable operation while remaining small enough for benchtop or machine-table mounting in constrained workshop spaces. Can the unit be used for both milling and drilling dividing operations? Yes. With the supplied chuck and faceplate and the precise indexing increments, the CS-6 is suitable for a range of dividing tasks commonly found in milling and drilling applications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
20mm Edge Probe With LED And Beeper, 157mm Length - Vertex
Take advantage of reliable edge detection and clear feedback from the VPS-20-BEEP: compact construction plus battery operation ensure fast set-up and fewer machining interruptions. Order the edge probe directly via Metav Werkzeuge or consult our specialists for compatibility with existing measuring systems. VPS-20-BEEP edge probe with LED and beeper by Vertex The VPS-20-BEEP is a compact edge probe designed for precise workpiece detection on machine tools, providing both visual and audible confirmation for measurement and setup tasks. Edge probe with LED and audible beeper 20 mm sensing diameter for precise detection Runs on UM-5#(SP) 12V battery Lightweight 0.4 kg, length 157 mm Faster, more reliable workpiece detection The VPS-20-BEEP functions as an edge probe that simplifies the detection of workpiece edges and reference points, reducing manual alignment time. The 20 mm sensing diameter delivers consistent contact area, which supports repeatable positioning and helps to avoid costly rework. By converting mechanical contact into a defined signal, the probe enables rapid digital input to measurement routines or CNC probing cycles, improving overall throughput and process reliability. This practical sensor is particularly suited to shops aiming to optimise set-up times without extensive retrofit. Immediate visual and audible confirmation for safer processes Integrated LED illumination and a beeper provide unmistakable feedback at the moment of contact, so operators receive both visual and audible confirmation. The combined signalling reduces uncertainty during automated and manual probing sequences, especially in noisy or poorly lit environments. For technicians unfamiliar with probing terminology: the LED indicates contact visually while the beeper emits an audible pulse when the probe touches the workpiece, ensuring that signalling is unmistakable even across different workstations. These features reduce false triggers and contribute directly to higher first-pass quality. Portable, battery-powered design for flexible deployment Designed for mobility, the device is battery-powered using a single UM-5 12V cell, which eliminates the need for an external supply and permits quick transfer between machines. With a length of 157 mm and a weight of 0.4 kg, the sensor is easy to handle, mount and store, making it suitable for smaller production areas or service engineers who require a compact detection tool. The simple power concept and compact form factor mean it can be used where cabling is impractical, providing mechanical probing capability without complex installation. Contact Metav Werkzeuge to discuss the Vertex VPS-20-BEEP for precise edge detection and ensure fast delivery from Emmerich via our experienced procurement team Technical data Article number: VPS-20-BEEP GTIN: 4061905084119 ECLASS: 21170311 ETIM: EC000029 Manufacturer: Vertex Facts Weight: 0.4 kg Length: 157 mm Sensing diameter: 20 mm Special features Edge probe with LED and beeper Battery: UM-5 (SP) 12V ×1 SKU: VPS-20-BEEP FAQ What is the main purpose of this probe? The VPS-20-BEEP is a compact edge probe designed to detect workpiece edges and reference points on machine tools, providing reliable signals for measurement and setup routines. Which power source does the probe use? The probe is battery-operated and uses a single UM-5 (SP) 12V cell, allowing portable use without an external power supply. Is the device suitable for transfer between machines? Yes, the light weight (0.4 kg) and 157 mm length make the unit easy to move and mount between different machines or workstations. How does the signalling work on this sensor? The device provides dual feedback: an LED for visual confirmation and a beeper for audible indication, ensuring contact is clearly signalled in various workshop conditions. Can the probe improve setup times? Using the VPS-20-BEEP for automated probing cycles or manual checks reduces alignment time and helps lower the rate of rework by delivering precise, repeatable contact detection. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
20mm Edge Probe With LED, Accuracy 0.005mm, Battery UM‑5 1.5V ×2 - Vertex
The combination of high repeatability and compact design enables faster workstation set-up and fewer measurement errors; the integrated LED provides immediate visual feedback while battery operation ensures flexible use at the machine. Order the edge probe directly via Metav Werkzeuge or ask the consultants for application support. Vertex VPS-20 edge probe with LED — 20 mm tip, 0.005 mm repeatability A VPS-20 edge probe with LED for precise edge detection and position referencing on machine tools and measuring fixtures. Fast LED indication for clear detection 0.005 mm repeatability for reliable set-up 20 mm tip diameter for stable contact Compact 157 mm length for machine compatibility Faster set-up through measurable repeatability The VPS-20 delivers 0.005 mm repeatability, a key parameter that reduces positioning uncertainty during tool and workpiece set-up. Repeatability describes the probe's ability to return to the same measured value under identical conditions; high repeatability therefore reduces scrap and rework and shortens cycle interruptions. For production environments where consistent part location is mandatory, this edge probe supports predictable workflows and fewer machine stops caused by uncertain referencing. Clear signalling and workshop practicality An integrated LED provides immediate visual confirmation of an edge contact, improving operator confidence during manual interventions and automated cycles. The probe's 20 mm tip diameter ensures a stable contact point with workpieces, while its compact overall length of 157 mm and low weight of 0.4 kg make it suitable for retrofitting into confined toolholders or fixture set-ups. Battery operation (UM-5#(SP) x2P/R1./1.5V) simplifies installation without requiring additional wiring, enabling rapid deployment across benches and machines. Designed for reliable metrology workflows With its focused function as an edge-detection device, the unit integrates easily into quality assurance routines and machine referencing procedures. The VPS-20 supports clear decision-making when aligning parts, transferring offsets, or validating datum positions; its concise specifications (repeatability, tip diameter, compact dimensions) translate directly into time savings during set-up and reduced downstream inspection effort. The product references (eClass and ETIM) allow straightforward documentation in procurement and maintenance records, supporting traceability and process control. For precise edge detection, request the Vertex VPS-20 from Metav Werkzeuge — Metav’s consultants and logistics team in Emmerich ensure quick supply and expert advice for integration into existing metrology and machine workflows Technical data Article number (SKU): VPS-20 GTIN: 4061905084935 Manufacturer: Vertex Facts Accuracy / repeatability: 0.005 mm Tip diameter: 20 mm Overall length: 157 mm Weight: 0.4 kg Special features Version: with LED Battery: UM-5#(SP) x2P/R1./1.5V eClass: 21170311 ETIM: EC000029 FAQ How precise is the edge detection? The VPS-20 provides a repeatability of 0.005 mm, allowing consistent edge referencing for setup and inspection tasks. Is the probe suitable for machine tool integration? Yes, the edge probe is designed for position referencing on machine tools and fixtures; the compact length and lightweight construction support straightforward installation of the VPS-20. What type of signalling does the probe use? The device uses an integrated LED for immediate visual confirmation of edge contact, improving workflow clarity during set-up. Which battery type is required? The probe operates with UM-5#(SP) x2P/R1./1.5V batteries as specified for the VPS-20. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
20mm Pneumatic Push Rod Clamp Zinc Cast Body 7.5kN Thrust, 18.45kN Holding Force - Kukamet
Combine robust zinc-plated construction with a compact piston Ø 20 mm and a maximum thrust of 7,500 N for secure, repeatable clamping in production fixtures. Order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. Kukamet Pneumatic Push-Rod Clamp 672 — 7,500 N thrust, zinc-plated cast body Kukamet Pneumatic Push-Rod Clamp 672 is a pneumatic actuator for industrial fixtures, designed for rapid actuation and high holding capacity in manufacturing and assembly jigs Zinc-plated cast body for durable service life 7,500 N maximum thrust for secure clamping 18,450 N holding force for load retention Piston diameter 20 mm for compact installation Industrial construction for long service life The clamp combines a zinc-plated finish with a cast body to resist corrosion and mechanical wear in workshop and production environments. The solid housing reduces deformation under load, which contributes to consistent clamping behaviour over long production runs. Thanks to the robust design and a mass of 5.26 kg, the unit provides a stable base for repetitive cycles while maintaining positional accuracy in fixtures and tooling plates. Precise force control and secure retention With a maximum thrust of 7,500 N and a holding force rated at 18,450 N, the device ensures reliable part retention during machining, welding or assembly. The difference between actuation force and holding force is explained by the mechanical design of the push-rod and contact geometry; this results in secure clamping even under vibration or dynamic loads. The compact piston Ø 20 mm supports fast stroke response while keeping the actuator footprint minimal for space-constrained jigs. Easy integration and practical maintenance Configured for horizontal-foot mounting, the actuator fits typical fixture bases and can be fastened quickly to existing plates. The horizontal foot arrangement simplifies alignment and replacement in modular tooling. Routine upkeep is straightforward: the zinc plating reduces the need for frequent surface protection, and the cast construction minimises deformation-related service. Metav’s product documentation and technical advisors can assist with selection of mounting hardware and pneumatic supply parameters for efficient commissioning. Order the Kukamet Pneumatic Push-Rod Clamp 672 via Metav Werkzeuge for dependable fixture clamping, or request tailored application advice from our consultants. Technical Data Article number: 672-5-Q20 GTIN: 8680731505313 Manufacturer: Kukamet SKU: 672-5-Q20 Core measurements Maximum thrust: 7,500 N Holding force: 18,450 N Piston diameter: 20 mm Weight: 5.26 kg eClass: 21041716 ETIM: EC011973 Features and mounting Zinc-plated with cast body Horizontal foot mounting Category: Spanner Files: product image and catalogue PDF available FAQ What is the primary use of this pneumatic clamp? The Kukamet pneumatic push-rod clamp 672 is designed for securing components in industrial fixtures, jigs and production lines where reliable, repeatable clamping is required. How do the thrust and holding forces relate in practice? The specified 7,500 N thrust is the actuation force; the higher holding force of 18,450 N reflects the mechanical retention capability once clamped, ensuring parts remain secure under dynamic conditions. Can the clamp be mounted on standard tooling plates? Yes. The unit is supplied for horizontal-foot mounting, making it compatible with common tooling and fixture plates used in manufacturing. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
20x200 mm Cylindrical Test Mandrel, Both Ends Centre, Runout Accuracy 0.005 mm - Metav IndustryLine
Combine runout accuracy of 0.005 mm, hardened gauge steel construction and bilateral centring for repeatable spindle and shaft inspections. Take advantage of reliable geometry and durable material for consistent quality control; order the cylindrical test mandrel M318.910 directly via Metav Werkzeuge or ask our consultants if needed. Cylindrical test mandrel M318.910 — Ø20×200 mm, runout accuracy 0.005 mm (Metav IndustryLine) The Cylindrical test mandrel M318.910 is a precision gauge designed for runout inspection of shafts, spindles and rotating assemblies in production and metrology environments. Cylindrical test mandrel Ø20 x 200 mm Runout accuracy 0.005 mm Both ends with centring Hardened gauge steel construction Reliable runout control for repeatable inspections The M318.910 mandrel provides a verified runout accuracy of 0.005 mm, enabling consistent assessment of spindle and shaft concentricity during inspection routines. Its defined diameter and length (Ø20×200 mm) produce a stable reference condition for measuring instruments, which reduces measurement scatter and shortens inspection cycles. The combination of tight tolerance and robust geometry supports decision-making in quality control and helps prevent downstream rework. Durable construction that preserves reference geometry Manufactured from hardened gauge steel, the mandrel resists wear and maintains cylindrical integrity under repeated use. The material choice delivers thermal and mechanical stability for workshop and laboratory conditions, which preserves the reference surface and minimises drift over time. With both ends centred, alignment in precision chucks and fixtures is simplified, improving repeatability when mounting the gauge in test machines or between centres. Practical integration into inspection workflows The cylindrical mandrel is intended for routine runout checks and serves as a dependable reference for alignment, assembly control and incoming inspection. Its moderate weight (approximately 1 kg) and standard dimensions make it straightforward to handle in quality departments while still offering sufficient mass to sit stably in fixtures. The mandrel complements dial indicators, digital comparators and other metrological tools, easing integration into existing measurement setups and documented test plans. Efficiency gains and quality assurance Using a stable cylindrical reference accelerates inspection throughput by reducing setup time and re-measurement. The mandrel’s precise geometry supports traceable comparisons between parts and fixtures, contributing to fewer rejects and improved process capability. Backed by the Metav IndustryLine offering, the tool aligns with a practical procurement approach that prioritises durable references and straightforward maintenance for continuous production environments. Contact Metav Werkzeuge to discuss application suitability and reserve the Metav IndustryLine cylindrical test mandrel M318.910 Technical data Article number: M318.910 GTIN: 4054469183824 Dimensions: Ø20 x 200 mm Material: Gauge steel, hardened Weight: 1 kg Facts Runout accuracy: 0.005 mm Diameter: 20 mm Length: 200 mm Special features Both ends with centring Suitable for runout inspection Category: Gauges / Mandrels Brand: Metav IndustryLine FAQ What runout accuracy can be expected from this test mandrel? The cylindrical test mandrel M318.910 achieves a runout accuracy of 0.005 mm, making it suitable as a high‑precision reference for spindle and shaft inspections. Which material is used for the mandrel and why? The mandrel is made from hardened gauge steel, selected for wear resistance and dimensional stability to preserve reference geometry under repeated use. How is the mandrel mounted for inspection tasks? The mandrel features both ends with centring, enabling secure placement between centres or in precision chucks to ensure reproducible alignment during measurements. Is the tool appropriate for workshop and laboratory use? Yes. The geometry and material provide a balance between handling convenience and metrological stability, making the mandrel well suited to production quality control and metrology labs. Which brand and SKU identify this product? This is the Metav IndustryLine cylindrical test mandrel, SKU M318.910, offered for runout inspection of rotating components. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
220mm Three-Point Self-Centring Low-Profile 3-Jaw Chuck 1,800 kgf Clamping Force - Vertex
Take advantage of the self-centring design, extra-flat profile and substantial clamping force to improve turning accuracy and reduce overhang in production and jobbing shops. Order the Vertex VNBK-6 3-jaw lathe chuck directly via Metav Werkzeuge or ask our consultants if needed. VNBK-6 3-jaw lathe chuck — self-centring and extra-flat, Ø220 mm VNBK-6 3-jaw lathe chuck engineered for secure workholding on small to medium turning centres; designed to combine compact dimensions with reliable clamping for efficient machining. Self-centring quick set Extra-flat profile for reduced overhang Ø220 mm nominal diameter High clamping force 1800 kgf Stable clamping for consistent machining results The three-jaw design provides fast, repeatable centring which shortens setup time and improves throughput. The self-centring mechanism aligns the workpiece automatically, while the specified clamping force of 1800 kgf ensures firm grip during conventional turning and light roughing. For production environments where cycle time and part uniformity matter, this combination reduces rework and supports tighter tolerances. The nominal diameter of Ø220 mm balances capacity and compactness, offering a practical work envelope without excessive spindle overhang. Compact form reduces overhang and vibration An extra-flat profile cuts the distance between spindle nose and clamped workpiece, lowering leverage and minimising vibration. Reduced overhang improves surface finish and lengthens tool life through more stable cutting conditions. The flatter geometry also increases accessibility to close-up features on turned parts, helping to simplify setups on vertical and horizontal lathes where space is constrained. Where stability directly affects cycle times, a compact chuck profile contributes to measurable process improvements. Robust operation that supports shop productivity Designed for dependable daily use, the chuck’s mechanical specification supports repetitive operations in both workshops and small-scale production lines. Its mass, at 12.4 kg, provides inertia that dampens minor disturbances during turning operations. The combination of substantial clamping capacity and a low-profile design helps maintain concentricity across runs, reducing inspection rejects and increasing machine uptime. This results in a rational investment: improved process reliability and fewer stoppages for repositioning. Practical use cases and workshop integration Well suited to general turning tasks, the chuck adapts easily to short-series production, prototyping and maintenance work where quick part changes and repeatability are priorities. The unit is compatible with standard spindle interfaces used on many bench and centre lathes and integrates into existing workholding arrays without the need for specialised fixtures. For workshops consolidating supplies, the product supports a straightforward transition to higher repeatability and lower cycle variance. For reliable high-clamp turning choose the Vertex VNBK-6 with its self-centring, extra-flat design — contact Metav Werkzeuge for personalised advice and rapid supply from Emmerich: info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: VNBK-6 GTIN: 4061905083181 Manufacturer: Vertex eClass: 21020401 Facts Diameter: 220 mm Weight: 12.4 kg Clamping force: 1800 kgf Special features Self-centring design Extra-flat profile SKU: VNBK-6 Thumbnail image available FAQ What is the nominal diameter of the chuck? The VNBK-6 3-jaw lathe chuck has a nominal diameter of 220 mm, suitable for many bench and centre turning applications. Does the chuck centre automatically? Yes, the chuck features a self-centring mechanism that aligns jaws simultaneously to simplify setup and improve repeatability. What clamping force can be expected? The chuck provides a clamping force of 1800 kgf, delivering secure workholding for typical turning tasks. Is the chuck suitable for reducing overhang on small lathes? The extra-flat profile reduces overhang and helps lower vibration, making it a good choice where short spindle-to-workpiece distance is required. Which manufacturer makes this chuck? This workholding device is produced by Vertex and supplied under SKU VNBK-6 as a compact three-jaw lathe chuck. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
220x110x6mm Plastic Holder For VMS-5 Collets, Lightweight 0.2kg - Vertex
Compact and lightweight storage with a focus on organisation and protection: the plastic construction and the compact dimensions 220 x 110 x 6 mm keep VMS-5 collet sleeves ready for use while saving bench space. Order the VMS-5 Plastic Holder directly via Metav Werkzeuge or ask our consultants if needed. VMS-5 Plastic Holder for Collet Sleeves – Compact 220 x 110 x 6 mm by Vertex The VMS-5 Plastic Holder is a compact storage solution for workshop and tooling environments, engineered to keep VMS-5 collet sleeves organised and protected within a small footprint. Durable plastic construction Compact 220 x 110 x 6 mm format Lightweight at just 0.2 kg Designed for VMS-5 collet sleeves Better organisation, less downtime A streamlined storage solution reduces searching and handling time, directly supporting workflow efficiency. The plastic tray is shaped for orderly placement of collet sleeves, enabling quick access and clear separation of tooling. With a compact footprint of 220 x 110 x 6 mm, the tray fits into standard tool cabinets and bench shelving, contributing to a tidier workstation and fewer misplaced parts. This organisation helps to maintain production rhythm and minimise interruptions. Robust protection without bulk Made from resilient plastic, the holder offers protection from knocks and contamination while remaining exceptionally lightweight at 0.2 kg. The low mass minimises stress on storage systems and makes handling effortless during tool changes. The material resists common workshop soiling and is easy to wipe clean, preserving the condition of stored components and reducing maintenance of both holder and tooling. Such protection supports consistent clamping performance and prolongs the service life of precision parts. Easy integration into existing setups The holder is designed specifically for VMS-5 collet sleeves and adapts well to established tool-storage arrangements. Its slim profile saves shelf depth and allows several units to be placed side by side, creating modular storage arrays for different sleeve sizes or types. The simple, functional design requires no additional fixtures and can be combined with bench organisers or drawer inserts to form a compact, efficient storage system that helps maintain order in busy shops. Secure organised clamping storage with the Vertex VMS-5 Plastic Holder — contact Metav Werkzeuge in Emmerich for technical advice and reliable supply. Technical Data Article number: VMS-5 GTIN: 4061905084768 Manufacturer: Vertex Machinery Works Co., Ltd. Material: Plastic Dimensions: 220 x 110 x 6 mm Weight: 0.2 kg Facts Dimensions (L x W x H): 220 x 110 x 6 mm Weight: 0.2 kg ECLASS: 21022190 GTIN numeric: 4061905084768 Special features For collet sleeves: VMS-5 Brand: Vertex Compact, low-profile design Easy-to-clean plastic material FAQ How compatible is the holder with different collet sleeve types? The VMS-5 Plastic Holder is designed specifically for VMS-5 collet sleeves and provides correct seating and separation for that sleeve type, ensuring consistent organisation for compatible tooling. What material is the holder made from and how durable is it? The Vertex VMS-5 plastic holder is manufactured from a resilient plastic that resists workshop dirt and provides impact protection while remaining lightweight for easy handling. Can the holder be used in drawers or on open shelving? The slim 220 x 110 x 6 mm profile makes the holder suitable for both drawer storage and open bench shelving, allowing modular arrangement alongside other workshop organisers. Does the holder require special maintenance? Maintenance is minimal: the plastic surface can be wiped clean with a cloth; the design of the VMS-5 holder avoids crevices that trap debris, simplifying routine upkeep. Is the product identified for ordering by a catalogue number or GTIN? Yes, the holder is listed under article number VMS-5 and GTIN 4061905084768 for straightforward procurement and inventory management. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
22500 Kg Shock Absorber M20x93L Thread, 200x160.5x191mm, 9.32kg - Vertex
Take advantage of the combination of high load capacity, compact installation dimensions and robust mounting to reduce impact loads and extend machine service life. Order the unit directly via Metav Werkzeuge or consult Metav's specialists for tailored mounting advice. Vertex VSA-150K Shock Absorber — 22,500 kg load capacity, M20x93L thread A heavy-duty shock absorber designed for industrial machinery and clamping applications, providing impact damping where high static loads and compact installation are required. High load capacity: 22,500 kg M20 x 93L threaded connection Compact size 200 x 160.5 x 191 mm Longer service life through controlled impact absorption The Vertex VSA-150K acts as a purpose-built damping element that reduces peak loads transmitted to frames and fixtures. With a high load capacity of 22,500 kg, impacts and dynamic shocks are dissipated, which lowers stress on bearings and welded joints and prolongs maintenance intervals. The result is a measurable reduction in unscheduled downtime and a more predictable component lifetime. For engineers, this translates into simplified load calculations and a clear basis for integrating damping into machine safety concepts. Straightforward mechanical integration and secure attachment Designed with a standard M20x93L threaded connection, the absorber offers a familiar mounting interface: M20 refers to a 20 mm metric thread diameter and 93 mm denotes the threaded engagement length. The compact footprint of 200 x 160.5 x 191 mm and a mass of 9.32 kg allow installation in confined spaces without compromising stability. Mechanical integration is facilitated by common tooling and fasteners, enabling robust clamping and repeatable alignment during assembly. The geometry supports both vertical and horizontal arrangements where axial damping is required. Practical benefits for workshop and production environments The device is engineered for continuous operation in industrial settings and complements clamping systems, presses and heavy jigs where impact mitigation is essential. The robust construction and compact form factor make the unit suitable for retrofit projects as well as new machine designs. Installation reduces vibration transmission to substructures and can improve process accuracy by stabilising tool and workpiece interaction. Delivery readiness and clear identification via SKU and GTIN support procurement and inventory tracking in production logistics. Contact Metav Werkzeuge in Emmerich for application advice and to arrange supply of the Vertex VSA-150K shock absorber via info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: VSA-150K GTIN: 4061905083952 Dimensions: 200 x 160.5 x 191 mm Weight: 9.32 kg Thread: M20x93L Facts Maximum load: 22,500 kg ECLASS: 27291201 SKU: VSA-150K Special features Manufacturer: Vertex Product type: Shock absorber Suitable for integration in industrial machinery FAQ What maximum load can the shock absorber handle? The Vertex VSA-150K is specified for a maximum load of 22,500 kg, making it suitable for heavy-duty damping tasks. What does the thread designation M20x93L mean? M20x93L indicates a metric thread with a 20 mm diameter and a 93 mm threaded engagement length for secure mechanical mounting of the VSA-150K. Is the device suitable for retrofit into existing machines? Yes, the compact dimensions and standard M20 thread allow the absorber to be retrofitted into many existing heavy machinery and clamping systems. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
