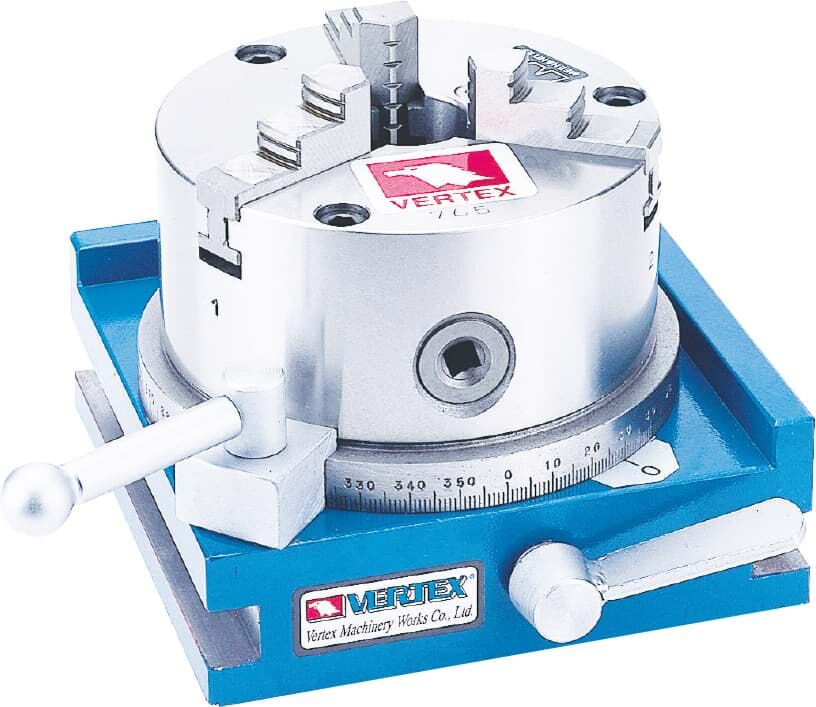

25 mm Indexing Three-Point Workpiece Clamp 120x117x116mm 1° Readout - Vertex
The compact indexing head combines 1° indexing, a 25 mm mounting bore and a rugged 7.5 kg build to deliver repeatable angular positioning with minimal setup time. Benefit from precise, space-saving fixturing that speeds batch and prototype work — order via Metav Werkzeuge or consult the team for specification advice. VSI-3 Indexing Head by Vertex — 25 mm mounting bore, 1° indexing The VSI-3 is a compact parts indexing head designed for precise angular positioning in workshops and small production cells, suitable for fixturing, measurement and light machining tasks. 1° indexing increments 25 mm mounting bore Compact 120 x 117 x 116 mm footprint Robust 7.5 kg construction Accurate angular positioning for repeatable setups The VSI-3 offers 1° indexing, a mechanical step size that enables reliable division of a full rotation into repeatable angular positions. This degree step is displayed as a clear graduations value, which simplifies the selection of common indexing angles without digital aids. The result is improved repeatability during batch operations and reduced time spent on alignment checks. For operations that demand consistent angular locations — such as drilling patterns, inspection stages or light reaming — the precise step increments translate directly into fewer rejects and more predictable throughput. Compact footprint that eases integration into fixtures With external dimensions of 120 x 117 x 116 mm and a standard 25 mm mounting bore, the unit is purposely compact to fit tight fixture layouts and small machine tables. The small envelope supports efficient use of bench or machine table space while enabling straightforward mechanical coupling to existing spindles or adapters. This compactness reduces the need for complex fixturing and helps maintain clear access to the workpiece, making it suitable for both prototyping benches and limited-footprint production cells where space economy matters. Solid mass and construction for stable operation At 7.5 kg, the indexing head provides a substantial, vibration-damping mass that contributes to stable positioning under machining light loads. The noticeable mass and robust design reduce micro-movements during short machining cycles and measurement routines, increasing the quality of each indexed operation. The construction supports frequent cycle usage common in workshop environments, and the mechanical simplicity means maintenance is limited to routine checks and lubrication rather than frequent part replacement. Straightforward handling for faster cycle times The mechanical indexing principle of this head keeps operation intuitive and fast: once mounted via the 25 mm bore, indexing steps are set and locked with minimal tooling. This lowers setup complexity and shortens the time from first part to steady production. The device is particularly suitable where controlled angular positioning is required without the overhead of fully motorised rotary tables — a pragmatic balance of precision and operational speed that fits many small- to medium-scale machining and inspection workflows. Choose Vertex quality for dependable indexing: contact Metav Werkzeuge in Emmerich for technical guidance and procurement of the VSI-3 indexing head to streamline angular positioning in workshop and small production applications Technical data Article number: VSI-3 GTIN: 4061905084973 Designation: Parts indexing head (Teileapparat) Mounting bore: 25 mm Index increments: 1° Dimensions: 120 x 117 x 116 mm Weight: 7.5 kg Facts Weight: 7.5 kg Dimensions (L × W × H): 120 x 117 x 116 mm Mounting bore diameter: 25 mm Index step: 1° Special features Designation: Indexing head (Index) Manufacturer: Vertex eClass: 21020590 SKU: VSI-3 FAQ What indexing resolution does the VSI-3 provide? The VSI-3 indexing head offers 1° indexing increments, enabling reliable division of the full circle into repeatable angular positions for machining and inspection tasks. Which mounting interface is required for installation? The unit uses a 25 mm mounting bore for attachment; the design allows straightforward coupling to compatible spindles or fixture adapters commonly found in workshop setups. Is the VSI-3 suitable for light machining operations? Yes, the VSI-3 indexing head (Vertex, SKU VSI-3) is designed for light machining and fixturing where precise angular positioning and mechanical stability are required. How does the mass of the device affect performance? The 7.5 kg mass improves stability and vibration damping during short machining cycles, which supports consistent positioning and better surface quality in repetitive operations. Can the indexing head be used for inspection and measurement tasks? The compact indexing unit is suitable for inspection and measurement workflows that require repeatable angular steps, offering a robust mechanical basis for comparative checks and staged measurements. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
2500 N Horizontal Toggle Clamp With Hook, 41mm Thread Length, Zinc Plated - Kukamet
Benefit from a compact, galvanised latch clamp that combines a 2,500 N holding force with a low mass of 0.32 kg for reliable fixture retention and easy handling; order the latch clamp directly via Metav Werkzeuge or ask our consultants if needed. Latch Clamp 421 — Horizontal base toggle latch with hook, galvanised, Kukamet The Latch Clamp 421 is a compact horizontal toggle clamp designed for secure fixturing in jigs and fixtures where a hooked closure and reliable holding force are required. Galvanised steel construction for corrosion resistance 2,500 N maximum holding force for secure retention Horizontal base mounting for easy fixture integration Hook closure with 41 mm thread length for adjustment Faster, more reliable clamping for production workflows The compact toggle design delivers consistent clamping action while keeping set-up times to a minimum. With a 2,000 N clamping force and a 2,500 N holding force, this latch provides a clear margin between applied pressure and the force required to resist release, enhancing safety and repeatability on production lines. The horizontal-foot mounting enables stable attachment to fixture plates, while the hook closure secures parts without additional locking elements. These characteristics combine to reduce the need for rework and support predictable cycle times in both small-batch and serial operations. Durable, low-maintenance construction that stands up to shop environments Manufactured from galvanised material, the clamp is protected against corrosion for prolonged service life in workshop and light industrial settings. The lightweight body at 0.32 kg eases handling during assembly or retrofitting of fixtures, yet the component maintains robust mechanical performance. The 41 mm thread length allows fine adjustment of the hook position for precise engagement, making the latch suitable for components with minor dimensional variations. Where longevity and low upkeep are priorities, this latch reduces replacement frequency and maintenance effort. Integrates simply into existing jigs and tooling with predictable behaviour The horizontal base and hooked closure simplify retrofitting into existing tooling arrangements: the mounting foot provides a secure reference, while the lever action ensures quick engagement and disengagement for repetitive tasks. The compact footprint supports dense tooling layouts without obstructing adjacent operations. As a general-purpose toggle latch, it is suitable for clamp-and-release workflows in assembly, fixture building and light manufacturing, offering consistent holding performance and simple mechanical adjustment for process optimisation. For dependable jigs and fixtures, choose the Kukamet Latch Clamp 421 — contact Metav Werkzeuge in Emmerich for purchasing and technical advice at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: 421-3 GTIN: 8680731502596 ECLASS: 21041718 ETIM: EC011973 Numbers / Core technical data Weight: 0.32 kg Clamping force (max): 2,000 N Holding force (max): 2,500 N Thread length: 41 mm Designs / Special features Material: galvanised steel Mounting: horizontal base Closure type: hook SKU: 421-3 With hook: yes FAQ What is the main advantage of this latch for fixture work? The latch offers a compact solution with a 2,500 N holding force, making the Kukamet latch clamp 421 suitable where secure, repeatable retention and quick operation are required. Can the clamp be adjusted to accommodate different part heights? Yes, adjustment is possible via the 41 mm thread length on the hook, allowing the latch to be fine-tuned for slight variations in component height. Is the material suitable for humid or workshop environments? The galvanised construction of the latch clamp 421 provides corrosion resistance, which improves durability in humid or general workshop conditions. How is the latch mounted to a fixture plate? The clamp uses a horizontal base mounting arrangement that provides a stable reference for attachment to fixture plates and jigs. What are the typical applications for this type of toggle latch? Common uses include jigs and fixtures for assembly, light manufacturing and repair benches where a hooked closure and quick, repeatable clamping are needed for process efficiency. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
2500 N Pneumatic Clamp Horizontal Base, 90° Three-Point, Zinc-Plated, Max Hold 9000 N - Kukamet
Take advantage of a galvanised, heavy‑duty design with a pneumatic cylinder for fast, repeatable clamping and a compact 90° orientation that saves fixture space; order reliably via Metav Werkzeuge or consult their specialists for integration advice. Pneumatic toggle clamp 682 — Kukamet, horizontal foot, 2.5 kN cylinder Pneumatic toggle clamp 682 is a pneumatically actuated toggle clamp designed for fixtures and jigs where rapid, consistent clamping is required Pneumatic actuation, 2,500 N cylinder force Horizontal foot for secure fixture mounting Galvanised finish for corrosion resistance Maximum holding force 9,000 N Faster cycles through consistent pneumatic actuation The integrated pneumatic cylinder delivers a controlled actuation impulse with a rated 2,500 N actuation force, producing highly repeatable clamp strokes. This consistency reduces variation between cycles and supports faster machine throughput by replacing manual clamping steps with automated motion. The pneumatic drive is suitable for repeated cycling in production settings and simplifies process timing by providing a predictable clamp response. Secure retention combined with robust corrosion protection A substantial holding force of 9,000 N ensures components remain fixed under load, reducing rework and downtime due to part movement. The galvanised finish protects exposed steel surfaces from corrosion in standard workshop environments, extending service life and preserving clamp geometry for steady clamping accuracy. The compact 90° arrangement helps to position workpieces reliably while maintaining a small footprint on the fixture. Straightforward mounting and low-maintenance operation Fitted with a horizontal foot for direct fixture attachment, this clamp integrates easily into jigs and workholding plates without complex adapters. At approximately 5.59 kg, the unit offers a stable base while remaining manageable for installation or relocation within a production cell. Pneumatic actuation reduces operator exertion and wear on manual levers, contributing to low maintenance demands and consistent cycle performance over time. Contact Metav Werkzeuge for technical selection and dependable supply of Kukamet pneumatic toggle clamps; the Emmerich team will advise on integration, availability and suitable fixture arrangements. Technical Data Article number: 682-4 GTIN: 8680731505139 Brand: Kukamet ECLASS: 21021004 ETIM: EC011973 Facts Weight: 5.59 kg Cylinder force: 2,500 N Maximum holding force: 9,000 N Clamp angle: 90° Special features Material: galvanised With pneumatic cylinder Mounting: horizontal foot Category: Clamps FAQ What forces are specified for actuation and holding? The clamp provides an actuation (cylinder) force of 2,500 N and a maximum holding force of 9,000 N for the Kukamet pneumatic toggle clamp 682-4, indicating strong retention once engaged. How is the clamp mounted to a fixture? Mounting is by a horizontal foot configuration, allowing the unit to be bolted directly to jigs or workholding plates for a stable clamp interface. Does the finish protect against corrosion? The galvanised finish on the Kukamet unit offers enhanced corrosion resistance for workshop and industrial environments, helping to preserve function and service life. What pneumatic supply details are required? The clamp is pneumatically actuated; specific operating pressure and flow requirements depend on the application and should be taken from the product’s technical documentation for safe and efficient use. What routine maintenance is recommended? Regular inspection of pivot points and pneumatic fittings, plus periodic lubrication of moving joints, will help maintain clamping performance and prolong service intervals for the Kukamet pneumatic toggle clamp 682-4. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
25x250 mm Runout Test Mandrel With MK3 Shank Runout Accuracy 0.005 mm, Hardened Gauge Steel DIN 229 - Metav IndustryLine
Take advantage of the combination of industrial-grade runout precision, hardened construction and a compact, serviceable design to ensure reliable spindle alignment and repeatable inspections—order or request advice through Metav Werkzeuge for a smooth integration into the production workflow. Test mandrel MK3 — runout accuracy 0.005 mm, Ø25 × 250 mm (Metav IndustryLine) The Test mandrel MK3 is a precision gauge intended for runout testing and alignment of machine spindles with an MK3 taper, suited to quality control in toolrooms and production workshops. Extremely low runout 0.005 mm Hardened gauge steel construction MK3 Morse taper mounting Conforms to DIN 229 standard Minimise rework with industrial-grade runout control A stable reference shaft with runout accuracy 0.005 mm reduces measurement uncertainty and shortens inspection cycles. The mandrel serves as a repeatable datum for concentricity checks and balancing tasks, meaning faults are identified earlier in the process and costly rework is avoided. In practice, the low radial deviation improves detection of spindle and fixture errors, so quality assurance teams can document true machine condition rather than artefacts of the test setup. The combination of compact diameter and defined usable length provides a clear, measurable standard that integrates easily with existing inspection routines. Robust materials for reliable shop-floor performance Manufactured from hardened gauge steel and produced to DIN 229, the component offers mechanical stiffness that resists wear and deformation during routine handling. The hardened finish sustains dimensional stability across repeated insertions into the spindle taper, which prolongs service life and preserves the calibrated condition of the reference surface. The MK3 taper provides a common, secure interface with conventional spindles and adapters, reducing the need for bespoke fixtures. This robustness translates into fewer interruptions for repair and less frequent replacement, improving uptime on critical machines. Faster alignment and verifiable measurements With a usable shaft of Ø25 × 250 mm and a total length suited to the task, the mandrel balances reach and handling convenience. The weight and geometry aid stable seating in the spindle, supporting faster rough alignment followed by fine adjustment using dial indicators or measuring probes. Using a single, well-specified mandrel for both concentricity checks and alignment tasks streamlines procedures: one tool for runout measurement, balancing setup and verification of collets or chucks. Documentation of results becomes straightforward, supporting traceable quality workflows and supplier audits. Workshop-ready supply and brand assurance Sourced via Metav IndustryLine, this test mandrel benefits from a supplier approach that emphasises accessibility and consistent quality across a broad catalogue. Metav’s handling in Emmerich acts as a quality filter for the European market, offering secure logistics and product availability so that calibration programmes and maintenance schedules remain predictable. For organisations seeking dependable metrology tools without excessive supplier overhead, the combination of certified production standards and Metav’s distribution network supports both procurement simplicity and long-term process reliability. Contact Metav Werkzeuge for application advice or to request the Test mandrel MK3 for integration into production checks—technical consultants are available via info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical Data SKU: M318.933 GTIN: 4054469183923 Type: MK3 Standard: DIN 229 Facts Diameter × usable length: Ø25 × 250 mm Total length: 355 mm Weight: 2.5 kg Runout accuracy: 0.005 mm Special features Material: hardened gauge steel Application: Runout testing and spindle alignment with MK mounting Category: Gauges / Lehren Brand: Metav IndustryLine FAQ What level of runout can be expected from this mandrel? The mandrel delivers a runout accuracy of 0.005 mm as supplied; this specification applies to the Test mandrel MK3 (Metav IndustryLine, SKU M318.933). Is the mandrel compatible with standard spindle tapers? Yes, the tool is supplied with an MK3 (Morse taper 3) interface, allowing secure seating in spindles and adapters designed for that taper. Which material is used for the shaft and why does it matter? The shaft is made from hardened gauge steel, chosen for dimensional stability and wear resistance so that the reference surface remains reliable under repeated use. Can this mandrel be used for both concentricity checks and alignment tasks? Yes, the Ø25 × 250 mm usable shaft and the precise runout make it suitable for concentricity measurement, balancing preparations and spindle alignment operations. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
25x30x19mm Step Block Precision Positioning Block - Vertex
Compact, precision-focused components that support consistent set-up and reliable step clamping are combined with easily verifiable specifications. With a compact footprint of 25 x 30 x 19 mm and repeatable positioning, this element streamlines fixture changes and reduces set-up time. Order directly via Metav Werkzeuge or consult the in-house specialists for tailored procurement guidance. Step Block — Compact, precision clamping element (Vertex) A Step Block for accurate step-height alignment in workholding and fixture applications, designed to simplify repeatable positioning in machining setups Compact dimensions 25 x 30 x 19 mm Precise step alignment for workholding Compatible with standard fixture setups Consistent clamping accuracy for repeatable setups A compact step element delivers measurable benefits for production workflows by improving repeatability during fixture changes. The small footprint and defined geometry ensure that step alignment is consistent from one set-up to the next, reducing the need for fine adjustments. For shops focused on cycle-time reduction and process stability, a well-specified block supports faster changeovers and less scrap, translating into tangible efficiency gains on the shop floor. Space-saving design that speeds fixture changes A reduced component size contributes directly to a more efficient machine table layout, freeing capacity for additional clamps or workpieces. The described 25 x 30 x 19 mm footprint is beneficial where space is constrained or where multiple step heights must be staged close together. By enabling compact stacking and predictable placement, the element helps cut overall set-up time and keeps toolpaths clear, supporting higher throughput without compromising positional control. Traceability, documentation and practical deployment Clear identification and accessible imagery simplify procurement and inspection tasks. The product is supplied with reference images and a technical drawing, facilitating verification against CAD layouts and control plans. Where documentation is required for quality records, the available data points such as GTIN and SKU aid traceability. For integration into existing fixturing systems, planners will appreciate having concise, verifiable specifications to compare with design tolerances. Contact Metav Werkzeuge in Emmerich for specialist advice on the Vertex Step Block (SKU 5114) and to arrange supply tailored to specific fixture requirements via info@metav-werkzeuge.com Technical data Article number: 5114 SKU: 5114 GTIN: 4061905083501 EClass: 21170107 Name: Step Block Brand: Vertex Numbers / Core technical data Dimensions: 25 x 30 x 19 mm Designs / Special features Images and technical drawing available (see product gallery) Compact footprint for dense fixture layouts FAQ What are the exact dimensions of the step block? The Step Block (Vertex, SKU 5114) measures 25 x 30 x 19 mm as stated in the product specification. Is material information provided for this Step Block? Material data is not specified in the available product fields for the Step Block (Vertex, SKU 5114); refer to the product gallery and technical drawing for visual assessment or check the product page for further details. Can this element be used in standard clamping fixtures? Yes, the Step Block (Vertex, SKU 5114) is described for step-height alignment and is compatible with typical fixture setups where compact positioning elements are required. Are there images or technical drawings to assist integration? Yes, the product includes a main image and a technical drawing in the gallery for the Step Block (Vertex, SKU 5114) to support CAD verification and assembly planning. How is the product identified for ordering and traceability? Identification is provided via SKU 5114 and GTIN 4061905083501 for the Vertex Step Block, enabling straightforward procurement and traceability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
280x210x30mm Base Plate for Vertex VHT Vises - Vertex
Take advantage of the robust construction and compact 280 x 210 x 30 mm footprint to secure stable, repeatable clamping in workshop setups; compatibility with Vertex VHT vices keeps tooling lines simple and reduces changeover time. Order the base directly via Metav Werkzeuge or consult the specialists for application advice. HS-4 base for Vertex VHT vices — 280 x 210 x 30 mm compact mounting plate The HS-4 is a precision base plate for Vertex VHT vices, engineered to provide a stable mounting platform and consistent clamping alignment in industrial and workshop environments. Solid base plate 280×210×30 mm Compatible with Vertex VHT vices Robust construction, mass approx. 4 kg GTIN 4061905084249 for easy identification Stable foundation that improves clamping repeatability A solid mounting plate delivers measurable benefits for machining consistency. The 280 x 210 x 30 mm footprint provides a low centre of gravity and a predictable contact area that increases mounting stability, reducing vibration and positional deviation during operations. With a mass of 4 kg, the plate adds inertial damping without excessive bulk, which supports more accurate clamping cycles and fewer reworks. This results in improved throughput and a clearer process window for quality control. Compact design that optimises workshop workflows Space is at a premium in many production environments; a compact base plate can streamline workstation layout. The compact dimensions allow straightforward placement on machine tables or dedicated benches while maintaining access to the vice and tooling. The compact format also simplifies handling during set-up and storage, meaning changeovers can be completed faster and floor space is used more efficiently. The design supports lean workflows and reduces non-productive time in busy shops. Direct compatibility to reduce set-up complexity Compatibility with Vertex VHT vices simplifies integration into existing clamping systems and tool stacks. The base is intended for seamless mounting to Vertex vices, avoiding the need for custom adapters or additional fixturing. This direct fit reduces set-up steps and lowers the risk of errors during assembly, supporting a more reliable process chain from fixture to workpiece. Fewer components in the clamping stack also means simpler inventory management and quicker replacement when necessary. Engineered durability for consistent long-term performance A robust base plate minimises wear-related drift and maintains alignment across repeated cycles, contributing to stable part quality over time. The construction supports routine workshop handling and the demands of daily machining activities while preserving the intended geometry for precise clamping. Choosing a durable mounting solution aids predictability in production and reduces the frequency of adjustments, which is valuable for small-batch work and serial manufacturing alike. Contact Metav Werkzeuge in Emmerich for a compatibility check, technical advice or a tailored quotation — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: HS-4 GTIN: 4061905084249 ECLASS: 21029106 Dimensions: 280 x 210 x 30 mm Weight: 4 kg Manufacturer: Vertex Core data Dimensions: 280 x 210 x 30 mm Weight: 4 kg GTIN: 4061905084249 Compatibility and special features Compatible with Vertex VHT vices Compact mounting plate for machine tables and benches Rapid dispatch indicated in product listing FAQ What are the exact dimensions of the base? The base measures 280 x 210 x 30 mm, providing a compact mounting footprint suitable for machine tables and benches. Which vices are supported by this mounting plate? The plate is designed for use with Vertex VHT vices, enabling direct mounting without additional adapters for most standard VHT vice models. How heavy is the HS-4 base and how does that affect machining? The plate has a mass of approximately 4 kg, which adds useful inertial damping to reduce vibration without making handling unwieldy during set-up. Is the HS-4 suitable for production and workshop use? Yes — the base is engineered for workshop conditions and frequent handling, offering durable support for repeated clamping operations. How can compatibility or suitability be confirmed for a specific machine? Compatibility can be verified with detailed mounting dimensions; Metav Werkzeuge can assist with checks and application advice for the HS-4 base. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
285x263x35mm Base Plate for Vertex VHO Vices, 12.5 kg - Vertex
Stable, compact mounting plate with defined dimensions and a substantial mass for predictable fixture behaviour. Combine the Vertex Base HSO-5's clear sizing and compatibility with Vertex VHO vices to streamline setup and improve process reliability; order via Metav Werkzeuge or consult our technical team for specification support. Vertex Base HSO-5 — Base for Vertex VHO vices, compact stability The Vertex Base HSO-5 is a compact mounting plate designed to provide a predictable and space-efficient platform for Vertex VHO vices in workshop and machine table applications. Compatible with Vertex VHO vices Dimensions 285 x 263 x 35 mm Weight 12.5 kg for stable support Compact footprint for bench mounting Predictable stability that supports accurate clamping A deliberately dimensioned mounting plate delivers a stable platform for fixture and vice assemblies. With overall dimensions of 285 x 263 x 35 mm and a mass of 12.5 kg, the base reduces the tendency to shift under load and aids in maintaining consistent clamping geometry. This predictability simplifies setup routines and shortens machine downtime, making it easier to achieve repeatable alignment without extensive fixturing adjustments. The clear, measured specification supports planning and CAD integration for production layouts. Seamless compatibility for faster workstation integration Designed specifically for use with Vertex VHO vices, the unit allows for straightforward integration into existing benches and tables. The compact footprint supports efficient workshop layout and leaves space for peripheral tooling. Because the plate is purpose-built for these vices, alignment and orientation become repeatable tasks rather than trial-and-error operations, which improves throughput and reduces the need for frequent reworking. Technical drawing and image references are provided to assist in mounting decisions and to verify fit before installation. Procurement confidence and workshop-level quality assurance Sourcing through Metav Werkzeuge brings the advantage of a centralised supply chain and a quality filter based in Emmerich, ensuring that precision components meet European workshop requirements. Metav’s approach to democratising precision means reliable availability and a broad accessory range to complement the base plate. For buyers seeking predictable performance and straightforward logistics, this product combines clear technical data with a supplier experienced in supporting industry and trade. Contact Metav Werkzeuge in Emmerich for tailored advice on integrating the Vertex Base HSO-5 into existing setups or request detailed drawings and order information via info@metav-werkzeuge.com Technical data Article: HSO-5 GTIN: 4061905083655 ECLASS: 21029106 Designation: Base For: Vertex Schraubstöcke VHO Facts Dimensions: 285 x 263 x 35 mm Weight: 12.5 kg Special features Compatibility with Vertex VHO vices Main image and technical drawing available in the gallery FAQ What is the purpose of this base plate? The base plate provides a compact and stable mounting surface for vice assemblies; the Vertex Base HSO-5 is intended to secure Vertex VHO vices and support repeatable fixturing. Will the Vertex Base HSO-5 fit existing Vertex VHO vices? Yes, the component is specified for use with Vertex VHO vices; refer to the supplied technical drawing to confirm hole positions and mounting orientation. How does the weight affect machining stability? The 12.5 kg mass of the plate contributes to a more stable support under clamping loads, reducing movement and helping to maintain consistent alignment during operations with the Vertex HSO-5. Are there images or drawings to verify fit before purchase? Technical drawings and a main product image are included in the gallery to assist with verification of fit and to support planning for installation. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
28mm ER‑16 Collet Chuck For ER Collets With Morse Taper Shank - Vertex
Take advantage of precise clamping with standard ER collets and a compact Ø 28 mm form factor to streamline tooling operations. The combination of ER-16 compatibility, a Morse taper mounting and lightweight design supports fast spindle changes and space-saving setup. Order the component directly via Metav Werkzeuge or contact our consultants for compatibility guidance. V-401 collet chuck — Collet chuck for ER collets, ER-16, Ø 28 mm (Vertex) A V-401 collet chuck engineered for use with ER collets and a Morse taper mounting, providing compact clamping for machine spindles and toolholding operations ER-16 compatibility for standard ER collets Morse taper (MT) mounting for spindle integration Compact Ø 28 mm outside diameter Manufactured by Vertex Consistent clamping for repeatable machining results The compact design delivers precise clamping for short, repeatable toolholding cycles. Compatibility with ER collets and the specified ER-16 size ensures standardised grip across common tooling ranges, reducing setup variation. Explained simply: an ER collet is a segmented sleeve that contracts uniformly around a tool shank when tightened, so the holder transfers torque and axial forces evenly. This makes the system particularly suitable where consistency between multiple operations is required and where quick tool changes improve throughput. Easy integration into Morse taper spindles Designed for machines with a Morse taper mounting, the unit allows straightforward spindle integration without extensive adapters. The Morse taper interface is a long-established spindle standard that provides concentric seating and secure axial positioning; when combined with the ER clamping system it offers both mechanical stability and fast interchangeability. This pairing supports rational workshop workflows by simplifying the transition between different holders and minimising machine downtime. Space-saving, lightweight solution for versatile workshops With an outside diameter of Ø 28 mm and a low mass, the chuck occupies minimal axial and radial space in the spindle, enabling closer tool spacing and improved access in compact setups. The reduced mass contributes to lower inertia during acceleration and deceleration phases, which can be advantageous in high-volume or high-speed sequencing where every gram counts. The construction suits general workshop and industrial environments that value compact, industry-standard toolholding components. For secure and compatible clamping solutions from Vertex, consult Metav Werkzeuge in Emmerich for tailored advice and to confirm spindle compatibility — contact via email info@metav-werkzeuge.com, phone +49 2822 7131930 or WhatsApp +49 170 2837271 Technical data Article number: V-401 GTIN: 4061905083877 Model: Collet chuck (V-401) Facts Outside diameter: 28 mm Weight: 0.2 kg EClass: 21020405 Special features Compatible with ER collets (ER-16) Morse taper mounting for spindle integration Manufacturer: Vertex FAQ Which collet size does this holder accept? The holder accepts ER-16 collets; confirm the required clamping range against the ER-16 specification when selecting tooling. Is the chuck suitable for standard Morse taper spindles? Yes, the unit is specified for a Morse taper mounting intended for direct spindle seating and integration. What is the outside diameter of the toolholder? The outside diameter is Ø 28 mm, making it suitable for compact spindle arrangements. How heavy is the V-401 collet chuck? The V-401 weighs approximately 0.2 kg, facilitating lower rotational inertia in short overhang setups. Who manufactures the component and where is it produced? The component is manufactured by Vertex, listed under the model V-401 and distributed through Metav Werkzeuge for the European market. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
28mm ER-16 Collet Chuck With Steep Taper, Quick-Change – Vertex
Take advantage of the combination of reliable precision clamping and a compact 28 mm footprint for consistently high concentricity in small toolholders. Order directly via Metav Werkzeuge or ask the consultants for compatibility and integration advice. Collet chuck V-741 — ER‑16 steep taper, compact 28 mm diameter, Vertex A collet chuck V-741 designed for secure clamping with ER‑16 collets, suited to precision machining centres and compact toolholders. Steep taper for ER-16 collets Compact 28 mm diameter Robust construction, 1.5 kg weight Precision clamping for concentricity Reliable clamping for repeatable results A compact clamping solution that focuses on precision and repeatability. The steep taper interface and compatibility with ER‑16 collets reduce axial and radial movement, improving concentricity on short tool overhangs. For operations where part tolerances are tight, this type of collet chuck minimises rework by securing tools with consistent grip force; the result is fewer rejects and more predictable cycle times. Technical stability is achieved without complex adjustment, which supports steady production in small-batch and medium-volume environments. Compact footprint with enhanced rigidity The small 28 mm diameter makes the chuck easy to integrate into compact spindles and multi‑tool heads while maintaining mechanical rigidity. The modest mass of 1.5 kg contributes to low rotating inertia, which can help preserve spindle response and balance. The steep taper design increases contact area between the chuck and the collet, converting clamping force into higher stiffness at the cutting edge. This configuration benefits high‑precision finishing and light machining tasks where both space and stiffness are at a premium. Time saving through reduced setup and maintenance Designed for workshop efficiency, the chuck supports fast collet changes and straightforward cleaning, reducing downtime between operations. Improved run‑out stability lowers the need for frequent tool re‑setting and inspection, while the simple mechanical design keeps routine maintenance minimal. For fleet managers and production planners, the predictable behaviour of this toolholder aids scheduling and reduces the total time spent on setup and troubleshooting over the life of the tool. Practical applications and safe handling in everyday use Ideal for small milling, drilling and turning tasks, the chuck suits jobs that demand accurate tool holding in tight spaces. ER collets are versatile: a single collet system accommodates a range of tool shank sizes while maintaining clamping accuracy. The steep taper helps translate axial tightening into uniform radial pressure around the tool shank, which is especially useful when machining short cutters or reamers. For safe operation, ensure collets and tools are clean and undamaged before assembly to retain the declared performance characteristics. Contact Metav Werkzeuge in Emmerich to confirm compatibility with existing toolholders and to arrange supply of the Vertex V‑741; technical consultants are available by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: V-741 GTIN: 4061905084218 Brand: Vertex Data Diameter: 28 mm Weight: 1.5 kg ECLASS: 21020405 Taper: ER-16 Special features Steep taper for ER‑16 collets Compatible with ER collet system Compact design for small toolholders FAQ Which collet series fits this chuck? The chuck is designed for the ER‑16 collet series; Vertex V‑741 accepts ER‑16 collets for a range of tool shank diameters. Is the V‑741 suitable for high‑speed spindles? The V‑741 provides a compact, low‑inertia interface; suitability for high speeds depends on specific spindle limits and balancing of the complete tool assembly. How does the steep taper affect clamping performance? A steep taper improves contact pressure transmission and rigidity, so the Vertex V‑741 delivers consistent clamping force and reduced run‑out in short overhang applications. Can the chuck be used in milling and turning machines? Yes, this collet chuck is appropriate for milling, drilling and light turning in setups where ER‑16 collets and a compact 28 mm holder are required. What should be checked before assembly? Inspect collets and tool shanks for cleanliness and damage; the Vertex V‑741 performs best when components are free of chips and burrs. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
290mm Rod Clamp Push‑Rod Clamp Square Bar 20x25mm Zinc Cast Body 12kN Thrust 29kN Hold - Kukamet
Robust galvanised cast body combined with a 29 kN maximum holding force and a compact square rod 20 x 25 mm results in dependable, repeatable clamping for heavy-duty fixtures; order the Kukamet 534 push-rod clamp directly via Metav Werkzeuge or consult our specialists for integration guidance. Kukamet 534 Push-rod clamp — Galvanised cast body, 29 kN holding force The Kukamet 534 is a horizontal-foot push-rod clamp engineered for secure workholding in metalworking, assembly and fixture applications Galvanised cast body for corrosion resistance Horizontal-foot mounting for stable attachment Square rod 20 x 25 mm for precise guidance 29 kN maximum holding force Secure, measurable clamping for heavy-duty workflows The clamp provides a clear, quantifiable advantage in production settings: 29 kN maximum holding force and 12 kN pressing force ensure consistent retention and contact pressure during machining and assembly operations. This measurable performance reduces slippage and rework, contributing directly to throughput and quality metrics. The numerical specification of holding and pressing forces enables planners to compare units objectively and select the correct device for load-bearing fixtures and jigs. Durable construction that reduces downtime A galvanised cast body and robust mechanical guidance deliver longevity in industrial environments. The square rod 20 x 25 mm offers accurate linear guidance with low play, keeping repeatability tight between cycles. Galvanising protects the main body from corrosion in standard workshop atmospheres, lowering maintenance frequency and part replacement. The unit’s mass (approx. 2.17 kg) balances solidity with manageable handling during fixture changes, supporting efficient workshop routines. Practical operation and adaptation to fixtures Horizontal-foot mounting simplifies attachment to base plates and tooling boards, making the clamp straightforward to integrate into bespoke fixtures. The compact geometry and clear clamping values support modular fixture design and faster set-up times, which improves overall equipment effectiveness. The design is optimised for repeatable actuation and secure retention, supporting safer handling and fewer interruptions in production cycles. Compatibility with common clamping layouts allows straightforward retrofitting into existing workstations. For technical advice or to secure the Kukamet 534 for the workshop, contact Metav Werkzeuge at info@metav-werkzeuge.com or +49 2822 7131930 to discuss specifications and availability Technical data SKU: 534-5 GTIN: 8680731506693 Brand: Kukamet Material: galvanised cast body Weight: 2.17 kg Facts Maximum holding force: 29,000 N Maximum pressing force: 12,000 N Rod cross-section: 20 x 25 mm ECLASS: 21041716 ETIM: EC011973 Special features Horizontal-foot mounting Square rod guidance Galvanised finish Cast main body Category: Clamping devices FAQ What clamping forces can be expected from this model? The Kukamet 534 push-rod clamp provides a maximum holding force of 29,000 N and a maximum pressing force of 12,000 N, values that support secure retention in heavy-duty fixtures. How is the clamp mounted to a fixture? Mounting is by a horizontal foot, which allows stable attachment to base plates and tooling boards for reliable workholding. What material is the clamp body made from? The main body is cast and finished with galvanisation for corrosion resistance and extended service life. What guidance does the rod provide and how large is it? The unit uses a square rod measuring 20 x 25 mm, offering precise linear guidance and reduced play for repeatable clamping cycles. What are the SKU and weight for integration planning? The SKU is 534-5 and the weight is approximately 2.17 kg, information useful for fixture layout and handling considerations. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

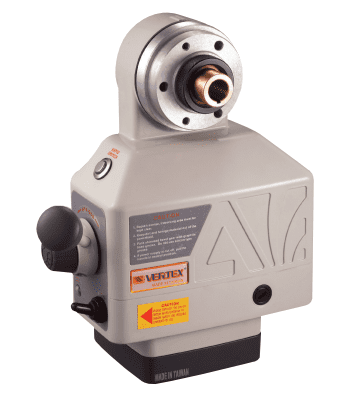

290x200x320mm Table Feed, 4–160 r.p.m. (Max 200 r.p.m.), 650 in/lb Torque - Vertex
The combination of 650 in/lb torque, a variable speed range up to 160 rpm (200 rpm max) and a compact footprint ensures consistent material advancement and reduced manual effort on the workshop table; order the unit directly via Metav Werkzeuge or consult the advisors for application support. VPF-500X Table Feed — 650 in/lb Torque, 110 V supply (Vertex) The VPF-500X is a compact table feed designed to deliver uniform workpiece advancement for machining tasks on milling and drilling equipment. High torque 650 in/lb output Variable speed 4–160 rpm, max 200 rpm Compact 290×200×320 mm footprint Robust 6.3 kg construction for stability Reliable, consistent feed for improved machining quality The rigid design and 650 in/lb torque provide a steady drive force that keeps feed motion uniform under load, which directly contributes to consistent surface finish and reduced rework. The wide variable speed range from 4–160 rpm (with short-term capacity to 200 rpm) allows the feed to be matched to cutting conditions rather than forcing a one-size-fits-all setting. This capability reduces cycle variations, supports repeatable results and lowers the frequency of manual adjustments, promoting higher throughput on batch jobs. Easy installation and compact integration minimise downtime With a compact footprint of 290×200×320 mm and a mass of 6.3 kg, the unit integrates into confined table setups without extensive modification. The standard 110 V supply simplifies electrical connection in many workshop environments and eliminates the need for special power arrangements in most cases. The result is faster commissioning and a quick return to production following fitment, helping workshops maintain operational continuity with minimal installation complexity. Durable construction lowers maintenance needs and increases uptime The feed’s substantial assembly and stable mass dampen vibrations during operation, supporting smoother feed motion and prolonged component life. Rated for routine speeds within its variable range and occasional peaks to 200 rpm, the device is optimised for continuous workshop use while keeping servicing requirements straightforward. The design reduces the risk of feed slippage or inconsistent advance, which translates into fewer interruptions and a longer interval between maintenance cycles. For reliable torque and compact integration choose the Vertex VPF-500X via Metav Werkzeuge; contact Metav Werkzeuge in Emmerich for an application consultation at info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: VPF-500X GTIN: 4061905083945 Manufacturer: Vertex Facts Torque: 650 in/lb Speed: 4–160 rpm, max 200 rpm Dimensions: 290×200×320 mm Weight: 6.3 kg Supply voltage: 110 V eClass: 36609221 Special features Compact table feed design Power feed for milling and drilling applications Robust construction for stable advancement SKU: VPF-500X FAQ What machines is this table feed suitable for? The VPF-500X table feed is intended for installation on milling and drilling tables where controlled, continuous workpiece advancement is required and where the compact footprint suits the available space. How does the variable speed support different machining tasks? Variable speed from 4–160 rpm (with a short-term capability to 200 rpm) allows the feed rate to be matched to cutting parameters and material properties, so operators can optimise feed for finish or stock removal as needed. Is the electrical supply compatible with standard workshop power? The unit is supplied for 110 V, which aligns with common workshop supplies; voltage requirements should be confirmed against local installations before commissioning. What maintenance can be expected for the VPF-500X? Regular checks for secure mounting and occasional lubrication where specified will support long-term reliability; the robust build of the VPF-500X reduces the frequency of repairs and helps maintain consistent feed performance. Can this feed handle heavy-duty production use? Designed with 650 in/lb torque and a stable mass, the feed is suited to repetitive workshop tasks; selection for heavy-duty production should consider specific cycle demands and integration with the machine tool. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
2L Electric Automatic Lubrication Pump, Adjustable Timer 5/10/15/30/60min, 3 Kg/cm² Pressure - Vertex
Reliable automatic lubrication with an adjustable dosing cycle and a 2 L reservoir reduces unplanned downtime and simplifies routine maintenance; order the unit via Metav Werkzeuge or consult the team for tailored advice. Vertex SMA-3 Lubrication pump — Electric automatic, 2 L capacity The Vertex SMA-3 is an electric, automatic lubrication pump designed for scheduled dispensing in workshop and light industrial environments. Electric automatic lubrication pump, 2 L capacity Adjustable dosing interval: 5/10/15/30/60 min Operates at 3 kg/cm² pressure Dual supply voltage 110 V / 220 V Consistent lubrication for longer machine life Automated dosing keeps contact surfaces lubricated at regular intervals, reducing friction and wear and extending service intervals. The unit includes a 2 L reservoir that lowers refill frequency and an adjustable dosing regime with settings every 5, 10, 15, 30 or 60 minutes, enabling tailored lubrication cycles for varying workloads. The 3 kg/cm² pressure rating supports reliable lubricant delivery across common point-of-use greasing systems, providing a measurable, efficient way to protect bearings and sliding guides. Flexible installation and simple electrical integration The pump accepts both 110 V / 220 V, so it adapts to different site supplies without additional transformers. Its 1.8 kg weight and compact footprint (158 × 108 × 201 mm) make it straightforward to position close to the lubrication points or to mount in confined spaces. The electric automatic operation removes manual dosing tasks from daily workflows and integrates easily into existing maintenance routines, offering consistent performance with minimal user intervention. Easy upkeep and dependable supply chain Maintenance is kept simple: the transparent scheduling and the adjustable frequency settings reduce monitoring effort and ensure continuity. Replenishing lubricant is straightforward thanks to the accessible reservoir design, and the unit’s modest size supports quick replacements where needed. Metav’s presence in Emmerich acts as a regional quality filter and supply partner, combining wide product availability with consistent logistics to keep workshops reliably supplied. Choose the Vertex SMA-3 for dependable automatic lubrication — contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 for precise ordering and fast dispatch Technical data Article number: SMA-3 GTIN: 4061905084751 Manufacturer: Vertex ECLASS: 23069090 Core specifications Capacity: 2 L Pressure rating: 3 kg/cm² Supply voltage: 110 V / 220 V Weight: 1.8 kg Dimensions (W × D × H): 158 × 108 × 201 mm Special features Electric and automatic operation Frequency adjustable every 5/10/15/30/60 min Compact, lightweight design Designed for scheduled workshop lubrication FAQ How often can the pump be programmed to dispense lubricant? The Vertex SMA-3 lubrication pump provides adjustable intervals of 5, 10, 15, 30 or 60 minutes to suit different application demands. What reservoir volume does this unit provide? The unit has a 2 L reservoir, which reduces refill frequency for routine maintenance cycles. Which supply voltages are supported? The pump supports both 110 V and 220 V operation, allowing flexible installation across different electrical systems. What delivery pressure can be expected from the pump? The pump is specified for operation at 3 kg/cm², ensuring consistent lubricant flow for common greasing points. Is the SMA-3 suitable for compact installations? Yes; the SMA-3’s compact dimensions and 1.8 kg weight make it well suited to confined workspaces and close-to-application mounting. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
2x VSJ-70A & 2x VSJ-150A Clamp Screw Set 64x28x12 / 100x32x19 / 150x32x22 M12 Thread - Vertex
Take advantage of a compact, compatible clamping solution that combines standard M12 thread connectivity with a varied selection of jaw widths for flexible fixturing. Benefit from immediate workshop readiness and central European stock handling via Metav Werkzeuge. Vertex VCK-1264 Clamping screws and screw vice set, M12 thread A Clamping screws and screw vice set intended for modular clamping and fixture tasks in general workshop and light industrial applications Complete 10-piece clamping set M12 threaded components for system compatibility Includes VSJ-70A and VSJ-150A screw vices Three jaw widths for versatile clamping Faster, modular fixturing for shop throughput The set is arranged as a 10-piece set that pairs two VSJ-70A and two VSJ-150A screw vices with six clamping screws in three sizes (64×28×12 mm, 100×32×19 mm, 150×32×22 mm). This composition supports rapid changeovers on modular fixture plates where M12 thread standardisation simplifies insertion, adjustment and repositioning. For operations that demand repeatable set-ups, the mix of vice sizes and screw lengths reduces the number of bespoke parts required, helping to maintain a steady production rhythm and shorter machine downtime. Reliable repeatability and secure workholding Standardised threading and a selection of jaw widths make consistent clamping pressure easier to achieve across different workpiece profiles. The inclusion of both compact and larger screw vices allows secure holding of small components as well as more substantial parts without swapping entire assemblies. By using proven mechanical principles in the screw vice design, the set offers repeatable clamping that aids accuracy during milling, drilling and light machining tasks, thereby supporting predictable quality outcomes. Practical workshop benefits and supply confidence At a total weight of 4.2 kg, the set remains portable for bench use yet robust enough for repeated handling. Supplied as a coordinated assortment, the components reduce procurement complexity and minimise the need for multiple suppliers. Metav Werkzeuge operates a European quality filter from Emmerich, offering central stock and dependable logistics; this localised supply chain helps ensure steady availability of standard items such as this clamping kit, contributing to smoother project planning and fewer interruptions. Contact Metav Werkzeuge for advice on configuring the Vertex VCK-1264 set to specific fixturing systems or to reserve stock from our Emmerich warehouse via info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: VCK-1264 GTIN: 4061905084706 ECLASS: 21022190 Manufacturer: Vertex Facts Weight: 4.2 kg Thread: M12 Pieces per set: 10 Set: yes Special features Contents: 2× VSJ-70A, 2× VSJ-150A, 2× clamping screw 64×28×12 mm, 2× clamping screw 100×32×19 mm, 2× clamping screw 150×32×22 mm Brand: Vertex SKU identifier: VCK-1264 FAQ Is this set suitable for use with modular fixture plates? The clamping screws and screw vice set (Vertex VCK-1264) uses an M12 thread, making it suitable for many modular fixture plate systems that accept M12 fastenings. What items are included in the set? The VCK-1264 set contains two VSJ-70A and two VSJ-150A screw vices plus six clamping screws in three sizes (64×28×12 mm, 100×32×19 mm, 150×32×22 mm), supplied as a coordinated 10-piece kit. Can the set handle both small and larger workpieces? Yes; the combination of compact and larger screw vices in the Vertex VCK-1264 provides flexible clamping options for a range of component sizes. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
6 mm Air Straight Grinder 22,000 rpm, Lightweight 0.6 kg - Vertex
Take advantage of the combination of high rotational speed, compact design, and lightweight handling for faster job cycles and reduced operator fatigue. Order the tool directly via Metav Werkzeuge or consult our specialists for tailored advice and availability. Vertex VAG-604 Pneumatic straight grinder — 22,000 r.p.m., lightweight 0.6 kg The Vertex VAG-604 pneumatic straight grinder is a compact, high-speed tool designed for precision surface finishing and deburring tasks in busy workshops and production cells High speed: 22,000 r.p.m. for efficient grinding Lightweight design at 0.6 kg for reduced operator fatigue Compact length 175 mm fits tight workspaces Faster finishing through high-speed pneumatic drive The pneumatic drive coupled with a top rotational speed of 22,000 r.p.m. delivers consistent material removal rates that shorten cycle times and increase throughput. As a cost-effective straight grinder, it is aimed at workshops and production environments where reliable, repeatable performance counts. The free-running speed is particularly beneficial for tasks such as light surface preparation, deburring and smoothing of welded seams, where the high rpm reduces the number of passes required and therefore the overall processing time. Ergonomic form that eases daily use With a weight of only 0.6 kg and a total length of 175 mm, the grinder offers a compact envelope that improves access in confined areas and reduces operator strain during prolonged use. The reduced mass assists in steady handling and better control when working on small components or intricate surfaces. This ergonomic balance supports smoother work sequences, helping teams to maintain consistent quality over longer shifts without sacrificing comfort or control. Robust workshop fit and straightforward integration The tool’s pneumatic design ensures straightforward integration into established compressed-air tool fleets and offers proven resilience under continuous operation. The 6 mm collet capacity provides compatibility with a wide range of small-diameter grinding and sanding accessories commonly used for finishing tasks. As a reliable Vertex product, the VAG-604 represents a practical option where affordability and dependable performance are required, making it suitable for metalworking shops, maintenance departments and production lines seeking a compact straight grinder. Choose the Vertex VAG-604 for efficient, ergonomic finishing—contact Metav Werkzeuge in Emmerich for availability and expert guidance. Technical data Article number: VAG-604 GTIN: 4061905085079 Brand: Vertex Product type: Pneumatic straight grinder ECLASS: 21060101 Facts Speed: 22,000 r.p.m. Weight: 0.6 kg Length: 175 mm Collet capacity: 6 mm Special features Pneumatic operation Cost-effective model Compact design for confined spaces Suitable for finishing and deburring tasks FAQ What is the maximum speed of the tool? The Vertex VAG-604 pneumatic straight grinder runs at 22,000 r.p.m., offering high-speed operation for efficient finishing. What collet diameter does it accept? The VAG-604 features a 6 mm collet capacity suitable for small grinding and sanding accessories. How heavy and how long is the grinder? The Vertex VAG-604 weighs 0.6 kg and has a length of 175 mm, designed for comfortable handling and access in tight areas. What type of drive does this tool use? This model is pneumatically driven, making it compatible with standard compressed-air tool setups. Which product identifiers are relevant for ordering? Refer to the SKU VAG-604 and GTIN 4061905085079 when enquiring about the Vertex pneumatic straight grinder Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
3-Backen Spannfutter, selbstzentrierend
Im Lieferumfang enthalten: 2 Sätze aus soliden Backen
7kg Horizontal Base Quick-Action Toggle Clamp, Screw Clamp Style, 1000N Thrust / 2500N Holding - Kukamet
The robust combination of galvanised construction, a horizontal foot for secure mounting and a 2,500 N holding force ensures stable, repeatable clamping in production and workshop environments. Order the quick clamp directly via Metav Werkzeuge or consult our specialists for specification support. Kukamet 811 Quick Clamp — galvanised lever clamp with horizontal foot and 2,500 N holding force The Kukamet 811 Quick Clamp is a lever-operated clamping solution designed for industrial fixturing and heavy-duty workshop applications, offering reliable holding capacity and corrosion-resistant construction. Galvanised steel construction for corrosion resistance Horizontal foot mounting for secure bench attachment 2,500 N maximum holding force for heavy fixtures 1,000 N clamping force for reliable pressure Robust 7 kg body for stable clamping Durable construction for long service life The clamp is built from galvanised steel, providing corrosion protection where wet or variable environments occur; this surface finish reduces maintenance intervals and extends component lifetime. The heavy-bodied design contributes to stable clamping, minimising vibration during machining or assembly. With a focus on robustness rather than lightweight convenience, this tool suits benches and jigs where permanence and strength are priorities. Consistent performance and measurable holding power Engineered for repeatable results, the device delivers a holding force of 2,500 N and a clamping force of 1,000 N, values that support securing medium to heavy workpieces without slipping. These numerical specifications enable planners and engineers to assess suitability for specific setups and calculate safety margins. Where repeatability is required across multiple cycles, the lever mechanism gives consistent clamp pressure with straightforward visual verification. Practical mounting and ergonomic operation A horizontal foot attachment provides a low-profile mounting option that integrates easily into fixture plates and workbenches, keeping the clamp body clear of overhead interference. The lever-operated action allows rapid engagement and release, reducing cycle times in repetitive tasks. Because the unit is supplied as a self-contained clamp, installation involves simple bolting to the work surface and immediate commissioning for production use. Typical applications and compatibility Designed for general workshop and industrial fixturing, the clamp is suitable for use in assembly jigs, test rigs and fixture systems where a dependable quick-action hold is needed. The screw-clamp style configuration gives compatibility with screw-jawed fixtures and standard bench arrangements. Its sturdy mass and mounting method make it a practical choice for permanent or semi-permanent setups that demand continuous, reliable clamping. Speak to Metav Werkzeuge about specifying the Kukamet 811 Quick Clamp for robust, repeatable fixturing — contact our consultants at info@metav-werkzeuge.com or call +49 2822 7131930 for tailored advice Technical Data SKU: 811-1 GTIN: 8680731504224 eClass: 21020701 ETIM: EC011973 Facts Weight: 7 kg Maximum holding force: 2,500 N Maximum clamping force: 1,000 N Special features Material: galvanised steel Mounting: horizontal foot Clamp type: screw-clamp style / lever-operated Category: quick clamp / lever clamp FAQ What maximum holding force does the clamp provide? The Kukamet 811 Quick Clamp provides a maximum holding force of 2,500 N, suitable for medium to heavy workpieces in fixture applications. Is the clamp suitable for use in humid or corrosive environments? Yes, the galvanised steel construction of the Kukamet 811 offers enhanced corrosion resistance for use in environments with elevated humidity or occasional exposure to moisture. How is the unit mounted to a workbench or fixture plate? The clamp mounts via a horizontal foot that is bolted to the workbench or fixture plate, providing a low-profile and secure attachment. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

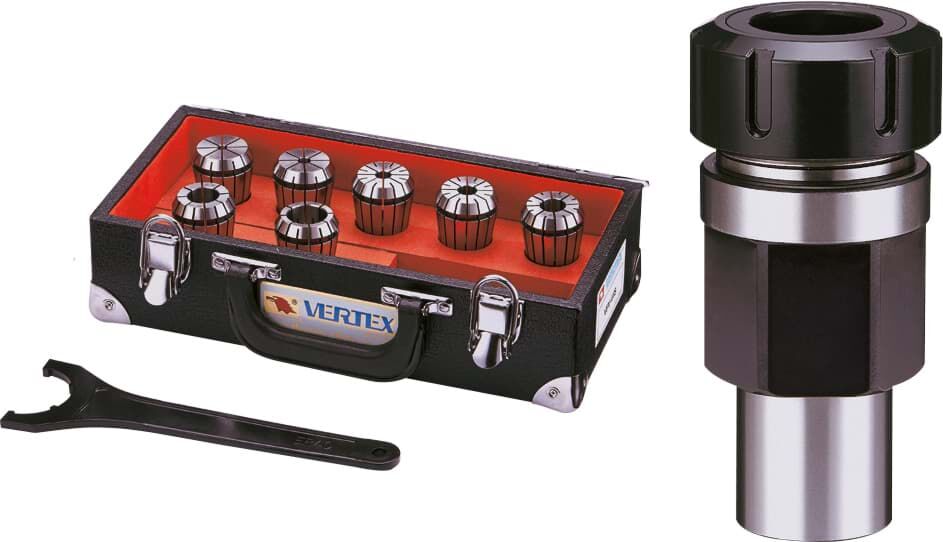

30mm ER40 Collet Set 7-Piece Hexagonal, 127mm Height - Vertex
Take advantage of a compact, workshop-ready collet solution that combines precise ER-40 clamping, a 30 mm holder for reduced runout and stable machining, plus a robust storage concept for safe transport. Order the set directly via Metav Werkzeuge or request advice from our consultants for application-specific guidance. VFV-40H Collet Set — Vertex ER-40 kit with 30 mm holder and hexagonal case The VFV-40H is a Vertex collet set designed for ER-40 clamping in machining and toolholding applications, optimised for stable runs and organised workshop storage. Vertex ER-40 compatibility for standard toolholders 30 mm precision holder for stable runs Hexagonal storage case for secure transport Solid build for consistent clamping force Consistent concentricity for repeatable machining results A well-maintained collet system delivers measurable improvements in part quality. The combination of ER-40 collets and a 30 mm holder reduces radial runout, which in turn keeps tool centres aligned and minimises dimensional scatter. This means fewer rejects and less rework when producing components that require tight tolerances. The design focuses on reliable precision during medium- to high-speed spindle work, so machining accuracy becomes a predictable part of daily production. Organised storage that speeds up workflow and protects tooling Efficient tool change and safe storage reduce downtime. The kit’s hexagonal case keeps collets secure and arranged for fast selection, lowering the time spent searching for the correct item during shift changes. A robust case construction and the overall 4.8 kg set weight signal a durable product that travels well between workstations. Organised storage not only protects the collets but also preserves clamping accuracy by preventing damage that could otherwise increase runout. Broad compatibility explained simply for everyday use ER-40 collets are a widely used standard for gripping tool shanks and small cutters. The collet’s taper compresses axially in the chuck, creating uniform radial pressure on the tool shank; this is why ER-40 collets are favoured for their balance of clamping range and precision. Compatibility with standard toolholders makes the kit suitable for spindle-mounted milling, drilling and reaming operations where a steady grip is essential. No specialist adapters are required for standard ER-40 chucks. Durability and reliable clamping for long-term performance A consistent clamping force preserves tool life and reduces runout-related wear on bearings and cutters. The set is manufactured to Vertex quality standards, providing dependable performance across repeated cycles. Proper assembly and periodic cleaning of the collets ensure long service life; debris-free contact surfaces help maintain clamping accuracy and protect both the machine and the tooling investment. For precise, dependable clamping solutions from Vertex, contact Metav Werkzeuge in Emmerich am Rhein to request the VFV-40H collet set and receive expert advice tailored to the application Technical Data Article number: VFV-40H GTIN: 4061905083686 Manufacturer: Vertex Facts Weight: 4.8 kg Height: 127 mm Holder diameter: 30 mm Special features Content: 7x ER-40 collets Case: Hexagonal ECLASS: 21022190 FAQ What does the VFV-40H set contain? The VFV-40H collet set contains a complete range of ER-40 collets supplied in a hexagonal storage case for organised handling and transport. Which holder diameter is supported by this set? The set is configured for a 30 mm holder diameter, providing reduced runout and stable clamping for compatible spindles and chucks. Are these ER-40 collets compatible with standard toolholders? Yes, the ER-40 collets in the set are compatible with standard ER-40 toolholders and chucks commonly used in milling and drilling spindles. How does the case support workshop efficiency? The hexagonal case included with the set keeps collets organised and protected, reducing selection time and preventing damage that could affect concentricity. Is maintenance required to keep clamping accuracy? Routine cleaning and inspection of contact surfaces will maintain clamping accuracy; the VFV-40H benefits from regular care to extend service life. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
30 mm Vertical Assembly Aid DIN 69871A - Vertex
Vorteile aus einer präzisen Montage: die Kombination aus DIN 69871A-Konformität, einer 30 mm Schnittstelle und stabiler Bauweise sorgt für schnelle, wiederholbare Werkzeugwechsel und reduzierte Rüstzeiten. Bestellungen und technische Abstimmungen können direkt über Metav Werkzeuge erfolgen oder über die Beratung telefonisch geklärt werden. VTS-SK30 Vertical Assembly Aid — SK30 interface, DIN 69871A A VTS-SK30 vertical assembly aid designed for secure, standard-compliant mounting and repeatable tool setup in industrial workshop environments Vertical assembly aid for SK30 tooling Compatible with DIN 69871A standard 30 mm interface for secure mounting Stable 11.9 kg base for reduced vibration Faster, more reliable set‑ups through standardised interfaces The VTS-SK30 is conceived to accelerate machine preparation by using a DIN 69871A interface and a 30 mm interface dimension that match established tooling systems. The standardised connection minimises fitting uncertainty and shortens calibration intervals, which directly improves throughput and reduces non-productive time. For production planners this means measurable gains in line efficiency and fewer interruptions for tool realignment. The device delivers a reliable mechanical datum for tool positioning, translating to consistent machining results. Minimise errors with a proven SK30-compatible solution Compatibility with the SK30 tool family ensures interchangeability across machines and fixtures that follow the same standard. The adherence to accepted norms removes guesswork during maintenance and when swapping holders, so rework due to misalignment is reduced. For workshops moving between job types, the standardised interface simplifies inventory management and supports predictable quality control, underpinning a rational, cost-effective workflow. Stability and durability for everyday workshop demands A substantial mass of 11.9 kg provides the stabilising influence required for accurate assembly and reduces susceptibility to vibration during handling. The robust build contributes to long service life and dependable positioning under repeated use. This solidity supports precise tool seating and lessens the need for frequent checks, thereby saving technician time and lowering total cost of ownership across shop floors that demand continuous operation. Procurement and long-term value through a trusted partner Sourcing through Metav Werkzeuge brings the practical benefit of a European distribution and a quality filter based in Emmerich. Metav’s offering is built on the principle of making high‑precision equipment accessible: over 48,000 customers rely on the supplier’s consistency and breadth of inventory. For purchasing managers this combination of a standard-compliant component and a reliable supply chain represents a strategic, low-risk investment that supports maintenance planning and spares provisioning over the life of the equipment. Contact Metav Werkzeuge in Emmerich for tailored procurement and technical advice regarding Vertex SK30 components and workshop integration. Technical data Article number: VTS-SK30 GTIN: 4061905083440 Manufacturer: Vertex Machinery Works Co., Ltd. Eclass: 21029203 Core specifications Shank diameter: 30 mm Weight: 11.9 kg Standard: DIN 69871A Features & compatibility Vertical assembly aid Interface for SK30 tooling Compatible with DIN 69871A standard FAQ Is the assembly aid compatible with standard SK30 tool holders? The VTS-SK30 is built for SK30 interface systems and connects via a DIN 69871A-compliant mounting for reliable interchangeability. What does DIN 69871A mean for workshop use? DIN 69871A defines the tool-holder taper and mounting dimensions; the VTS-SK30 follows this norm to ensure consistent seating and positioning across compliant machines. How does the weight affect handling and stability? A mass of 11.9 kg provides a stable base that reduces movement during assembly, improving repeatability and lowering the likelihood of misalignment. Can the device support frequent tool changes in a production environment? Yes, the vertical assembly aid is intended for regular use in workshop and production settings, offering dependable positioning that streamlines recurring tool changes. Is this suitable for integration into existing maintenance routines? The product’s standardised interface and robust design make it straightforward to include in scheduled maintenance and spares management programmes. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Hand Schmiermittelpumpe
Technische Daten: Bezeichnung: Hand Schmiermittelpumpe VHM Abmessung: 100x110mm - 98x107mm Gewicht: 0,7 kg bis 1,6 kg Typ: Mit Hebel, Niederdrücken (Hebel links), Niederdrücken (Hebel rechts), Niederdrücken (für Fett), Niederdrücken (für Maschinenöl), Ziehen links, Ziehen rechts Kapazität: 230c.c - 800c.c Druck: 100 Kg/cm² bis 60 Kg/cm² Abgesetzte Menge: 1-8c.c/st bis 8c.c/st Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren. Vertex, der Hersteller in einigen Worten: Seit 1978 ist VERTEX der größte Hersteller für Maschinenteile in Taiwan. Mit einer beeindruckenden Produktionsfläche von über 15000 m² ist VERTEX in der Lage, große Mengen hochwertiger Maschinenteile herzustellen, um den Bedürfnissen der Kunden gerecht zu werden. Das Unternehmen hat sich auf Forschung und Entwicklung spezialisiert und ist stets bestrebt, innovative Designs zu entwickeln. Die hohe Lagerverfügbarkeit von 98% aller Artikel stellt sicher, dass die Kunden schnell und effizient bedient werden können. VERTEX hat sich einen hervorragenden Ruf aufgebaut, indem es qualitativ hochwertige Produkte liefert und gleichzeitig erstklassigen Kundenservice bietet. VERTEX ist der vertrauenswürdige Partner für Maschinenteile in Taiwan.

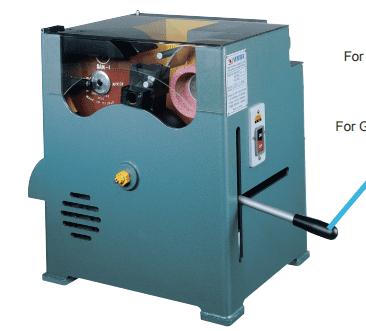

300mm Precision Cut And Grind Machine For Round Bars, 3600rpm, Accuracy 0.1mm - Vertex
Take advantage of the combination of high rotational speed and precision accuracy to maintain a steady production flow with minimal rework; the compact footprint and robust construction support stable processing of round bars. Order the VEC-300G directly via Metav Werkzeuge or ask our consultants if needed. Vertex VEC-300G Precision cutting and grinding machine — 3600 rpm, compact footprint The VEC-300G is a precision cutting and grinding machine for round bars, engineered for accurate end finishing and efficient throughput in small to medium production settings High-speed 3600 rpm for efficient machining Compact footprint 600x550x660 mm for tight spaces Accuracy 0.1 for repeatable results Robust 89 kg construction for reduced vibration Consistent throughput through engineered speed and control The unit combines a 3600 rpm spindle with a design focused on steady material feed to maximise throughput without compromising finish quality. High rotational speed reduces cycle times on short cuts, while the machine's mechanical stability maintains consistent results during repetitive operations. For manufacturers, this translates into predictable output and fewer interruptions, supporting lean workflows and improved capacity planning. Stable support and compact installation save workshop space With a compact footprint of 600x550x660 mm and a machine mass of 89 kg, the system occupies little floor area while offering a stable processing platform. The substantial weight dampens vibrations that commonly cause surface imperfections on turned or ground faces, so operators benefit from a cleaner finish and less time spent on rework. This configuration is particularly advantageous where floor space is limited but component quality must remain high. Accurate finishing and simple interpretation of results The machine delivers an accuracy 0.1, providing a reliable baseline for dimensional control when preparing round bars for assembly or secondary operations. Accuracy in this context means reproducible results across batches, reducing downstream inspection time and scrap. Technical terms such as accuracy and rotational speed are presented here to clarify how the machine influences part tolerance and surface quality for teams that may not be familiar with machining metrics. Practical design for production and workshop environments Designed specifically for round bars, the unit integrates functions for cutting and subsequent surface refinement in one compact station. This reduces handling between machines and shortens the overall process chain. The combination of precision capabilities and a small installation footprint supports both small workshops looking to upgrade capabilities and production lines needing a reliable periphery machine to maintain part conformity. Contact Metav Werkzeuge today to discuss how the Vertex VEC-300G's high-speed precision and compact design can be integrated into current production workflows and to arrange tailored advice from our consultants. Technical Data Article number: VEC-300G GTIN: 4061905084829 Manufacturer: Vertex Facts Dimensions: 600x550x660 mm Weight: 89 kg Speed: 3600 rpm Accuracy: 0.1 Special features Precision cutting and grinding for round bars Compact footprint suitable for benchtop or small shop installations Robust construction for reduced vibration and improved surface finish FAQ What materials can be processed with this machine? The VEC-300G is specified for cutting and grinding of round bars; material compatibility should be verified against tooling choices and operational parameters for each application. How does the machine's accuracy affect production quality? An accuracy rating of 0.1 supports consistent dimensional results, which reduces inspection time and the need for corrective machining on subsequent operations. Is the VEC-300G suitable for small workshops? Yes, the compact dimensions and integrated cutting-plus-grinding design make it well suited to shops with limited floor space that require precise finishing capability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
300mm Runout Test Mandrel SK50 Ø40 Hardened Gauge Steel 0.002mm Runout, DIN ISO 7388-1 - Metav IndustryLine
Take advantage of ultra‑fine runout control and robust construction to keep spindle alignment and inspection reliable; the combination of 0.002 mm runout accuracy, hardened gauge steel and DIN ISO 7388‑1 conformity ensures consistent measurement results. Order the control mandrel via Metav Werkzeuge or consult the technical team for tailored advice. Control Mandrel SK 50 (SK50‑D40‑300L) – 0.002 mm runout accuracy, hardened gauge steel The Control Mandrel SK 50 is a precision checking mandrel for runout inspection and alignment of machine spindles with an SK50 taper, designed for demanding workshop and inspection applications. 0.002 mm runout accuracy Hardened gauge steel, HRC 58 SK50 taper for spindle alignment Compliant with DIN ISO 7388‑1 Reduce rework with micrometre‑grade runout control The mandrel offers a guaranteed runout accuracy of 0.002 mm, which translates into measurable reductions in rework and setup time when aligning spindles or verifying chuck concentricity. Constructed from hardened gauge steel, the shaft resists wear and preserves datum integrity over repeated use; the specified HRC 58 hardness supports long service life and repeatable contact conditions. For inspection routines that demand repeatability, the low runout figure and documented cylindricity <0.003 mm provide a solid basis for process decisions and traceable quality assurance. Practical benefits for alignment and inspection workflows The SK50 taper and a nominal shaft diameter of Ø40 mm give the mandrel direct compatibility with standard SK50 spindle noses and holding fixtures, simplifying insertion and removal during alignment tasks. With a working length of 300 mm, the mandrel balances reach and stiffness to enable accurate checks across typical spindle depths without excessive deflection. The robust mass (approx. 8 kg) contributes to stable seating during measurement, reducing vibration sensitivity and supporting faster, more confident adjustments in the machine tool environment. Designed for workshop durability and certified form Engineered to the DIN ISO 7388‑1 standard, the mandrel is produced and finished to the tolerances expected in professional metrology environments. The hardened finish and controlled geometry make the mandrel suitable as a reference shaft for concentricity and runout verification, and the documented features support integration into formal inspection plans. Where traceability and conformity matter, the mandrel’s specifications allow straightforward documentation within existing quality systems. For reliable spindle alignment and reproducible runout checks, choose the Metav IndustryLine Control Mandrel SK 50 (M318.975) — contact Metav Werkzeuge in Emmerich for technical consultation and ordering at info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: M318.975 GTIN: 4054469184722 Type: SK50‑D40‑300L Label: Control Mandrel SK 50, L = 300 mm, runout accuracy 0.002 mm Facts Runout accuracy: 0.002 mm Cylindricity: <0.003 mm Length (usable): 300 mm Diameter: Ø40 mm Weight: 8 kg Hardness: HRC 58 Standard: DIN ISO 7388‑1 Special features Material: hardened gauge steel Application: runout inspection and spindle alignment with SK50 taper Mount: SK50 Finish: hardened, precision ground FAQ What applications is this mandrel intended for? The mandrel is intended for runout inspection and alignment of machine spindles and chucks; the SK50 taper makes it suitable for SK50‑mount spindles and fixtures, as specified for the Control Mandrel SK 50 (M318.975). How precise is the runout performance? Runout performance is specified at 0.002 mm, providing high precision for verification tasks where concentricity and minimal eccentricity are critical. Is the mandrel suitable for regular workshop use? Yes. The hardened gauge steel construction and HRC 58 rating mean the mandrel is built for repeated workshop use while maintaining measurement integrity. Does the mandrel comply with recognised standards? The product is manufactured to conform with DIN ISO 7388‑1, ensuring its geometry and tolerances meet established industry requirements. What are the key dimensional data to consider when selecting this mandrel? Key dimensions are a shaft diameter of Ø40 mm, usable length of 300 mm and SK50 mount; total weight is approximately 8 kg, which aids stable seating during inspection. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

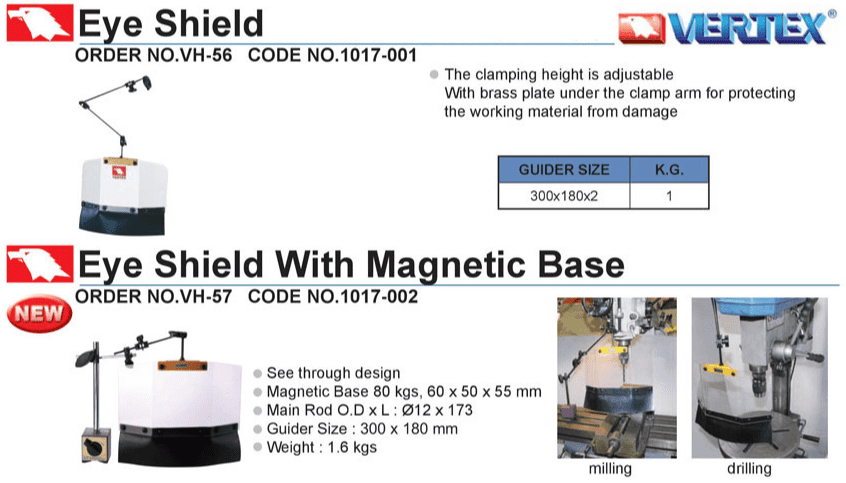

300x180x2mm Face Shield Clear Anti-Scratch Splash Protection, Vertex
Take advantage of the combination of robust construction, clear dimensional specifications and practical workshop suitability for consistent eye protection. The result is a dependable barrier that supports safe operations; order the VH-56 face shield directly via Metav Werkzeuge or consult our advisors for further details. Vertex VH-56 face shield — compact 300 x 180 x 2 mm visor for workshop eye protection The VH-56 face shield provides a straightforward solution for basic eye protection in workshop and industrial environments, offering a compact footprint and a sturdy-sounding visor design to assist everyday safety routines. Vertex VH-56 face shield 300 x 180 x 2 mm Solid 2 mm visor construction Compact format for limited spaces Weight approx. 1 kg for robust handling Robust barrier with clearly stated dimensions for planning The 300 x 180 x 2 mm visor specification delivers a measurable reference for storage, mounting or compatibility checks in workshop planning. With a 2 mm thickness stated, the shield provides a tangible physical barrier that can be relied on to reduce direct splash and particulate exposure in routine tasks; the explicit dimensions support procurement and layout decisions by giving engineers and buyers clear, comparable data. The listed mass of 1 kg further informs handling requirements and fixture choices without ambiguity. Compact design that fits constrained workspaces A compact footprint simplifies integration into crowded benches or assembly lines where space is at a premium. The described format makes it possible to allocate storage and transport space with confidence while maintaining eye protection in areas where larger systems would be impractical. This practical geometry supports continuity of work processes by reducing the need for special accommodation and by making the shield a sensible addition to standard personal protection equipment inventories. Practical handling and dependable provenance Marked with the Vertex brand and SKU, the product’s identification supports traceability and stock management. The clear labelling enables systematic inventory control and ensures that the chosen protective item matches the documented specification during safety audits. The combination of measurable visor thickness and compact dimensions underlines a focus on functional reliability rather than decorative features, helping maintain consistent safety standards across workshop teams. For procurement of Vertex protection equipment, specify the VH-56 face shield with Metav Werkzeuge — contact our Emmerich hub for order coordination and supply certainty via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VH-56 GTIN: 4061905083419 Brand: Vertex Facts Dimensions: 300 x 180 x 2 mm Weight: 1 kg eClass: 40011590 Special features Product: face shield (eye protection) Manufacturer: Vertex Image asset: VH-56-main.png FAQ What are the exact dimensions and mass of the shield? The VH-56 face shield is specified at 300 x 180 x 2 mm with an approximate mass of 1 kg, enabling precise planning for storage and handling. Is the shield intended for workshop use? The VH-56 has been described as a compact eye protection shield suitable for workshop and industrial tasks where a measurable, robust visor is required. How should the visor be cared for to maintain clarity? Regular inspection and gentle cleaning with a mild detergent solution and a soft cloth are recommended to preserve visibility; follow any additional guidance from Vertex for handling and storage. How is the product identified for ordering and stock control? Identification is provided via the article number VH-56 and GTIN 4061905083419, allowing straightforward procurement and inventory tracking. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
300x220mm 90° Clamping Angle With T-Slots, M12 T-Slot, 62.5kg - Vertex
Benefit from a stable 90° reference, M12 T-slots for flexible fixturing and a heavy, vibration-damping platform; these characteristics combine to improve setup repeatability and reduce rework. Order via Metav Werkzeuge or consult the Metav advisors for application-specific guidance. Vertex Angle Plate BP22-30 — 90° clamping angle with M12 T-slots The Vertex Angle Plate BP22-30 is a 90° clamping angle designed for secure workholding on machine tables and inspection benches Precision 90° alignment for repeatable setups M12 T-slots for versatile fixturing 300×300 mm top plate for broad clamping area 62.5 kg mass for stable vibration damping Achieve repeatable perpendicular set-ups with industrial precision A true perpendicular reference is essential for machining and inspection. The BP22-30 provides a rigid 90° datum that keeps workpieces consistently aligned, supporting accurate machining and measurement processes. Because the plate presents a stable right-angle surface, set-up times are reduced and downstream adjustments are minimised, which improves throughput. The design supports standard clamping workflows and integrates with existing table fixtures to maintain production continuity. Stable platform that reduces vibration and improves part quality With a mass of 62.5 kg and a compact base footprint, the clamping angle delivers inherent stability during heavy-duty clamping and intermittent machining. The substantial weight helps dampen vibrations that can otherwise compromise surface finish and dimensional accuracy; this makes the unit particularly suitable where consistent reference and repeatability are required. The combination of a solid platform and a defined table area ensures that forces from clamps and fixtures are absorbed reliably, protecting delicate set-ups and workpiece geometry. Flexible T-slot system for fast, secure fixturing The integrated M12 T-slots allow a wide range of clamps and T-nuts to be used without special adaptors, offering practical versatility for both bespoke and repeat jobs. The slot pattern on the 300×300 mm top plate accommodates multiple clamping configurations, enabling efficient placement of supports and stops. This flexibility shortens the time to ready a workpiece for machining or inspection and supports quick changes between different component types, enhancing operational agility on the shop floor. For reliable 90° workholding and rapid technical advice on application or fixturing options, contact Metav Werkzeuge in Emmerich — the Metav team can advise on compatibility and fast delivery Technical data Article number: BP22-30 GTIN: 4061905083075 eClass: 21020601 Facts Foot: 300×220 mm Top plate: 300×300 mm Weight: 62.5 kg T-slot size: M12 Special features 90° clamping angle M12 T-slots for standard T-nuts and clamps Robust mass for vibration damping SKU BP22-30 FAQ What is the primary function of this angle plate? The Vertex angle plate BP22-30 provides a precise 90° reference for clamping, machining and inspection operations, enabling repeatable set-ups and consistent part alignment. Which T-nuts and clamps are compatible with the T-slots? The M12 T-slots accept standard M12 T-nuts and compatible clamping elements; this allows direct use of common fixture hardware without special adapters. What are the surface dimensions of the working table? The top plate is 300×300 mm, offering a broad area for fixturing multiple clamping setups on the same reference surface. How does the weight affect machining stability? At 62.5 kg, the plate's mass provides effective vibration damping and a stable reference, which helps to maintain dimensional accuracy during machining and measuring tasks. Is the product suitable for use on machine tables? Yes, the design and footprint are intended for machine-table and inspection-bench use where a rigid 90° reference is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
