Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
100mm Pneumatic Clamp Vertical Handle Massive Holding Arm 3,000 N Force 3,300 N Hold Zinc-Plated, 90° - Kukamet
Take advantage of the combination of robust holding force, a galvanised, maintenance-friendly design and a compact 100 mm arm for reliable, repeatable clamping in production. Order the unit directly via Metav Werkzeuge or consult our experts for specification support. Pneumatikspanner 651 — Pneumatic toggle clamp with vertical handle and solid holding arm (Kukamet) The Pneumatikspanner 651 is a pneumatic toggle clamp designed for secure, repeatable workpiece holding in production, assembly and fixture applications, featuring a vertical handle and a massive holding arm. Vertical handle for ergonomic actuation Massive holding arm for stable clamping Up to 3,300 N holding force Galvanised finish for corrosion resistance Reliable clamping that keeps processes moving The pneumatic toggle clamp delivers a clear, measurable benefit: repeatable clamping with a maximum holding force of 3,300 N and actuator pressure capability up to 3,000 N. This translates into consistent part positioning and reduced scrap rates on the production line. The closed clamping geometry and robust toggle mechanism ensure that clamping force is maintained throughout machining or assembly cycles, supporting faster cycle times and predictable throughput. Built to last — less maintenance, more uptime Constructed with a galvanised finish and a solid holding arm, the clamp resists corrosion and mechanical wear in workshop environments. The vertical handle and substantial arm profile reduce flex during operation, which lowers the frequency of adjustments and extends service intervals. As a result, fixture maintenance time is decreased and the overall equipment availability improves — a direct contribution to production reliability and lower long-term running costs. Compact mounting with flexible integration Designed for vertical-base installation, the unit features a vertical foot for straightforward attachment to jigs and fixtures. The 100 mm arm length and fixed 90° clamp orientation make the device suitable for tight work envelopes while still providing ample reach for typical assembly and holding tasks. The compact footprint and standard mounting arrangement simplify retrofitting into existing fixtures and support modular jig design. Pneumatic actuation for controlled, safe operation Pneumatic actuation provides smooth, controllable motion and predictable force output, separating pressure force from the resulting holding force so that process engineers can match supply pressure to application requirements. The toggle action gives positive mechanical locking at full stroke, improving safety in automated cells and reducing the risk of accidental release during machining. Where repeatability and operator safety matter, the clamp’s design supports both objectives without complex controls. Contact Metav Werkzeuge for tailored technical advice on the Kukamet Pneumatikspanner 651 and to arrange prompt supply from our Emmerich distribution centre Technical Data Article number: 651-4-H-D-C1 Product name: Pneumatikspanner 651 Category: Spanner SKU: 651-4-H-D-C1 Facts Arm length: 100 mm Holding force max: 3,300 N Pressure force max: 3,000 N Angle: 90° eClass: 21021004 ETIM: EC011973 Special features Material: galvanised Mounting: vertical foot Vertical handle and massive holding arm Massive arm construction Lever-style (toggle) clamp design FAQ What is the maximum holding force of the clamp? The Pneumatikspanner 651 provides a maximum holding force of 3,300 N, suitable for a wide range of fixturing and assembly tasks. How is the clamp mounted to a fixture? Mounting uses the clamp’s vertical foot design, allowing direct attachment to vertical plates or jig bases for stable installation and easy integration. Which materials is the clamp suitable for in production use? The clamp’s robust design and galvanised finish make it suitable for general industrial applications, including repeated use in metalworking and assembly environments. Does the clamp require special maintenance? Routine checks of pneumatic connections, a visual inspection of the solid holding arm and occasional lubrication of pivot points are recommended to maintain performance; the galvanised finish reduces corrosion-related upkeep. Can the clamp be used in automated cells? Yes — pneumatic actuation and the toggle locking action offer controlled movement and secure holding that integrate well with automated production and assembly systems; reference SKU 651-4-H-D-C1 for ordering. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Pneumatic Precision Machine Vice 0.01mm Accuracy, 3200 Kgf Clamping Force - Vertex
Combine fast pneumatic actuation, a 3,200 kgf clamping force and an adjustable 0–100 mm jaw travel to secure consistent, high-repeatability clamping in production. Order the VMC-4P directly via Metav Werkzeuge or ask our consultants if needed. VMC-4P Pneumatic Precision Machine Vice — rapid pneumatic clamping, 3,200 kgf, Vertex A VMC-4P pneumatic precision machine vice engineered for stable and repeatable clamping in milling and machining centre applications. Pneumatic actuation for rapid clamping 0–100 mm adjustable jaw opening Robust cast iron construction 3,200 kgf clamping force for stability Proven clamping performance that increases throughput The vice delivers measurable improvements in setup and cycle time thanks to its pneumatic actuation, which speeds clamping and release compared with manual alternatives. With a rated 3,200 kgf clamping force and an advertised accuracy 0.01 mm, the unit provides the firm, vibration-resistant hold required for precision milling and drilling. These specifications translate into fewer rejects and less rework, supporting a leaner production flow and more predictable output. Simple integration for workshop automation Designed for straightforward mounting and repeatable operation, the vice’s 0–100 mm adjustable jaw opening accommodates a wide range of workpieces without complex adjustments. The combination of compact dimensions (100x450x148 mm) and a moderate mass of 27 kg makes the device compatible with many machining centres and fixtures, while pneumatic actuation enables easy interfacing with existing compressed-air systems. This reduces installation time and minimises engineering overhead. Durability that lowers life-cycle costs Constructed from cast iron, the vice offers high structural stiffness and resistance to wear in daily shop use. The robust material choice, together with the vice’s mechanical design, reduces the frequency of service interventions. For operations processing medium-to-large batches, this durability means lower total cost of ownership over time and a more dependable bench or machine-centre partner. Benefits for precision and repeatability in your process Precision in clamping prevents part movement during cutting, which directly improves dimensional stability and surface finish. The vice’s combination of firm clamping force and tight repeatability supports processes where tolerances matter; fewer manual interventions are required, and set-up times are shortened. Where traceable accuracy and consistent part quality are priorities, this device contributes to reliable results shift after shift. For specification checks, delivery options or to confirm suitability for a particular machining application, contact Metav Werkzeuge to arrange a technical consultation or order the VMC-4P directly through their sales team. Technical data Article number: VMC-4P GTIN: 4061905083792 ETIM: EC002173 ECLASS: 21020601 Core specifications Jaw opening: 0–100 mm Clamping force: 3,200 kgf Accuracy: 0.01 mm Dimensions: 100 x 450 x 148 mm (L x W x H) Weight: 27 kg Materials & features Material: Cast iron Actuation: Pneumatic Manufacturer: Vertex SKU / UID: VMC-4P FAQ What applications is this vice suited for? The vice is designed for milling and machining-centre applications requiring stable, repeatable clamping; the VMC-4P is particularly suited to medium-duty production and precision fixture work. How is the VMC-4P actuated and integrated? Actuation is pneumatic; the VMC-4P connects to standard compressed-air supplies and can be incorporated into automated or semi-automated workholding systems. What range of workpiece sizes can be clamped? The adjustable jaw opening of 0–100 mm provides flexibility for a broad range of parts without additional jaw changes. What level of clamping force and repeatability does the vice provide? The device offers a clamping force of 3,200 kgf and an advertised accuracy of 0.01 mm, supporting high repeatability in production settings. Is the vice suitable for heavy-duty shop use? Yes; with a cast iron construction and robust mechanical design, the vice is intended for continuous workshop operation and long-term durability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100mm Precision Machine Vice Force-Boosted Compact, 0.01mm Accuracy - Vertex
Take advantage of the combination of a force-amplified, compact design and proven cast iron stiffness for reliable clamping and repeatable part quality; order the VMC-100HV directly via Metav Werkzeuge or consult the Metav team for tailored delivery and technical clarification. VMC-100HV – Vertex precision machine vice, mechanical and hydraulic, 0–125 mm opening The VMC-100HV is a compact, force-amplified precision machine vice for use on milling machines and machining centres, optimised for secure clamping in confined setups High clamping force 3000 kgf Opening range 0–125 mm Cast iron body for stiffness 0.01 mm repeatability accuracy Built for continuous production with dependable clamping performance The vice is engineered to deliver a high and consistent clamping force, specified at 3000 kgf, which translates into stable holding during heavy cuts and repeated cycles. Because the body is made from cast iron, the assembly benefits from damping of vibrations and dimensional stability, so machining quality remains constant over batches. This combination reduces part rework and supports tighter process control, enabling smoother production flow and fewer interruptions. Compact footprint that integrates into busy machine shops With overall dimensions of 100 x 470 x 130 mm and a mass of 27 kg, the unit fits readily on crowded machine tables without sacrificing rigidity. The force-amplified and compact design offers strong bite in a modest envelope, which is particularly useful where table space is at a premium. Mounting is straightforward on standard T-slot tables, and the vice's proportions are chosen to support quick set-ups and efficient workholding in short-cycle environments. Precision clamping for repeatable results and traceable tolerances Repeatability is a core benefit: the device is specified with an accuracy of 0.01 mm, ensuring that clamping-related deviations remain minimal across runs. For operators and process planners, this level of precision means fewer alignment checks between operations and better control of final part tolerances. When fine positional control is required, the vice’s repeatability supports downstream inspection and reduces the need for corrective machining. Robust construction reduces maintenance and increases uptime The construction emphasises durability: a solid cast iron structure, a mechanical-hydraulic actuation approach and conservative engineering choices lower lifetime maintenance. This results in predictable service intervals and stable clamping behaviour even under sustained use. For procurement and workshop managers, the vice offers a pragmatic balance of performance and longevity that suits both small job shops and production cells seeking trustworthy workholding. Contact Metav Werkzeuge for professional advice and reliable supply of Vertex workholding: benefit from local stock management in Emmerich and efficient dispatch for the VMC-100HV, with tailored ordering and invoice options available. Technical Data Article number: VMC-100HV GTIN: 4061905083785 eClass: 21020601 ETIM: EC002173 Facts Opening range: 0–125 mm Clamping force: 3000 kgf Weight: 27 kg Accuracy: 0.01 mm Dimensions: 100 x 470 x 130 mm Special features Material: cast iron Type: mechanical and hydraulic Designation: precision machine vice, force-amplified and compact Brand: Vertex FAQ How much clamping force does the vice provide? The Vertex VMC-100HV delivers a clamping force of 3000 kgf, specified for secure holding during machining operations. What is the usable jaw opening of the vice? The vice accepts workpieces across an opening range of 0–125 mm, enabling a wide variety of part sizes to be held. Which materials is the vice body made from? The body is manufactured from cast iron, chosen for its stiffness and vibration damping properties. What level of precision can be expected when re-clamping parts? Repeatability is specified at 0.01 mm, allowing reproducible positioning and reduced need for repeated alignment. Is the unit suitable for use on milling machines and machining centres? Yes, the compact, force-amplified design of the VMC-100HV is intended for integration on milling machines and machining centres where robust workholding is required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100mm Stud Bolt M10 Heat Treated 10.9, DIN 6379 - AMF
Benefit from a combination of standard compliance, high tensile strength and precise dimensions for reliable mechanical joins. The AMF stud bolt delivers consistent performance in machinery and structural assemblies; order directly via Metav Werkzeuge or consult our advisors for specification matching. AMF stud bolt DIN 6379 — M10 x 100 mm, strength class 10.9 The AMF stud bolt DIN 6379 is a high-strength fastening element designed for secure machine and structural connections where standard conformity and consistent thread engagement are required. DIN 6379 standard compliance Heat-treated to strength class 10.9 Metric thread M10 for standard fittings Secure connections through standardised strength The stud is manufactured to meet DIN 6379, guaranteeing compatibility with common industrial fittings and replacement parts. Its 10.9 heat-treated specification provides a high tensile strength that reduces the risk of fastener failure under load, delivering measurable reliability for bolted joints. This specification translates into fewer unscheduled maintenance intervals and longer service life for assemblies, which supports predictable production planning and lowers lifecycle disruption. Precision dimensions for consistent assembly With a defined M10 thread and an overall length of 100 mm, the fastener ensures predictable thread engagement and clamping behaviour. The measured width across tool flats of 13 mm enables standard spanner use and repeatable torque application. Consistent dimensions simplify assembly processes and reduce variation in clamping forces, which is particularly beneficial in repetitive production environments and when interchangeability with DIN-compliant components is required. Durable performance and suitable applications Heat treatment to class 10.9 enhances both tensile and yield characteristics while preserving thread geometry for reliable torque transmission. The component is ideal for mechanical assemblies, fixtures and machine construction where a strong, corrosion-resistant coating is not specified in the data. When used in appropriately matched materials and joint designs, the bolt supports durable clamping and stable joint stiffness, contributing to overall system longevity without frequent replacement. For secure, standards-compliant fastenings, request the AMF stud bolt via Metav Werkzeuge — technical advice and order support are available from Metav Werkzeuge GmbH in Emmerich; eMail: info@metav-werkzeuge.com, Tel: +49 2822 7131930 Technical data SKU: 4000833253NW Brand: AMF Product type: Stud bolt Measurements Thread: M10 Overall length: 100 mm Width across flats / tool size: 13 mm Additional dimension: b: 75 Features Standard: DIN 6379 Strength class: 10.9 (heat-treated) Packaging unit: 1 FAQ What load capacity does the stud bolt offer? The AMF stud bolt specified to strength class 10.9 provides high tensile and yield values suitable for demanding mechanical joints; exact load ratings depend on joint design and mating materials. Is this fastener compatible with standard M10 nuts and fittings? Yes, the metric M10 thread and adherence to DIN 6379 ensure compatibility with standard M10 nuts and DIN-compliant components. Can the stud bolt be used in structural machine assemblies? The stud bolt is intended for machine and structural connections where 10.9 strength and standardised dimensions are required; verify joint calculations for the specific application. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm Stud Bolt M12x100 Hardened 10.9, DIN 6379 - AMF
Take advantage of a standardised, high‑strength fastening solution with predictable dimensions and reliable clamping force; the combination of DIN 6379 compliance, M12 threading and property class 10.9 hardness supports secure assemblies and consistent installation. Order directly via Metav Werkzeuge or consult our specialists for application advice. AMF Stud Bolt DIN 6379 M12 x 100 mm, Grade 10.9 The AMF Stud Bolt DIN 6379 M12 x 100 mm is a hardened, threaded stud designed for standardised industrial and mechanical fastening where consistent geometry and elevated strength are required. DIN 6379 standardised geometry M12 x 100 mm threaded stud Hardened to property class 10.9 Precision-manufactured by AMF Consistent strength and standard conformity for dependable assemblies Compliance with DIN 6379 ensures a standardised stud geometry that simplifies component selection and guarantees interchangeability across fixtures and mating parts. The M12 thread and 100 mm overall length provide a common, versatile size for through-bolting and clamping arrangements, while the property class 10.9 rating indicates a tempered steel grade engineered for high tensile performance. This combination reduces uncertainty during procurement and supports repeatable torque and preload behaviour in production and maintenance settings. Streamlined installation and inventory advantages A threaded stud format reduces the need for multiple bolt variants and enables flexible assembly strategies such as using nuts and washers to adapt to different joint designs. The standard M12 thread profile simplifies matching with commonly stocked nuts and threaded components, improving process efficiency and minimising downtime caused by part mismatch. Precision manufacture ensures consistent thread fit and engagement, which in turn supports accurate torque application and predictable clamping results without unnecessary trial and error. Robust construction with practical handling benefits The stud is quenched and tempered to achieve the 10.9 property class, delivering enhanced yield and tensile strength compared with lower grades. This makes it suitable for demanding mechanical connections where higher clamping forces are required. As a component from AMF, the stud bolt is produced to industrial tolerances that favour long service life and reduced maintenance frequency. Its clear specification and uniform dimensions also aid quality control processes, allowing fast verification and fewer assembly errors. Secure robust, standard-compliant fastening with AMF’s Grade 10.9 stud — contact Metav Werkzeuge for availability and tailored application advice via info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: 4000833260NW Label: Stiftschraube DIN6379 M12x100mm vergütet auf 10.9 AMF SKU: 4000833260NW Core dimensions Thread: M12 Overall length: 100 mm Width: 15 Packaging unit: 1 Materials & features Brand: AMF Standard: DIN 6379 Property class: 10.9 Finish: tempered (vergütet) Additional: Addition: b: 63 FAQ What does DIN 6379 mean for fit and interchangeability? DIN 6379 defines the stud geometry and thread form so the stud offers predictable fitment and interchangeability with compatible components adhering to the same standard. Is this stud suitable for high‑load applications? Yes, the stud is rated property class 10.9, which denotes a quenched and tempered steel grade designed for elevated tensile and yield strength compared with lower classes. What are the exact thread and length specifications? The stud features an M12 thread with an overall length of 100 mm, as specified on the article label and SKU 4000833260NW. How is the surface treated or finished? The product is supplied tempered to achieve the 10.9 classification; any further surface treatment details are not specified in the provided data. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm Stud Screw DIN 6379 Heat Treated 10.9, M8 Thread - AMF
Combining high tensile strength with standard conformity and a compact M8×100 mm format ensures dependable fixation and reduced maintenance in serial production; order the component directly via Metav Werkzeuge or ask the consultants for application-specific advice. Stud screw DIN 6379 M8×100 mm — hardened property class 10.9 by AMF The Stud screw DIN 6379 M8×100 mm is a hardened industrial fastener manufactured to DIN 6379 for reliable axial locating and secure mechanical joints in machinery and assemblies. Hardened to property class 10.9 Conforms to DIN 6379 standard M8 thread, 100 mm overall length Industrial-grade axial fastening Proven strength for load-bearing fastenings The stud is supplied hardened to property class 10.9, delivering elevated tensile strength and improved yield for demanding applications. This higher material grade reduces the risk of elongation under preload and improves joint integrity in repetitive load cycles. By specifying a DIN 6379 component, the fastener meets defined geometric and mechanical tolerances, which simplifies quality control and inspection procedures on the shop floor. The combination of heat treatment and precise thread geometry supports predictable clamping behaviour and longer service intervals. Standard format for straightforward assembly and interchangeability Engineered with an M8 thread and an overall length of 100 mm, this fastener integrates into common assembly patterns and replacement stocks without additional adaptation. The standardized dimensions facilitate rapid selection from inventory and reduce setup time on production lines. Where traceability and conformity matter, the DIN reference provides clear criteria for procurement and incoming inspection. The fastener’s 11 mm width and the specified addition parameter help determine seating and engagement depths during installation, enabling consistent torque application and reliable preload. Practical supply and compatibility advantages for workshops Selection of a standardised, hardened stud from a recognised maker such as AMF minimises downtime through predictable performance and simplified maintenance planning. The product’s packaging unit supports single-piece usage and straightforward stock keeping for spare-part management. Choosing standardised components reduces the number of special parts in a facility, streamlines ordering and ensures compatibility across similar assemblies. The result is lower operational complexity and improved process reliability for production and service operations. Select AMF quality for critical joints — contact Metav Werkzeuge for direct supply and expert specification support at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4000833248NW UID: 4000833248NW Standard: DIN 6379 Label: Stiftschraube DIN6379 M8x100mm vergütet auf 10.9 AMF Manufacturer: AMF Core technical data Thread: M8 Overall length: 100 mm Width: 11 mm Packaging unit: 1 Materials & special features Hardened to property class 10.9 Conforms to DIN 6379 standard Product type: stud screw Axite enrichment: Addition: b: 63 FAQ What mechanical class does this stud screw have? The stud screw is hardened to property class 10.9, providing enhanced tensile strength suitable for many industrial joints. Is the fastener compliant with recognised standards? Yes, the component is produced to DIN 6379, ensuring standard geometry and mechanical tolerances for interchangeability. Which thread and length are specified? The fastener uses an M8 thread and an overall length of 100 mm, a common format for industrial assemblies. Can this stud be used as a direct replacement in existing DIN-based assemblies? Where assemblies expect DIN 6379 geometry and a 10.9 strength class, this AMF stud screw is designed for direct compatibility. How is the product supplied for inventory control? The item is supplied with a packaging unit of 1, simplifying spare-part stocking and single-part usage. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm T-Slot Bolt 14mm T-Slot M12 Thread Grade 10.9 With Nut And Washer - AMF
Take advantage of the combination of M12 thread, 100 mm overall length and Grade 10.9 strength for reliable fixture clamping; this solution fits standard 14 mm T-slots and comes with a nut and washer from AMF. Order the AMF T-slot bolt directly via Metav Werkzeuge or ask our consultants if needed. AMF T-slot bolt DIN 787, M12 × 100 mm, Grade 10.9 — T-slot bolt for 14 mm T-slots The AMF T-slot bolt secures workpieces and clamping elements in 14 mm T-slots on machine tables and fixtures for industrial workholding. High-strength Grade 10.9 steel Thread size M12 for robust clamping Fits 14 mm T-slot profiles Includes nut and washer AMF Secure clamping designed for machine tables The bolt is produced to DIN 787, the recognised standard for T-slot fasteners, ensuring consistent geometry for safe seating in a 14 mm T-slot. As a dedicated T-slot bolt, it converts axial tightening into secure lateral clamping, reducing torsion and movement of fixturing components. This characteristic provides a measurable improvement in setup repeatability and reduces time spent on re-adjustment during batch production runs, supporting a smoother workflow on milling tables and drill presses. High tensile strength for demanding applications Manufactured in Grade 10.9, the fastener offers elevated tensile and yield strength compared with lower grades, making it suitable for heavier clamping and frequent tightening cycles. The M12 thread provides a balance between load-bearing capacity and compatibility with standard clamping hardware, enabling firm torque transfer without excessive thread wear. For operations where reliability under repeated stress is required, the higher strength grade translates into longer service life and reduced likelihood of fastener failure. Practical dimensions and included hardware for immediate use With an overall length of 100 mm, the bolt covers a wide range of fixture thicknesses while maintaining adequate thread engagement for safe clamping. The delivery includes a nut and washer from AMF, packaged as a complete fastening set ready for installation. Additional dimensional references are provided as additive values: A: 13.7 mm; B: 65 mm; E: 22 mm; K: 8 mm — these figures assist engineers during fixture design and when verifying clearances on bespoke setups. Versatile in workshop applications and reliable supply This fastening solution is well suited to jigs, fixtures, modular fixturing systems and general machine table accessories where a standard 14 mm T-slot is present. The standardised form factor simplifies inventory management and replacement planning. Combined with Metav’s logistics and quality assurance, the risk of delayed replacement or inconsistent parts is reduced, supporting uninterrupted production and dependable workshop performance. For secure, standard-compliant clamping with AMF Grade 10.9 reliability, contact Metav Werkzeuge for tailored advice and rapid supply direct from Emmerich. Technical data SKU: 4000833319NW UID: 4000833319NW Product type: T-slot bolt Standard: DIN 787 Manufacturer: AMF Packaging unit: 1 Includes: nut and washer AMF Facts Thread: M12 Overall length: 100 mm T-slot width compatibility: 14 mm Packaging unit: 1 Special features Grade 10.9 high-strength fastener Additions: A 13.7; B 65; E 22; K 8 Delivered with nut and washer (AMF) Conforms to DIN 787 FAQ Which T-slot size does this bolt fit? The bolt is designed for a 14 mm T-slot and seats to the DIN 787 profile dimensions for a secure fit. Is the fastener suitable for heavy-duty clamping? Yes. The combination of Grade 10.9 and an M12 thread makes the AMF T-slot bolt appropriate for demanding clamping tasks. What is included in the delivery? Delivery comprises the T-slot bolt together with a nut and washer from AMF, provided as a ready-to-use set. How long is the bolt and what clearance does it provide? Overall length is 100 mm; additional dimensional additions are A: 13.7 mm, B: 65 mm, E: 22 mm and K: 8 mm to support clearance and design checks. Which standard does the fastener comply with? The component is manufactured to DIN 787, ensuring standardised geometry for machine-table applications. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm T-Slot Bolt DIN 787 18mm T-Slot M16 Length 100mm Grade 8.8 - AMF
Robust clamping and dependable tensile strength from the M16 thread and property class 8.8 enable secure fixing in 18 mm T‑slots; the 100 mm overall length provides deep engagement for stable assemblies. Order the component directly via Metav Werkzeuge or consult our specialists for tailored fixture advice. T-slot bolt DIN 787 — T-slot 18 mm, M16, 100 mm — AMF A T-slot bolt DIN 787 T-slot 18 mm M16 L100 mm property class 8.8 AMF engineered for secure workholding in machine tables, modular fixturing and industrial clamping systems. DIN 787 standard for reliable fit 18 mm T-slot compatibility M16 metric thread, high clamping force 100 mm overall length for deep engagement Property class 8.8 steel for strength Secure fastening for industrial fixturing The DIN 787 compliance ensures the bolt engages predictably with compatible T‑slots, reducing play and alignment errors during assembly. With an M16 thread, the fastener delivers considerable clamping capacity while remaining compatible with standard metric nuts and clamping elements. This combination of standard conformity and thread size translates into a measurable improvement in fixture stability, particularly where repeatable positioning and vibration resistance are required. For production environments, the result is fewer re‑set operations and a more reliable machining process. Practical dimensions for predictable assembly Precise dimensions matter when assembling clamping systems; the 100 mm overall length allows deeper engagement into fixtures and supports thicker workpieces or multi‑plate arrangements. The supplied dimensional data — A: 17.7 mm; B: 65 mm; E: 28 mm; K: 10 mm — give clear reference points for planning clearances and reach. These values support both quick compatibility checks and CAD validation, making it straightforward to confirm that the fastener meets the spatial requirements of a given setup before procurement or installation. Strength and application suitability Rated property class 8.8, this fastener offers a robust balance between tensile strength and ductility suitable for many workshop and light industrial applications. The specification favours secure clamping in general machining, assembly jigs and fixture plates without over‑engineering the solution. Where higher hardness or specialist coatings are required, consider specifying those requirements separately; for standard mechanical clamping tasks, the combination of property class 8.8 and metric threading provides a dependable foundation for everyday use. Integration into existing systems and procurement ease As a standard T‑slot component, the bolt integrates seamlessly into modular clamping systems and machine tables with an 18 mm T‑slot. Its compatibility with commonly available clamping elements simplifies sourcing and reduces the number of bespoke parts in a workshop. For purchasers seeking consolidated supply, Metav’s offering channels high availability and transparent logistics from Emmerich, helping to keep assembly lines moving without prolonged waiting times. Technical drawings and fitting advice are available on request to support correct selection for specific fixtures. For reliable clamping solutions from AMF, contact Metav Werkzeuge in Emmerich for personalised technical advice and fast delivery to your workshop at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: 4000603229NW Product: T-slot bolt DIN 787 Manufacturer: AMF Product type: T-slot bolt Facts T-slot size: 18 mm Thread: M16 Overall length: 100 mm Addition dimensions: A: 17.7; B: 65; E: 28; K: 10 Standard: DIN 787 Packaging unit: 1 Special features Property class: 8.8 Suitable for machine tables and modular fixturing Ideal for repeatable clamping applications FAQ Which T-slot width is this bolt compatible with? The bolt is designed for an 18 mm T‑slot and is suitable for standard machine tables and clamping rails specified to that slot width; refer to SKU 4000603229NW for exact fit. Does the fastener meet recognised standards? Yes, the component conforms to DIN 787, ensuring consistent dimensions and engagement behaviour for compatible T‑slot systems. Is this bolt suitable for heavy‑duty clamping? With property class 8.8, the bolt provides robust tensile strength for many heavy‑duty and repetitive clamping tasks; actual suitability depends on specific load and safety factors in the assembly. Are additional components required for assembly? Depending on the clamping concept, the T‑slot bolt can be used with standard nuts and washers or with dedicated clamping elements; the M16 thread allows use of common metric accessories. How to choose the correct length for a fixture? Consider total stack height and required thread engagement; the 100 mm overall length of this fastener is suited to thicker workpiece stacks and deeper fixture plates—check the A/B/E/K dimensions when planning mounting clearances. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm Threaded Stud M16 Heat-Treated 8.8, DIN 6379 - AMF
Robust fastening reliability with DIN 6379 compliance and heat-treated strength class 8.8, combined with the compact M16 × 100 mm format for straightforward integration into assembly workflows. Order the DIN 6379 threaded stud M16 x 100 mm from AMF directly via Metav Werkzeuge or ask our consultants if needed. AMF DIN 6379 threaded stud M16 x 100 mm, tempered to 8.8 AMF DIN 6379 threaded stud M16 x 100 mm is a high-strength fastening element designed for mechanical assemblies and maintenance tasks where standardised threads and predictable clamping behaviour are required. Heat-treated to strength class 8.8 DIN 6379 compliant stud design Thread size M16 × 100 mm Wrench size 19 mm for secure tightening Consistent clamping force for reliable joints This threaded stud follows DIN 6379, ensuring dimensional conformity and interchangeability in industrial settings. The M16 x 100 mm specification gives a clear, verifiable basis for component selection, while the tempering to 8.8 provides enhanced tensile and yield characteristics compared with non-hardened fasteners. For workshops and production environments this translates into fewer retentions and predictable joint integrity under standard operating loads. Practical benefits during installation and maintenance Designed for efficient assembly, the stud’s standard M16 thread mates with commonly available hardware, and the wrench size 19 mm allows secure torque application using standard tools. The stud format reduces installation time in repeat-fit operations and supports straightforward replacement procedures in maintenance cycles. Minimal handling and clear specifications contribute to faster throughput on the shop floor and reduced downtime between changeovers. Traceability, packaging and supply advantages Delivered in packaging unit 1 and listed under SKU 4000833273NW, the part supports inventory control and traceability for repair or production orders. The AMF branded component benefits from production controls that align with industrial expectations for repeatability and quality. Sourcing via Metav Werkzeuge further provides access to centralised procurement, detailed product listings and a dependable logistics hub for European deliveries. For dependable mechanical fastening with AMF’s DIN 6379 stud (M16 x 100 mm, strength class 8.8), contact Metav Werkzeuge to secure supply or request technical clarification at info@metav-werkzeuge.com Technical data Article number: 4000833273NW Product type: threaded stud Standard: DIN 6379 Manufacturer: AMF Facts Thread: M16 Overall length: 100 mm Wrench size: 19 mm Packaging unit: 1 Special features Tempered to strength class 8.8 DIN 6379 compliant Brand: AMF Addition: b: 63 FAQ What standard does this stud meet? The stud adheres to DIN 6379, ensuring dimensional conformity and interchangeability for the AMF DIN 6379 threaded stud M16 x 100 mm (SKU 4000833273NW). What does strength class 8.8 indicate for use? Strength class 8.8 denotes a heat-treated, higher-strength fastener suitable for applications that require improved clamping force and reliable joint performance compared with untreated screws. Is the M16 thread compatible with standard nuts and components? Yes, the M16 thread is a standard metric size and is compatible with commonly available M16 nuts and mating parts when using the AMF threaded stud. How is the stud supplied for inventory and traceability? The item is supplied in packaging unit 1 and listed under SKU 4000833273NW, supporting straightforward stock management and order tracking. Which applications commonly use this type of stud? This stud format is typically used in mechanical engineering, maintenance and assembly operations where standardised fasteners and dependable clamping behaviour are required, such as machine assembly and fixture construction. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm Toolholder Weldon With 6mm Clamping Diameter, DIN 69871 Form AD - TECWERK
Take advantage of a compact, standards‑based clamping solution that combines Weldon shank retention with a DIN 69871 Form AD taper for reliable tool engagement and precise bore tolerance H4; order directly via Metav Werkzeuge or consult our specialists for application advice. TECWERK Weldon Face Clamping Chuck (DIN 69871 Form AD), SK40, 6 mm A TECWERK Weldon face clamping chuck (DIN 69871 Form AD) designed for SK40 spindles, optimised to hold cylindrical‑shank tools with lateral drive according to DIN 1835‑B for machining tasks requiring repeatable clamping accuracy. Weldon shank retention for secure lateral drive Compatible with SK40 taper to DIN 69871 Form AD 6 mm clamping bore, H4 tolerance for accuracy Precision clamping for consistent machining results The Weldon retention method, paired with the DIN 69871 Form AD steep taper, provides a compact interface that reduces axial play and improves repeatability. The clamping bore of 6 mm with H4 tolerance ensures consistent fitment of tooling shanks and supports stable rotational behaviour under load. These characteristics translate into measurable improvements in machining consistency and reduced rework rates when compared with non‑standard holders. Seamless integration with standard toolholders and tools Designed for tools with cylindrical shanks and a lateral drive to DIN 1835‑B, the face clamping chuck offers straightforward compatibility with common tool inventories. The SK40 spindle interface allows rapid fitting to matching machine tapers, while the specified projection A: 100 mm and body diameter D: 25 mm keep the tool envelope compact for improved accessibility in tight setups. Together, these features simplify tool change planning and support efficient spindle use. Workshop robustness and straightforward handling Built to fit standard shop practices, the holder supports frequent tool changes without elaborate procedures, reducing fixture downtime. The simple Weldon flat engagement provides positive axial and rotational transmission for small‑diameter cutters, and the adherence to DIN tolerances facilitates predictable maintenance cycles. For workshops aiming to standardise clamping equipment, this chuck delivers dependable behaviour that aligns with established machining workflows. Contact Metav Werkzeuge for tailored advice on integrating the TECWERK Weldon face clamping chuck into specific SK40 applications and to confirm compatibility with existing tooling. Technical data Article number: 2000833718NW Product type: Flächenspannfutter Label: Flächenspannfutter DIN 69871AD Weldon Spann‑D.6mm SK40 A.‑L.100mm TECWERK Norm: DIN 69871 Packaging unit: 1 Facts Body diameter D: 25 mm Clamping bore d: 6 mm Projection A: 100 mm Bore tolerance: H4 Special features Weldon shank retention (Weldon flat) Steep taper to DIN 69871 Form AD SK40 spindle taper Accepts cylindrical shanks with lateral drive to DIN 1835‑B FAQ What shank sizes are supported by this chuck? The TECWERK Weldon face clamping chuck is specified with a 6 mm clamping bore (H4), making it suitable for cutters with a 6 mm cylindrical shank and a Weldon flat. Is the chuck compatible with SK40 spindles? Yes. The holder uses the SK40 spindle taper to DIN 69871 Form AD, allowing direct mounting to SK40 toolholders that conform to the same standard. What does the H4 bore tolerance mean for workshop use? An H4 tolerance indicates a precise bore fit that minimises play between the tool shank and the clamping bore, improving repeatability and reducing runout for the tool assembly. Can the chuck be used with tools that follow DIN 1835‑B? Yes. The clamping chuck is designed to accept cylindrical‑shank tools with lateral drive according to DIN 1835‑B, ensuring positive torque transmission via the Weldon flat. How does the Weldon retention affect tool change speed? The Weldon flat offers a straightforward mechanical engagement that supports quick manual or mechanised tool changes while maintaining secure axial and rotational engagement for small‑diameter tools. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund

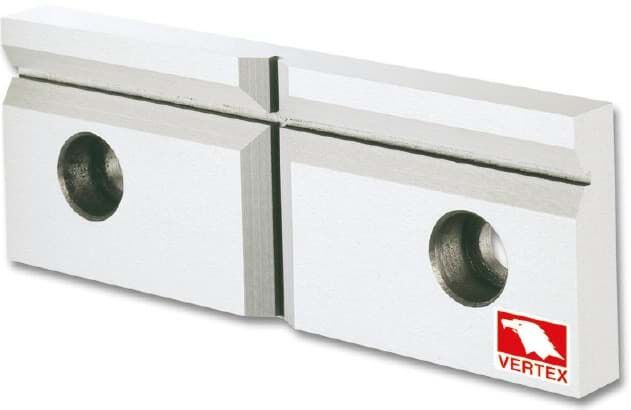

100mm Universal Jaws With Prism Stop For Round Parts, 0.01mm Accuracy - Vertex
Take advantage of precise clamping with a prismatic stop for round workpieces and 0.01 mm measurement capability; compatibility with jaw widths of 100–110 mm delivers flexible use across inspection tasks. Order the components directly via Metav Werkzeuge or contact Metav's consultants for application advice. Universal jaws — caliper replacement jaws with prismatic stop (Vertex) The Universal jaws are clamping inserts designed to adapt precision calipers for consistent measurement of flat and round components, providing a reliable interface between measuring instrument and workpiece. Prismatic stop for round components Compatible with jaw width 100–110 mm Measurement accuracy 0.01 mm Accurate contact for repeatable results The prismatic stop creates a defined bearing surface when measuring cylindrical parts, reducing alignment error and ensuring repeatable results. With a declared accuracy of 0.01 mm, the clamping inserts support quality control processes where small deviations matter. The combination of a shaped stop and a stable jaw profile reduces the influence of manual handling, so deviations caused by inconsistent seating are minimised, which in turn streamlines inspection routines and lowers the need for rework. Simple integration that saves time Designed for compatibility with calipers offering a jaw width of 100–110 mm, the inserts mount quickly and convert general-purpose calipers into tools better suited for diverse measurement tasks. The compact external dimensions of 145 x 38 x 49 mm and a mass of 1.6 kg keep handling straightforward while delivering a robust feel during repetitive use. Fewer tool changes and quicker set-ups translate into measurable time savings on the shop floor and a smoother inspection workflow. Built to support consistent workshop quality The prismatic feature is especially valuable in batch inspection of shafts, pins and round components where seating variation would otherwise introduce scatter in results. These clamping inserts contribute to process reliability by providing a defined contact geometry, which benefits statistical process control and traceable inspection records. Coupled with Metav Werkzeuge's European quality filter and long-standing supply chain, the solution supports dependable stock levels and consistent product quality for industry and trade. Contact Metav Werkzeuge to confirm compatibility of Vertex caliper jaws VWSJ-4 with existing measuring equipment and to arrange a tailored supply for workshop inspection needs Technical Data SKU: VWSJ-4 GTIN: 4061905089992 Manufacturer: Vertex Facts Dimensions: 145 x 38 x 49 mm Weight: 1.6 kg Accuracy: 0.01 mm Jaw width suitability: 100–110 mm Special features Prismatic stop for round workpieces Intended for precision caliper integration ECLASS: 21029107 ETIM: EC001959 FAQ Will these jaws fit my caliper? Compatibility is determined by the caliper's existing jaw width; the Universal jaws (Vertex VWSJ-4) are suitable for calipers with a jaw width of 100–110 mm How does the prismatic stop improve measurements? The prismatic stop on the Universal jaws centres round components and creates a repeatable seating plane, reducing alignment error and helping to achieve the declared 0.01 mm measurement precision Are these jaws suitable for measuring shafts and pins? Yes, the clamping inserts are specifically designed to support cylindrical parts such as shafts and pins by providing a defined contact geometry for consistent readings What are the physical dimensions and weight of the jaws? The caliper replacement jaws (Vertex VWSJ-4) measure 145 x 38 x 49 mm and weigh 1.6 kg, offering a compact and robust solution for inspection tasks Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
100mm Vertical Clamp 3000N Closing Force, Massive Holding Arm, Blackened Finish - Kukamet
Take advantage of a compact design that combines a solid 100 mm holding arm with proven clamping capacity for secure, repeatable fixture work; order the vertical clamp directly via Metav Werkzeuge or request consultancy for application-specific advice. Vertical clamp 211 by Kukamet — 100 mm arm, horizontal foot The Vertical clamp 211 is a compact vertical clamping device for workshop and assembly fixtures, engineered with a massive holding arm and a horizontal foot for robust, space-saving mounting. Solid 100 mm holding arm Horizontal mounting foot 3,300 N maximum holding force Blackened protective finish Reliable clamping in a compact footprint A compact clamping solution designed for tight fixturing and repetitive assembly tasks. The combination of a solid holding arm and a 100 mm reach provides concentrated support where space is limited, while the specified 3,000 N maximum clamping force and 3,300 N holding force ensure secure fixation of workpieces under load. This reliability reduces rework and contributes to consistent cycle times on the shop floor. The device is presented as a purpose-built element of clamping systems rather than a general-purpose fastener, making it suitable for jigs, fixtures and bench-mounted operations. Stable mounting for repeatable positioning Mounting is carried out via the horizontal foot, giving a low-profile attachment that minimises sideplay and improves repeatability of clamped parts. The blackened finish (brünierung) delivers basic surface protection against light corrosion and wear, maintaining functional surfaces in a production environment. The structural design with a massive clamping arm translates into improved contact stability when integrated into fixture plates or assembly rigs, supporting precise alignment over many cycles without complex maintenance. Built for workshop efficiency and simple integration Weighing approximately 0.782 kg, the clamp is light enough for flexible fixture design yet robust enough for frequent handling. The compact construction eases integration into existing tooling layouts and allows for efficient part loading and unloading. Suitable for use in small-batch production, maintenance workbenches and tooling stations, this clamp supports quick set-ups and repeatable results. As part of Kukamet’s range of clamping tools, the product is intended to bring straightforward, mechanical clamping performance to workshops that prioritise dependable operation and low complexity. For reliable fixture performance choose the Kukamet vertical clamp 211 and contact Metav Werkzeuge for tailored advice and equipment supply from Emmerich. Technical data SKU: B211-4-D-C1 GTIN: 8680731507737 Model: 211 Type: Vertical clamp Manufacturer: Kukamet Facts Arm length: 100 mm Max clamping force: 3,000 N Max holding force: 3,300 N Weight: 0.782 kg eClass: 21041717 ETIM: EC011973 Design & features Mounting: horizontal foot Finish: blackened (blueing) Solid holding arm Compact workshop clamp Category: Clamps FAQ What is the reach of the clamp arm? The clamp features a 100 mm arm length; the Vertical clamp 211 provides that reach for compact fixturing. What clamping and holding forces are specified? Maximum clamping force is 3,000 N and maximum holding force is 3,300 N for the Kukamet vertical clamp (SKU B211-4-D-C1). How is the clamp mounted to a fixture? Mounting is via a horizontal foot designed for low-profile attachment to fixture plates or bench surfaces. What surface finish does the clamp have and why does it matter? The clamp is supplied with a blackened (blueing) finish, which offers basic corrosion protection and preserves contact surfaces during repeated use. Can the clamp be integrated into existing assembly jigs? Yes, the compact design and solid holding arm make the unit suitable for integration into jigs, fixtures and assembly stations where repeatable clamping is required. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp Horizontal Foot, 750N Closing Force, Zinc Plated - Kukamet
Compact clamp for reliable fixtures: compact, corrosion-resistant construction combined with defined holding and clamping forces ensures secure workholding in small jigs. The zinc-plated design and adjustable pressure spindle give durable, adaptable performance for repetitive clamping tasks. Order the Kukamet 211 vertical clamp directly via Metav Werkzeuge or ask our consultants if needed. 211 Vertical toggle clamp — zinc-plated, 1000 N holding force (Kukamet) The 211 is a vertical toggle clamp designed for secure, space-saving workholding on horizontal fixture plates and jigs Zinc-plated corrosion protection 1000 N holding force 750 N clamping force M5x35 pressure spindle adjustment Horizontal base mounting Secure hold for precision and repeatability With a 1000 N holding force and defined 750 N clamping force, this vertical toggle clamp delivers consistent clamping performance that supports precision assembly and machining operations. The separation of holding and clamping values explains how the device resists separation forces (holding) while applying the required contact pressure (clamping) to the workpiece. That separation reduces shift and vibration during processing, which is particularly valuable in short-cycle or repetitive tasks where repeatability directly affects quality. Compact, adjustable integration into fixtures The combination of a horizontal base mounting and an adjustable M5x35 pressure spindle enables straightforward integration into small jigs and bespoke fixtures. The spindle permits fine adjustment of contact height and pressure without additional components, simplifying set-up and changeover. At 0.155 kg the clamp is lightweight yet sturdy, helping to keep overall fixture mass low while maintaining dependable function in manual or semi-automated workflows. Durable finish and low-maintenance operation A zinc-plated finish protects the mechanism from corrosion in workshop environments, reducing maintenance intervals and preserving appearance under regular handling. The simple toggle mechanism requires minimal servicing and allows rapid manual actuation for frequent clamping cycles. Suited to sheet metal, small assemblies and general workshop clamping tasks, the clamp offers reliable holding with a compact footprint that supports efficient production flow. For technical advice or to specify the Kukamet 211 vertical toggle clamp for a particular jig application, contact Metav Werkzeuge in Emmerich: info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 211-1 GTIN: 8680731501117 Manufacturer: Kukamet Facts Weight: 0.155 kg Holding force: 1000 N Clamping force: 750 N Pressure spindle: M5x35 Mounting: horizontal base Material: zinc-plated SKU: 211-1 Special features Arm: not applicable Press spindle specification present No special accessories included eClass: 21041717 ETIM: EC011973 FAQ What is the difference between holding force and clamping force for this clamp? Holding force refers to the maximum force the clamp resists before release, while clamping force denotes the applied contact pressure; the Kukamet 211 provides 1000 N holding and 750 N clamping force to ensure stable workholding. Can the pressure spindle be adjusted for differing workpiece heights? Yes, the M5x35 pressure spindle on the 211 vertical toggle clamp allows fine height and pressure adjustments to accommodate varying part thicknesses. Is the clamp suitable for use on standard fixture plates? The horizontal base mounting makes this clamp compatible with common fixture plates and jigs; the compact design supports space-saving installation. How resistant is the finish to workshop conditions? The zinc-plated surface provides corrosion resistance and reduces maintenance needs, keeping the clamp serviceable in typical workshop environments. What is the weight and how does that affect fixture design? At 0.155 kg, the clamp is lightweight, simplifying fixture balancing and helping to keep overall fixture mass low for manual handling. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp Three-Point Heavy-Duty Arm With Safety Lock, Zinc Plated - Kukamet
Robust vertical clamping with a 100 mm holding arm and a galvanised finish ensures dependable fixation up to 3,300 N; combine reliable mechanical security, corrosion-resistant material and compact mounting for consistent cycle times. Order the clamp directly via Metav Werkzeuge or consult the specialists for application support and fast delivery. Kukamet Vertikalspanner 212 — Vertical toggle clamp with 100 mm arm and safety lock The Vertikalspanner 212 is a vertical toggle clamp engineered for repeatable, secure clamping in jigs, fixtures and general workshop applications Solid 100 mm holding arm Safety locking mechanism Galvanised corrosion resistance Up to 3,300 N holding force Secure clamping that supports production consistency This vertical toggle clamp delivers measured performance: a 3,000 N clamping force combined with a 3,300 N holding force provides a reliable safety margin for fixtures exposed to vibration or side loads. The combination of a solid holding arm and a safety locking mechanism prevents unintended release once the clamp is engaged, reducing rework and improving first-pass yield. The galvanised finish contributes to process reliability by resisting surface corrosion, which helps to maintain consistent clamping geometry over time and supports predictable cycle times in batch production. Built to last — lower lifecycle maintenance Constructed from galvanised steel with a massive holding arm, the clamp is engineered for a long service life while remaining compact and lightweight at approximately 0.785 kg. The heavy-duty components reduce wear on pivot points and enable stable performance over many cycles, which translates into lower maintenance intervals and fewer unplanned stoppages. The integrated safety lock enhances operator confidence during manual loading and unloading, while the durable finish minimises the need for protective recoating in standard workshop environments. Fast integration into jigs and assembly stations The vertical foot mounting simplifies attachment to plates and bases, making the clamp suitable for retrofits as well as new fixture designs. Its compact footprint and standardised geometry allow straightforward positioning close to the workpiece, enabling shorter lever arms and more efficient force transmission. For further technical clarification or to confirm compatibility with a specific jig layout, Metav Werkzeuge provides detailed specifications and application advice via email or phone: info@metav-werkzeuge.com, +49 2822 7131930, WhatsApp +49 170 2837271 Contact Metav Werkzeuge for tailored advice on integrating the Kukamet vertical toggle clamp and secure procurement from Emmerich Technical data SKU: 212-4-D-L-C1 GTIN: 8680731501728 Manufacturer: Kukamet Material: Galvanised steel Weight: 0.785 kg Facts Arm length: 100 mm Max clamping force: 3,000 N Max holding force: 3,300 N Special features Vertical foot mounting Solid holding arm Safety locking mechanism Finish: galvanised FAQ What is the main purpose of this vertical clamp? The vertical toggle clamp is designed to secure workpieces in jigs and fixtures where a vertical actuation and locked position are required; the Vertikalspanner 212 offers repeatable fixation for production and assembly tasks. Which materials is the clamp suitable to work with? The clamp’s galvanised steel construction and the specified holding forces make it suitable for a wide range of workpieces and fixture setups; selection should be based on workpiece mass and applied process loads. How is the clamp mounted to a fixture plate? Mounting is performed via the vertical foot base, allowing direct attachment to plate surfaces; standard hole patterns and simple fastening give quick installation and repeatable positioning. Does the clamp include a safety feature to prevent accidental release? Yes, the unit incorporates a safety locking mechanism that keeps the clamp locked under load, preventing accidental opening during handling or vibration. Can the clamp withstand harsh workshop environments? The galvanised finish provides enhanced corrosion resistance for typical workshop conditions; for highly corrosive or specialised environments, additional surface protections should be considered. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp Three-Point Heavy-Duty Holding Arm With Safety Lock, 1.5kN Thrust - Kukamet
Take advantage of the combination of robust clamping power, a compact 68 mm arm and a secure safety lock for reliable fixture performance. Order the 241 vertical clamp directly via Metav Werkzeuge or ask our consultants if needed. Kukamet 241 Vertical Clamp — Horizontal-base toggle clamp with safety locking and 68 mm arm The 241 Vertical Clamp is a durable horizontal-base toggle clamp designed for secure workpiece retention in jigs, fixtures and assembly stations, delivering high holding capability in a compact format Horizontal base for stable mounting 68 mm heavy-duty holding arm Holding force 5,000 N for secure clamping Safety locking mechanism for process security Consistent clamping force for reliable production flow The vertical toggle unit offers a clear technical advantage through its high holding force of 5,000 N combined with a maximum pressing force of 1,500 N, which together ensure stable clamping without frequent readjustment. This consistent mechanical performance reduces cycle variability in repetitive assembly or welding operations and supports process reliability. The compact 68 mm arm keeps the fixture footprint small while transferring clamping energy efficiently, allowing shorter clamp travel and faster repositioning in automated or semi-automated setups Integration made straightforward for jig and fixture builders Mounting is effected via a horizontal base, which simplifies alignment on flat fixture plates and ensures predictable load paths under dynamic conditions. The clamp’s opening angle of 100° and modest weight (1.288 kg) make it suitable for retrofitting into existing tooling layouts where space and mass are constrained. Clear numeric specifications support quick engineering decisions and allow precise calculations for fixture stiffness and cycle kinematics, shortening design iterations and minimising downtime during changeover Built for safety and long service life A massive holding arm and a dedicated safety locking mechanism prevent accidental release during machining or handling operations, addressing occupational safety and minimizing scrap risk. The component is finished in a black blued finish, which offers basic corrosion resistance and an industrial appearance that integrates well with workshop hardware. Robust mechanical construction reduces maintenance intervals and supports a predictable lifetime under regular production loads, contributing to lower total cost of ownership over time Suitable applications and practical benefits This toggle-style clamp is primarily intended for general industrial clamping tasks in assembly, welding fixtures and test rigs where firm retention is essential. The combination of high holding force and compact geometry supports clamping of medium to heavy parts while maintaining easy access for operators and automation tooling. The design balances power and compactness, enabling firms to standardise on a single clamp type across multiple stations and thereby simplify spare parts management and inventory Contact Metav Werkzeuge in Emmerich for a tailored application review or to discuss the suitability of the 241 vertical clamp for specific fixture requirements — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: 241-4-D-L-C1 GTIN: 8682843520635 Manufacturer: Kukamet Core technical data Max holding force: 5,000 N Max pressing force: 1,500 N Arm length: 68 mm Opening angle: 100° Weight: 1.288 kg Mounting: horizontal base SKU: 241-4-D-L-C1 Special features Massive holding arm Safety locking mechanism Black blued finish Category: Toggle clamp (vertical) eClass: 21041717 ETIM: EC011973 FAQ What clamping forces can be expected from this toggle clamp? The 241 vertical clamp provides a holding force of 5,000 N and a maximum pressing force of 1,500 N, values suitable for medium to heavy-duty fixture tasks Is the clamp suitable for retrofitting into existing fixtures? Yes, the horizontal base and compact 68 mm arm length make the clamp easy to integrate into existing jigs and fixture plates Does the clamp include a safety lock? The clamp features a dedicated safety locking mechanism, designed to prevent unintended release during handling or machining What finish does the clamp have and what does it mean for workshop use? The unit is supplied with a black blued finish, offering basic corrosion protection and a durable surface for industrial environments How can Metav Werkzeuge help specify this clamp for an application? Metav Werkzeuge can assist with application assessment and technical matching for the 241 vertical clamp (SKU 241-4-D-L-C1) to ensure the clamp meets the fixture and process requirements Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp Three-Point Massive Holding Arm, Safety Lock, Horizontal Base - Kukamet
With a 6,000 N maximum holding force, 2,000 N clamping force and a massive hold arm with safety lock, the 241 vertical toggle clamp delivers reliable, repeatable workholding for production and fixture applications; order the clamp directly via Metav Werkzeuge or consult our technical advisers for specification support. 241 Vertical Toggle Clamp — 6,000 N holding force, 2,000 N clamping force (Kukamet) The 241 Vertical Toggle Clamp is a robust workholding device designed for secure vertical clamping in jigs and fixtures, combining compact integration with high holding capacity. Massive hold arm with safety lock 6,000 N maximum holding force 2,000 N clamping force Horizontal base for stable mounting Secure clamping for continuous production The clamp provides a high holding force of 6,000 N and a defined clamping force of 2,000 N, which together reduce slippage and rework in repetitive operations. These measurable performance values translate directly into fewer interruptions on the shop floor and more predictable cycle times. The construction keeps the load path short and rigid, while the moderate mass (approx. 2.52 kg) contributes to steady contact pressure. For assembly and fixture designers the data allows straightforward load calculations and process validation. Easy integration into fixtures and jigs With a horizontal foot for mounting and an arm length of 180 mm, the clamp is suitable for a wide range of fixture geometries where vertical actuation is required. The fixed 100° operating angle delivers a clear open and closed position, simplifying end-of-travel detection and mechanical interlocks. The blackened finish offers basic surface protection and a reduced visual contrast in production setups where appearance and resistance to light wear matter. Installation is compatible with standard workshop practices and leaves the clamping area accessible for part loading and tooling. Robust design and operator safety A massive hold arm and integrated safety lock prevent accidental release under load, enhancing operator safety and process reliability. Pivot points and the toggle geometry are sized for repeated cycles, keeping maintenance demands low while extending service life. The clamp’s compact footprint allows dense placement in multi-station fixtures, while the solid build reduces the need for frequent adjustments—benefits that support lean manufacturing and lower total cost of ownership. Visual inspection intervals and simple lubrication of pivot pins are sufficient to maintain consistent performance. Contact Metav Werkzeuge for availability of the Kukamet 241 vertical toggle clamp from our Emmerich warehouse and for specialist advice on fixture integration; call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: 241-6-D-L-C3 GTIN: 8682843520727 Weight: 2.52 kg Facts Maximum holding force: 6,000 N Maximum clamping force: 2,000 N Arm length: 180 mm Operating angle: 100° Special features Horizontal foot mounting Massive hold arm Safety lock mechanism Blackened finish Category: Clamps (spanner) eClass: 21041717 ETIM: EC011973 FAQ What is the maximum holding and clamping force of the clamp? The Kukamet 241 vertical toggle clamp (SKU 241-6-D-L-C3) offers a maximum holding force of 6,000 N and a clamping force of 2,000 N, specified for static workholding in fixtures. How is the clamp mounted in a jig or fixture? The unit is supplied with a horizontal foot for stable attachment to fixture plates; the clamp’s compact base and standard hole pattern allow rigid mounting in common jig layouts. Which features enhance operator safety during operation? The clamp includes a safety lock and a massive hold arm, which together prevent unintended opening under load and provide a secure locked state for manual handling tasks. Is the finish suitable for workshop environments? The blackened finish provides basic surface protection and reduces glare; the construction is intended for industrial workshop use where mechanical robustness is the primary requirement. What maintenance is required to keep the clamp operational? Routine visual checks, removal of debris from pivot areas and occasional light lubrication of the pivot pins are sufficient to maintain reliable function and a long service life for the 241 vertical toggle clamp. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With 6000N Holding Arm, 2000N Thrust, Safety Lock - Kukamet
Take advantage of the combination of robust holding power and a secure safety lock for stable production processes. Order the clamp directly via Metav Werkzeuge or contact our consultants for application advice. Vertical clamp 222 — Kukamet vertical clamping solution with 6,000 N holding arm and safety lock A Vertical clamp 222 is a lever-style vertical clamping device designed for secure workpiece retention in jigs, fixtures and workshop assemblies. 6000 N holding arm and safety lock Max pressing force 2,000 N Horizontal-foot mounting for secure fixing Blackened finish for industrial durability Secure retention that keeps processes moving The vertical clamping device delivers a 6,000 N holding arm capacity combined with a 2,000 N maximum pressing force, providing a clear distinction between retention and clamping action. The higher holding force prevents unintended release of the workpiece when the device is locked, while the pressing force defines the clamping pressure applied during setting. This separation increases process reliability and reduces rework cycles, making the clamp suitable for repetitive fixture tasks where consistent retention and repeatability are required. Fitting and handling designed for workshop use Mounting is performed via a horizontal foot, which offers stable attachment to plates or jig bases and simplifies alignment in typical workshop fixtures. The unit’s blackened finish resists wear and provides a low-reflective surface suitable for production environments. At approximately 2.34 kg, the clamp balances robustness with manageable handling during fixture assembly and maintenance. The lever mechanism and 100° clamping angle ensure ergonomic operation while maintaining compact installation space. Safety and workflow benefits for day-to-day production An integrated safety locking mechanism prevents accidental release and supports safe, unattended cycles in batch production. The lever-style actuation speeds up clamping actions, shortening cycle times and contributing to higher throughput. Built for durability and predictable behaviour, this clamping solution reduces downtime and aligns with quality-driven workflows in industrial and craft settings, supporting repeatable jigs and fixture setups without complex adjustments. For dependable clamping performance select the Kukamet Vertical clamp 222 and contact Metav Werkzeuge for tailored technical advice and supply from Emmerich at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 222-6-C-L GTIN: 8682843520529 Manufacturer: Kukamet Weight: 2.34 kg Material: blackened finish Facts Holding arm force: 6,000 N Maximum pressing force: 2,000 N Clamping angle: 100° Special features Holding arm with 6,000 N holding capacity and safety lock Horizontal-foot mounting Blackened, burnished finish Lever-type clamping mechanism FAQ What is the difference between holding force and pressing force? The holding force refers to the clamp’s retention capacity (here 6,000 N) while the pressing force (2,000 N) is the actual clamping pressure applied; the Vertical clamp 222 separates these functions for safer and more reliable retention. How is the clamp mounted to a fixture? Mounting is via a horizontal foot on the base, allowing secure attachment to jig plates or fixture bases; the Kukamet unit is designed for standard workshop fixing methods. Does the clamp include a safety lock and how does it work? Yes—the clamp features a safety locking mechanism that prevents unintended release of the lever once engaged, improving operator safety and process stability. What environments and applications suit this clamping device? The lever-style vertical clamp is intended for jigs, fixtures and repetitive assembly tasks in industrial workshops where secure retention and fast actuation are priorities. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Horizontal Base, 3,000 N Thrust, Zinc Plated, Massive Holding Arm, Safety Lock - Kukamet
Take advantage of a compact, corrosion‑resistant workholding solution that combines a 100 mm reach, a galvanised finish and a robust safety locking mechanism. The resulting reduction in setup time and reliable part retention under loads up to 3,300 N supports a steady production flow. Order or discuss application details directly with Metav Werkzeuge for immediate supply and technical advice. Vertical clamp 211 — Kukamet vertical clamp with 100 mm arm and safety lock Vertical clamp 211 is a compact toggle clamp for secure vertical workholding in light industrial and workshop fixtures Massive holding arm with safety lock 100 mm reach arm Galvanised finish for corrosion resistance Horizontal‑foot mounting for stable set‑up Faster, more reliable clamping for repetitive production The compact vertical clamp reduces cycle time by delivering immediate, repeatable clamping with a clear mechanical advantage. With a maximum pressing force of 3,000 N and a maximum holding force of 3,300 N, the unit secures workpieces reliably during machining, assembly or testing operations. The combination of a short, rigid arm and a dedicated horizontal mounting foot ensures that the clamp remains fixed under lateral and vertical loads, cutting down re‑adjustments and improving throughput on repetitive tasks. Built to withstand workshop conditions Surface protection is essential in everyday use. The galvanised construction of the clamp resists corrosion and simplifies maintenance, so fixtures retain precision over time. A massive holding arm enhances stiffness while the integrated safety lock prevents accidental release when the clamp is under load. These features together help to extend service life and reduce downtime caused by component wear or unexpected part movement. Simple installation and clear technical credentials Designed for straightforward integration, the clamp mounts via a horizontal foot that aligns easily with standard tooling plates and jigs. At under 1 kg, the assembly is light enough to reposition during fixture changes but remains heavy enough to avoid vibration during operation. The compact footprint supports denser fixture layouts, enabling more efficient use of table space without sacrificing clamping force or reliability. Suited to small‑batch and series production The clamp's mechanical simplicity makes it a pragmatic choice where repeatable clamping is required without complex pneumatics or hydraulics. Its robust design and galvanised finish suit both workshop and light industrial environments, supporting applications where reliable manual action and a positive locking feature are desirable. For traceable procurement and rapid replenishment the clamp is stocked with the trade reference SKU 211-4-D-L-C1, enabling consistent reorder handling. For application checks or to secure supply of the Kukamet Vertical clamp 211, contact Metav Werkzeuge for expert advice and immediate processing via eMail info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical data Article number: 211-4-D-L-C1 GTIN: 8680731501346 Model: 211 eCl@ss: 21041717 ETIM: EC011973 Facts Arm length: 100 mm Max pressing force: 3,000 N Max holding force: 3,300 N Weight: 0.89 kg Special features Material: galvanised steel Mounting: horizontal foot Massive holding arm and safety lock Category: Spanner FAQ What clamping and holding forces does the clamp provide? The Vertical clamp 211 offers a maximum pressing force of 3,000 N and a holding force up to 3,300 N, giving secure retention for many light industrial tasks. How is the clamp mounted to a fixture or table? Mounting is via the horizontal foot; this alignment simplifies installation on tooling plates and is common in jig and fixture layouts. Is the clamp suitable for corrosive or humid environments? The clamp’s galvanised finish increases resistance to corrosion, making it more durable in workshop atmospheres than untreated steel variants. Can the clamp be used for repeatable production set‑ups? Yes, the mechanical toggle action, short rigid arm and safety lock make it well suited to repetitive operations and small‑batch production. Which reference helps with reordering or specifying the clamp? Use the trade reference SKU 211-4-D-L-C1 and GTIN 8680731501346 when reordering to ensure the correct model is supplied. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Horizontal Foot, 3,000 N Thrust, Massive Arm & Safety Lock - Kukamet
Take advantage of a compact, high-force solution that combines robust clamping, a massive holding arm with safety lock, and straightforward mounting for jigs and fixtures; order directly via Metav Werkzeuge or ask our consultants for application support. Vertical toggle clamp 211 — vertical clamp with 100 mm arm and 3,300 N holding force (Kukamet) A Vertical toggle clamp 211 engineered for reliable vertical workholding in jigs, fixtures and assembly operations across workshops and small production lines. Massive holding arm and safety lock 100 mm clamping arm length Holding force 3,300 N Horizontal base for stable mounting Secure, high-force workholding that reduces rework The clamp delivers a holding force of 3,300 N with a maximum pressing capacity of 3,000 N, providing consistent clamping for repeatable processes. The 100 mm arm gives an extended reach for a range of component sizes while the horizontal base simplifies fixture integration. The blackened finish offers basic corrosion resistance and a professional appearance; the overall specification supports stable positioning and reduces the risk of slippage, which in turn lowers scrap rates and boost throughput. Faster setup, safer operation and less downtime A massive holding arm combined with a dedicated safety lock ensures the clamping element remains secure under vibration and handling, improving operator confidence and machine uptime. The compact unit, weighing just 0.89 kg, is easy to handle during fixture assembly and replacement. Designed as a toggle-style workholding device, the mechanism gives a rapid single-action clamp and release, cutting set-up time and simplifying process steps for operators. Compact design for workshop and production environments With a small footprint and a horizontal mounting base, the clamp integrates cleanly into bespoke jigs or standard tooling plates. The lever-clamp principle provides straightforward mechanical advantage without the need for external power, making it suitable where simplicity and reliability are priorities. The robust construction supports frequent daily cycles and, being service-friendly, the device requires only routine inspection to maintain performance and safety. Contact Metav Werkzeuge for tailored mounting recommendations and rapid supply from Emmerich — eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 Technical data SKU: B211-4-D-L-C1 Designation: 211 Brand: Kukamet Category: Spanner Facts Arm length: 100 mm Holding force: 3,300 N Pressing force (max): 3,000 N Weight: 0.89 kg eClass: 21041717 ETIM: EC011973 Special features Massive holding arm Safety lock Horizontal base for mounting Blackened finish Lever clamp style FAQ What is the maximum holding force of this clamp? The holding force is 3,300 N for the Vertical toggle clamp 211 (Kukamet, SKU B211-4-D-L-C1), providing secure retention for medium-duty workholding tasks. What arm length does the device have and why does it matter? The clamping arm is 100 mm long, which gives extra reach for larger components while maintaining stable leverage for reliable clamping cycles. How is the clamp mounted? The unit uses a horizontal base for stable mounting in jigs, fixtures and tooling plates, enabling straightforward integration into production assemblies. Which safety features are included? The clamp is fitted with a safety lock and a massive holding arm to prevent accidental release under vibration or external loads, improving on-machine safety. Is the clamp suitable for frequent use in workshop environments? Yes; the lever-toggle design and robust construction make the clamp suitable for frequent daily cycles in workshops and smaller production lines. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Massive Arm And Safety Lock, 3,000N Thrust / 3,300N Holding Force - Kukamet
Take advantage of a compact, high-force clamping solution that combines a 100 mm massive holding arm, a safety locking mechanism and a robust black oxide finish for reliable, repeatable workholding. Order the clamp via Metav Werkzeuge or consult our specialists for application advice. Vertical toggle clamp 212 (B212-4-D-L-C1) — 100 mm arm · 3,300 N holding force · Kukamet The Vertical toggle clamp 212 is a vertically actuating lever clamp engineered for secure workholding in jigs, fixtures and assembly stations, offering a solid holding arm and an integrated safety lock for repeatable clamping cycles Robust 100 mm holding arm Safety locking mechanism Holding force 3,300 N Black oxide finish for corrosion resistance Reliable clamping where consistency matters The combination of a holding force of 3,300 N and a clamping force of 3,000 N delivers consistent retention for repetitive processes, reducing rework and downtime. The vertical actuation keeps the workpiece perpendicular to the clamping motion, which improves repeatability in machining and assembly operations. Numerical specifications enable planners to compare fixtures objectively and integrate the clamp into automated stations or manual jigs with predictable load behaviour. The compact construction keeps the footprint small while providing industrial-grade retention. Faster set-up and safer operation on the shop floor With a 100 mm arm and a vertical foot mounting, this clamp allows quick installation on fixture plates and tooling boards, cutting preparation time and simplifying changeovers. The safety locking mechanism prevents accidental release during handling and machining, improving operator confidence and reducing the risk of workpiece movement. The lever-action design provides fast engagement and reliable mechanical advantage, which supports efficient takt times and stable clamping without the need for complex auxiliary hardware. Built for durability and low-maintenance use Constructed with a massive holding arm and finished in black oxide for enhanced corrosion resistance, the clamp is designed for frequent industrial use. The unit’s modest mass (0.785 kg) and compact form make it easy to integrate into fixtures without adding excessive bulk, while the robust materials extend service life under normal workshop conditions. Routine inspection and light lubrication of pivot points maintain performance; the straightforward design minimises maintenance effort and supports long-term operational reliability. Choose Kukamet’s Vertical toggle clamp 212 for robust, repeatable workholding — contact Metav Werkzeuge for tailored advice and specification support via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: B212-4-D-L-C1 Model: 212 Brand: Kukamet Category: Clamps EClass: 21041717 ETIM: EC011973 Core specifications Clamping force (max): 3,000 N Holding force (max): 3,300 N Arm length: 100 mm Weight: 0.785 kg Features & materials Massive holding arm Safety locking mechanism Mounting: vertical foot Finish: black oxide Material: blackened steel FAQ What applications is this clamp suited for? The Vertical toggle clamp 212 (Kukamet, SKU B212-4-D-L-C1) is suited for jigs, fixtures and assembly stations that require vertical actuation and reliable retention up to the specified holding force. How is the clamp mounted in a fixture? Mounting is via the vertical foot; the clamp is fastened to fixture plates or tooling boards in a vertical orientation to deliver perpendicular clamping motion and compact integration. What are the maximum forces the clamp can handle? The clamp provides a clamping force up to 3,000 N and a holding force up to 3,300 N, allowing objective planning for workpiece retention under typical production loads. Does the clamp include safety features to prevent accidental release? Yes, the unit features an integrated safety locking mechanism that secures the lever in the clamped position to prevent unintended opening during handling or machining. What maintenance is required to keep performance stable? Periodic inspection of pivots and the locking mechanism plus light lubrication of moving parts preserves smooth operation and prolongs service life; replacement is straightforward if wear occurs. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Massive Holding Arm, 3,300N Hold Force, Zinc Plated - Kukamet
Benefit from robust clamping performance and a galvanised, corrosion‑resistant body combined with a sturdy 100 mm arm for reliable fixture setup; the unit supports high holding loads while remaining compact and easy to integrate. Order the (Vertical clamp 211) directly via (Metav Werkzeuge) or ask our consultants if needed. Vertical clamp 211 — vertical clamping device with 100 mm arm, galvanised (Kukamet) The Vertical clamp 211 is a compact vertical clamping device designed for production fixtures and workshop jigs, offering a solid 100 mm arm and horizontal‑foot mounting for straightforward installation. Massive holding arm 100 mm clamping arm Galvanised corrosion protection Up to 3,300 N holding force Consistent force where it matters The clamp delivers a pressing force of 3,000 N and a maximum holding force of 3,300 N, providing dependable restraint for repetitive machining or assembly tasks. These figures describe the mechanical capability: pressing force refers to the active clamp travel load, while holding force indicates the static retention under load. The robust design with a massive holding arm reduces deformation under stress, ensuring repeatable results and minimised rework in production environments. Built for harsh workshop conditions A galvanised finish protects the body against corrosion and extends service life in workshop atmospheres. The horizontal‑foot mount allows secure attachment to fixture plates or machine tables and simplifies retrofitting into existing setups. At a mass of 0.782 kg the unit is light enough for flexible fixture layouts yet heavy enough to feel solid during operation, balancing manoeuvrability with mechanical stability. Fast integration and reliable operation Installation requires minimal effort thanks to the horizontal base and standard fixing points, enabling quick replacement of hand levers or worn clamps in jigs. The compact 100 mm arm provides accessibility in confined clamping zones while maintaining clearance for tooling. For repetitive processes, the clamp’s steady performance reduces cycle variation and supports consistent throughput, contributing to measurable efficiency gains on the shop floor. For robust vertical clamping from Kukamet, contact Metav Werkzeuge for procurement advice or to arrange supply directly from Emmerich; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: 211-4-D-C1 GTIN: 8680731501315 ECLASS: 21041717 ETIM: EC011973 Facts Arm length: 100 mm Pressing force max: 3,000 N Holding force max: 3,300 N Weight: 0.782 kg Special features Massively reinforced holding arm Horizontal‑foot mounting Material: galvanised Suitable for lever clamping applications FAQ What maximum holding force does this clamp provide? The clamp offers a maximum holding force of 3,300 N, enabling secure fixation of components during machining and assembly. Is the surface protected against corrosion? Yes, the body is galvanised, which provides reliable corrosion resistance for workshop environments and extends service life. How is the clamp mounted to a fixture? Mounting is via a horizontal‑foot base that fits standard fixture plates and allows straightforward retrofitting into existing jigs. What arm reach does the unit have? The device features a 100 mm arm, giving good reach for confined clamping zones while keeping the overall footprint compact. Can the clamp be used for repetitive production cycles? The robust construction and consistent force characteristics make this clamp well suited to repetitive cycles, where steady clamping reduces variation and improves throughput. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Massive Holding Arm, 3.3 kN Holding Force, 3 kN Thrust - Kukamet
Take advantage of the combination of a massive 100 mm holding arm, high clamping forces and a compact, workshop-ready design for reliable fixture performance. Order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. 212 Vertical Clamp — Vertical Toggle Clamp with 100 mm Arm (Kukamet) The 212 Vertical Clamp is a vertical toggle clamp designed for upright mounting in jigs and fixtures, delivering strong clamping and secure holding for repetitive production tasks. Massive 100 mm holding arm Vertical foot for upright mounting Holding force up to 3,300 N Blackened burnished finish Secure, measurable clamping for production use The vertical toggle design provides a clear, quantifiable advantage in fixtures that require repeatable force. With a holding force of 3,300 N and a clamping/pressing force of 3,000 N, the device secures workpieces against movement during machining, welding or assembly operations. These force values describe the clamp’s performance under load and support process reliability, reducing rework and improving cycle consistency in batch production. The forces are stated as peak capabilities for design and fixture planning. Robust construction that reduces setup time A massive holding arm and a vertical foot for upright mounting ensure a stable interface with base plates and tooling plates. The clamp’s compact mass (approx. 0.809 kg) and durable blackened burnished finish simplify integration into existing jigs without requiring major fixture redesign. This solid construction minimises vibration and contributes to a longer service life in industrial environments, enabling quicker set-ups and fewer adjustments between cycles. Practical installation and application guidance The clamp is intended for fixed, upright installation using the vertical foot; the lever-style action converts operator input into a high clamping force via a toggle mechanism, which locks securely in the clamped position. This behaviour is beneficial where positive, downward force is needed and where a clear visual/clamped state is required on a station. The compact footprint and standard mounting arrangement make this solution suitable for custom fixtures, welding jigs and assembly stations where consistent repeatability is required. Integration benefits and supplier reliability Supplied by a trusted partner network, the clamp combines straightforward mechanics with industrial-grade specifications. Its simple mechanical design supports easy inspection and predictable maintenance intervals, while the listed force ratings and dimensional data allow planners and purchasing to specify the component precisely for production fixtures. The combination of measurable performance and robust materials makes it a practical choice for workshops aiming to standardise clamping on multiple workstations. Contact Metav Werkzeuge to discuss suitability for specific fixtures, request the catalogue page or arrange delivery from Emmerich; email info@metav-werkzeuge.com or call +49 2822 7131930 for personalised advice Technical Data Article number: B212-4-D-C1 GTIN: 8682843522332 Model: Vertical clamp 212 Core specifications Arm length: 100 mm Holding force max: 3,300 N Pressing force max: 3,000 N Weight: 0.809 kg ECLASS: 21041717 ETIM: EC011973 Materials & features Finish: blackened burnished Mounting: vertical foot Massive holding arm Category: Clamp Manufacturer: Kukamet FAQ What maximum holding and clamping forces does this clamp provide? The 212 Vertical Clamp from Kukamet provides a holding force of up to 3,300 N and a clamping (pressing) force of 3,000 N, as stated for fixture design and selection. How is the clamp mounted and oriented on a fixture? The unit is fitted using a vertical foot for upright mounting; the arrangement is suitable for jigs and fixtures where downward clamping action is required. What is the arm length and overall mass of the clamp? The clamp features a 100 mm holding arm and weighs approximately 0.809 kg, facilitating compact fixture design without excessive mass. Is the finish suitable for workshop environments? The product is supplied with a blackened burnished finish, offering a robust surface condition for industrial use and easy visual integration into fixtures. Which SKU and identifiers should be used for ordering and documentation? Use article number B212-4-D-C1 and GTIN 8682843522332 for ordering and inventory records. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TURKEY; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm Vertical Clamp With Safety Lock, 1.5 kN Thrust / 5 kN Holding Force, Blackened - Kukamet
Reliable clamping for vertical fixtures: combines a holding force of up to 5,000 N, a pressing force of 1,500 N and a compact 1.25 kg design for straightforward integration into jigs and fixtures. Order the 224 vertical clamp directly via Metav Werkzeuge or ask our consultants if needed. 224 Vertical Clamp by Kukamet — vertical foot, safety locking The 224 vertical clamp is a lever clamp for secure vertical mounting, offering repeatable workholding for workshop fixtures and small production runs. Vertical foot mounting Integrated safety locking Holding force up to 5,000 N Robust blackened finish Secure, repeatable clamping for production The clamp delivers dependable clamping performance through a combination of sturdy mechanics and a positive safety locking mechanism that prevents unintended release during machining or handling. Designed as a lever clamp, it converts operator input into a reliable hold, producing a holding force of 5,000 N for stable fixation of components. This level of clamping reduces rework and aligns with production demands where consistent part location and repeatability are essential. Engineered for efficiency and operator safety A geared balance between clamping power and ergonomic operation is achieved by the lever design and integrated lock. The 1,500 N pressing force provides strong contact pressure without excessive operator effort, while the safety lock secures the clamp once engaged, supporting safe, unattended cycles where repeatability matters. The compact mechanism minimises footprint on fixtures and contributes to quicker set-ups and faster changeovers in busy workshops. Compact construction and corrosion-resistant finish At 1.25 kg the clamp is lightweight enough for fixture integration yet robust for daily industrial use. The blackened finish offers surface protection and a professional appearance while damping minor abrasions. The clamp’s geometry supports installation on a vertical foot mounting, with a working angle of 100° that suits typical vertical clamping arrangements. These design choices combine to keep assemblies compact, durable and straightforward to maintain over long production runs. Discuss the Kukamet 224 vertical clamp with Metav Werkzeuge for tailored workshop integration or request detailed technical advice at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 224-4-L GTIN: 8682843520567 Manufacturer: Kukamet Facts Weight: 1.25 kg Holding force: 5,000 N Pressing force: 1,500 N Angle: 100° eClass: 21041717 ETIM: EC011973 Special features Material: blackened finish Mounting: vertical foot Safety locking: integrated Design: lever clamp FAQ What clamping force can be expected from this clamp? The clamp provides a holding force of up to 5,000 N and a pressing force of 1,500 N, making the Kukamet 224 suitable for demanding fixture applications. How is the 224 mounted to a fixture? Mounting is designed for a vertical foot arrangement; the clamp attaches to a vertical surface or base plate to secure parts in an upright orientation. Does the clamp include a locking mechanism? Yes, the 224 features an integrated safety locking device that secures the lever once engaged, preventing accidental release during machining. Is the surface treated for resistance to wear and corrosion? The clamp is supplied with a blackened finish that protects against minor wear and provides a low-maintenance surface suitable for workshop environments. Is the clamp suitable for frequent cycle changes in production? The lever clamp design and compact mass support rapid set-ups and repeatable operation, making it appropriate for frequent changeovers in small-series production. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100mm Vertical Clamp With Safety Lock, 1.5kN Thrust, 5kN Hold Force, Blackened - Kukamet
Take advantage of the combination of compact design, high retention force and a secure safety lock to speed up fixture cycles without compromising on workplace safety. Order the clamp direct from Metav Werkzeuge or consult our specialists for application advice. Vertikalspanner 242 – Vertical toggle clamp with safety lock, 1,500 N clamping force (Kukamet) The Vertikalspanner 242 is a vertical toggle clamp designed for secure, repeatable holding in jig and fixture applications across metalworking and assembly stations Vertical base foot for stable mounting Safety lock prevents unintended release 1,500 N clamping force for firm hold Holds up to 5,000 N retention force Consistent holding power for production environments The clamp delivers a clear performance advantage through its 1,500 N rated clamping capability combined with a 5,000 N maximum retention force. This ratio of clamping to holding force provides a secure grip on parts during machining or assembly, reducing rework and stoppages. The mechanism locks positively, so the safety lock maintains engagement under vibration and intermittent loads. For production planners the result is a measurable improvement in process stability and fewer manual interventions. Robust construction that speeds up cycle times A compact, blackened finish body and a vertical base mounting allow rapid integration into existing fixtures while offering corrosion-resistant surface protection. The lever-driven action of this type of clamp shortens the motion path, enabling quicker part securing and release compared with multi-component systems. At a lightweight 1.47 kg the unit is easy to position during jig building yet substantial enough to withstand repeated cycles, supporting higher throughput without adding bulk to the fixture. Safety and installation advantages for workshop fixtures Designed as a classic lever clamp, the device opens to a 100° travel angle, giving good access for loading and unloading components while maintaining a compact footprint. The integrated safety lock prevents accidental opening, which is beneficial where unattended machines or automated feeders are in use. Clear mechanical behaviour and straightforward mounting on a vertical foot make it suitable for clamping, assembly and testing fixtures where repeatability and operator safety are priorities. The model is supplied as a single, ready-to-install clamp with a defined SKU for traceability. Contact Metav Werkzeuge for tailored technical advice and to specify the Kukamet Vertikalspanner 242 (SKU 242-4-L) for reliable fixture integration in your workshop Technical data Article number: 242-4-L GTIN: 8680731505696 SKU: 242-4-L Facts Weight: 1.47 kg Max clamping force: 1,500 N Max holding force: 5,000 N Angle: 100° Special features Material: blackened finish Mounting: vertical base foot Safety lock: yes Category: Spanner eClass: 21041717 ETIM: EC011973 FAQ What is the primary application for this vertical clamp? The Vertikalspanner 242 from Kukamet is intended for use in jigs, fixtures and assembly fixtures where secure, repeatable clamping and compact mounting are required. Can the clamp be mounted on production fixtures with limited space? Yes. The vertical base foot and compact design of the Vertikalspanner 242 (SKU 242-4-L) allow straightforward installation in confined fixture layouts. How does the safety lock improve workshop safety? The integrated safety lock prevents unintended release under vibration or incidental impact, so the clamp keeps a positive hold until deliberately released. Is the lever action suitable for high-cycle automation? The lever-driven mechanism offers short actuation and reliable engagement, making this model suitable for higher cycle rates in manual or semi-automated processes. What finish does the clamp have and what does it mean for maintenance? The unit features a blackened finish that provides basic surface protection; this reduces the need for frequent touch-up while supporting standard workshop maintenance routines. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
Fragen zu diesen Produkten??
Mit mehr als 30 Jahren Erfahrung beraten wir Sie gerne persönlich.
Tel.: +49 2822 7131930
Mail: info@metav-werkzeuge.com
