Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
100° Vertical Clamp With Massive Holding Arm, Safety Lock, 1,500 N Thrust, 5,000 N Hold - Kukamet
Take advantage of the combination of a massive 118 mm holding arm, a reliable safety locking mechanism and a compact vertical base for consistent fixture clamping; order the Kukamet unit directly via Metav Werkzeuge or consult our specialists for application advice. Vertikalspanner 242 – Vertical lever clamp with 118 mm arm and 5,000 N holding force (Kukamet) The Vertikalspanner 242 is a vertical lever clamp designed to provide secure, repeatable clamping in jigs, fixtures and assembly stations within production and workshop environments. Solid 118 mm holding arm Safety locking mechanism Vertical base mounting 5,000 N maximum clamping force Consistent clamping force for productive setups The clamp delivers clearly defined forces: 5,000 N maximum holding force and 1,500 N pressing force, values that support repeatable part fixation in small-series production or repair work. These measurable figures enable planners to size fixturing with confidence, linking expected process stability directly to the clamp’s capacity. The numeric specification simplifies comparisons with other clamping elements and helps reduce rework caused by insufficient clamp performance. Robust construction that shortens setup times A massive holding arm and safety lock reduce the need for frequent adjustments and prevent unintentional release during machining or handling. The unit’s blackened finish protects against wear while offering a uniform appearance in toolrooms and on shop floors. At 118 mm reach and 100° operating angle the design balances accessibility and clearance, so fixtures can be loaded and unloaded quickly without compromising stability. Compact mounting and straightforward function Mounting on a vertical base provides a small footprint and straightforward installation into plates or tooling blocks. The lever mechanism is simple to operate and the integrated safety lock holds the lever in its clamped position until deliberately released, improving process safety. With a unit mass of 1.362 kg, the clamp is robust yet manageable for retrofitting into existing fixtures or building new assemblies without heavy handling equipment. Suitable applications and workshop benefits Engineered for jigs, assembly stations and light machining tasks, this vertical lever clamp is well suited to metalworking and general workshop use where reliable repeatability matters. The combination of precise clamping forces and the massive arm design reduces vibration and movement of the workpiece, contributing to better machining results and fewer rejects. Procurement and production planners will value the predictable performance when standardising fixture hardware across multiple stations. Contact Metav Werkzeuge for tailored application advice and fast supply from Emmerich—discuss the Kukamet Vertikalspanner 242 (SKU 242-4-D-L-C2) with our specialists via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Product details SKU: 242-4-D-L-C2 GTIN: 8680731509168 Brand: Kukamet eCl@ss: 21041717 ETIM: EC011973 Key specifications Arm length: 118 mm Maximum holding force: 5,000 N Maximum pressing force: 1,500 N Operating angle: 100° Weight: 1.362 kg Features & materials Mounting type: vertical base Finish: blackened (brünniert) Massive holding arm Safety locking mechanism FAQ What is the difference between the holding force and the pressing force? The holding force denotes the maximum static retention capability (5,000 N) while the pressing force (1,500 N) refers to the clamping action applied by the lever; these values for the Kukamet Vertikalspanner 242 indicate strong retention with controlled actuation. Can the clamp be mounted directly into a fixture plate? Yes, the vertical base mounting allows direct installation into plates or tooling blocks for stable integration in jigs and assemblies. Is the safety lock suitable for machining applications? The integrated safety locking mechanism prevents accidental opening during handling and light machining, improving operational safety for production and workshop tasks. What materials and finishes are used? The unit features a blackened finish and a massive arm construction designed for wear resistance and long service life in workshop environments. Is the clamp suitable for automated handling or do adjustments require manual intervention? The lever clamp operates manually; its robust construction and safety lock make it suitable for repetitive manual cycles and integration into semi-automated stations where manual clamping is required. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamp With Massive Holding Arm, Safety Lock, 68mm Stroke, 1.5kN Pressure, 5kN Hold - Kukamet
Take advantage of the combination of a massive holding arm, a safety locking mechanism and high clamping performance to secure fixtures reliably in vertical applications; order the clamp directly via Metav Werkzeuge or consult our specialists for technical advice. Vertical clamp 242 — vertical foot-mounted toggle clamp with 68 mm arm and 5,000 N holding force (Kukamet) The Vertical clamp 242 provides secure vertical clamping for production and assembly work, combining a lever-style action with a vertical foot for stable installation and rapid locking. Vertical foot mounting for stable installation Massive holding arm with safety lock 5,000 N maximum holding force 68 mm arm length, 100° clamping angle Reliable clamping performance that keeps production moving The vertical toggle clamp is engineered for repeatable fixture retention under demanding conditions. With a maximum holding force of 5,000 N and a maximum pressing force of 1,500 N, the device delivers a clear capacity advantage where secure workpiece retention prevents movement during machining or assembly. The lever-based mechanism converts operator input into a strong clamping action, reducing the number of rechecks and minimising setup time. This translates directly into higher throughput and fewer stoppages in a production environment where consistency and uptime are critical. The robust design ensures force is applied evenly, supporting precision and repeatability across batches. Designed for straightforward installation and safe operation Mounting is simplified by the vertical foot configuration, which provides a stable base and straightforward alignment on vertical surfaces. The massive holding arm is paired with a dedicated safety locking mechanism, preventing accidental release and adding an extra layer of protection in automated or manual workflows. The clamp’s 100° clamping angle and a 68 mm arm length are optimised to accommodate typical workpiece geometries while maintaining compact overall dimensions. Technical teams will appreciate the predictable kinematics and the low-maintenance nature of the mechanism, which reduces downtime and the need for frequent adjustments. Durable finish and compact weight for long service life Constructed with a blackened finish that resists corrosion and surface wear, the clamp balances durability with a modest mass of 1.288 kg, making it easy to handle during installation without compromising strength. The lever-style construction and materials selection focus on longevity in workshop environments, so the component sustains repeated cycles with minimal degradation. For engineers specifying fixtures, the compact footprint and reliable locking deliver confidence that clamped parts remain stable through machining, inspection or assembly operations, helping to protect both workpieces and tooling. Choose the Kukamet Vertical clamp 242 for dependable vertical fixturing — contact Metav Werkzeuge in Emmerich for a tailored supply and expert consultation at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 242-4-D-L-C1 GTIN: 8682843520826 Brand: Kukamet Facts Arm length: 68 mm Clamping angle: 100° Max pressing force: 1,500 N Max holding force: 5,000 N Weight: 1.288 kg Special features Vertical foot mounting Massive holding arm Safety locking mechanism Blackened finish Lever-style clamp design FAQ What holding capacity does the clamp offer? The Vertical clamp 242 (Kukamet, SKU 242-4-D-L-C1) provides a maximum holding force of 5,000 N and a maximum pressing force of 1,500 N. How is the clamp mounted? Mounting is via a vertical foot; the Kukamet Vertical clamp 242 is designed for secure vertical-foot installation to ensure stable alignment on vertical fixtures. Is the clamp suitable for frequent cycle use? Yes, the lever-style design and robust construction of the Vertical clamp 242 (Kukamet 242-4-D-L-C1) are intended for repeated cycles with reduced maintenance requirements. What safety features are included? A dedicated safety locking mechanism and a massive holding arm provide secure retention and protection against accidental release in the Kukamet Vertical clamp 242. What are the compactness and weight considerations? The device weighs 1.288 kg and has a 68 mm arm length, making the Kukamet Vertical clamp 242 compact enough for tight fixtures while offering substantial clamping force. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamp With Safety Lock, 2.5 kN Thrust, 6.5 kN Holding Force, 2.3 kg - Kukamet
Take advantage of a robust vertical clamp that combines a 6,500 N holding capacity, a 2,500 N closing force and a secure safety lock to maintain stable fixturing in demanding workshop environments. Order the clamp directly via Metav Werkzeuge or consult the Metav team for application advice. Vertikalspanner 224 — Vertical clamp with safety lock (Kukamet) The Vertikalspanner 224 is a vertical clamp designed for secure workholding and repeatable fixturing in machining and assembly applications. Vertical base for upright mounting Safety locking mechanism included 6,500 N maximum holding force Black-burnished, robust finish Dependable holding for precision machining The vertical clamp delivers a clear performance advantage through its 6,500 N maximum holding force, paired with a 2,500 N closing force. This difference means the device secures parts under load while the actuating force remains manageable, which reduces wear on the actuator and shortens cycle times. The lever-clamp design provides fast engagement, making the clamp suitable for repetitive production where secure, repeatable clamping reduces scrap rates and downtime. Holding force and closing force are stated values that allow planners to calculate safety factors for fixtures and choose the correct clamp for the workpiece mass and cutting forces. Built-in safety and workshop ergonomics A mechanical safety lock prevents unintended release once the clamp is engaged, improving operator safety and protecting delicate workpieces during secondary operations. The clamp’s vertical foot mounting enables compact fixturing on upright plates and modular fixture systems, saving table space and simplifying setup. The black-burnished finish reduces surface glare and provides a degree of corrosion resistance that helps maintain a dependable contact surface between clamp and workpiece. These features together lower the risk of costly operator errors and support a steady production flow. Fast installation and versatile use Designed as a lever-style vertical clamp, the unit mounts quickly and integrates cleanly into jigs and fixture plates with standard workshop practices. The 100° operating angle offers a balance between clearance and compact design, making the clamp suitable for confined setups. At 2.3 kg it is light enough for manual handling during fixture changes but solid enough to resist vibration and lateral load. The clamp is therefore a practical choice where reliable clamping, straightforward assembly and robust finish matter to both small shops and production lines. Specify the Kukamet Vertikalspanner 224 for secure vertical fixturing — contact Metav Werkzeuge in Emmerich for tailored advice and ordering at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: 224-6-L GTIN: 8680731501308 eClass: 21041717 ETIM: EC011973 Core specifications Max closing force: 2,500 N Max holding force: 6,500 N Weight: 2.3 kg Operating angle: 100° Design & special features Vertical foot (upright mounting) Safety locking mechanism Black-burnished finish Lever clamp style FAQ How much holding force does the clamp provide? The clamp offers a maximum holding force of 6,500 N, providing secure fixturing for medium-duty machining tasks with the Vertikalspanner 224. What is the closing or actuation force required? Actuation requires up to 2,500 N of closing force; this balanced ratio reduces actuator strain while maintaining high holding capacity in the Kukamet clamp. Can the clamp be mounted on vertical plates? Yes, the vertical foot is designed for upright mounting and integrates with common fixture plates and jig systems. Does the clamp include a safety lock? Yes, the Vertikalspanner 224 features a mechanical safety lock to prevent unintended release during secondary operations. Is the finish corrosion-resistant? The black-burnished surface offers enhanced wear resistance and reduced glare, supporting longevity in workshop conditions. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamp With Safety Lock, Blackened Finish - Kukamet
Robust clamping with a 7,000 N clamping force and integrated safety locking delivers secure, repeatable workholding. The vertical mounting foot and black blued finish provide stable installation and corrosion resistance. Order directly via Metav Werkzeuge or consult our specialists for fixture integration. Kukamet 222 Vertical Clamp — 7,000 N clamping force, safety locking The 222 is a vertical clamp designed for compact, reliable workholding in workshop jigs and production fixtures. Vertical mounting foot for stable fixing 7,000 N maximum clamping force Integrated safety locking mechanism Black blued finish for corrosion resistance Secure, repeatable clamping for production use The clamp delivers a consistent 7,000 N clamping force, ensuring reliable retention for a wide range of shop-floor tasks. The mechanism includes a safety locking device that prevents accidental release during machining or handling, reducing the risk of workpiece movement and rework. The specified 100° angle provides a positive lever travel that secures the clamping arm without excessive operator effort. This combination of force and locking offers a measurable improvement in fixture stability and process repeatability for batch production. Compact footprint for tight fixture layouts With a total mass of 1.07 kg and a vertical mounting arrangement, the unit occupies minimal space on a tooling plate while maintaining high holding capacity. The vertical mounting foot simplifies installation onto uprights or fixture bases and allows straightforward alignment in confined assemblies. The modest weight supports ease of handling during assembly changes and keeps loading on lightweight jigs low, making the clamp suitable for both manual and automated workstations where space and weight budgets are constrained. Long-term workshop durability and simple integration A black blued finish provides corrosion resistance and a uniform appearance for long service life in industrial environments. The mechanical design emphasises straightforward integration: fixed mounting, clear clamping force rating and a positive locking feature enable planners to calculate safety margins and interchange components with minimal testing. The robust construction minimises maintenance intervals and supports uninterrupted throughput, while the familiar form factor eases replacement in existing fixture designs. For reliable clamping solutions from Kukamet, contact Metav Werkzeuge in Emmerich to review the 222’s fit for specific fixtures and to obtain current availability and technical drawings: info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: 222-4-L GTIN: 8680731505719 eClass: 21041717 ETIM: EC011973 Manufacturer: Kukamet Numbers / Core technical data Maximum clamping force: 7,000 N Angle: 100° Weight: 1.07 kg Special features / Versions Mounting: vertical foot Finish: black blued Safety locking mechanism FAQ What clamping force does the Kukamet 222 provide? The Kukamet 222 vertical clamp offers a maximum clamping force of 7,000 N (SKU 222-4-L), suitable for robust fixture retention in light to medium production tasks. Is the clamp suitable for permanent fixture mounting? Yes — the vertical mounting foot is designed for stable attachment to fixture plates and uprights, enabling long-term installation in production jigs. Does the unit include a locking mechanism to prevent accidental release? The clamp features an integrated safety locking mechanism that secures the clamping position and reduces the risk of unintentional opening during machining. What is the finish and approximate weight of the clamp? The device has a black blued finish for corrosion resistance and weighs approximately 1.07 kg, allowing easy handling and mounting. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamp With Safety Lock, Horizontal Base, 2,000 N Thrust, 6,000 N Holding Force, Blackened - Kukamet
Take advantage of high clamping reliability and a secure safety lock combined with a compact horizontal mounting solution for improved fixture throughput; order the clamp via Metav Werkzeuge or consult the team for application advice. 241 vertical clamp — Kukamet vertical toggle clamp with horizontal base and safety lock The 241 vertical clamp is a lever-operated vertical clamp designed to secure workpieces in jigs, fixtures and assembly benches, offering dependable holding power for production and workshop tasks. High clamping force up to 2,000 N Holding capacity 6,000 N Horizontal base for stable mounting Integrated safety lock for secure operation Secure, measurable clamping for production use The 241 provides a defined clamping force of 2,000 N and a holding capacity of 6,000 N, values that translate directly into consistent part retention during machining, assembly or inspection. A clear distinction between operational clamping and maximum holding capacity allows process planners to size clamps for specific tasks without guesswork, reducing the risk of movement-related rework. The numeric specifications enable straightforward integration into fixture calculations and contribute to predictable cycle times on the shop floor. Stable mounting and clear kinematics for repeatable cycles Fitted with a horizontal base, the device mounts securely to plates or fixture bodies, delivering a predictable lever trajectory that completes at an angle of 100°. The lever kinematics and compact footprint support high-density fixture layouts where space is limited but access and ergonomics remain important. A blackened finish provides corrosion resistance and reduces glare at the clamping point, while the overall mass (approx. 2.545 kg) contributes to a solid, vibration-resistant assembly—advantages that improve repeatability across production batches. Built-in safety and low-maintenance operation An integrated safety lock prevents accidental release of the clamped workpiece and supports safe changeover procedures in busy production environments. The lever design is based on proven mechanical principles that require minimal maintenance; routine inspection and lubrication are sufficient to maintain performance. Robust construction and a restrained list of wear components make the clamp suitable for repetitive applications, helping to lower downtime and preserve process quality over extended production runs. Choose the Kukamet 241 vertical clamp for secure, repeatable clamping — contact Metav Werkzeuge for ordering and technical guidance at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: 241-6-L GTIN: 8682843520734 Manufacturer: Kukamet eClass: 21041717 ETIM: EC011973 Facts Clamping force (max): 2,000 N Holding force (max): 6,000 N Angle: 100° Weight: 2.545 kg Special features Horizontal base (waagerechter Fuß) Integrated safety lock (Sicherheitsverriegelung) Lever-operated (hebelspanner) Material: blackened finish (Schwarz brüniert) Image and PDF datasheet available FAQ What maximum clamping force does this clamp provide? The Kukamet 241 vertical clamp (SKU 241-6-L) delivers a clamping force of up to 2,000 N and a holding capacity of 6,000 N. How is the clamp mounted in a fixture? Mounting is via a horizontal base; the clamp is intended for bolting to plates or fixture bodies and completes at a 100° lever angle. Is there a safety mechanism to prevent accidental release? Yes — the device includes an integrated safety lock that secures the lever and prevents unintentional opening. What is the surface and material condition of the clamp? The clamp is supplied with a blackened finish for enhanced corrosion resistance and a robust appearance suitable for workshop use. Is the clamp suitable for repetitive production cycles? Yes — the lever design and solid construction are intended for repeatable clamping in jigs and fixtures with low maintenance demands. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamp With Safety Lock, Horizontal Foot, 11 000 N Thrust - Kukamet
Take advantage of a high 11,000 N clamping force, space-saving horizontal foot mounting and an integrated safety locking feature to keep production jigs secure and reduce rework; order through Metav Werkzeuge or consult the team for fast, reliable supply. 221 Vertical Clamp — Kukamet vertical clamp with 11,000 N force and horizontal foot The 221 is a vertical clamp designed for fixture and jig use in metalworking and assembly environments, providing secure part retention and compact mounting where space is limited 11,000 N maximum clamping force Horizontal foot for compact mounting Integrated safety locking mechanism Blackened finish for corrosion resistance Reliable clamping for high-throughput production The clamp delivers a maximum clamping force of 11,000 N, giving a measurable increase in workpiece stability compared with lighter hold-downs. This high force rating enables confident processing of parts during machining, assembly and inspection, translating to fewer interruptions and a steadier production flow. The robust design supports repeatable results in short-cycle fixtures while the horizontal foot keeps the clamping envelope compact, allowing denser fixture arrangements on tooling plates. Safe operation reduces downtime and scrap An integrated safety locking mechanism secures the lever in the clamped position, preventing unintended release during handling or vibration. As a lever-style clamp, the device combines quick actuation with positive retention, reducing the risk of movement under load. The locking feature is especially relevant for operations that require frequent re-clamping or that handle delicate components where movement would cause rejection—improving process reliability and operator confidence. Durable finish and practical handling Finished in a blackened finish the clamp resists corrosion in typical workshop environments while maintaining a low visual footprint on fixtures. With a mass of 2.025 kg, the component balances solidity with ease of handling when fitting or reconfiguring jigs. The compact footprint and moderate weight make the clamp suitable for both permanent fixture plates and portable setups where swapping clamping elements is required. Integration and typical applications Engineered for clamping in fixtures, toolmaking and general workholding, the clamp fits standard workshop and production contexts where a reliable vertical hold is required. Its mounting style with a horizontal foot and an operating angle of 100° supports integration into angled or offset tooling layouts. For specification matching and integration advice, Metav’s technical team can provide layout guidance and confirm compatibility with existing fixture systems, ensuring seamless adoption into production lines. Contact Metav Werkzeuge for tailored advice on Kukamet vertical clamps, fixture integration and reliable supply from Emmerich — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: 221-6-L GTIN: 8682843520444 Brand: Kukamet eClass: 21041717 ETIM: EC011973 Facts Max clamping force: 11,000 N Weight: 2.025 kg Operating angle: 100° Special features Horizontal foot mounting Integrated safety locking mechanism Material/finish: blackened finish Category: Clamp (Spanner) FAQ What clamping force does the 221 vertical clamp provide? The 221 vertical clamp provides a maximum clamping force of 11,000 N, suitable for demanding fixture applications. Is there a locking feature to prevent accidental release? Yes, the clamp includes an integrated safety locking mechanism that secures the lever in the clamped position. How is the clamp mounted on a fixture plate? The unit uses a horizontal foot for compact mounting, enabling placement close to other fixture elements. What material finish does the clamp have and how does it perform? The clamp is supplied with a blackened finish that offers basic corrosion resistance suitable for standard workshop conditions. Which brand and SKU should be referenced for ordering and documentation? Refer to Kukamet, article number 221-6-L (GTIN 8682843520444) for ordering and documentation. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamp, Horizontal Base, Safety Lock, 1.5 kN Thrust, 5 kN Holding Force, Blackened – Kukamet
Benefit from robust clamping performance and secure locking for reliable fixture work: the combination of 1,500 N clamping force, a 5,000 N holding capacity and a horizontal mounting foot supports stable, repeatable production. Order the vertical clamp directly via Metav Werkzeuge or request application advice from our consultants. 241 Vertical Lever Clamp — horizontal base, safety lock (Kukamet) The 241 is a vertical lever clamp designed for secure workholding in assembly and machining, combining a horizontal mounting foot with an integrated safety lock for safe and repeatable clamping. Safety locking for secure hold 1,500 N clamping force 5,000 N holding force Horizontal base for stable mounting Consistent clamping for productive workflows The clamp delivers 1,500 N clamping force and a 5,000 N holding capacity, providing a reliable grip for jigs, fixtures and repetitive assembly tasks. These performance figures translate into fewer rework cycles and increased machine uptime, because components remain firmly located during machining and handling. The lever-operated design ensures fast actuation without compromising contact stability, helping to maintain a steady production rhythm and minimise downtime. Safer operation and straightforward integration An integrated safety lock prevents accidental release, which reduces the risk of workpiece displacement during setup or handling. The horizontal base simplifies mounting to plates or fixture tables and allows the clamp to be positioned close to the workpiece, while the 100° opening angle provides ample access for loading and unloading. Together these features make the clamp suitable for both manual assembly stations and automated fixture systems where secure, repeatable engagement matters. Durable finish and ease of handling Finished in a black oxide coating, the clamp resists surface wear and offers basic corrosion protection for everyday workshop environments. At 1.47 kg, the unit is lightweight enough for easy positioning yet substantial enough to provide a vibration-resistant support in fixtures. Its compact lever geometry and maintenance-light construction reduce servicing intervals, making it a practical choice for busy workshops and production lines that require dependable clamping with low life‑cycle effort. Contact Metav Werkzeuge for practical mounting advice or to discuss how the Kukamet 241 vertical lever clamp can be integrated into existing fixtures; reach out at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: 241-4-L GTIN: 8682843520666 Manufacturer: Kukamet Weight: 1.47 kg Finish: black oxide Numbers / Core technical data Clamping force: 1,500 N Holding capacity: 5,000 N Opening angle: 100° Designs / Special features Vertical lever clamp design Horizontal mounting foot Safety locking mechanism Black oxide finish FAQ What clamping and holding forces does this clamp provide? The Kukamet 241 vertical lever clamp provides a clamping force of 1,500 N and a holding capacity of 5,000 N, suitable for secure locating in fixture work. Is the clamp suitable for fixture plates and machine tables? Yes, the horizontal mounting foot enables stable attachment to fixture plates and machine tables for both manual and semi‑automated setups. How does the safety lock work in practice? The safety locking mechanism secures the lever in the clamped position to prevent accidental opening during handling or secondary operations. What protection does the surface finish offer? The black oxide finish provides wear resistance and basic corrosion protection appropriate for workshop conditions and regular handling. Which SKU should be specified when ordering or quoting? Refer to SKU 241-4-L when ordering or requesting a quotation for the Kukamet 241 vertical lever clamp. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100° Vertical Clamping Toggle Clamp With Safety Lock, 2 000 N Thrust / 6 000 N Hold - Kukamet
Combine robust 6,000 N holding force with a compact 2,000 N clamping force and a corrosion-resistant finish for dependable, repeatable vertical clamping. Order the clamp directly via Metav Werkzeuge or ask our advisors for selection support. Kukamet 242-6-L Vertical clamp — 2,000 N clamping force, integrated safety lock 242-6-L is a vertical clamp designed for secure holding in fixtures and jigs, featuring a vertical foot for upright mounting and an integrated safety lock for process reliability Vertical foot for upright mounting Integrated safety lock for process security Holding force up to 6,000 N Blackened finish for corrosion resistance Consistent, measurable clamping performance for production use The clamp delivers a 2,000 N clamping force and a 6,000 N holding force, values that translate directly into reproducible workpiece fixation and reduced rework. These numerical specifications enable planners to calculate clamp arrangement and safety margins in tooling layouts, while the compact mass of 2.545 kg keeps additional fixture weight minimal. The technical clarity of these figures supports fast decisions in jigs and assembly line planning and underlines the product’s suitability for medium-duty industrial applications. Space-saving mounting and simplified integration into jigs A fixed vertical foot accommodates upright installation on benches or base plates, reducing the need for additional adapters. The clamp’s geometry, with a working angle of 100°, is expressed to ease positioning within tight fixture envelopes and to maintain clear access for operators and tooling. Fewer parts and straightforward mounting mean shorter set-up times on the shop floor and higher machine uptime, which benefits throughput and process stability. Safety and durability designed for daily workshop use The integrated safety lock prevents accidental release during operations, contributing to safer handling and fewer interruptions. The housing is treated with a blackened finish, providing basic corrosion resistance and a matte surface that minimises glare in bright production lighting. Together, these features support a durable clamping solution that reduces maintenance cycles and preserves repeat accuracy over time. Suitable applications and practical advantages for workshop planners The clamp is intended for fixture building, assembly jigs and repetitive production tasks where a reliable vertical hold is required. Its combination of measurable clamping parameters, compact weight and secure locking makes it a practical choice for toolrooms and manufacturing cells seeking consistent part registration and simplified fixture design. For projects needing precise verification, the clear technical data facilitates integration into CAD layouts and procurement specifications. Contact Metav Werkzeuge for tailored technical advice and to secure the Kukamet 242-6-L vertical clamp with safety lock for reliable fixture solutions Technical data SKU: 242-6-L GTIN: 8682843520901 ECLASS: 21041717 ETIM: EC011973 Facts Clamping force max: 2,000 N Holding force max: 6,000 N Weight: 2.545 kg Angle: 100° Materials & features Material: blackened finish Mounting type: vertical foot Safety lock: yes Category: Spanner FAQ What clamping and holding forces does the clamp provide? The Kukamet 242-6-L offers a clamping force of 2,000 N and a holding force up to 6,000 N, values suited to repeatable fixture applications. Can the clamp be mounted upright on a base plate? Yes, the clamp features a vertical foot that enables upright mounting on benches or plates for compact fixture designs. Does the device include a safety mechanism to prevent accidental release? The clamp is equipped with an integrated safety lock to secure the clamped position during handling and operation. Is the exterior treated to resist corrosion in workshop environments? The unit has a blackened finish that provides basic corrosion resistance and a durable surface for everyday industrial use. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
100–140mm Screw Vice Nr.6400 Flat Support H.100–140mm, Load Capacity 120 kg - AMF
Benefit from a robust clamping solution that combines a high maximum load capacity with an adjustable height range, ensuring secure setups and shorter preparation times; order directly via Metav Werkzeuge or consult our specialists for application advice. Screw Vice Nr. 6400 - 140 with flat support, adjustable height — AMF The Screw Vice Nr. 6400 - 140 is a heavy-duty clamping device for workshop and production use, offering a flat support and a height adjustment range for precise positioning and versatile fixturing. Adjustable height 100–140 mm Jaw width 140 mm Maximum load capacity 120 Flat support for stable clamping Faster set-up through adjustable height and reliable clamping The vice delivers practical efficiency: an adjustable height range of 100–140 mm reduces reconfiguration time when switching workpieces, while the maximum load capacity of 120 provides consistent holding power for demanding tasks. The combination of height adjustability and solid clamping performance translates directly into increased throughput and fewer interruptions during machining or light assembly operations. Clear mechanical interface for maintenance and integration The vice is built around a defined spindle geometry — spindle thread 40 x 7 — and matching interface diameters D1 / D2 = 68 mm, which simplify replacement parts selection and machine-table integration. These measurable values enable planners and maintenance technicians to assess compatibility with existing fixtures and to predict service intervals, supporting a predictable production rhythm without guesswork. Stable support and precise positioning for repeatable results A flat support provides a consistent contact surface for components, improving repeatability across batches. The jaw width 140 mm offers a balance between grip area and accessibility, making the unit suitable for clamping a wide variety of parts. The vice’s design focuses on firm seating and minimal movement under load, which reduces rework and lowers scrap rates in repetitive workflows. Robust, workshop-friendly design for everyday use This clamping device is designed for practical workshop conditions: straightforward geometry, measurable connection points and simple mechanical function mean rapid familiarisation for operators and reduced training time. The construction supports routine tasks at the bench or in small-series production, contributing to a safer, more dependable workplace atmosphere while preserving machining accuracy. For expert guidance on application or to secure the AMF screw vice with 100–140 mm height adjustment, contact Metav Werkzeuge for personalised advice at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4000833116NW Type: Nr. 6400 - 140 Product name: Schraubbock Nr.6400 Gr.140 m.flacher Auflage H.100-140mm AMF Brand: AMF Packaging unit: 1 Facts Maximum load capacity: 120 Height range: 100–140 mm TR: 40 x 7 D1: 68 mm D2: 68 mm Size: 140 Special features Flat support Adjustable height Jaw width 140 mm Bench-mountable clamping device FAQ What is the adjustable height range of the vice? The adjustable height range is 100–140 mm for the Screw Vice Nr. 6400 - 140 (AMF, SKU 4000833116NW). Which spindle specification does the vice use? The vice is specified with a spindle thread of 40 x 7, and interface diameters D1 and D2 are 68 mm. What does the maximum load capacity value represent? The listed maximum load capacity is 120 as provided in the product data for the AMF screw vice; use this figure when comparing clamping demands and fixture limits. Is the vice suitable for bench mounting in a production environment? Yes, the vice’s flat support and bench-compatible geometry make it suitable for workshop benches and small-series production set-ups. How wide are the jaws of the clamping device? The vice is provided in size 140, corresponding to a jaw width of 140 mm. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
101mm Morse Taper MK2 To B10 Arbor Hardened And Ground, DIN 238 - TECWERK
Take advantage of the DIN 238 standard for reliable chuck mounting and the fully hardened and ground finish to reduce runout and extend service life; order directly via Metav Werkzeuge or consult our specialists for technical advice and fast supply. MT2 x B10 taper arbor, hardened & ground (101 mm) — TECWERK A MT2 x B10 taper arbor designed for secure mounting of standard drill chucks on drilling and turning machines DIN 238 taper for standard drill chucks Fully hardened and ground Overall length 101 mm Accurate chuck seating for machining stability The precision-engineered taper ensures a repeatable, rigid connection between chuck and spindle, improving the concentricity of mounted tools and reducing costly rework. Conforming to DIN 238 and delivered in the common MT2 configuration, this taper arbor gives a stable mechanical interface with standard drill chucks and tailstock arrangements. The standardised shank reduces variability between setups, which supports consistent machining tolerances and predictable production output. Robust finish lowers maintenance intervals A hardened and ground surface significantly improves resistance to wear and fretting at the contact surfaces, which translates into longer service life and fewer interruptions. The combination of surface treatment and precise machining reduces the need for frequent replacement or adjustment, delivering tangible savings in machine uptime and tool-handling effort. This robust construction is particularly suited to workshops and production lines where reliability and repeatability are essential. Compact design for straightforward integration With an overall length of 101 mm, the arbor balances compactness and accessibility for routine chuck changes and inspection. The B10 mounting interface accommodates common drill chuck fittings, while the MT2 shank integrates seamlessly with many drill- and turning-machine tailstocks and spindles, enabling flexible use across different setups. The simple, standard format helps to streamline tool inventories and makes the component easy to stock and replace within an organised workshop environment. For tailored technical guidance or to secure this TECWERK MT2 taper arbor with reliable delivery from Metav Werkzeuge, contact our specialists in Emmerich for expert advice and rapid supply Technical Data Article number: 2000832318NW Standard: DIN 238 Manufacturer: TECWERK Product type: Taper arbor Shank / taper: MT2 x B10 Overall length: 101 mm Facts Overall length: 101 mm Packaging unit: 1 SKU: 2000832318NW Special features DIN 238 taper for drill chucks Fully hardened and ground finish Suitable for drill and turning machines Designed for secure chuck mounting FAQ Which taper standard does this arbor use? The arbor uses the DIN 238 taper form with an MT2 shank suitable for standard drill chucks. Can this arbor accept standard drill chucks? Yes, the B10 mounting interface on the TECWERK taper arbor is intended for standard drill chucks in accordance with DIN 238. Is the surface treated for high wear resistance? The TECWERK MT2 x B10 taper arbor is fully hardened and ground to improve wear resistance and maintain concentricity under regular use. What is the overall length and packaging unit? The arbor has an overall length of 101 mm and is supplied as a single unit (packaging unit: 1); SKU 2000832318NW identifies the exact item. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
102.5mm Centre Point MK4 With Live Spindle Support, 60° Tip, 800 kg Workpiece Capacity - TECWERK
Take advantage of a high-capacity, precision rotating centre that combines reliable runout control and robust load capacity for smoother turning operations. With a compact 70 mm housing and a 60° tip, this centre delivers repeatable axial guidance and supports heavy workpieces while keeping spindle speeds up to 2,700 rpm. Order directly via Metav Werkzeuge or consult the team for application-specific advice. Rotating live centre MT4 (32 mm) by TECWERK — 60° tip, 2,700 rpm max The Rotating live centre MT4 (32 mm) is a heavy-duty lathe support designed for axial centring of turned components, offering high load capacity and fine radial accuracy for demanding workshop and light industrial turning applications. Live centre MT4 with 60° tip angle Max. workpiece load 800 kg capacity Runout ≤ 0.005 mm for precision Max. speed 2,700 rpm; 70 mm housing Stability and precision for heavy turning Acentre that keeps parts concentric under load reduces rework and shortens cycle times. The runout ≤ 0.005 mm specification ensures tight radial control, which translates into finer surface finish and consistent diameters when machining shafts or large rings. The 60° tip is a proven geometry for secure seating in standard centres, and the specified 800 kg maximum workpiece support means less risk of deflection during facing or turning operations. For workshops aiming to improve first-pass yield, this rotating centre brings measurable gains in machining accuracy. Robust construction for continuous operation Built around a compact 70 mm housing and a solid shank execution, the unit withstands sustained spindle activity without compromising stability. The combination of a substantial 31.267 mm shaft diameter and a projection of 102.5 mm gives a favourable stiffness-to-length ratio for common lathe setups. Rated for up to 2,700 rpm, the centre suits many standard turning speeds while the measured tip length of 41 mm provides sufficient contact depth for secure engagement. These attributes reduce vibration and support longer tool life through steadier cutting conditions. Compatibility and workshop efficiency Designed for MT4 (Morse taper 4) spindles, the centre fits conventional tailstock and live-centre arrangements without additional adaptors, simplifying changeovers. The compact form and standard interface help reduce setup time and allow rapid integration into existing turning processes. Clear numerical specifications make process planning straightforward: spindle speed limits, permissible workpiece mass and dimensional data enable quick verification of suitability for specific jobs. For buyers seeking a balance of durability and measurable performance, this component offers a practical upgrade to centre tooling. For tailored advice on integrating the TECWERK rotating live centre into production or to arrange supply from Metav Werkzeuge, contact Metav Werkzeuge in Emmerich via info@metav-werkzeuge.com or call +49 2822 7131930 for prompt technical guidance and same‑day dispatch options. Technical data Article number: 2000832042NW Label: Zentrierspitze MK4 mitlfd.TECWERK Manufacturer: TECWERK Facts Diameter: 32 mm Projection: 102.5 mm Weight: 2.3 kg Tip angle: 60° Shaft diameter: 31.267 mm Max. workpiece weight: 800 kg Runout (max.): 0.005 mm Max. speed: 2,700 min⁻¹ Housing diameter: 70 mm Tip length: 41 mm Special features Shank execution: MT4 Product type: Rotating live centre Packaging unit: 1 FAQ What materials and machines is this centre suited for? The TECWERK rotating live centre is intended as axial support for turning operations on lathes and is compatible with conventional workpiece materials where a 60° seating is appropriate; the technical data such as runout ≤ 0.005 mm and 800 kg load rating guide machine selection. How does the runout specification affect machining quality? A low runout value (0.005 mm) on the rotating centre reduces concentricity errors during turning; when the TECWERK centre is used, parts typically exhibit improved diameter consistency and surface finish, which lowers scrap rates. Is the shank compatible with standard tailstocks? Yes, the shank execution is MT4, making the unit compatible with tailstocks and live‑centre adaptors designed for Morse taper 4 interfaces without further modification. Can the centre be used at high spindle speeds? The component is rated for a maximum of 2,700 rpm; operating within this limit maintains the specified accuracy and service life for the TECWERK rotating live centre. What are the dimensional considerations for setup? Key dimensions to verify during setup include the projection (102.5 mm), housing diameter (70 mm) and shaft diameter (31.267 mm) to ensure correct seating and clearance in the lathe tailstock and any workholding fixtures. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
102mm Vertical Clamp With Angle Base M8 Pressure Screw 2kN Holding Force 3kN - AMF
Combine robust holding force and a compact angle base to streamline fixture changes and secure reliable clamping in demanding production environments; order the vertical clamp directly via Metav Werkzeuge or consult the specialists for application advice. Vertical clamp No. 6803, Size 4 with angle base (AMF) Vertical clamp No. 6803 Size 4 with angle base is a compact clamping element designed for fixtures and jigs, delivering measured holding power for machining and assembly applications. Vertical clamp, Size 4 Angle base for versatile mounting Pressing force up to 2,000 N Holding force up to 3,000 N Strong, measurable clamping for reliable production The vertical clamp No. 6803 provides clearly defined forces that translate directly into process reliability: a pressing force of 2,000 N and a holding force of 3,000 N. These values enable consistent workholding during milling, drilling or assembly cycles and support predictable cycle times. The integrated M8 x 65 pressure screw ensures repeatable contact pressure; explained simply, higher nominal forces reduce the risk of workpiece movement under machining loads, improving tolerances and reducing rework. Space-saving angle base that simplifies fixture design An angular mounting foot gives the clamp flexible positioning options on modular plates and dedicated jigs. With compact dimensions such as H 102 mm, H1 280 mm and a mounting angle a = 105°, the component allows close access to the workpiece and efficient use of bench or fixture space. The relatively small footprint combined with measured offsets (for example B 84 mm, P 96 mm) supports denser clamping patterns and faster tool paths, helping to increase throughput without compromising accessibility. Built for quick integration and dependable workshop use Designed as a straightforward mechanical clamping element, this vertical clamping device fits into standard fixture concepts and is supplied in a single packaging unit for immediate assembly. The clear numeric specifications aid planning and reduce setup time: designers can match clamp positions, screw sizes and force requirements without guesswork. Backed by Metav’s commitment to precision distribution from Emmerich, the component helps maintain uninterrupted supply and consistent quality across production runs. Contact Metav Werkzeuge today for tailored advice on integrating AMF vertical clamps into existing fixtures and to benefit from reliable delivery from Emmerich. Technical data Article number: 4000604351NW Manufacturer: AMF Type: 6803 Product type: Vertical clamp Execution: with angle base Facts Pressing force (max): 2,000 N Holding force (max): 3,000 N Size: 4 Pressure screw: M8 x 65 Packaging unit: 1 A [mm]: 10 B [mm]: 84 C [mm]: 32 D [mm]: 8.5 E [mm]: 54 F [mm]: 11 H [mm]: 102 H1 [mm]: 280 I [mm]: 20 K [mm]: 54 L1 [mm]: 141 M [mm]: 32 N [mm]: 52 O [mm]: 8 P [mm]: 96 a [°]: 105 Special features Angle base for flexible mounting M8 x 65 pressure screw included Compact dimensions for dense clamping arrangements Single-unit delivery FAQ What maximum forces does the clamp provide? The vertical clamp No. 6803 (AMF) specifies a pressing force of 2,000 N and a holding force up to 3,000 N for secure workholding. How is the clamp mounted to a fixture? The clamp is supplied with an angle base that enables versatile mounting; the pressure screw is M8 x 65 for mechanical fixation. Which applications suit this clamp? The clamp is suitable for jigs and fixtures in machining and assembly where compact, vertical clamping and reliable holding forces are required. Which dimensions are most relevant for layout planning? Relevant dimensions include H 102 mm, H1 280 mm, B 84 mm, P 96 mm and the mounting angle a = 105°, which are useful when planning clamp positions. What comes in the packaging? Delivery consists of one unit per packaging and the clamp as described under the product label No. 6803 Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
102x126x150mm Angle Plate, High-Strength Cast Steel, 0.01mm Accuracy, 6.3kg - Vertex
Take advantage of precision and robust construction to secure repeatable right-angle setups on the shop bench; the combination of 0.01 mm accuracy and high-strength cast steel ensures long-term stability and reliable measurement references. Order via Metav Werkzeuge or consult our specialists for fast delivery and tailored advice. VRH-4 Angle Plate by Vertex — high-strength cast steel, 102 x 126 x 150 mm VRH-4 is a precision angle plate designed to provide stable, perpendicular reference surfaces for inspection and setup tasks in metalworking and toolrooms. High-strength cast steel construction Accuracy 0.01 mm for precise alignment Compact footprint 102 x 126 x 150 mm Stable 6.3 kg mass reduces vibration Reliable right-angle reference that keeps setups consistent The VRH-4 angle plate delivers repeatable alignment thanks to its declared 0.01 mm accuracy, which corresponds to tight tolerances required in inspection and fine machining tasks. A reference plate with this level of precision reduces the need for repeated adjustments and re-measurements, improving throughput and lowering the risk of scrap. The measured flatness and perpendicularity act as an objective baseline for calibrations and setup procedures, so fewer process checks are necessary and machine time can be used more efficiently. Durable construction for a stable working base Manufactured from high-strength cast steel, the fixture is engineered to resist deformation under typical bench use. The substantial 6.3 kg mass dampens minor vibrations and helps maintain contact stability during measuring or marking operations. This robustness supports consistent results over time and reduces the impact of incidental knocks or tool contact, contributing to a longer service life and lower maintenance needs compared with lighter, less rigid alternatives. Space-conscious design for versatile bench use With an overall size of 102 x 126 x 150 mm, the unit occupies a compact footprint while still offering sufficiently broad faces for clamping, scribing and inspection. The geometry makes it suitable for constrained workbenches and allows multiple fixtures to be used together when larger assemblies require square references. The compact dimensions also simplify storage and transport within a busy workshop, enabling rapid reconfiguration of workspaces without compromising accuracy. Integrates easily into quality workflows As a stable perpendicular reference, the angle plate helps streamline common processes such as layout, inspection and component set-up. The solid construction and precise surfaces reduce the number of verification steps required during a production run, supporting faster changeovers and consistent part quality. Documentation and inspection protocols benefit from a measurable baseline, and the component's build quality aligns with standard shop metrology practices for dependable results. Contact Metav Werkzeuge for a tailored recommendation on the Vertex VRH-4 angle plate and secure fast delivery from our Emmerich warehouse Technical data SKU: VRH-4 GTIN: 4061905085031 EClass: 21170130 Manufacturer: Vertex Core specifications Dimensions: 102 x 126 x 150 mm Weight: 6.3 kg Accuracy: 0.01 mm Materials & images Material: high-strength cast steel Images: VRH-4-main.png, VRH-4-detail.png FAQ What tolerance can be expected from the VRH-4 angle plate? The Vertex VRH-4 angle plate is specified with an accuracy of 0.01 mm, providing a reliable tolerance reference for inspection and setup tasks. Is the VRH-4 suitable for use on a regular workshop bench? Yes, the VRH-4 angle plate's compact footprint (102 x 126 x 150 mm) and 6.3 kg mass make it appropriate for standard benches while offering stable support for measuring operations. What material is the angle plate made from and why does that matter? The component is made from high-strength cast steel, which gives the plate dimensional stability and resistance to deformation, ensuring consistent perpendicular reference surfaces over prolonged use. Can the VRH-4 be combined with other fixtures for larger workpieces? The VRH-4 is designed as a modular reference element; multiple plates can be arranged together on the bench to create larger fixturing setups while maintaining precise right-angle references. Who manufactures the VRH-4? The VRH-4 is produced by Vertex and supplied with details suitable for integration into professional metrology and setup workflows Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
102x76mm Prism Pair With Clamping Strap - Vertex
A robust prism pair with an integrated clamping yoke delivers stable support and precise alignment for cylindrical components; the substantial mass and compact base reduce vibration and improve repeatability. Benefit from a heavy-duty footprint (102 x 76 mm) and a total weight of 39 kg for steady inspection and machining tasks. Order the prism pair directly via Metav Werkzeuge or consult our advisors for application guidance. Prism Pair with Clamping Yoke VBC-009 — 102×76 mm base, 39 kg, Vertex A Prism Pair with Clamping Yoke designed to cradle and secure cylindrical workpieces for inspection and light machining operations, delivering repeatable positioning and reliable clamping in workshop and inspection environments Heavy 39 kg for vibration damping Base 102 x 76 mm for stable mounting Integrated clamping yoke for secure hold Precision support for cylindrical parts Consistent cradle for high-precision checks The prism configuration provides a defined seating surface that secures round workpieces for dimensional checks and alignment tasks, improving measurement precision and reducing repositioning error. With a compact 102 x 76 mm base and a substantial overall mass of 39 kg, the fixture offers inherent damping that minimises vibrations during optical or contact measurement. The integrated clamping yoke keeps components seated without overconstraining them, which supports repeatable inspection cycles and reliable comparison to reference standards. Better control during inspection and machining setups Designed for use alongside bench vises, measuring stands and rotary tables, the unit facilitates reproducible setup conditions for turning, grinding or gauging operations. The pair of angled supports distributes loading evenly to avoid point stress on the workpiece, while the clamping device secures the part with minimal deflection. The result is improved process stability, fewer scrapped parts and more efficient verification—benefits that translate into measurable time savings in quality control and set-up procedures. Practical integration into workshop routines Mounting and handling are simplified by the prism pair’s compact footprint and clear seating geometry, enabling its placement on inspection plates or machine tables without elaborate fixturing. The robust construction and mass contribute to steady support under common workshop conditions, making the item suitable for repeated use in production and metrology areas. Where traceable, repeatable positioning is required, this fixture supports consistent results and smoother workflow integration across measurement and small-batch machining tasks. Contact Metav Werkzeuge in Emmerich for procurement advice on the Vertex VBC-009 prism pair with clamping yoke; email info@metav-werkzeuge.com or call +49 2822 7131930 for technical guidance and ordering support Technical Data Article number: VBC-009 GTIN: 4061905086564 Manufacturer: Vertex Foot dimensions: 102 x 76 mm Weight: 39 kg Facts eClass: 21160304 Mass: 39 kg Base footprint: 102 x 76 mm Special features Prism pair for cylindrical workpiece support Integrated clamping yoke included Suited to inspection and light machining setups FAQ What types of components are supported by this prism fixture? The prism pair with clamping yoke is intended for cylindrical components such as shafts, pins and round bars; the design of the Vertex VBC-009 provides stable seating for measurement and light machining. How does the weight influence performance? A higher mass enhances vibration damping and positional stability; the 39 kg mass of this Vertex unit reduces disturbance during contact measurement and optical inspection, improving repeatability. Can the fixture be used on common inspection plates and machine tables? Yes, the compact 102 x 76 mm base allows straightforward placement on inspection plates and machine tables, enabling integration into existing setups without extensive additional fixturing. What is the function of the clamping yoke? The clamping yoke secures the workpiece in the prism seats to prevent movement during checks or light machining, maintaining consistent contact and alignment for reliable results. Is the VBC-009 suitable for serial quality control tasks? The design of the Vertex VBC-009, with stable support and secure clamping, is well suited to repeatable inspection cycles and small-batch quality control applications Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
1035mm Mobile Chip Collector, Trolley Mounted – Vertex
Benefit from the combination of a mobile design, low weight and straightforward integration to keep chip handling efficient and machine uptime high; order the VCC-19 mobile chip collector directly via Metav Werkzeuge or ask our consultants for guidance. VCC-19 mobile chip collector — mobile chip collector by Vertex, lightweight 1.5 kg A VCC-19 mobile chip collector engineered as a compact solution for collecting machining chips and metal swarf in workshops and toolrooms, ideal where mobility and quick repositioning are required. Mobile chip collector VCC-19 by Vertex Lightweight construction, only 1.5 kg Length 1,035 mm for easy integration Keep production flowing with compact chip collection The VCC-19 serves as a simple, focused device for chip collection close to machining centres, reducing the need for manual clearing and the associated production interruptions. Its compact footprint and measurable dimensions permit installation where space is limited, while the mobile concept supports rapid redeployment between workstations. By capturing swarf at source, the unit contributes to a cleaner work environment and lowers the frequency of unscheduled stops, supporting continuous operation and predictable cycle times. Flexible placement and fast workshop adaption Thanks to its low weight — just 1.5 kg — and elongated profile of 1,035 mm, the unit can be repositioned without heavy lifting equipment, enabling flexible workflow layouts. The design suits dynamic production cells where machines are frequently reconfigured; the collector integrates into existing setups without extensive modification. For production planners this means improved floor-space utilisation and simplified logistics when organising machining sequences or temporary workstations. Practical benefits: maintenance, handling and reliability Designed for routine workshop use, the collector focuses on straightforward operation and minimal upkeep. The simple configuration limits maintenance tasks and shortens service intervals, while the light construction eases handling during emptying and cleaning cycles. Specifying a compact, mobile collector like this supports shop-floor efficiency by lowering labour spent on chip management and by providing a repeatable, auditable process for waste handling that aligns with modern workshop routines. Contact Metav Werkzeuge in Emmerich for local availability and tailored advice on integrating the VCC-19 mobile chip collector into existing machining cells Technical data Article number: VCC-19 Manufacturer: Vertex Eclass: 21101790 GTIN: 4061905083662 Facts Weight: 1.5 kg Length: 1,035 mm Special features Mobile (fahrbar) Category: Vertex FAQ What is the primary purpose of this unit? The VCC-19 mobile chip collector is intended to gather and contain machining chips and swarf at the source, simplifying waste management on the shop floor. Can the unit be moved between machines easily? Yes, the collector’s mobile design combined with a low weight of 1.5 kg allows quick repositioning for temporary or reconfigurable workstation layouts. Which dimensions matter for integration into a production cell? Length is the primary consideration; the unit measures 1,035 mm, which should be checked against machine clearance and available floor space before positioning. Is the collector suitable for heavy-duty metalworking environments? The VCC-19 is intended for routine chip collection tasks; assess specific process demands against the unit’s compact design and handling characteristics to confirm suitability. How does this collector improve workshop efficiency? By reducing manual chip clearing and enabling rapid redeployment, the VCC-19 supports uninterrupted machining cycles and lowers labour time spent on housekeeping tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
103x206x143mm V-Block Prism For Precision Work 0.05mm Accuracy, Fine-Grain Cast Iron - Vertex
Take advantage of the combination of high stability, fine‑grain cast iron construction, and consistent measurement accuracy for reliable inspection and machining setups; order the part or consult Metav Werkzeuge for application advice. V-8V Prism Block — Vertex prism block in fine‑grain cast iron with 0.05 mm accuracy The V-8V Prism Block is a robust precision support for inspection benches and machining fixtures, designed to stabilise and align cylindrical workpieces during measurement and tooling operations. Fine‑grain cast iron construction Measurement accuracy 0.05 mm Stable 16.7 kg mass for vibration damping Compact dimensions 103×206×143 mm Consistent measurement support through mass and material The combination of fine‑grain cast iron and a substantial 16.7 kg mass provides a stable base that reduces measurement scatter and dampens vibrations during both static inspection and light machining tasks. Heavy mass minimises movement that would otherwise affect repeatability; the material choice contributes to thermal stability and wear resistance, which supports long‑term measurement consistency. These properties make the block especially suitable where small deviations can compromise part acceptance and downstream assembly. Precise geometry that reduces setup error A well‑defined V profile ensures reliable seating and repeatable alignment of round bars, shafts and cylindrical components. By centring parts in the trough, the prism geometry reduces lateral shift and angular misalignment, which simplifies comparative measurements with micrometres or a precision caliper. The specified accuracy of 0.05 mm describes the manufacturing tolerance of the seating surfaces and indicates the expected maximum deviation under normal conditions, enabling process planners to account for this when setting inspection limits. Practical integration and handling in the workshop With compact dimensions of 103×206×143 mm, the block fits inspection benches and modular fixturing systems without occupying excessive space. The mass contributes to a secure feel on the bench and resists displacement during clamping or when measuring longer workpieces. The unit is straightforward to position and pairs well with common measurement aids such as V‑blocks, clamping straps and gauge stands, supporting efficient workflows in quality control and small batch production. The construction also supports routine cleaning and bench usage typical for metrology equipment. Discuss application requirements with Metav Werkzeuge in Emmerich to confirm suitability for specific tasks and to request additional technical documentation or mounting suggestions Technical Data SKU: V-8V GTIN: 4061905089046 Manufacturer: Vertex Facts Dimensions: 103×206×143 mm Weight: 16.7 kg Accuracy: 0.05 mm Special features Material: fine‑grain cast iron Product type: prism block Category: Vertex FAQ What materials is the prism block suitable for supporting? The V-8V prism block by Vertex is designed to support cylindrical components made of metals commonly inspected in workshops; its fine‑grain cast iron base provides stable seating for steels and non‑ferrous bars during measurement. How does the specified accuracy affect inspection results? An accuracy of 0.05 mm for the seating surfaces defines the maximum expected deviation of the block geometry; this value helps to establish measurement uncertainty budgets when using the V-8V prism block in comparison measurements. Can the block be used with a precision caliper or micrometer? Yes, the prism profile and stable mass make the unit suitable for use with a precision caliper or micrometer; it centres round parts and reduces errors caused by part movement during measurement. Is the prism block easy to integrate into existing inspection benches? The compact footprint and substantial mass allow straightforward placement on inspection benches and integration with clamping aids, making the V-8V practical for both fixed benches and portable inspection set‑ups. Where can the V-8V be sourced and are spare parts available? The V-8V (SKU V-8V) is distributed by Metav Werkzeuge; for information on availability and accessory options consult Metav or request the manufacturer's documentation. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

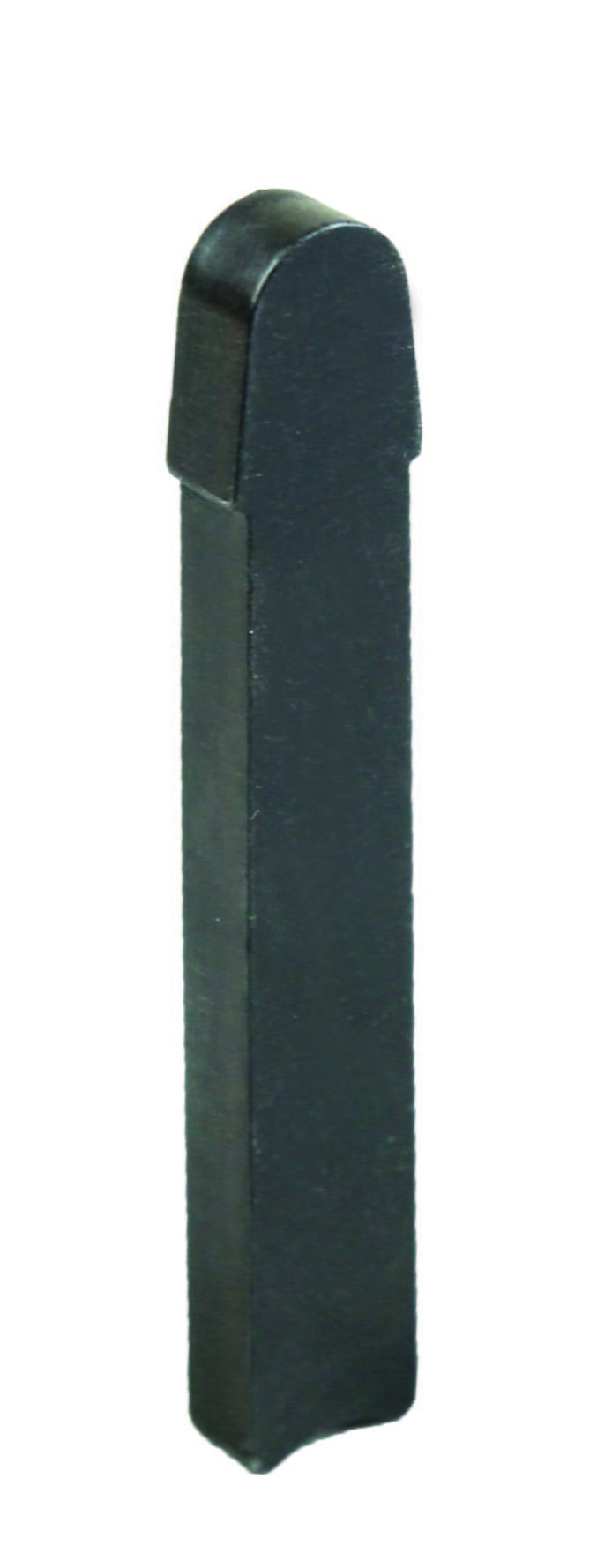

105mm Extension Lever Metal Lever Clamp Arm, 18mm Width x 8mm Thick - Kukamet
Available with a robust metal construction, compact dimensions (105 mm height; 18 × 8 mm profile) and a low weight of 0.11 kg, this extension lever improves clamp reach and handling while keeping workshop logistics simple. Order the accessory directly via Metav Werkzeuge or request further advice from the consultants. Extension Lever 220 — metal extension for lever/toggle clamps, 105 mm height, Kukamet The Extension Lever 220 is a compact accessory for lever and toggle clamp systems, designed to extend reach and simplify handling in workshop and industrial clamping tasks. Robust metal construction for workshop use 105 mm overall height for extended reach Compact dimensions: 18 mm width, 8 mm thickness Light weight at 0.11 kg supports easy handling Improved accessibility and consistent clamping results The extension arm delivers a straightforward means to increase the effective reach of a lever clamp without altering the primary clamping mechanism. Built from metal, the component provides dimensional stability under repeated actuation and helps maintain a consistent clamping position where additional length is required. The 105 mm overall height and slim profile reduce interference with surrounding tooling while enabling faster setup — a direct benefit for production lines and maintenance benches that demand repeatable results and minimal adjustment time. Minimal footprint, durable operation With a compact cross-section of 18 mm width and 8 mm thickness, the part occupies little space while offering a firm grip extension. The modest mass of 0.11 kg keeps inertia low, which supports responsive manual operation and reduces operator fatigue during frequent cycles. The straightforward, no-frills design focuses on longevity and ease of replacement: a cost-effective element for workshops that prioritise reliable, low-maintenance accessories within a modular clamping system. Practical fit for industry and craft As an accessory intended for use with lever/toggle clamps, the extension is suitable for a wide range of light to medium clamping tasks in workshops, fixture building and small-batch production. The simple geometry makes stock management uncomplicated and ensures quick interchangeability between fixtures. Supplied by a specialist distributor with a clear supply chain in Europe, the component fits into a pragmatic procurement strategy that values availability, compatibility and dependable technical performance. Contact Metav Werkzeuge for procurement and technical advice on the Extension Lever 220 — Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich; eMail: info@metav-werkzeuge.com; Tel: +49 2822 7131930 Technical Data SKU: 220-4-06 GTIN: 4061905079504 Manufacturer: Kukamet Material: Metal Weight: 0.11 kg Facts Height: 105 mm Width: 18 mm Thickness: 8 mm eClass: 21170613 Special features Application: accessory for lever / toggle clamps Catalog page: 220-2-06-katalogseite.pdf Category: Spanner FAQ What material is the extension lever made from? The extension lever is manufactured from metal, providing dimensional stability and suitability for repeated workshop use. Which clamping systems is this accessory compatible with? The accessory is intended as an extension for lever and toggle clamps and is commonly used to increase reach on standard clamping fixtures. What are the exact dimensions and mass of the part? The component measures 105 mm in overall height with an 18 mm width and 8 mm thickness and weighs 0.11 kg. How does the extension lever improve handling in production environments? By extending the clamp reach with a compact, lightweight arm, handling is simplified and setup time reduced, supporting more efficient workflow and repeatable clamping positions. Is the component suitable for frequent interchange between fixtures? Yes; the compact geometry and low weight make the extension practical for regular interchange and straightforward stock management. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
105mm Morse Taper MT2 Live Centre With B12 Arbor, Hardened And Ground - TECWERK
Take advantage of the combination of proven DIN 238 compatibility, a Morse taper MT2 fit and a fully hardened and ground finish for reliable chuck mounting and low runout; order directly via Metav Werkzeuge or ask the technical consultants for tailored advice. Taper arbor MT2 to B12, hardened & ground, L 105 mm — TECWERK The Taper arbor MT2 to B12 is a hardened, ground arbor for secure mounting of drill chucks on drill presses and lathes, compliant with DIN 238. MT2 taper for standard drill spindles DIN 238 drill-chuck shank compatibility Fully hardened and ground for durability 105 mm overall length for stable mounting Precision fit for consistent machining The Taper arbor MT2 to B12 provides a close, repeatable fit between machine spindle and chuck thanks to the Morse taper MT2 geometry and conformity to DIN 238. The hardened and ground finish maintains concentricity, reducing radial runout that otherwise degrades hole quality. For production and workshop environments this results in fewer reworks and a higher first-pass yield, as stable clamping directly benefits drilling accuracy and tool life. Versatile mounting that speeds up set-up Designed for straightforward use on both drill presses and turning centres, the arbor accepts standard drill chucks with B12 shanks and enables quick changeovers between chucked tooling and tapered tooling. The DIN 238 specification denotes a standardised chuck-shank interface, simplifying tooling choices across machines. In practical terms this means shorter downtime and more predictable workflow for toolrooms and maintenance shops that require reliable chuck attachment. Robust construction for dependable service life Manufactured in a hardened and ground execution, the arbor resists wear while preserving seating accuracy over repeated use. The 105 mm overall length offers a balance between compactness and stable support, minimising bending moments during operation. The combination of hardened surface treatment and precision grinding supports long-term durability and low maintenance, making this component a practical, resilient choice for everyday workshop demands. Contact Metav Werkzeuge in Emmerich for precise matching, quick supply and expert technical advice: info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 2000832322NW Product: Taper arbor Brand: TECWERK Standard: DIN 238 Shank reception: B12 Outer taper: MT2 Overall length: 105 mm Facts Norm: DIN 238 Overall length: 105 mm Outer taper size: MT2 Packaging unit: 1 SKU / UID: 2000832322NW Special features With drill-chuck taper to DIN 238 Fully hardened and ground For mounting drill chucks on drill and turning machines Execution: hardened and ground FAQ Which machines are compatible with this taper arbor? The taper arbor MT2 to B12 (TECWERK, article 2000832322NW) fits machines with a Morse taper MT2 spindle and is intended for use where B12 drill-chuck shanks are required, such as drill presses and lathes. Is the arbor suitable for precision drilling tasks? Yes, the TECWERK arbor is hardened and ground to preserve seating accuracy and reduce runout, making it suitable for precision drilling when combined with a quality drill chuck. What does DIN 238 mean for chuck compatibility? DIN 238 specifies the dimensions and taper for drill-chuck shanks, so a B12 shank to DIN 238 will seat correctly in this arbor and ensure standardised compatibility. How does the overall length affect performance? The 105 mm overall length provides stable support and a compact profile that reduces overhang, helping to minimise bending forces and maintain concentricity during operation. Can the arbor be used with keyless and keyed chucks? The arbor accepts drill chucks with a B12 taper per DIN 238, which includes both keyed and keyless chucks provided the chuck shank conforms to the same standard and the chuck itself offers the required precision. TECWERK: Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
106mm Centre Point Slim MK5 With 60° Tip, 0.01mm Runout, 1600kg Workpiece Capacity - RÖHM
Take advantage of the combination of precise concentric support, a slim profile for confined tailstock spaces and high load capacity to maintain throughput and reduce rework; order directly via Metav Werkzeuge or ask the consultants for further application advice. Slim Centre Point MK5 — 30 mm, 60° point angle, RÖHM The Slim Centre Point MK5 is a slim live centre designed for lathe support and accurate workpiece centring in medium to heavy turning operations. Slim profile for confined tailstocks High load capacity 1600 kg Precise runout ≤ 0.01 mm Suitable for speeds up to 4,300 rpm Delivering repeatable concentricity for precision turning The slim centre provides a stable contact geometry that translates directly into consistent concentricity on turned components. With a specified runout ≤ 0.01 mm, the centre reduces scrap and minimises secondary finishing, which improves overall process economy. The 30 mm tip diameter and 60° point angle give a clear seating for a wide range of workpieces, supporting predictable turning results even where tight tolerances are required. Access and ergonomics for constrained setups A compact profile frees up clearance at the tailstock and enhances accessibility when machining long or complex parts. The combination of a slim design and a projection of 106 mm supports work on longer spindle overhangs without obstructing tooling, while the housing diameter of 58 mm and 34 mm tip length ensure a low-profile fit. The reduced bulk around the spindle makes setups faster and simplifies loading in confined work envelopes. Built to cope with demanding loads and speeds Engineered for robust performance, the centre accepts substantial radial load with a maximum workpiece weight of 1,600 kg and is rated for speeds up to 4,300 rpm, allowing stable operation during higher-speed turning cycles. The solid construction and a gross weight of 2.6 kg contribute to operational stability, enabling longer runs and fewer interruptions for inspection or reorientation. Easy integration and low-maintenance operation Fitted for a Morse taper MK5 mounting, the centre offers straightforward installation into standard MT5 tailstocks and adaptors. The MT5 taper and precise shaft diameter of 44.399 mm provide reliable engagement and repeatable seating. With a clear specification for tip geometry and runout, maintenance becomes a matter of routine inspection rather than complex recalibration, keeping machine downtime to a minimum. For secure spindle support and reliable centring, request the RÖHM Slim Centre Point MK5 via Metav Werkzeuge in Emmerich — contact info@metav-werkzeuge.com or call +49 2822 7131930 to confirm compatibility and stock availability Technical Data Article number: 4000832078NW Manufacturer: RÖHM Product type: Centre point Label: Slim Centre Point MK5 RÖHM Facts Tip diameter: 30 mm Projection: 106 mm Tip length: 34 mm Shaft diameter: 44.399 mm Housing diameter: 58 mm Max workpiece weight: 1,600 kg Max speed: 4,300 min⁻¹ Runout deviation: max. 0.01 mm Point angle: 60° Weight: 2.6 kg Special features Type: Slim Shaft execution: MK5 (Morse taper MT5) Packaging unit: 1 Slim profile for restricted tailstock spaces Designed for lathe centring operations FAQ What maximum workpiece weight can this centre support? The Slim Centre Point MK5 is specified for a maximum workpiece weight of 1,600 kg and is suitable for demanding turning tasks. Which taper is required to fit this centre into a tailstock? The centre is supplied with an MK5 shaft execution, corresponding to a Morse taper MT5 mounting for direct installation. What accuracy can be expected in terms of runout? The product is specified with a runout deviation of max. 0.01 mm, ensuring high concentric accuracy for precision turning. Is the centre suitable for higher spindle speeds? Yes, the Slim Centre Point MK5 is rated for operation up to 4,300 rpm, making it appropriate for many medium- to high-speed turning applications. What is the point geometry of the centre tip? The centre features a 60° point angle with a 30 mm tip diameter, providing a secure seating for a wide range of workpiece profiles. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
107mm Tailstock for BS, 134x94mm Base, 4kg - Vertex
Compact support with a 107 mm centre height and a 134 x 94 mm base gives steady workpiece support while keeping the workshop layout efficient. The robust 4 kg construction ensures stability during turning operations. Order the tailstock directly via Metav Werkzeuge or consult our technical team for compatibility advice. Reitstock – Tailstock for BS lathes, 107 mm centre height (Vertex) A Reitstock designed as a tailstock for BS lathes, providing steady axial support for workpieces during turning and light metalworking tasks. Compact 134 x 94 mm base footprint 107 mm centre height for small lathes Robust 4 kg construction for stability Designed for BS lathe series Steady support that improves machining quality The principal role of a tailstock is to provide axial support and reduce deflection during turning; this results in improved surface finish and tighter tolerances. With a centre height of 107 mm, the support point aligns the workpiece concentric to the spindle axis on many compact and benchtop lathes. By stabilising long or slender components during machining, the support device reduces chatter and repeat operations, which translates into fewer rejects and a more efficient production flow. The function is straightforward but essential: steady support yields consistent results. Space-saving footprint eases integration into workshops A base footprint of 134 x 94 mm keeps the unit compact and simple to position on smaller lathe beds where space is at a premium. The modest footprint combined with a robust 4 kg mass helps balance two competing needs: minimal intrusion on the work envelope and sufficient mass for damping vibrations. For workshops that prioritise flexible layout and quick changeovers, the compact design makes the tailstock easy to mount, reposition and store without compromising on the stability required for quality turning operations. Durable assembly built for routine workshop use Designed for regular use in machining tasks, the tailstock is engineered to deliver dependable support across a range of routine turning operations. The relatively low weight contributes to handling ease during setup, while the solid build supports ongoing production demands. Integration into existing equipment is simplified by its dedicated fit for the BS lathe series, enabling predictable behaviour in serial or small-batch manufacturing. The result is a pragmatic addition to any workshop seeking consistent, repeatable workholding without unnecessary complexity. Choose the Vertex tailstock for reliable workpiece support and order through Metav Werkzeuge in Emmerich for fast dispatch and specialist advice via info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: BS-0-TS GTIN: 4061905084232 Manufacturer: Vertex Machinery Works Co., Ltd. ECLASS: 36600102 Facts Centre height: 107 mm Base footprint: 134 x 94 mm Weight: 4 kg Special features Suitable for BS lathe series Product type: tailstock Fast dispatch indicated in shop description FAQ Is this tailstock compatible with BS lathes? The Reitstock is specified for the BS lathe series; compatibility depends on bed width and mounting arrangement—refer to the centre height and base footprint for verification. What is the centre height and why is it important? Centre height is 107 mm; it determines how the workpiece axis aligns with the spindle and directly affects concentricity and finish quality during turning. What mounting space is required on the lathe bed? The base footprint is 134 x 94 mm; ensure the lathe bed provides sufficient flat area and clearance for secure placement and any required clamps. How does the tailstock affect machining results? By providing axial support and damping, the tailstock reduces deflection and vibration, which improves surface finish and dimensional repeatability. Is the mass of the unit relevant for stability? At 4 kg, the construction contributes to stability and vibration damping while remaining manageable for positioning and setup. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
108mm Universal Centre With Running Tailstock, Accuracy 0.005mm, 3200r.p.m. - Vertex
Take advantage of precise, high-speed centring combined with robust alloy construction for consistent turning results; secure supply and expert advice directly via Metav Werkzeuge or request consultation for application-specific guidance. VPC‑MT1 Live Centre — 108 mm, 3200 r.p.m., Vertex The VPC‑MT1 is a revolving live centre designed to support turning operations in workshop lathes, offering high concentricity and dependable running at elevated spindle speeds. High precision 0.005 mm runout Alloy steel construction for longevity Suitable for 3200 r.p.m. turning Compact 108 mm overall length Maintain concentricity with measurable precision The live centre delivers a 0.005 mm accuracy which directly reduces vibration and runout during rotation; this measurable performance improves surface finish and lowers scrap rates in repetitive turning tasks. A revolving support that maintains concentricity enables higher machining consistency, meaning fewer reworks and predictable tolerances for production batches. The specification of 3200 r.p.m. confirms suitability for moderate high-speed applications where stability and repeatability are priorities. Built for sustained use in workshop environments Constructed from alloy steel, the component offers enhanced wear resistance compared with standard steel alternatives, extending service life under regular use. The rotating tip is designed to follow the workpiece rotation, reducing friction and heat build-up at the contact point. This results in reduced maintenance intervals and a lower risk of premature failure, which contributes to improved uptime on the shopfloor and reliable daily performance. Compact form that simplifies setups and throughput With an overall length of 108 mm and a weight of 0.3 kg, the revolving centre is compact and easy to handle within confined lathe applications. The small footprint supports flexible fixturing and helps maintain clearance in multi-operation setups. Practical benefits include simplified changeovers and consistent centring across short-run and batch production, providing operational efficiency without sacrificing robustness. Choose the Vertex live centre for reliable high-speed centring — contact Metav Werkzeuge for tailored application advice and assured European supply from Emmerich: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: VPC‑MT1 GTIN: 4061905083600 Product: Universal centre, revolving Core specifications Length: 108 mm Maximum speed: 3200 r.p.m. Accuracy: 0.005 mm Weight: 0.3 kg Materials & features Material: alloy steel Type: live / revolving centre Brand: Vertex FAQ Is the live centre suitable for high-speed turning? The VPC‑MT1 is specified for operation up to 3200 r.p.m., making this revolving centre suitable for many high-speed turning tasks where maintained concentricity is required. What level of concentricity can be expected? The device provides an accuracy of 0.005 mm, which supports tight concentricity demands and contributes to improved surface finish during turning operations. What material is the centre made from and what are the benefits? Manufactured from alloy steel, the centre combines toughness with wear resistance, offering prolonged service life under regular workshop use. Is the VPC‑MT1 easy to handle and install in standard setups? The compact 108 mm length and light weight (0.3 kg) allow straightforward handling and integration into space-limited lathe setups without complex adjustments. Which brand produces this live centre? This revolving centre is produced by Vertex and supplied under the designation VPC‑MT1 for workshop and industrial turning support. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
108mm Vertical Clamp 1,200N Clamping Force, Massive Holding Arm & Safety Lock, Blackened Finish - Kukamet
The combination of a massive holding arm, a secure safety lock and defined clamping and holding forces ensures reliable workholding and fewer rejects in production. Benefit from a compact, corrosion-resistant finish and straightforward installation for efficient fixture design. Order the component directly via Metav Werkzeuge or contact our consultants for application advice. Vertical clamp 213 — vertical toggle clamp with 108 mm arm and safety lock (Kukamet) Vertical clamp 213 is a compact, toggle-style vertical clamp designed for secure fixturing in production, assembly and jig applications; it combines a massive holding arm with a mechanical safety lock and is supplied with an angle foot for versatile mounting Robust 108 mm holding arm with high rigidity Safety lock for secure, vibration-proof clamping Mounting: angle foot for flexible installation Clamping force up to 1,200 N; holding 1,400 N Secure hold that reduces rework and cycle time The clamp delivers a defined clamping force of up to 1,200 N and a holding force of 1,400 N, providing a measurable basis for fixture design and process reliability. The combination of a rigid arm and a mechanical safety lock prevents unexpected opening under vibration or impact, which reduces stoppages and scrap rates. For engineers specifying clamps, these numeric values enable straightforward strength calculations and help to select the correct component for repeatable production tasks. Flexible mounting and corrosion-resistant finish for diverse jigs Supplied with an angle foot mounting, the device integrates into varied fixture layouts without elaborate adaptors, shortening assembly time for jigs and pallets. The 108 mm arm provides a practical reach for many clamping positions while keeping the footprint minimal; this supports denser fixture arrangements and optimised tooling space. The blackened finish gives a protective surface that resists handling marks and lowers the need for frequent refinish, supporting long-term uptime in workshop and shopfloor environments. Lightweight design that supports precision handling and low-maintenance operation At approximately 0.24 kg, the clamp is lightweight yet stiff, which reduces moving mass in automated fixtures and helps maintain cycle accuracy under rapid motion. The compact toggle mechanism is easy to incorporate into manual or semi-automatic stations and requires only routine inspection rather than complex maintenance. For further specification details or assistance with fixture integration, additional technical data and consultation are available via info@metav-werkzeuge.com or by telephone at +49 2822 7131930. For reliable, production-ready workholding choose the Kukamet vertical clamp 213 through Metav Werkzeuge — contact our Emmerich team for tailored advice on fixture design and compatibility Technical data SKU: B213-2-D-L-C2 Designation: 213 Manufacturer: Kukamet Facts Arm length: 108 mm Clamping force max: 1,200 N Holding force max: 1,400 N Weight: 0.24 kg Special features Massive holding arm and safety lock Mounting: angle foot Finish: blackened Category: Spanner (clamping technology) FAQ What clamping and holding forces does the clamp provide? The vertical clamp 213 offers a clamping force up to 1,200 N and a holding force of 1,400 N (SKU B213-2-D-L-C2), values that support reliable fixture calculations. Is the clamp suitable for vibration-prone applications? Yes — the mechanical safety lock and the massive holding arm on this Kukamet clamp secure components against vibration and dynamic loads. How is the clamp mounted on a fixture? The clamp is mounted via an angle foot, which allows straightforward attachment to plates and jig bases without bespoke adapters. What reach does the clamp arm provide? The clamp features an 108 mm arm, offering practical reach for many standard clamping positions while maintaining a compact footprint. What surface finish does the clamp have and how durable is it? The clamp is supplied with a blackened finish that reduces visible wear from handling and provides basic protection against corrosion in workshop environments. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
108mm Vertical Clamp 1,200N Closing Force, Zinc Coated, Heavy-Duty Arm - Kukamet
Taking advantage of a massive holding arm, a galvanised finish and a compact 108 mm reach, this clamp delivers reliable clamping with minimal installation space; benefit from up to 1,200 N clamping force and a holding capacity of 1,400 N for secure fixture work. Order the Vertikalspanner 213 directly via Metav Werkzeuge or consult our advisors for application advice. Vertikalspanner 213 – vertical clamp with massive holding arm and galvanised finish The Vertikalspanner 213 is a vertical clamp designed for secure workholding in jigs and fixtures, combining a robust holding arm with a compact footprint for light to medium industrial applications. Massive holding arm, 108 mm reach Galvanised steel construction Up to 1,200 N clamping force Angle-foot mounting for stable fit Secure clamping despite limited space The compact design places a massive holding arm on a short 108 mm extension, allowing a high clamping force in constrained setups. With a rated 1,200 N clamping force and a 1,400 N holding capacity, the device offers a reliable safety margin for repetitive clamping tasks. The sturdy, low-profile body is suited to fixture plates and small jigs where vertical clearance is restricted; this results in efficient use of table space while maintaining repeatable clamping results. Explaining the numbers: 1,200 N refers to the operational clamping force generated by the lever, while the 1,400 N figure provides the maximum holding capability under static conditions. Built to last in work environments A galvanised finish protects the clamp from corrosion and shop-floor wear, extending service intervals and reducing replacement rates. The robust construction and the choice of surface treatment mean less downtime and lower total cost of ownership for routine production and maintenance tasks. The presence of a solid-arm design improves mechanical stiffness during clamping cycles, which translates into more consistent part positioning and fewer rejects — a clear efficiency benefit for batch production and assembly work. Fast integration into fixtures and machines Fitted with an angle-foot mounting, the clamp can be secured to flat plates or angled brackets quickly, enabling straightforward retrofitting into existing fixtures. The simple mounting concept reduces setup time and facilitates rapid changeovers between jobs. Owing to its lightweight construction at approximately 0.266 kg, the clamp is easy to handle during assembly yet stiff enough for repetitive operation, supporting both manual and semi-automated workstations without adding unnecessary mass to the fixture. Efficient choice for everyday workshop needs As a compact vertical clamp, it provides a pragmatic balance between performance and economy. The uncomplicated lever mechanism demands little maintenance and is intuitive for operators, helping to speed up clamping cycles and reduce human error. In combination with a galvanised surface and the massive arm, the clamp offers a dependable solution for manufacturers and trades seeking robust, long-lived fixturing components that keep production flowing. Contact Metav Werkzeuge today for tailored advice on integrating the Kukamet Vertikalspanner 213 into existing fixtures and to ensure the clamp matches specific application requirements Technical data SKU: 213-2-D-C2 GTIN: 8680731501889 Model: Vertikalspanner 213 Manufacturer: Kukamet eClass: 21041717 ETIM: EC011973 Core specifications Arm length: 108 mm Clamping force (max): 1,200 N Holding force (max): 1,400 N Weight: 0.266 kg Features & versions Galvanised finish Massive holding arm Angle-foot mounting Fastening type: Winkelfuß FAQ What clamping and holding forces does the clamp provide? The Vertikalspanner 213 by Kukamet delivers a clamping force of up to 1,200 N and a holding capacity of 1,400 N, ensuring secure fixation for repetitive tasks. Which materials is the clamp suitable for in fixture assemblies? The Kukamet Vertikalspanner 213 is intended for use with typical fixture materials such as steel and aluminium plates; its galvanised finish adds corrosion resistance for mixed-material environments. How is the clamp mounted in a jig or fixture? Mounting is performed via the angle-foot bracket (Winkelfuß), allowing the Vertikalspanner 213 to be fixed to flat or angled fixture plates for quick integration. Is the clamp easy to replace or reposition on a fixture plate? Yes, the compact format and lightweight construction of the Vertikalspanner 213 support fast repositioning and simple replacement during setup changes. Does the clamp require special maintenance? Routine inspection and occasional lubrication of the lever mechanism keep the Kukamet vertical clamp operating reliably; the galvanised finish reduces corrosion-related maintenance. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
108mm Vertical Clamp With Angle Foot, 1.2kN Push / 1.4kN Hold, Massiv Arm - Kukamet
Compact 108 mm arm and high holding force up to 1,400 N provide secure clamping in confined setups; the angled-foot mounting and robust black oxide finish ensure stable, low-maintenance operation. Order the Vertical Clamp 213 directly via Metav Werkzeuge or ask our consultants if needed. Vertical Clamp 213 – Compact angled-foot clamp with 108 mm arm and 1,400 N holding force (Kukamet) The Vertical Clamp 213 is a compact clamping device designed for integration into jigs and fixtures where space is limited and reliable retention is required *Compact 108 mm arm length *Angled-foot mounting for stable positioning *Robust black oxide finish *High holding force up to 1,400 N Space-saving design with confident clamping power The Vertical Clamp 213 combines a 108 mm clamping arm with a high holding force of 1,400 N, delivering stable retention without demanding large installation space. The compact dimensions permit straightforward placement in fixtures, allowing machine builders and jig makers to maintain an efficient work envelope. The difference between the clamp’s static holding force and its dynamic pressing capacity is deliberate: the unit secures components under load while supporting moderate actuation forces during operation, contributing to consistent part positioning and reduced rework. Stable mounting and a finish made for daily workshop use Mounting is via an angled-foot base that offers a secure attachment point even on slightly irregular surfaces; this reduces play and improves repeatability in repetitive clamping cycles. The clamp’s massive holding arm adds rigidity where it matters, and the black oxide finish provides basic corrosion protection and a non-reflective surface that is beneficial in production environments. These design choices lower the need for frequent maintenance and preserve the clamp’s functional accuracy over time, supporting uninterrupted production runs. Easy integration, light installation and reliable forces for fixtures Weighing just 0.266 kg, the unit is light enough for simple fixture assembly while robust where required. The Vertical Clamp 213 supports a maximum pressing force of 1,200 N, enabling firm engagement during actuation, and its concise form factor aids in modular jig design. Clear technical values and a compact profile make it straightforward to specify for medium-duty clamping tasks, offering a predictable mechanical behaviour that streamlines fixture design and shortens commissioning time. Contact Metav Werkzeuge for tailored advice on integrating the Kukamet Vertical Clamp 213 into existing fixtures or to request detailed specifications from the Emmerich quality filter team Technical data Article number: B213-2-D-C2 GTIN: 8682843522448 Manufacturer: Kukamet eClass: 21041717 ETIM: EC011973 Facts Arm length: 108 mm Holding force max: 1,400 N Pressing force max: 1,200 N Weight: 0.266 kg Special features Angled-foot mounting Massive holding arm Black oxide finish Compact vertical clamp design FAQ What is the arm length of this clamp? The clamp has an arm length of 108 mm, specified for the Vertical Clamp 213 (Kukamet, SKU B213-2-D-C2). What holding and pressing forces are specified? The Vertical Clamp 213 provides a maximum holding force of 1,400 N and a maximum pressing force of 1,200 N for secure fixture retention. How is the clamp mounted in a fixture? Mounting is via the angled-foot base; the angled-foot design of the Vertical Clamp 213 improves positional stability when fastened to plates or subframes. What finish and durability features does the clamp have? The unit is supplied with a black oxide finish that reduces surface reflectivity and offers basic protection against wear and corrosion for workshop environments. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
